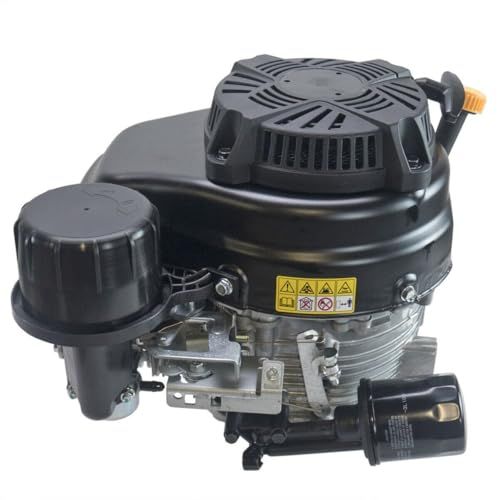

Kawasaki FJ180V-EM08-S 6HP 179cc Vertical Kai Engine with Recoil Start (Replaces FJ180V-CM08-S and FJ180V-DM08-S)
Kawasaki FJ180V-EM08-S 6HP 179cc Vertical Kai Engine with Recoil Start (Replaces FJ180V-CM08-S and FJ180V-DM08-S)


Kawasaki FJ180V-EM08-S 6HP 179cc Vertical Kai Engine with Recoil Start (Replaces FJ180V-CM08-S and FJ180V-DM08-S)

Save $20.00
SKU: FJ180V-CM08-S

$479.00 $499.00  MSRP
Only 3 left in stock
Ships Next Business Day
FREE delivery Monday, January 19 - Wednesday, January 21

Pickup available at Cutler's Warehouse

Usually ready in 24 hours

Features

  • Pressurized lubrication
  • Recoil starter with automatic compression release
  • Dual element air filter, integrated into fan housing
  • Rotating Metal Grass Chopper Screen
  • Flywheel magneto transistor ignition
  • Combined crankcase design

    • Description

    This is a genuine Kawasaki FJ180V-CM08-S 6HP 179cc Vertical Kai Engine with Recoil Start

    Replaces FJ180V-CM08-S and FJ180V-DM08-S

    The FJ180V KAI is an all-purpose, heavy duty engine with overhead valve technology. It's lightweight and compact, but it can take on tough jobs when used on walk-behind mowers, construction equipment, agricultural equipment and turf/golf machines.

    ENGINE SPECIFICATIONS
    ENGINE BRAND Kawasaki
    MODEL NUMBER FJ180V-M08-S
    WARRANTY 3 Years
    POWER OUTPUT 6 HP @ 3600 RPM
    TORQUE 11.8 Nm @ 2800 RPM
    CRANKSHAFT ORIENTATION Vertical
    CRANKSHAFT TYPE Straight
    CRANKSHAFT DIAMETER 63/64" (25mm)
    CRANKSHAFT LENGTH 3-5/32" (80mm)
    END TAPPED SIZE
    KEYWAY 3/16"
    ROTATION DIRECTION  Counter-Clockwise
    STARTER TYPE  Heavy Duty Serviceable Recoil
    IGNITION SYSTEM  Electronic
    CARBURETOR
    NUMBER OF CYLINDERS One
    CYLINDER BORE  Cast Iron Sleeve
    AIR CLEANER  Canister Style Dual Element
    OIL CAPACITY  0.6 qt
    FUEL  Gasoline
    FUEL PUMP
    GOVERNOR SYSTEM  Mechanical
    CONTROLS  Variable Throttle
    BORE x STROKE  2.6" x 2.1"
    COMPRESSION RATIO  8.5 : 1
    CHARGING SYSTEM
    MUFFLER  Low Tone Muffler with Guard
    FLYWHEEL High Inertia Cast Iron
    ENGINE NOTES  Blade brake installed; 7/16"-20 blade bolt. 86" starter rope.
    REPLACES

    COMMON APPLICATIONS

    *This engine is commonly used for, but not limited to, these applications*

    		 Walk Behind Lawn Mowers, Agricultural Equipment, Construction Equipment

    COMMON EQUIPMENT MANUFACTURERS

    *This engine is commonly used on, but not limited to, these equipment manufacturers/brands*

    		 Exmark, Toro

    Please verify this is the correct replacement engine using your current engine's model and spec number. Do not order based off the image alone - engines in the same series may look similar, but have different specifications that may not work for your application. If you're unsure if this is the correct replacement, don't hesitate to contact us with your current model and spec numbers and we'll do our best to find the engine that works for you.
