Replaces: FR730V-AS00-S, FR730V-BS00-S, FR730V-CS00-S, FR730V-DS00-S, FR730V-ES00-S, FR730V-FS00-S, FR730V-GS00-S, FR730V-HS00-S, FR730V-JS00-S
Not Available to Ship to California

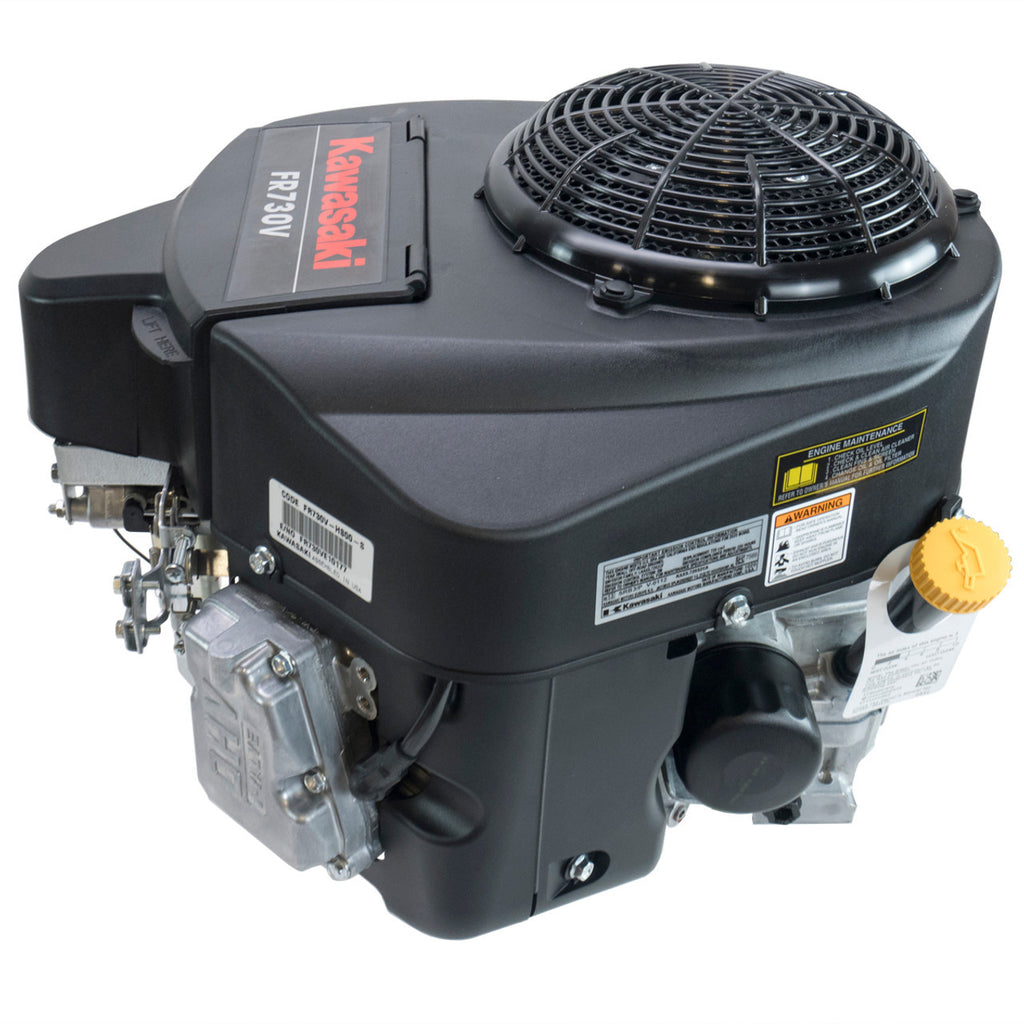

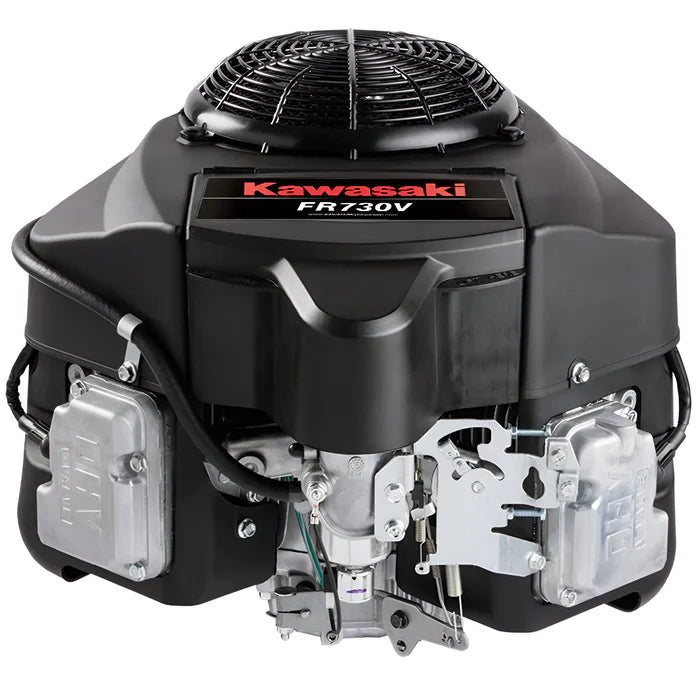

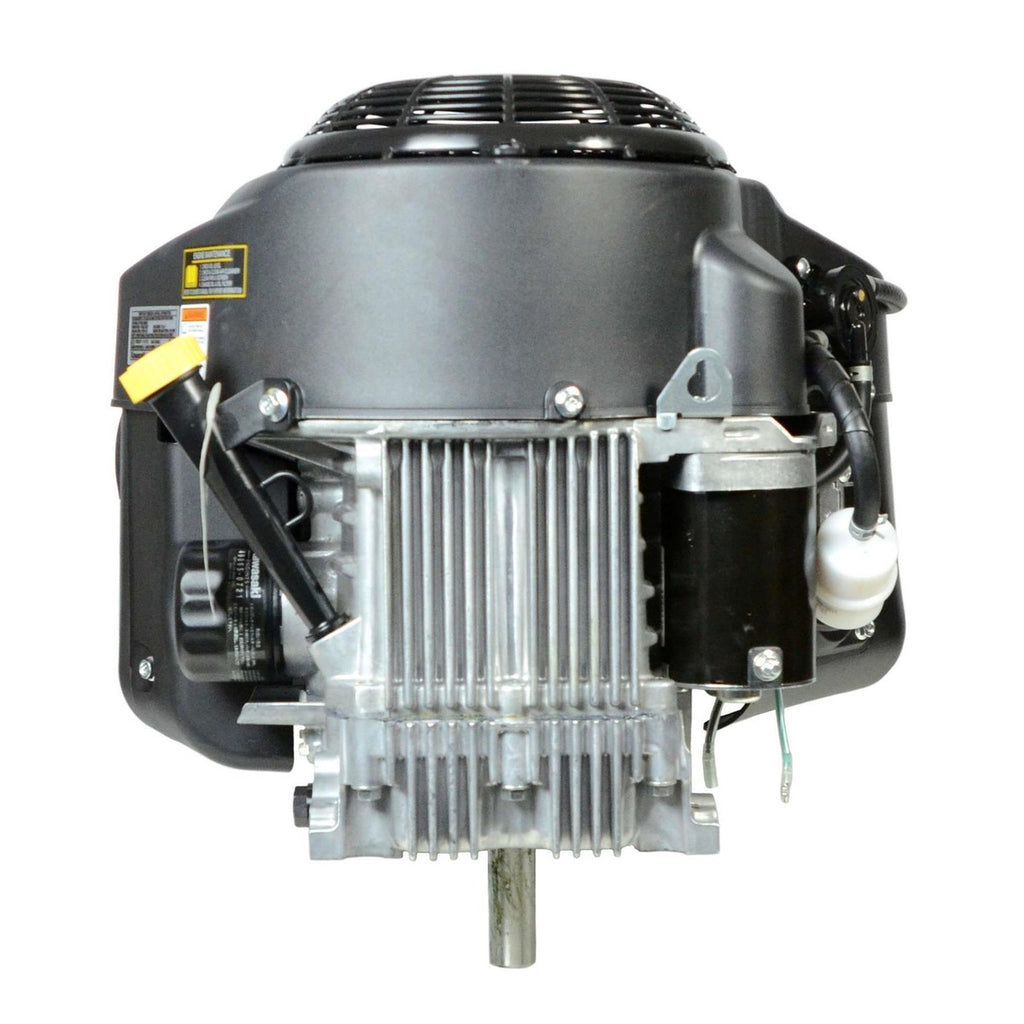

Kawasaki's FR730V delivers professional grade power to tame any homeowners landscape challenge. The forced air-cooled V-twin engine features a rotating grass screen and electronic spark ignition.
| ENGINE SPECIFICATIONS |
| ENGINE BRAND |
Kawasaki |
| MODEL NUMBER |
FR730V-S00-S |
| WARRANTY |
3 Years |
| POWER OUTPUT |
24.0 HP @ 3600 RPM |
| TORQUE |
39.8 lb-ft @ 2400 RPM |
| CRANKSHAFT ORIENTATION |
Vertical |
| CRANKSHAFT TYPE |
|
| CRANKSHAFT DIAMETER |
1" (25.4mm) |
| CRANKSHAFT LENGTH |
3-5/32" (80mm) |
| END TAPPED SIZE |
|
| KEYWAY |
|
| ROTATION DIRECTION |
Counter-Clockwise |
| STARTER TYPE |
Electric Bendix |
| IGNITION SYSTEM |
Electronic |
| CARBURETOR |
Single Barrel |
| NUMBER OF CYLINDERS |
Two |
| CYLINDER BORE |
Cast Iron Liners |
| AIR CLEANER |
Single Element |
| OIL CAPACITY |
2.1 qt |
| FUEL |
Gasoline |
| FUEL PUMP |
Pulse |
| GOVERNOR SYSTEM |
Mechanical |
| CONTROLS |
Dual Cable |
| BORE x STROKE |
3.1" x 3.0" |
| COMPRESSION RATIO |
8.2 : 1 |
| CHARGING SYSTEM |
15 Amp |
| MUFFLER |
Not Included |
| FLYWHEEL |
|
| ENGINE NOTES |
Hinged air box cover. |
| REPLACES |
FR730V-S15-R, FR730V-AS15-R, FR730V-BS15-R, FR730V-DS15-R, FR730V-ES05-R, FR691V-CS09-R, FR691V-GS00-R, FR691V-ES19-R |
|
COMMON APPLICATIONS
*This engine is commonly used for, but not limited to, these applications*
|
Lawn & Garden Tractors, Zero Turn Mowers |
|
COMMON EQUIPMENT MANUFACTURERS
*This engine is commonly used on, but not limited to, these equipment manufacturers/brands*
|
Ariens, Bad Boy, Bobcat, Dixie Chopper, Excel, Exmark, Ferris, Gravely, Husqvarna, Jacobsen, KMC, MTD, Swisher, Toro |
Please verify this is the correct replacement engine using your current engine's model and spec number. Do not order based off the image alone - engines in the same series may look similar, but have different specifications that may not work for your application. If you're unsure if this is the correct replacement, don't hesitate to contact us via an eBay message with your current model and spec numbers and we'll do our best to find the engine that works for you.
