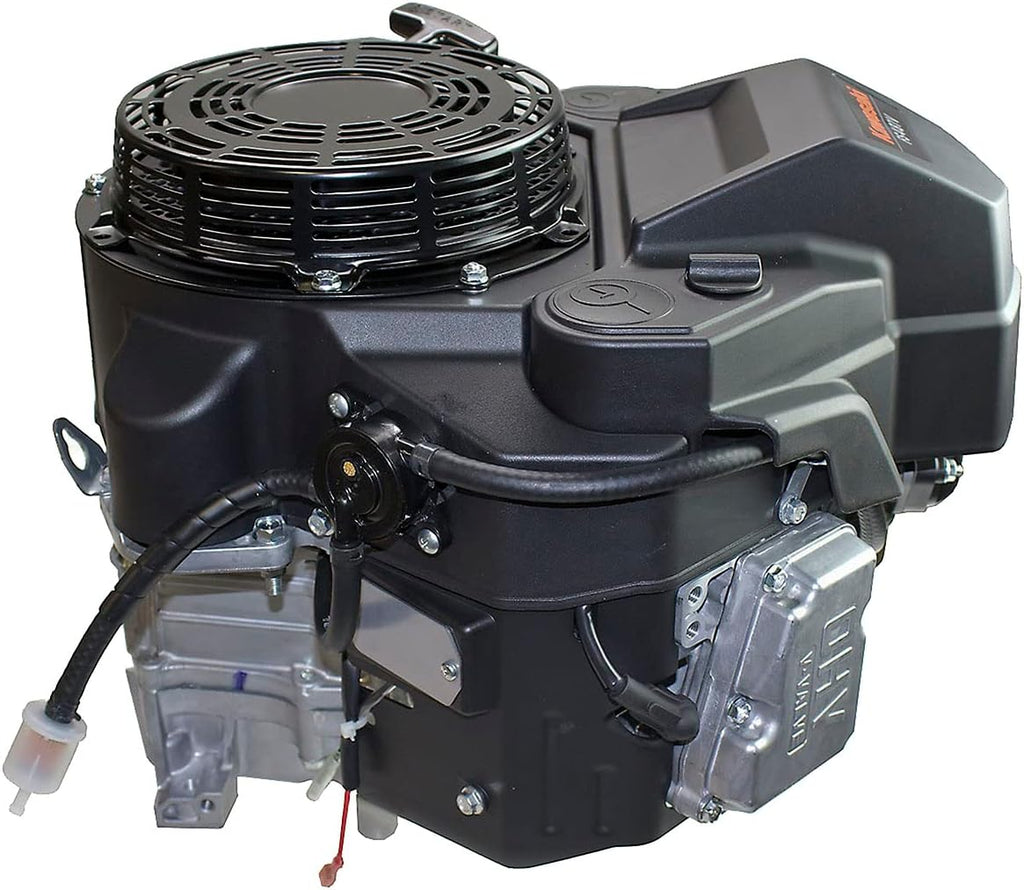

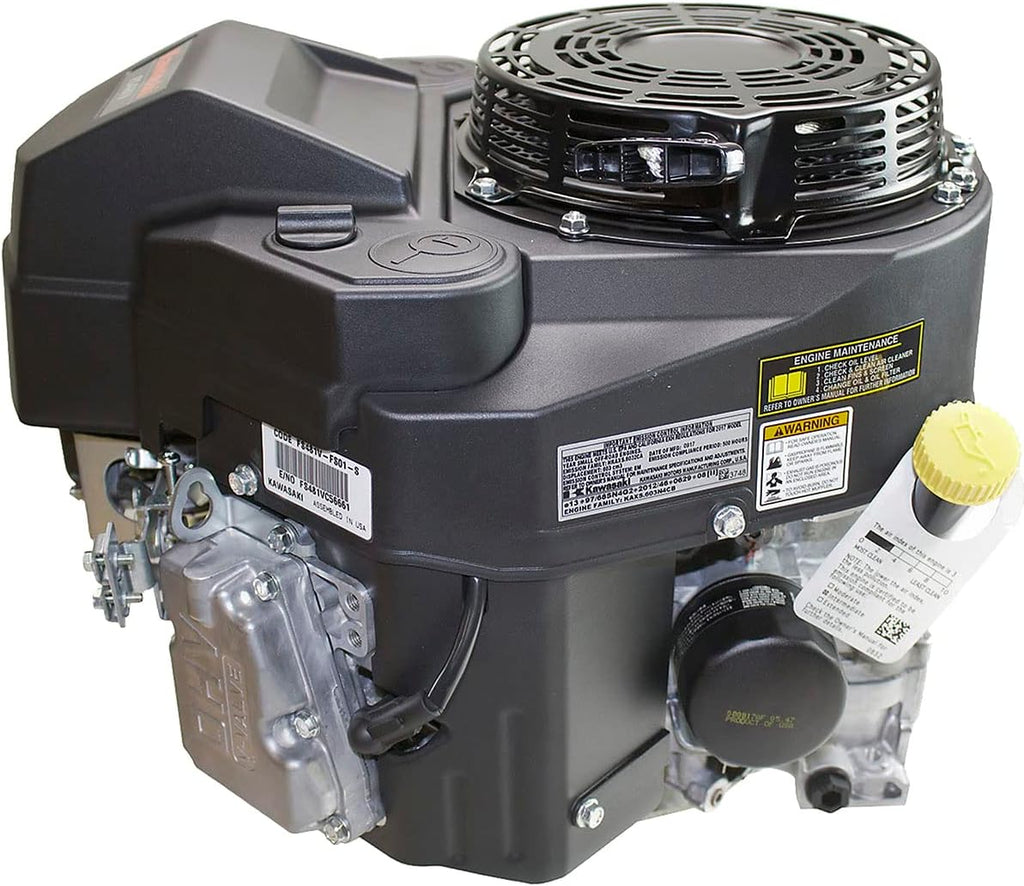

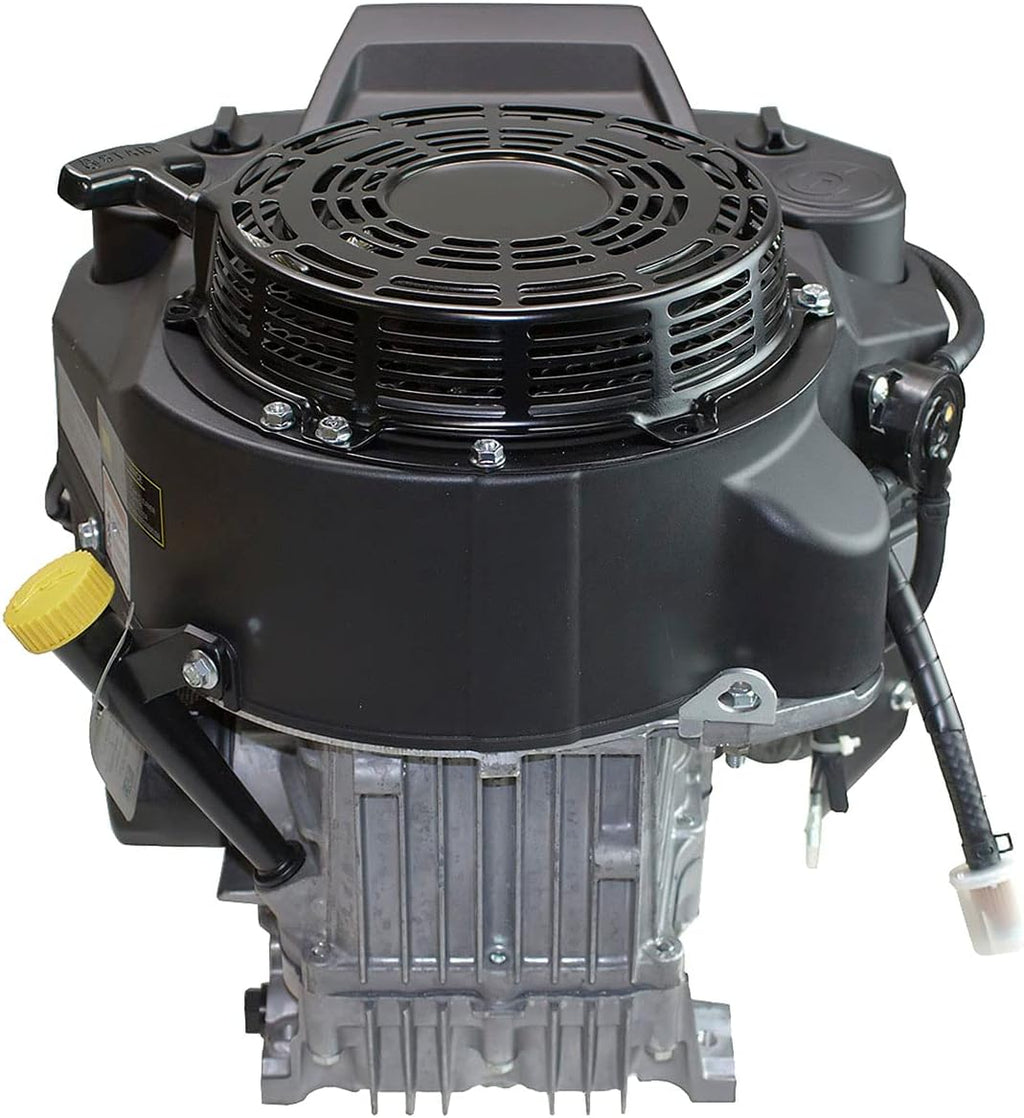

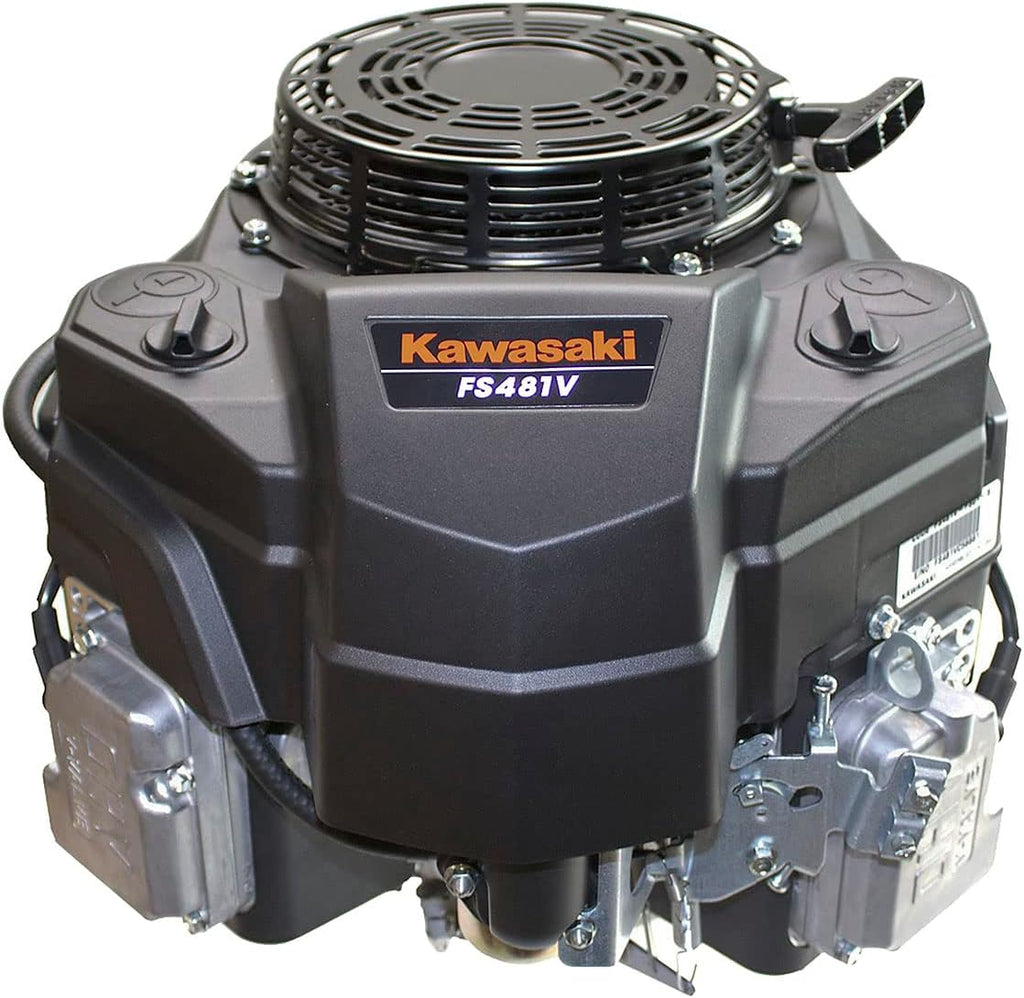

This is a genuine Kawasaki FS481V-JS01-S 4-Cycle Vertical Engine, 1" x 3-5/32-inch (Replaces FS481V-DS01-S, FS481V-ES01-S and FS481V-HS01-S ). An absolute landscaping workhorse, the Kawasaki FS481V engine is a forced-air-cooled overhead V-valve 4-cycle engine capable of delivering compact power with surprisingly smooth operation and low emissions. Plus, this engine boasts Kawasaki Critical Power, SAE-Certified horsepower.
| ENGINE SPECIFICATIONS |
| ENGINE BRAND |
Kawasaki |
| MODEL NUMBER |
FS481V-S01-S |
| WARRANTY |
3 Years |
| POWER OUTPUT |
14.5 HP @ 3600 RPM |
| TORQUE |
30.9 lb-ft @ 1800 RPM |
| CRANKSHAFT ORIENTATION |
Vertical |
| CRANKSHAFT TYPE |
|
| CRANKSHAFT DIAMETER |
1" (25.4mm) |
| CRANKSHAFT LENGTH |
3-5/32" (80mm) |
| END TAPPED SIZE |
|
| KEYWAY |
|
| ROTATION DIRECTION |
Counter-Clockwise |
| STARTER TYPE |
Recoil |
| IGNITION SYSTEM |
Electronic |
| CARBURETOR |
Single Barrel |
| NUMBER OF CYLINDERS |
Two |
| CYLINDER BORE |
Cast Iron Liners |
| AIR CLEANER |
Dual Element |
| OIL CAPACITY |
1.8 qt |
| FUEL |
Gasoline |
| FUEL PUMP |
Pulse |
| GOVERNOR SYSTEM |
Mechanical |
| CONTROLS |
Dual Cable |
| BORE x STROKE |
2.9" x 2.8" |
| COMPRESSION RATIO |
8.1 : 1 |
| CHARGING SYSTEM |
Clutch Coil |
| MUFFLER |
Not Included |
| FLYWHEEL |
|
| ENGINE NOTES |
Gen 2 air box design with clean out ports |
| REPLACES |
FS481V-S23-S, FS481V-S26-S, FB460V-ES05, FC420V-FS15, FH480V-CS24-R, FH541V-AS38-R, FS481V-AS04-R, FS481V-DS06-R, FS481V-GS18-R, FS481V-FS21-R, FS481V-CS26-S, FS481V-BS26-R |
|
COMMON APPLICATIONS
*This engine is commonly used for, but not limited to, these applications*
|
Lawn & Garden Tractors, Stand On Mowers, Wide Area Walk Behind Mowers, Zero Turn Mowers |
|
COMMON EQUIPMENT MANUFACTURERS
*This engine is commonly used on, but not limited to, these equipment manufacturers/brands*
|
Ariens, Auburn Consolidated, Excel, Exmark, Doosan Bobcat, Ferris, Giant Vac, Great Dane, Husqvarna, KMC, Little Wonder, MTD, Ransomes, Scag, Snapper, Toro, Walker, Worldlawn, Wright Manufacturing
|
