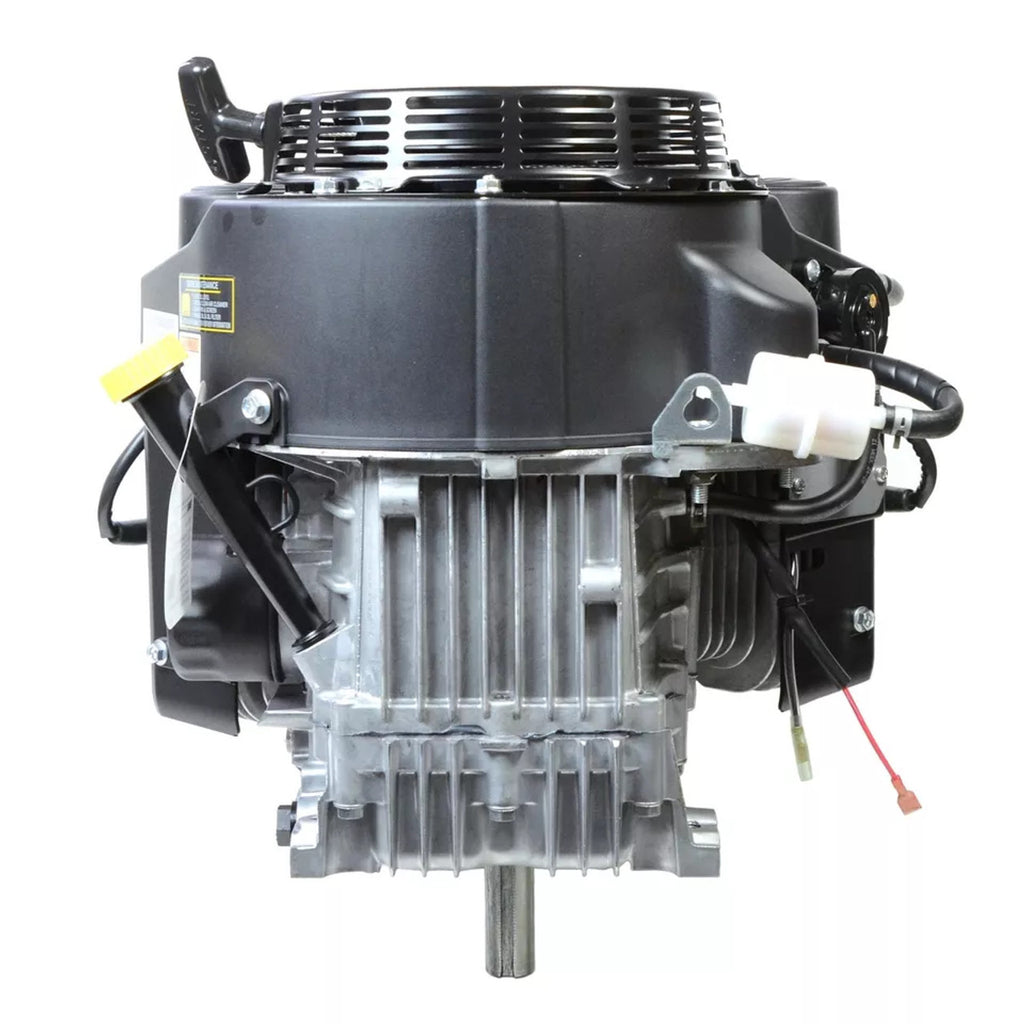

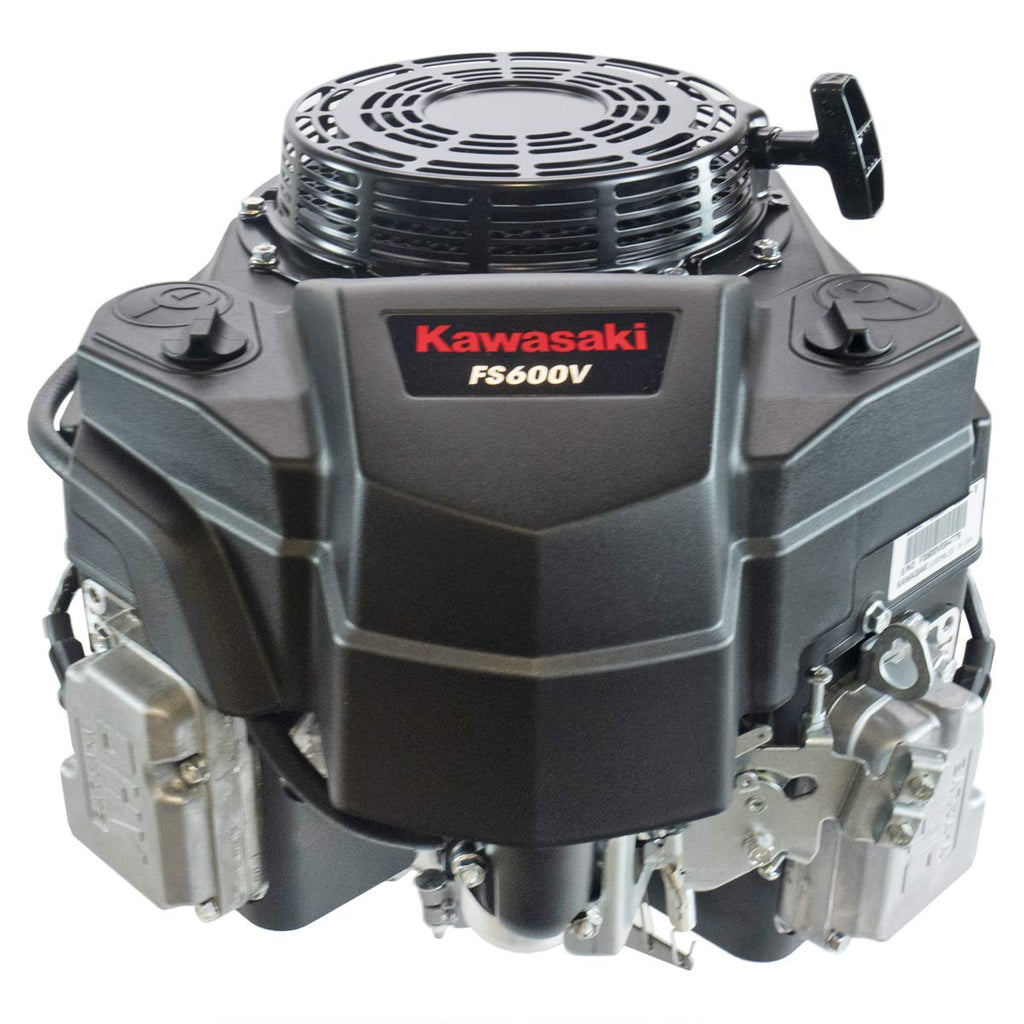

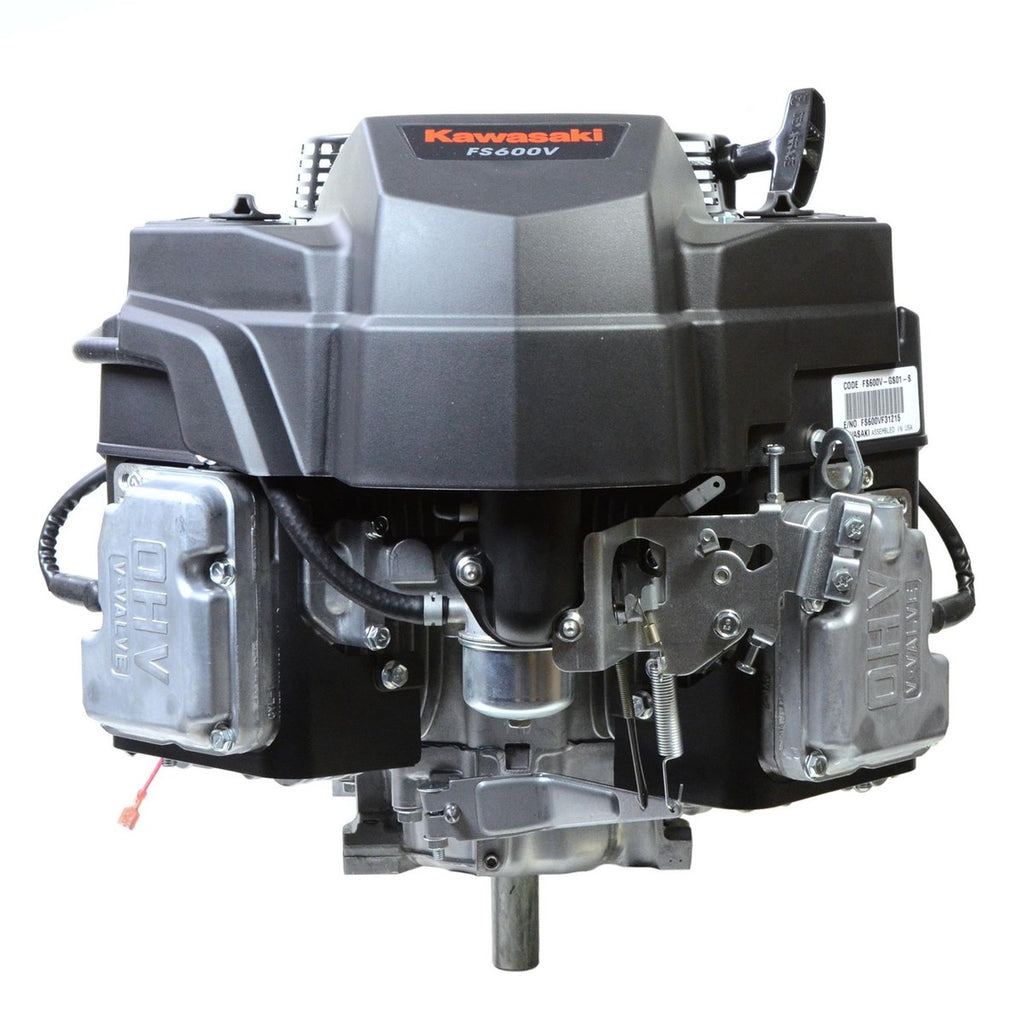

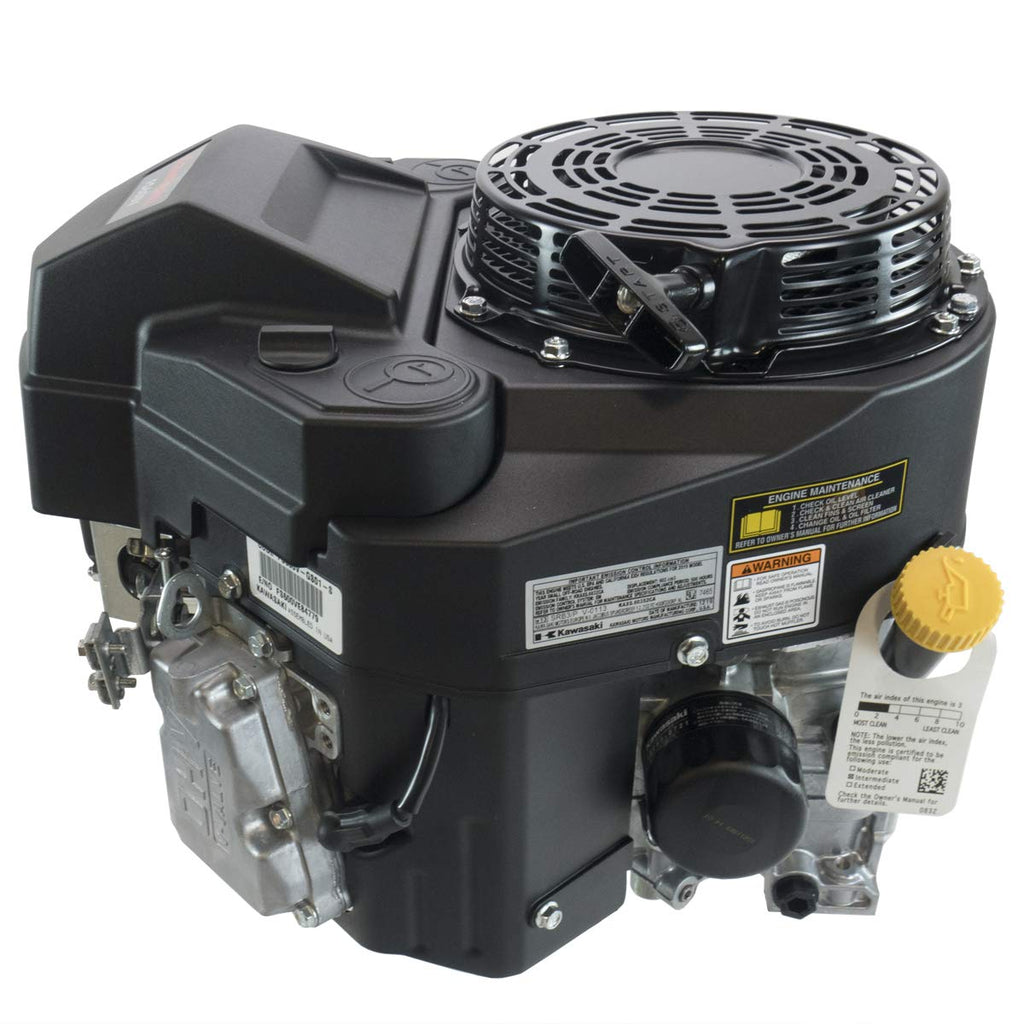

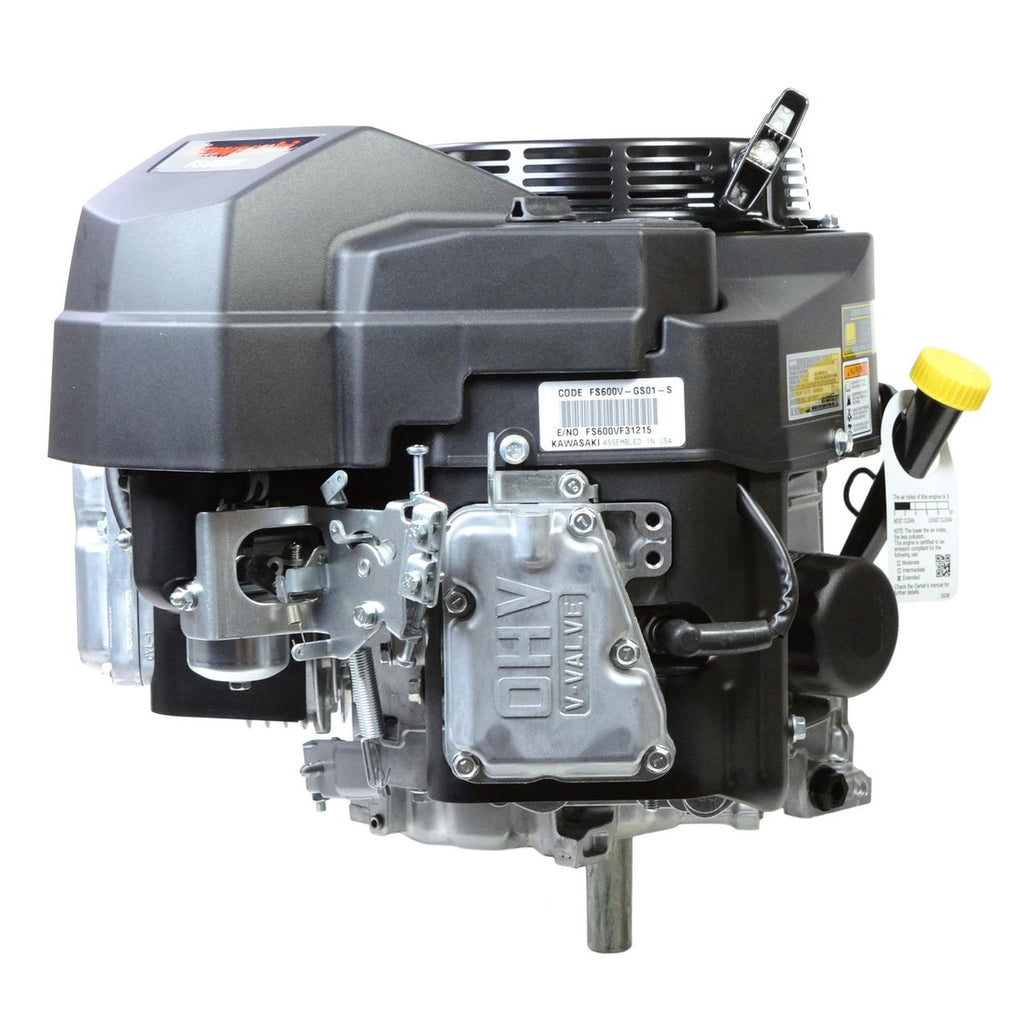

This is a Genuine Kawasaki FS600V-HS01-S 18.5 HP Recoil Start 1" Crank V-Twin Engine.
Replaces: FS600V-AS01-S, FS600V-BS01-S, FS600V-CS01-S, FS600V-DS01-S, FS600V-ES01-S, FS600V-FS01-S, FS600V-GS01-S
Not Available to Ship to California
| ENGINE SPECIFICATIONS |
| ENGINE BRAND |
Kawasaki |
| MODEL NUMBER |
FS600V-S01-S |
| WARRANTY |
3 Years |
| POWER OUTPUT |
18.5 HP @ 3600 RPM |
| TORQUE |
32.5 lb-ft @ 2000 RPM |
| CRANKSHAFT ORIENTATION |
Vertical |
| CRANKSHAFT TYPE |
|
| CRANKSHAFT DIAMETER |
1" (25.4mm) |
| CRANKSHAFT LENGTH |
3-5/32" (80mm) |
| END TAPPED SIZE |
|
| KEYWAY |
|
| ROTATION DIRECTION |
Counter-Clockwise |
| STARTER TYPE |
Recoil |
| IGNITION SYSTEM |
Electronic |
| CARBURETOR |
Single Barrel |
| NUMBER OF CYLINDERS |
Two |
| CYLINDER BORE |
Cast Iron Liners |
| AIR CLEANER |
Dual Element |
| OIL CAPACITY |
1.8 qt |
| FUEL |
Gasoline |
| FUEL PUMP |
Pulse |
| GOVERNOR SYSTEM |
Mechanical |
| CONTROLS |
Dual Cable |
| BORE x STROKE |
2.9" x 2.8" |
| COMPRESSION RATIO |
8.1 : 1 |
| CHARGING SYSTEM |
Clutch Coil |
| MUFFLER |
Not Included |
| FLYWHEEL |
|
| ENGINE NOTES |
Gen 2 air box design with clean out ports |
| REPLACES |
FS541V-S01-S, FS541V-S27-S, FS600V-S25-S, FH500V-S03, FH541V-DS23-R, FS481V-FS18-R,FS541V-AS07-R, FS541V- FS11-R, FS541V-GS19-R, FS541V-BS23-R |
|
COMMON APPLICATIONS
*This engine is commonly used for, but not limited to, these applications*
|
Lawn & Garden Tractors, Trenchers, Wide Area Walk Behind Mowers, Zero Turn Mowers |
|
COMMON EQUIPMENT MANUFACTURERS
*This engine is commonly used on, but not limited to, these equipment manufacturers/brands*
|
Ariens, Doosan Bobcat, Excel, Exmark, Ferris, Giant Vac, Hustler, KMC, Scag, Toro, Wright |
Please verify this is the correct replacement engine using your current engine's model and spec number. Do not order based off the image alone - engines in the same series may look similar, but have different specifications that may not work for your application. If you're unsure if this is the correct replacement, don't hesitate to contact us with your current model and spec numbers and we'll do our best to find the engine that works for you.
