This is a genuine ECHO / Shindaiwa 91149 Mityvac Mv8500 Pressure Vacuum. Mityvac Auto Test Kit - Kit includes everything for performing hundreds of automotive diagnostic & mechanical tests.
- Used for one-person brake bleeding.
- Produces vacuum or pressure at the turn of a switch
- Comfortable ergonomic design
- One-finger trigger vacuum/pressure release
- Pressure & vacuum are created on the squeeze stroke for superior accuracy & control
- Includes durable, accurate diaphragm style compound pressure/vacuum gauge
Includes:

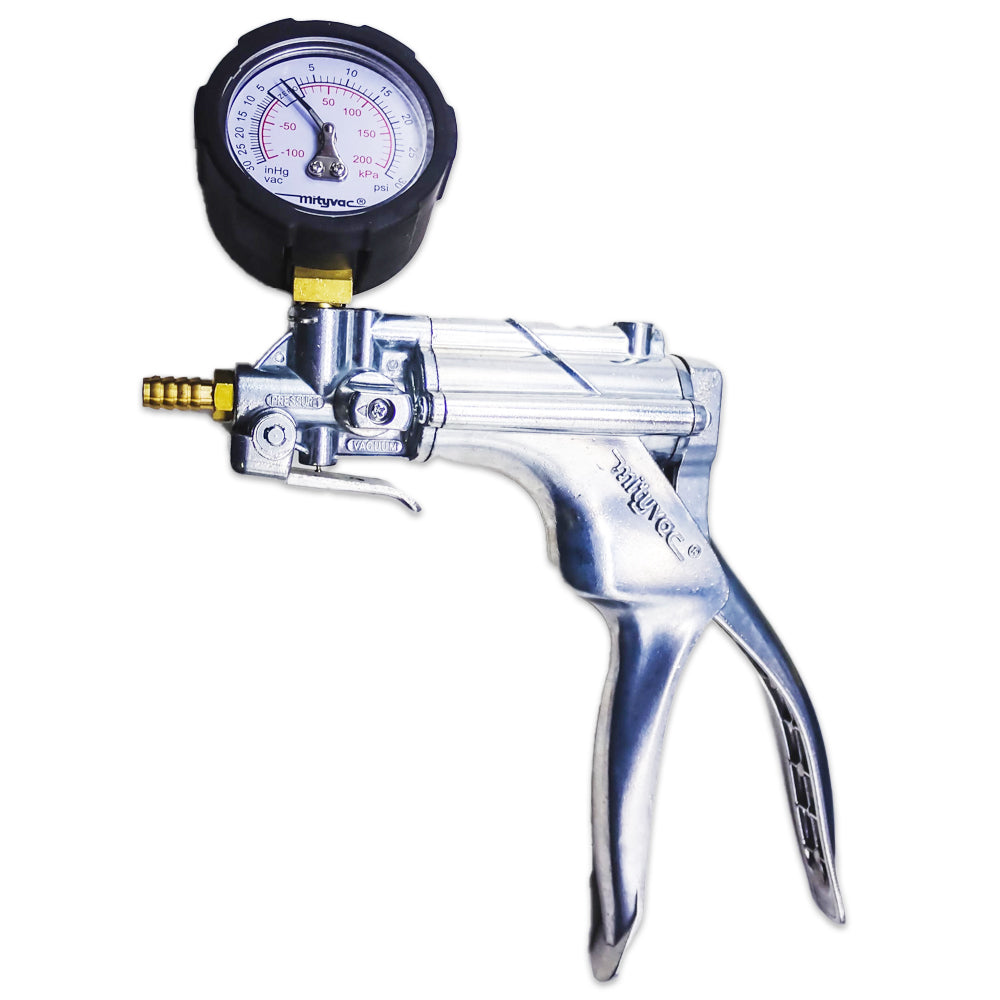

- Silverline Elite hand vacuum/pressure pump with 2" (50 mm) compound gauge with rubber boot

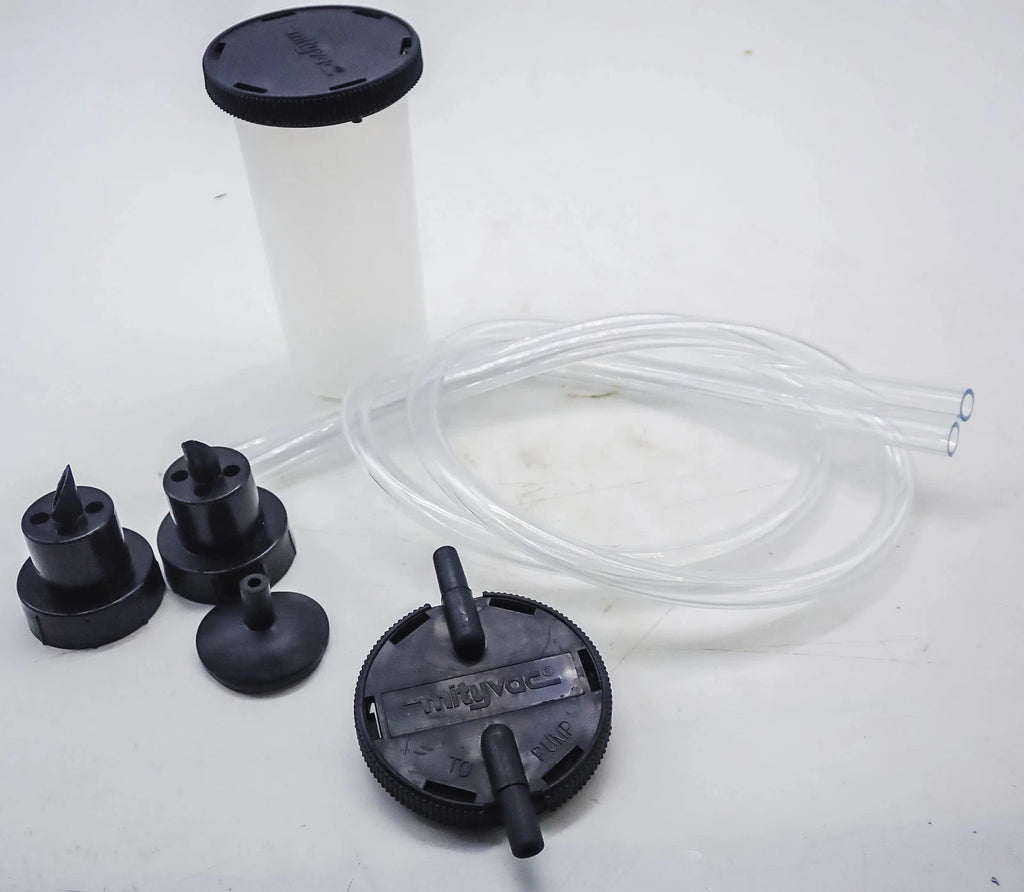

- 4.5 oz. (135 ml) fluid reservoir bottle with fluid transfer & storage lids

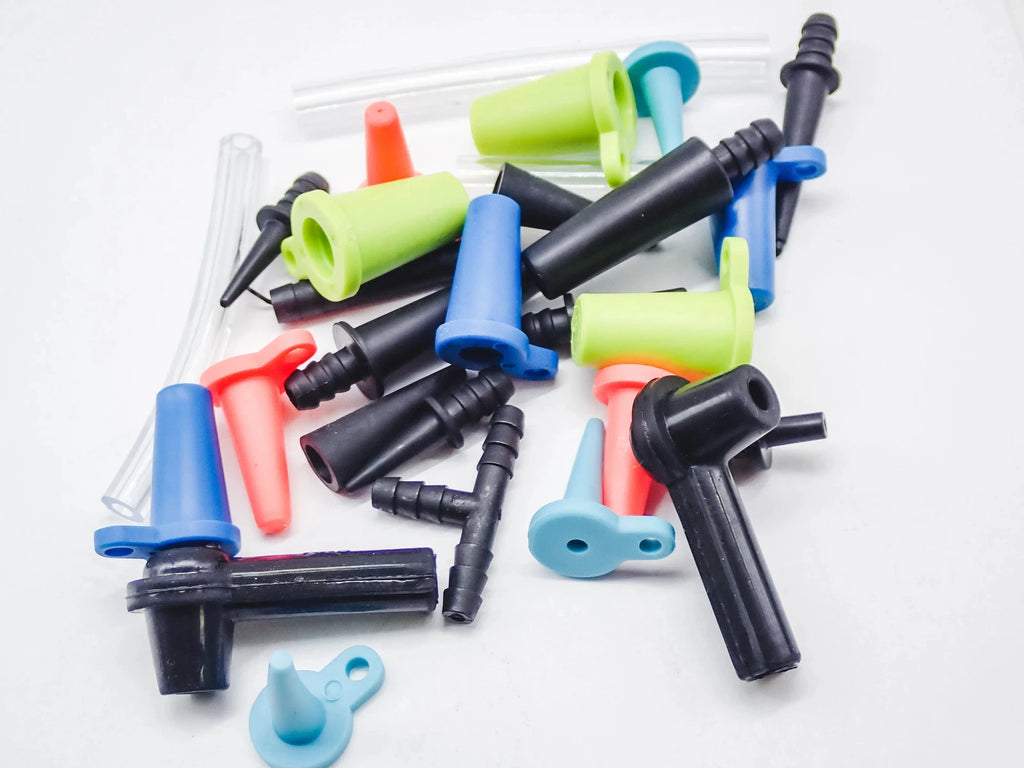

- 4 Tapered adapters for connecting to tubing from .09" (2.3 mm) to .50" (13 mm) ID
- 2 Tapered manifold plugs
- 4 Universal bleed screw adapters
- 12 Vacuum cap plugs
- Vacuum line T-adapter
- (2) 1/4" (6.4 mm) ID x 24" (610 mm) long connection tubes
- 5/32" (4 mm) ID x 1/4" (6.4 mm) ID tubing adapter
- 3 Connection tubes
- Rubber cupped adapter
- Master Cylinder Refill Kit (model no. MVA6825)

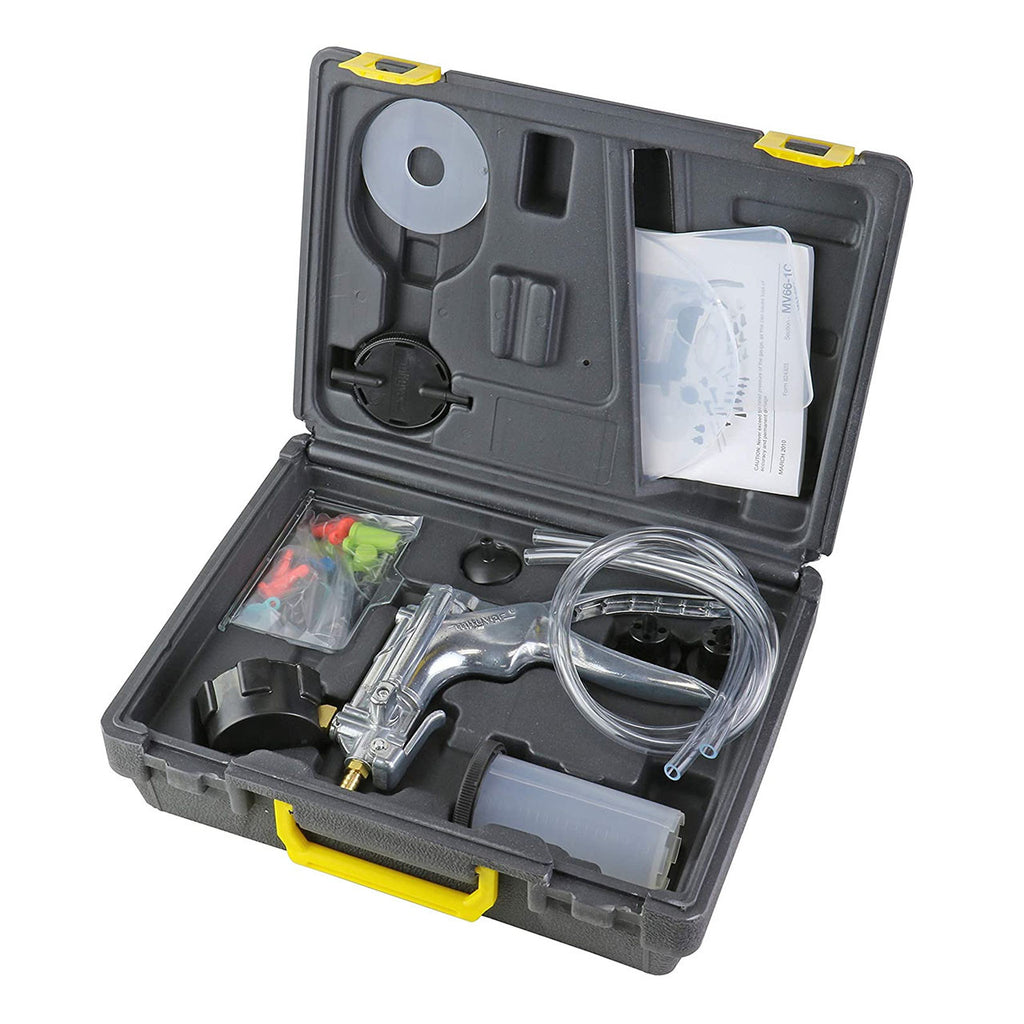

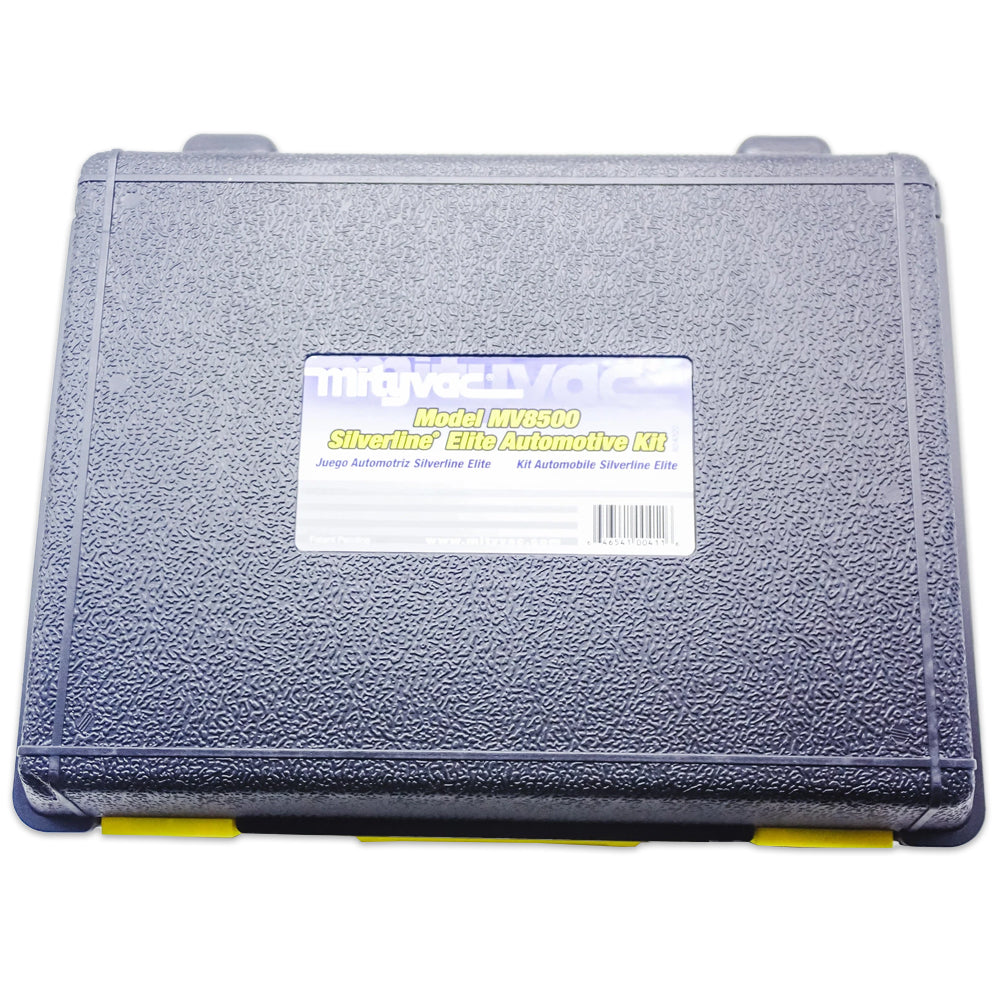

- Custom Molded Case
- User's Manual (English, French, Spanish, German)
Specifications:
Packaged Weight: 5.5 lbs (2.5 kg)
Packaged Size: 12.9" (330 mm) x 9.8" (250 mm) x 4.5" (115 mm)
Pump Displacement: 1 cubic inch (16cc) per stroke
Max. Vacuum:25 in Hg (85kPa)
Max. Pressure: 30+ psi (207+ kPa)
