Ariens 815051 Bagger 42" Edge/ZT Parts Diagram
Diagrams:
Diagram:
Bagger Frame Assembly
Bagger Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
04409751
04409751
|
|||
|
|
07500225
07500225
|
|||
|
|
09684851
09684851
|
|||
|
|
30199951
30199951
|
|||
|
|
04409851
04409851
|
|||
|
|
05194800
05194800
|
|||
|
|
05901711
05901711
|
|||
|
|
05901836
05901836
|
|||
|
|
06200232
06200232
|
|||
|
|
06200235
06200235
|
|||
|
|
06200327
06200327
|
|||
|
|
06401013
06401013
|
|||
|
|
06401015
06401015
|
|||
|
|
06500840
06500840
|
|||
|
|
06500901
06500901
|
|||
|
|
06500902
06500902
|
|||
|
|
06700220
06700220
|
|||
|
|
06814800
06814800
|
|||
|
|
07500226
07500226
|
|||
|
|
07500425
07500425
|
|||
|
|
09171251
09171251
|
|||
|
|
30137900
30137900
|
|||
|
|
30199851
30199851
|

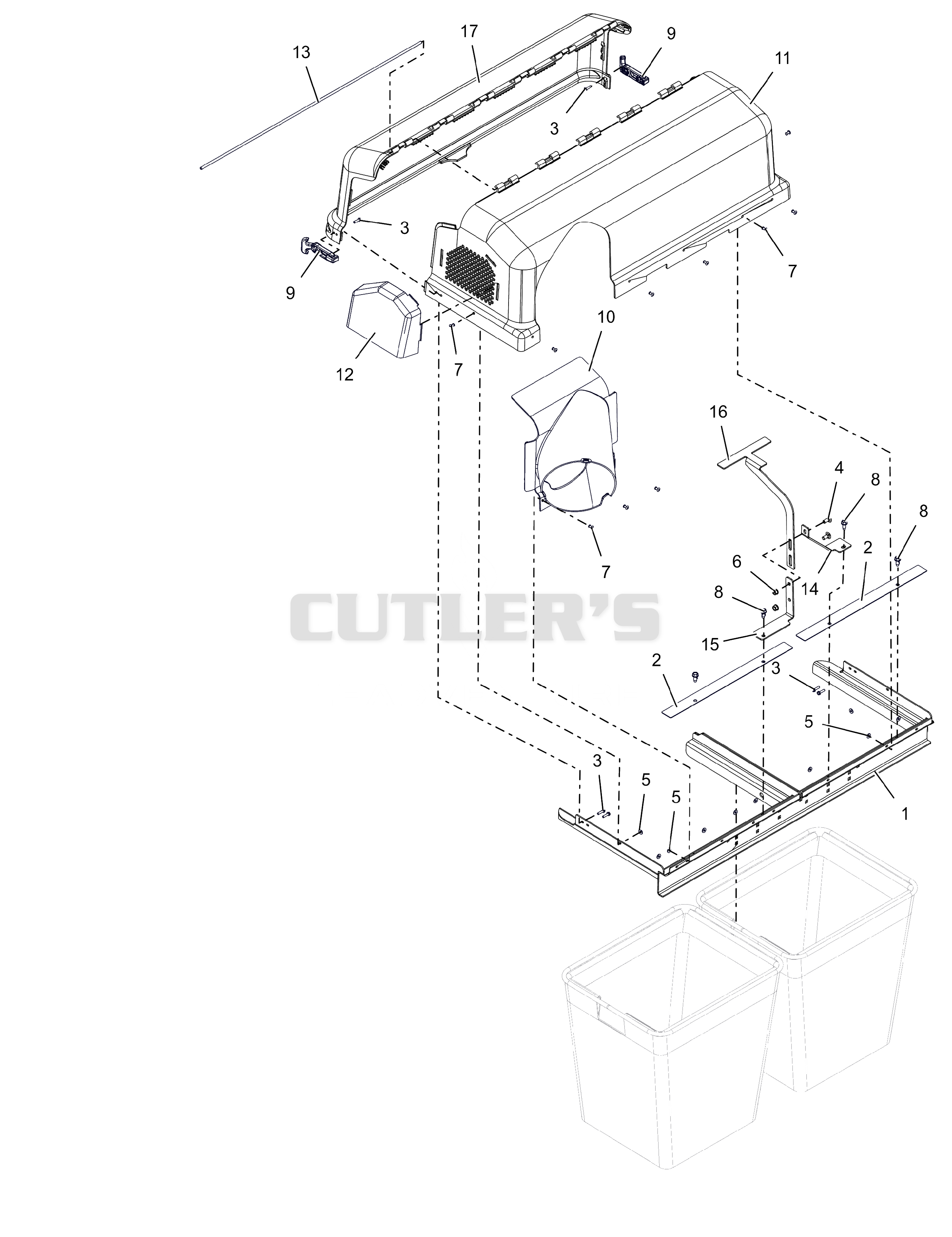

Bagger Hood Assembly
Bagger Hood Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09684851
09684851
|
|||
|
|
03844151
03844151
|
|||
|
|
05901837
05901837
|
|||
|
|
06200232
06200232
|
|||
|
|
06401029
06401029
|
|||
|
|
06500840
06500840
|
|||
|
|
06800107
06800107
|
|||
|
|
07400127
07400127
|
|||
|
|
09079500
09079500
|
|||
|
|
09678302
09678302
|
|||
|
|
09684500
09684500
|
|||
|
|
09684600
09684600
|
|||
|
|
09684700
09684700
|
|||
|
|
09733951
09733951
|
|||
|
|
09736351
09736351
|
|||
|
|
09737351
09737351
|
|||
|
|
51801900
51801900
|

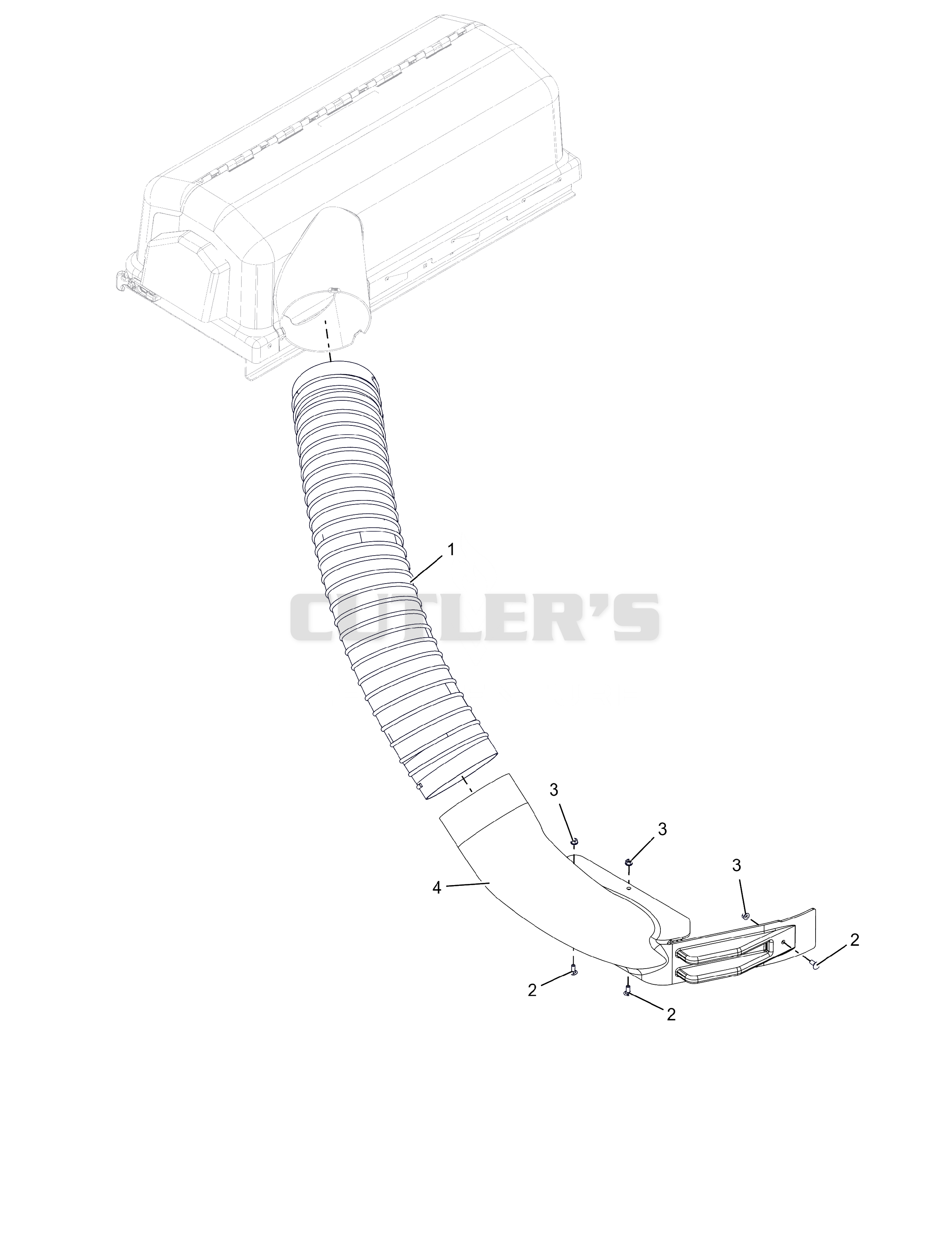

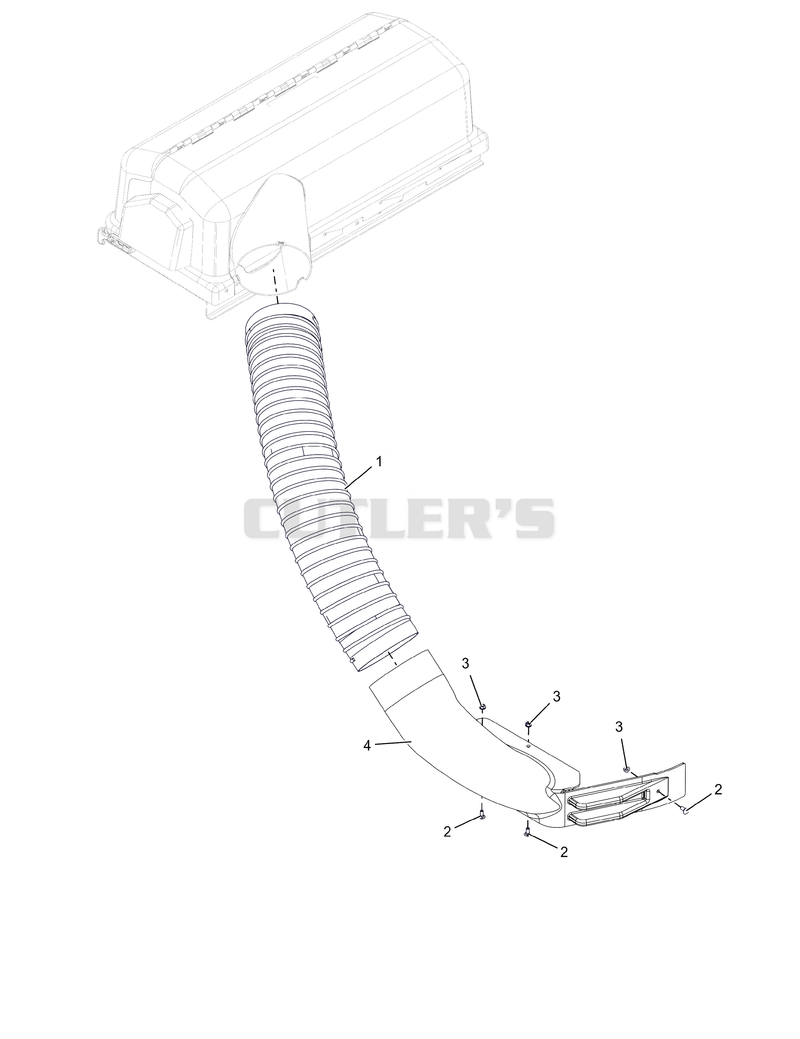

Bagger Neck and Hose â 42"
Bagger Neck and Hose â 42"
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
04222900
04222900
|
|||
|
|
06200232
06200232
|
|||
|
|
06500840
06500840
|
|||
|
|
51535900
51535900
|

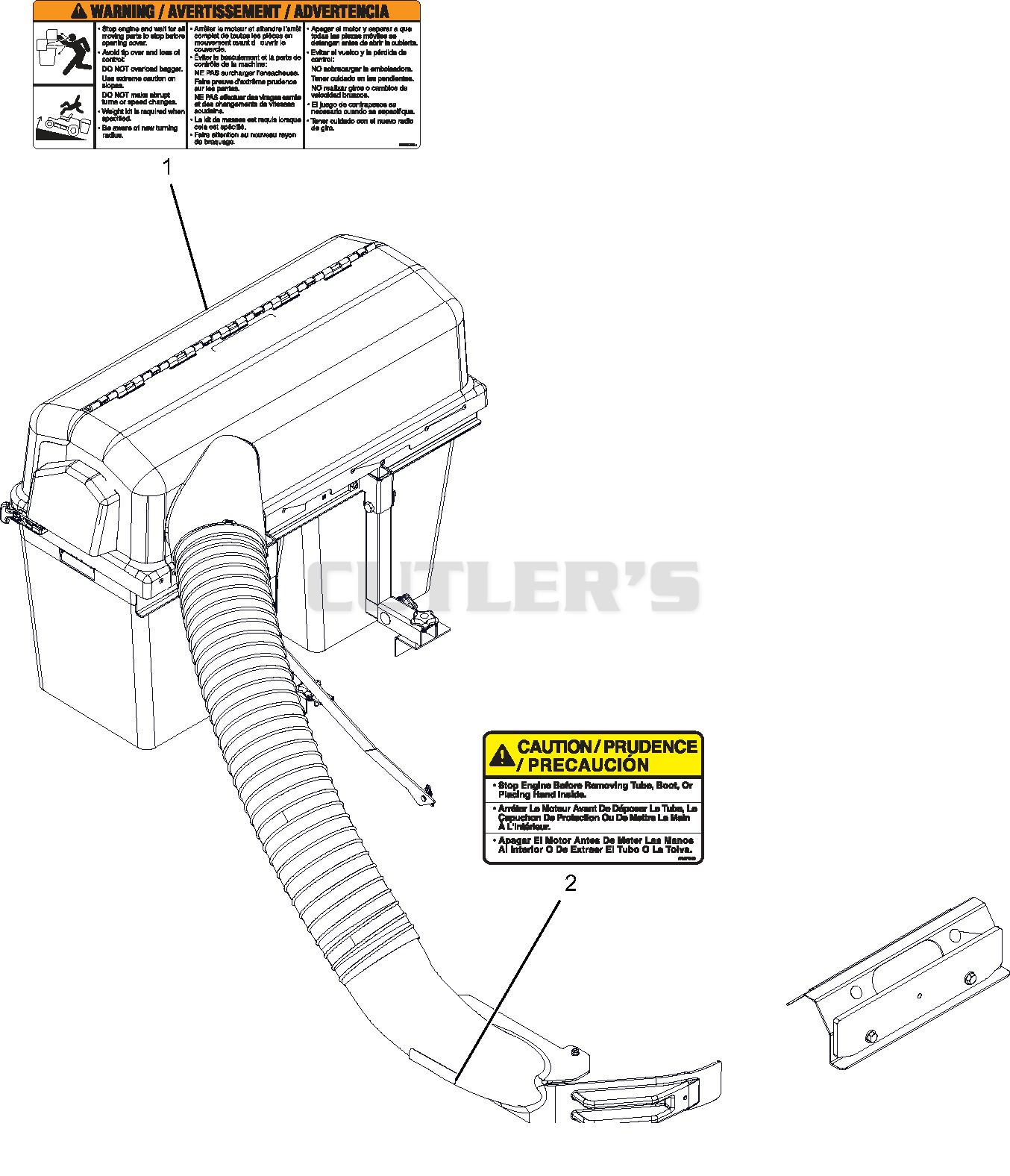

Decals
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
05359700
05359700
|
|||
|
|
07897700
07897700
|

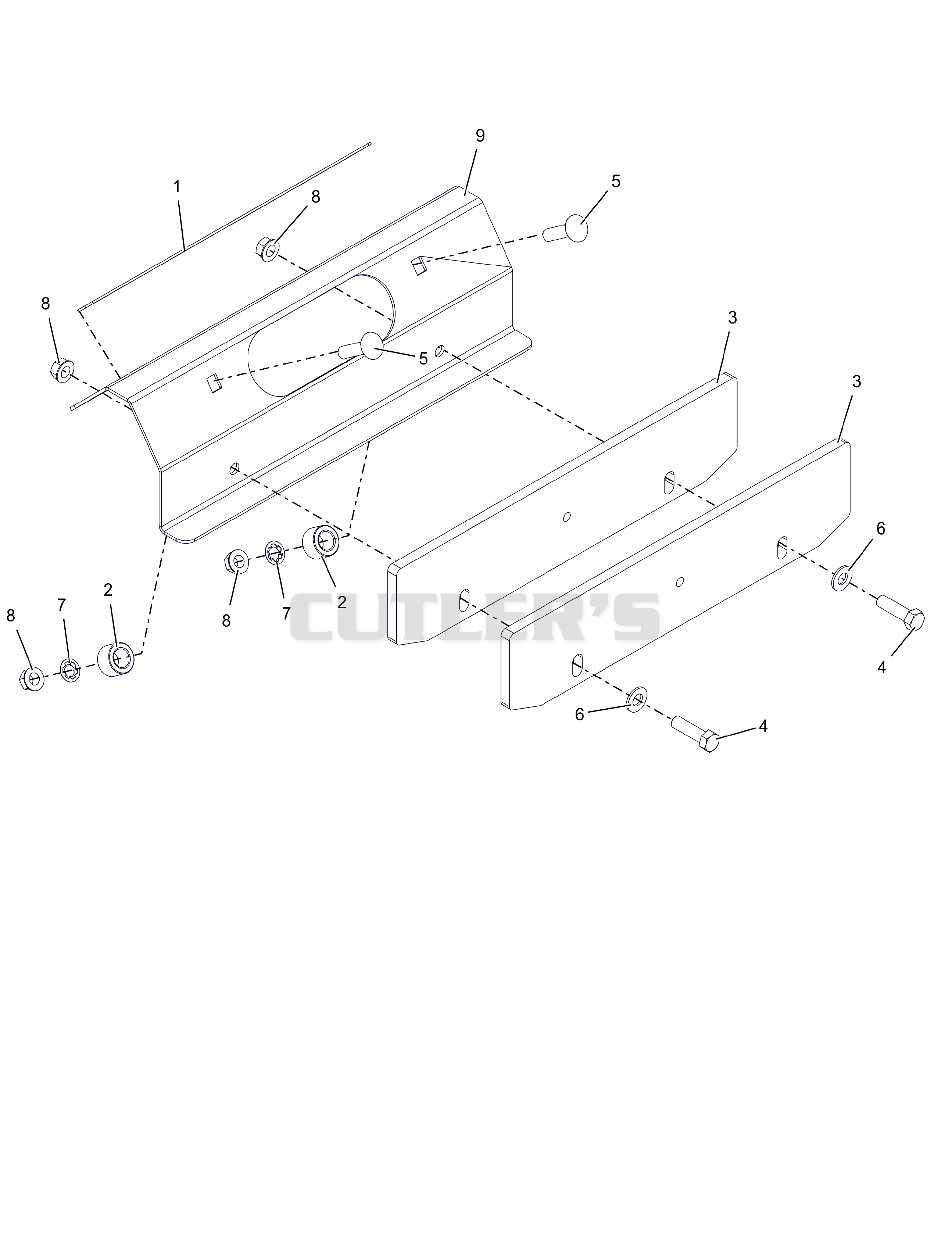

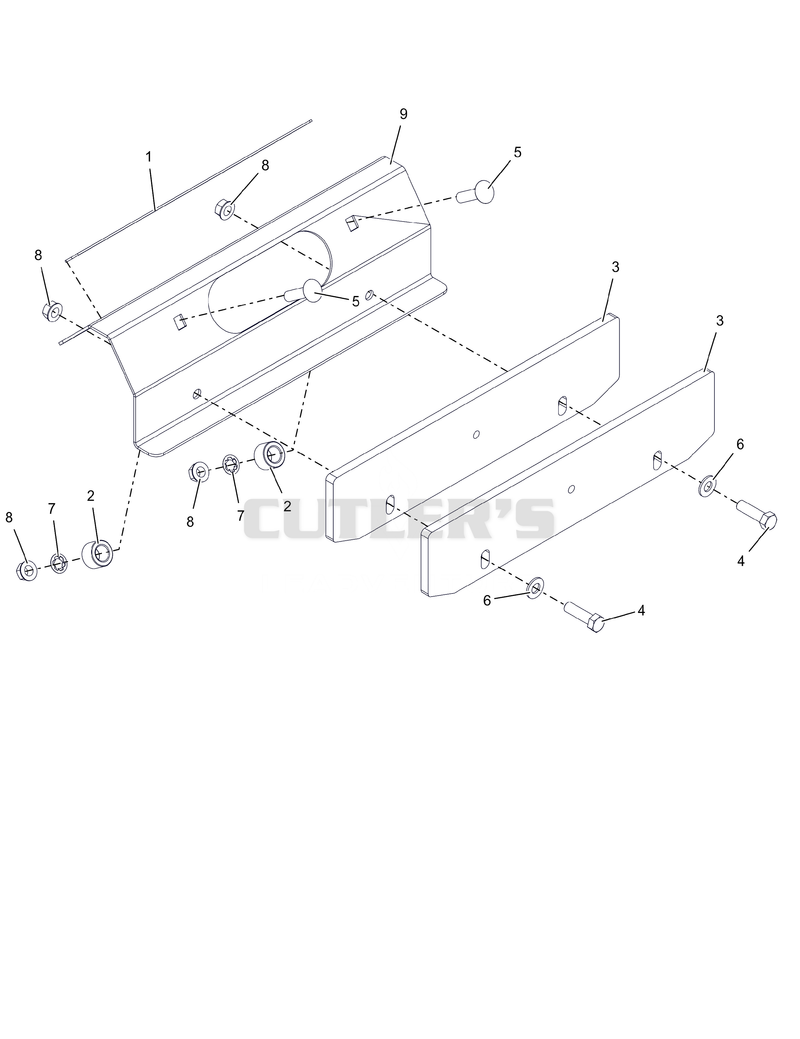

Weights 34" and 42"
Weights 34" and 42"
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
03833800
03833800
|
|||
|
|
04192901
04192901
|
|||
|
|
04422451
04422451
|
|||
|
|
05901939
05901939
|
|||
|
|
06200326
06200326
|
|||
|
|
06401015
06401015
|
|||
|
|
06500705
06500705
|
|||
|
|
06500902
06500902
|
|||
|
|
30200151
30200151
|
