Ariens 915063 Mini-Zoom 1540 Parts Diagram
Diagrams:
Diagram:

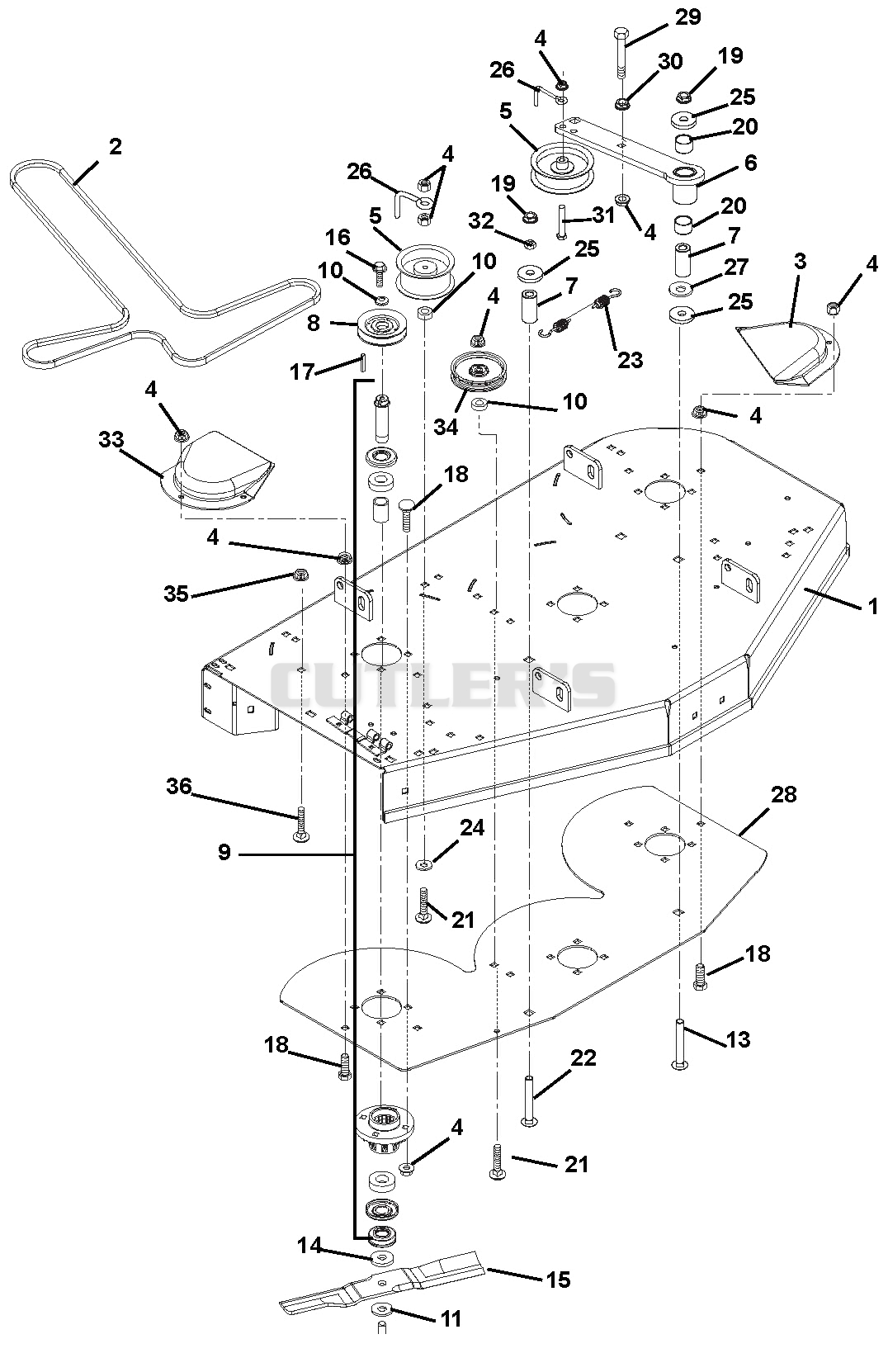

40" Mower Deck, Belt, Idlers And Blades
40" Mower Deck, Belt, Idlers And Blades
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00388651
00388651
|
|||
|
|
07200002
07200002
|
|||
|
|
01520100
01520100
|
|||
|
|
06545500
06545500
|
|||
|
|
07327100
07327100
|
|||
|
|
00431851
00431851
|
|||
|
|
01581700
01581700
|
|||
|
|
01593800
01593800
|
|||
|
|
51510000
51510000
|
|||
|
|
06400006
06400006
|
|||
|
|
06445700
06445700
|
|||
|
|
05978900
05978900
|
|||
|
|
06225000
06225000
|
|||
|
|
06442900
06442900
|
|||
|
|
03498400
03498400
|
|||
|
|
05974500
05974500
|
|||
|
|
06611100
06611100
|
|||
|
|
06224100
06224100
|
|||
|
|
06543600
06543600
|
|||
|
|
05435800
05435800
|
|||
|
|
06224300
06224300
|
|||
|
|
06218600
06218600
|
|||
|
|
08313300
08313300
|
|||
|
|
06441900
06441900
|
|||
|
|
06445000
06445000
|
|||
|
|
00391900
00391900
|
|||
|
|
06436400
06436400
|
|||
|
|
00388751
00388751
|
|||
|
|
05963300
05963300
|
|||
|
|
06534900
06534900
|
|||
|
|
05958400
05958400
|
|||
|
|
06543300
06543300
|
|||
|
|
00390000
00390000
|
|||
|
|
07300006
07300006
|
|||
|
|
06545400
06545400
|
|||
|
|
06212200
06212200
|

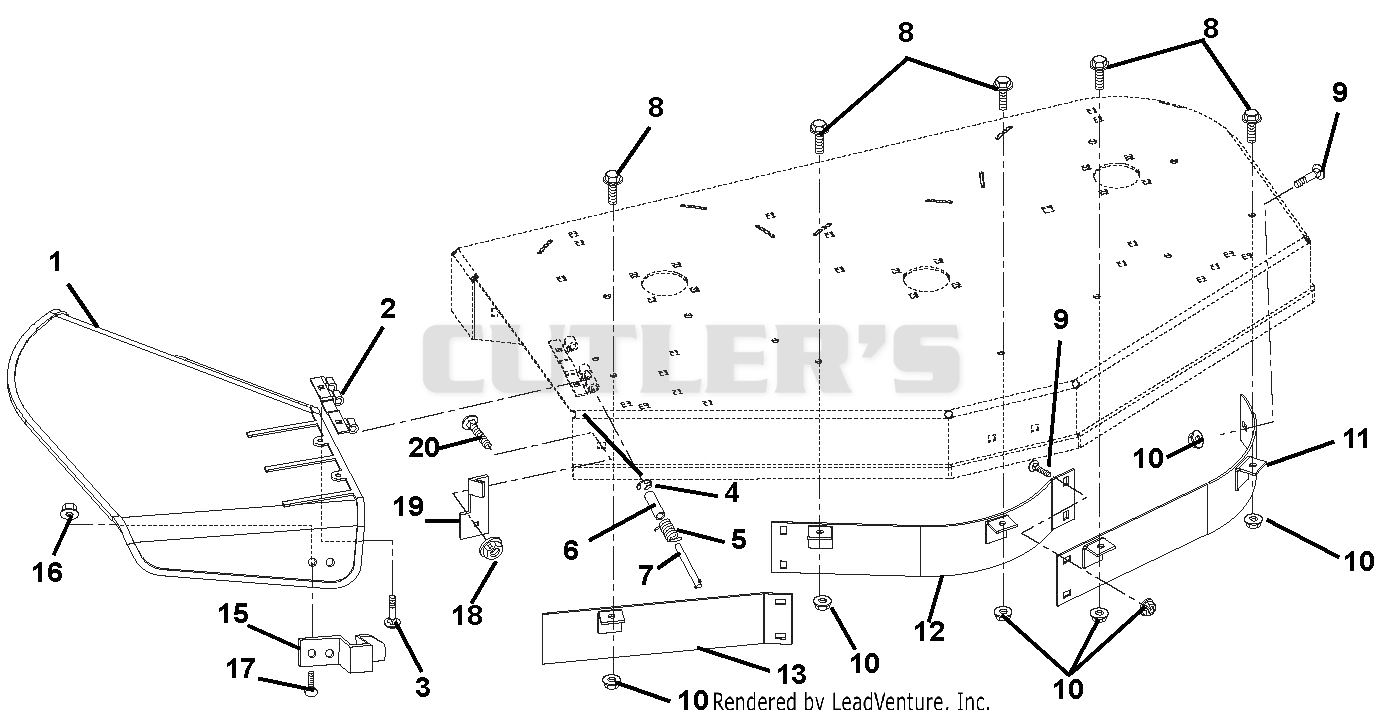

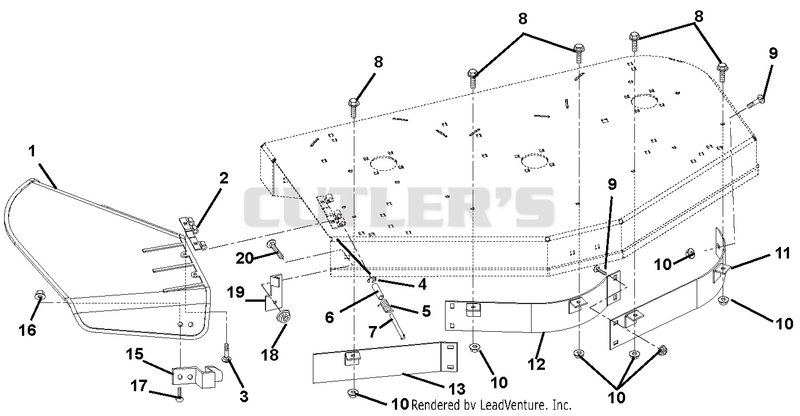

Baffles And Chute
Baffles And Chute
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
01585500
01585500
|
|||
|
|
02709551
02709551
|
|||
|
|
06219900
06219900
|
|||
|
|
05706300
05706300
|
|||
|
|
08307200
08307200
|
|||
|
|
02202900
02202900
|
|||
|
|
03624200
03624200
|
|||
|
|
07049600
07049600
|
|||
|
|
06212200
06212200
|
|||
|
|
06545400
06545400
|
|||
|
|
01576151
01576151
|
|||
|
|
01576251
01576251
|
|||
|
|
01576351
01576351
|
|||
|
|
01576751
01576751
|
|||
|
|
01597751
01597751
|
|||
|
|
06543500
06543500
|
|||
|
|
06220600
06220600
|
|||
|
|
06545500
06545500
|
|||
|
|
01599151
01599151
|
|||
|
|
06224200
06224200
|

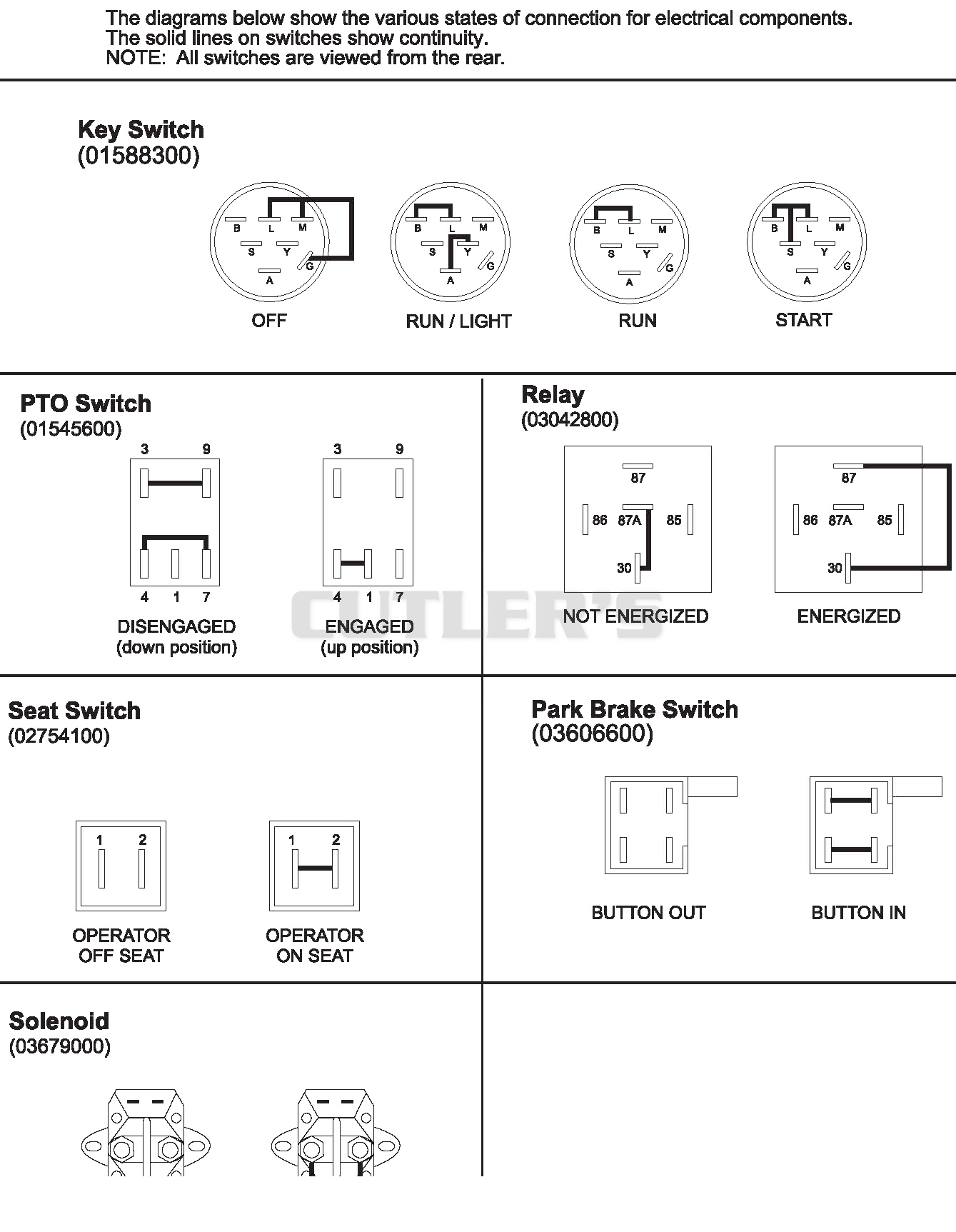

Continuity Diagram
Continuity Diagram
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Decals - Safety
Decals - Safety
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
05305100
05305100
|
|||
|
|
07754100
07754100
|
|||
|
|
05305000
05305000
|
|||
|
|
00347100
00347100
|
|||
|
|
05304800
05304800
|
|||
|
|
07731400
07731400
|
|||
|
|
07742300
07742300
|
|||
|
|
08088400
08088400
|
|||
|
|
00384700
00384700
|
|||
|
|
05301500
05301500
|
|||
|
|
07757500
07757500
|
|||
|
|
07735200
07735200
|
|||
|
|
07757600
07757600
|
|||
|
|
00290000
00290000
|
Decals - Style
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00347200
00347200
|
|||
|
|
00347300
00347300
|
|||
|
|
00382100
00382100
|
|||
|
|
05303100
05303100
|
|||
|
|
00373600
00373600
|

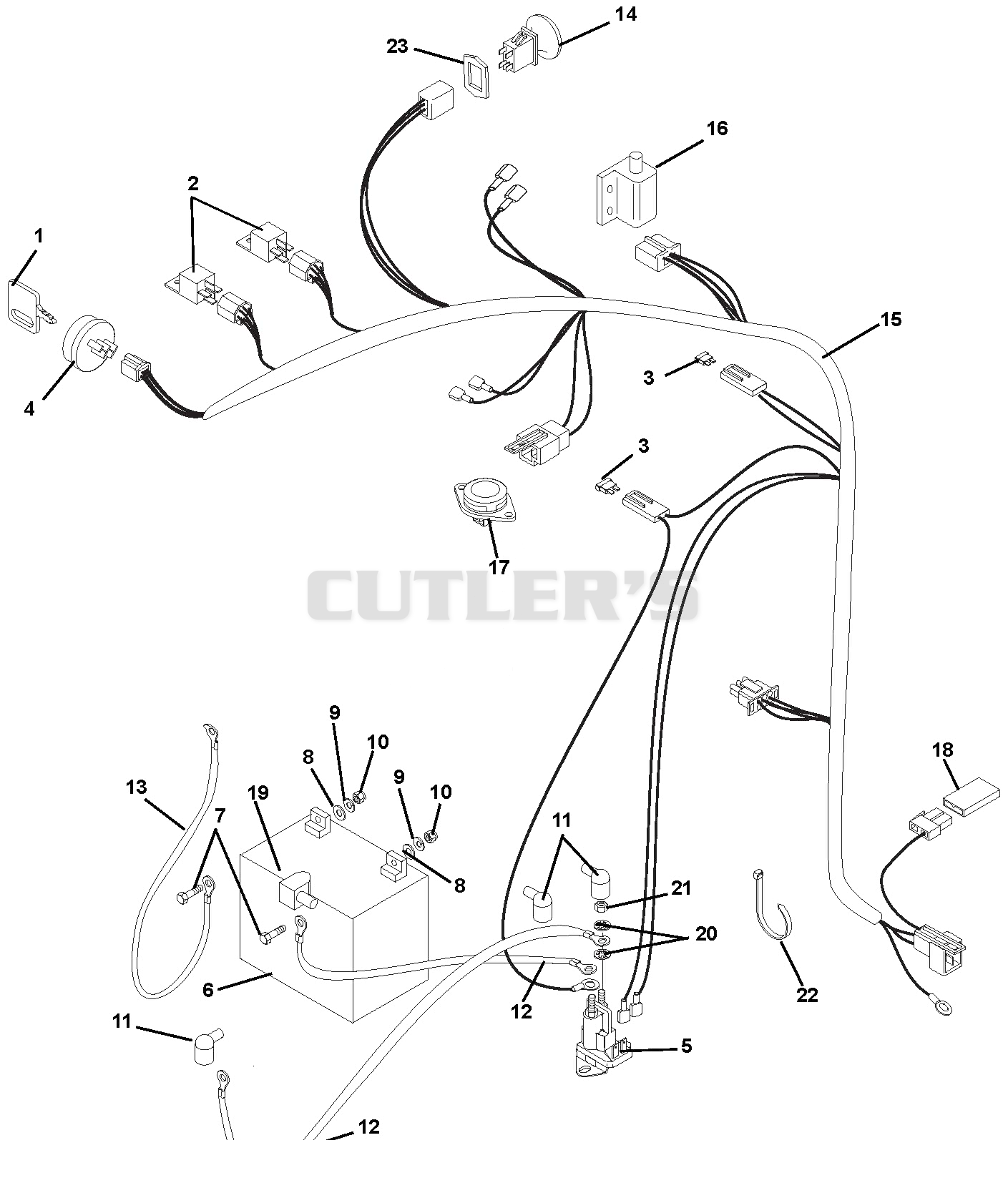

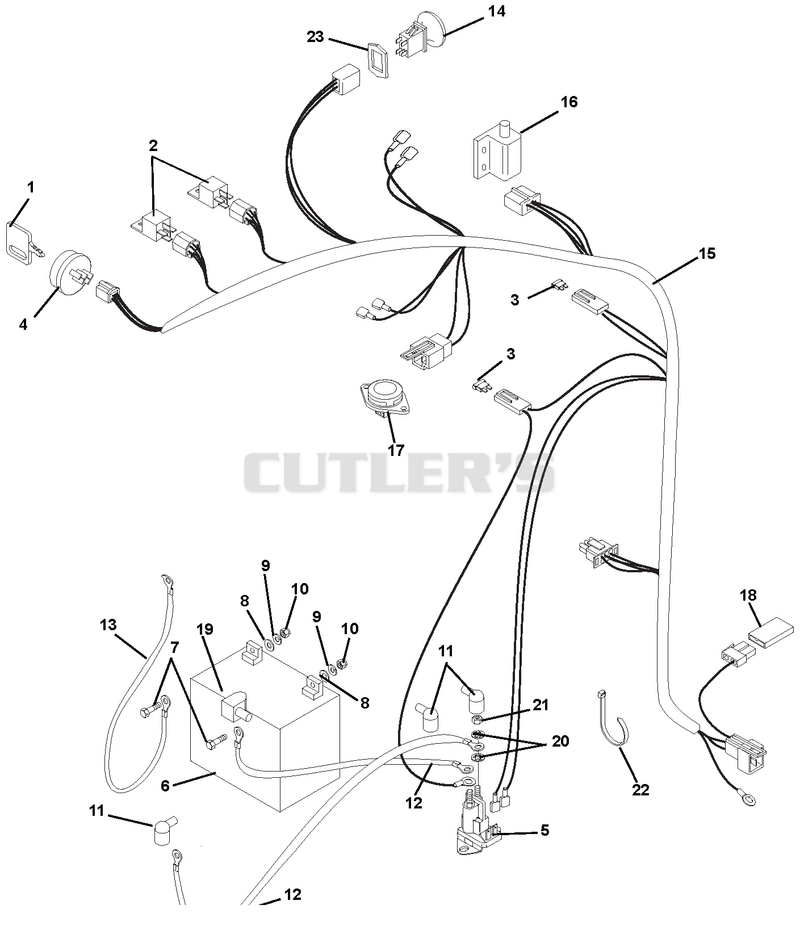

Electrical System
Electrical System
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
02460700
02460700
|
|||
|
|
03042800
03042800
|
|||
|
|
09351100
09351100
|
|||
|
|
01588300
01588300
|
|||
|
|
03679000
03679000
|
|||
|
|
01554800
01554800
|
|||
|
|
05946800
05946800
|
|||
|
|
06437300
06437300
|
|||
|
|
06308400
06308400
|
|||
|
|
06533200
06533200
|
|||
|
|
07533200
07533200
|
|||
|
|
02727200
02727200
|
|||
|
|
03111100
03111100
|
|||
|
|
01545600
01545600
|
|||
|
|
00347900
00347900
|
|||
|
|
03606600
03606600
|
|||
|
|
02754100
02754100
|
|||
|
|
09293500
09293500
|
|||
|
|
07505700
07505700
|
|||
|
|
06310500
06310500
|
|||
|
|
06536700
06536700
|
|||
|
|
07517300
07517300
|
|||
|
|
00289200
00289200
|

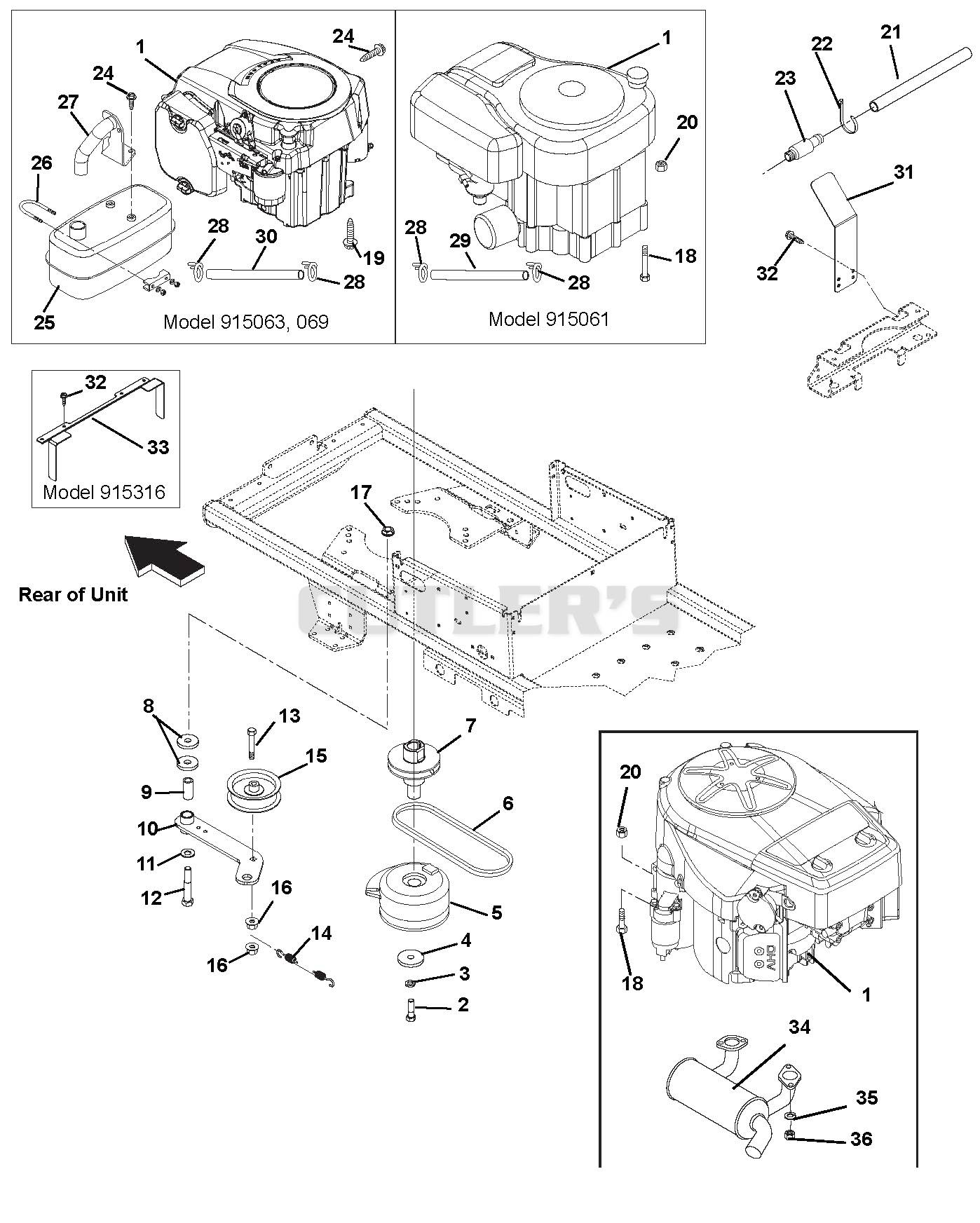

Engine, Exhaust, Belts And Idlers
Engine, Exhaust, Belts And Idlers
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
08200004
08200004
|
|||
|
|
08200022
08200022
|
|||
|
|
08200013
08200013
|
|||
|
|
05966700
05966700
|
|||
|
|
06309300
06309300
|
|||
|
|
06443600
06443600
|
|||
|
|
03643100
03643100
|
|||
|
|
07229000
07229000
|
|||
|
|
00365000
00365000
|
|||
|
|
06445000
06445000
|
|||
|
|
05516400
05516400
|
|||
|
|
00375600
00375600
|
|||
|
|
06441900
06441900
|
|||
|
|
05960000
05960000
|
|||
|
|
05963300
05963300
|
|||
|
|
08336100
08336100
|
|||
|
|
07324100
07324100
|
|||
|
|
06545500
06545500
|
|||
|
|
06543600
06543600
|
|||
|
|
05957400
05957400
|
|||
|
|
07414100
07414100
|
|||
|
|
06545400
06545400
|
|||
|
|
00191400
00191400
|
|||
|
|
07517300
07517300
|
|||
|
|
07067800
07067800
|
|||
|
|
07412000
07412000
|
|||
|
|
00182400
00182400
|
|||
|
|
00255400
00255400
|
|||
|
|
00368000
00368000
|
|||
|
|
06939100
06939100
|
|||
|
|
00924300
00924300
|
|||
|
|
00924300
00924300
|
|||
|
|
00382051
00382051
|
|||
|
|
07411500
07411500
|
|||
|
|
07411500
07411500
|
|||
|
|
00396251
00396251
|
|||
|
|
09298000
09298000
|
|||
|
|
06308600
06308600
|
|||
|
|
06538600
06538600
|

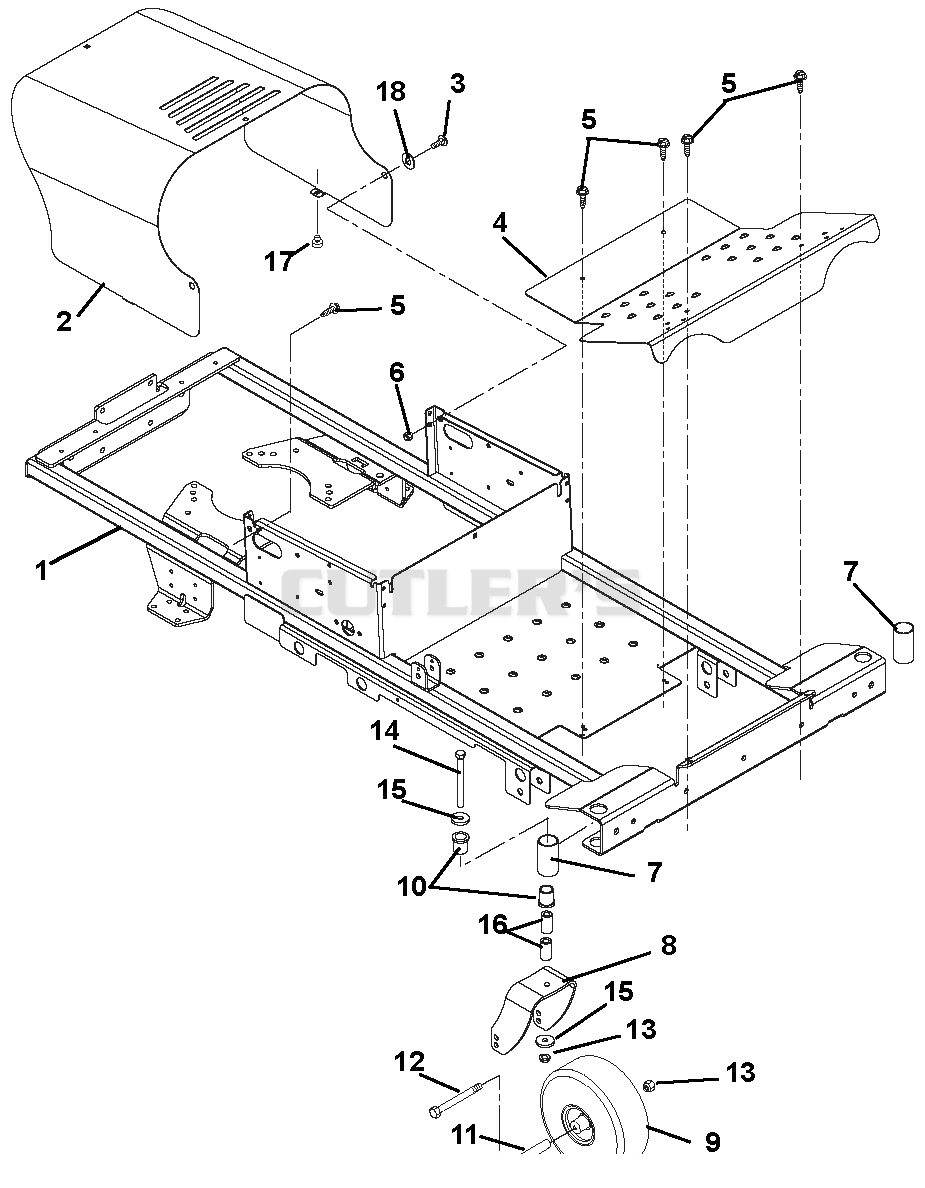

Frame, Hood, Footrest, Casters And Tires
Frame, Hood, Footrest, Casters And Tires
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00278851
00278851
|
|||
|
|
00288659
00288659
|
|||
|
|
07056700
07056700
|
|||
|
|
00279759
00279759
|
|||
|
|
07411500
07411500
|
|||
|
|
06542000
06542000
|
|||
|
|
00354700
00354700
|
|||
|
|
00363351
00363351
|
|||
|
|
01588100
01588100
|
|||
|
|
05533600
05533600
|
|||
|
|
00278500
00278500
|
|||
|
|
05964400
05964400
|
|||
|
|
06543600
06543600
|
|||
|
|
05975400
05975400
|
|||
|
|
06445000
06445000
|
|||
|
|
00363100
00363100
|
|||
|
|
07516000
07516000
|
|||
|
|
06443300
06443300
|
Fuel Tank
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00348500
00348500
|
|||
|
|
01538400
01538400
|
|||
|
|
09112300
09112300
|
|||
|
|
07511400
07511400
|
|||
|
|
00431651
00431651
|
|||
|
|
00428851
00428851
|
|||
|
|
07411500
07411500
|
|||
|
|
00392651
00392651
|
|||
|
|
00348400
00348400
|
|||
|
|
00366100
00366100
|
|||
|
|
00396300
00396300
|
|||
|
|
06536000
06536000
|
|||
|
|
01588300
01588300
|
|||
|
|
02460700
02460700
|
|||
|
|
01545600
01545600
|
|||
|
|
06116900
06116900
|
|||
|
|
00373951
00373951
|
Mower Deck Lift
Mower Deck Lift
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00279900
00279900
|
|||
|
|
00279800
00279800
|
|||
|
|
00280000
00280000
|
|||
|
|
05946900
05946900
|
|||
|
|
06439100
06439100
|
|||
|
|
06446300
06446300
|
|||
|
|
05959900
05959900
|
|||
|
|
00160000
00160000
|
|||
|
|
06543300
06543300
|
|||
|
|
06714900
06714900
|
|||
|
|
07411500
07411500
|
|||
|
|
00288300
00288300
|
|||
|
|
05503900
05503900
|
|||
|
|
05963300
05963300
|
|||
|
|
06545500
06545500
|
|||
|
|
00347800
00347800
|
|||
|
|
01593500
01593500
|
|||
|
|
00347700
00347700
|
|||
|
|
00279551
00279551
|
|||
|
|
07412000
07412000
|
|||
|
|
06927100
06927100
|
|||
|
|
05958400
05958400
|
|||
|
|
01590400
01590400
|
|||
|
|
06436400
06436400
|
|||
|
|
06441500
06441500
|
|||
|
|
06445000
06445000
|
|||
|
|
08300010
08300010
|
Parking Brake
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00293851
00293851
|
|||
|
|
02202900
02202900
|
|||
|
|
01612700
01612700
|
|||
|
|
06439100
06439100
|
|||
|
|
05962500
05962500
|
|||
|
|
08332000
08332000
|
|||
|
|
06545400
06545400
|
|||
|
|
06713500
06713500
|
|||
|
|
01596400
01596400
|
|||
|
|
00349800
00349800
|
|||
|
|
07533300
07533300
|
|||
|
|
00354151
00354151
|
|||
|
|
07411500
07411500
|
|||
|
|
05503900
05503900
|
|||
|
|
00294100
00294100
|
|||
|
|
00349700
00349700
|
|||
|
|
06435800
06435800
|
|||
|
|
08300600
08300600
|
|||
|
|
00364900
00364900
|
|||
|
|
06531000
06531000
|
|||
|
|
06536000
06536000
|
|||
|
|
03606600
03606600
|
|||
|
|
06116900
06116900
|
|||
|
|
06444200
06444200
|
|||
|
|
05715100
05715100
|

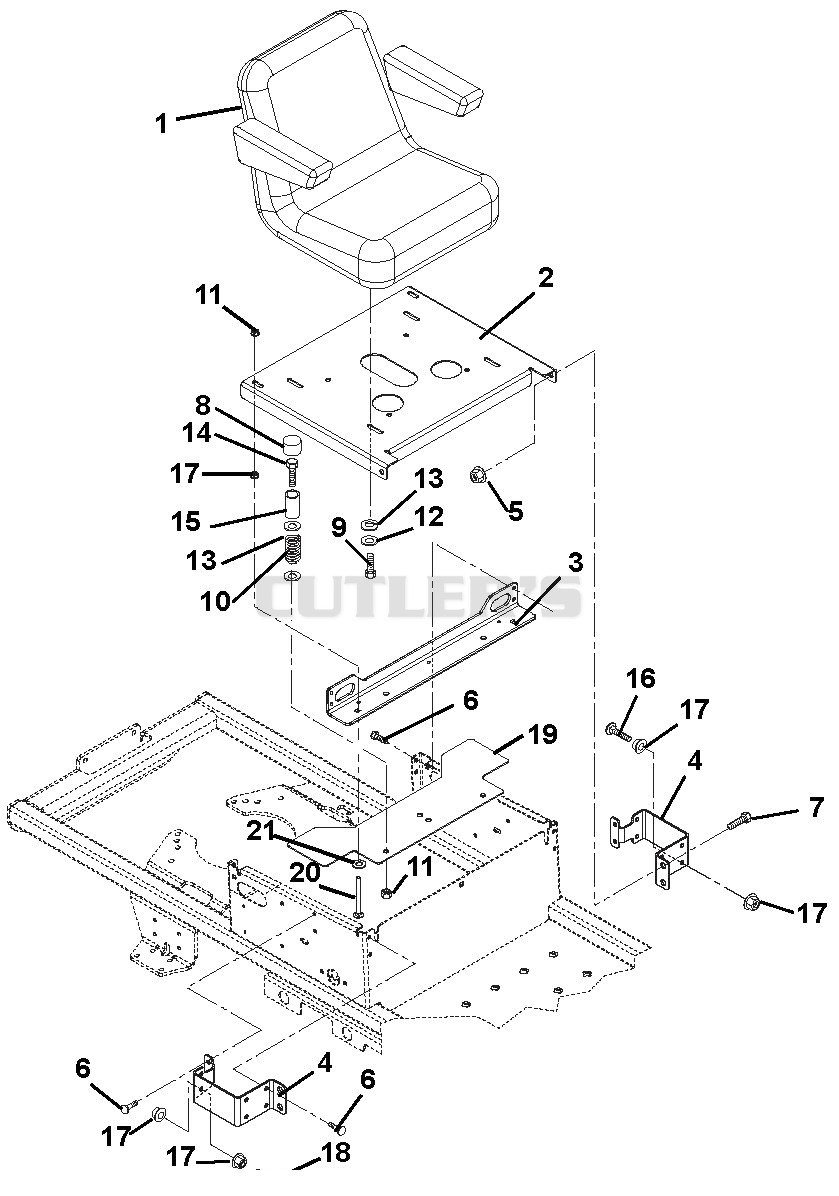

Seat And Support
Seat And Support
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00366300
00366300
|
|||
|
|
00288751
00288751
|
|||
|
|
00288851
00288851
|
|||
|
|
00350051
00350051
|
|||
|
|
06542000
06542000
|
|||
|
|
07411500
07411500
|
|||
|
|
07056700
07056700
|
|||
|
|
00337700
00337700
|
|||
|
|
05946900
05946900
|
|||
|
|
00571600
00571600
|
|||
|
|
06545400
06545400
|
|||
|
|
06308600
06308600
|
|||
|
|
06439100
06439100
|
|||
|
|
05960600
05960600
|
|||
|
|
02202900
02202900
|
|||
|
|
06219400
06219400
|
|||
|
|
06530400
06530400
|
|||
|
|
06220200
06220200
|
|||
|
|
00389351
00389351
|
|||
|
|
06221300
06221300
|
|||
|
|
06439200
06439200
|
Steering Controls
Steering Controls
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00436800
00436800
|
|||
|
|
02493000
02493000
|
|||
|
|
00292100
00292100
|
|||
|
|
00437800
00437800
|
|||
|
|
01591100
01591100
|
|||
|
|
00437051
00437051
|
|||
|
|
03652200
03652200
|
|||
|
|
00388051
00388051
|
|||
|
|
07533300
07533300
|
|||
|
|
00364900
00364900
|
|||
|
|
00372300
00372300
|
|||
|
|
00354951
00354951
|
|||
|
|
01570000
01570000
|
|||
|
|
09273400
09273400
|
|||
|
|
01554800
01554800
|
|||
|
|
06537500
06537500
|
|||
|
|
01533400
01533400
|
|||
|
|
03679000
03679000
|
|||
|
|
07411600
07411600
|
|||
|
|
05957400
05957400
|
|||
|
|
06545400
06545400
|
|||
|
|
05947000
05947000
|
|||
|
|
06545400
06545400
|
|||
|
|
05958300
05958300
|
|||
|
|
06534900
06534900
|
|||
|
|
06714800
06714800
|
|||
|
|
06308600
06308600
|
|||
|
|
06536100
06536100
|
|||
|
|
06543100
06543100
|
|||
|
|
05900018
05900018
|
Transaxle, Dump Valves And Rear Wheels
Transaxle, Dump Valves And Rear Wheels
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00348100
00348100
|
|||
|
|
00348000
00348000
|
|||
|
|
00361351
00361351
|
|||
|
|
06545400
06545400
|
|||
|
|
00395051
00395051
|
|||
|
|
00348200
00348200
|
|||
|
|
00348300
00348300
|
|||
|
|
06713500
06713500
|
|||
|
|
01588700
01588700
|
|||
|
|
07159800
07159800
|
|||
|
|
06535000
06535000
|
|||
|
|
07026400
07026400
|
|||
|
|
07026300
07026300
|
|||
|
|
01543100
01543100
|
|||
|
|
05946900
05946900
|
|||
|
|
05960600
05960600
|
|||
|
|
06439100
06439100
|
Transmission, LH - 00348100
Transmission, LH - 00348100
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21543985
21543985
|
|||
|
|
21548913
21548913
|
|||
|
|
21543921
21543921
|
|||
|
|
21543870
21543870
|
|||
|
|
21543889
21543889
|
|||
|
|
27105900
27105900
|
|||
|
|
21543844
21543844
|
|||
|
|
21543783
21543783
|
|||
|
|
08611200
08611200
|
|||
|
|
08621500
08621500
|
|||
|
|
08609400
08609400
|
|||
|
|
21543785
21543785
|
|||
|
|
21543738
21543738
|
|||
|
|
21543773
21543773
|
|||
|
|
08609100
08609100
|
|||
|
|
21543708
21543708
|
|||
|
|
21543704
21543704
|
|||
|
|
21543807
21543807
|
|||
|
|
21543849
21543849
|
|||
|
|
21543788
21543788
|
|||
|
|
21543724
21543724
|
|||
|
|
21543806
21543806
|
|||
|
|
21543781
21543781
|
|||
|
|
21543793
21543793
|
|||
|
|
21543935
21543935
|
|||
|
|
21543987
21543987
|
|||
|
|
21543736
21543736
|
|||
|
|
00951000
00951000
|
|||
|
|
21543771
21543771
|
|||
|
|
21543937
21543937
|
|||
|
|
21543958
21543958
|
|||
|
|
21543851
21543851
|
|||
|
|
21543876
21543876
|
|||
|
|
21543867
21543867
|
|||
|
|
21544009
21544009
|
Transmission, RH - 00348000
Transmission, RH - 00348000
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21543985
21543985
|
|||
|
|
21548912
21548912
|
|||
|
|
21543921
21543921
|
|||
|
|
21543870
21543870
|
|||
|
|
21543889
21543889
|
|||
|
|
27105900
27105900
|
|||
|
|
21543844
21543844
|
|||
|
|
21543783
21543783
|
|||
|
|
08611200
08611200
|
|||
|
|
08621500
08621500
|
|||
|
|
08609400
08609400
|
|||
|
|
21543785
21543785
|
|||
|
|
21543738
21543738
|
|||
|
|
21543773
21543773
|
|||
|
|
08609100
08609100
|
|||
|
|
21543708
21543708
|
|||
|
|
21543704
21543704
|
|||
|
|
21543807
21543807
|
|||
|
|
21543849
21543849
|
|||
|
|
21543788
21543788
|
|||
|
|
21543724
21543724
|
|||
|
|
21543806
21543806
|
|||
|
|
21543781
21543781
|
|||
|
|
21543793
21543793
|
|||
|
|
21543935
21543935
|
|||
|
|
21543988
21543988
|
|||
|
|
21543736
21543736
|
|||
|
|
00951000
00951000
|
|||
|
|
21543771
21543771
|
|||
|
|
21543937
21543937
|
|||
|
|
21543958
21543958
|
|||
|
|
21543851
21543851
|
|||
|
|
21544061
21544061
|
|||
|
|
21543876
21543876
|
|||
|
|
21543866
21543866
|
|||
|
|
21544009
21544009
|
Wiring Diagram
| Sequence Number | Image | Product | Price | Add to cart |
|---|
