Ariens 932302 ST524, 5hp Tec., 24" Blower Parts Diagram
Diagrams:
Diagram:

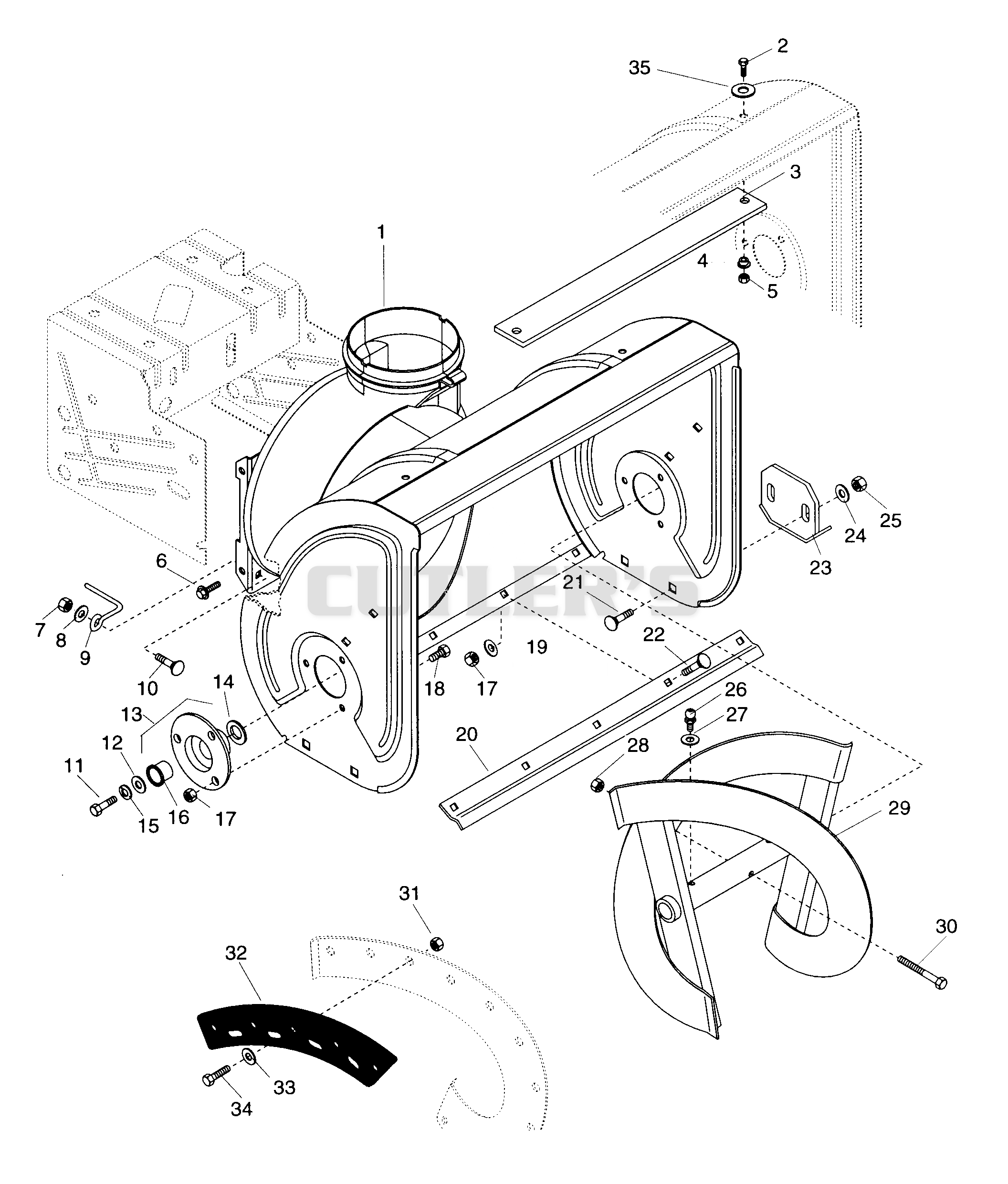

Auger/Impeller Housing
Auger/Impeller Housing
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
53203600
53203600
|
|||
|
|
53203700
53203700
|
|||
|
|
05913400
05913400
|
|||
|
|
03233500
03233500
|
|||
|
|
05521700
05521700
|
|||
|
|
06504200
06504200
|
|||
|
|
07401400
07401400
|
|||
|
|
06506200
06506200
|
|||
|
|
06409000
06409000
|
|||
|
|
03234300
03234300
|
|||
|
|
06204100
06204100
|
|||
|
|
05900200
05900200
|
|||
|
|
06412800
06412800
|
|||
|
|
53203100
53203100
|
|||
|
|
06400900
06400900
|
|||
|
|
06300300
06300300
|
|||
|
|
05503900
05503900
|
|||
|
|
06505600
06505600
|
|||
|
|
07005800
07005800
|
|||
|
|
06412700
06412700
|
|||
|
|
03208100
03208100
|
|||
|
|
03707200
03707200
|
|||
|
|
06201000
06201000
|
|||
|
|
06208600
06208600
|
|||
|
|
06205300
06205300
|
|||
|
|
02459900
02459900
|
|||
|
|
06400200
06400200
|
|||
|
|
06503900
06503900
|
|||
|
|
07012600
07012600
|
|||
|
|
06409400
06409400
|
|||
|
|
06504000
06504000
|
|||
|
|
53201600
53201600
|
|||
|
|
53201700
53201700
|
|||
|
|
53204100
53204100
|
|||
|
|
53204200
53204200
|
|||
|
|
53200500
53200500
|
|||
|
|
06504100
06504100
|
|||
|
|
53201800
53201800
|
|||
|
|
06406800
06406800
|
|||
|
|
06107400
06107400
|
|||
|
|
06413000
06413000
|

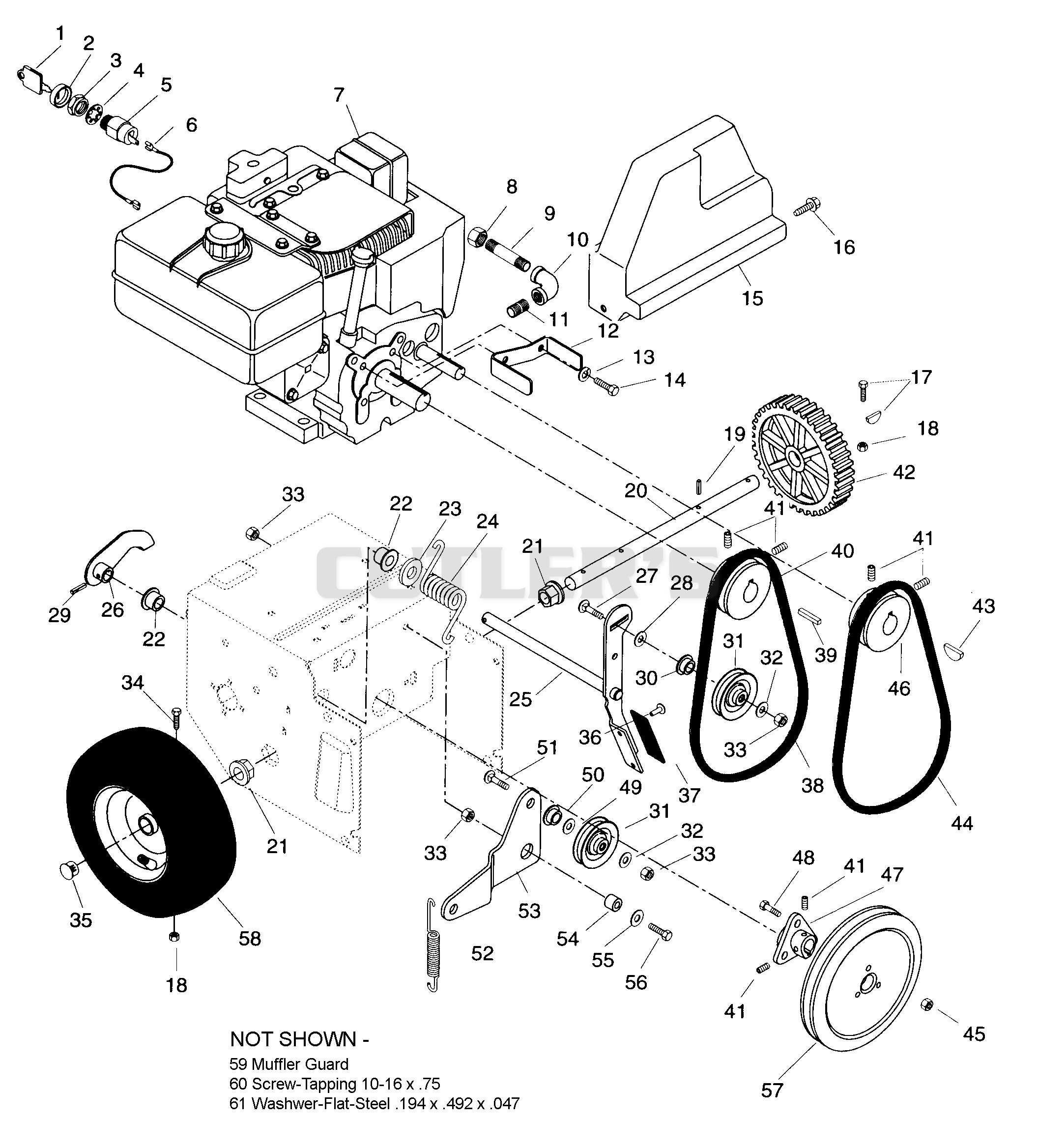

Belt Drive
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
02460700
02460700
|
|||
|
|
07517700
07517700
|
|||
|
|
06517300
06517300
|
|||
|
|
06301900
06301900
|
|||
|
|
03216800
03216800
|
|||
|
|
03222400
03222400
|
|||
|
|
08228800
08228800
|
|||
|
|
02520800
02520800
|
|||
|
|
01222200
01222200
|
|||
|
|
01048500
01048500
|
|||
|
|
02520700
02520700
|
|||
|
|
03229000
03229000
|
|||
|
|
03228900
03228900
|
|||
|
|
03233300
03233300
|
|||
|
|
06300300
06300300
|
|||
|
|
05905300
05905300
|
|||
|
|
03232300
03232300
|
|||
|
|
07401500
07401500
|
|||
|
|
05923300
05923300
|
|||
|
|
06601200
06601200
|
|||
|
|
06507000
06507000
|
|||
|
|
06507000
06507000
|
|||
|
|
05800300
05800300
|
|||
|
|
03235800
03235800
|
|||
|
|
03233000
03233000
|
|||
|
|
05521600
05521600
|
|||
|
|
05503700
05503700
|
|||
|
|
06410400
06410400
|
|||
|
|
08322000
08322000
|
|||
|
|
53205100
53205100
|
|||
|
|
03231900
03231900
|
|||
|
|
06202200
06202200
|
|||
|
|
06409000
06409000
|
|||
|
|
05802600
05802600
|
|||
|
|
01213100
01213100
|
|||
|
|
02457400
02457400
|
|||
|
|
06400200
06400200
|
|||
|
|
06504200
06504200
|
|||
|
|
05919100
05919100
|
|||
|
|
07506700
07506700
|
|||
|
|
06806700
06806700
|
|||
|
|
03229100
03229100
|
|||
|
|
07219100
07219100
|
|||
|
|
07219200
07219200
|
|||
|
|
06601300
06601300
|
|||
|
|
03225000
03225000
|
|||
|
|
03229200
03229200
|
|||
|
|
06005500
06005500
|
|||
|
|
03226000
03226000
|
|||
|
|
01021100
01021100
|
|||
|
|
06601500
06601500
|
|||
|
|
07210600
07210600
|
|||
|
|
07215700
07215700
|
|||
|
|
07225200
07225200
|
|||
|
|
06507800
06507800
|
|||
|
|
03228400
03228400
|
|||
|
|
03224900
03224900
|
|||
|
|
03232700
03232700
|
|||
|
|
03205000
03205000
|
|||
|
|
07005300
07005300
|
|||
|
|
06403800
06403800
|
|||
|
|
01305900
01305900
|
|||
|
|
06209600
06209600
|
|||
|
|
08317200
08317200
|
|||
|
|
03206900
03206900
|
|||
|
|
01035800
01035800
|
|||
|
|
06412800
06412800
|
|||
|
|
05900200
05900200
|
|||
|
|
07307400
07307400
|
|||
|
|
07105000
07105000
|
|||
|
|
07124400
07124400
|
|||
|
|
07121300
07121300
|
|||
|
|
07124200
07124200
|
|||
|
|
03227000
03227000
|
|||
|
|
03227100
03227100
|
|||
|
|
07403300
07403300
|
|||
|
|
06406800
06406800
|
|||
|
|
06301100
06301100
|

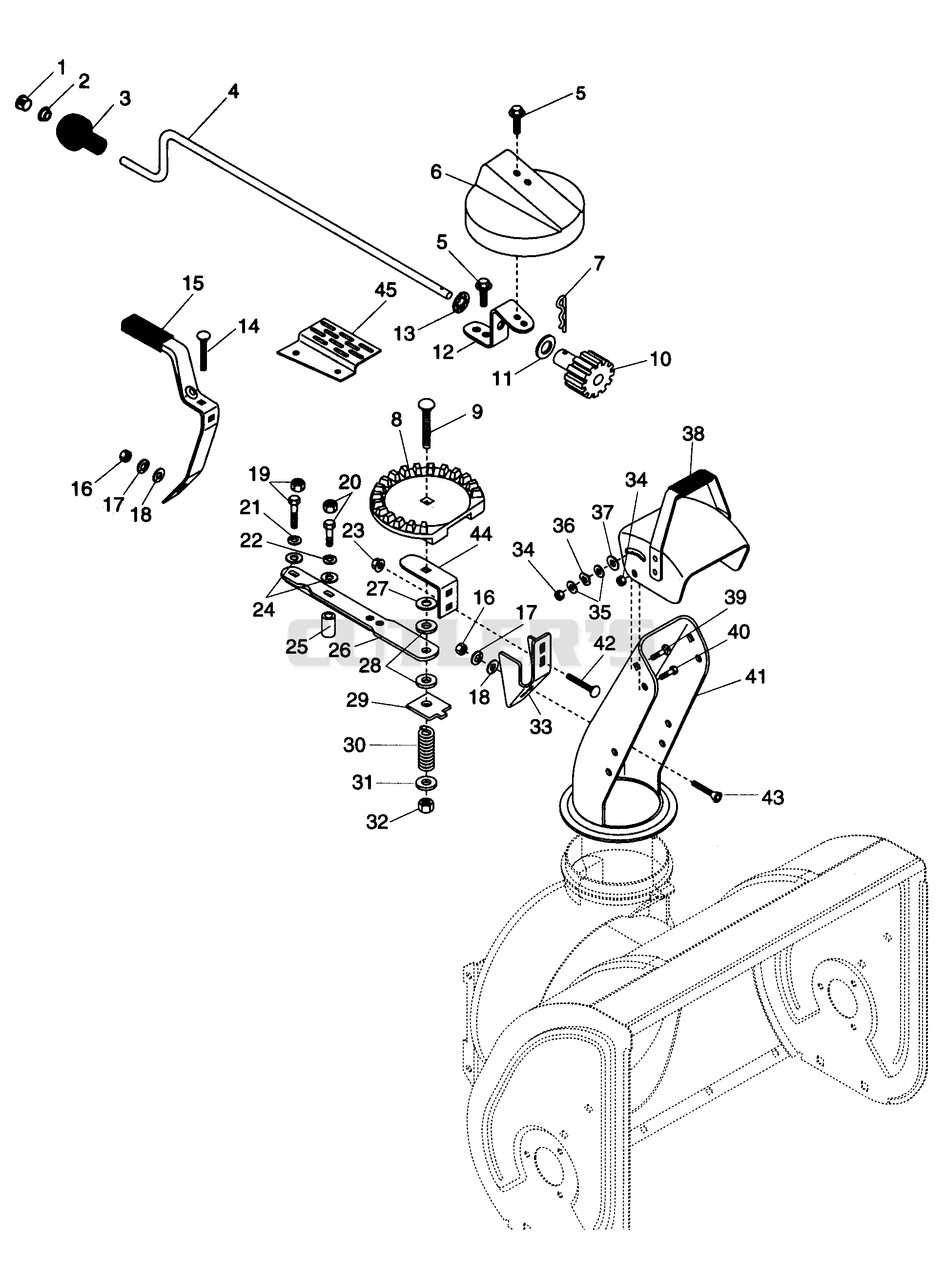

Discharge Chute
Discharge Chute
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
07516700
07516700
|
|||
|
|
05711300
05711300
|
|||
|
|
07508300
07508300
|
|||
|
|
03228600
03228600
|
|||
|
|
07405200
07405200
|
|||
|
|
03223000
03223000
|
|||
|
|
06701000
06701000
|
|||
|
|
03222900
03222900
|
|||
|
|
06200500
06200500
|
|||
|
|
03223900
03223900
|
|||
|
|
06403900
06403900
|
|||
|
|
03220500
03220500
|
|||
|
|
03224300
03224300
|
|||
|
|
06203200
06203200
|
|||
|
|
03218800
03218800
|
|||
|
|
06503200
06503200
|
|||
|
|
06300200
06300200
|
|||
|
|
06404400
06404400
|
|||
|
|
05900200
05900200
|
|||
|
|
05913400
05913400
|
|||
|
|
06501500
06501500
|
|||
|
|
06504200
06504200
|
|||
|
|
05905000
05905000
|
|||
|
|
05913400
05913400
|
|||
|
|
06501500
06501500
|
|||
|
|
06504200
06504200
|
|||
|
|
06300300
06300300
|
|||
|
|
06300200
06300200
|
|||
|
|
06300300
06300300
|
|||
|
|
06505600
06505600
|
|||
|
|
06409000
06409000
|
|||
|
|
03221800
03221800
|
|||
|
|
03217300
03217300
|
|||
|
|
03233600
03233600
|
|||
|
|
03214200
03214200
|
|||
|
|
03220400
03220400
|
|||
|
|
03224600
03224600
|
|||
|
|
03233200
03233200
|
|||
|
|
06406100
06406100
|
|||
|
|
01123800
01123800
|
|||
|
|
03215500
03215500
|
|||
|
|
03219000
03219000
|
|||
|
|
08320900
08320900
|
|||
|
|
06404300
06404300
|
|||
|
|
06503900
06503900
|
|||
|
|
03220300
03220300
|
|||
|
|
06504200
06504200
|
|||
|
|
06405700
06405700
|
|||
|
|
01320200
01320200
|
|||
|
|
06416800
06416800
|
|||
|
|
53201300
53201300
|
|||
|
|
06203400
06203400
|
|||
|
|
05903900
05903900
|
|||
|
|
03219800
03219800
|
|||
|
|
03214400
03214400
|
|||
|
|
06201700
06201700
|
|||
|
|
05927300
05927300
|
|||
|
|
03220700
03220700
|
|||
|
|
03230400
03230400
|

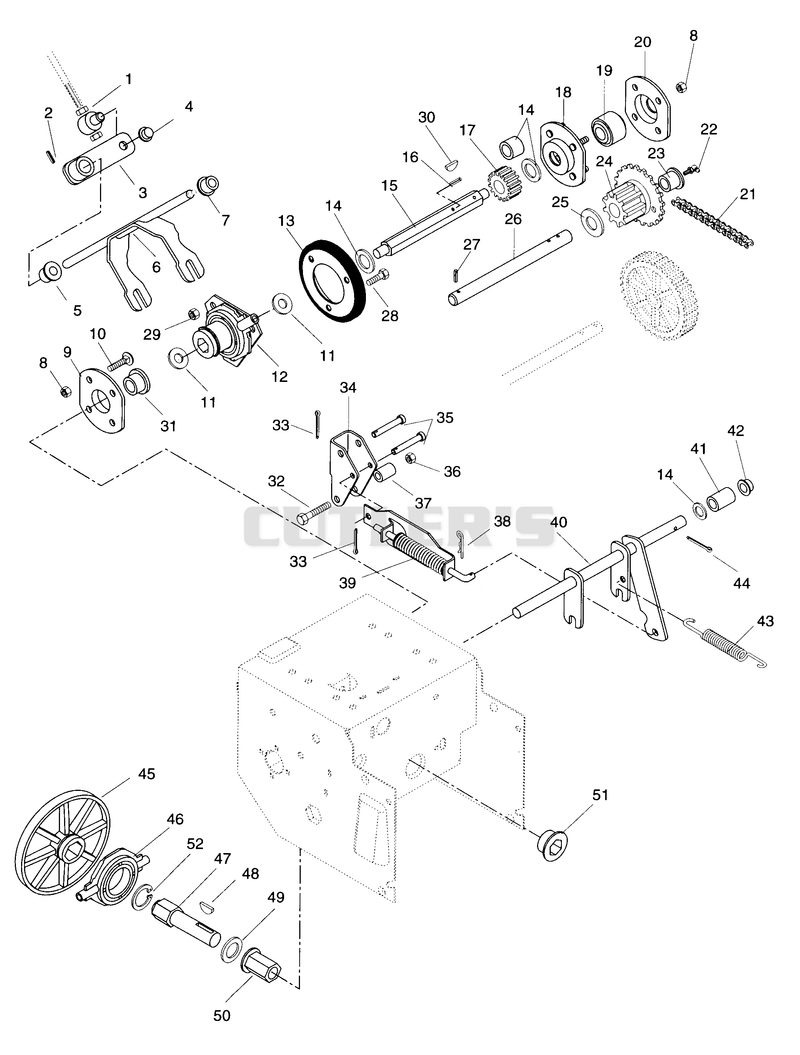

Friction Drive
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
01124100
01124100
|
|||
|
|
05802600
05802600
|
|||
|
|
03231800
03231800
|
|||
|
|
01019800
01019800
|
|||
|
|
05503700
05503700
|
|||
|
|
03231700
03231700
|
|||
|
|
05514500
05514500
|
|||
|
|
06509400
06509400
|
|||
|
|
03201400
03201400
|
|||
|
|
06204900
06204900
|
|||
|
|
06405800
06405800
|
|||
|
|
03235300
03235300
|
|||
|
|
02201300
02201300
|
|||
|
|
06400300
06400300
|
|||
|
|
03233100
03233100
|
|||
|
|
03207300
03207300
|
|||
|
|
03232900
03232900
|
|||
|
|
05804700
05804700
|
|||
|
|
02201100
02201100
|
|||
|
|
01027600
01027600
|
|||
|
|
00308500
00308500
|
|||
|
|
05408000
05408000
|
|||
|
|
03226900
03226900
|
|||
|
|
03232800
03232800
|
|||
|
|
01313600
01313600
|
|||
|
|
05502600
05502600
|
|||
|
|
53205400
53205400
|
|||
|
|
06403900
06403900
|
|||
|
|
03232600
03232600
|
|||
|
|
05800900
05800900
|
|||
|
|
05902800
05902800
|
|||
|
|
06504000
06504000
|
|||
|
|
06601500
06601500
|
|||
|
|
05511000
05511000
|
|||
|
|
05904500
05904500
|
|||
|
|
06703400
06703400
|
|||
|
|
03220600
03220600
|
|||
|
|
00283500
00283500
|
|||
|
|
06504200
06504200
|
|||
|
|
03222500
03222500
|
|||
|
|
06702000
06702000
|
|||
|
|
53205500
53205500
|
|||
|
|
03221100
03221100
|
|||
|
|
03231500
03231500
|
|||
|
|
01208600
01208600
|
|||
|
|
08314100
08314100
|
|||
|
|
06700400
06700400
|
|||
|
|
03201100
03201100
|
|||
|
|
03225900
03225900
|
|||
|
|
03200700
03200700
|
|||
|
|
06600300
06600300
|
|||
|
|
06417300
06417300
|
|||
|
|
05512000
05512000
|
|||
|
|
05512100
05512100
|
|||
|
|
05704300
05704300
|

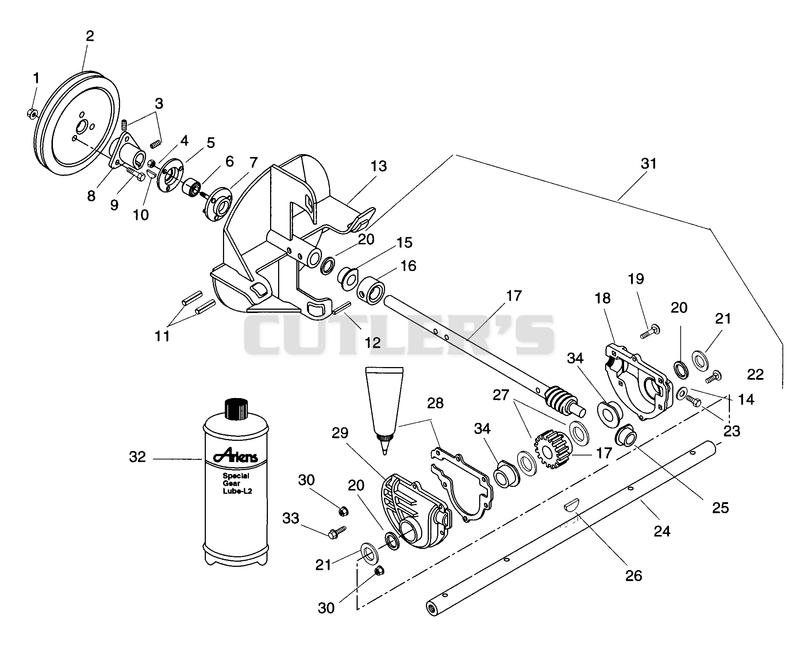

Gearcase And Impeller
Gearcase And Impeller
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
06507800
06507800
|
|||
|
|
07316359
07316359
|
|||
|
|
07310359
07310359
|
|||
|
|
06005500
06005500
|
|||
|
|
06504000
06504000
|
|||
|
|
01014200
01014200
|
|||
|
|
05406300
05406300
|
|||
|
|
00301700
00301700
|
|||
|
|
00286200
00286200
|
|||
|
|
07005300
07005300
|
|||
|
|
06600100
06600100
|
|||
|
|
05800700
05800700
|
|||
|
|
05804500
05804500
|
|||
|
|
03204000
03204000
|
|||
|
|
06442500
06442500
|
|||
|
|
05511200
05511200
|
|||
|
|
03210300
03210300
|
|||
|
|
53200100
53200100
|
|||
|
|
03235600
03235600
|
|||
|
|
06200100
06200100
|
|||
|
|
05618900
05618900
|
|||
|
|
06400900
06400900
|
|||
|
|
06205400
06205400
|
|||
|
|
07401600
07401600
|
|||
|
|
03203600
03203600
|
|||
|
|
03208200
03208200
|
|||
|
|
05511100
05511100
|
|||
|
|
06601400
06601400
|
|||
|
|
06416100
06416100
|
|||
|
|
00031700
00031700
|
|||
|
|
03235700
03235700
|
|||
|
|
06505600
06505600
|
|||
|
|
53206900
53206900
|
|||
|
|
53207100
53207100
|
|||
|
|
00008100
00008100
|
|||
|
|
07402700
07402700
|
|||
|
|
05530000
05530000
|

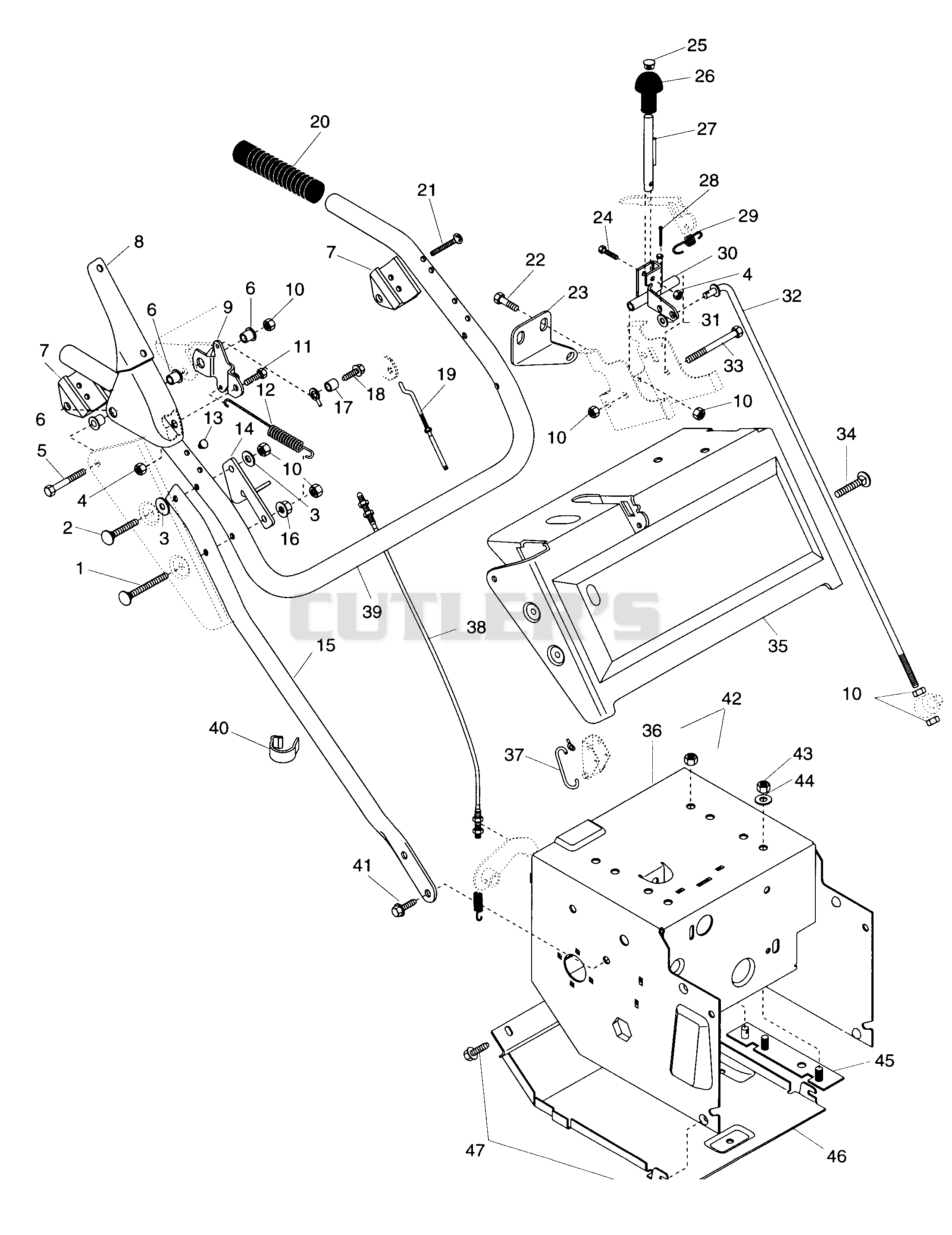

Handlebars And Controls
Handlebars And Controls
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
06205100
06205100
|
|||
|
|
06202300
06202300
|
|||
|
|
06400800
06400800
|
|||
|
|
06504000
06504000
|
|||
|
|
05913100
05913100
|
|||
|
|
05516200
05516200
|
|||
|
|
02464700
02464700
|
|||
|
|
02462100
02462100
|
|||
|
|
03229700
03229700
|
|||
|
|
06504200
06504200
|
|||
|
|
05910400
05910400
|
|||
|
|
08325500
08325500
|
|||
|
|
07511800
07511800
|
|||
|
|
03227900
03227900
|
|||
|
|
03228000
03228000
|
|||
|
|
03228100
03228100
|
|||
|
|
06507800
06507800
|
|||
|
|
03232200
03232200
|
|||
|
|
07404500
07404500
|
|||
|
|
06906800
06906800
|
|||
|
|
07518700
07518700
|
|||
|
|
07403900
07403900
|
|||
|
|
05903900
05903900
|
|||
|
|
03228500
03228500
|
|||
|
|
05913200
05913200
|
|||
|
|
07516700
07516700
|
|||
|
|
07509600
07509600
|
|||
|
|
02444800
02444800
|
|||
|
|
06700100
06700100
|
|||
|
|
08318400
08318400
|
|||
|
|
02462600
02462600
|
|||
|
|
06405700
06405700
|
|||
|
|
03232100
03232100
|
|||
|
|
05919200
05919200
|
|||
|
|
06201800
06201800
|
|||
|
|
53204800
53204800
|
|||
|
|
03231400
03231400
|
|||
|
|
03230100
03230100
|
|||
|
|
06925300
06925300
|
|||
|
|
03227800
03227800
|
|||
|
|
06901200
06901200
|
|||
|
|
07001700
07001700
|
|||
|
|
06506200
06506200
|
|||
|
|
07027600
07027600
|
|||
|
|
06501500
06501500
|
|||
|
|
06528700
06528700
|
|||
|
|
06300300
06300300
|
|||
|
|
03233800
03233800
|
|||
|
|
03234000
03234000
|
|||
|
|
03233900
03233900
|
|||
|
|
03234100
03234100
|
|||
|
|
03232400
03232400
|
|||
|
|
07401500
07401500
|
