Ariens 938017 SS522, 5hp, 22" Single Stage Parts Diagram
Diagrams:
Diagram:

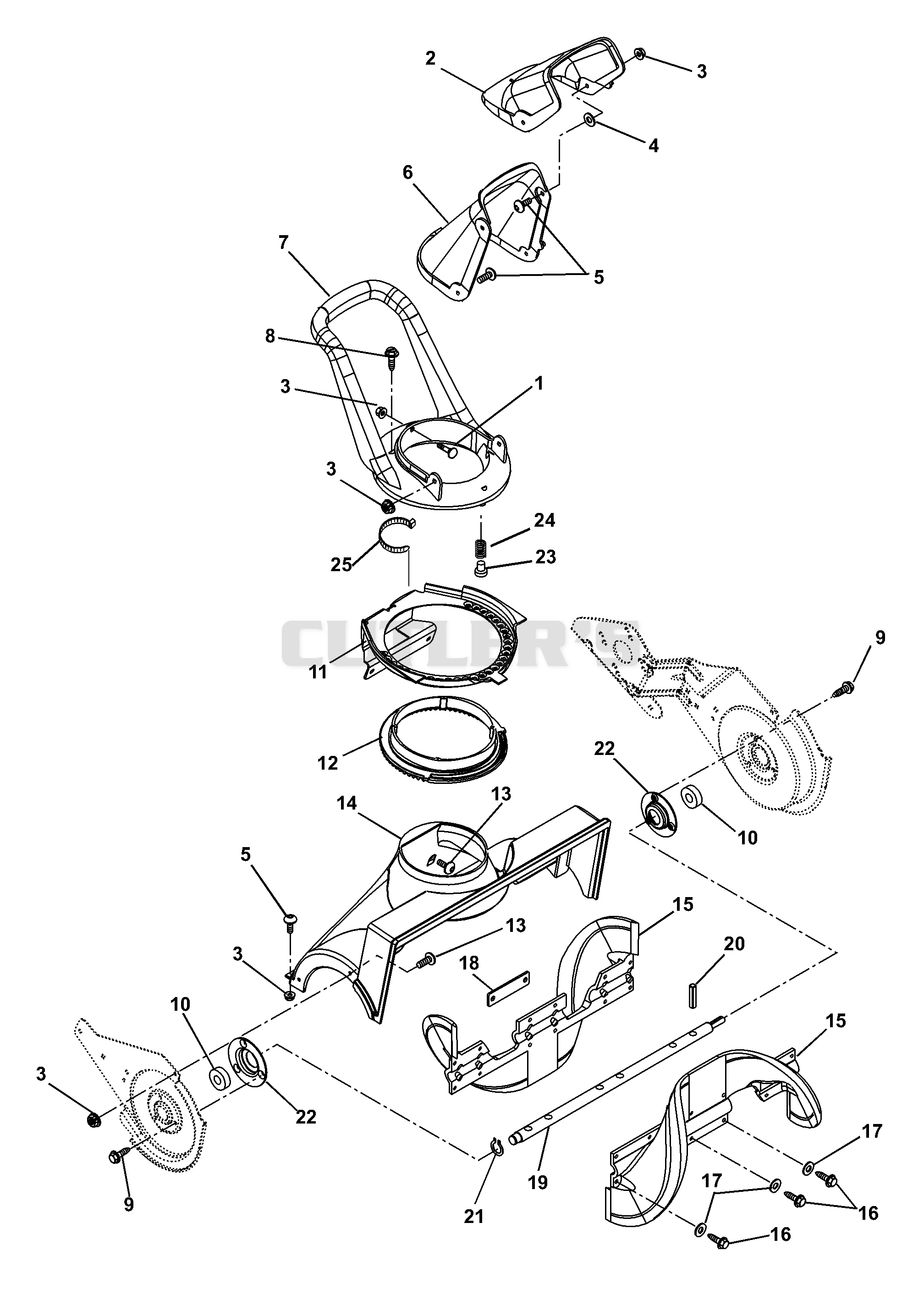

Auger And Discharge Chute
Auger And Discharge Chute
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
06219900
06219900
|
|||
|
|
53800400
53800400
|
|||
|
|
06527600
06527600
|
|||
|
|
06437800
06437800
|
|||
|
|
06114400
06114400
|
|||
|
|
53801700
53801700
|
|||
|
|
03801800
03801800
|
|||
|
|
07409500
07409500
|
|||
|
|
07412000
07412000
|
|||
|
|
05418800
05418800
|
|||
|
|
03801700
03801700
|
|||
|
|
03804000
03804000
|
|||
|
|
06114300
06114300
|
|||
|
|
53800300
53800300
|
|||
|
|
03807000
03807000
|
|||
|
|
07412400
07412400
|
|||
|
|
06426600
06426600
|
|||
|
|
03803000
03803000
|
|||
|
|
03806900
03806900
|
|||
|
|
05809200
05809200
|
|||
|
|
05706100
05706100
|
|||
|
|
03800800
03800800
|
|||
|
|
06816700
06816700
|
|||
|
|
08329800
08329800
|
|||
|
|
07517300
07517300
|

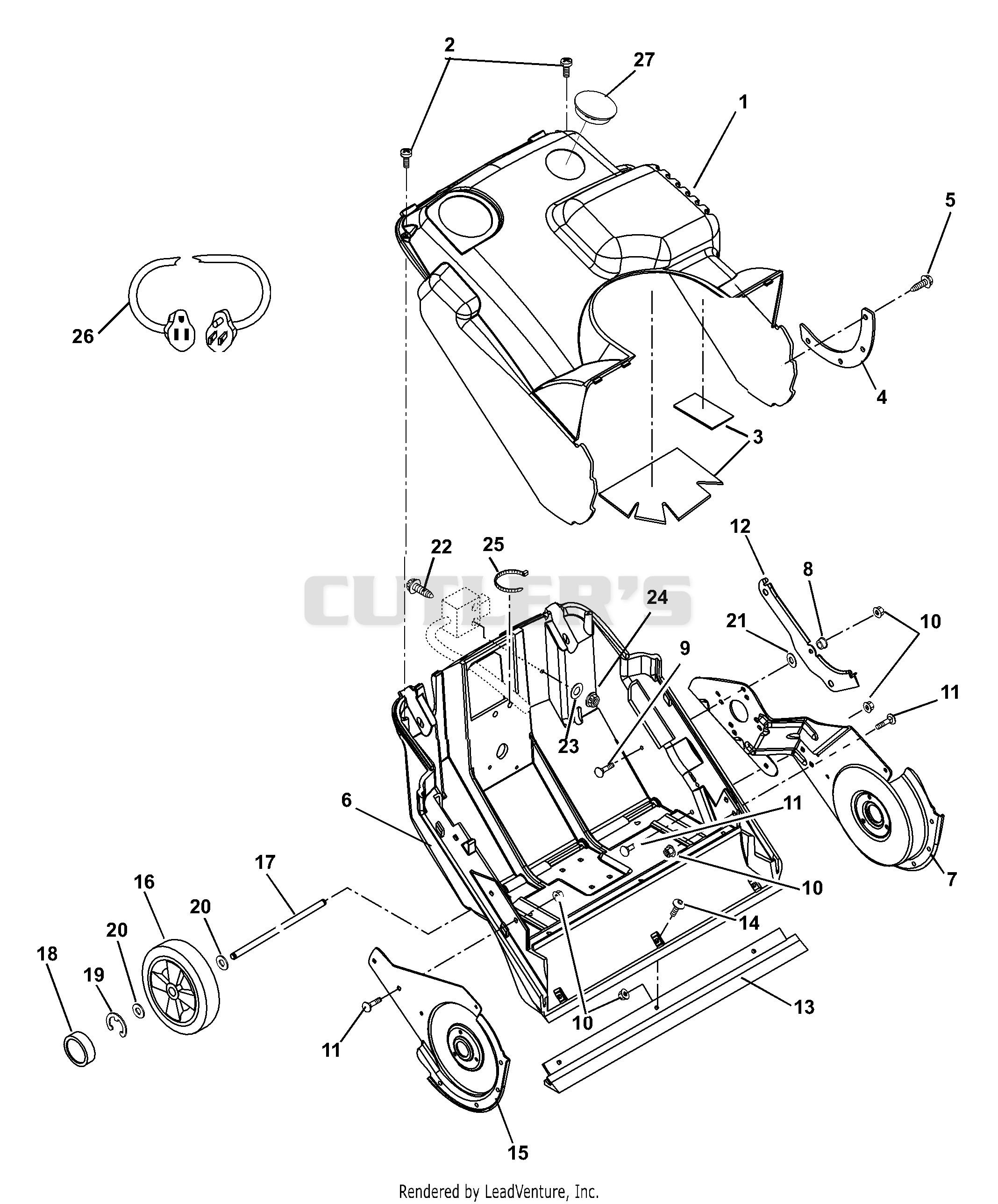

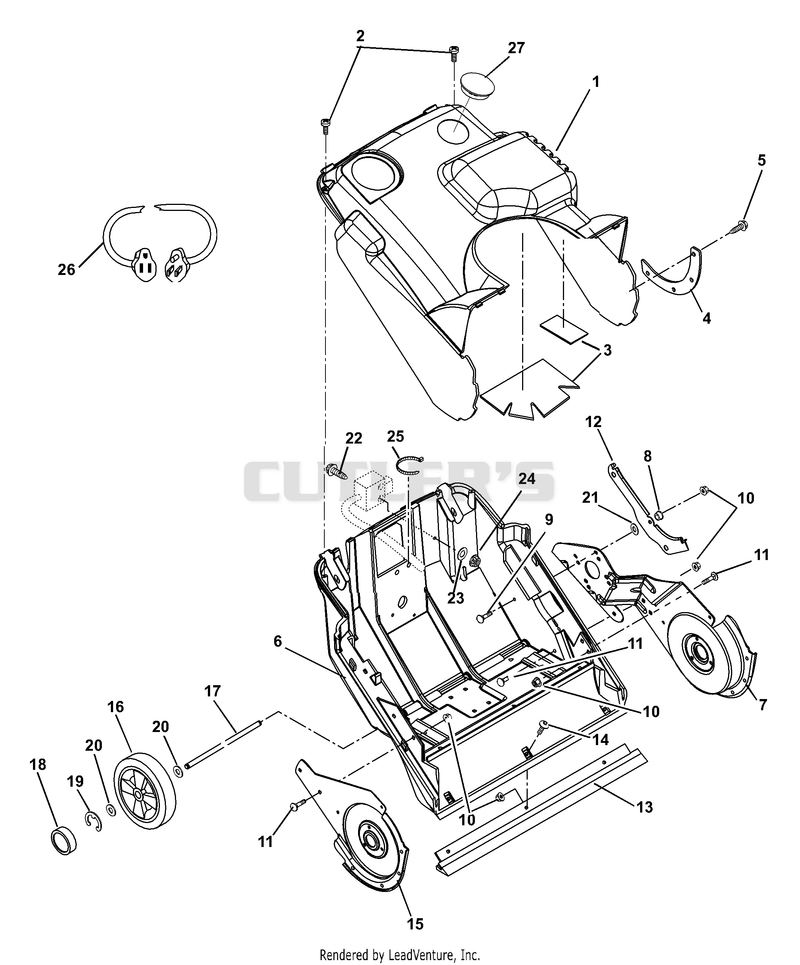

Chassis, Cowl, Wheels And Supports
Chassis, Cowl, Wheels And Supports
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
53801800
53801800
|
|||
|
|
07412300
07412300
|
|||
|
|
03805000
03805000
|
|||
|
|
03810451
03810451
|
|||
|
|
07416800
07416800
|
|||
|
|
03810500
03810500
|
|||
|
|
03807151
03807151
|
|||
|
|
05513400
05513400
|
|||
|
|
06219800
06219800
|
|||
|
|
06527600
06527600
|
|||
|
|
06219900
06219900
|
|||
|
|
03811400
03811400
|
|||
|
|
03813800
03813800
|
|||
|
|
06114400
06114400
|
|||
|
|
03807251
03807251
|
|||
|
|
07139400
07139400
|
|||
|
|
03802300
03802300
|
|||
|
|
03802400
03802400
|
|||
|
|
05710600
05710600
|
|||
|
|
06436200
06436200
|
|||
|
|
06435800
06435800
|
|||
|
|
06116600
06116600
|
|||
|
|
06442700
06442700
|
|||
|
|
06531300
06531300
|
|||
|
|
07517300
07517300
|
|||
|
|
02483100
02483100
|
|||
|
|
07500004
07500004
|

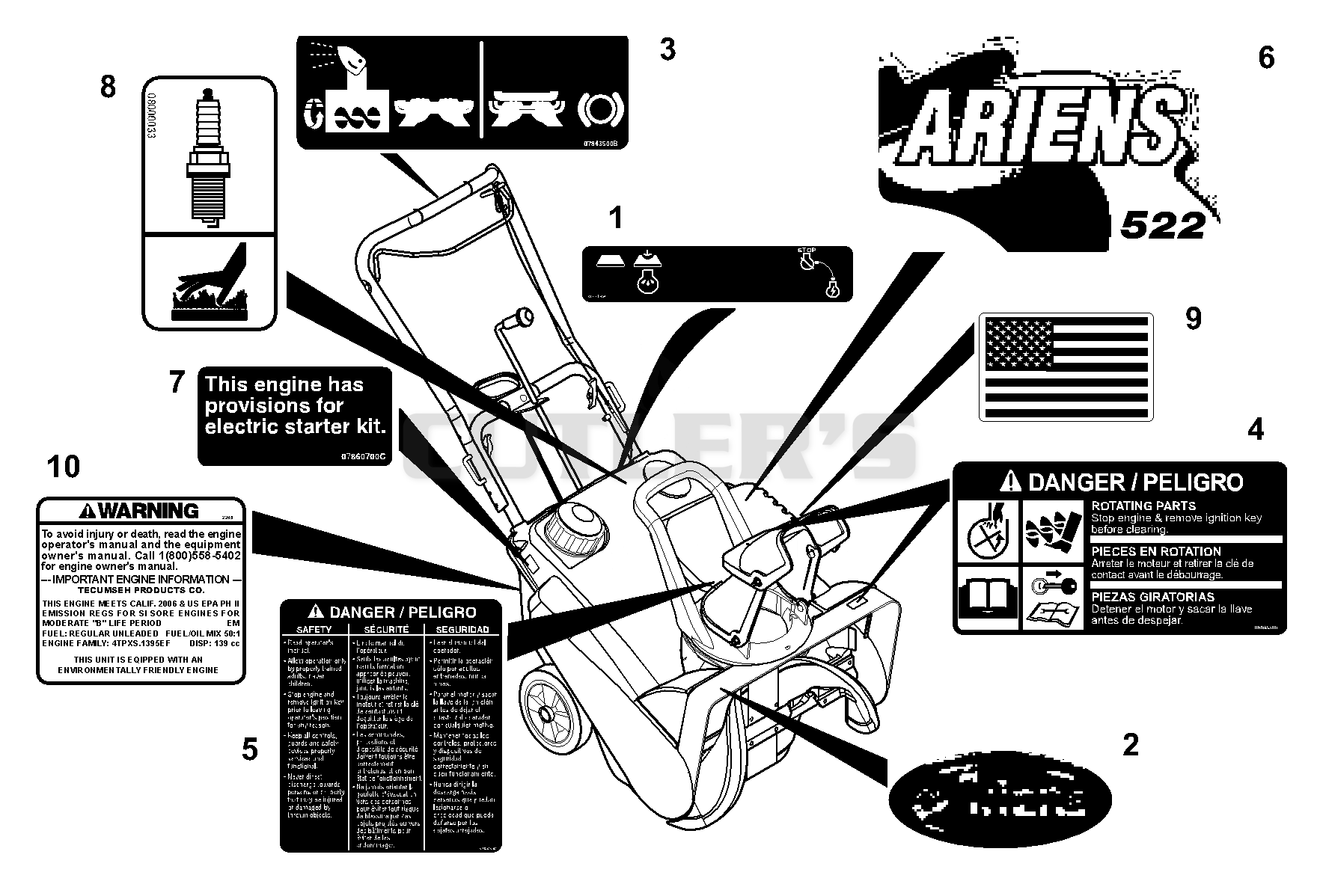

Decals
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
07718200
07718200
|
|||
|
|
05303100
05303100
|
|||
|
|
07843500
07843500
|
|||
|
|
08095500
08095500
|
|||
|
|
07753100
07753100
|
|||
|
|
08000007
08000007
|
|||
|
|
08000008
08000008
|
|||
|
|
07860700
07860700
|
|||
|
|
08000033
08000033
|
|||
|
|
05305100
05305100
|
|||
|
|
03811200
03811200
|

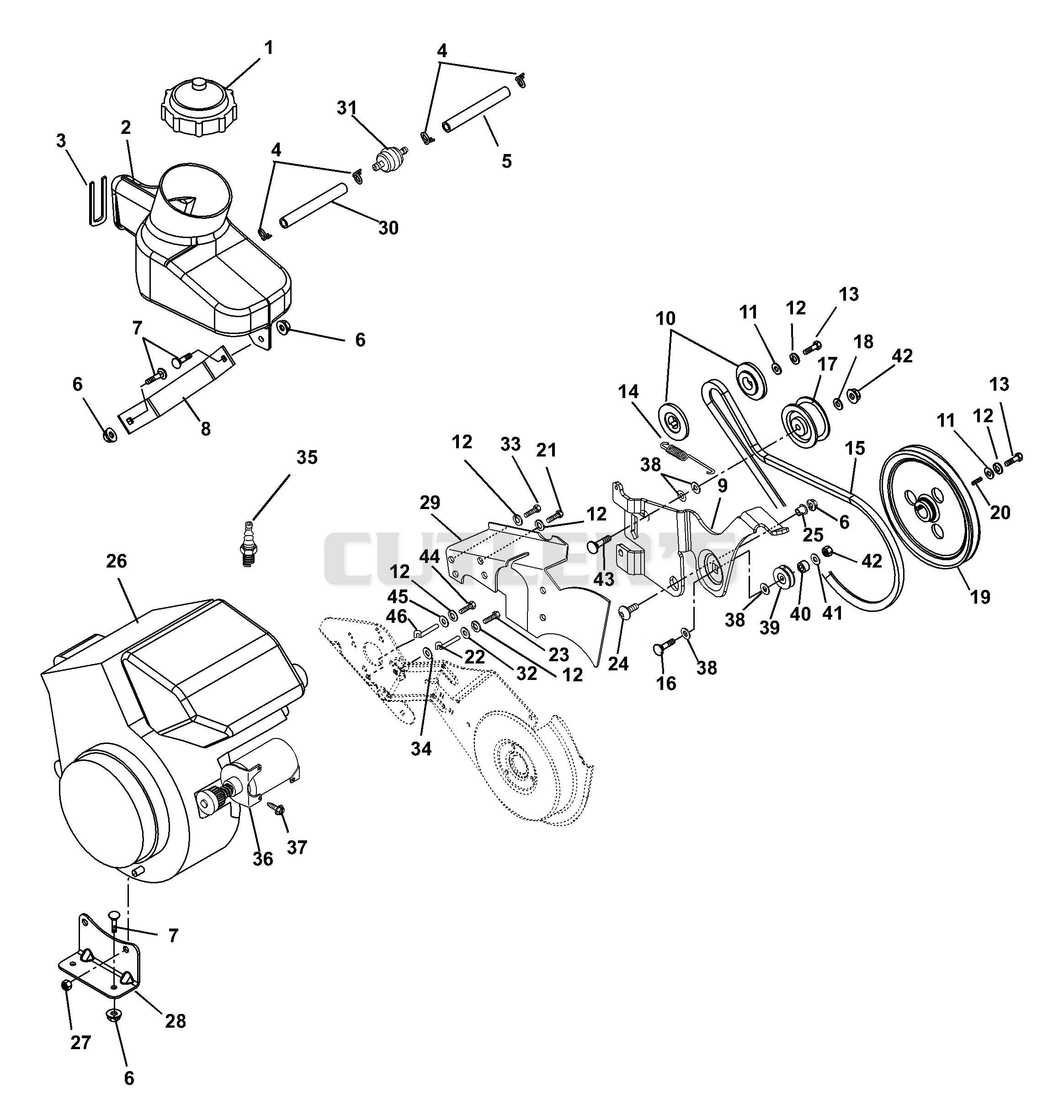

Engine And Drive
Engine And Drive
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
07525300
07525300
|
|||
|
|
53802500
53802500
|
|||
|
|
03807800
03807800
|
|||
|
|
06939100
06939100
|
|||
|
|
03807900
03807900
|
|||
|
|
06527600
06527600
|
|||
|
|
06219900
06219900
|
|||
|
|
03802600
03802600
|
|||
|
|
00443900
00443900
|
|||
|
|
03801200
03801200
|
|||
|
|
06435700
06435700
|
|||
|
|
06307400
06307400
|
|||
|
|
05947300
05947300
|
|||
|
|
08334000
08334000
|
|||
|
|
07236300
07236300
|
|||
|
|
06219800
06219800
|
|||
|
|
07321900
07321900
|
|||
|
|
06426600
06426600
|
|||
|
|
07325900
07325900
|
|||
|
|
06606100
06606100
|
|||
|
|
05933100
05933100
|
|||
|
|
03805500
03805500
|
|||
|
|
05946900
05946900
|
|||
|
|
06114400
06114400
|
|||
|
|
05500033
05500033
|
|||
|
|
08249100
08249100
|
|||
|
|
08264700
08264700
|
|||
|
|
08200134
08200134
|
|||
|
|
06529800
06529800
|
|||
|
|
03801600
03801600
|
|||
|
|
03810751
03810751
|
|||
|
|
03813600
03813600
|
|||
|
|
02910800
02910800
|
|||
|
|
06437200
06437200
|
|||
|
|
05952200
05952200
|
|||
|
|
06307200
06307200
|
|||
|
|
21533600
21533600
|
|||
|
|
03803500
03803500
|
|||
|
|
07029500
07029500
|
|||
|
|
06435700
06435700
|
|||
|
|
00444400
00444400
|
|||
|
|
05500032
05500032
|
|||
|
|
06437300
06437300
|
|||
|
|
06529700
06529700
|
|||
|
|
06200010
06200010
|
|||
|
|
05952200
05952200
|
|||
|
|
05946900
05946900
|
|||
|
|
06437200
06437200
|
|||
|
|
03805500
03805500
|

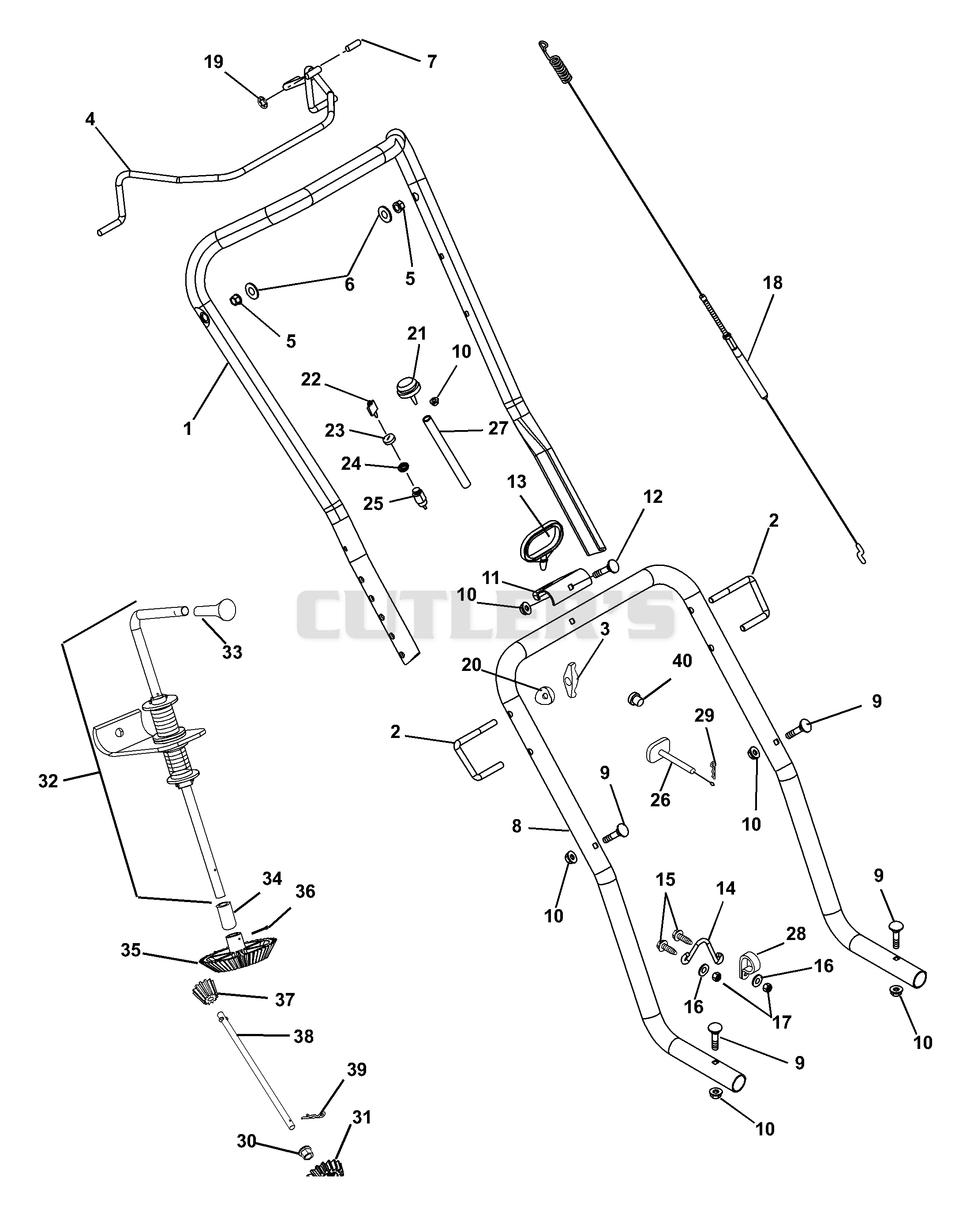

Handlebars And Controls
Handlebars And Controls
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
03804451
03804451
|
|||
|
|
03802700
03802700
|
|||
|
|
07531700
07531700
|
|||
|
|
03809051
03809051
|
|||
|
|
05514500
05514500
|
|||
|
|
06437200
06437200
|
|||
|
|
07517000
07517000
|
|||
|
|
00439951
00439951
|
|||
|
|
06220000
06220000
|
|||
|
|
06527600
06527600
|
|||
|
|
03802900
03802900
|
|||
|
|
06206000
06206000
|
|||
|
|
01157100
01157100
|
|||
|
|
00447500
00447500
|
|||
|
|
06118500
06118500
|
|||
|
|
06442700
06442700
|
|||
|
|
06536000
06536000
|
|||
|
|
06943300
06943300
|
|||
|
|
05717600
05717600
|
|||
|
|
07500005
07500005
|
|||
|
|
07518200
07518200
|
|||
|
|
02460700
02460700
|
|||
|
|
07517700
07517700
|
|||
|
|
06517300
06517300
|
|||
|
|
52406900
52406900
|
|||
|
|
06949200
06949200
|
|||
|
|
03803300
03803300
|
|||
|
|
00539800
00539800
|
|||
|
|
06714800
06714800
|
|||
|
|
05514500
05514500
|
|||
|
|
03804100
03804100
|
|||
|
|
53800100
53800100
|
|||
|
|
07514500
07514500
|
|||
|
|
03803900
03803900
|
|||
|
|
03804300
03804300
|
|||
|
|
06701100
06701100
|
|||
|
|
03804200
03804200
|
|||
|
|
03803600
03803600
|
|||
|
|
06700003
06700003
|
|||
|
|
07527800
07527800
|
