Ariens 988811 - PWKA1636S 36inch Parts Diagram
Diagrams:
Diagram:

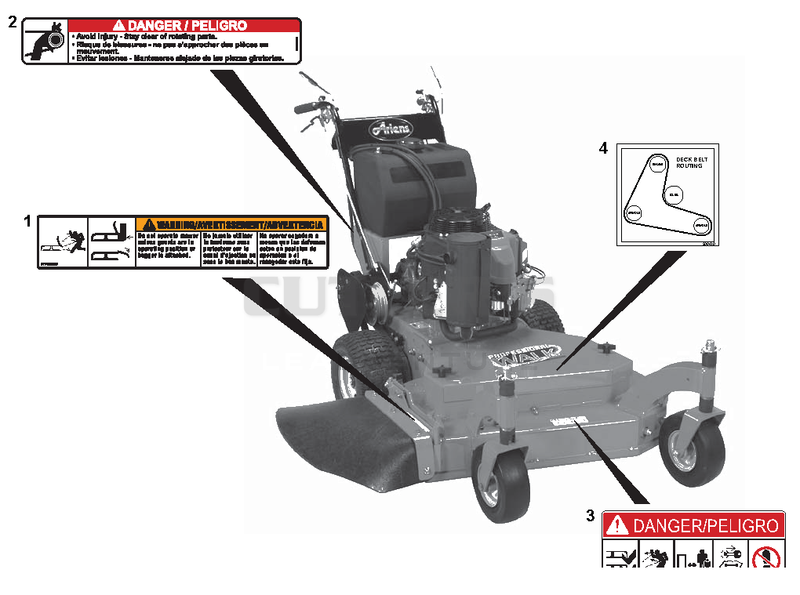

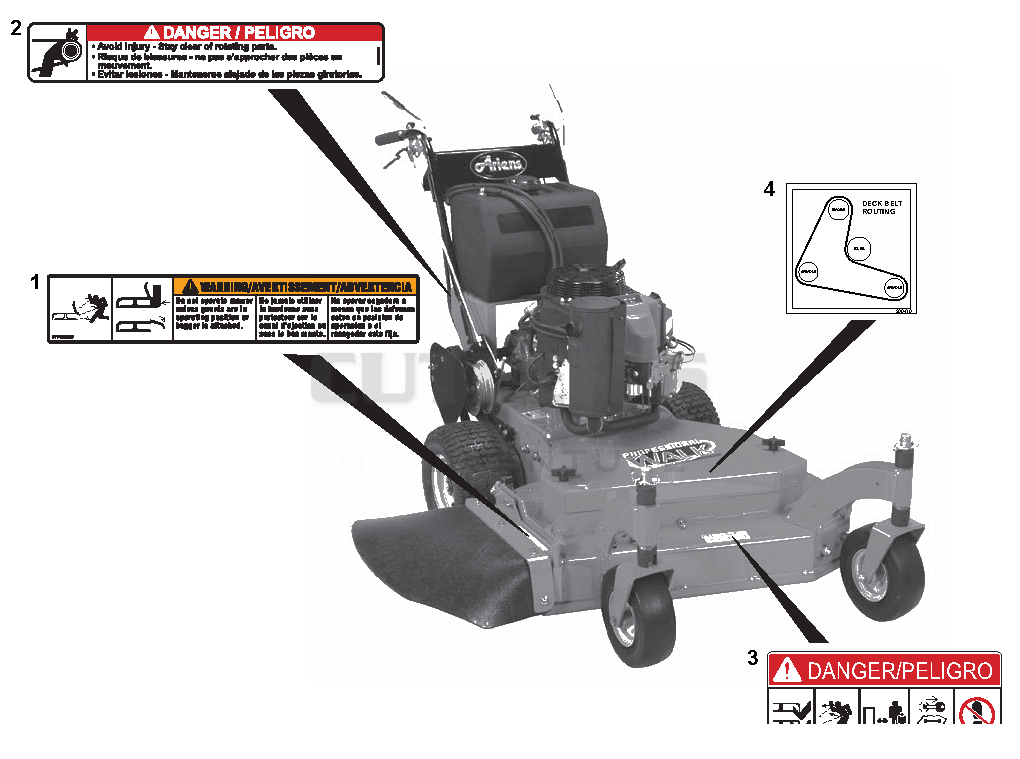

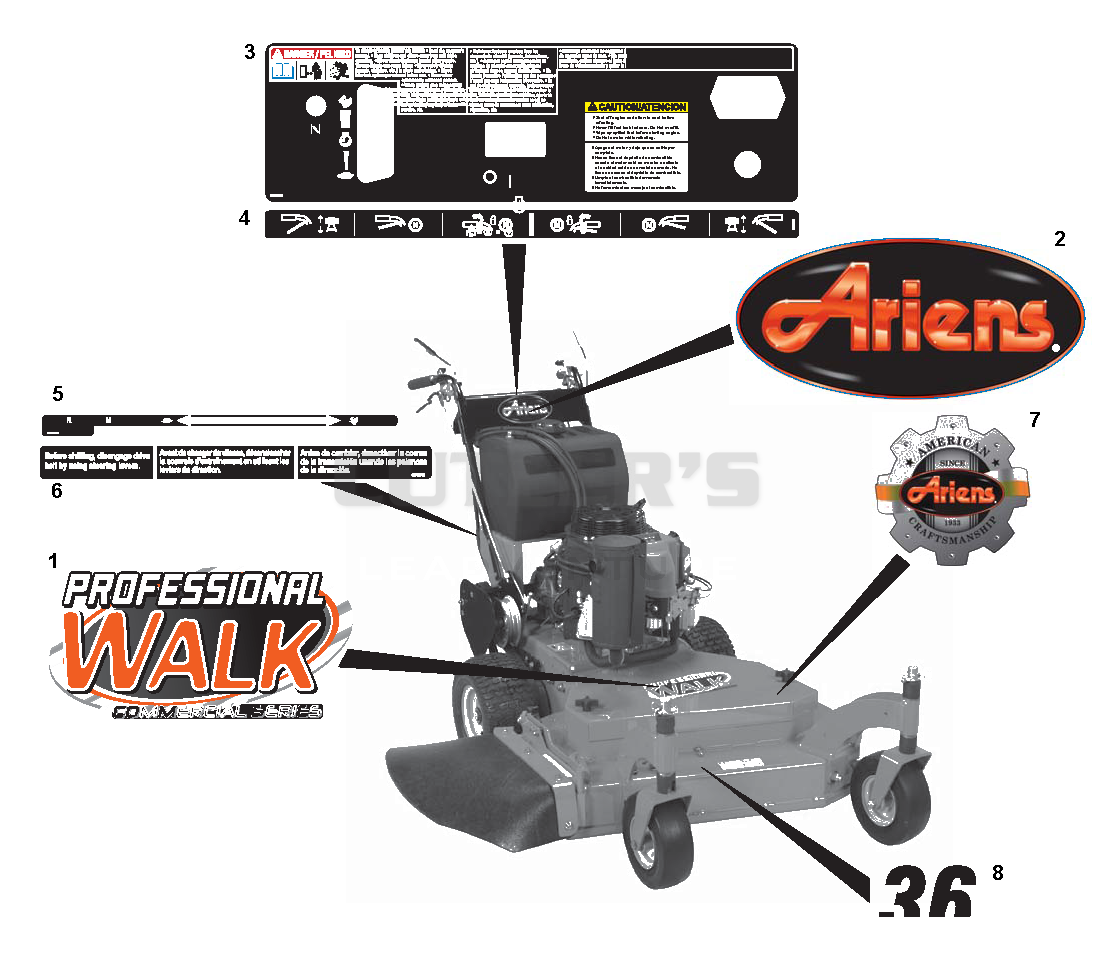

Decals Safety
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
07742300
07742300
|
|||
|
|
05236900
05236900
|
|||
|
|
07731400
07731400
|
|||
|
|
00200470
00200470
|
|||
|
|
00200471
00200471
|

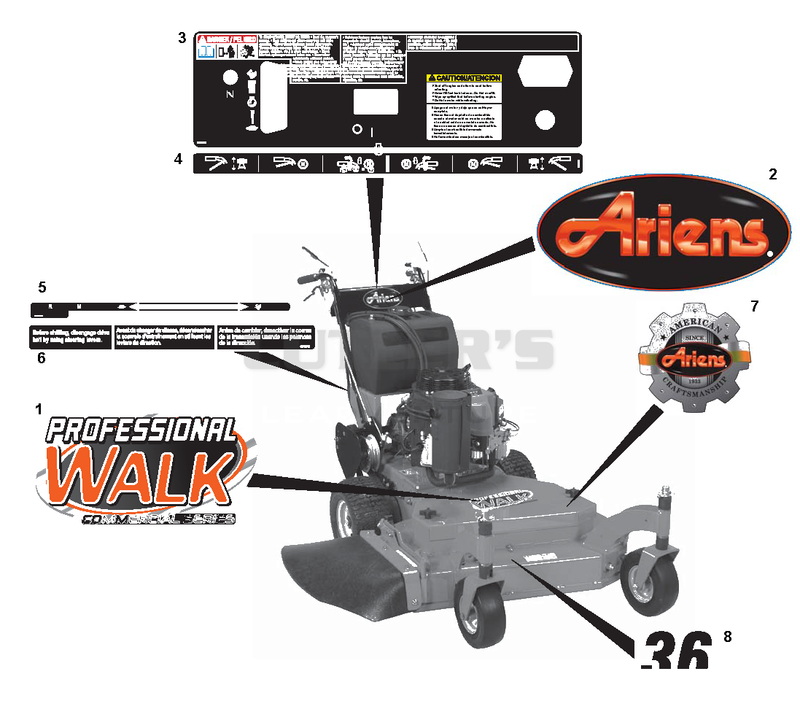

Decals Style
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
04306300
04306300
|
|||
|
|
07800001
07800001
|
|||
|
|
07700022
07700022
|
|||
|
|
05356700
05356700
|
|||
|
|
05237000
05237000
|
|||
|
|
05361500
05361500
|
|||
|
|
04278200
04278200
|

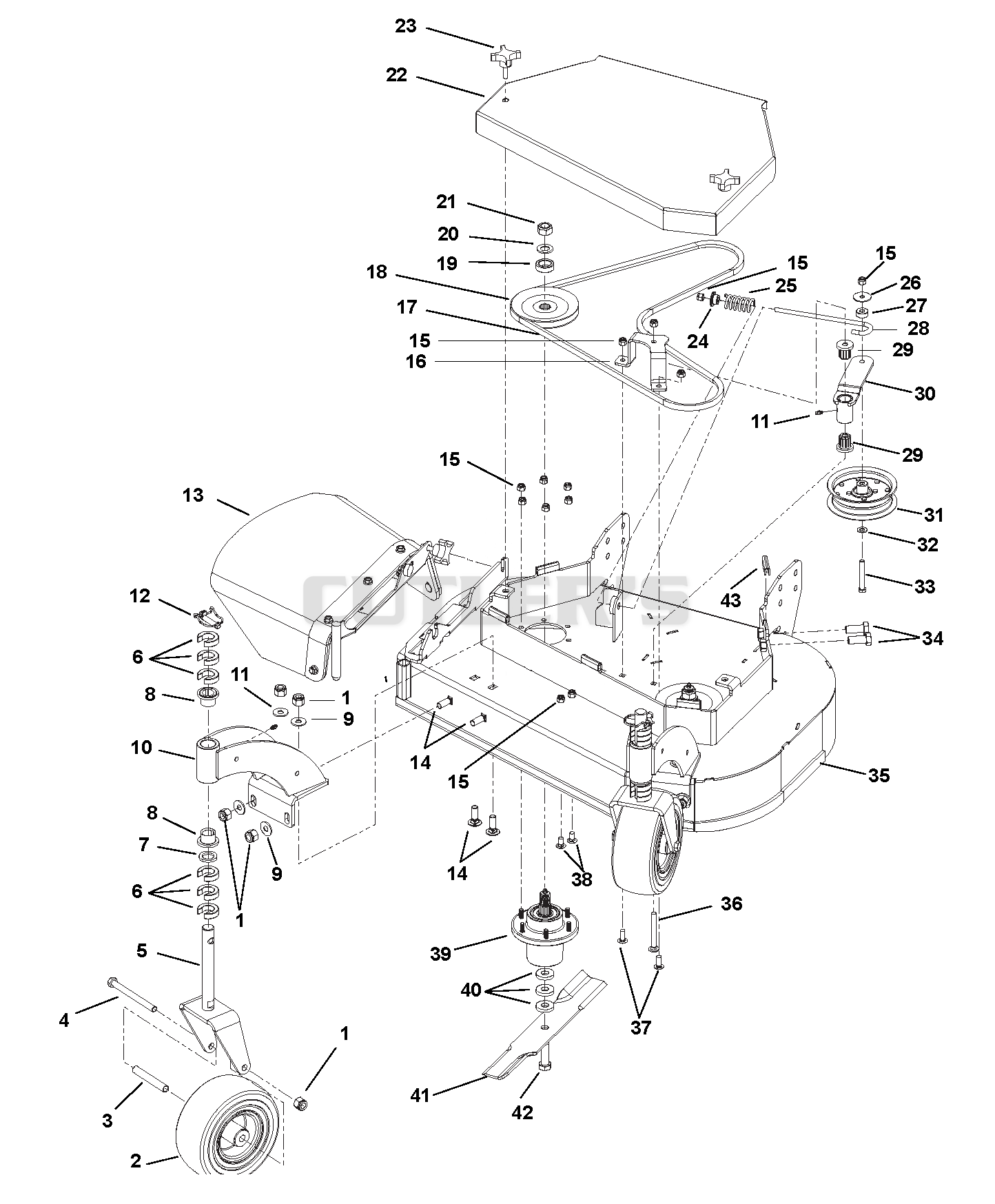

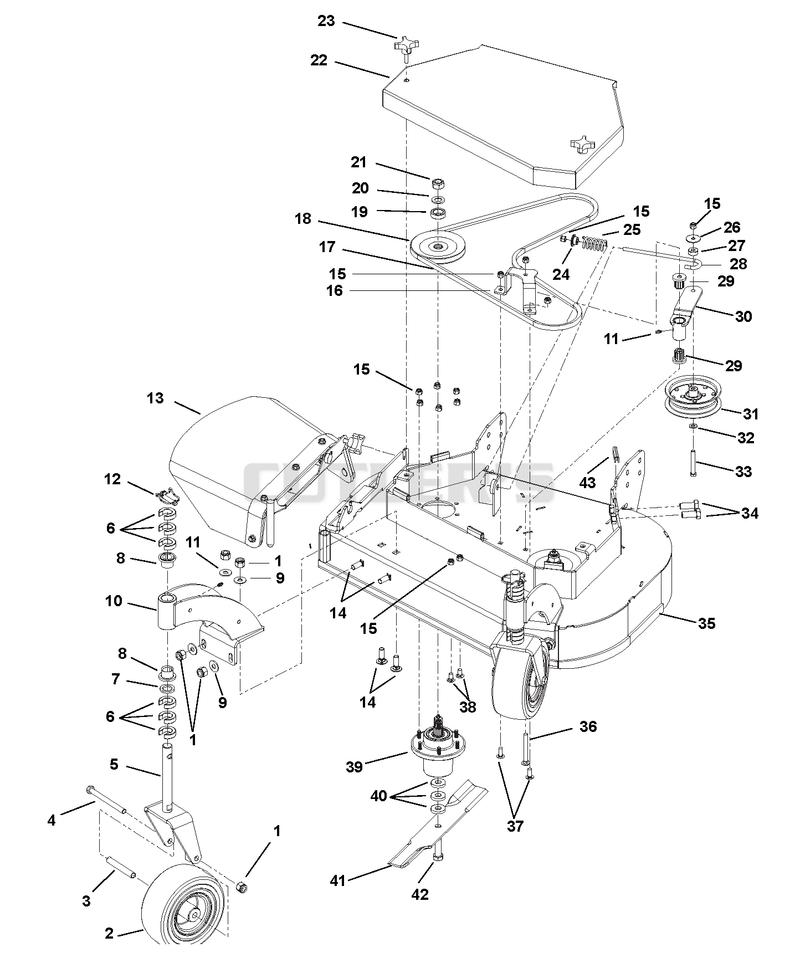

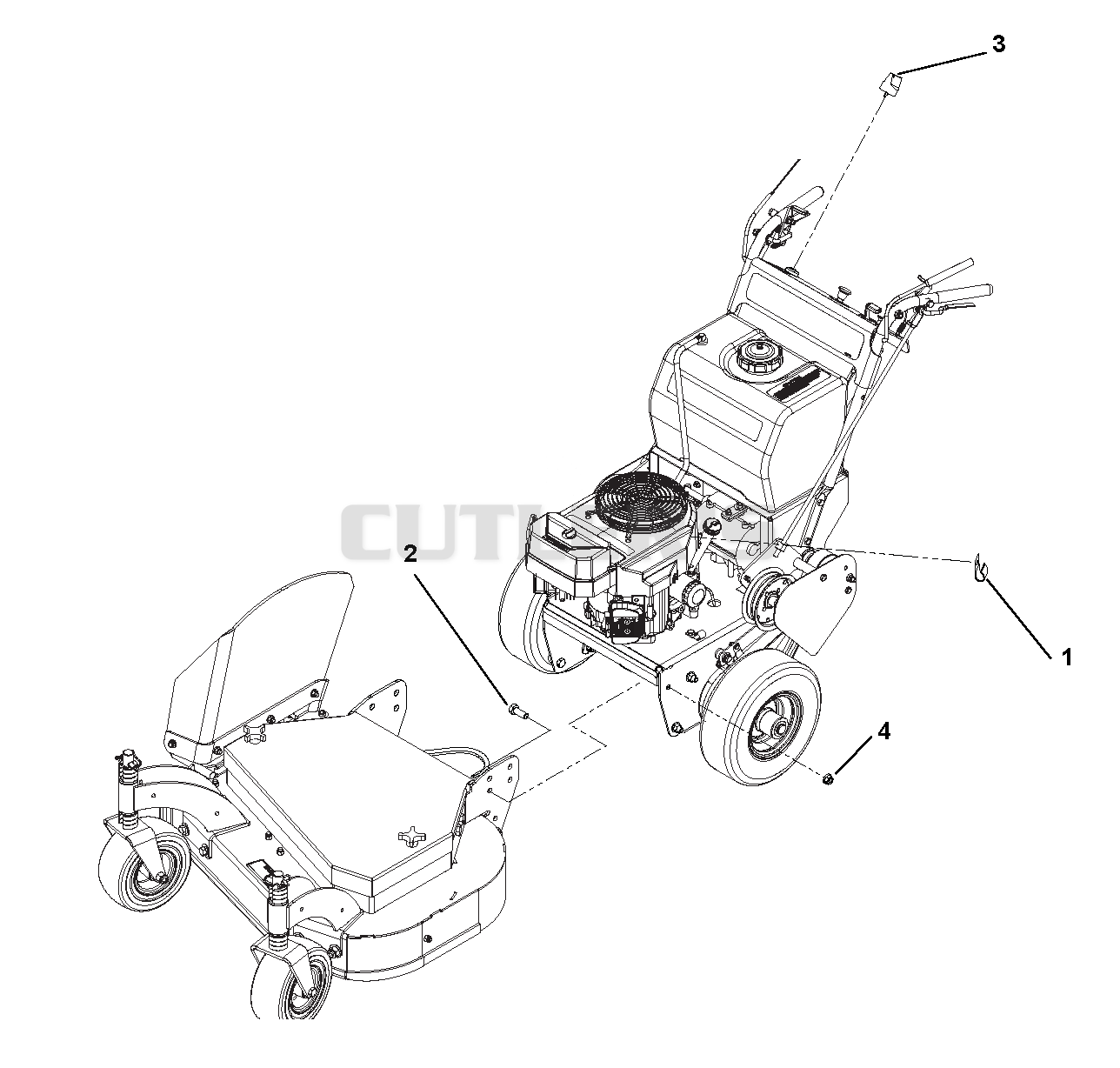

Deck Assembly 36 inch
Deck Assembly 36 inch
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00964015
00964015
|
|||
|
|
07100302
07100302
|
|||
|
|
D13003
D13003
|
|||
|
|
05964100
05964100
|
|||
|
|
00203959
00203959
|
|||
|
|
00164145
00164145
|
|||
|
|
D13008
D13008
|
|||
|
|
D18076
D18076
|
|||
|
|
00960703
00960703
|
|||
|
|
03987459
03987459
|
|||
|
|
00959995
00959995
|
|||
|
|
00161397
00161397
|
|||
|
|
56155059
56155059
|
|||
|
|
06223100
06223100
|
|||
|
|
00968087
00968087
|
|||
|
|
04054951
04054951
|
|||
|
|
00201010
00201010
|
|||
|
|
D18083
D18083
|
|||
|
|
D13024
D13024
|
|||
|
|
03399703
03399703
|
|||
|
|
06500031
06500031
|
|||
|
|
04057959
04057959
|
|||
|
|
03820400
03820400
|
|||
|
|
D33062
D33062
|
|||
|
|
D38128
D38128
|
|||
|
|
00964502
00964502
|
|||
|
|
D13023
D13023
|
|||
|
|
D23040
D23040
|
|||
|
|
TCU14540
TCU14540
|
|||
|
|
04056251
04056251
|
|||
|
|
D18032
D18032
|
|||
|
|
00964501
00964501
|
|||
|
|
05961400
05961400
|
|||
|
|
05901321
05901321
|
|||
|
|
50568000
50568000
|
|||
|
|
03H1836
03H1836
|
|||
|
|
00963019
00963019
|
|||
|
|
06200004
06200004
|
|||
|
|
00200262
00200262
|
|||
|
|
D18055
D18055
|
|||
|
|
GDU10231
GDU10231
|
|||
|
|
00967348
00967348
|
|||
|
|
00999538
00999538
|

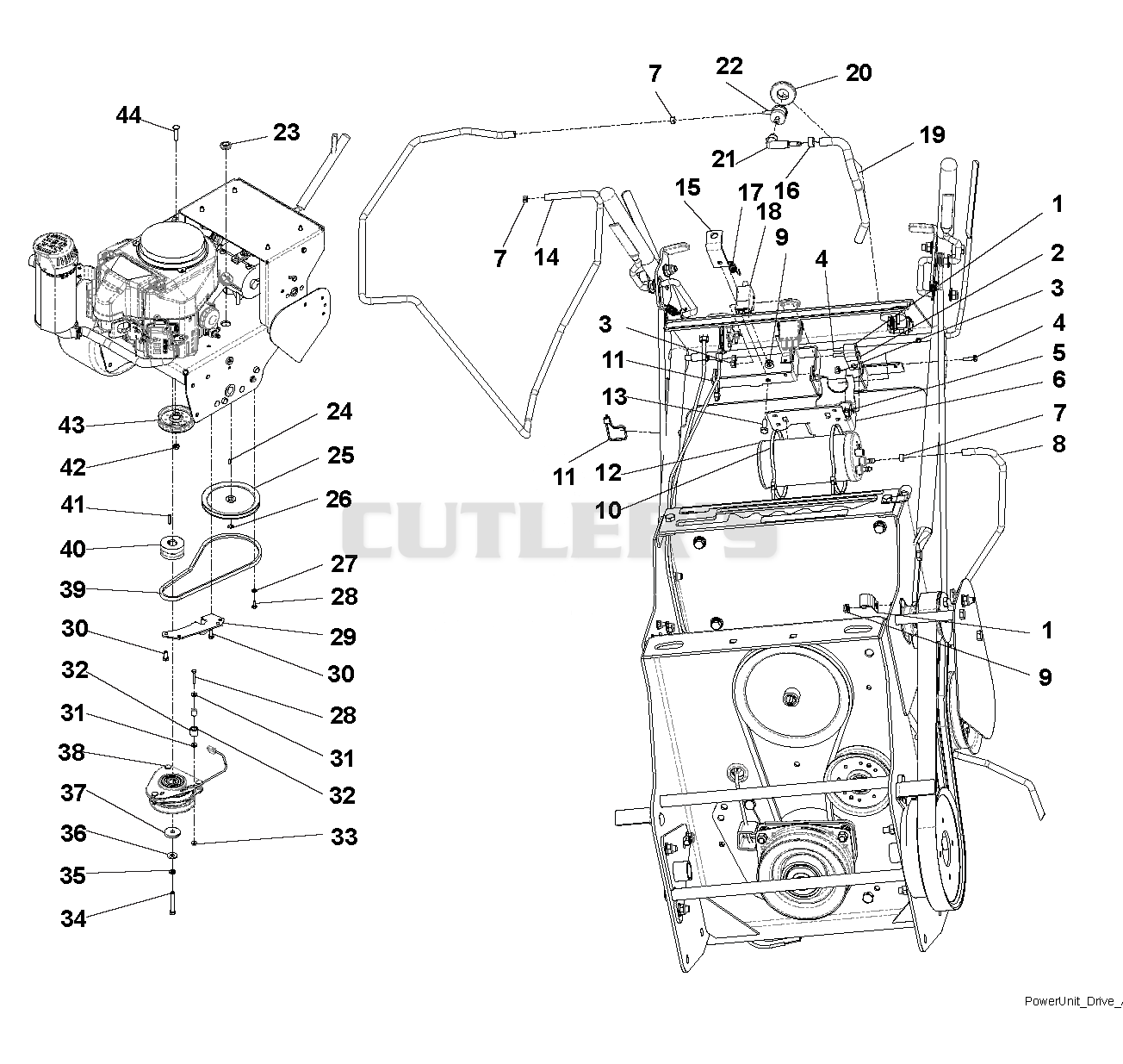

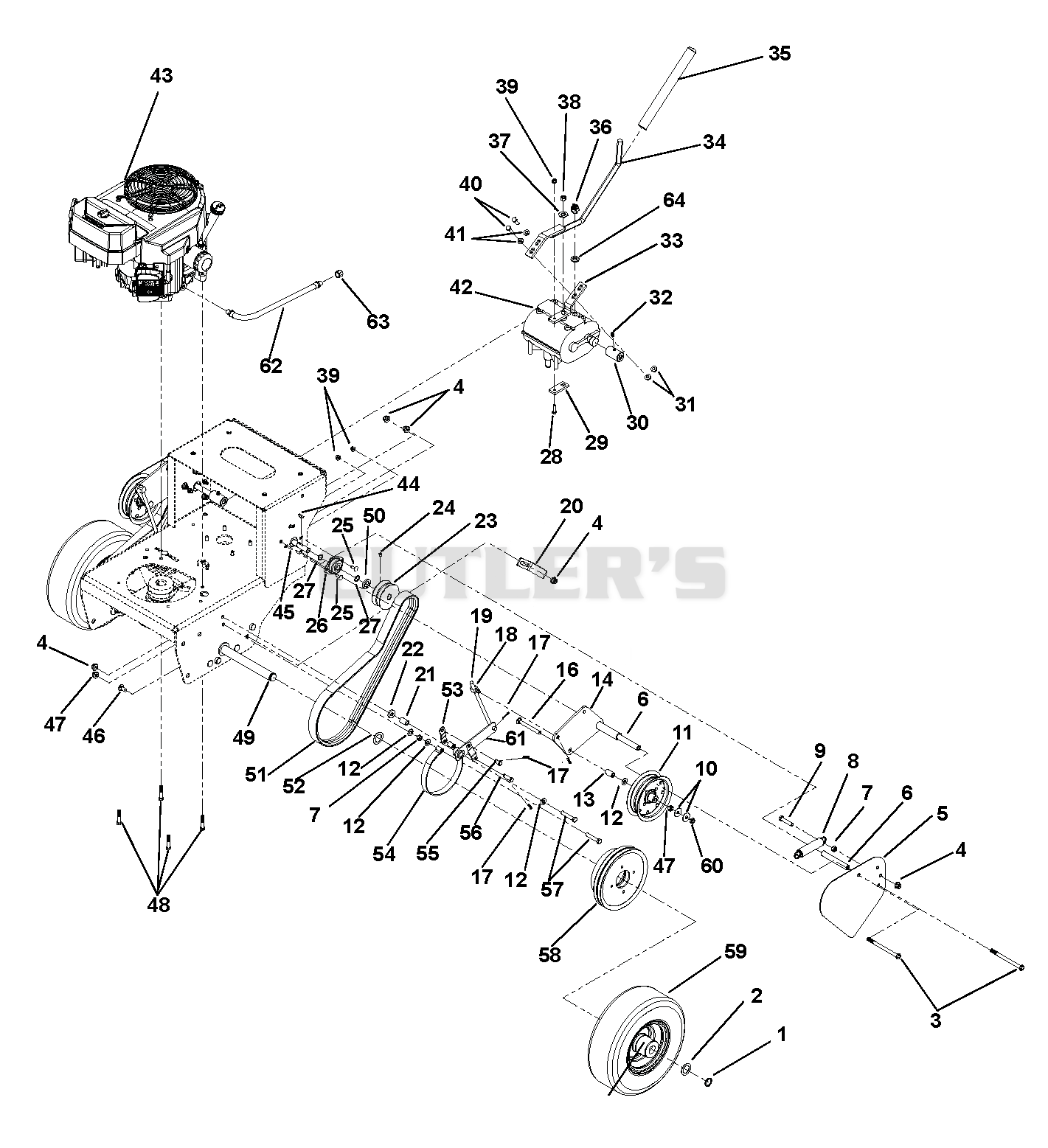

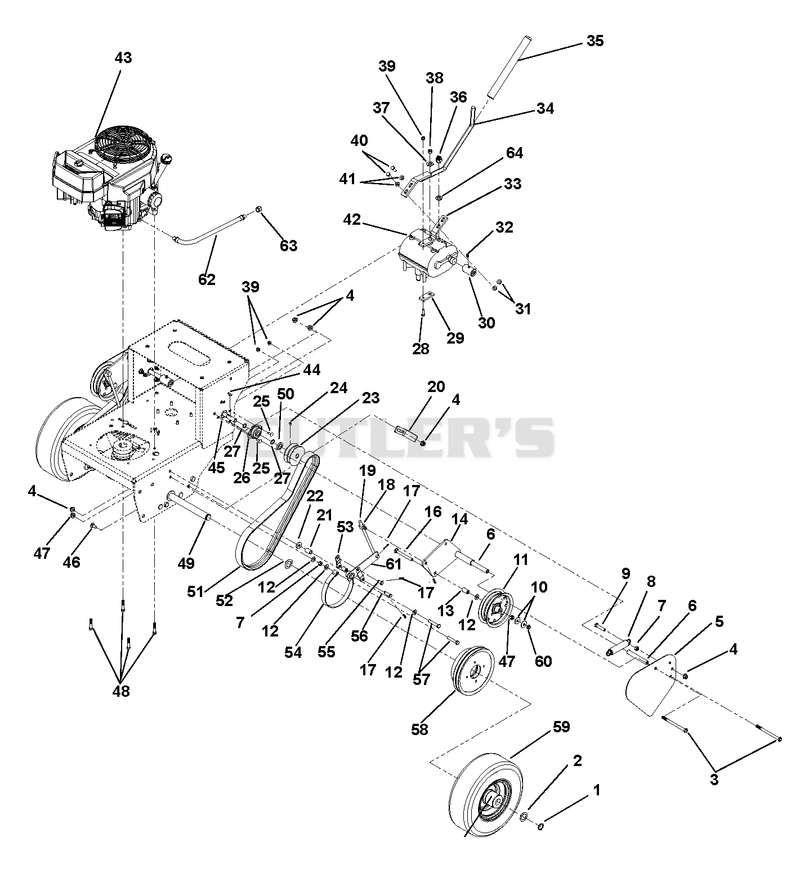

Engine and Traction Control
Engine and Traction Control
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
05707300
05707300
|
|||
|
|
06436300
06436300
|
|||
|
|
00960062
00960062
|
|||
|
|
06545500
06545500
|
|||
|
|
03296651
03296651
|
|||
|
|
05500835
05500835
|
|||
|
|
00960502
00960502
|
|||
|
|
08346800
08346800
|
|||
|
|
00960049
00960049
|
|||
|
|
06425500
06425500
|
|||
|
|
07300039
07300039
|
|||
|
|
00964501
00964501
|
|||
|
|
05509000
05509000
|
|||
|
|
03292251
03292251
|
|||
|
|
03292151
03292151
|
|||
|
|
06222400
06222400
|
|||
|
|
06714800
06714800
|
|||
|
|
D33002
D33002
|
|||
|
|
03369100
03369100
|
|||
|
|
03299151
03299151
|
|||
|
|
08833400
08833400
|
|||
|
|
06444000
06444000
|
|||
|
|
07328500
07328500
|
|||
|
|
06005500
06005500
|
|||
|
|
00963095
00963095
|
|||
|
|
05426400
05426400
|
|||
|
|
05711900
05711900
|
|||
|
|
00960002
00960002
|
|||
|
|
04923000
04923000
|
|||
|
|
04901200
04901200
|
|||
|
|
06545400
06545400
|
|||
|
|
00959995
00959995
|
|||
|
|
04922951
04922951
|
|||
|
|
03369851
03369851
|
|||
|
|
00675200
00675200
|
|||
|
|
02913100
02913100
|
|||
|
|
06306700
06306700
|
|||
|
|
06539400
06539400
|
|||
|
|
06500012
06500012
|
|||
|
|
00960032
00960032
|
|||
|
|
06437200
06437200
|
|||
|
|
04901000
04901000
|
|||
|
|
08200612
08200612
|
|||
|
|
06608700
06608700
|
|||
|
|
04923100
04923100
|
|||
|
|
00963033
00963033
|
|||
|
|
00964062
00964062
|
|||
|
|
05900125
05900125
|
|||
|
|
03386800
03386800
|
|||
|
|
06400830
06400830
|
|||
|
|
07400037
07400037
|
|||
|
|
06416600
06416600
|
|||
|
|
08831951
08831951
|
|||
|
|
08880600
08880600
|
|||
|
|
00967176
00967176
|
|||
|
|
06814900
06814900
|
|||
|
|
00960050
00960050
|
|||
|
|
07326900
07326900
|
|||
|
|
07100239
07100239
|
|||
|
|
06537200
06537200
|
|||
|
|
03371851
03371851
|
|||
|
|
04271700
04271700
|
|||
|
|
03873200
03873200
|
|||
|
|
06400031
06400031
|
|||
|
|
05436500
05436500
|

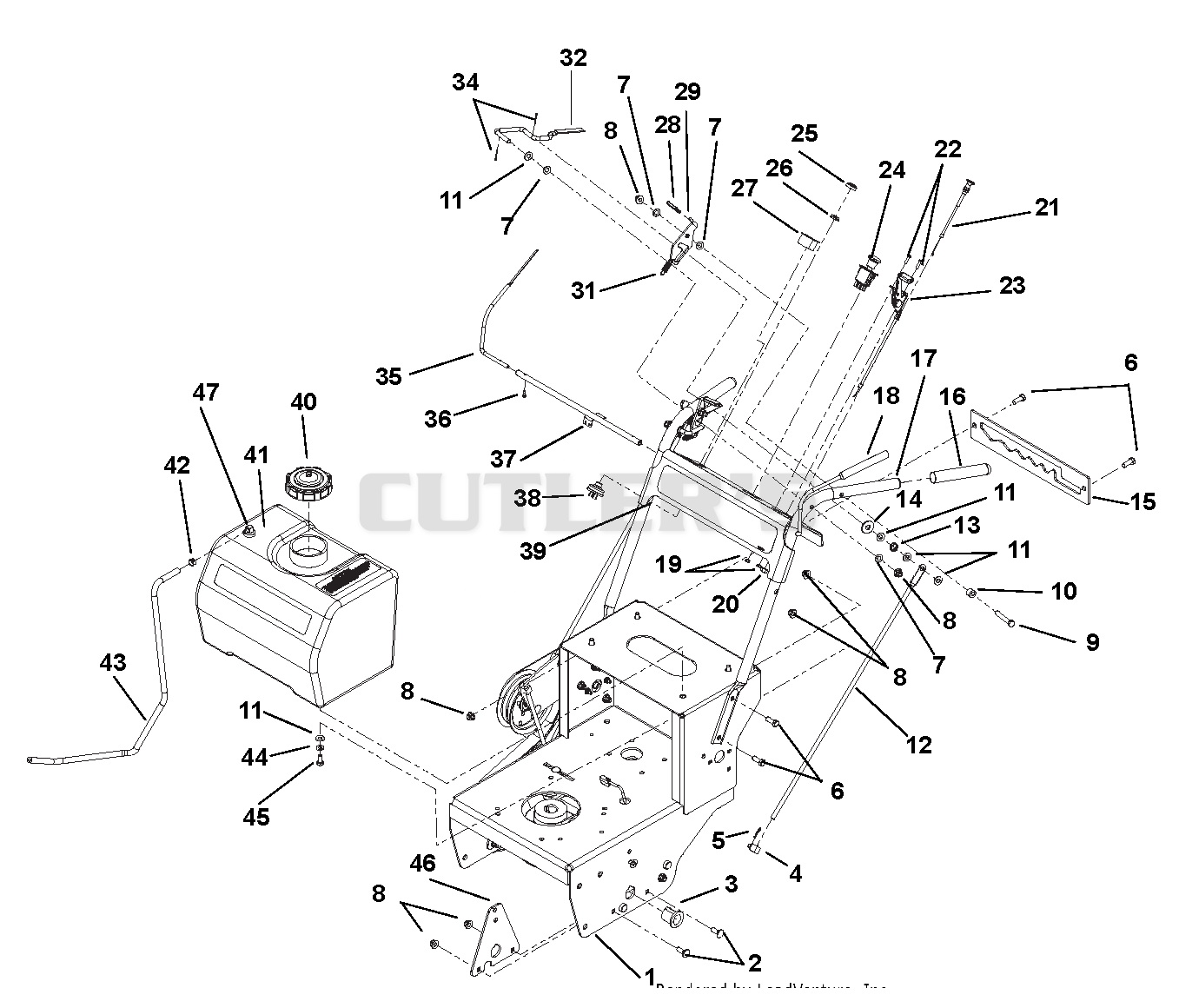

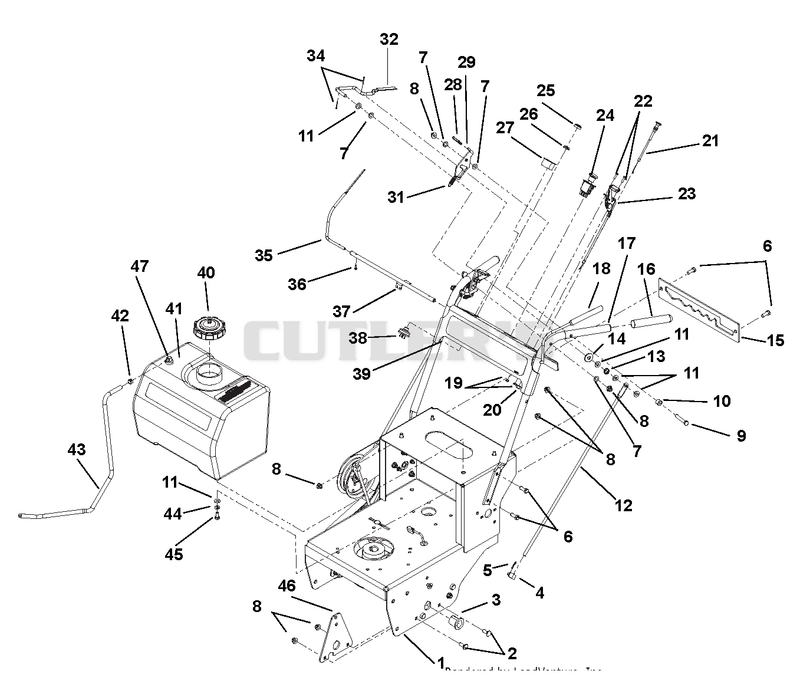

Handle Bar and Frame Assembly
Handle Bar and Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
50568002
50568002
|
|||
|
|
00963020
00963020
|
|||
|
|
05517900
05517900
|
|||
|
|
D33002
D33002
|
|||
|
|
06714800
06714800
|
|||
|
|
00960046
00960046
|
|||
|
|
06433600
06433600
|
|||
|
|
06545500
06545500
|
|||
|
|
00960052
00960052
|
|||
|
|
08553700
08553700
|
|||
|
|
00964501
00964501
|
|||
|
|
03371700
03371700
|
|||
|
|
08338800
08338800
|
|||
|
|
06441000
06441000
|
|||
|
|
04950459
04950459
|
|||
|
|
04928800
04928800
|
|||
|
|
07533300
07533300
|
|||
|
|
04924200
04924200
|
|||
|
|
00964013
00964013
|
|||
|
|
00967054
00967054
|
|||
|
|
06944700
06944700
|
|||
|
|
06116900
06116900
|
|||
|
|
06949100
06949100
|
|||
|
|
04311800
04311800
|
|||
|
|
07517700
07517700
|
|||
|
|
06517400
06517400
|
|||
|
|
04196515
04196515
|
|||
|
|
04928700
04928700
|
|||
|
|
04922600
04922600
|
|||
|
|
04922700
04922700
|
|||
|
|
08339300
08339300
|
|||
|
|
04905200
04905200
|
|||
|
|
04922400
04922400
|
|||
|
|
00962008
00962008
|
|||
|
|
04924100
04924100
|
|||
|
|
07415600
07415600
|
|||
|
|
04924000
04924000
|
|||
|
|
03602300
03602300
|
|||
|
|
50568003
50568003
|
|||
|
|
04952005
04952005
|
|||
|
|
04953200
04953200
|
|||
|
|
04068910
04068910
|
|||
|
|
04082700
04082700
|
|||
|
|
03278800
03278800
|
|||
|
|
03832612
03832612
|
|||
|
|
00960602
00960602
|
|||
|
|
00960045
00960045
|
|||
|
|
03384151
03384151
|
|||
|
|
09112300
09112300
|
Oil Drain and Deck Connectin
Oil Drain and Deck Connectin
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
AH89557
AH89557
|
|||
|
|
00960113
00960113
|
|||
|
|
09284600
09284600
|
|||
|
|
06500010
06500010
|

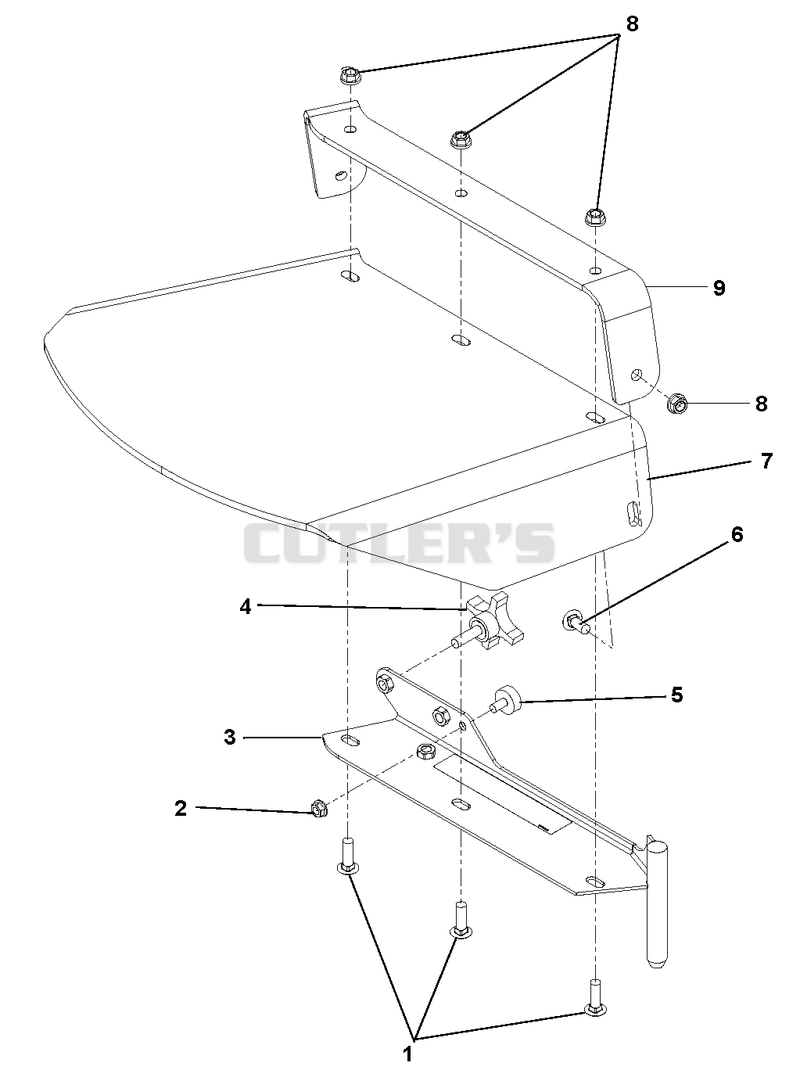

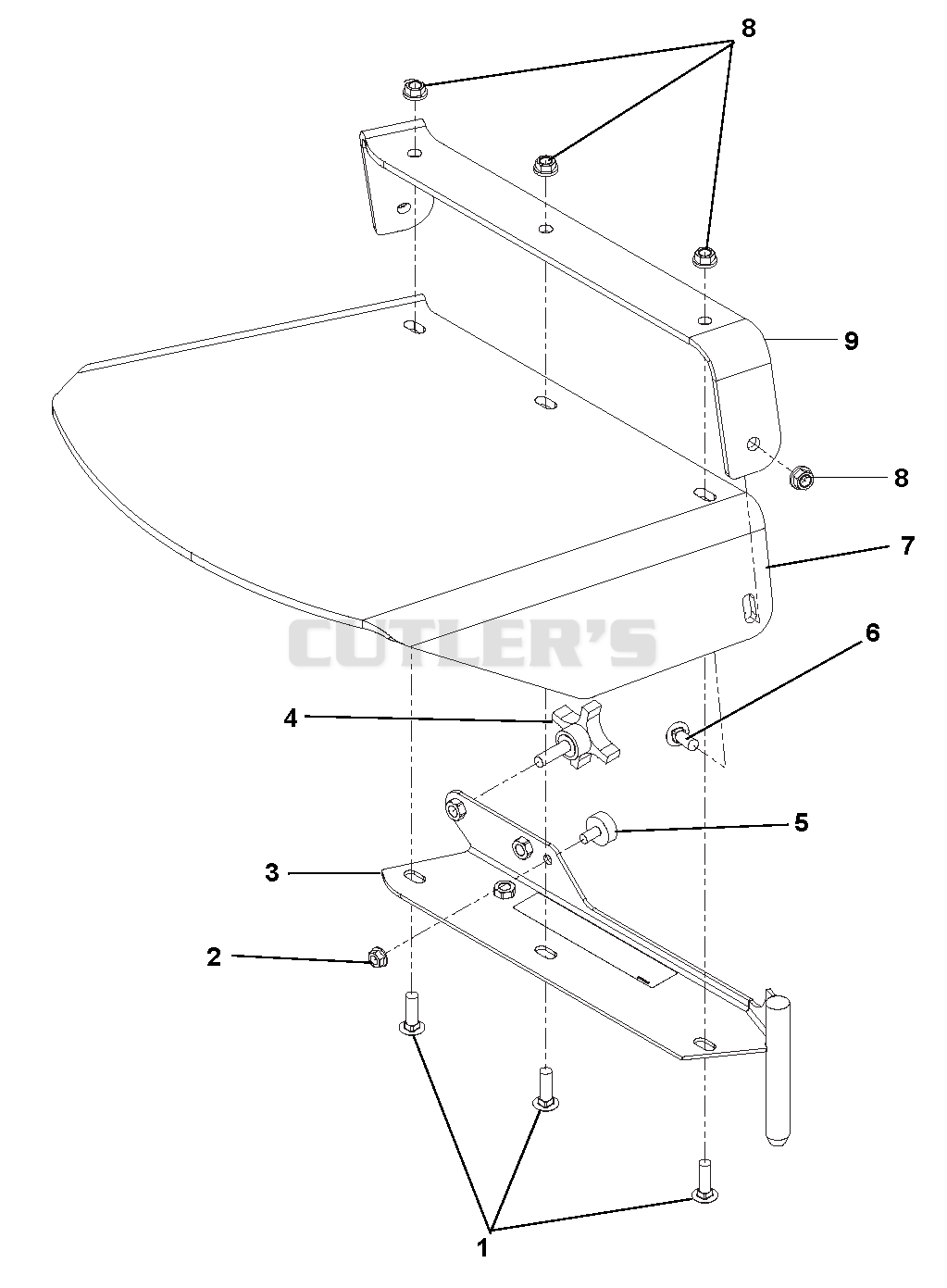

Rubber Discharge Sheild Assembly
Rubber Discharge Sheild Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
06224100
06224100
|
|||
|
|
00964019
00964019
|
|||
|
|
03981959
03981959
|
|||
|
|
03820400
03820400
|
|||
|
|
07533600
07533600
|
|||
|
|
06223600
06223600
|
|||
|
|
04044200
04044200
|
|||
|
|
06534900
06534900
|
|||
|
|
03983859
03983859
|

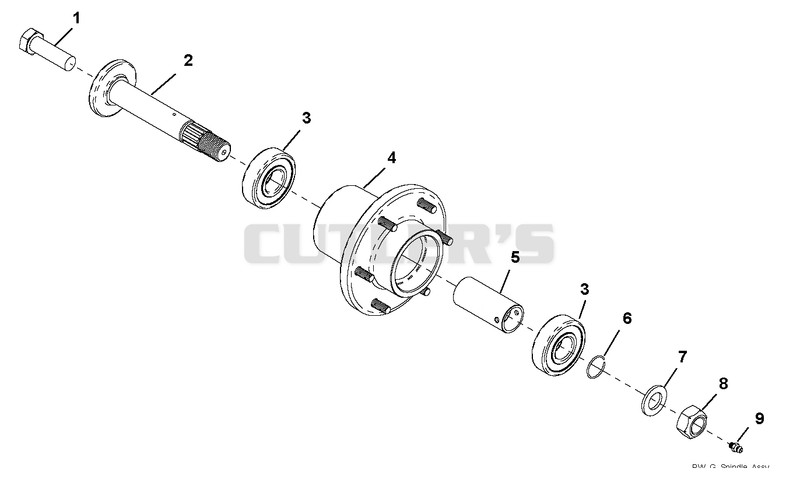

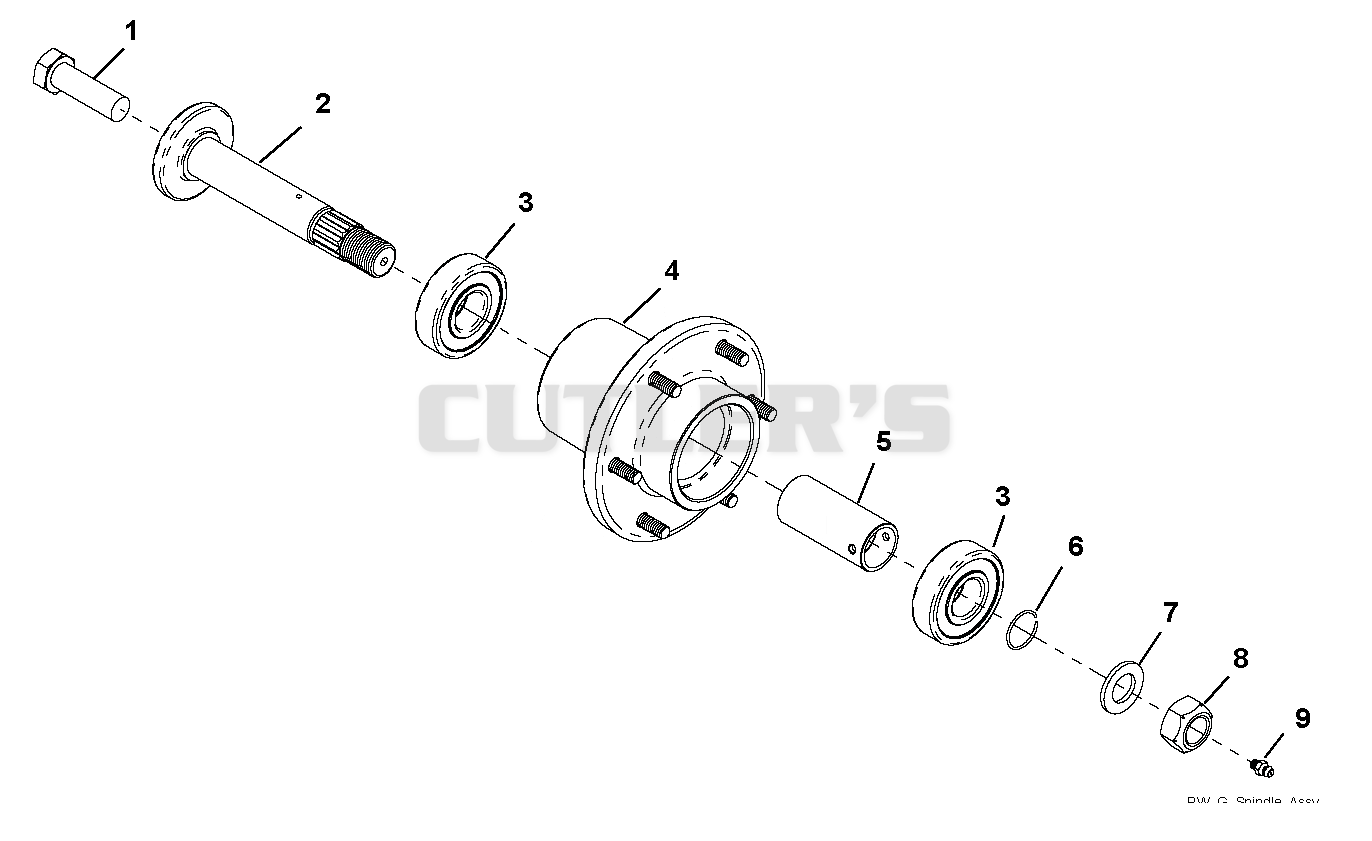

Spindle Assembly
Spindle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
00967348
00967348
|
|||
|
|
00200196
00200196
|
|||
|
|
00200046
00200046
|
|||
|
|
00200042
00200042
|
|||
|
|
00200044
00200044
|
|||
|
|
00200263
00200263
|
|||
|
|
03399703
03399703
|
|||
|
|
00964024
00964024
|
|||
|
|
00959995
00959995
|
Transmission and Console
Transmission and Console
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
AH89557
AH89557
|
|||
|
|
06542300
06542300
|
|||
|
|
06536000
06536000
|
|||
|
|
06116900
06116900
|
|||
|
|
05970001
05970001
|
|||
|
|
04265351
04265351
|
|||
|
|
04097715
04097715
|
|||
|
|
03832617
03832617
|
|||
|
|
06500012
06500012
|
|||
|
|
00967006
00967006
|
|||
|
|
00111910
00111910
|
|||
|
|
04058210
04058210
|
|||
|
|
05946800
05946800
|
|||
|
|
03832619
03832619
|
|||
|
|
04928951
04928951
|
|||
|
|
03278800
03278800
|
|||
|
|
08337000
08337000
|
|||
|
|
08828100
08828100
|
|||
|
|
03832618
03832618
|
|||
|
|
04068925
04068925
|
|||
|
|
07001632
07001632
|
|||
|
|
04068920
04068920
|
|||
|
|
03384007
03384007
|
|||
|
|
06608700
06608700
|
|||
|
|
07328600
07328600
|
|||
|
|
05711900
05711900
|
|||
|
|
06308600
06308600
|
|||
|
|
05947000
05947000
|
|||
|
|
04061951
04061951
|
|||
|
|
05900013
05900013
|
|||
|
|
06435800
06435800
|
|||
|
|
07500007
07500007
|
|||
|
|
06545400
06545400
|
|||
|
|
05900037
05900037
|
|||
|
|
06309300
06309300
|
|||
|
|
06441000
06441000
|
|||
|
|
06443600
06443600
|
|||
|
|
00200665
00200665
|
|||
|
|
07225500
07225500
|
|||
|
|
07300501
07300501
|
|||
|
|
06606900
06606900
|
|||
|
|
06545500
06545500
|
|||
|
|
07300039
07300039
|
|||
|
|
06203200
06203200
|

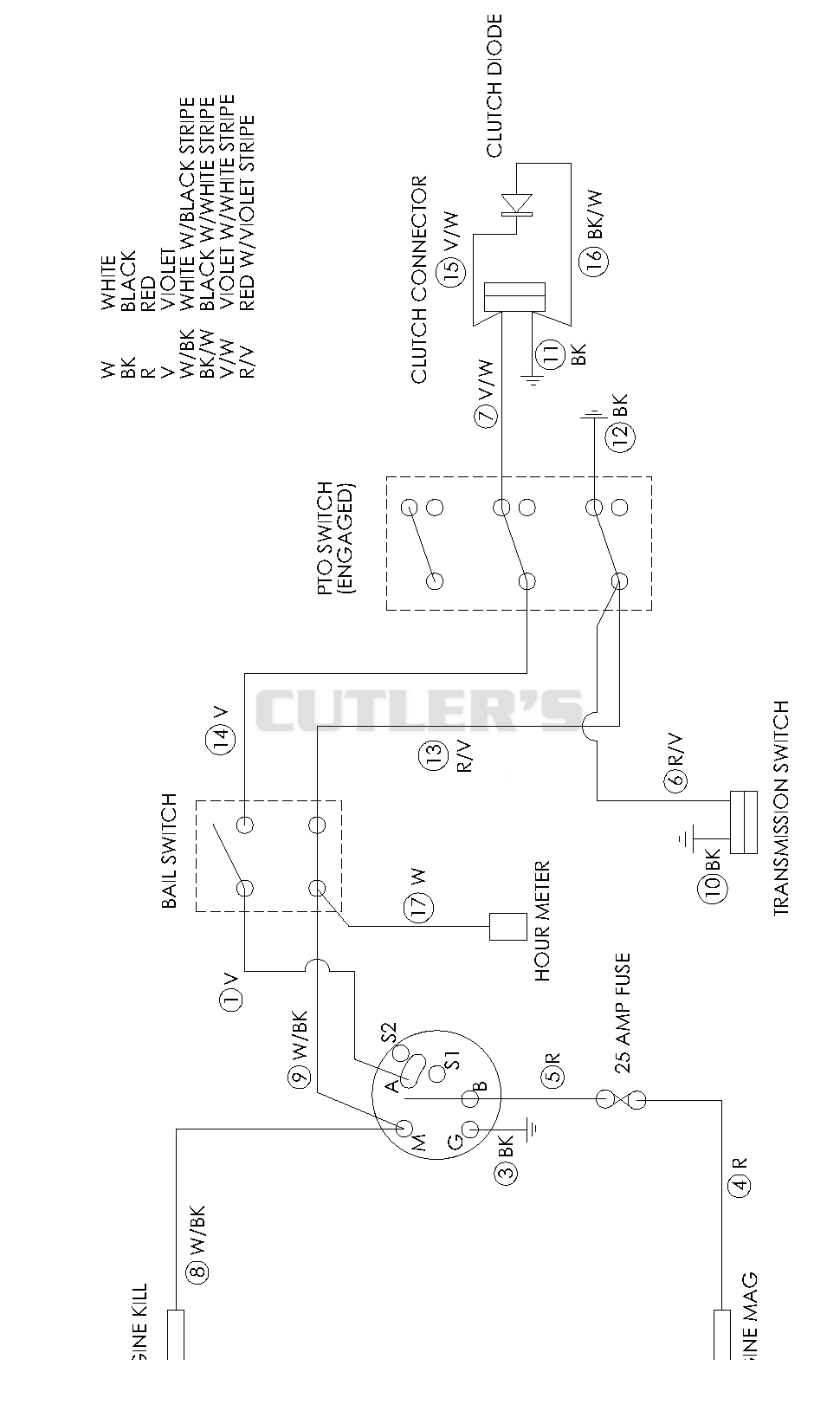

Wiring Diagram
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
03298705
03298705
|
