ECHO HCR-1500 Rotating Hedge Trimmer Parts Diagram
Diagrams:
Diagram:

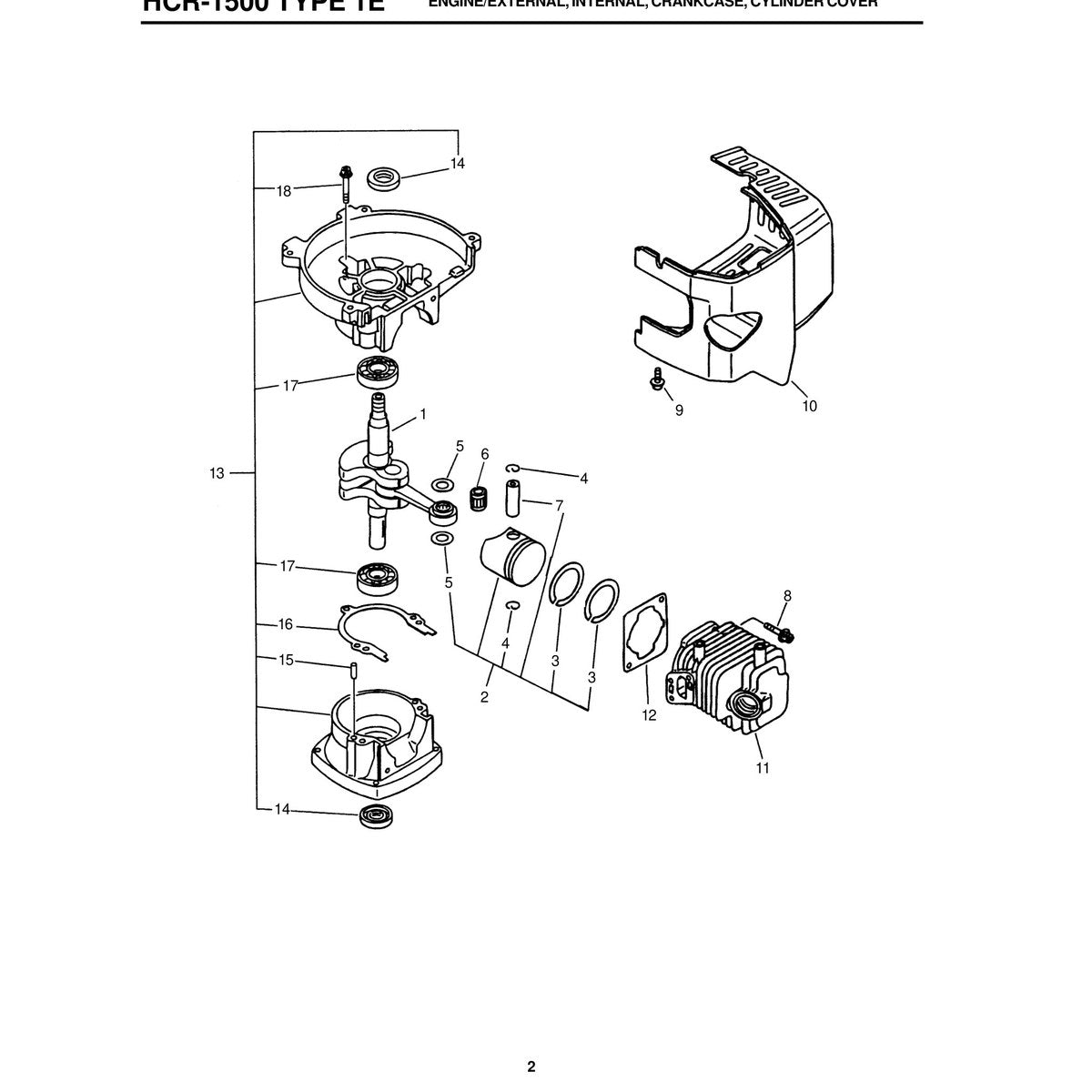

ENGINE/EXTERNAL, INTERNAL, CRANKCASE, CYLINDER COVER
ENGINE/EXTERNAL, INTERNAL, CRANKCASE, CYLINDER COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
10000006962
10000006962
|
|||
|
|
10001105330
10001105330
|
|||
|
|
10001504630
10001504630
|
|||
|
|
10001408960
10001408960
|
|||
|
|
10011305930
10011305930
|
|||
|
|
10001311520
10001311520
|
|||
|
|
90016205022
90016205022
|
|||
|
|
90016204020
90016204020
|
|||
|
|
10150606560
10150606560
|
|||
|
|
10101106562
10101106562
|
|||
|
|
10021242030
10021242030
|
|||
|
|
10021503930
10021503930
|
|||
|
|
90081036201
90081036201
|
|||
|
|
90016205028
90016205028
|

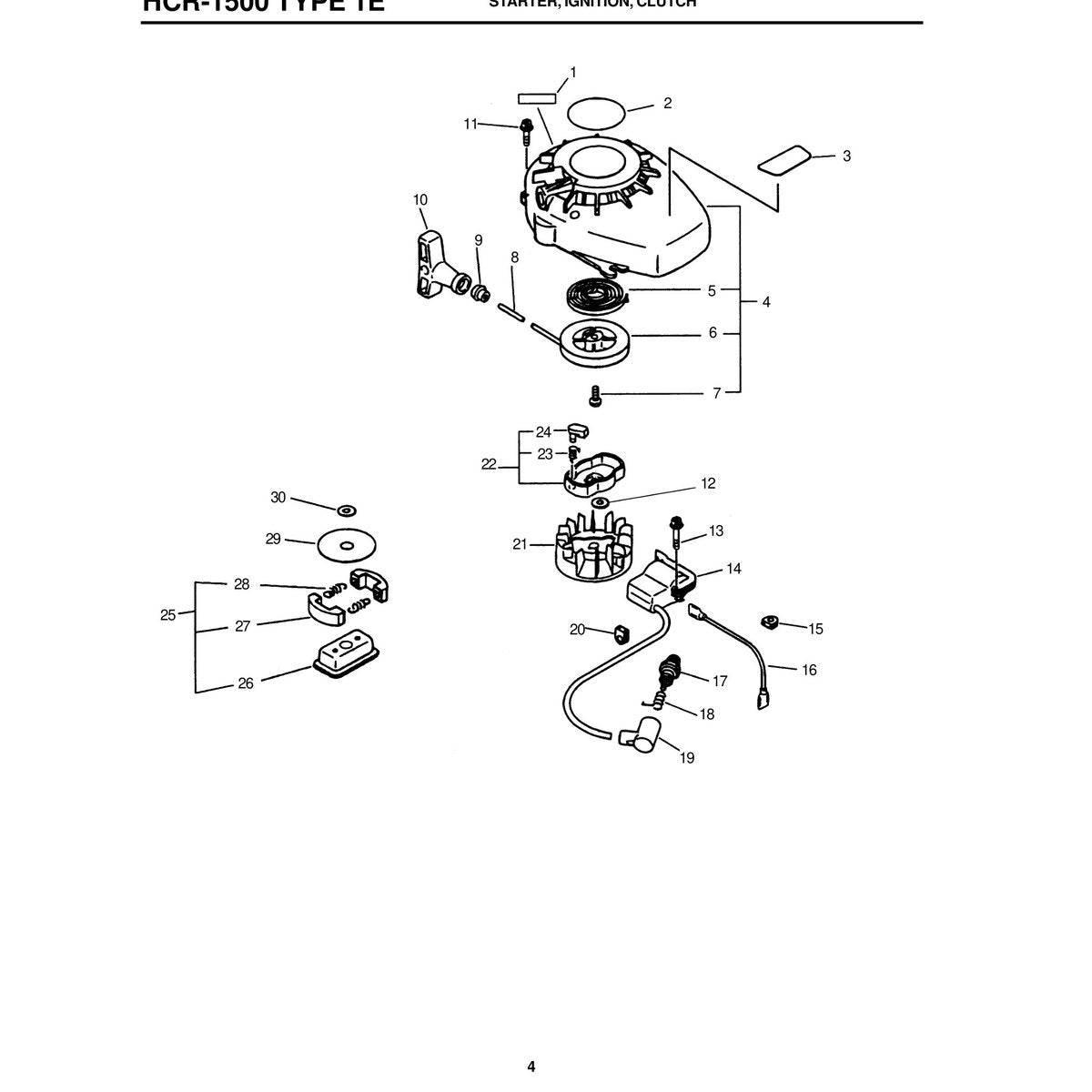

STARTER, IGNITION, CLUTCH
STARTER, IGNITION, CLUTCH
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
89011225460
89011225460
|
|||
|
|
89016007761
89016007761
|
|||
|
|
17720012220
17720012220
|
|||
|
|
17722042030
17722042030
|
|||
|
|
17721544430
17721544430
|
|||
|
|
17723644330
17723644330
|
|||
|
|
17722742030
17722742030
|
|||
|
|
17722811120
17722811120
|
|||
|
|
90016304016
90016304016
|
|||
|
|
90060500008
90060500008
|
|||
|
|
90016204022
90016204022
|
|||
|
|
15660152130
15660152130
|
|||
|
|
15611404920
15611404920
|
|||
|
|
99944500071
99944500071
|
|||
|
|
15901010230
15901010230
|
|||
|
|
15901103432
15901103432
|
|||
|
|
15901201620
15901201620
|
|||
|
|
15611004920
15611004920
|
|||
|
|
17723442030
17723442030
|
|||
|
|
17721844330
17721844330
|
|||
|
|
17500006560
17500006560
|
|||
|
|
A056000020
A056000020
|
|||
|
|
17501604920
17501604920
|
|||
|
|
A552000010
A552000010
|
|||
|
|
17500905131
17500905131
|
|||
|
|
A555000010
A555000010
|
|||
|
|
17501805960
17501805960
|
|||
|
|
V451000010
V451000010
|
|||
|
|
17501904920
17501904920
|
|||
|
|
17501904920
17501904920
|
|||
|
|
17501405360
17501405360
|

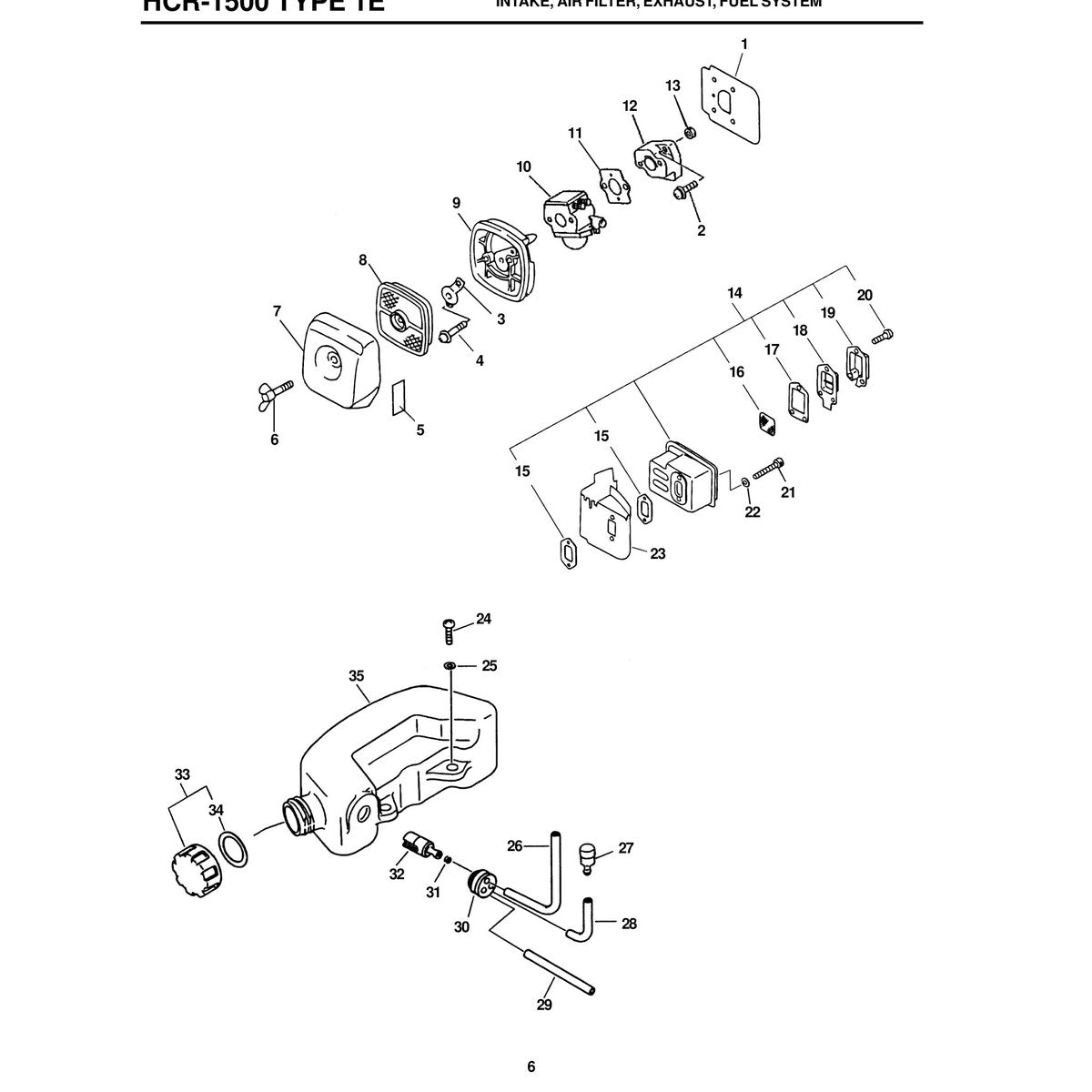

INTAKE, AIR FILTER, EXHAUST, FUEL SYSTEM
INTAKE, AIR FILTER, EXHAUST, FUEL SYSTEM
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
90023805020
90023805020
|
|||
|
|
90024205065
90024205065
|
|||
|
|
89012106360
89012106360
|
|||
|
|
89012105360
89012105360
|
|||
|
|
21041752730
21041752730
|
|||
|
|
13031306563
13031306563
|
|||
|
|
13031054130
13031054130
|
|||
|
|
13030706561
13030706561
|
|||
|
|
12520005962
12520005962
|
|||
|
|
13001642031
13001642031
|
|||
|
|
13001742031
13001742031
|
|||
|
|
14580005361
14580005361
|
|||
|
|
14551042031
14551042031
|
|||
|
|
14586240630
14586240630
|
|||
|
|
14586642031
14586642031
|
|||
|
|
14587642030
14587642030
|
|||
|
|
14586306560
14586306560
|
|||
|
|
90024204010
90024204010
|
|||
|
|
90010505050
90010505050
|
|||
|
|
90060000005
90060000005
|
|||
|
|
14587105360
14587105360
|
|||
|
|
90023805016
90023805016
|
|||
|
|
90060300005
90060300005
|
|||
|
|
13201007530
13201007530
|
|||
|
|
13130056430
13130056430
|
|||
|
|
13131239130
13131239130
|
|||
|
|
13201006460
13201006460
|
|||
|
|
13211546730
13211546730
|
|||
|
|
13201309820
13201309820
|
|||
|
|
13120507320
13120507320
|
|||
|
|
13100455830
13100455830
|
|||
|
|
13101655830
13101655830
|
|||
|
|
13100505360
13100505360
|

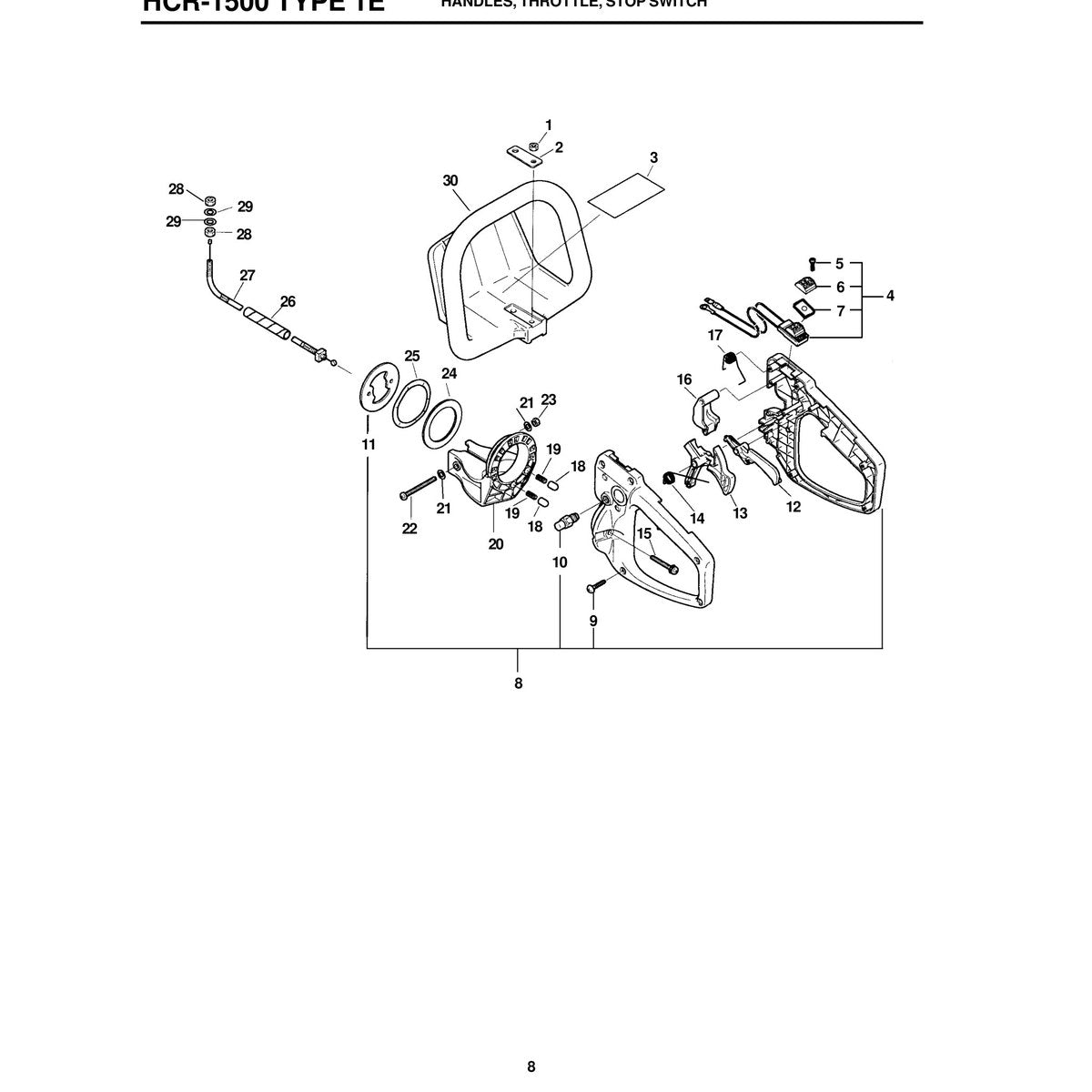

HANDLES, THROTTLE, STOP SWITCH
HANDLES, THROTTLE, STOP SWITCH
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
35161105360
35161105360
|
|||
|
|
89031705160
89031705160
|
|||
|
|
16340013360
16340013360
|
|||
|
|
90022003010
90022003010
|
|||
|
|
89015712330
89015712330
|
|||
|
|
35110113360
35110113360
|
|||
|
|
90025604016
90025604016
|
|||
|
|
17830213360
17830213360
|
|||
|
|
35131313361
35131313361
|
|||
|
|
17801213360
17801213360
|
|||
|
|
17801013361
17801013361
|
|||
|
|
17801313660
17801313660
|
|||
|
|
90023805030
90023805030
|
|||
|
|
35164813360
35164813360
|
|||
|
|
17804313660
17804313660
|
|||
|
|
60561113360
60561113360
|
|||
|
|
17804313360
17804313360
|
|||
|
|
90060300005
90060300005
|
|||
|
|
90022005047
90022005047
|
|||
|
|
90056000005
90056000005
|
|||
|
|
68902513361
68902513361
|
|||
|
|
17812913361
17812913361
|
|||
|
|
17800113360
17800113360
|
|||
|
|
90050200006
90050200006
|
|||
|
|
90060000006
90060000006
|
|||
|
|
35161005360
35161005360
|

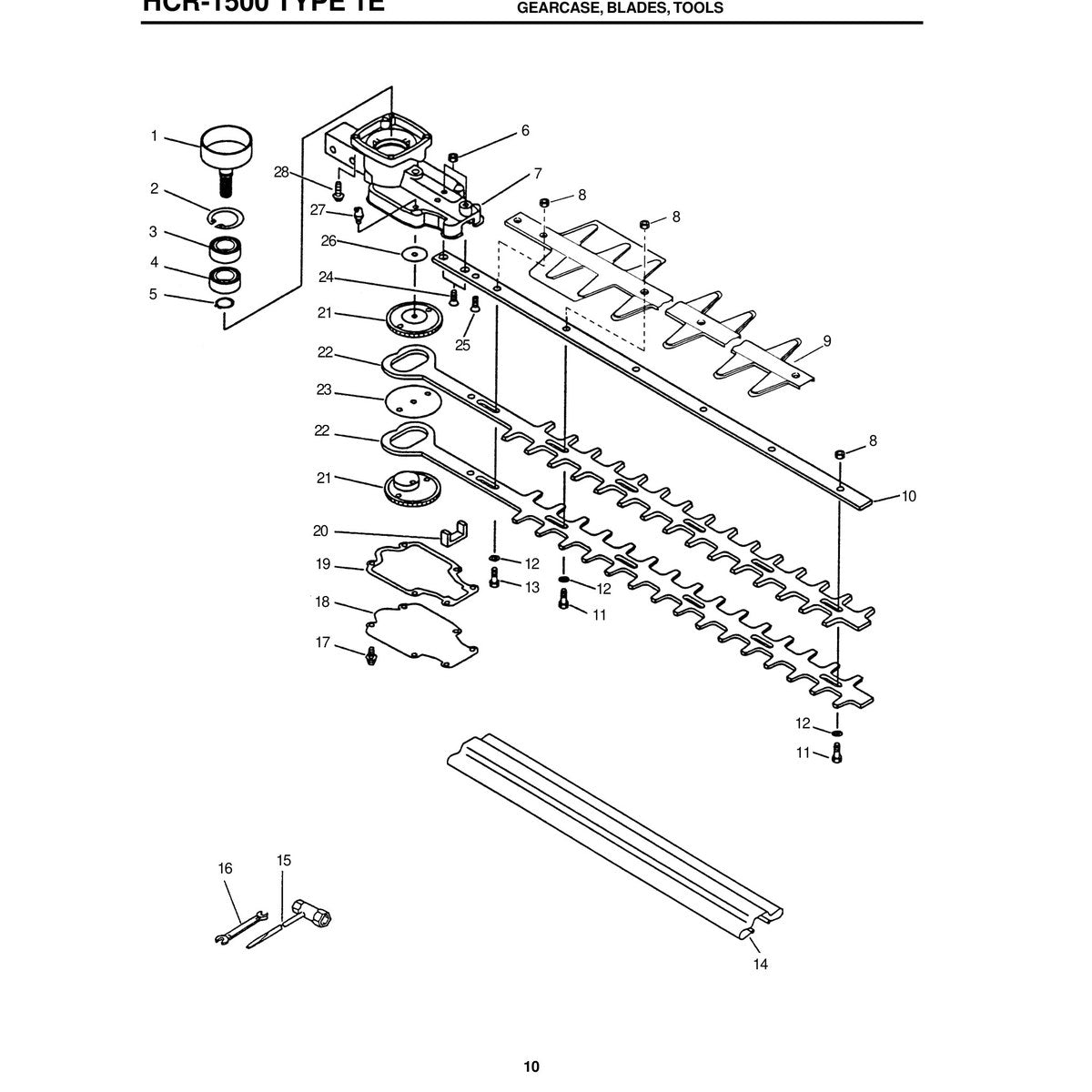

GEARCASE, BLADES, TOOLS
GEARCASE, BLADES, TOOLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
90070200035
90070200035
|
|||
|
|
90087236202
90087236202
|
|||
|
|
90087036202
90087036202
|
|||
|
|
90070100014
90070100014
|
|||
|
|
90050000006
90050000006
|
|||
|
|
61041006561
61041006561
|
|||
|
|
43302206460
43302206460
|
|||
|
|
69912503060
69912503060
|
|||
|
|
69911504660
69911504660
|
|||
|
|
69911804560
69911804560
|
|||
|
|
89852306960
89852306960
|
|||
|
|
89541006960
89541006960
|
|||
|
|
89511200330
89511200330
|
|||
|
|
90016204012
90016204012
|
|||
|
|
61041106560
61041106560
|
|||
|
|
61041406560
61041406560
|
|||
|
|
61042606560
61042606560
|
|||
|
|
61031206560
61031206560
|
|||
|
|
69701006560
69701006560
|
|||
|
|
90021206030
90021206030
|
|||
|
|
68902506560
68902506560
|
|||
|
|
88011054230
88011054230
|
|||
|
|
90016304016
90016304016
|

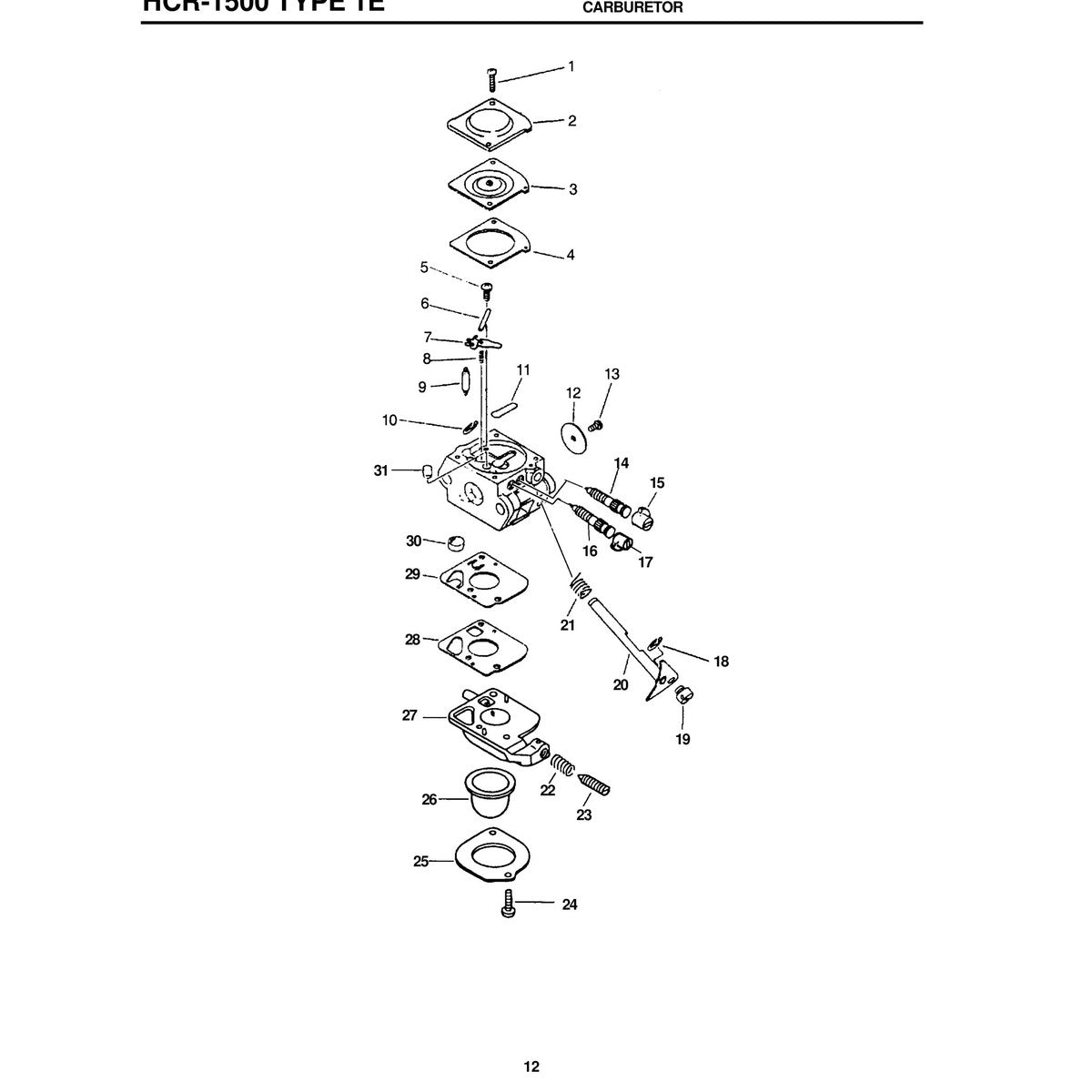

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12520005962
12520005962
|
|||
|
|
12534452130
12534452130
|
|||
|
|
12533942030
12533942030
|
|||
|
|
12532715130
12532715130
|
|||
|
|
12531649030
12531649030
|
|||
|
|
12531413930
12531413930
|
|||
|
|
12531813120
12531813120
|
|||
|
|
12532909860
12532909860
|
|||
|
|
12532013310
12532013310
|
|||
|
|
12532939030
12532939030
|
|||
|
|
12532713930
12532713930
|
|||
|
|
12537242030
12537242030
|
|||
|
|
12531342030
12531342030
|
|||
|
|
12533306960
12533306960
|
|||
|
|
12533406960
12533406960
|
|||
|
|
12531011610
12531011610
|
|||
|
|
12538108660
12538108660
|
|||
|
|
12538313310
12538313310
|
