ECHO PPT-265H Power Pruner Parts Diagram (Serial # E06812001001 - E06812999999)
Diagrams:
Diagram:

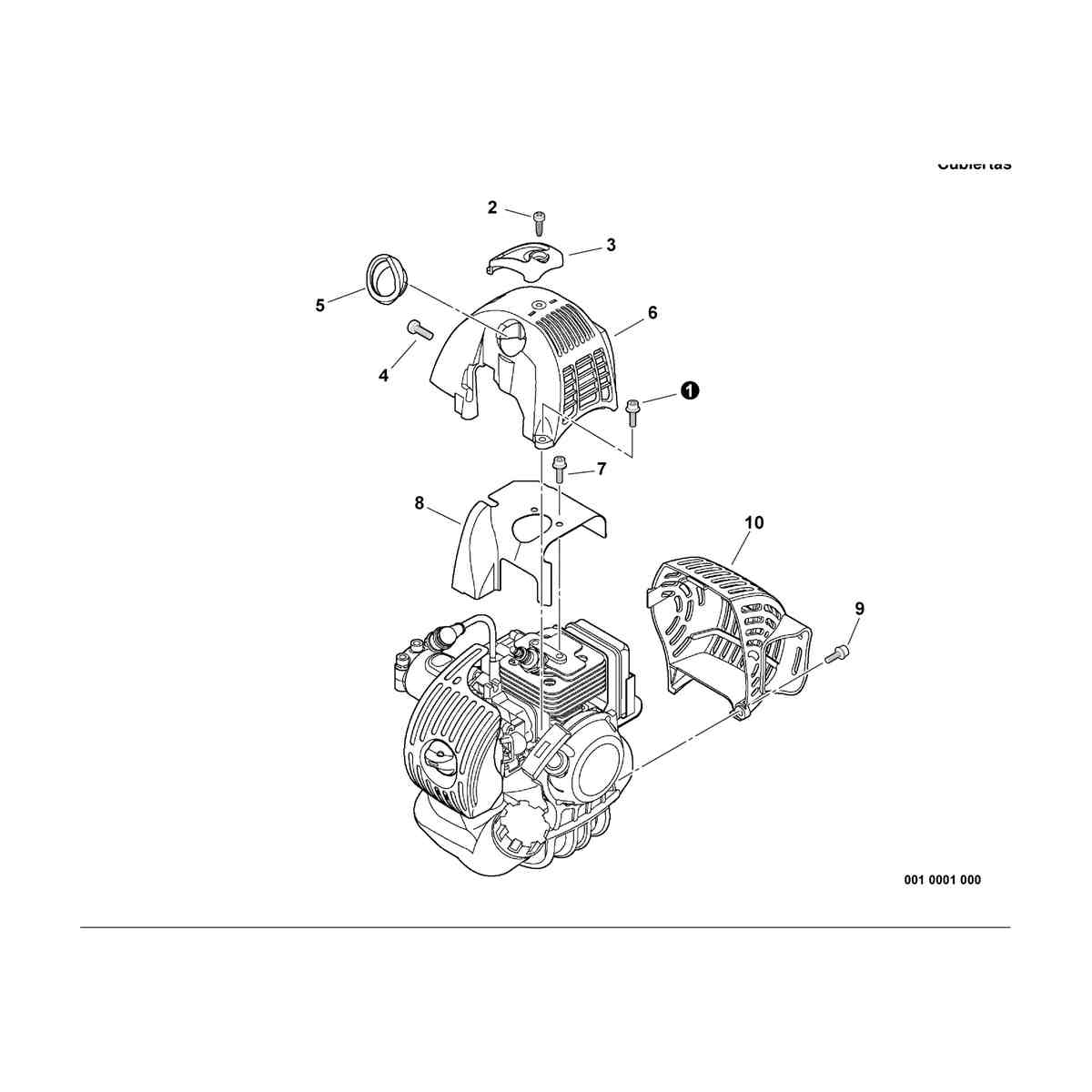

Covers
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
90010605014
90010605014
|
|||
|
|
90025605016
90025605016
|
|||
|
|
A162000100
A162000100
|
|||
|
|
9114005012
9114005012
|
|||
|
|
A162000080
A162000080
|
|||
|
|
A160000780
A160000780
|
|||
|
|
90010605008
90010605008
|
|||
|
|
A160000691
A160000691
|
|||
|
|
90010605014
90010605014
|
|||
|
|
A320000341
A320000341
|

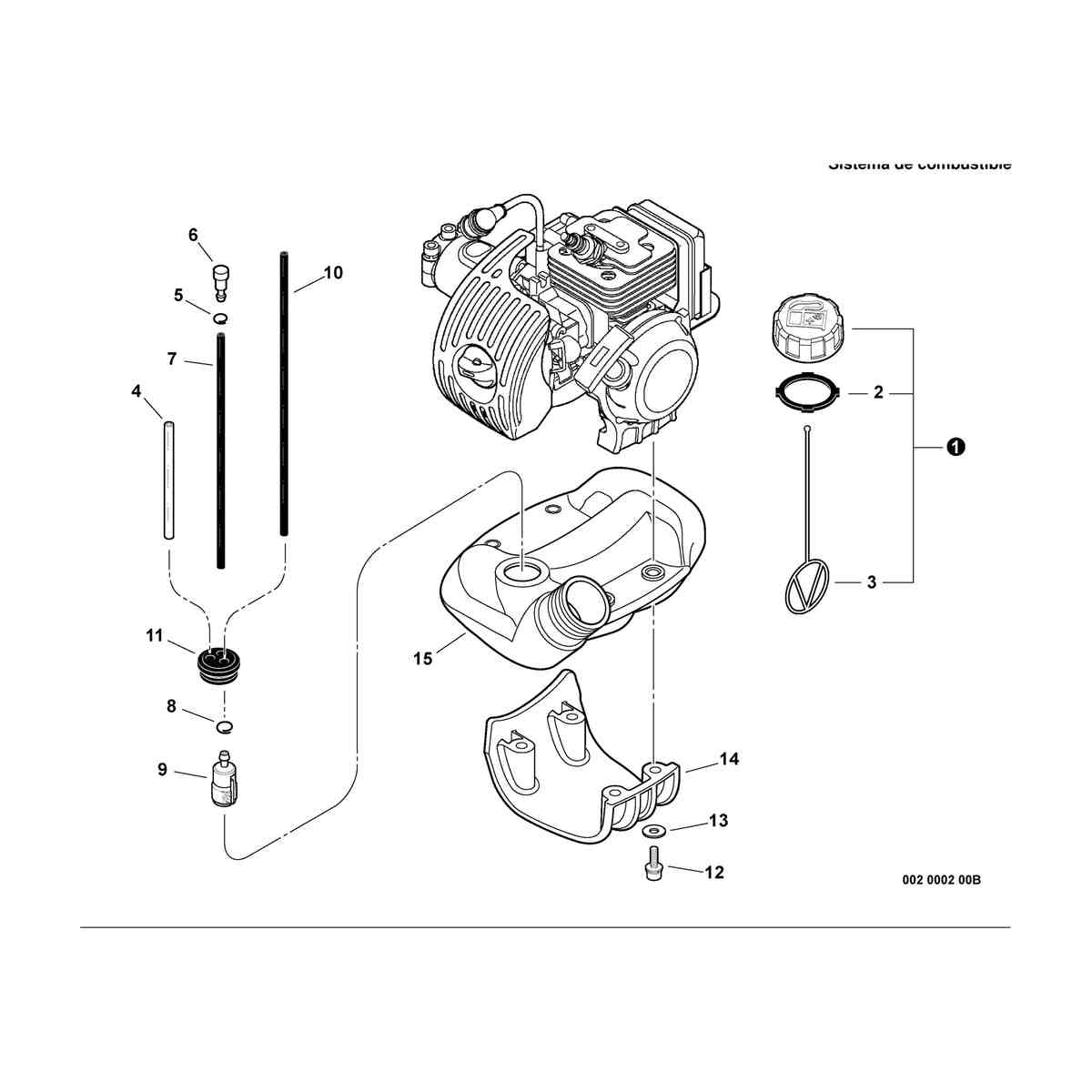

Fuel System
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13100455530
13100455530
|
|||
|
|
+ 13101655830
+ 13101655830
|
|||
|
|
+ 13105156030
+ 13105156030
|
|||
|
|
13201040830
13201040830
|
|||
|
|
13201326630
13201326630
|
|||
|
|
A356000030
A356000030
|
|||
|
|
V471001180
V471001180
|
|||
|
|
13201309820
13201309820
|
|||
|
|
A369000000
A369000000
|
|||
|
|
V470000580
V470000580
|
|||
|
|
13211555930
13211555930
|
|||
|
|
90016205025
90016205025
|
|||
|
|
90060300005
90060300005
|
|||
|
|
A175000030
A175000030
|
|||
|
|
P021013640
P021013640
|
|||
|
|
1
1
|
|||
|
|
4
4
|

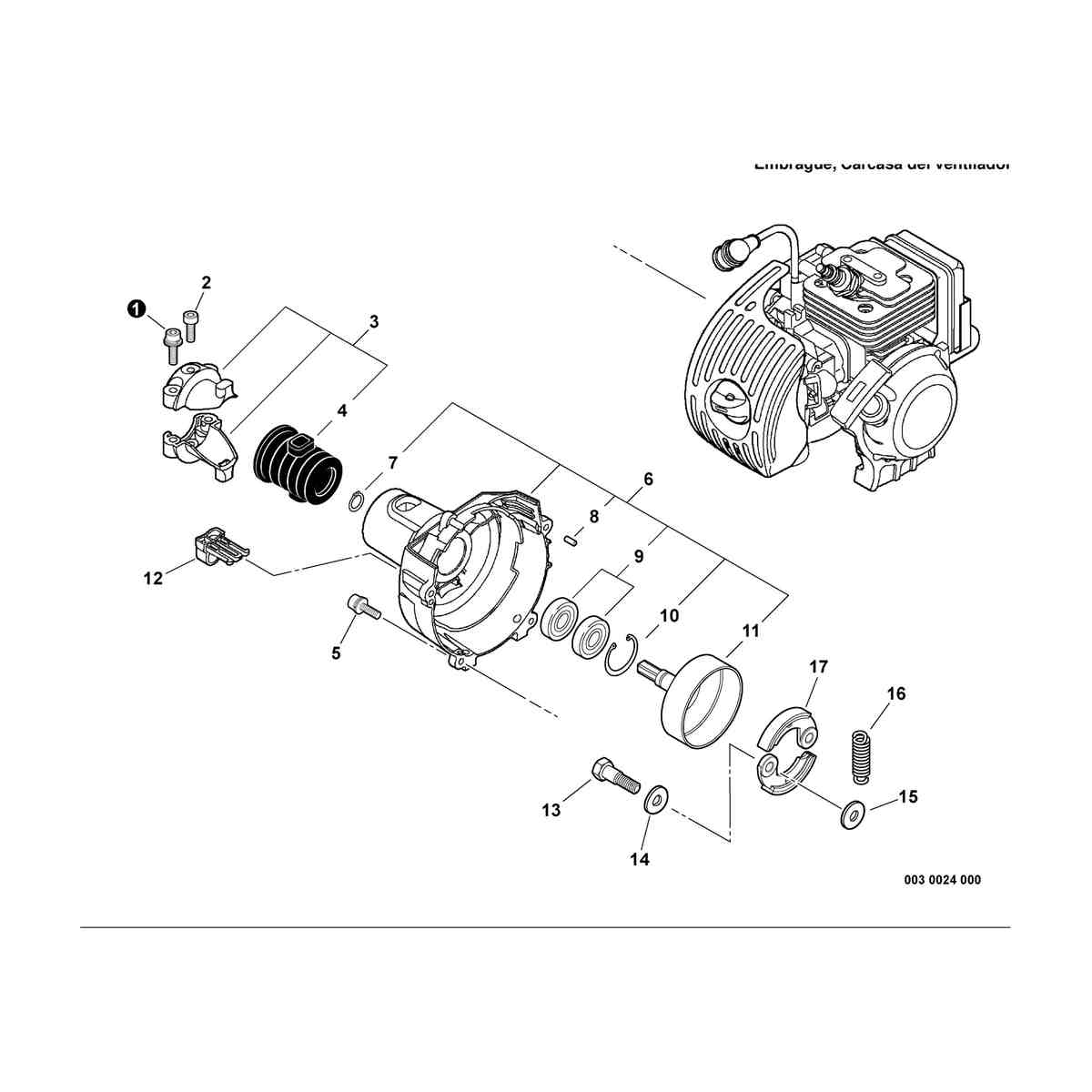

Clutch, Fan Case
Clutch, Fan Case
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
90016205025
90016205025
|
|||
|
|
90010505012
90010505012
|
|||
|
|
P021009380
P021009380
|
|||
|
|
+ V420001081
+ V420001081
|
|||
|
|
90016304016
90016304016
|
|||
|
|
P021038020
P021038020
|
|||
|
|
+ 90070100012
+ 90070100012
|
|||
|
|
+ V622000020
+ V622000020
|
|||
|
|
+ 90080796001
+ 90080796001
|
|||
|
|
+ 90070200028
+ 90070200028
|
|||
|
|
+ A556001320
+ A556001320
|
|||
|
|
V491000180
V491000180
|
|||
|
|
17504656030
17504656030
|
|||
|
|
17504956030
17504956030
|
|||
|
|
17504805530
17504805530
|
|||
|
|
V451000400
V451000400
|
|||
|
|
A553000010
A553000010
|

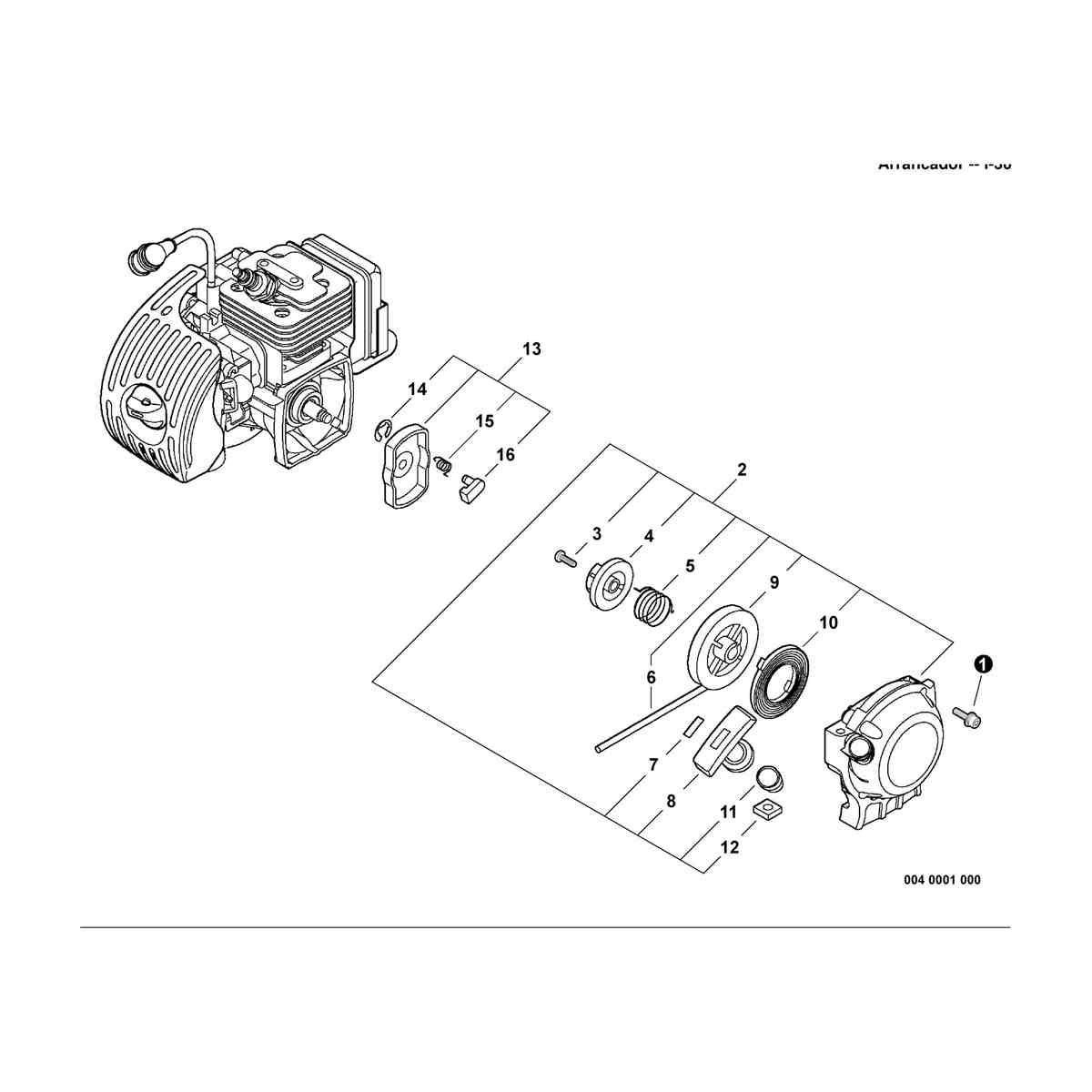

Starter -- i-30
Starter -- i-30
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
90016304016
90016304016
|
|||
|
|
A051000940
A051000940
|
|||
|
|
+ 17723661830
+ 17723661830
|
|||
|
|
+ P022008280
+ P022008280
|
|||
|
|
+ P022008270
+ P022008270
|
|||
|
|
+ P022008260
+ P022008260
|
|||
|
|
+ 17724611120
+ 17724611120
|
|||
|
|
+ 17722827030
+ 17722827030
|
|||
|
|
+ P022006830
+ P022006830
|
|||
|
|
+ 17722042030
+ 17722042030
|
|||
|
|
+ 17722742030
+ 17722742030
|
|||
|
|
+ 90056500005
+ 90056500005
|
|||
|
|
A052000180
A052000180
|
|||
|
|
+ P022002100
+ P022002100
|
|||
|
|
+ 17723412220
+ 17723412220
|
|||
|
|
+ P022006850
+ P022006850
|
|||
|
|
1
1
|

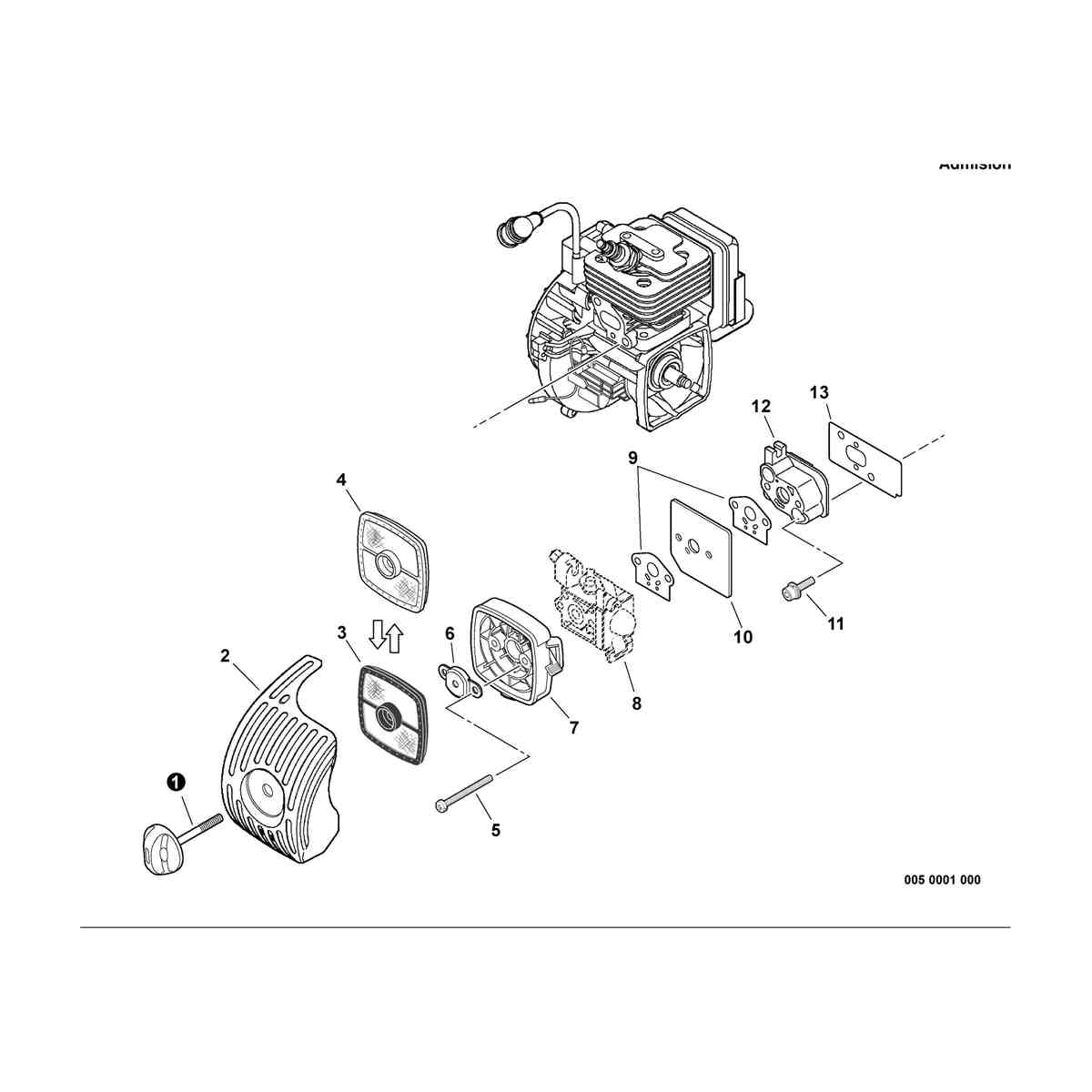

Intake
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
V299000250
V299000250
|
|||
|
|
A232000330
A232000330
|
|||
|
|
A226001410
A226001410
|
|||
|
|
13031054130
13031054130
|
|||
|
|
90024205065
90024205065
|
|||
|
|
12901152730
12901152730
|
|||
|
|
P021004480
P021004480
|
|||
|
|
------------------
------------------
|
|||
|
|
V103000270
V103000270
|
|||
|
|
A209000140
A209000140
|
|||
|
|
90016205025
90016205025
|
|||
|
|
A200000200
A200000200
|
|||
|
|
V103000210
V103000210
|
|||
|
|
1
1
|
|||
|
|
3
3
|

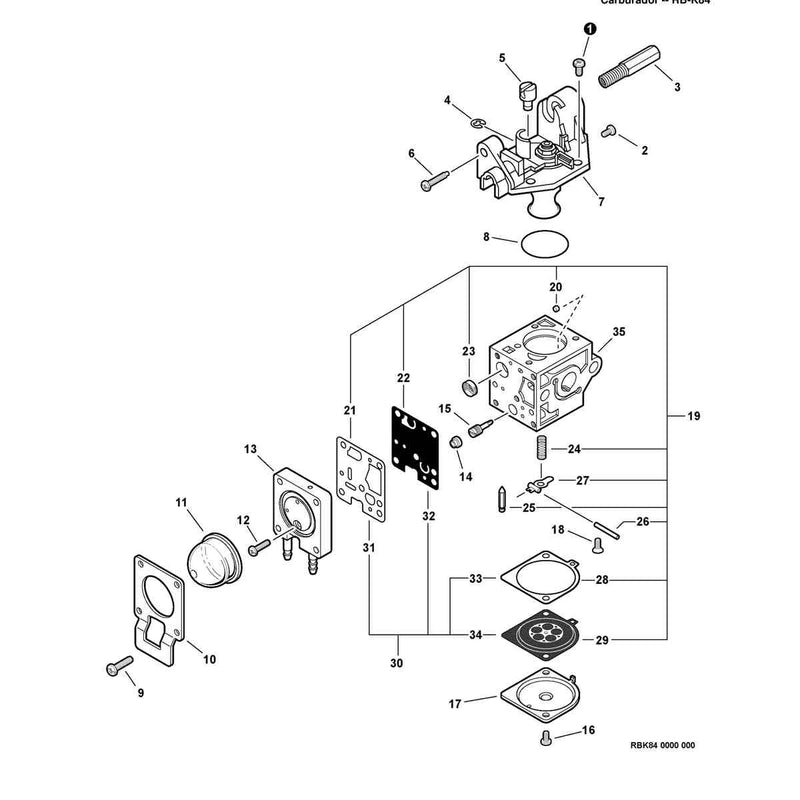

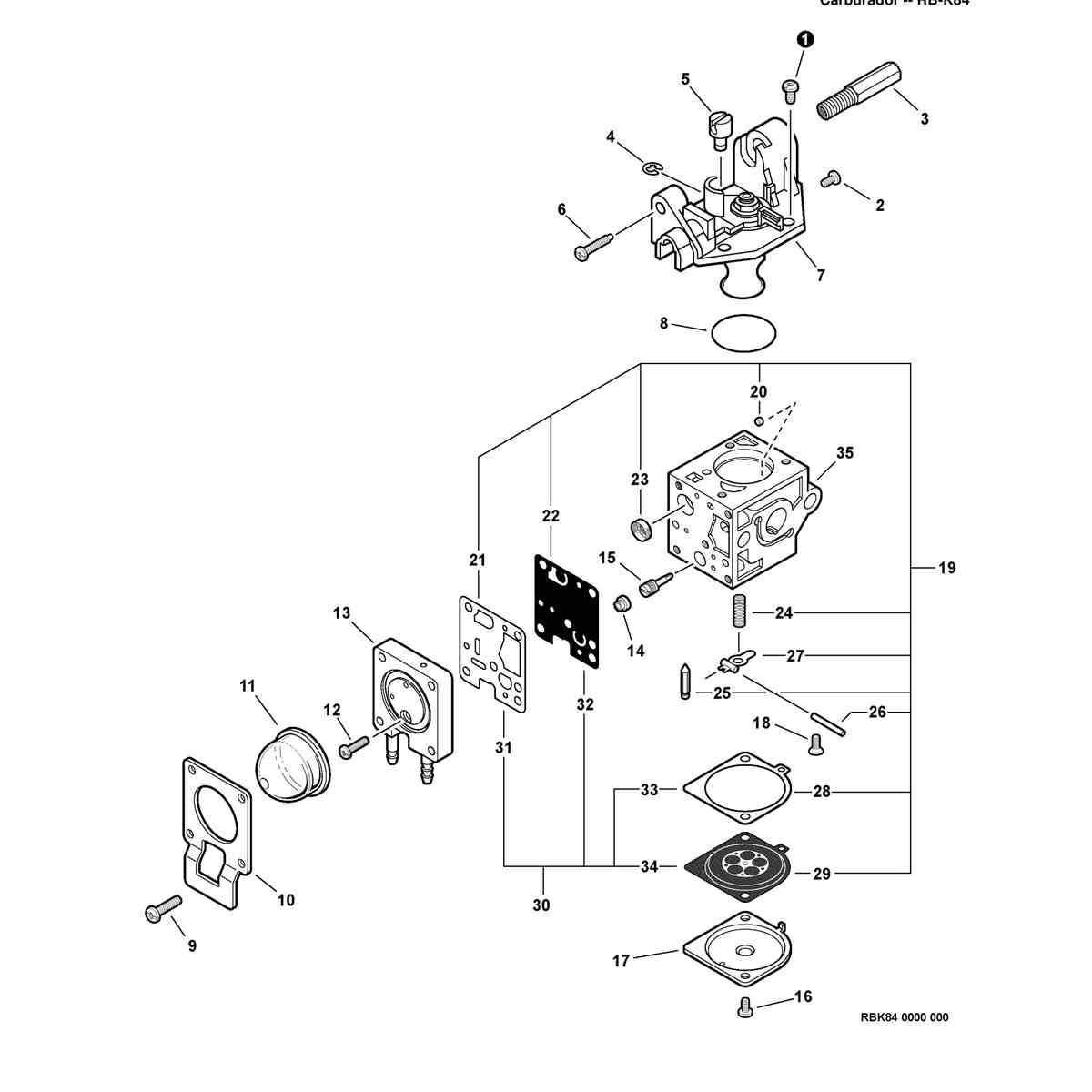

Carburetor -- RB-K84
Carburetor -- RB-K84
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
+ 12534413931
+ 12534413931
|
|||
|
|
+ 12534452130
+ 12534452130
|
|||
|
|
+ P005001330
+ P005001330
|
|||
|
|
+ P005000190
+ P005000190
|
|||
|
|
+ P005001240
+ P005001240
|
|||
|
|
+ P005000100
+ P005000100
|
|||
|
|
+ P005001980
+ P005001980
|
|||
|
|
+ P005000280
+ P005000280
|
|||
|
|
+ P005001900
+ P005001900
|
|||
|
|
+ P005000250
+ P005000250
|
|||
|
|
+ 12538108660
+ 12538108660
|
|||
|
|
+ P005000270
+ P005000270
|
|||
|
|
+ P005001890
+ P005001890
|
|||
|
|
+ P005001270
+ P005001270
|
|||
|
|
+ P005001290
+ P005001290
|
|||
|
|
+ 12534452130
+ 12534452130
|
|||
|
|
+ 12534252130
+ 12534252130
|
|||
|
|
+ 12533942030
+ 12533942030
|
|||
|
|
+ P005002290
+ P005002290
|
|||
|
|
+ P005001000
+ P005001000
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ P005002270
+ P005002270
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
1
1
|

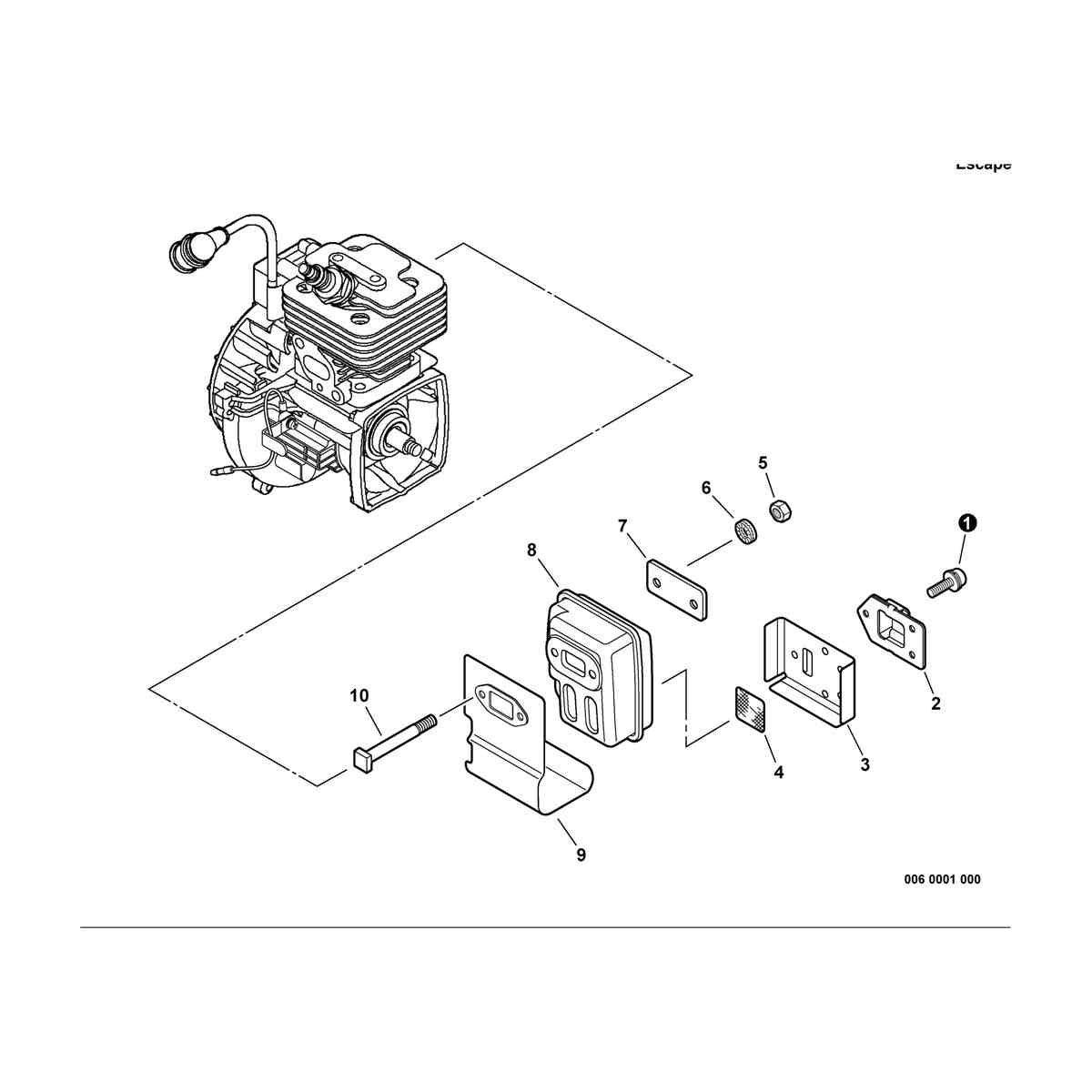

Exhaust
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
9136704012
9136704012
|
|||
|
|
A313000830
A313000830
|
|||
|
|
V104000790
V104000790
|
|||
|
|
14586240630
14586240630
|
|||
|
|
90050000005
90050000005
|
|||
|
|
9228005000
9228005000
|
|||
|
|
V150001760
V150001760
|
|||
|
|
A300000670
A300000670
|
|||
|
|
V104000780
V104000780
|
|||
|
|
V203000120
V203000120
|
|||
|
|
1
1
|

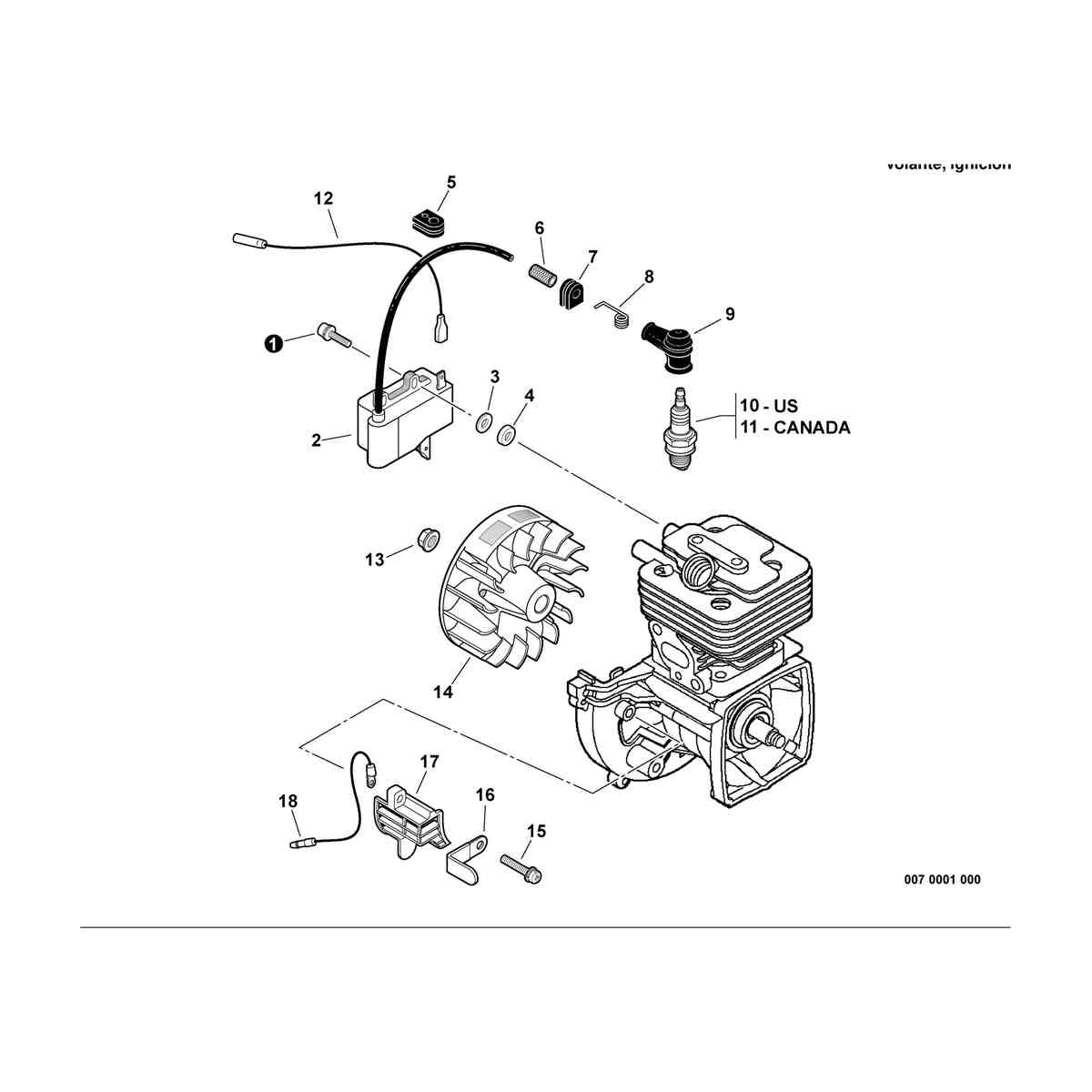

Flywheel, Ignition
Flywheel, Ignition
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
V202000130
V202000130
|
|||
|
|
A411000251
A411000251
|
|||
|
|
90060300004
90060300004
|
|||
|
|
V322000031
V322000031
|
|||
|
|
V135000030
V135000030
|
|||
|
|
V475003380
V475003380
|
|||
|
|
15611004920
15611004920
|
|||
|
|
A426000010
A426000010
|
|||
|
|
A427000013
A427000013
|
|||
|
|
15901019830
15901019830
|
|||
|
|
A425000000
A425000000
|
|||
|
|
16201004561
16201004561
|
|||
|
|
90051500008
90051500008
|
|||
|
|
A409000310
A409000310
|
|||
|
|
90016205016
90016205016
|
|||
|
|
15911621231
15911621231
|
|||
|
|
A127000160
A127000160
|
|||
|
|
15663543130
15663543130
|
|||
|
|
1
1
|
|||
|
|
2
2
|

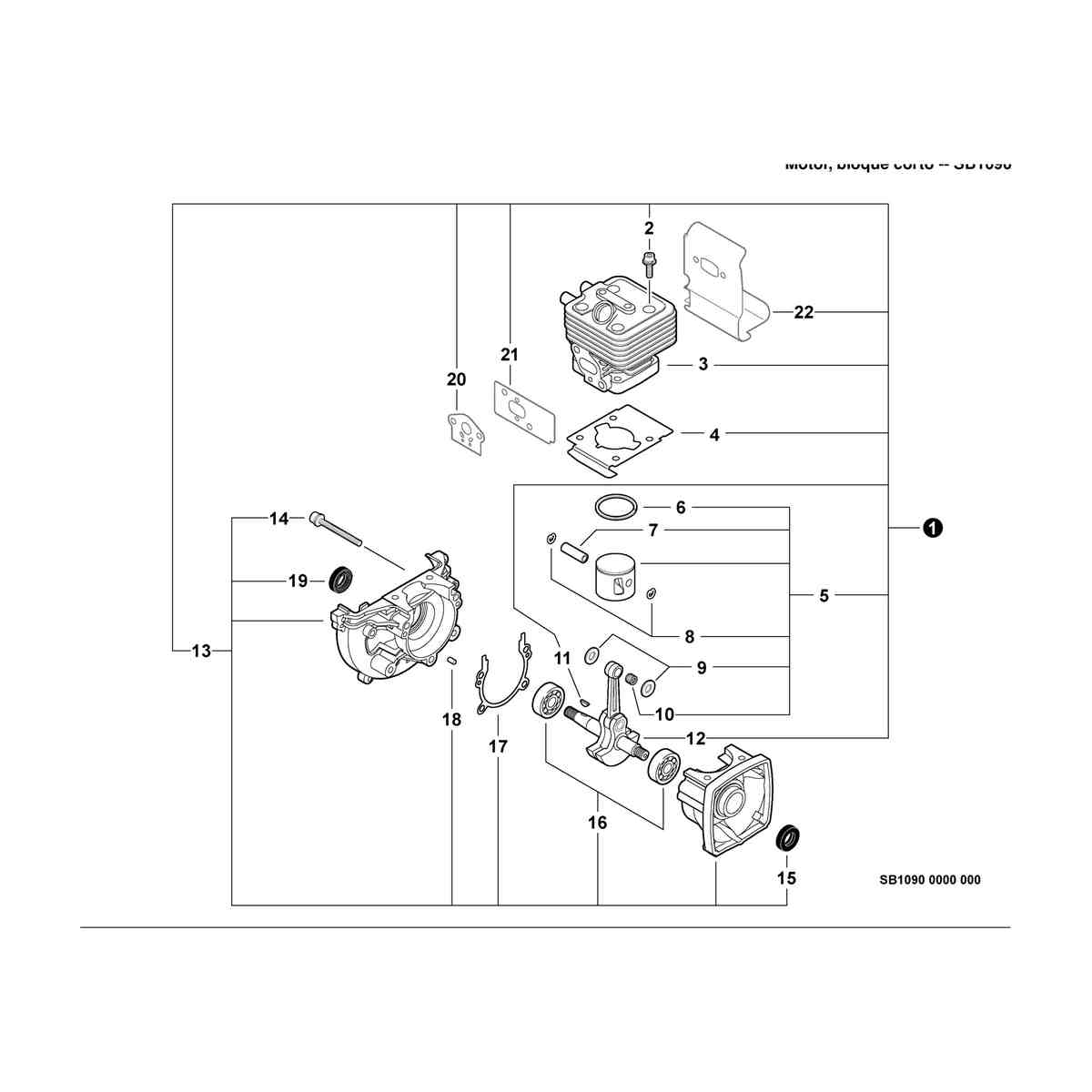

Engine, Short Block -- SB1090
Engine, Short Block -- SB1090
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
SB1090
SB1090
|
|||
|
|
+ 90016205025
+ 90016205025
|
|||
|
|
+ A130000761
+ A130000761
|
|||
|
|
+ V100000210
+ V100000210
|
|||
|
|
+ P021009771
+ P021009771
|
|||
|
|
+ A101000170
+ A101000170
|
|||
|
|
+ 10001335430
+ 10001335430
|
|||
|
|
+ 10001503931
+ 10001503931
|
|||
|
|
+ 10001453630
+ 10001453630
|
|||
|
|
+ 10001216131
+ 10001216131
|
|||
|
|
+ 10014212330
+ 10014212330
|
|||
|
|
+ A011000434
+ A011000434
|
|||
|
|
+ P021010801
+ P021010801
|
|||
|
|
+ 90016205028
+ 90016205028
|
|||
|
|
+ V505000050
+ V505000050
|
|||
|
|
+ 9403536201
+ 9403536201
|
|||
|
|
+ 10024242030
+ 10024242030
|
|||
|
|
+ V622000020
+ V622000020
|
|||
|
|
+ 10021242031
+ 10021242031
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
+ ------------------
+ ------------------
|
|||
|
|
1
1
|

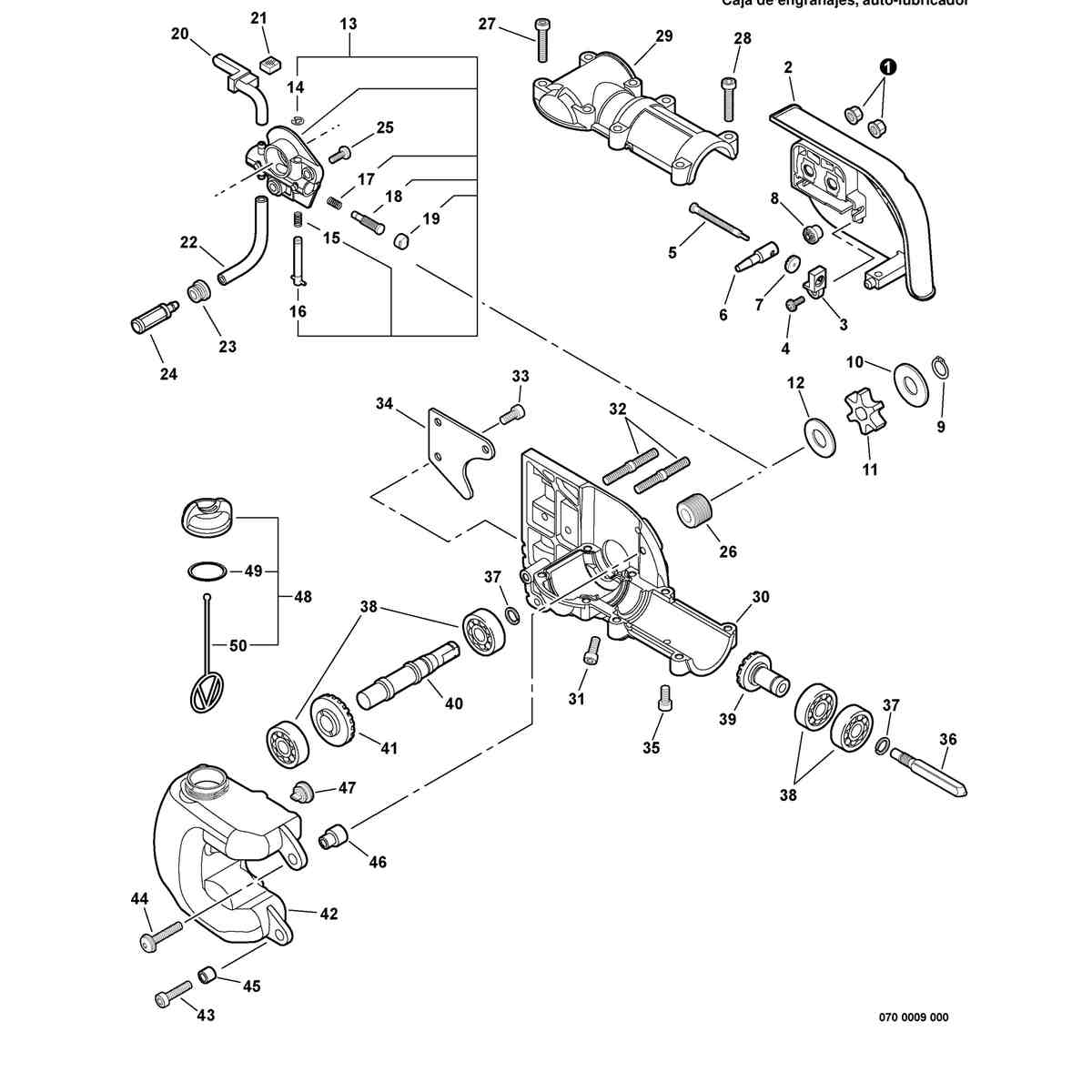

Gear Case, Auto-Oiler
Gear Case, Auto-Oiler
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
43301903933
43301903933
|
|||
|
|
C300000920
C300000920
|
|||
|
|
V355000140
V355000140
|
|||
|
|
V252000040
V252000040
|
|||
|
|
V203000041
V203000041
|
|||
|
|
C309000030
C309000030
|
|||
|
|
V651000310
V651000310
|
|||
|
|
V651000320
V651000320
|
|||
|
|
V583000090
V583000090
|
|||
|
|
V307000160
V307000160
|
|||
|
|
C580000070
C580000070
|
|||
|
|
17501439131
17501439131
|
|||
|
|
C022000010
C022000010
|
|||
|
|
+ 12532715130
+ 12532715130
|
|||
|
|
+ P022010670
+ P022010670
|
|||
|
|
+ P022010680
+ P022010680
|
|||
|
|
+ P022010660
+ P022010660
|
|||
|
|
+ P022010650
+ P022010650
|
|||
|
|
+ P022010640
+ P022010640
|
|||
|
|
V470000180
V470000180
|
|||
|
|
43724439130
43724439130
|
|||
|
|
13011014330
13011014330
|
|||
|
|
13211501461
13211501461
|
|||
|
|
43620502832
43620502832
|
|||
|
|
V253000200
V253000200
|
|||
|
|
V652000021
V652000021
|
|||
|
|
V253000240
V253000240
|
|||
|
|
90010505025
90010505025
|
|||
|
|
C531000030
C531000030
|
|||
|
|
C531000430
C531000430
|
|||
|
|
V253000200
V253000200
|
|||
|
|
V224000040
V224000040
|
|||
|
|
V253000200
V253000200
|
|||
|
|
C649000140
C649000140
|
|||
|
|
90010505010
90010505010
|
|||
|
|
61002522361
61002522361
|
|||
|
|
90070600012
90070600012
|
|||
|
|
9404206001
9404206001
|
|||
|
|
V651000210
V651000210
|
|||
|
|
C534000430
C534000430
|
|||
|
|
V651000201
V651000201
|
|||
|
|
C200000080
C200000080
|
|||
|
|
90010505020
90010505020
|
|||
|
|
V253000240
V253000240
|
|||
|
|
13104528230
13104528230
|
|||
|
|
V354000010
V354000010
|
|||
|
|
13131406320
13131406320
|
|||
|
|
P021014940
P021014940
|
|||
|
|
+ 90072000018
+ 90072000018
|
|||
|
|
+ A365000050
+ A365000050
|
|||
|
|
1
1
|

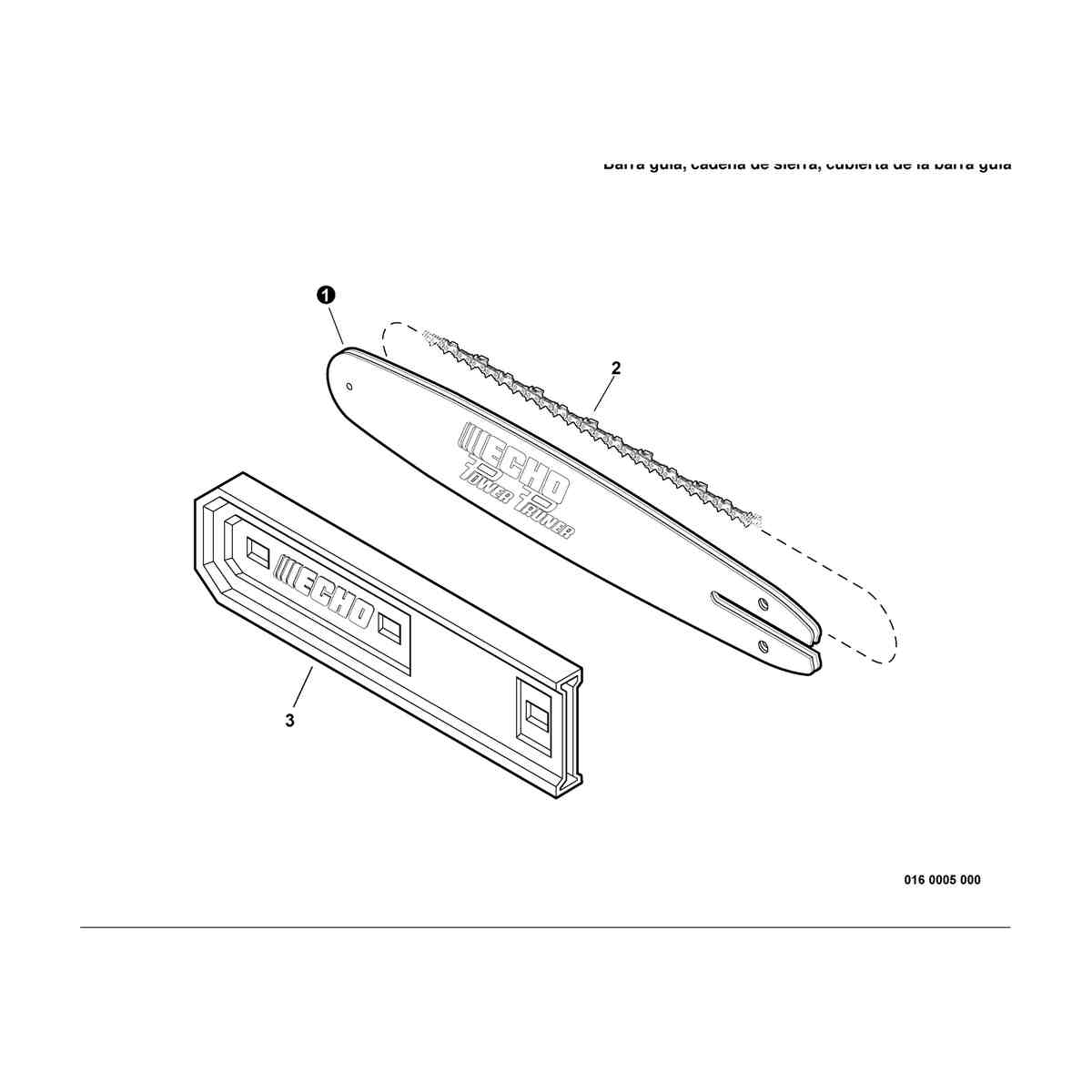

Guide Bar, Sawing Chain, Guide Bar Cover
Guide Bar, Sawing Chain, Guide Bar Cover
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12A0CD3744
12A0CD3744
|
|||
|
|
91VX44CQ
91VX44CQ
|
|||
|
|
X490000050
X490000050
|
|||
|
|
1
1
|

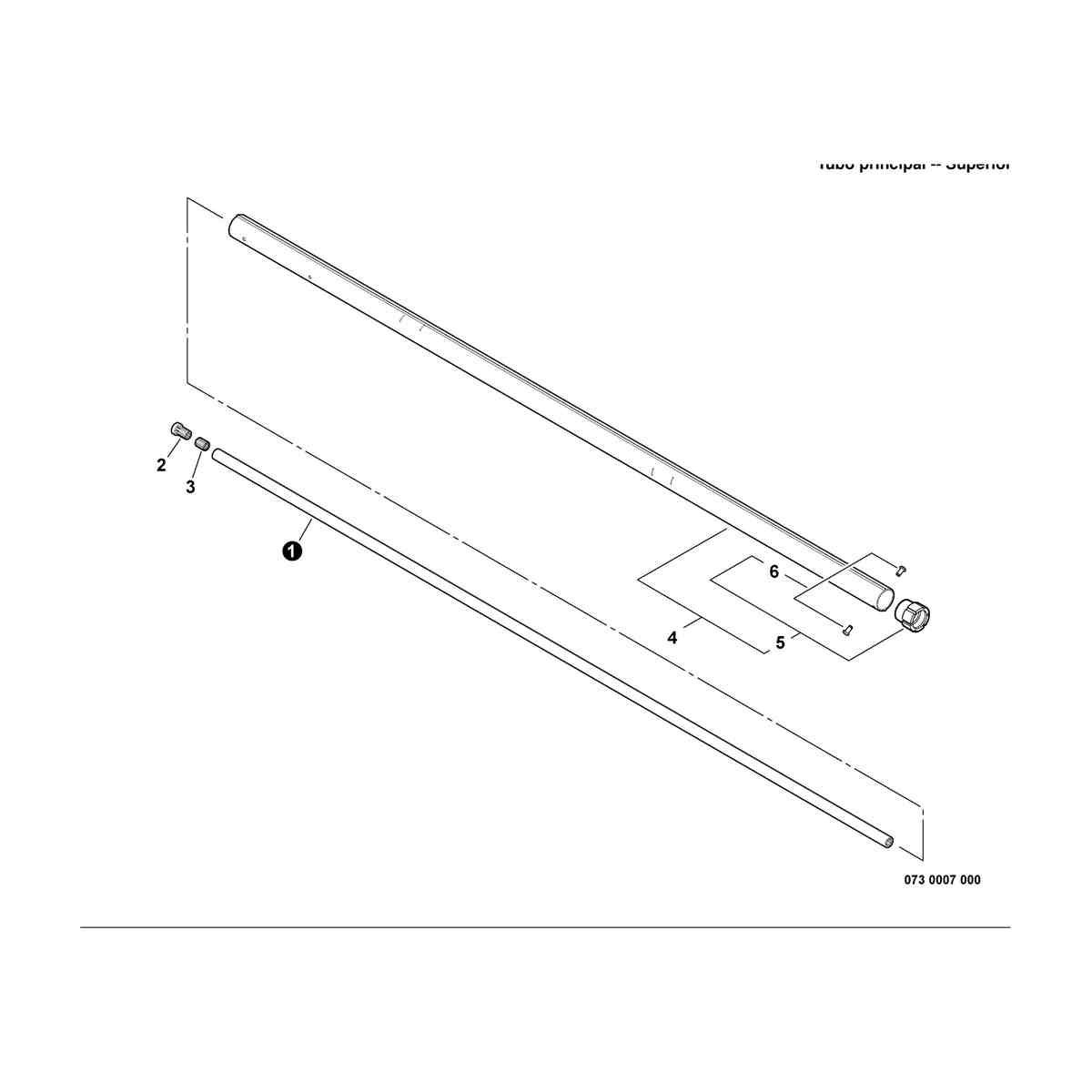

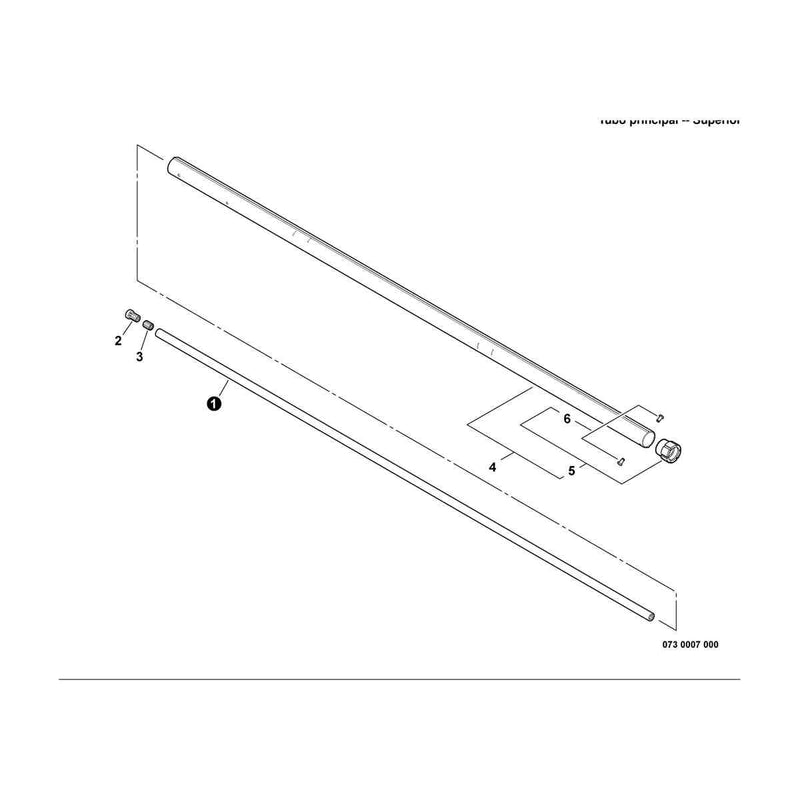

Main Pipe -- Upper
Main Pipe -- Upper
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
C504000360
C504000360
|
|||
|
|
C509000080
C509000080
|
|||
|
|
C509000090
C509000090
|
|||
|
|
+ C050000760
+ C050000760
|
|||
|
|
+ C503000080
+ C503000080
|
|||
|
|
+ 89001122360
+ 89001122360
|

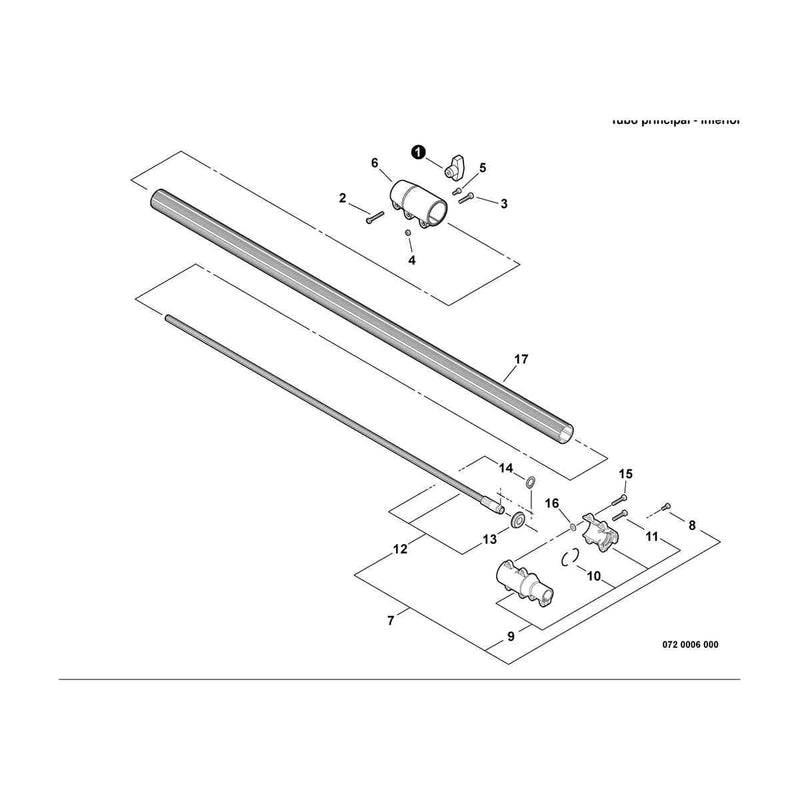

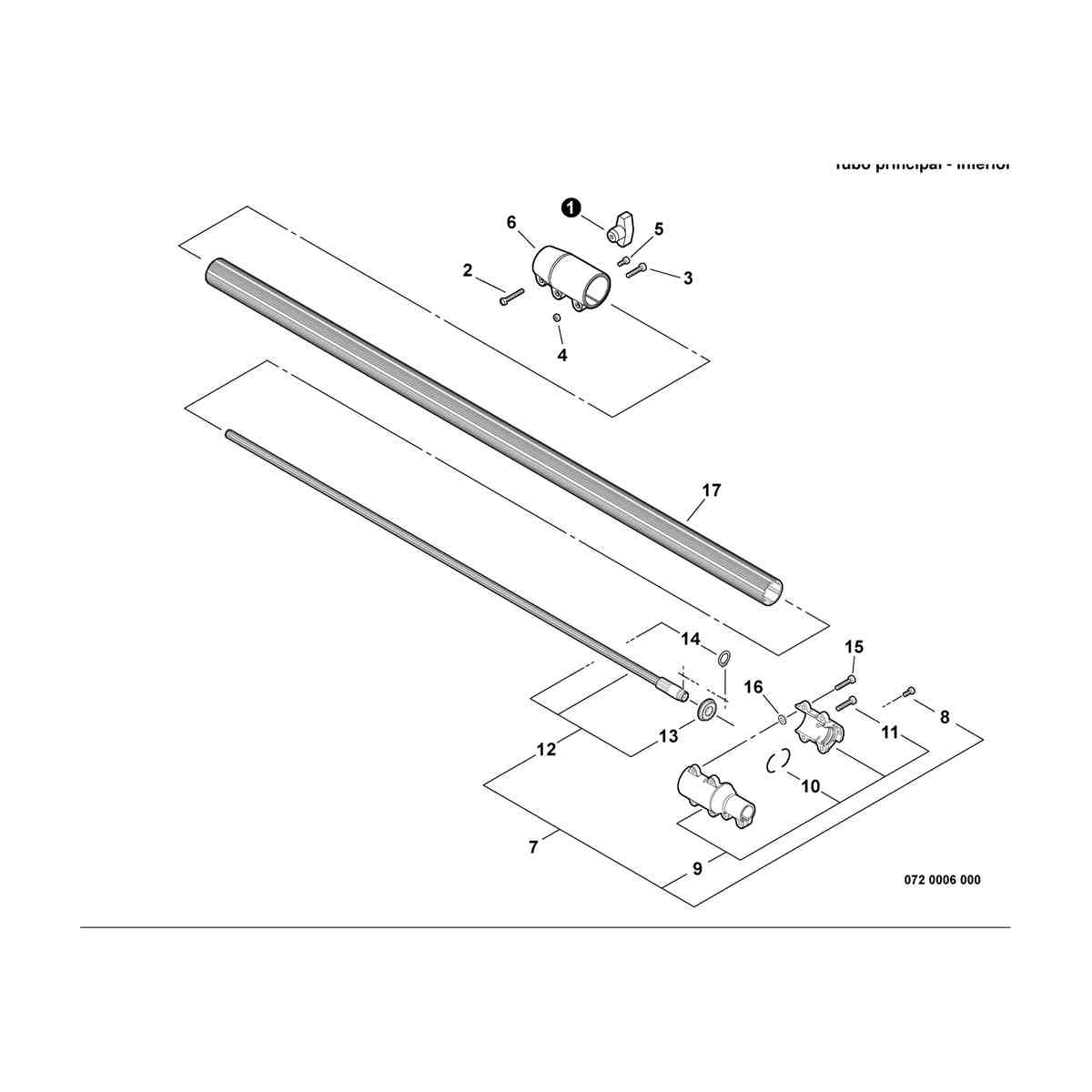

Main Pipe -- Lower
Main Pipe -- Lower
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
V299000321
V299000321
|
|||
|
|
90010006025
90010006025
|
|||
|
|
90010505020
90010505020
|
|||
|
|
90050000005
90050000005
|
|||
|
|
90010505012
90010505012
|
|||
|
|
C510000280
C510000280
|
|||
|
|
P021038660
P021038660
|
|||
|
|
+ 90010505014
+ 90010505014
|
|||
|
|
+ C510000164
+ C510000164
|
|||
|
|
+ V420001810
+ V420001810
|
|||
|
|
+ 90010505020
+ 90010505020
|
|||
|
|
+ C504000372
+ C504000372
|
|||
|
|
+ 9405736002
+ 9405736002
|
|||
|
|
+ 10022922460
+ 10022922460
|
|||
|
|
90010505020
90010505020
|
|||
|
|
V303000071
V303000071
|
|||
|
|
C500000271
C500000271
|

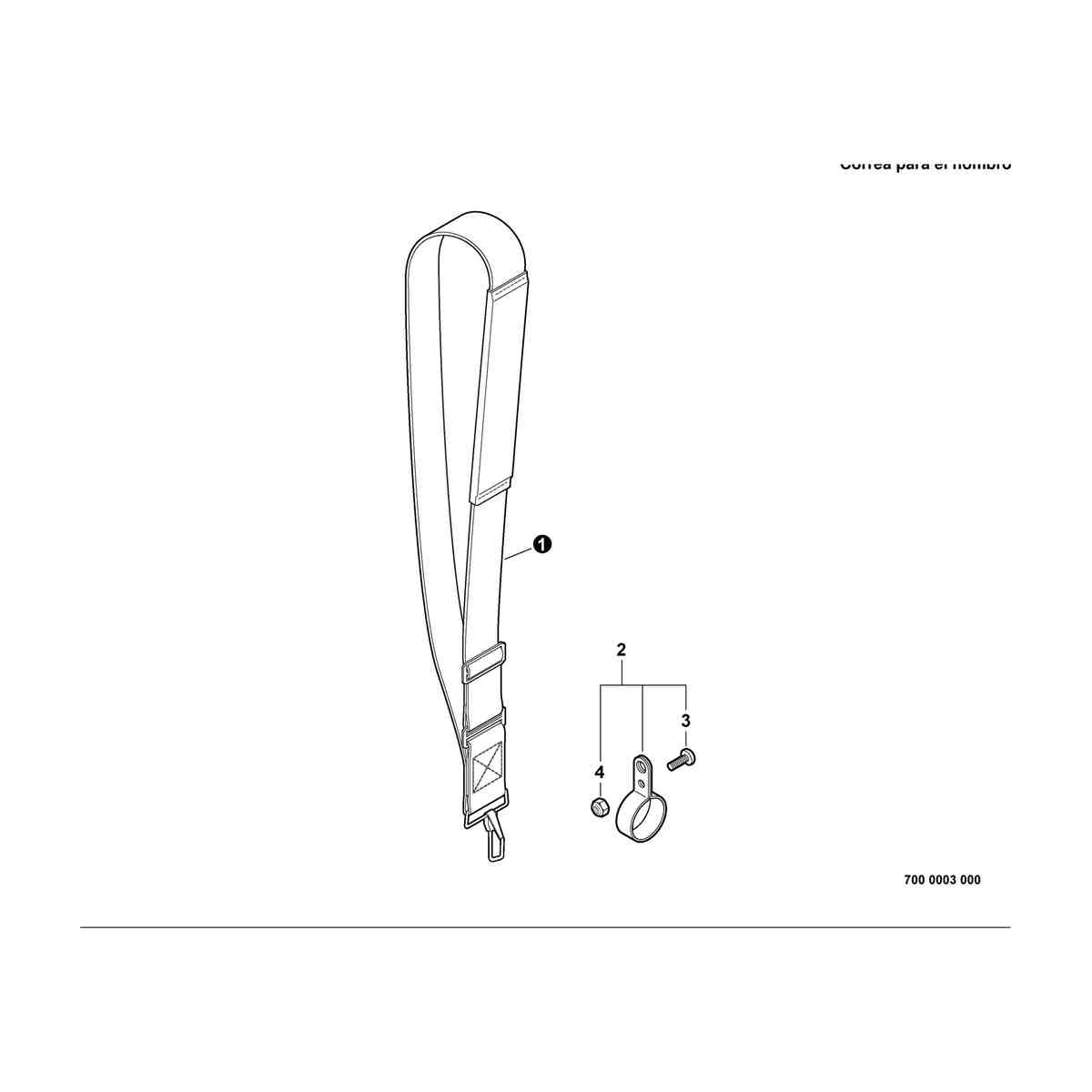

Shoulder Strap
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30100022060
30100022060
|
|||
|
|
30060522060
30060522060
|
|||
|
|
+ 90005300200
+ 90005300200
|
|||
|
|
+ 90003150100
+ 90003150100
|

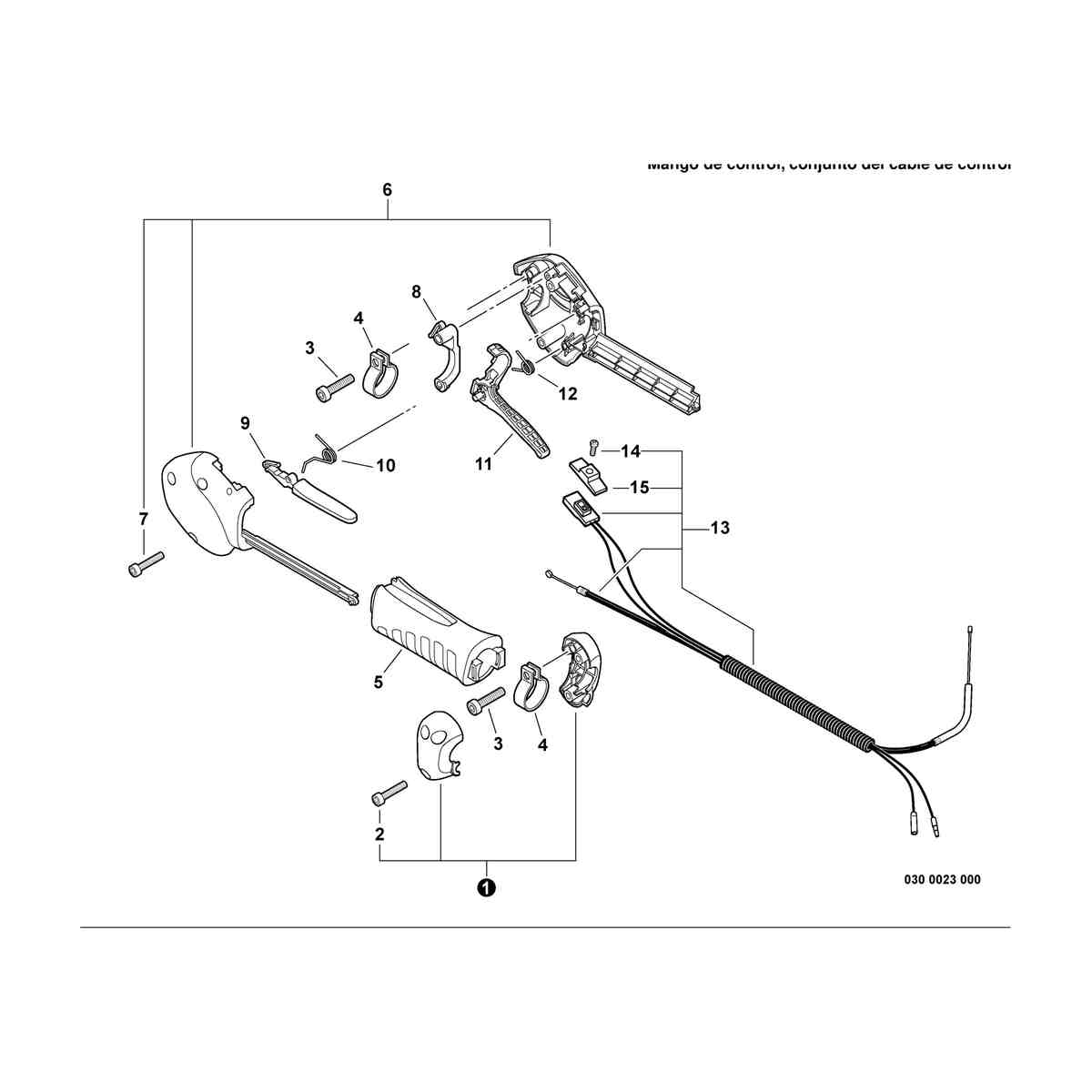

Control Handle, Control Cable Assembly
Control Handle, Control Cable Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P021009970
P021009970
|
|||
|
|
+ 88995021060
+ 88995021060
|
|||
|
|
90016205020
90016205020
|
|||
|
|
V495000680
V495000680
|
|||
|
|
C412000090
C412000090
|
|||
|
|
P021009961
P021009961
|
|||
|
|
+ 88995021060
+ 88995021060
|
|||
|
|
C453000151
C453000151
|
|||
|
|
C460000051
C460000051
|
|||
|
|
V452000240
V452000240
|
|||
|
|
C450000183
C450000183
|
|||
|
|
V452000210
V452000210
|
|||
|
|
V043000071
V043000071
|
|||
|
|
+ 9154503010
+ 9154503010
|
|||
|
|
+ A444000020
+ A444000020
|

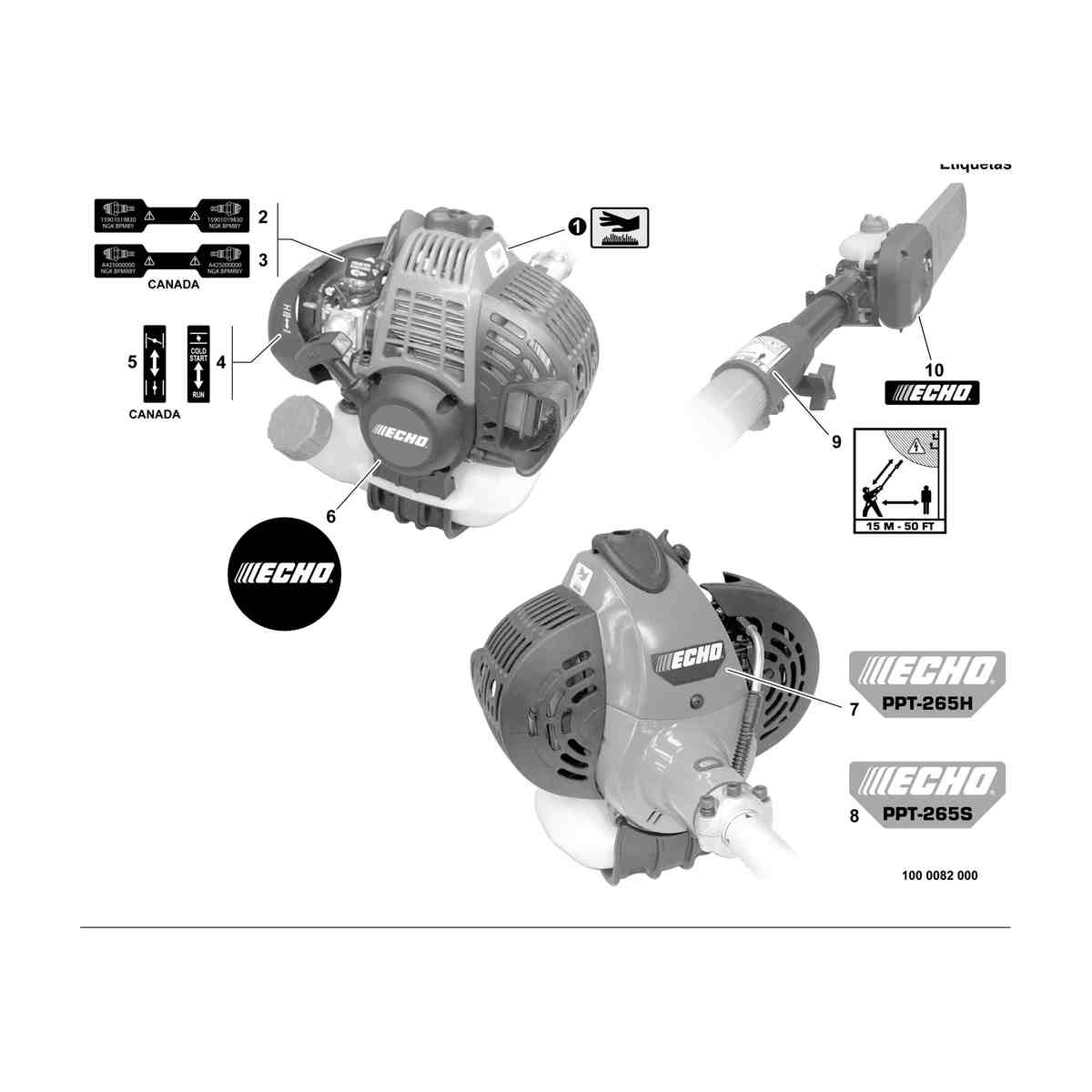

Labels
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
X505002310
X505002310
|
|||
|
|
X532000671
X532000671
|
|||
|
|
X532000720
X532000720
|
|||
|
|
89012152730
89012152730
|
|||
|
|
89033252730
89033252730
|
|||
|
|
X502000330
X502000330
|
|||
|
|
X547001270
X547001270
|
|||
|
|
X547001860
X547001860
|
|||
|
|
X505002371
X505002371
|
|||
|
|
X502000600
X502000600
|
