ECHO SRM-251 String Trimmer Parts Diagram (Serial # 09001001 - 09999999)
Diagrams:
Diagram:

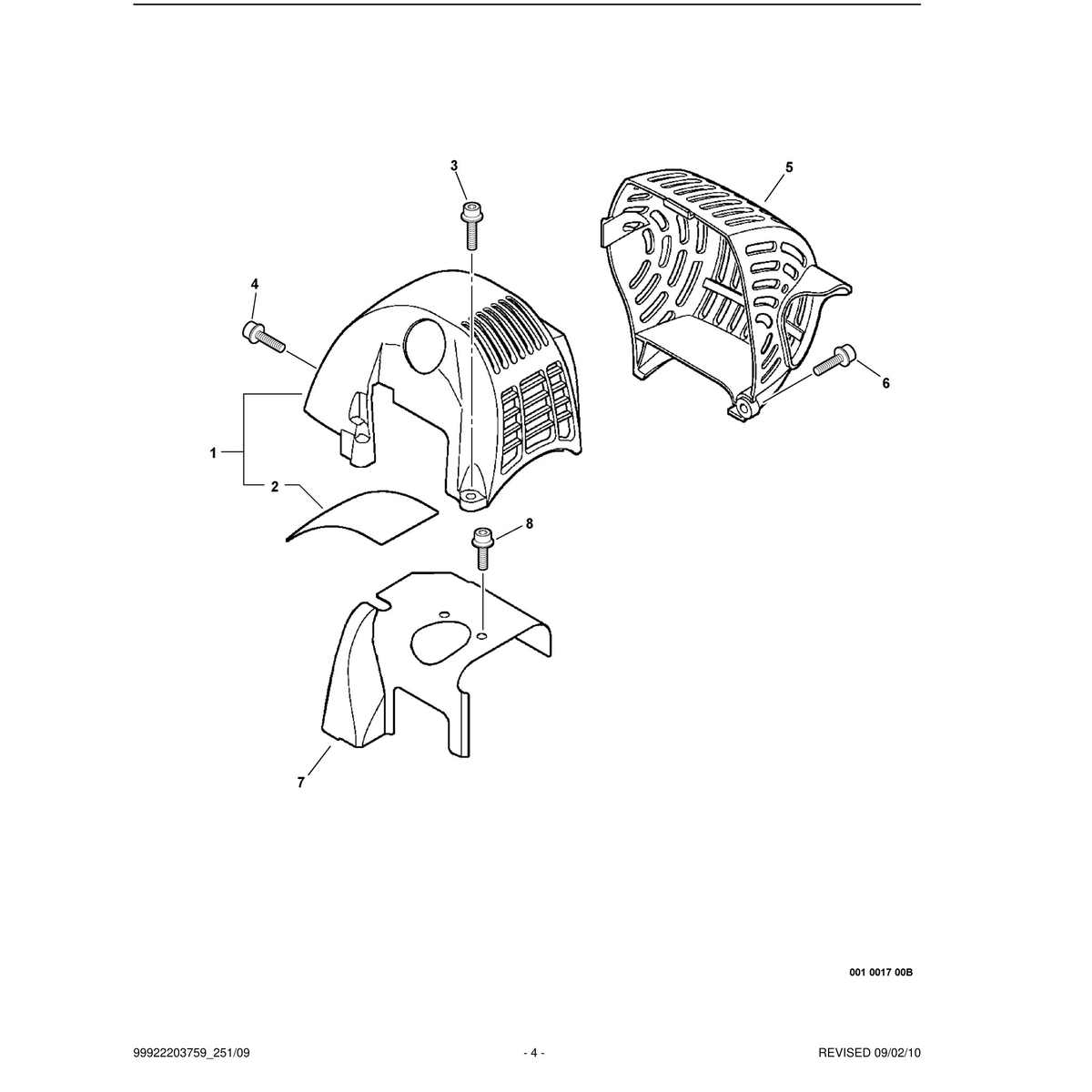

Engine Cover, Cylinder Cover, Exhaust Cover
Engine Cover, Cylinder Cover, Exhaust Cover
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P021008250
P021008250
|
|||
|
|
9114005012
9114005012
|
|||
|
|
V202000030
V202000030
|
|||
|
|
A320000330
A320000330
|
|||
|
|
90010605020
90010605020
|
|||
|
|
A160000690
A160000690
|
|||
|
|
90010605008
90010605008
|

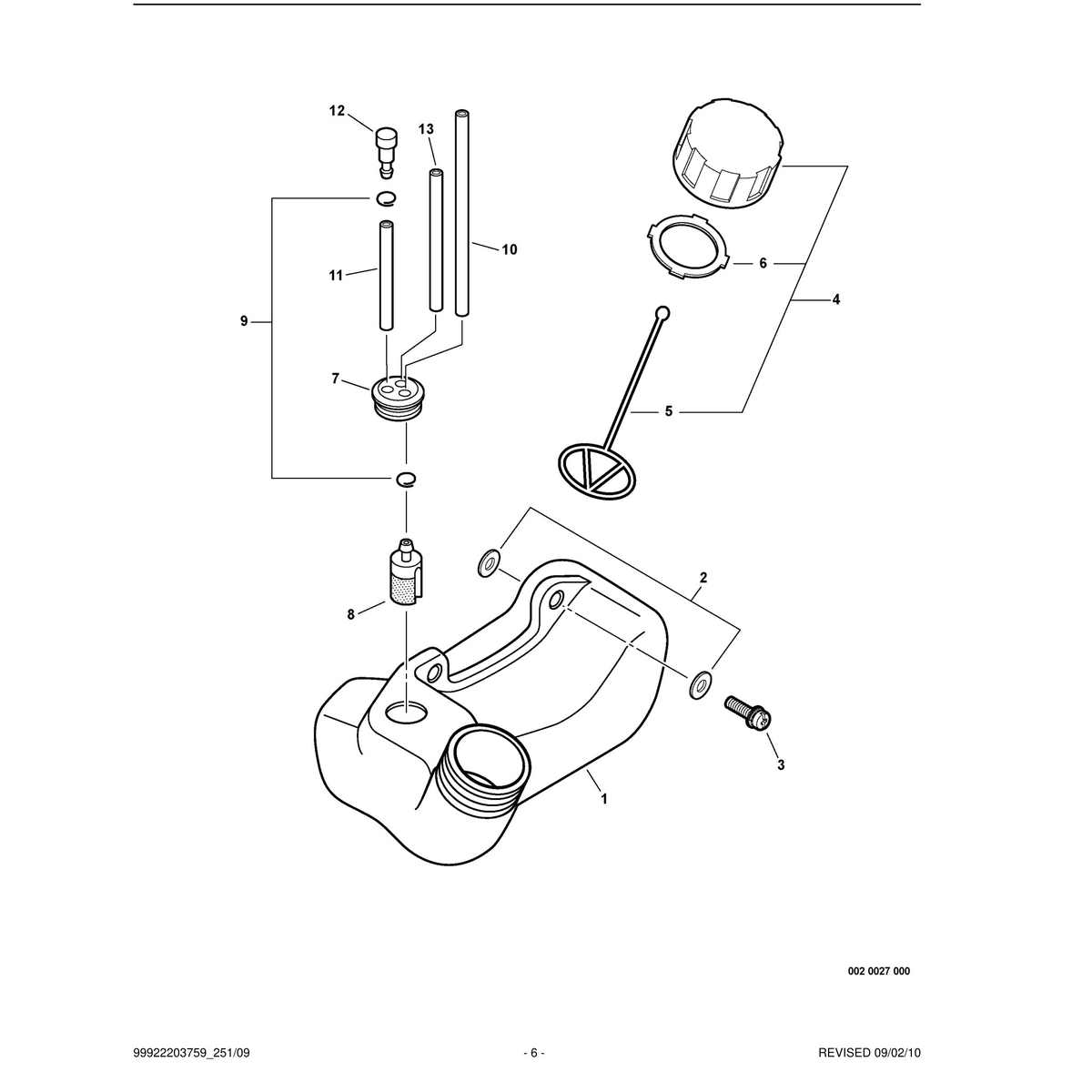

Fuel System
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
A350000392
A350000392
|
|||
|
|
90023805025
90023805025
|
|||
|
|
P021012210
P021012210
|
|||
|
|
A365000020
A365000020
|
|||
|
|
13101655830
13101655830
|
|||
|
|
13120507320
13120507320
|
|||
|
|
13201309820
13201309820
|
|||
|
|
V470000580
V470000580
|
|||
|
|
13201021160
13201021160
|
|||
|
|
A356000030
A356000030
|
|||
|
|
13201006460
13201006460
|

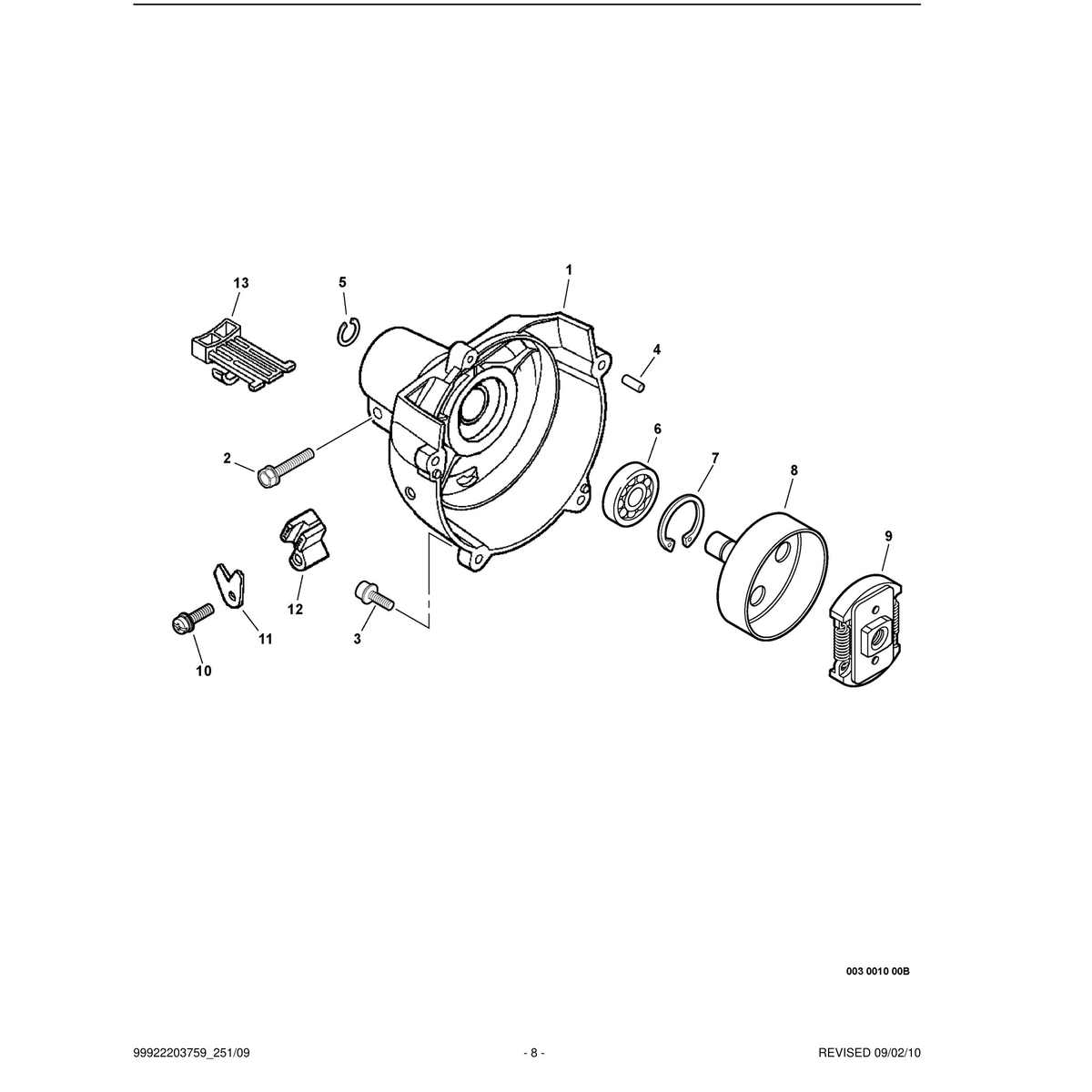

Fancase, Clutch
Fancase, Clutch
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
A172000550
A172000550
|
|||
|
|
90016205028
90016205028
|
|||
|
|
90016304016
90016304016
|
|||
|
|
V622000020
V622000020
|
|||
|
|
90070100012
90070100012
|
|||
|
|
90081406201
90081406201
|
|||
|
|
90070200032
90070200032
|
|||
|
|
A556000370
A556000370
|
|||
|
|
A056000150
A056000150
|
|||
|
|
90023804018
90023804018
|
|||
|
|
V150001540
V150001540
|
|||
|
|
C482000030
C482000030
|
|||
|
|
V491000150
V491000150
|

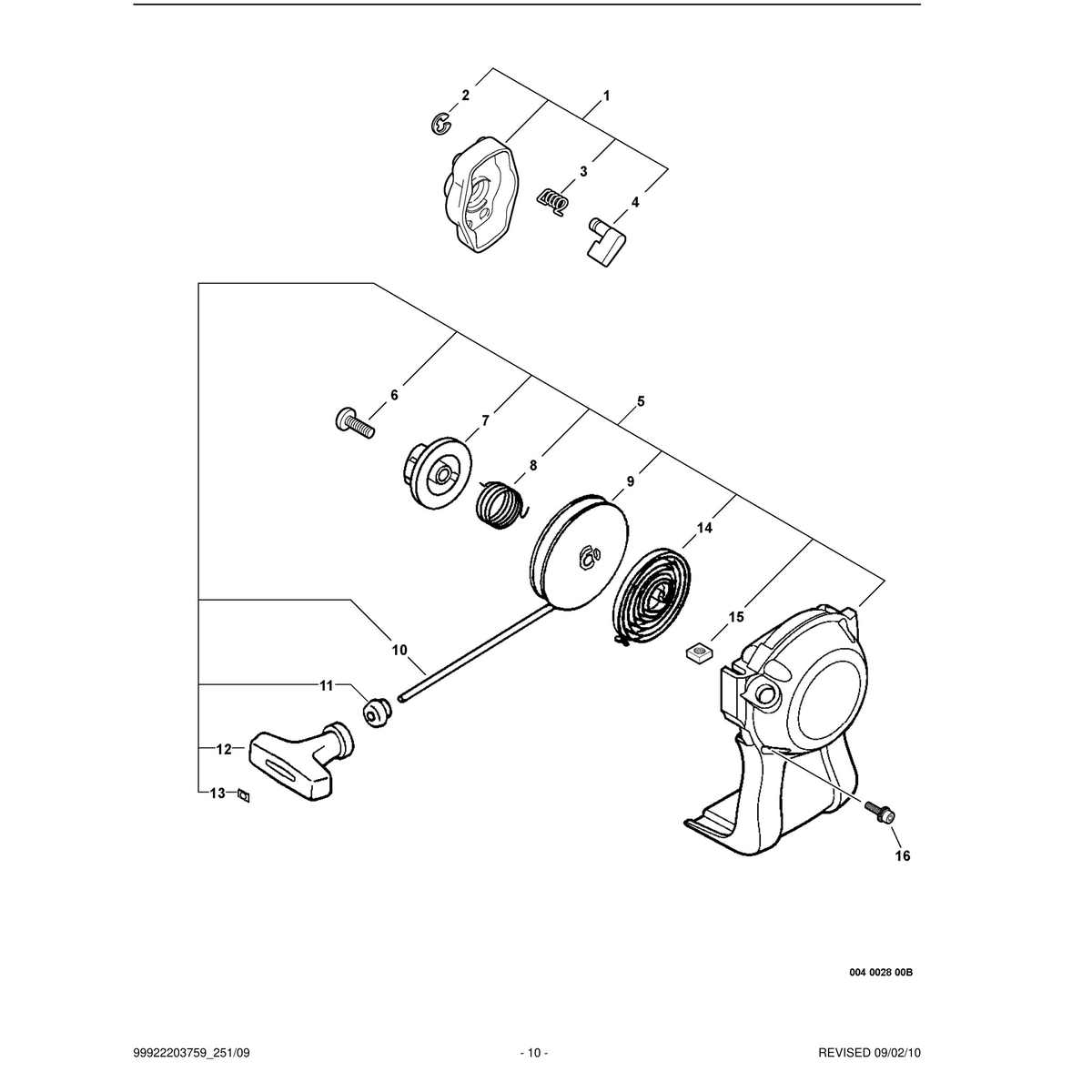

Starter -- i-30
Starter -- i-30
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
A052000180
A052000180
|
|||
|
|
17723412220
17723412220
|
|||
|
|
P022006850
P022006850
|
|||
|
|
A051000770
A051000770
|
|||
|
|
P022008280
P022008280
|
|||
|
|
P022008270
P022008270
|
|||
|
|
P022008260
P022008260
|
|||
|
|
17722742030
17722742030
|
|||
|
|
17722827030
17722827030
|
|||
|
|
17722042030
17722042030
|
|||
|
|
90056500005
90056500005
|
|||
|
|
90016304016
90016304016
|

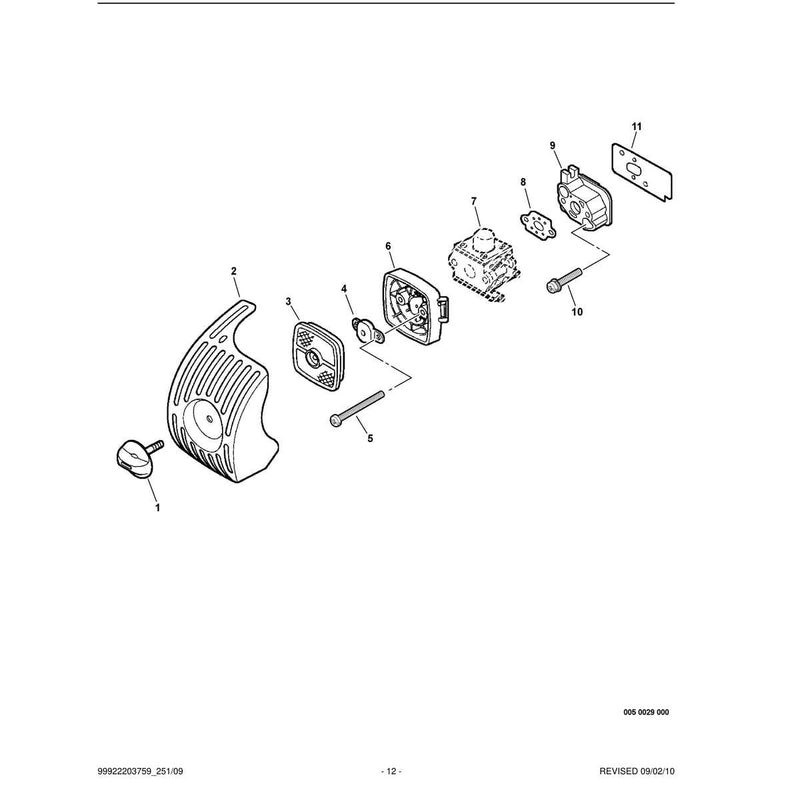

Intake
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
V299000250
V299000250
|
|||
|
|
A232000271
A232000271
|
|||
|
|
13031054130
13031054130
|
|||
|
|
12901152730
12901152730
|
|||
|
|
90022005065
90022005065
|
|||
|
|
P021000991
P021000991
|
|||
|
|
V103000200
V103000200
|
|||
|
|
A200000200
A200000200
|
|||
|
|
90016205025
90016205025
|
|||
|
|
V103000210
V103000210
|

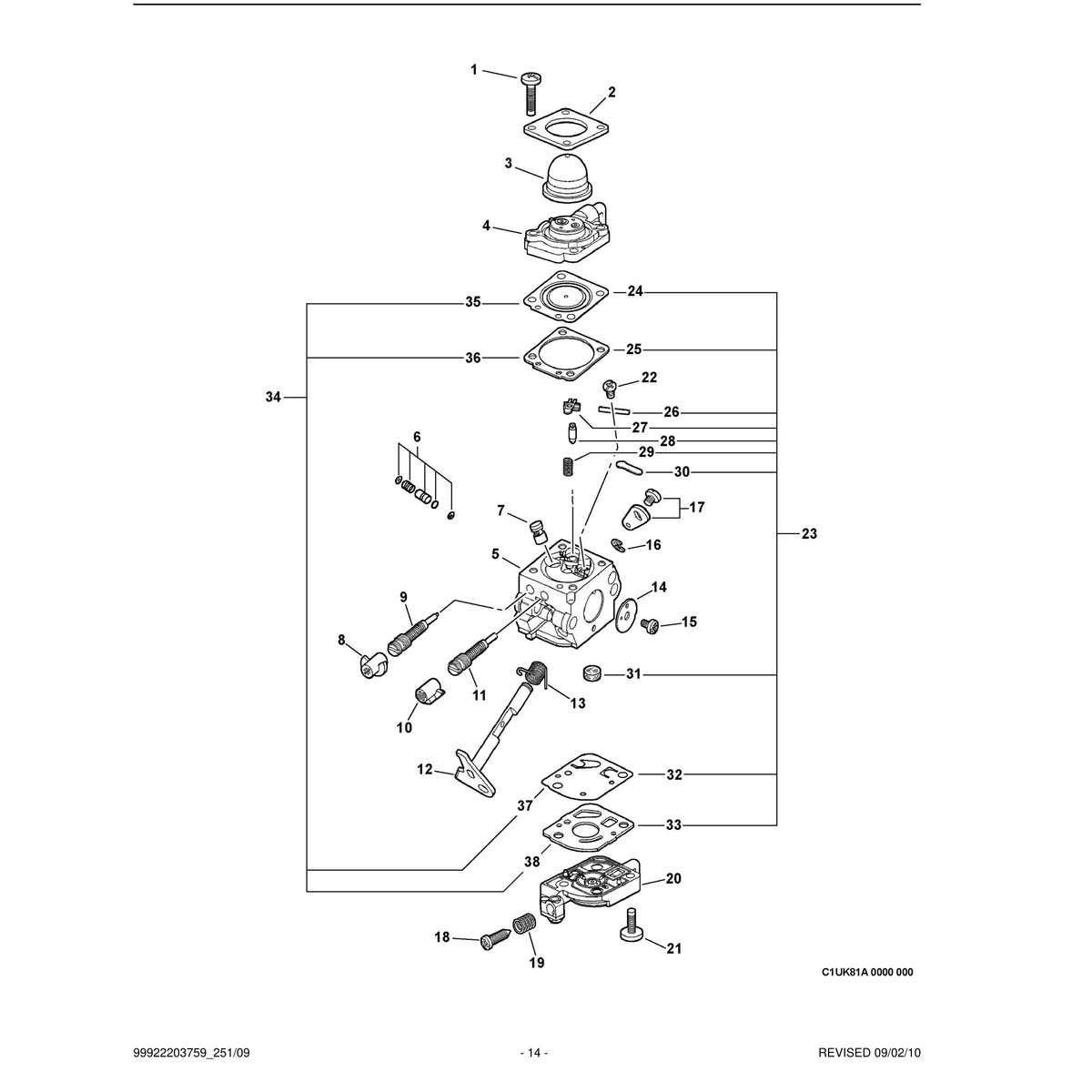

Carburetor -- C1U-K81A
Carburetor -- C1U-K81A
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P005000980
P005000980
|
|||
|
|
P005000620
P005000620
|
|||
|
|
12538108660
12538108660
|
|||
|
|
P005001680
P005001680
|
|||
|
|
12530613120
12530613120
|
|||
|
|
P005001920
P005001920
|
|||
|
|
12532939030
12532939030
|
|||
|
|
12532013310
12532013310
|
|||
|
|
12532909860
12532909860
|
|||
|
|
12531813120
12531813120
|
|||
|
|
P005001700
P005001700
|
|||
|
|
12531342030
12531342030
|
|||
|
|
12531649030
12531649030
|
|||
|
|
12531413930
12531413930
|
|||
|
|
12532713930
12532713930
|
|||
|
|
P005001690
P005001690
|
|||
|
|
12533406960
12533406960
|
|||
|
|
12533306960
12533306960
|
|||
|
|
12532412820
12532412820
|
|||
|
|
12531012820
12531012820
|
|||
|
|
12533942030
12533942030
|
|||
|
|
12530013120
12530013120
|
|||
|
|
12530313120
12530313120
|

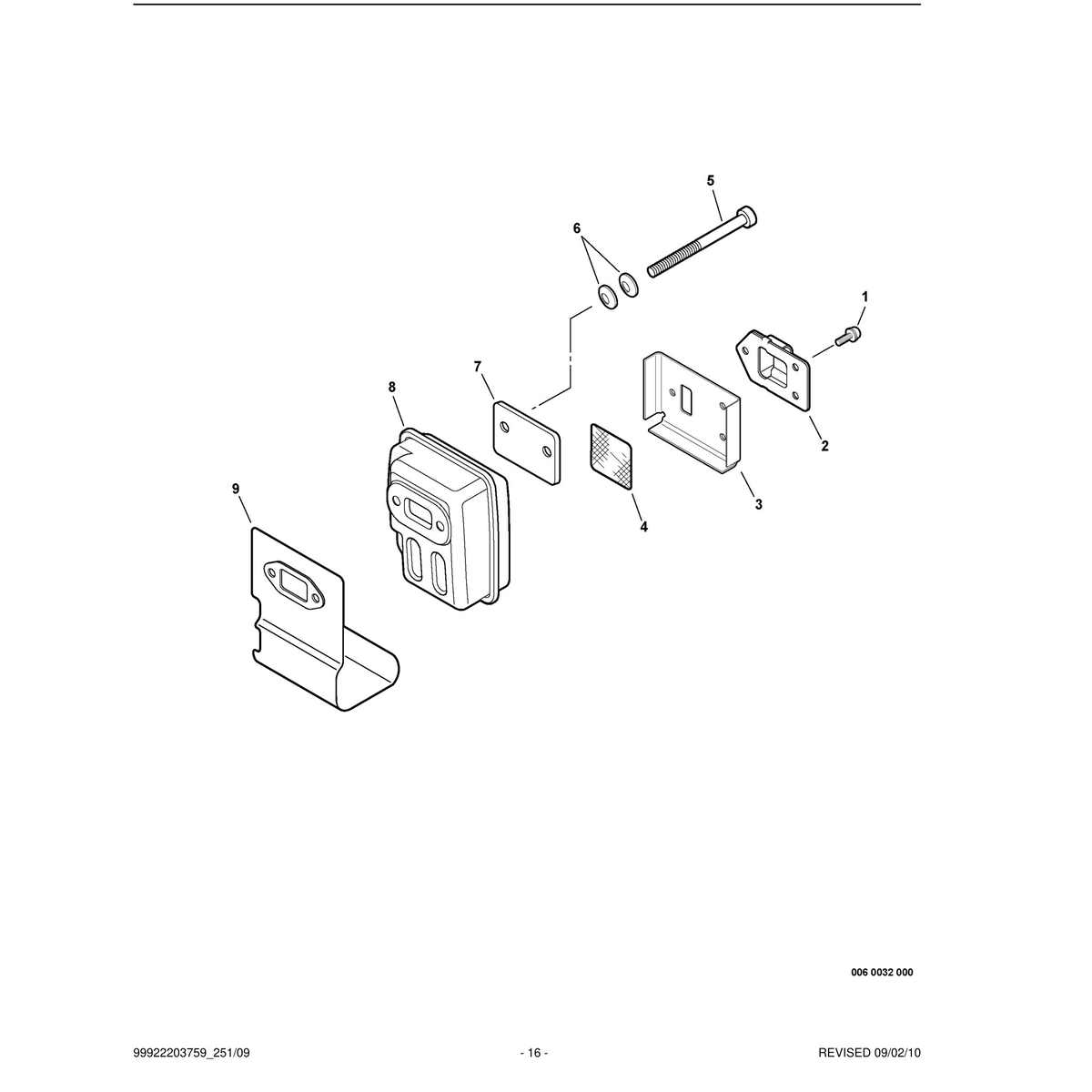

Exhaust
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
9136704012
9136704012
|
|||
|
|
A313000700
A313000700
|
|||
|
|
V104000072
V104000072
|
|||
|
|
14586240630
14586240630
|
|||
|
|
90010505055
90010505055
|
|||
|
|
V347000000
V347000000
|
|||
|
|
V150000371
V150000371
|
|||
|
|
V104000660
V104000660
|

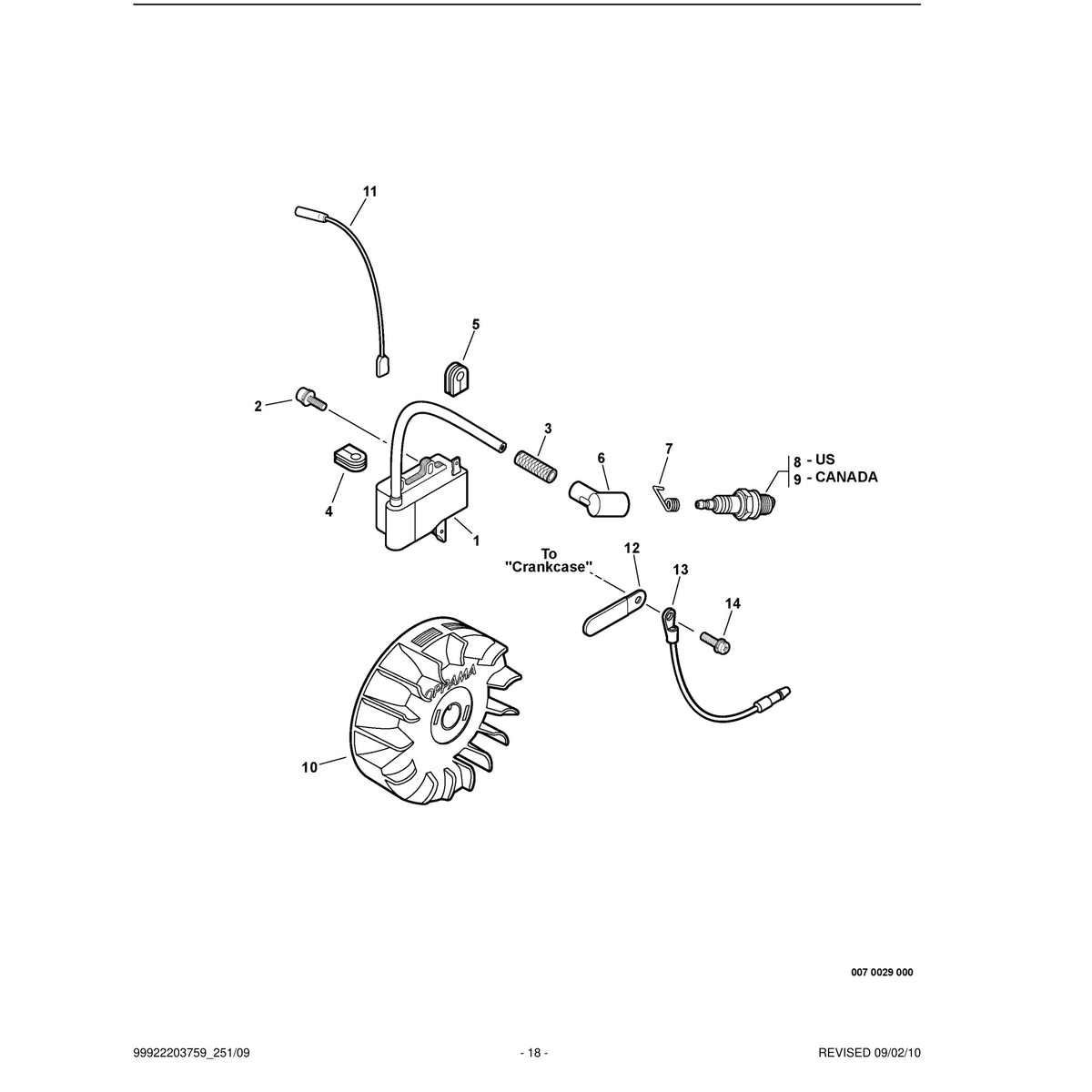

Ignition
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
A411000210
A411000210
|
|||
|
|
90016204020
90016204020
|
|||
|
|
A427000013
A427000013
|
|||
|
|
A426000010
A426000010
|
|||
|
|
15901019830
15901019830
|
|||
|
|
A425000000
A425000000
|
|||
|
|
16201004561
16201004561
|
|||
|
|
16201452930
16201452930
|
|||
|
|
90024205010
90024205010
|

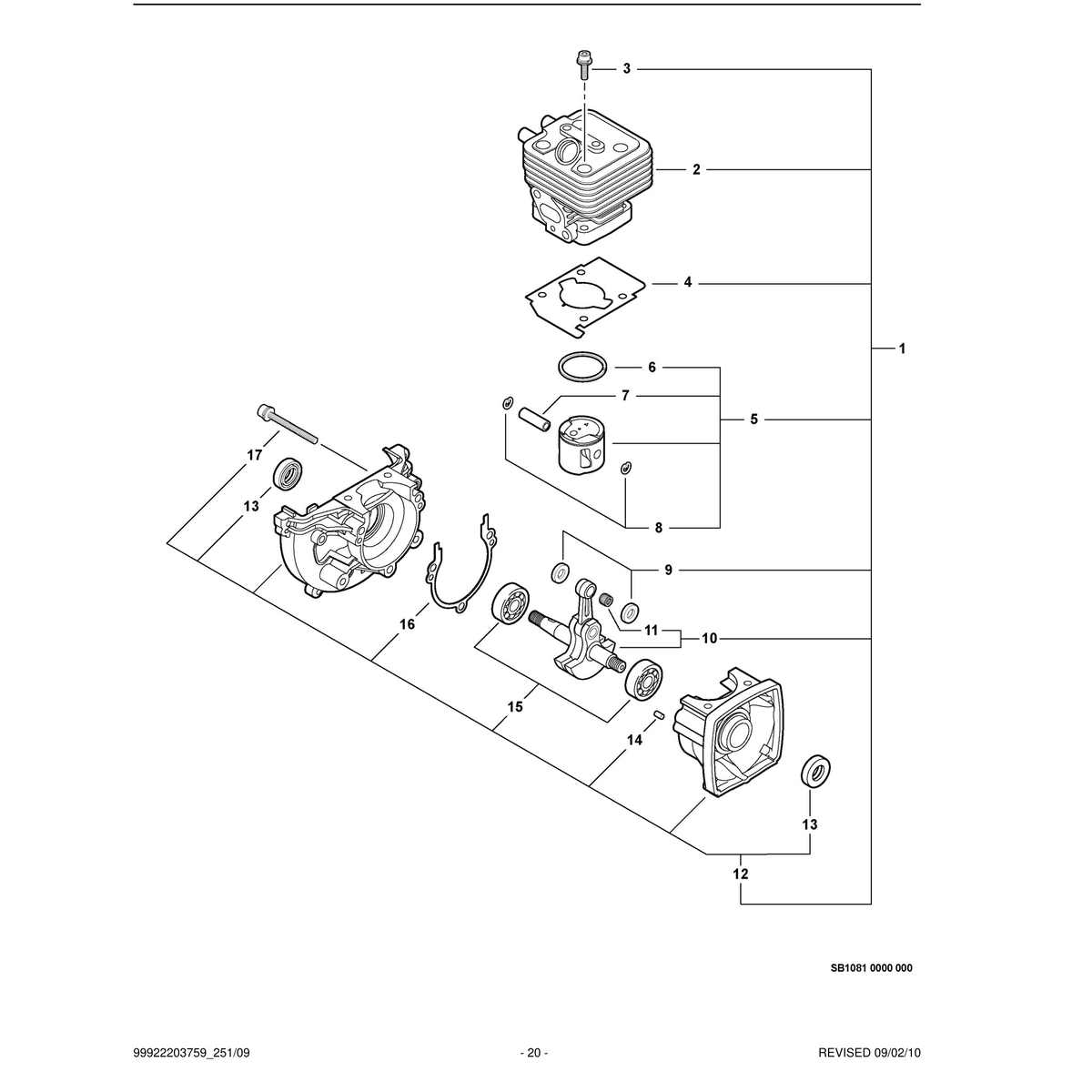

Engine, Short Block -- SB1081
Engine, Short Block -- SB1081
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
SB1081
SB1081
|
|||
|
|
90016205025
90016205025
|
|||
|
|
V100000181
V100000181
|
|||
|
|
P021008221
P021008221
|
|||
|
|
A101000100
A101000100
|
|||
|
|
V606000000
V606000000
|
|||
|
|
10001504630
10001504630
|
|||
|
|
10001411520
10001411520
|
|||
|
|
A011000371
A011000371
|
|||
|
|
V553000010
V553000010
|
|||
|
|
P021008231
P021008231
|
|||
|
|
10021242031
10021242031
|
|||
|
|
V622000020
V622000020
|
|||
|
|
9403536201
9403536201
|
|||
|
|
10024242030
10024242030
|
|||
|
|
90016205028
90016205028
|

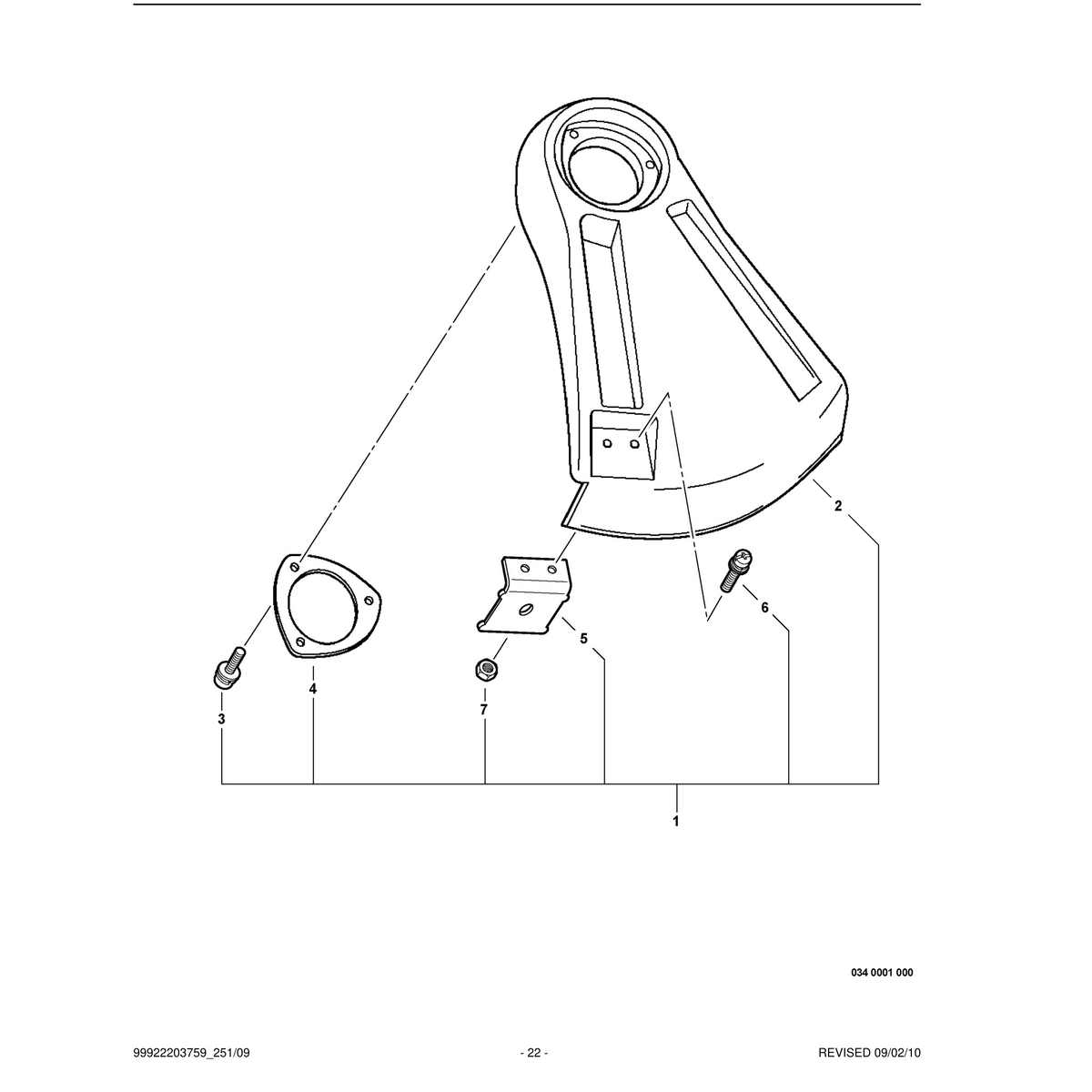

Plastic Shield
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P021001392
P021001392
|
|||
|
|
C550000031
C550000031
|
|||
|
|
90023805020
90023805020
|
|||
|
|
C552000110
C552000110
|
|||
|
|
69901644330
69901644330
|
|||
|
|
90023805016
90023805016
|
|||
|
|
90050000005
90050000005
|

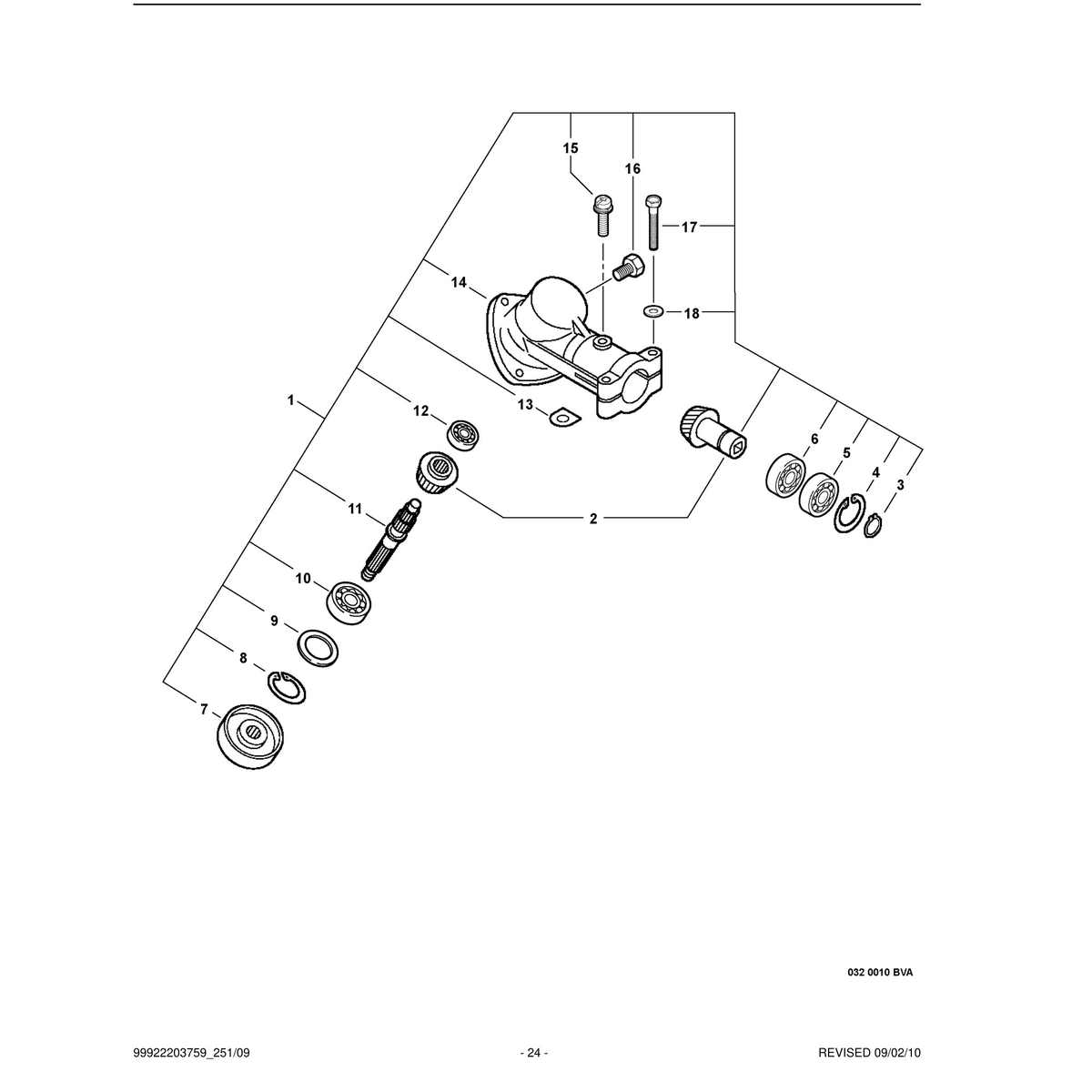

Gear Case S/N: 09001001 - 09020648
Gear Case S/N: 09001001 - 09020648
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P021008180
P021008180
|
|||
|
|
61030044830
61030044830
|
|||
|
|
90070600010
90070600010
|
|||
|
|
90070200022
90070200022
|
|||
|
|
9406306900
9406306900
|
|||
|
|
9406006900
9406006900
|
|||
|
|
C535000210
C535000210
|
|||
|
|
90070200032
90070200032
|
|||
|
|
90081206201
90081206201
|
|||
|
|
C534000270
C534000270
|
|||
|
|
9406000609
9406000609
|
|||
|
|
61023904130
61023904130
|
|||
|
|
C531000310
C531000310
|
|||
|
|
90024205010
90024205010
|
|||
|
|
61043450031
61043450031
|
|||
|
|
90010005035
90010005035
|
Gear Case S/N: 09020649 - 09999999
Gear Case S/N: 09020649 - 09999999
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P021008181
P021008181
|
|||
|
|
61030044830
61030044830
|
|||
|
|
90070600010
90070600010
|
|||
|
|
90070200022
90070200022
|
|||
|
|
9406306900
9406306900
|
|||
|
|
9406006900
9406006900
|
|||
|
|
C535000210
C535000210
|
|||
|
|
90070200032
90070200032
|
|||
|
|
90081206201
90081206201
|
|||
|
|
C534000270
C534000270
|
|||
|
|
9406000609
9406000609
|
|||
|
|
61023904130
61023904130
|
|||
|
|
C531000310
C531000310
|
|||
|
|
90024205010
90024205010
|
|||
|
|
61043450031
61043450031
|
|||
|
|
90010005035
90010005035
|

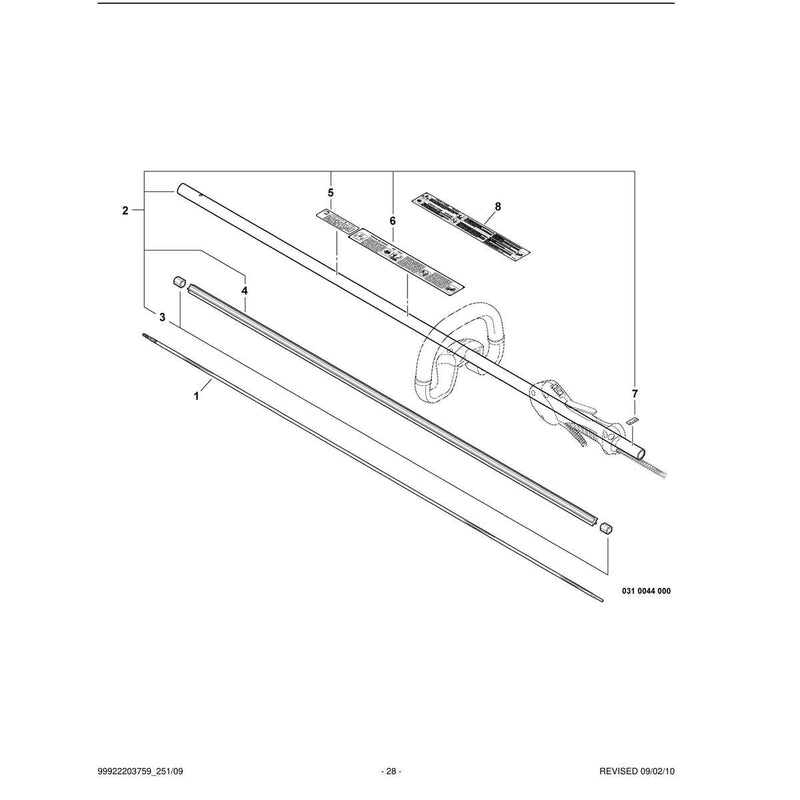

Main Pipe, Flexible Driveshaft
Main Pipe, Flexible Driveshaft
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
61001344730
61001344730
|
|||
|
|
61060944730
61060944730
|
|||
|
|
89022809560
89022809560
|
|||
|
|
89016054130
89016054130
|
|||
|
|
89015204930
89015204930
|
|||
|
|
89031749030
89031749030
|

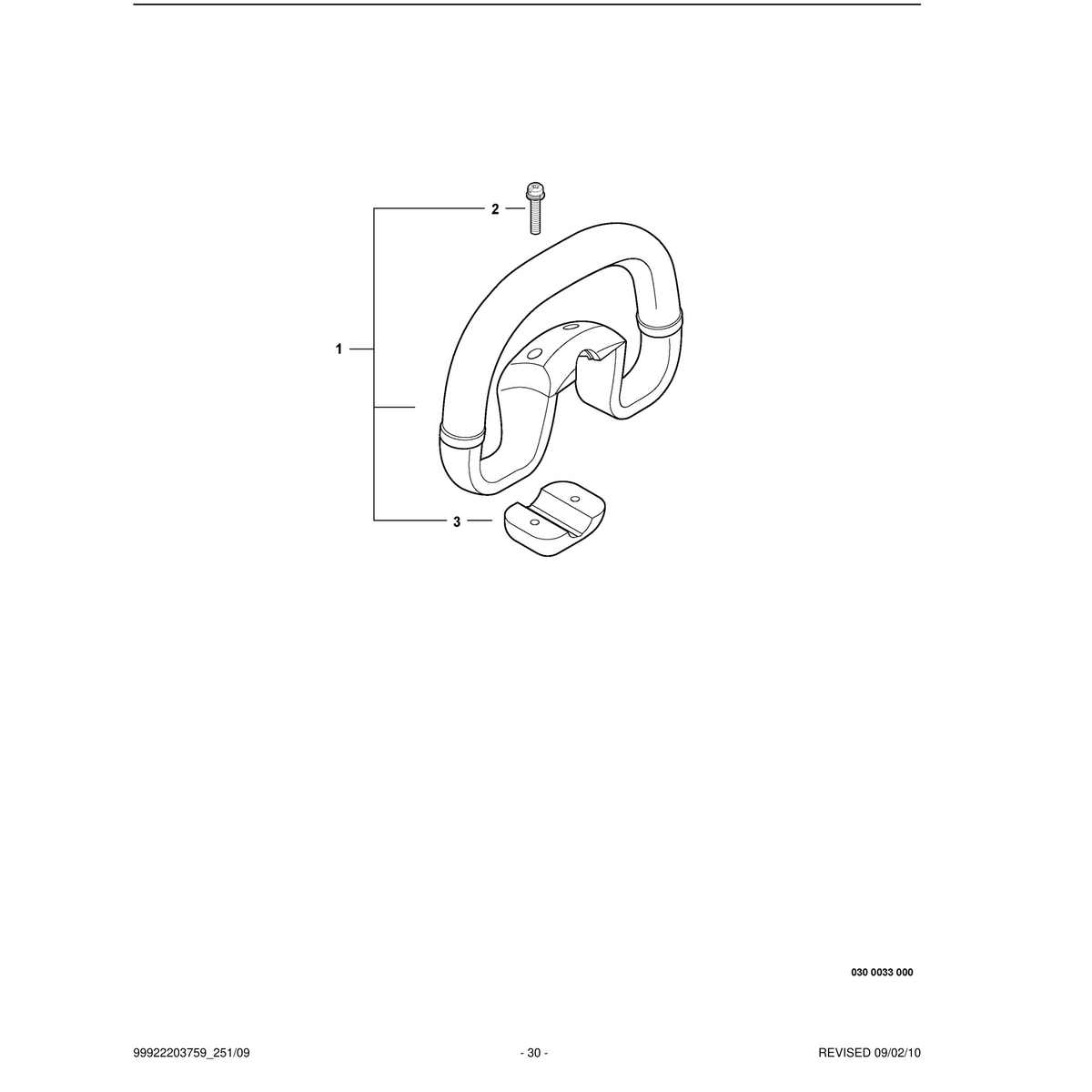

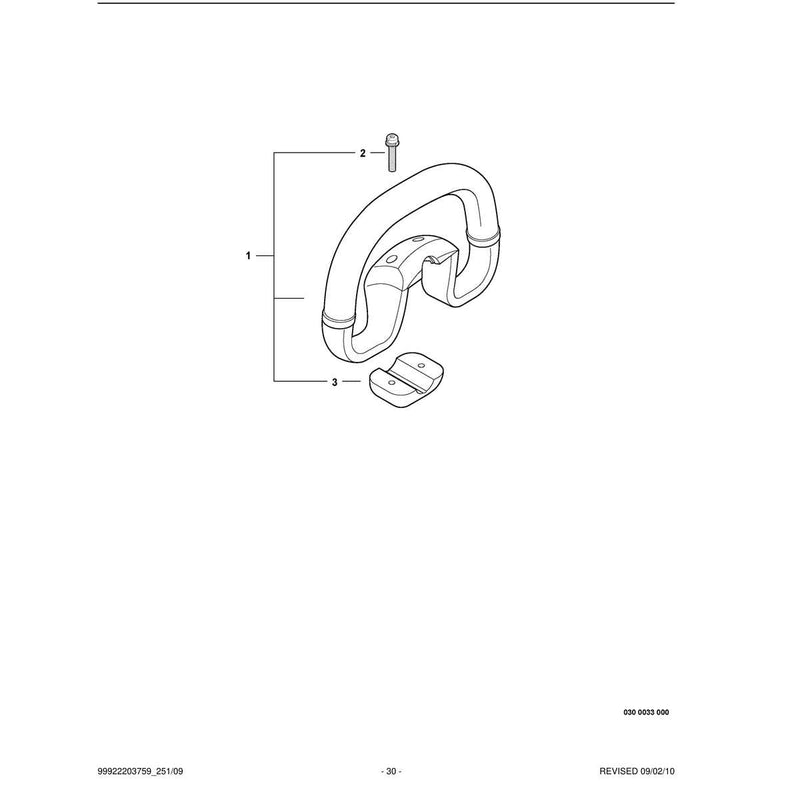

Front Handle
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P021008322
P021008322
|
|||
|
|
90024205040
90024205040
|
|||
|
|
C423000190
C423000190
|
Control Handle,Throttle Cable
Control Handle,Throttle Cable
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P021008330
P021008330
|
|||
|
|
90023805020
90023805020
|
|||
|
|
C460000050
C460000050
|
|||
|
|
V452000240
V452000240
|
|||
|
|
V430001390
V430001390
|
|||
|
|
C450000182
C450000182
|
|||
|
|
V452000210
V452000210
|
|||
|
|
C453000151
C453000151
|
|||
|
|
A440000570
A440000570
|
|||
|
|
9154503010
9154503010
|
|||
|
|
A444000020
A444000020
|
|||
|
|
V475003390
V475003390
|

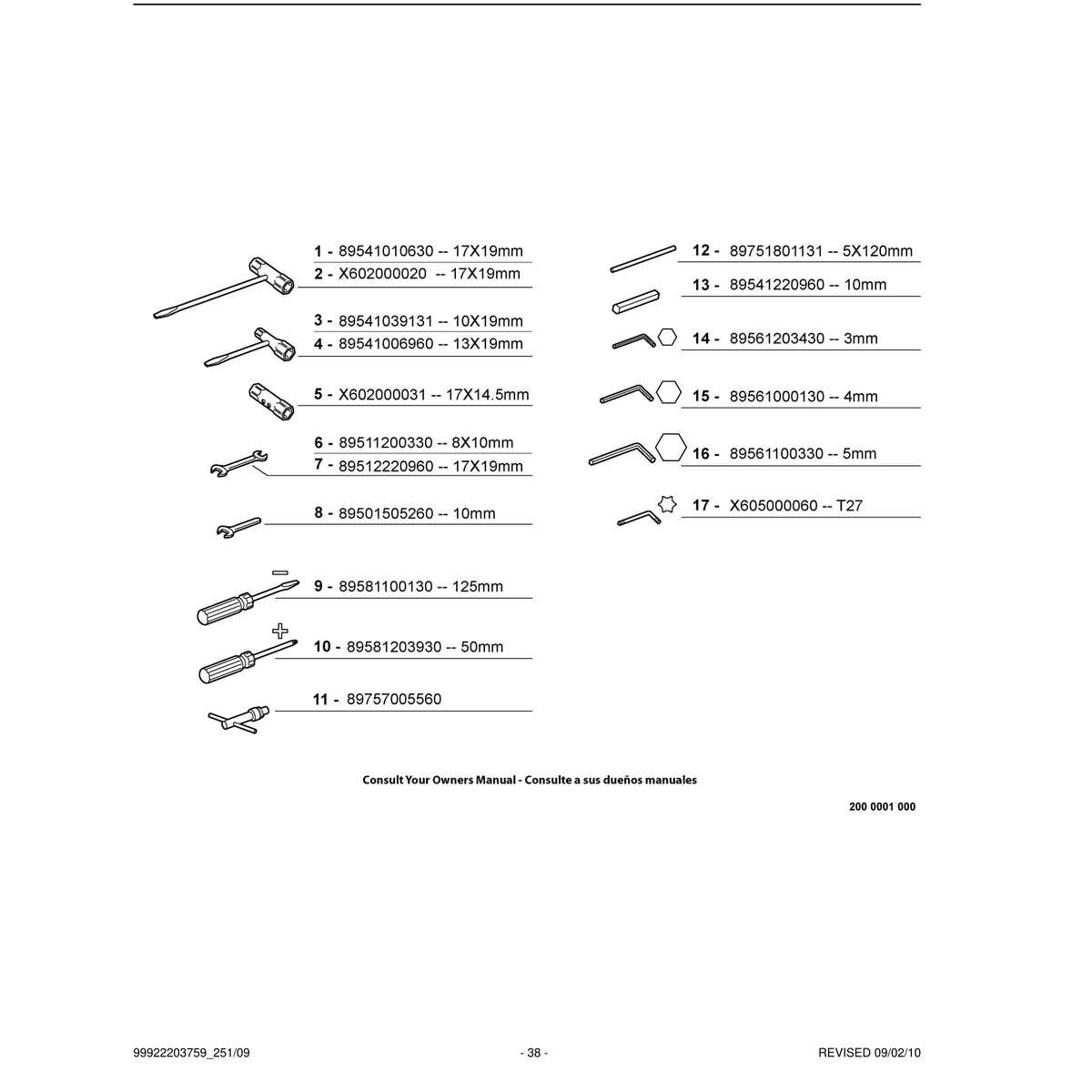

Tools
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
89541010630
89541010630
|
|||
|
|
X602000020
X602000020
|
|||
|
|
89541039131
89541039131
|
|||
|
|
89541006960
89541006960
|
|||
|
|
X602000031
X602000031
|
|||
|
|
89511200330
89511200330
|
|||
|
|
89512220960
89512220960
|
|||
|
|
89501505260
89501505260
|
|||
|
|
89757005560
89757005560
|
|||
|
|
89751801131
89751801131
|
|||
|
|
89541220960
89541220960
|
|||
|
|
89561203430
89561203430
|
|||
|
|
89561000130
89561000130
|
|||
|
|
89561100330
89561100330
|
|||
|
|
X605000060
X605000060
|
