Gravely 895802 36" Trailing Lawn Sweeper Parts Diagram
Diagrams:
Diagram:

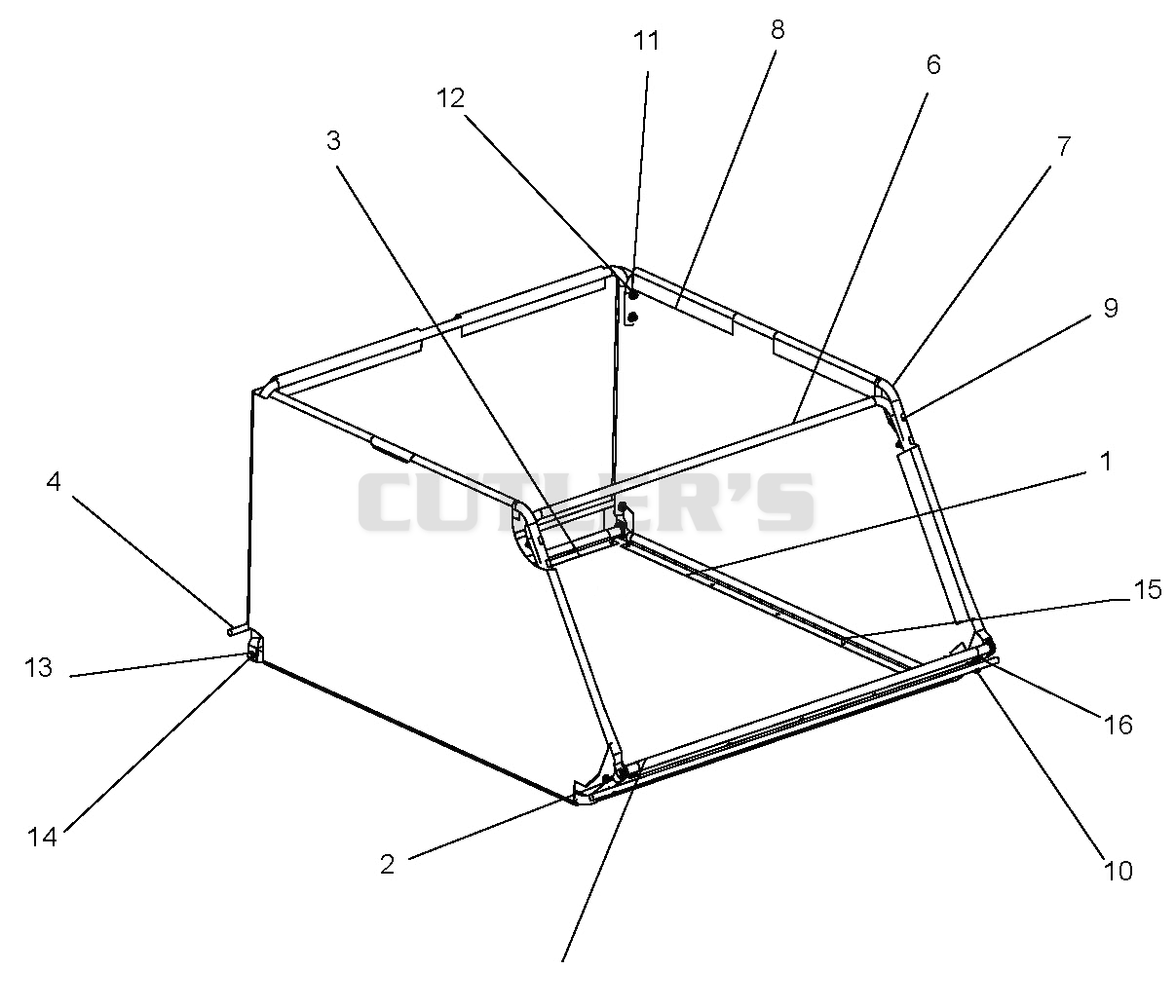

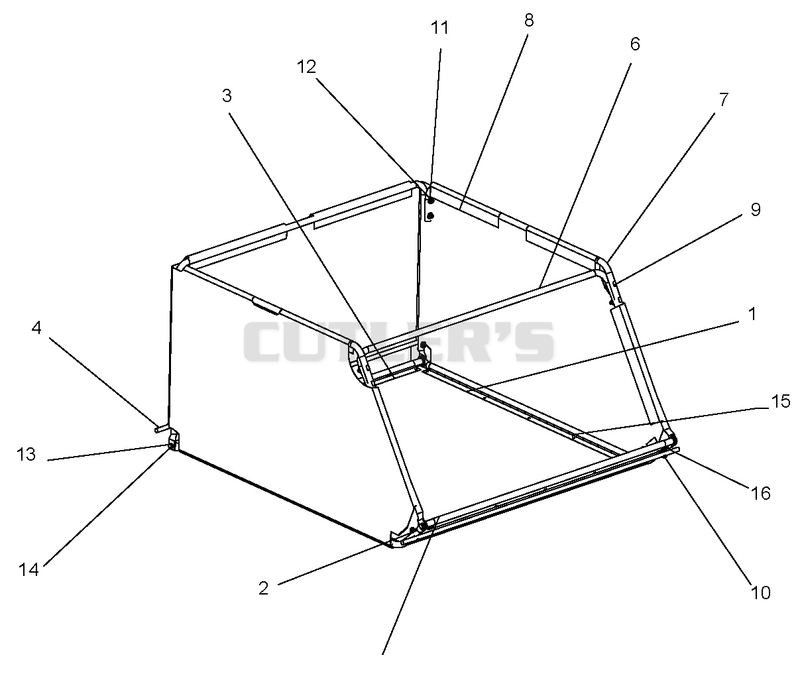

Basket Assembly
Basket Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
PSA-1590-C
PSA-1590-C
|
|||
|
|
PSA-1591-C
PSA-1591-C
|
|||
|
|
PSA-1427-B
PSA-1427-B
|
|||
|
|
P86-105-B
P86-105-B
|
|||
|
|
P82-86-B
P82-86-B
|
|||
|
|
P82-87-B
P82-87-B
|
|||
|
|
P80-137-B
P80-137-B
|
|||
|
|
P89-65-D
P89-65-D
|
|||
|
|
P69-416-32
P69-416-32
|
|||
|
|
00960004
00960004
|
|||
|
|
AA960700
AA960700
|
|||
|
|
06533200
06533200
|
|||
|
|
AA960601
AA960601
|
|||
|
|
00960023
00960023
|
|||
|
|
P92-28
P92-28
|
|||
|
|
04098500
04098500
|
|||
|
|
PSA-1556-D
PSA-1556-D
|

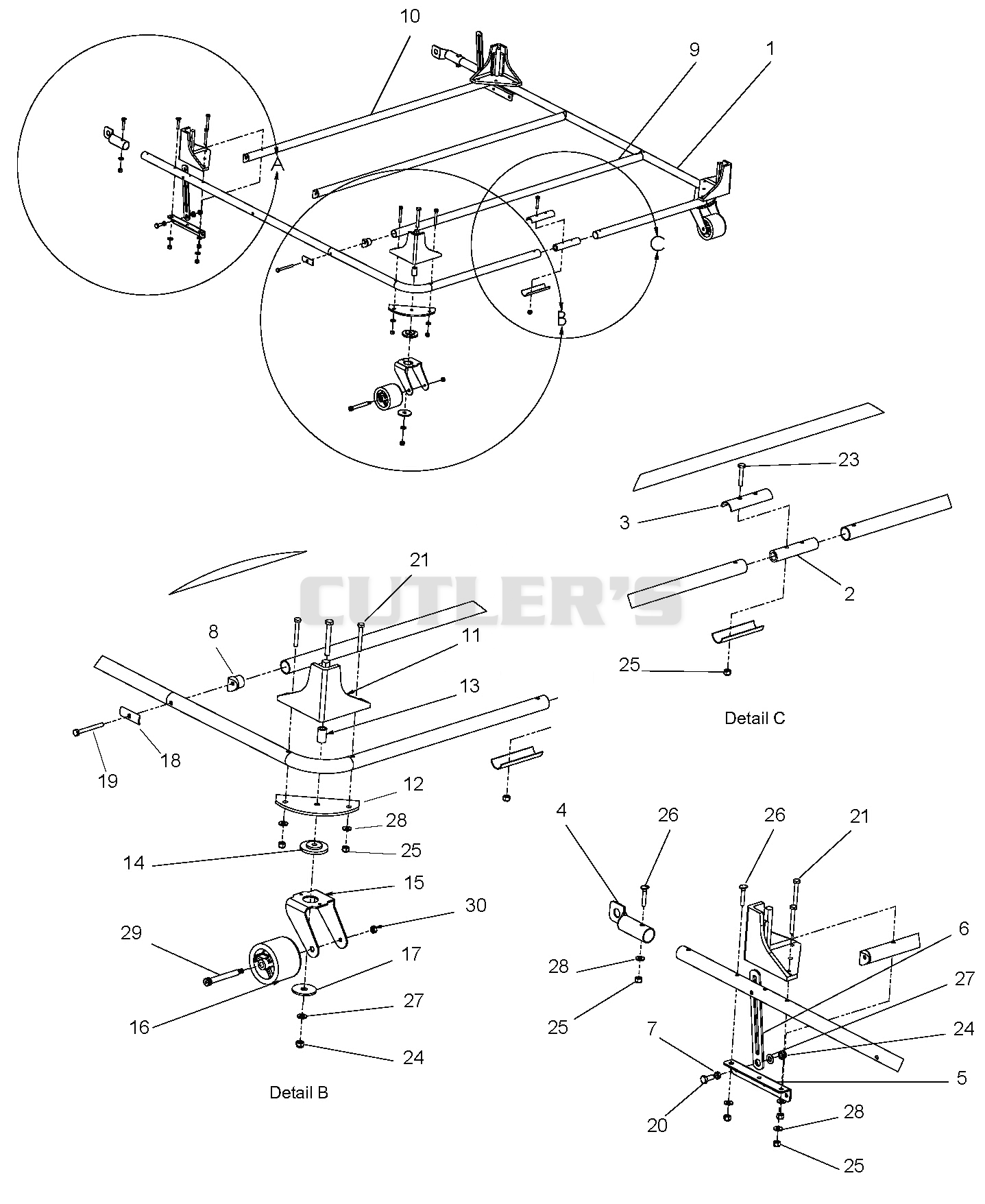

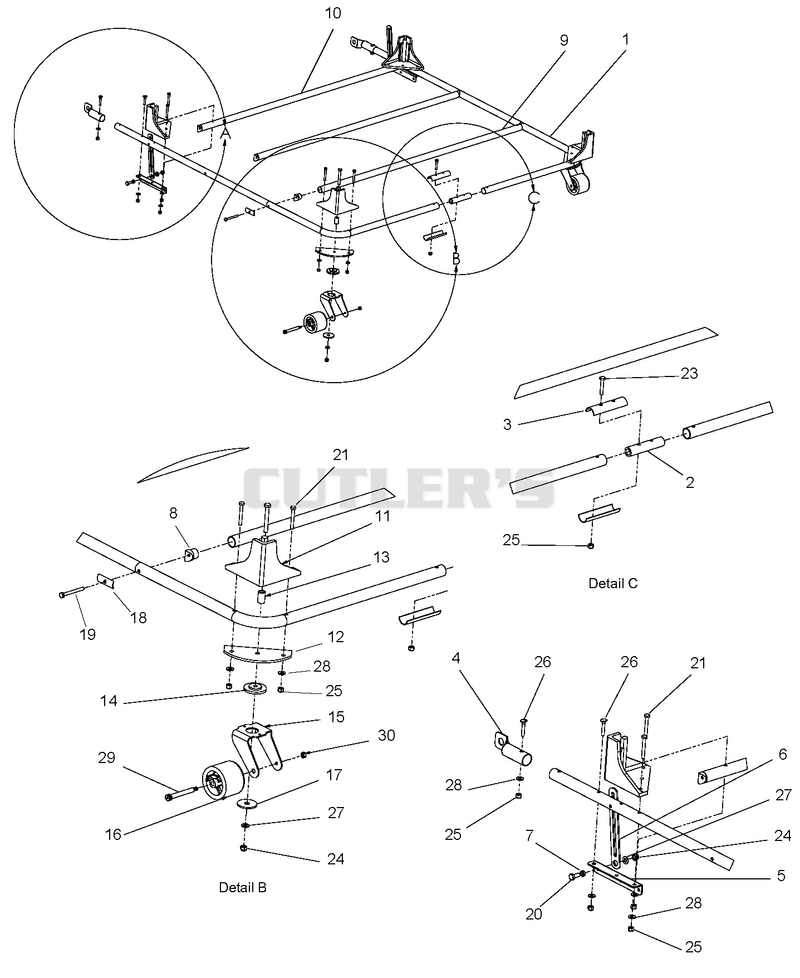

Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P80-126-B
P80-126-B
|
|||
|
|
P80-147-A
P80-147-A
|
|||
|
|
P82-12-B
P82-12-B
|
|||
|
|
P92-22-D
P92-22-D
|
|||
|
|
P81-105-B
P81-105-B
|
|||
|
|
P59-59-A
P59-59-A
|
|||
|
|
P54-227-A
P54-227-A
|
|||
|
|
P81-172-A
P81-172-A
|
|||
|
|
PSA-834-B
PSA-834-B
|
|||
|
|
PSA-835-C
PSA-835-C
|
|||
|
|
P80-130-C
P80-130-C
|
|||
|
|
P82-02-B
P82-02-B
|
|||
|
|
P57-105-A
P57-105-A
|
|||
|
|
P78-130-A
P78-130-A
|
|||
|
|
P76-136-B
P76-136-B
|
|||
|
|
P76-58-A
P76-58-A
|
|||
|
|
P82-138-B-3
P82-138-B-3
|
|||
|
|
P80-181-A
P80-181-A
|
|||
|
|
05961600
05961600
|
|||
|
|
05947000
05947000
|
|||
|
|
05967100
05967100
|
|||
|
|
05952600
05952600
|
|||
|
|
05952500
05952500
|
|||
|
|
06530200
06530200
|
|||
|
|
06531000
06531000
|
|||
|
|
P69-416-24
P69-416-24
|
|||
|
|
06437200
06437200
|
|||
|
|
06437300
06437300
|
|||
|
|
P76-202-A
P76-202-A
|
|||
|
|
06529700
06529700
|

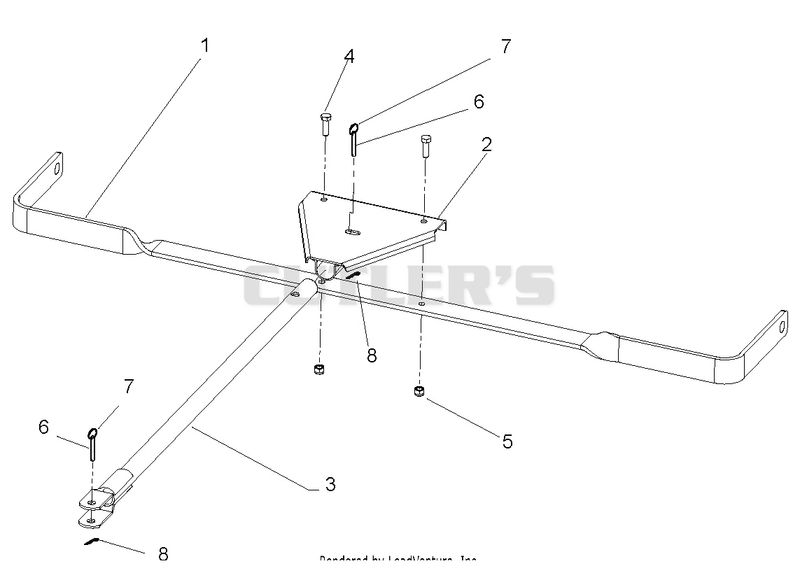

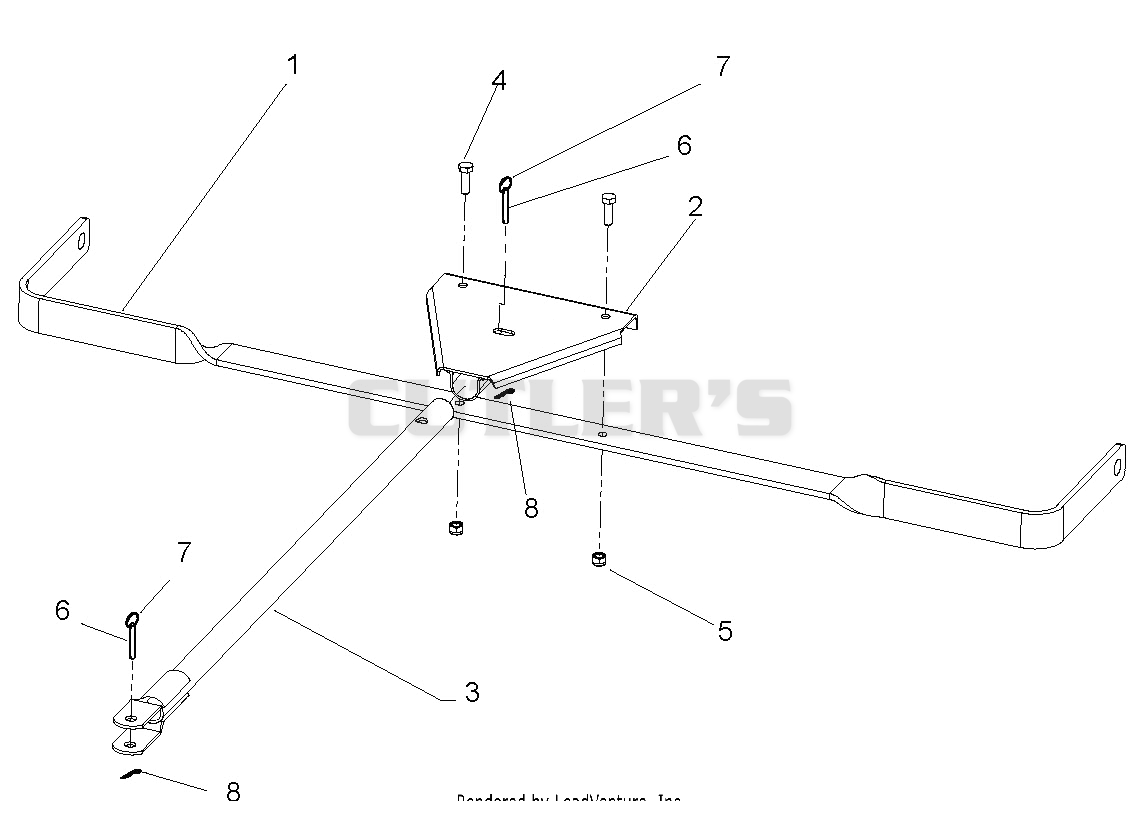

Hitch Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P75-134-B
P75-134-B
|
|||
|
|
P75-40-B
P75-40-B
|
|||
|
|
P75-32-B
P75-32-B
|
|||
|
|
05946900
05946900
|
|||
|
|
06530200
06530200
|
|||
|
|
04197868
04197868
|
|||
|
|
M88183
M88183
|
|||
|
|
00121080
00121080
|

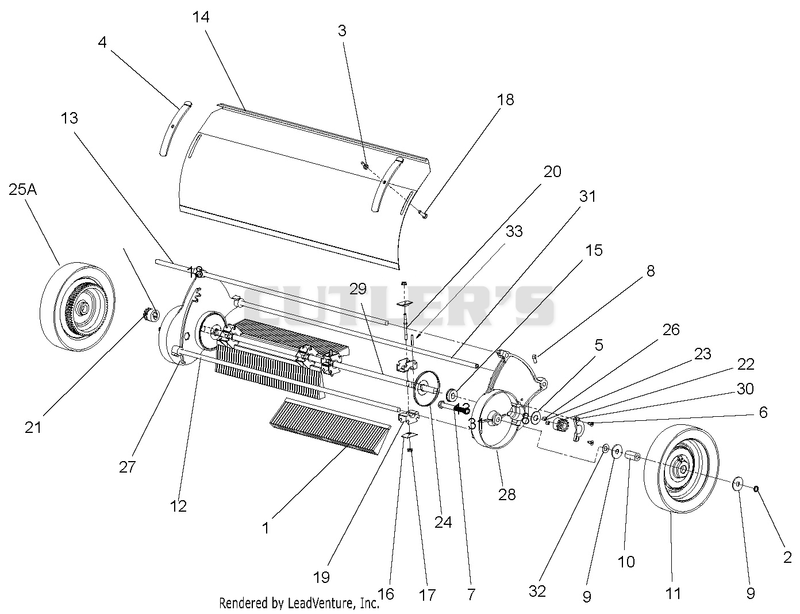

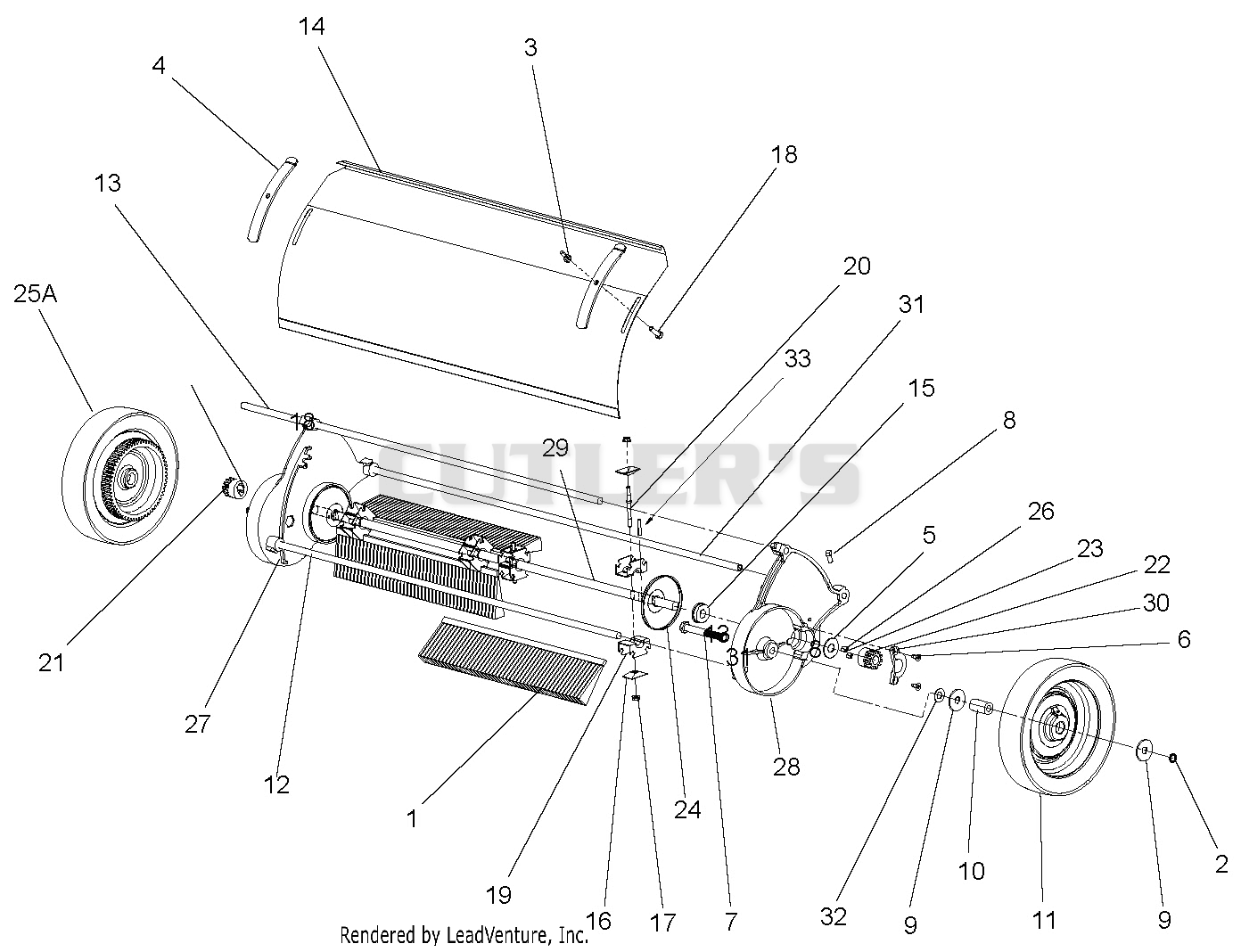

Sweeper Unit Assembly
Sweeper Unit Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P-1200-17-B
P-1200-17-B
|
|||
|
|
PBK-11
PBK-11
|
|||
|
|
06530200
06530200
|
|||
|
|
P711366
P711366
|
|||
|
|
P49-11-A
P49-11-A
|
|||
|
|
P50-33-A
P50-33-A
|
|||
|
|
P506-416-10
P506-416-10
|
|||
|
|
P53-35-A
P53-35-A
|
|||
|
|
P560C516-10
P560C516-10
|
|||
|
|
P58-05-A
P58-05-A
|
|||
|
|
P58-06-A
P58-06-A
|
|||
|
|
P58-14PTD
P58-14PTD
|
|||
|
|
P68-33-A
P68-33-A
|
|||
|
|
P68-34-A
P68-34-A
|
|||
|
|
P68-58D
P68-58D
|
|||
|
|
P68-60-A
P68-60-A
|
|||
|
|
P69-04-A
P69-04-A
|
|||
|
|
P711425
P711425
|
|||
|
|
05946900
05946900
|
|||
|
|
P74-13-C
P74-13-C
|
|||
|
|
P74-16-PLT
P74-16-PLT
|
|||
|
|
P74-78-RB
P74-78-RB
|
|||
|
|
P74-79-LB
P74-79-LB
|
|||
|
|
PSA-1580-B
PSA-1580-B
|
|||
|
|
P74-80-A
P74-80-A
|
|||
|
|
P74-166-B
P74-166-B
|
|||
|
|
P75-88-C
P75-88-C
|
|||
|
|
PSA-609-C
PSA-609-C
|
|||
|
|
P76-37-A
P76-37-A
|
|||
|
|
P76-338-RF
P76-338-RF
|
|||
|
|
P76-339-LF
P76-339-LF
|
|||
|
|
04229100
04229100
|
|||
|
|
P80-01-B
P80-01-B
|
|||
|
|
P80-141PLT
P80-141PLT
|
|||
|
|
P50-33-A
P50-33-A
|
|||
|
|
P67-521-A
P67-521-A
|
