Gravely 993016 495 PROCHIP 80 HP PERKIN DIESEL Parts Diagram
Diagrams:
Diagram:

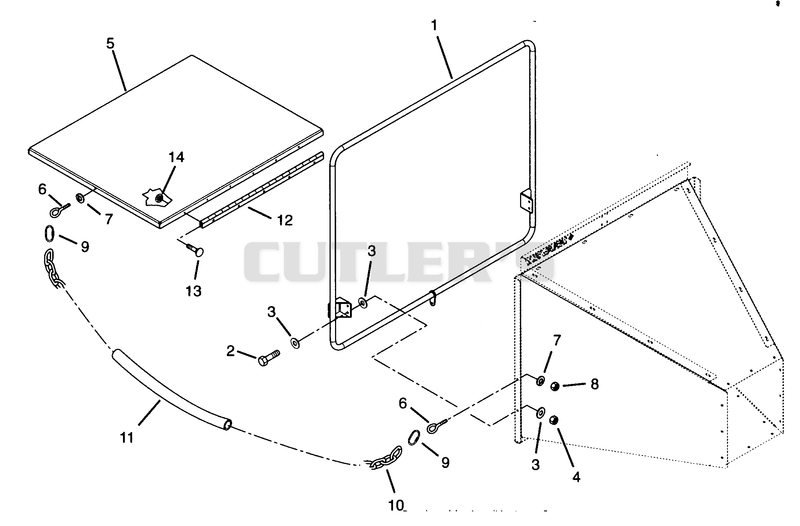

APRON AND FEED CONTROL BAR
APRON AND FEED CONTROL BAR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09315200
09315200
|
|||
|
|
180128
180128
|
|||
|
|
06400800
06400800
|
|||
|
|
06503900
06503900
|
|||
|
|
09316500
09316500
|
|||
|
|
04138200
04138200
|
|||
|
|
131099
131099
|
|||
|
|
120377
120377
|
|||
|
|
09300300
09300300
|
|||
|
|
09325800
09325800
|
|||
|
|
04130700
04130700
|
|||
|
|
04125400
04125400
|
|||
|
|
06208600
06208600
|
|||
|
|
06504000
06504000
|

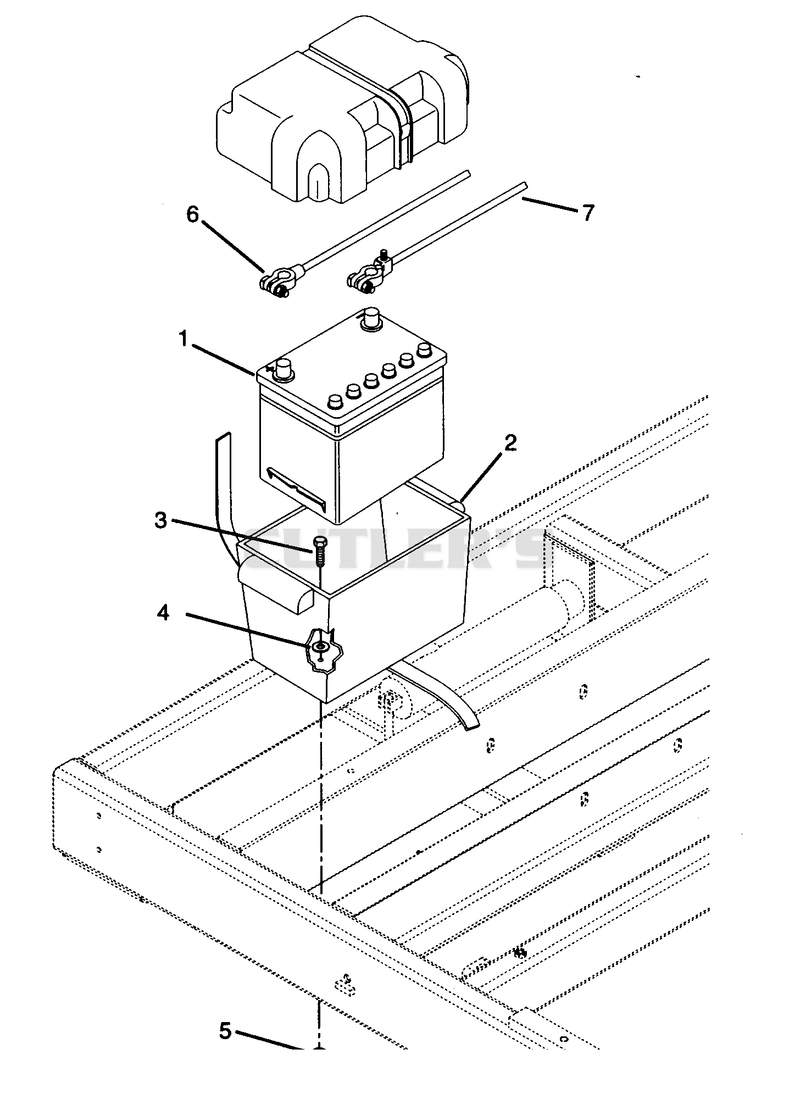

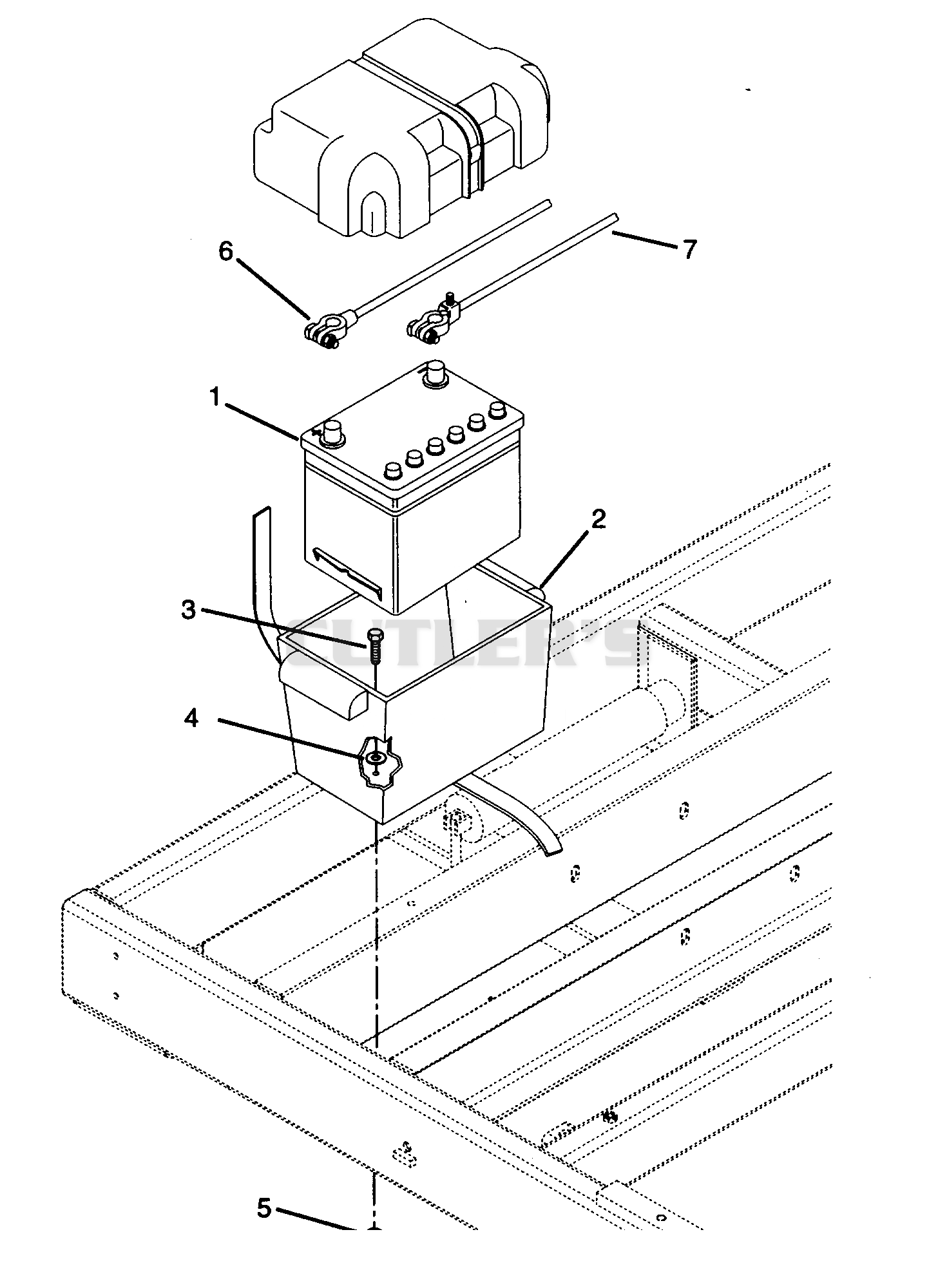

BATTERY
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09318400
09318400
|
|||
|
|
09318900
09318900
|
|||
|
|
180020
180020
|
|||
|
|
120386
120386
|
|||
|
|
06503200
06503200
|
|||
|
|
04202100
04202100
|
|||
|
|
04202000
04202000
|

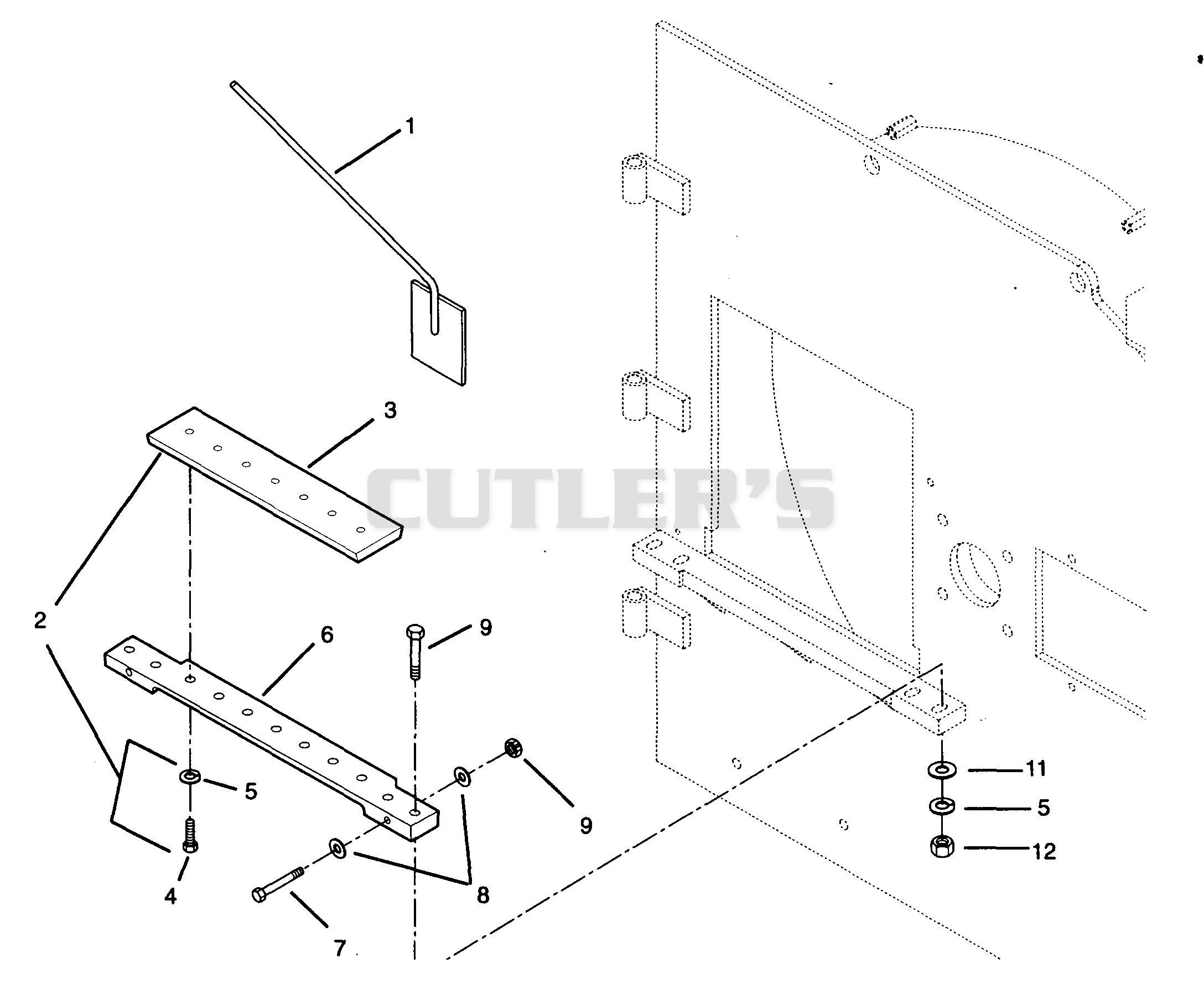

BED KNIFE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
04133651
04133651
|
|||
|
|
59304800
59304800
|
|||
|
|
09313500
09313500
|
|||
|
|
05930600
05930600
|
|||
|
|
120384
120384
|
|||
|
|
09314800
09314800
|
|||
|
|
05953600
05953600
|
|||
|
|
06439900
06439900
|
|||
|
|
06524500
06524500
|
|||
|
|
05953500
05953500
|
|||
|
|
06412000
06412000
|
|||
|
|
120378
120378
|

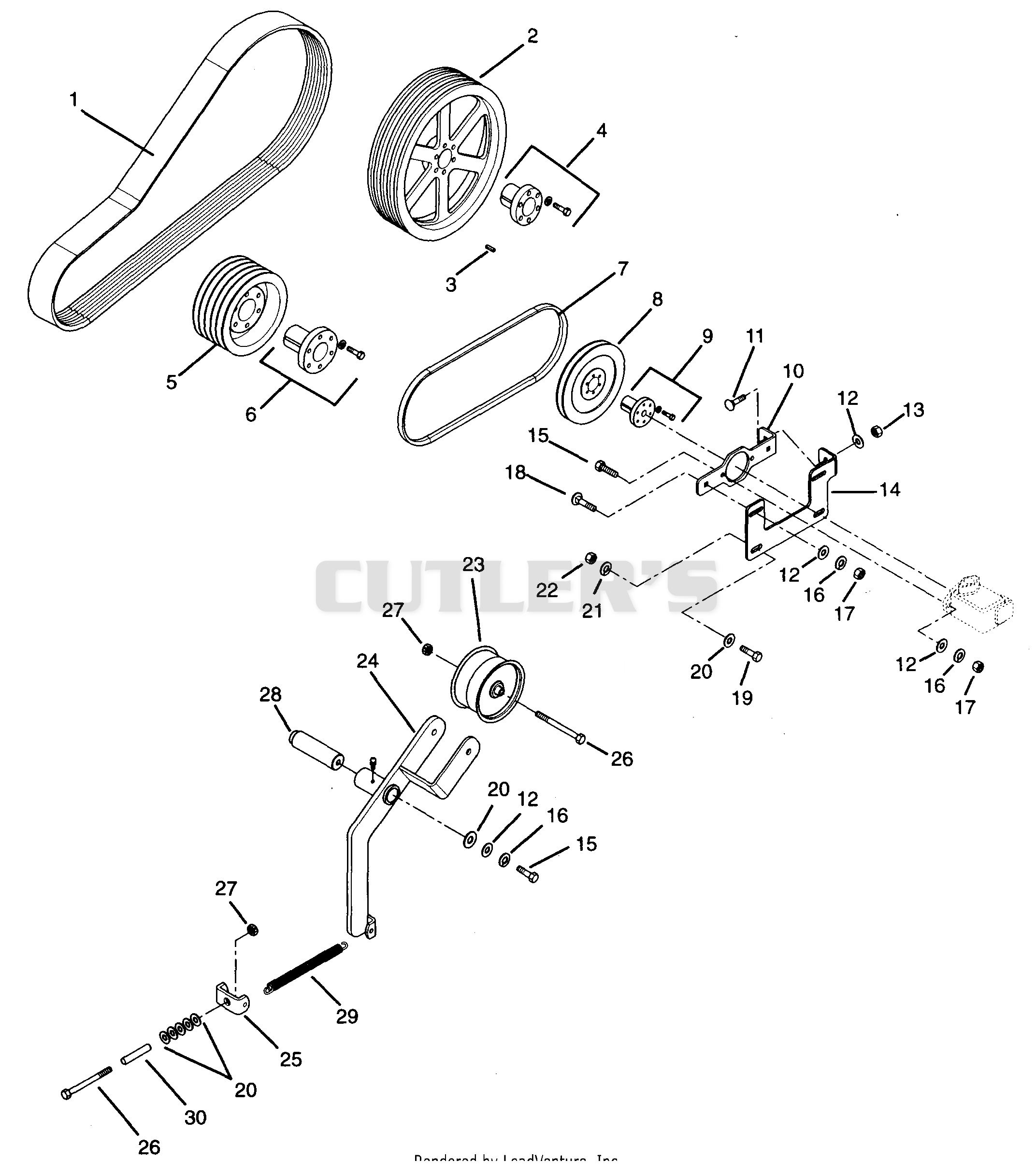

BELTS AND IDLER
BELTS AND IDLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
07229800
07229800
|
|||
|
|
07322100
07322100
|
|||
|
|
06606400
06606400
|
|||
|
|
07322400
07322400
|
|||
|
|
07322200
07322200
|
|||
|
|
07322400
07322400
|
|||
|
|
07323200
07323200
|
|||
|
|
07215300
07215300
|
|||
|
|
07322600
07322600
|
|||
|
|
07322500
07322500
|
|||
|
|
09317500
09317500
|
|||
|
|
06208900
06208900
|
|||
|
|
06400800
06400800
|
|||
|
|
06503900
06503900
|
|||
|
|
09317600
09317600
|
|||
|
|
035952
035952
|
|||
|
|
131100
131100
|
|||
|
|
06503500
06503500
|
|||
|
|
06214700
06214700
|
|||
|
|
05905200
05905200
|
|||
|
|
06412000
06412000
|
|||
|
|
120384
120384
|
|||
|
|
120378
120378
|
|||
|
|
07322300
07322300
|
|||
|
|
09315300
09315300
|
|||
|
|
09315302
09315302
|
|||
|
|
443734
443734
|
|||
|
|
06504600
06504600
|
|||
|
|
09316600
09316600
|
|||
|
|
039364
039364
|
|||
|
|
09321200
09321200
|

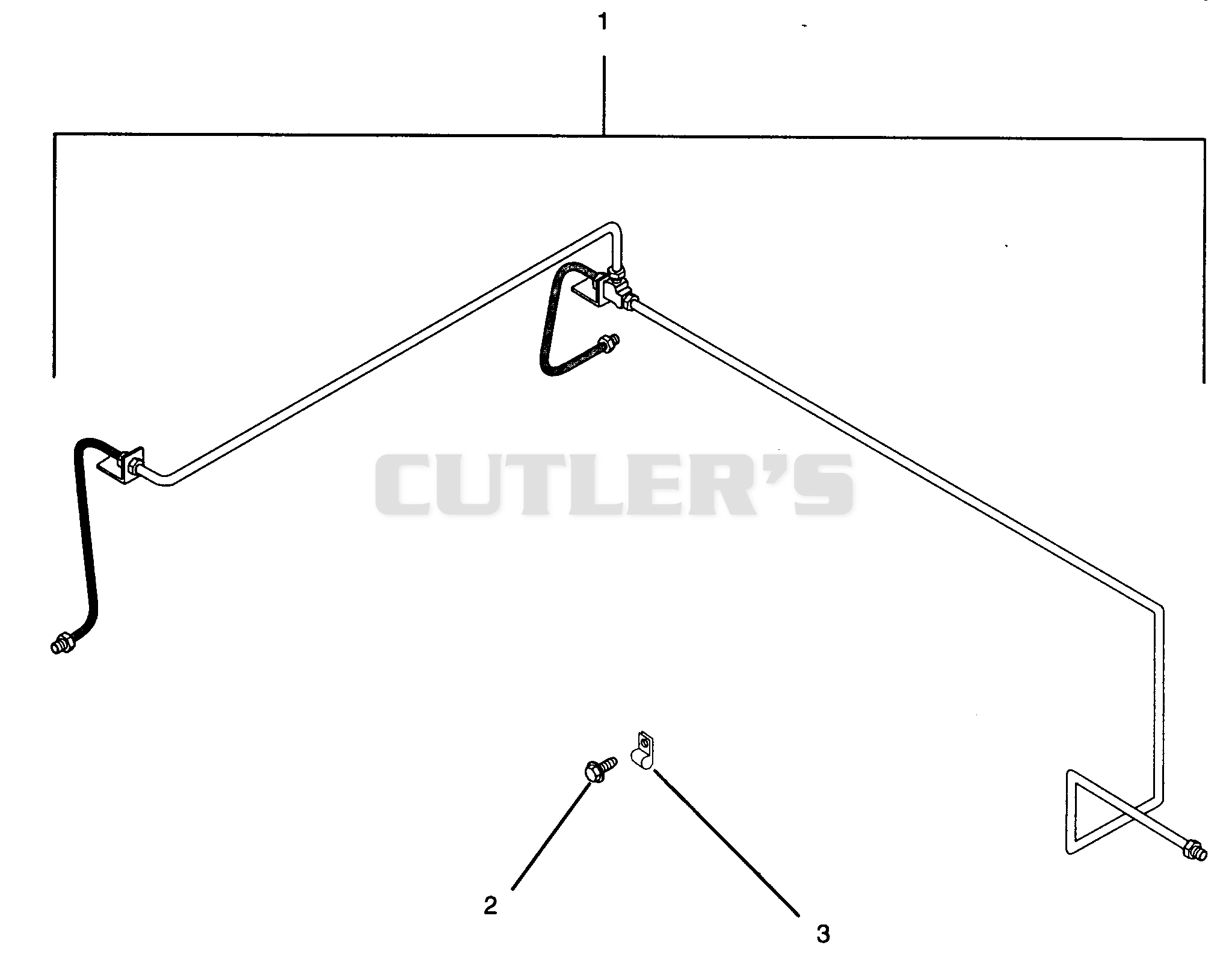

BRAKE LINE KIT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09324300
09324300
|
|||
|
|
050366
050366
|
|||
|
|
09325200
09325200
|

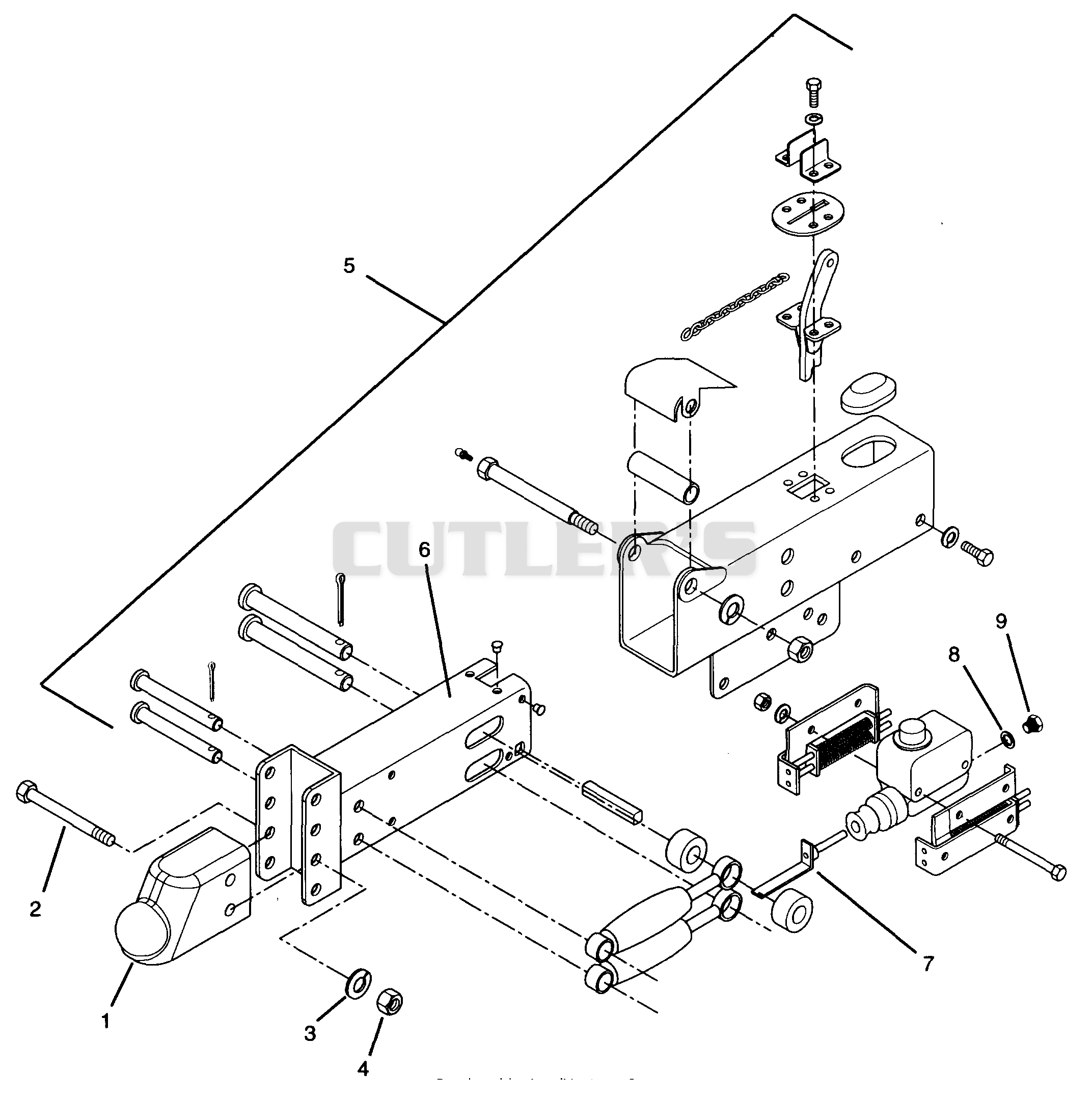

COUPLER AND ACTUATOR
COUPLER AND ACTUATOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
0413500
0413500
|
|||
|
|
05905800
05905800
|
|||
|
|
120384
120384
|
|||
|
|
120378
120378
|
|||
|
|
09312600
09312600
|
|||
|
|
21509600
21509600
|
|||
|
|
21509300
21509300
|
|||
|
|
21509400
21509400
|
|||
|
|
21509500
21509500
|
|||
|
|
21509700
21509700
|

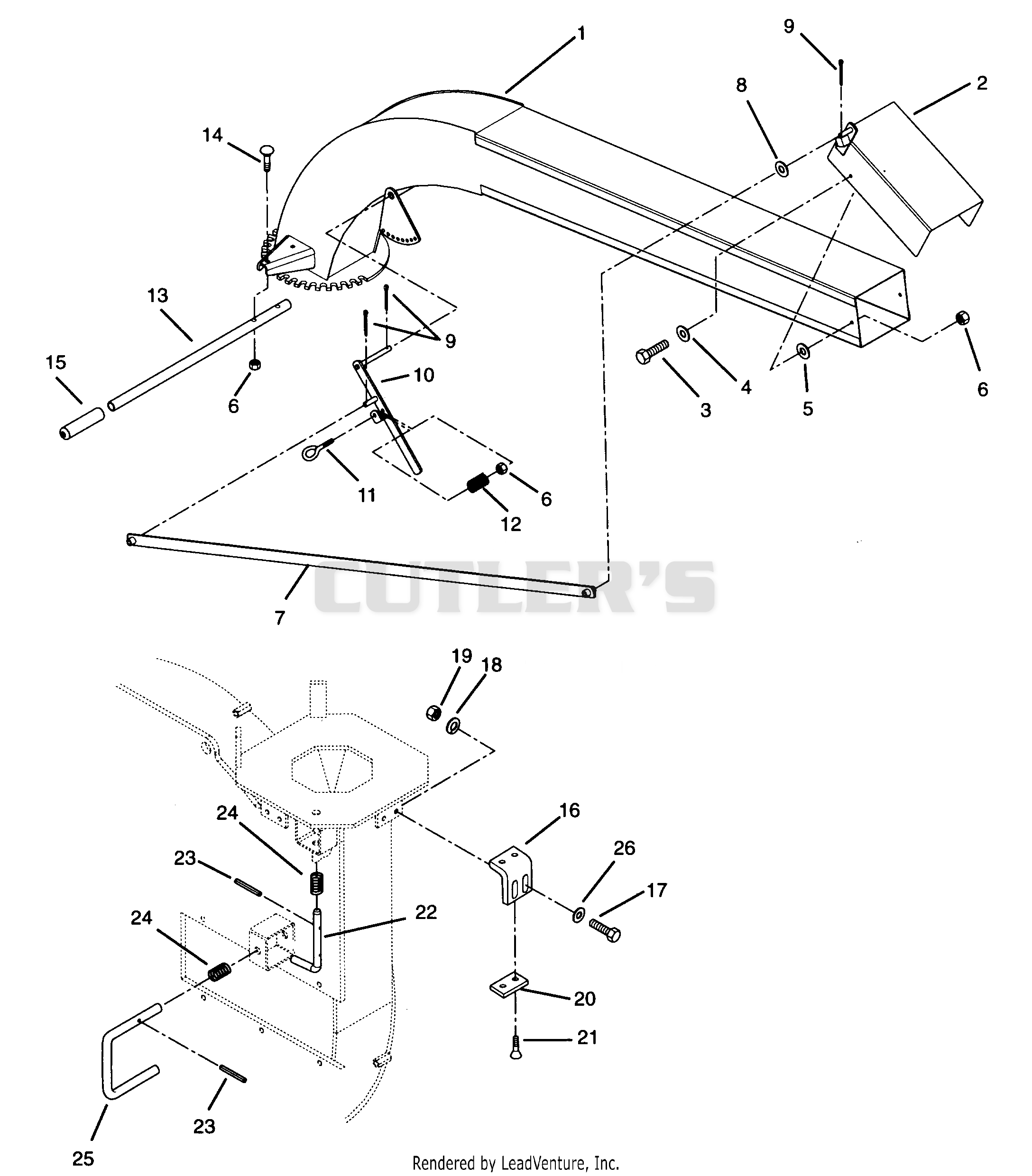

DISCHARGE CHUTE AND FLYWHEEL LOCK PIN
DISCHARGE CHUTE AND FLYWHEEL LOCK PIN
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09312500
09312500
|
|||
|
|
09313200
09313200
|
|||
|
|
180122
180122
|
|||
|
|
06400800
06400800
|
|||
|
|
06425000
06425000
|
|||
|
|
06503900
06503900
|
|||
|
|
09316100
09316100
|
|||
|
|
06405600
06405600
|
|||
|
|
137185
137185
|
|||
|
|
09313300
09313300
|
|||
|
|
07030000
07030000
|
|||
|
|
08300600
08300600
|
|||
|
|
09319900
09319900
|
|||
|
|
06204300
06204300
|
|||
|
|
07518700
07518700
|
|||
|
|
09327100
09327100
|
|||
|
|
180175
180175
|
|||
|
|
120384
120384
|
|||
|
|
435507
435507
|
|||
|
|
09327200
09327200
|
|||
|
|
05929400
05929400
|
|||
|
|
04106200
04106200
|
|||
|
|
05803000
05803000
|
|||
|
|
08324100
08324100
|
|||
|
|
09314400
09314400
|
|||
|
|
120396
120396
|

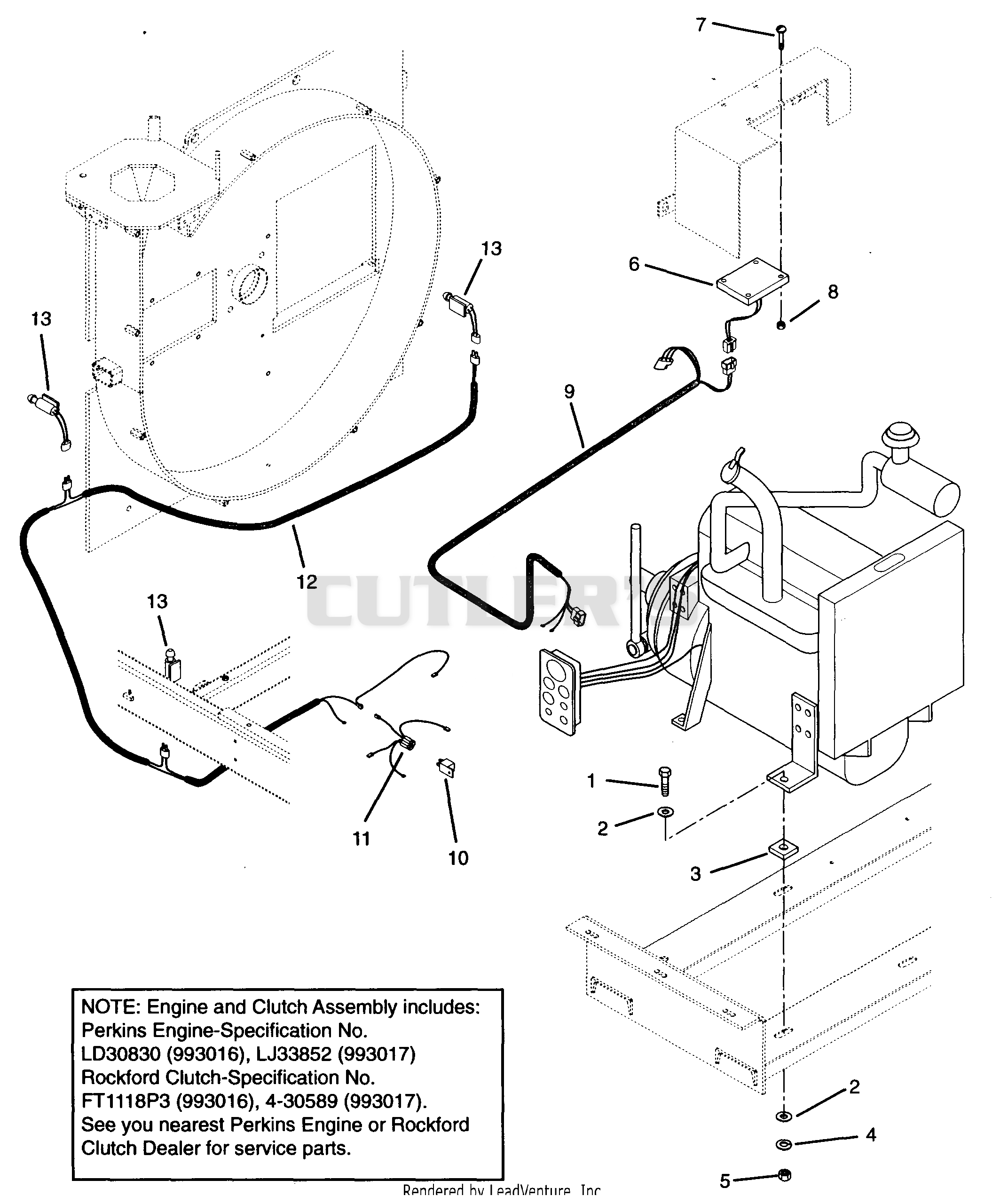

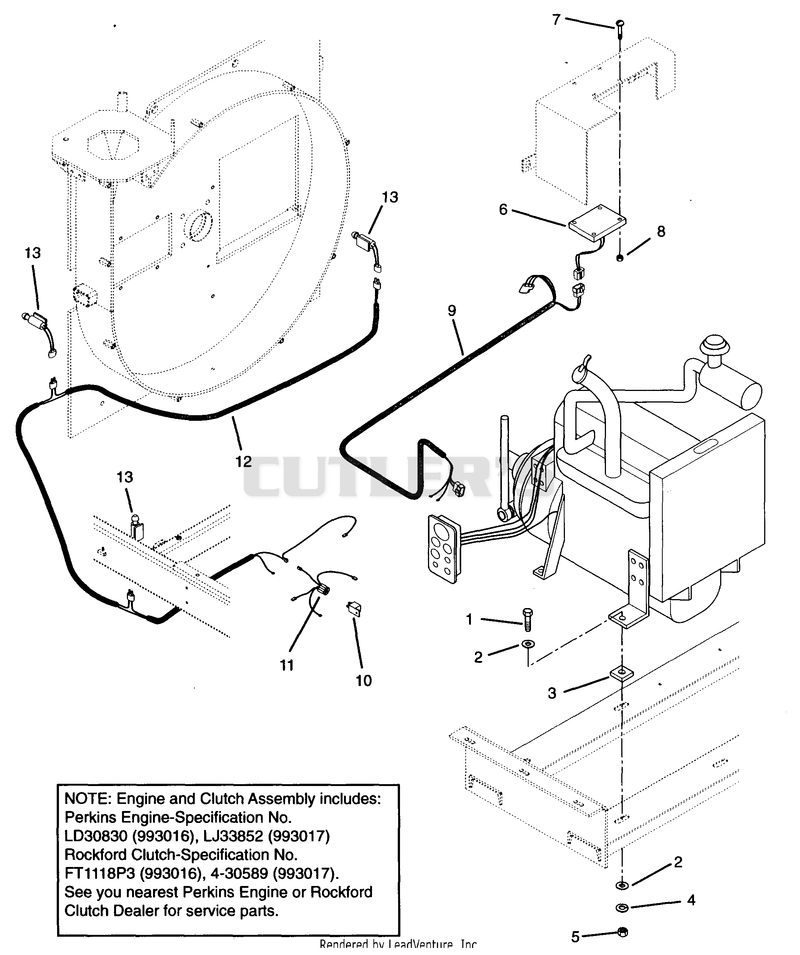

ENGINE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
05953400
05953400
|
|||
|
|
131000
131000
|
|||
|
|
09325000
09325000
|
|||
|
|
06300800
06300800
|
|||
|
|
06514000
06514000
|
|||
|
|
09320100
09320100
|
|||
|
|
06116100
06116100
|
|||
|
|
06505100
06505100
|
|||
|
|
09323600
09323600
|
|||
|
|
03042800
03042800
|
|||
|
|
04139900
04139900
|
|||
|
|
09323700
09323700
|
|||
|
|
09323800
09323800
|

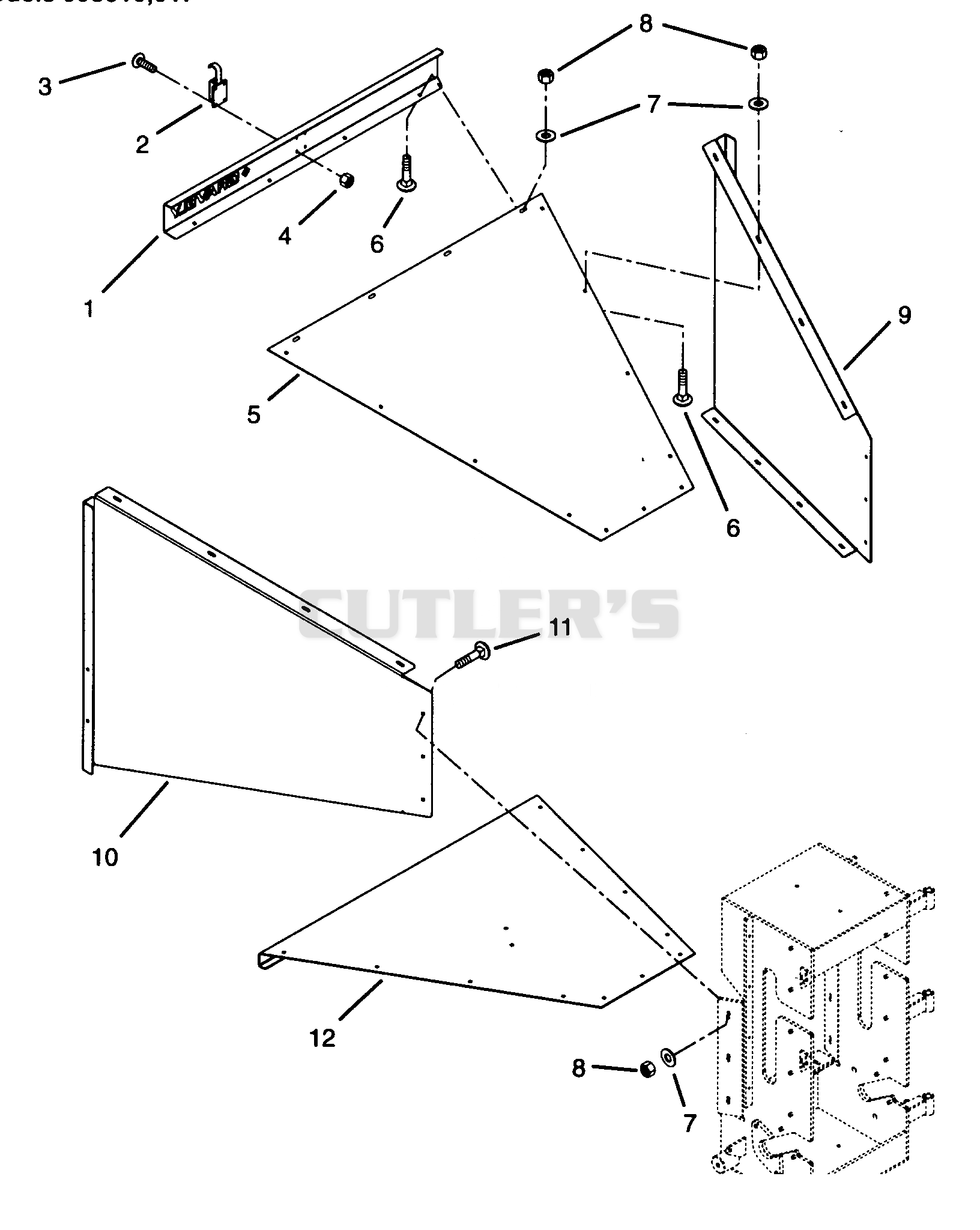

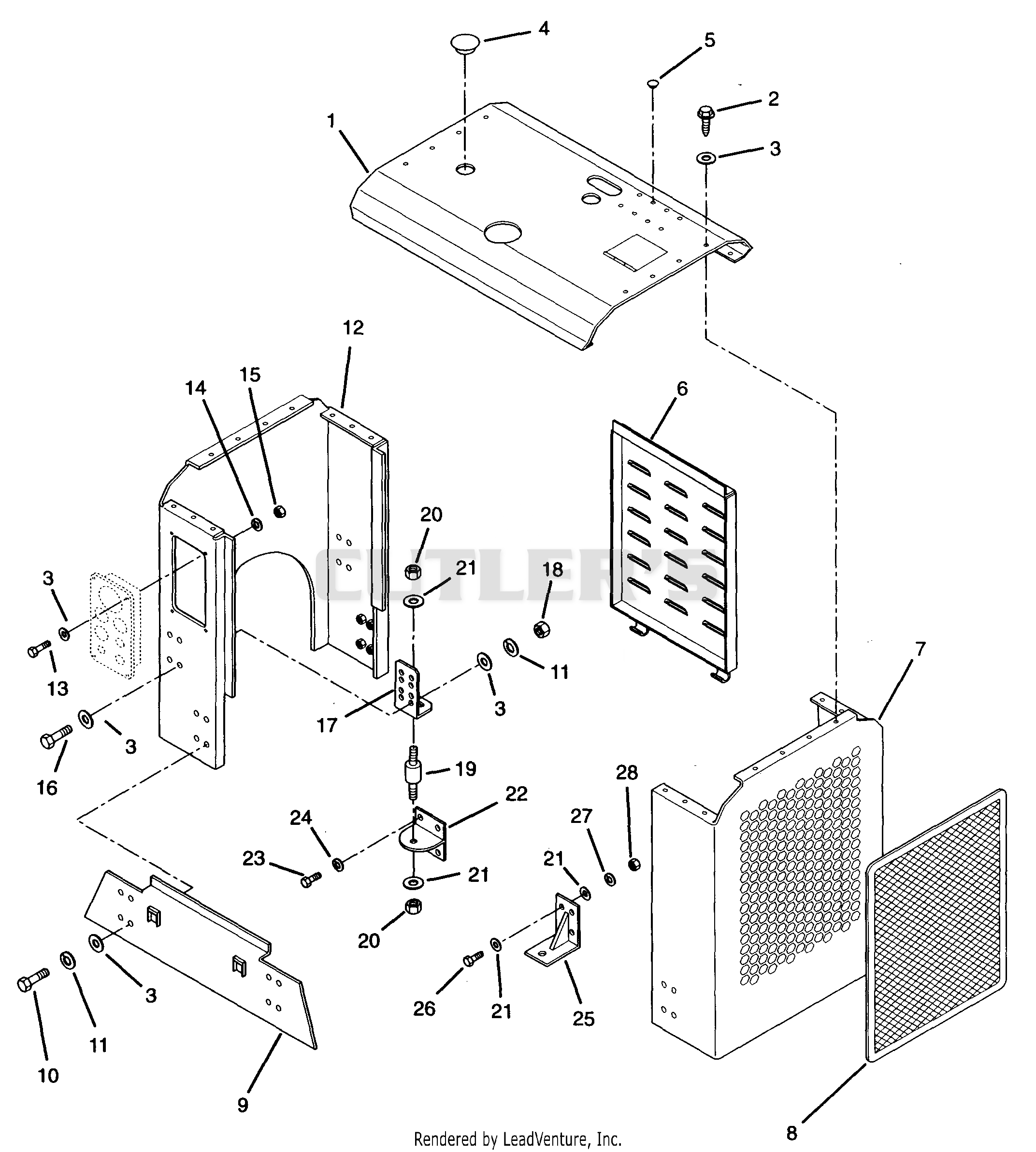

ENGINE HOUSING
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09322753
09322753
|
|||
|
|
036905
036905
|
|||
|
|
120386
120386
|
|||
|
|
09323200
09323200
|
|||
|
|
09323300
09323300
|
|||
|
|
09323300
09323300
|
|||
|
|
09322853
09322853
|
|||
|
|
09322653
09322653
|
|||
|
|
09320800
09320800
|
|||
|
|
09322953
09322953
|
|||
|
|
180077
180077
|
|||
|
|
120214
120214
|
|||
|
|
09322553
09322553
|
|||
|
|
180022
180022
|
|||
|
|
06300200
06300200
|
|||
|
|
06503200
06503200
|
|||
|
|
180079
180079
|
|||
|
|
09323000
09323000
|
|||
|
|
120376
120376
|
|||
|
|
09323400
09323400
|
|||
|
|
413447
413447
|
|||
|
|
06400200
06400200
|
|||
|
|
09323100
09323100
|
|||
|
|
180173
180173
|
|||
|
|
131101
131101
|
|||
|
|
09323500
09323500
|
|||
|
|
180122
180122
|
|||
|
|
120382
120382
|
|||
|
|
120377
120377
|

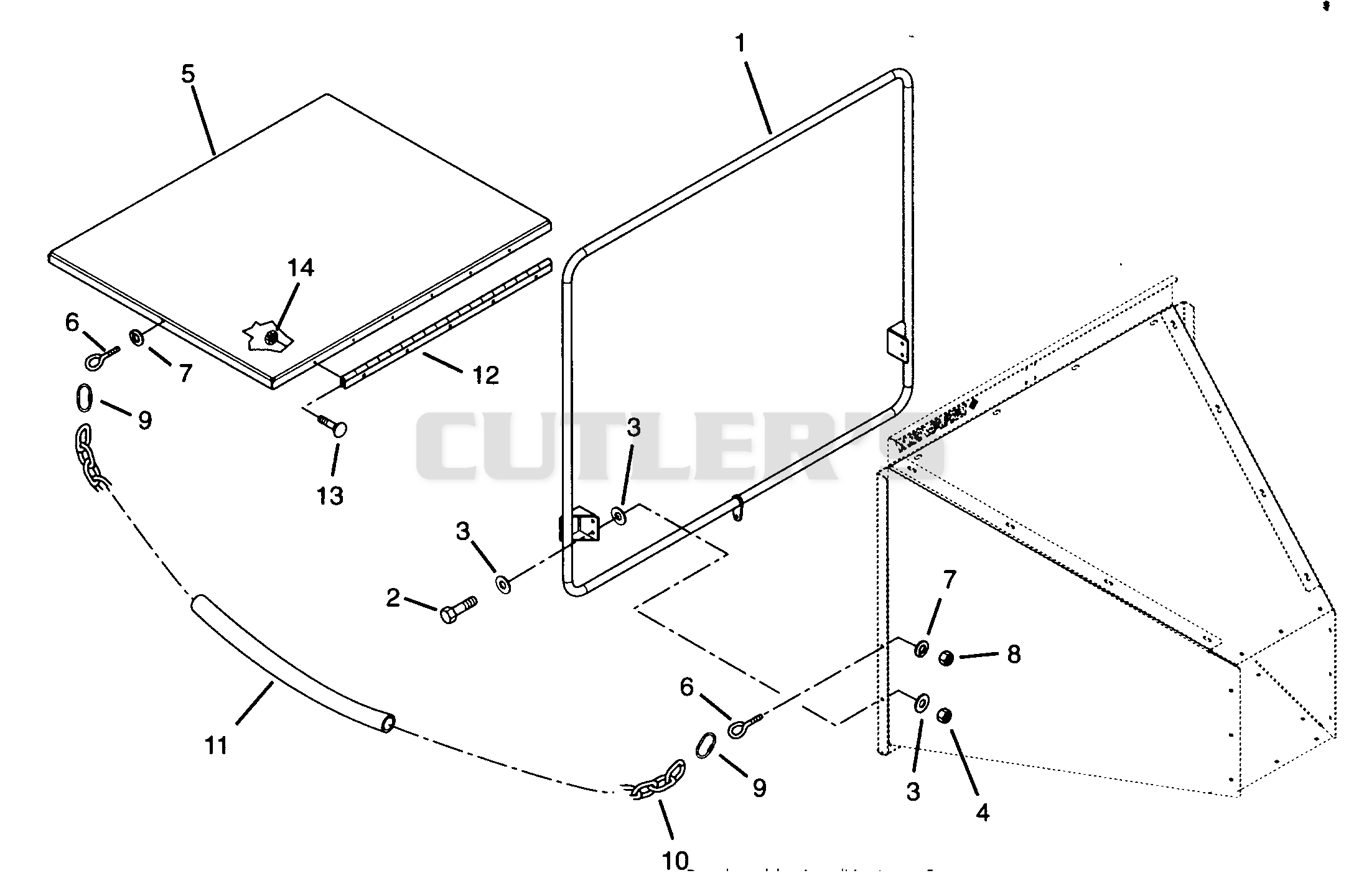

FEED HOPPER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09317100
09317100
|
|||
|
|
09321100
09321100
|
|||
|
|
06104000
06104000
|
|||
|
|
036191
036191
|
|||
|
|
09316800
09316800
|
|||
|
|
06216600
06216600
|
|||
|
|
06400200
06400200
|
|||
|
|
06503900
06503900
|
|||
|
|
09317000
09317000
|
|||
|
|
09316900
09316900
|
|||
|
|
036552
036552
|
|||
|
|
09316700
09316700
|

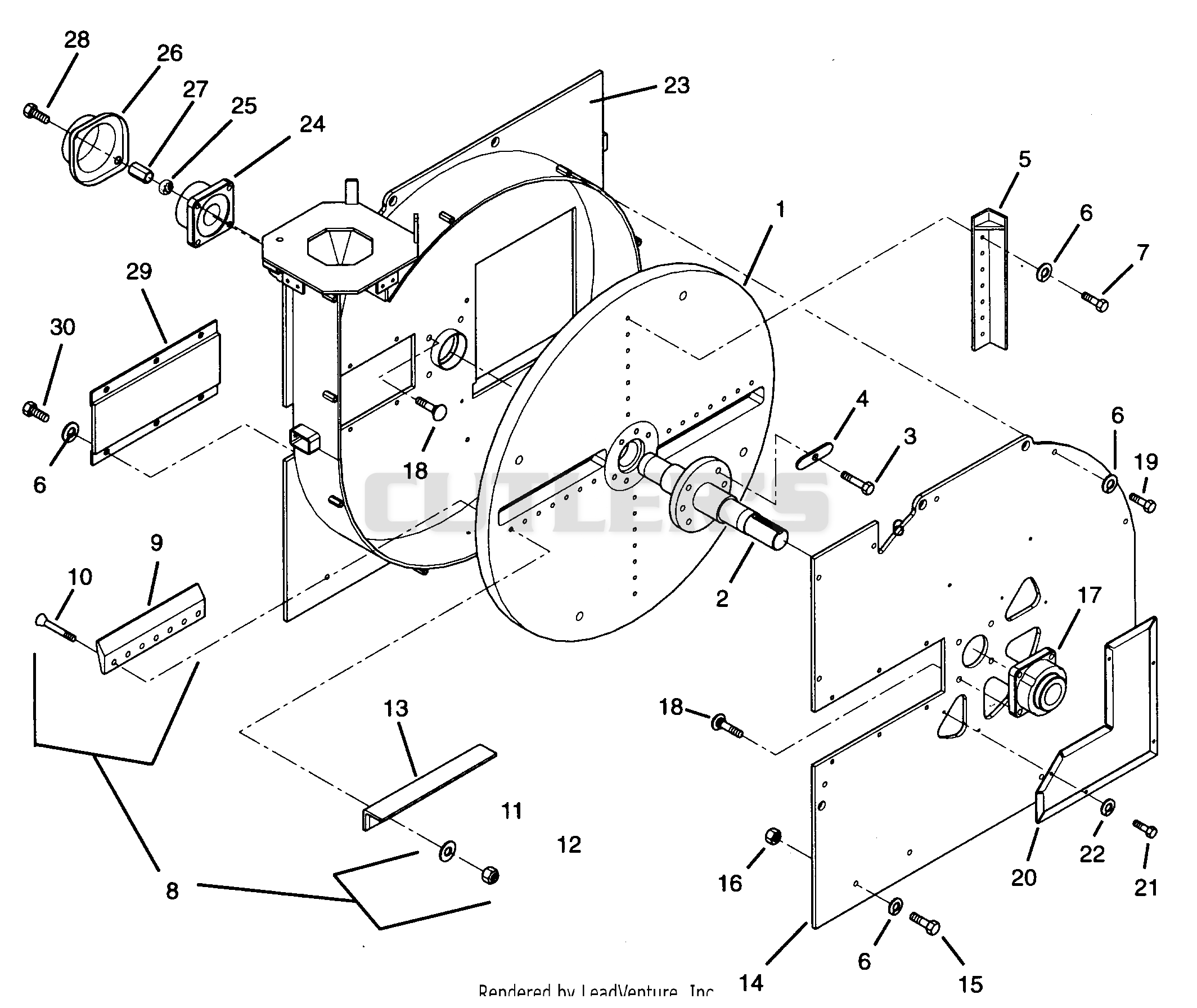

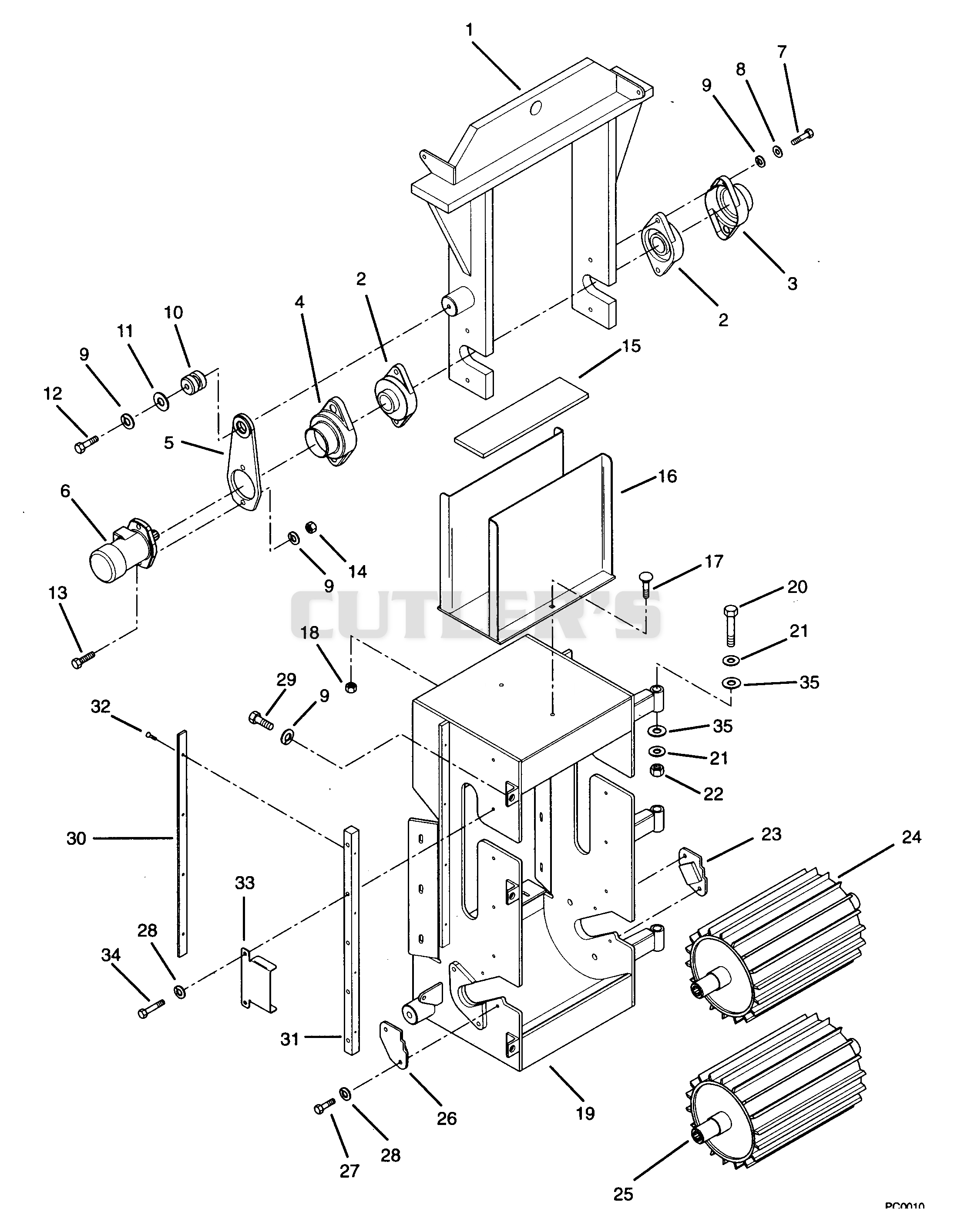

FEED ROLLER BOX
FEED ROLLER BOX
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09315000
09315000
|
|||
|
|
05413800
05413800
|
|||
|
|
09319700
09319700
|
|||
|
|
09319800
09319800
|
|||
|
|
09315500
09315500
|
|||
|
|
09319100
09319100
|
|||
|
|
180175
180175
|
|||
|
|
06400300
06400300
|
|||
|
|
120384
120384
|
|||
|
|
09318200
09318200
|
|||
|
|
09324700
09324700
|
|||
|
|
180190
180190
|
|||
|
|
05928600
05928600
|
|||
|
|
120378
120378
|
|||
|
|
09318800
09318800
|
|||
|
|
09317900
09317900
|
|||
|
|
06208100
06208100
|
|||
|
|
06503900
06503900
|
|||
|
|
09314900
09314900
|
|||
|
|
05918200
05918200
|
|||
|
|
036407
036407
|
|||
|
|
06520300
06520300
|
|||
|
|
09317800
09317800
|
|||
|
|
09312700
09312700
|
|||
|
|
09312800
09312800
|
|||
|
|
09317700
09317700
|
|||
|
|
180120
180120
|
|||
|
|
120382
120382
|
|||
|
|
05930200
05930200
|
|||
|
|
09317300
09317300
|
|||
|
|
09316453
09316453
|
|||
|
|
05929400
05929400
|
|||
|
|
09320200
09320200
|
|||
|
|
180126
180126
|
|||
|
|
06403300
06403300
|
FLYWHEEL AND HOUSING
FLYWHEEL AND HOUSING
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09311800
09311800
|
|||
|
|
09312400
09312400
|
|||
|
|
05930700
05930700
|
|||
|
|
04125200
04125200
|
|||
|
|
09321000
09321000
|
|||
|
|
131101
131101
|
|||
|
|
180175
180175
|
|||
|
|
59304700
59304700
|
|||
|
|
09313400
09313400
|
|||
|
|
05929700
05929700
|
|||
|
|
06403200
06403200
|
|||
|
|
06512700
06512700
|
|||
|
|
09321000
09321000
|
|||
|
|
09314600
09314600
|
|||
|
|
05946000
05946000
|
|||
|
|
06512700
06512700
|
|||
|
|
05418400
05418400
|
|||
|
|
04129900
04129900
|
|||
|
|
05946000
05946000
|
|||
|
|
09315700
09315700
|
|||
|
|
180079
180079
|
|||
|
|
120214
120214
|
|||
|
|
09314500
09314500
|
|||
|
|
05418300
05418300
|
|||
|
|
06519200
06519200
|
|||
|
|
09309200
09309200
|
|||
|
|
09309500
09309500
|
|||
|
|
05948900
05948900
|
|||
|
|
09315100
09315100
|
|||
|
|
180173
180173
|

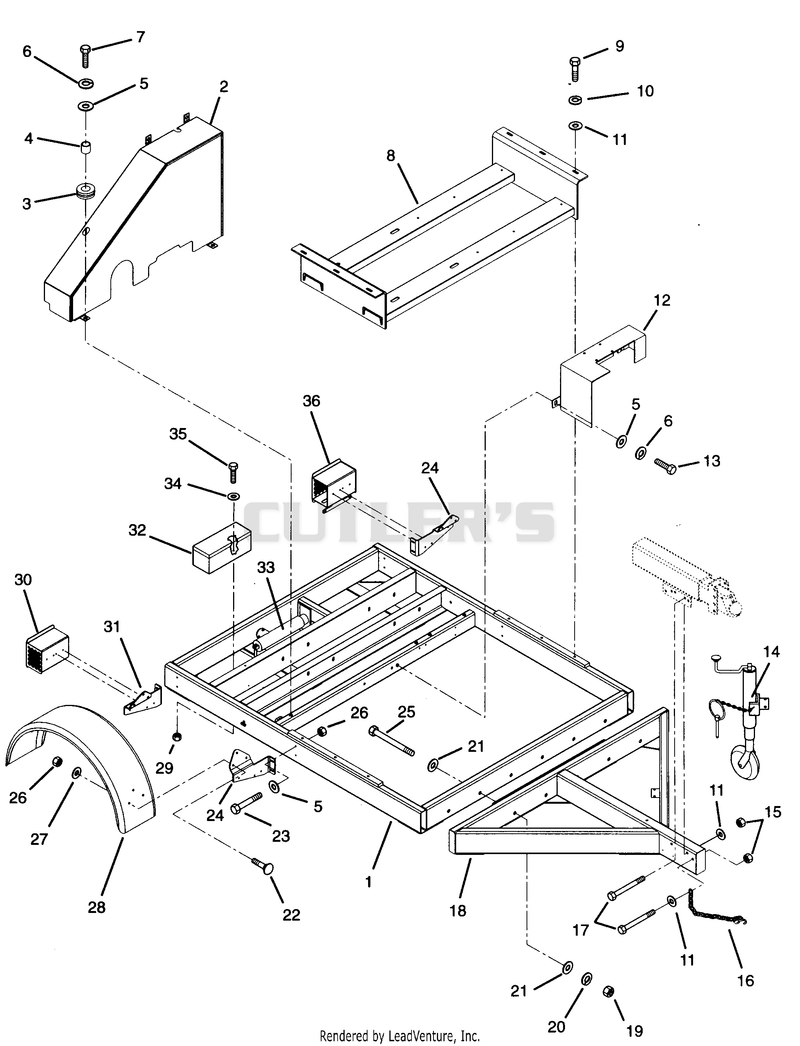

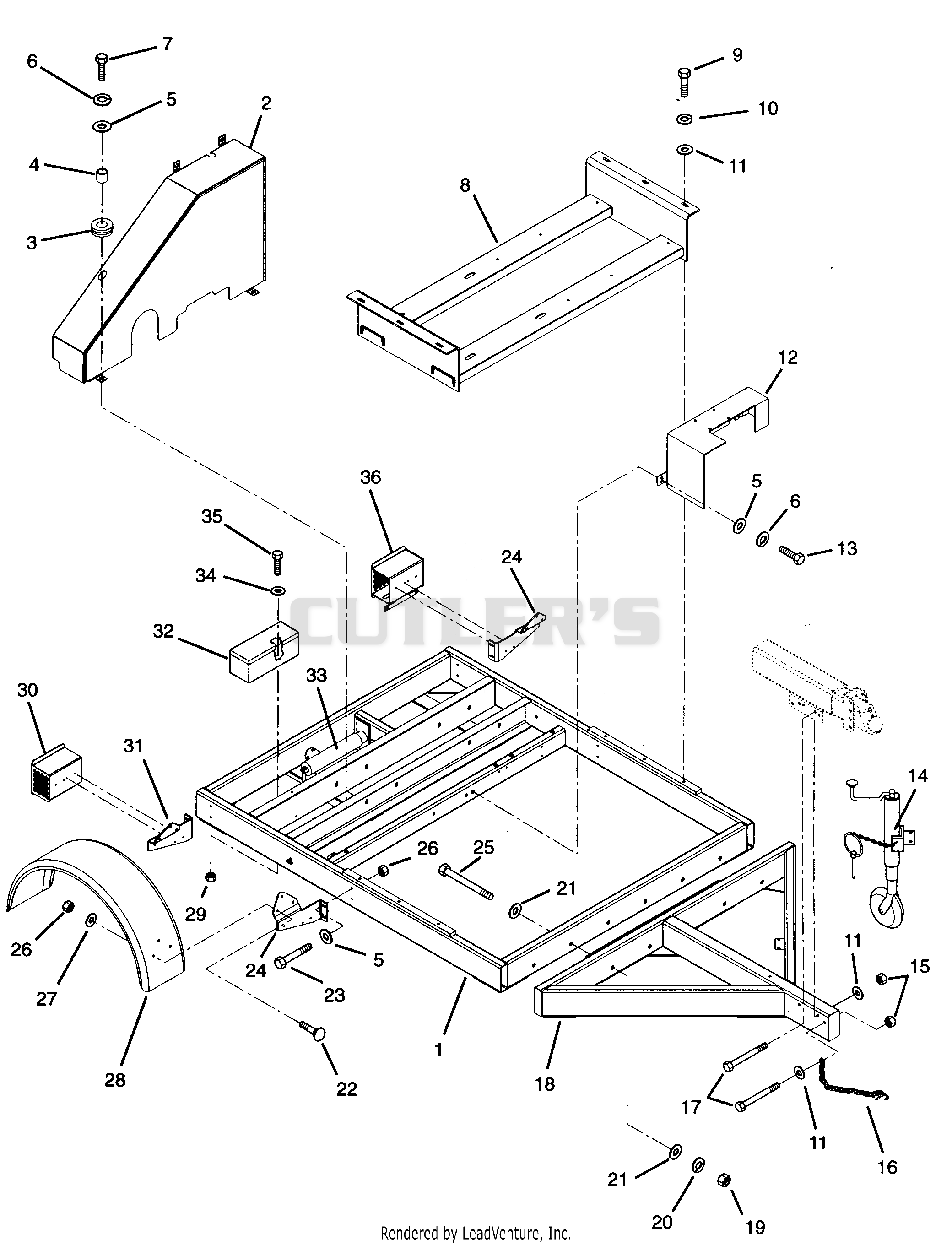

FRAME
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09315600
09315600
|
|||
|
|
09327300
09327300
|
|||
|
|
07506400
07506400
|
|||
|
|
09326700
09326700
|
|||
|
|
06400200
06400200
|
|||
|
|
131099
131099
|
|||
|
|
05900400
05900400
|
|||
|
|
09315400
09315400
|
|||
|
|
180175
180175
|
|||
|
|
120384
120384
|
|||
|
|
06412000
06412000
|
|||
|
|
09322000
09322000
|
|||
|
|
180120
180120
|
|||
|
|
09318300
09318300
|
|||
|
|
06512700
06512700
|
|||
|
|
09319500
09319500
|
|||
|
|
05953200
05953200
|
|||
|
|
09315800
09315800
|
|||
|
|
06514000
06514000
|
|||
|
|
06300800
06300800
|
|||
|
|
06424600
06424600
|
|||
|
|
126390
126390
|
|||
|
|
05913600
05913600
|
|||
|
|
09318100
09318100
|
|||
|
|
429887
429887
|
|||
|
|
413447
413447
|
|||
|
|
06421500
06421500
|
|||
|
|
09317400
09317400
|
|||
|
|
06503200
06503200
|
|||
|
|
09322100
09322100
|
|||
|
|
09318000
09318000
|
|||
|
|
09319400
09319400
|
|||
|
|
09320400
09320400
|
|||
|
|
120386
120386
|
|||
|
|
180020
180020
|
|||
|
|
09322300
09322300
|

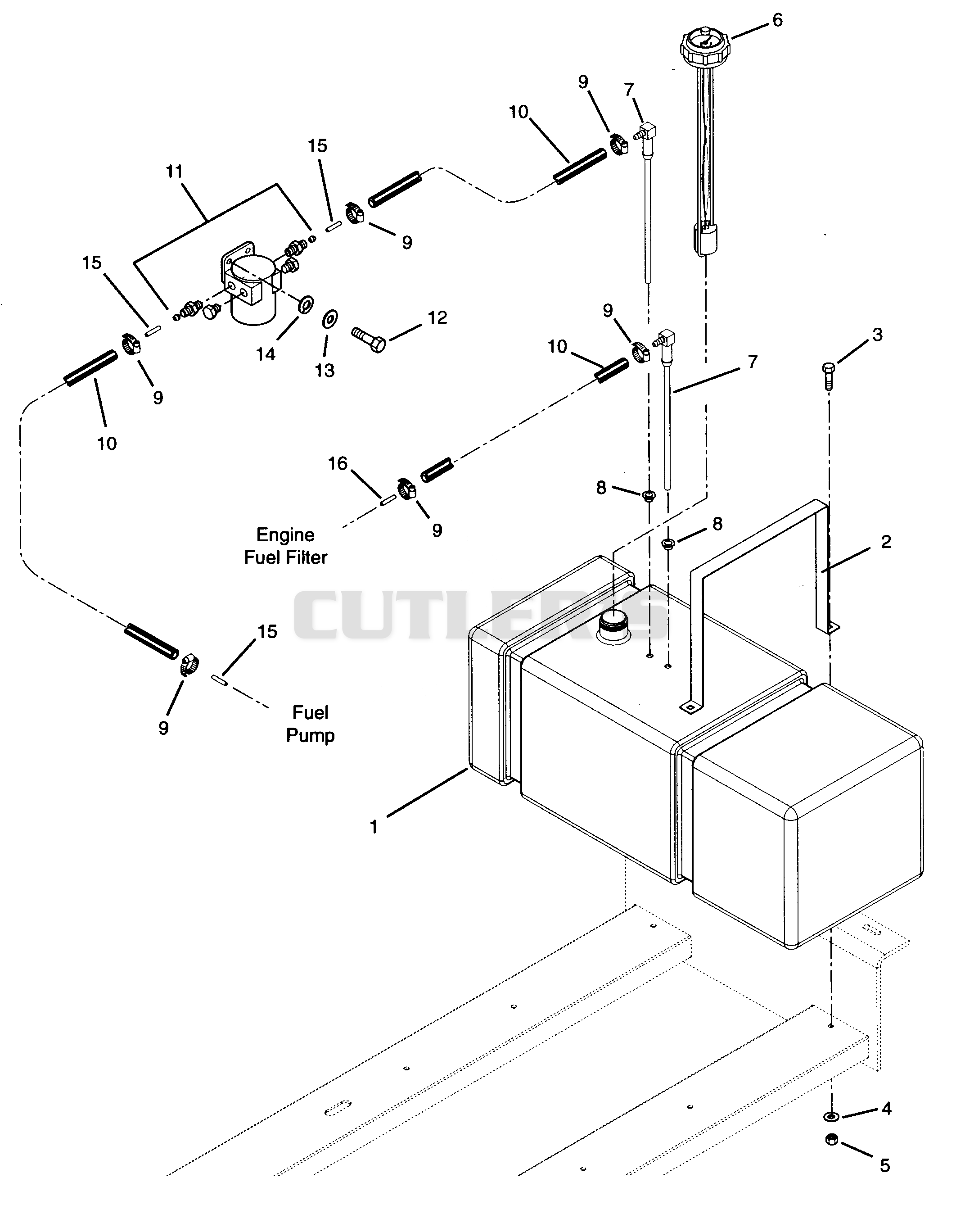

FUEL SYSTEM
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09319300
09319300
|
|||
|
|
09321800
09321800
|
|||
|
|
180128
180128
|
|||
|
|
06400800
06400800
|
|||
|
|
036889
036889
|
|||
|
|
047615
047615
|
|||
|
|
047614
047614
|
|||
|
|
050246
050246
|
|||
|
|
032045
032045
|
|||
|
|
021134
021134
|
|||
|
|
09326900
09326900
|
|||
|
|
180079
180079
|
|||
|
|
120386
120386
|
|||
|
|
06300200
06300200
|
|||
|
|
00928600
00928600
|
|||
|
|
00928500
00928500
|
HYDRAULIC CONTROL VALVE AND ROLLER MOTOR CIRCUIT
HYDRAULIC CONTROL VALVE AND ROLLER MOTOR CIRCUIT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09308800
09308800
|
|||
|
|
06205100
06205100
|
|||
|
|
06504200
06504200
|
|||
|
|
09309600
09309600
|
|||
|
|
05932500
05932500
|
|||
|
|
06404300
06404300
|
|||
|
|
06702400
06702400
|
|||
|
|
09311000
09311000
|
|||
|
|
050961
050961
|
|||
|
|
04131300
04131300
|
|||
|
|
07025800
07025800
|
|||
|
|
09309900
09309900
|
|||
|
|
07025900
07025900
|
|||
|
|
04131100
04131100
|

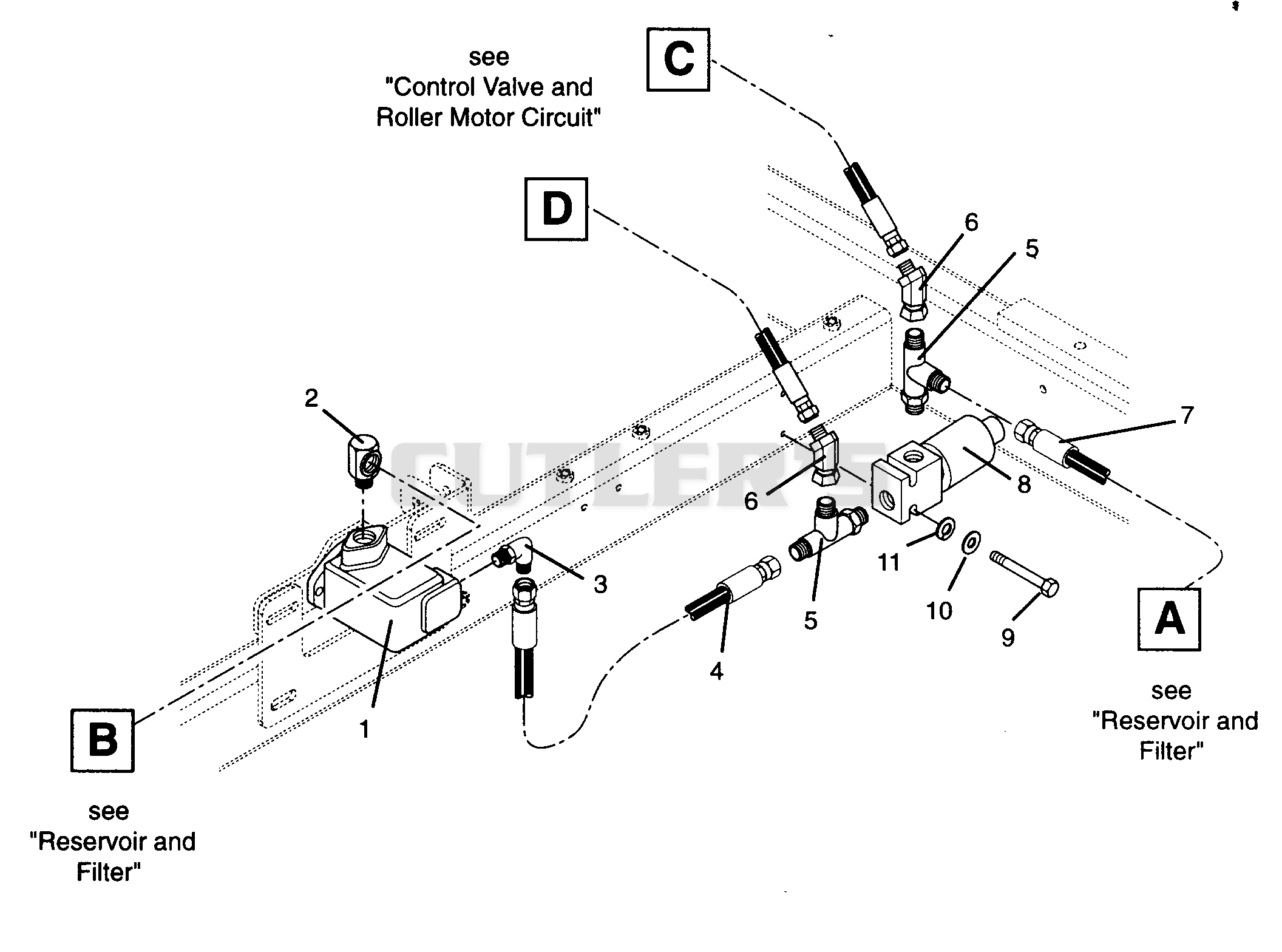

HYDRAULIC PUMP AND VALVE
HYDRAULIC PUMP AND VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09320600
09320600
|
|||
|
|
07029000
07029000
|
|||
|
|
050961
050961
|
|||
|
|
04131100
04131100
|
|||
|
|
07048200
07048200
|
|||
|
|
07025900
07025900
|
|||
|
|
04130900
04130900
|
|||
|
|
09320000
09320000
|
|||
|
|
05906700
05906700
|
|||
|
|
120386
120386
|
|||
|
|
06300200
06300200
|

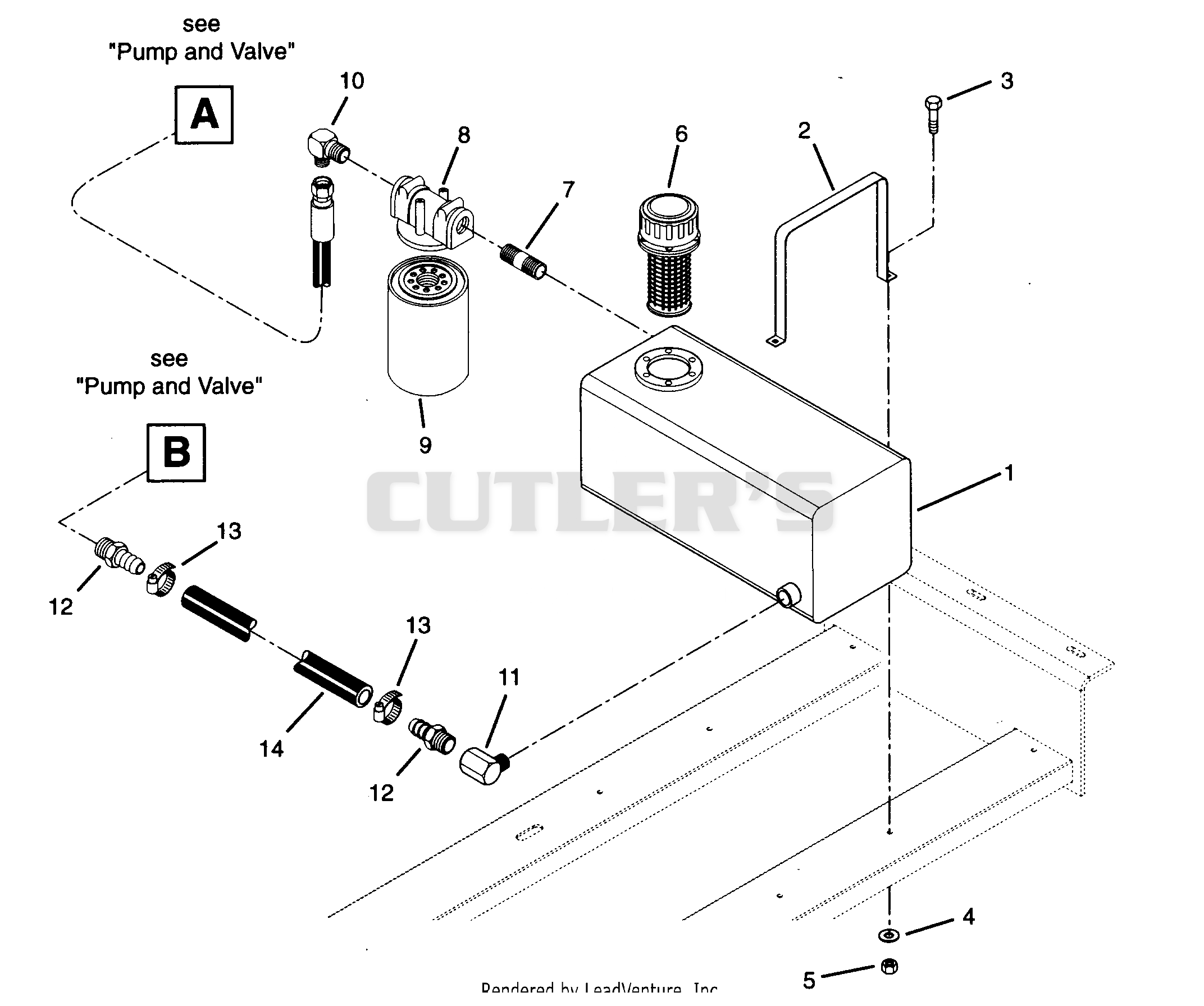

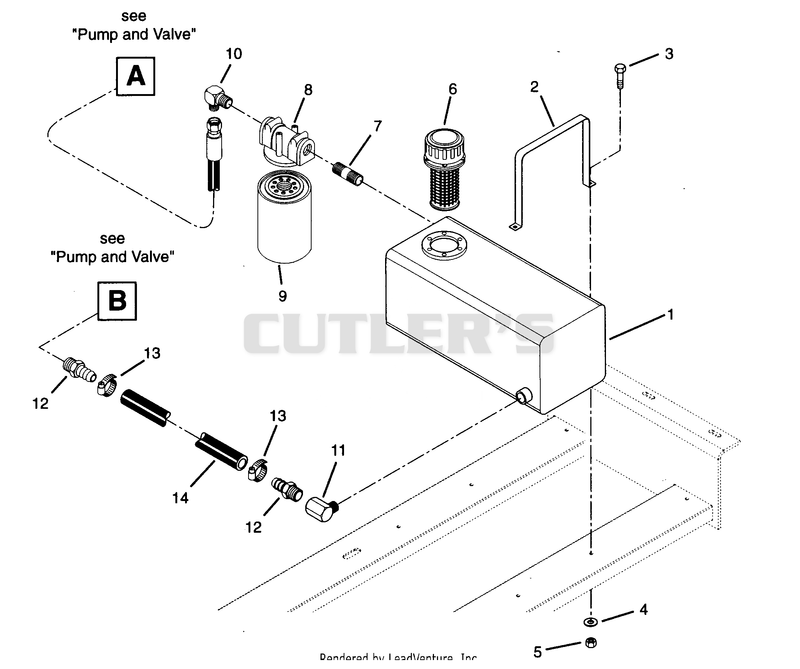

HYDRAULIC RESERVOIR AND FILTER
HYDRAULIC RESERVOIR AND FILTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
04122253
04122253
|
|||
|
|
09321900
09321900
|
|||
|
|
180128
180128
|
|||
|
|
06400800
06400800
|
|||
|
|
06503900
06503900
|
|||
|
|
04105800
04105800
|
|||
|
|
04133400
04133400
|
|||
|
|
04108000
04108000
|
|||
|
|
04108100
04108100
|
|||
|
|
050961
050961
|
|||
|
|
09324000
09324000
|
|||
|
|
07027300
07027300
|
|||
|
|
04132100
04132100
|
|||
|
|
09323900
09323900
|

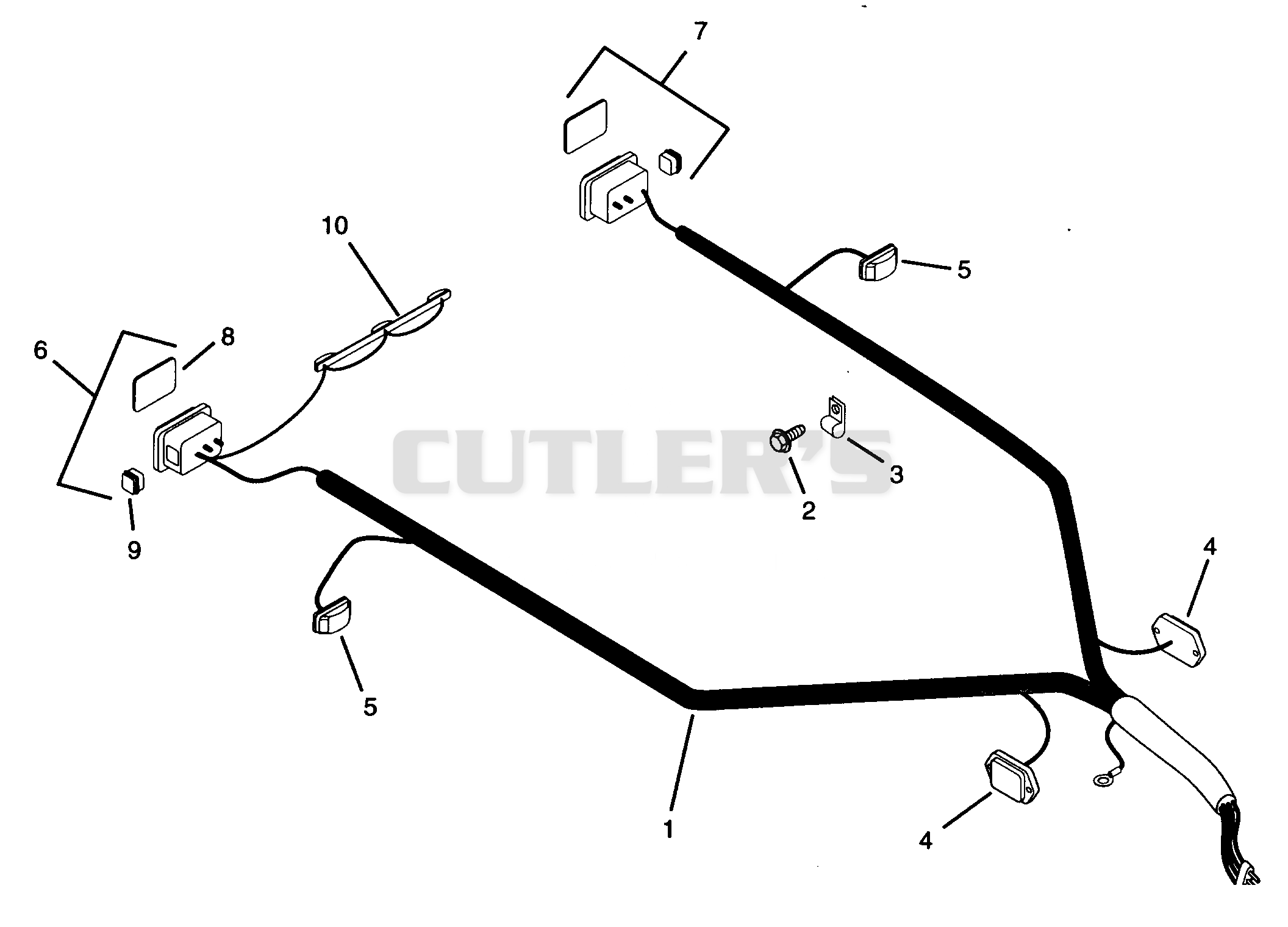

LIGHTS AND WIRING HARNESS
LIGHTS AND WIRING HARNESS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09324100
09324100
|
|||
|
|
050366
050366
|
|||
|
|
09325100
09325100
|
|||
|
|
09320500
09320500
|
|||
|
|
09321400
09321400
|
|||
|
|
09321700
09321700
|
|||
|
|
09321600
09321600
|
|||
|
|
09310000
09310000
|
|||
|
|
09322200
09322200
|
|||
|
|
09321500
09321500
|

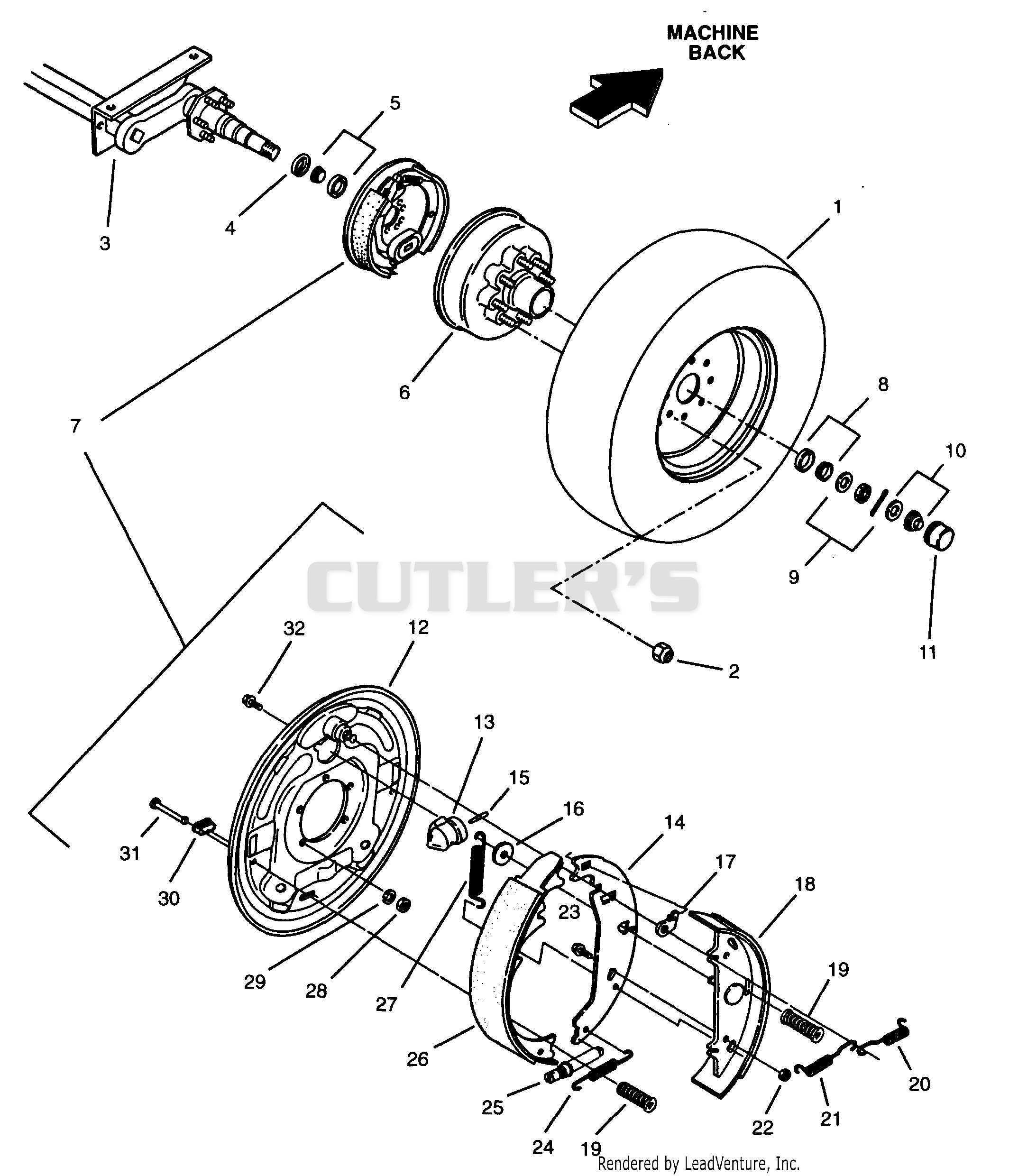

WHEELS, BRAKES, SUSPENSION
WHEELS, BRAKES, SUSPENSION
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
07140100
07140100
|
|||
|
|
06517600
06517600
|
|||
|
|
09317200
09317200
|
|||
|
|
59303300
59303300
|
|||
|
|
59303400
59303400
|
|||
|
|
59303200
59303200
|
|||
|
|
59302300
59302300
|
|||
|
|
59302400
59302400
|
|||
|
|
59303500
59303500
|
|||
|
|
59303800
59303800
|
|||
|
|
59303700
59303700
|
|||
|
|
59303600
59303600
|
|||
|
|
59302500
59302500
|
|||
|
|
59302600
59302600
|
|||
|
|
59302700
59302700
|
|||
|
|
59303900
59303900
|
|||
|
|
59302900
59302900
|
|||
|
|
09303000
09303000
|
|||
|
|
09303100
09303100
|
|||
|
|
09302800
09302800
|

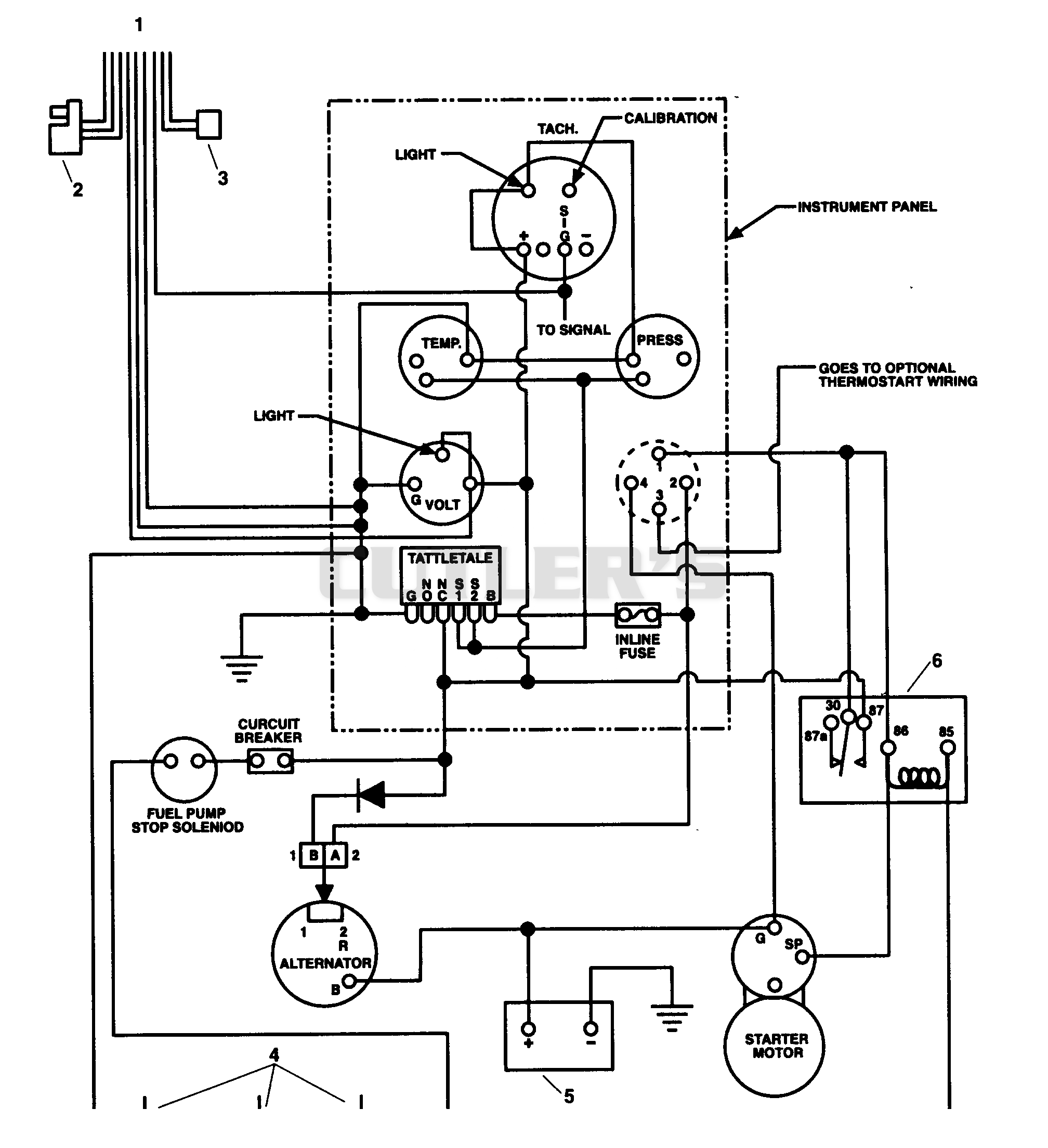

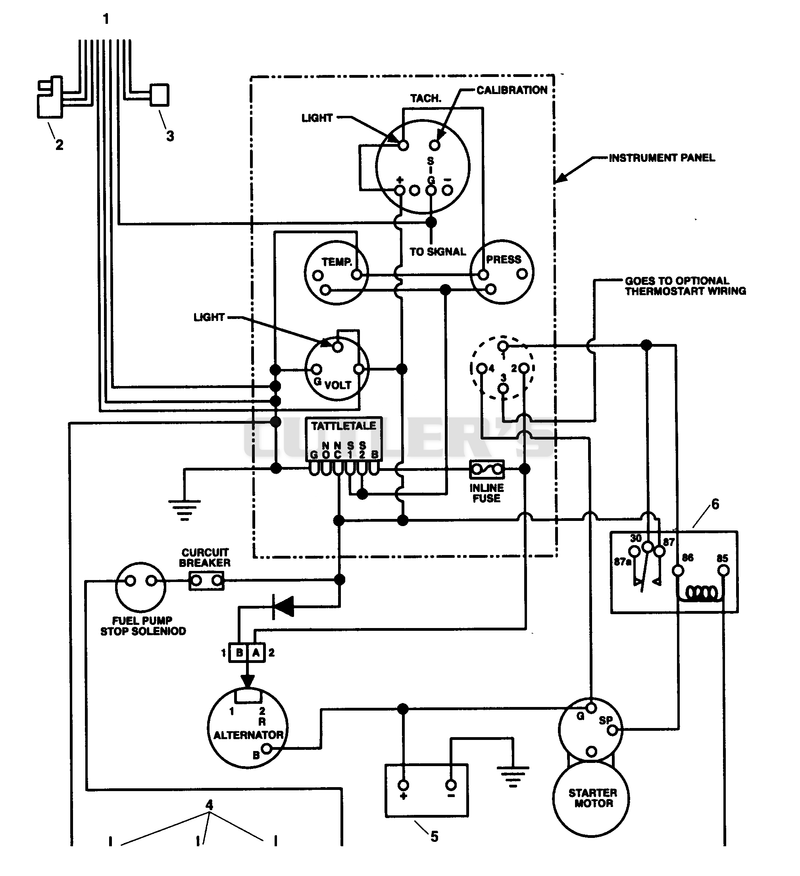

WIRING DIAGRAM
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09320100
09320100
|
|||
|
|
79301800
79301800
|
|||
|
|
09320000
09320000
|
|||
|
|
09323800
09323800
|
|||
|
|
09318400
09318400
|
|||
|
|
040216
040216
|
