Honda E1500-A Parts Diagram (Serial E1500-123001 to 1171000)
Diagrams:
Diagram:

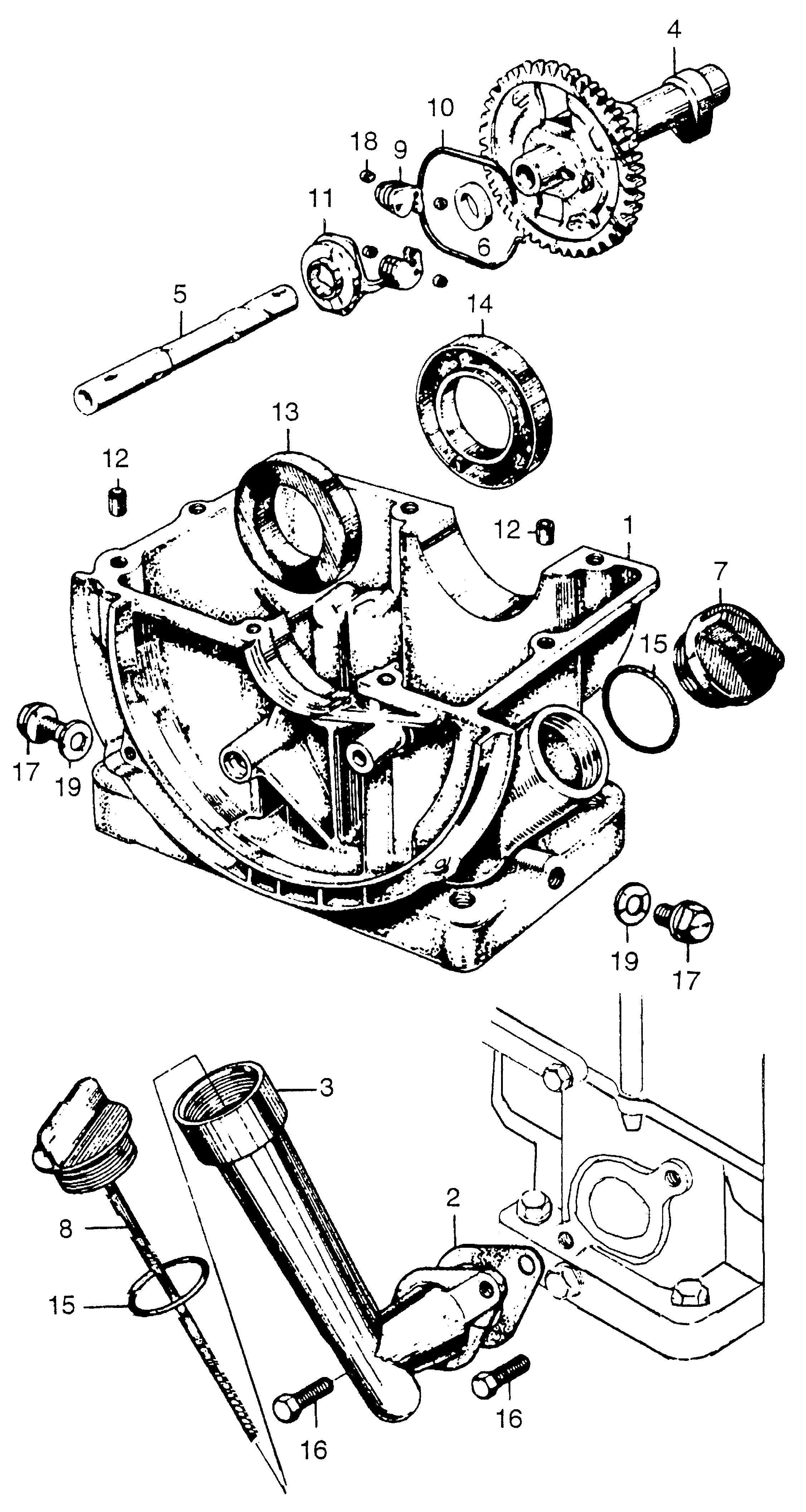

CAMSHAFT@OIL PAN
CAMSHAFT@OIL PAN
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
15611-921-000
15611-921-000
|
|||
|
|
15620-815-000
15620-815-000
|
|||
|
|
91201-822-003
91201-822-003
|
|||
|
|
91301-805-000
91301-805-000
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
92800-12000
92800-12000
|
|||
|
|
94101-03000
94101-03000
|
|||
|
|
94109-12000
94109-12000
|

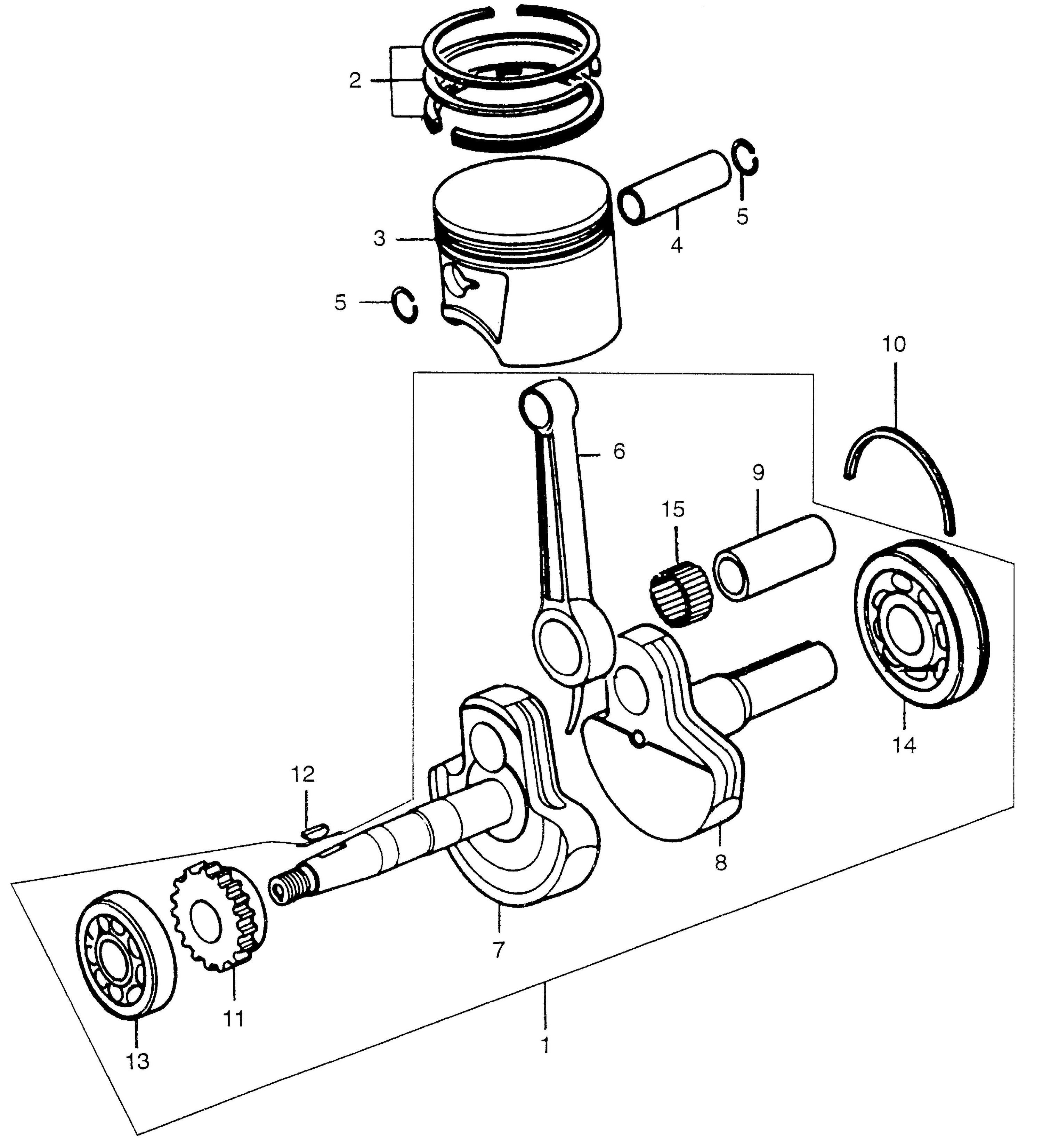

CRANKSHAFT@PISTON
CRANKSHAFT@PISTON
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13101-822-000
13101-822-000
|
|||
|
|
13103-822-000
13103-822-000
|
|||
|
|
94601-18000
94601-18000
|

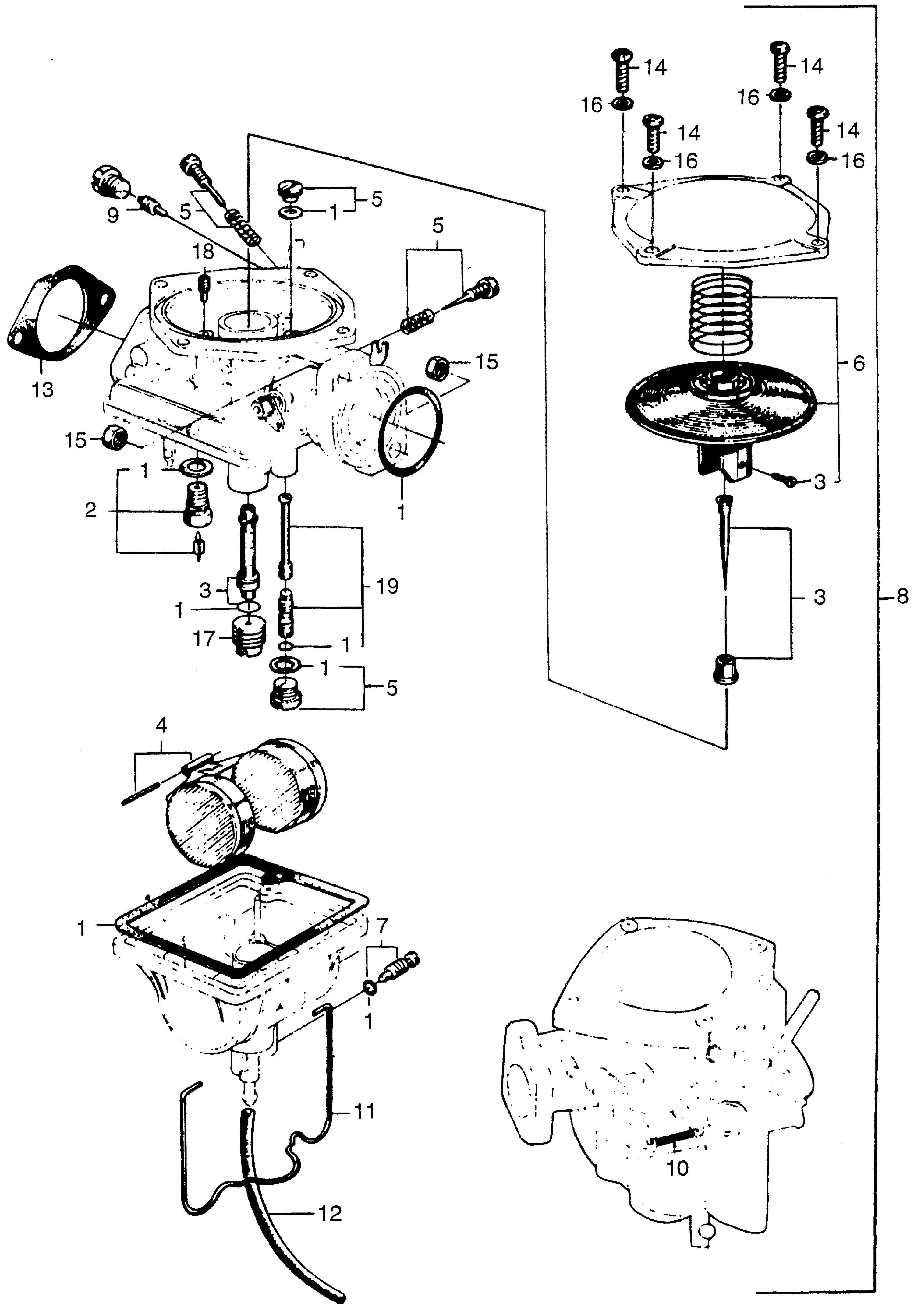

E1500 CARBURETOR
E1500 CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
95001-35003-60m
95001-35003-60m
|
|||
|
|
93500-05012-0b
93500-05012-0b
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94111-05000
94111-05000
|

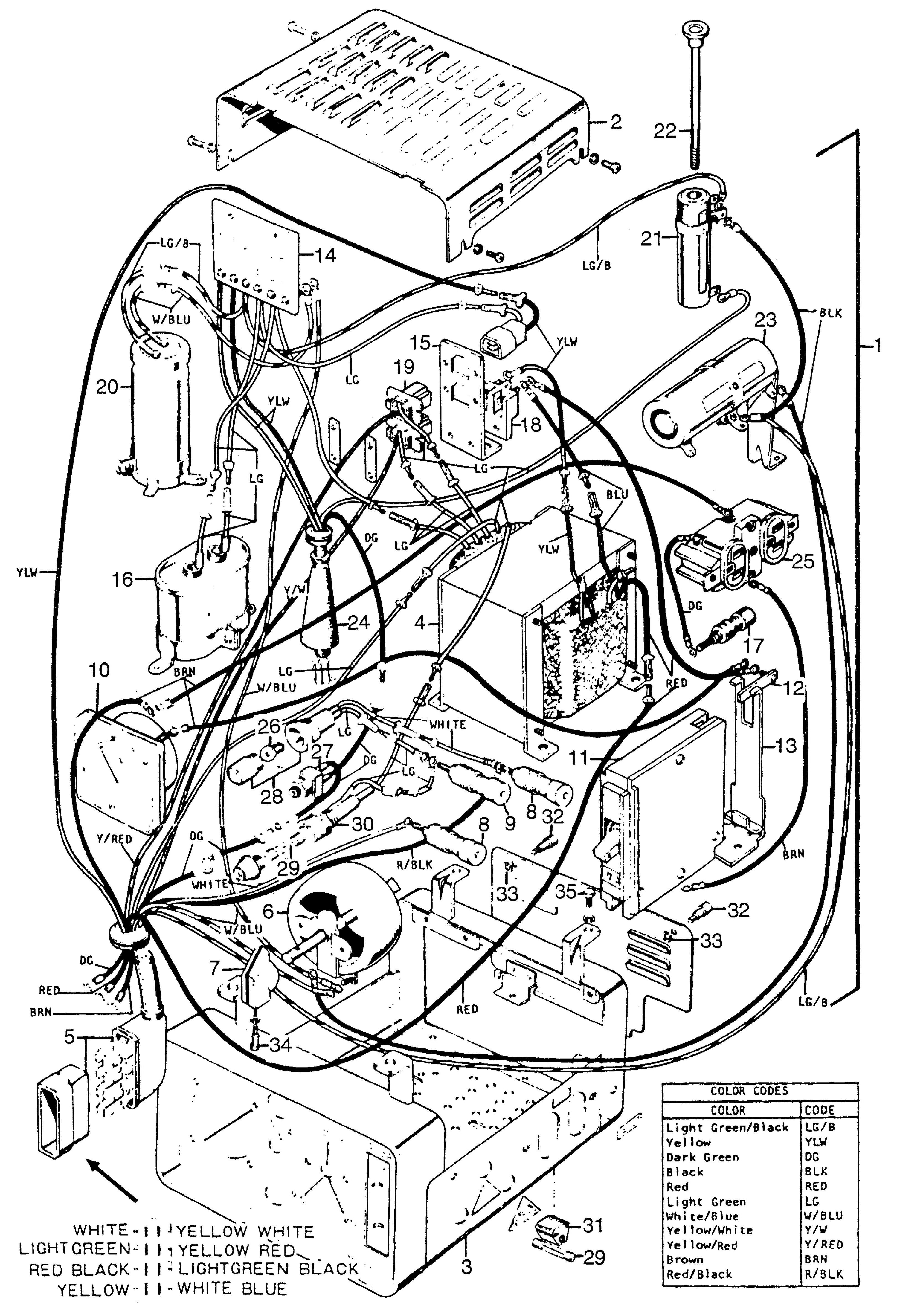

E1500 CONTROL BOX
E1500 CONTROL BOX
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
31408-880-000
31408-880-000
|
|||
|
|
31409-880-000
31409-880-000
|
|||
|
|
37450-898-000
37450-898-000
|
|||
|
|
32333-880-680
32333-880-680
|
|||
|
|
34909-880-000
34909-880-000
|
|||
|
|
38201-815-605
38201-815-605
|
|||
|
|
92101-05008-0a
92101-05008-0a
|

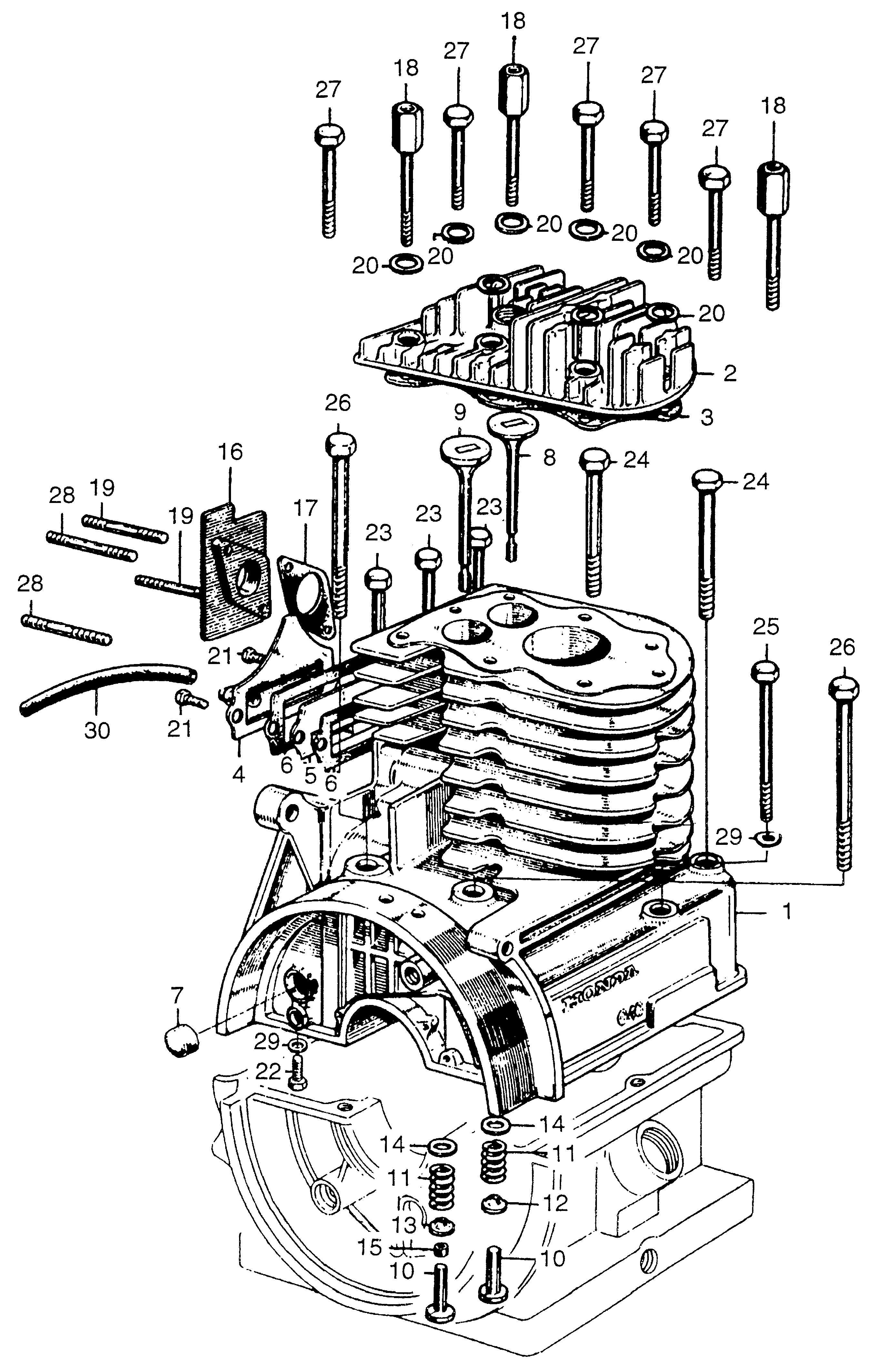

E1500 CYLINDER
E1500 CYLINDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12251-843-306
12251-843-306
|
|||
|
|
14771-883-305
14771-883-305
|
|||
|
|
16229-822-306
16229-822-306
|
|||
|
|
90402-822-000
90402-822-000
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
92101-06032-0a
92101-06032-0a
|
|||
|
|
92900-06018-0b
92900-06018-0b
|
|||
|
|
94101-06800
94101-06800
|

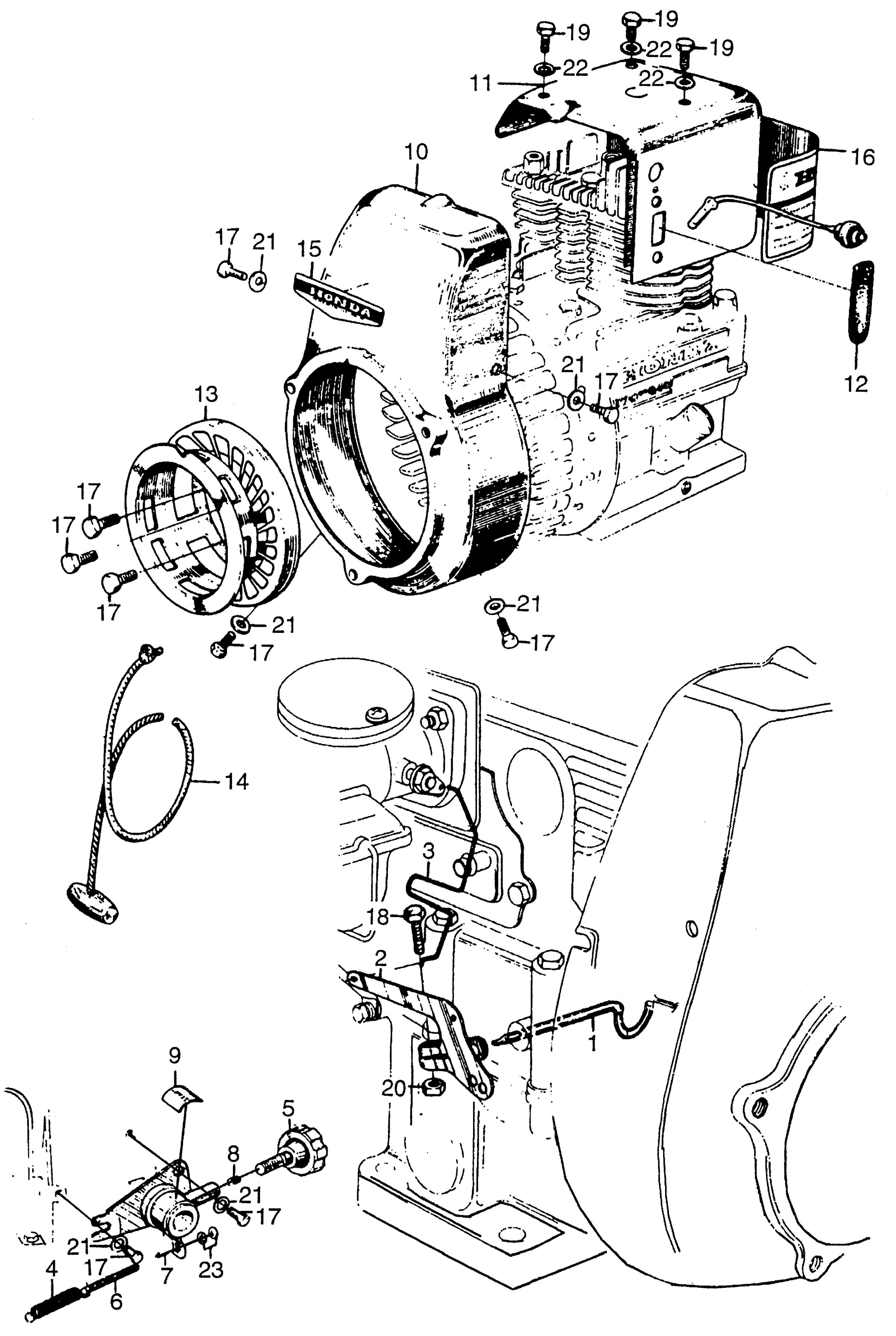

E1500 FAN COVER
E1500 FAN COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
92101-08016-0a
92101-08016-0a
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94101-08000
94101-08000
|
E1500 FRAME
E1500 FRAME
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17682-817-020
17682-817-020
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94030-08000
94030-08000
|
|||
|
|
94031-08000
94031-08000
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94101-08000
94101-08000
|
|||
|
|
94111-06000
94111-06000
|
|||
|
|
94251-05000
94251-05000
|
|||
|
|
94251-06000
94251-06000
|
FLYWHEEL
FLYWHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30280-815-014
30280-815-014
|
|||
|
|
30280-815-024
30280-815-024
|
|||
|
|
30700-ke2-942
30700-ke2-942
|
|||
|
|
19905-za8-701
19905-za8-701
|
|||
|
|
92101-06028-0a
92101-06028-0a
|
|||
|
|
93500-05010-0a
93500-05010-0a
|
|||
|
|
93500-05010-0a
93500-05010-0a
|
|||
|
|
94001-14000-0s
94001-14000-0s
|
|||
|
|
98076-56740
98076-56740
|
FUEL TANK
FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16080-865-005
16080-865-005
|
|||
|
|
16081-822-005
16081-822-005
|
|||
|
|
16081-865-305
16081-865-305
|
|||
|
|
16921-815-004
16921-815-004
|
|||
|
|
16975-815-004
16975-815-004
|
|||
|
|
87561-880-600
87561-880-600
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
93500-06016-0a
93500-06016-0a
|
|||
|
|
93500-03006-0a
93500-03006-0a
|
|||
|
|
93500-03008-0a
93500-03008-0a
|
|||
|
|
95002-70000
95002-70000
|
|||
|
|
90604-921-000
90604-921-000
|
|||
|
|
95002-02120
95002-02120
|

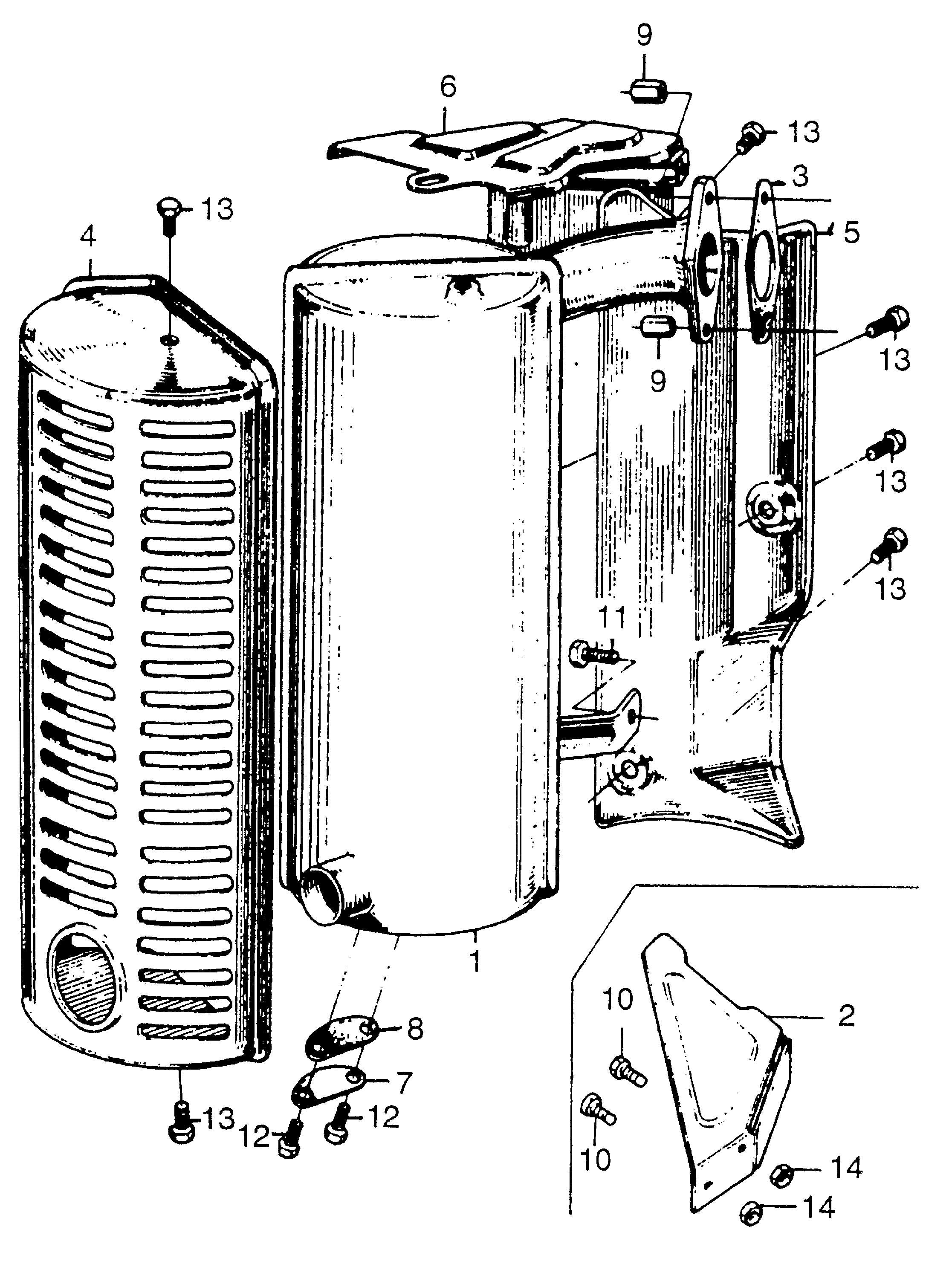

MUFFLER
MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
18351-822-000
18351-822-000
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
