Honda E2500K3-A Parts Diagram (Serial E2500-2000093 to 2043277)
Diagrams:
Diagram:

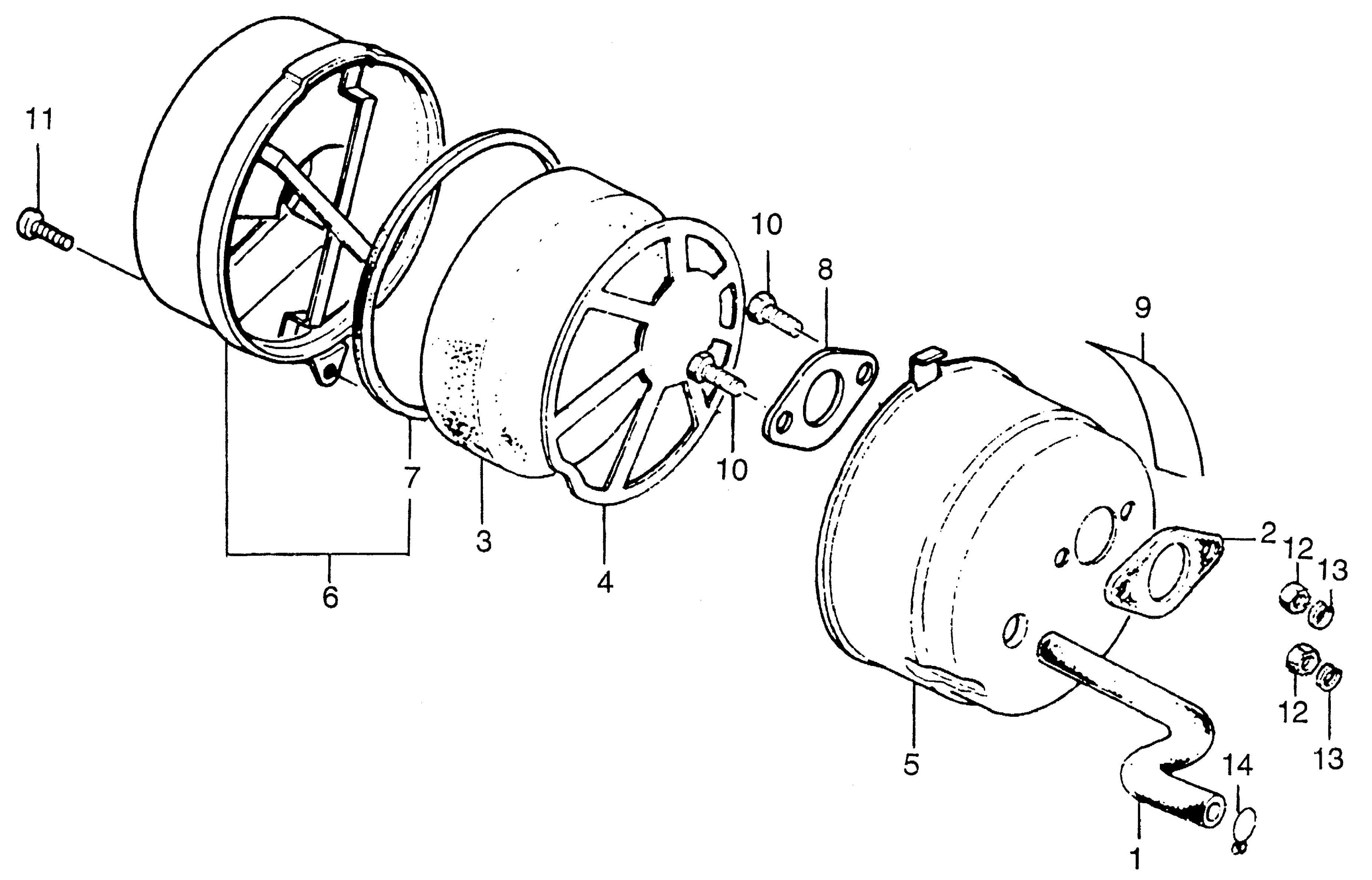

AIR CLEANER
AIR CLEANER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17212-810-000
17212-810-000
|
|||
|
|
17220-823-680h
17220-823-680h
|
|||
|
|
17230-873-630h
17230-873-630h
|
|||
|
|
17236-880-000
17236-880-000
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
93500-06012-0a
93500-06012-0a
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94111-06000
94111-06000
|
|||
|
|
95002-02130
95002-02130
|

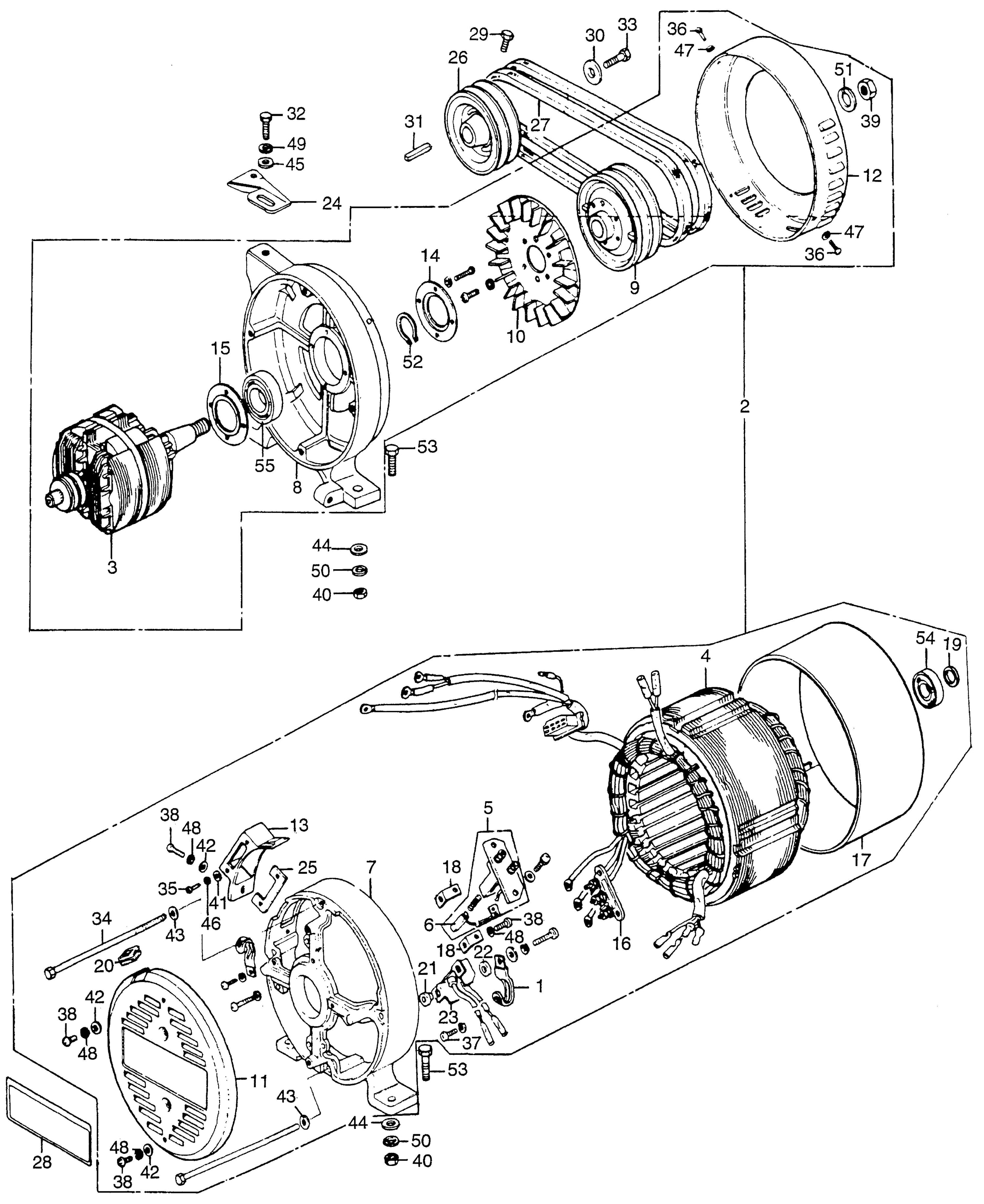

ALTERNATOR
ALTERNATOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30564-871-601
30564-871-601
|
|||
|
|
31108-877-305xc
31108-877-305xc
|
|||
|
|
90534-706-010
90534-706-010
|
|||
|
|
90741-889-810
90741-889-810
|
|||
|
|
92101-08020-0a
92101-08020-0a
|
|||
|
|
92101-08025-0a
92101-08025-0a
|
|||
|
|
93500-03010-0h
93500-03010-0h
|
|||
|
|
93500-04006-0h
93500-04006-0h
|
|||
|
|
93500-04006-3j
93500-04006-3j
|
|||
|
|
93500-05010-0h
93500-05010-0h
|
|||
|
|
94030-10000
94030-10000
|
|||
|
|
94101-03800
94101-03800
|
|||
|
|
94101-05800
94101-05800
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94101-10000
94101-10000
|
|||
|
|
94102-08000
94102-08000
|
|||
|
|
94111-03800
94111-03800
|
|||
|
|
94111-04800
94111-04800
|
|||
|
|
94111-05800
94111-05800
|
|||
|
|
94111-08000
94111-08000
|
|||
|
|
94111-10000
94111-10000
|
|||
|
|
96150-62030-10
96150-62030-10
|
|||
|
|
96150-62050-10
96150-62050-10
|

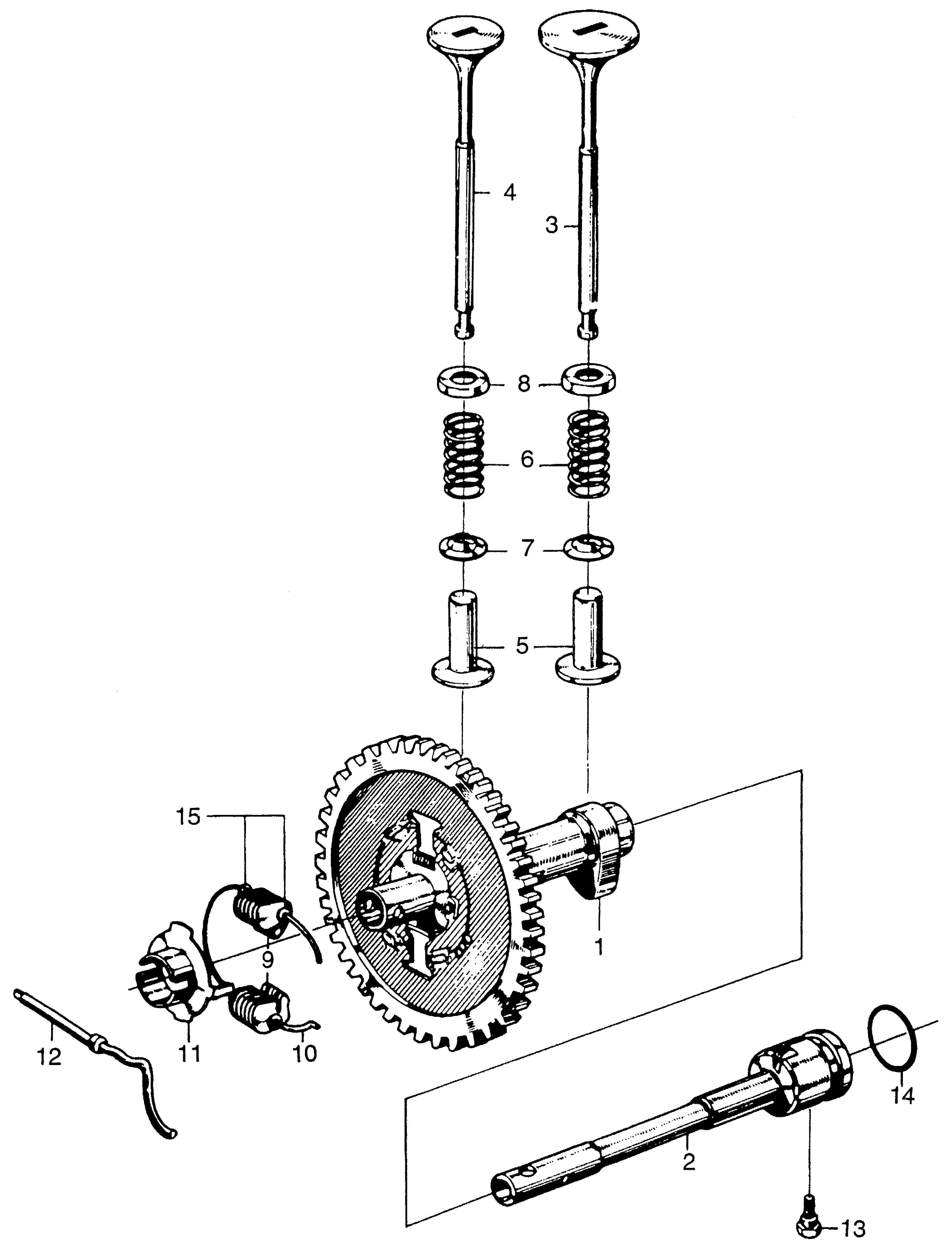

CAMSHAFT VALVE
CAMSHAFT VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14711-823-020
14711-823-020
|
|||
|
|
14721-823-020
14721-823-020
|
|||
|
|
14771-883-305
14771-883-305
|
|||
|
|
16535-823-000
16535-823-000
|
|||
|
|
91318-pa9-003
91318-pa9-003
|
|||
|
|
94101-03000
94101-03000
|

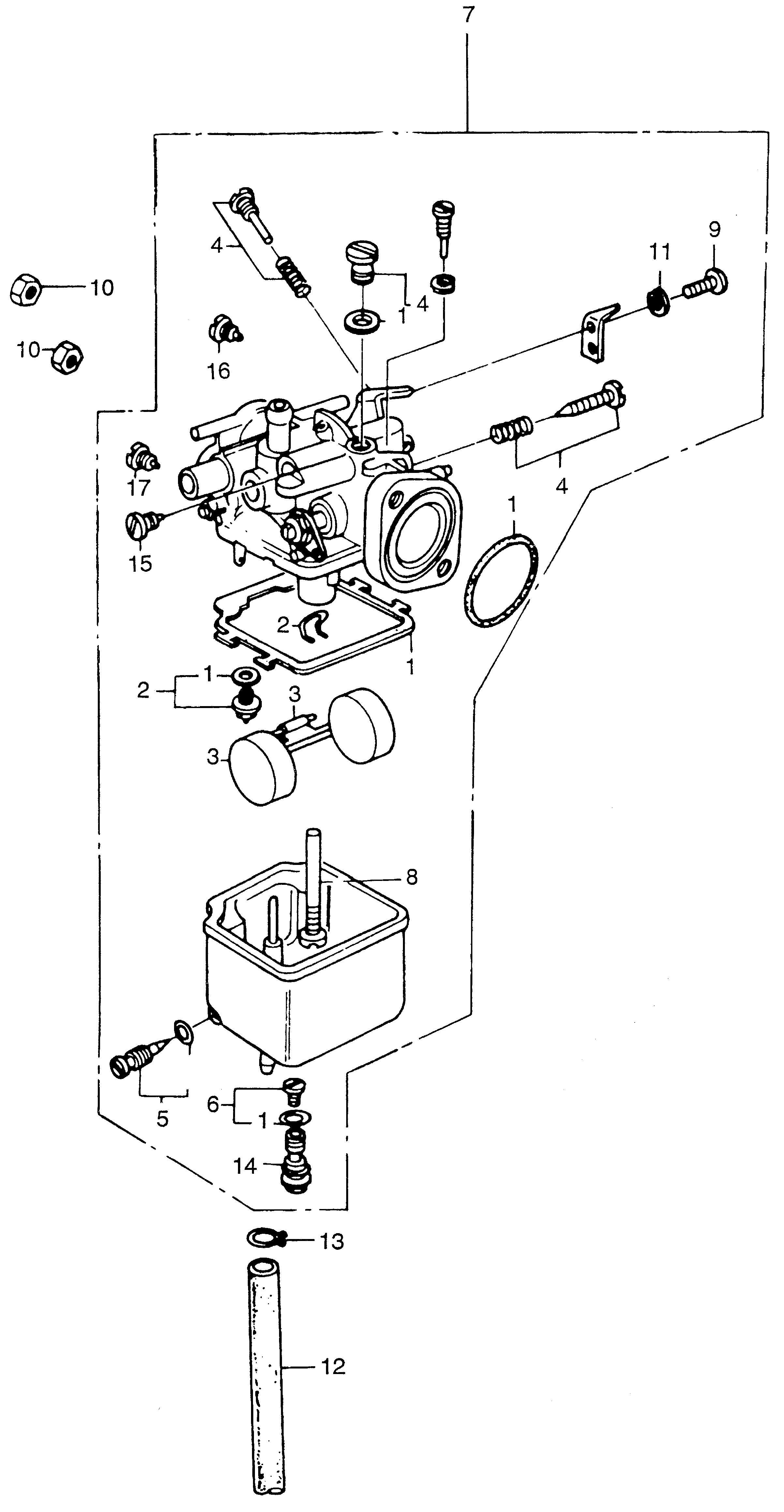

CARBURETOR
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16010-873-004
16010-873-004
|
|||
|
|
16028-862-004
16028-862-004
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94111-03000
94111-03000
|
|||
|
|
95001-35003-60m
95001-35003-60m
|
|||
|
|
95002-02070
95002-02070
|

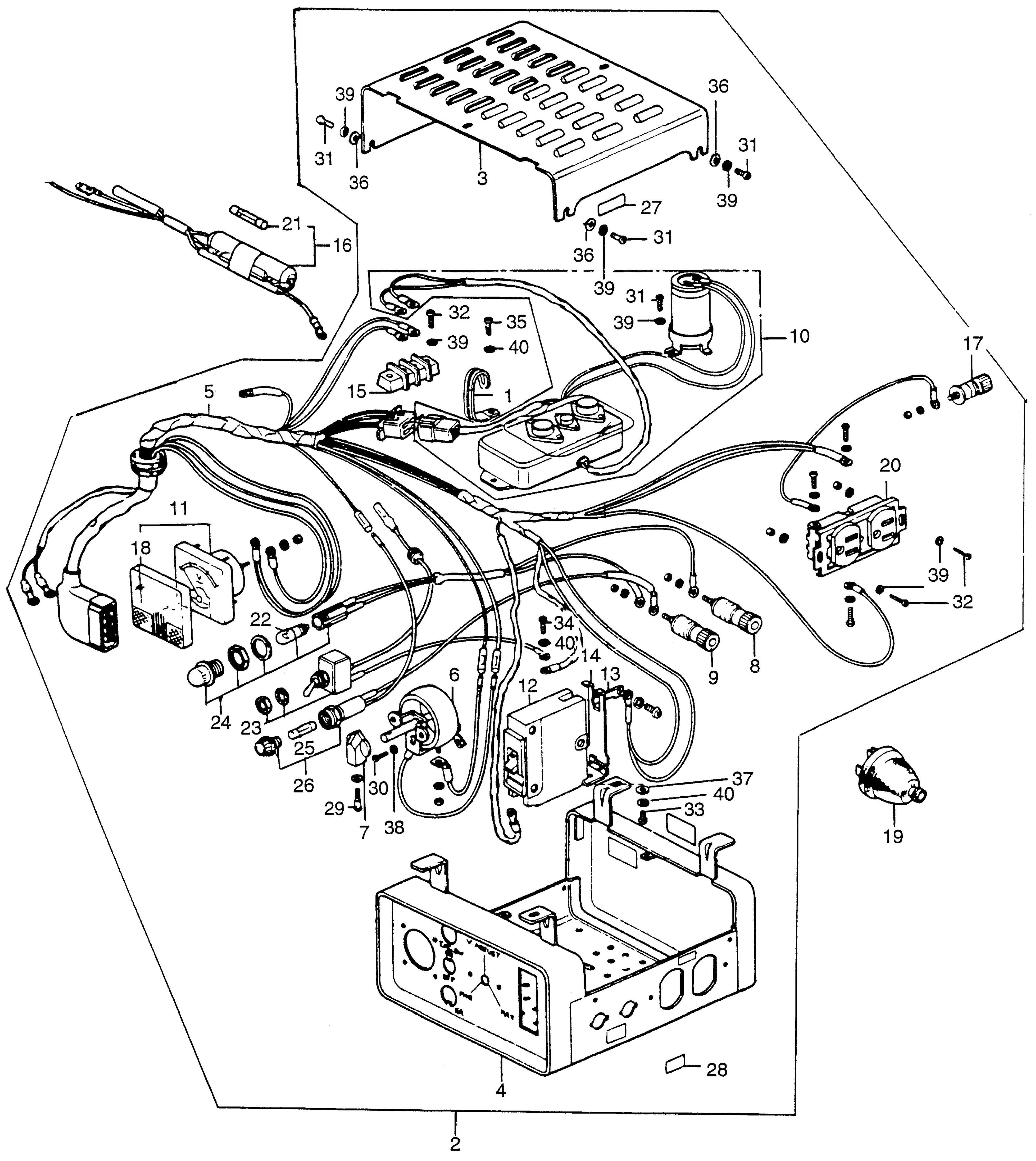

CONTROL BOX
CONTROL BOX
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30564-871-601
30564-871-601
|
|||
|
|
31408-880-000
31408-880-000
|
|||
|
|
31409-880-000
31409-880-000
|
|||
|
|
37450-898-000
37450-898-000
|
|||
|
|
32310-812-640
32310-812-640
|
|||
|
|
32333-880-680
32333-880-680
|
|||
|
|
34909-880-000
34909-880-000
|
|||
|
|
38201-868-158
38201-868-158
|
|||
|
|
93500-03006-0h
93500-03006-0h
|
|||
|
|
93500-04006-0h
93500-04006-0h
|
|||
|
|
93500-04012-0h
93500-04012-0h
|
|||
|
|
93500-05008-0h
93500-05008-0h
|
|||
|
|
93500-05008-3j
93500-05008-3j
|
|||
|
|
93500-05010-0h
93500-05010-0h
|
|||
|
|
94101-04800
94101-04800
|
|||
|
|
94101-05800
94101-05800
|
|||
|
|
94111-03800
94111-03800
|
|||
|
|
94111-04800
94111-04800
|
|||
|
|
94111-05800
94111-05800
|

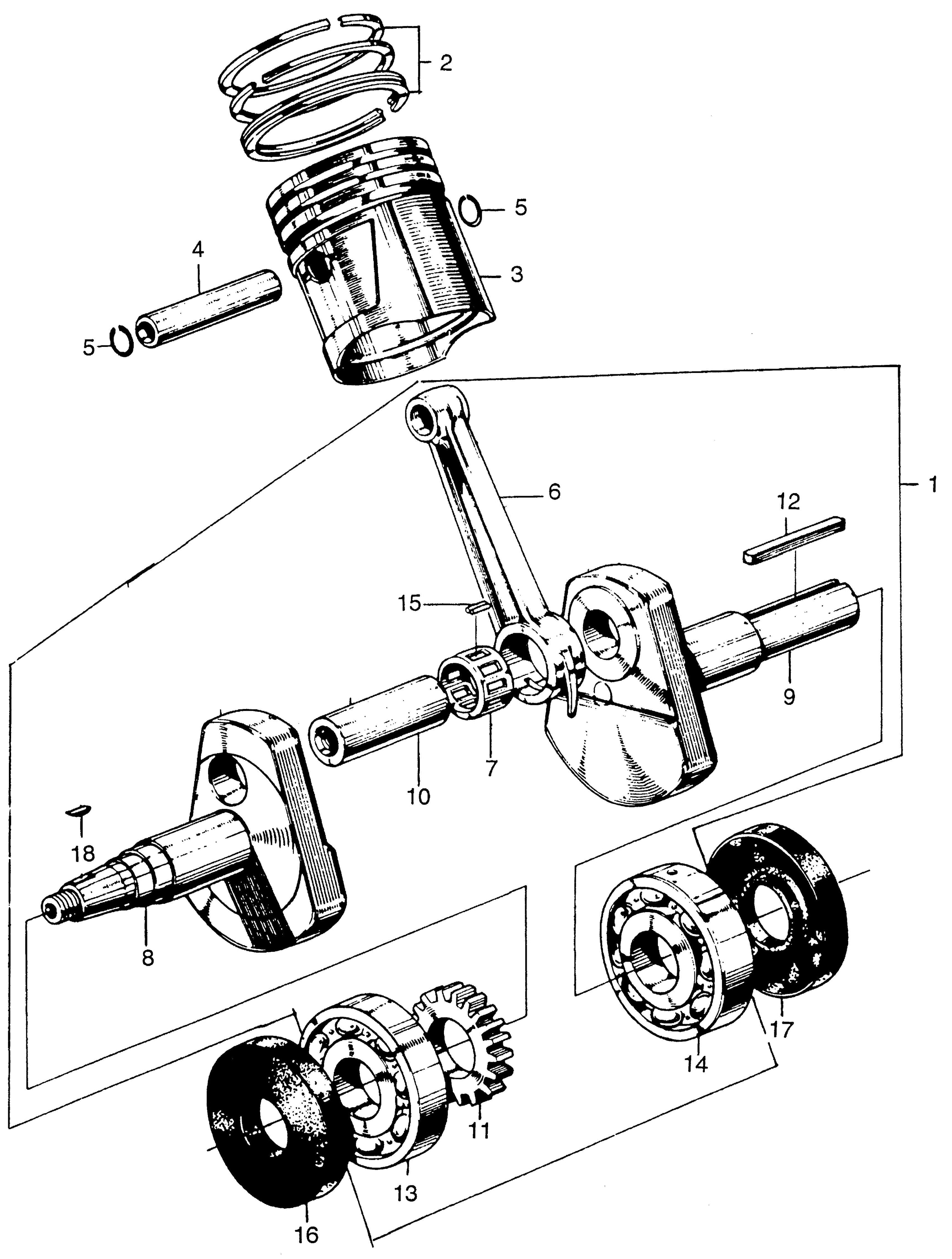

CRANKSHAFT PISTON
CRANKSHAFT PISTON
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13011-809-010
13011-809-010
|
|||
|
|
13021-809-010
13021-809-010
|
|||
|
|
13111-809-010
13111-809-010
|
|||
|
|
94601-19000
94601-19000
|
|||
|
|
13201-809-010
13201-809-010
|
|||
|
|
13211-809-000
13211-809-000
|
|||
|
|
90741-889-810
90741-889-810
|
|||
|
|
91202-809-003
91202-809-003
|
|||
|
|
94401-25180
94401-25180
|

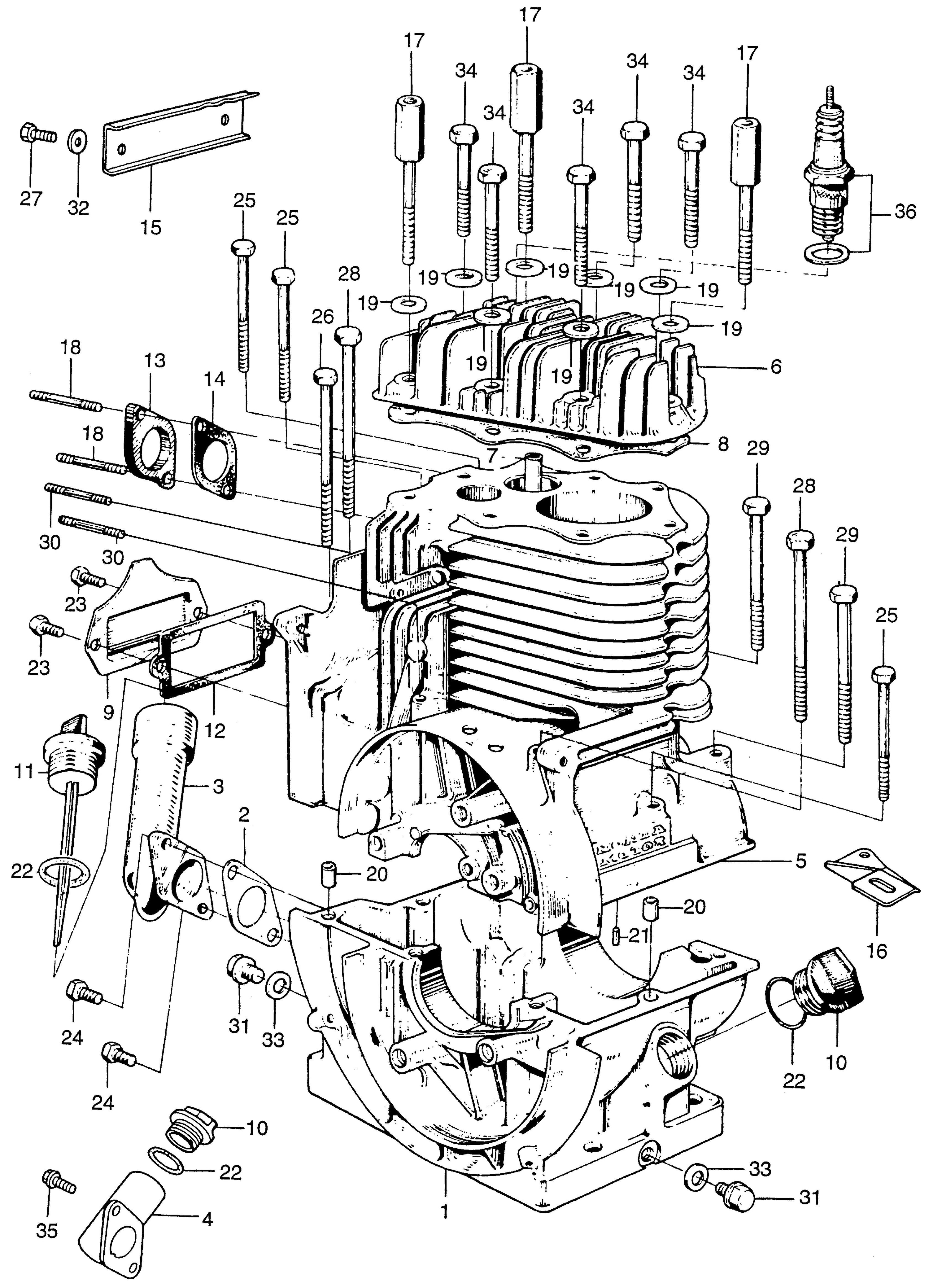

CYLINDER OIL PAN
CYLINDER OIL PAN
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
15611-921-000
15611-921-000
|
|||
|
|
15620-815-000
15620-815-000
|
|||
|
|
16211-823-303
16211-823-303
|
|||
|
|
90062-822-701
90062-822-701
|
|||
|
|
90402-822-000
90402-822-000
|
|||
|
|
91301-805-000
91301-805-000
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
92101-08016-0a
92101-08016-0a
|
|||
|
|
92900-06020-0b
92900-06020-0b
|
|||
|
|
92800-12000
92800-12000
|
|||
|
|
94102-08000
94102-08000
|
|||
|
|
94102-12000
94102-12000
|
|||
|
|
94109-12000
94109-12000
|
|||
|
|
95701-06032-08
95701-06032-08
|
|||
|
|
98076-56740
98076-56740
|

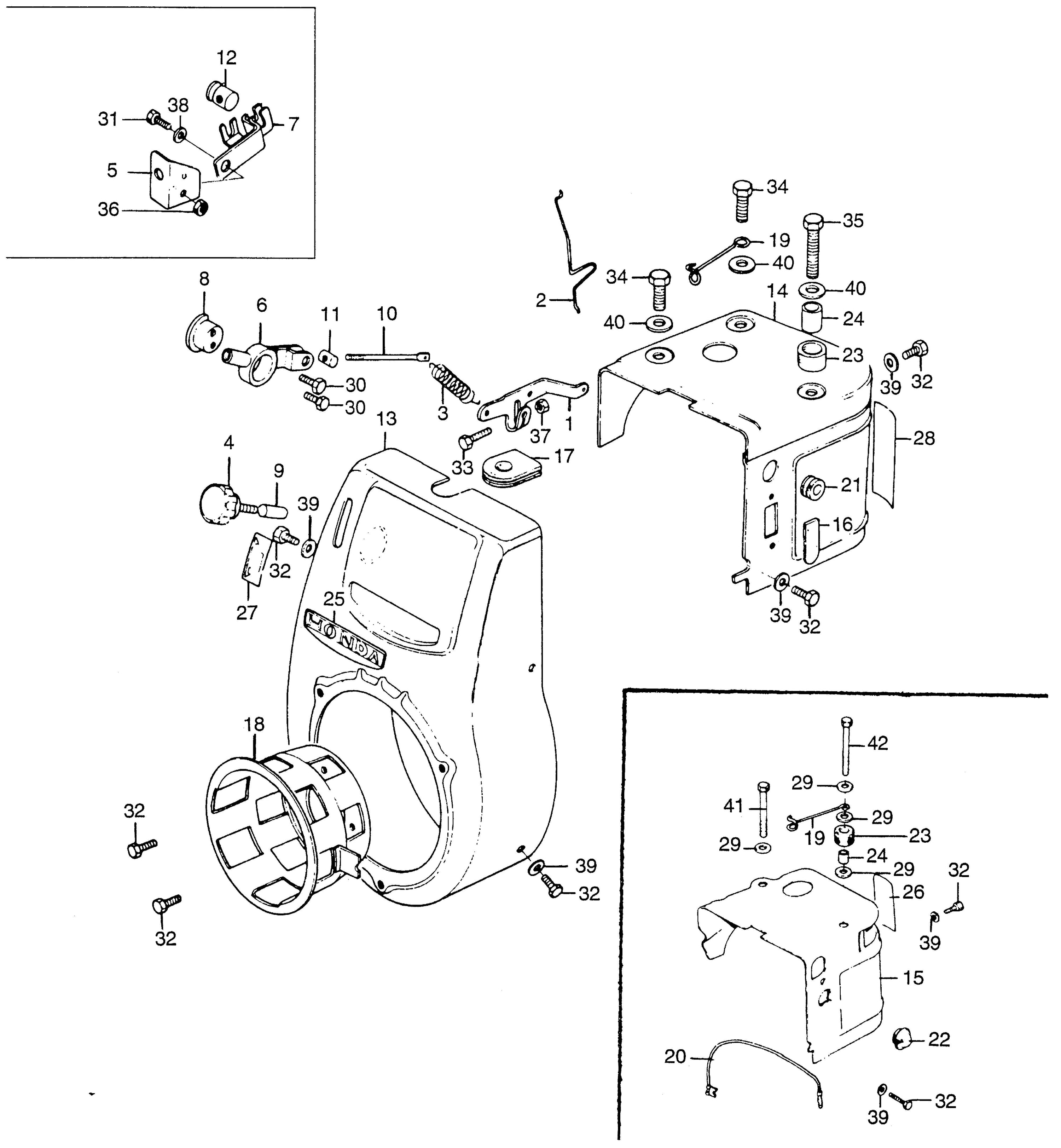

FAN COVER SIDE COVER
FAN COVER SIDE COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
93500-06035-0a
93500-06035-0a
|
|||
|
|
19905-za8-701
19905-za8-701
|
|||
|
|
50319-839-000
50319-839-000
|
|||
|
|
90402-822-000
90402-822-000
|
|||
|
|
92101-05008-0a
92101-05008-0a
|
|||
|
|
92101-05012-0g
92101-05012-0g
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
92101-08016-0a
92101-08016-0a
|
|||
|
|
92101-08032-0b
92101-08032-0b
|
|||
|
|
94001-05000-0s
94001-05000-0s
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94101-05000
94101-05000
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94102-08000
94102-08000
|

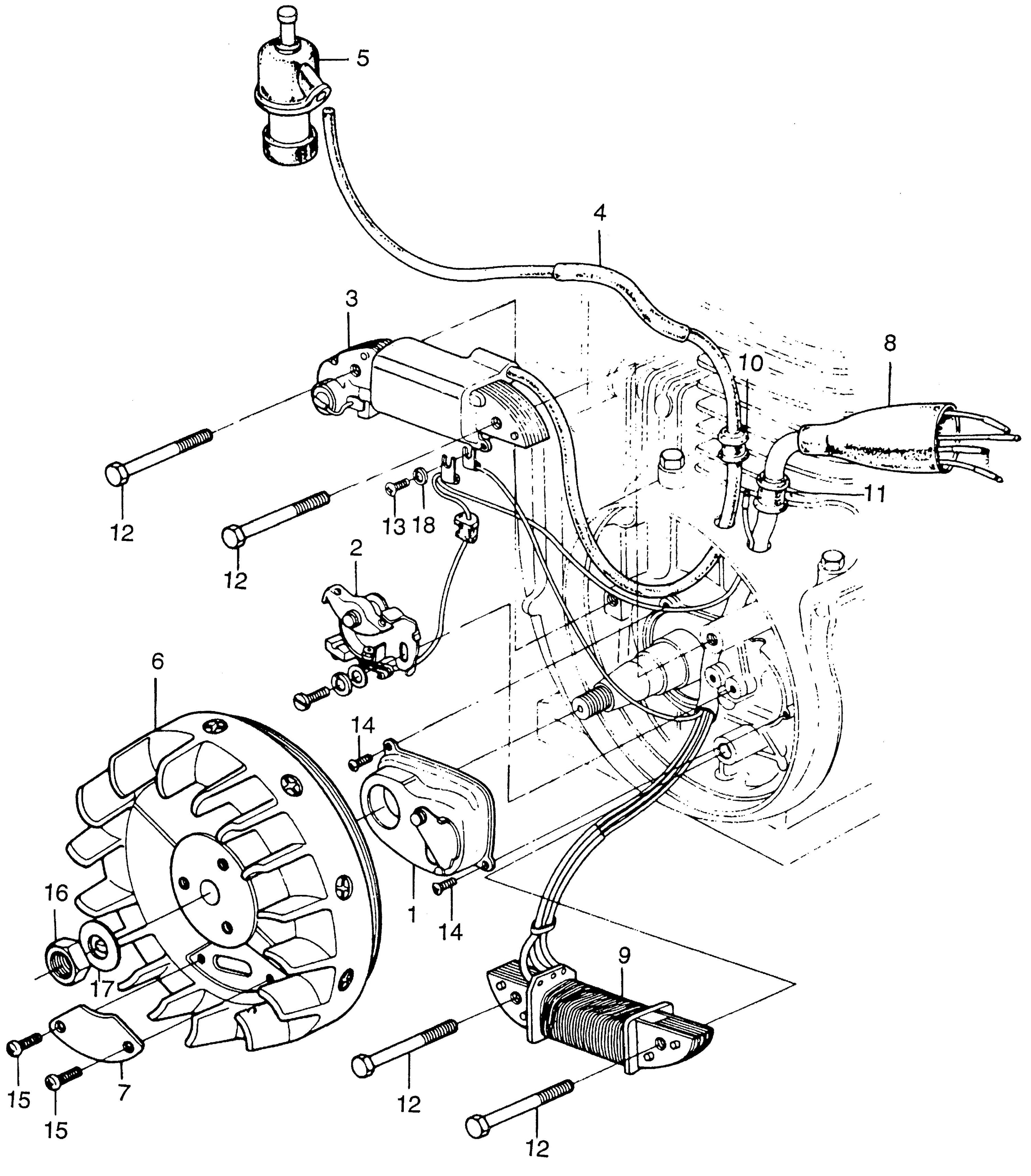

FLYWHEEL COIL
FLYWHEEL COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30700-ke2-942
30700-ke2-942
|
|||
|
|
92101-06028-0a
92101-06028-0a
|
|||
|
|
93500-05006-0a
93500-05006-0a
|
|||
|
|
93500-05010-0b
93500-05010-0b
|
|||
|
|
93500-05008-0a
93500-05008-0a
|
|||
|
|
94001-14000-0s
94001-14000-0s
|
|||
|
|
94101-14000
94101-14000
|
|||
|
|
94111-03000
94111-03000
|

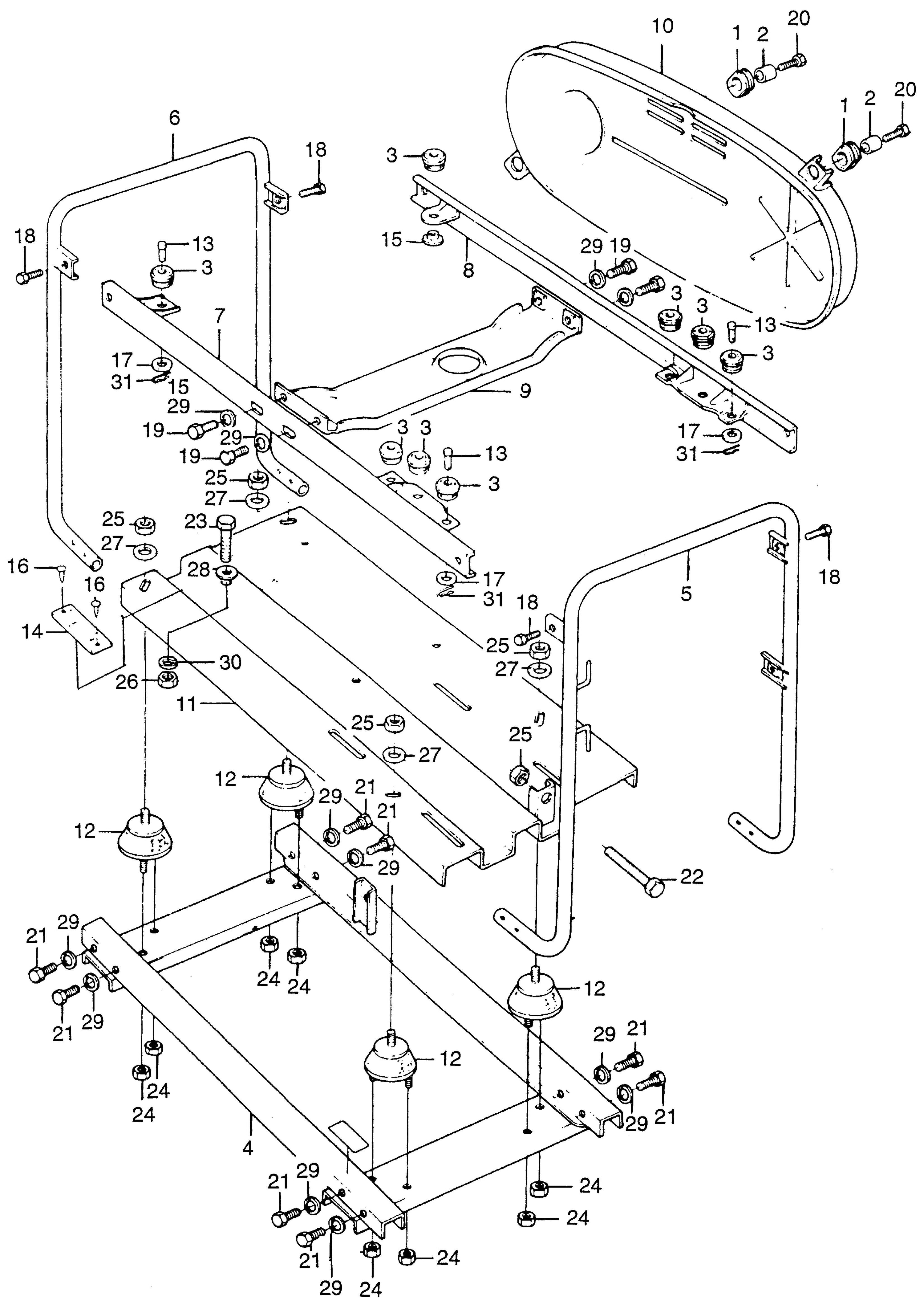

FRAME
FRAME
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17682-817-020
17682-817-020
|
|||
|
|
90563-045-000
90563-045-000
|
|||
|
|
92101-06010-0a
92101-06010-0a
|
|||
|
|
92101-08016-0a
92101-08016-0a
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
93404-06020-08
93404-06020-08
|
|||
|
|
92101-06028-0a
92101-06028-0a
|
|||
|
|
92101-08020-0a
92101-08020-0a
|
|||
|
|
92101-08050-0a
92101-08050-0a
|
|||
|
|
92101-10040-0a
92101-10040-0a
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94030-08000
94030-08000
|
|||
|
|
94002-08000-0s
94002-08000-0s
|
|||
|
|
94030-10000
94030-10000
|
|||
|
|
94101-08000
94101-08000
|
|||
|
|
94101-10000
94101-10000
|
|||
|
|
94111-06000
94111-06000
|
|||
|
|
94111-08000
94111-08000
|
|||
|
|
94111-10000
94111-10000
|
|||
|
|
94251-06000
94251-06000
|
|||
|
|
94251-08000
94251-08000
|

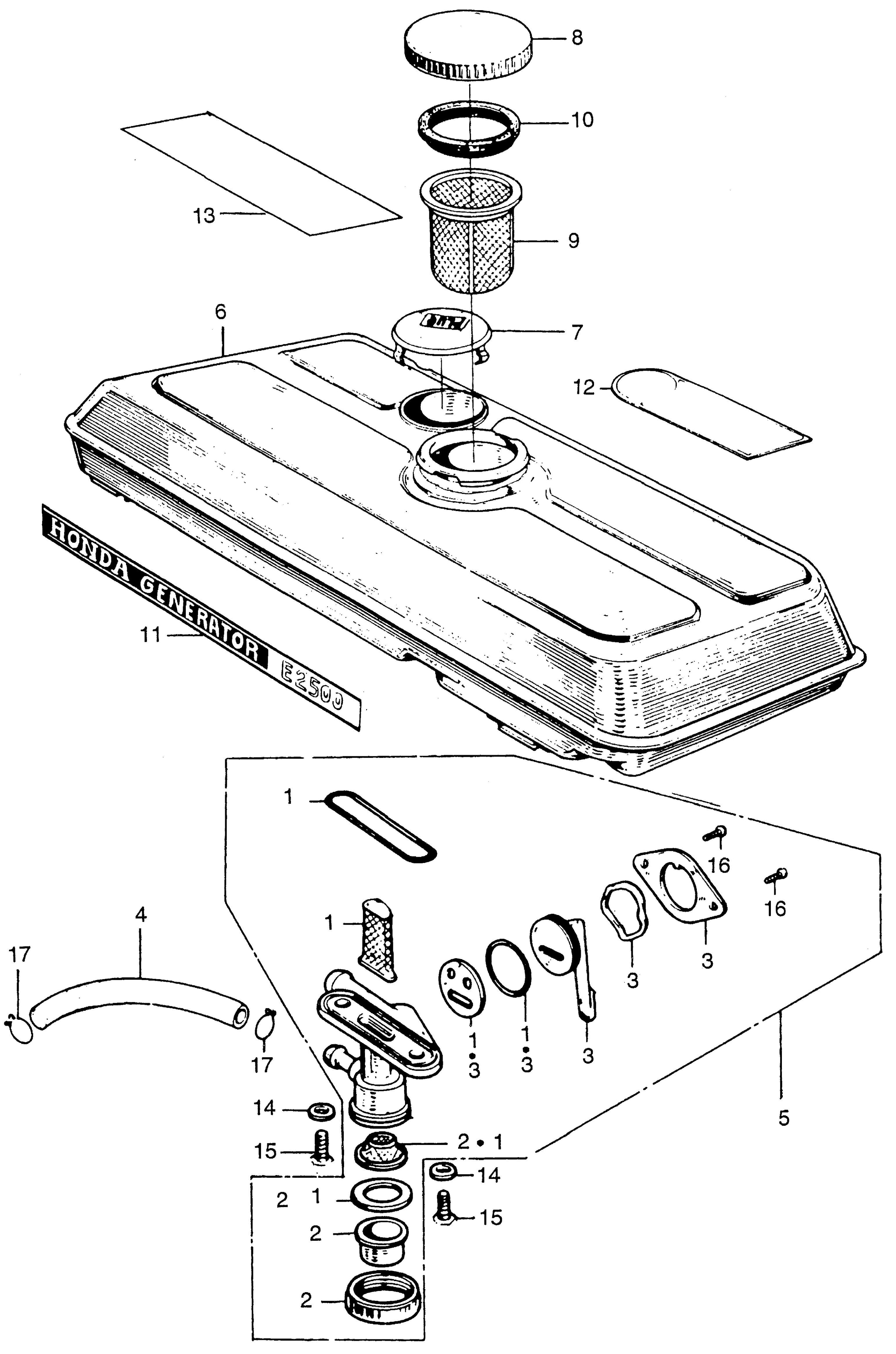

FUEL TANK
FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16080-865-005
16080-865-005
|
|||
|
|
16081-822-005
16081-822-005
|
|||
|
|
16081-865-305
16081-865-305
|
|||
|
|
87561-880-600
87561-880-600
|
|||
|
|
93500-06016-0a
93500-06016-0a
|
|||
|
|
93500-03006-0a
93500-03006-0a
|
|||
|
|
93500-03008-0a
93500-03008-0a
|
|||
|
|
95002-02120
95002-02120
|

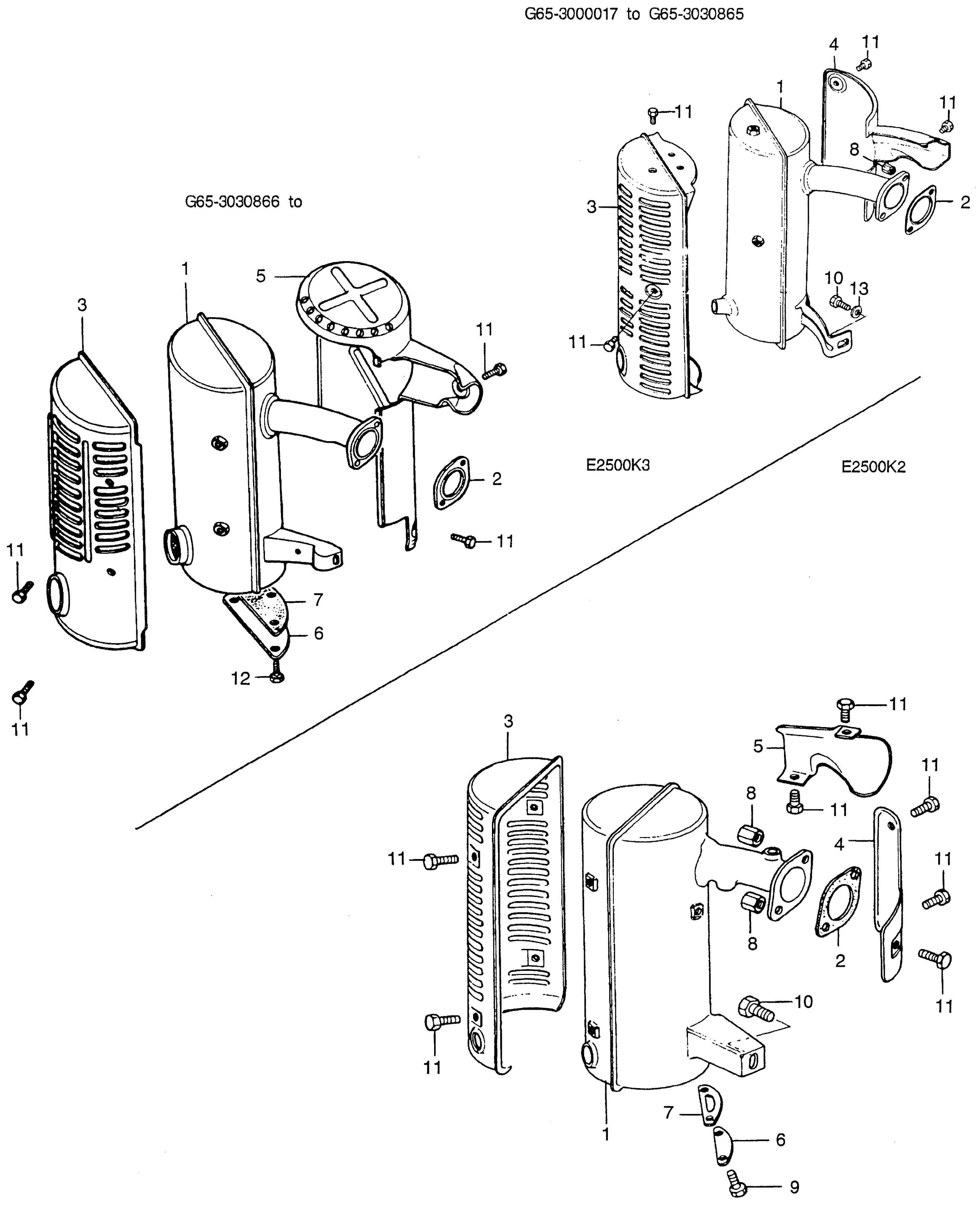

MUFFLER
MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
92101-06008-0b
92101-06008-0b
|
|||
|
|
92101-08018-0a
92101-08018-0a
|
|||
|
|
93101-06012-0b
93101-06012-0b
|
|||
|
|
94101-08000
94101-08000
|

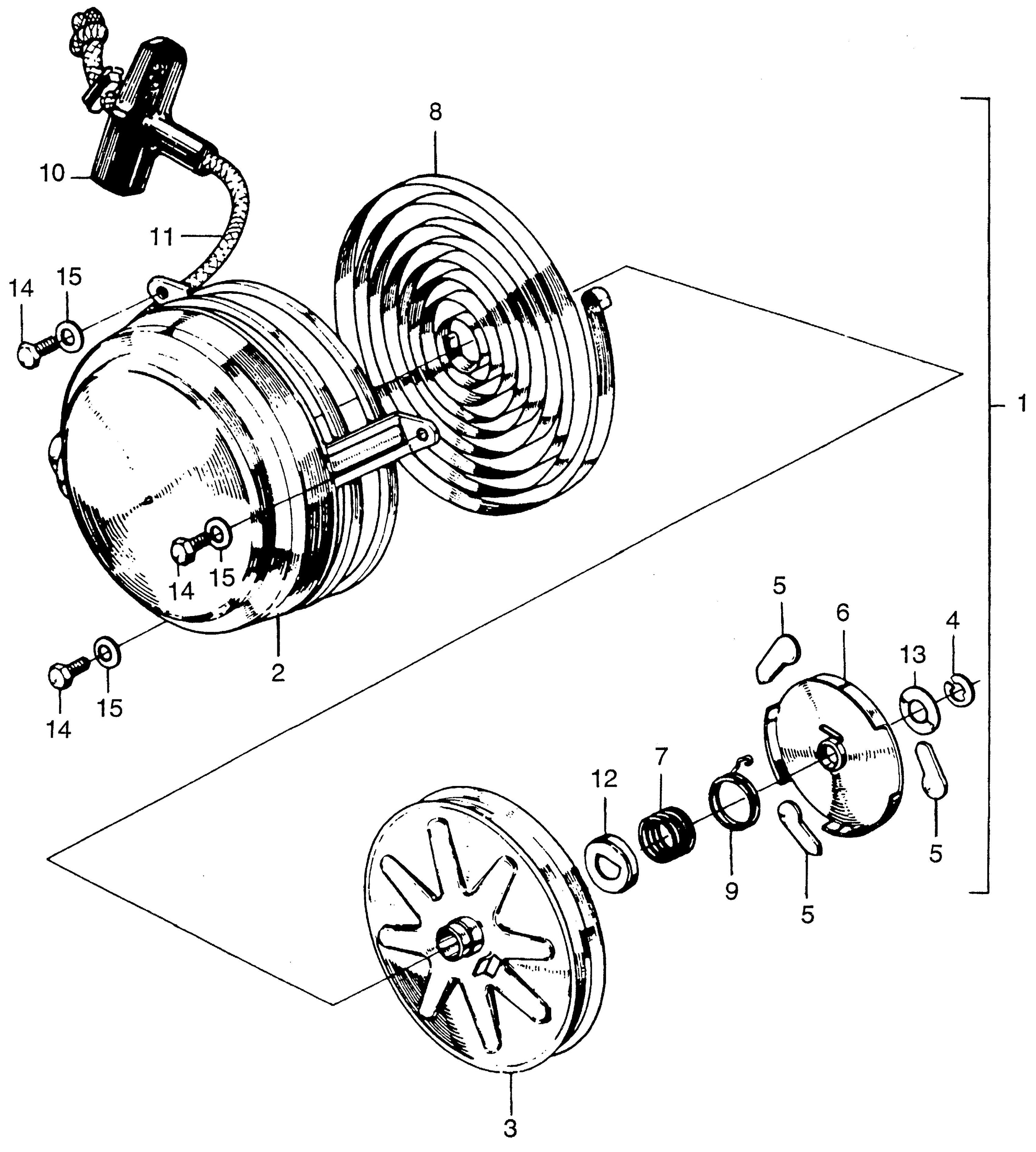

RECOIL STARTER
RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28420-822-810
28420-822-810
|
|||
|
|
28441-822-810
28441-822-810
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
94101-06800
94101-06800
|

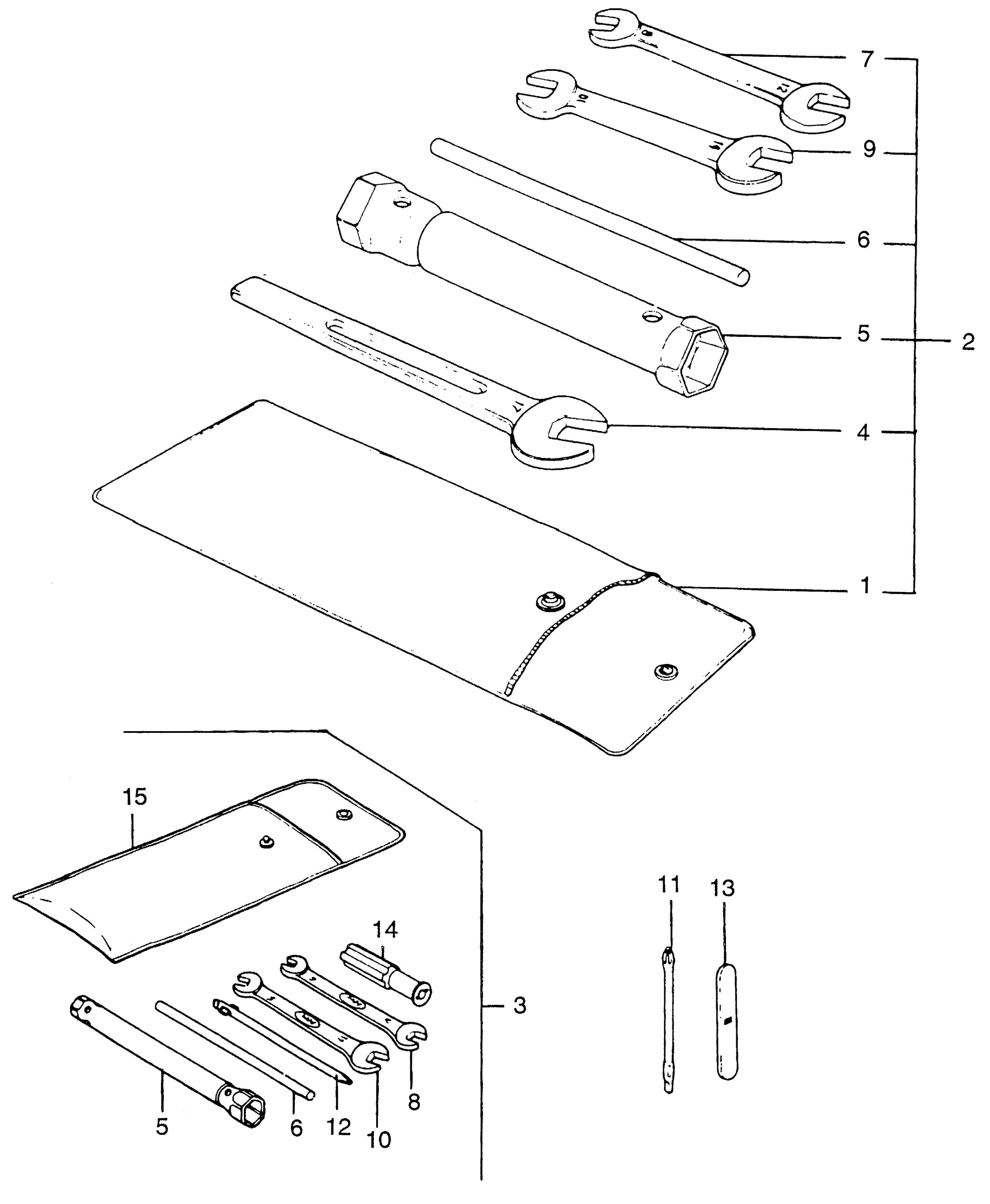

TOOL SET
TOOL SET
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
89000-839-000
89000-839-000
|
|||
|
|
89206-805-000
89206-805-000
|
|||
|
|
89219-805-000
89219-805-000
|
|||
|
|
99001-08120
99001-08120
|
|||
|
|
99001-10120
99001-10120
|
|||
|
|
99001-10140
99001-10140
|
|||
|
|
99001-14170
99001-14170
|
|||
|
|
99003-10000
99003-10000
|
|||
|
|
99003-20000
99003-20000
|
|||
|
|
99003-40000
99003-40000
|
|||
|
|
99003-50000
99003-50000
|
