Honda GXE2.0S-V2 Parts Diagram (Serial GMACK-1000001 to 9999999)
Diagrams:
Diagram:
BATTERY TRAY
BATTERY TRAY
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
60105-8a0-000
60105-8a0-000
|
|||
|
|
60107-8a0-000
60107-8a0-000
|
|||
|
|
60123-8a0-600
60123-8a0-600
|
|||
|
|
60801-8a0-000
60801-8a0-000
|
|||
|
|
60806-8a0-600
60806-8a0-600
|
|||
|
|
60902-8a0-000za
60902-8a0-000za
|
|||
|
|
60903-8a0-000
60903-8a0-000
|
|||
|
|
60904-8a0-000
60904-8a0-000
|
|||
|
|
61105-8a0-800za
61105-8a0-800za
|
|||
|
|
61105-8a0-800zb
61105-8a0-800zb
|
|||
|
|
90002-8a0-000
90002-8a0-000
|
|||
|
|
90006-8a0-000
90006-8a0-000
|
|||
|
|
90007-892-000
90007-892-000
|
|||
|
|
94540-04018
94540-04018
|
|||
|
|
95701-08016-08
95701-08016-08
|
|||
|
|
95701-08020-08
95701-08020-08
|
|||
|
|
96600-06012-08
96600-06012-08
|

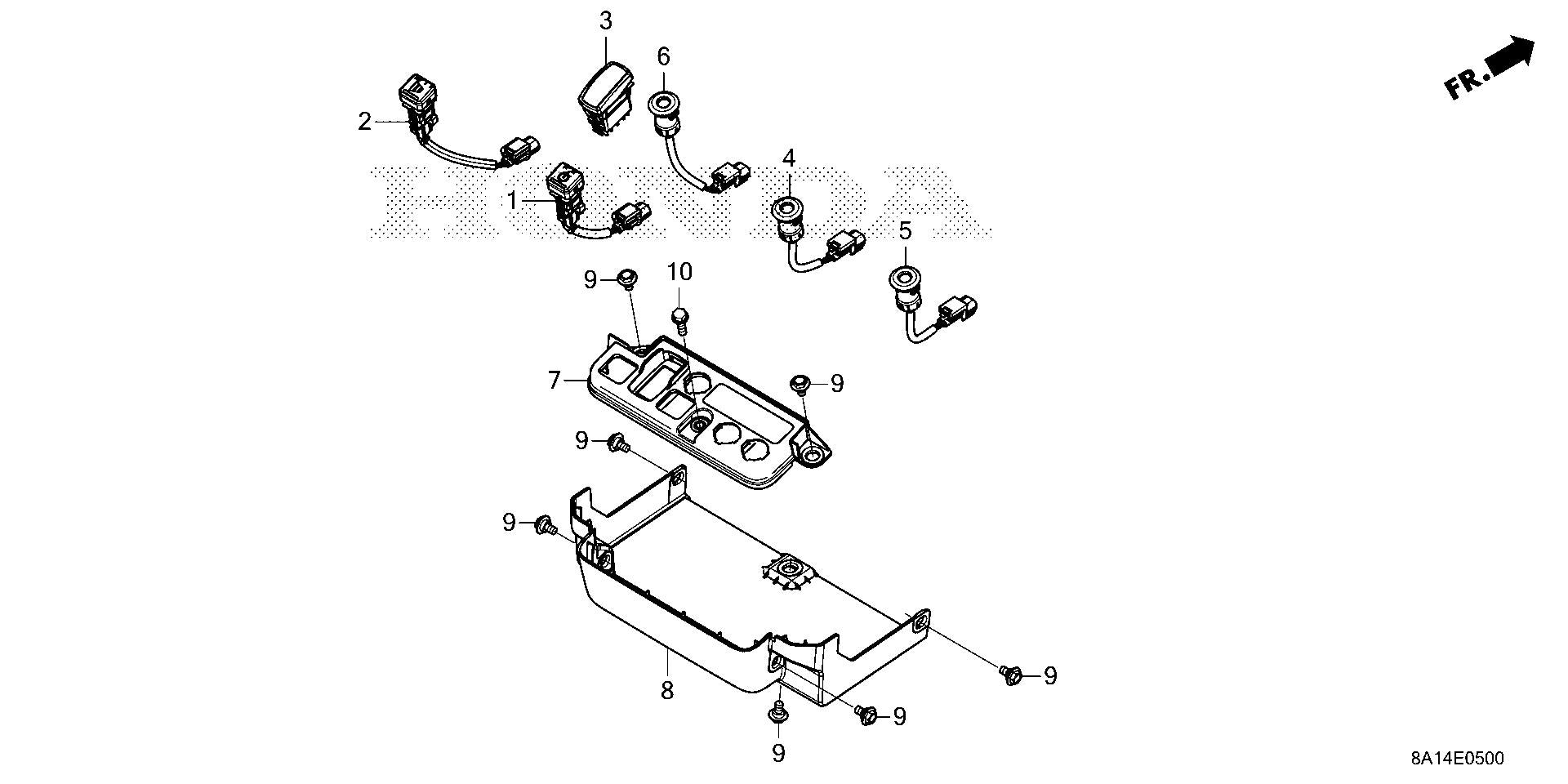

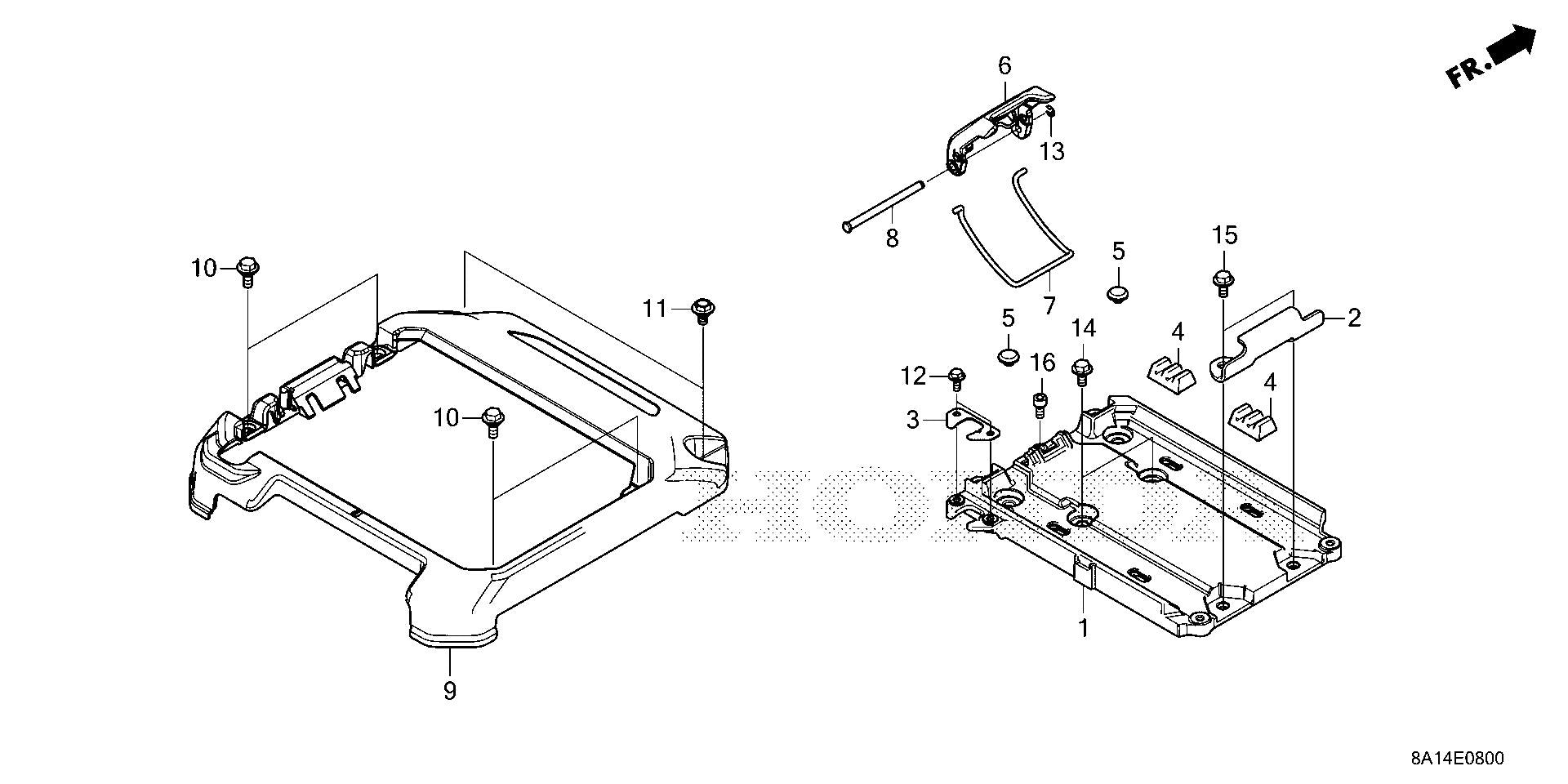

COVER@SWITCH PANEL
COVER@SWITCH PANEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1n311-8a0-003
1n311-8a0-003
|
|||
|
|
1n313-8a0-003
1n313-8a0-003
|
|||
|
|
1n330-8a0-003
1n330-8a0-003
|
|||
|
|
1n421-8a0-003
1n421-8a0-003
|
|||
|
|
1n422-8a0-003
1n422-8a0-003
|
|||
|
|
1n423-8a0-003
1n423-8a0-003
|
|||
|
|
1n451-8a0-800za
1n451-8a0-800za
|
|||
|
|
61103-8a0-800za
61103-8a0-800za
|
|||
|
|
90006-8a0-000
90006-8a0-000
|
|||
|
|
95701-06020-07
95701-06020-07
|

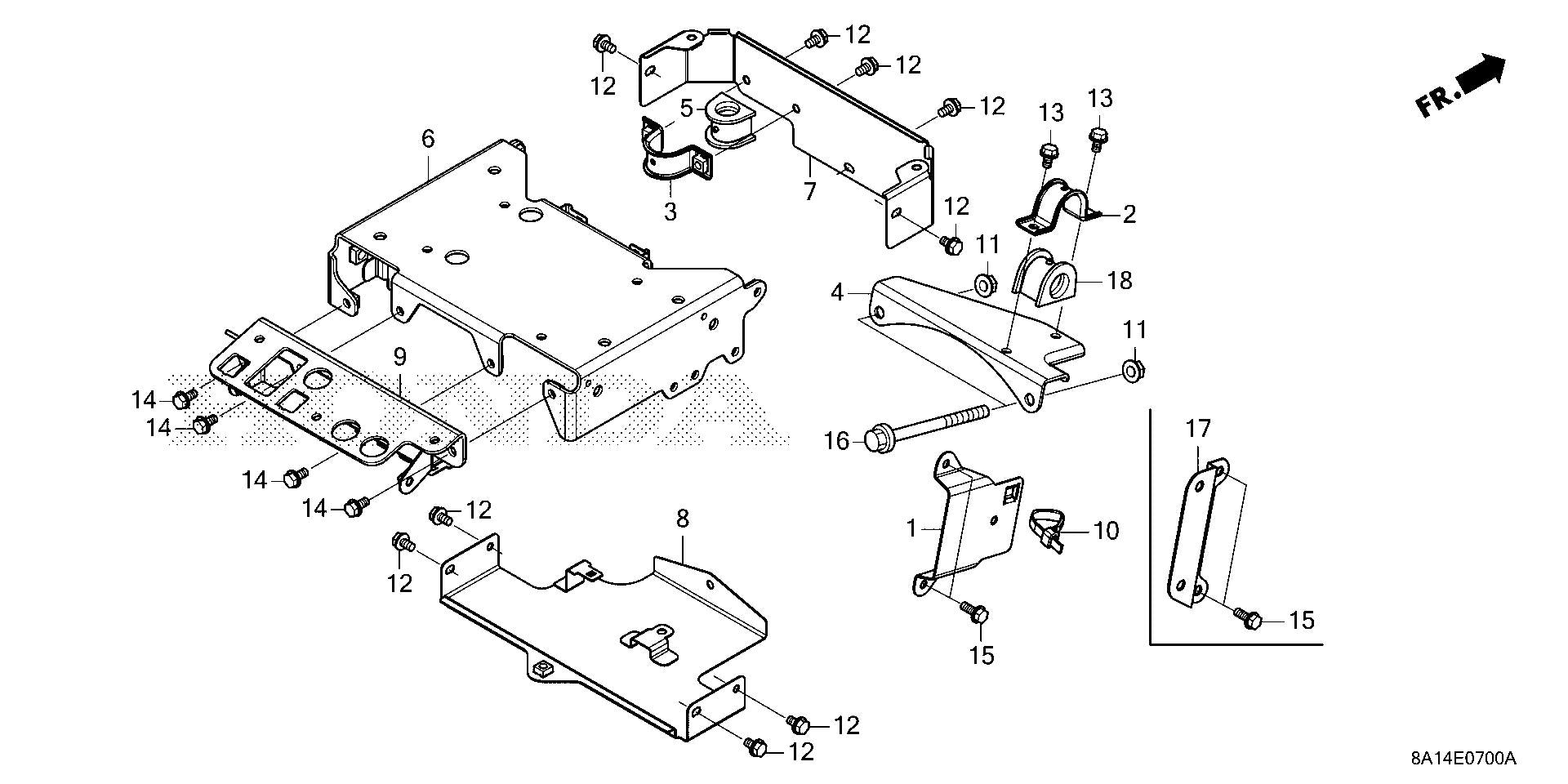

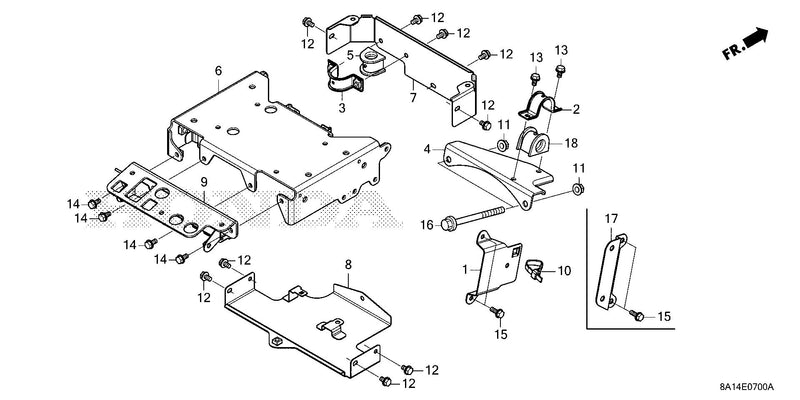

FRAME
FRAME
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1f080-8a0-800
1f080-8a0-800
|
|||
|
|
1f081-8a0-800
1f081-8a0-800
|
|||
|
|
1f082-8a0-800
1f082-8a0-800
|
|||
|
|
1f085-8a0-800
1f085-8a0-800
|
|||
|
|
1f920-8a0-800
1f920-8a0-800
|
|||
|
|
60110-8a0-800
60110-8a0-800
|
|||
|
|
60112-8a0-800
60112-8a0-800
|
|||
|
|
60113-8a0-800
60113-8a0-800
|
|||
|
|
60116-8a0-800
60116-8a0-800
|
|||
|
|
91560-8a0-000
91560-8a0-000
|
|||
|
|
94050-08080
94050-08080
|
|||
|
|
95701-06010-07
95701-06010-07
|
|||
|
|
95701-06010-08
95701-06010-08
|
|||
|
|
95701-06014-08
95701-06014-08
|
|||
|
|
95701-08125-07
95701-08125-07
|
|||
|
|
1f080-8a1-810
1f080-8a1-810
|
|||
|
|
1f920-8a0-800
1f920-8a0-800
|

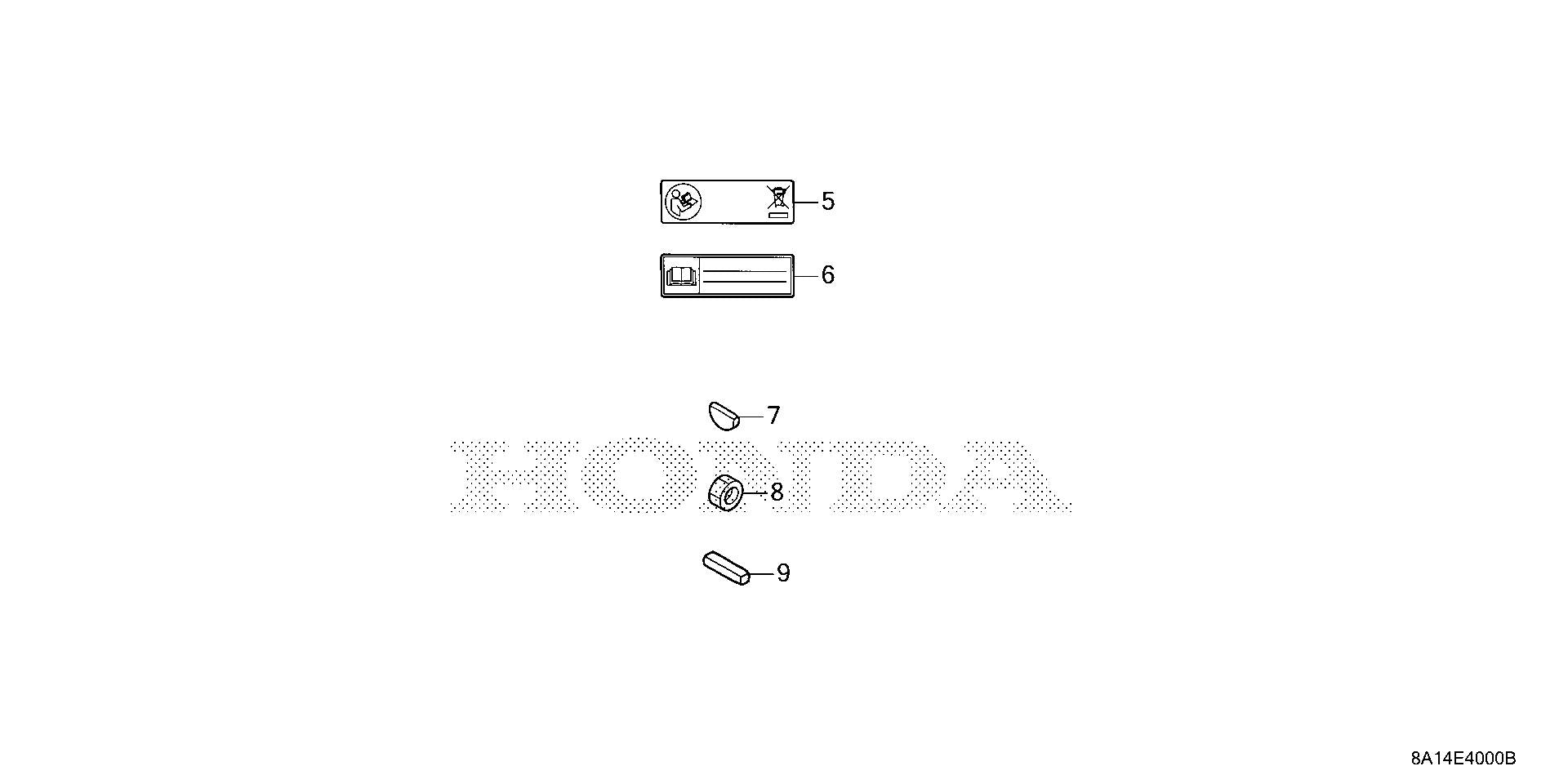

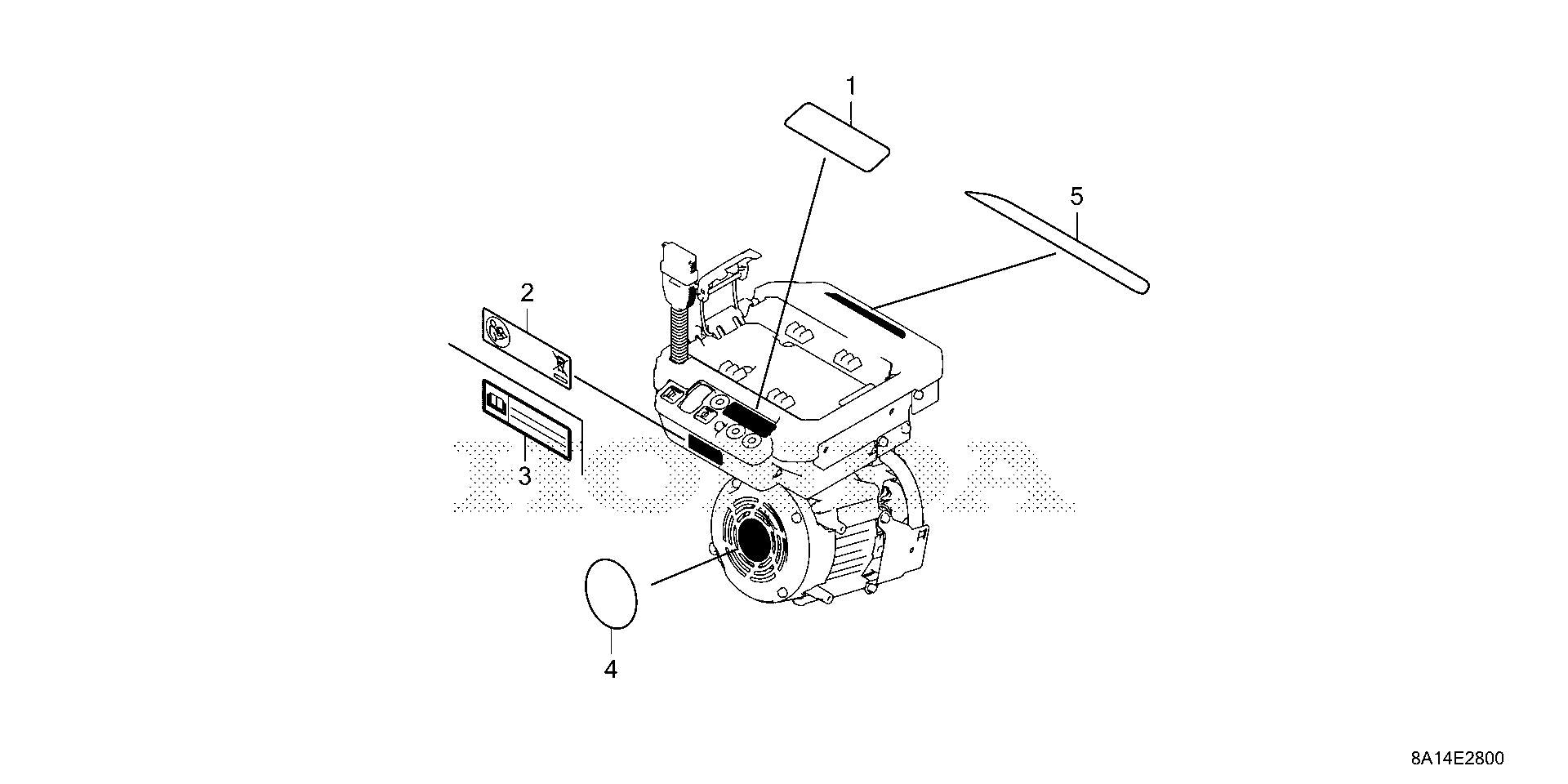

LABEL
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87237-8a0-800
87237-8a0-800
|
|||
|
|
87516-8a0-600
87516-8a0-600
|
|||
|
|
87516-8a0-610
87516-8a0-610
|
|||
|
|
87516-8a0-630
87516-8a0-630
|
|||
|
|
87521-8a0-800
87521-8a0-800
|
|||
|
|
87523-8a0-800
87523-8a0-800
|
MOTOR
MOTOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1a100-8a0-pa0
1a100-8a0-pa0
|
|||
|
|
1a100-8a0-pb0
1a100-8a0-pb0
|
|||
|
|
1a100-8a1-pa0
1a100-8a1-pa0
|
|||
|
|
1a100-8a1-pb0
1a100-8a1-pb0
|

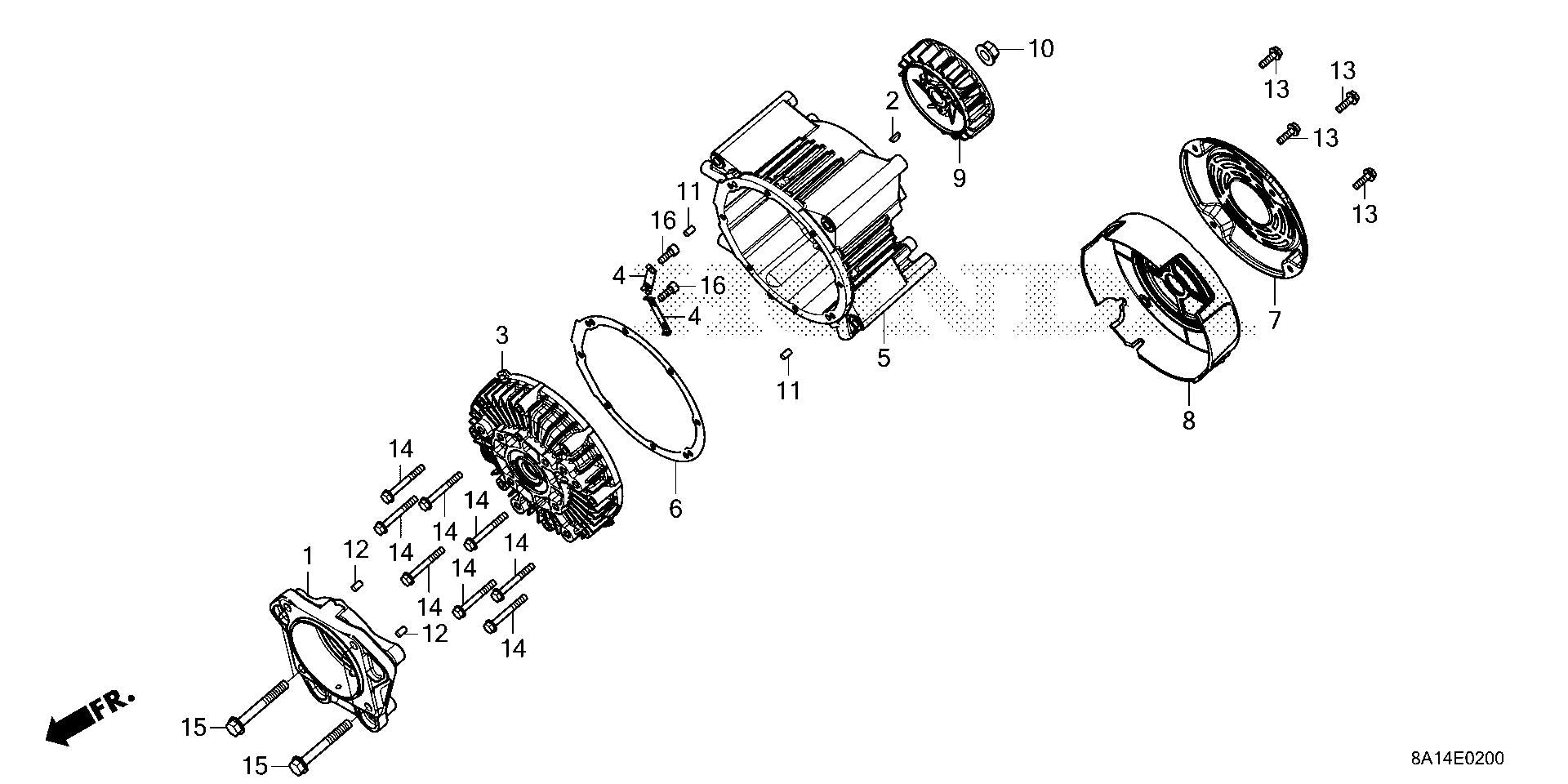

MOTOR HOUSING
MOTOR HOUSING
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11511-z0d-v00
11511-z0d-v00
|
|||
|
|
13331-8a0-000
13331-8a0-000
|
|||
|
|
1a110-8a0-000
1a110-8a0-000
|
|||
|
|
1a110-8a1-810
1a110-8a1-810
|
|||
|
|
1a113-8a0-000
1a113-8a0-000
|
|||
|
|
1a120-8a0-000
1a120-8a0-000
|
|||
|
|
1a381-8a0-000
1a381-8a0-000
|
|||
|
|
1a602-8a0-800za
1a602-8a0-800za
|
|||
|
|
1a602-8a0-800zb
1a602-8a0-800zb
|
|||
|
|
1a610-8a0-800za
1a610-8a0-800za
|
|||
|
|
1a702-8a0-000
1a702-8a0-000
|
|||
|
|
94302-06100
94302-06100
|
|||
|
|
94303-06100
94303-06100
|
|||
|
|
95701-06020-07
95701-06020-07
|
|||
|
|
95701-06050-08
95701-06050-08
|
|||
|
|
95701-08040-08
95701-08040-08
|
|||
|
|
96600-06016-08
96600-06016-08
|
OTHER PARTS
OTHER PARTS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
06301-8a0-000
06301-8a0-000
|
|||
|
|
1n311-8a0-003
1n311-8a0-003
|
|||
|
|
32107-zvl-003
32107-zvl-003
|
|||
|
|
32135-8a0-pa0
32135-8a0-pa0
|
|||
|
|
87516-8a0-600
87516-8a0-600
|
|||
|
|
87516-8a0-620
87516-8a0-620
|
|||
|
|
90741-z0d-v50
90741-z0d-v50
|
|||
|
|
94002-12000-0s
94002-12000-0s
|
|||
|
|
90741-883-810
90741-883-810
|
|||
|
|
90745-ze1-600
90745-ze1-600
|

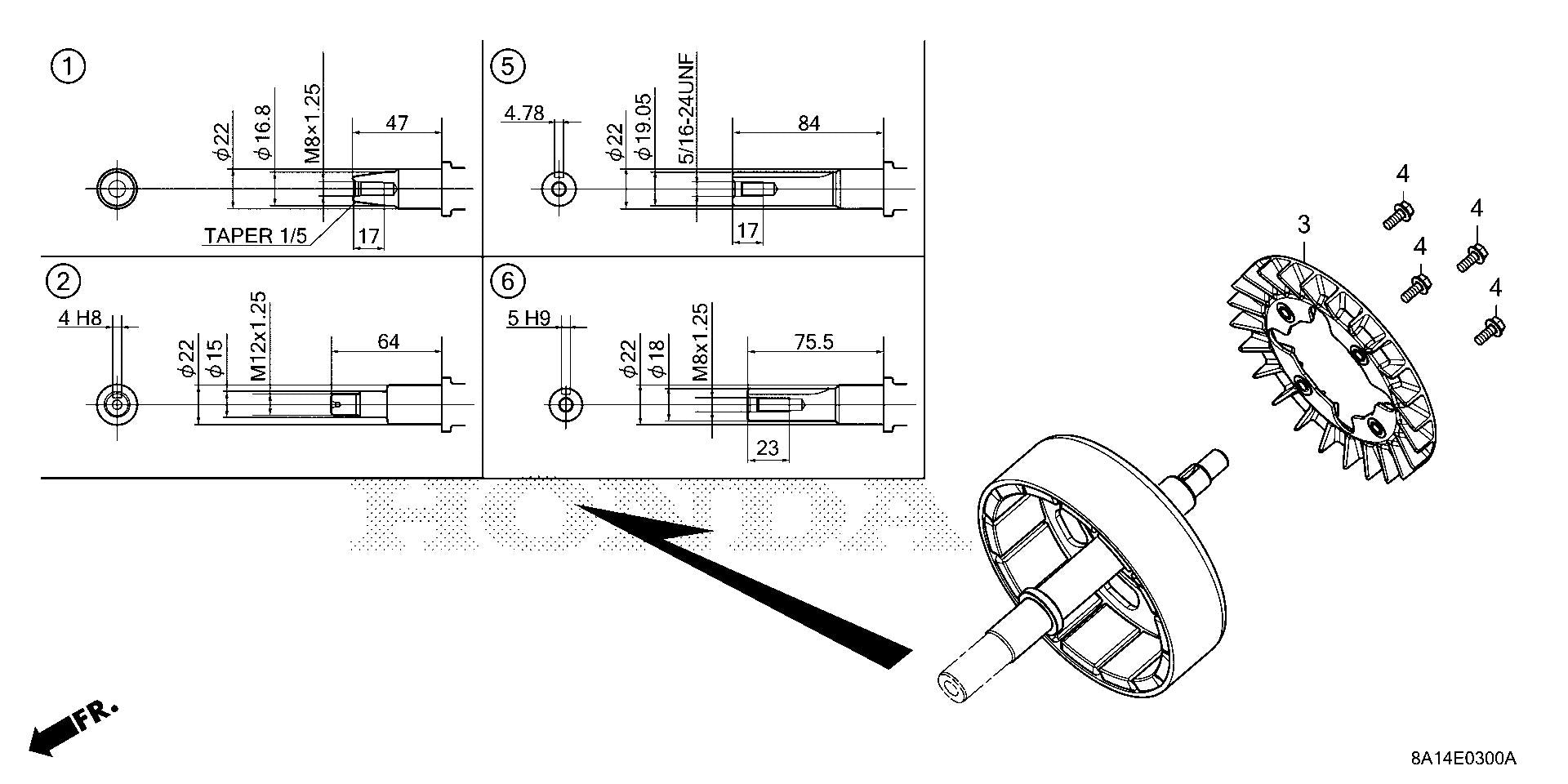

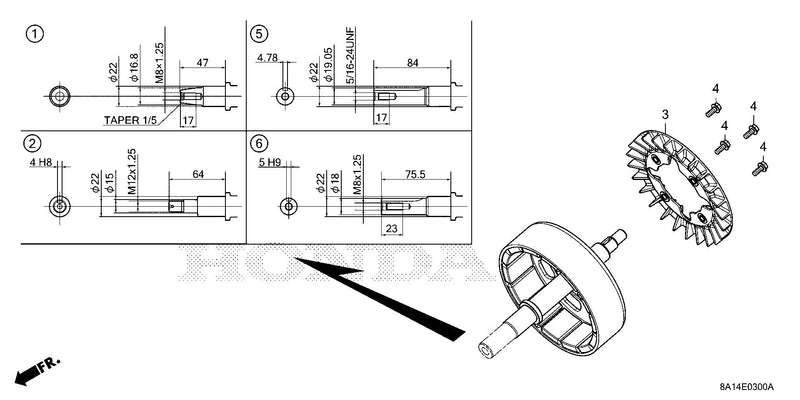

ROTOR
ROTOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1a300-8a0-800
1a300-8a0-800
|
|||
|
|
1a300-8a0-810
1a300-8a0-810
|
|||
|
|
1a710-8a0-000
1a710-8a0-000
|
|||
|
|
90007-892-000
90007-892-000
|
|||
|
|
1a300-8a0-600
1a300-8a0-600
|
|||
|
|
1a300-8a0-610
1a300-8a0-610
|

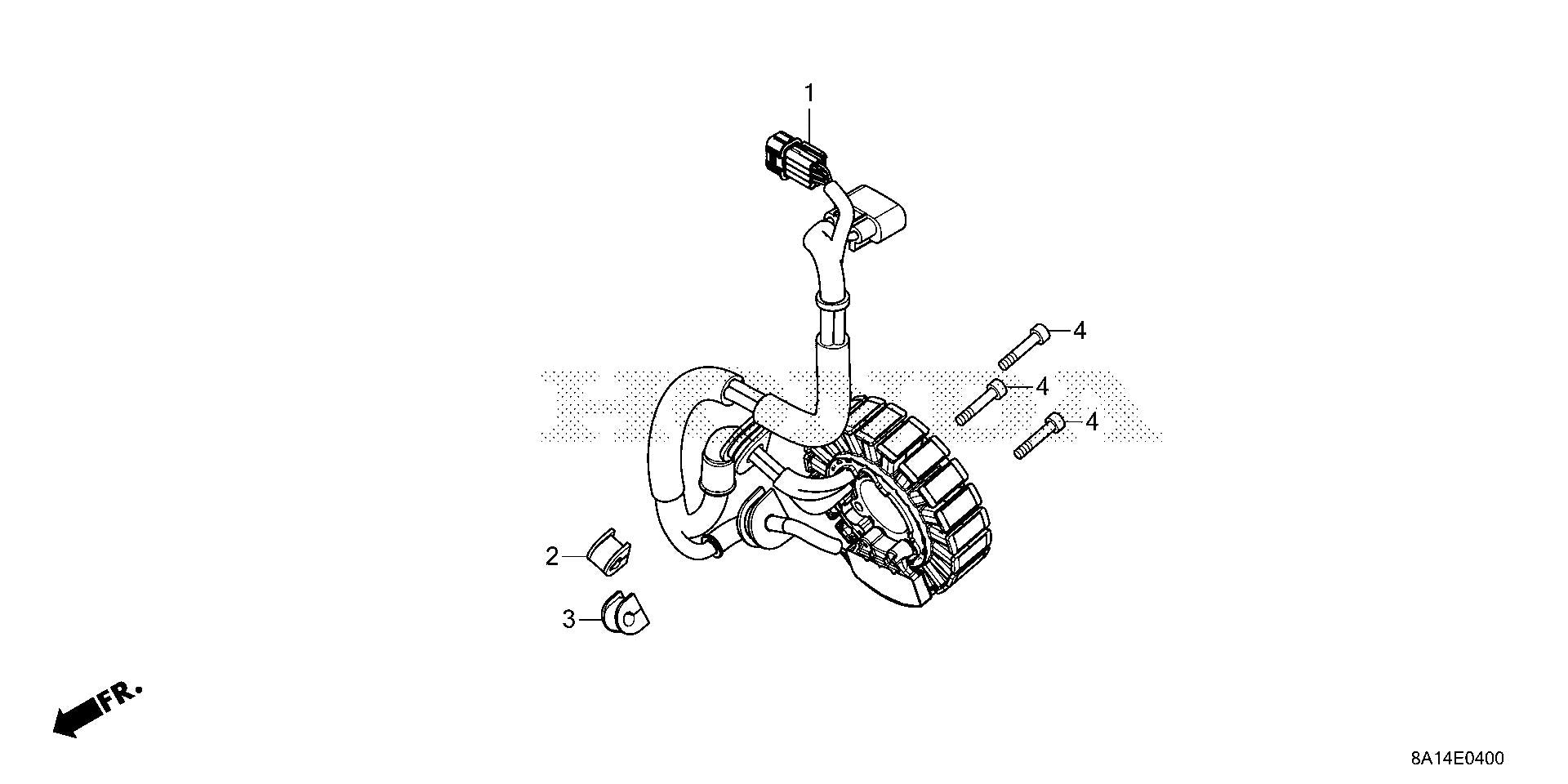

STATOR
STATOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1a240-8a0-811
1a240-8a0-811
|
|||
|
|
1a240-8a1-811
1a240-8a1-811
|
|||
|
|
1a915-8a0-000
1a915-8a0-000
|
|||
|
|
1a916-8a0-000
1a916-8a0-000
|
|||
|
|
96600-06040-08
96600-06040-08
|

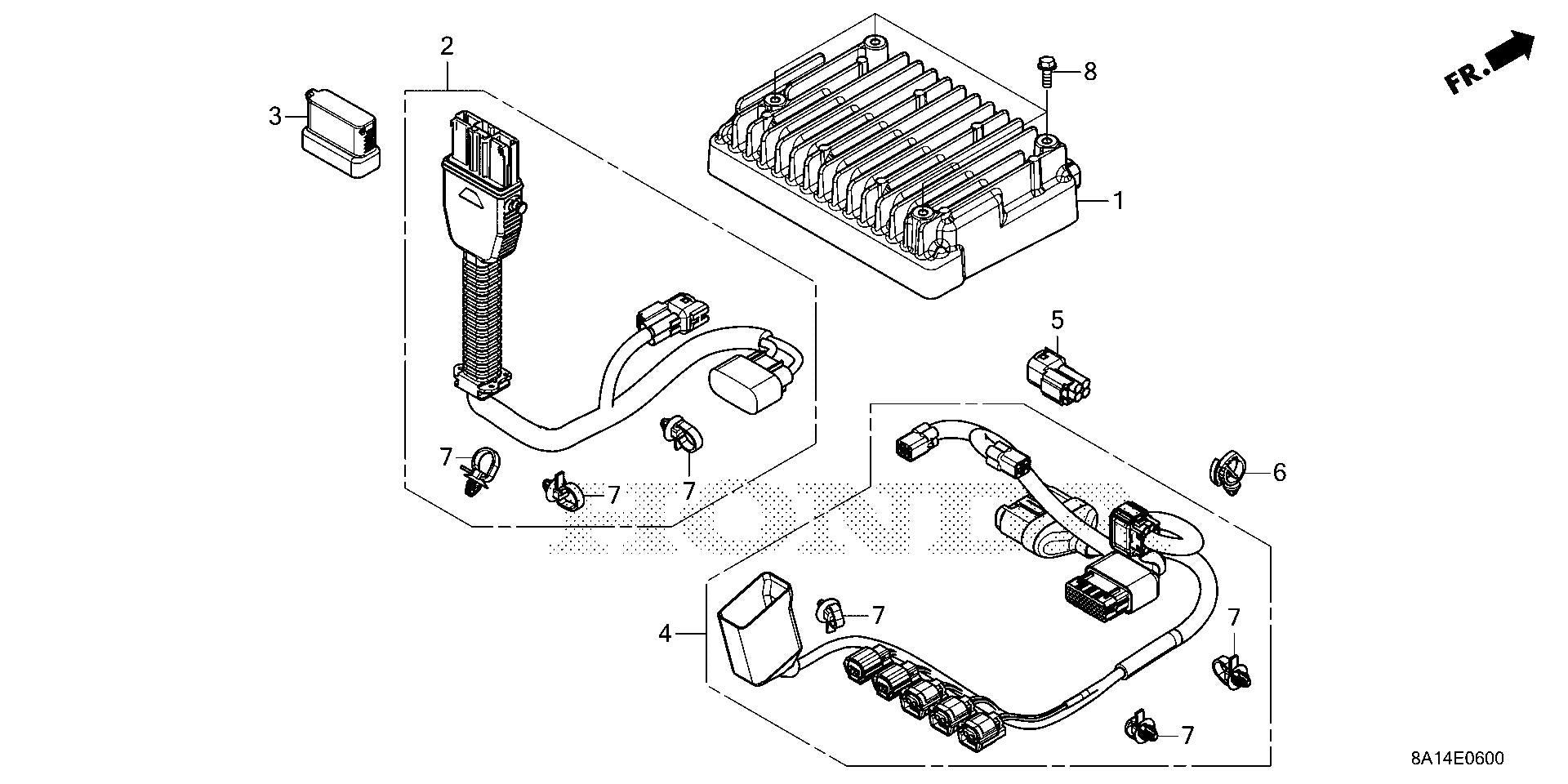

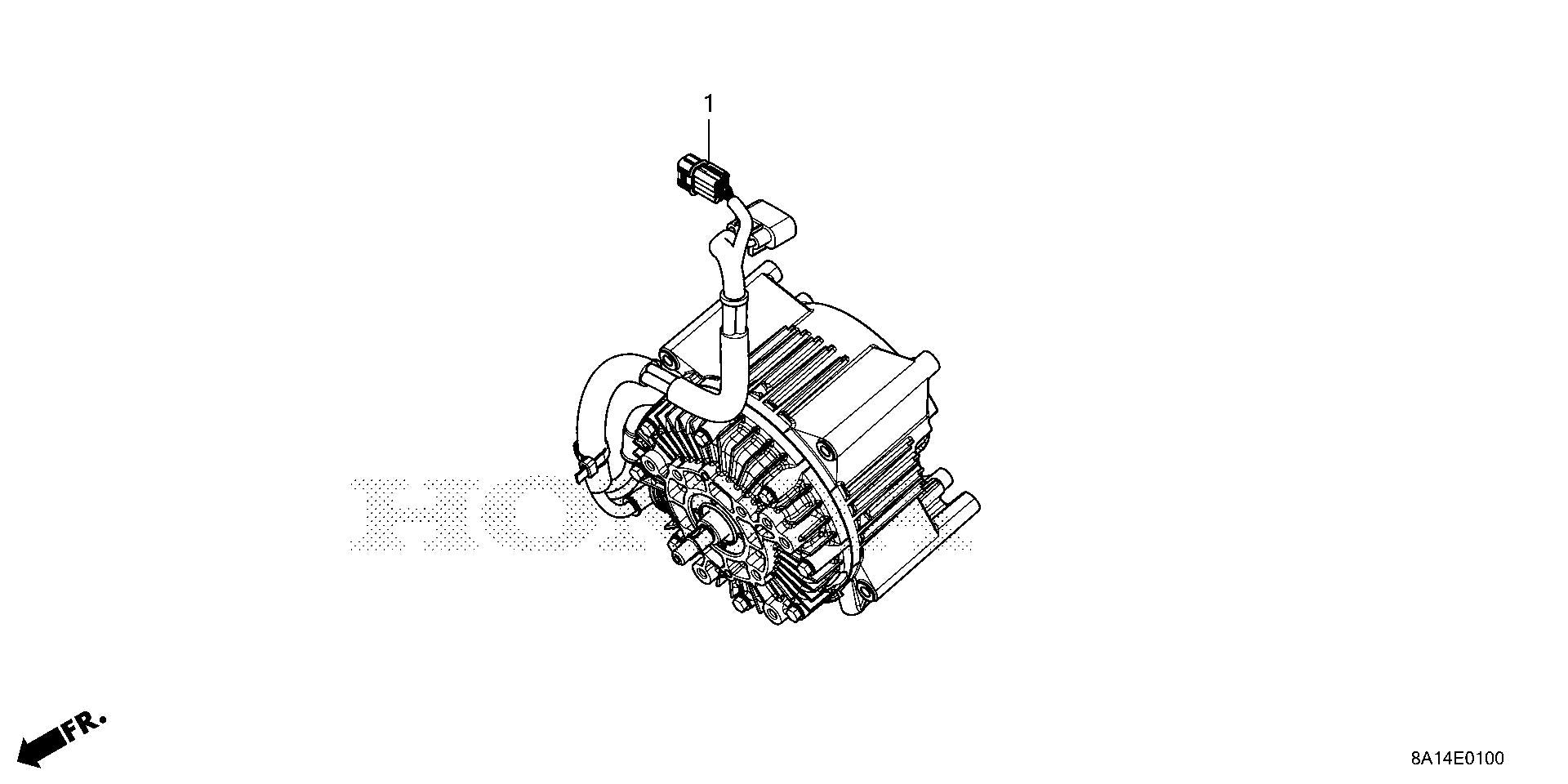

WIRE HARNESS@PDU
WIRE HARNESS@PDU
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1b100-8a0-801
1b100-8a0-801
|
|||
|
|
1b100-8a1-811
1b100-8a1-811
|
|||
|
|
1f100-8a0-800
1f100-8a0-800
|
|||
|
|
1f512-8a0-000
1f512-8a0-000
|
|||
|
|
1n500-8a0-800
1n500-8a0-800
|
|||
|
|
32174-vp7-000
32174-vp7-000
|
|||
|
|
90691-zb7-003
90691-zb7-003
|
|||
|
|
91541-s0a-003
91541-s0a-003
|
|||
|
|
95701-06016-08
95701-06016-08
|
