Kawasaki FD590V-CS08 Engine Parts Diagram
Diagrams:
Diagram:
AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11011-2193
11011-2193
|
|||
|
|
11013-2114
11013-2114
|
|||
|
|
11013-2205
11013-2205
|
|||
|
|
11029-2017
11029-2017
|
|||
|
|
11060-2079
11060-2079
|
|||
|
|
49070-2435-9Y
49070-2435-9Y
|
|||
|
|
92022-1545
92022-1545
|
|||
|
|
92151-2155
92151-2155
|

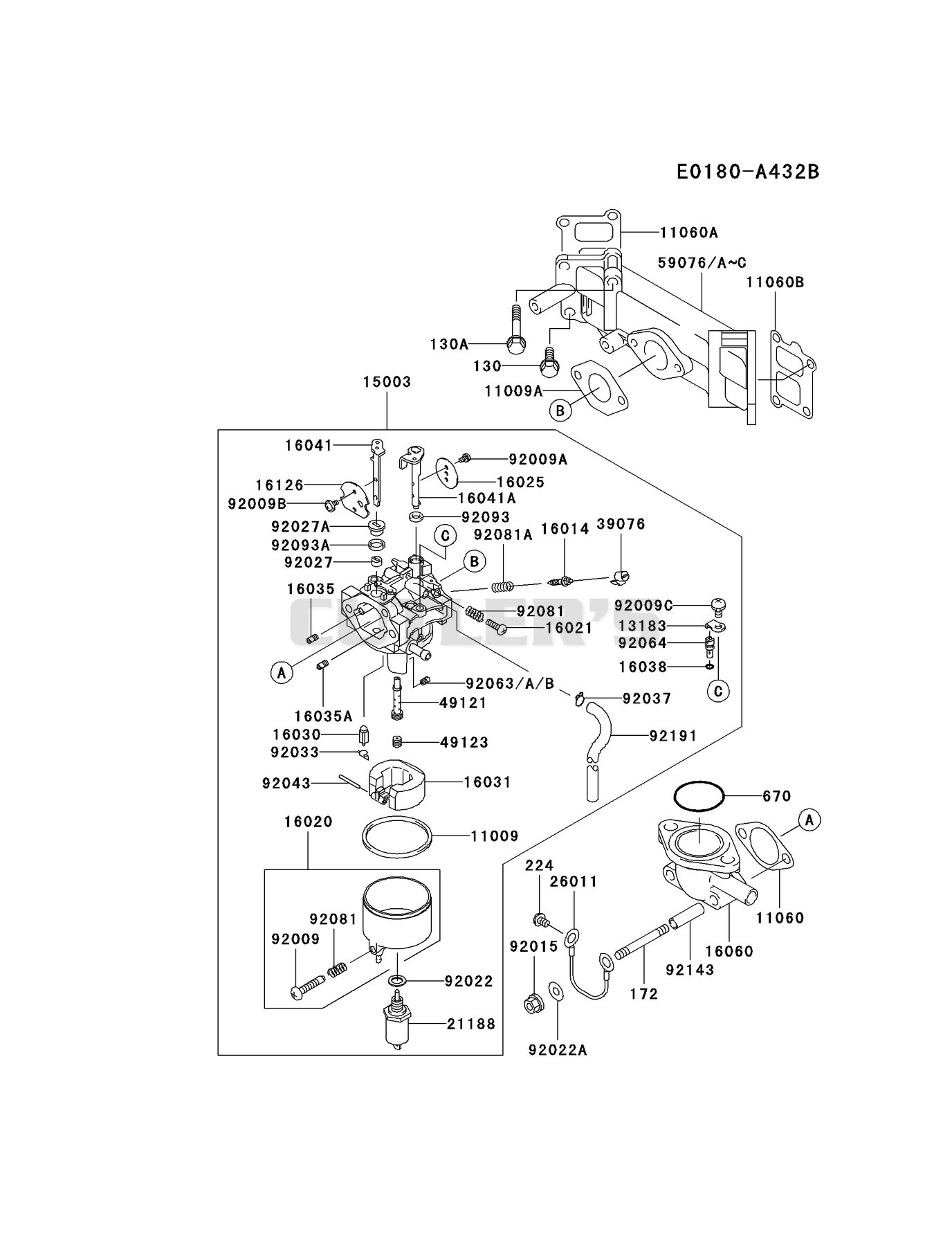

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2024
11009-2024
|
|||
|
|
11060-2336
11060-2336
|
|||
|
|
11060-2076
11060-2076
|
|||
|
|
11060-2077
11060-2077
|
|||
|
|
11060-2078
11060-2078
|
|||
|
|
13183-2252
13183-2252
|
|||
|
|
15003-2721
15003-2721
|
|||
|
|
16014-2079
16014-2079
|
|||
|
|
16020-2139
16020-2139
|
|||
|
|
16021-2060
16021-2060
|
|||
|
|
16025-2181
16025-2181
|
|||
|
|
16030-2021
16030-2021
|
|||
|
|
16031-2066
16031-2066
|
|||
|
|
16035-2051
16035-2051
|
|||
|
|
16035-2055
16035-2055
|
|||
|
|
16038-024
16038-024
|
|||
|
|
16041-2256
16041-2256
|
|||
|
|
16041-2257
16041-2257
|
|||
|
|
16060-2127
16060-2127
|
|||
|
|
16126-2223
16126-2223
|
|||
|
|
21188-2011
21188-2011
|
|||
|
|
26011-2233
26011-2233
|
|||
|
|
39076-2053
39076-2053
|
|||
|
|
49121-2200
49121-2200
|
|||
|
|
49123-2076
49123-2076
|
|||
|
|
59076-2078
59076-2078
|
|||
|
|
59076-2078
59076-2078
|
|||
|
|
92009-2015
92009-2015
|
|||
|
|
92009-2080
92009-2080
|
|||
|
|
92009-2081
92009-2081
|
|||
|
|
92009-2244
92009-2244
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92022-2231
92022-2231
|
|||
|
|
92022-2373
92022-2373
|
|||
|
|
92027-2003
92027-2003
|
|||
|
|
92027-2004
92027-2004
|
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
92033-2067
92033-2067
|
|||
|
|
92037-1610
92037-1610
|
|||
|
|
92043-2006
92043-2006
|
|||
|
|
92063-2371
92063-2371
|
|||
|
|
92063-2383
92063-2383
|
|||
|
|
92063-2414
92063-2414
|
|||
|
|
92064-2128
92064-2128
|
|||
|
|
92081-2009
92081-2009
|
|||
|
|
92081-2256
92081-2256
|
|||
|
|
92093-2002
92093-2002
|
|||
|
|
92093-2101
92093-2101
|
|||
|
|
92143-2011
92143-2011
|
|||
|
|
92191-2096
92191-2096
|
|||
|
|
130B0620
130B0620
|
|||
|
|
130B0645
130B0645
|
|||
|
|
172G0695
172G0695
|
|||
|
|
224B0508
224B0508
|
|||
|
|
670B3036
670B3036
|
CONTROL-EQUIPMENT
CONTROL-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16169-2121
16169-2121
|
|||
|
|
16171-2057
16171-2057
|
|||
|
|
39003-2083
39003-2083
|
|||
|
|
39129-2088
39129-2088
|
|||
|
|
42036-2060
42036-2060
|
|||
|
|
49103-2108
49103-2108
|
|||
|
|
49110-2090
49110-2090
|
|||
|
|
49113-2073
49113-2073
|
|||
|
|
92002-2269
92002-2269
|
|||
|
|
92200-2036
92200-2036
|
|||
|
|
92037-2209
92037-2209
|
|||
|
|
92081-2192
92081-2192
|
|||
|
|
92143-2200
92143-2200
|
|||
|
|
92144-2004
92144-2004
|
|||
|
|
92144-2052
92144-2052
|
|||
|
|
92145-2079
92145-2079
|
|||
|
|
92150-2182
92150-2182
|
|||
|
|
92022-2374
92022-2374
|
|||
|
|
180B0616
180B0616
|
|||
|
|
180B0635
180B0635
|
|||
|
|
214B0520
214B0520
|
|||
|
|
311AA0600
311AA0600
|
|||
|
|
411B0600
411B0600
|

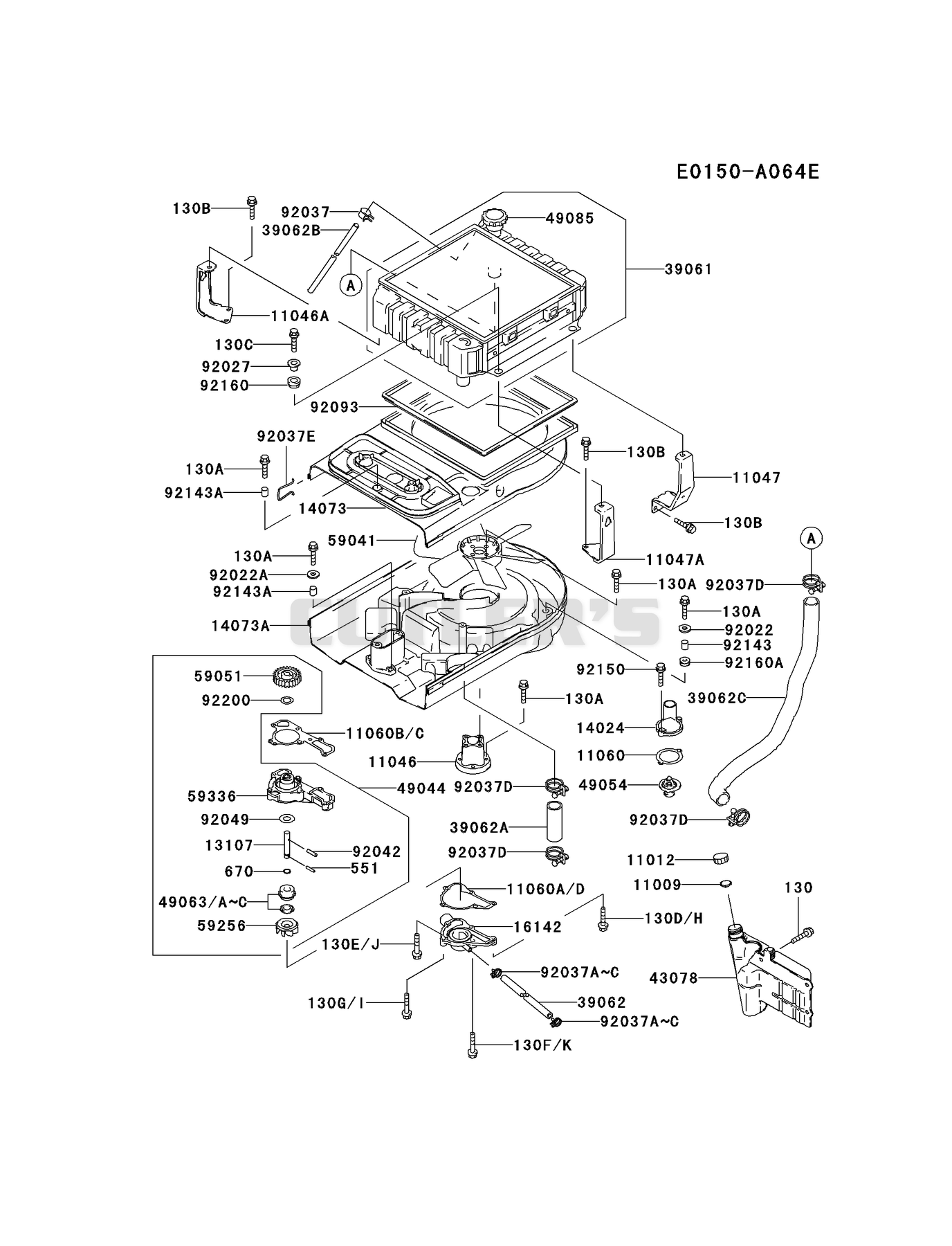

COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-1145
11009-1145
|
|||
|
|
11012-1084
11012-1084
|
|||
|
|
11046-2008
11046-2008
|
|||
|
|
11046-2010-9H
11046-2010-9H
|
|||
|
|
11047-2058-9H
11047-2058-9H
|
|||
|
|
11047-2059-9H
11047-2059-9H
|
|||
|
|
11060-2084
11060-2084
|
|||
|
|
11060-2450
11060-2450
|
|||
|
|
11060-2451
11060-2451
|
|||
|
|
13107-2097
13107-2097
|
|||
|
|
14093-0294
14093-0294
|
|||
|
|
14073-2067
14073-2067
|
|||
|
|
14073-2068
14073-2068
|
|||
|
|
16142-0729
16142-0729
|
|||
|
|
39061-2061
39061-2061
|
|||
|
|
39062-2051
39062-2051
|
|||
|
|
39062-2052
39062-2052
|
|||
|
|
39062-2054
39062-2054
|
|||
|
|
39062-2055
39062-2055
|
|||
|
|
43078-2051
43078-2051
|
|||
|
|
49044-2066
49044-2066
|
|||
|
|
49054-2056
49054-2056
|
|||
|
|
49063-1056
49063-1056
|
|||
|
|
49063-1056
49063-1056
|
|||
|
|
49085-2052
49085-2052
|
|||
|
|
59041-2063
59041-2063
|
|||
|
|
59051-2113
59051-2113
|
|||
|
|
59256-2057
59256-2057
|
|||
|
|
59336-2052
59336-2052
|
|||
|
|
92022-1557
92022-1557
|
|||
|
|
92022-2247
92022-2247
|
|||
|
|
92027-271
92027-271
|
|||
|
|
92037-2001
92037-2001
|
|||
|
|
92037-2082
92037-2082
|
COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
92037-2210
92037-2210
|
|||
|
|
92037-2211
92037-2211
|
|||
|
|
92042-014
92042-014
|
|||
|
|
92049-2111
92049-2111
|
|||
|
|
92093-2085
92093-2085
|
|||
|
|
92143-2013
92143-2013
|
|||
|
|
92143-2014
92143-2014
|
|||
|
|
92150-2231
92150-2231
|
|||
|
|
92160-2001
92160-2001
|
|||
|
|
92160-2002
92160-2002
|
|||
|
|
92200-2044
92200-2044
|
|||
|
|
130B0614
130B0614
|
|||
|
|
130B0620
130B0620
|
|||
|
|
130B0816
130B0816
|
|||
|
|
130CA0825
130CA0825
|
|||
|
|
130T0645
130T0645
|
|||
|
|
130T0665
130T0665
|
|||
|
|
130T0675
130T0675
|
|||
|
|
130T0870
130T0870
|
|||
|
|
551A0314
551A0314
|
|||
|
|
670B1507
670B1507
|
CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11004-2098
11004-2098
|
|||
|
|
11008-2133
11008-2133
|
|||
|
|
11008-6035
11008-6035
|
|||
|
|
11022-2056
11022-2056
|
|||
|
|
11060-2074
11060-2074
|
|||
|
|
11061-2182
11061-2182
|
|||
|
|
11060-2449
11060-2449
|
|||
|
|
13183-2120
13183-2120
|
|||
|
|
14024-2109
14024-2109
|
|||
|
|
16126-2146
16126-2146
|
|||
|
|
49015-6100
49015-6100
|
|||
|
|
49120-6178
49120-6178
|
|||
|
|
59071-2079
59071-2079
|
|||
|
|
92004-2141
92004-2141
|
|||
|
|
92009-2308
92009-2308
|
|||
|
|
92043-1037
92043-1037
|
|||
|
|
92049-2097
92049-2097
|
|||
|
|
92049-2112
92049-2112
|
|||
|
|
92049-2112
92049-2112
|
|||
|
|
92141-2122
92141-2122
|
|||
|
|
92143-2010
92143-2010
|
|||
|
|
92153-2130
92153-2130
|
|||
|
|
92170-2002
92170-2002
|
|||
|
|
92190-2145
92190-2145
|
|||
|
|
130B0625
130B0625
|
|||
|
|
130B0816
130B0816
|
|||
|
|
130G0865
130G0865
|
ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2766
11009-2766
|
|||
|
|
21066-2070
21066-2070
|
|||
|
|
21119-2157
21119-2157
|
|||
|
|
21121-2083
21121-2083
|
|||
|
|
21130-2060
21130-2060
|
|||
|
|
21193-2148
21193-2148
|
|||
|
|
26030-2246
26030-2246
|
|||
|
|
26030-2255
26030-2255
|
|||
|
|
27010-0851
27010-0851
|
|||
|
|
27010-2181
27010-2181
|
|||
|
|
59026-2054
59026-2054
|
|||
|
|
59031-2078
59031-2078
|
|||
|
|
92009-2273
92009-2273
|
|||
|
|
92015-2167
92015-2167
|
|||
|
|
92022-2245
92022-2245
|
|||
|
|
92037-1173
92037-1173
|
|||
|
|
92037-2208
92037-2208
|
|||
|
|
92070-2060
92070-2060
|
|||
|
|
92072-1195
92072-1195
|
|||
|
|
92037-1173
92037-1173
|
|||
|
|
130B0520
130B0520
|
|||
|
|
130B0614
130B0614
|
|||
|
|
214B0510
214B0510
|
|||
|
|
225B0414
225B0414
|
|||
|
|
223D0406
223D0406
|
|||
|
|
510A5100
510A5100
|

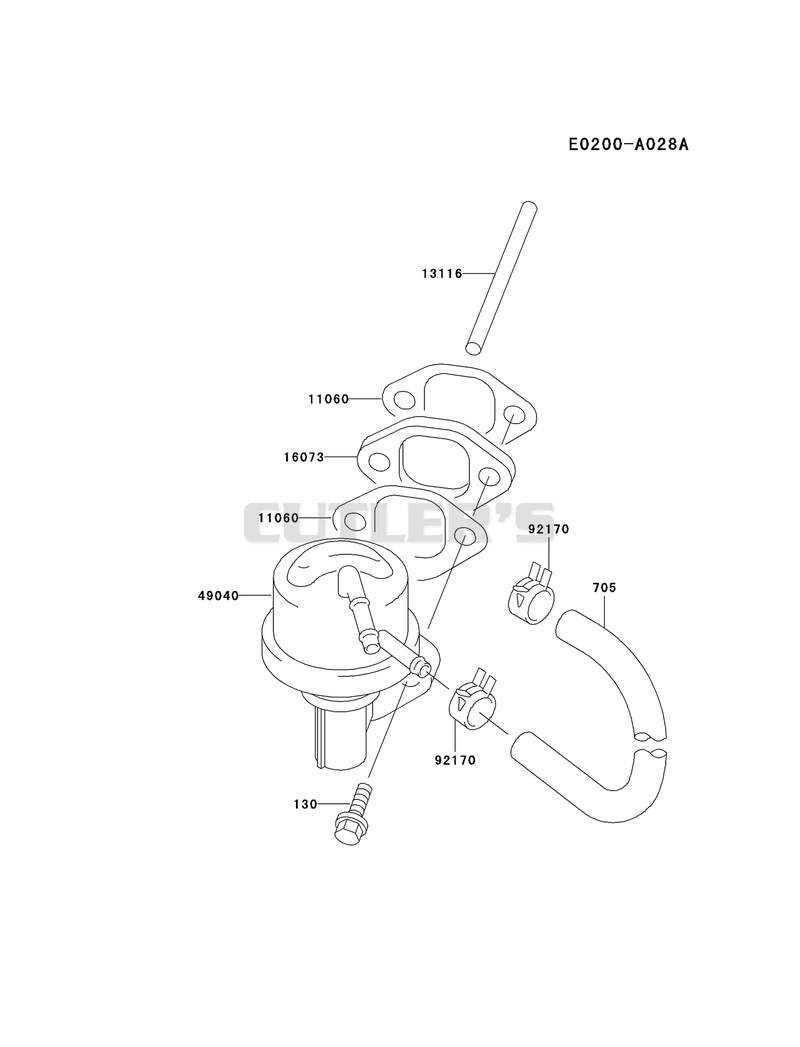

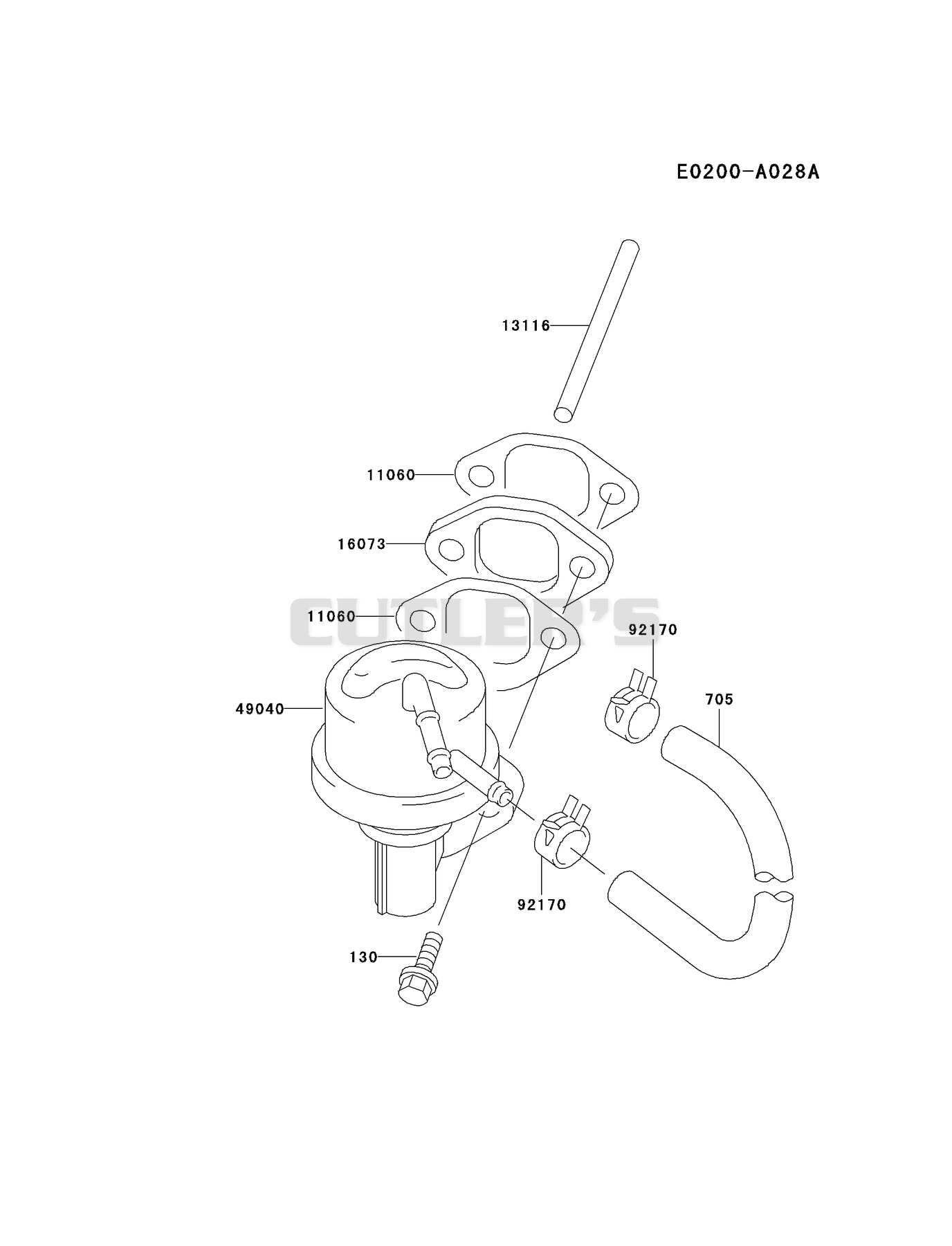

FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11060-2075
11060-2075
|
|||
|
|
13116-2058
13116-2058
|
|||
|
|
16073-2116
16073-2116
|
|||
|
|
99916-2164
99916-2164
|
|||
|
|
92170-2043
92170-2043
|
|||
|
|
130B0835
130B0835
|
|||
|
|
705A061000
705A061000
|
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56030-2314
56030-2314
|
|||
|
|
56033-2081
56033-2081
|
|||
|
|
56031-2461
56031-2461
|
|||
|
|
56031-2480
56031-2480
|
|||
|
|
56031-2483
56031-2483
|
LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2346
11009-2346
|
|||
|
|
11009-2566
11009-2566
|
|||
|
|
11060-2083
11060-2083
|
|||
|
|
13107-2296
13107-2296
|
|||
|
|
13183-2121
13183-2121
|
|||
|
|
14024-2113
14024-2113
|
|||
|
|
16154-2053
16154-2053
|
|||
|
|
16154-2054
16154-2054
|
|||
|
|
49065-2058
49065-2058
|
|||
|
|
49065-2071
49065-2071
|
|||
|
|
52005-2079
52005-2079
|
|||
|
|
59051-2114
59051-2114
|
|||
|
|
59231-2080
59231-2080
|
|||
|
|
92042-014
92042-014
|
|||
|
|
92055-2086
92055-2086
|
|||
|
|
92066-2099
92066-2099
|
|||
|
|
92145-2132
92145-2132
|
|||
|
|
130B0614
130B0614
|
|||
|
|
130BA0625
130BA0625
|
|||
|
|
600A1300
600A1300
|
|||
|
|
670B2011
670B2011
|
PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13001-2123
13001-2123
|
|||
|
|
13002-1013
13002-1013
|
|||
|
|
13008-6016
13008-6016
|
|||
|
|
13025-6001
13025-6001
|
|||
|
|
13025-6002
13025-6002
|
|||
|
|
13029-2090
13029-2090
|
|||
|
|
13029-2091
13029-2091
|
|||
|
|
13251-0034
13251-0034
|
|||
|
|
13251-0042
13251-0042
|
|||
|
|
49119-0005
49119-0005
|
|||
|
|
59051-2112
59051-2112
|
|||
|
|
92002-2053
92002-2053
|
|||
|
|
92036-021
92036-021
|
|||
|
|
551A0408
551A0408
|

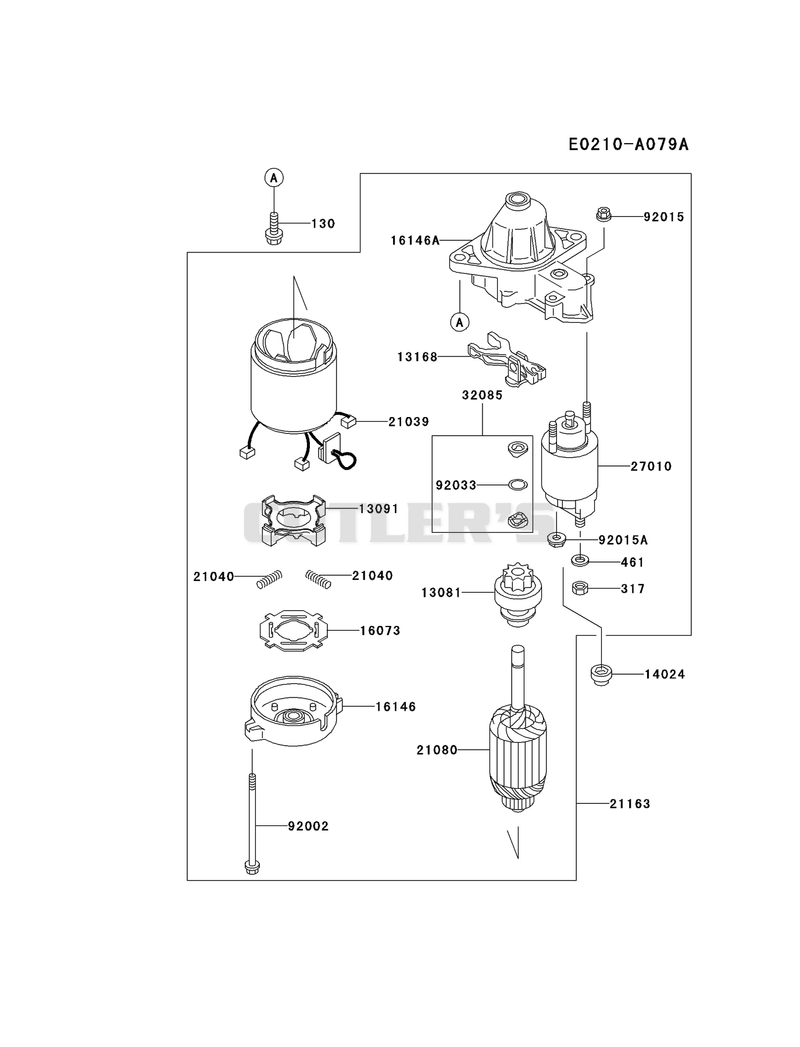

STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13081-2108
13081-2108
|
|||
|
|
13091-2068
13091-2068
|
|||
|
|
13168-2131
13168-2131
|
|||
|
|
14024-2205
14024-2205
|
|||
|
|
16073-2098
16073-2098
|
|||
|
|
16146-2077
16146-2077
|
|||
|
|
16146-2128
16146-2128
|
|||
|
|
21039-2059
21039-2059
|
|||
|
|
21040-2052
21040-2052
|
|||
|
|
21080-2054
21080-2054
|
|||
|
|
21163-2141
21163-2141
|
|||
|
|
27010-2122
27010-2122
|
|||
|
|
32085-2097
32085-2097
|
|||
|
|
92002-2277
92002-2277
|
|||
|
|
92015-2146
92015-2146
|
|||
|
|
92015-2147
92015-2147
|
|||
|
|
92033-2081
92033-2081
|
|||
|
|
130B0830
130B0830
|
|||
|
|
317AA0800
317AA0800
|
|||
|
|
461DA0800
461DA0800
|
VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12004-2116
12004-2116
|
|||
|
|
12005-2094
12005-2094
|
|||
|
|
12009-2067
12009-2067
|
|||
|
|
12011-2056
12011-2056
|
|||
|
|
12016-2056
12016-2056
|
|||
|
|
12020-2059
12020-2059
|
|||
|
|
12032-2064
12032-2064
|
|||
|
|
12044-2242
12044-2242
|
|||
|
|
13116-2057
13116-2057
|
|||
|
|
39108-2057
39108-2057
|
|||
|
|
49078-2082
49078-2082
|
|||
|
|
92009-1109
92009-1109
|
|||
|
|
92210-1491
92210-1491
|
|||
|
|
92049-2109
92049-2109
|
|||
|
|
480J1200
480J1200
|
