Kawasaki FE170D-AS02 Engine Parts Diagram
Diagrams:
Diagram:

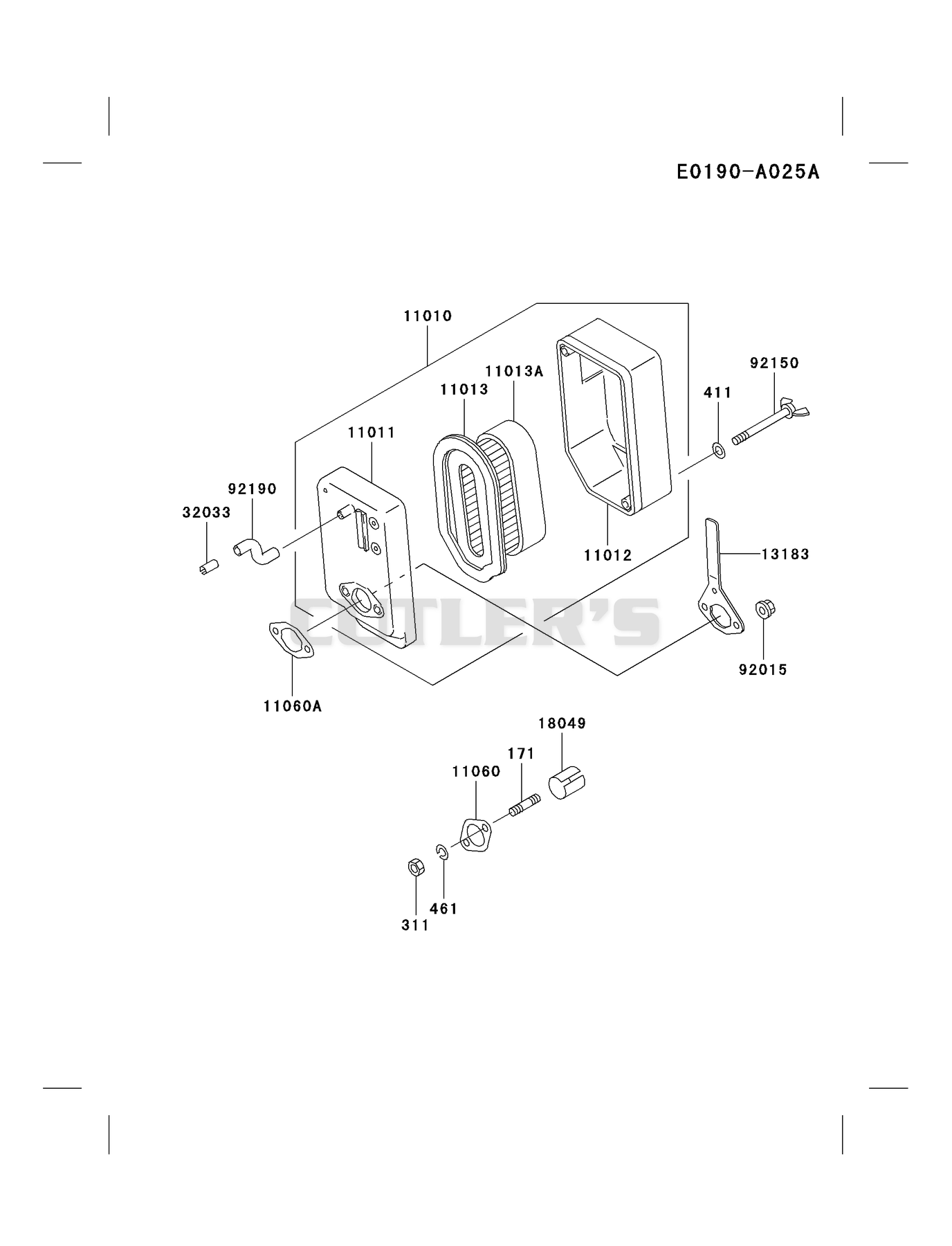

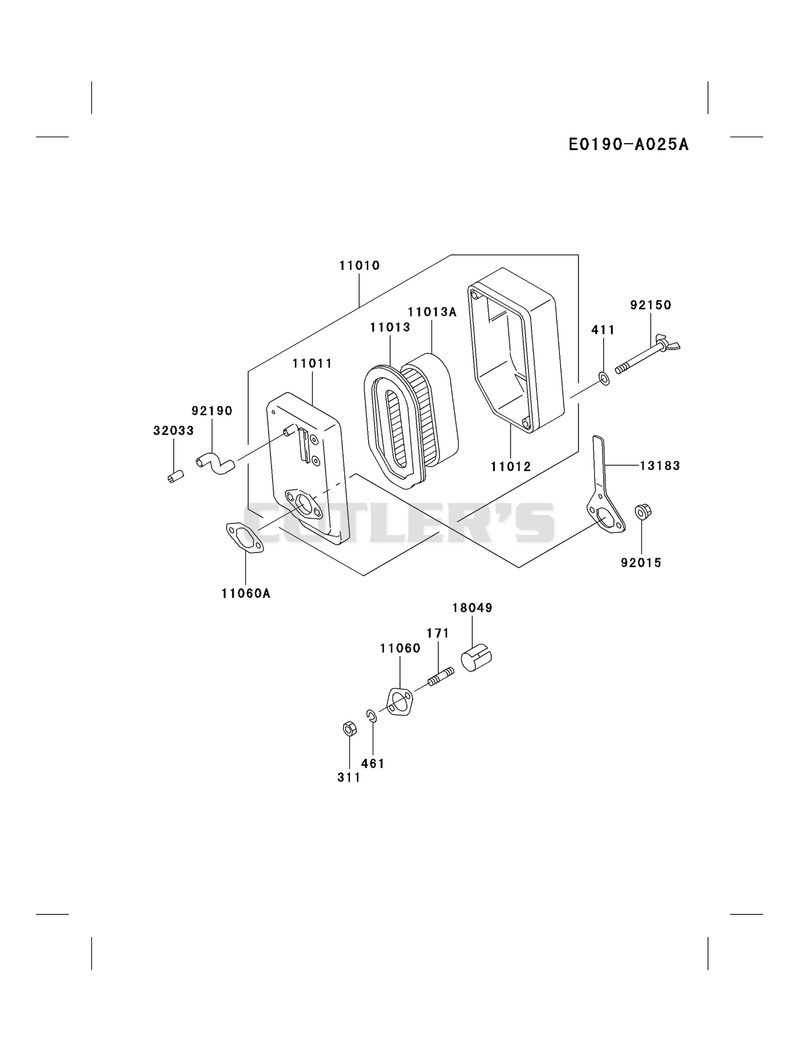

AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11010-2459
11010-2459
|
|||
|
|
11011-2241
11011-2241
|
|||
|
|
11012-2325
11012-2325
|
|||
|
|
11013-2132
11013-2132
|
|||
|
|
11013-2133
11013-2133
|
|||
|
|
11060-2037
11060-2037
|
|||
|
|
11060-2049
11060-2049
|
|||
|
|
13183-2527
13183-2527
|
|||
|
|
18049-2202
18049-2202
|
|||
|
|
32033-2001
32033-2001
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92153-2085
92153-2085
|
|||
|
|
92190-2043
92190-2043
|
|||
|
|
171G0616
171G0616
|
|||
|
|
310R0600
310R0600
|
|||
|
|
411F0500
411F0500
|
|||
|
|
461DA0600
461DA0600
|

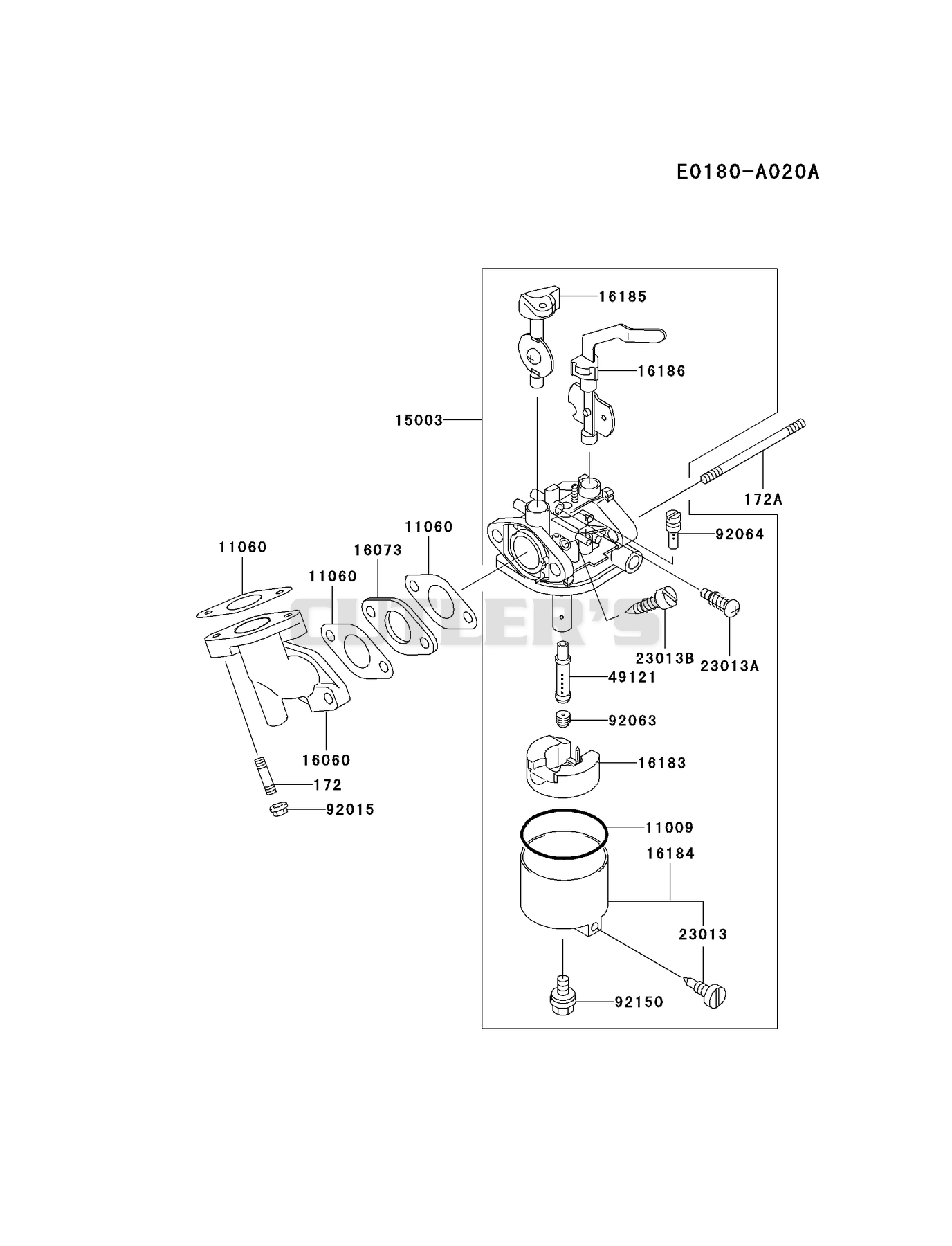

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2919
11009-2919
|
|||
|
|
11060-2051
11060-2051
|
|||
|
|
15003-2034
15003-2034
|
|||
|
|
16060-2154
16060-2154
|
|||
|
|
16073-2180
16073-2180
|
|||
|
|
16183-2005
16183-2005
|
|||
|
|
16184-2002
16184-2002
|
|||
|
|
16185-2001
16185-2001
|
|||
|
|
16186-2001
16186-2001
|
|||
|
|
23013-2053
23013-2053
|
|||
|
|
23013-2054
23013-2054
|
|||
|
|
23013-2055
23013-2055
|
|||
|
|
49121-2145
49121-2145
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92063-2185
92063-2185
|
|||
|
|
92064-2082
92064-2082
|
|||
|
|
92150-2209
92150-2209
|
|||
|
|
172G0618
172G0618
|
|||
|
|
172G0673
172G0673
|

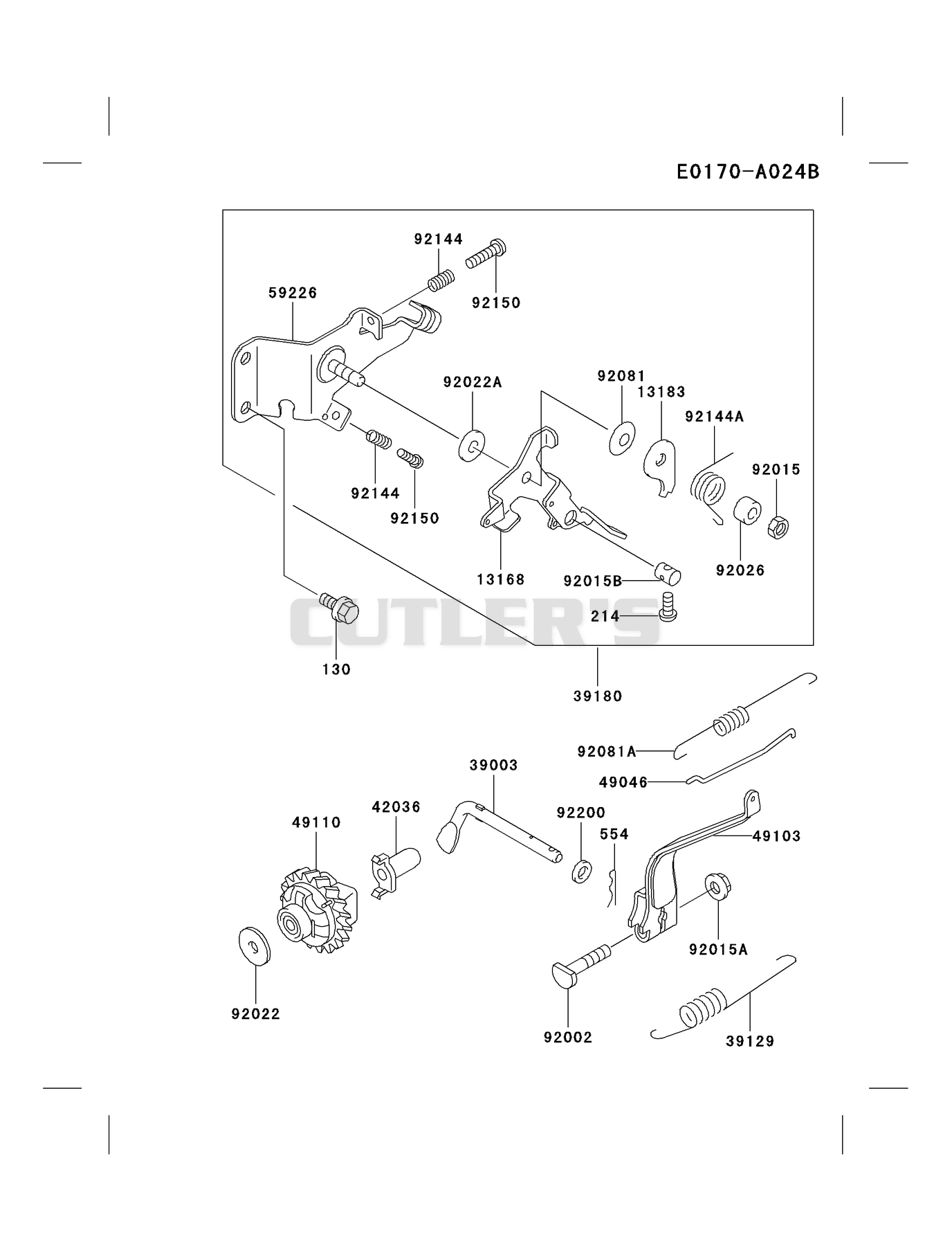

CONTROL-EQUIPMENT
CONTROL-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13168-2425
13168-2425
|
|||
|
|
13271-2112
13271-2112
|
|||
|
|
39003-2074
39003-2074
|
|||
|
|
39129-2053
39129-2053
|
|||
|
|
39182-2145
39182-2145
|
|||
|
|
42036-2051
42036-2051
|
|||
|
|
49046-2098
49046-2098
|
|||
|
|
49103-2155
49103-2155
|
|||
|
|
49110-2081
49110-2081
|
|||
|
|
59226-2276
59226-2276
|
|||
|
|
92002-2269
92002-2269
|
|||
|
|
92015-2051
92015-2051
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92015-2120
92015-2120
|
|||
|
|
92200-2036
92200-2036
|
|||
|
|
92022-2103
92022-2103
|
|||
|
|
92026-2304
92026-2304
|
|||
|
|
92081-2104
92081-2104
|
|||
|
|
92081-2132
92081-2132
|
|||
|
|
92144-2266
92144-2266
|
|||
|
|
92144-2270
92144-2270
|
|||
|
|
92150-2227
92150-2227
|
|||
|
|
92200-2029
92200-2029
|
|||
|
|
130B0612
130B0612
|
|||
|
|
214B0414
214B0414
|
|||
|
|
554A0600
554A0600
|

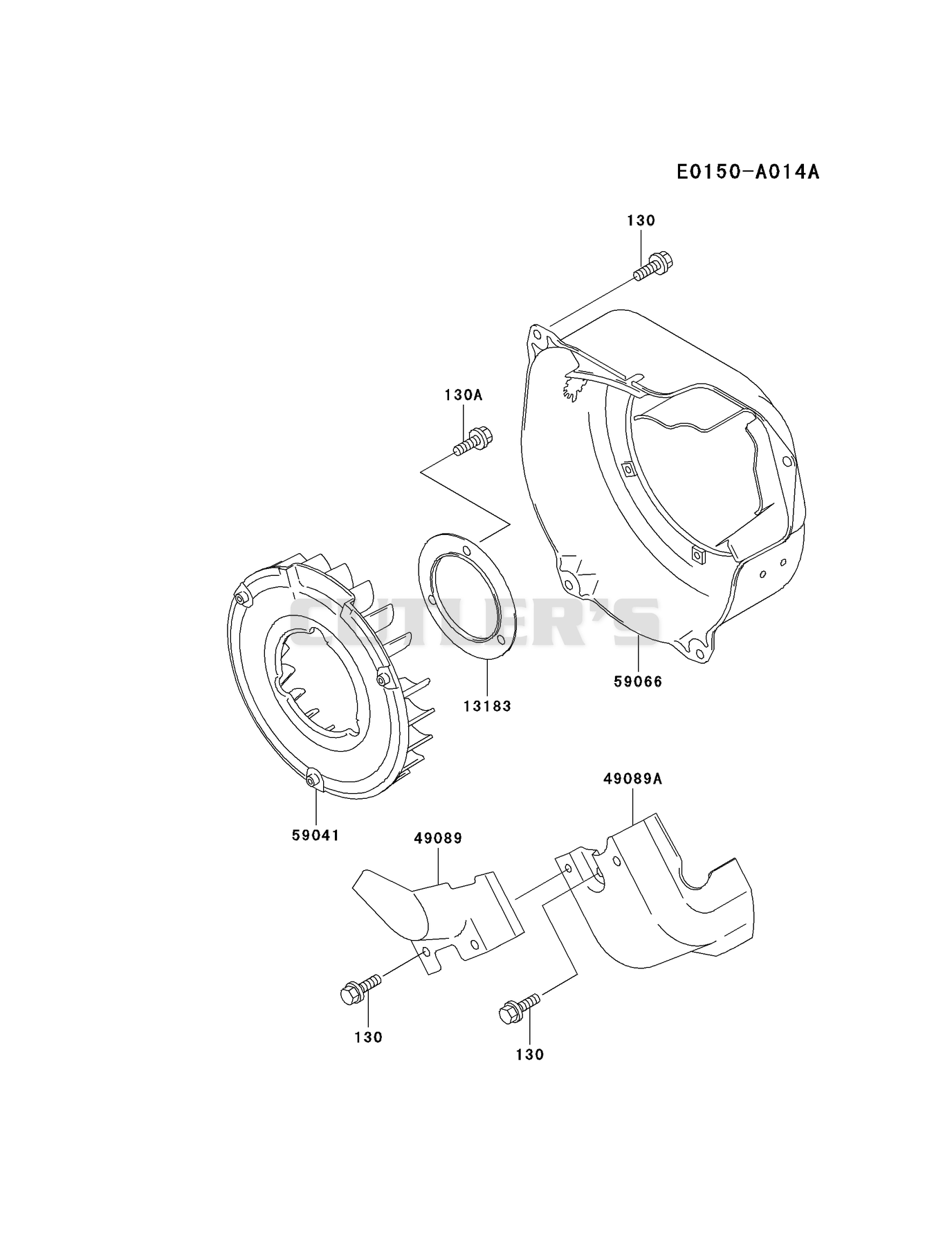

COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13183-2401
13183-2401
|
|||
|
|
49089-2347-9H
49089-2347-9H
|
|||
|
|
49089-2350-9H
49089-2350-9H
|
|||
|
|
59041-2071
59041-2071
|
|||
|
|
59066-2609-9H
59066-2609-9H
|
|||
|
|
130AA0608
130AA0608
|
|||
|
|
130BA0612
130BA0612
|

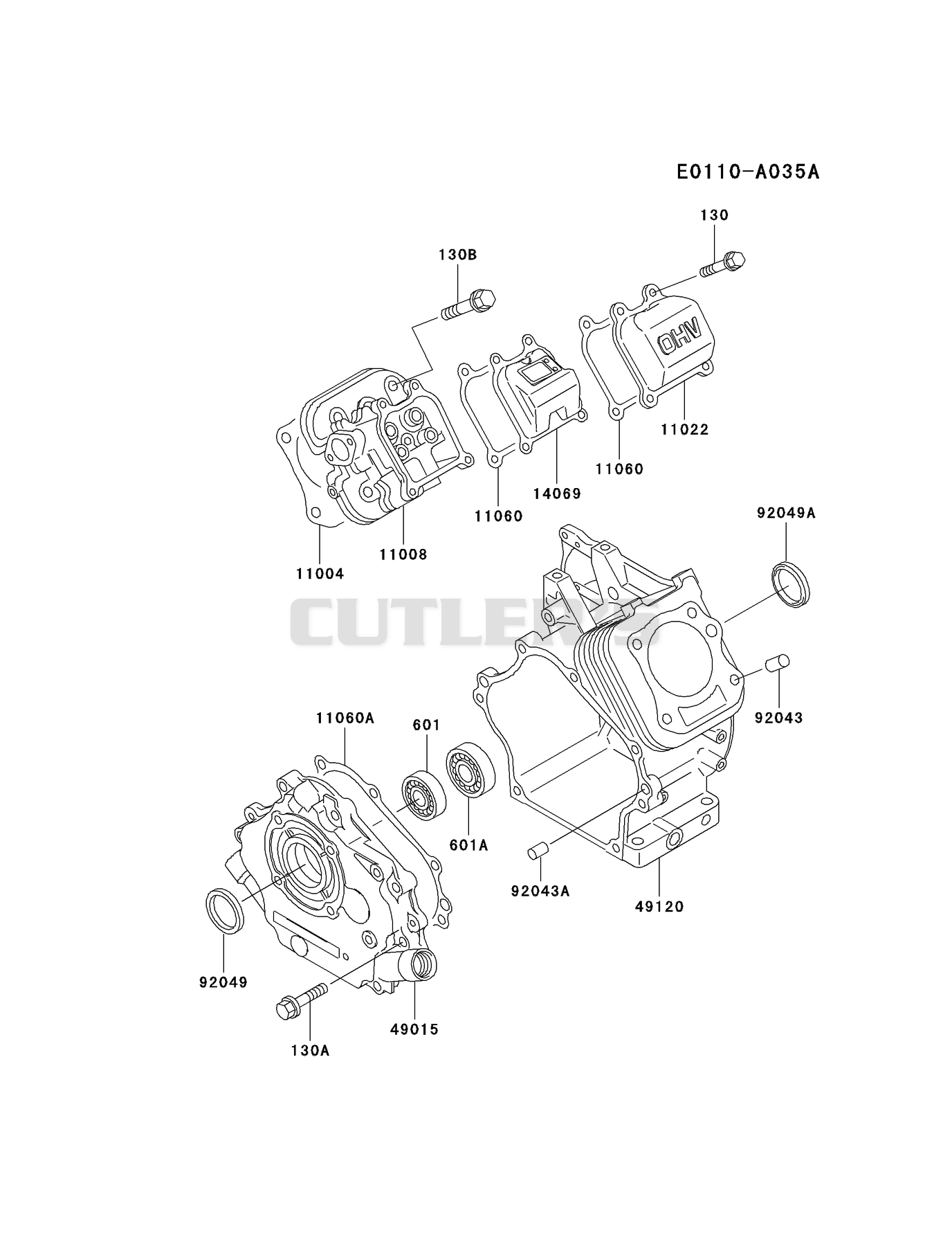

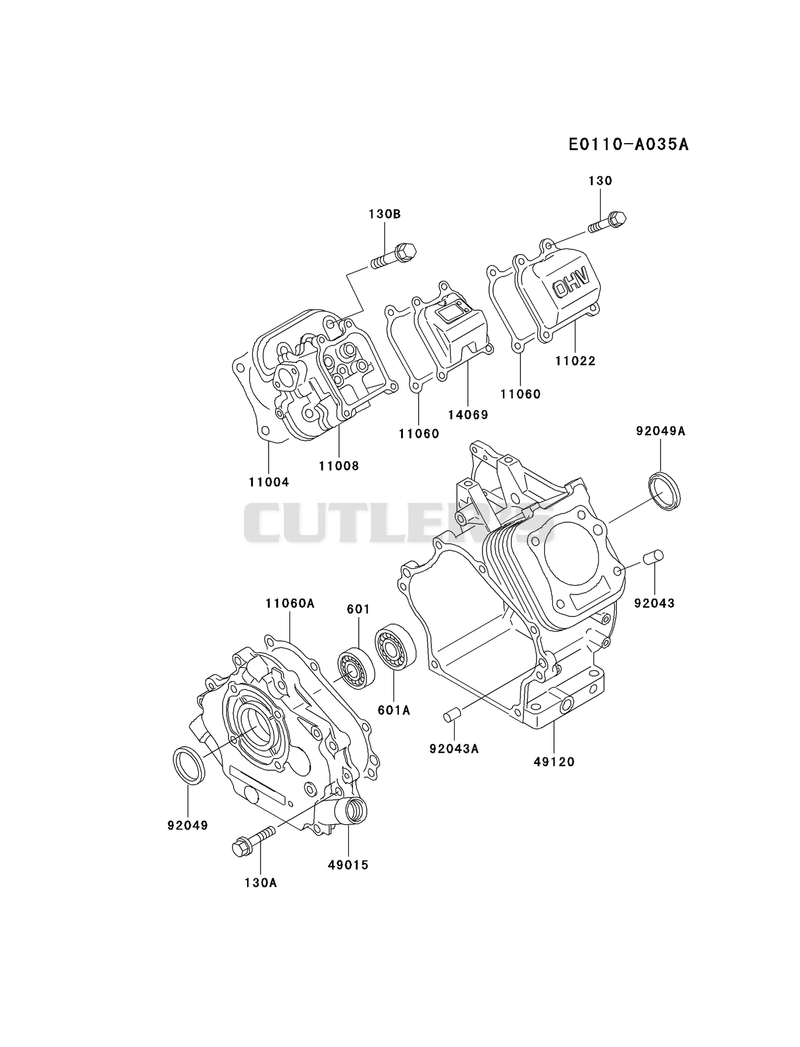

CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11004-2112
11004-2112
|
|||
|
|
11008-2157
11008-2157
|
|||
|
|
11022-2065-9H
11022-2065-9H
|
|||
|
|
11060-2291
11060-2291
|
|||
|
|
11060-2060
11060-2060
|
|||
|
|
14069-2080
14069-2080
|
|||
|
|
49015-6104
49015-6104
|
|||
|
|
49120-2245
49120-2245
|
|||
|
|
92043-1037
92043-1037
|
|||
|
|
92043-1263
92043-1263
|
|||
|
|
92049-2065
92049-2065
|
|||
|
|
92049-2225
92049-2225
|
|||
|
|
130C0612
130C0612
|
|||
|
|
130G0835
130G0835
|
|||
|
|
130T0845
130T0845
|
|||
|
|
601A6205
601A6205
|
|||
|
|
601A6305
601A6305
|

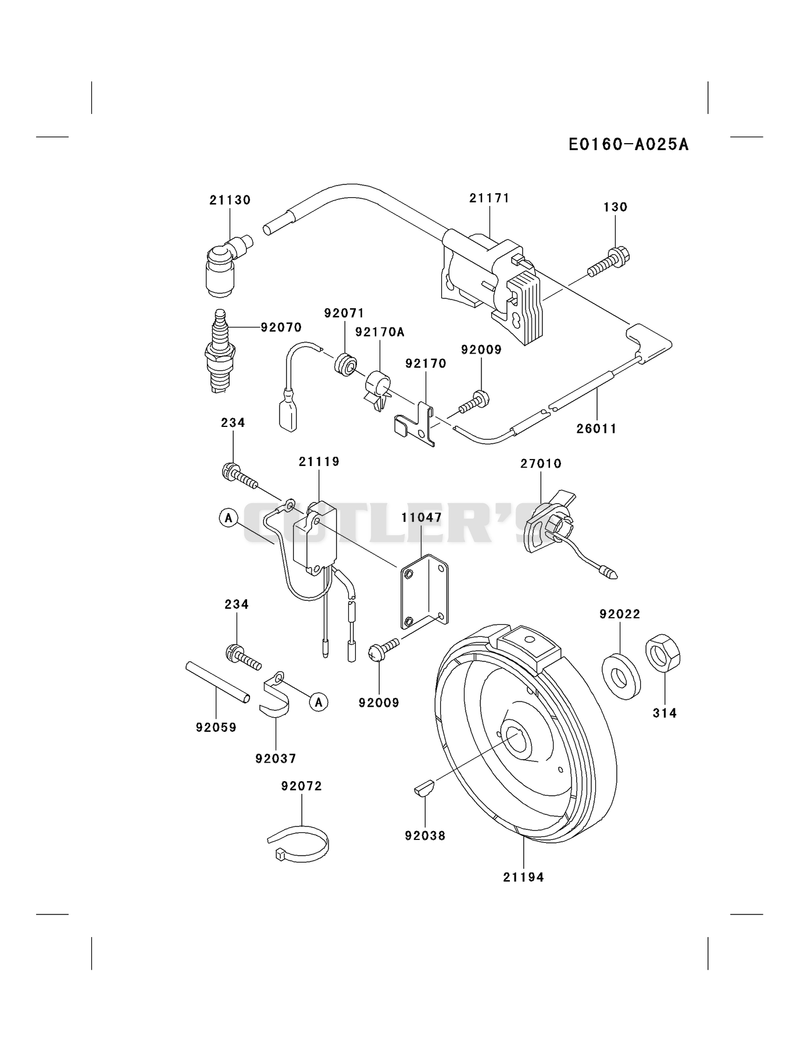

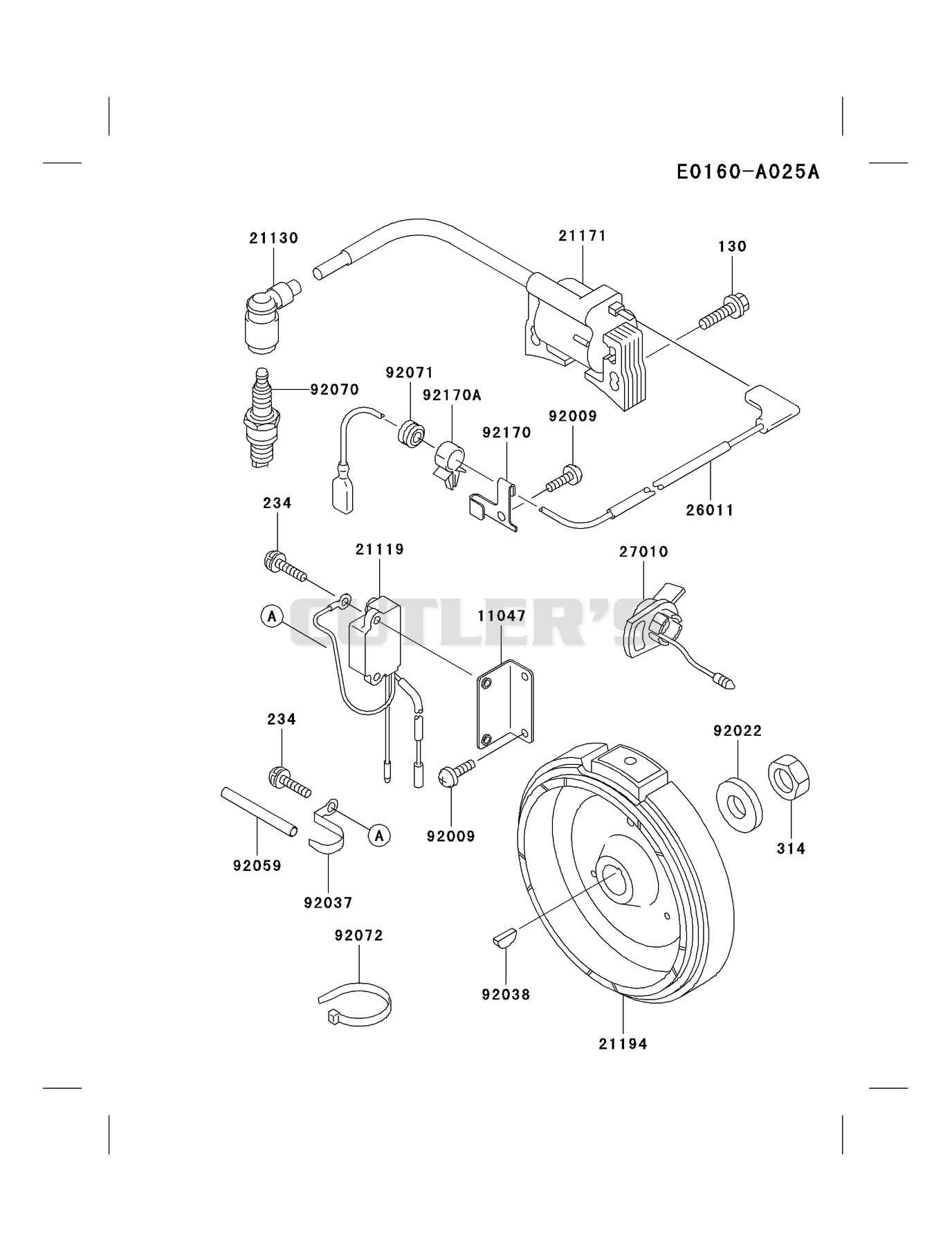

ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11047-2062
11047-2062
|
|||
|
|
21119-2143
21119-2143
|
|||
|
|
21130-2060
21130-2060
|
|||
|
|
21171-2174
21171-2174
|
|||
|
|
21194-2376
21194-2376
|
|||
|
|
26011-2277
26011-2277
|
|||
|
|
27010-2052
27010-2052
|
|||
|
|
92009-2166
92009-2166
|
|||
|
|
92022-2102
92022-2102
|
|||
|
|
92037-2006
92037-2006
|
|||
|
|
92038-2077
92038-2077
|
|||
|
|
92059-2011
92059-2011
|
|||
|
|
4006
4006
|
|||
|
|
92071-2125
92071-2125
|
|||
|
|
92037-1173
92037-1173
|
|||
|
|
92170-2016
92170-2016
|
|||
|
|
92170-2047
92170-2047
|
|||
|
|
130B0525
130B0525
|
|||
|
|
234B0514
234B0514
|
|||
|
|
314G1400A
314G1400A
|

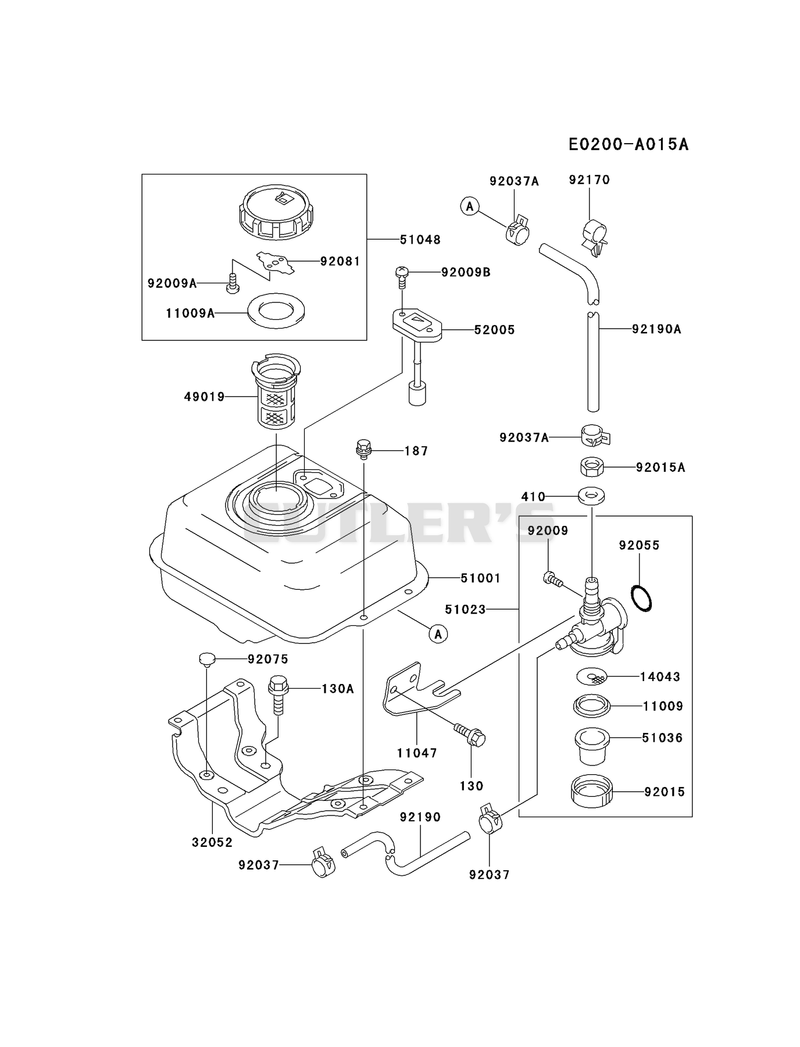

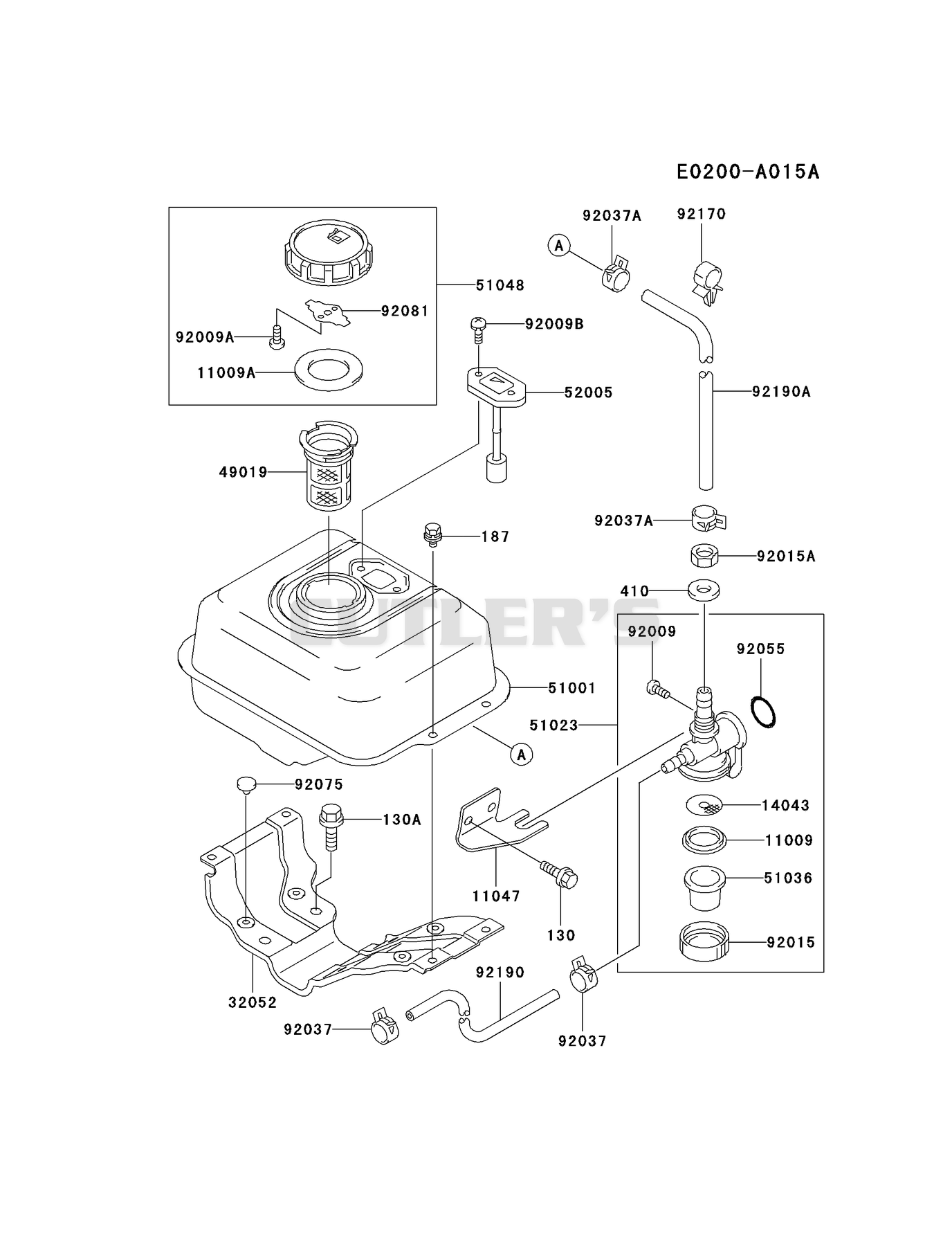

FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2021
11009-2021
|
|||
|
|
11009-2115
11009-2115
|
|||
|
|
11047-2001
11047-2001
|
|||
|
|
14043-2058
14043-2058
|
|||
|
|
32052-2198-9H
32052-2198-9H
|
|||
|
|
49019-2051
49019-2051
|
|||
|
|
51001-2307-9H
51001-2307-9H
|
|||
|
|
51023-2131
51023-2131
|
|||
|
|
51036-2063
51036-2063
|
|||
|
|
51048-2055
51048-2055
|
|||
|
|
52005-2139
52005-2139
|
|||
|
|
92009-2004
92009-2004
|
|||
|
|
92009-2021
92009-2021
|
|||
|
|
92172-2064
92172-2064
|
|||
|
|
92015-2007
92015-2007
|
|||
|
|
92015-2317
92015-2317
|
|||
|
|
92037-2116
92037-2116
|
|||
|
|
92037-2113
92037-2113
|
|||
|
|
92055-2002
92055-2002
|
|||
|
|
92075-2113
92075-2113
|
|||
|
|
92081-2036
92081-2036
|
|||
|
|
92170-2067
92170-2067
|
|||
|
|
92190-2040
92190-2040
|
|||
|
|
92190-2094
92190-2094
|
|||
|
|
130B0508
130B0508
|
|||
|
|
130AA0818
130AA0818
|
|||
|
|
187J0614
187J0614
|
|||
|
|
410B1000
410B1000
|

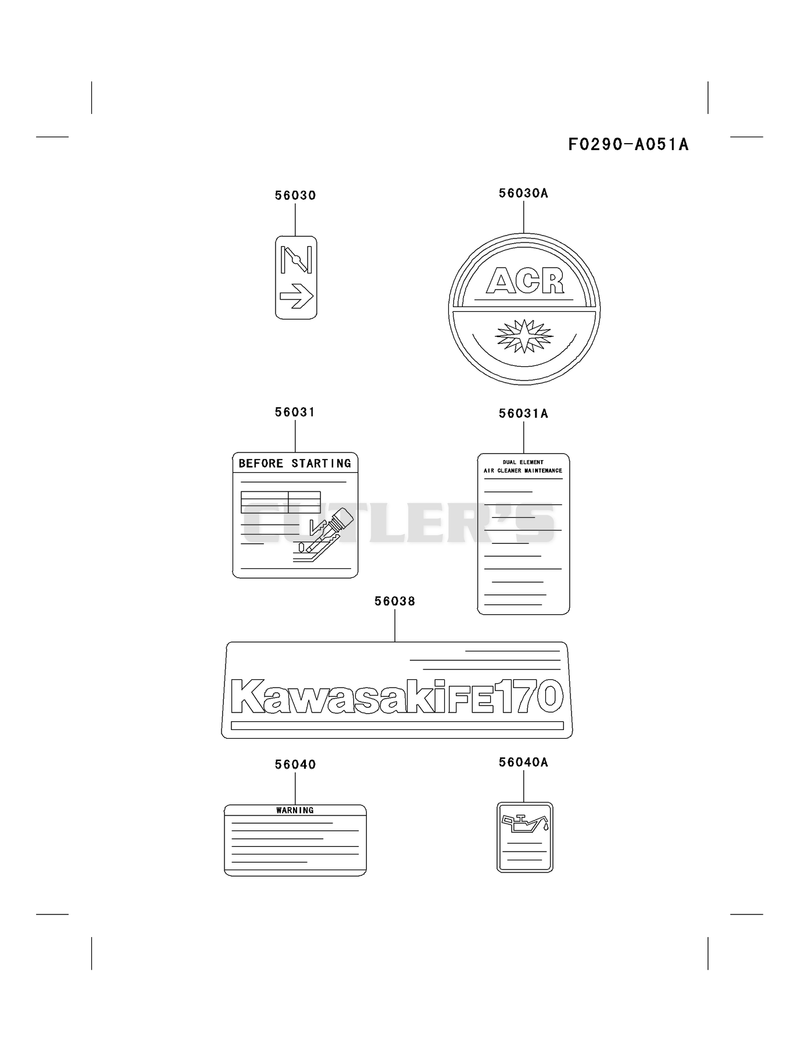

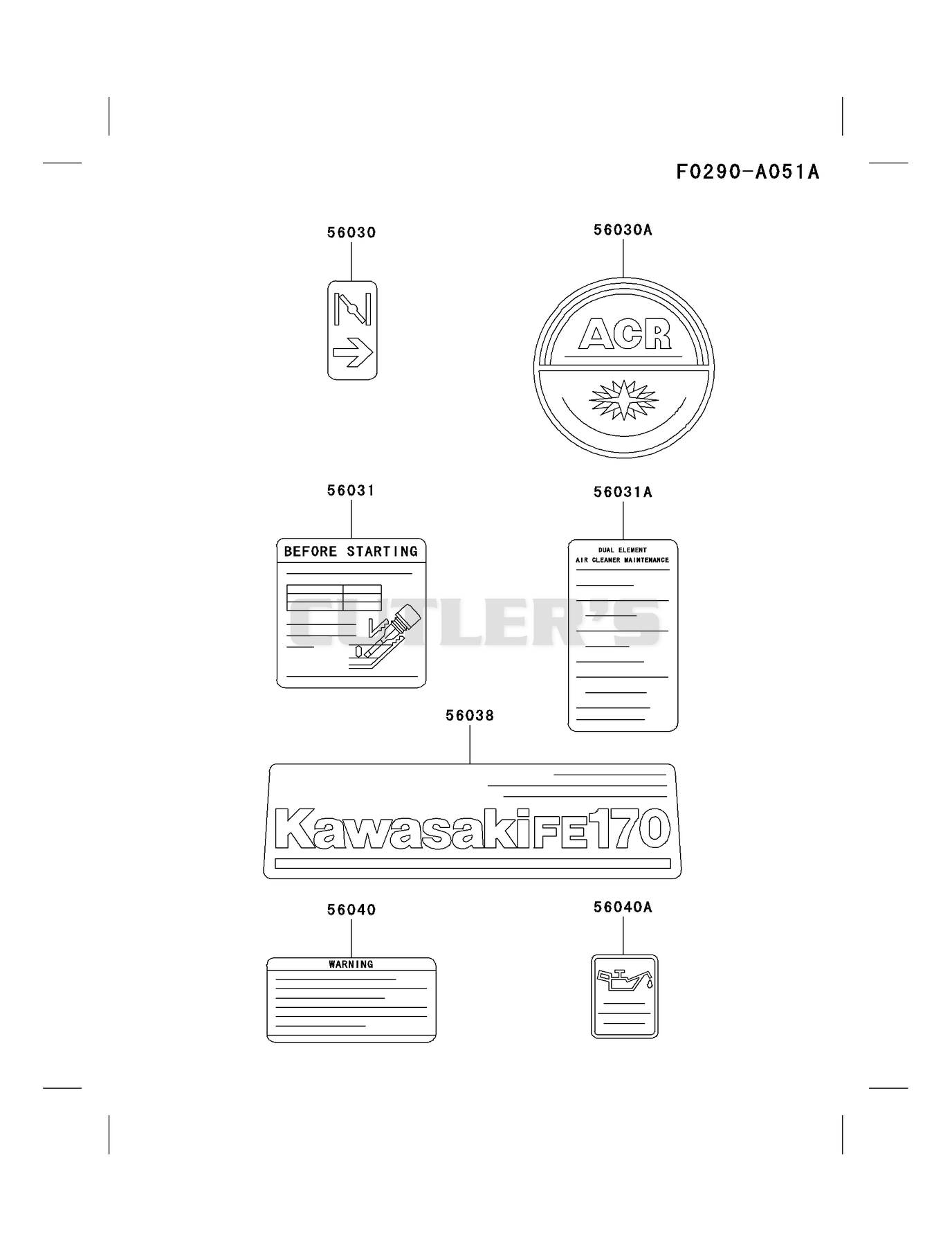

LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56030-2590
56030-2590
|
|||
|
|
56030-2546
56030-2546
|
|||
|
|
56031-2458
56031-2458
|
|||
|
|
56031-2387
56031-2387
|
|||
|
|
56080-0772
56080-0772
|
|||
|
|
56070-2066
56070-2066
|
|||
|
|
56040-2189
56040-2189
|

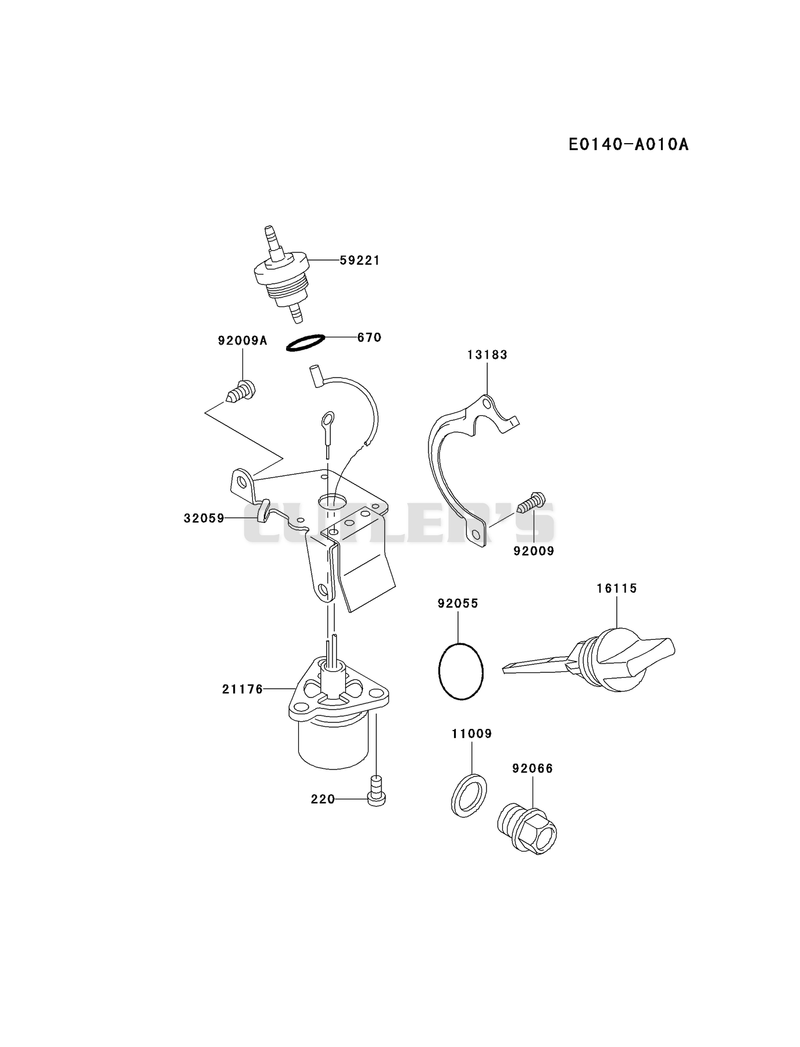

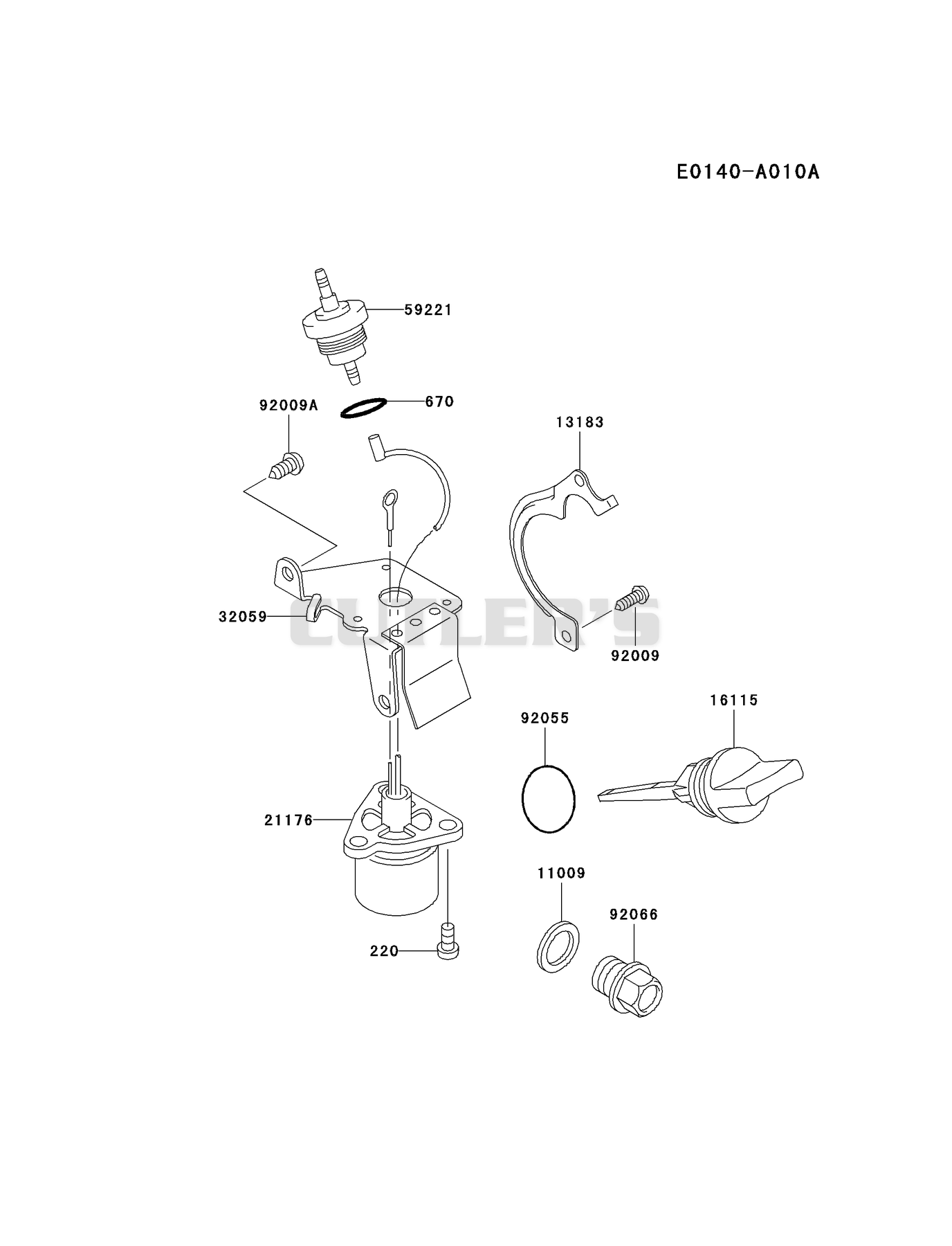

LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2175
11009-2175
|
|||
|
|
13183-2444
13183-2444
|
|||
|
|
16115-2091
16115-2091
|
|||
|
|
21176-2092
21176-2092
|
|||
|
|
32059-2094
32059-2094
|
|||
|
|
59221-2123
59221-2123
|
|||
|
|
92009-2307
92009-2307
|
|||
|
|
92009-2308
92009-2308
|
|||
|
|
92055-2185
92055-2185
|
|||
|
|
92066-2253
92066-2253
|
|||
|
|
220B0408
220B0408
|
|||
|
|
670B2015
670B2015
|

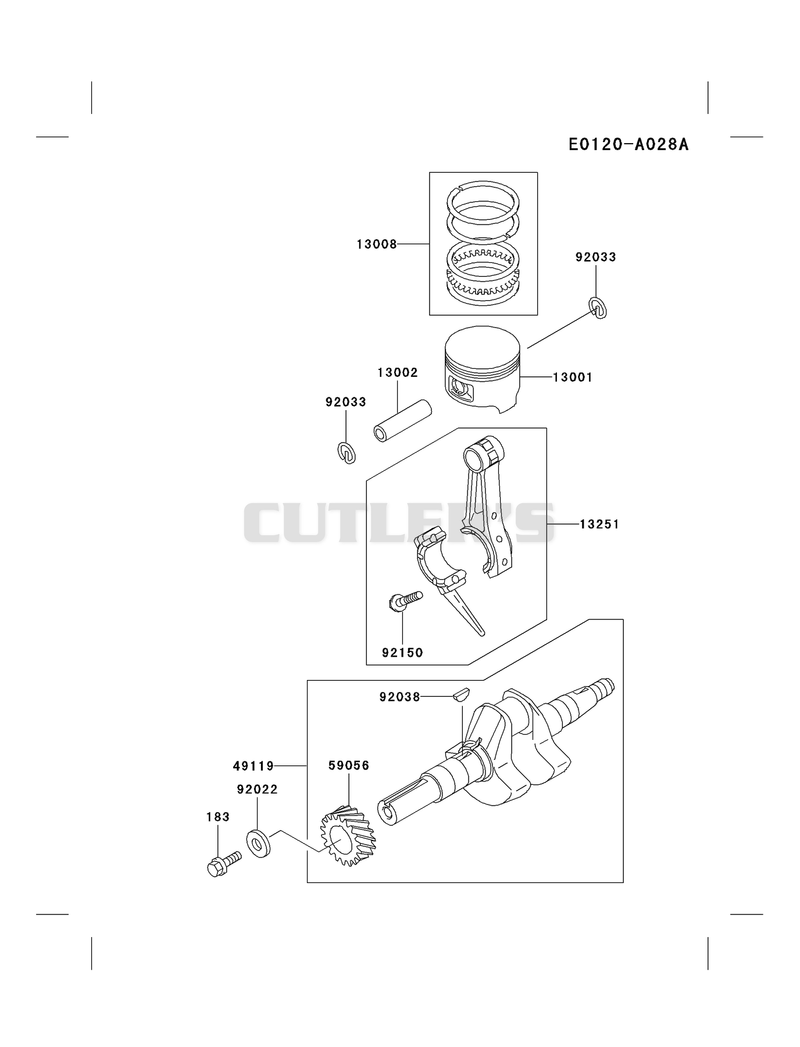

PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13001-2124
13001-2124
|
|||
|
|
13002-1004
13002-1004
|
|||
|
|
13008-6024
13008-6024
|
|||
|
|
13251-6062
13251-6062
|
|||
|
|
49119-6124
49119-6124
|
|||
|
|
59056-2992
59056-2992
|
|||
|
|
92200-2071
92200-2071
|
|||
|
|
92033-2053
92033-2053
|
|||
|
|
92038-2077
92038-2077
|
|||
|
|
92153-2097
92153-2097
|
|||
|
|
183B0825
183B0825
|
STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13070-2088
13070-2088
|
|||
|
|
13165-2082
13165-2082
|
|||
|
|
32099-2277-9H
32099-2277-9H
|
|||
|
|
46075-2003
46075-2003
|
|||
|
|
49080-2158
49080-2158
|
|||
|
|
49088-2409-9H
49088-2409-9H
|
|||
|
|
59101-2086
59101-2086
|
|||
|
|
59106-2119
59106-2119
|
|||
|
|
92009-2311
92009-2311
|
|||
|
|
92033-2160
92033-2160
|
|||
|
|
92144-2177
92144-2177
|
|||
|
|
92144-2272
92144-2272
|
|||
|
|
130AA0608
130AA0608
|
VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12004-2091
12004-2091
|
|||
|
|
12005-2079
12005-2079
|
|||
|
|
12009-2062
12009-2062
|
|||
|
|
12016-2059
12016-2059
|
|||
|
|
12032-2064
12032-2064
|
|||
|
|
13070-2117
13070-2117
|
|||
|
|
13116-2070
13116-2070
|
|||
|
|
21118-2081
21118-2081
|
|||
|
|
49078-7001
49078-7001
|
|||
|
|
49118-6065
49118-6065
|
|||
|
|
92015-2240
92015-2240
|
|||
|
|
92015-2253
92015-2253
|
|||
|
|
92043-2122
92043-2122
|
|||
|
|
92043-2130
92043-2130
|
|||
|
|
92144-2049
92144-2049
|
|||
|
|
92150-2198
92150-2198
|
