Kawasaki FG300D-CS09 Engine Parts Diagram
Diagrams:
Diagram:

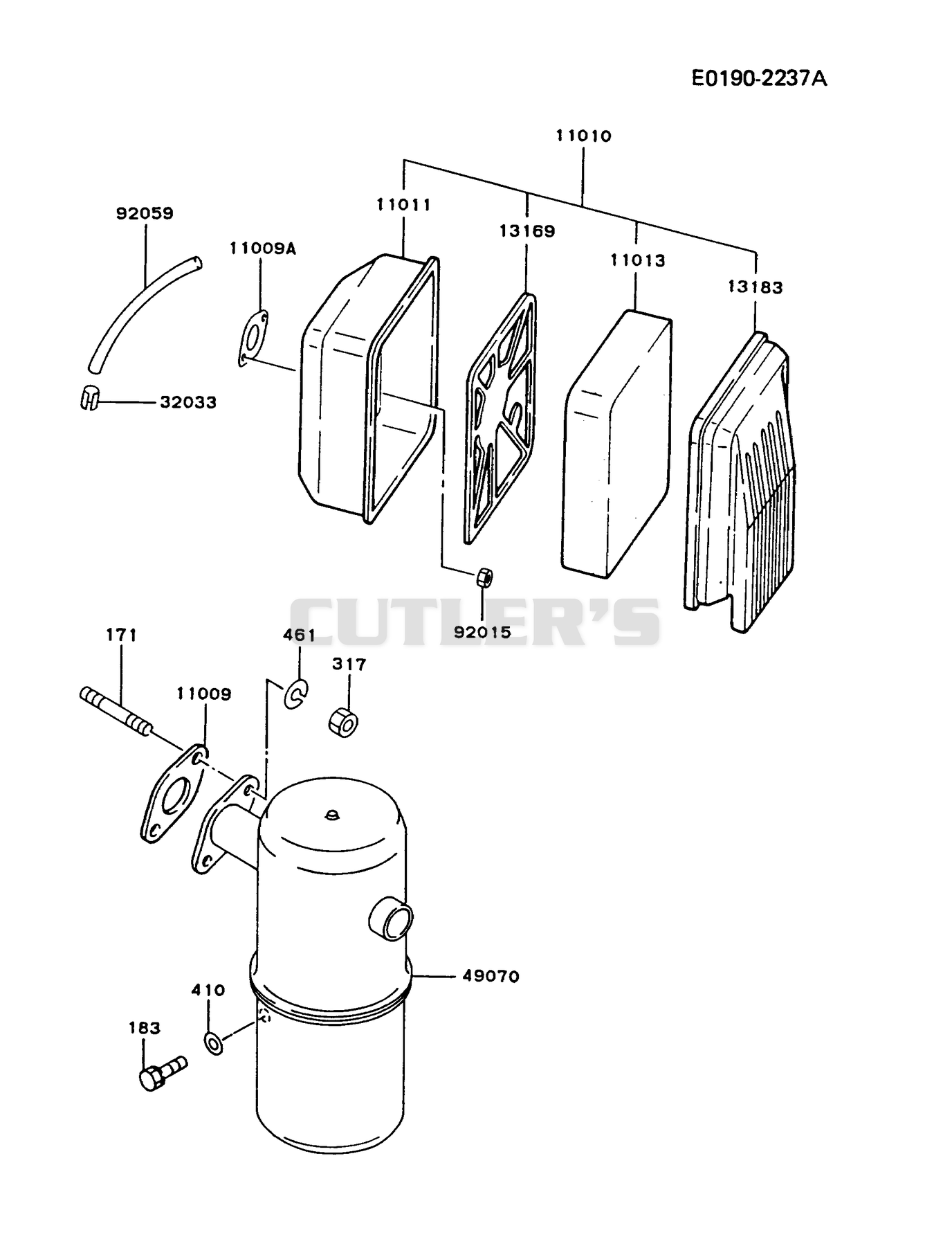

AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11060-2056
11060-2056
|
|||
|
|
11009-2266
11009-2266
|
|||
|
|
11010-2058
11010-2058
|
|||
|
|
11011-2095
11011-2095
|
|||
|
|
11013-2074
11013-2074
|
|||
|
|
13169-2300
13169-2300
|
|||
|
|
13183-2078
13183-2078
|
|||
|
|
32033-2001
32033-2001
|
|||
|
|
49070-2524-9Y
49070-2524-9Y
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92059-2060
92059-2060
|
|||
|
|
171G0818
171G0818
|
|||
|
|
183B0814
183B0814
|
|||
|
|
317R0800
317R0800
|
|||
|
|
410B0800
410B0800
|
|||
|
|
461DA0800
461DA0800
|
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2024
11009-2024
|
|||
|
|
11009-2036
11009-2036
|
|||
|
|
11009-2114
11009-2114
|
|||
|
|
15001-2756
15001-2756
|
|||
|
|
16014-2003
16014-2003
|
|||
|
|
16020-2082
16020-2082
|
|||
|
|
16025-2131
16025-2131
|
|||
|
|
16030-2075
16030-2075
|
|||
|
|
16031-2065
16031-2065
|
|||
|
|
16035-2055
16035-2055
|
|||
|
|
16041-2053
16041-2053
|
|||
|
|
16041-2052
16041-2052
|
|||
|
|
16073-2053
16073-2053
|
|||
|
|
16126-2054
16126-2054
|
|||
|
|
49121-2104
49121-2104
|
|||
|
|
92002-2319
92002-2319
|
|||
|
|
92009-2081
92009-2081
|
|||
|
|
92009-2046
92009-2046
|
|||
|
|
92009-2080
92009-2080
|
|||
|
|
92027-2003
92027-2003
|
|||
|
|
92033-2024
92033-2024
|
|||
|
|
92043-2006
92043-2006
|
|||
|
|
92063-2145
92063-2145
|
|||
|
|
92064-2001
92064-2001
|
|||
|
|
92081-2008
92081-2008
|
|||
|
|
92081-2045
92081-2045
|
|||
|
|
92081-2009
92081-2009
|
|||
|
|
92140-2001
92140-2001
|
|||
|
|
172G0685
172G0685
|
|||
|
|
214B0414
214B0414
|
CONTROL-EQUIPMENT
CONTROL-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11043-2081
11043-2081
|
|||
|
|
13236-2081
13236-2081
|
|||
|
|
14024-2067
14024-2067
|
|||
|
|
23062-2052
23062-2052
|
|||
|
|
39003-2070
39003-2070
|
|||
|
|
39003-2070
39003-2070
|
|||
|
|
42036-2051
42036-2051
|
|||
|
|
49046-2064
49046-2064
|
|||
|
|
49103-2065
49103-2065
|
|||
|
|
49110-2079
49110-2079
|
|||
|
|
92002-2087
92002-2087
|
|||
|
|
92002-2269
92002-2269
|
|||
|
|
92009-2307
92009-2307
|
|||
|
|
92015-2051
92015-2051
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92200-2036
92200-2036
|
|||
|
|
92022-2103
92022-2103
|
|||
|
|
92037-2020
92037-2020
|
|||
|
|
92081-2104
92081-2104
|
|||
|
|
92081-2134
92081-2134
|
|||
|
|
92081-2135
92081-2135
|
|||
|
|
92144-2004
92144-2004
|
|||
|
|
92200-2029
92200-2029
|
|||
|
|
130B0616
130B0616
|
|||
|
|
214B0518
214B0518
|
|||
|
|
410B0600
410B0600
|
|||
|
|
411B0500
411B0500
|
|||
|
|
554A0600
554A0600
|

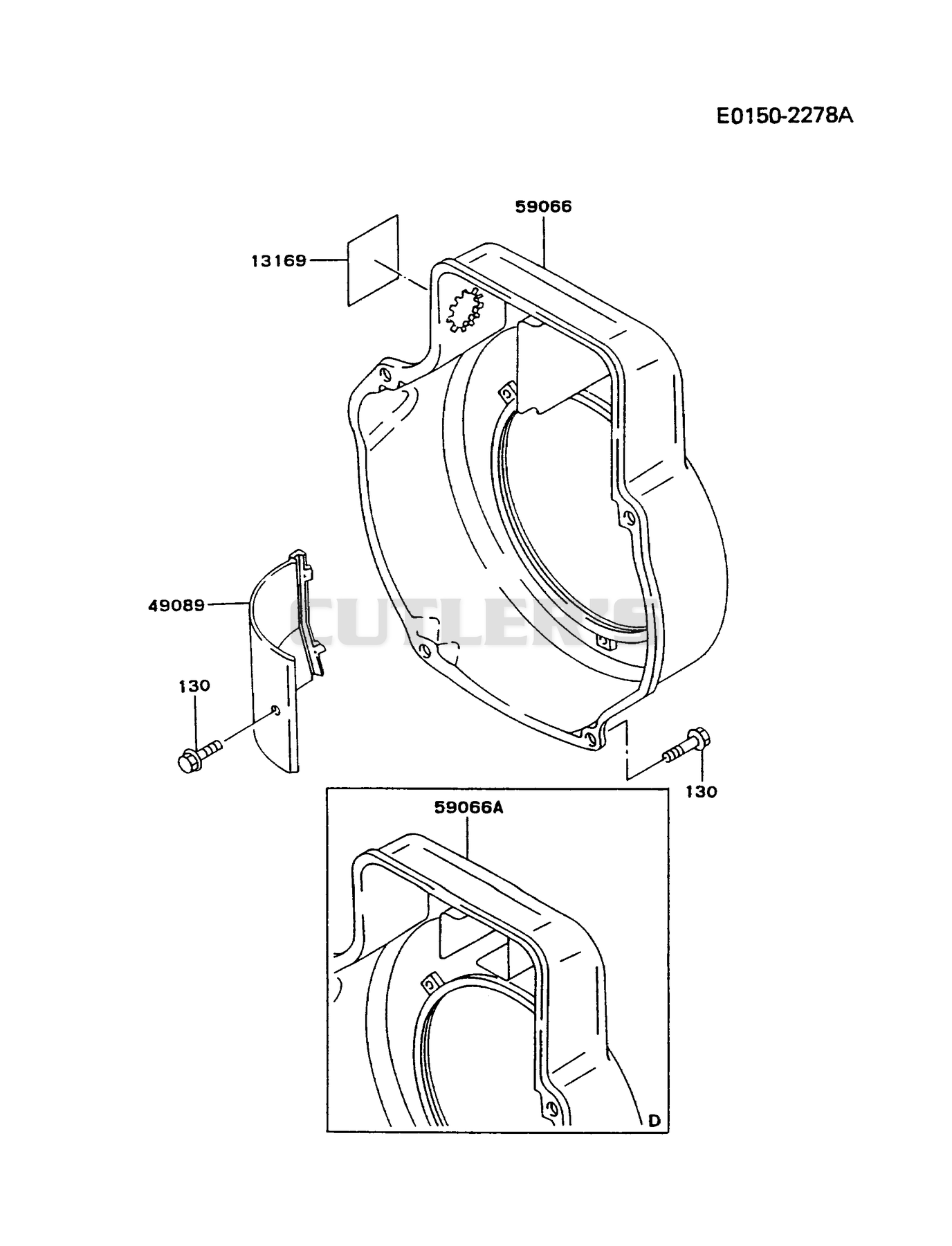

COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13169-2141
13169-2141
|
|||
|
|
49089-2055
49089-2055
|
|||
|
|
59066-2512-YC
59066-2512-YC
|
|||
|
|
130B0612
130B0612
|
CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11001-2104
11001-2104
|
|||
|
|
11004-2055
11004-2055
|
|||
|
|
11060-2052
11060-2052
|
|||
|
|
11060-2053
11060-2053
|
|||
|
|
11009-2015
11009-2015
|
|||
|
|
14069-2051
14069-2051
|
|||
|
|
49015-6022
49015-6022
|
|||
|
|
49108-2054
49108-2054
|
|||
|
|
49120-2164
49120-2164
|
|||
|
|
92002-2054
92002-2054
|
|||
|
|
92049-2052
92049-2052
|
|||
|
|
92049-2199
92049-2199
|
|||
|
|
130B0612
130B0612
|
|||
|
|
130B0828
130B0828
|
|||
|
|
130B0835
130B0835
|
|||
|
|
130G1045
130G1045
|
|||
|
|
551A0814
551A0814
|
|||
|
|
601A6204
601A6204
|
|||
|
|
601B6206
601B6206
|
ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13169-2225
13169-2225
|
|||
|
|
21119-2052
21119-2052
|
|||
|
|
21130-2066
21130-2066
|
|||
|
|
21169-2057
21169-2057
|
|||
|
|
21171-2066
21171-2066
|
|||
|
|
21194-2121
21194-2121
|
|||
|
|
26011-2227
26011-2227
|
|||
|
|
27010-2127
27010-2127
|
|||
|
|
92009-2339
92009-2339
|
|||
|
|
92015-2157
92015-2157
|
|||
|
|
92022-2102
92022-2102
|
|||
|
|
92022-2105
92022-2105
|
|||
|
|
92037-2165
92037-2165
|
|||
|
|
92038-2077
92038-2077
|
|||
|
|
92059-2051
92059-2051
|
|||
|
|
92059-2156
92059-2156
|
|||
|
|
BP4HS
BP4HS
|
|||
|
|
92071-2052
92071-2052
|
|||
|
|
92071-2053
92071-2053
|
|||
|
|
92037-1173
92037-1173
|
|||
|
|
92160-2031
92160-2031
|
|||
|
|
112AA0608
112AA0608
|
|||
|
|
130B0612
130B0612
|
|||
|
|
187B0625
187B0625
|
|||
|
|
318AA0800
318AA0800
|
|||
|
|
461DA0800
461DA0800
|
FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11060-2063
11060-2063
|
|||
|
|
11009-2115
11009-2115
|
|||
|
|
14043-2052
14043-2052
|
|||
|
|
32052-2053-YC
32052-2053-YC
|
|||
|
|
49019-2051
49019-2051
|
|||
|
|
49091-2053
49091-2053
|
|||
|
|
51001-2053-9H
51001-2053-9H
|
|||
|
|
51023-2096
51023-2096
|
|||
|
|
51036-2062
51036-2062
|
|||
|
|
51048-2055
51048-2055
|
|||
|
|
52005-2139
52005-2139
|
|||
|
|
92002-2055
92002-2055
|
|||
|
|
92009-2021
92009-2021
|
|||
|
|
92172-2064
92172-2064
|
|||
|
|
92009-1123
92009-1123
|
|||
|
|
92037-2052
92037-2052
|
|||
|
|
92055-2069
92055-2069
|
|||
|
|
92059-2094
92059-2094
|
|||
|
|
92075-2052
92075-2052
|
|||
|
|
92081-2036
92081-2036
|
|||
|
|
187AA0614
187AA0614
|
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56030-2051
56030-2051
|
|||
|
|
56031-2104
56031-2104
|
|||
|
|
56038-2158
56038-2158
|
|||
|
|
56038-2697
56038-2697
|
|||
|
|
56040-2270
56040-2270
|
LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16115-2085
16115-2085
|
|||
|
|
16115-2085
16115-2085
|
|||
|
|
52014-2057
52014-2057
|
|||
|
|
92055-2185
92055-2185
|
|||
|
|
92065-097
92065-097
|
|||
|
|
92066-2101
92066-2101
|
|||
|
|
180B0640
180B0640
|
|||
|
|
670B2018
670B2018
|
PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13001-2054
13001-2054
|
|||
|
|
13002-2068
13002-2068
|
|||
|
|
13008-6006
13008-6006
|
|||
|
|
13025-2071
13025-2071
|
|||
|
|
13025-2072
13025-2072
|
|||
|
|
13029-2075
13029-2075
|
|||
|
|
13029-2076
13029-2076
|
|||
|
|
13041-2051
13041-2051
|
|||
|
|
13251-6028
13251-6028
|
|||
|
|
49119-6061
49119-6061
|
|||
|
|
59051-2054
59051-2054
|
|||
|
|
59056-2015
59056-2015
|
|||
|
|
92033-2053
92033-2053
|
|||
|
|
92038-2101
92038-2101
|
|||
|
|
92038-2051
92038-2051
|
|||
|
|
92038-2077
92038-2077
|
|||
|
|
92150-2193
92150-2193
|
STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13165-2005
13165-2005
|
|||
|
|
14020-2005
14020-2005
|
|||
|
|
32099-2062-9H
32099-2062-9H
|
|||
|
|
46075-2002
46075-2002
|
|||
|
|
49080-2111
49080-2111
|
|||
|
|
49088-2085-9H
49088-2085-9H
|
|||
|
|
59101-2005
59101-2005
|
|||
|
|
59106-2005
59106-2005
|
|||
|
|
49074-2003
49074-2003
|
|||
|
|
49074-2004
49074-2004
|
|||
|
|
92081-2027
92081-2027
|
|||
|
|
92081-2034
92081-2034
|
|||
|
|
92081-2029
92081-2029
|
|||
|
|
130B0612
130B0612
|
|||
|
|
311AA0600
311AA0600
|
|||
|
|
461DA0600
461DA0600
|
VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12004-2088
12004-2088
|
|||
|
|
12005-2055
12005-2055
|
|||
|
|
39108-2052
39108-2052
|
|||
|
|
12032-2052
12032-2052
|
|||
|
|
49118-6024
49118-6024
|
|||
|
|
16007-2051
16007-2051
|
|||
|
|
49078-2053
49078-2053
|
