Kawasaki FR730V-CS15 Engine Parts Diagram
Diagrams:
Diagram:
KITS GASKET / CYLINDER HEAD
KITS GASKET / CYLINDER HEAD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11028-6322
11028-6322
|
|||
|
|
11028-6318
11028-6318
|
|||
|
|
99999-0627
99999-0627
|
|||
|
|
99999-0628
99999-0628
|
|||
|
|
99999-0629
99999-0629
|
MAINTENANCE PARTS
MAINTENANCE PARTS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
110130752
110130752
|
|||
|
|
110137046
110137046
|
|||
|
|
11029-0031
11029-0031
|
|||
|
|
BPR4ES
BPR4ES
|
|||
|
|
99969-6543
99969-6543
|
|||
|
|
99969-6544
99969-6544
|
|||
|
|
490650721BK
490650721BK
|
|||
|
|
49065-0724
49065-0724
|
|||
|
|
51044-0902
51044-0902
|
|||
|
|
49019-0031
49019-0031
|
|||
|
|
99969-6281
99969-6281
|
|||
|
|
99969-6273
99969-6273
|
|||
|
|
99969-6500
99969-6500
|
|||
|
|
99969-6578
99969-6578
|
|||
|
|
99969-6081
99969-6081
|
|||
|
|
99969-6274
99969-6274
|
|||
|
|
99969-6296
99969-6296
|
|||
|
|
99969-6297
99969-6297
|
|||
|
|
99969-6298
99969-6298
|
|||
|
|
99969-6504
99969-6504
|
|||
|
|
99969-6299
99969-6299
|
|||
|
|
99969-6501
99969-6501
|
|||
|
|
99969-6502
99969-6502
|
|||
|
|
99969-6568
99969-6568
|
REPLACEMENT ENGINE / ACCESSORIES
REPLACEMENT ENGINE / ACCESSORIES
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
49070-0878
49070-0878
|
|||
|
|
49070-0877
49070-0877
|
|||
|
|
99999-0769
99999-0769
|
|||
|
|
51044-0902
51044-0902
|
AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11011-0820
11011-0820
|
|||
|
|
110130752
110130752
|
|||
|
|
11060-7016
11060-7016
|
|||
|
|
11061-7086
11061-7086
|
|||
|
|
16060-0048
16060-0048
|
|||
|
|
16060-7038
16060-7038
|
|||
|
|
42036-7022
42036-7022
|
|||
|
|
92009-2303
92009-2303
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92066-0095
92066-0095
|
|||
|
|
92170-2042
92170-2042
|
|||
|
|
92173-1001
92173-1001
|
|||
|
|
92173-7003
92173-7003
|
|||
|
|
92173-7010
92173-7010
|
|||
|
|
92192-7146
92192-7146
|
|||
|
|
92192-7165
92192-7165
|
|||
|
|
92210-7027
92210-7027
|
|||
|
|
461DA0800
461DA0800
|

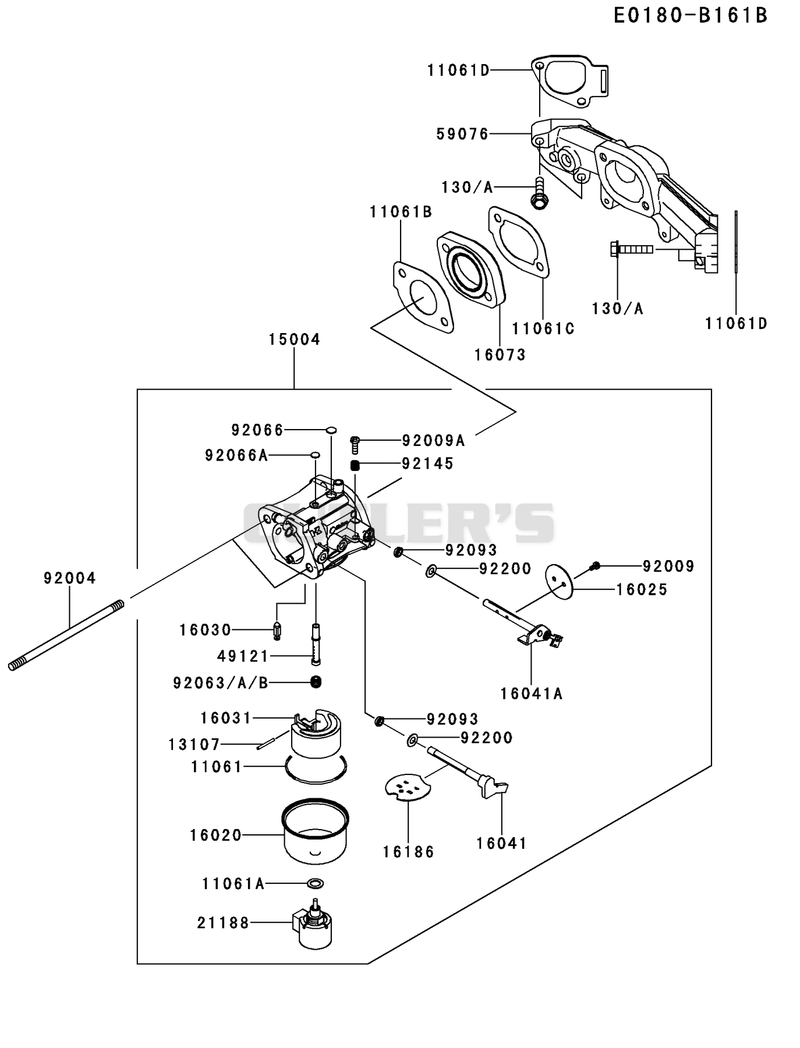

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11061-7009
11061-7009
|
|||
|
|
11061-7010
11061-7010
|
|||
|
|
11061-7087
11061-7087
|
|||
|
|
11061-7088
11061-7088
|
|||
|
|
11061-7093
11061-7093
|
|||
|
|
13107-7018
13107-7018
|
|||
|
|
15004-0984
15004-0984
|
|||
|
|
16020-7003
16020-7003
|
|||
|
|
16025-7017
16025-7017
|
|||
|
|
16030-7003
16030-7003
|
|||
|
|
16031-7002
16031-7002
|
|||
|
|
16041-0007
16041-0007
|
|||
|
|
16041-7056
16041-7056
|
|||
|
|
16073-7013
16073-7013
|
|||
|
|
16186-7006
16186-7006
|
|||
|
|
21188-7002
21188-7002
|
|||
|
|
49121-7018
49121-7018
|
|||
|
|
59076-0009
59076-0009
|
|||
|
|
92004-0723
92004-0723
|
|||
|
|
92009-2083
92009-2083
|
|||
|
|
92009-2349
92009-2349
|
|||
|
|
92063-7141
92063-7141
|
|||
|
|
92063-7142
92063-7142
|
|||
|
|
92063-7149
92063-7149
|
|||
|
|
92066-2204
92066-2204
|
|||
|
|
92066-2244
92066-2244
|
|||
|
|
92093-0593
92093-0593
|
|||
|
|
92145-1579
92145-1579
|
|||
|
|
92200-0848
92200-0848
|
|||
|
|
130BA0630
130BA0630
|
CONTROL-EQUIPMENT
CONTROL-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13107-7047
13107-7047
|
|||
|
|
13271-7038
13271-7038
|
|||
|
|
16171-0042
16171-0042
|
|||
|
|
39129-0030
39129-0030
|
|||
|
|
49103-0010
49103-0010
|
|||
|
|
49103-7014
49103-7014
|
|||
|
|
49113-0727
49113-0727
|
|||
|
|
92145-1811
92145-1811
|
|||
|
|
92145-1812
92145-1812
|
|||
|
|
92150-2182
92150-2182
|
|||
|
|
92153-0009
92153-0009
|
|||
|
|
92154-2697
92154-2697
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92170-7001
92170-7001
|
|||
|
|
92172-0792
92172-0792
|
|||
|
|
92172-0870
92172-0870
|
|||
|
|
311BA0600
311BA0600
|
|||
|
|
312AA0500
312AA0500
|
|||
|
|
411AA0600
411AA0600
|
COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13272-1487
13272-1487
|
|||
|
|
14037-7008-9H
14037-7008-9H
|
|||
|
|
23062-7024
23062-7024
|
|||
|
|
49089-7079
49089-7079
|
|||
|
|
49089-7080
49089-7080
|
|||
|
|
55020-0900
55020-0900
|
|||
|
|
59041-7014
59041-7014
|
|||
|
|
59066-0820
59066-0820
|
|||
|
|
92026-7007
92026-7007
|
|||
|
|
92039-0751
92039-0751
|
|||
|
|
92153-7007
92153-7007
|
|||
|
|
92154-2687
92154-2687
|
|||
|
|
92154-2938
92154-2938
|

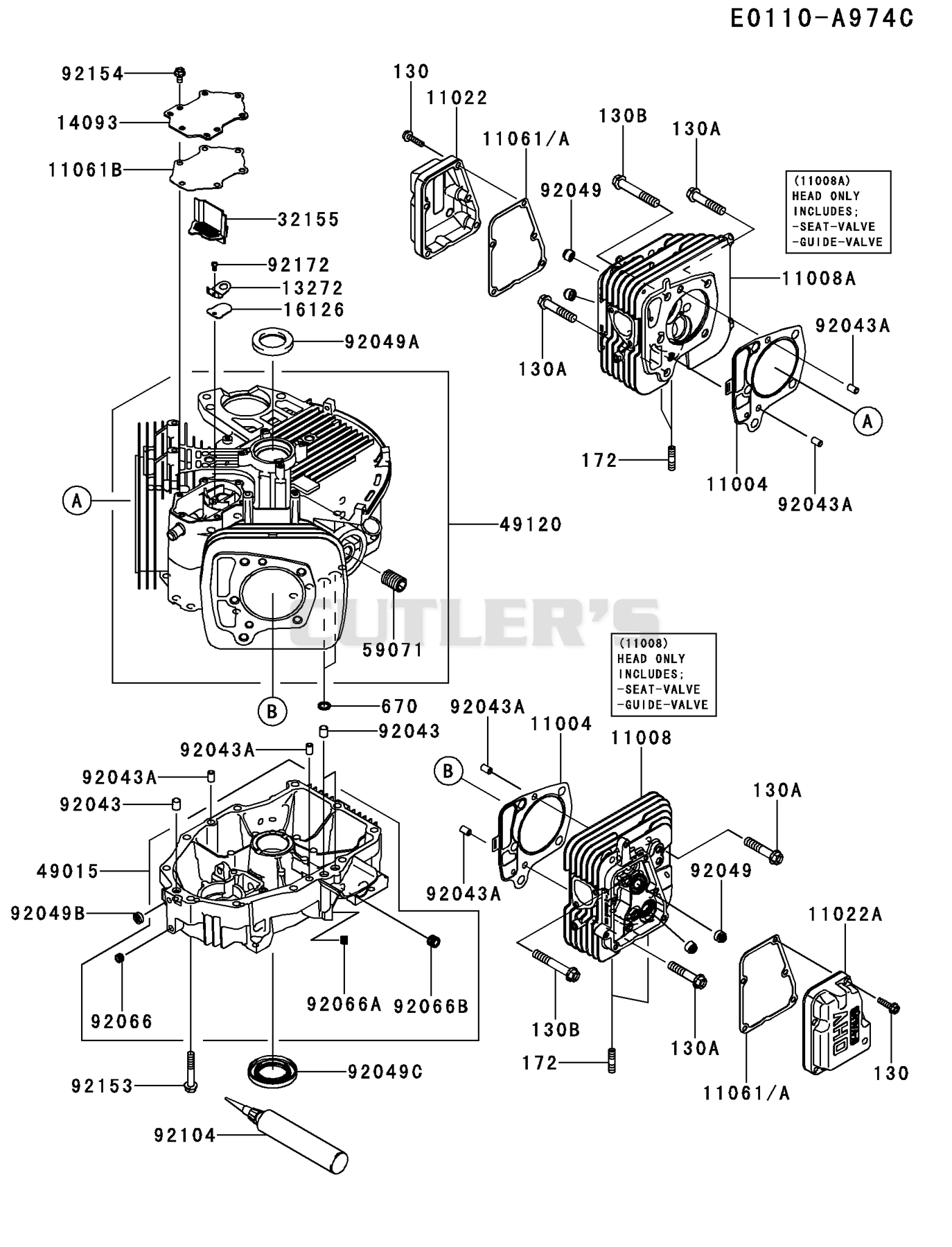

CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11004-7026
11004-7026
|
|||
|
|
11008-0845
11008-0845
|
|||
|
|
11008-0861
11008-0861
|
|||
|
|
11022-0046
11022-0046
|
|||
|
|
11022-0047
11022-0047
|
|||
|
|
11061-1285
11061-1285
|
|||
|
|
11061-7094
11061-7094
|
|||
|
|
13272-1374
13272-1374
|
|||
|
|
14093-0455
14093-0455
|
|||
|
|
16126-7020
16126-7020
|
|||
|
|
32155-2214
32155-2214
|
|||
|
|
49015-0023
49015-0023
|
|||
|
|
49120-0858
49120-0858
|
|||
|
|
59071-0733
59071-0733
|
|||
|
|
92043-0858
92043-0858
|
|||
|
|
92043-1263
92043-1263
|
|||
|
|
92049-7001
92049-7001
|
|||
|
|
92049-7010
92049-7010
|
|||
|
|
92049-7019
92049-7019
|
|||
|
|
92049-7028
92049-7028
|
|||
|
|
92066-0880
92066-0880
|
|||
|
|
92066-0881
92066-0881
|
|||
|
|
92066-2223
92066-2223
|
|||
|
|
92104-0007
92104-0007
|
|||
|
|
92153-7054
92153-7054
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92172-0870
92172-0870
|
|||
|
|
130BA0625
130BA0625
|
|||
|
|
130CA1050
130CA1050
|
|||
|
|
130CA1065
130CA1065
|
|||
|
|
172BA0822
172BA0822
|
|||
|
|
670B2011
670B2011
|

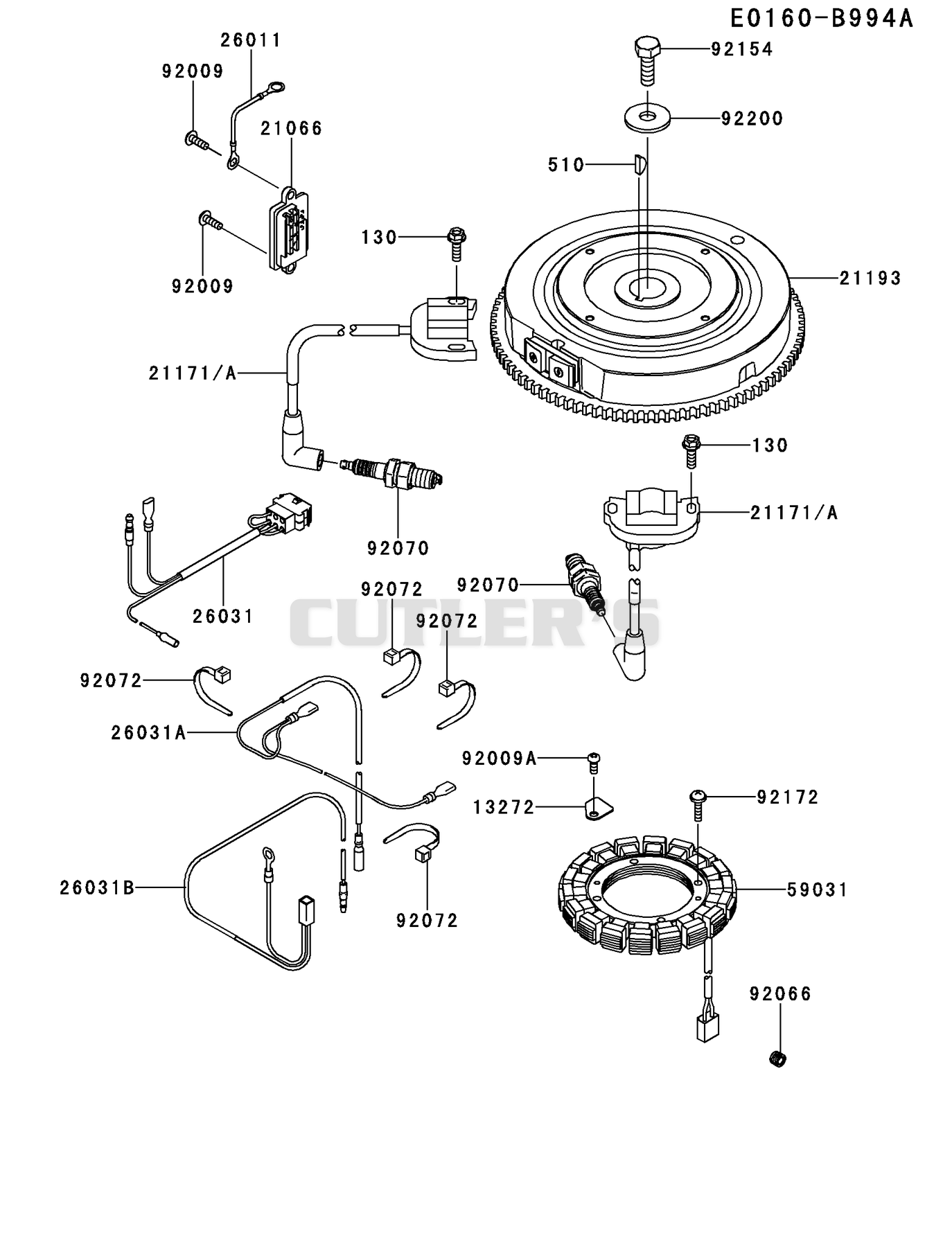

ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13272-7012
13272-7012
|
|||
|
|
21066-7017
21066-7017
|
|||
|
|
21171-0740
21171-0740
|
|||
|
|
21193-0035
21193-0035
|
|||
|
|
26011-2234
26011-2234
|
|||
|
|
26031-1624
26031-1624
|
|||
|
|
26031-7040
26031-7040
|
|||
|
|
26031-7041
26031-7041
|
|||
|
|
59031-7017
59031-7017
|
|||
|
|
92009-2303
92009-2303
|
|||
|
|
92009-2308
92009-2308
|
|||
|
|
92066-0881
92066-0881
|
|||
|
|
BPR4ES
BPR4ES
|
|||
|
|
92072-7003
92072-7003
|
|||
|
|
92154-7003
92154-7003
|
|||
|
|
92172-7018
92172-7018
|
|||
|
|
92200-7002
92200-7002
|
|||
|
|
130BA0620
130BA0620
|
|||
|
|
510A5100
510A5100
|
FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
42036-7015
42036-7015
|
|||
|
|
49019-0027
49019-0027
|
|||
|
|
49040-0770
49040-0770
|
|||
|
|
92009-2303
92009-2303
|
|||
|
|
92170-2009
92170-2009
|
|||
|
|
92173-1000
92173-1000
|
|||
|
|
92192-1551
92192-1551
|
|||
|
|
92192-1555
92192-1555
|
|||
|
|
92192-7148
92192-7148
|
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56033-7001
56033-7001
|
|||
|
|
56071-0216
56071-0216
|
|||
|
|
56080-0023
56080-0023
|
LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13272-7011
13272-7011
|
|||
|
|
14075-0707
14075-0707
|
|||
|
|
16154-7010
16154-7010
|
|||
|
|
16154-7011
16154-7011
|
|||
|
|
49065-7006
49065-7006
|
|||
|
|
490650721BK
490650721BK
|
|||
|
|
59231-0746
59231-0746
|
|||
|
|
92055-0892
92055-0892
|
|||
|
|
92066-0774
92066-0774
|
|||
|
|
92140-7003
92140-7003
|
|||
|
|
92145-1809
92145-1809
|
|||
|
|
92153-7008
92153-7008
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
555A0420
555A0420
|
PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13001-7027
13001-7027
|
|||
|
|
13002-0704
13002-0704
|
|||
|
|
13008-0569
13008-0569
|
|||
|
|
13025-0016
13025-0016
|
|||
|
|
13029-7010
13029-7010
|
|||
|
|
13031-0822
13031-0822
|
|||
|
|
13251-0719
13251-0719
|
|||
|
|
92033-0790
92033-0790
|
|||
|
|
92154-2842
92154-2842
|
STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13101-0650
13101-0650
|
|||
|
|
16146-7013
16146-7013
|
|||
|
|
21039-7002
21039-7002
|
|||
|
|
21080-0009
21080-0009
|
|||
|
|
21163-0749
21163-0749
|
|||
|
|
27012-7008
27012-7008
|
|||
|
|
39184-0019
39184-0019
|
|||
|
|
92153-7034
92153-7034
|
|||
|
|
92200-7023
92200-7023
|
|||
|
|
92200-7024
92200-7024
|
|||
|
|
130BA0840
130BA0840
|
VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11055-7009
11055-7009
|
|||
|
|
12004-0733
12004-0733
|
|||
|
|
12005-0777
12005-0777
|
|||
|
|
12009-7001
12009-7001
|
|||
|
|
12011-2056
12011-2056
|
|||
|
|
12016-0040
12016-0040
|
|||
|
|
12032-7001
12032-7001
|
|||
|
|
13070-7017
13070-7017
|
|||
|
|
13116-0725
13116-0725
|
|||
|
|
13271-7007
13271-7007
|
|||
|
|
13271-7021
13271-7021
|
|||
|
|
42036-7021
42036-7021
|
|||
|
|
49078-7002
49078-7002
|
|||
|
|
49118-7022
49118-7022
|
|||
|
|
92033-0778
92033-0778
|
|||
|
|
92140-7005
92140-7005
|
|||
|
|
92145-1653
92145-1653
|
|||
|
|
92152-1689
92152-1689
|
|||
|
|
92153-7100
92153-7100
|
|||
|
|
92154-1267
92154-1267
|
|||
|
|
92200-0945
92200-0945
|
|||
|
|
92200-2151
92200-2151
|
|||
|
|
92200-7048
92200-7048
|
|||
|
|
312AA0600
312AA0600
|
