Kawasaki FX541V-CS07 Engine Parts Diagram
Diagrams:
Diagram:

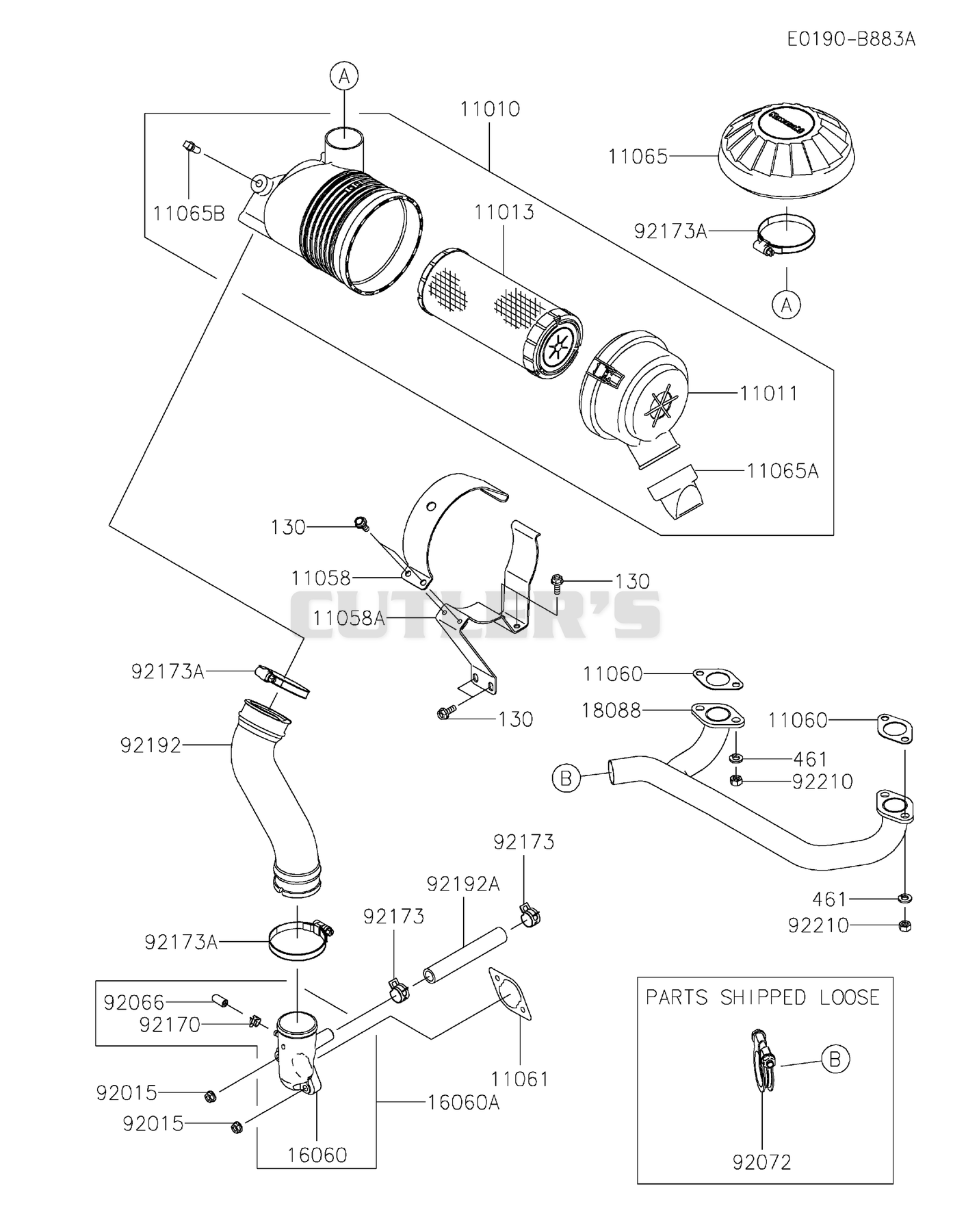

AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11010-7031
11010-7031
|
|||
|
|
11011-7058
11011-7058
|
|||
|
|
11013-7048
11013-7048
|
|||
|
|
11058-2118
11058-2118
|
|||
|
|
11058-2136
11058-2136
|
|||
|
|
11060-7016
11060-7016
|
|||
|
|
11061-7095
11061-7095
|
|||
|
|
11065-1392
11065-1392
|
|||
|
|
11065-7031
11065-7031
|
|||
|
|
11065-7032
11065-7032
|
|||
|
|
16060-0791
16060-0791
|
|||
|
|
16060-0792
16060-0792
|
|||
|
|
18088-1787
18088-1787
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92066-0095
92066-0095
|
|||
|
|
92072-7013
92072-7013
|
|||
|
|
92170-2042
92170-2042
|
|||
|
|
92173-7003
92173-7003
|
|||
|
|
92173-7009
92173-7009
|
|||
|
|
92192-2624
92192-2624
|
|||
|
|
92192-7146
92192-7146
|
|||
|
|
92210-7027
92210-7027
|
|||
|
|
130BA0616
130BA0616
|
|||
|
|
461DA0800
461DA0800
|
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11061-0877
11061-0877
|
|||
|
|
11061-1573
11061-1573
|
|||
|
|
11061-7009
11061-7009
|
|||
|
|
11061-7096
11061-7096
|
|||
|
|
13107-7018
13107-7018
|
|||
|
|
15004-0819
15004-0819
|
|||
|
|
16014-7011
16014-7011
|
|||
|
|
16020-7003
16020-7003
|
|||
|
|
16025-7006
16025-7006
|
|||
|
|
16030-7003
16030-7003
|
|||
|
|
16031-7002
16031-7002
|
|||
|
|
16041-7018
16041-7018
|
|||
|
|
16041-7049
16041-7049
|
|||
|
|
16073-0876
16073-0876
|
|||
|
|
16186-7001
16186-7001
|
|||
|
|
21188-7002
21188-7002
|
|||
|
|
39076-7001
39076-7001
|
|||
|
|
49121-7020
49121-7020
|
|||
|
|
59076-7020
59076-7020
|
|||
|
|
92004-2149
92004-2149
|
|||
|
|
92009-2083
92009-2083
|
|||
|
|
92009-2349
92009-2349
|
|||
|
|
92063-7046
92063-7046
|
|||
|
|
92063-7047
92063-7047
|
|||
|
|
92063-7156
92063-7156
|
|||
|
|
92066-2204
92066-2204
|
|||
|
|
92066-2244
92066-2244
|
|||
|
|
92093-0593
92093-0593
|
|||
|
|
92093-0594
92093-0594
|
|||
|
|
92145-0931
92145-0931
|
|||
|
|
92145-1579
92145-1579
|
|||
|
|
92145-7015
92145-7015
|
|||
|
|
92200-0848
92200-0848
|
|||
|
|
92200-2061
92200-2061
|
|||
|
|
130BA0635
130BA0635
|

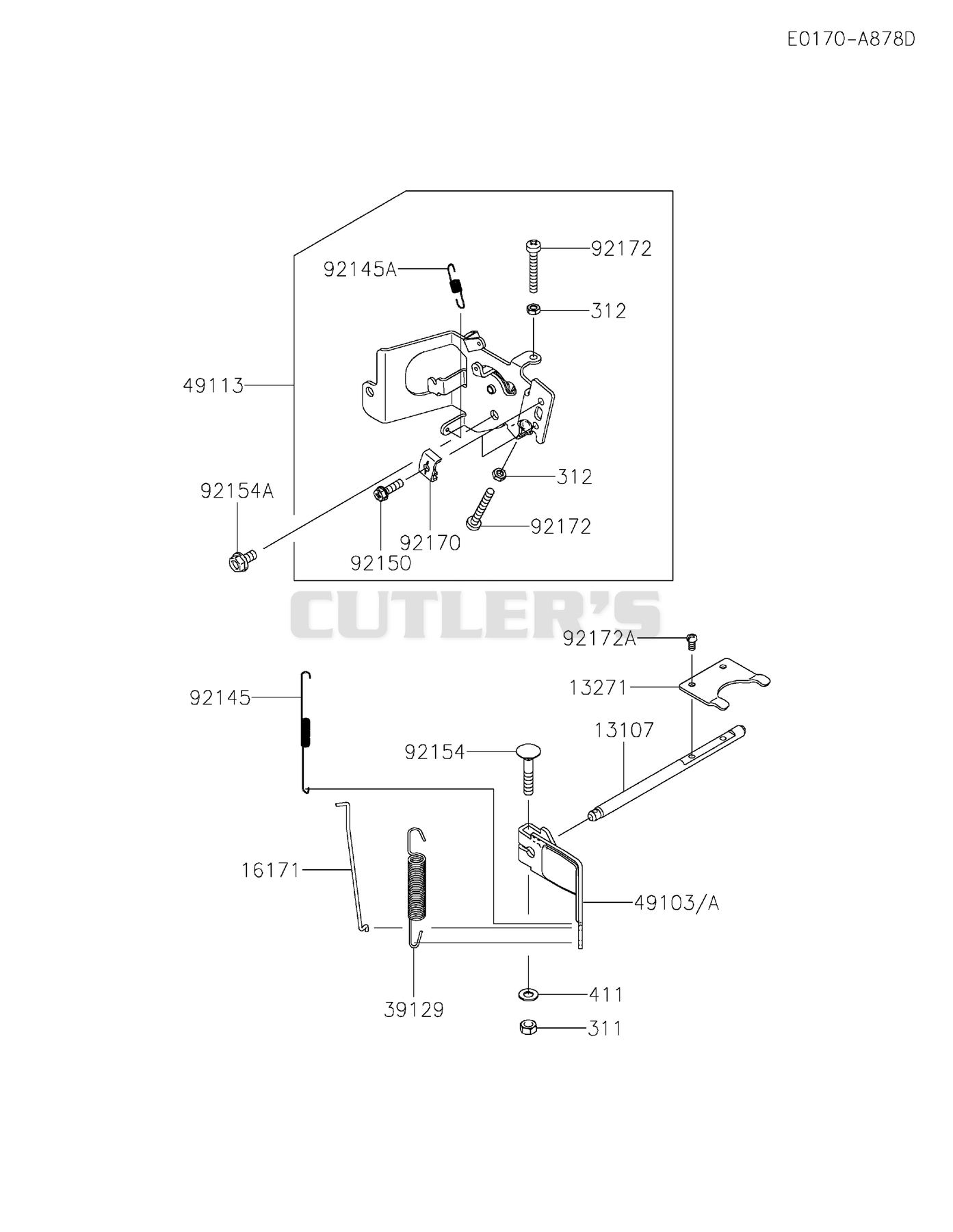

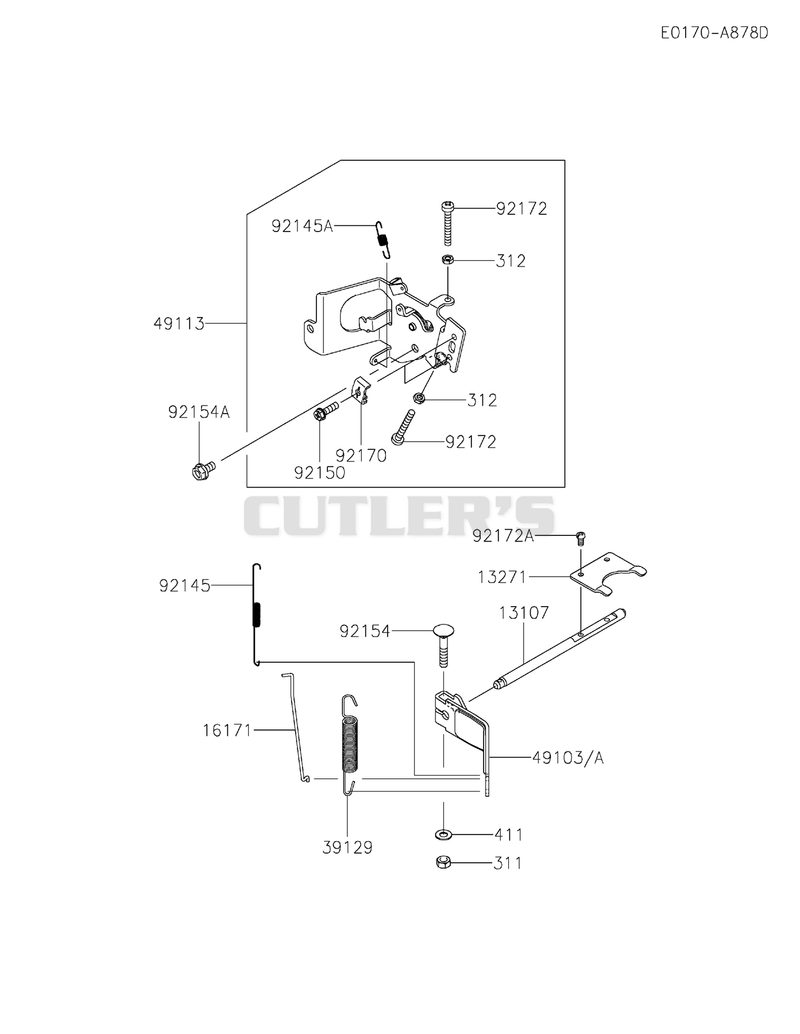

CONTROL-EQUIPMENT
CONTROL-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13107-1555
13107-1555
|
|||
|
|
13271-7038
13271-7038
|
|||
|
|
16171-0044
16171-0044
|
|||
|
|
39129-0725
39129-0725
|
|||
|
|
49103-0018
49103-0018
|
|||
|
|
49113-0744
49113-0744
|
|||
|
|
92145-1811
92145-1811
|
|||
|
|
92145-7004
92145-7004
|
|||
|
|
92150-2182
92150-2182
|
|||
|
|
92154-2697
92154-2697
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92170-7001
92170-7001
|
|||
|
|
92172-0792
92172-0792
|
|||
|
|
92172-0870
92172-0870
|
|||
|
|
311BA0600
311BA0600
|
|||
|
|
312AA0500
312AA0500
|
|||
|
|
411AA0600
411AA0600
|
COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14037-7008-9H
14037-7008-9H
|
|||
|
|
14094-0475
14094-0475
|
|||
|
|
14094-0476
14094-0476
|
|||
|
|
49089-1197
49089-1197
|
|||
|
|
49089-1198
49089-1198
|
|||
|
|
55020-2505
55020-2505
|
|||
|
|
59041-7016
59041-7016
|
|||
|
|
59066-0855
59066-0855
|
|||
|
|
92153-7007
92153-7007
|
|||
|
|
92154-1119
92154-1119
|
|||
|
|
92154-2815
92154-2815
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92172-1608
92172-1608
|
CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11004-7027
11004-7027
|
|||
|
|
11008-7050
11008-7050
|
|||
|
|
11008-7051
11008-7051
|
|||
|
|
11022-0046
11022-0046
|
|||
|
|
11022-0047
11022-0047
|
|||
|
|
11061-1285
11061-1285
|
|||
|
|
11061-7094
11061-7094
|
|||
|
|
13272-3997
13272-3997
|
|||
|
|
14091-7064
14091-7064
|
|||
|
|
16126-7020
16126-7020
|
|||
|
|
27012-0721
27012-0721
|
|||
|
|
32155-7455
32155-7455
|
|||
|
|
49015-0726
49015-0726
|
|||
|
|
49120-0883
49120-0883
|
|||
|
|
59071-0743
59071-0743
|
|||
|
|
92004-0823
92004-0823
|
|||
|
|
92043-0858
92043-0858
|
|||
|
|
92043-1263
92043-1263
|
|||
|
|
92049-0862
92049-0862
|
|||
|
|
92049-7010
92049-7010
|
|||
|
|
92049-7019
92049-7019
|
|||
|
|
92049-7028
92049-7028
|
|||
|
|
92066-0880
92066-0880
|
|||
|
|
92066-0881
92066-0881
|
|||
|
|
92066-2223
92066-2223
|
|||
|
|
92104-0007
92104-0007
|
|||
|
|
92153-7054
92153-7054
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92172-0870
92172-0870
|
|||
|
|
130BA0625
130BA0625
|
|||
|
|
130CA0870
130CA0870
|
|||
|
|
670B2011
670B2011
|

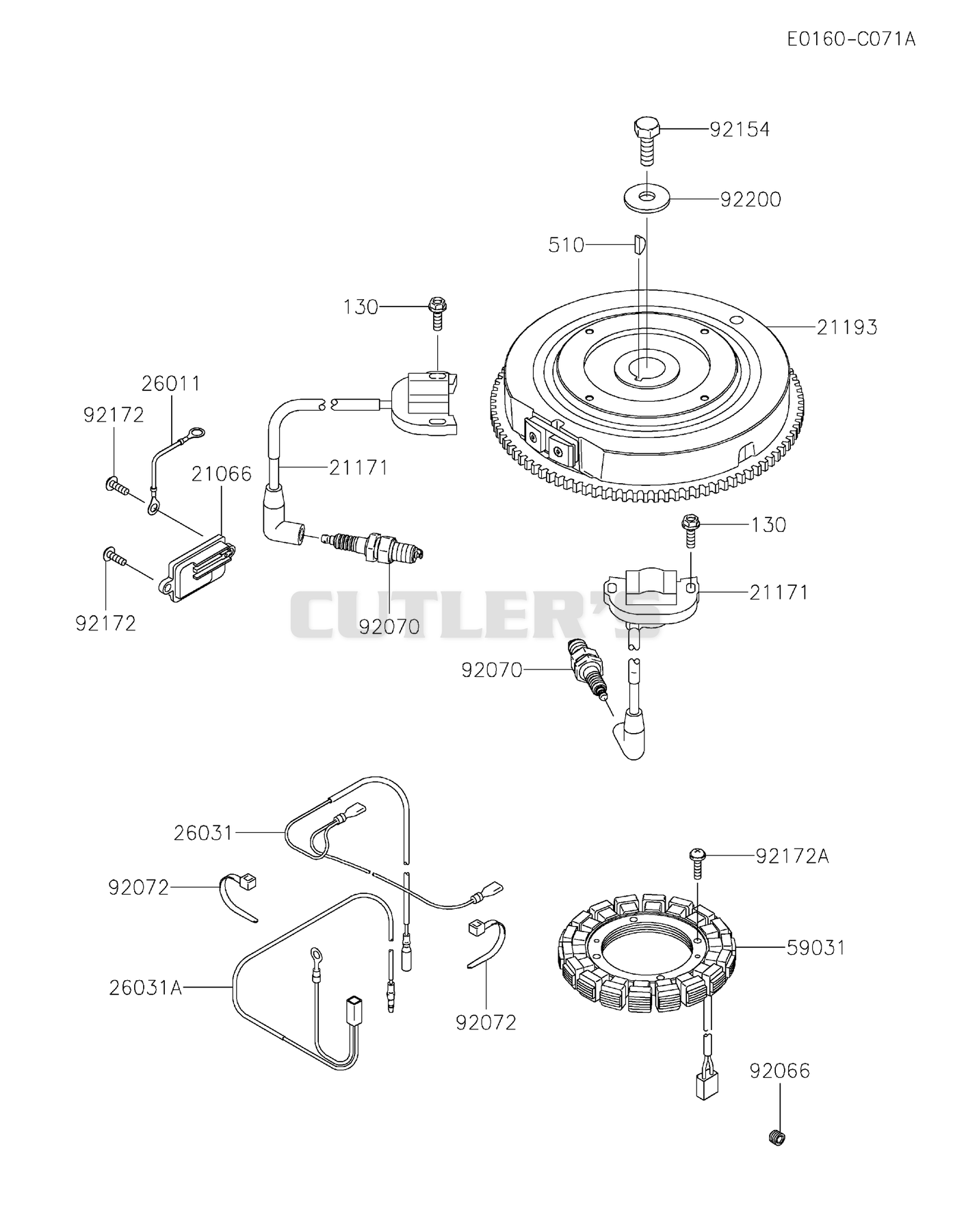

ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21066-7017
21066-7017
|
|||
|
|
21171-0740
21171-0740
|
|||
|
|
21193-0719
21193-0719
|
|||
|
|
26011-2234
26011-2234
|
|||
|
|
26031-7040
26031-7040
|
|||
|
|
26031-7047
26031-7047
|
|||
|
|
59031-7017
59031-7017
|
|||
|
|
92066-0881
92066-0881
|
|||
|
|
BPR4ES
BPR4ES
|
|||
|
|
92072-0911
92072-0911
|
|||
|
|
92154-7003
92154-7003
|
|||
|
|
92172-1091
92172-1091
|
|||
|
|
92172-7018
92172-7018
|
|||
|
|
92200-2119
92200-2119
|
|||
|
|
130BA0620
130BA0620
|
|||
|
|
510A5100
510A5100
|
FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
42036-7015
42036-7015
|
|||
|
|
49019-0031
49019-0031
|
|||
|
|
49040-0802
49040-0802
|
|||
|
|
92172-1608
92172-1608
|
|||
|
|
92173-1000
92173-1000
|
|||
|
|
92173-1582
92173-1582
|
|||
|
|
92192-2388
92192-2388
|
|||
|
|
92192-2397
92192-2397
|
|||
|
|
92192-7148
92192-7148
|

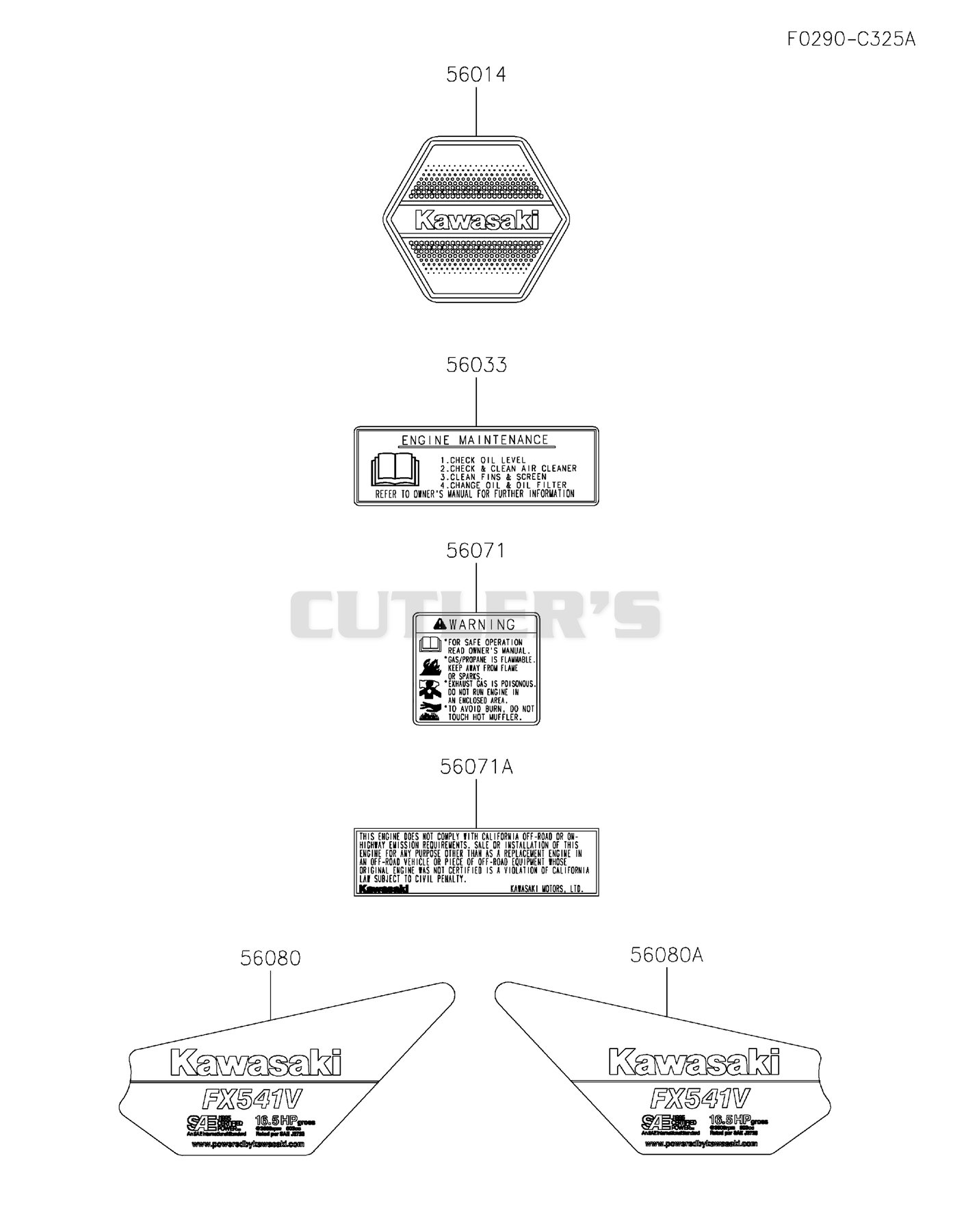

LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
560140021
560140021
|
|||
|
|
56033-1502
56033-1502
|
|||
|
|
56071-1170
56071-1170
|
|||
|
|
56071-1311
56071-1311
|
|||
|
|
56080-0984
56080-0984
|
|||
|
|
56080-0985
56080-0985
|

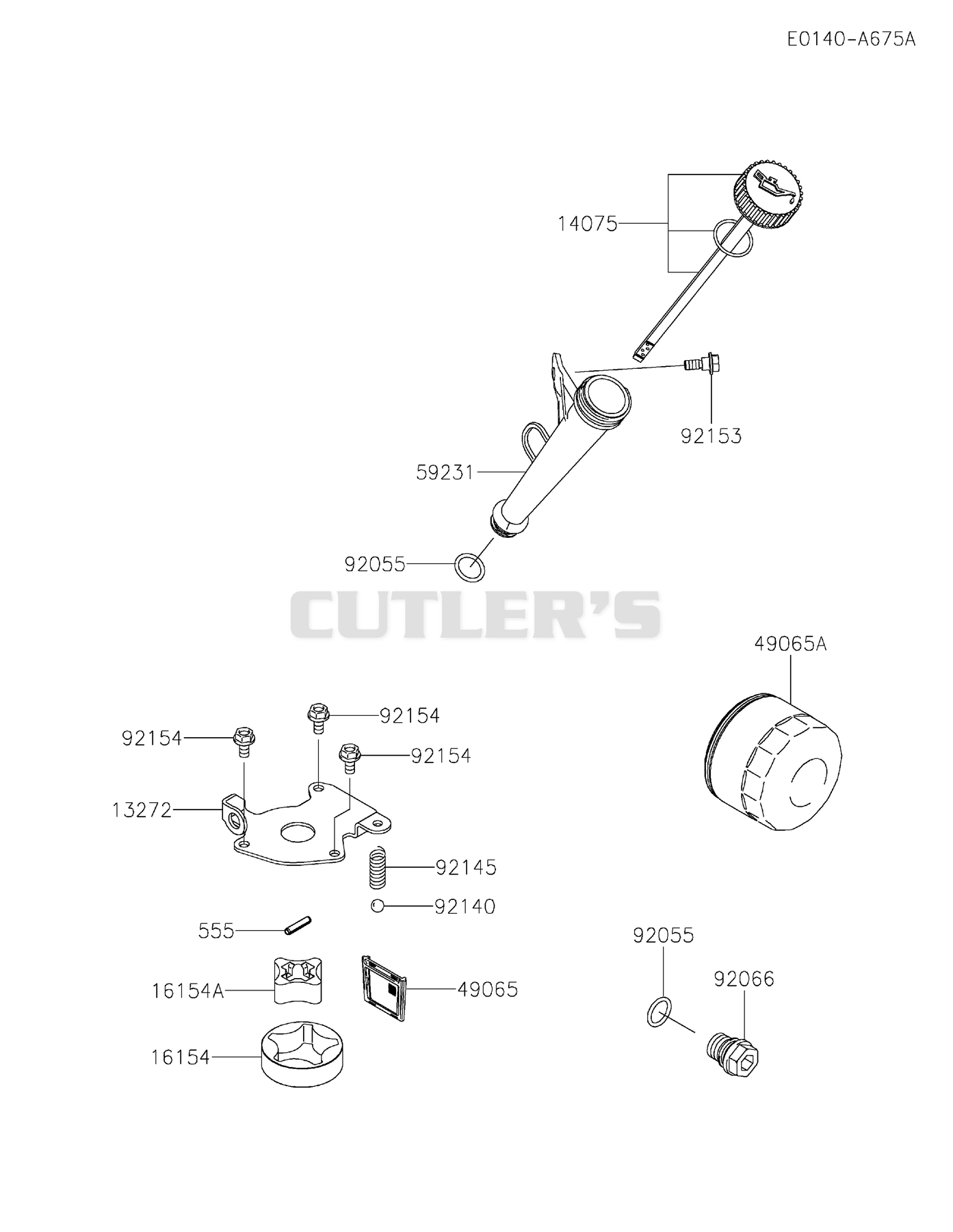

LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13272-4000
13272-4000
|
|||
|
|
14075-0725
14075-0725
|
|||
|
|
16154-7010
16154-7010
|
|||
|
|
16154-7011
16154-7011
|
|||
|
|
49065-0720
49065-0720
|
|||
|
|
49065-0736
49065-0736
|
|||
|
|
59231-0778
59231-0778
|
|||
|
|
92055-0892
92055-0892
|
|||
|
|
92066-0774
92066-0774
|
|||
|
|
92140-0029
92140-0029
|
|||
|
|
92145-1809
92145-1809
|
|||
|
|
92153-7007
92153-7007
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
555A0420
555A0420
|
PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13001-7031
13001-7031
|
|||
|
|
13002-7001
13002-7001
|
|||
|
|
13008-0583
13008-0583
|
|||
|
|
13025-7010
13025-7010
|
|||
|
|
13029-7011
13029-7011
|
|||
|
|
13031-0817
13031-0817
|
|||
|
|
13251-0741
13251-0741
|
|||
|
|
92033-0780
92033-0780
|
|||
|
|
92154-2842
92154-2842
|

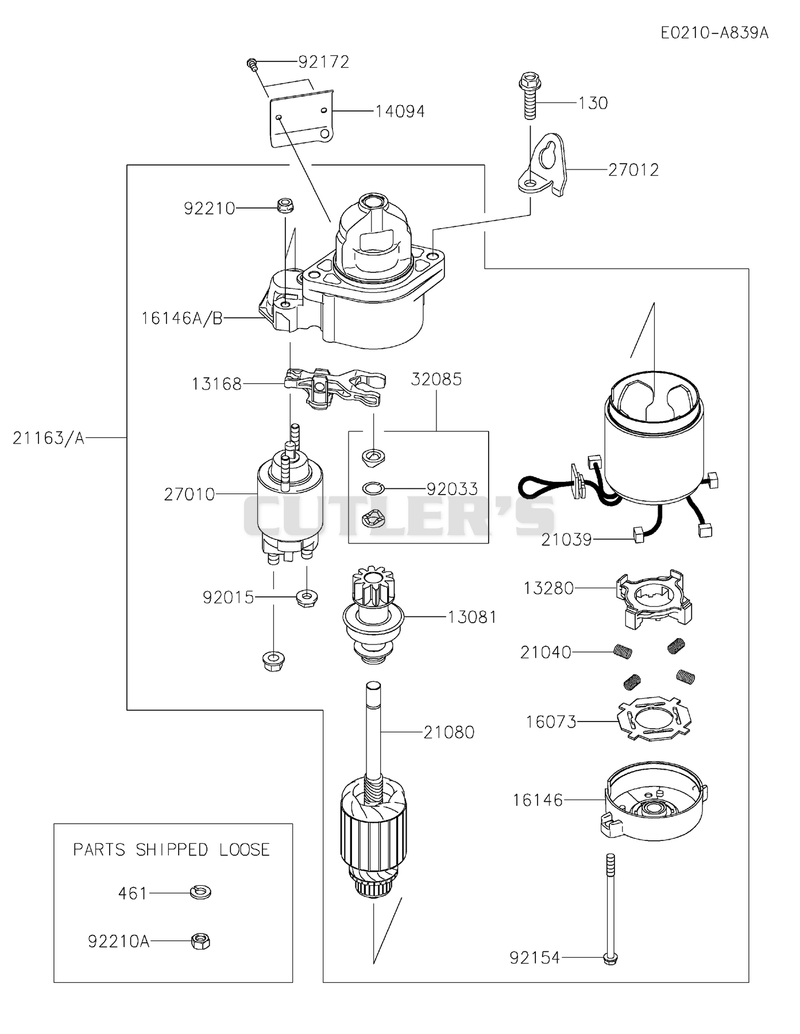

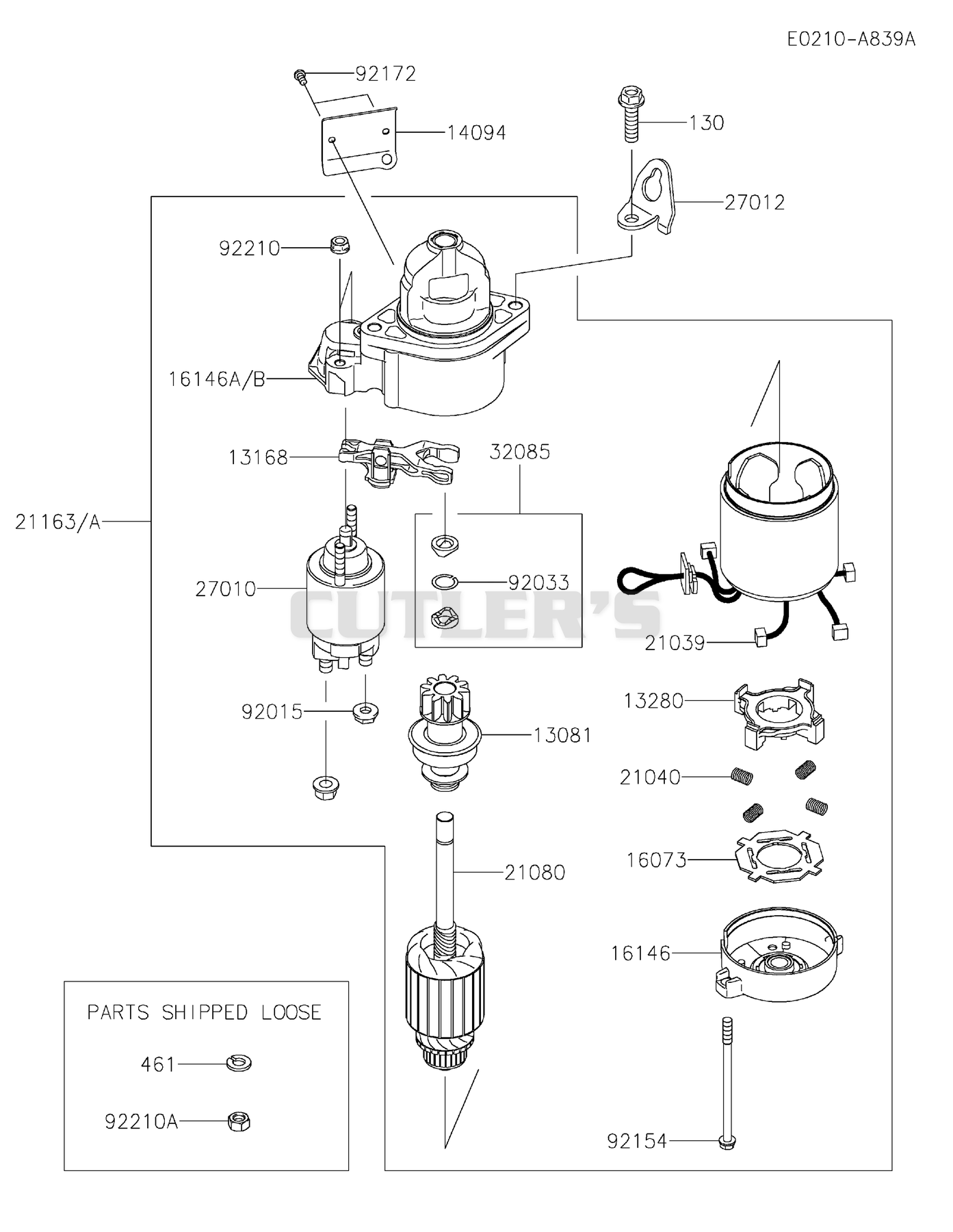

STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13081-0651
13081-0651
|
|||
|
|
13168-0847
13168-0847
|
|||
|
|
13280-0873
13280-0873
|
|||
|
|
14094-0528
14094-0528
|
|||
|
|
16073-0854
16073-0854
|
|||
|
|
16146-0796
16146-0796
|
|||
|
|
16146-0943
16146-0943
|
|||
|
|
21039-0011
21039-0011
|
|||
|
|
21040-0005
21040-0005
|
|||
|
|
21080-0011
21080-0011
|
|||
|
|
21163-0810
21163-0810
|
|||
|
|
27010-0843
27010-0843
|
|||
|
|
27012-7008
27012-7008
|
|||
|
|
32085-0797
32085-0797
|
|||
|
|
92015-2147
92015-2147
|
|||
|
|
92033-0777
92033-0777
|
|||
|
|
92154-2116
92154-2116
|
|||
|
|
92172-0870
92172-0870
|
|||
|
|
92210-1493
92210-1493
|
|||
|
|
92210-7027
92210-7027
|
|||
|
|
130BA0830
130BA0830
|
|||
|
|
461DA0800
461DA0800
|
VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11055-7009
11055-7009
|
|||
|
|
12004-0740
12004-0740
|
|||
|
|
12005-0793
12005-0793
|
|||
|
|
12009-7001
12009-7001
|
|||
|
|
12011-2056
12011-2056
|
|||
|
|
12016-0040
12016-0040
|
|||
|
|
12032-7001
12032-7001
|
|||
|
|
13070-0997
13070-0997
|
|||
|
|
13116-7008
13116-7008
|
|||
|
|
13271-7007
13271-7007
|
|||
|
|
13271-7021
13271-7021
|
|||
|
|
42036-7021
42036-7021
|
|||
|
|
49078-7002
49078-7002
|
|||
|
|
49118-0809
49118-0809
|
|||
|
|
92033-0778
92033-0778
|
|||
|
|
92140-0026
92140-0026
|
|||
|
|
92145-1653
92145-1653
|
|||
|
|
92152-1689
92152-1689
|
|||
|
|
92153-7100
92153-7100
|
|||
|
|
92154-1267
92154-1267
|
|||
|
|
92200-0945
92200-0945
|
|||
|
|
92200-2707
92200-2707
|
|||
|
|
92200-7048
92200-7048
|
|||
|
|
312AA0600
312AA0600
|
