Kawasaki FX781A-AS05 Engine Parts Diagram
Diagrams:
Diagram:

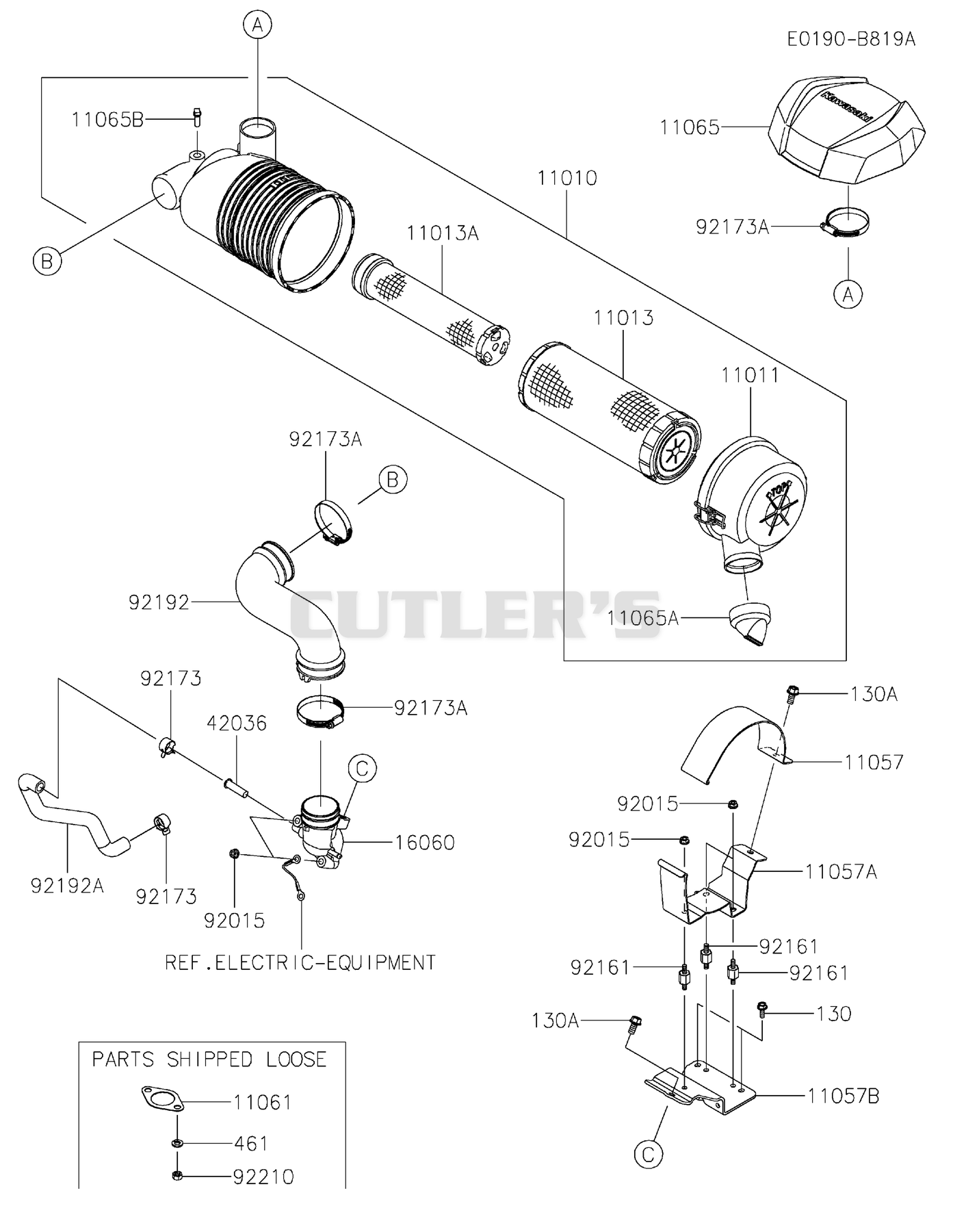

AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11010-0995
11010-0995
|
|||
|
|
11011-0960
11011-0960
|
|||
|
|
11013-7044
11013-7044
|
|||
|
|
11013-7045
11013-7045
|
|||
|
|
11057-4280
11057-4280
|
|||
|
|
11057-7395
11057-7395
|
|||
|
|
11057-7497
11057-7497
|
|||
|
|
11061-1405
11061-1405
|
|||
|
|
11065-1399
11065-1399
|
|||
|
|
11065-7031
11065-7031
|
|||
|
|
11065-7032
11065-7032
|
|||
|
|
16060-0782
16060-0782
|
|||
|
|
42036-0903
42036-0903
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92161-1840
92161-1840
|
|||
|
|
92173-7003
92173-7003
|
|||
|
|
92173-7010
92173-7010
|
|||
|
|
92192-2514
92192-2514
|
|||
|
|
92192-2515
92192-2515
|
|||
|
|
92210-7027
92210-7027
|
|||
|
|
130BA0616
130BA0616
|
|||
|
|
130BA-0816
130BA-0816
|
|||
|
|
461DA0800
461DA0800
|
COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13272-3868
13272-3868
|
|||
|
|
13272-3907
13272-3907
|
|||
|
|
13272-3909
13272-3909
|
|||
|
|
14037-0804
14037-0804
|
|||
|
|
14093-1182
14093-1182
|
|||
|
|
14093-1183
14093-1183
|
|||
|
|
39067-0026
39067-0026
|
|||
|
|
49089-1152
49089-1152
|
|||
|
|
49089-1153
49089-1153
|
|||
|
|
49089-1158
49089-1158
|
|||
|
|
55020-2376
55020-2376
|
|||
|
|
59041-0016
59041-0016
|
|||
|
|
59066-0863
59066-0863
|
|||
|
|
92039-0751
92039-0751
|
|||
|
|
92152-1511
92152-1511
|
|||
|
|
92153-0010
92153-0010
|
|||
|
|
92154-2665
92154-2665
|
|||
|
|
92154-2687
92154-2687
|
|||
|
|
92154-2815
92154-2815
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92154-4098
92154-4098
|
|||
|
|
92154-4378
92154-4378
|
|||
|
|
92172-0896
92172-0896
|
|||
|
|
92173-1619
92173-1619
|
|||
|
|
92192-1649
92192-1649
|
|||
|
|
92192-1650
92192-1650
|
|||
|
|
92200-2035
92200-2035
|
|||
|
|
130BA0616
130BA0616
|
|||
|
|
130CA0620
130CA0620
|
CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11004-0803
11004-0803
|
|||
|
|
11008-1472
11008-1472
|
|||
|
|
11008-1473
11008-1473
|
|||
|
|
11022-0736
11022-0736
|
|||
|
|
11022-0738
11022-0738
|
|||
|
|
11061-1406
11061-1406
|
|||
|
|
11061-7081
11061-7081
|
|||
|
|
13272-1374
13272-1374
|
|||
|
|
14091-7060
14091-7060
|
|||
|
|
16126-7020
16126-7020
|
|||
|
|
49015-0742
49015-0742
|
|||
|
|
49120-0913
49120-0913
|
|||
|
|
59071-0743
59071-0743
|
|||
|
|
92004-0823
92004-0823
|
|||
|
|
92004-1208
92004-1208
|
|||
|
|
92005-0991
92005-0991
|
|||
|
|
92022-1768
92022-1768
|
|||
|
|
92043-0858
92043-0858
|
|||
|
|
92043-1263
92043-1263
|
|||
|
|
92049-0862
92049-0862
|
|||
|
|
92049-2100
92049-2100
|
|||
|
|
92049-7024
92049-7024
|
|||
|
|
92049-7026
92049-7026
|
|||
|
|
92066-0881
92066-0881
|
|||
|
|
92104-0007
92104-0007
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92172-0870
92172-0870
|
|||
|
|
130BA0635
130BA0635
|
|||
|
|
130CA1060
130CA1060
|
|||
|
|
130CA1065
130CA1065
|
|||
|
|
130CA1085
130CA1085
|
|||
|
|
601A6309
601A6309
|
|||
|
|
670B2011
670B2011
|
ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11057-1626
11057-1626
|
|||
|
|
11057-7396
11057-7396
|
|||
|
|
11057-7397
11057-7397
|
|||
|
|
13280-0922
13280-0922
|
|||
|
|
21066-0794
21066-0794
|
|||
|
|
21130-2060
21130-2060
|
|||
|
|
21171-0725
21171-0725
|
|||
|
|
21193-0034
21193-0034
|
|||
|
|
26006-0036
26006-0036
|
|||
|
|
26006-0045
26006-0045
|
|||
|
|
26006-0046
26006-0046
|
|||
|
|
26011-1984
26011-1984
|
|||
|
|
26011-7024
26011-7024
|
|||
|
|
26031-3750
26031-3750
|
|||
|
|
26031-3751
26031-3751
|
|||
|
|
26031-3764
26031-3764
|
|||
|
|
27010-0830
27010-0830
|
|||
|
|
27034-0010
27034-0010
|
|||
|
|
59031-0013
59031-0013
|
|||
|
|
92070-0724
92070-0724
|
|||
|
|
92072-0911
92072-0911
|
|||
|
|
92153-7029
92153-7029
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92154-7003
92154-7003
|
|||
|
|
92172-0896
92172-0896
|
|||
|
|
92172-1460
92172-1460
|
|||
|
|
92173-1184
92173-1184
|
|||
|
|
92173-1186
92173-1186
|
|||
|
|
92173-1515
92173-1515
|
|||
|
|
92173-2326
92173-2326
|
|||
|
|
92200-7040
92200-7040
|
|||
|
|
130BA0616
130BA0616
|
|||
|
|
130BA-0816
130BA-0816
|
|||
|
|
132BA0516
132BA0516
|
|||
|
|
224B0408
224B0408
|
|||
|
|
510A5100
510A5100
|

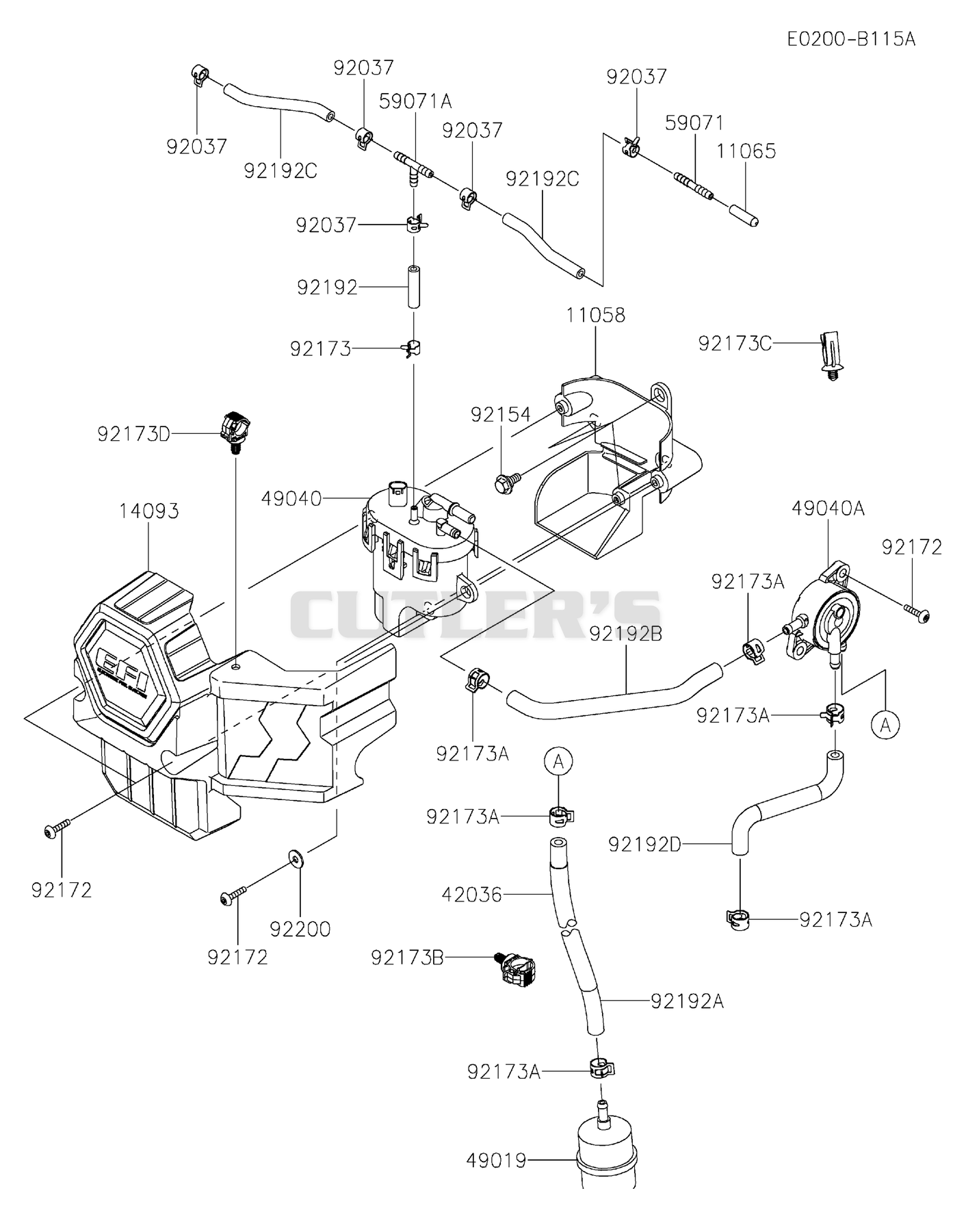

FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11058-0717
11058-0717
|
|||
|
|
11065-1437
11065-1437
|
|||
|
|
14093-1181
14093-1181
|
|||
|
|
42036-7012
42036-7012
|
|||
|
|
49019-0031
49019-0031
|
|||
|
|
49040-0736 See ENG 25-02
49040-0736 See ENG 25-02
|
|||
|
|
49040-0801
49040-0801
|
|||
|
|
59071-0050
59071-0050
|
|||
|
|
59071-0723
59071-0723
|
|||
|
|
92037-1461
92037-1461
|
|||
|
|
92154-2815
92154-2815
|
|||
|
|
92172-0896
92172-0896
|
|||
|
|
92173-1495
92173-1495
|
|||
|
|
92173-1582
92173-1582
|
|||
|
|
92173-1738
92173-1738
|
|||
|
|
92173-2143
92173-2143
|
|||
|
|
92173-2326
92173-2326
|
|||
|
|
92192-1372
92192-1372
|
|||
|
|
92192-2387
92192-2387
|
|||
|
|
92192-2516
92192-2516
|
|||
|
|
92192-2518
92192-2518
|
|||
|
|
92192-2694
92192-2694
|
|||
|
|
92200-1850
92200-1850
|

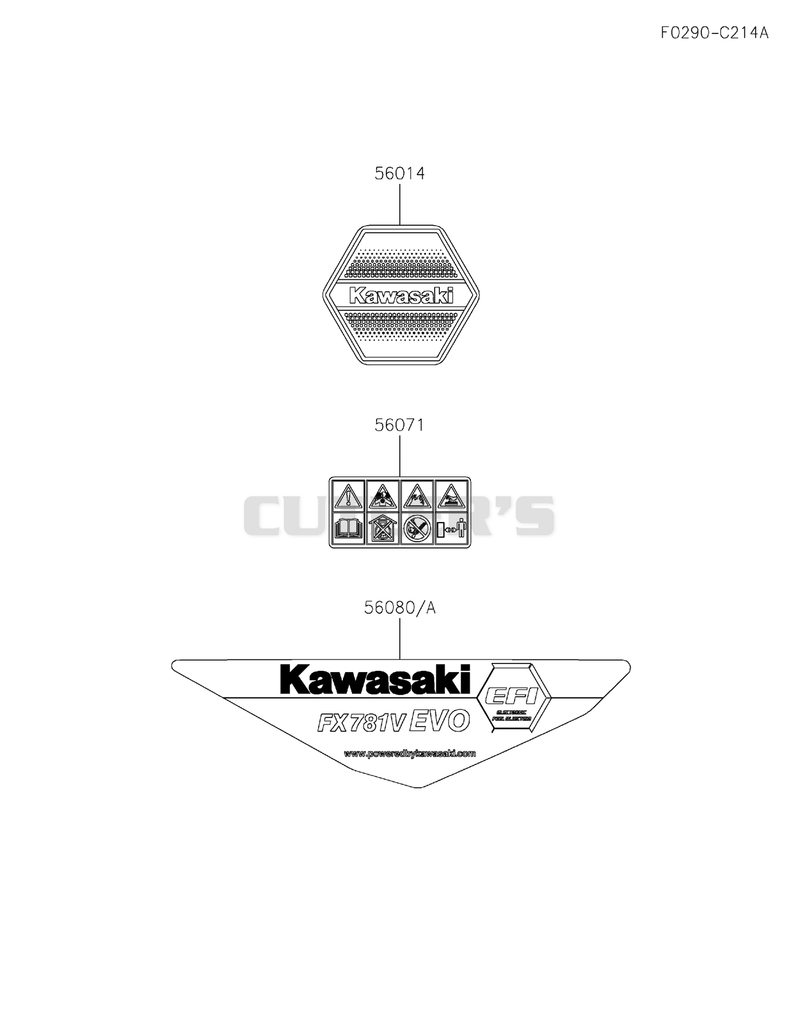

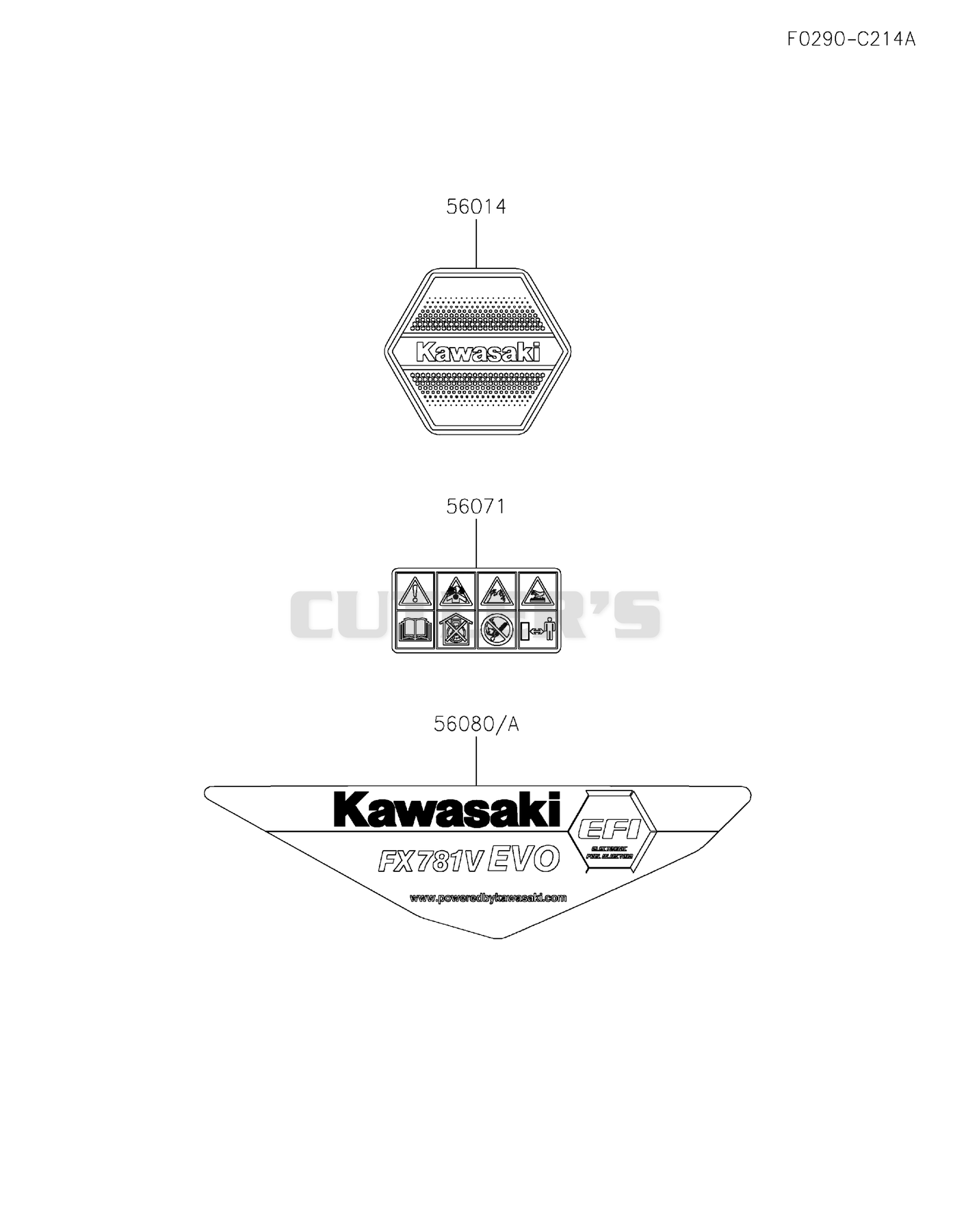

LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
560140021
560140021
|
|||
|
|
56071-1171
56071-1171
|
|||
|
|
56080-1092
56080-1092
|
|||
|
|
56080-1093
56080-1093
|

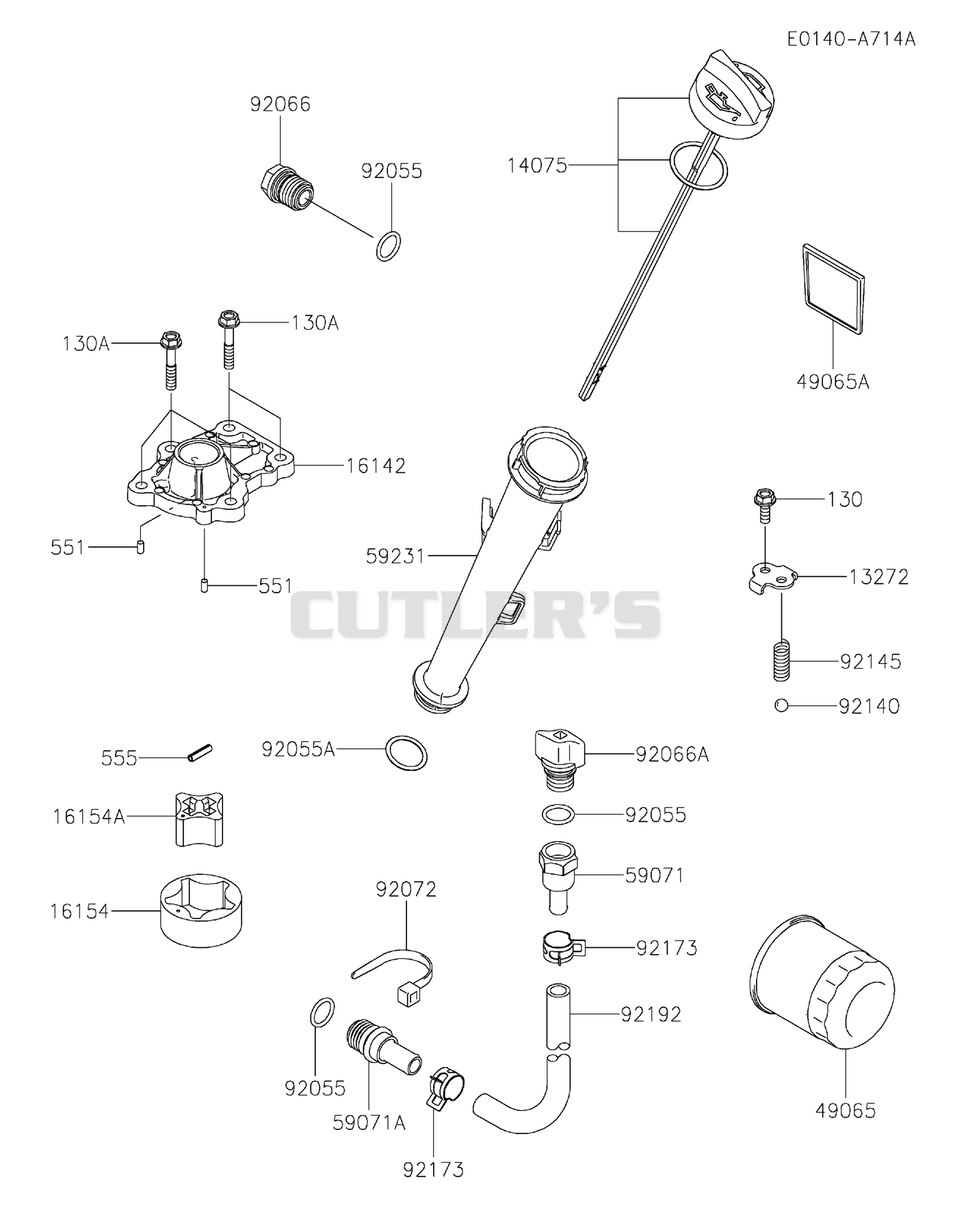

LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13272-4013
13272-4013
|
|||
|
|
14075-0724
14075-0724
|
|||
|
|
16142-0765
16142-0765
|
|||
|
|
16154-0772
16154-0772
|
|||
|
|
16154-0773
16154-0773
|
|||
|
|
49065-0724
49065-0724
|
|||
|
|
49065-0727
49065-0727
|
|||
|
|
59071-0732
59071-0732
|
|||
|
|
59071-0750
59071-0750
|
|||
|
|
59231-0753
59231-0753
|
|||
|
|
92055-0892
92055-0892
|
|||
|
|
92055-1753
92055-1753
|
|||
|
|
92066-0774
92066-0774
|
|||
|
|
92066-0818
92066-0818
|
|||
|
|
92072-0911
92072-0911
|
|||
|
|
92140-7003
92140-7003
|
|||
|
|
92145-1809
92145-1809
|
|||
|
|
92173-7003
92173-7003
|
|||
|
|
92192-1430
92192-1430
|
|||
|
|
130BA0616
130BA0616
|
|||
|
|
130BA0635
130BA0635
|
|||
|
|
551A0408
551A0408
|
|||
|
|
555A0418
555A0418
|

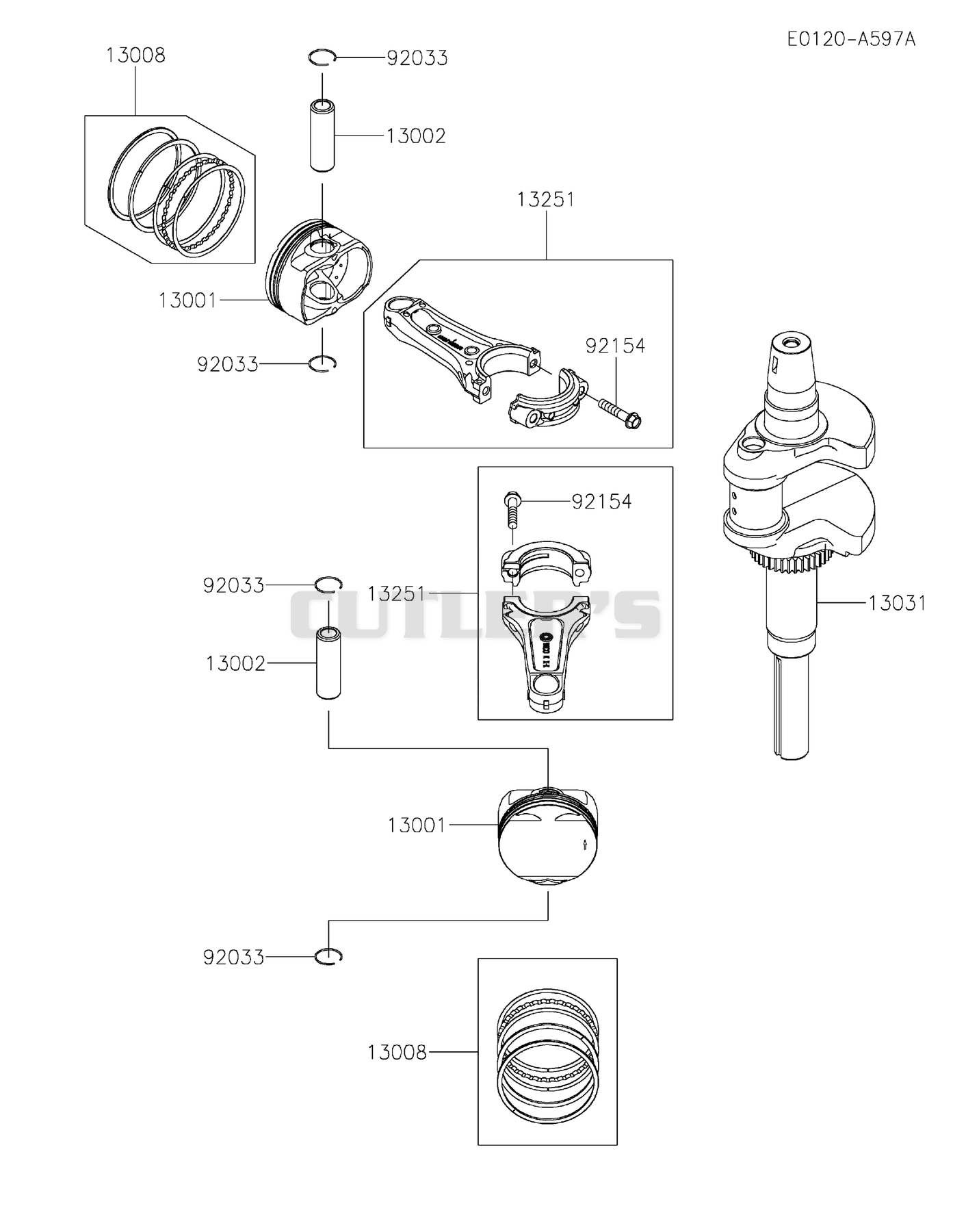

PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13001-0832
13001-0832
|
|||
|
|
13002-0729
13002-0729
|
|||
|
|
13008-6079
13008-6079
|
|||
|
|
13031-1518
13031-1518
|
|||
|
|
13251-0750
13251-0750
|
|||
|
|
92033-0779
92033-0779
|
|||
|
|
92154-4373
92154-4373
|
STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13081-0651
13081-0651
|
|||
|
|
13168-0847
13168-0847
|
|||
|
|
13280-0873
13280-0873
|
|||
|
|
14093-1187
14093-1187
|
|||
|
|
16073-0854
16073-0854
|
|||
|
|
16146-0796
16146-0796
|
|||
|
|
16146-0802
16146-0802
|
|||
|
|
21039-0011
21039-0011
|
|||
|
|
21040-0005
21040-0005
|
|||
|
|
21080-0011
21080-0011
|
|||
|
|
99996-6121
99996-6121
|
|||
|
|
27010-0843
27010-0843
|
|||
|
|
27012-7008
27012-7008
|
|||
|
|
32085-0797
32085-0797
|
|||
|
|
92015-2147
92015-2147
|
|||
|
|
92033-0777
92033-0777
|
|||
|
|
92154-2116
92154-2116
|
|||
|
|
92172-0870
92172-0870
|
|||
|
|
92210-1493
92210-1493
|
|||
|
|
130BA0840
130BA0840
|
THROTTLE-EQUIPMENT
THROTTLE-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11057-7399
11057-7399
|
|||
|
|
11057-7400
11057-7400
|
|||
|
|
11061-1404
11061-1404
|
|||
|
|
11061-1571
11061-1571
|
|||
|
|
16163-1317
16163-1317
|
|||
|
|
21176-0771
21176-0771
|
|||
|
|
21176-1140
21176-1140
|
|||
|
|
49033-0581
49033-0581
|
|||
|
|
51044-0981
51044-0981
|
|||
|
|
59076-0039
59076-0039
|
|||
|
|
92015-1014
92015-1014
|
|||
|
|
92037-1461
92037-1461
|
|||
|
|
92055-0818
92055-0818
|
|||
|
|
92055-0819
92055-0819
|
|||
|
|
92066-0095
92066-0095
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92173-1184
92173-1184
|
|||
|
|
92173-1690
92173-1690
|
|||
|
|
92173-1738
92173-1738
|
|||
|
|
120CA0620
120CA0620
|
|||
|
|
130BA0616
130BA0616
|
|||
|
|
172BA06105
172BA06105
|
|||
|
|
172BA06130
172BA06130
|
VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12004-0773
12004-0773
|
|||
|
|
12005-0799
12005-0799
|
|||
|
|
12009-2067
12009-2067
|
|||
|
|
12009-7004
12009-7004
|
|||
|
|
12011-2052
12011-2052
|
|||
|
|
12011-2056
12011-2056
|
|||
|
|
12016-0735
12016-0735
|
|||
|
|
12016-0737
12016-0737
|
|||
|
|
12016-0739
12016-0739
|
|||
|
|
12016-0741
12016-0741
|
|||
|
|
12020-0032
12020-0032
|
|||
|
|
12032-0036
12032-0036
|
|||
|
|
13116-0751
13116-0751
|
|||
|
|
13116-0752
13116-0752
|
|||
|
|
16007-0709
16007-0709
|
|||
|
|
49078-0794
49078-0794
|
|||
|
|
49078-7008
49078-7008
|
|||
|
|
49118-1268
49118-1268
|
|||
|
|
92009-1109
92009-1109
|
|||
|
|
92145-1653
92145-1653
|
|||
|
|
92210-1491
92210-1491
|
|||
|
|
132BA0516
132BA0516
|
