Shindaiwa EB802 / EB802RT Backpack Blowers Parts Diagram
Diagrams:
Diagram:

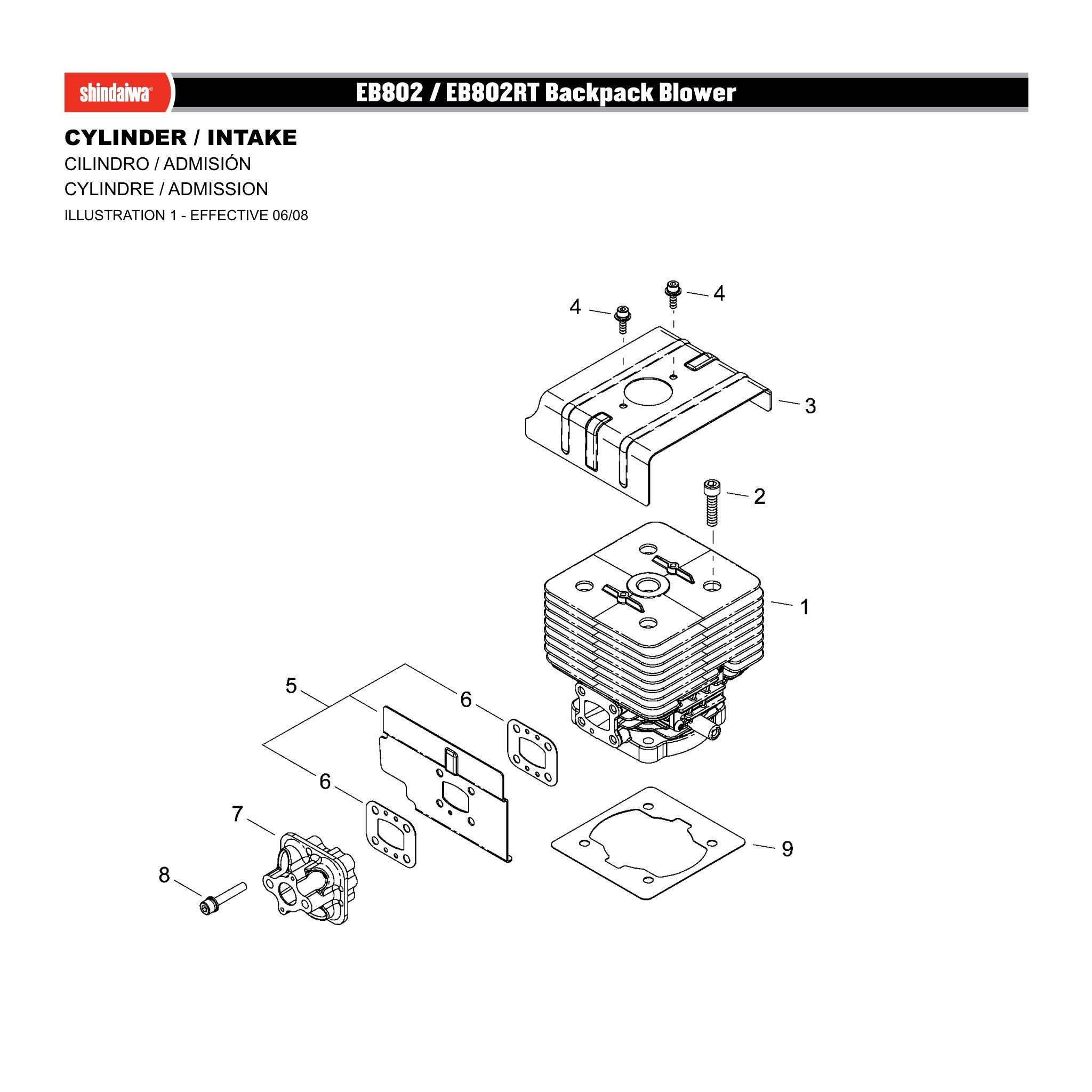

CYLINDER / INTAKE
CYLINDER / INTAKE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68242-12011
68242-12011
|
|||
|
|
01020-06250
01020-06250
|
|||
|
|
68242-12330
68242-12330
|
|||
|
|
11024-04120
11024-04120
|
|||
|
|
68242-12311
68242-12311
|
|||
|
|
68900-12220
68900-12220
|
|||
|
|
68242-12210
68242-12210
|
|||
|
|
11022-05305
11022-05305
|
|||
|
|
68242-12121
68242-12121
|

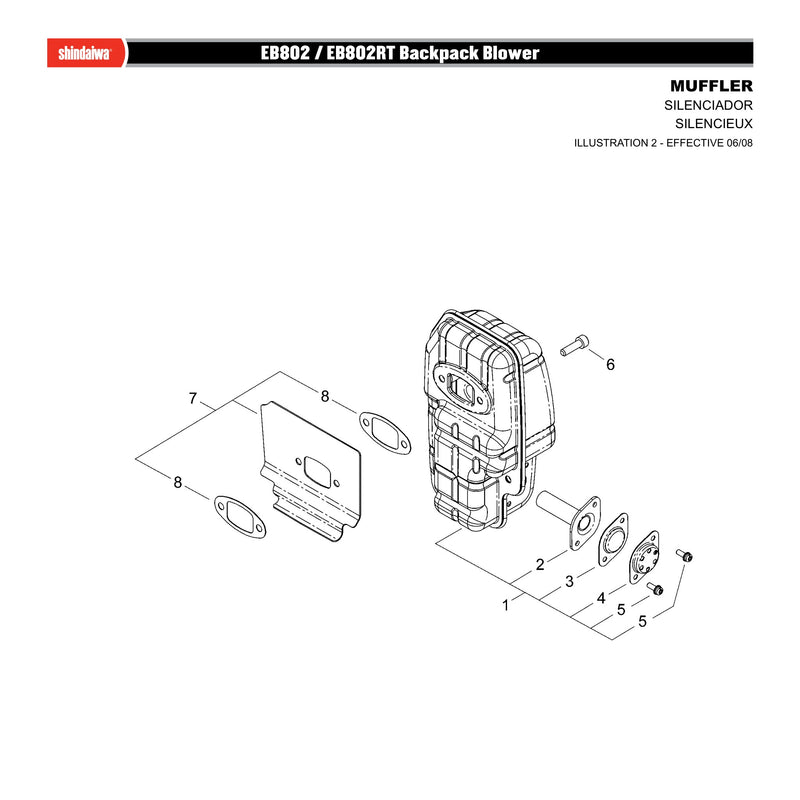

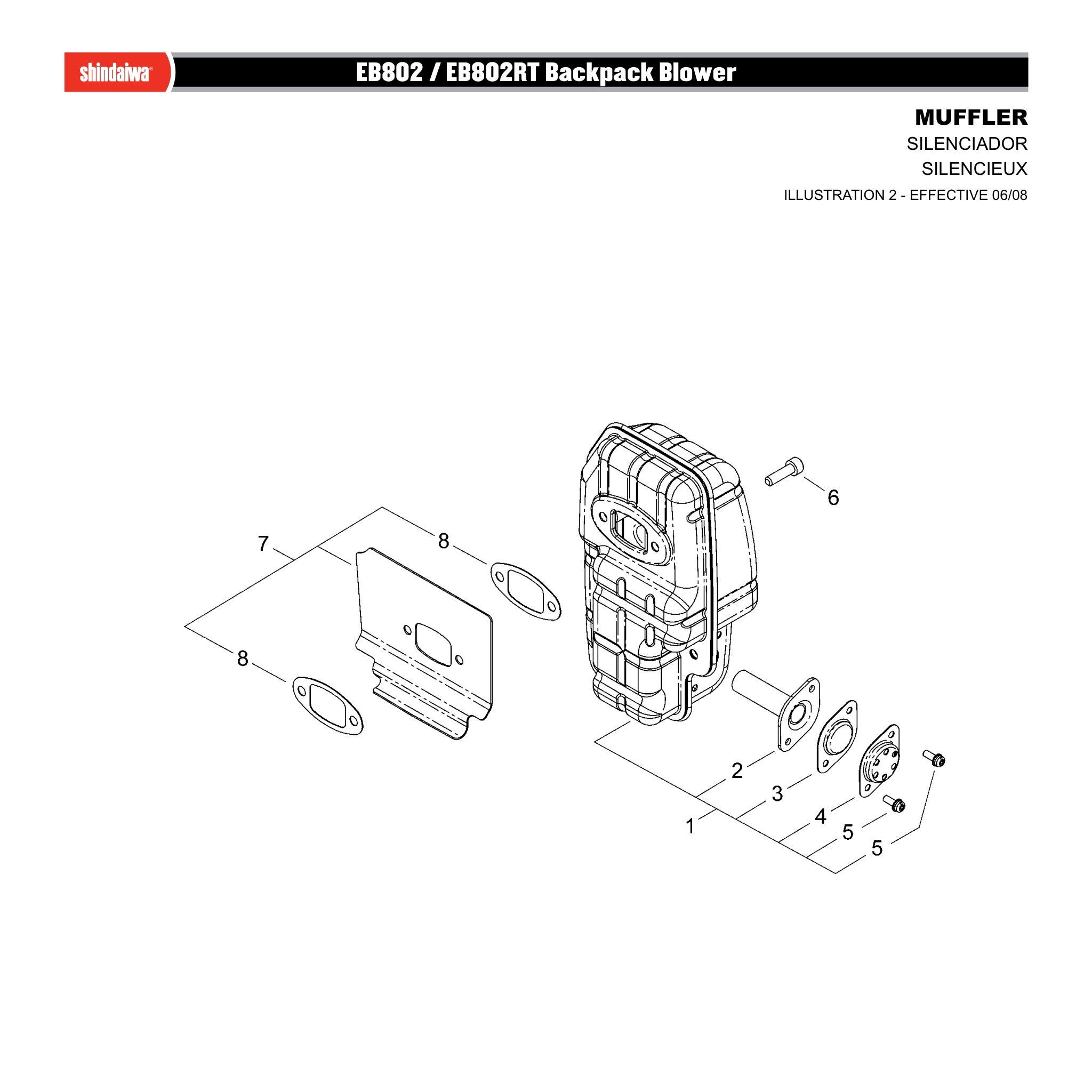

MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68242-15010
68242-15010
|
|||
|
|
68242-15140
68242-15140
|
|||
|
|
68242-15130
68242-15130
|
|||
|
|
68242-15160
68242-15160
|
|||
|
|
11206-04120
11206-04120
|
|||
|
|
01020-06200
01020-06200
|
|||
|
|
68242-15211
68242-15211
|
|||
|
|
68242-15320
68242-15320
|

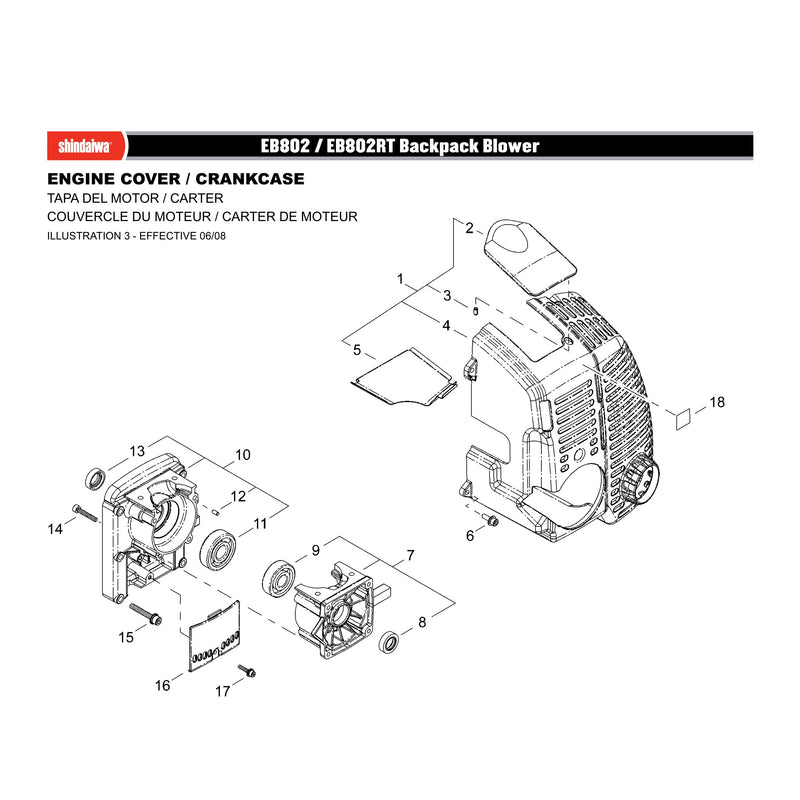

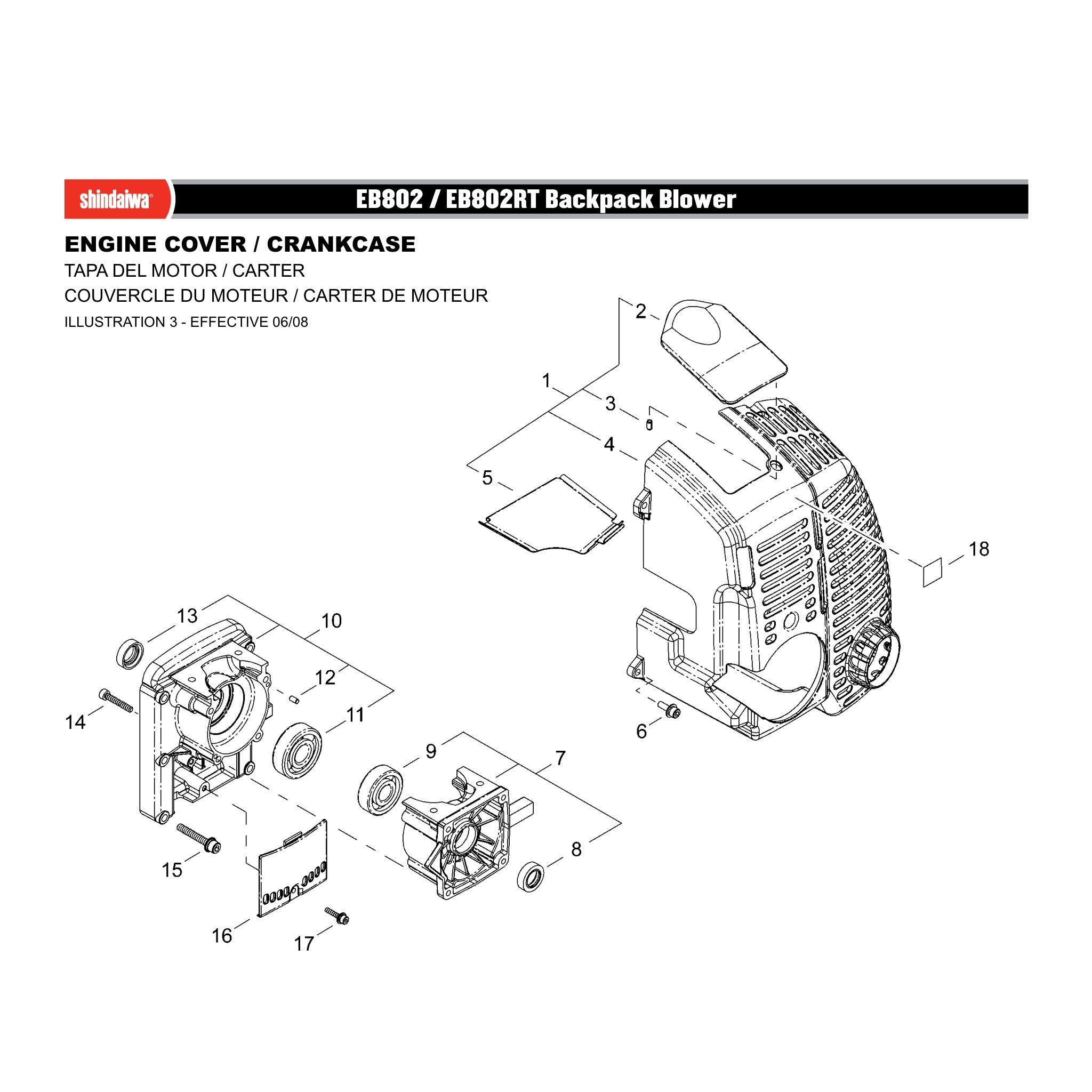

ENGINE COVER / CRANKCASE
ENGINE COVER / CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68242-31011
68242-31011
|
|||
|
|
68900-31311
68900-31311
|
|||
|
|
02427-40085
02427-40085
|
|||
|
|
68242-31111
68242-31111
|
|||
|
|
68242-31311
68242-31311
|
|||
|
|
11024-05160
11024-05160
|
|||
|
|
68242-21012
68242-21012
|
|||
|
|
12310-12000
12310-12000
|
|||
|
|
02030-06302
02030-06302
|
|||
|
|
68242-21021
68242-21021
|
|||
|
|
02030-06303
02030-06303
|
|||
|
|
12492-40080
12492-40080
|
|||
|
|
12310-12000
12310-12000
|
|||
|
|
01020-05300
01020-05300
|
|||
|
|
11060-06400
11060-06400
|
|||
|
|
68900-21311
68900-21311
|
|||
|
|
11024-04200
11024-04200
|
|||
|
|
19402-00205
19402-00205
|

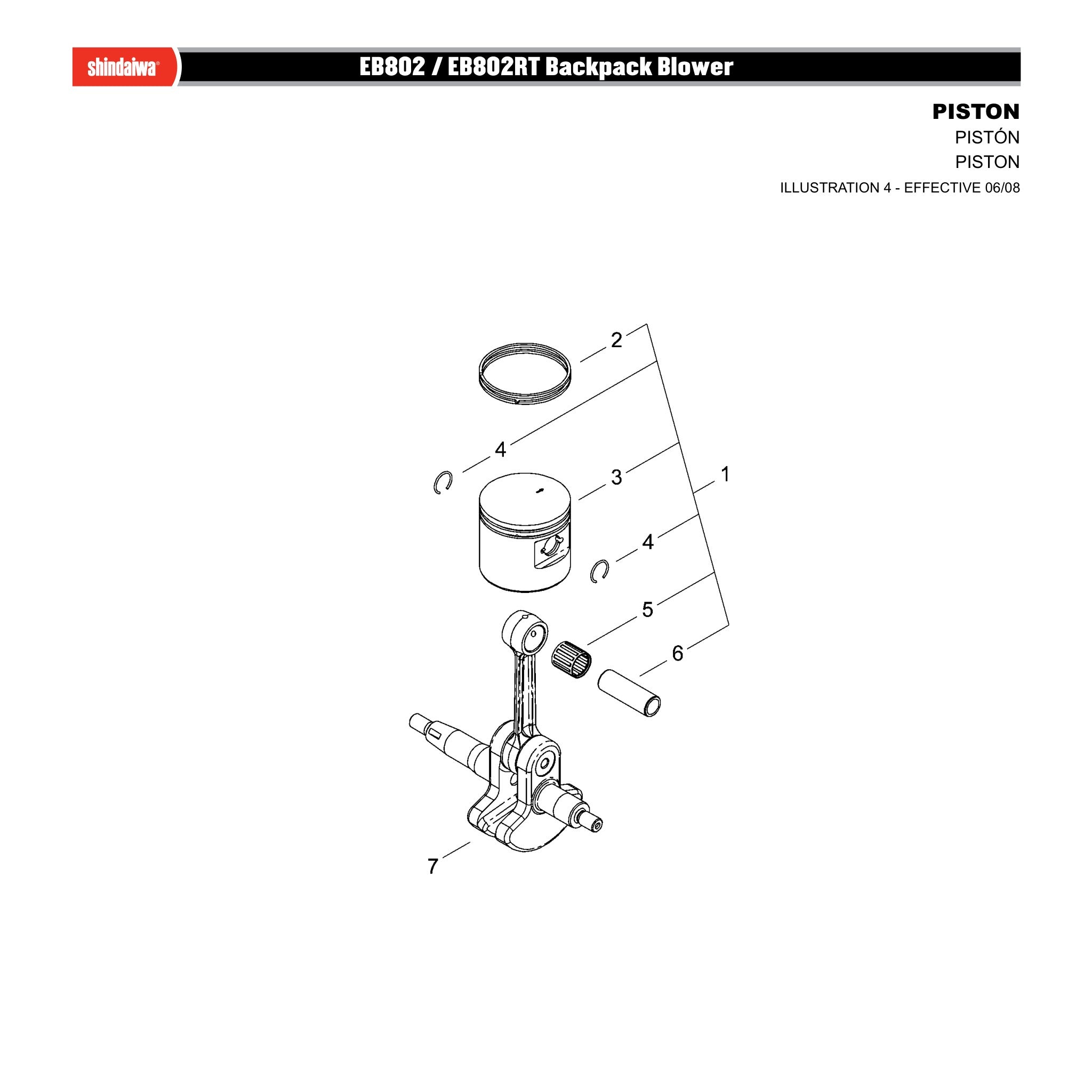

PISTON
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68242-98320
68242-98320
|
|||
|
|
68242-41120
68242-41120
|
|||
|
|
68242-41111
68242-41111
|
|||
|
|
22155-41230
22155-41230
|
|||
|
|
22155-41281
22155-41281
|
|||
|
|
22169-41220
22169-41220
|
|||
|
|
68242-42011
68242-42011
|

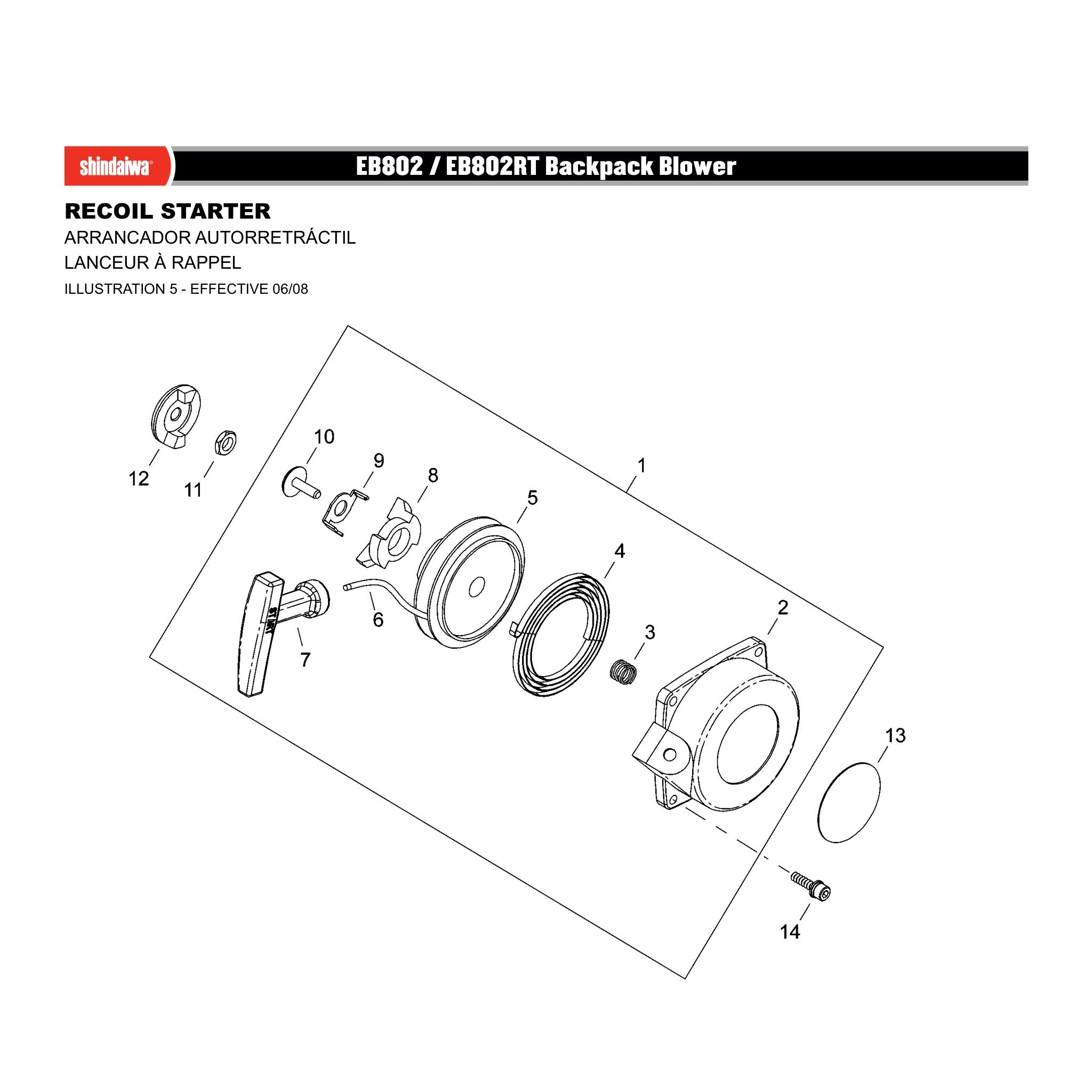

RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68900-75011
68900-75011
|
|||
|
|
68900-75110
68900-75110
|
|||
|
|
68900-75320
68900-75320
|
|||
|
|
68900-75130
68900-75130
|
|||
|
|
68900-75120
68900-75120
|
|||
|
|
68900-75140
68900-75140
|
|||
|
|
68900-75150
68900-75150
|
|||
|
|
68900-75310
68900-75310
|
|||
|
|
68900-75340
68900-75340
|
|||
|
|
68900-75330
68900-75330
|
|||
|
|
01511-08051
01511-08051
|
|||
|
|
68900-75210
68900-75210
|
|||
|
|
68242-91330
68242-91330
|
|||
|
|
11024-05160
11024-05160
|

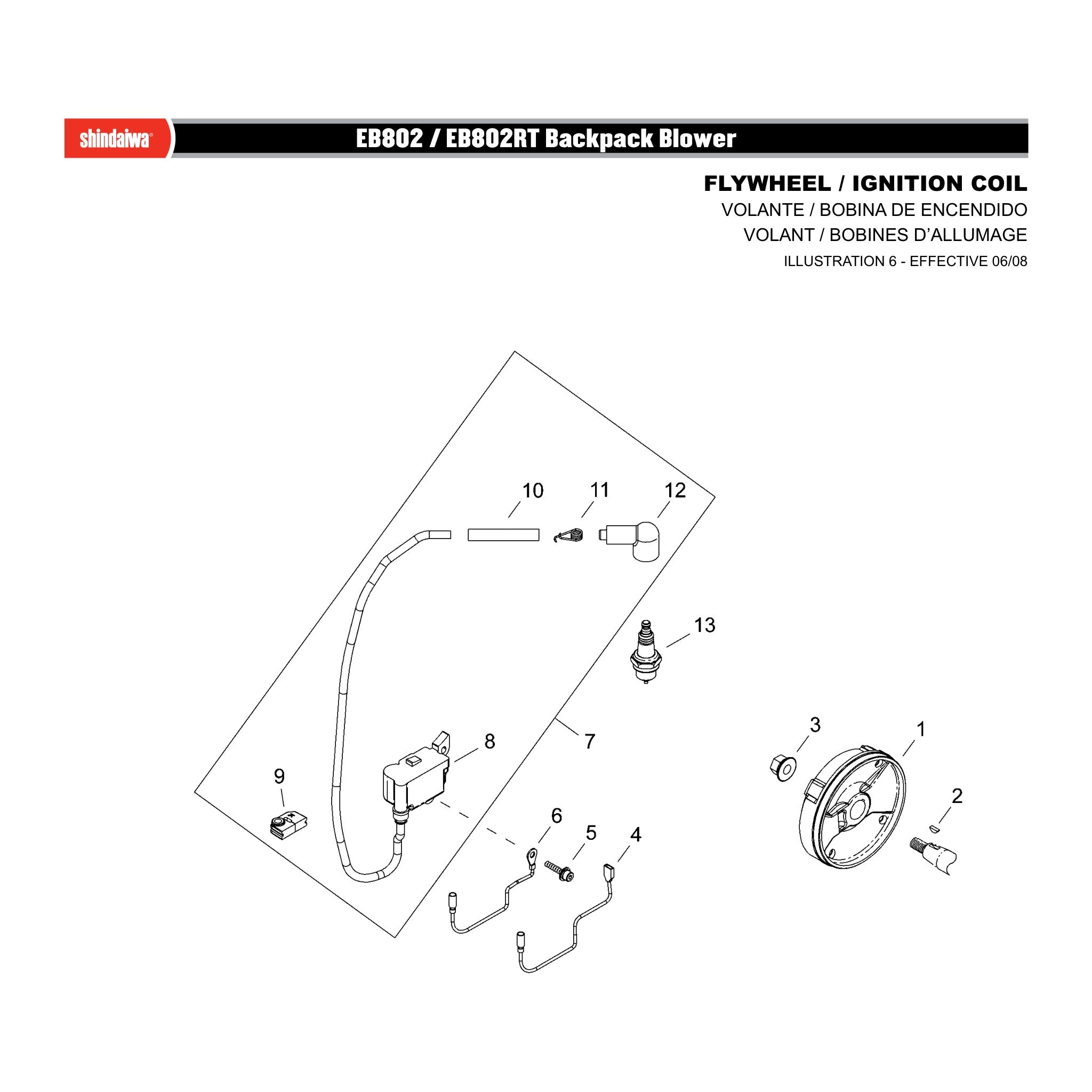

FLYWHEEL / IGNITION COIL
FLYWHEEL / IGNITION COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68900-71112
68900-71112
|
|||
|
|
12408-03100
12408-03100
|
|||
|
|
20035-71220
20035-71220
|
|||
|
|
14350-01702
14350-01702
|
|||
|
|
11024-04200
11024-04200
|
|||
|
|
14350-11601
14350-11601
|
|||
|
|
68242-71310
68242-71310
|
|||
|
|
68242-71021
68242-71021
|
|||
|
|
68900-71311
68900-71311
|
|||
|
|
70168-71660
70168-71660
|
|||
|
|
20000-72230
20000-72230
|
|||
|
|
22102-72220
22102-72220
|
|||
|
|
13000-03506
13000-03506
|

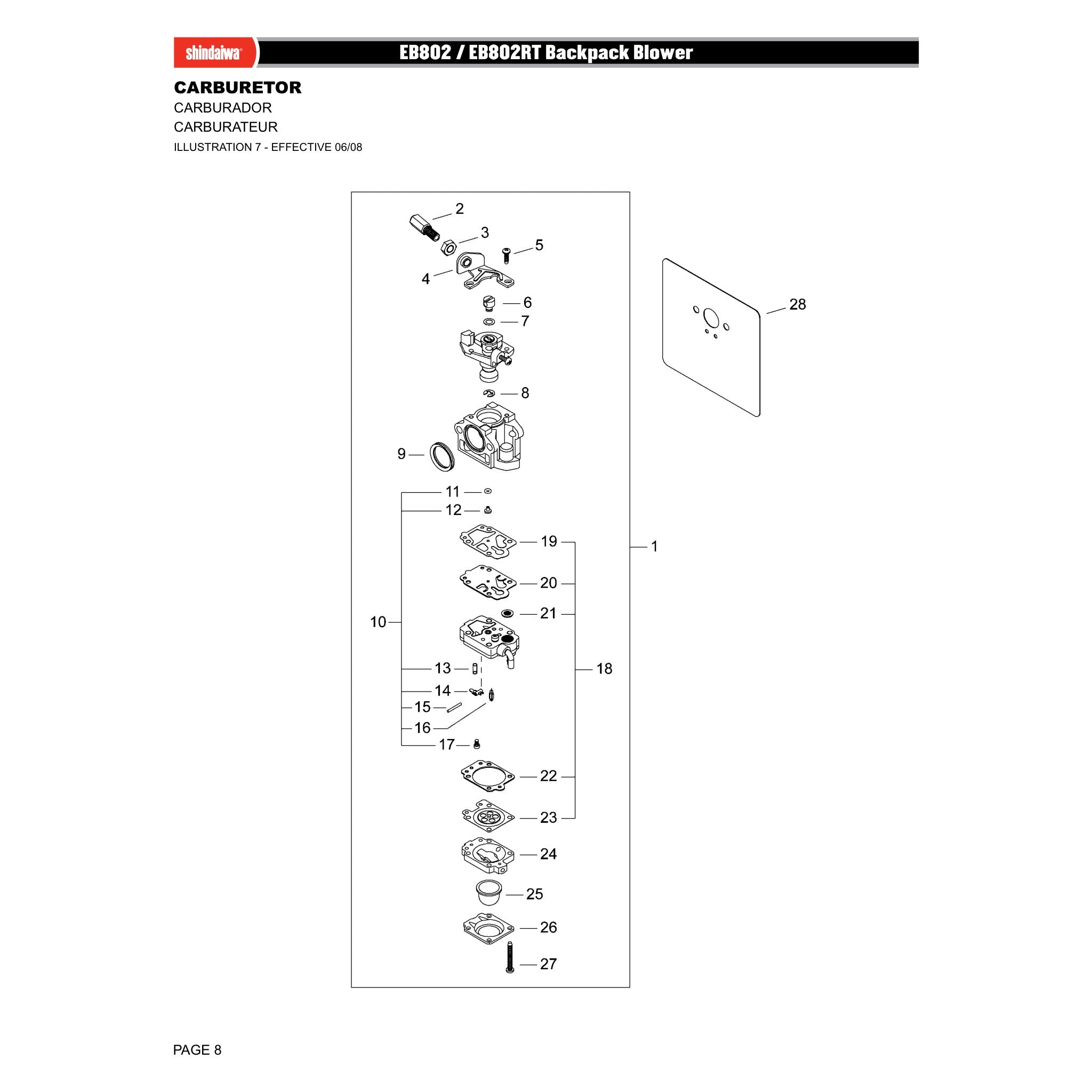

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68242-81011
68242-81011
|
|||
|
|
20089-81110
20089-81110
|
|||
|
|
20036-81120
20036-81120
|
|||
|
|
20089-81130
20089-81130
|
|||
|
|
70097-81290
70097-81290
|
|||
|
|
72933-81450
72933-81450
|
|||
|
|
20089-81185
20089-81185
|
|||
|
|
20036-81195
20036-81195
|
|||
|
|
72933-81250
72933-81250
|
|||
|
|
68242-98340
68242-98340
|
|||
|
|
70097-81220
70097-81220
|
|||
|
|
39046-81320
39046-81320
|
|||
|
|
72933-81270
72933-81270
|
|||
|
|
22100-81230
22100-81230
|
|||
|
|
22100-81250
22100-81250
|
|||
|
|
20036-81440
20036-81440
|
|||
|
|
20016-81450
20016-81450
|
|||
|
|
68242-98330
68242-98330
|
|||
|
|
70097-81310
70097-81310
|
|||
|
|
70097-81320
70097-81320
|
|||
|
|
70030-81380
70030-81380
|
|||
|
|
20016-81280
20016-81280
|
|||
|
|
37145-81320
37145-81320
|
|||
|
|
20016-81420
20016-81420
|
|||
|
|
20036-81670
20036-81670
|
|||
|
|
20016-81510
20016-81510
|
|||
|
|
20016-81140
20016-81140
|
|||
|
|
68242-81211
68242-81211
|

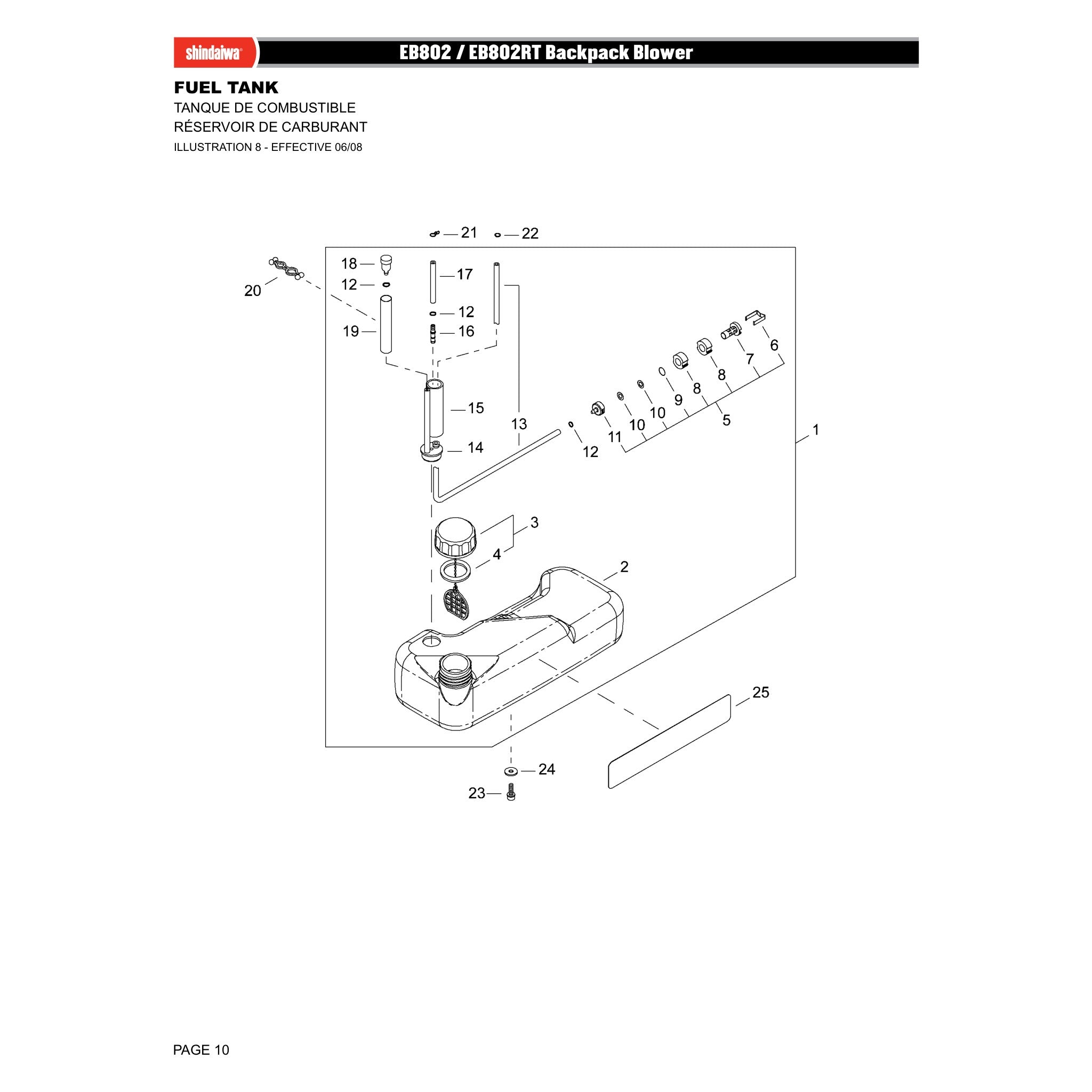

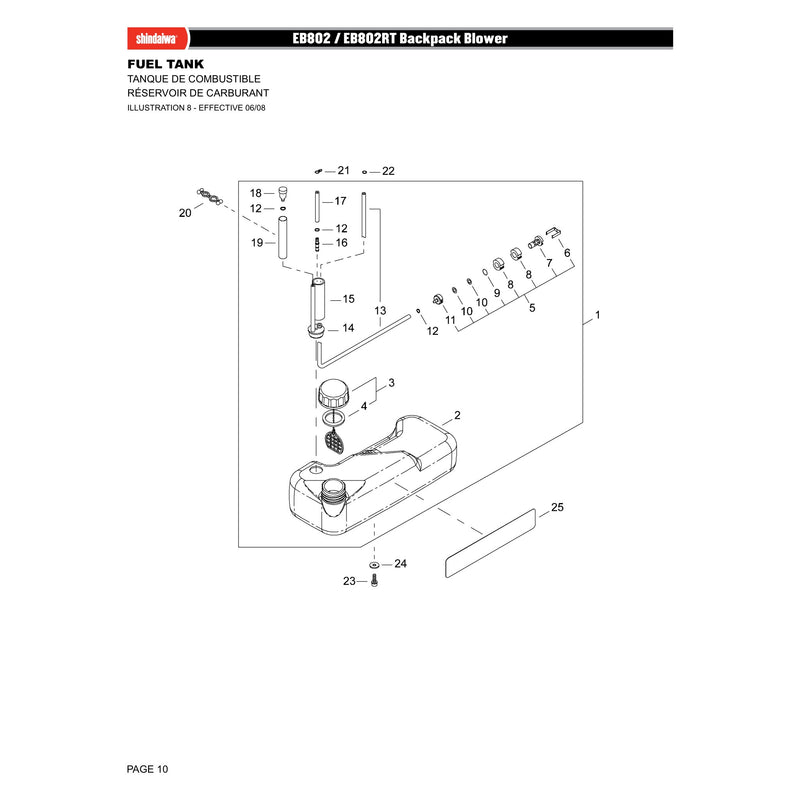

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68913-85010
68913-85010
|
|||
|
|
68206-85110
68206-85110
|
|||
|
|
68204-85020
68204-85020
|
|||
|
|
20000-85221
20000-85221
|
|||
|
|
22115-85401
22115-85401
|
|||
|
|
22128-85440
22128-85440
|
|||
|
|
22128-85470
22128-85470
|
|||
|
|
22128-85421
22128-85421
|
|||
|
|
22128-85480
22128-85480
|
|||
|
|
22118-85460
22118-85460
|
|||
|
|
22128-85410
22128-85410
|
|||
|
|
20020-85540
20020-85540
|
|||
|
|
68913-85310
68913-85310
|
|||
|
|
72933-85350
72933-85350
|
|||
|
|
68913-85330
68913-85330
|
|||
|
|
72933-85620
72933-85620
|
|||
|
|
68913-85320
68913-85320
|
|||
|
|
20035-85522
20035-85522
|
|||
|
|
72935-85530
72935-85530
|
|||
|
|
72935-85550
72935-85550
|
|||
|
|
37013-85310
37013-85310
|
|||
|
|
20020-85540
20020-85540
|
|||
|
|
11060-05140
11060-05140
|
|||
|
|
15401-10010
15401-10010
|
|||
|
|
19420-00108
19420-00108
|

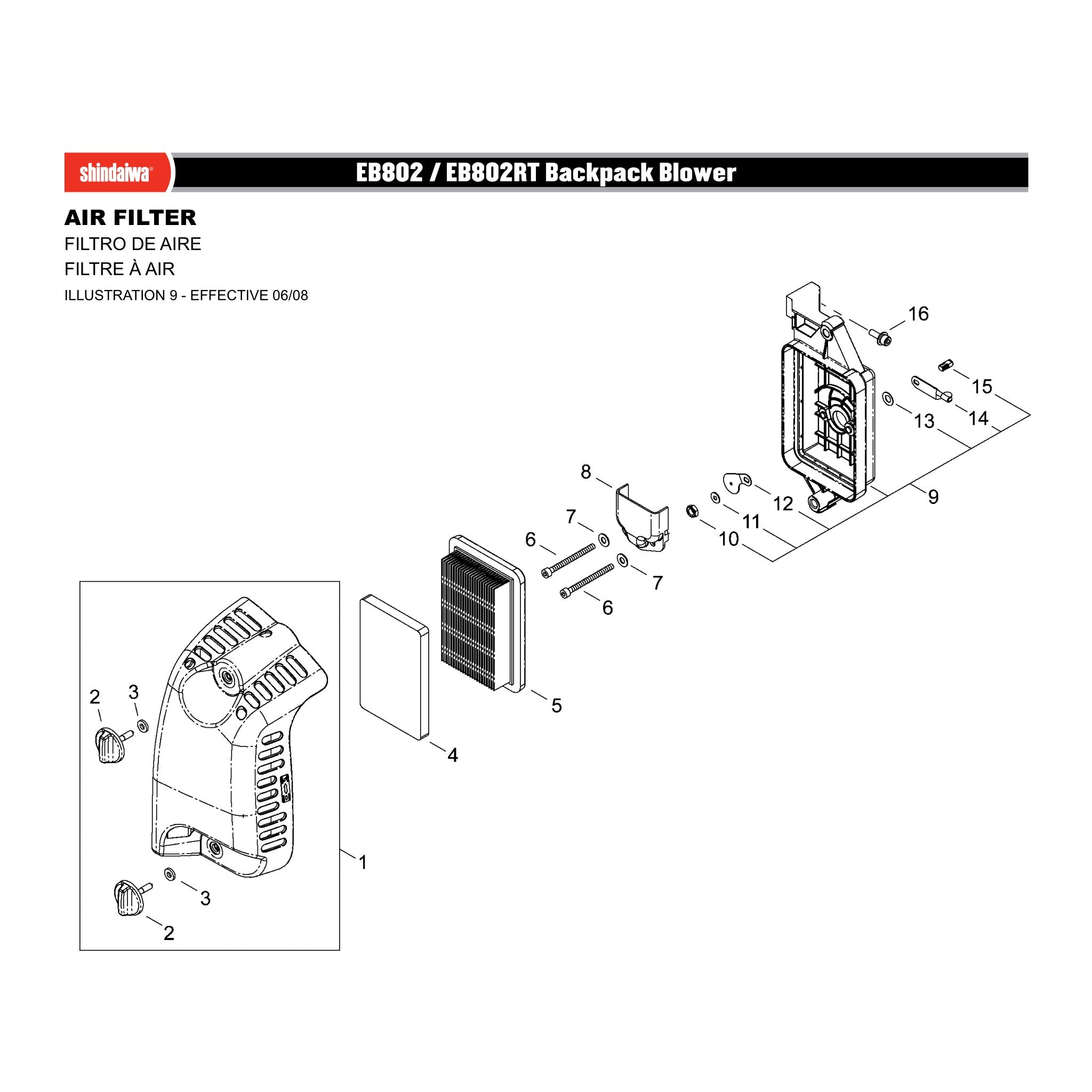

AIR FILTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68242-82031
68242-82031
|
|||
|
|
22182-31220
22182-31220
|
|||
|
|
23627-21220
23627-21220
|
|||
|
|
68242-82310
68242-82310
|
|||
|
|
68242-82120
68242-82120
|
|||
|
|
01020-05705
01020-05705
|
|||
|
|
01612-00500
01612-00500
|
|||
|
|
68900-82311
68900-82311
|
|||
|
|
68913-82011
68913-82011
|
|||
|
|
11524-06211
11524-06211
|
|||
|
|
01600-06151
01600-06151
|
|||
|
|
20018-81711-B
20018-81711-B
|
|||
|
|
20024-81790
20024-81790
|
|||
|
|
20870-82120
20870-82120
|
|||
|
|
20110-82140
20110-82140
|
|||
|
|
11022-05200
11022-05200
|

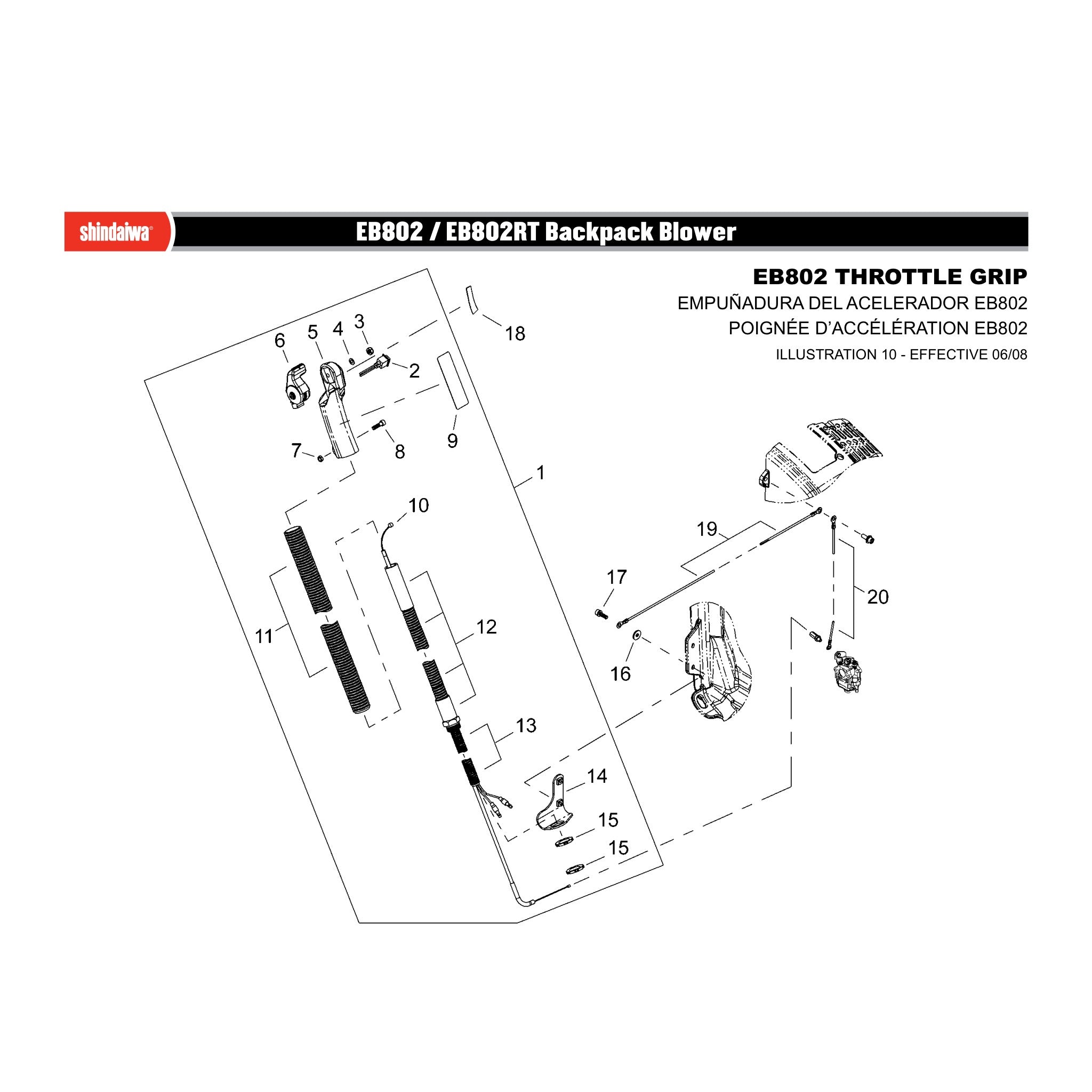

EB802 THROTTLE GRIP
EB802 THROTTLE GRIP
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68206-84014
68206-84014
|
|||
|
|
68206-84350
68206-84350
|
|||
|
|
11525-05001
11525-05001
|
|||
|
|
01613-05080
01613-05080
|
|||
|
|
68206-84210
68206-84210
|
|||
|
|
68206-84110
68206-84110
|
|||
|
|
01500-05031
01500-05031
|
|||
|
|
11210-05160
11210-05160
|
|||
|
|
68206-84370
68206-84370
|
|||
|
|
68206-83110
68206-83110
|
|||
|
|
68206-84320
68206-84320
|
|||
|
|
68206-84312
68206-84312
|
|||
|
|
68206-84360
68206-84360
|
|||
|
|
68206-84331
68206-84331
|
|||
|
|
68206-84340
68206-84340
|
|||
|
|
15401-10010
15401-10010
|
|||
|
|
11060-05181
11060-05181
|
|||
|
|
19401-00175
19401-00175
|
|||
|
|
14350-05900
14350-05900
|
|||
|
|
14350-01100
14350-01100
|

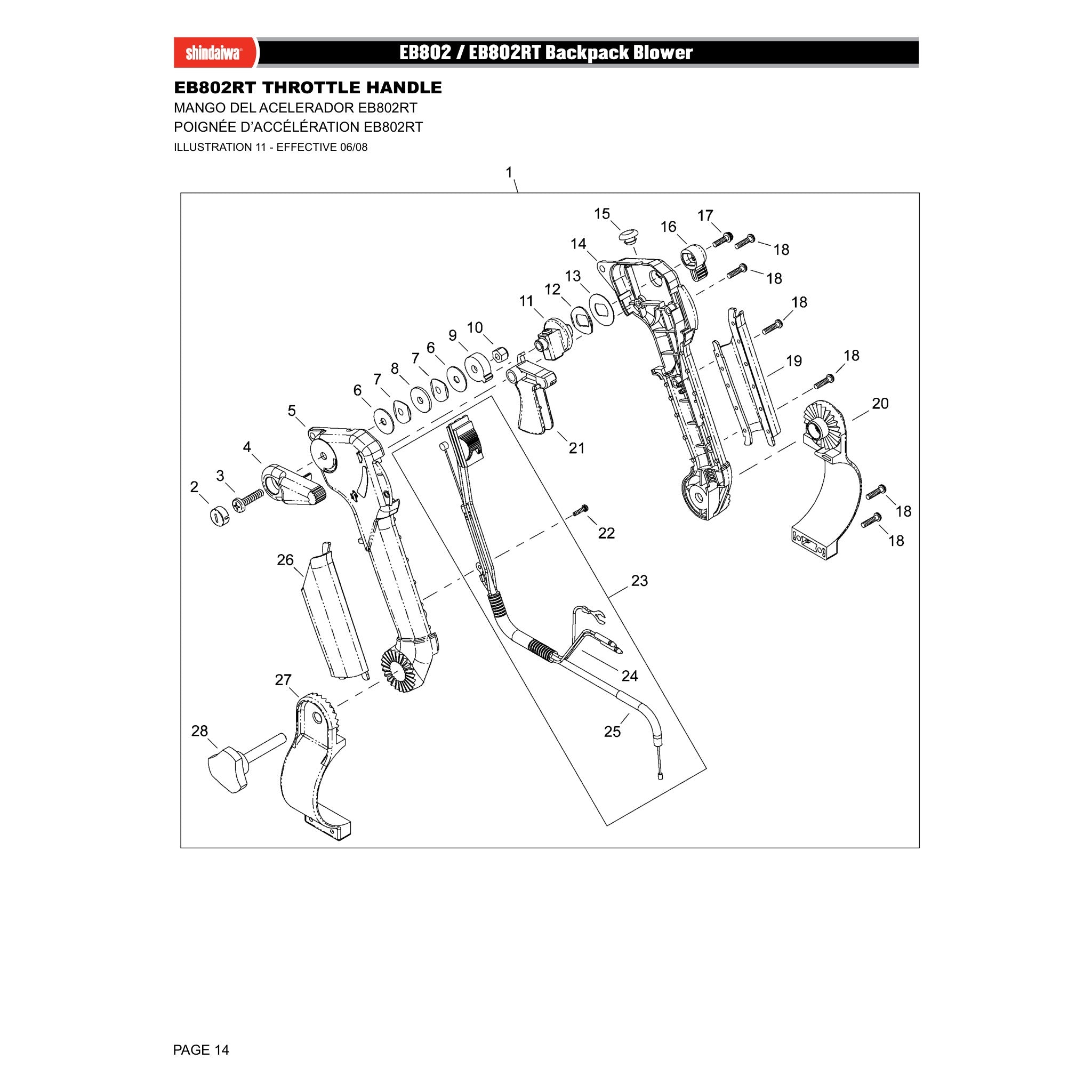

EB802RT THROTTLE HANDLE
EB802RT THROTTLE HANDLE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68209-84011
68209-84011
|
|||
|
|
68209-84420
68209-84420
|
|||
|
|
68209-84360
68209-84360
|
|||
|
|
68209-84350
68209-84350
|
|||
|
|
68209-84331
68209-84331
|
|||
|
|
68209-84370
68209-84370
|
|||
|
|
68209-84380
68209-84380
|
|||
|
|
68209-84390
68209-84390
|
|||
|
|
68209-84400
68209-84400
|
|||
|
|
68209-84410
68209-84410
|
|||
|
|
68209-84480
68209-84480
|
|||
|
|
68209-84530
68209-84530
|
|||
|
|
68209-84520
68209-84520
|
|||
|
|
68209-84321
68209-84321
|
|||
|
|
68209-84490
68209-84490
|
|||
|
|
68209-84510
68209-84510
|
|||
|
|
68209-84500
68209-84500
|
|||
|
|
68209-84440
68209-84440
|
|||
|
|
68209-84541
68209-84541
|
|||
|
|
68209-84450
68209-84450
|
|||
|
|
68209-84340
68209-84340
|
|||
|
|
68209-84561
68209-84561
|
|||
|
|
68209-84430
68209-84430
|
|||
|
|
68209-84580
68209-84580
|
|||
|
|
68209-84570
68209-84570
|
|||
|
|
68209-84551
68209-84551
|
|||
|
|
68209-84460
68209-84460
|
|||
|
|
68209-84470
68209-84470
|

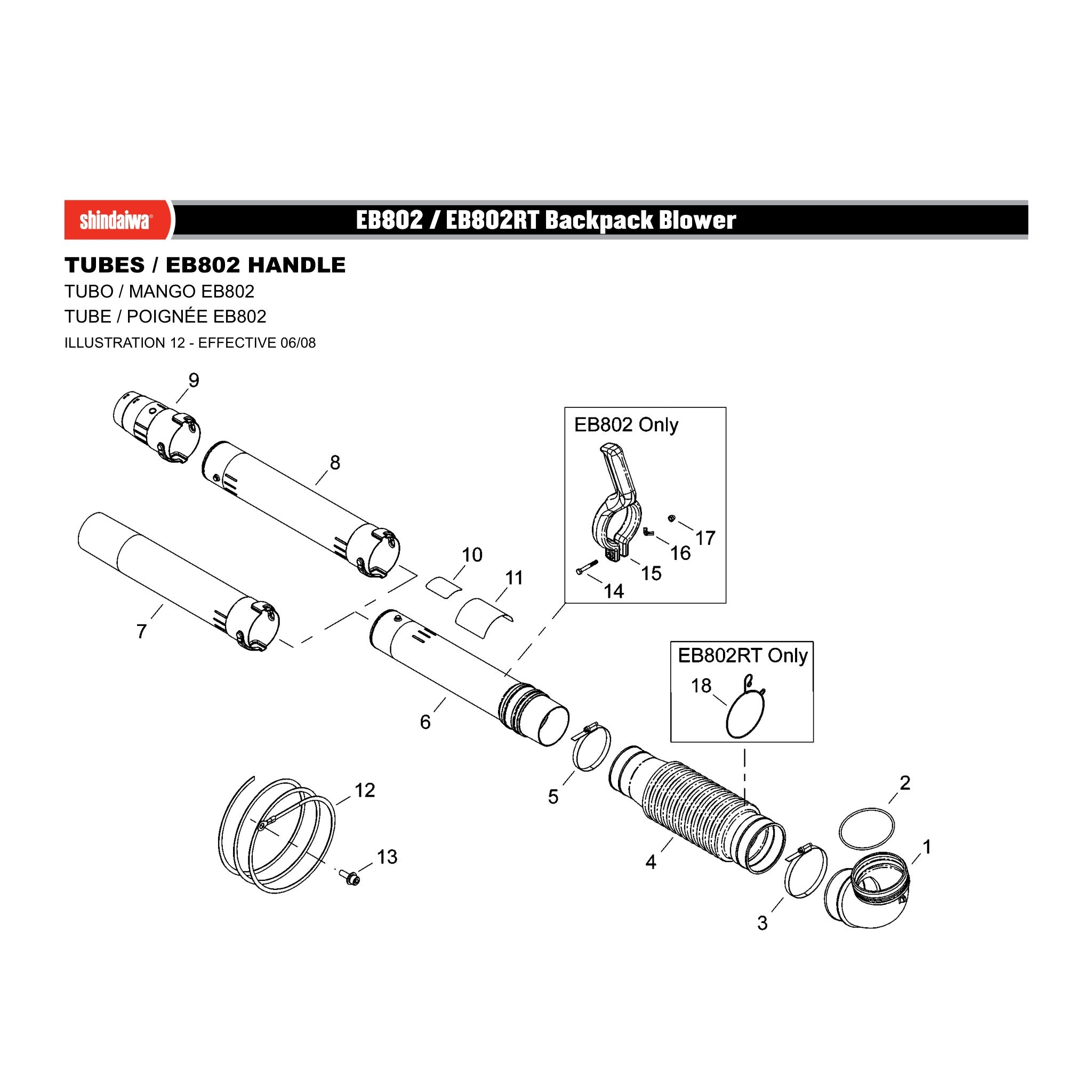

TUBES / EB802 HANDLE
TUBES / EB802 HANDLE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68900-63111
68900-63111
|
|||
|
|
68900-63330
68900-63330
|
|||
|
|
68900-63340
68900-63340
|
|||
|
|
68900-63120
68900-63120
|
|||
|
|
68900-63351
68900-63351
|
|||
|
|
68900-63130
68900-63130
|
|||
|
|
68900-63150
68900-63150
|
|||
|
|
68900-63140
68900-63140
|
|||
|
|
68900-63360
68900-63360
|
|||
|
|
19402-00337
19402-00337
|
|||
|
|
19420-00109
19420-00109
|
|||
|
|
14395-09100
14395-09100
|
|||
|
|
11024-05160
11024-05160
|
|||
|
|
01000-06601
01000-06601
|
|||
|
|
68900-63210
68900-63210
|
|||
|
|
01520-10671
01520-10671
|
|||
|
|
11523-06010
11523-06010
|
|||
|
|
68901-84311
68901-84311
|

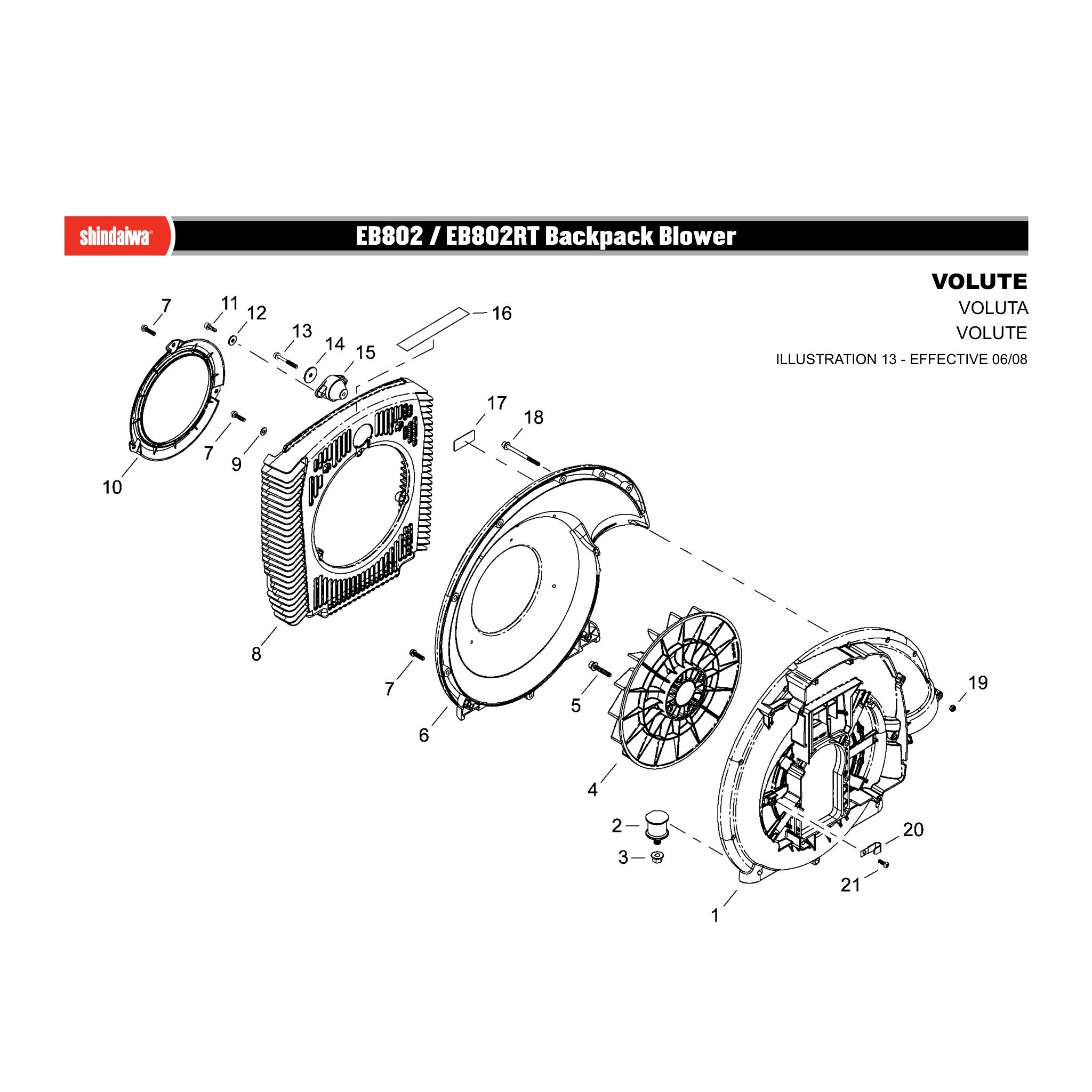

VOLUTE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68242-61111
68242-61111
|
|||
|
|
68206-61320
68206-61320
|
|||
|
|
11526-06202
11526-06202
|
|||
|
|
17343-07001
17343-07001
|
|||
|
|
11024-06351
11024-06351
|
|||
|
|
68900-61121
68900-61121
|
|||
|
|
70140-31480
70140-31480
|
|||
|
|
68913-61131
68913-61131
|
|||
|
|
01613-05080
01613-05080
|
|||
|
|
68900-61310
68900-61310
|
|||
|
|
11020-05160
11020-05160
|
|||
|
|
15401-10010
15401-10010
|
|||
|
|
68206-61340
68206-61340
|
|||
|
|
15401-20009
15401-20009
|
|||
|
|
68206-61330
68206-61330
|
|||
|
|
19402-00290
19402-00290
|
|||
|
|
19402-00178
19402-00178
|
|||
|
|
11024-05700
11024-05700
|
|||
|
|
11500-05001
11500-05001
|
|||
|
|
68206-71370
68206-71370
|
|||
|
|
01280-05142
01280-05142
|

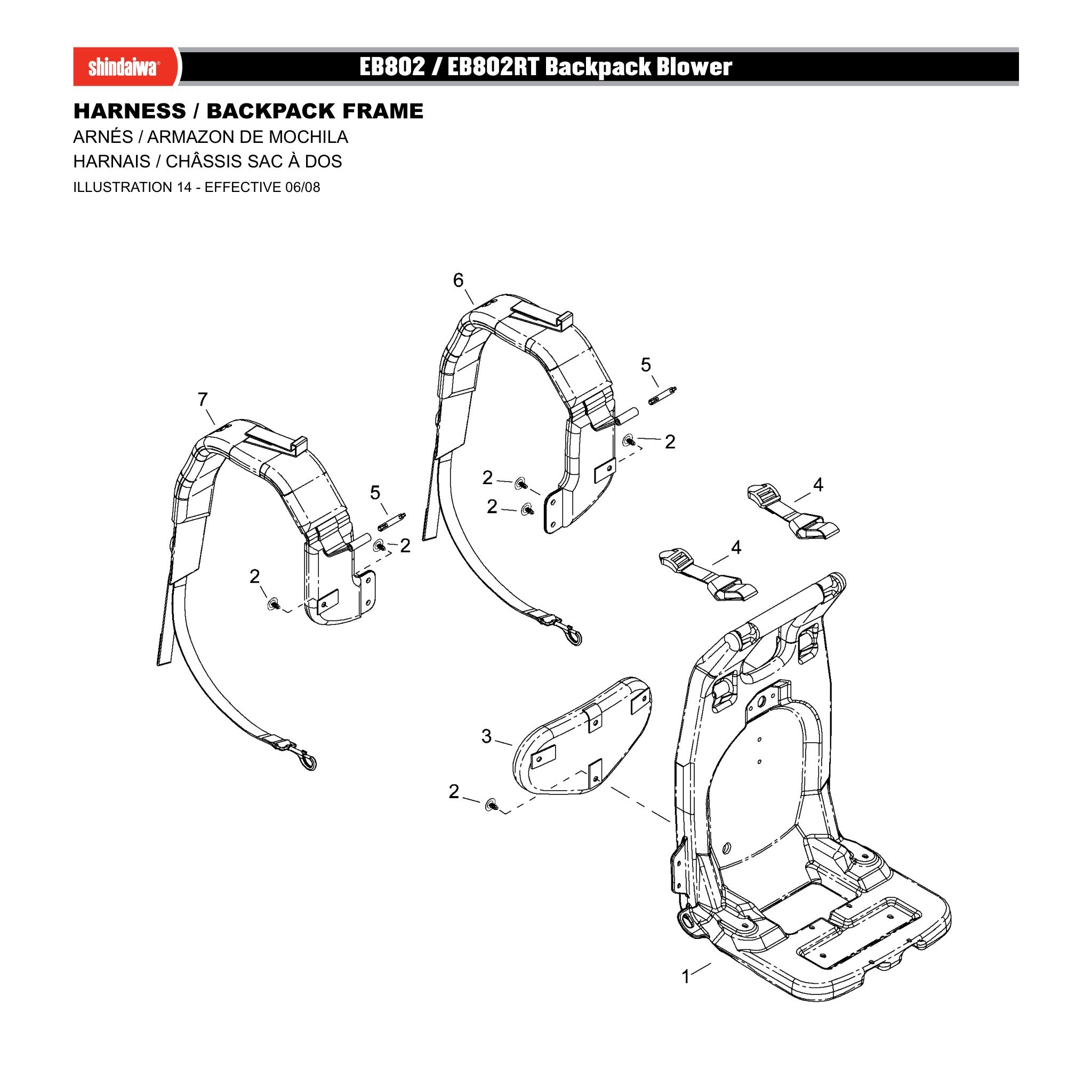

HARNESS / BACKPACK FRAME
HARNESS / BACKPACK FRAME
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68913-86111
68913-86111
|
|||
|
|
68913-86321
68913-86321
|
|||
|
|
68913-86311
68913-86311
|
|||
|
|
68913-87310
68913-87310
|
|||
|
|
68913-87320
68913-87320
|
|||
|
|
68913-87011
68913-87011
|
|||
|
|
68913-87021
68913-87021
|

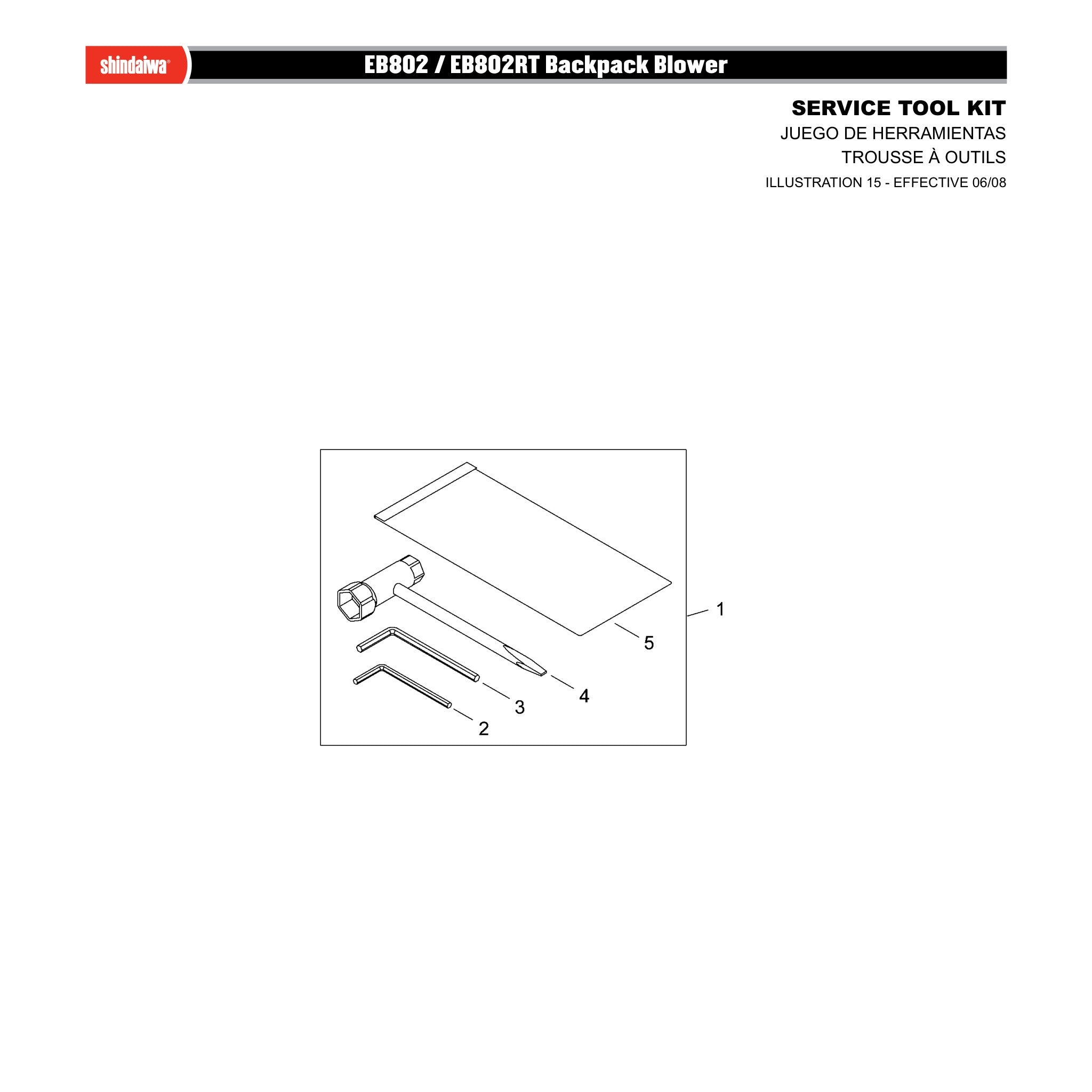

SERVICE TOOL KIT
SERVICE TOOL KIT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
68242-92310
68242-92310
|
|||
|
|
09026-04001
09026-04001
|
|||
|
|
09026-05001
09026-05001
|
|||
|
|
72320-91410
72320-91410
|
|||
|
|
19639-01100
19639-01100
|
