Toro 17005 Electric Mower (Serial #: 6000001 - 6999999) Parts Diagram
Diagrams:
Diagram:

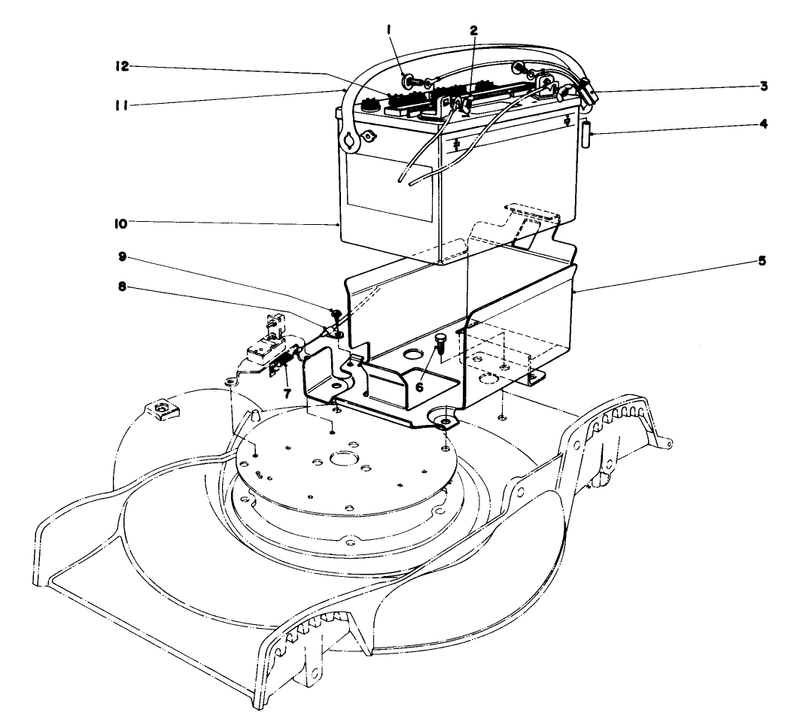

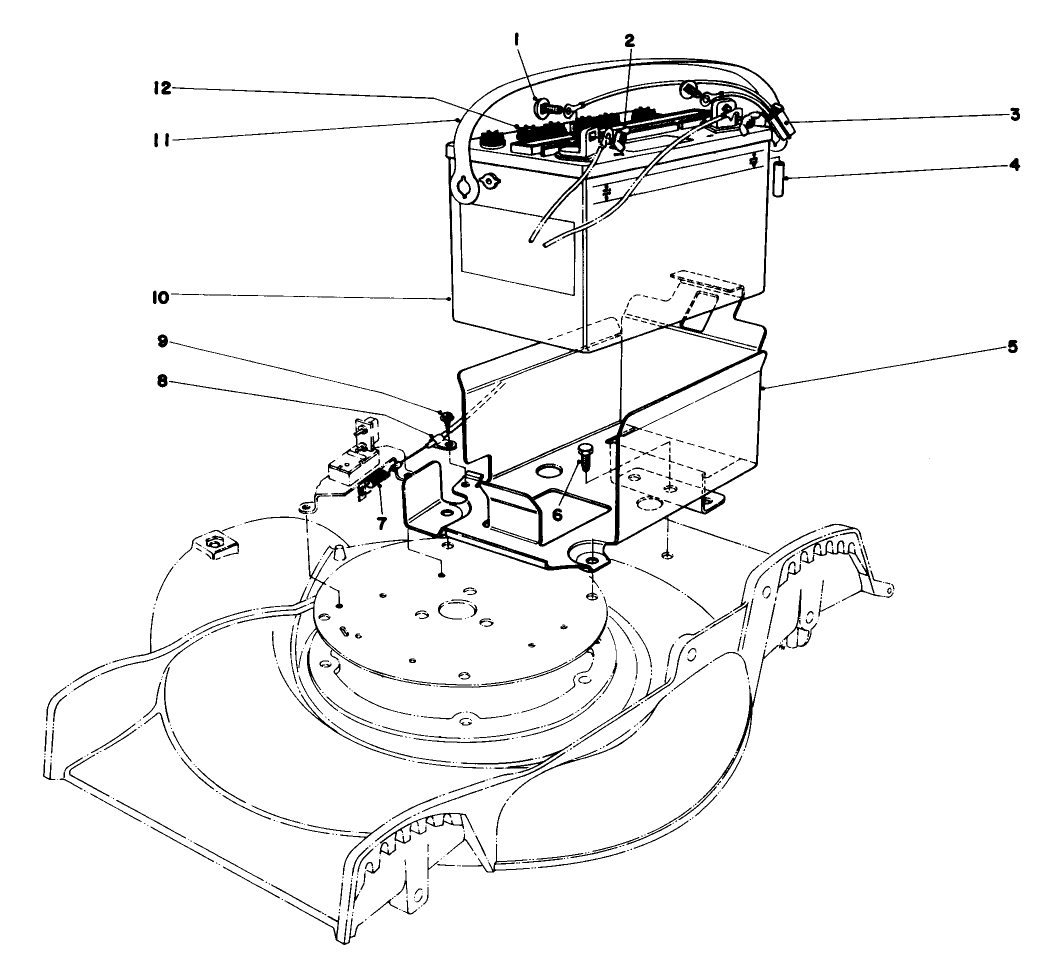

Battery Assembly
Battery Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
3229-1
3229-1
|
|||
|
|
32103-22
32103-22
|
|||
|
|
26-5110
26-5110
|
|||
|
|
239-21
239-21
|
|||
|
|
26-0140
26-0140
|
|||
|
|
32144-11
32144-11
|
|||
|
|
26-5250
26-5250
|
|||
|
|
2412-60
2412-60
|
|||
|
|
32104-76
32104-76
|
|||
|
|
26-5780
26-5780
|
|||
|
|
25-0880
25-0880
|
|||
|
|
239-20
239-20
|

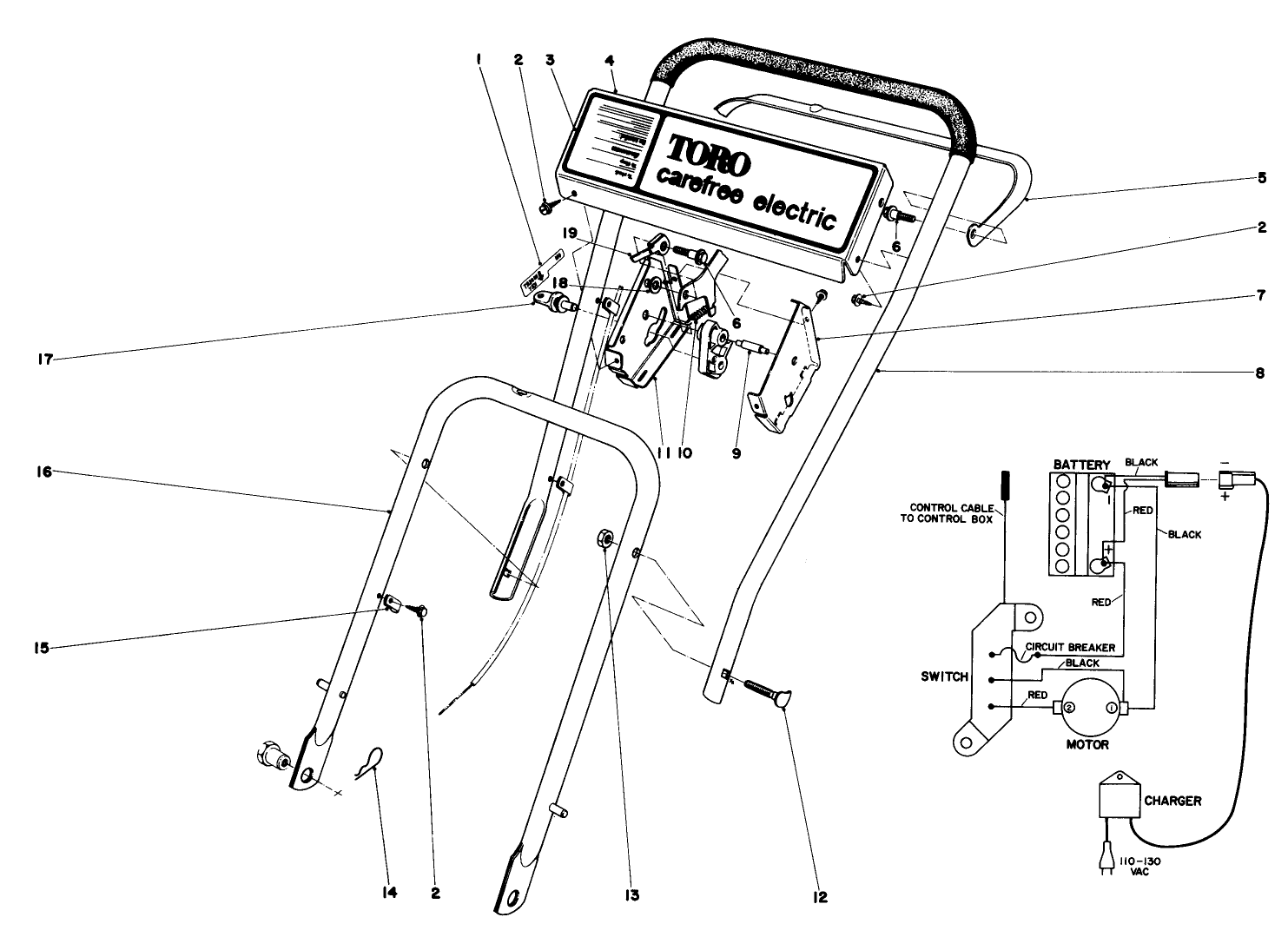

Handle Assembly
Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
26-5120
26-5120
|
|||
|
|
32104-76
32104-76
|
|||
|
|
26-0190
26-0190
|
|||
|
|
264180
264180
|
|||
|
|
26-0300
26-0300
|
|||
|
|
43-7260
43-7260
|
|||
|
|
26-0240
26-0240
|
|||
|
|
26-0260
26-0260
|
|||
|
|
26-5020
26-5020
|
|||
|
|
26-5610
26-5610
|
|||
|
|
26-0230
26-0230
|
|||
|
|
6-6330
6-6330
|
|||
|
|
32153-3
32153-3
|
|||
|
|
3290-255
3290-255
|
|||
|
|
2412-60
2412-60
|
|||
|
|
26-3820
26-3820
|
|||
|
|
26-3880
26-3880
|
|||
|
|
3256-22
3256-22
|
|||
|
|
26-5600
26-5600
|

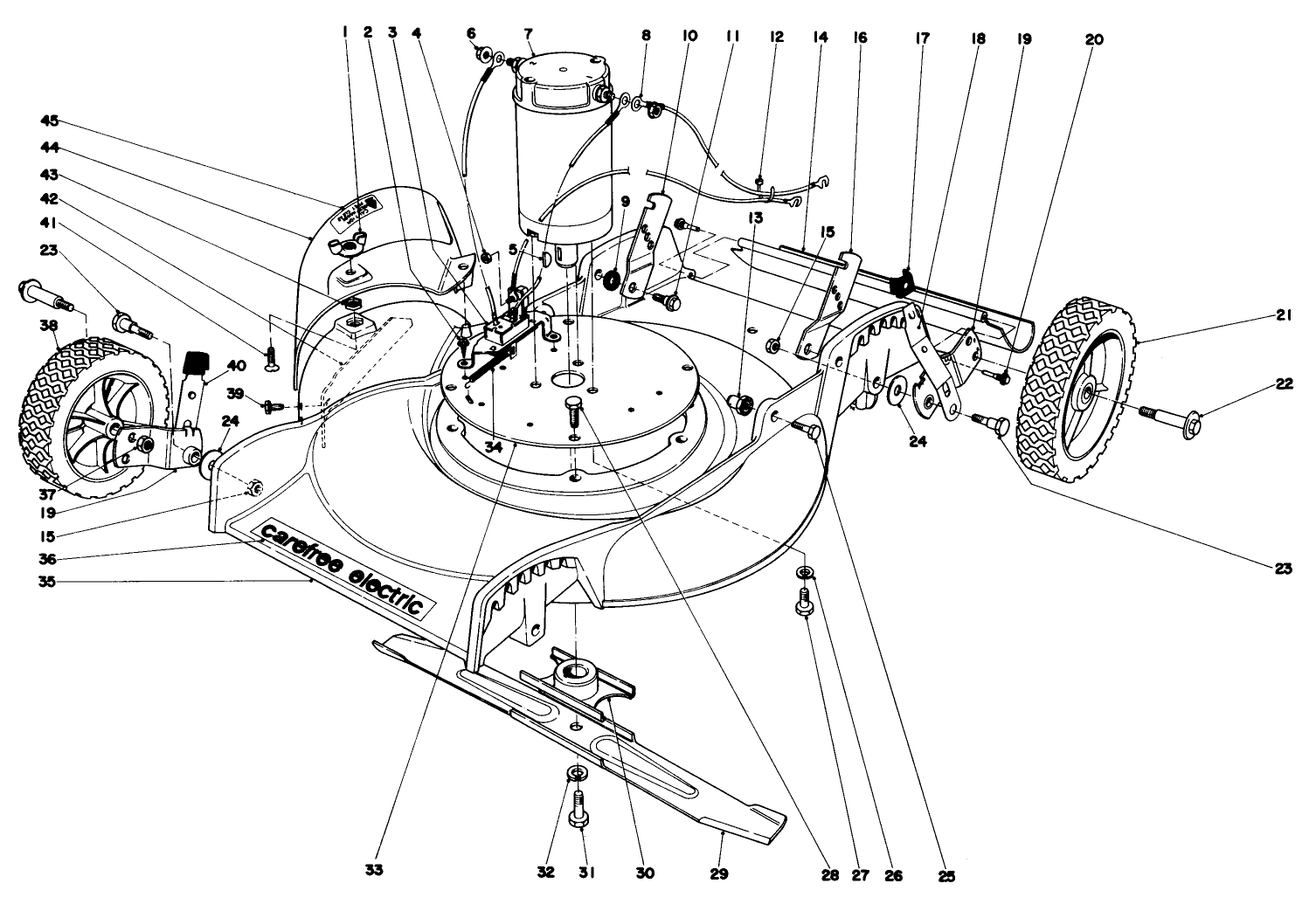

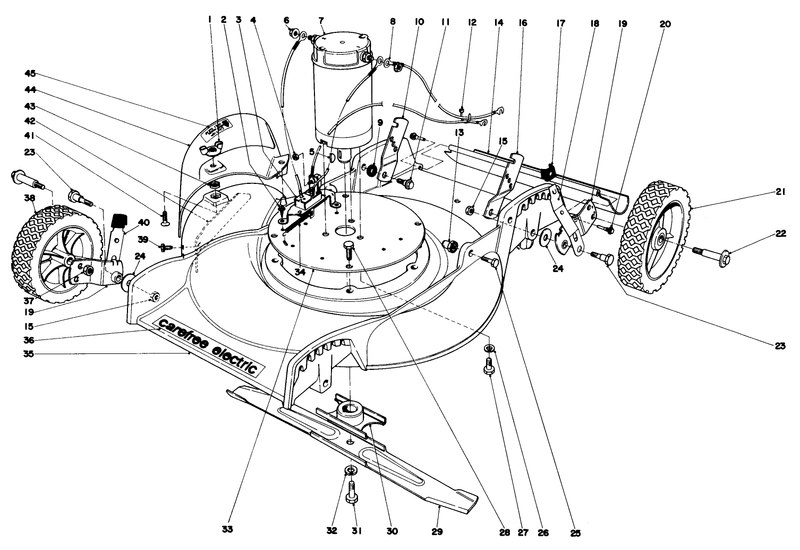

Housing Assembly
Housing Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
32103-14
32103-14
|
|||
|
|
32104-76
32104-76
|
|||
|
|
26-0220
26-0220
|
|||
|
|
3219-14
3219-14
|
|||
|
|
3257-1
3257-1
|
|||
|
|
2210-159
2210-159
|
|||
|
|
24-6990
24-6990
|
|||
|
|
26-5130
26-5130
|
|||
|
|
3-3287
3-3287
|
|||
|
|
23-5830
23-5830
|
|||
|
|
5-2490
5-2490
|
|||
|
|
3290-381
3290-381
|
|||
|
|
12-2080
12-2080
|
|||
|
|
26-3830
26-3830
|
|||
|
|
32153-3
32153-3
|
|||
|
|
23-5820
23-5820
|
|||
|
|
25-7740
25-7740
|
|||
|
|
25-8020
25-8020
|
|||
|
|
25-9800
25-9800
|
|||
|
|
8-6160
8-6160
|
|||
|
|
10-9670
10-9670
|
|||
|
|
99-5651
99-5651
|
|||
|
|
25-1270
25-1270
|
|||
|
|
26-9530
26-9530
|
|||
|
|
322-3
322-3
|
|||
|
|
3253-21
3253-21
|
|||
|
|
323-4
323-4
|
|||
|
|
32144-11
32144-11
|
|||
|
|
23-5630
23-5630
|
|||
|
|
23-5600
23-5600
|
|||
|
|
3211-35
3211-35
|
|||
|
|
3253-5
3253-5
|
|||
|
|
26-0130
26-0130
|
|||
|
|
26-3850
26-3850
|
|||
|
|
6-5659
6-5659
|
|||
|
|
24-6910
24-6910
|
|||
|
|
3296-6
3296-6
|
|||
|
|
26-7310
26-7310
|
|||
|
|
32104-17
32104-17
|
|||
|
|
26-9540
26-9540
|
|||
|
|
32108-3
32108-3
|
|||
|
|
23-5590
23-5590
|
|||
|
|
3290-375
3290-375
|
|||
|
|
25-2130
25-2130
|
|||
|
|
23-6120
23-6120
|

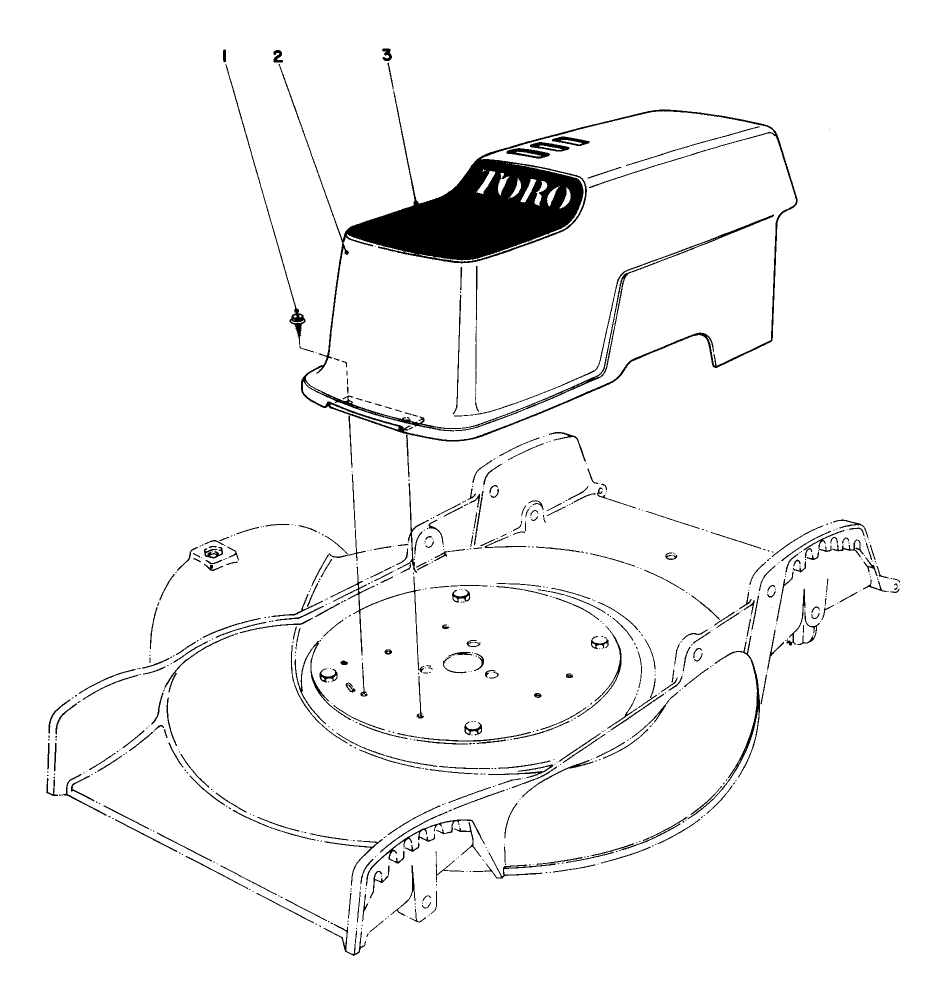

Shroud Assembly
Shroud Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
32104-76
32104-76
|
|||
|
|
26-0170
26-0170
|
|||
|
|
26-5030
26-5030
|
