Toro 20039 Super Recycler Mower with Bag Mower (Serial #: 220000001 - 220999999) Parts Diagram
Diagrams:
Diagram:

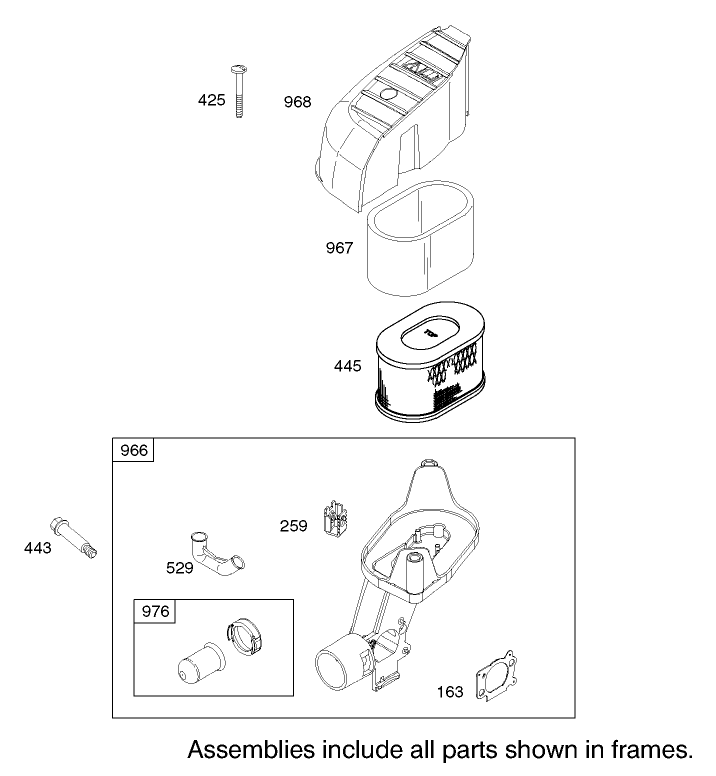

Air Cleaner Assembly Engine Briggs and Stratton Model 122607 0118 E1
Air Cleaner Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
691189
691189
|
|||
|
|
690244
690244
|
|||
|
|
690255
690255
|
|||
|
|
690610
690610
|
|||
|
|
692937
692937
|
|||
|
|
690243
690243
|
|||
|
|
273356
273356
|
|||
|
|
692692
692692
|
|||
|
|
694395
694395
|

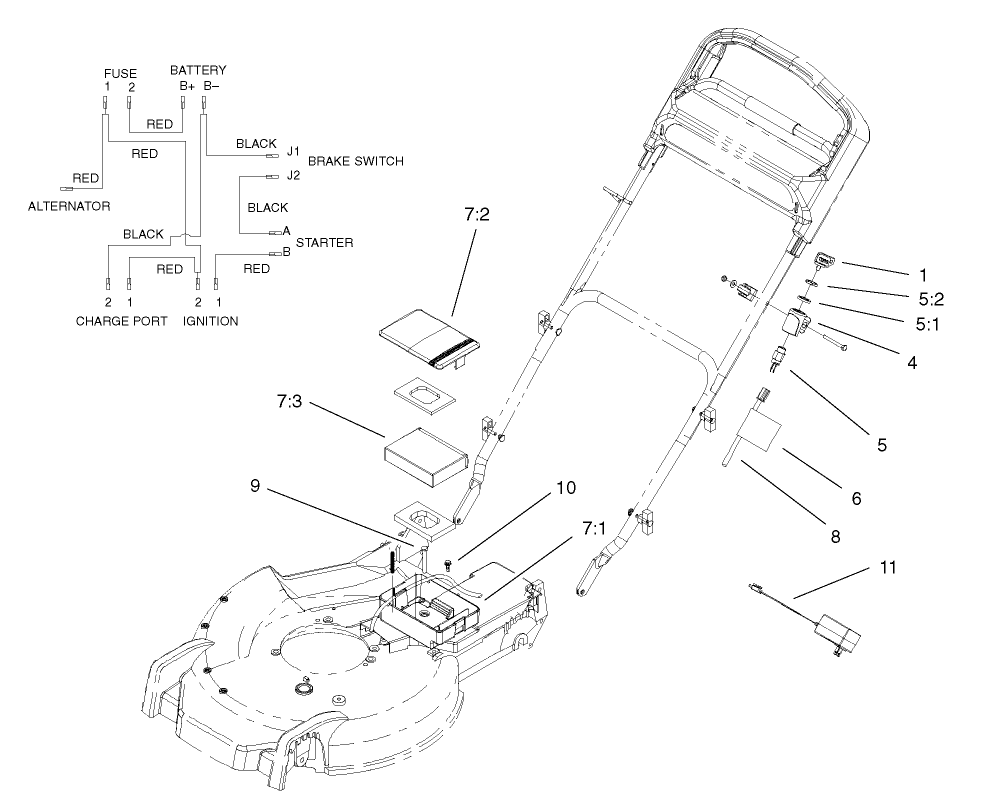

Battery and Switch Assembly
Battery and Switch Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
115-1304
115-1304
|
|||
|
|
700918
700918
|
|||
|
|
108-9760
108-9760
|
|||
|
|
46-5780
46-5780
|
|||
|
|
3254-5
3254-5
|
|||
|
|
218-461
218-461
|
|||
|
|
104-7953
104-7953
|
|||
|
|
105-6843
105-6843
|
|||
|
|
105-6844
105-6844
|
|||
|
|
115-1304
115-1304
|
|||
|
|
104-7921
104-7921
|
|||
|
|
37-7262
37-7262
|
|||
|
|
32144-32
32144-32
|
|||
|
|
136-9126
136-9126
|

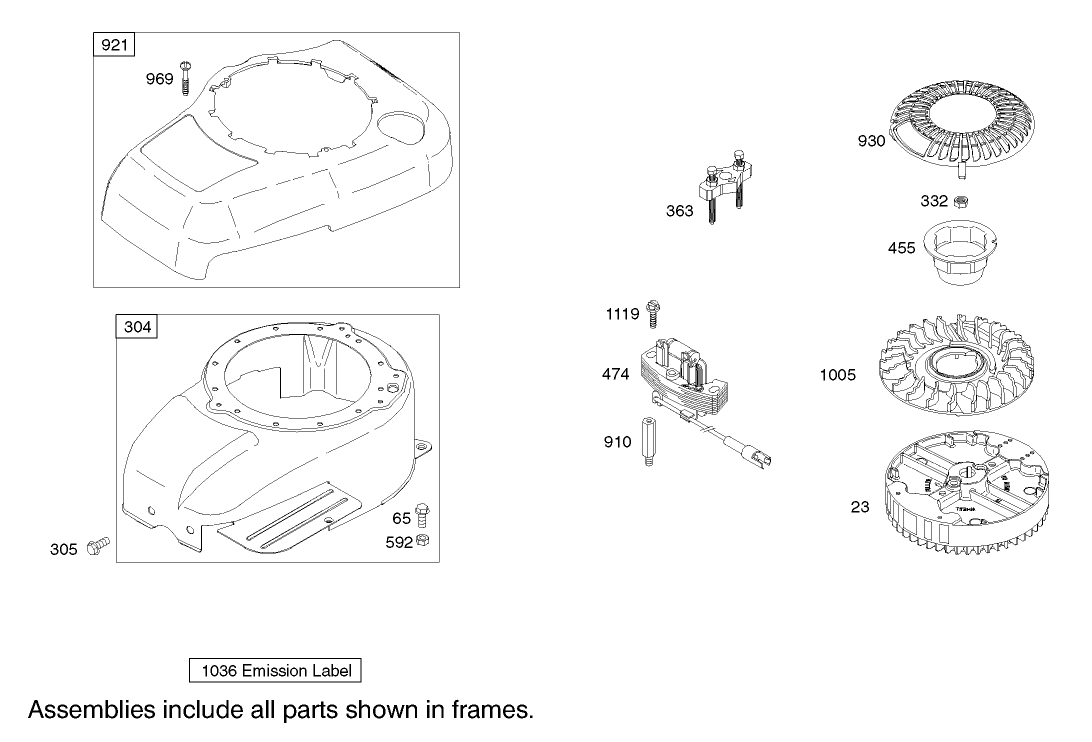

Blower Housing Assembly Engine Briggs and Stratton Model 122607 0118 E1
Blower Housing Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
696569
696569
|
|||
|
|
690837
690837
|
|||
|
|
499677
499677
|
|||
|
|
690960
690960
|
|||
|
|
690662
690662
|
|||
|
|
19069
19069
|
|||
|
|
695161
695161
|
|||
|
|
691991
691991
|
|||
|
|
690800
690800
|
|||
|
|
691094
691094
|
|||
|
|
692699
692699
|
|||
|
|
692691
692691
|
|||
|
|
691138
691138
|
|||
|
|
691346
691346
|
|||
|
|
696767
696767
|
|||
|
|
691648
691648
|

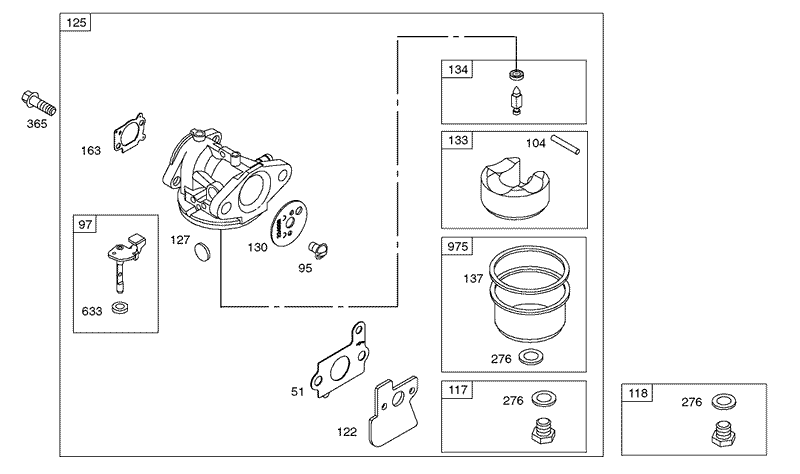

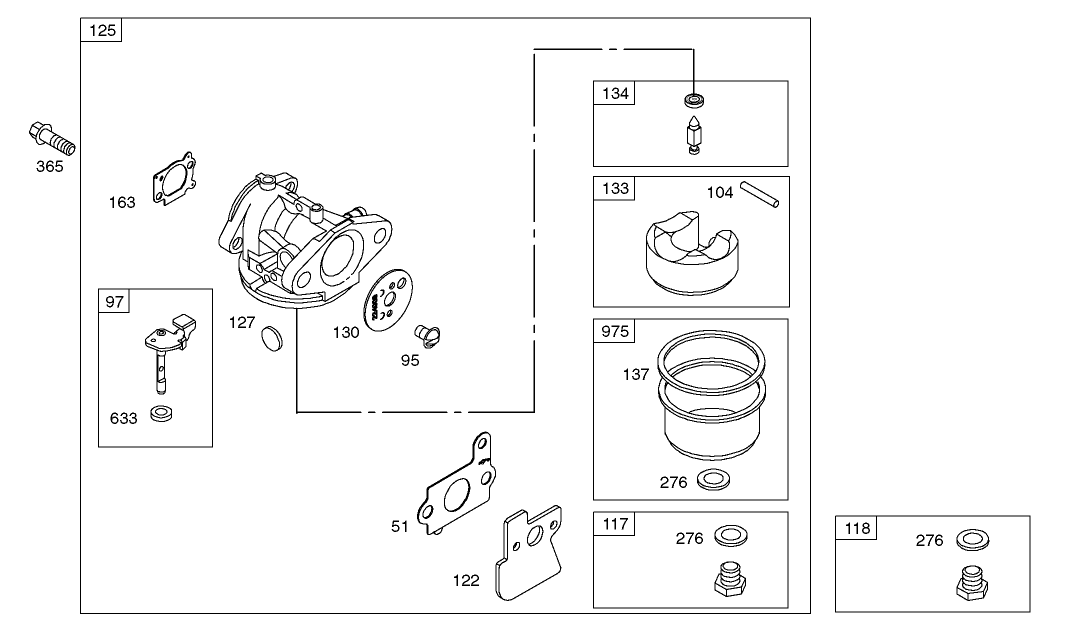

Carburetor Assembly Engine Briggs and Stratton Model 122607 0118 E1
Carburetor Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
691636
691636
|
|||
|
|
499682
499682
|
|||
|
|
|
|||
|
|
498978
498978
|
|||
|
|
498975
498975
|
|||
|
|
|
|||
|
|
694202
694202
|
|||
|
|
|
|||
|
|
691203
691203
|
|||
|
|
398187
398187
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
691136
691136
|
|||
|
|
|
|||
|
|
493640
493640
|

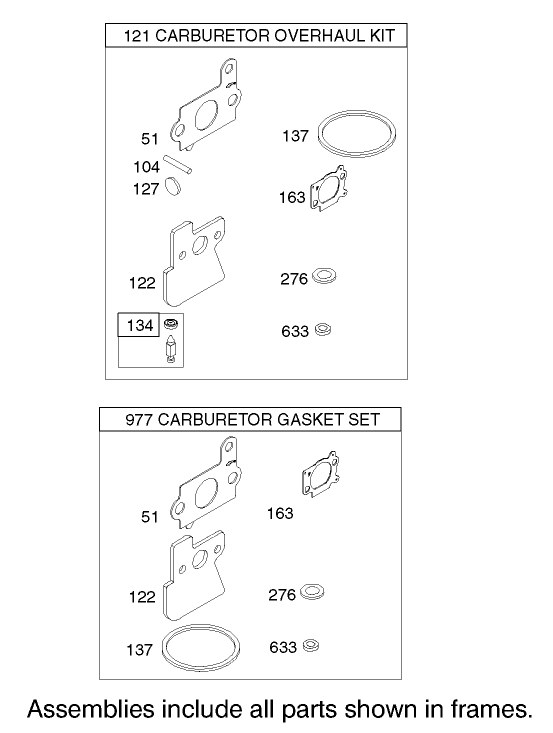

Carburetor Overhaul Kit Assembly Engine Briggs and Stratton Model 122607 0118 E1
Carburetor Overhaul Kit Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
692703
692703
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
692704
692704
|

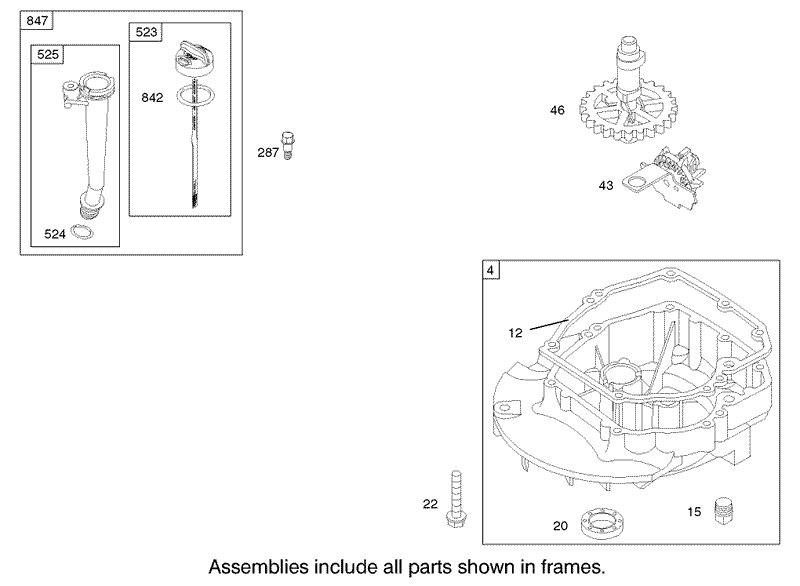

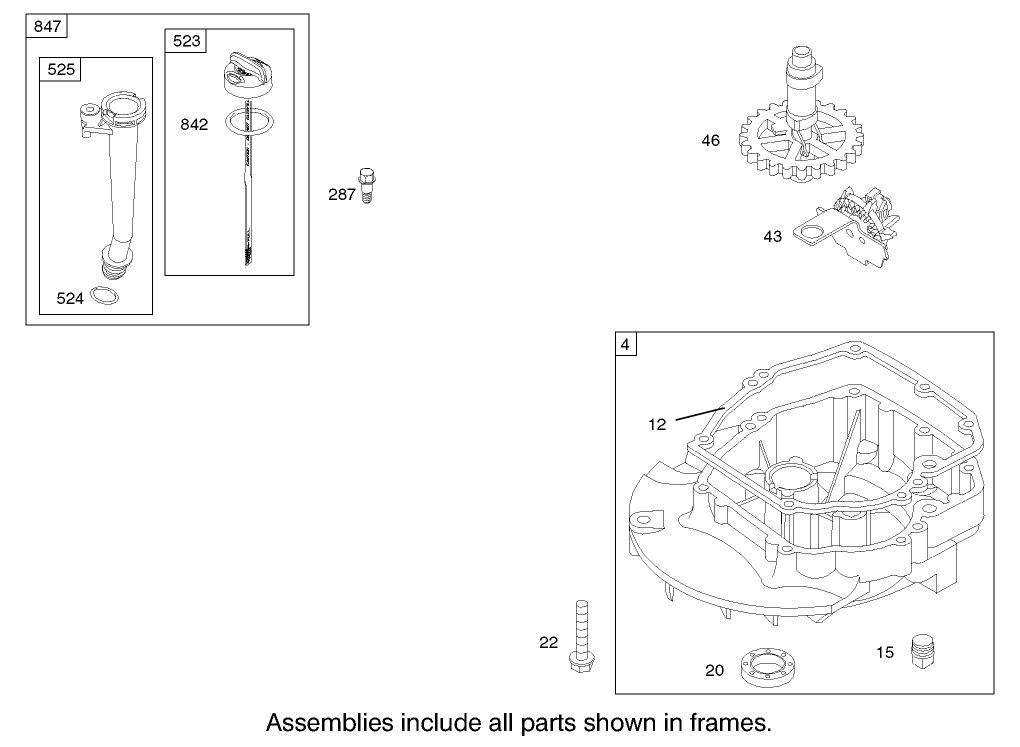

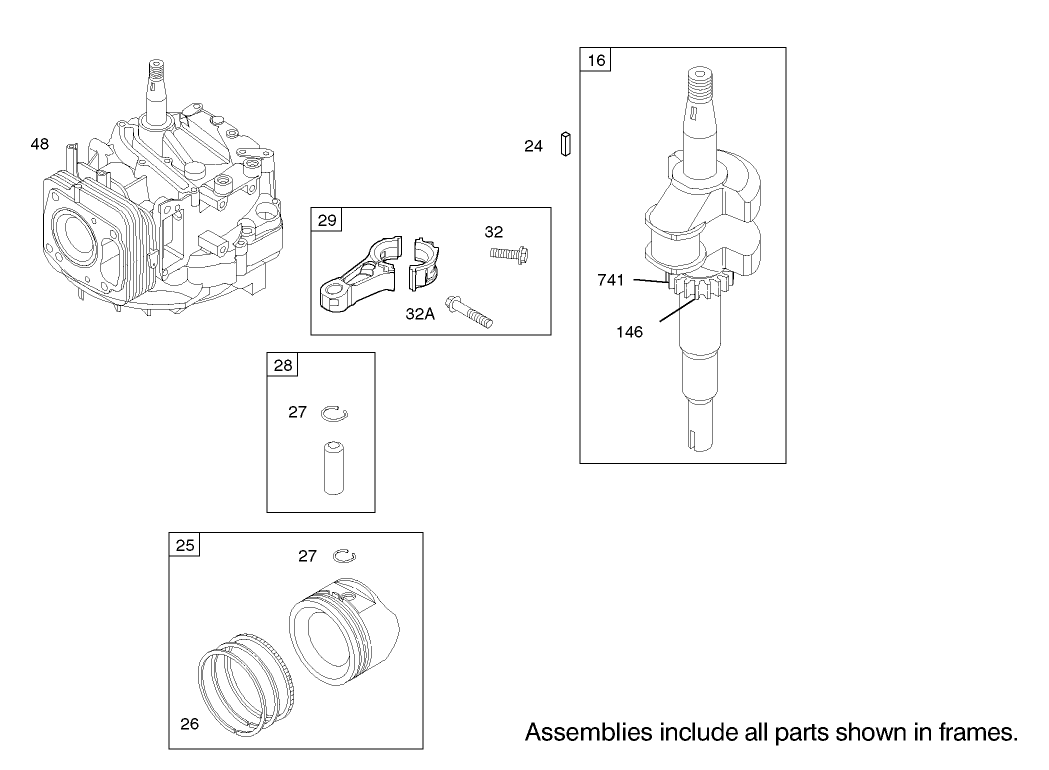

Crankcase Assembly Engine Briggs and Stratton Model 122607 0118 E1
Crankcase Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
499619
499619
|
|||
|
|
|
|||
|
|
691680
691680
|
|||
|
|
|
|||
|
|
691092
691092
|
|||
|
|
691997
691997
|
|||
|
|
694039
694039
|
|||
|
|
690940
690940
|
|||
|
|
499621
499621
|
|||
|
|
|
|||
|
|
495265
495265
|
|||
|
|
|
|||
|
|
692047
692047
|

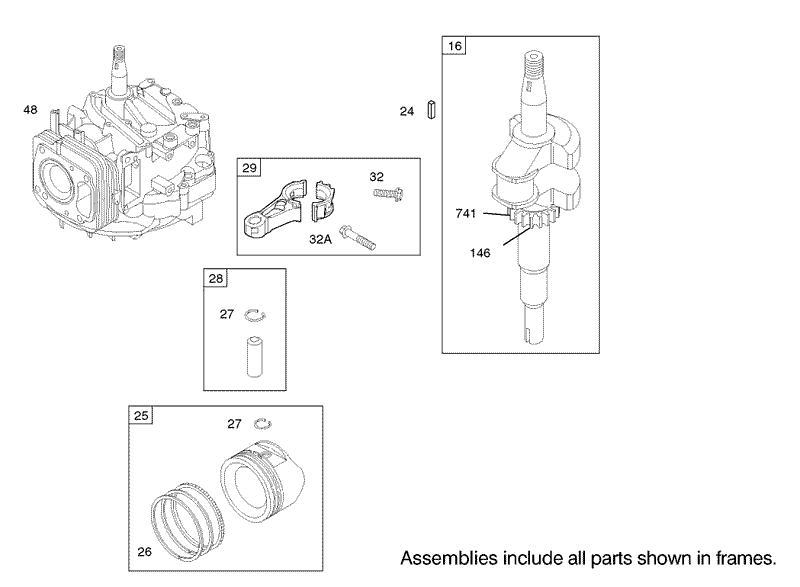

Crankshaft Assembly Engine Briggs and Stratton Model 122607 0118 E1
Crankshaft Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
692786
692786
|
|||
|
|
692787
692787
|
|||
|
|
692790
692790
|
|||
|
|
692788
692788
|
|||
|
|
692789
692789
|
|||
|
|
692785
692785
|
|||
|
|
695950
695950
|
|||
|
|
222698
222698
|
|||
|
|
499627
499627
|
|||
|
|
499631
499631
|
|||
|
|
691866
691866
|
|||
|
|
499423
499423
|
|||
|
|
499424
499424
|
|||
|
|
691664
691664
|
|||
|
|
695759
695759
|
|||
|
|
694898
694898
|
|||
|
|
690979
690979
|
|||
|
|
691830
691830
|

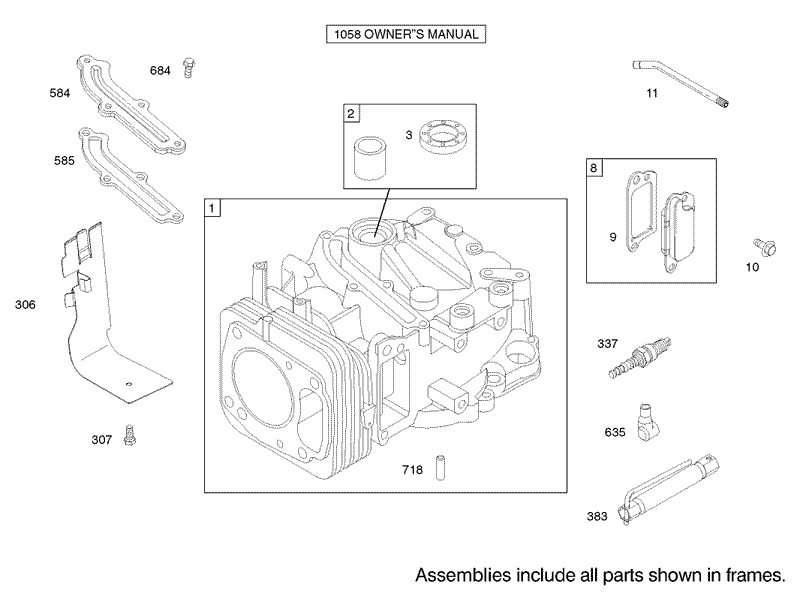

Cylinder Assembly Engine Briggs and Stratton Model 122607 0118 E1
Cylinder Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
499678
499678
|
|||
|
|
399269
399269
|
|||
|
|
|
|||
|
|
495786
495786
|
|||
|
|
|
|||
|
|
691125
691125
|
|||
|
|
691260
691260
|
|||
|
|
691232
691232
|
|||
|
|
690345
690345
|
|||
|
|
692051
692051
|
|||
|
|
19374
19374
|
|||
|
|
692342
692342
|
|||
|
|
|
|||
|
|
66538
66538
|
|||
|
|
690345
690345
|
|||
|
|
690959
690959
|
|||
|
|
274979
274979
|

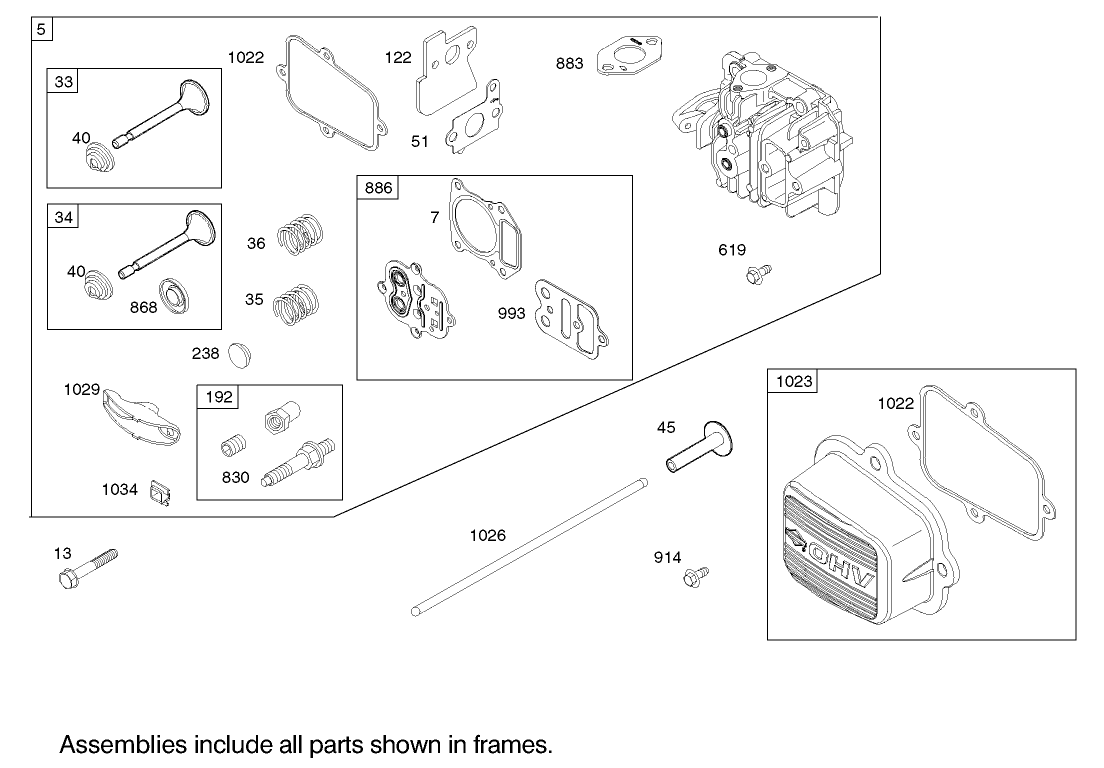

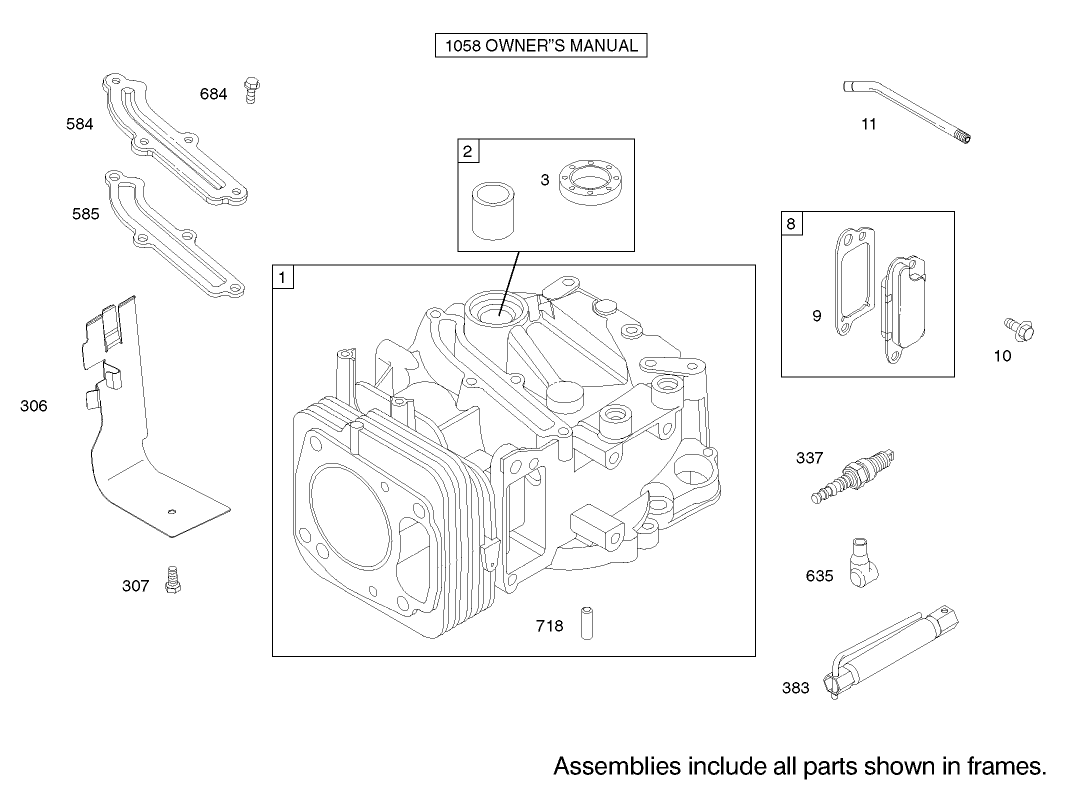

Cylinder Head Assembly Engine Briggs and Stratton Model 122607 0118 E1
Cylinder Head Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
695276
695276
|
|||
|
|
|
|||
|
|
691137
691137
|
|||
|
|
499642
499642
|
|||
|
|
499641
499641
|
|||
|
|
691304
691304
|
|||
|
|
691304
691304
|
|||
|
|
692194
692194
|
|||
|
|
690977
690977
|
|||
|
|
|
|||
|
|
|
|||
|
|
694543
694543
|
|||
|
|
691300
691300
|
|||
|
|
691108
691108
|
|||
|
|
694544
694544
|
|||
|
|
|
|||
|
|
|
|||
|
|
696268
696268
|
|||
|
|
693398
693398
|
|||
|
|
|
|||
|
|
|
|||
|
|
690214
690214
|
|||
|
|
692045
692045
|
|||
|
|
691230
691230
|
|||
|
|
691343
691343
|

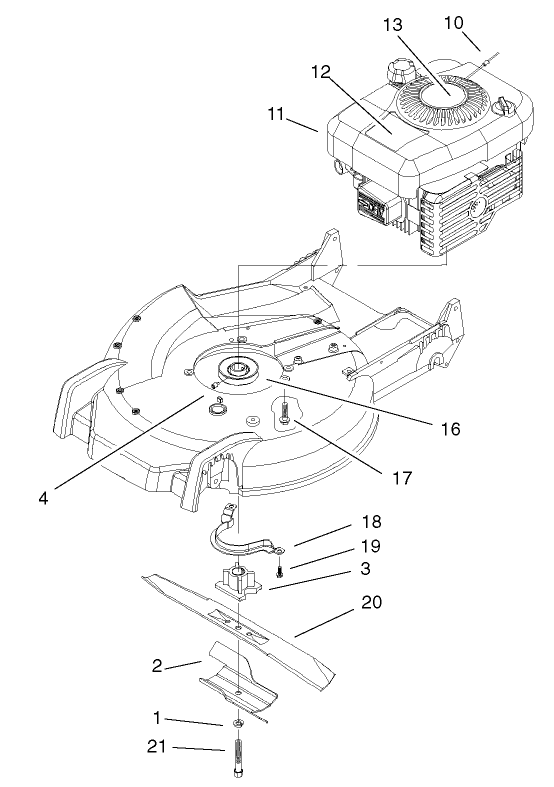

Engine Assembly
Engine Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3253-22
3253-22
|
|||
|
|
105-6848-03
105-6848-03
|
|||
|
|
104-1007
104-1007
|
|||
|
|
105-8875
105-8875
|
|||
|
|
2210-316
2210-316
|
|||
|
|
|
|||
|
|
99-6015
99-6015
|
|||
|
|
105-8571
105-8571
|
|||
|
|
95-1878
95-1878
|
|||
|
|
32144-102
32144-102
|
|||
|
|
66-0570-03
66-0570-03
|
|||
|
|
32144-70
32144-70
|
|||
|
|
133-8183-03
133-8183-03
|
|||
|
|
105-8629
105-8629
|

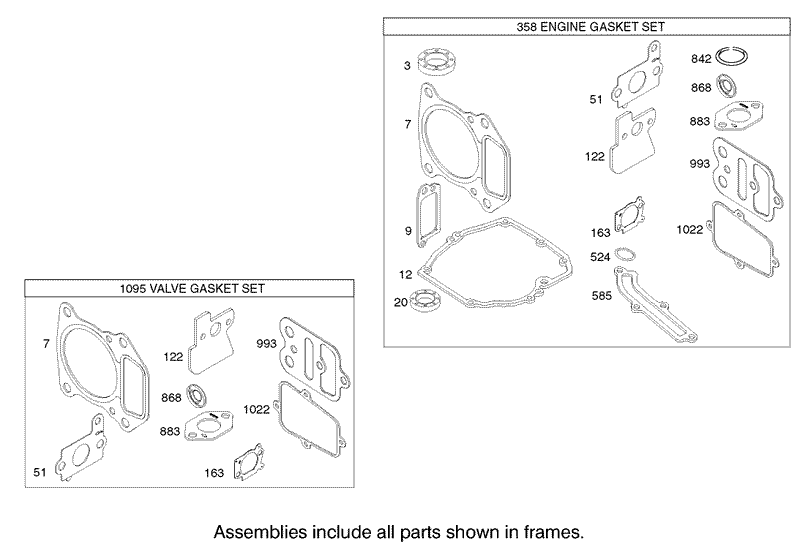

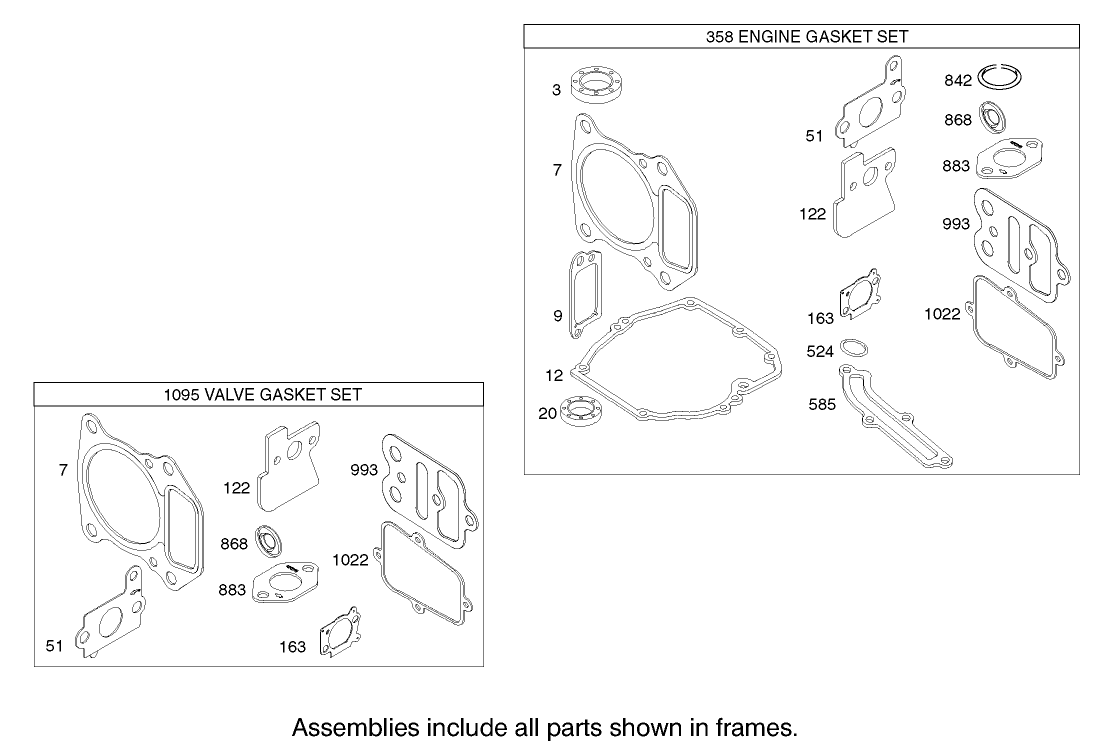

Gasket Assembly Engine Briggs and Stratton Model 122607 0118 E1
Gasket Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
694090
694090
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
694091
694091
|

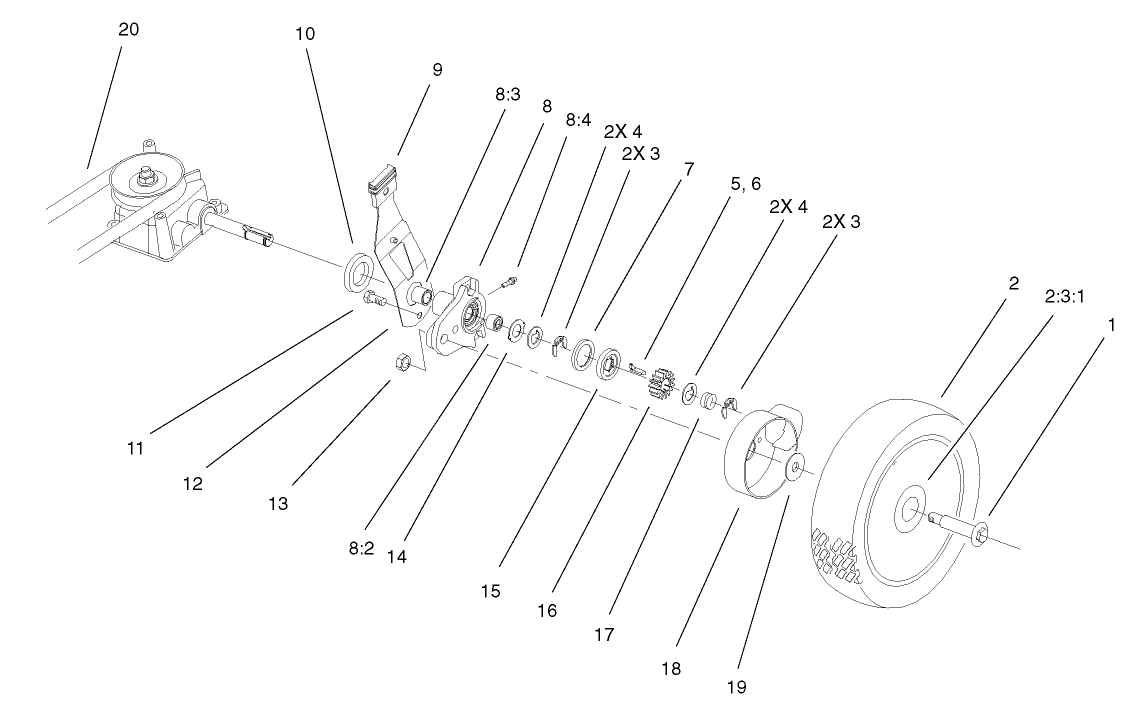

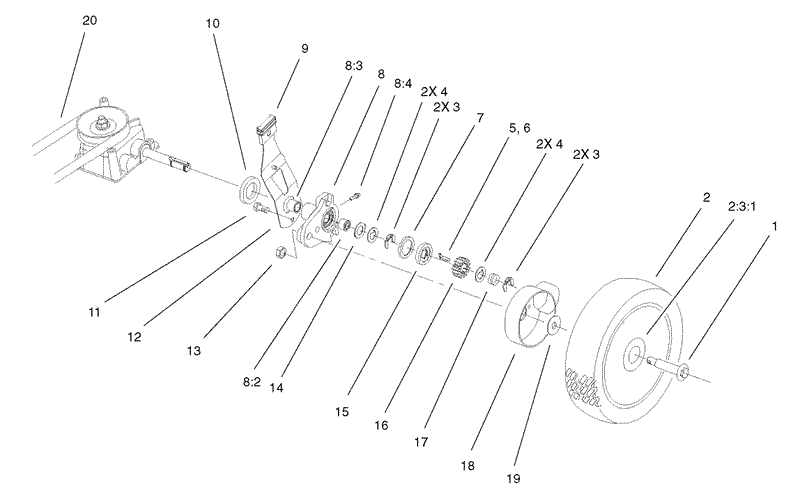

Gear Case and Wheel Assembly
Gear Case and Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
92-1057
92-1057
|
|||
|
|
98-7135
98-7135
|
|||
|
|
27-6250
27-6250
|
|||
|
|
65-2720
65-2720
|
|||
|
|
65-4740
65-4740
|
|||
|
|
139-6643
139-6643
|
|||
|
|
139-6644
139-6644
|
|||
|
|
65-4710
65-4710
|
|||
|
|
100-8774
100-8774
|
|||
|
|
47-2900
47-2900
|
|||
|
|
70-9760
70-9760
|
|||
|
|
302-56
302-56
|
|||
|
|
25-7740
25-7740
|
|||
|
|
138-3235
138-3235
|
|||
|
|
32144-85
32144-85
|
|||
|
|
63-8721
63-8721
|
|||
|
|
603773
603773
|
|||
|
|
65-4730
65-4730
|
|||
|
|
65-4760
65-4760
|
|||
|
|
65-4750
65-4750
|
|||
|
|
65-4720
65-4720
|
|||
|
|
74-1660
74-1660
|
|||
|
|
74-1671
74-1671
|
|||
|
|
91-2258
91-2258
|

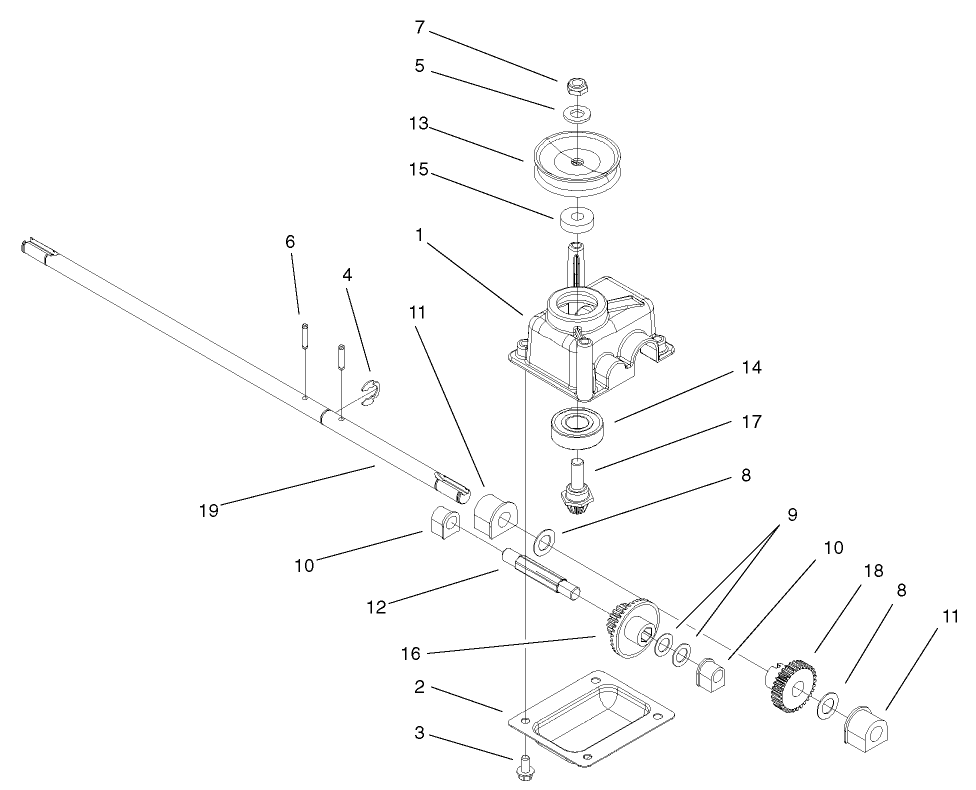

Gear Case Assembly No 104 7674
Gear Case Assembly No 104 7674
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
104-7619
104-7619
|
|||
|
|
614668-03
614668-03
|
|||
|
|
32144-4
32144-4
|
|||
|
|
65-2720
65-2720
|
|||
|
|
3256-24
3256-24
|
|||
|
|
3285-19
3285-19
|
|||
|
|
3296-5
3296-5
|
|||
|
|
36-4780
36-4780
|
|||
|
|
36-4791
36-4791
|
|||
|
|
60-8750
60-8750
|
|||
|
|
60-8850
60-8850
|
|||
|
|
614696
614696
|
|||
|
|
100-1176
100-1176
|
|||
|
|
38-7820
38-7820
|
|||
|
|
62-6660
62-6660
|
|||
|
|
104-1005
104-1005
|
|||
|
|
104-7667
104-7667
|
|||
|
|
104-1004
104-1004
|
|||
|
|
104-7673
104-7673
|
Governor Assembly Engine Briggs and Stratton Model 122607 0118 E1
Governor Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
693168
693168
|
|||
|
|
691303
691303
|
|||
|
|
690319
690319
|
|||
|
|
692723
692723
|
|||
|
|
691467
691467
|
|||
|
|
802574
802574
|
|||
|
|
691061
691061
|
|||
|
|
692390
692390
|
|||
|
|
690272
690272
|
|||
|
|
231082
231082
|
|||
|
|
94852
94852
|
|||
|
|
690340
690340
|
|||
|
|
691308
691308
|
|||
|
|
692310
692310
|
|||
|
|
691648
691648
|
|||
|
|
493880
493880
|
|||
|
|
691831
691831
|
|||
|
|
691994
691994
|
|||
|
|
499421
499421
|
|||
|
|
691627
691627
|

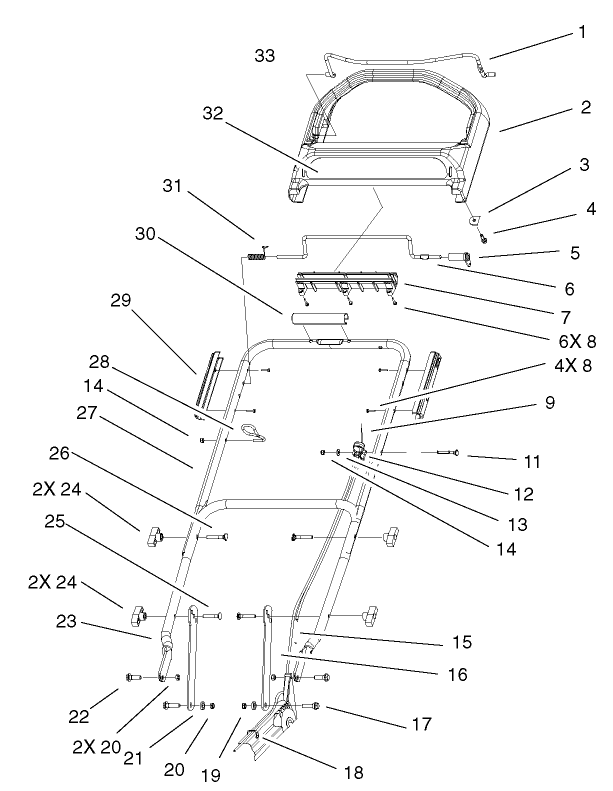

Handle and Control Assembly
Handle and Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
99-1593-03
99-1593-03
|
|||
|
|
99-1582
99-1582
|
|||
|
|
106-2662
106-2662
|
|||
|
|
98-2682
98-2682
|
|||
|
|
99-1589
99-1589
|
|||
|
|
136-7150
136-7150
|
|||
|
|
99-6008
99-6008
|
|||
|
|
94-4496
94-4496
|
|||
|
|
100-1186
100-1186
|
|||
|
|
321-50
321-50
|
|||
|
|
136-5864
136-5864
|
|||
|
|
3256-1
3256-1
|
|||
|
|
3296-73
3296-73
|
|||
|
|
106-8300
106-8300
|
|||
|
|
99-5248-03
99-5248-03
|
|||
|
|
27-7210
27-7210
|
|||
|
|
100-2894
100-2894
|
|||
|
|
3296-47
3296-47
|
|||
|
|
3296-72
3296-72
|
|||
|
|
3-3287
3-3287
|
|||
|
|
27-7211
27-7211
|
|||
|
|
99-5249-05
99-5249-05
|
|||
|
|
98-7134
98-7134
|
|||
|
|
99-6019
99-6019
|
|||
|
|
92-2260
92-2260
|
|||
|
|
99-1596-05
99-1596-05
|
|||
|
|
86-9671
86-9671
|
|||
|
|
99-1590
99-1590
|
|||
|
|
99-6339
99-6339
|
|||
|
|
99-1592
99-1592
|
|||
|
|
99-6009
99-6009
|

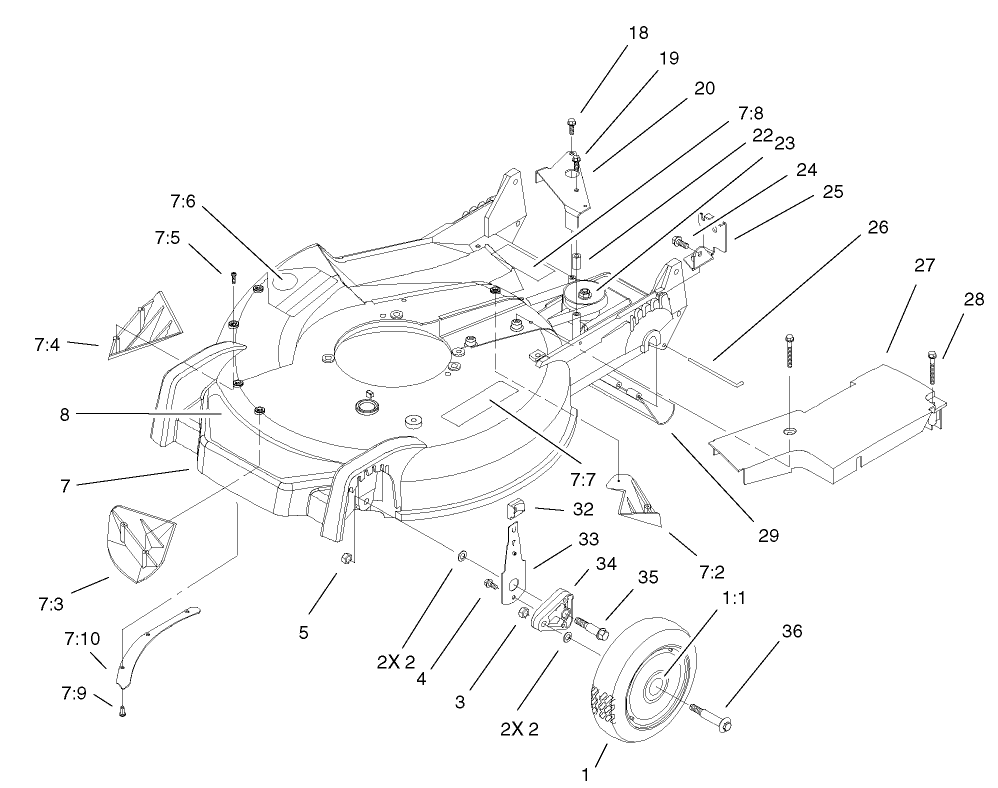

Housing and Wheel Assembly
Housing and Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
98-7130
98-7130
|
|||
|
|
27-6250
27-6250
|
|||
|
|
40-1940
40-1940
|
|||
|
|
603773
603773
|
|||
|
|
32144-85
32144-85
|
|||
|
|
3296-6
3296-6
|
|||
|
|
105-1307
105-1307
|
|||
|
|
92-1750
92-1750
|
|||
|
|
92-1720
92-1720
|
|||
|
|
92-1730
92-1730
|
|||
|
|
32144-111
32144-111
|
|||
|
|
43-8480
43-8480
|
|||
|
|
104-8589
104-8589
|
|||
|
|
99-6018
99-6018
|
|||
|
|
63-8590
63-8590
|
|||
|
|
105-1316-03
105-1316-03
|
|||
|
|
99-6010
99-6010
|
|||
|
|
49-2040
49-2040
|
|||
|
|
92-1616
92-1616
|
|||
|
|
99-1513-03
99-1513-03
|
|||
|
|
614673
614673
|
|||
|
|
104-7674
104-7674
|
|||
|
|
32144-70
32144-70
|
|||
|
|
99-1512-03
99-1512-03
|
|||
|
|
33-3208
33-3208
|
|||
|
|
104-7906
104-7906
|
|||
|
|
37-7260
37-7260
|
|||
|
|
112-9989
112-9989
|
|||
|
|
25-7740
25-7740
|
|||
|
|
66-0541
66-0541
|
|||
|
|
66-0580
66-0580
|
|||
|
|
66-0560
66-0560
|
|||
|
|
92-1057
92-1057
|

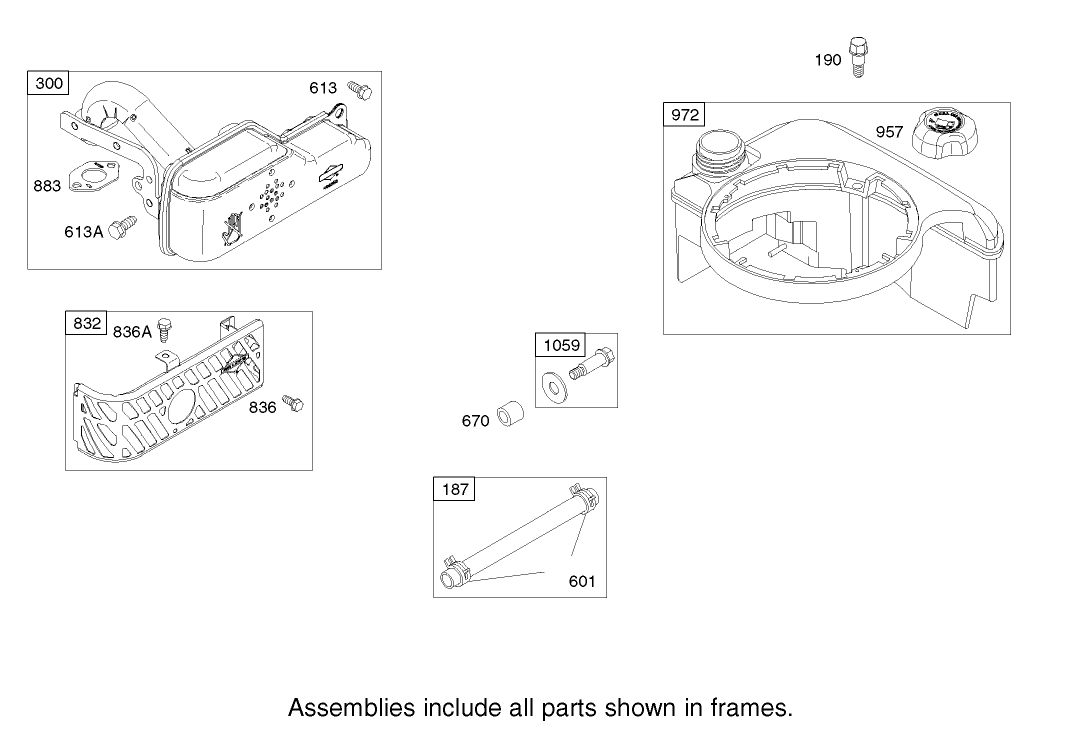

Muffler and Fuel Tank Assembly Engine Briggs and Stratton Model 122607 0118 E1
Muffler and Fuel Tank Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
691050
691050
|
|||
|
|
690940
690940
|
|||
|
|
694248
694248
|
|||
|
|
95162
95162
|
|||
|
|
691108
691108
|
|||
|
|
691140
691140
|
|||
|
|
692294
692294
|
|||
|
|
691466
691466
|
|||
|
|
690960
690960
|
|||
|
|
691147
691147
|
|||
|
|
|
|||
|
|
692046
692046
|
|||
|
|
499618
499618
|
|||
|
|
692311
692311
|

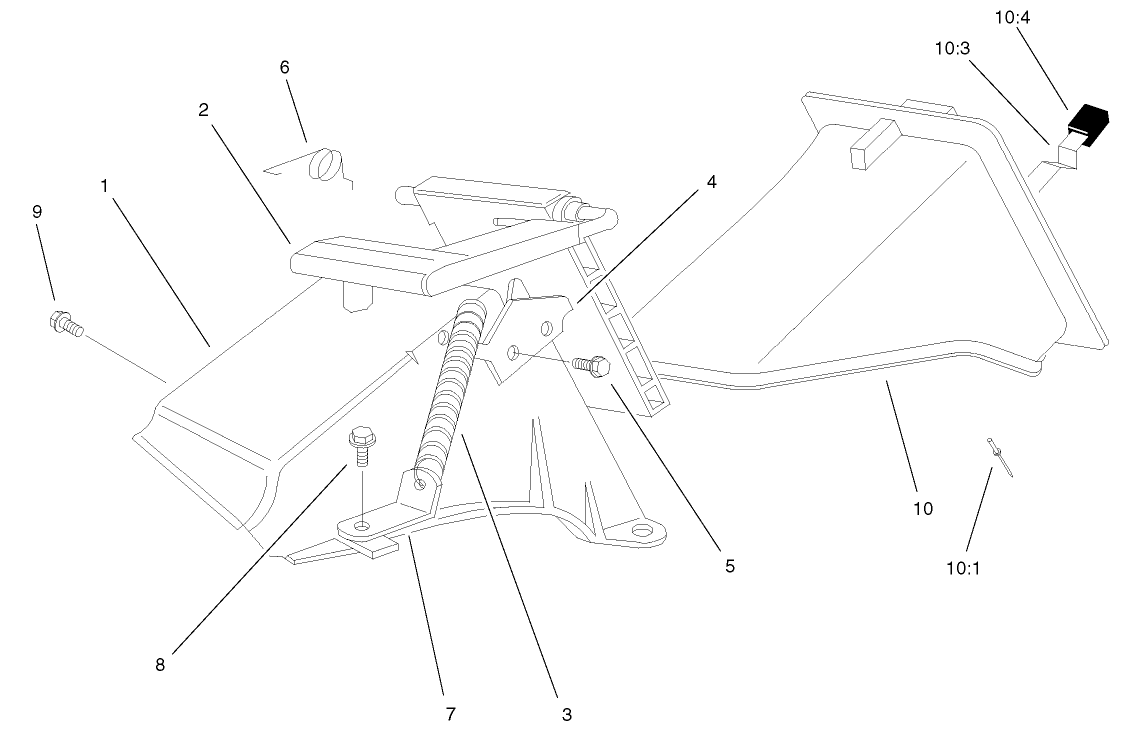

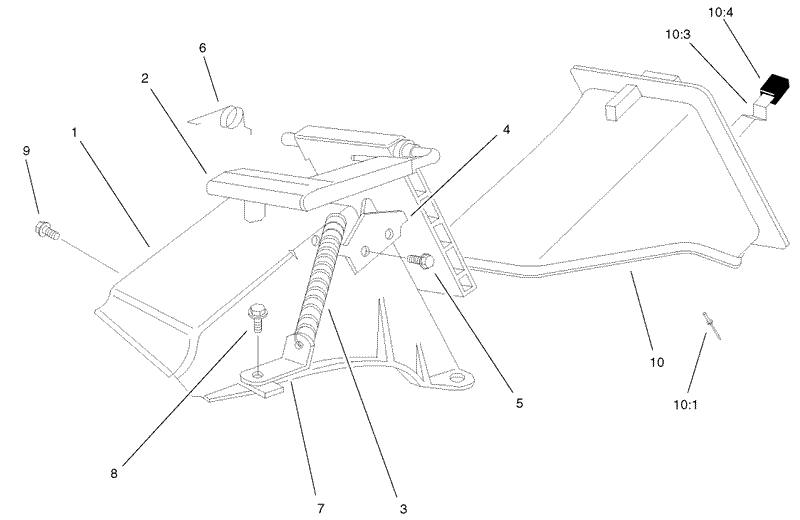

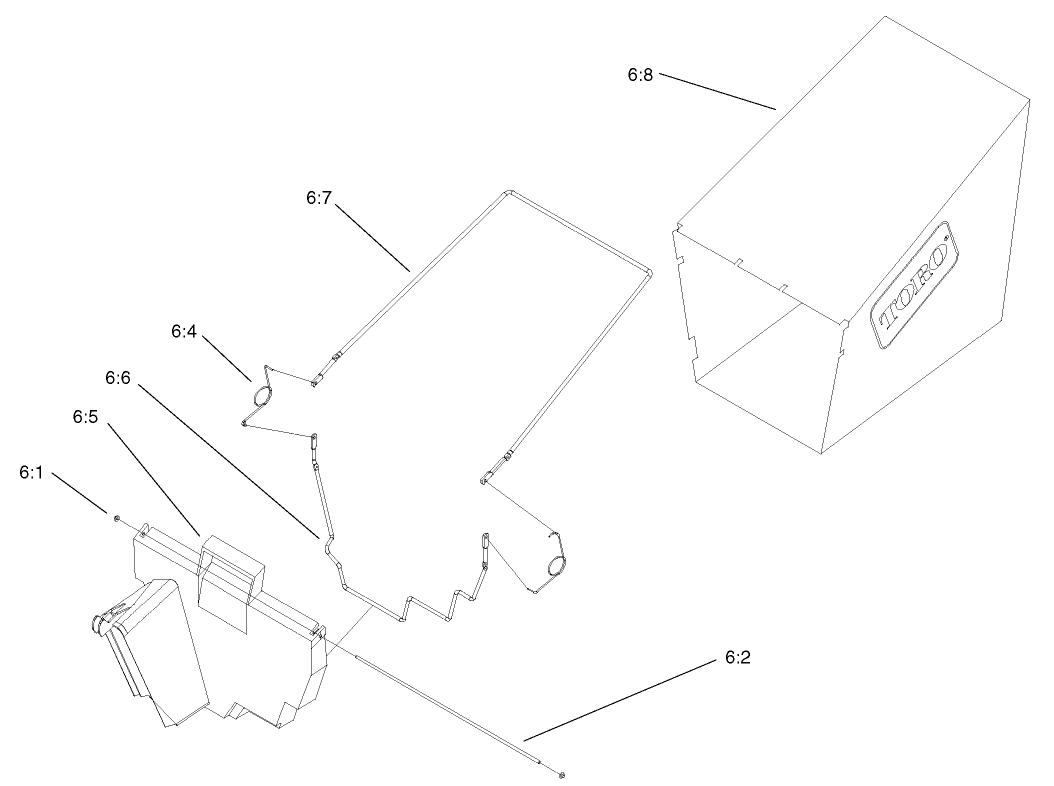

Rear Bag Discharge Chute Assembly
Rear Bag Discharge Chute Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
82-9153
82-9153
|
|||
|
|
93-7351
93-7351
|
|||
|
|
76-4660
76-4660
|
|||
|
|
93-3154
93-3154
|
|||
|
|
46-8090
46-8090
|
|||
|
|
80-3770
80-3770
|
|||
|
|
71-9350
71-9350
|
|||
|
|
46-6811
46-6811
|
|||
|
|
46-6810
46-6810
|
|||
|
|
77-0500
77-0500
|
|||
|
|
3295-35
3295-35
|
|||
|
|
76-4640
76-4640
|
|||
|
|
76-4650
76-4650
|
Rear Bagger Assembly
Rear Bagger Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
3290-422
3290-422
|
|||
|
|
33-4820
33-4820
|
|||
|
|
36-6910
36-6910
|
|||
|
|
37-1393
37-1393
|
|||
|
|
42-4020
42-4020
|
|||
|
|
121-1388
121-1388
|
|||
|
|
44-0522
44-0522
|

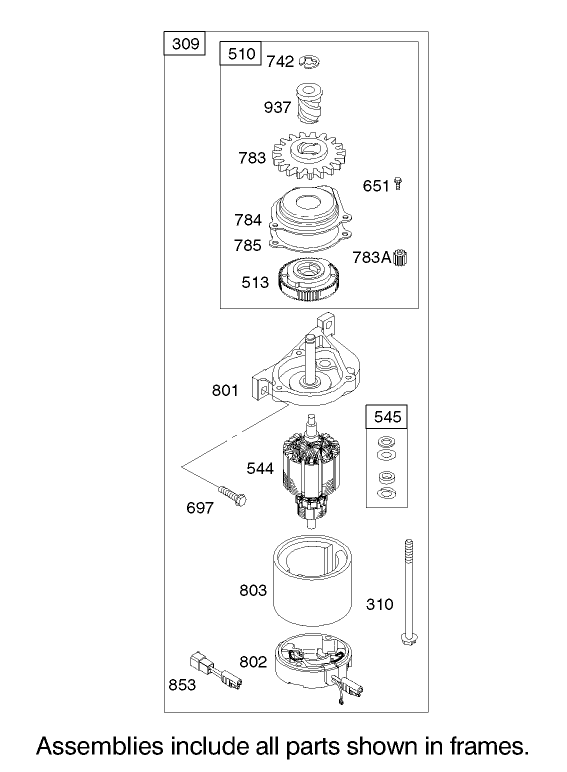

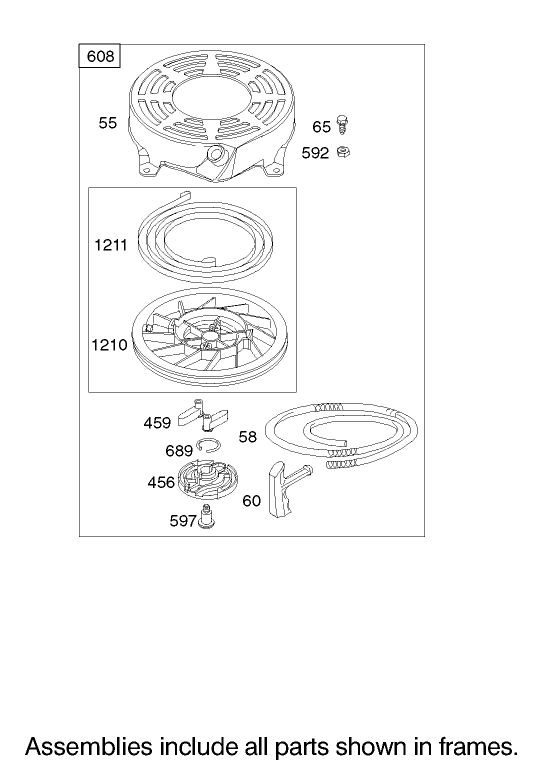

Starter Assembly Engine Briggs and Stratton Model 122607 0118 E1
Starter Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
695550
695550
|
|||
|
|
692327
692327
|
|||
|
|
494147
494147
|
|||
|
|
692358
692358
|
|||
|
|
690786
690786
|
|||
|
|
492919
492919
|
|||
|
|
690345
690345
|
|||
|
|
691127
691127
|
|||
|
|
93941
93941
|
|||
|
|
691918
691918
|
|||
|
|
691269
691269
|
|||
|
|
692341
692341
|
|||
|
|
692352
692352
|
|||
|
|
690782
690782
|
|||
|
|
695267
695267
|
|||
|
|
695266
695266
|
|||
|
|
695268
695268
|
|||
|
|
691325
691325
|
Starter Assembly Engine Briggs and Stratton Model 122607 0118 E1
Starter Assembly Engine Briggs and Stratton Model 122607 0118 E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
691421
691421
|
|||
|
|
280399
280399
|
|||
|
|
281434
281434
|
|||
|
|
690837
690837
|
|||
|
|
692299
692299
|
|||
|
|
281505
281505
|
|||
|
|
690800
690800
|
|||
|
|
691696
691696
|
|||
|
|
497680
497680
|
|||
|
|
691855
691855
|
|||
|
|
498144
498144
|
|||
|
|
498144
498144
|
