Toro 20812 Recycler/rear Bagging Mower (Serial #: 200000001 - 200999999) Parts Diagram
Diagrams:
Diagram:

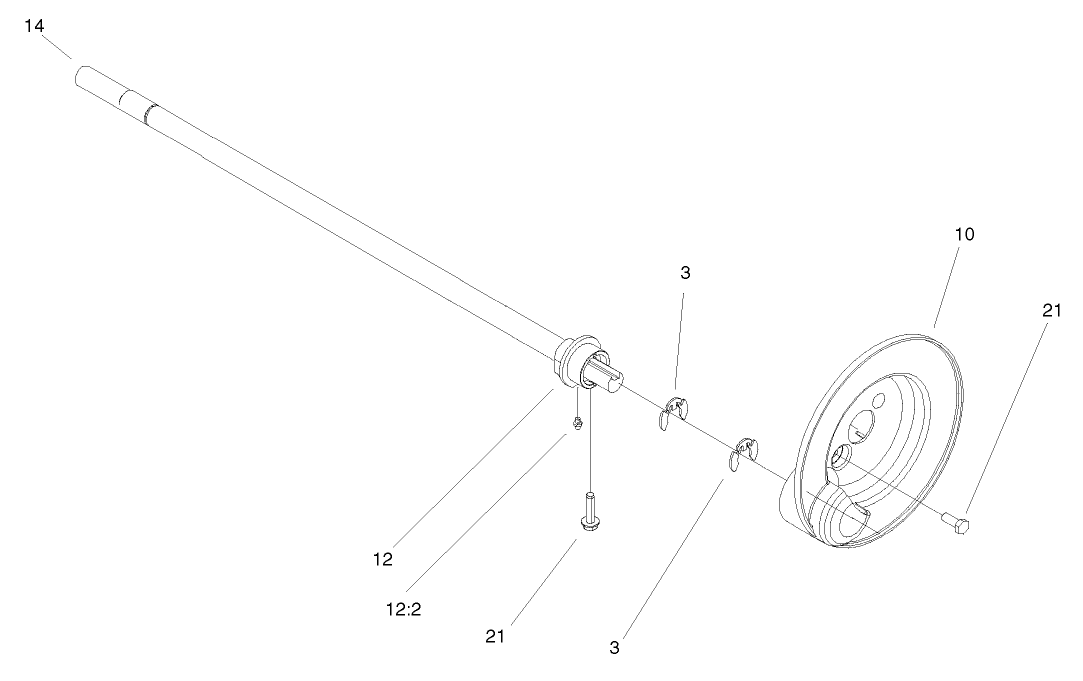

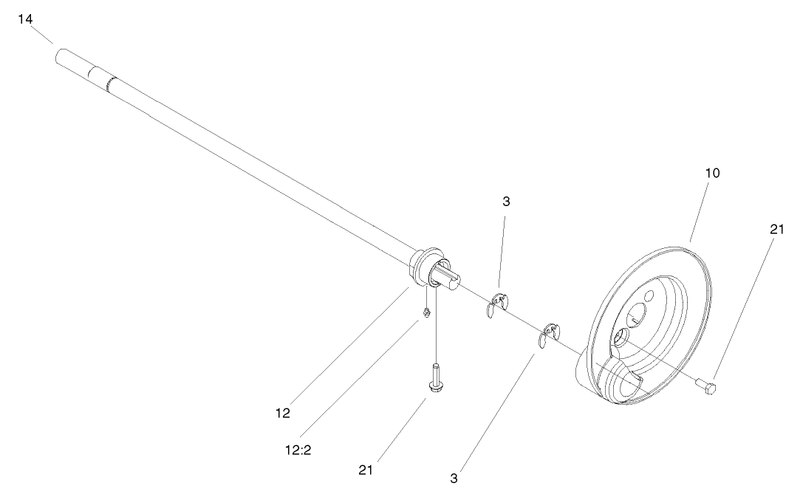

Axle Assembly
Axle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
65-2720
65-2720
|
|||
|
|
100-1513
100-1513
|
|||
|
|
100-9118
100-9118
|
|||
|
|
302-56
302-56
|
|||
|
|
100-1512
100-1512
|
|||
|
|
32144-1
32144-1
|

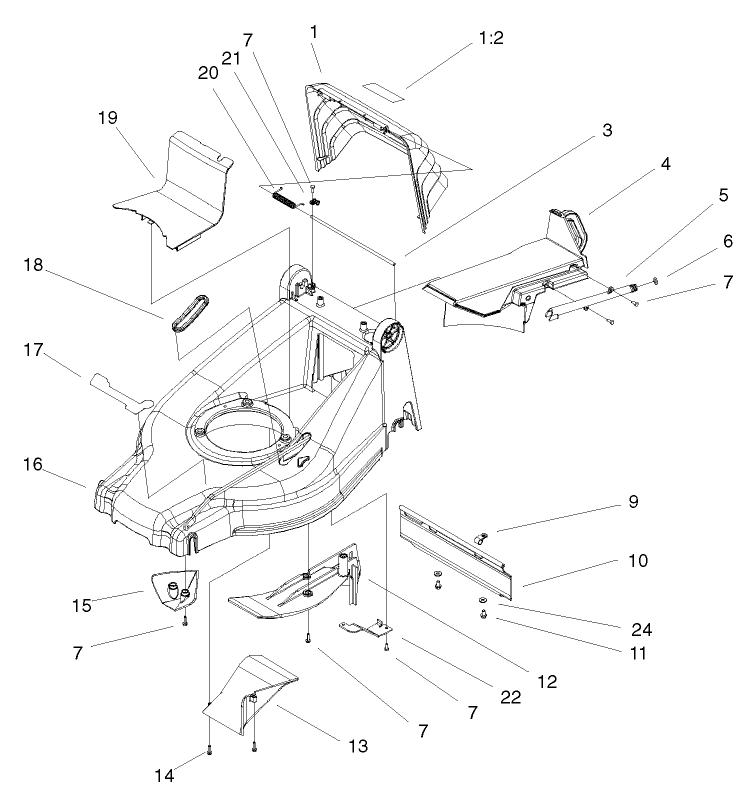

Deck Kickers and Recycler Plug Assembly
Deck Kickers and Recycler Plug Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
100-9115
100-9115
|
|||
|
|
112-8759
112-8759
|
|||
|
|
100-1509
100-1509
|
|||
|
|
100-1505
100-1505
|
|||
|
|
100-1522
100-1522
|
|||
|
|
46-6290
46-6290
|
|||
|
|
32144-1
32144-1
|
|||
|
|
2412-87
2412-87
|
|||
|
|
100-4367
100-4367
|
|||
|
|
49-2040
49-2040
|
|||
|
|
99-6486
99-6486
|
|||
|
|
100-1506
100-1506
|
|||
|
|
100-4352
100-4352
|
|||
|
|
99-6485
99-6485
|
|||
|
|
99-6457-01
99-6457-01
|
|||
|
|
100-9120
100-9120
|
|||
|
|
100-4354
100-4354
|
|||
|
|
100-3932
100-3932
|
|||
|
|
99-6479
99-6479
|
|||
|
|
99-5293
99-5293
|
|||
|
|
98-2256
98-2256
|
|||
|
|
100-9123-03
100-9123-03
|
|||
|
|
3256-22
3256-22
|

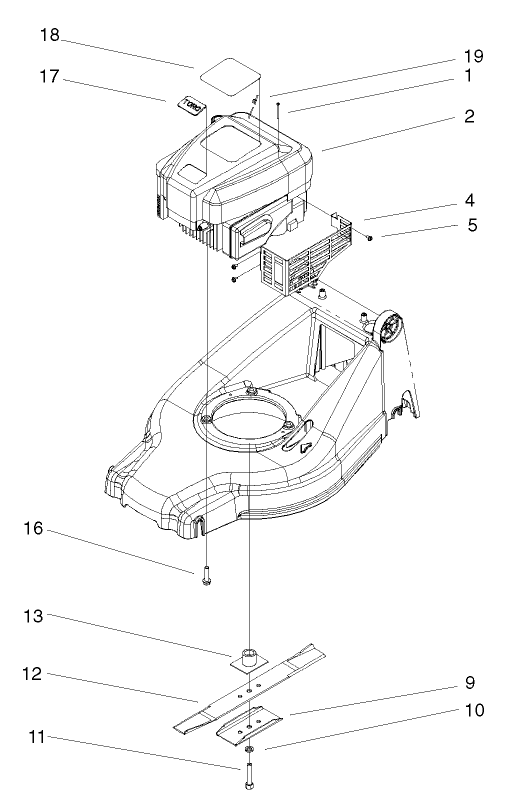

Engine and Blade Assembly
Engine and Blade Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
32144-88
32144-88
|
|||
|
|
93-0243
93-0243
|
|||
|
|
104-7577-03
104-7577-03
|
|||
|
|
104-2065
104-2065
|
|||
|
|
80-0510-03
80-0510-03
|
|||
|
|
3253-22
3253-22
|
|||
|
|
100-4368
100-4368
|
|||
|
|
71-9260-03
71-9260-03
|
|||
|
|
99-6467
99-6467
|
|||
|
|
32144-102
32144-102
|
|||
|
|
98-3206
98-3206
|
|||
|
|
100-9122
100-9122
|
|||
|
|
100-5952
100-5952
|
|||
|
|
2210-316
2210-316
|

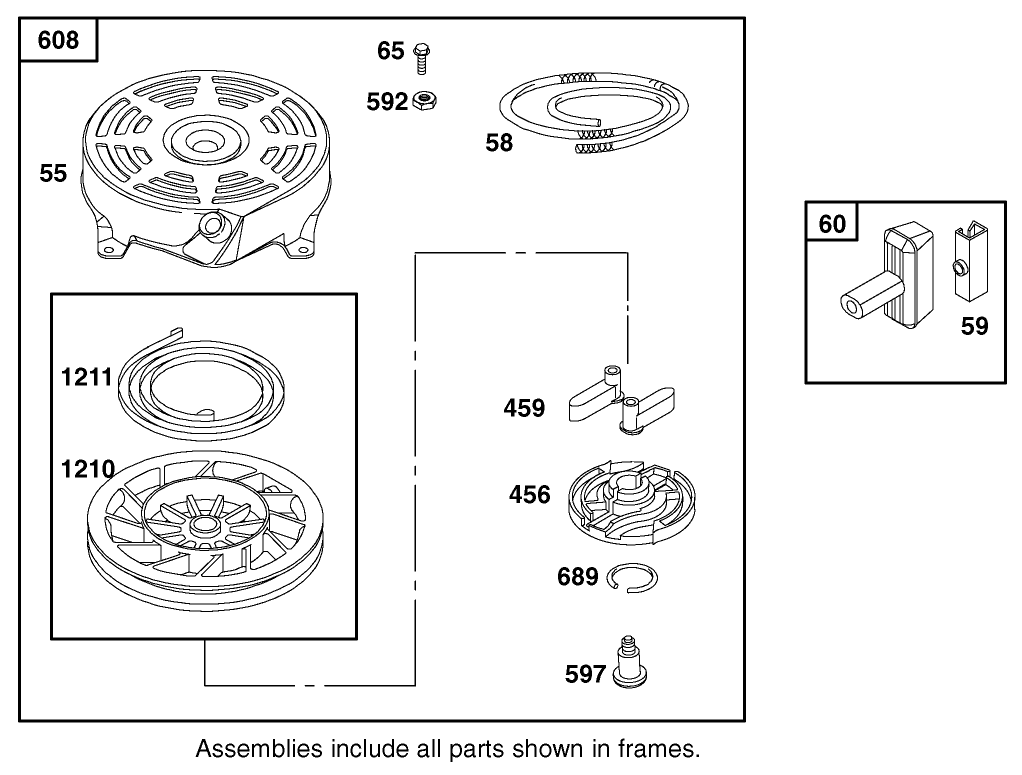

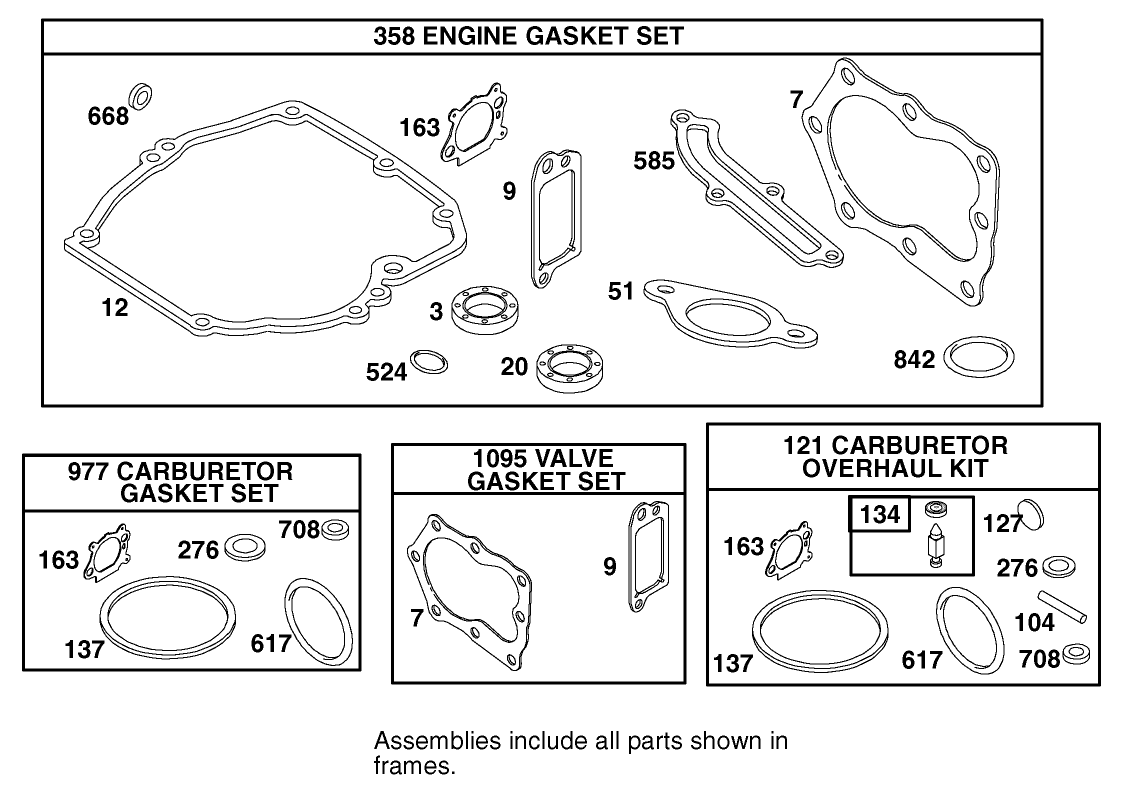

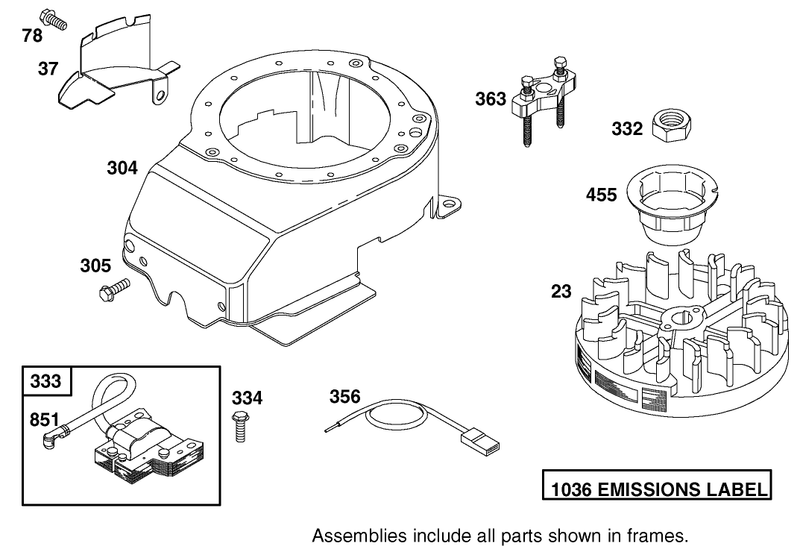

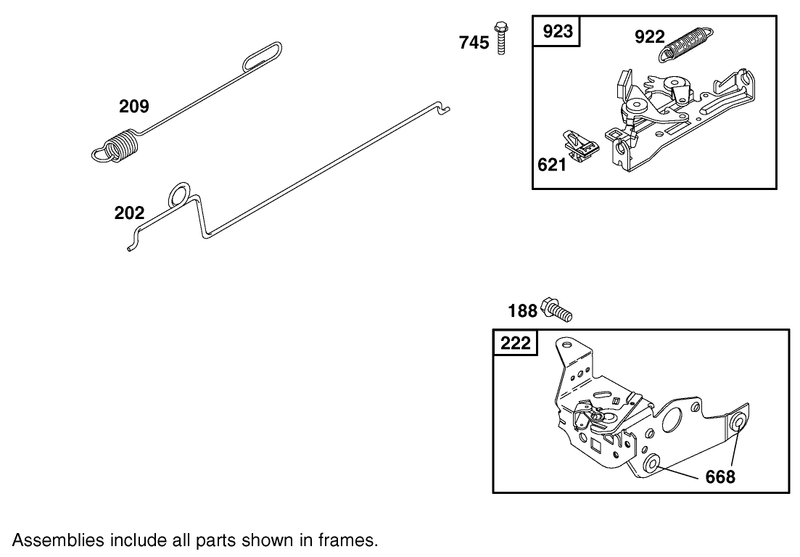

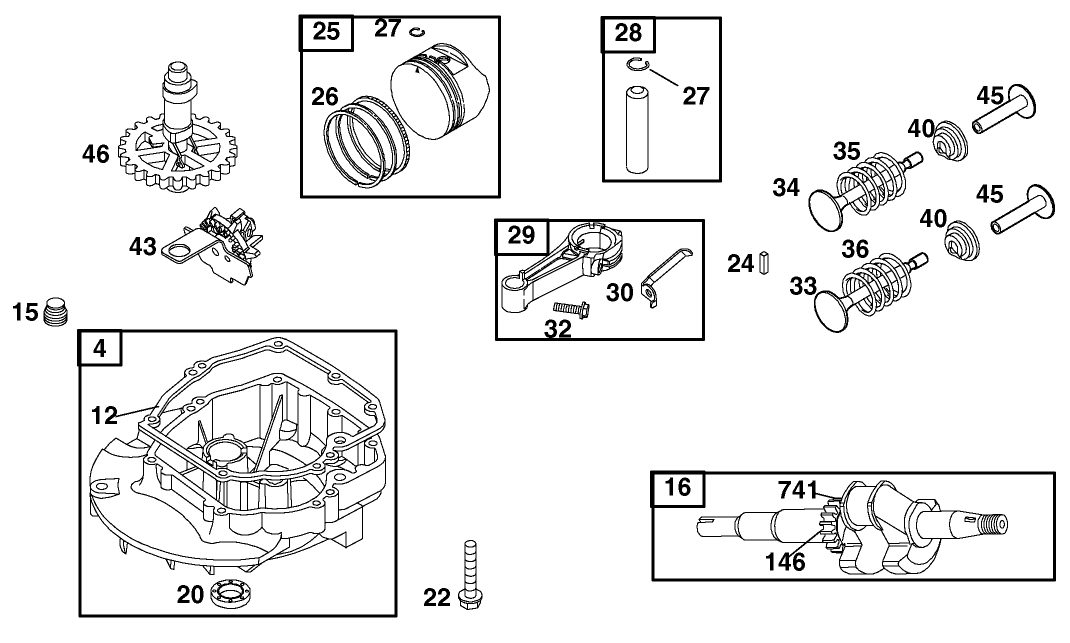

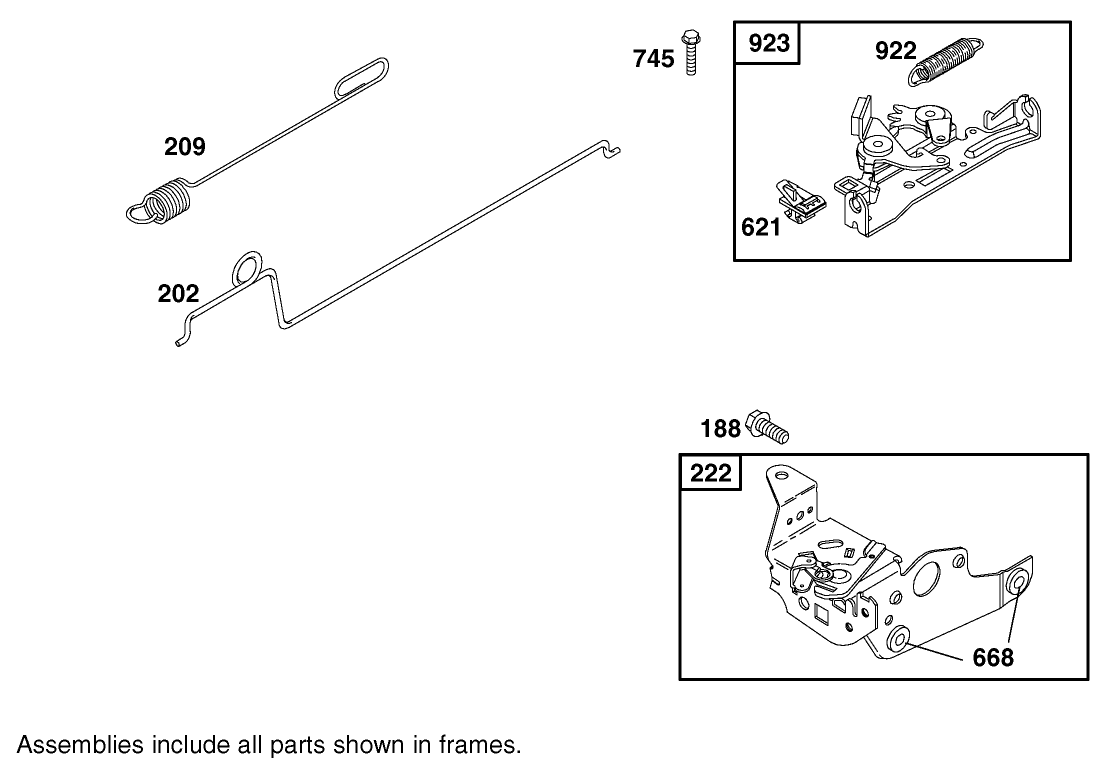

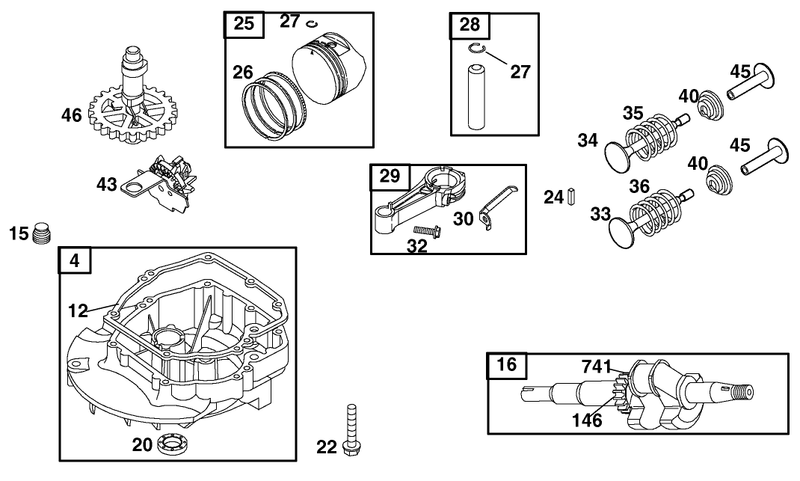

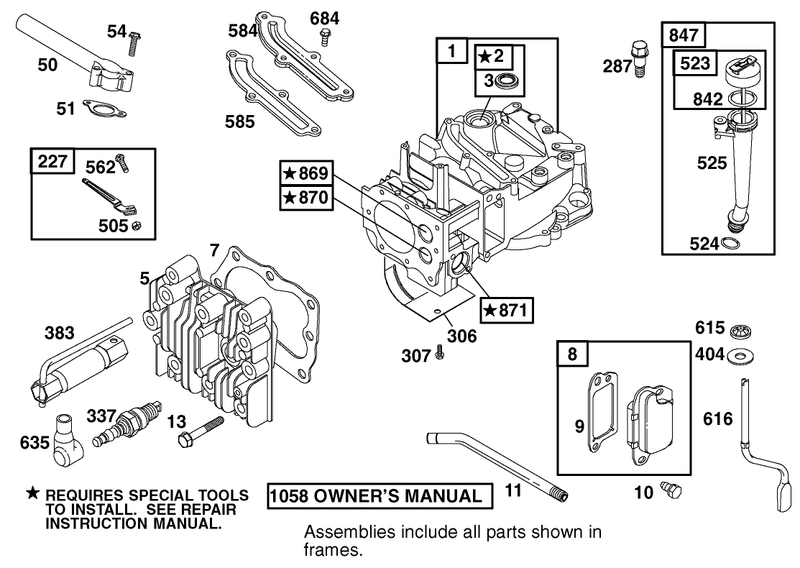

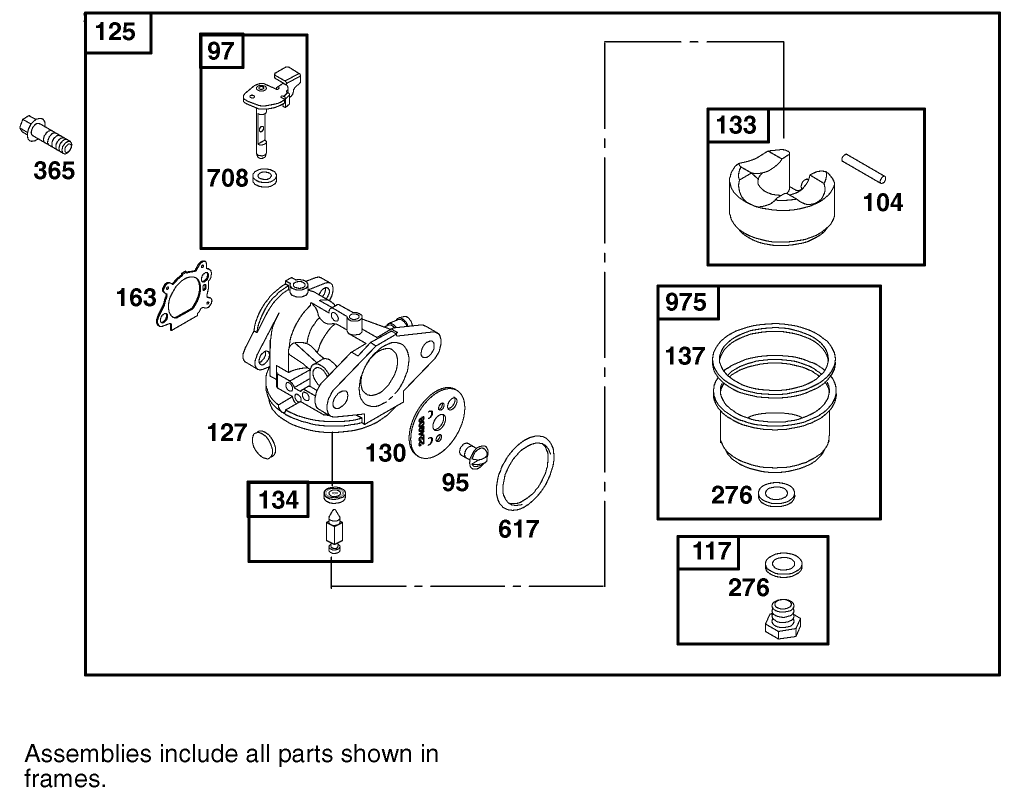

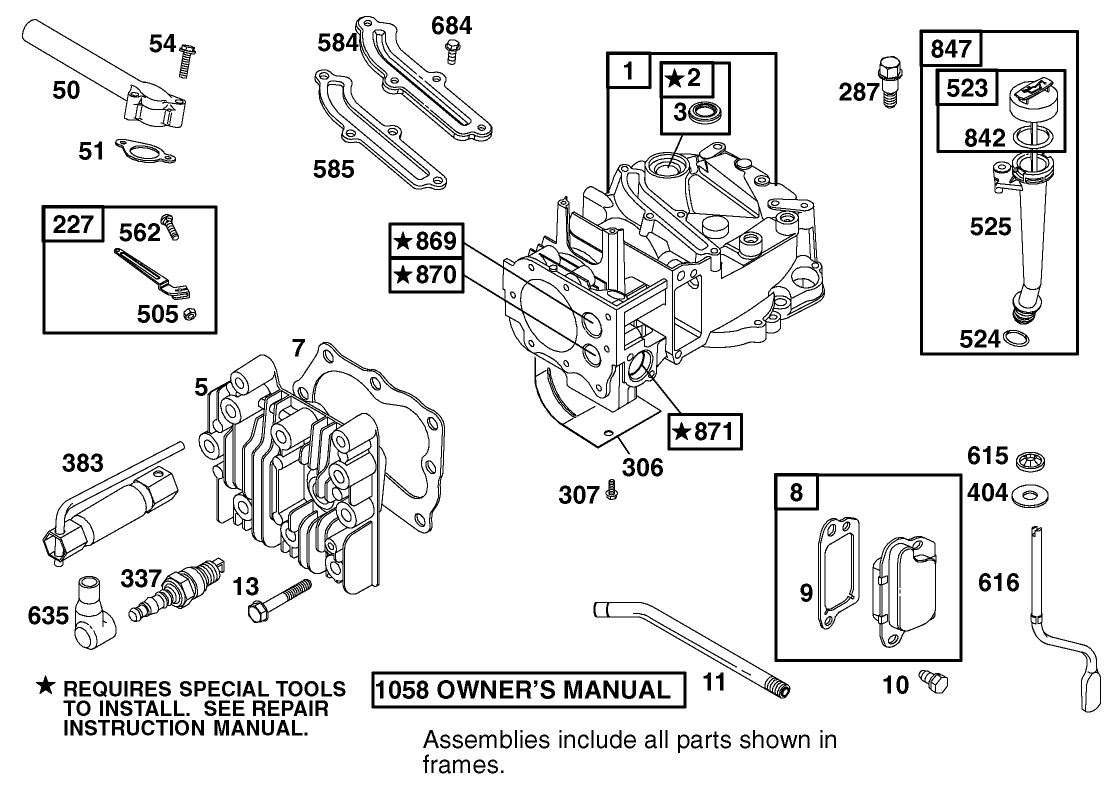

Engine Briggs and Stratton Model 12f802 1769 B1
Engine Briggs and Stratton Model 12f802 1769 B1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
493260
493260
|
|||
|
|
293708
293708
|
|||
|
|
|
|||
|
|
691160
691160
|
|||
|
|
|
|||
|
|
695250
695250
|
|||
|
|
|
|||
|
|
94650
94650
|
|||
|
|
231933
231933
|
|||
|
|
94547
94547
|
|||
|
|
497465
497465
|
|||
|
|
|
|||
|
|
94526
94526
|
|||
|
|
492349
492349
|
|||
|
|
94511
94511
|
|||
|
|
690345
690345
|
|||
|
|
94515
94515
|
|||
|
|
802592
802592
|
|||
|
|
89838
89838
|
|||
|
|
690272
690272
|
|||
|
|
231082
231082
|
|||
|
|
495264
495264
|
|||
|
|
|
|||
|
|
495265
495265
|
|||
|
|
94582
94582
|
|||
|
|
692342
692342
|
|||
|
|
|
|||
|
|
690340
690340
|
|||
|
|
691306
691306
|
|||
|
|
66538
66538
|
|||
|
|
690345
690345
|
|||
|
|
|
|||
|
|
495263
495263
|
|||
|
|
213512
213512
|
|||
|
|
213513
213513
|
|||
|
|
262001
262001
|
|||
|
|
274265
274265
|

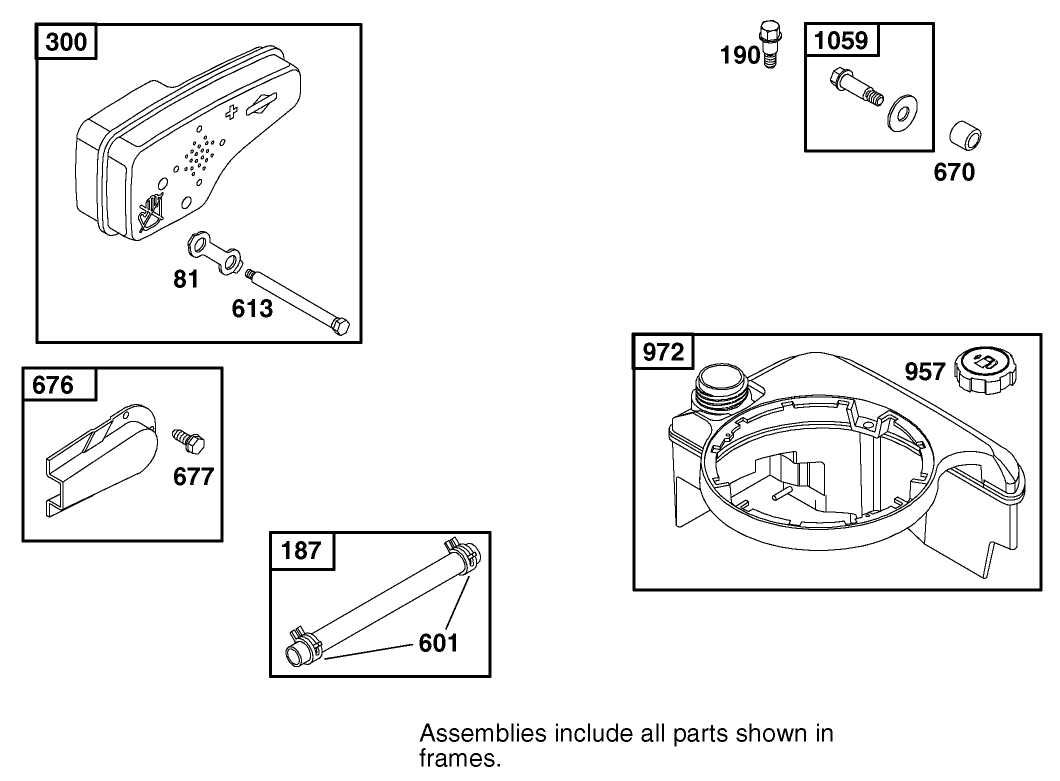

Engine Briggs and Stratton Model 12f802 1769 B1
Engine Briggs and Stratton Model 12f802 1769 B1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
94098
94098
|
|||
|
|
493267
493267
|
|||
|
|
|
|||
|
|
494870
494870
|
|||
|
|
498170
498170
|
|||
|
|
|
|||
|
|
691203
691203
|
|||
|
|
398187
398187
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
94840
94840
|
|||
|
|
|
|||
|
|
|
|||
|
|
493640
493640
|
|||
|
|
499426
499426
|
|||
|
|
499427
499427
|
|||
|
|
499428
499428
|
|||
|
|
499430
499430
|
|||
|
|
499431
499431
|
|||
|
|
499432
499432
|

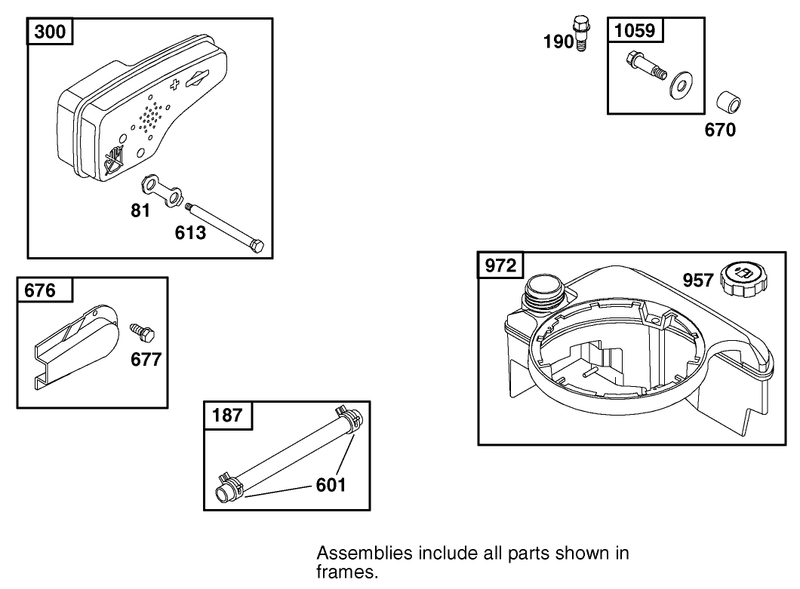

Engine Briggs and Stratton Model 12f802 1769 B1
Engine Briggs and Stratton Model 12f802 1769 B1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
493279
493279
|
|||
|
|
|
|||
|
|
94880
94880
|
|||
|
|
694079
694079
|
|||
|
|
|
|||
|
|
691092
691092
|
|||
|
|
222698
222698
|
|||
|
|
499429
499429
|
|||
|
|
499425
499425
|
|||
|
|
263190
263190
|
|||
|
|
499423
499423
|
|||
|
|
499424
499424
|
|||
|
|
692562
692562
|
|||
|
|
94699
94699
|
|||
|
|
262651
262651
|
|||
|
|
262652
262652
|
|||
|
|
691270
691270
|
|||
|
|
691270
691270
|
|||
|
|
93312
93312
|
|||
|
|
493737
493737
|
|||
|
|
690548
690548
|
|||
|
|
691449
691449
|
|||
|
|
94388
94388
|
|||
|
|
262598
262598
|

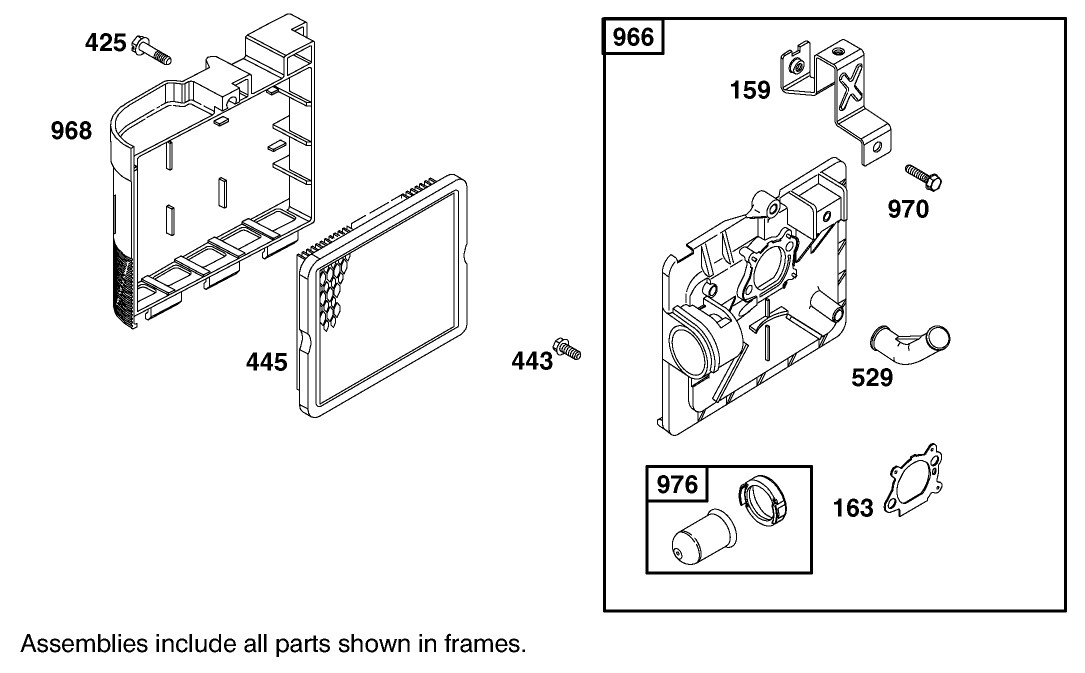

Engine Briggs and Stratton Model 12f802 1769 B1
Engine Briggs and Stratton Model 12f802 1769 B1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
94644
94644
|
|||
|
|
262579
262579
|
|||
|
|
263047
263047
|
|||
|
|
692467
692467
|
|||
|
|
396847
396847
|
|||
|
|
|
|||
|
|
94512
94512
|
|||
|
|
262640
262640
|
|||
|
|
493442
493442
|
Engine Briggs and Stratton Model 12f802 1769 B1
Engine Briggs and Stratton Model 12f802 1769 B1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
224815
224815
|
|||
|
|
|
|||
|
|
94872
94872
|
|||
|
|
94873
94873
|
|||
|
|
491588
491588
|
|||
|
|
281299
281299
|
|||
|
|
496116
496116
|
|||
|
|
281340
281340
|
|||
|
|
94749
94749
|
|||
|
|
496115
496115
|

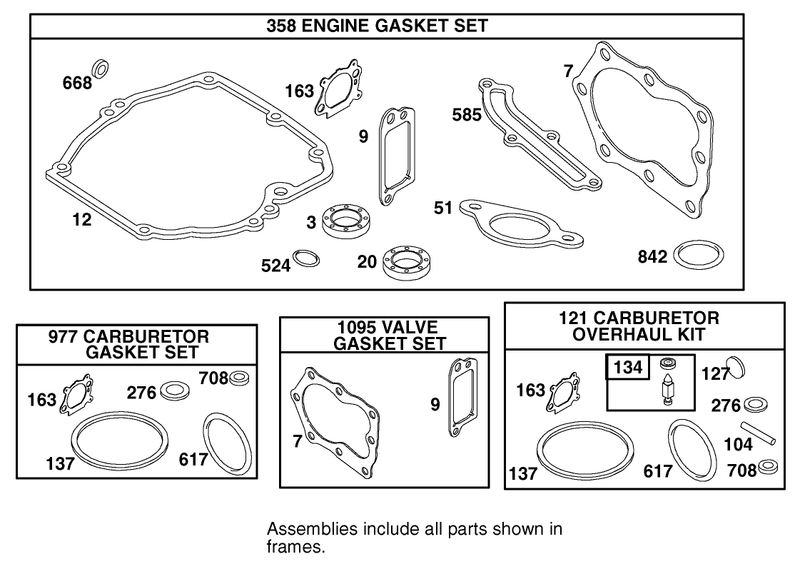

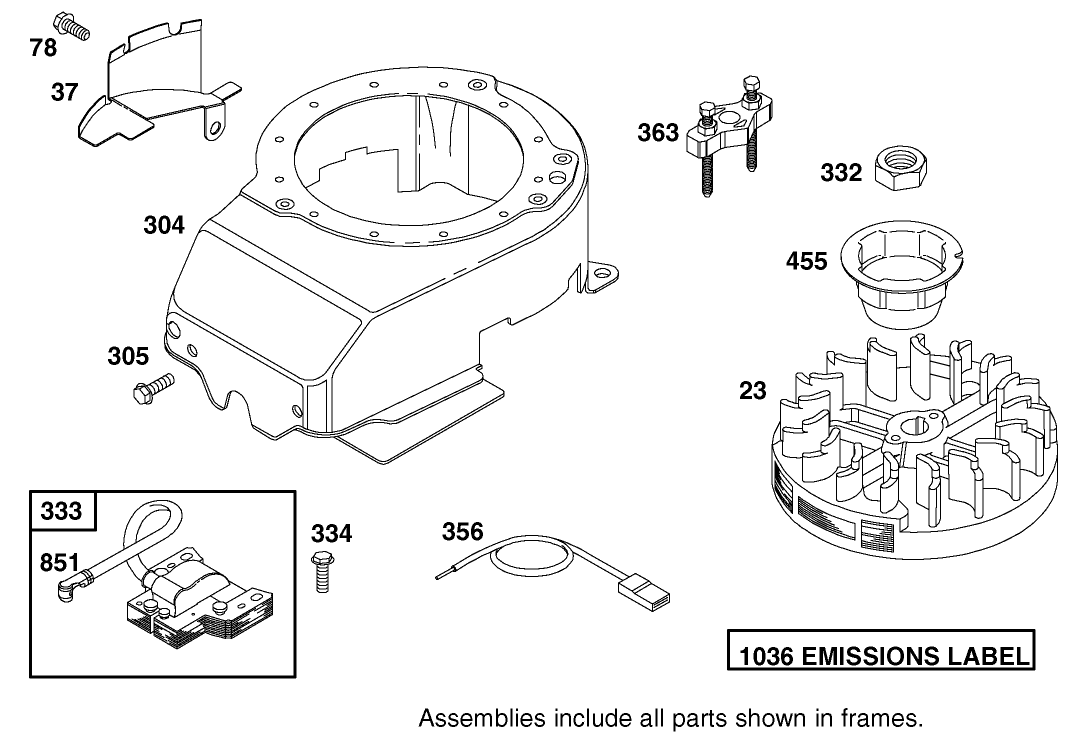

Engine Briggs and Stratton Model 12f802 1769 B1
Engine Briggs and Stratton Model 12f802 1769 B1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
492177
492177
|
|||
|
|
694086
694086
|
|||
|
|
691108
691108
|
|||
|
|
493293
493293
|
|||
|
|
691108
691108
|
|||
|
|
94877
94877
|
|||
|
|
802574
802574
|
|||
|
|
94731
94731
|
|||
|
|
692390
692390
|
|||
|
|
19069
19069
|
|||
|
|
691219
691219
|
|||
|
|
493880
493880
|
|||
|
|
695111
695111
|
Engine Briggs and Stratton Model 12f802 1769 B1
Engine Briggs and Stratton Model 12f802 1769 B1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
223664
223664
|
|||
|
|
298049
298049
|
|||
|
|
94511
94511
|
|||
|
|
496106
496106
|
|||
|
|
95162
95162
|
|||
|
|
94231
94231
|
|||
|
|
280512
280512
|
|||
|
|
493871
493871
|
|||
|
|
94896
94896
|
|||
|
|
397974
397974
|
|||
|
|
495224
495224
|
|||
|
|
398540
398540
|
Engine Briggs and Stratton Model 12f802 1769 B1
Engine Briggs and Stratton Model 12f802 1769 B1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
498260
498260
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
497316
497316
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
498261
498261
|
|||
|
|
498528
498528
|
Engine Briggs and Stratton Model 12f802 1769 B1
Engine Briggs and Stratton Model 12f802 1769 B1
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
691421
691421
|
|||
|
|
280399
280399
|
|||
|
|
224467
224467
|
|||
|
|
493926
493926
|
|||
|
|
94904
94904
|
|||
|
|
281503
281503
|
|||
|
|
281505
281505
|
|||
|
|
94908
94908
|
|||
|
|
94943
94943
|
|||
|
|
497680
497680
|
|||
|
|
263073
263073
|
|||
|
|
498144
498144
|
|||
|
|
498144
498144
|

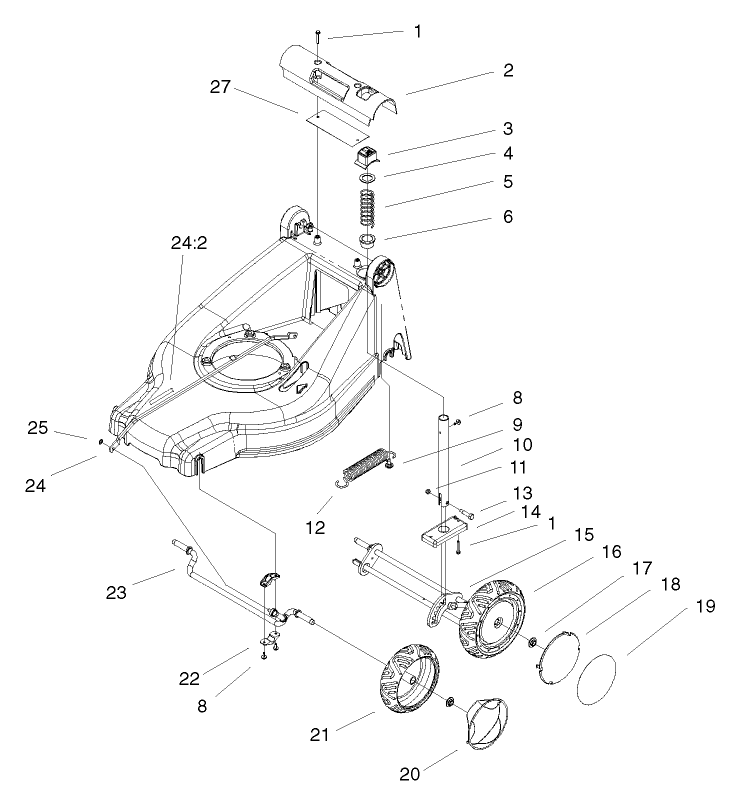

Hoc and Wheel Assembly
Hoc and Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
100-4352
100-4352
|
|||
|
|
99-6487
99-6487
|
|||
|
|
99-6480
99-6480
|
|||
|
|
88-7540
88-7540
|
|||
|
|
99-6481
99-6481
|
|||
|
|
99-6483
99-6483
|
|||
|
|
32144-1
32144-1
|
|||
|
|
92-9698
92-9698
|
|||
|
|
99-6458
99-6458
|
|||
|
|
3296-73
3296-73
|
|||
|
|
100-4384
100-4384
|
|||
|
|
99-6459
99-6459
|
|||
|
|
99-6460
99-6460
|
|||
|
|
99-6478
99-6478
|
|||
|
|
100-1516
100-1516
|
|||
|
|
108-8890
108-8890
|
|||
|
|
100-4366
100-4366
|
|||
|
|
100-9114
100-9114
|
|||
|
|
95-6543
95-6543
|
|||
|
|
99-6470
99-6470
|
|||
|
|
100-1500
100-1500
|
|||
|
|
99-6464
99-6464
|
|||
|
|
100-9116
100-9116
|
|||
|
|
100-4355
100-4355
|
|||
|
|
100-3939
100-3939
|
|||
|
|
100-4383-03
100-4383-03
|

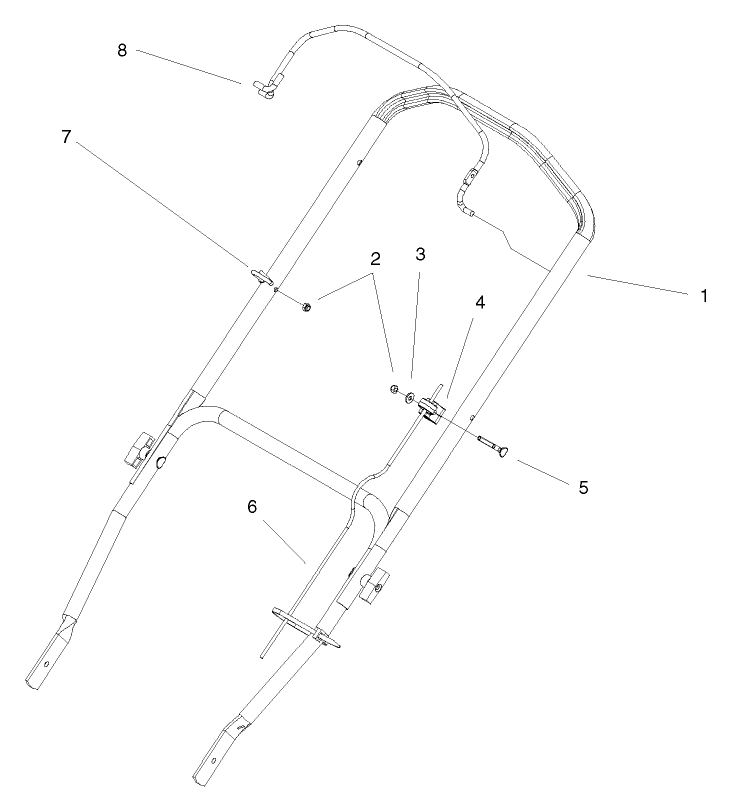

Hp Handle Assembly
Hp Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
100-1520-05
100-1520-05
|

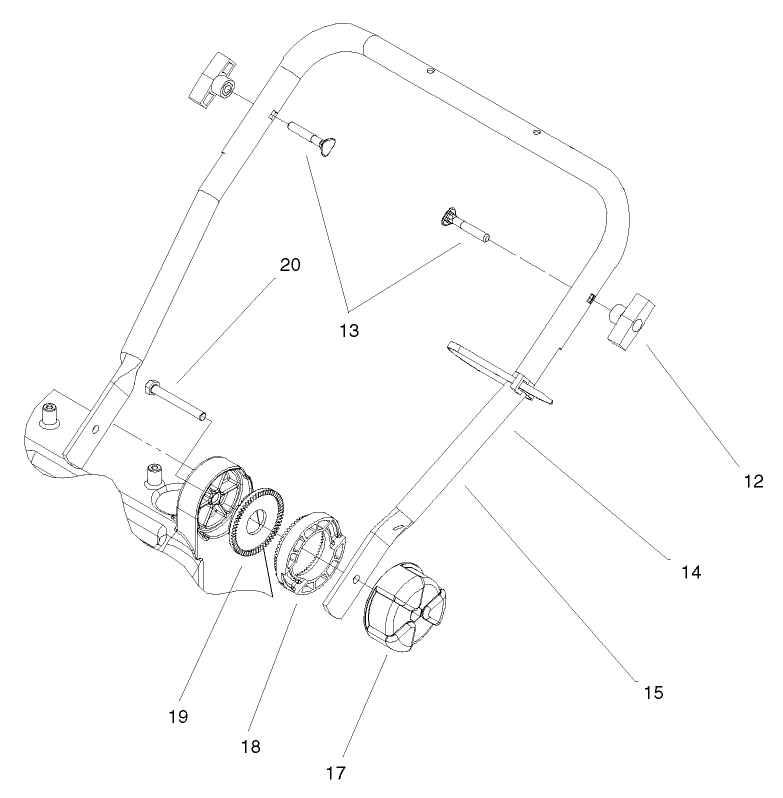

Lower Handle Assembly
Lower Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3296-73
3296-73
|
|||
|
|
3256-1
3256-1
|
|||
|
|
92-7729
92-7729
|
|||
|
|
95-4453
95-4453
|
|||
|
|
100-4364
100-4364
|
|||
|
|
86-9671
86-9671
|
|||
|
|
100-4358-03
100-4358-03
|

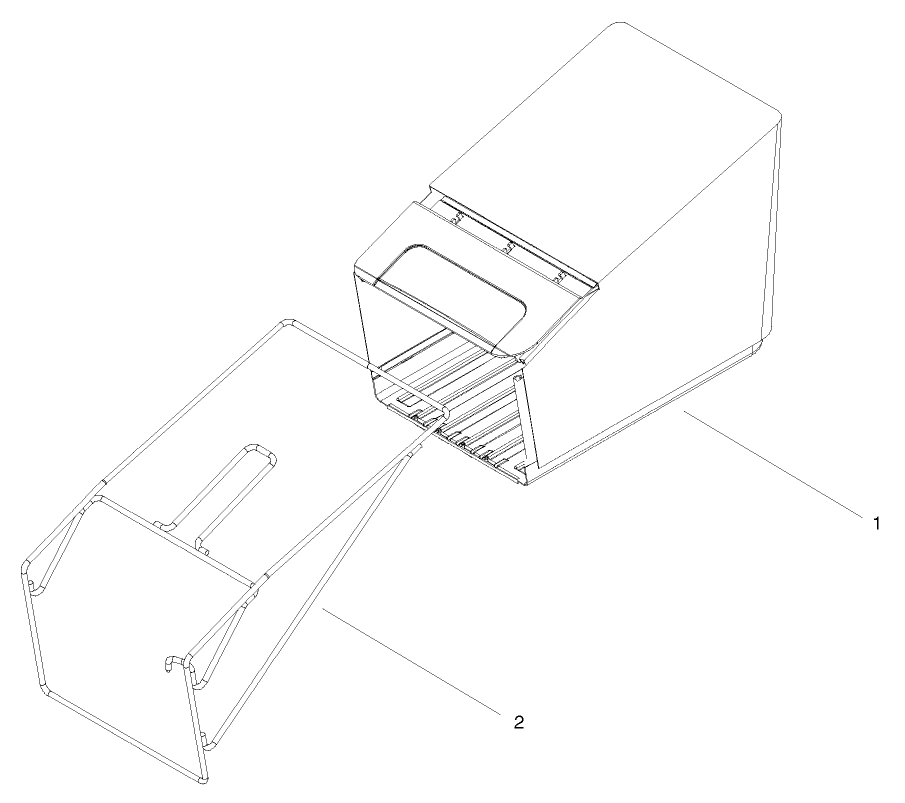

Rear Bagging Assembly
Rear Bagging Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
98-7134
98-7134
|
|||
|
|
92-2260
92-2260
|
|||
|
|
3290-378
3290-378
|
|||
|
|
100-1502-05
100-1502-05
|
|||
|
|
100-4396
100-4396
|
|||
|
|
100-1510
100-1510
|
|||
|
|
100-1517
100-1517
|
|||
|
|
60-6690
60-6690
|
