Toro 21383 Super Recycler Mower (Serial #: 400000000 - 999999999) Parts Diagram
Diagrams:
Diagram:

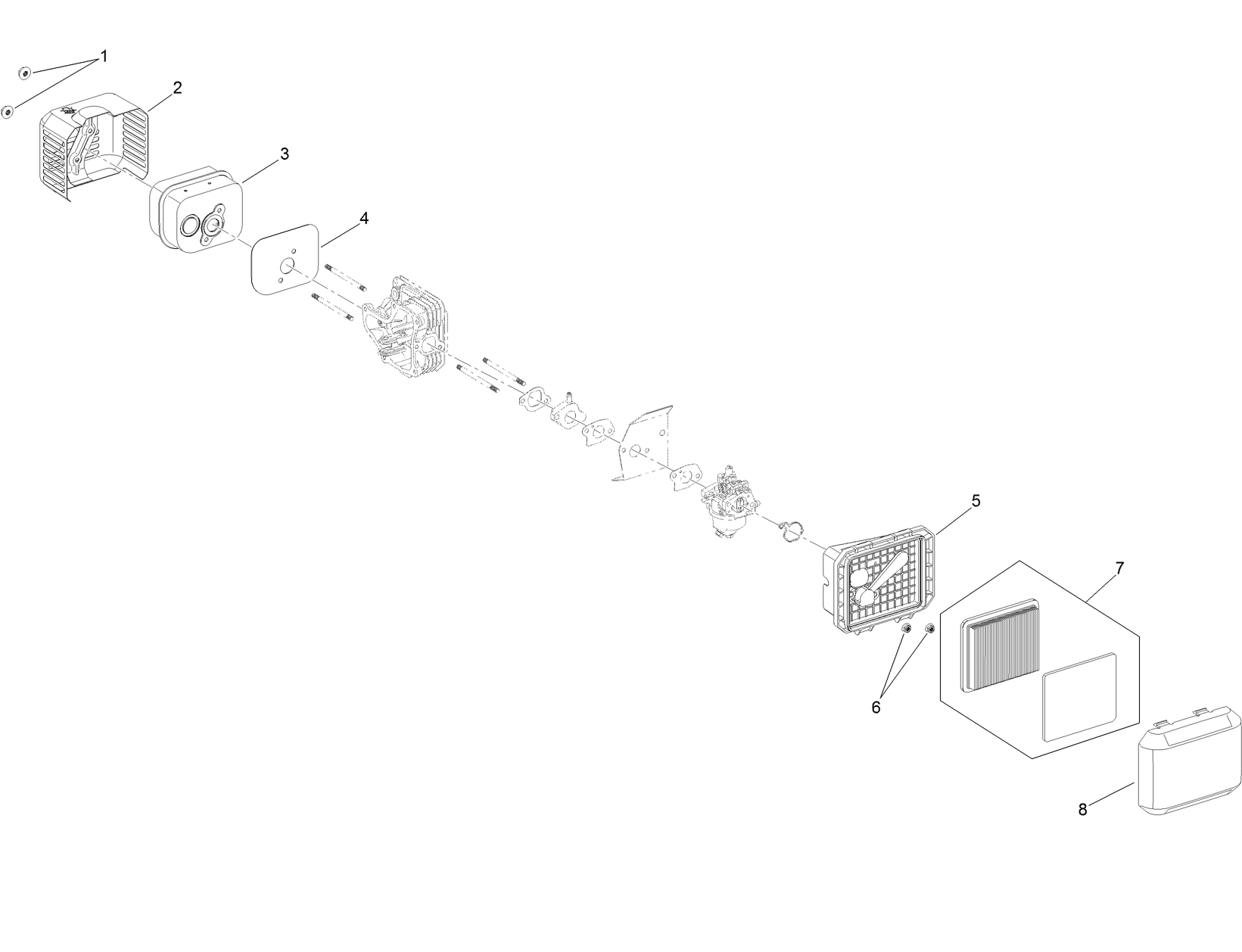

Air Intake and Filtration Assembly
Air Intake and Filtration Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
121-0010
121-0010
|
|||
|
|
133-9906
133-9906
|
|||
|
|
121-0166
121-0166
|
|||
|
|
121-0034
121-0034
|
|||
|
|
133-9928
133-9928
|
|||
|
|
120-4236
120-4236
|
|||
|
|
119-1909
119-1909
|
|||
|
|
121-0364
121-0364
|

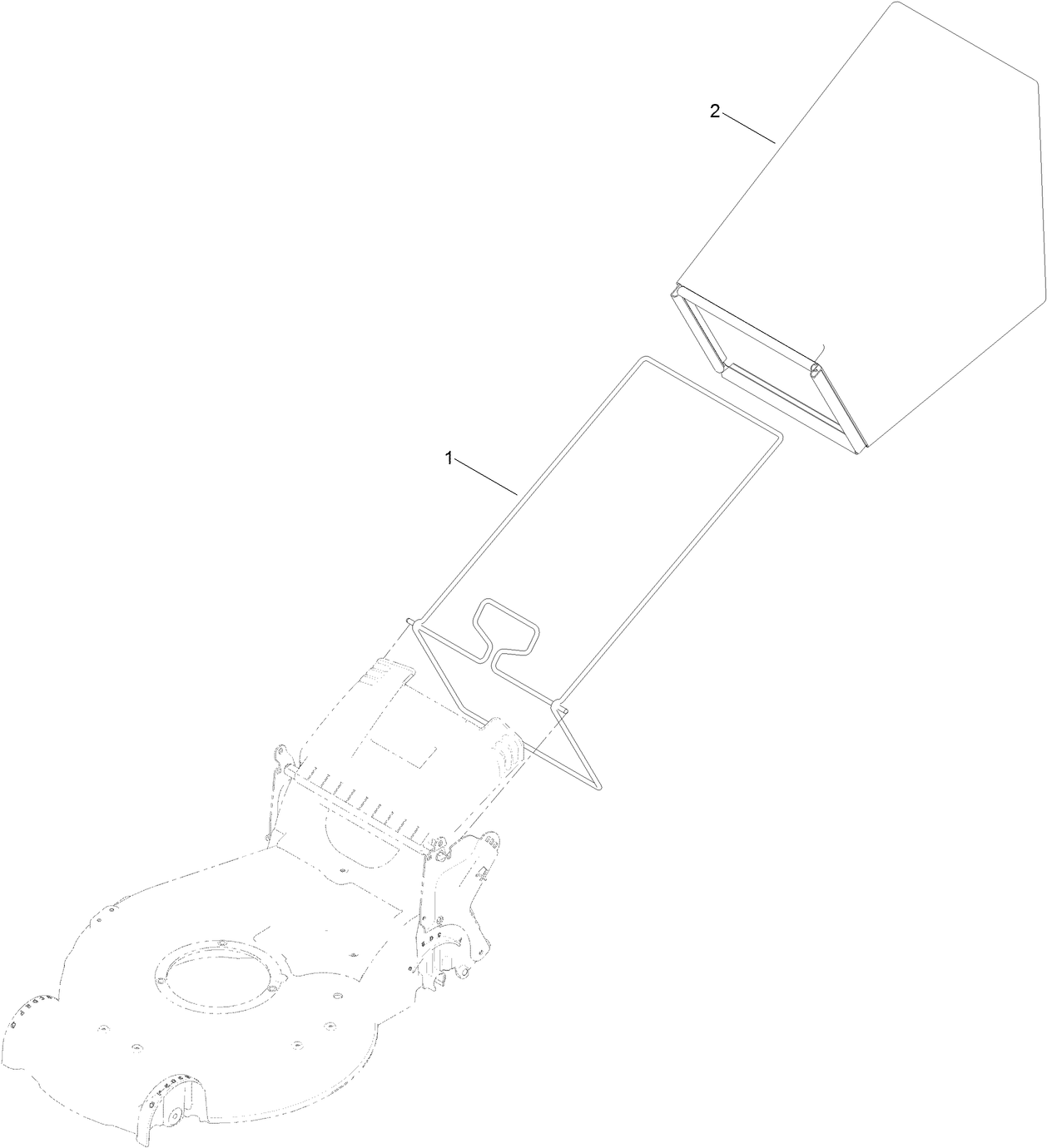

Bag Assembly
Bag Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
132-4529-03
132-4529-03
|
|||
|
|
114-2664
114-2664
|

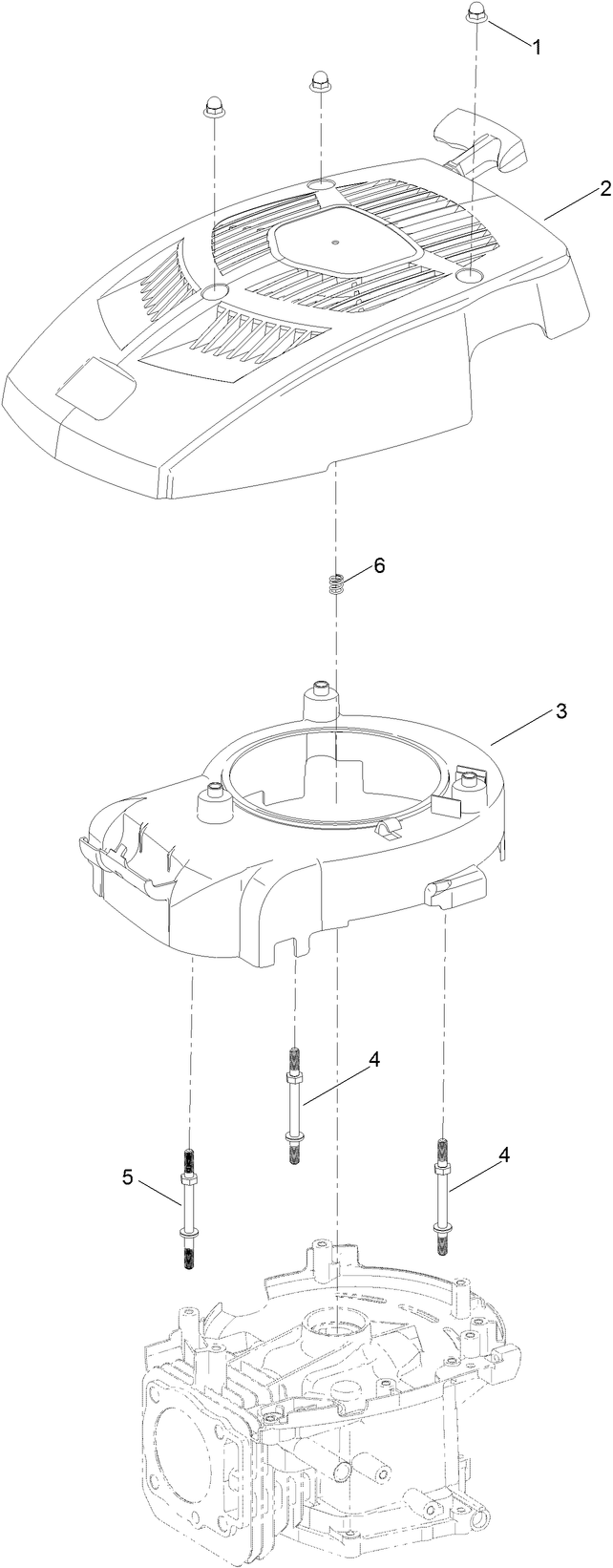

Blower Housing Assembly
Blower Housing Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
127-9115
127-9115
|
|||
|
|
133-9857
133-9857
|
|||
|
|
133-9922
133-9922
|
|||
|
|
136-7867
136-7867
|
|||
|
|
133-9877
133-9877
|
|||
|
|
133-9878
133-9878
|
|||
|
|
136-7770
136-7770
|

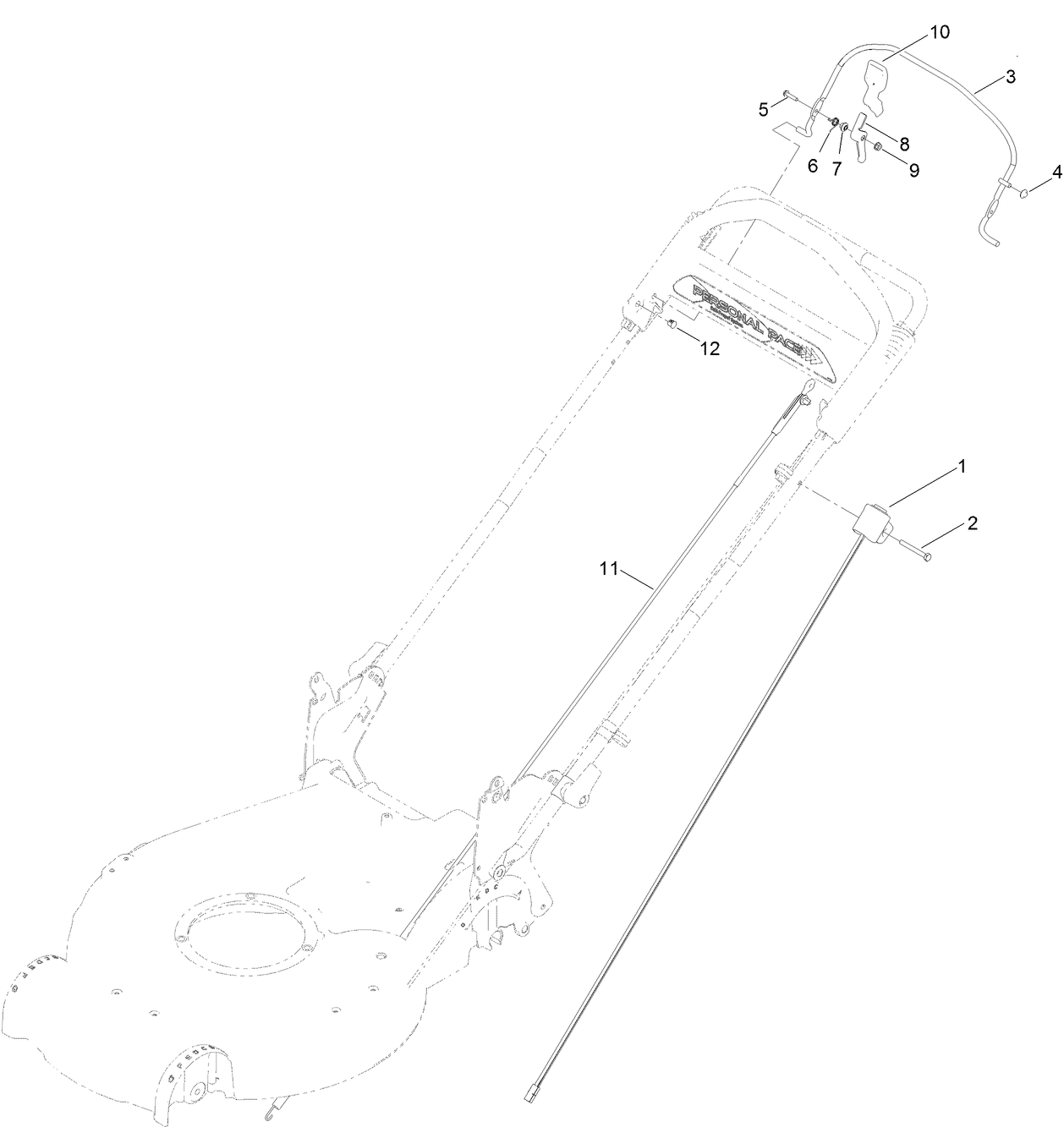

Brake Control Assembly
Brake Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
121-2347
121-2347
|
|||
|
|
321-50
321-50
|
|||
|
|
108-3788-03
108-3788-03
|
|||
|
|
3290-337
3290-337
|
|||
|
|
106-9169
106-9169
|
|||
|
|
107-7462
107-7462
|
|||
|
|
107-7463
107-7463
|
|||
|
|
138-3220
138-3220
|
|||
|
|
32128-17
32128-17
|
|||
|
|
112-8884
112-8884
|
|||
|
|
108-8155
108-8155
|
|||
|
|
104-9368
104-9368
|

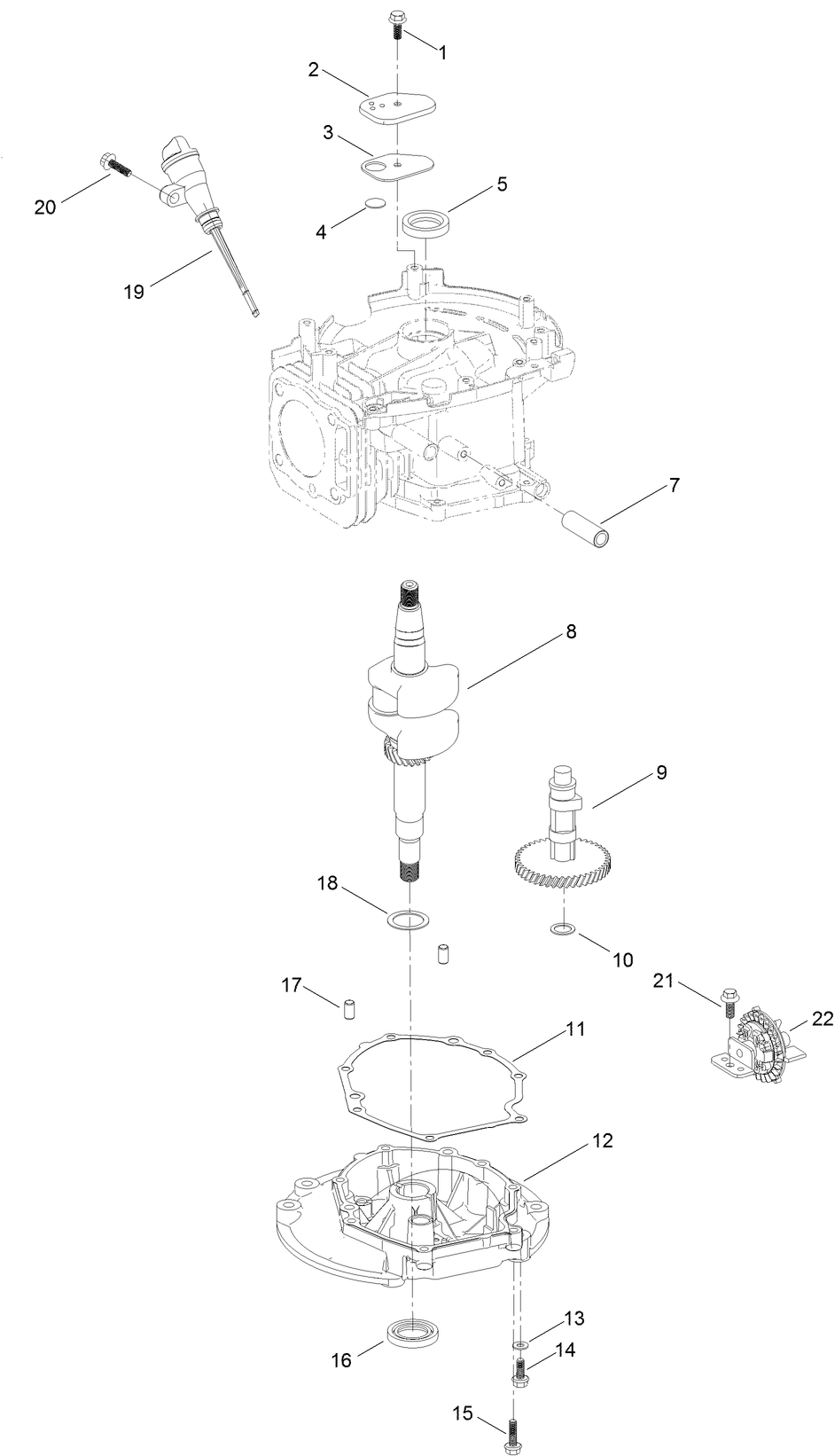

Crankcase Assembly
Crankcase Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
120-4216
120-4216
|
|||
|
|
133-9882
133-9882
|
|||
|
|
133-9883
133-9883
|
|||
|
|
133-9884
133-9884
|
|||
|
|
121-0019
121-0019
|
|||
|
|
133-9911
133-9911
|
|||
|
|
133-9915
133-9915
|
|||
|
|
121-4174
121-4174
|
|||
|
|
121-0051
121-0051
|
|||
|
|
133-9895
133-9895
|
|||
|
|
133-9897
133-9897
|
|||
|
|
121-0048
121-0048
|
|||
|
|
121-0030
121-0030
|
|||
|
|
120-4223
120-4223
|
|||
|
|
121-0022
121-0022
|
|||
|
|
121-0054
121-0054
|
|||
|
|
136-7863
136-7863
|
|||
|
|
133-9886
133-9886
|
|||
|
|
121-0007
121-0007
|
|||
|
|
121-0369
121-0369
|
|||
|
|
136-7864
136-7864
|

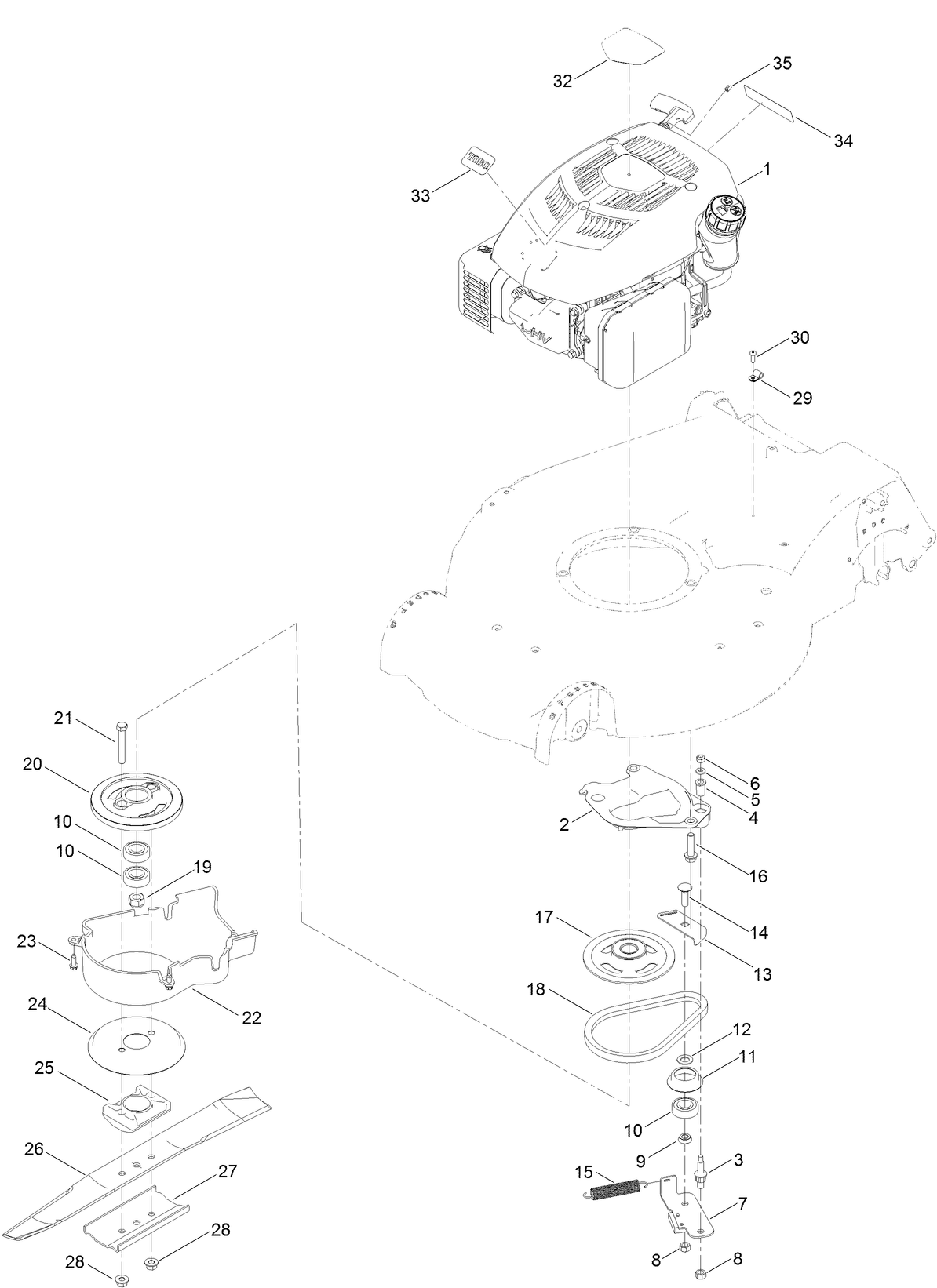

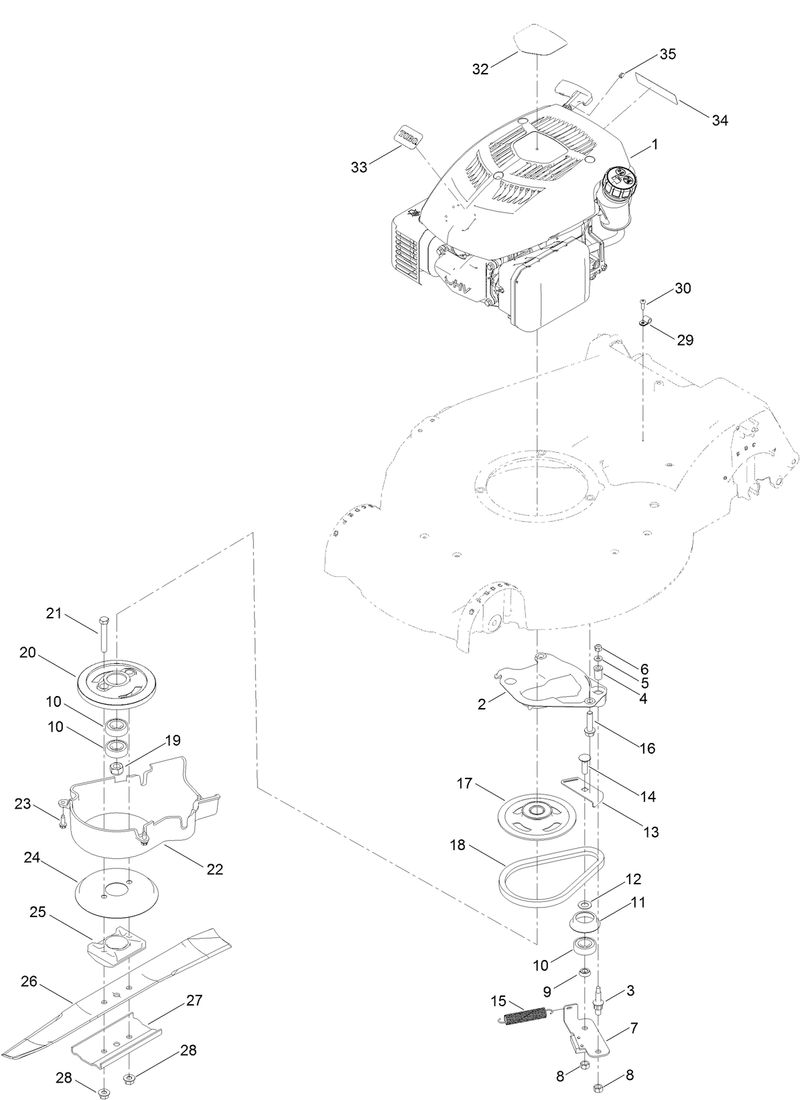

Engine and Blade Assembly
Engine and Blade Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
136-7858
136-7858
|
|||
|
|
133-8189
133-8189
|
|||
|
|
107-0759
107-0759
|
|||
|
|
107-0797
107-0797
|
|||
|
|
3256-16
3256-16
|
|||
|
|
3296-73
3296-73
|
|||
|
|
125-1063
125-1063
|
|||
|
|
603773
603773
|
|||
|
|
107-0758
107-0758
|
|||
|
|
38-7820
38-7820
|
|||
|
|
138-3217
138-3217
|
|||
|
|
605256
605256
|
|||
|
|
138-3222
138-3222
|
|||
|
|
119-4162
119-4162
|
|||
|
|
108-3792
108-3792
|
|||
|
|
32144-102
32144-102
|
|||
|
|
117-5970
117-5970
|
|||
|
|
110-1790
110-1790
|
|||
|
|
108-9342
108-9342
|
|||
|
|
126-8108
126-8108
|
|||
|
|
3211-42
3211-42
|
|||
|
|
107-7488
107-7488
|
|||
|
|
49-2040
49-2040
|
|||
|
|
138-3225
138-3225
|
|||
|
|
107-7487
107-7487
|
|||
|
|
133-8183-03
133-8183-03
|
|||
|
|
108-3766-01
108-3766-01
|
|||
|
|
127-6852
127-6852
|
|||
|
|
98-2256
98-2256
|
|||
|
|
32144-32
32144-32
|
|||
|
|
140-3823
140-3823
|
|||
|
|
136-5863
136-5863
|
|||
|
|
133-8062
133-8062
|
|||
|
|
2210-316
2210-316
|

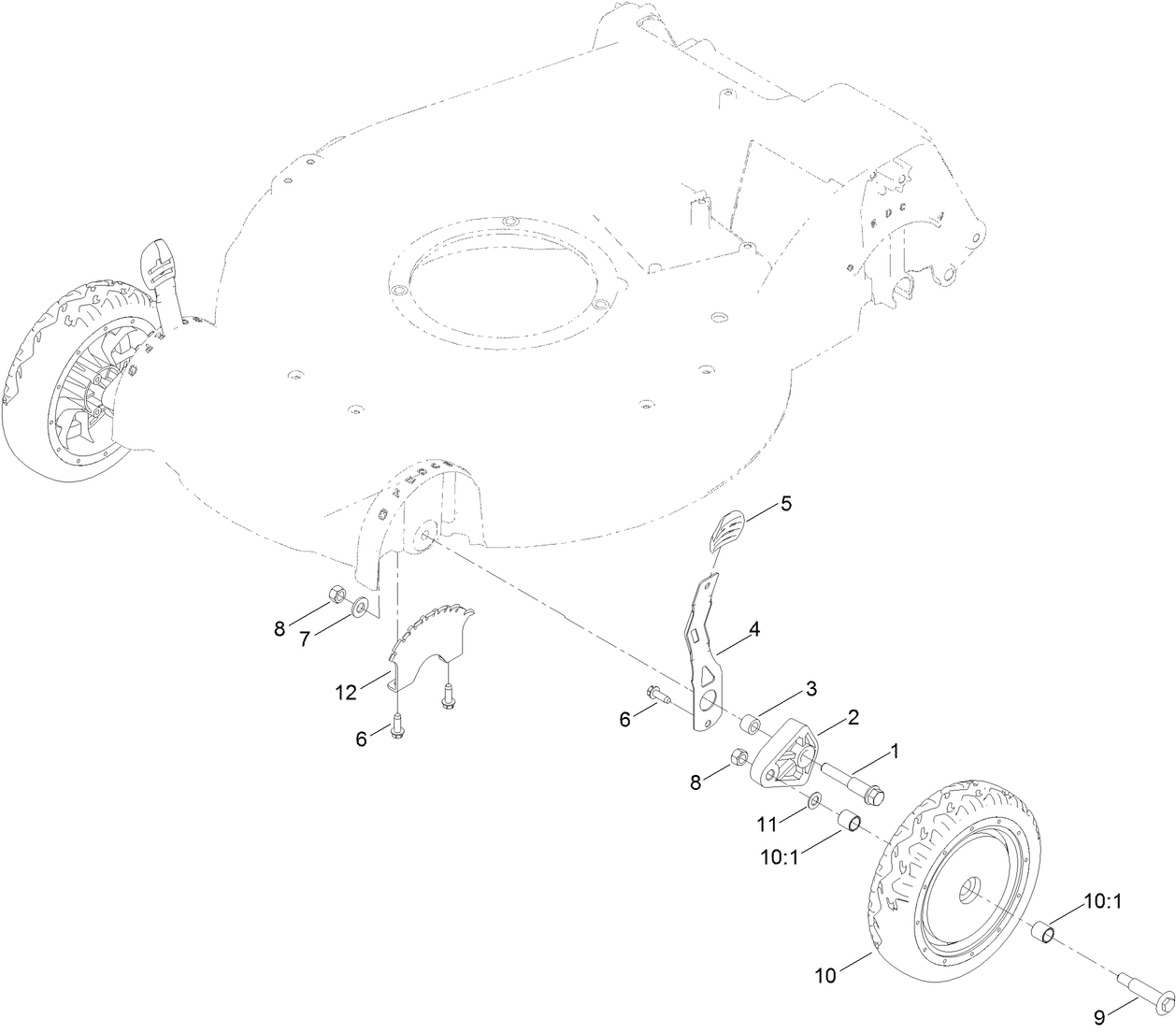

Front Wheel and Height of Cut Assembly
Front Wheel and Height of Cut Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
114-3467
114-3467
|
|||
|
|
107-7492
107-7492
|
|||
|
|
52-2480
52-2480
|
|||
|
|
107-7491
107-7491
|
|||
|
|
105-3042
105-3042
|
|||
|
|
49-2040
49-2040
|
|||
|
|
3256-24
3256-24
|
|||
|
|
603773
603773
|
|||
|
|
92-1057
92-1057
|
|||
|
|
140-1294
140-1294
|
|||
|
|
27-6250
27-6250
|
|||
|
|
40-1940
40-1940
|
|||
|
|
139-1669-01
139-1669-01
|

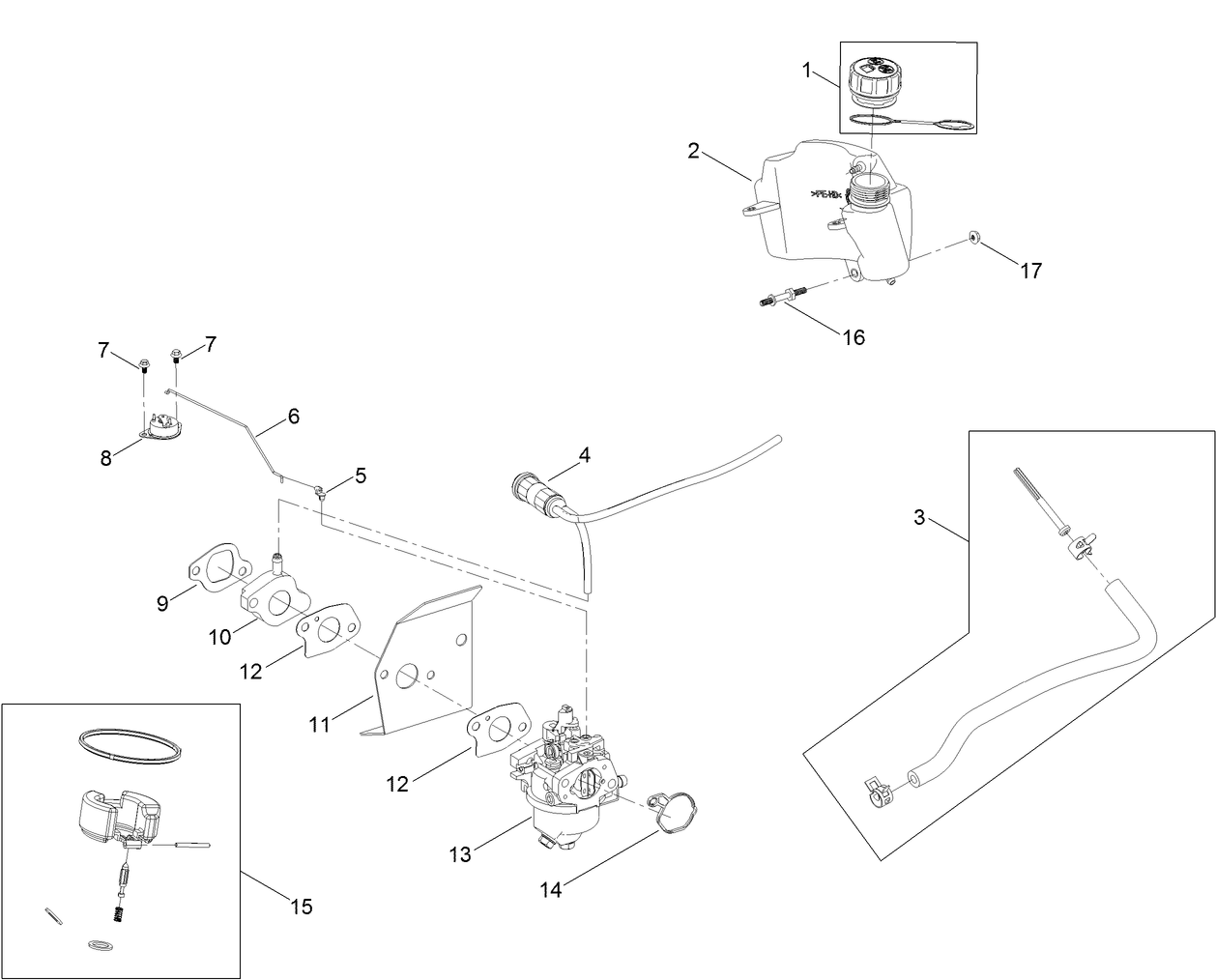

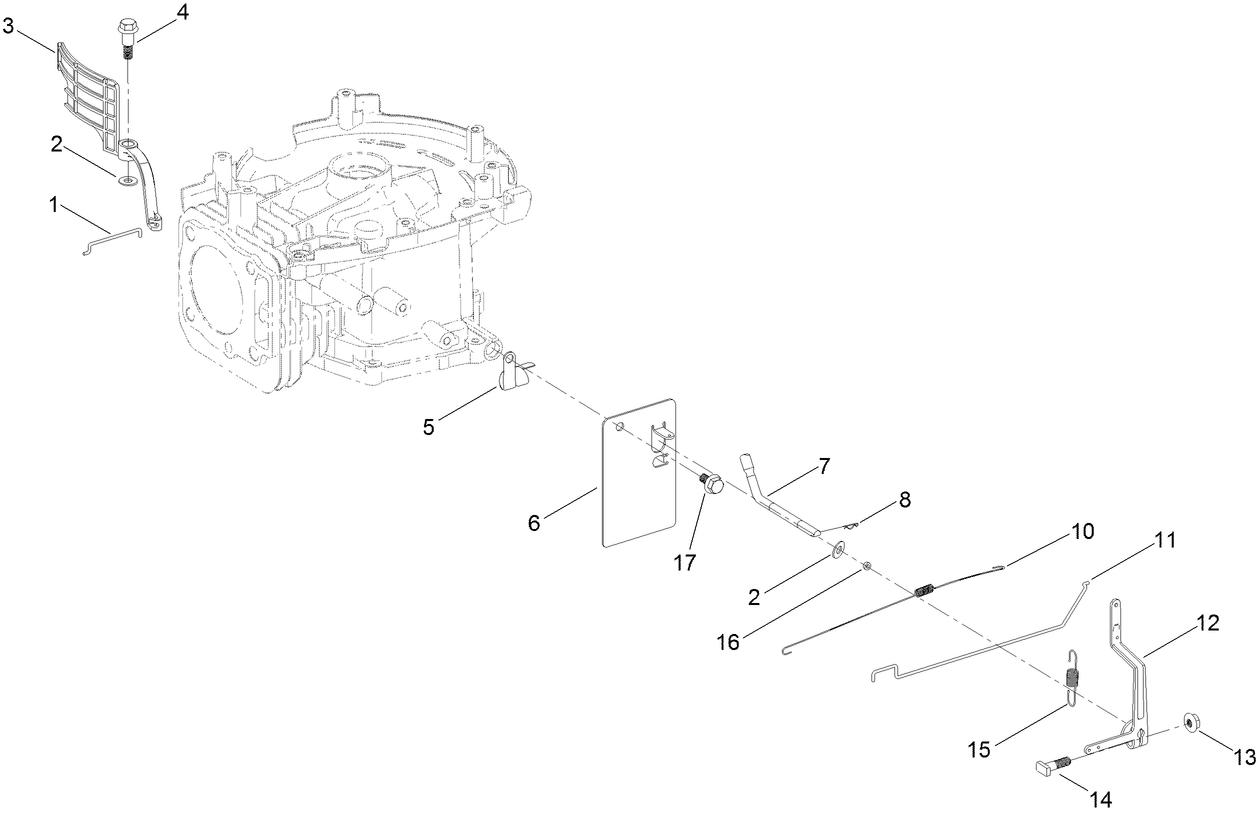

Fuel System Assembly
Fuel System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
133-9943
133-9943
|
|||
|
|
136-7875
136-7875
|
|||
|
|
139-0718
139-0718
|
|||
|
|
121-4167
121-4167
|
|||
|
|
133-9874
133-9874
|
|||
|
|
120-4451
120-4451
|
|||
|
|
133-9909
133-9909
|
|||
|
|
133-9908
133-9908
|
|||
|
|
133-9907
133-9907
|
|||
|
|
121-4183
121-4183
|
|||
|
|
133-9902
133-9902
|
|||
|
|
133-9901
133-9901
|
|||
|
|
121-4184
121-4184
|
|||
|
|
133-9900
133-9900
|
|||
|
|
133-9899
133-9899
|
|||
|
|
127-9395
127-9395
|
|||
|
|
121-0016
121-0016
|
|||
|
|
120-4236
120-4236
|
Governor Assembly
Governor Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
133-9880
133-9880
|
|||
|
|
136-7866
136-7866
|
|||
|
|
133-9879
133-9879
|
|||
|
|
127-9196
127-9196
|
|||
|
|
121-0017
121-0017
|
|||
|
|
133-9891
133-9891
|
|||
|
|
136-7865
136-7865
|
|||
|
|
120-4256
120-4256
|
|||
|
|
121-0023
121-0023
|
|||
|
|
133-9892
133-9892
|
|||
|
|
121-0028
121-0028
|
|||
|
|
120-4236
120-4236
|
|||
|
|
120-4238
120-4238
|
|||
|
|
133-9893
133-9893
|
|||
|
|
121-0021
121-0021
|
|||
|
|
120-4216
120-4216
|

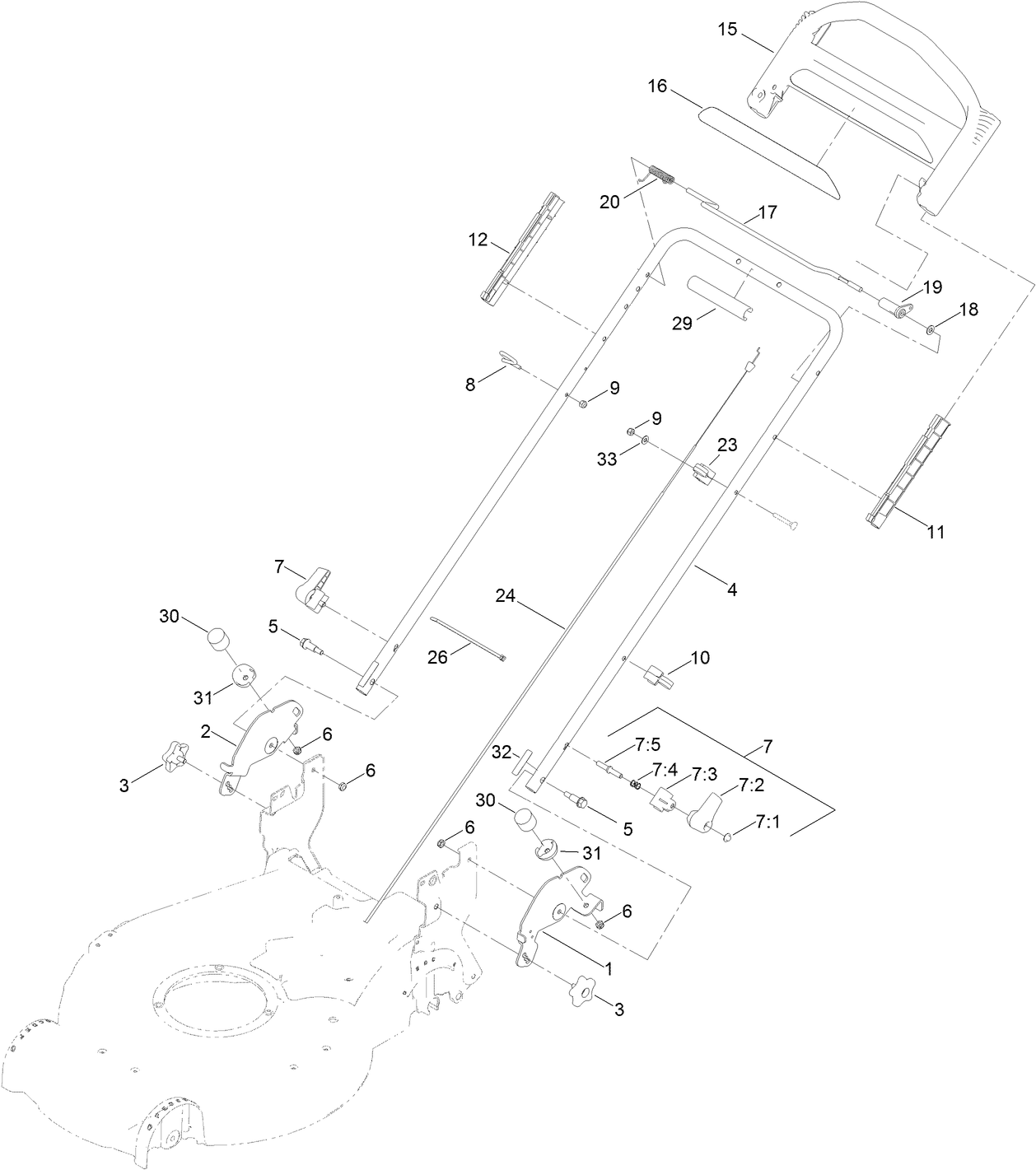

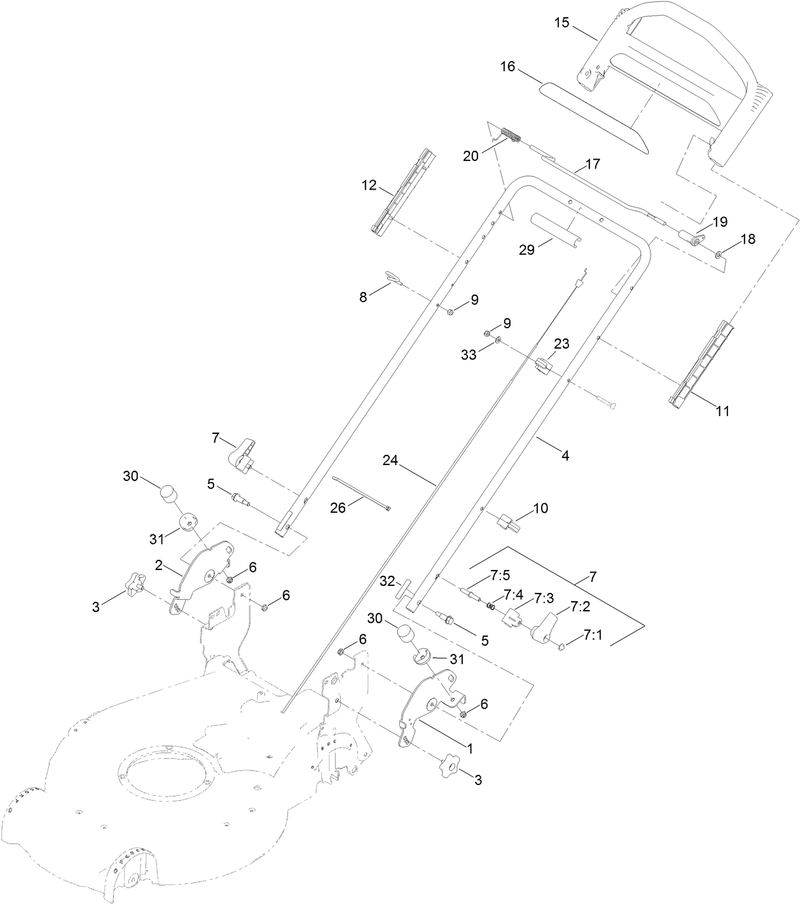

Handle Assembly
Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
137-4845-03
137-4845-03
|
|||
|
|
137-4846-03
137-4846-03
|
|||
|
|
137-4844
137-4844
|
|||
|
|
140-3824-05
140-3824-05
|
|||
|
|
140-3759
140-3759
|
|||
|
|
3296-47
3296-47
|
|||
|
|
138-3249
138-3249
|
|||
|
|
32112-11
32112-11
|
|||
|
|
138-3249
138-3249
|
|||
|
|
138-3249
138-3249
|
|||
|
|
115-2858
115-2858
|
|||
|
|
138-3243
138-3243
|
|||
|
|
86-9671
86-9671
|
|||
|
|
3296-73
3296-73
|
|||
|
|
114-7988
114-7988
|
|||
|
|
105-6842
105-6842
|
|||
|
|
105-6841
105-6841
|
|||
|
|
104-8678
104-8678
|
|||
|
|
140-3821
140-3821
|
|||
|
|
136-7150
136-7150
|
|||
|
|
3256-23
3256-23
|
|||
|
|
99-1589
99-1589
|
|||
|
|
136-7166
136-7166
|
|||
|
|
136-5864
136-5864
|
|||
|
|
117-9389
117-9389
|
|||
|
|
614249
614249
|
|||
|
|
131-4551
131-4551
|
|||
|
|
137-4803
137-4803
|
|||
|
|
137-9100
137-9100
|
|||
|
|
140-3827
140-3827
|
|||
|
|
3256-1
3256-1
|

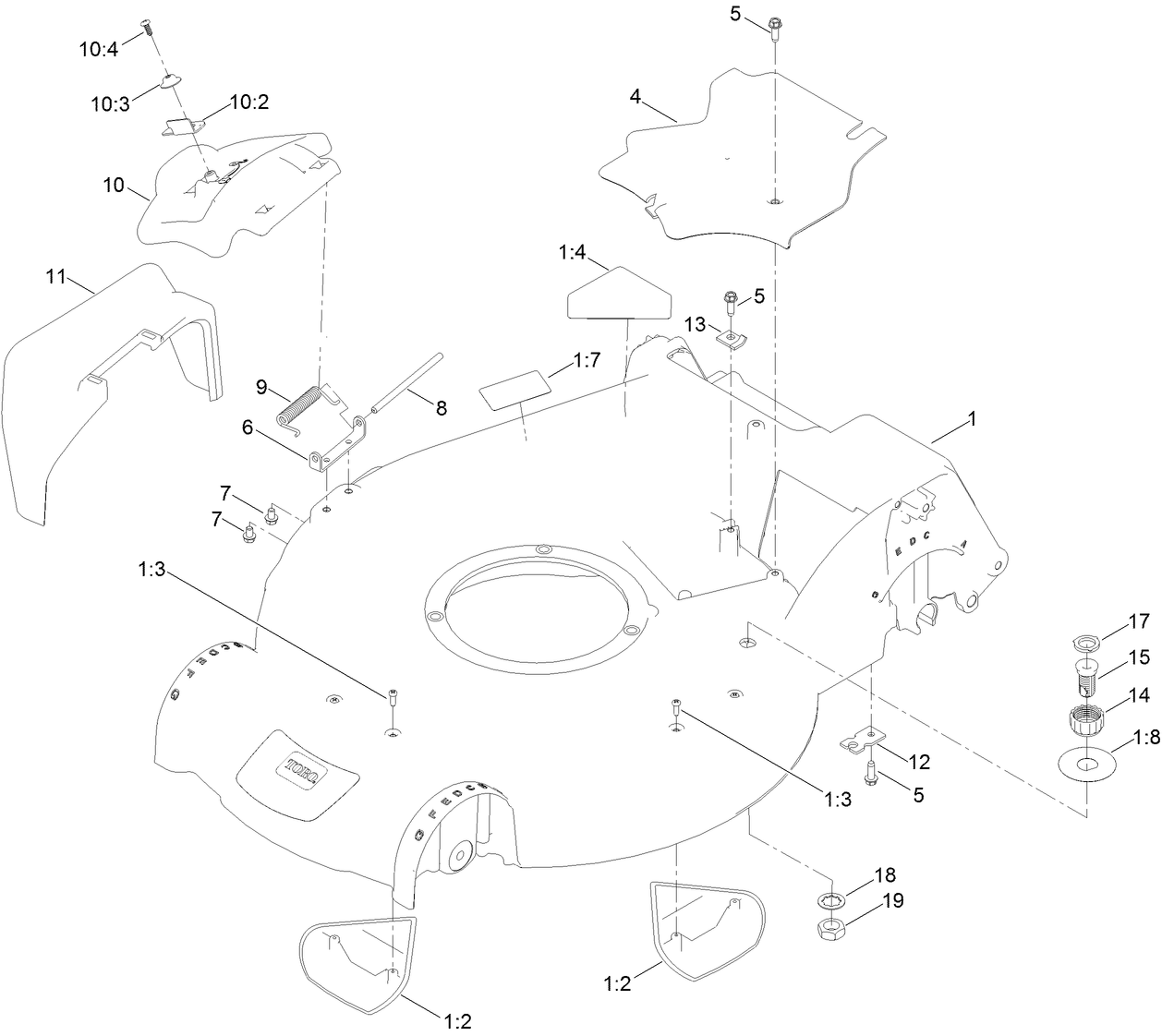

Housing Assembly
Housing Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
140-3768
140-3768
|
|||
|
|
140-3770
140-3770
|
|||
|
|
32144-111
32144-111
|
|||
|
|
94-8072
94-8072
|
|||
|
|
125-5092
125-5092
|
|||
|
|
137-9196
137-9196
|
|||
|
|
107-7494
107-7494
|
|||
|
|
49-2040
49-2040
|
|||
|
|
112-6416
112-6416
|
|||
|
|
137-4795
137-4795
|
|||
|
|
136-8672
136-8672
|
|||
|
|
99-5293
99-5293
|
|||
|
|
107-3717
107-3717
|
|||
|
|
138-3221
138-3221
|
|||
|
|
138-3242
138-3242
|
|||
|
|
137-9137
137-9137
|
|||
|
|
108-3753
108-3753
|
|||
|
|
138-3224
138-3224
|
|||
|
|
62-3720
62-3720
|
|||
|
|
112-6401
112-6401
|
|||
|
|
112-6400
112-6400
|
|||
|
|
112-6438
112-6438
|
|||
|
|
3254-5
3254-5
|
|||
|
|
3218-6
3218-6
|

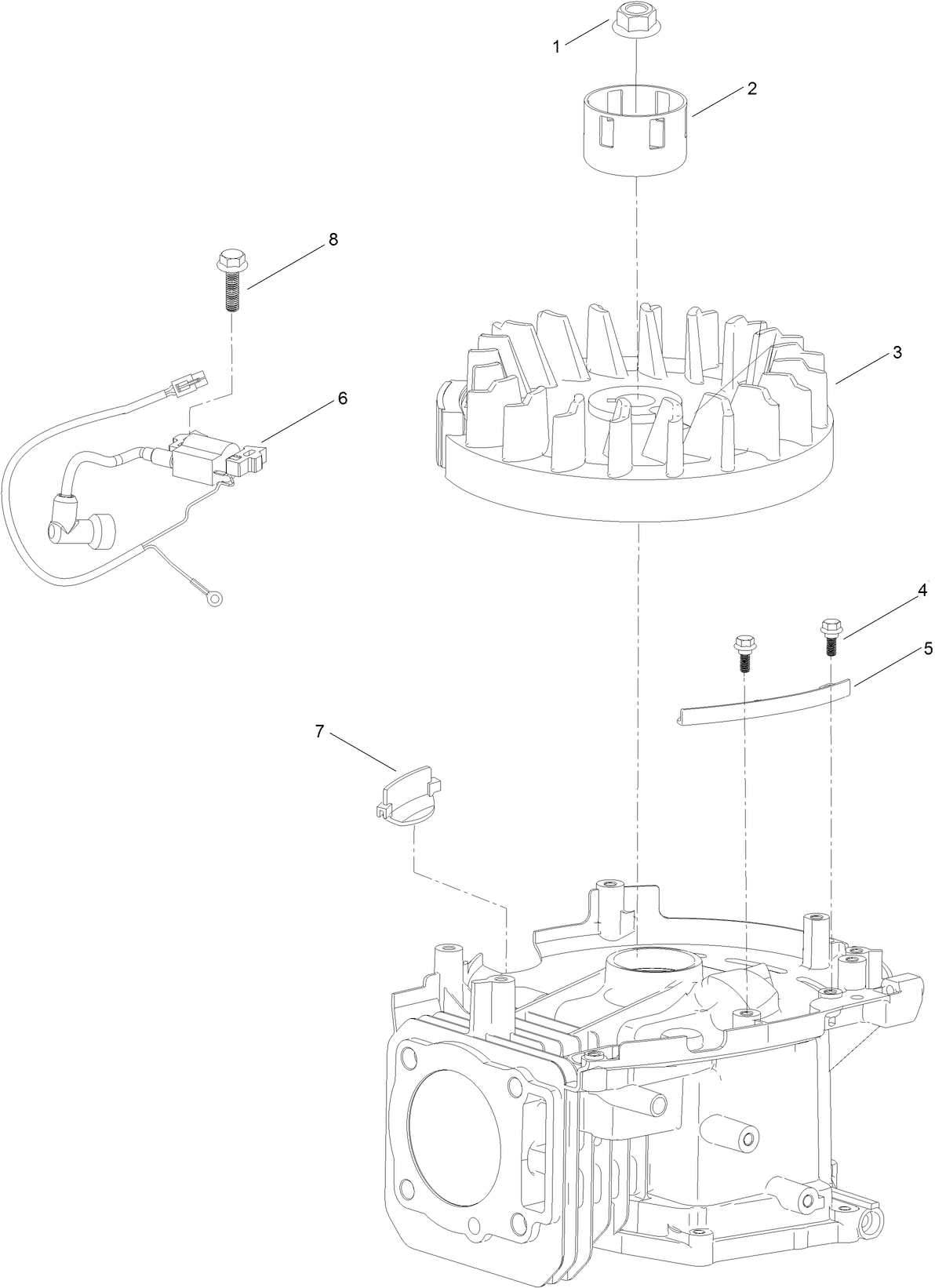

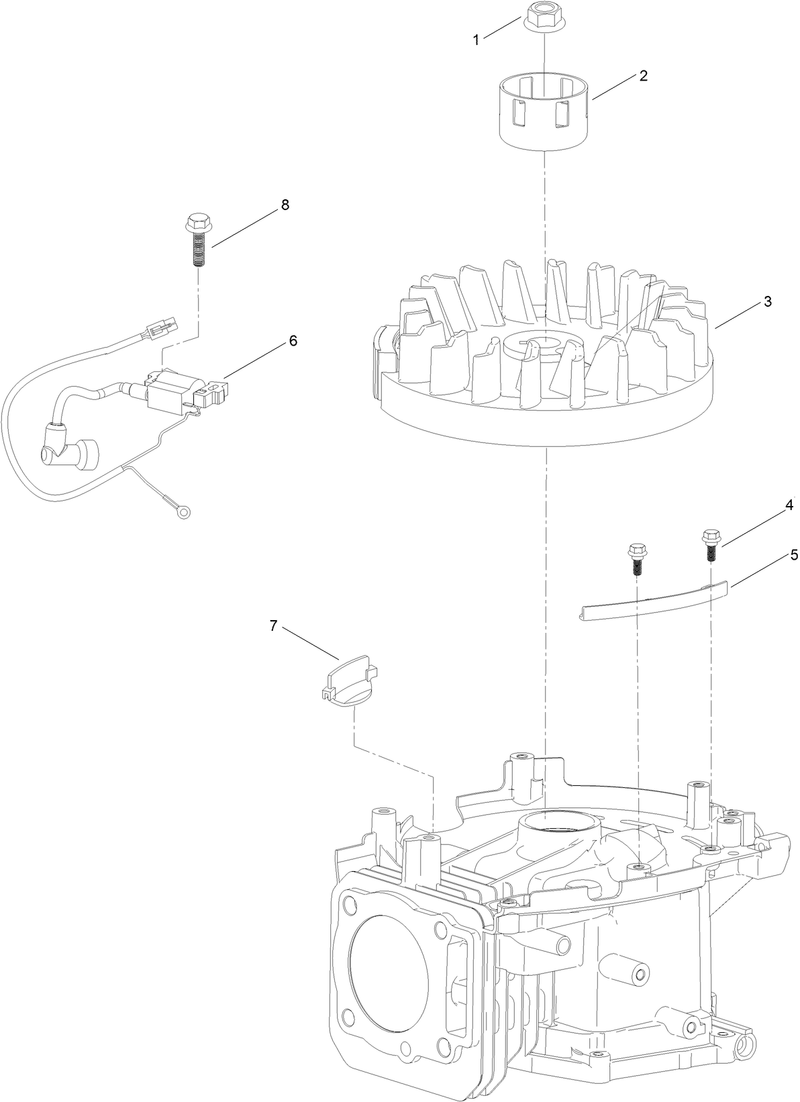

Ignition and Electrical Assembly
Ignition and Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
121-0047
121-0047
|
|||
|
|
133-9912
133-9912
|
|||
|
|
133-9913
133-9913
|
|||
|
|
120-4209
120-4209
|
|||
|
|
133-9914
133-9914
|
|||
|
|
136-7871
136-7871
|
|||
|
|
133-9881
133-9881
|
|||
|
|
120-4225
120-4225
|

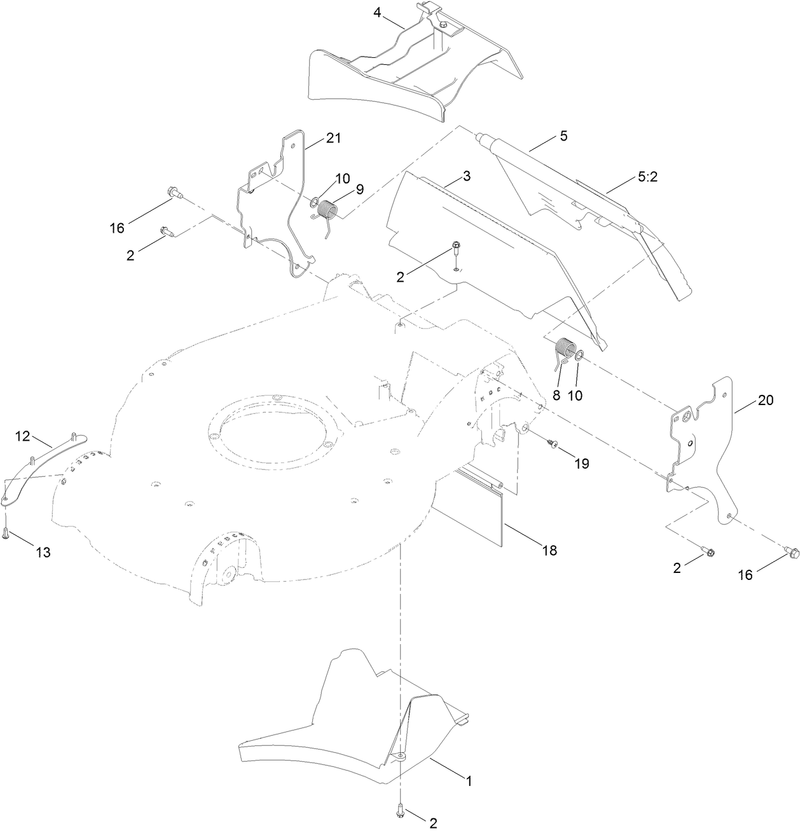

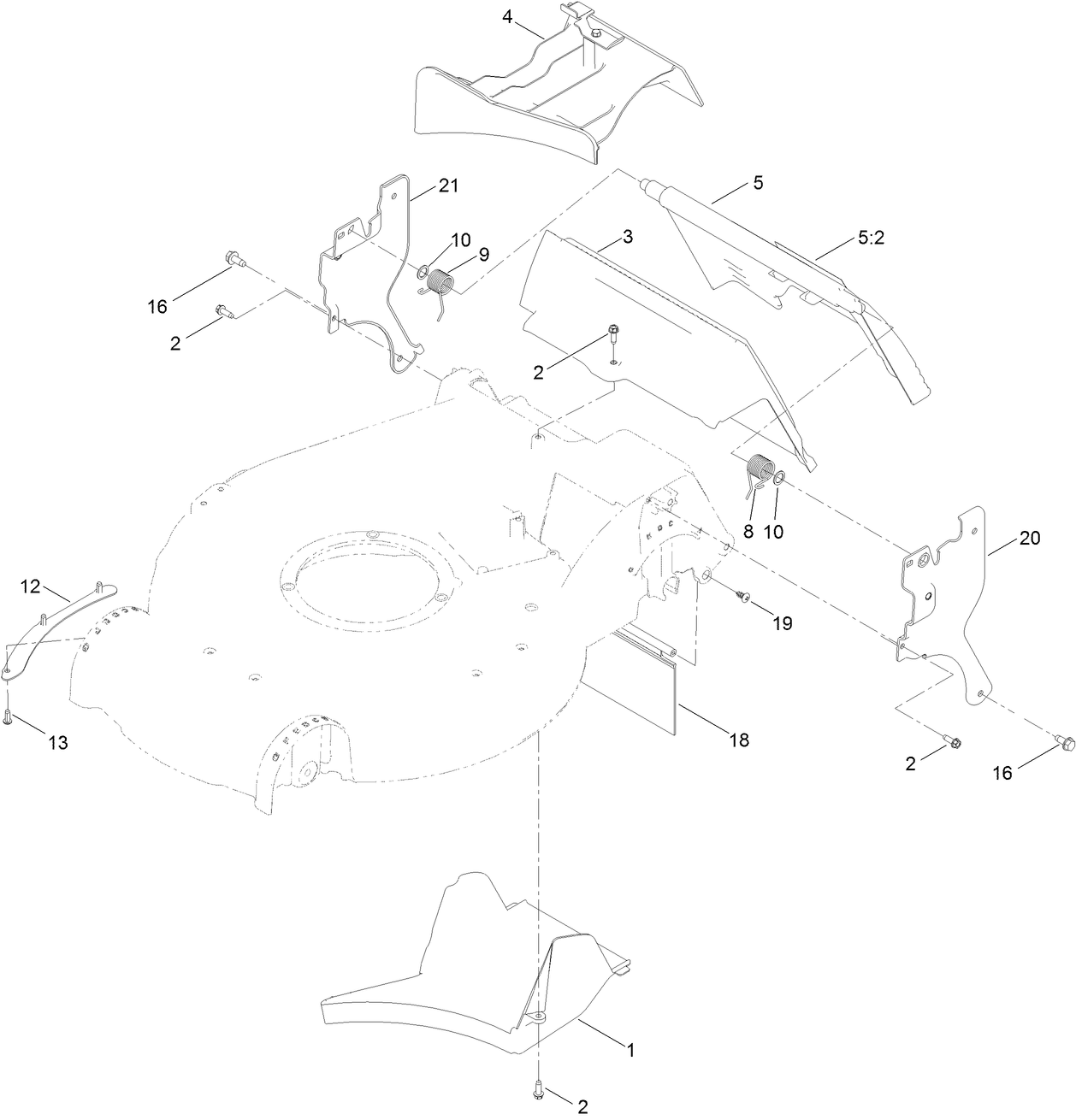

Mulch Plug Assembly
Mulch Plug Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
107-7495
107-7495
|
|||
|
|
49-2040
49-2040
|
|||
|
|
114-2668
114-2668
|
|||
|
|
115-8413
115-8413
|
|||
|
|
137-9139
137-9139
|
|||
|
|
131-4514
131-4514
|
|||
|
|
115-2859
115-2859
|
|||
|
|
114-7924
114-7924
|
|||
|
|
94-8196
94-8196
|
|||
|
|
105-1316-01
105-1316-01
|
|||
|
|
63-8590
63-8590
|
|||
|
|
32144-70
32144-70
|
|||
|
|
120-7011
120-7011
|
|||
|
|
139-1692
139-1692
|
|||
|
|
137-9108
137-9108
|
|||
|
|
137-9107
137-9107
|

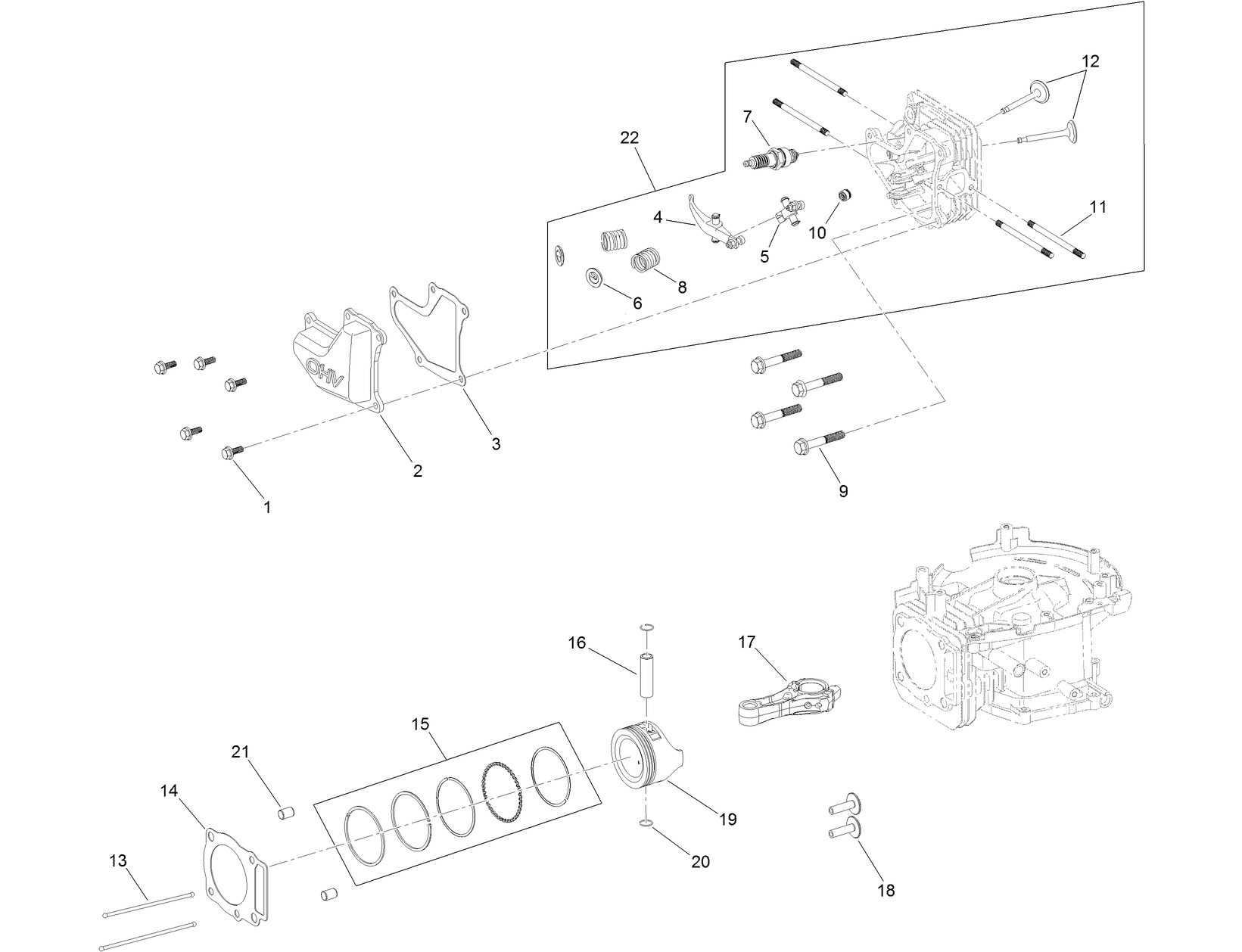

Piston and Cylinder Head Assembly
Piston and Cylinder Head Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
120-4232
120-4232
|
|||
|
|
133-9905
133-9905
|
|||
|
|
133-9904
133-9904
|
|||
|
|
136-7868
136-7868
|
|||
|
|
136-7869
136-7869
|
|||
|
|
120-4474
120-4474
|
|||
|
|
121-4199
121-4199
|
|||
|
|
120-4473
120-4473
|
|||
|
|
121-0043
121-0043
|
|||
|
|
121-4202
121-4202
|
|||
|
|
121-0045
121-0045
|
|||
|
|
121-4192
121-4192
|
|||
|
|
121-4193
121-4193
|
|||
|
|
133-9910
133-9910
|
|||
|
|
121-4171
121-4171
|
|||
|
|
120-4467
120-4467
|
|||
|
|
120-4469
120-4469
|
|||
|
|
120-4477
120-4477
|
|||
|
|
121-4173
121-4173
|
|||
|
|
121-0052
121-0052
|
|||
|
|
121-0053
121-0053
|
|||
|
|
136-7890
136-7890
|

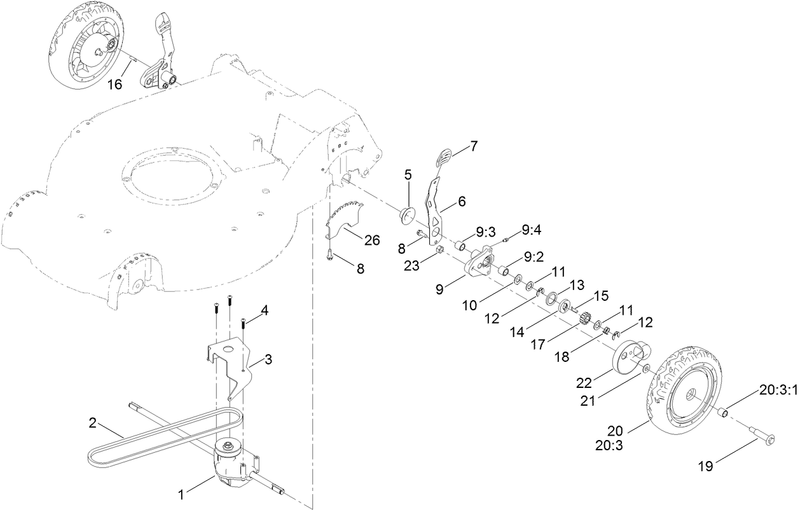

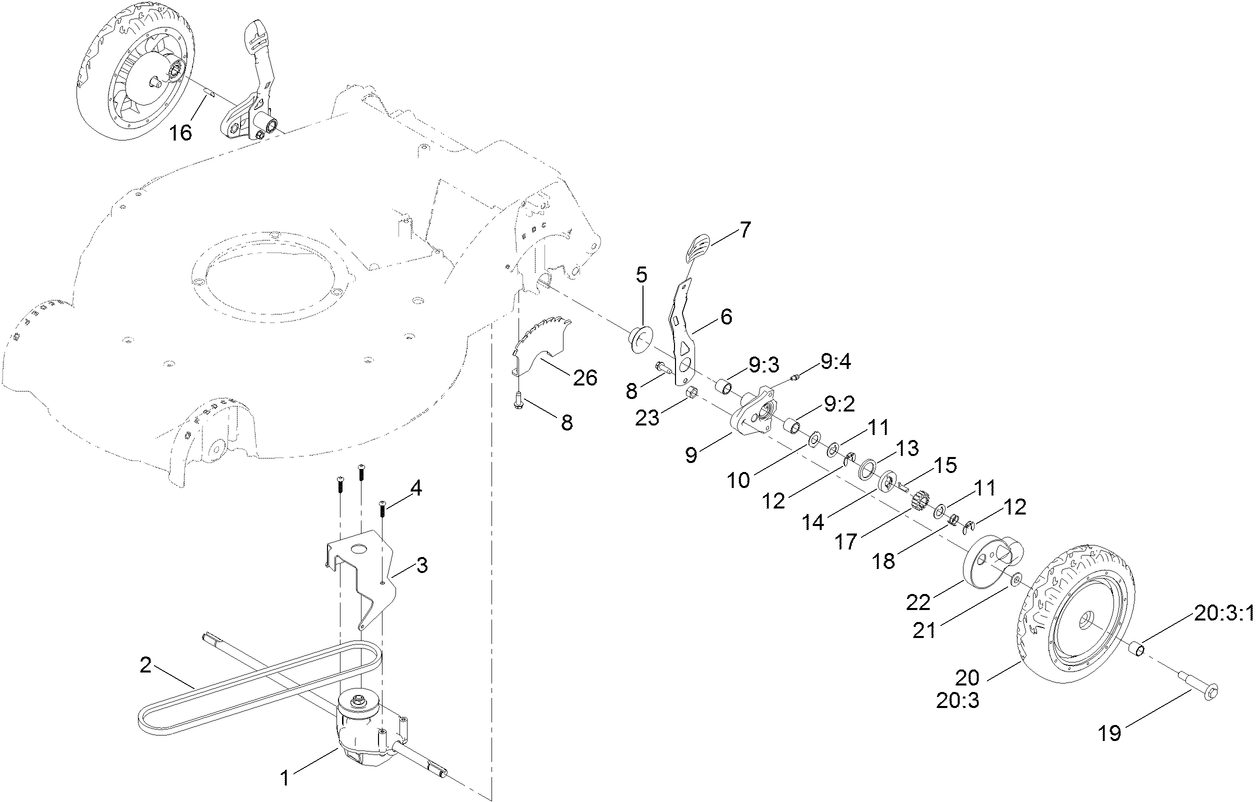

Transmission and Rear Wheel Height of Cut Assembly
Transmission and Rear Wheel Height of Cut Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
121-9184
121-9184
|
|||
|
|
115-4669
115-4669
|
|||
|
|
114-7977-03
114-7977-03
|
|||
|
|
108-7476
108-7476
|
|||
|
|
138-3235
138-3235
|
|||
|
|
107-7491
107-7491
|
|||
|
|
105-3042
105-3042
|
|||
|
|
49-2040
49-2040
|
|||
|
|
100-8774
100-8774
|
|||
|
|
47-2900
47-2900
|
|||
|
|
70-9760
70-9760
|
|||
|
|
302-56
302-56
|
|||
|
|
65-4730
65-4730
|
|||
|
|
65-4740
65-4740
|
|||
|
|
65-2720
65-2720
|
|||
|
|
65-4710
65-4710
|
|||
|
|
65-4760
65-4760
|
|||
|
|
139-6644
139-6644
|
|||
|
|
139-6643
139-6643
|
|||
|
|
65-4750
65-4750
|
|||
|
|
65-4720
65-4720
|
|||
|
|
92-1057
92-1057
|
|||
|
|
140-1295
140-1295
|
|||
|
|
|
|||
|
|
27-6250
27-6250
|
|||
|
|
74-1671
74-1671
|
|||
|
|
74-1660
74-1660
|
|||
|
|
603773
603773
|
|||
|
|
139-1669-01
139-1669-01
|
