Toro 21472 22 in. Recycler All Wheel Drive Mower (Serial #: 408900000 - 410239153) Parts Diagram
Diagrams:
Diagram:

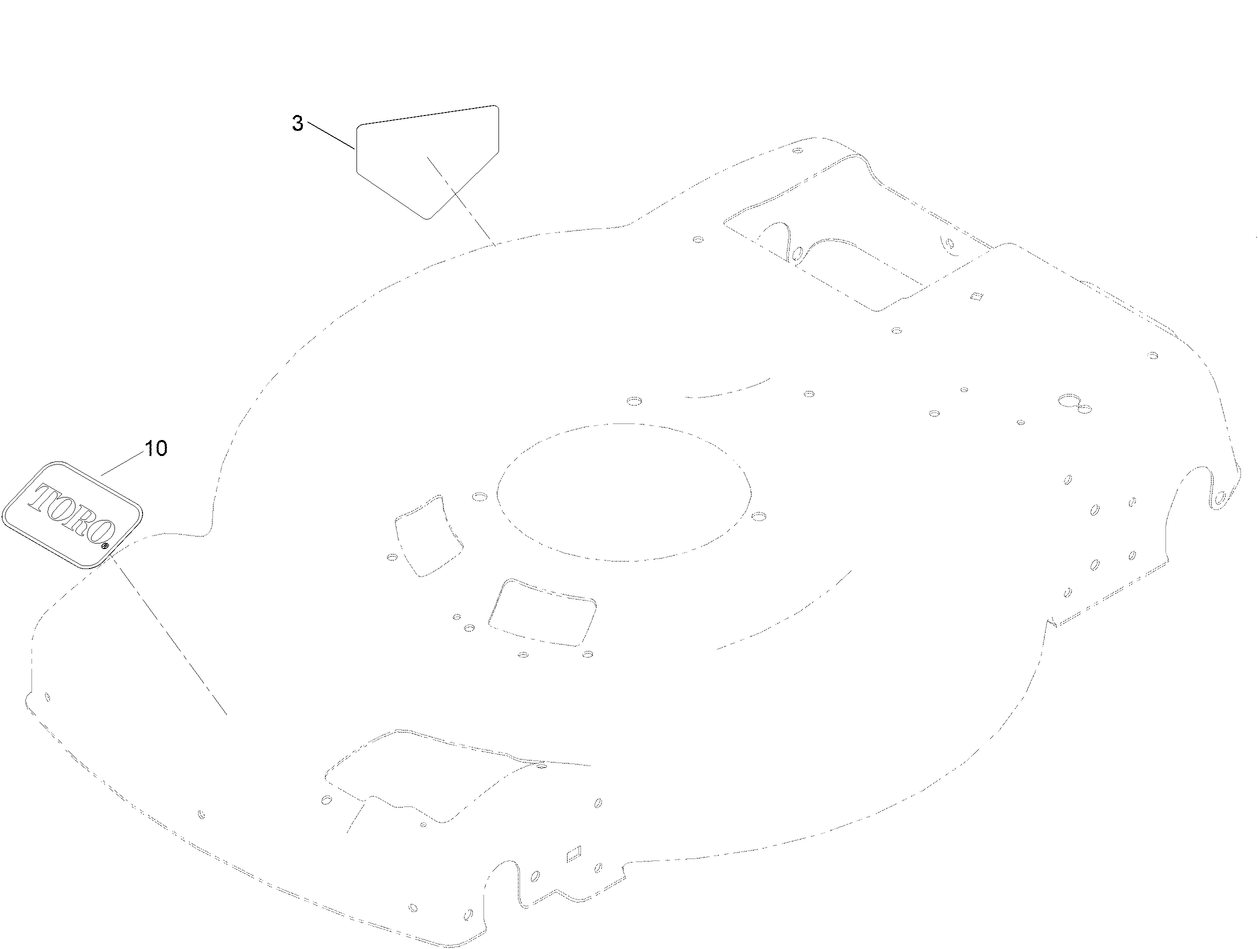

Decal Assembly
Decal Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
94-8072
94-8072
|
|||
|
|
140-4183
140-4183
|
Engine and Blade Assembly
Engine and Blade Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
121-5844
121-5844
|
|||
|
|
106-3999
106-3999
|
|||
|
|
130-6705
130-6705
|
|||
|
|
131-4547-03
131-4547-03
|
|||
|
|
108-3766-03
108-3766-03
|
|||
|
|
125-2466
125-2466
|
|||
|
|
140-4248
140-4248
|
|||
|
|
133-8062
133-8062
|

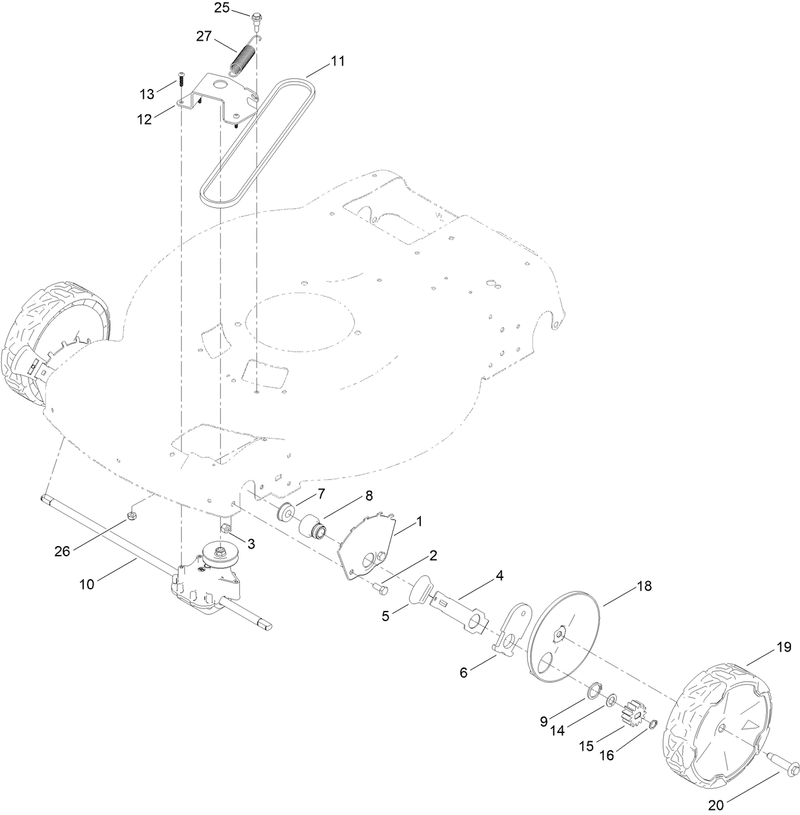

Front Wheel and Height of Cut Assembly
Front Wheel and Height of Cut Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
115-1956-05
115-1956-05
|
|||
|
|
322-3
322-3
|
|||
|
|
3296-29
3296-29
|
|||
|
|
105-1809
105-1809
|
|||
|
|
110-0549
110-0549
|
|||
|
|
137-9128
137-9128
|
|||
|
|
104-8699
104-8699
|
|||
|
|
131-0836
131-0836
|
|||
|
|
32151-36
32151-36
|
|||
|
|
137-4823
137-4823
|
|||
|
|
71-9450
71-9450
|
|||
|
|
114-7978-03
114-7978-03
|
|||
|
|
108-7476
108-7476
|
|||
|
|
110-7191
110-7191
|
|||
|
|
131-0896
131-0896
|
|||
|
|
32151-61
32151-61
|
|||
|
|
140-2364
140-2364
|
|||
|
|
140-2358
140-2358
|
|||
|
|
145-3899
145-3899
|
|||
|
|
104-0858
104-0858
|
|||
|
|
3296-16
3296-16
|
|||
|
|
140-4193
140-4193
|
Handle Assembly
Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
144-0227-05
144-0227-05
|
|||
|
|
139-6599
139-6599
|
|||
|
|
3296-29
3296-29
|
|||
|
|
131-9663
131-9663
|
|||
|
|
117-5976
117-5976
|
|||
|
|
140-2367
140-2367
|
|||
|
|
140-2366
140-2366
|
|||
|
|
139-5464
139-5464
|
|||
|
|
140-2378
140-2378
|
|||
|
|
144-0219
144-0219
|
|||
|
|
3256-23
3256-23
|
|||
|
|
140-4194
140-4194
|
|||
|
|
139-6569
139-6569
|
|||
|
|
139-6567
139-6567
|
|||
|
|
139-6568
139-6568
|
|||
|
|
94-4496
94-4496
|
|||
|
|
145-5879-03
145-5879-03
|
|||
|
|
139-6594
139-6594
|
|||
|
|
144-0222
144-0222
|
|||
|
|
139-6582
139-6582
|
|||
|
|
140-2391
140-2391
|
|||
|
|
140-2392
140-2392
|
|||
|
|
136-5922
136-5922
|
|||
|
|
136-9075
136-9075
|
|||
|
|
3296-73
3296-73
|
|||
|
|
86-9671
86-9671
|
|||
|
|
114-7988
114-7988
|
|||
|
|
140-2379
140-2379
|
|||
|
|
144-0213
144-0213
|
|||
|
|
144-0212
144-0212
|
|||
|
|
3296-2
3296-2
|
|||
|
|
140-4187
140-4187
|
|||
|
|
139-6577
139-6577
|
|||
|
|
131-4551
131-4551
|
Housing Assembly
Housing Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
144-3193
144-3193
|
|||
|
|
114-7963-01
114-7963-01
|
|||
|
|
46-8091
46-8091
|
|||
|
|
139-5440
139-5440
|
|||
|
|
131-0837
131-0837
|
|||
|
|
140-2368
140-2368
|
|||
|
|
139-5443
139-5443
|
|||
|
|
139-5444
139-5444
|
|||
|
|
139-5445
139-5445
|
|||
|
|
140-4192
140-4192
|
|||
|
|
32104-120
32104-120
|
|||
|
|
139-5476
139-5476
|
|||
|
|
139-5478
139-5478
|
|||
|
|
139-5479
139-5479
|
|||
|
|
139-5457
139-5457
|
|||
|
|
139-5467
139-5467
|
|||
|
|
144-0211
144-0211
|
|||
|
|
140-2384
140-2384
|
|||
|
|
140-2389
140-2389
|
|||
|
|
140-4186
140-4186
|
Rear Bag Assembly
Rear Bag Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
139-5470-03
139-5470-03
|
|||
|
|
139-5471
139-5471
|

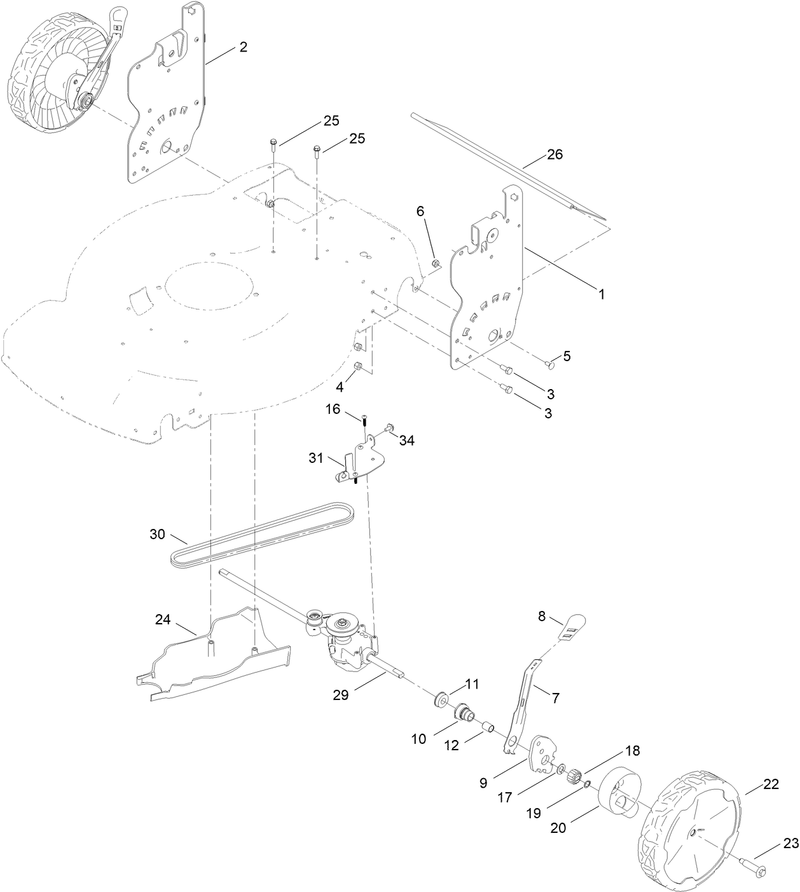

Rear Wheel and Height of Cut Assembly
Rear Wheel and Height of Cut Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
144-6476-05
144-6476-05
|
|||
|
|
145-5650-05
145-5650-05
|
|||
|
|
322-3
322-3
|
|||
|
|
3296-29
3296-29
|
|||
|
|
3229-11
3229-11
|
|||
|
|
3296-16
3296-16
|
|||
|
|
132-4486
132-4486
|
|||
|
|
110-0549
110-0549
|
|||
|
|
139-5451
139-5451
|
|||
|
|
108-9779
108-9779
|
|||
|
|
104-8699
104-8699
|
|||
|
|
108-9782
108-9782
|
|||
|
|
108-7476
108-7476
|
|||
|
|
110-7191
110-7191
|
|||
|
|
131-5399
131-5399
|
|||
|
|
32151-61
32151-61
|
|||
|
|
140-2362
140-2362
|
|||
|
|
140-2350
140-2350
|
|||
|
|
145-3899
145-3899
|
|||
|
|
130-6709
130-6709
|
|||
|
|
46-8091
46-8091
|
|||
|
|
145-5821
145-5821
|
|||
|
|
140-2370
140-2370
|
|||
|
|
140-2380
140-2380
|
|||
|
|
140-2371-03
140-2371-03
|
|||
|
|
46-8560
46-8560
|
