Toro 22342HD TX 427 Narrow Track Compact Utility Loader (Serial #: 405700000 - 407399999) Parts Diagram
Diagrams:
Diagram:

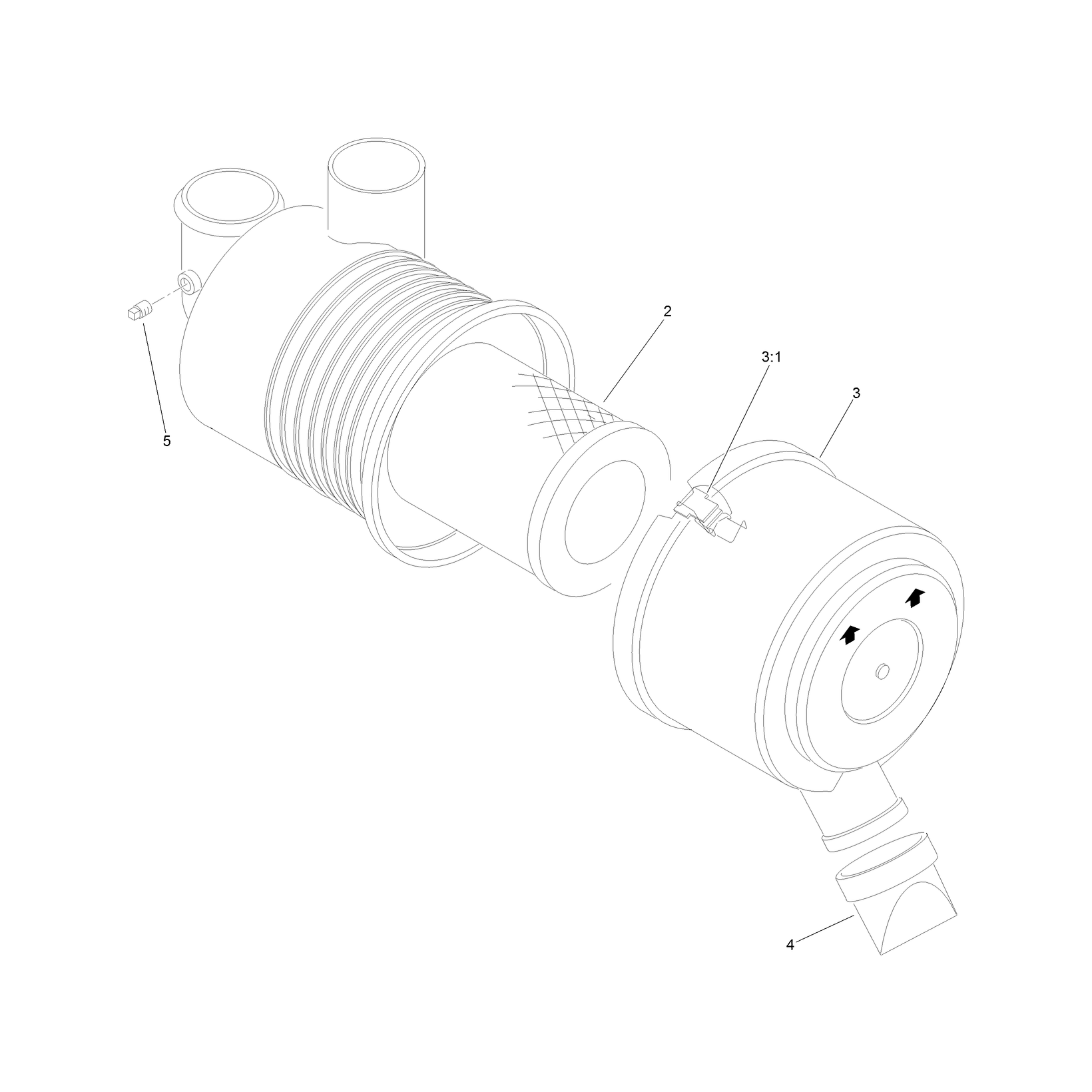

Air Cleaner Assembly No 93-2190
Air Cleaner Assembly No 93-2190
| Sequence Number | Image | Product | Price | Add to cart |
|---|

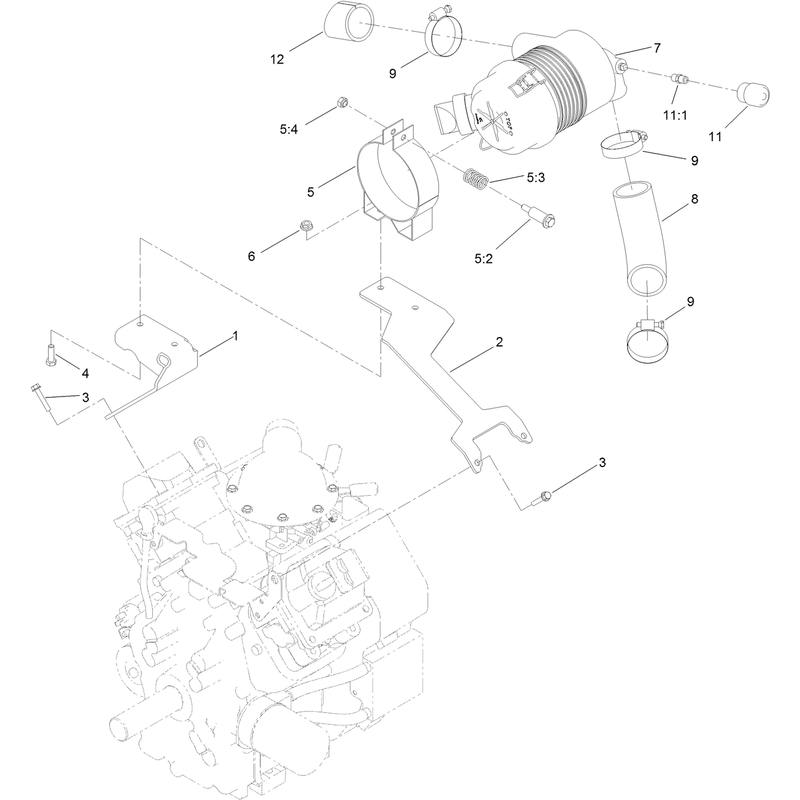

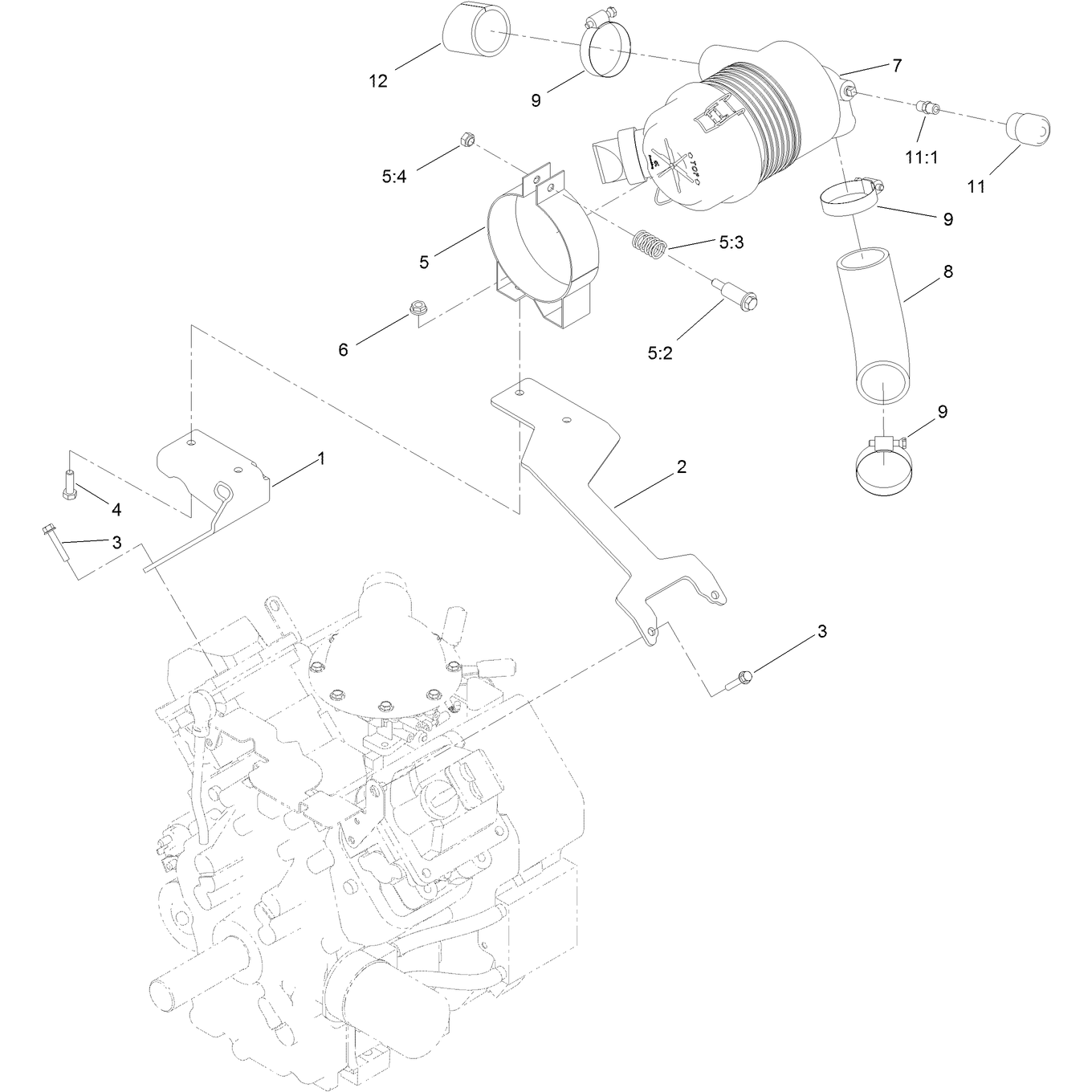

Air Cleaner Mount Assembly
Air Cleaner Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

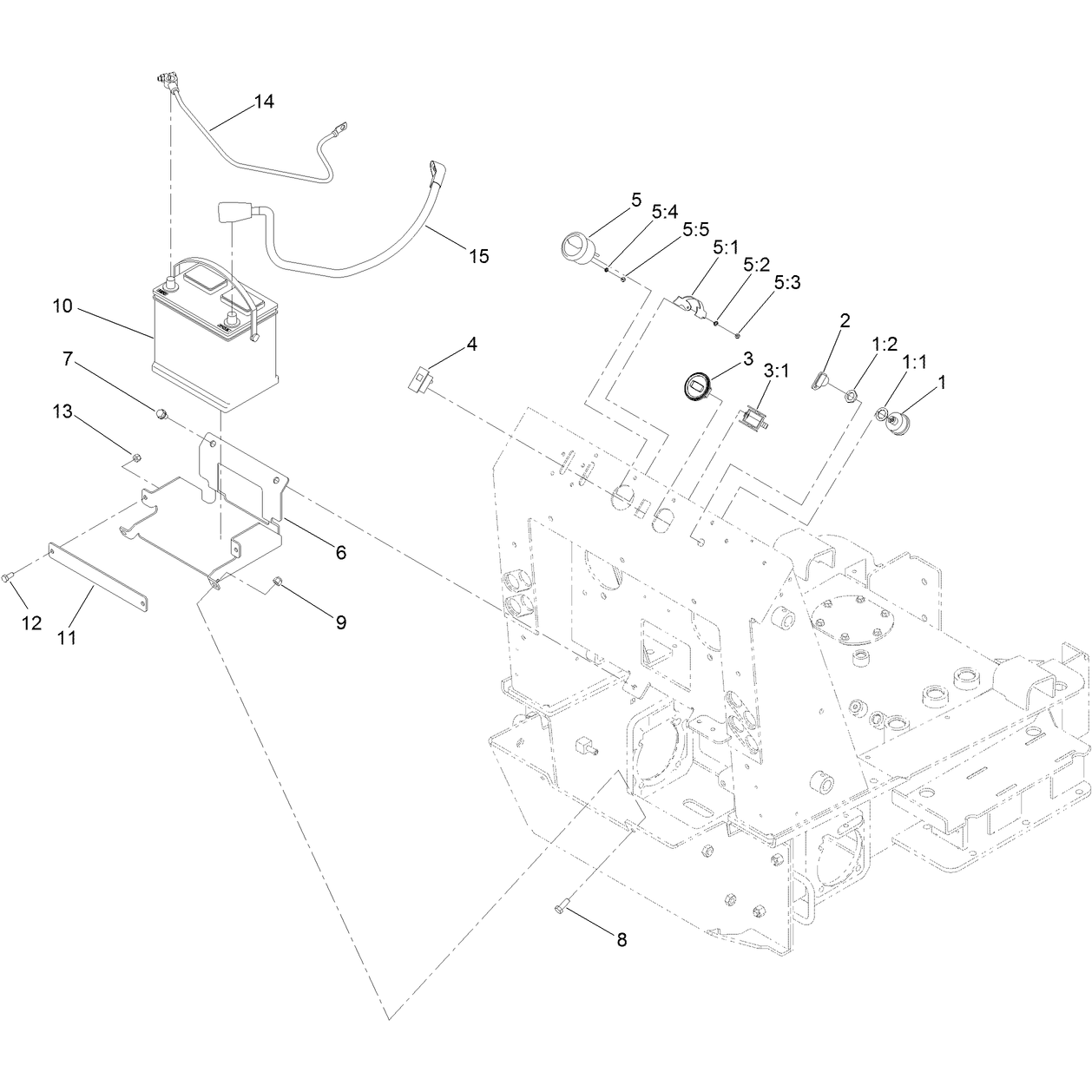

Battery Key Switch and Fuel Gauge Assembly
Battery Key Switch and Fuel Gauge Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

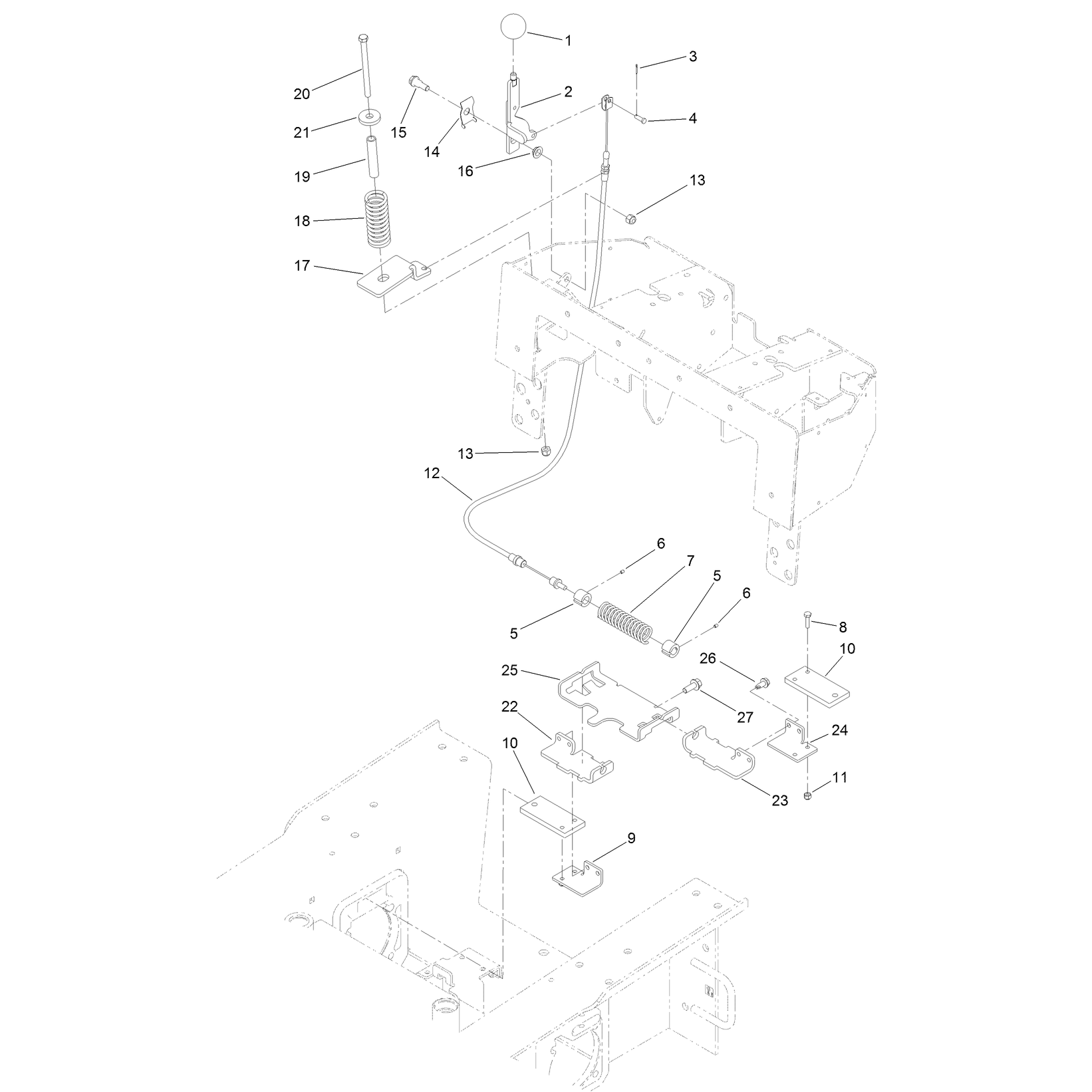

Brake Handle and Bracket Assembly
Brake Handle and Bracket Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

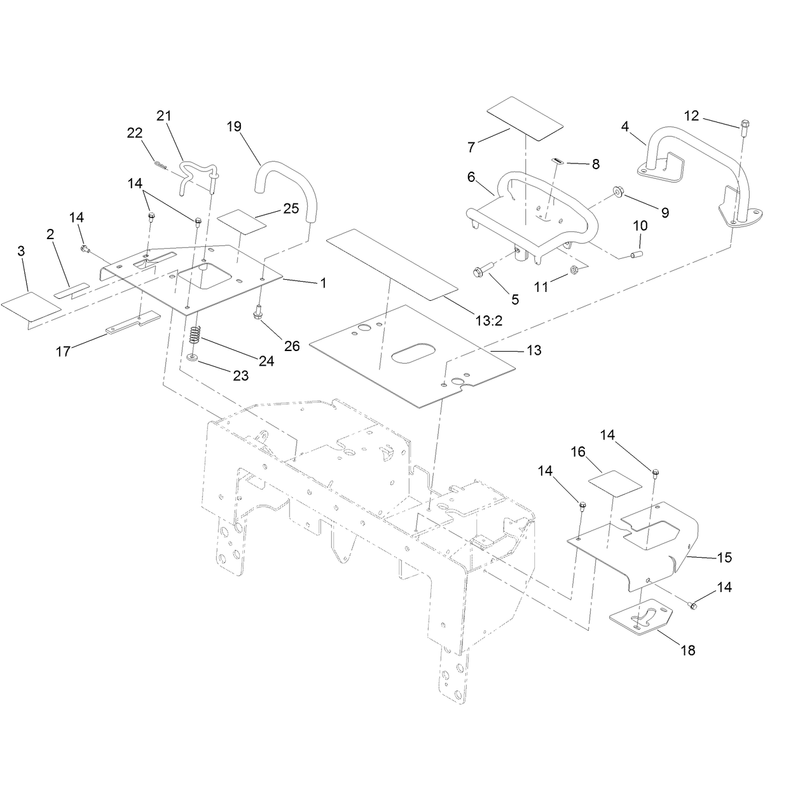

Control Handle and Reference Bar Assembly
Control Handle and Reference Bar Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

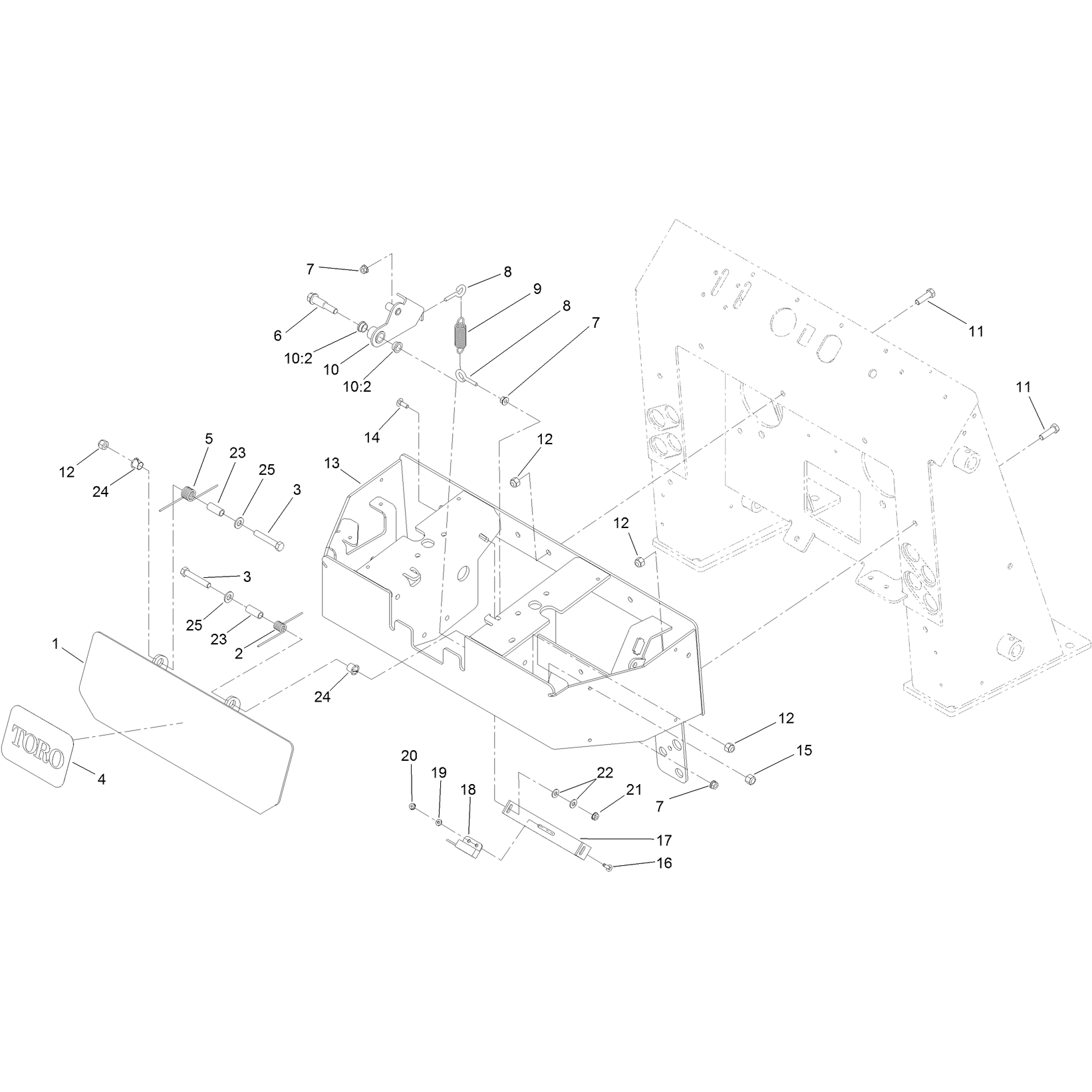

Control Panel Assembly
Control Panel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

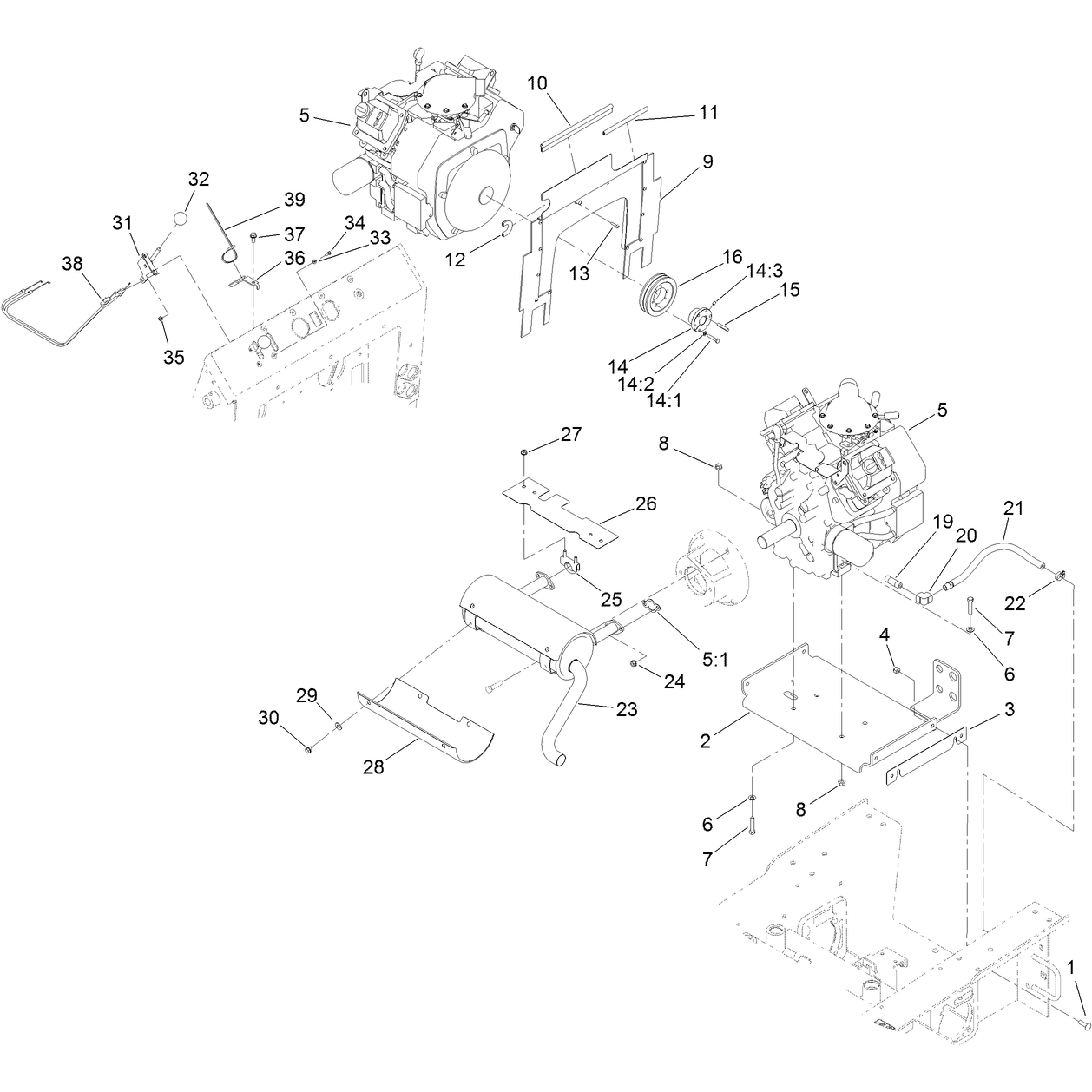

Engine Exhaust and Control Lever Assembly
Engine Exhaust and Control Lever Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

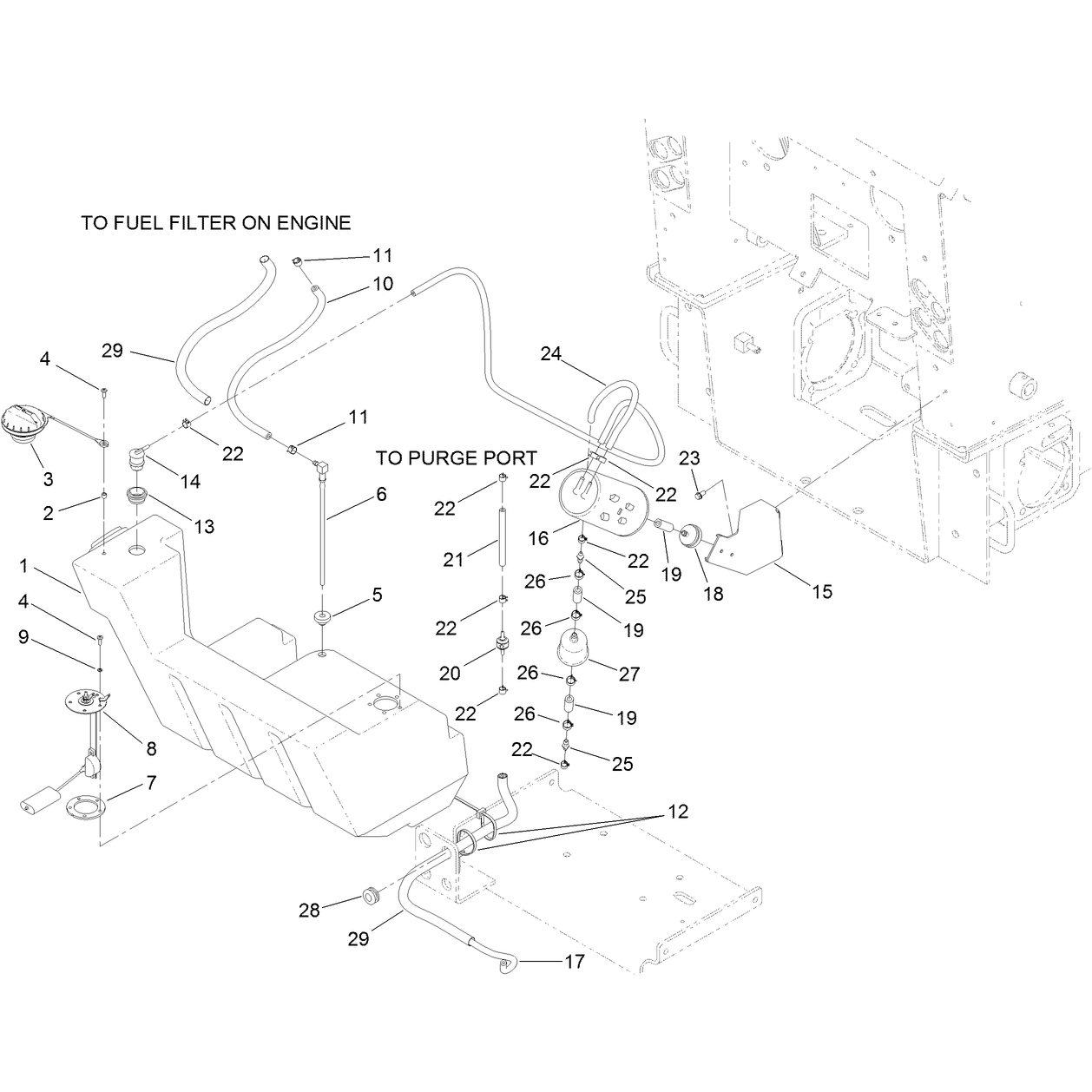

Fuel Tank and Carbon Canister Assembly
Fuel Tank and Carbon Canister Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

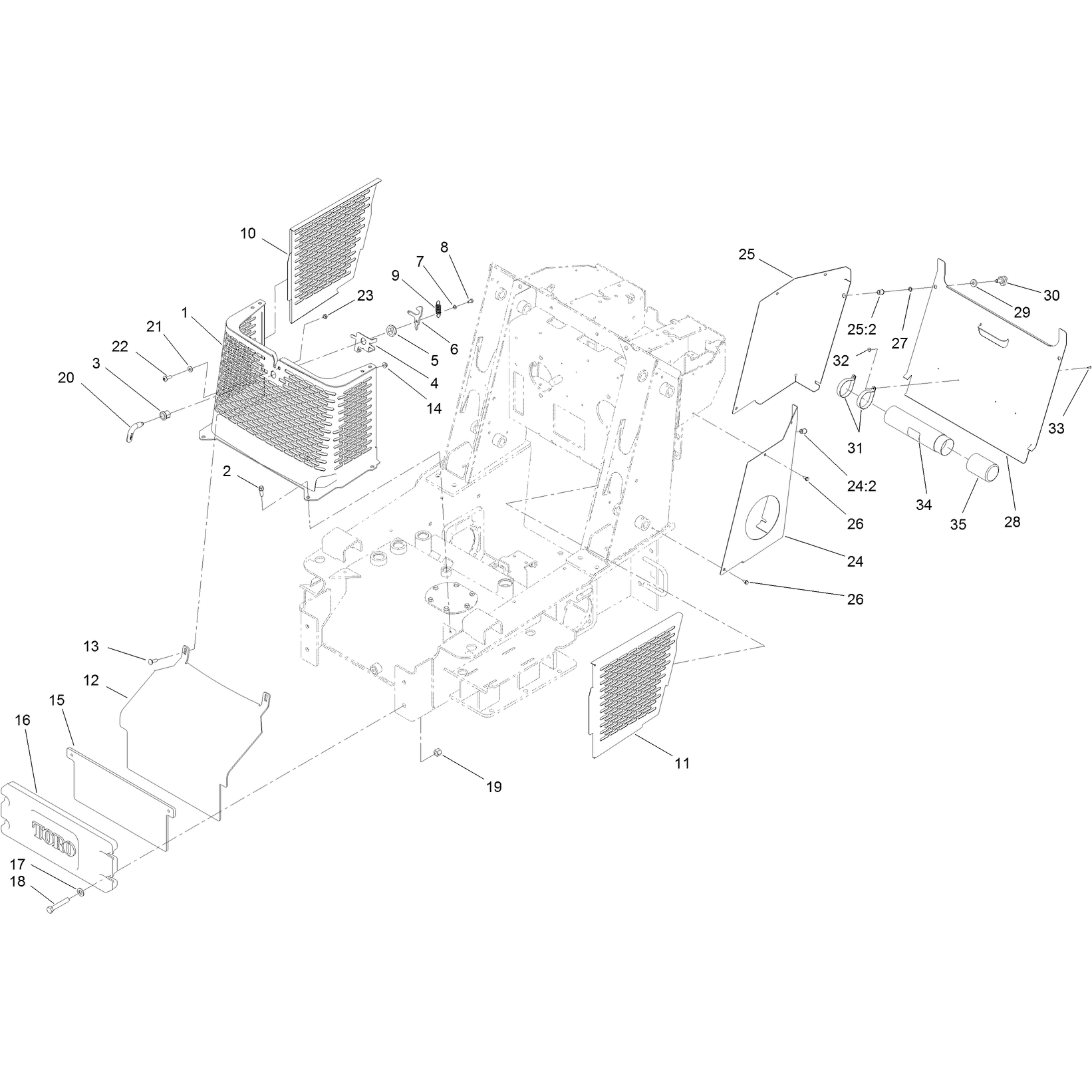

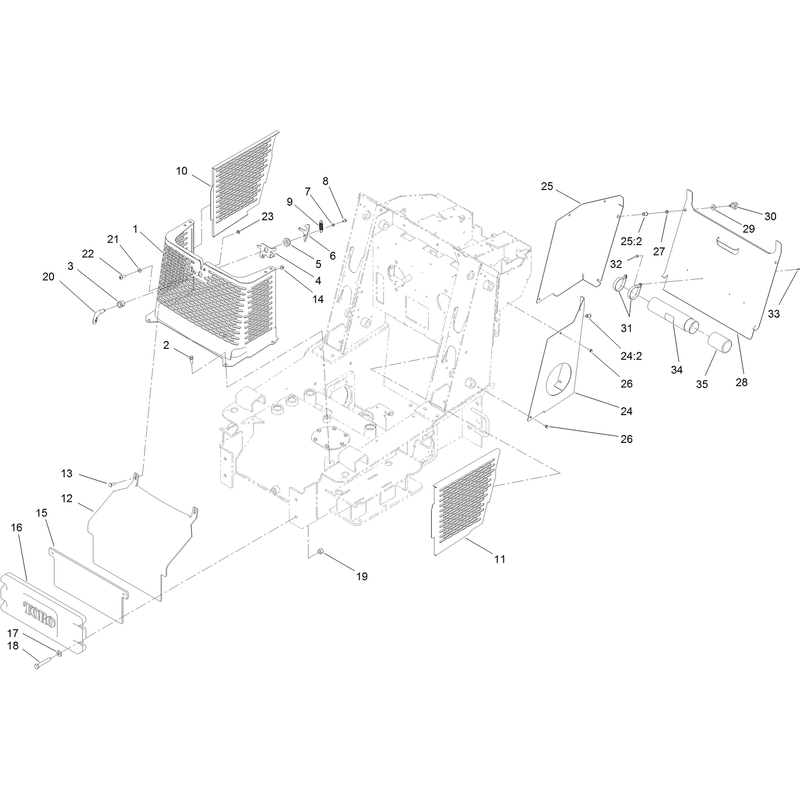

Grill Side Cover and Counterweight Assembly
Grill Side Cover and Counterweight Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

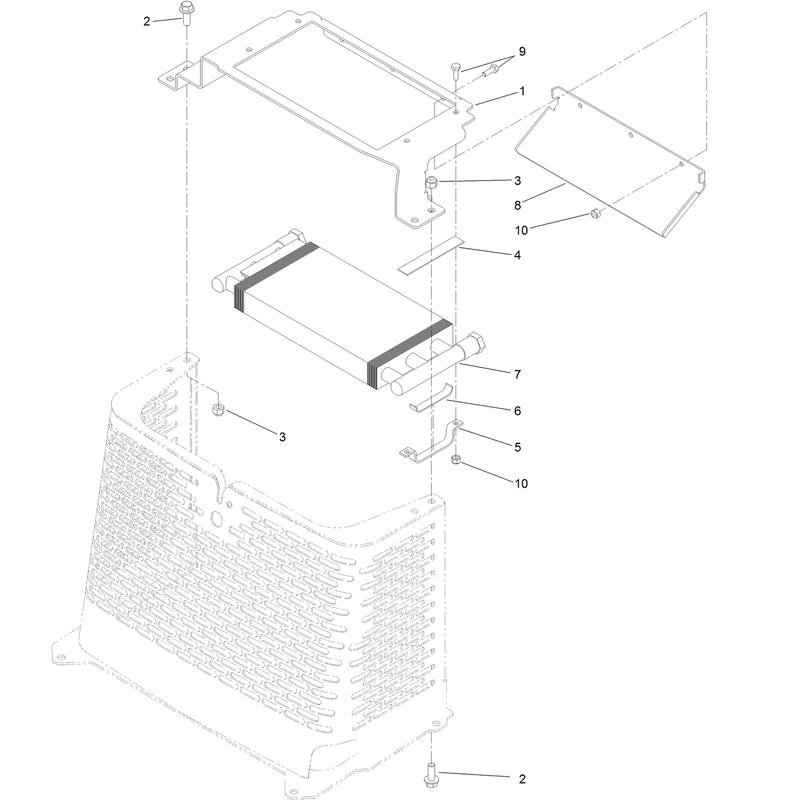

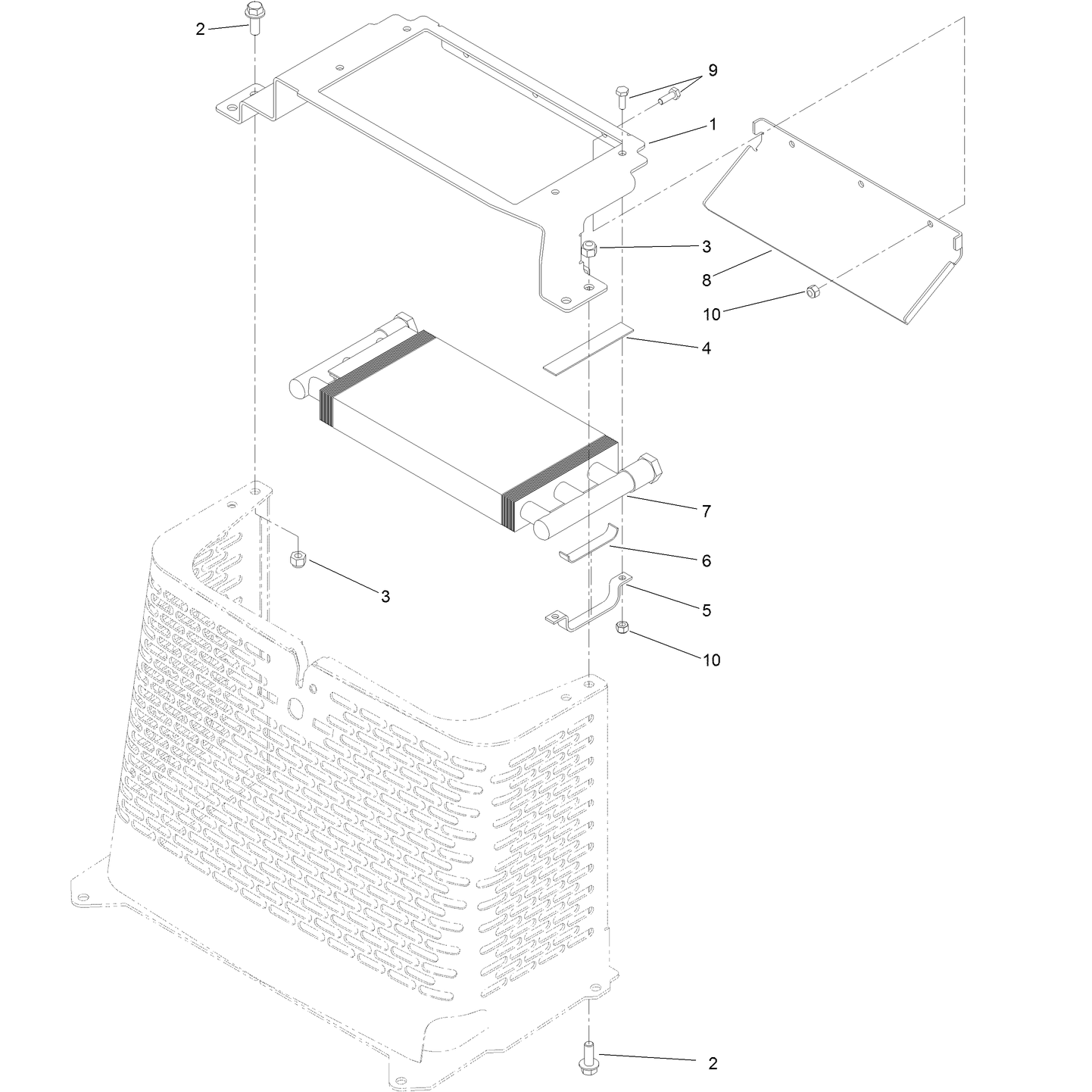

Heat Exchanger Assembly
Heat Exchanger Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

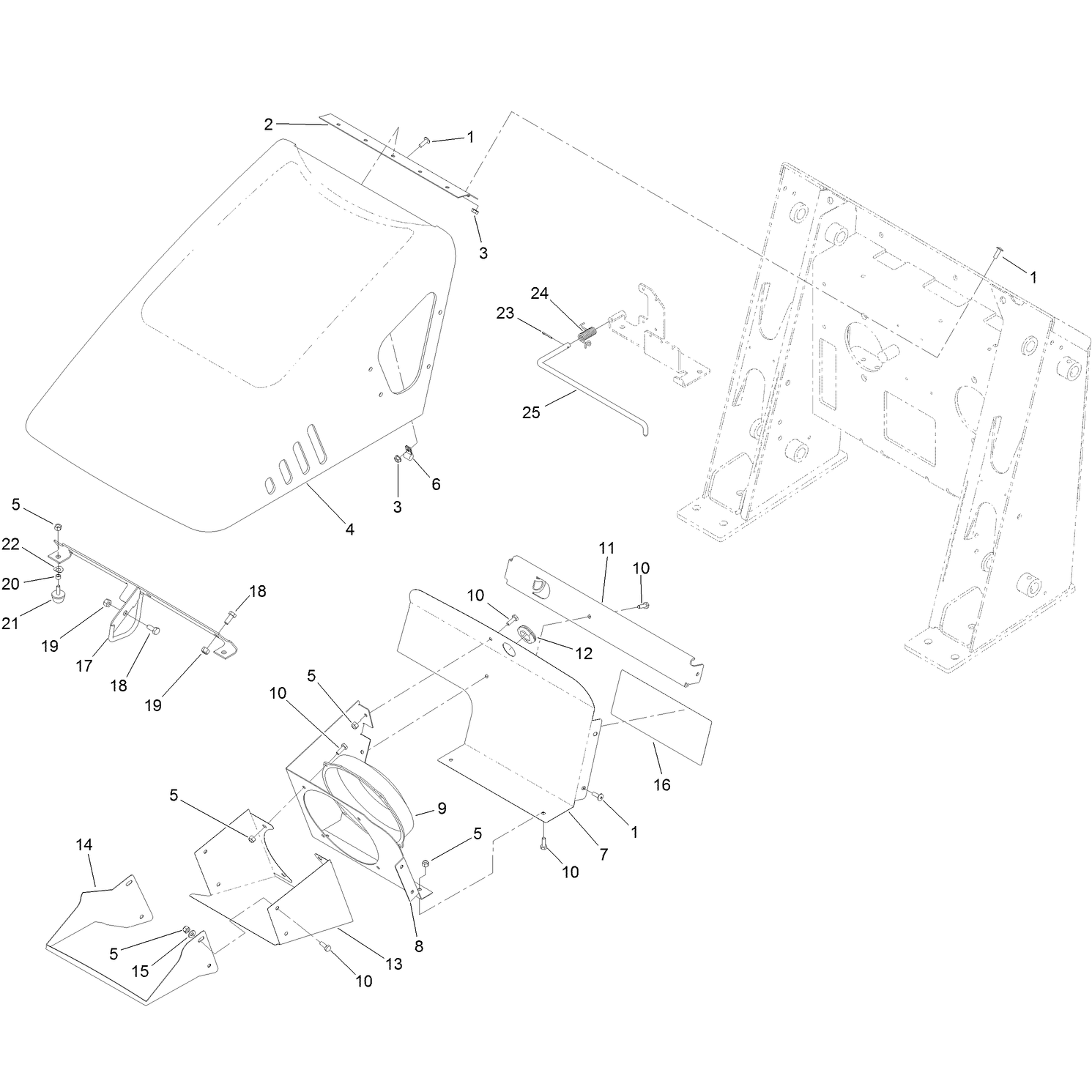

Hood and Fan Assembly
Hood and Fan Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

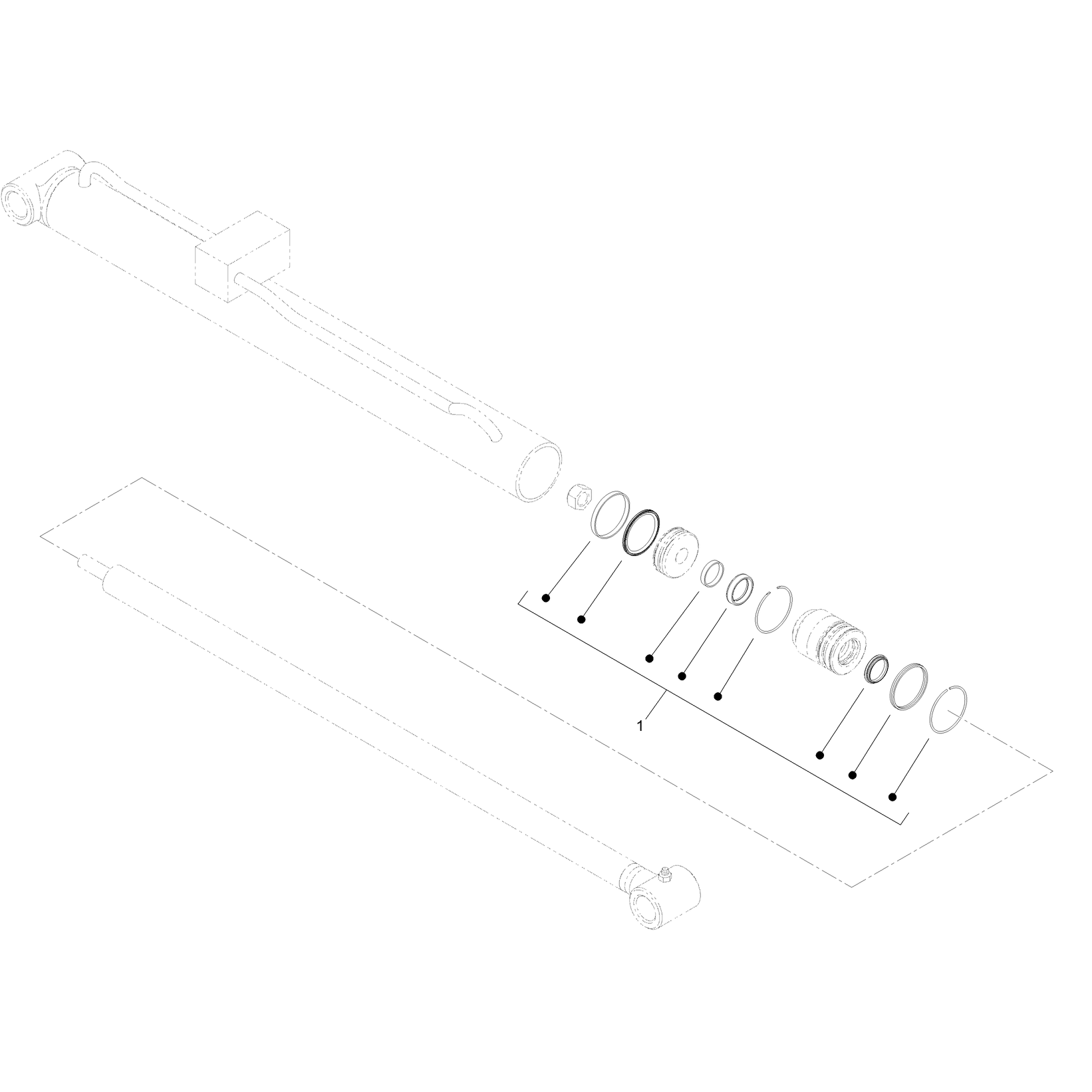

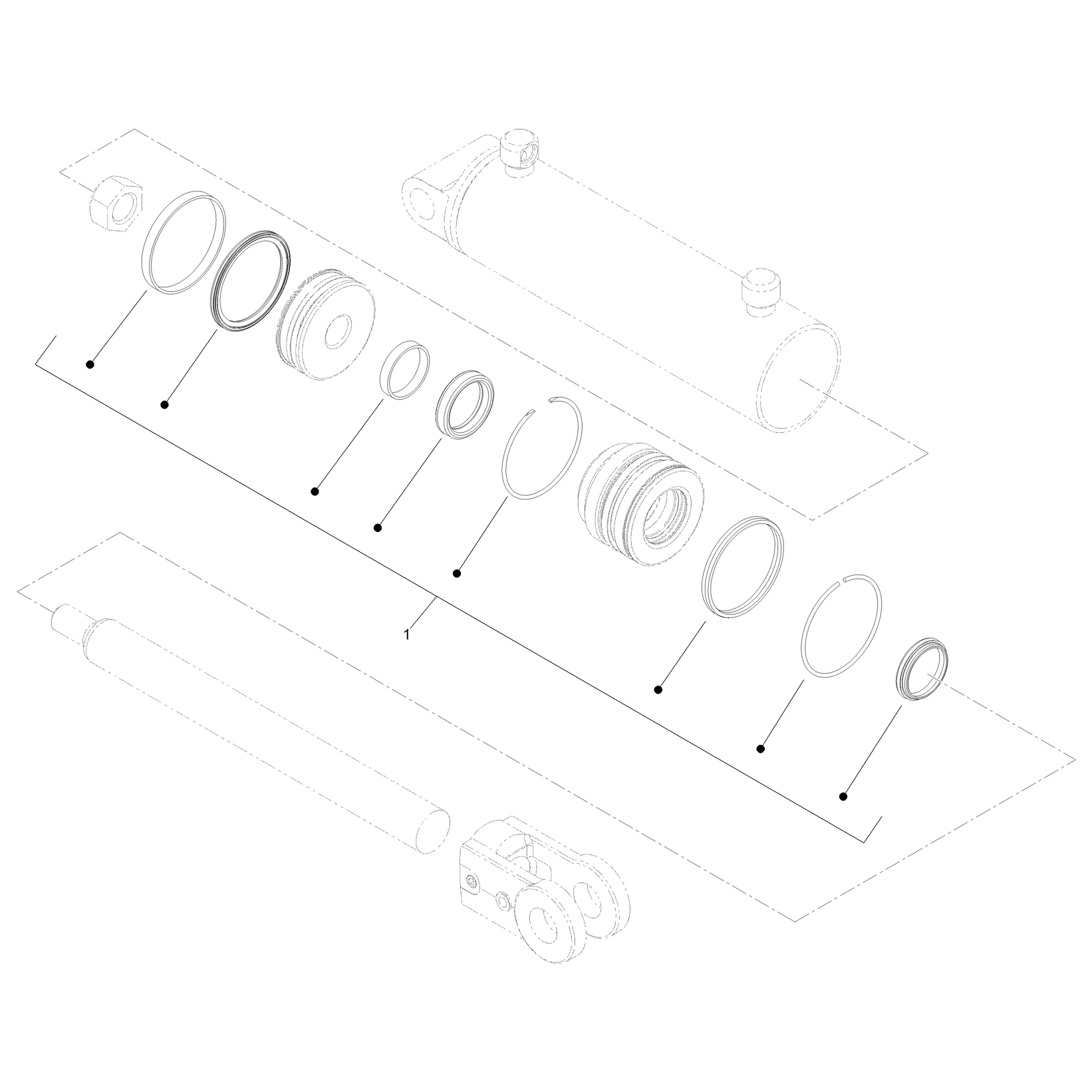

Hydraulic Cylinder Assembly No 139-0776
Hydraulic Cylinder Assembly No 139-0776
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Hydraulic Cylinder Assembly No 139-0777
Hydraulic Cylinder Assembly No 139-0777
| Sequence Number | Image | Product | Price | Add to cart |
|---|

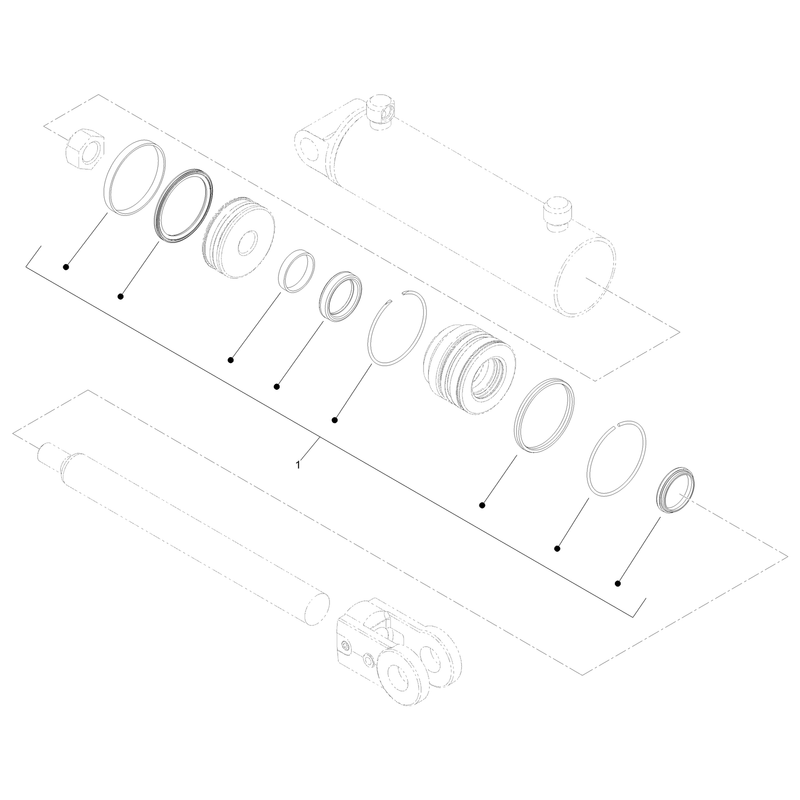

Hydraulic Cylinder Assembly No 139-0778
Hydraulic Cylinder Assembly No 139-0778
| Sequence Number | Image | Product | Price | Add to cart |
|---|

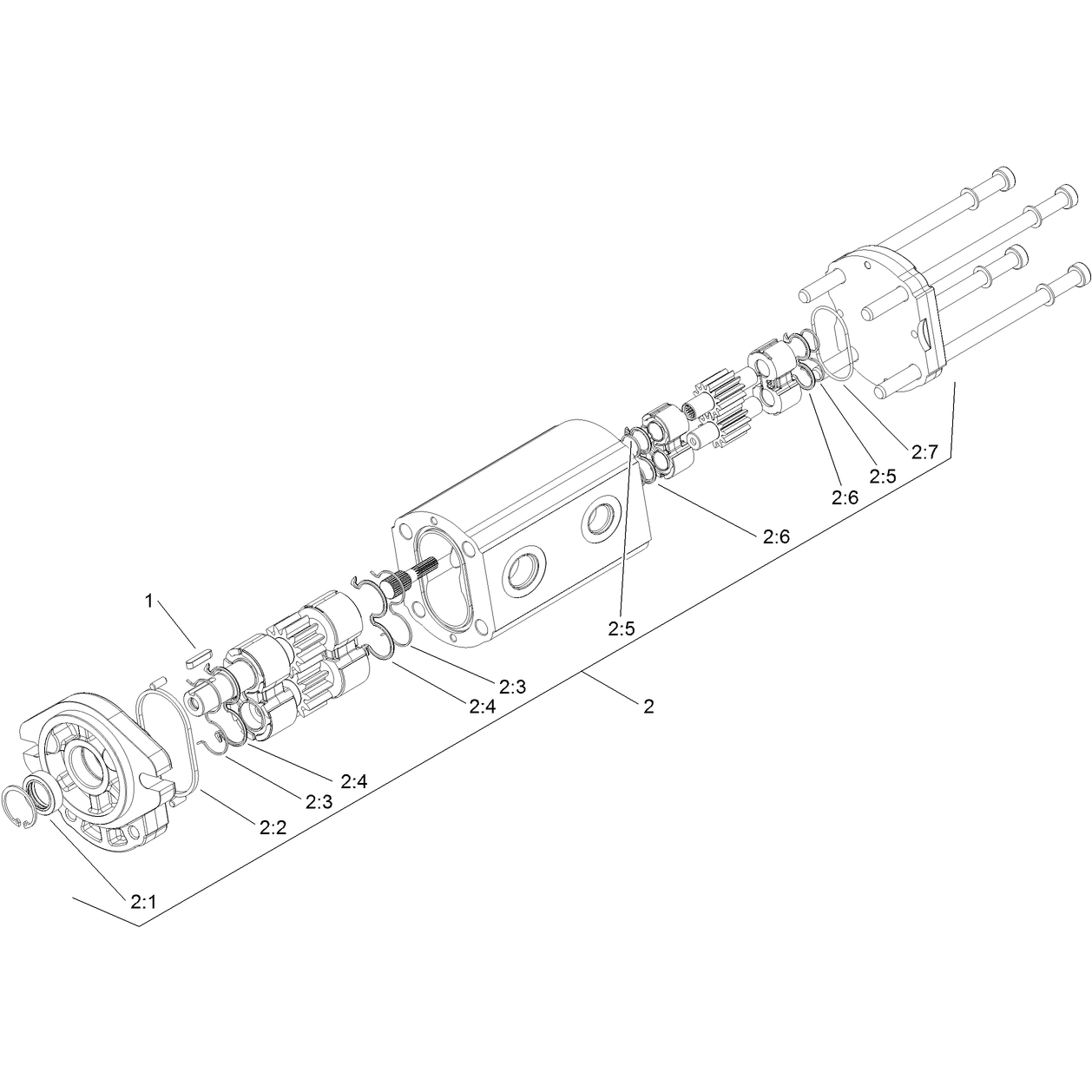

Hydraulic Gear Pump Assembly No 106-7650
Hydraulic Gear Pump Assembly No 106-7650
| Sequence Number | Image | Product | Price | Add to cart |
|---|

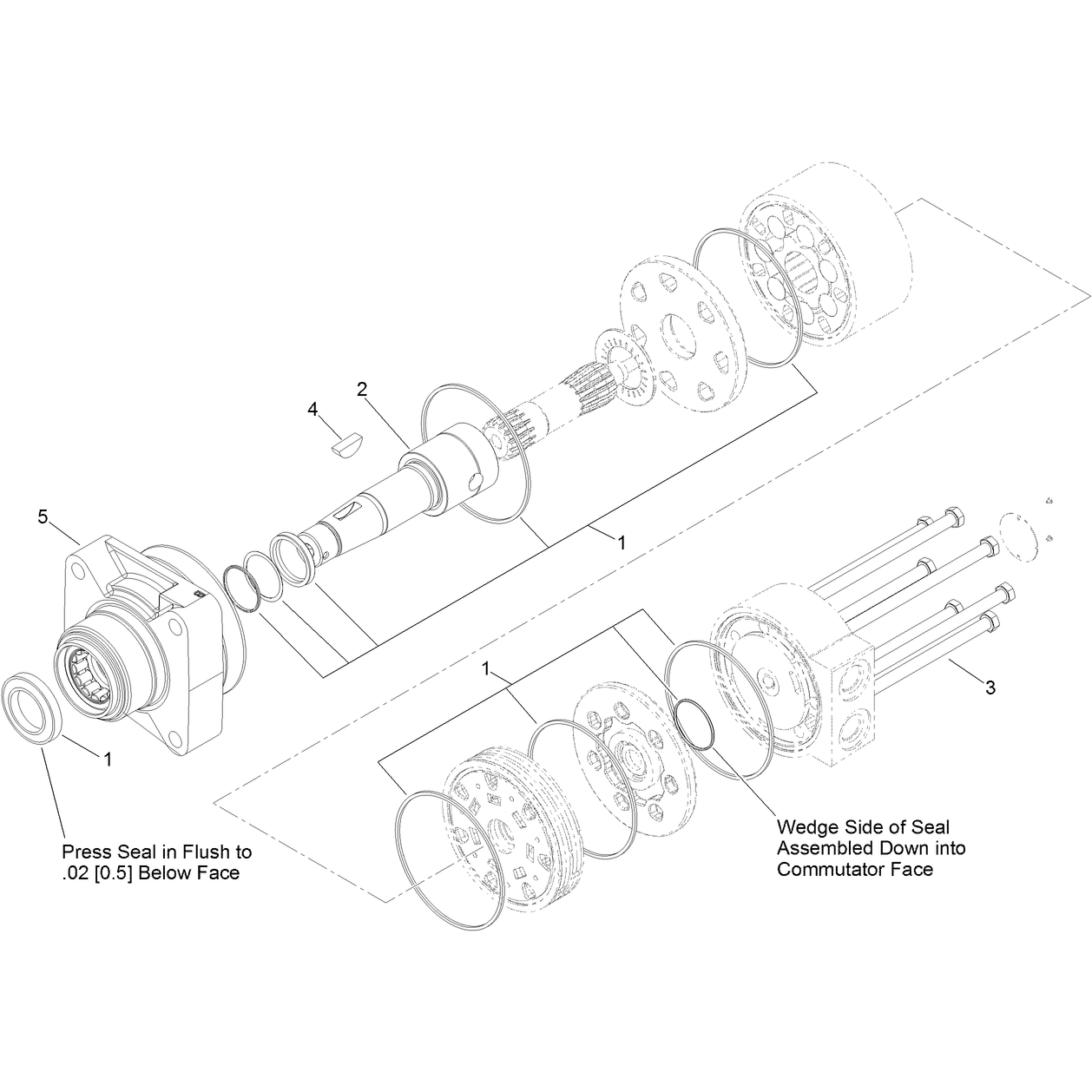

Hydraulic Motor Assembly No 106-7654
Hydraulic Motor Assembly No 106-7654
| Sequence Number | Image | Product | Price | Add to cart |
|---|

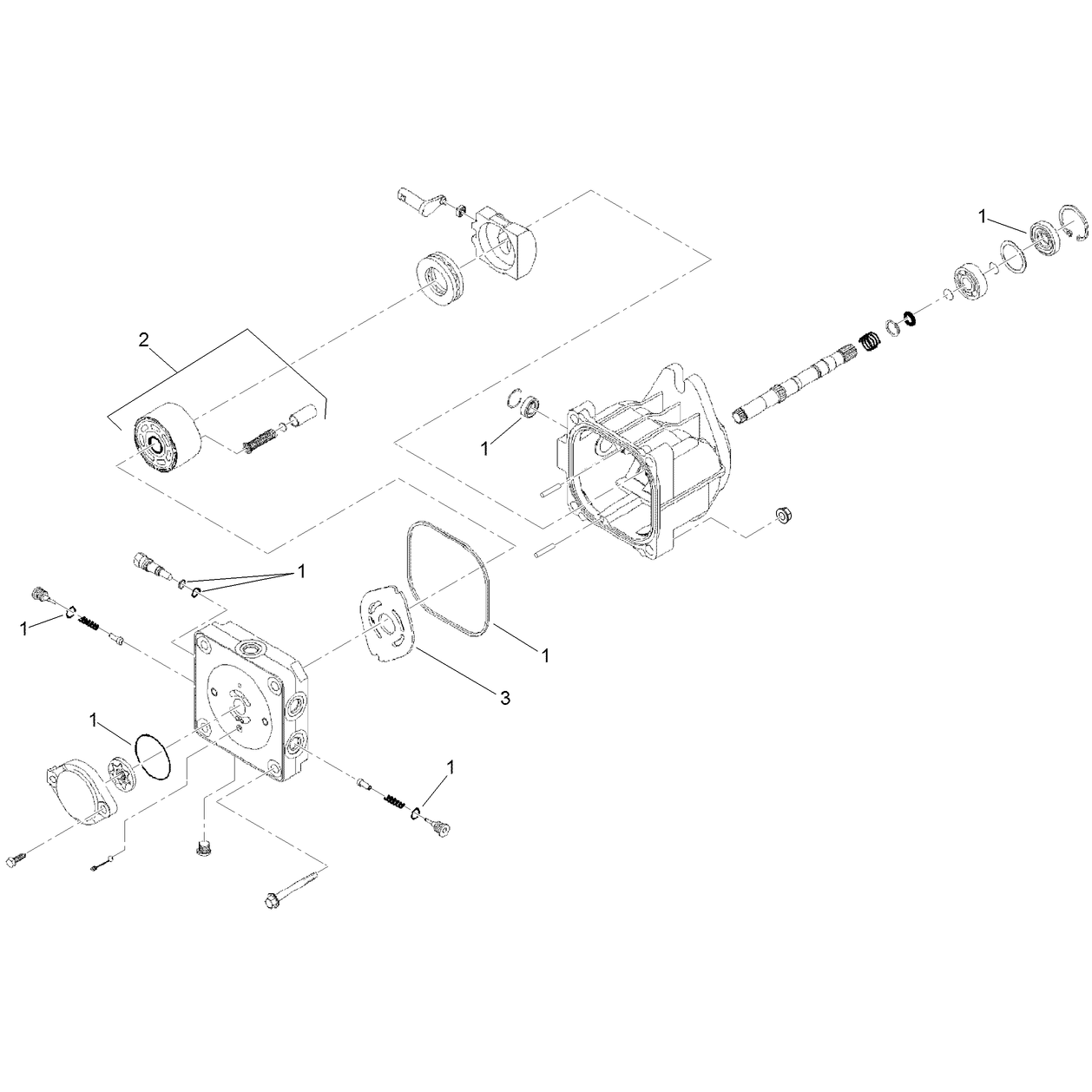

Hydraulic Pump Assembly No 106-5705 and 106-5706
Hydraulic Pump Assembly No 106-5705 and 106-5706
| Sequence Number | Image | Product | Price | Add to cart |
|---|

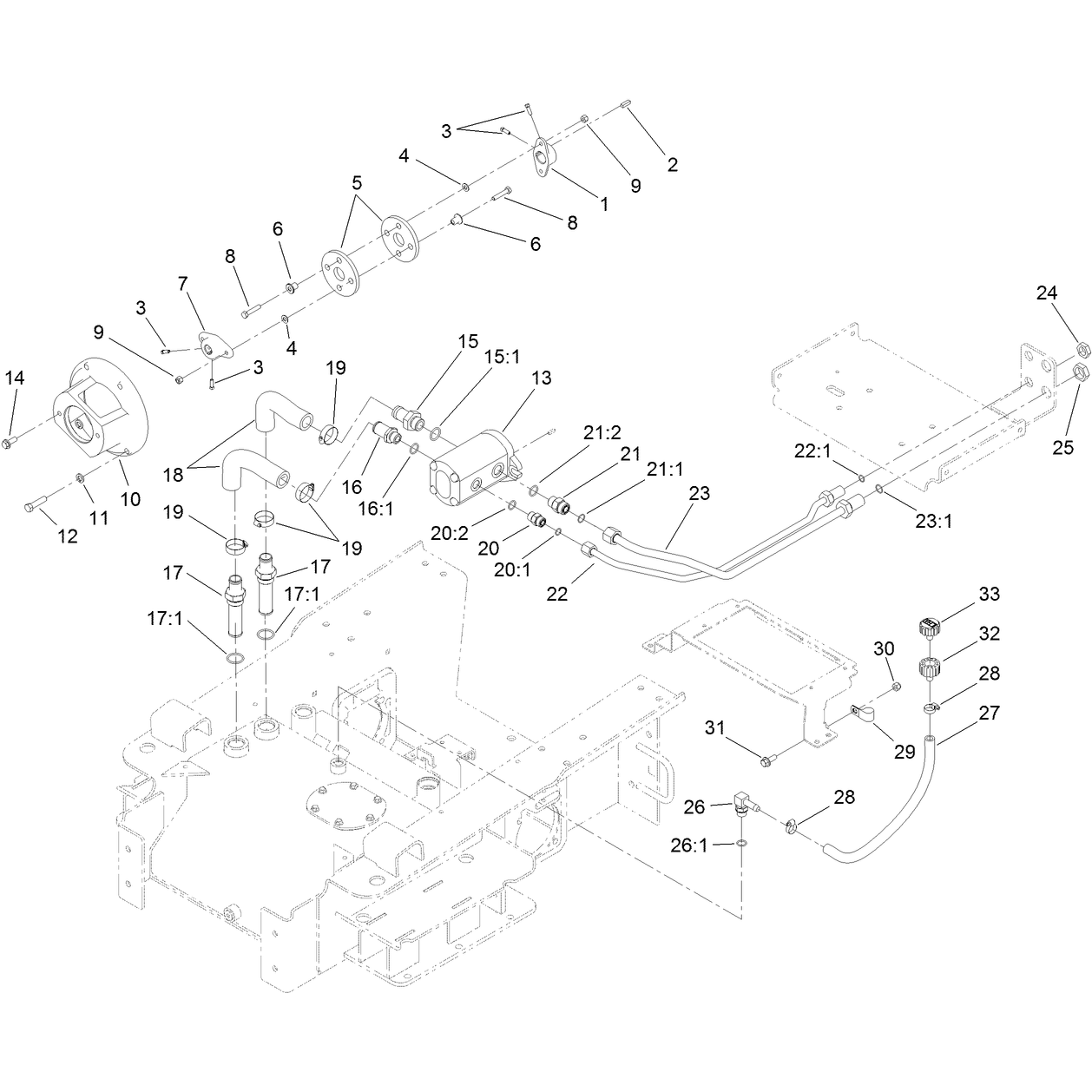

Hydraulic Pump Mount Assembly
Hydraulic Pump Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

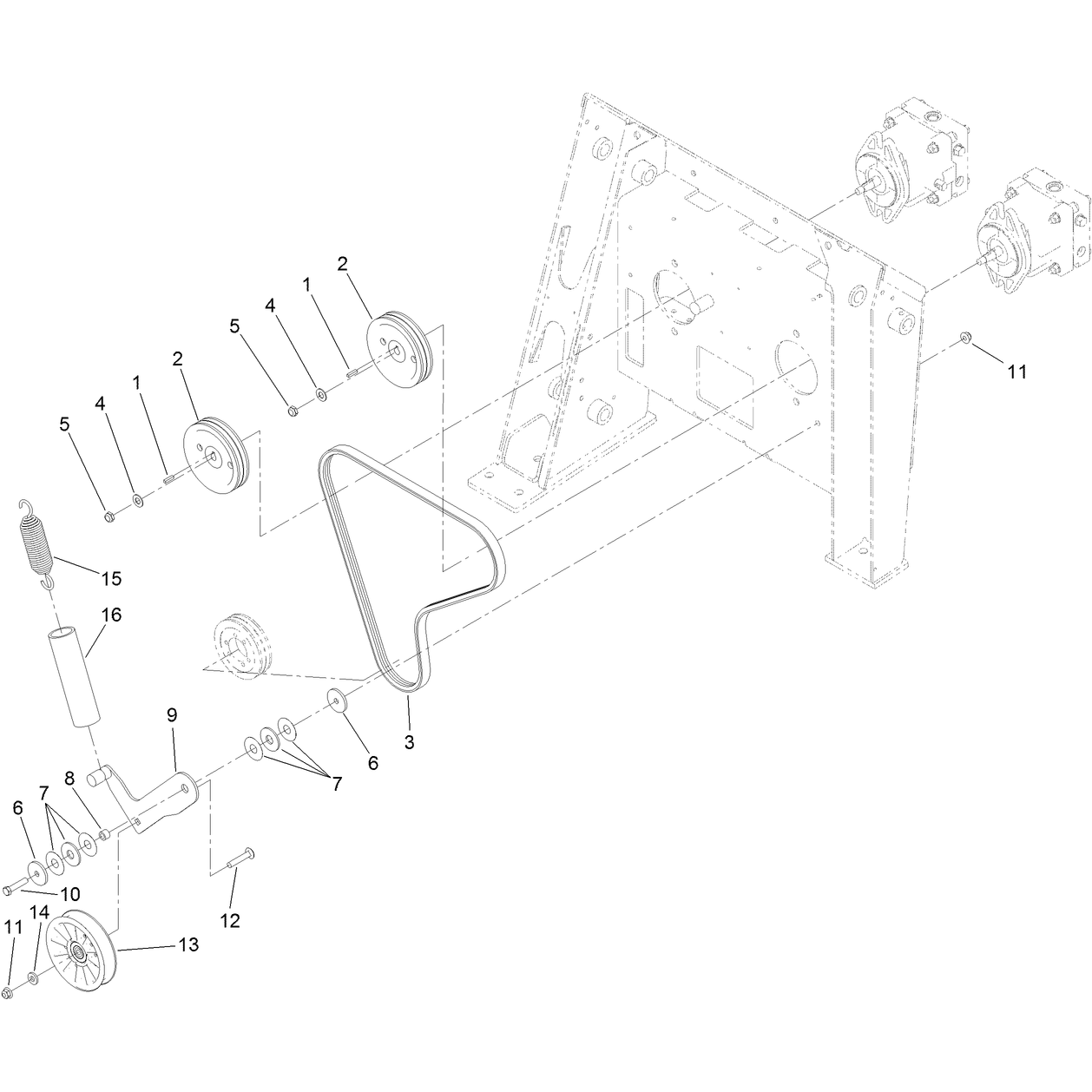

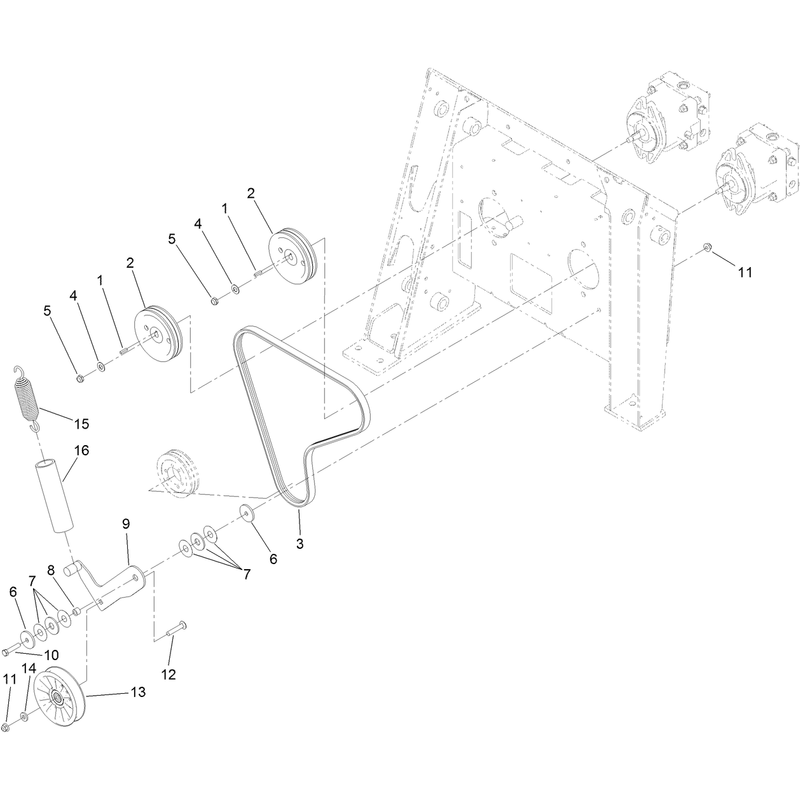

Hydraulic Pump Pulley Assembly
Hydraulic Pump Pulley Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Linkage Assembly No 115-4582
Linkage Assembly No 115-4582
| Sequence Number | Image | Product | Price | Add to cart |
|---|

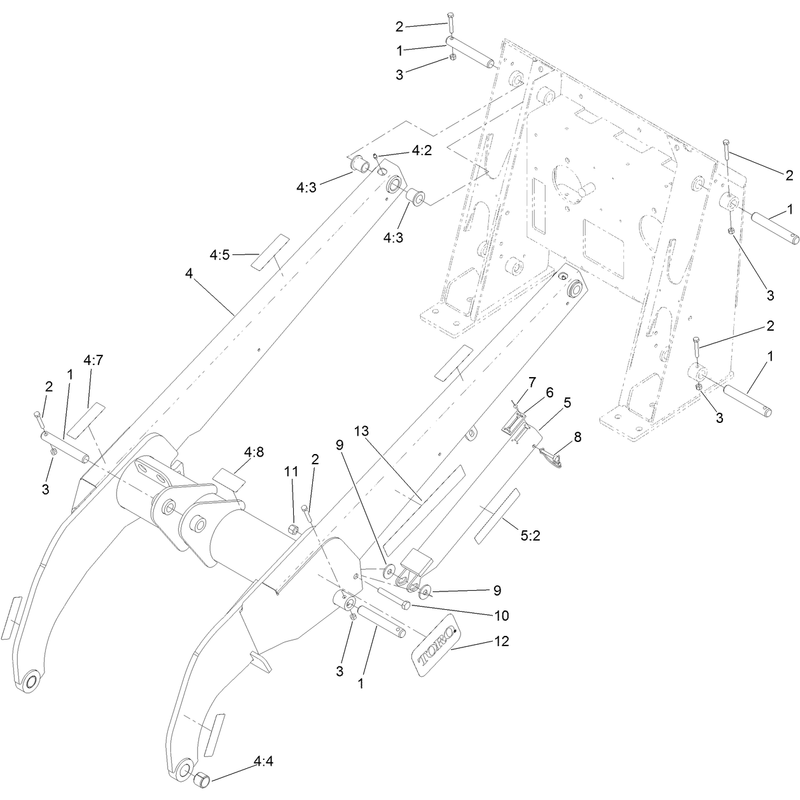

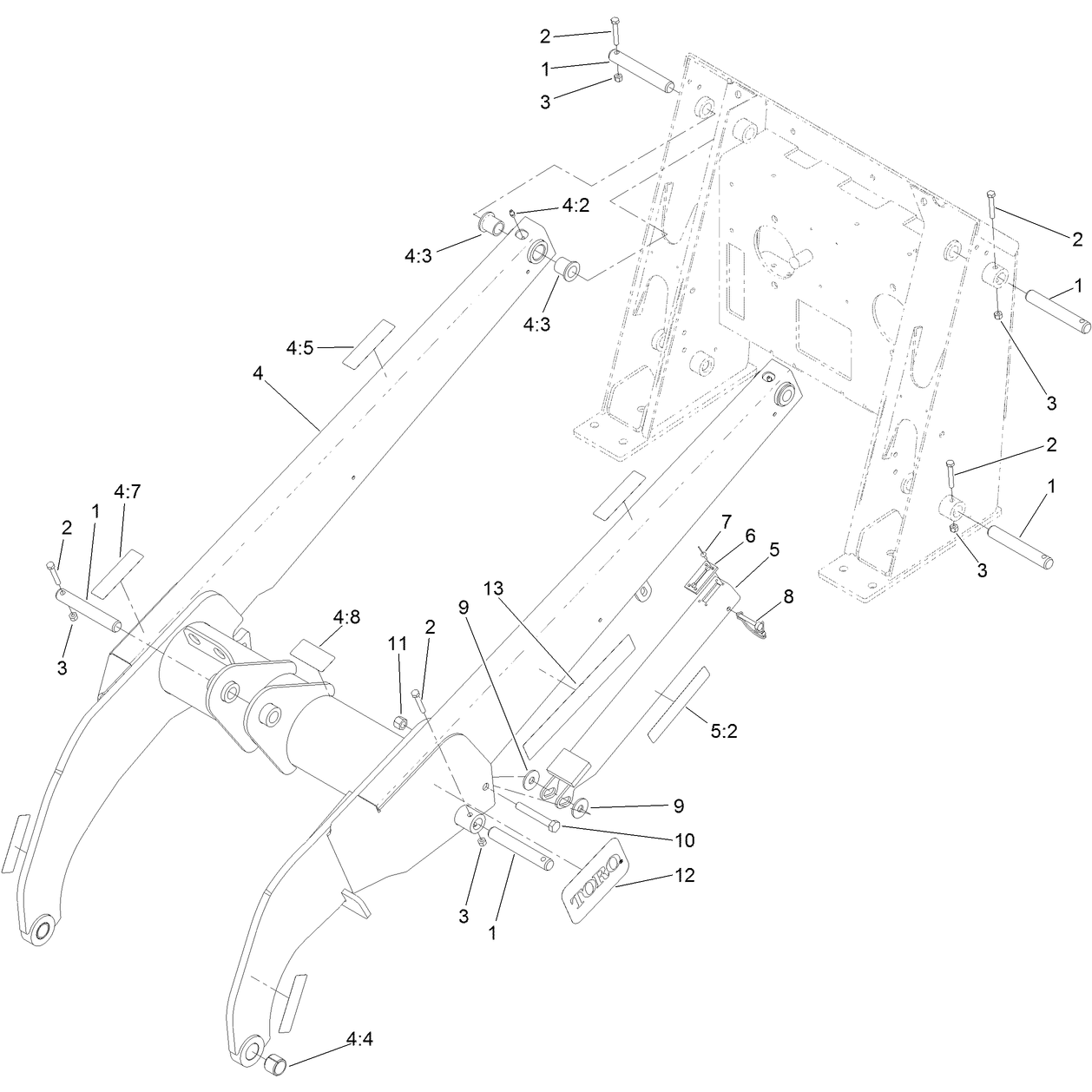

Loader Arm Assembly
Loader Arm Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

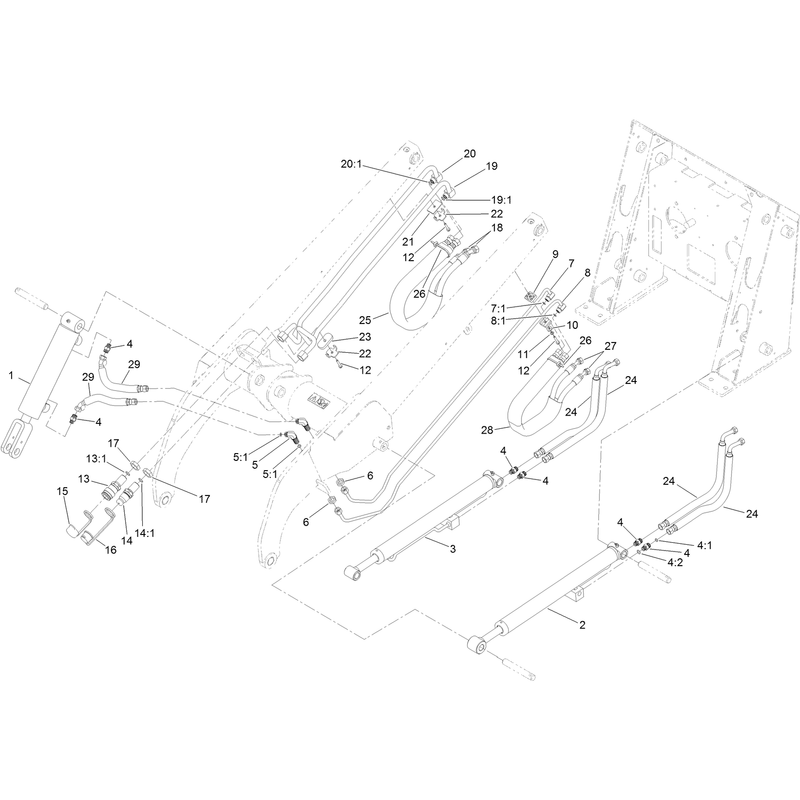

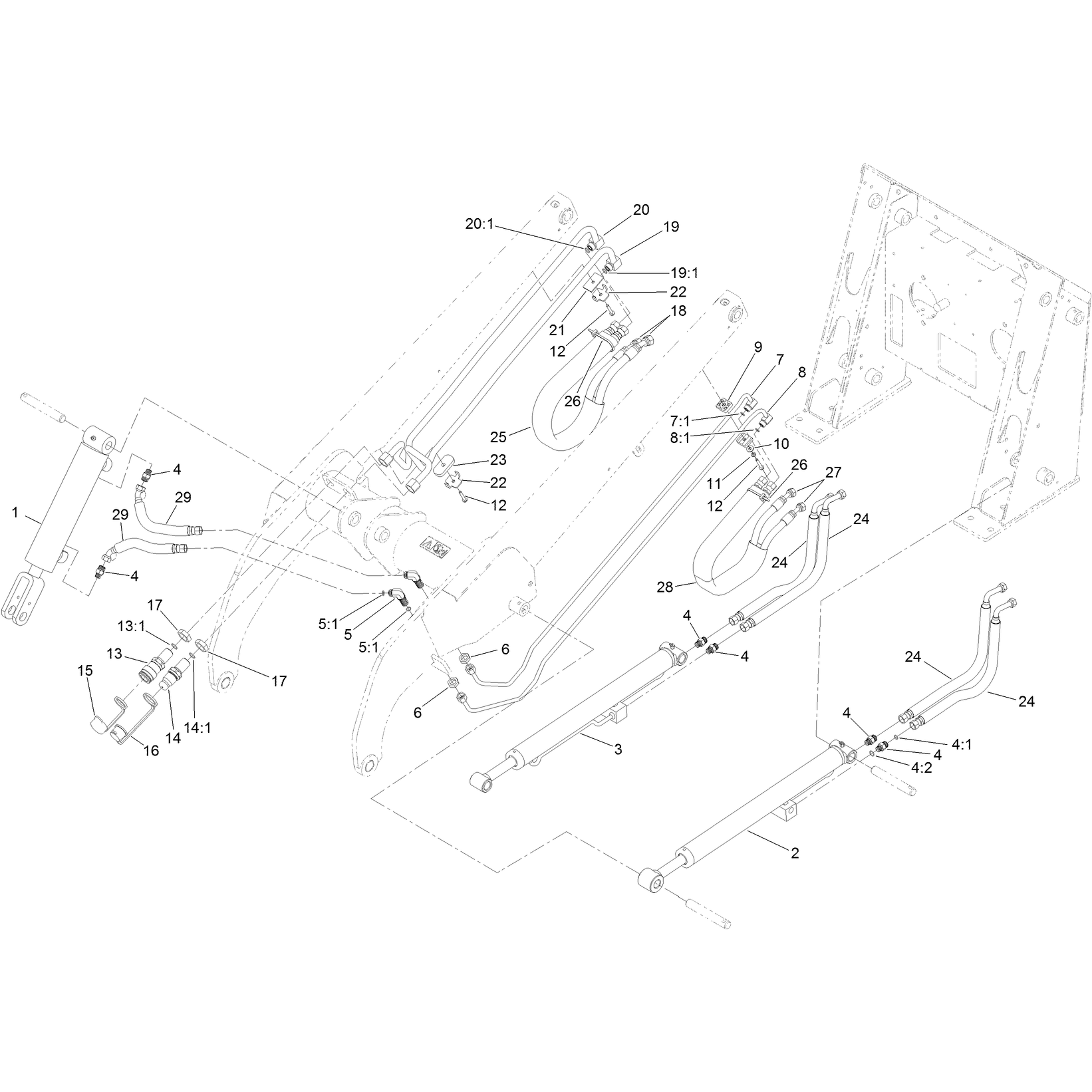

Loader Arm Hydraulic Assembly
Loader Arm Hydraulic Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

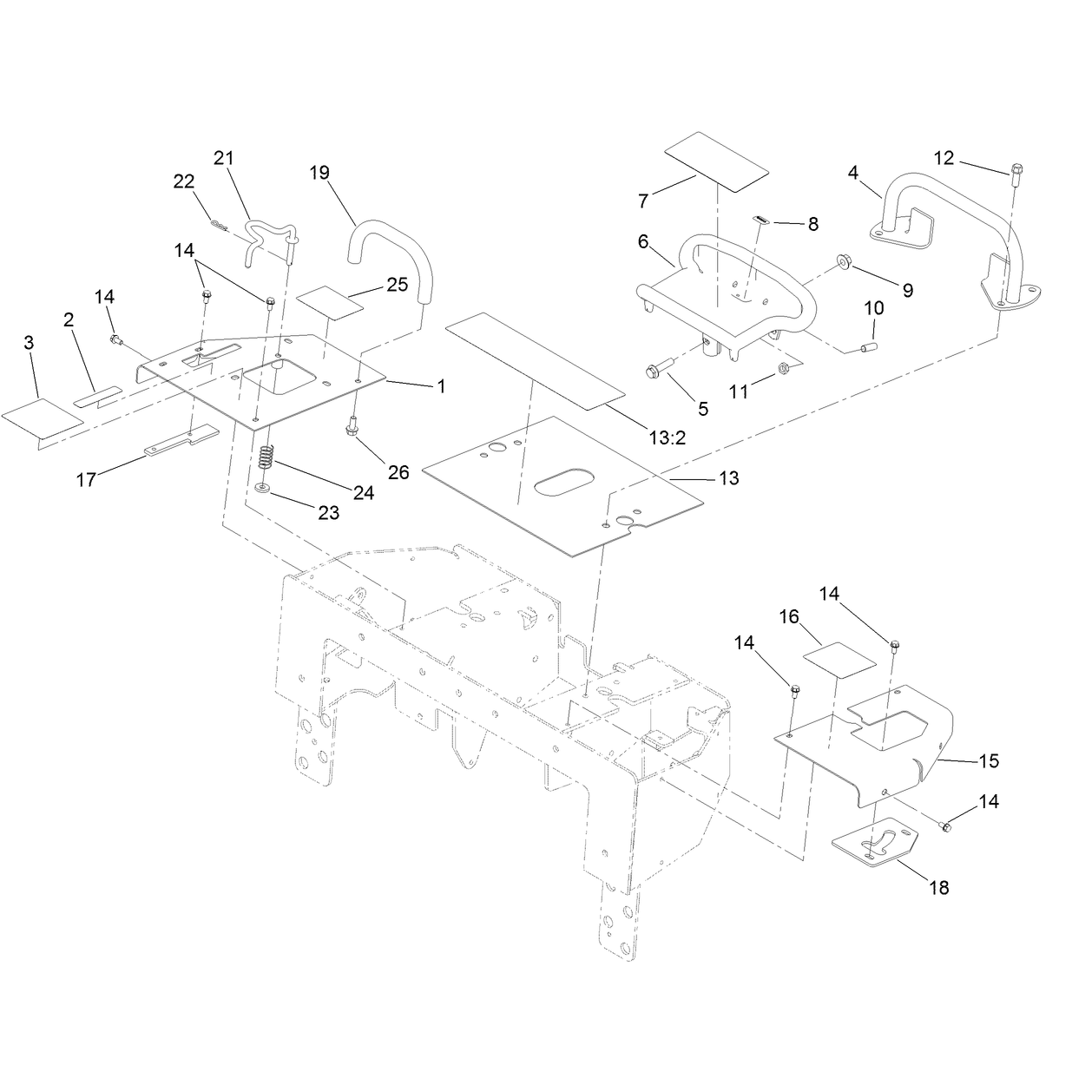

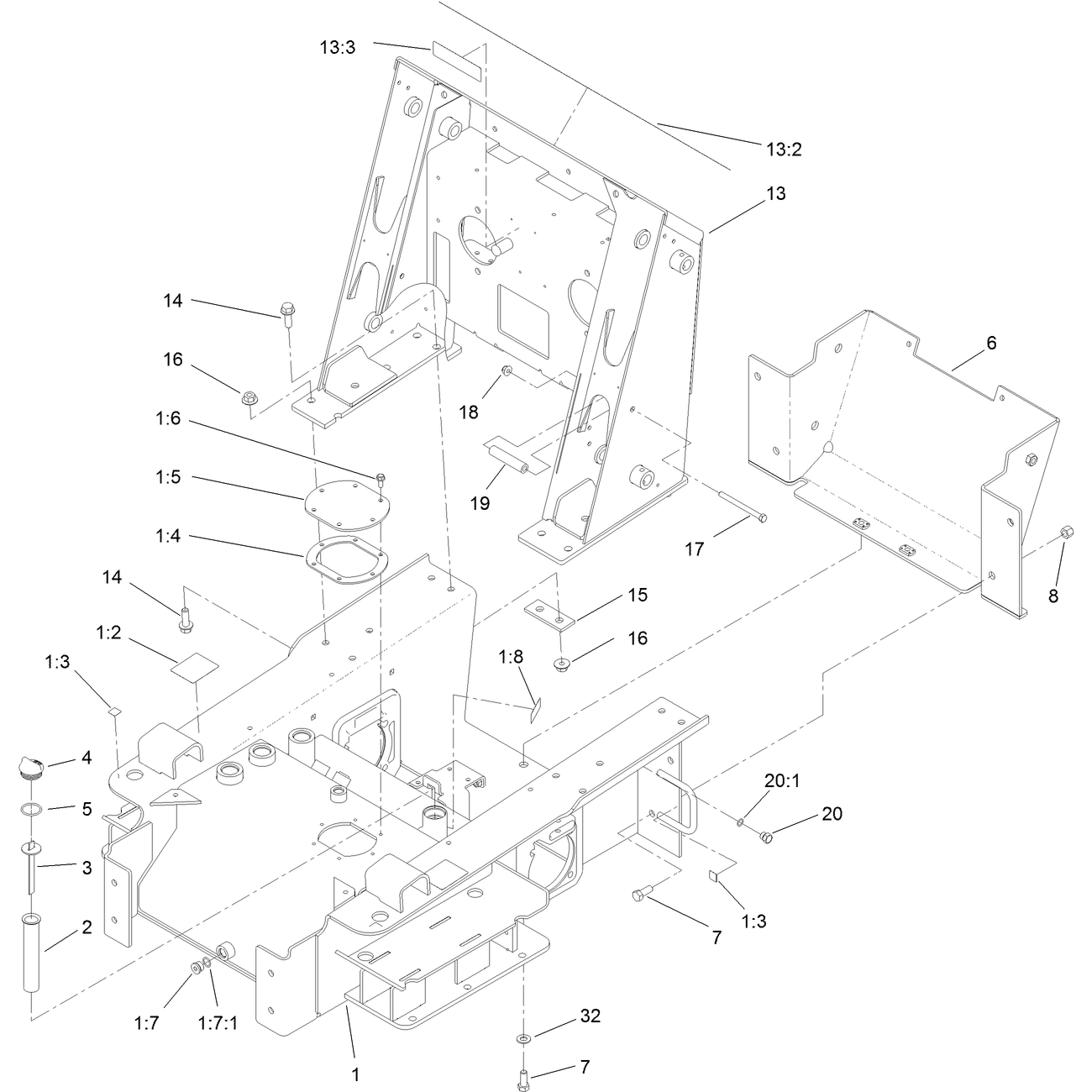

Main Frame Assembly
Main Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

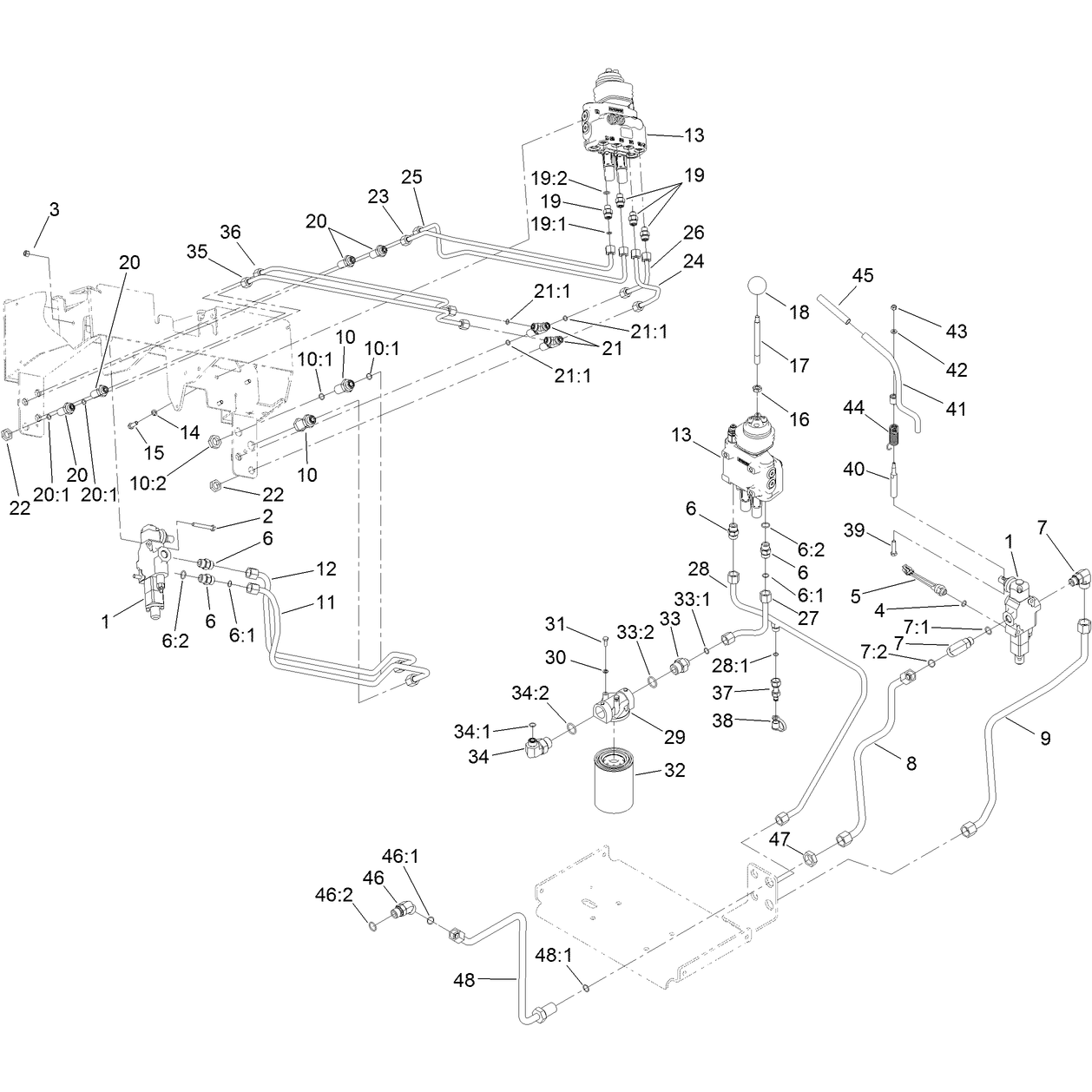

Main Hydraulic Assembly
Main Hydraulic Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

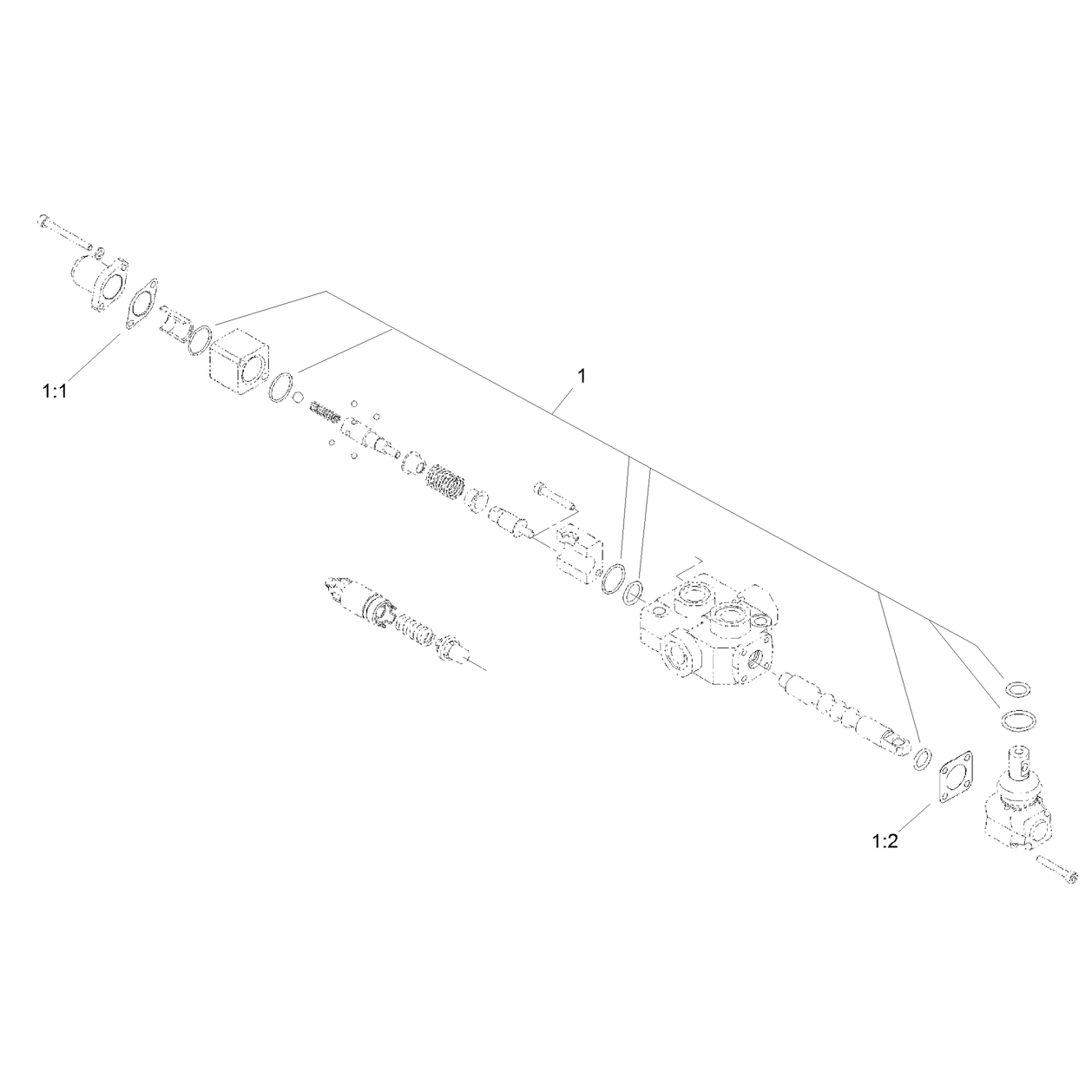

One Spool Valve Assembly No 104-2831
One Spool Valve Assembly No 104-2831
| Sequence Number | Image | Product | Price | Add to cart |
|---|

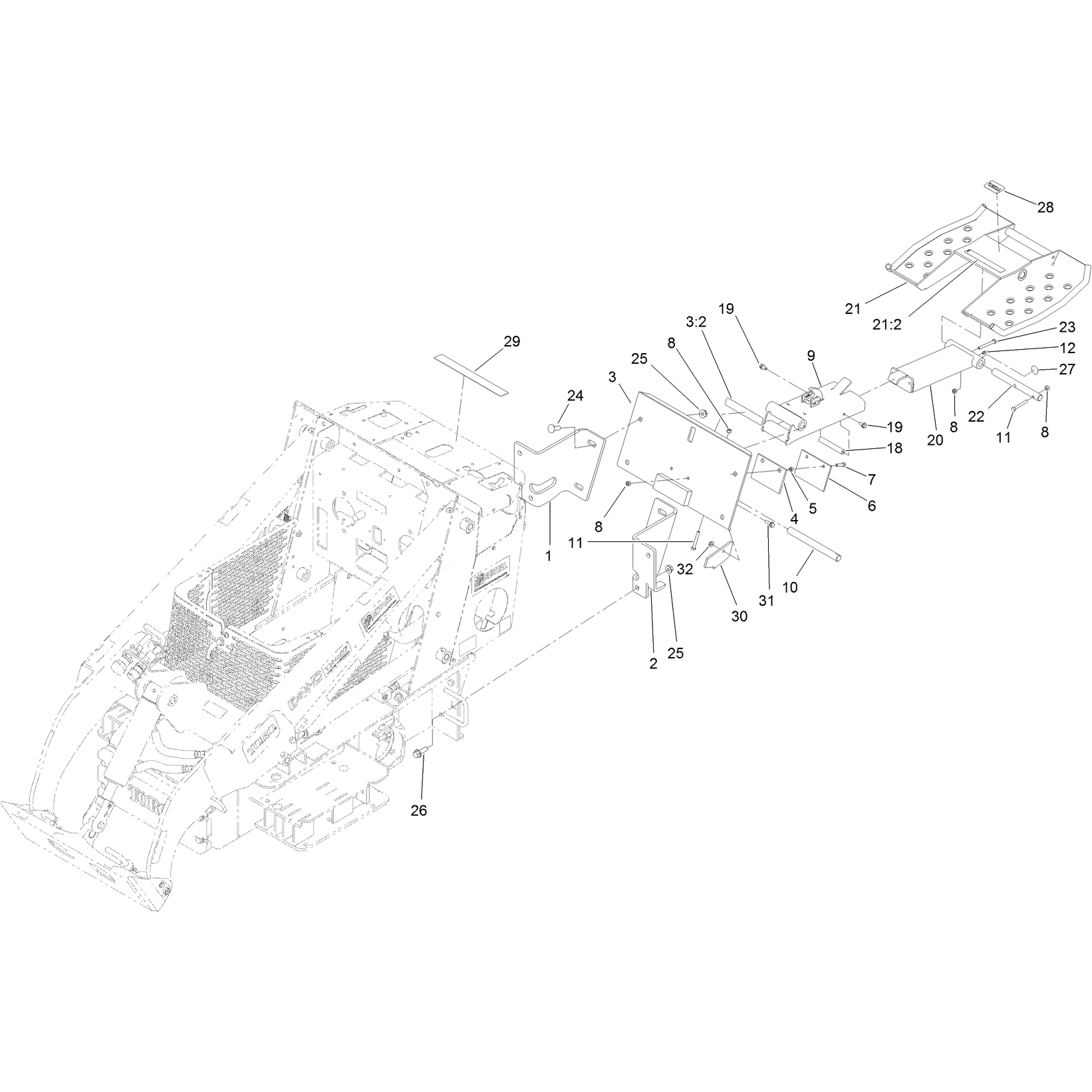

Platform Assembly
Platform Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

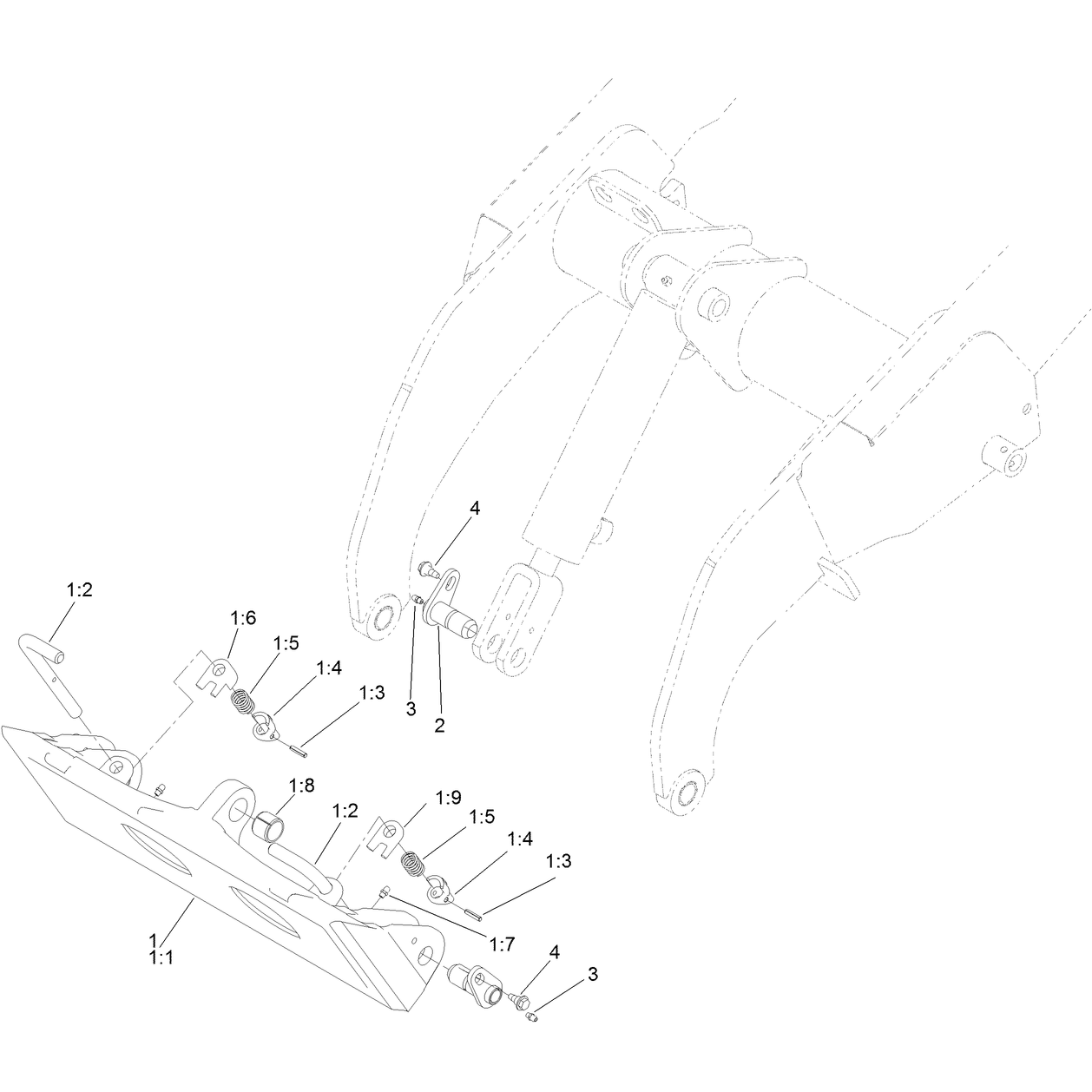

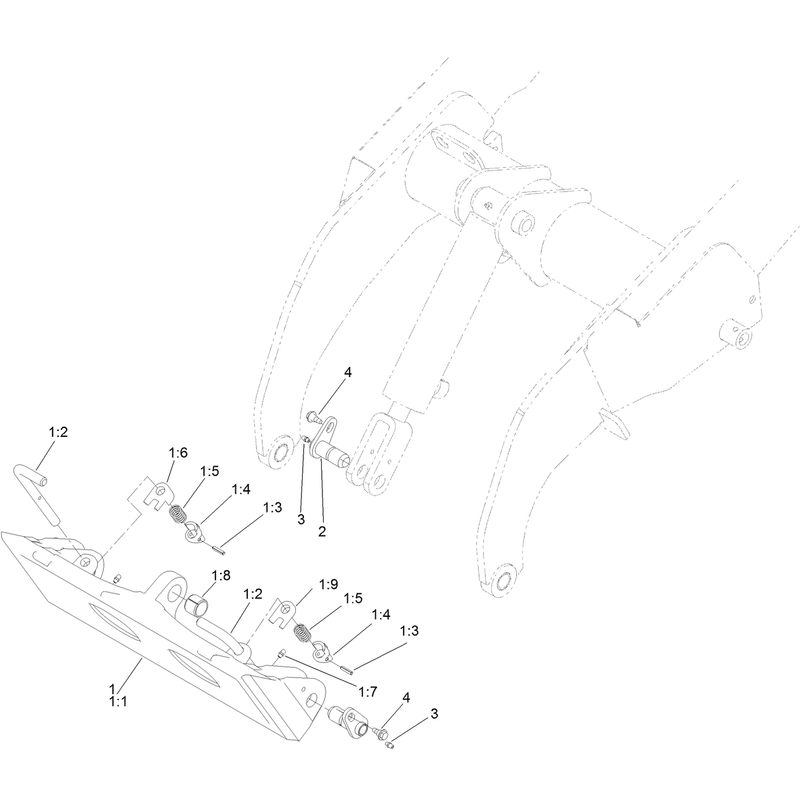

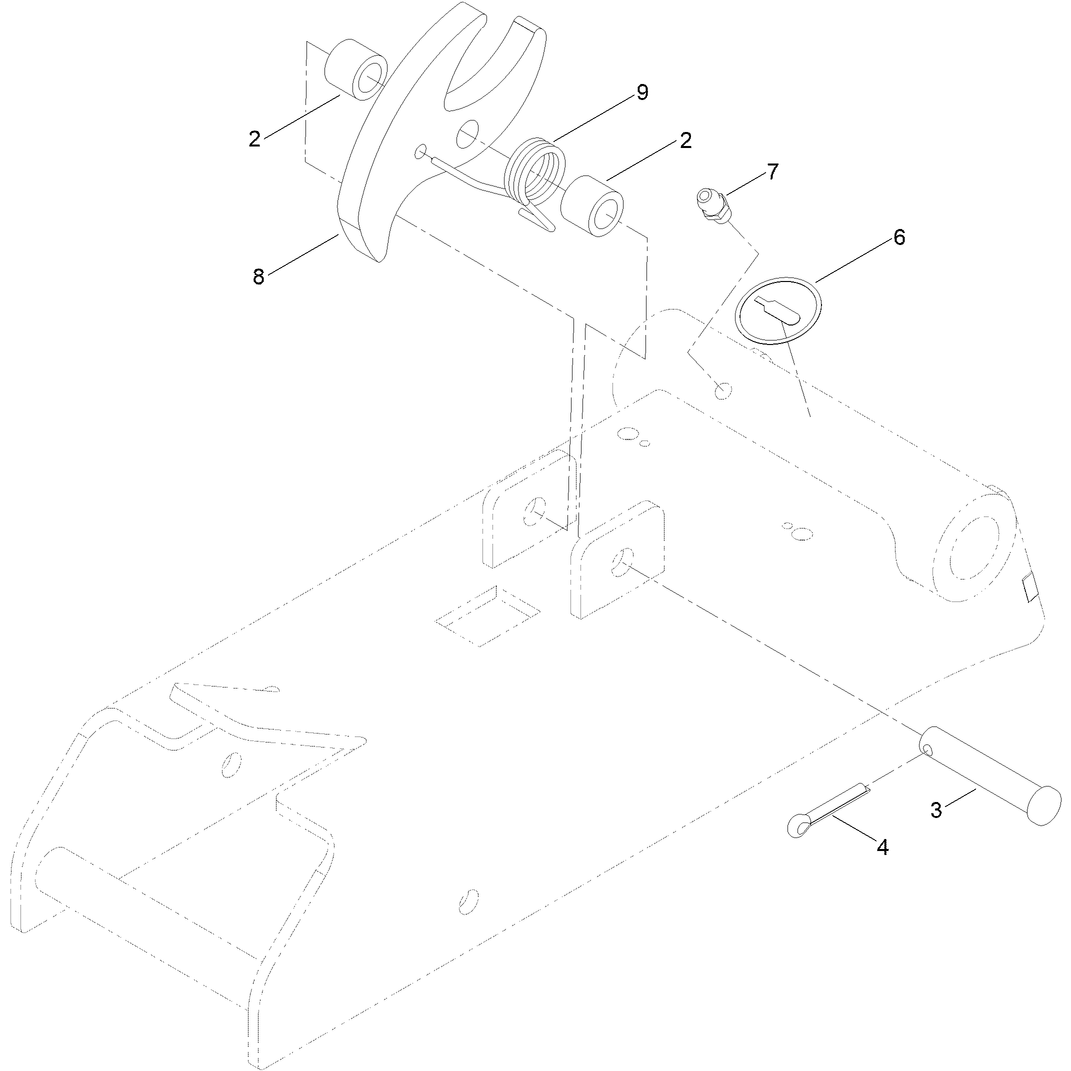

Quick Attach Assembly
Quick Attach Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

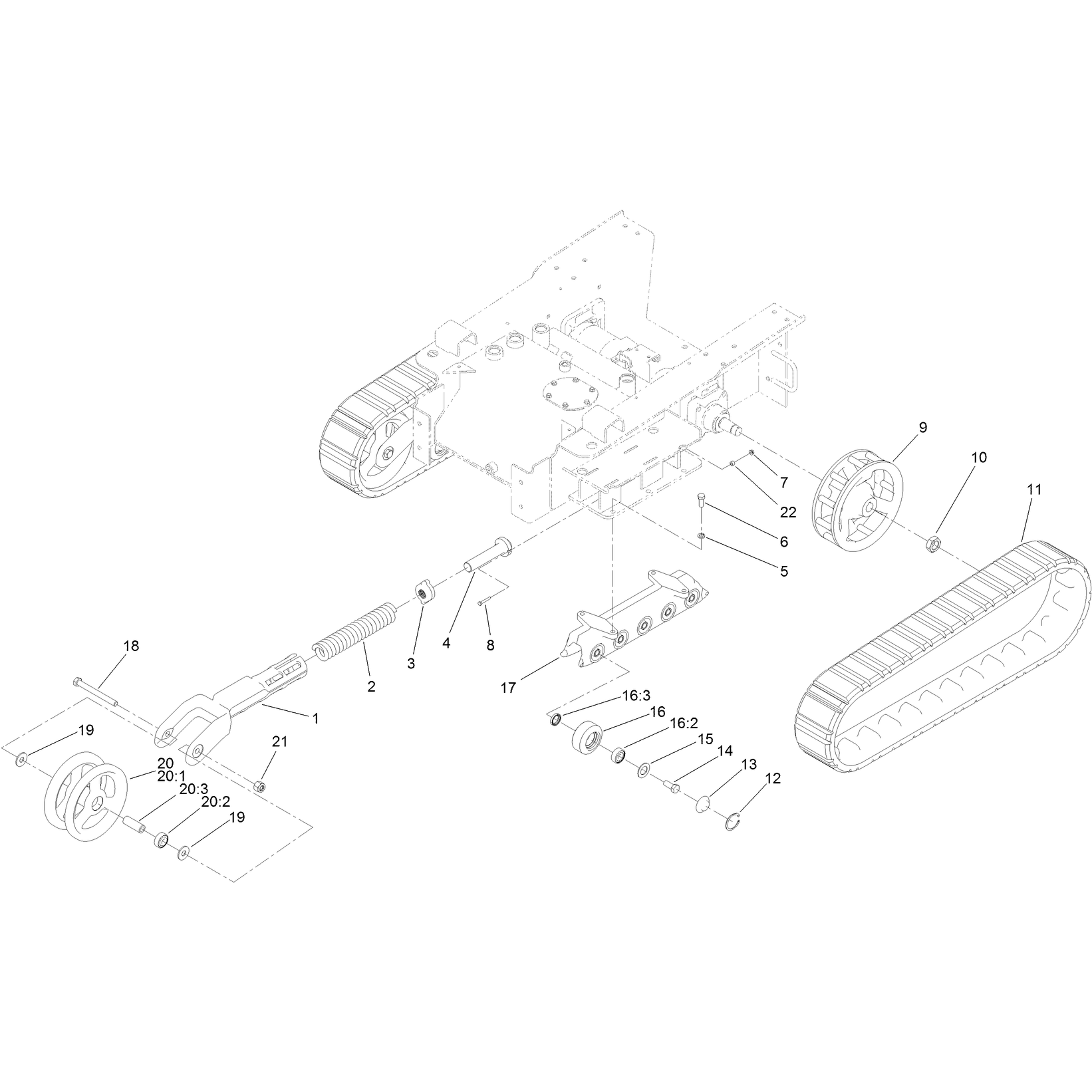

Track and Traction Assembly
Track and Traction Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

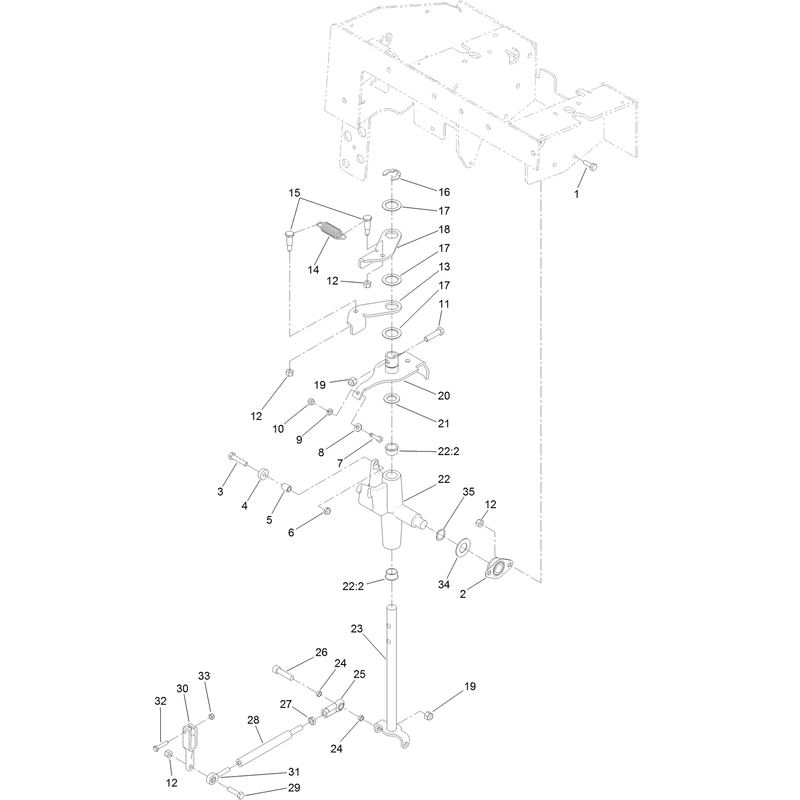

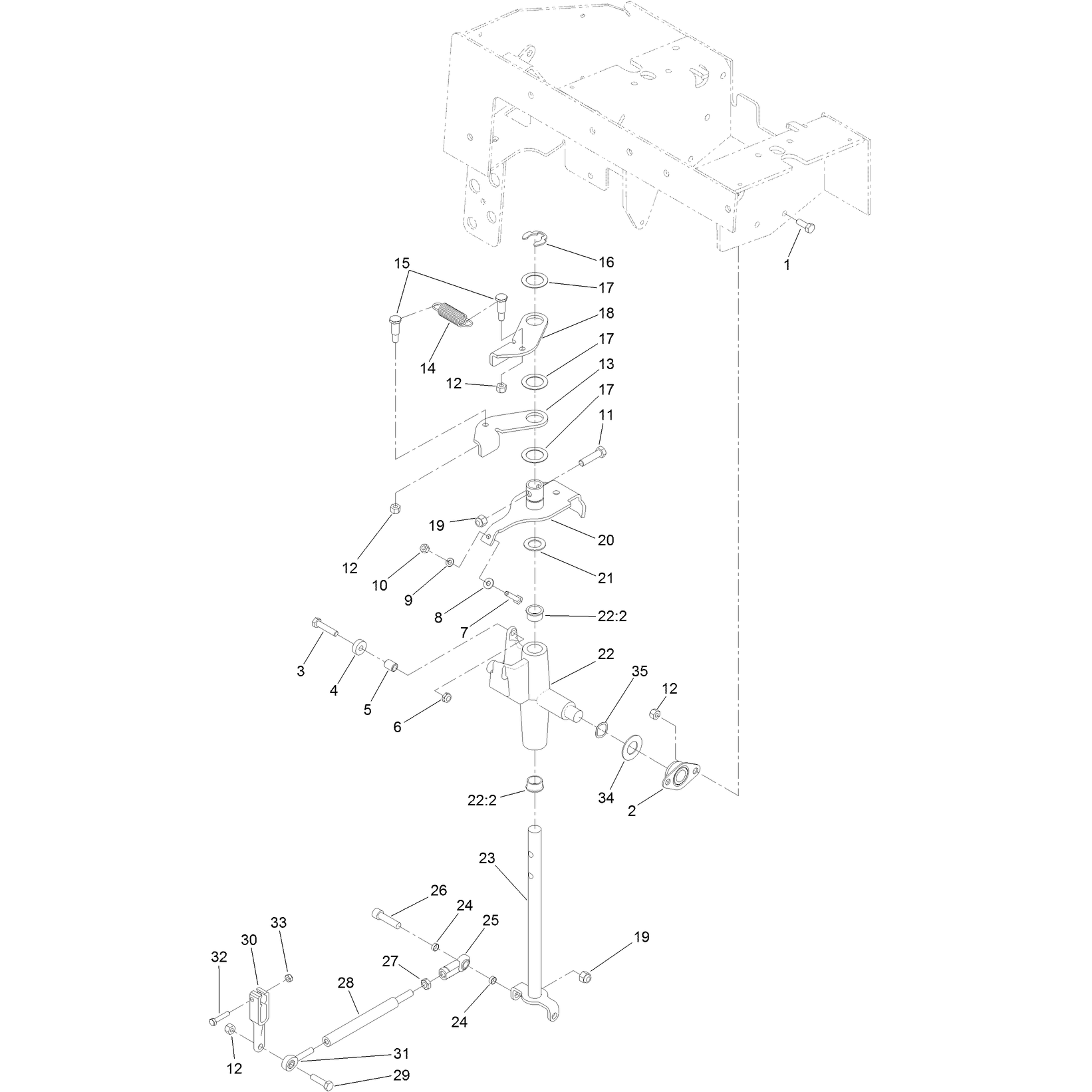

Traction Control Assembly
Traction Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

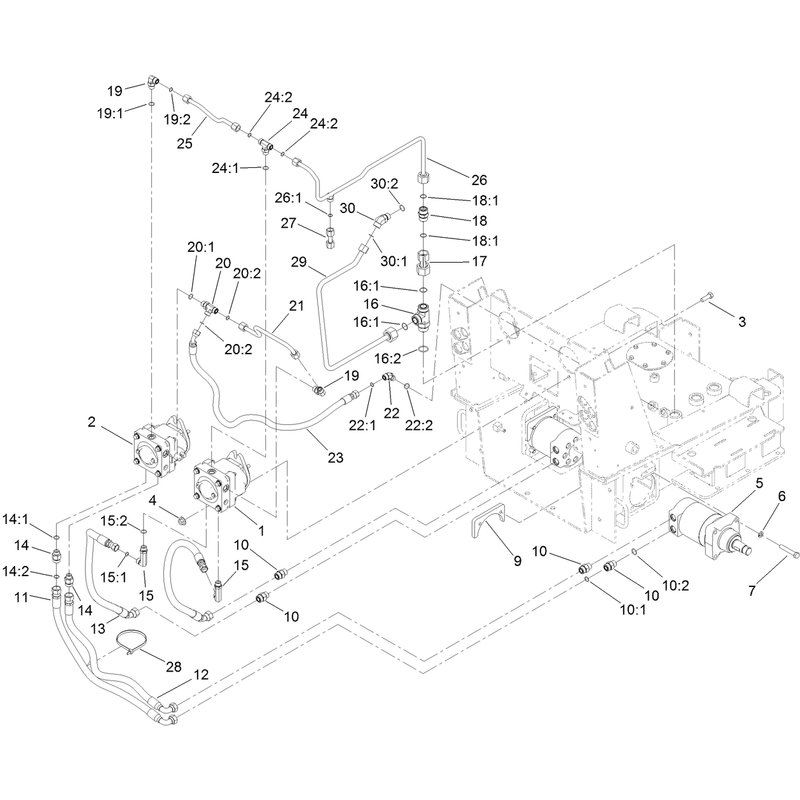

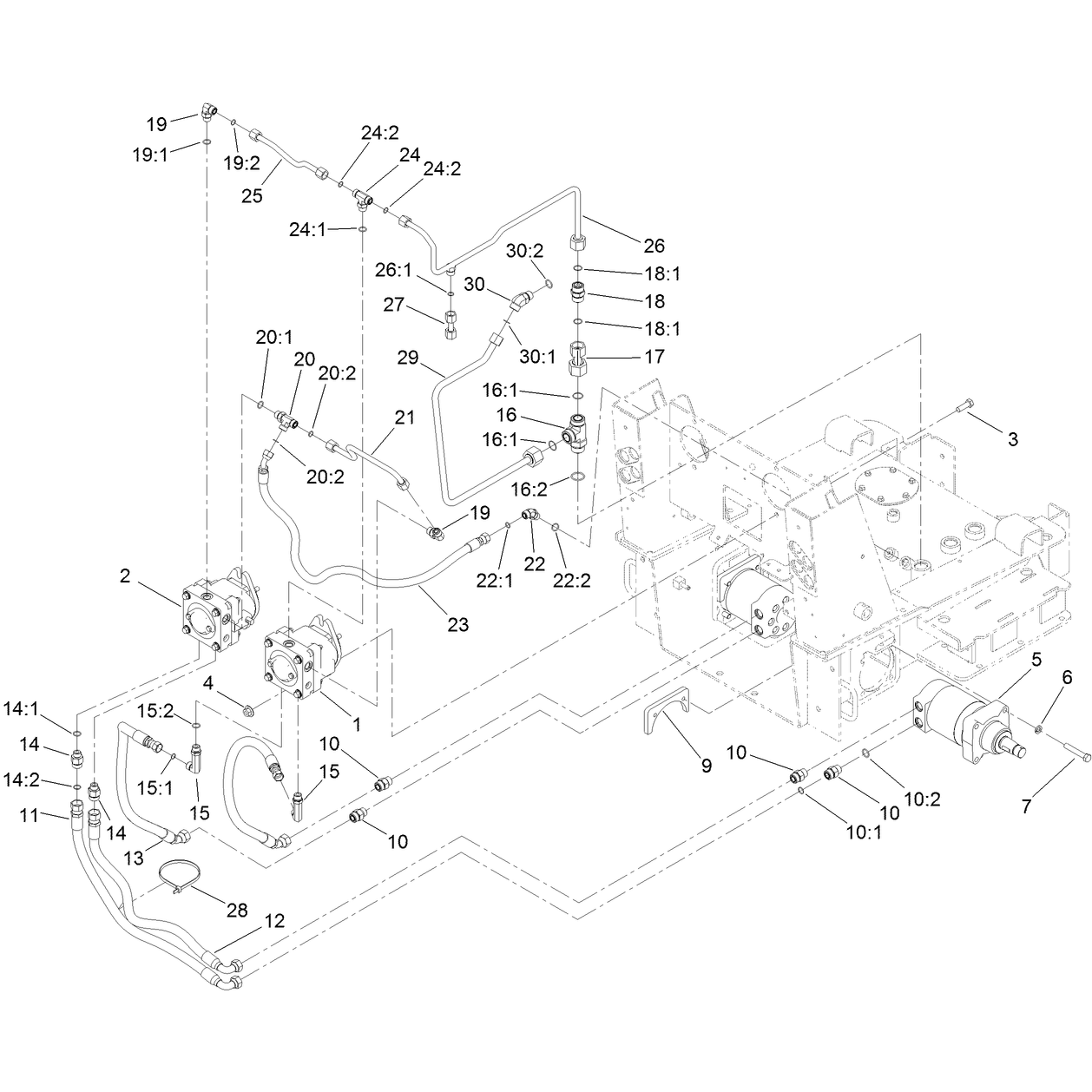

Traction Hydraulic Assembly
Traction Hydraulic Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

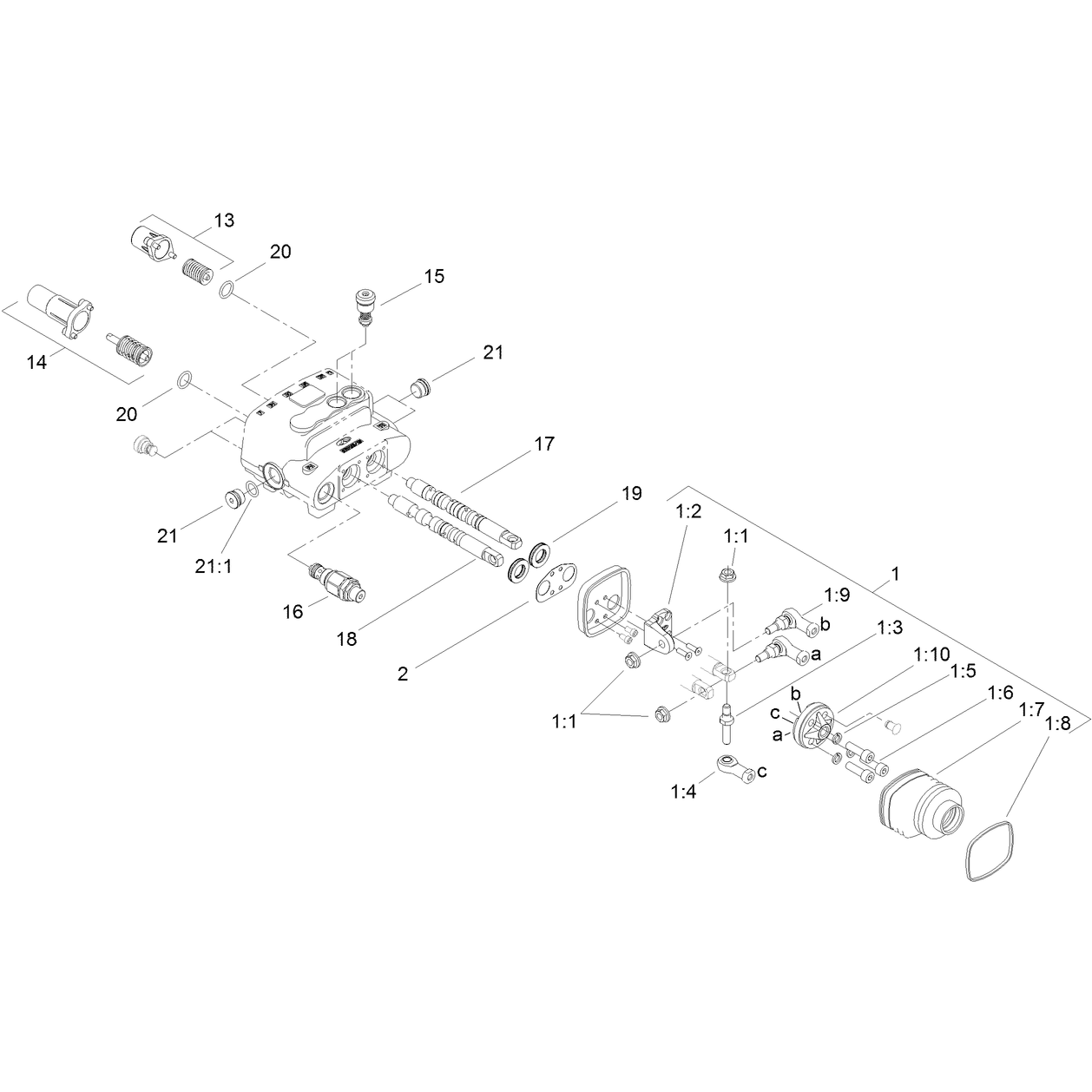

Two Spool Valve Assembly No 106-9307
Two Spool Valve Assembly No 106-9307
| Sequence Number | Image | Product | Price | Add to cart |
|---|

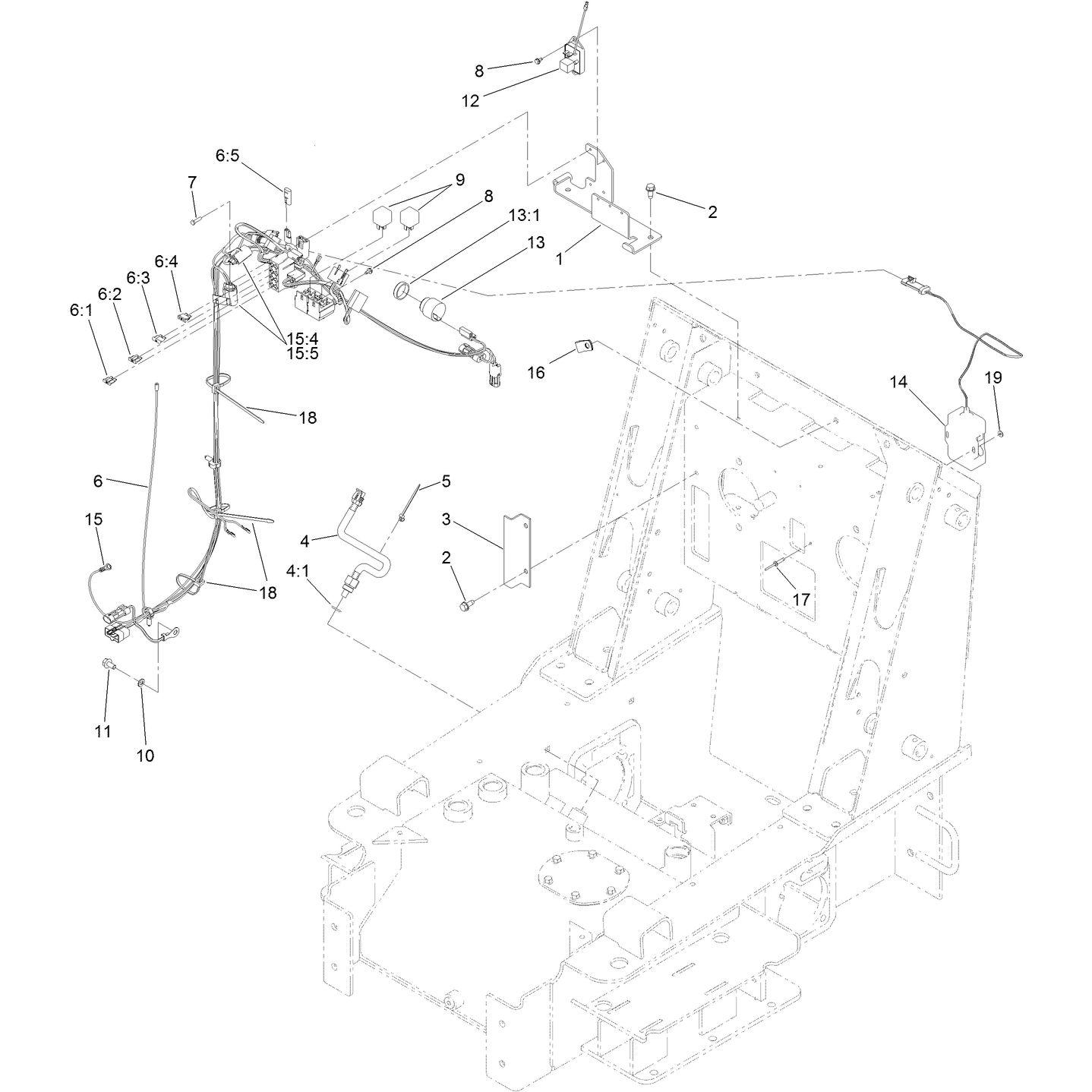

Wire Harness Temperature Sensor and Shield Assembly
Wire Harness Temperature Sensor and Shield Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
