Toro 23516 18 in. Aerator Dethatcher (Serial #: 313000001 - 313999999) Parts Diagram
Diagrams:
Diagram:

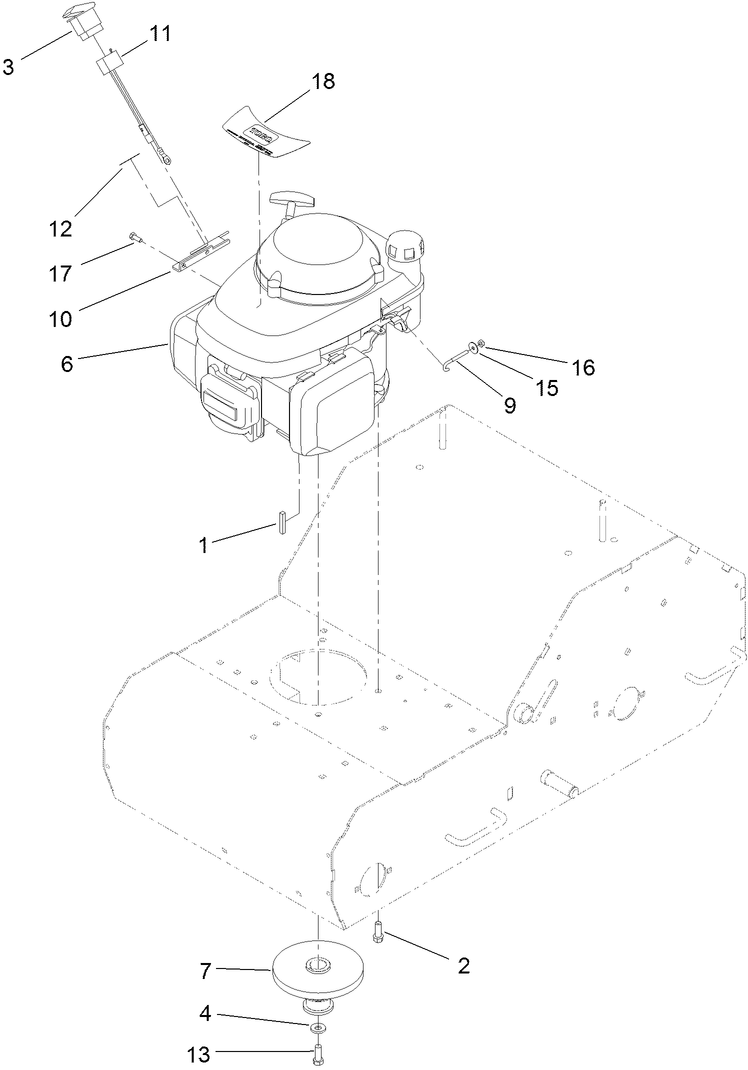

Engine Assembly
Engine Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
67-7490
67-7490
|
|||
|
|
95-1726
95-1726
|
|||
|
|
95-8999
95-8999
|
|||
|
|
98-5975
98-5975
|
|||
|
|
112-8771
112-8771
|
|||
|
|
127-4039
127-4039
|
|||
|
|
121-6186
121-6186
|
|||
|
|
121-6200-03
121-6200-03
|
|||
|
|
121-6201
121-6201
|
|||
|
|
121-6229
121-6229
|
|||
|
|
3211-4
3211-4
|
|||
|
|
3256-61
3256-61
|
|||
|
|
3296-2
3296-2
|
|||
|
|
33113-016
33113-016
|
|||
|
|
117-5245
117-5245
|

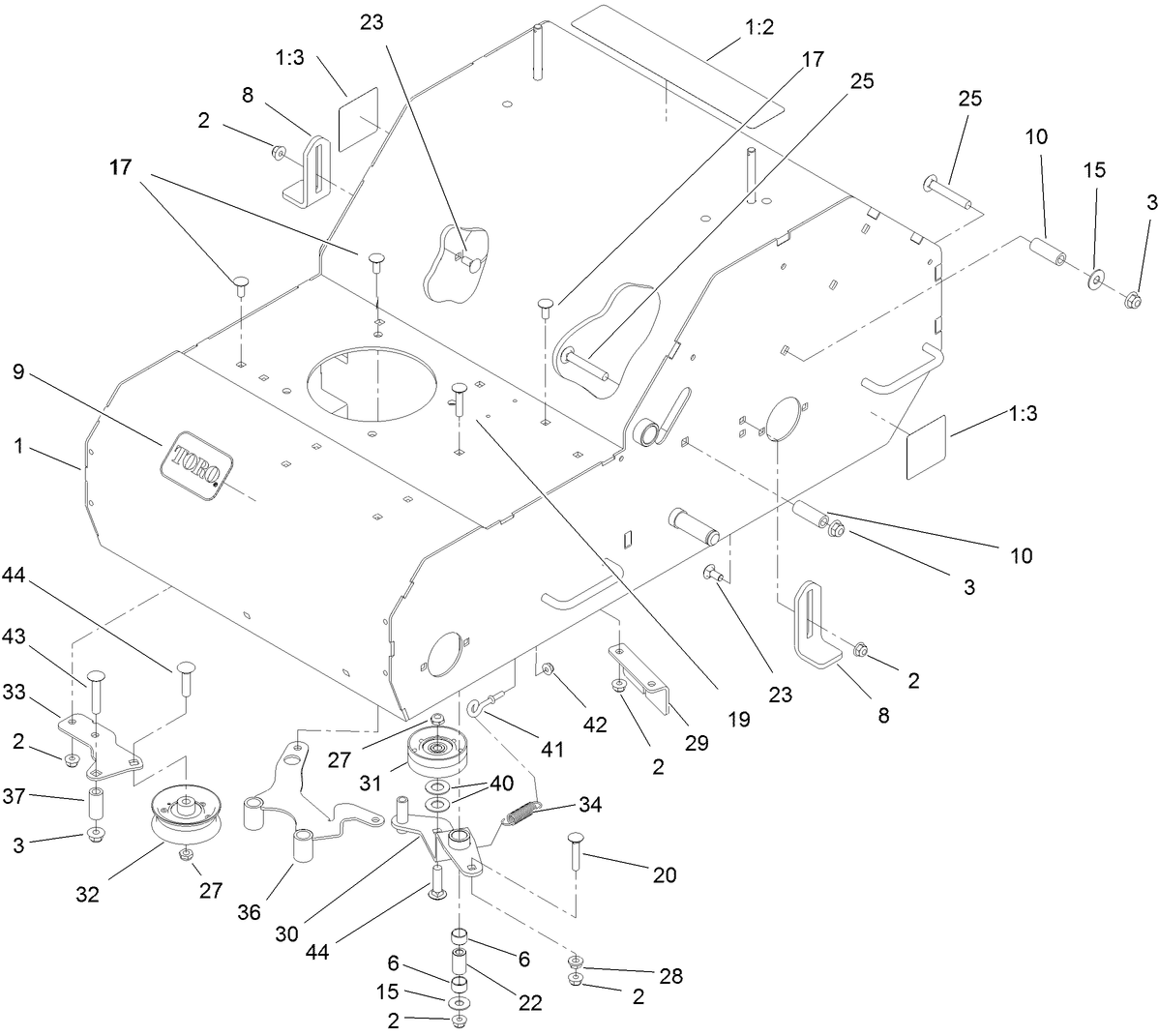

Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
125-3855
125-3855
|
|||
|
|
121-2009
121-2009
|
|||
|
|
121-6150
121-6150
|
|||
|
|
104-8300
104-8300
|
|||
|
|
104-8301
104-8301
|
|||
|
|
103-6111
103-6111
|
|||
|
|
116-9886
116-9886
|
|||
|
|
70-2200
70-2200
|
|||
|
|
95-6448
95-6448
|
|||
|
|
1126
1126
|
|||
|
|
3230-23
3230-23
|
|||
|
|
3230-4
3230-4
|
|||
|
|
3230-5
3230-5
|
|||
|
|
103-7108
103-7108
|
|||
|
|
3230-1
3230-1
|
|||
|
|
3231-44
3231-44
|
|||
|
|
121-4600
121-4600
|
|||
|
|
32128-20
32128-20
|
|||
|
|
125-3941-03
125-3941-03
|
|||
|
|
127-4047-03
127-4047-03
|
|||
|
|
116-6361
116-6361
|
|||
|
|
130-8362
130-8362
|
|||
|
|
127-4053-03
127-4053-03
|
|||
|
|
121-4409
121-4409
|
|||
|
|
127-4063-03
127-4063-03
|
|||
|
|
104-0151
104-0151
|
|||
|
|
117-1240
117-1240
|
|||
|
|
611243
611243
|
|||
|
|
104-7201
104-7201
|
|||
|
|
117-9971
117-9971
|
|||
|
|
3231-26
3231-26
|

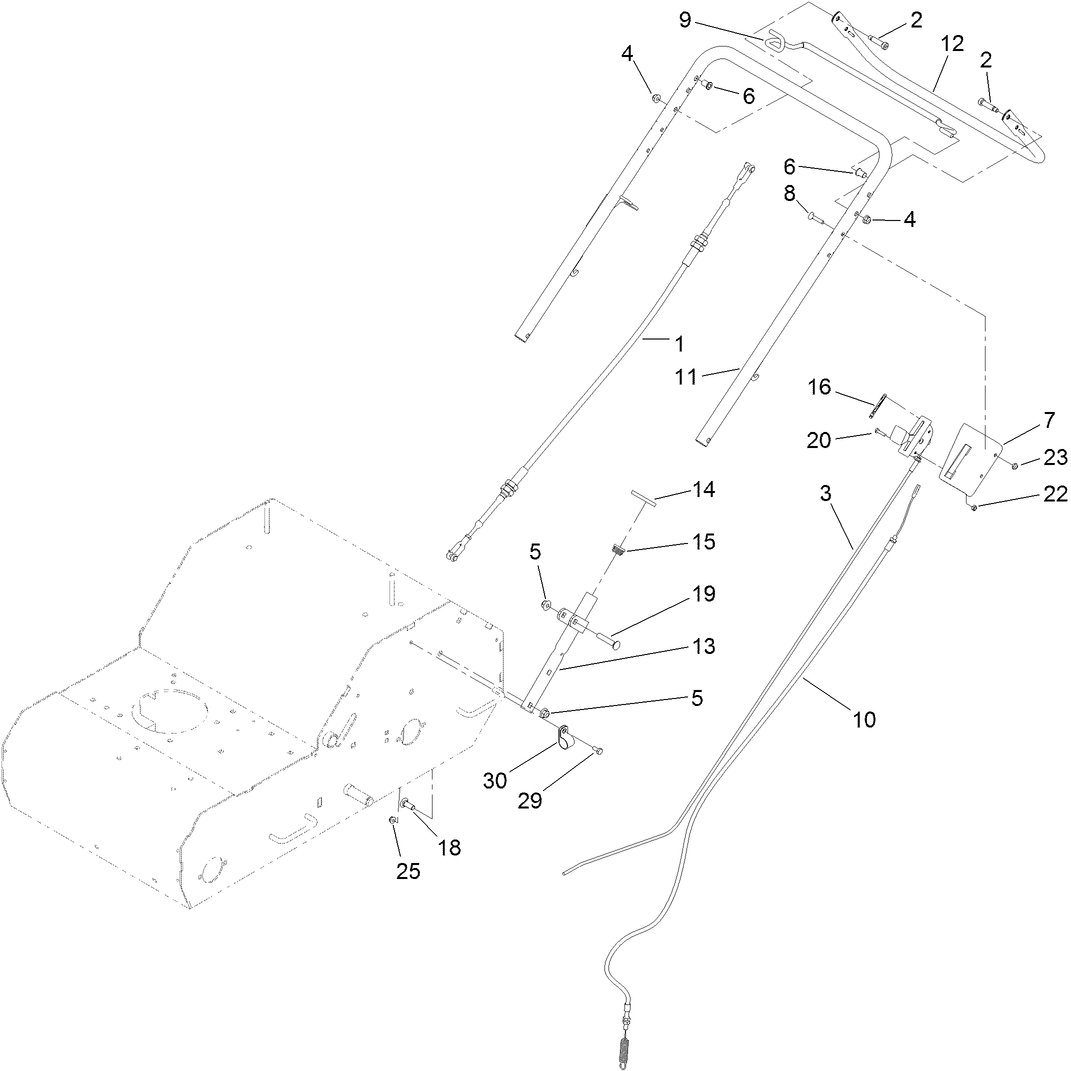

Handle Assembly
Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130-2160
130-2160
|
|||
|
|
65-9340
65-9340
|
|||
|
|
103-6123
103-6123
|
|||
|
|
104-8300
104-8300
|
|||
|
|
104-8301
104-8301
|
|||
|
|
109-2713
109-2713
|
|||
|
|
127-4058-03
127-4058-03
|
|||
|
|
117-7737
117-7737
|
|||
|
|
127-4054
127-4054
|
|||
|
|
121-4860
121-4860
|
|||
|
|
121-4862-03
121-4862-03
|
|||
|
|
125-3854-03
125-3854-03
|
|||
|
|
121-4866-03
121-4866-03
|
|||
|
|
121-6202
121-6202
|
|||
|
|
121-6222
121-6222
|
|||
|
|
3231-22
3231-22
|
|||
|
|
3231-6
3231-6
|
|||
|
|
3250-27
3250-27
|
|||
|
|
3296-2
3296-2
|
|||
|
|
3296-56
3296-56
|
|||
|
|
104-7201
104-7201
|
|||
|
|
321-3
321-3
|
|||
|
|
2412-41
2412-41
|
Idler Sprocket and Weight Assembly
Idler Sprocket and Weight Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
105-9714
105-9714
|
|||
|
|
120-9350
120-9350
|
|||
|
|
121-4880
121-4880
|
|||
|
|
121-4915
121-4915
|
|||
|
|
121-4916
121-4916
|
|||
|
|
112-7059-01
112-7059-01
|
|||
|
|
323-11
323-11
|
|||
|
|
3231-22
3231-22
|
|||
|
|
3256-24
3256-24
|
|||
|
|
105-4740
105-4740
|
|||
|
|
108519
108519
|
|||
|
|
104-8300
104-8300
|
|||
|
|
104-8301
104-8301
|
|||
|
|
1-806003
1-806003
|
|||
|
|
3230-23
3230-23
|
|||
|
|
117-2718
117-2718
|

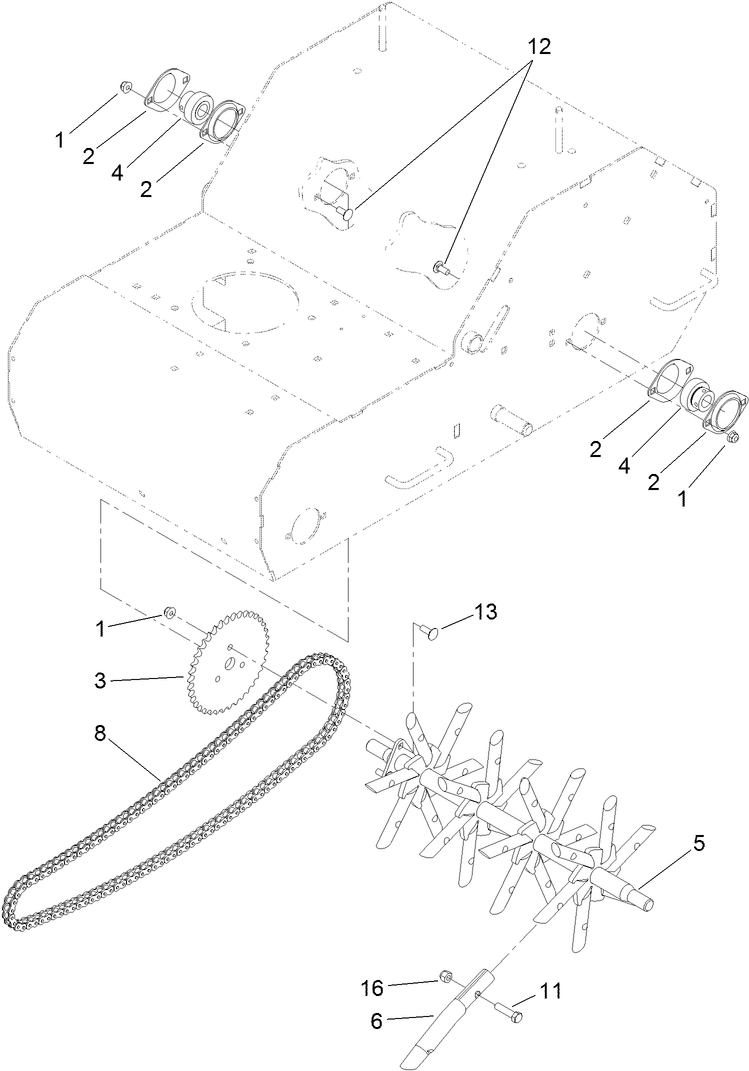

Tine Wheel Assembly
Tine Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
104-8300
104-8300
|
|||
|
|
105-9714
105-9714
|
|||
|
|
121-6224
121-6224
|
|||
|
|
120-9350
120-9350
|
|||
|
|
125-3852-01
125-3852-01
|
|||
|
|
126-2143
126-2143
|
|||
|
|
121-4914
121-4914
|
|||
|
|
323-8
323-8
|
|||
|
|
3230-23
3230-23
|
|||
|
|
3230-10
3230-10
|
|||
|
|
3296-39
3296-39
|

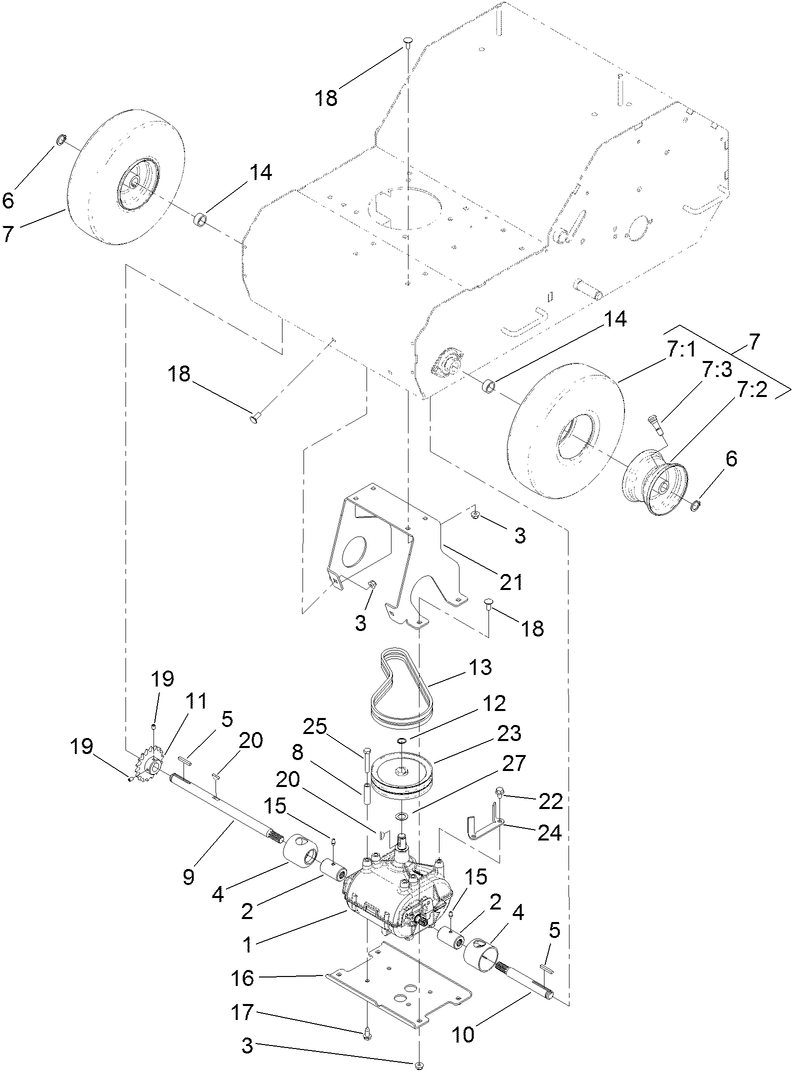

Transmission and Wheel Assembly
Transmission and Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
131-5740
131-5740
|
|||
|
|
1-323680
1-323680
|
|||
|
|
104-8300
104-8300
|
|||
|
|
51-4220
51-4220
|
|||
|
|
92-2649
92-2649
|
|||
|
|
32120-93
32120-93
|
|||
|
|
120-3550
120-3550
|
|||
|
|
121-6081
121-6081
|
|||
|
|
121-6082
121-6082
|
|||
|
|
5108
5108
|
|||
|
|
95-6327
95-6327
|
|||
|
|
121-4878
121-4878
|
|||
|
|
121-4879
121-4879
|
|||
|
|
121-4901
121-4901
|
|||
|
|
32120-64
32120-64
|
|||
|
|
121-4907
121-4907
|
|||
|
|
83-0730
83-0730
|
|||
|
|
302-19
302-19
|
|||
|
|
125-3823-03
125-3823-03
|
|||
|
|
9264964
9264964
|
|||
|
|
3230-23
3230-23
|
|||
|
|
3245-41
3245-41
|
|||
|
|
3257-5
3257-5
|
|||
|
|
125-3938-03
125-3938-03
|
|||
|
|
3234-30
3234-30
|
|||
|
|
127-4003
127-4003
|
|||
|
|
125-3928-03
125-3928-03
|
|||
|
|
322-10
322-10
|
|||
|
|
108-0015
108-0015
|

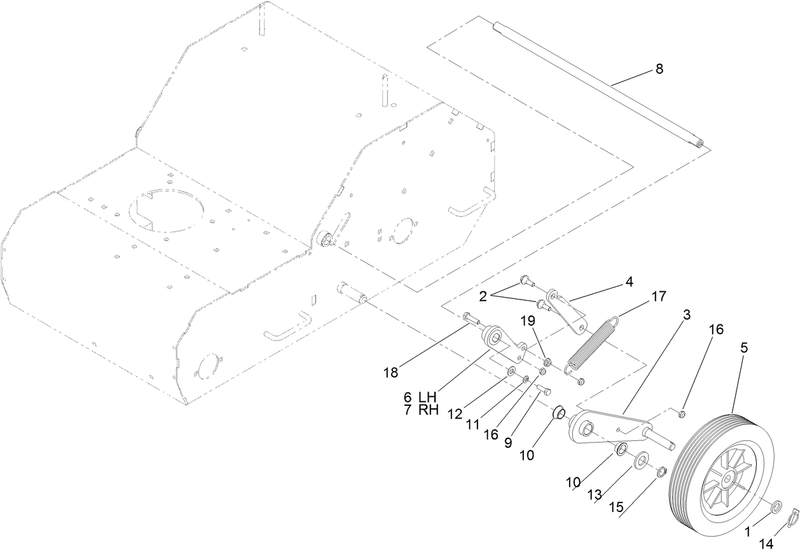

Wheel Assembly
Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
63-9710
63-9710
|
|||
|
|
116-2670
116-2670
|
|||
|
|
121-4886-03
121-4886-03
|
|||
|
|
121-6212-03
121-6212-03
|
|||
|
|
130-2157-03
130-2157-03
|
|||
|
|
130-2158-03
130-2158-03
|
|||
|
|
125-3856
125-3856
|
|||
|
|
322-5
322-5
|
|||
|
|
108519
108519
|
|||
|
|
3253-4
3253-4
|
|||
|
|
3256-24
3256-24
|
|||
|
|
3256-28
3256-28
|
|||
|
|
3290-495
3290-495
|
|||
|
|
32120-93
32120-93
|
|||
|
|
3296-47
3296-47
|
|||
|
|
125-3786
125-3786
|
|||
|
|
322-6
322-6
|
|||
|
|
32128-20
32128-20
|
