Toro 30140 Mid-Size ProLine T-Bar Gear, 15 HP with 48in Side Discharge Mower (Serial #: 250000001 - 250999999) Parts Diagram
Diagrams:
Diagram:

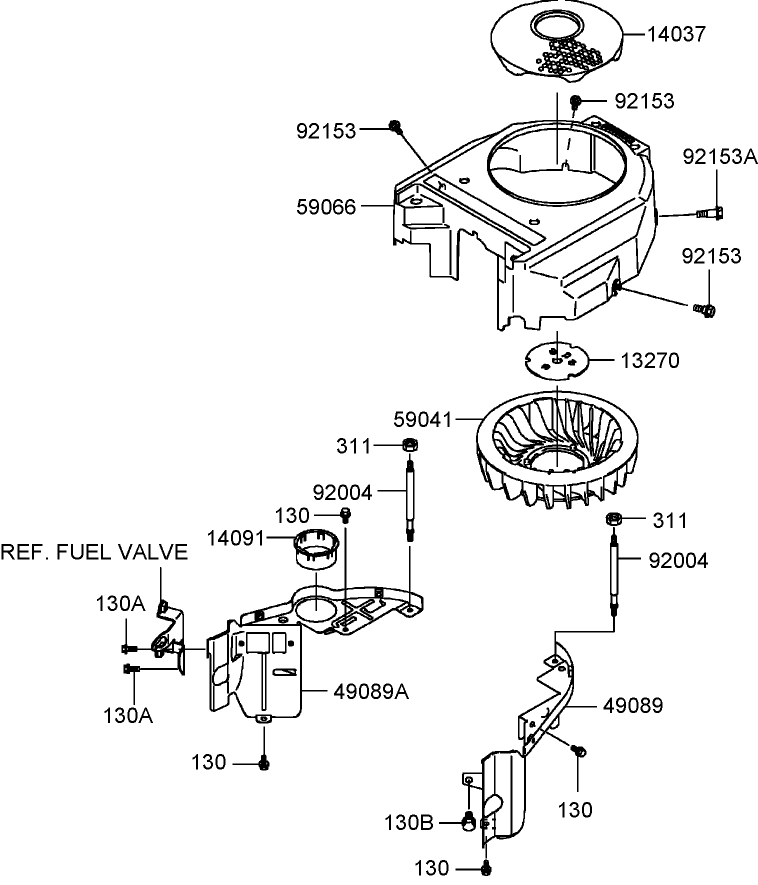

Cooling Equipment Assembly Kawasaki FH430V AS25
Cooling Equipment Assembly Kawasaki FH430V AS25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

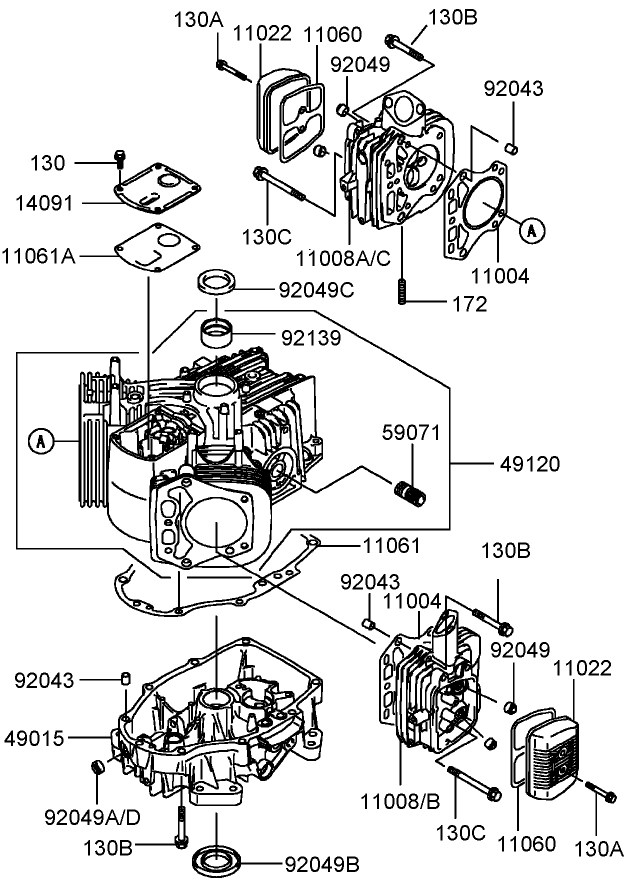

Cylinder and Crankcase Assembly Kawasaki FH430V AS25
Cylinder and Crankcase Assembly Kawasaki FH430V AS25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

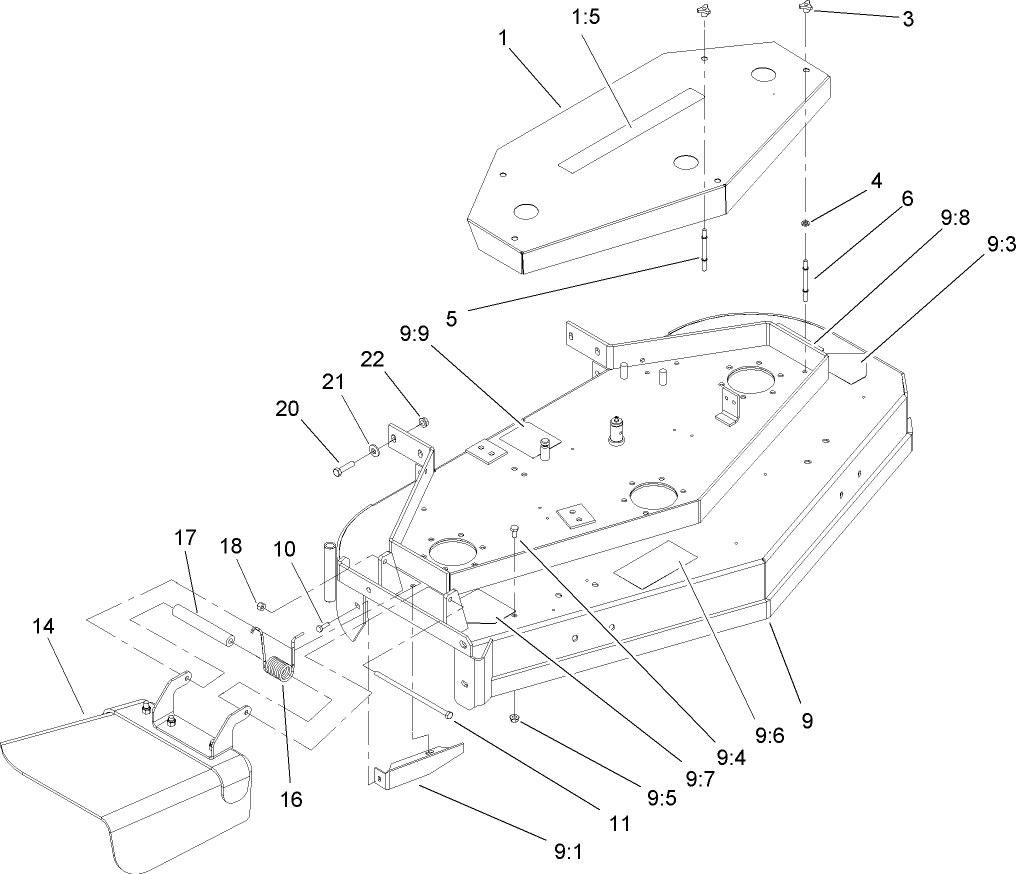

Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
Deflector Assembly No 107 4140
Deflector Assembly No 107 4140
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

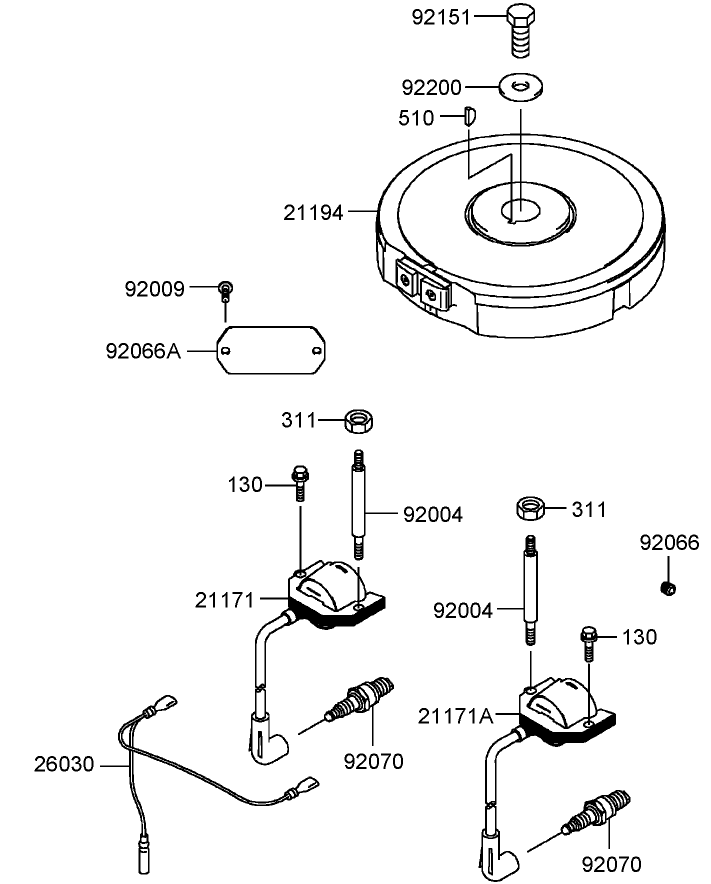

Electric Equipment Assembly Kawasaki FH430V AS25
Electric Equipment Assembly Kawasaki FH430V AS25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

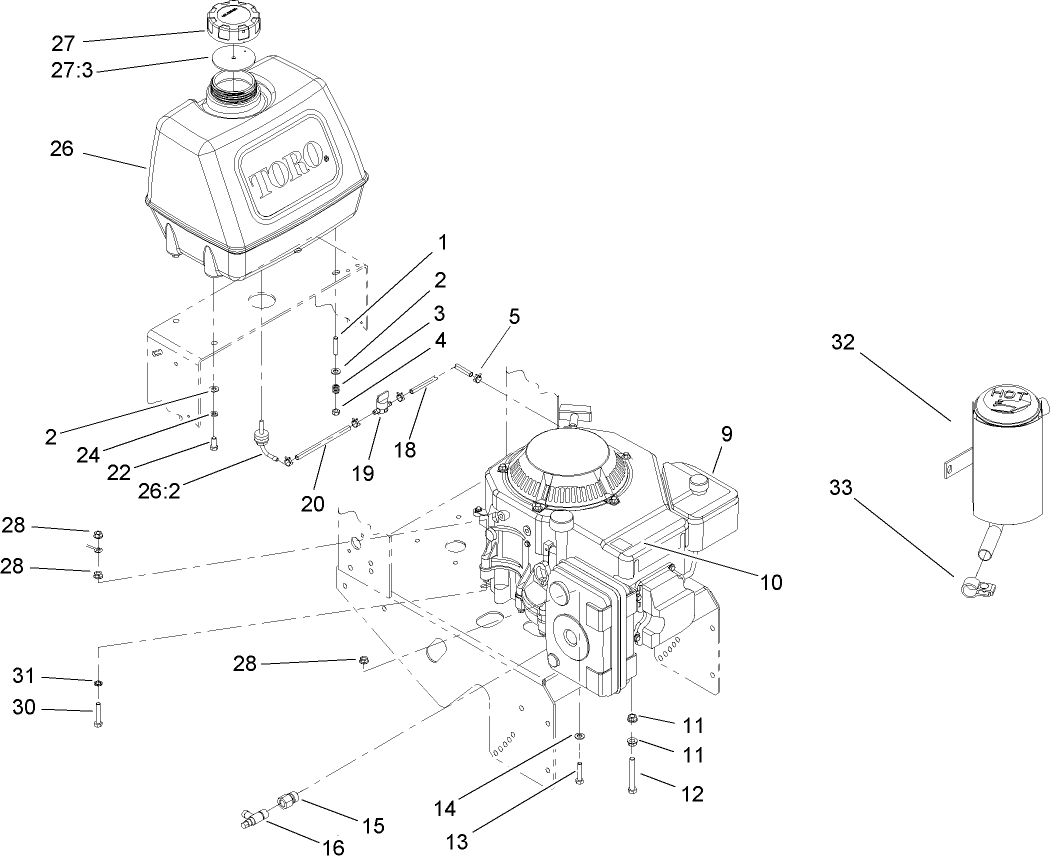

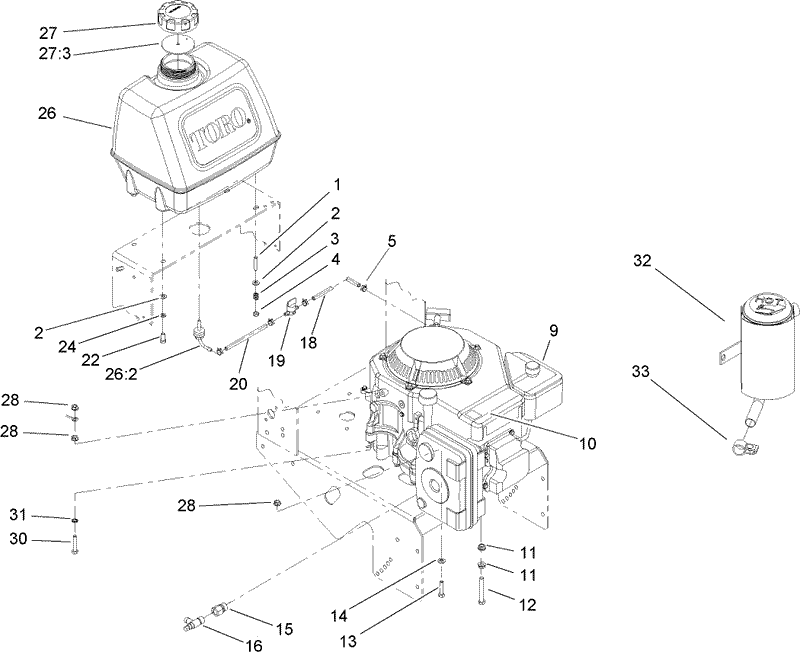

Engine and Fuel Tank Assembly
Engine and Fuel Tank Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1-404246
1-404246
|
|||
|
|
106-0712
106-0712
|
|||
|
|
106-4161
106-4161
|
|||
|
|
1-323417
1-323417
|
|||
|
|
1-303536
1-303536
|
|||
|
|
1-303537
1-303537
|
|||
|
|
107-4215
107-4215
|
|||
|
|
1-402107-01
1-402107-01
|
|||
|
|
1-403005
1-403005
|
|||
|
|
322-2
322-2
|
|||
|
|
32128-20
32128-20
|
|||
|
|
66-1340
66-1340
|
|||
|
|
93-1122
93-1122
|
|||
|
|
98-5130
98-5130
|
|||
|
|
99-3943
99-3943
|
|||
|
|
322-2
322-2
|
|||
|
|
322-50
322-50
|
|||
|
|
107-4140
107-4140
|
|||
|
|
104-8554
104-8554
|
|||
|
|
105-4622
105-4622
|
|||
|
|
3296-29
3296-29
|
|||
|
|
323-8
323-8
|
|||
|
|
98-5975
98-5975
|
|||
|
|
3290-357
3290-357
|

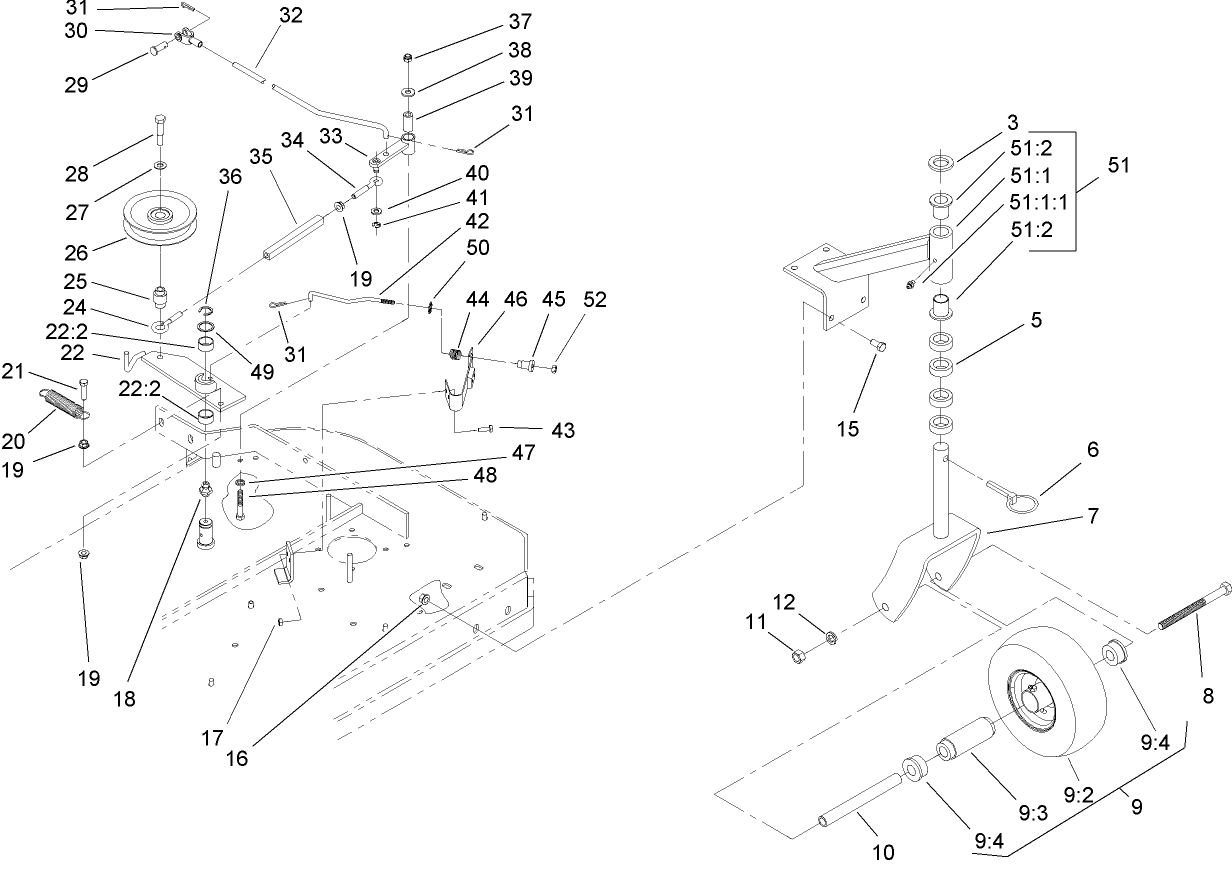

Front Caster and Blade Brake Assembly
Front Caster and Blade Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3231-4
3231-4
|
|||
|
|
107-4138-01
107-4138-01
|
|||
|
|
107-4139-01
107-4139-01
|
|||
|
|
107-4137
107-4137
|
|||
|
|
107-4164-01
107-4164-01
|
|||
|
|
3296-39
3296-39
|

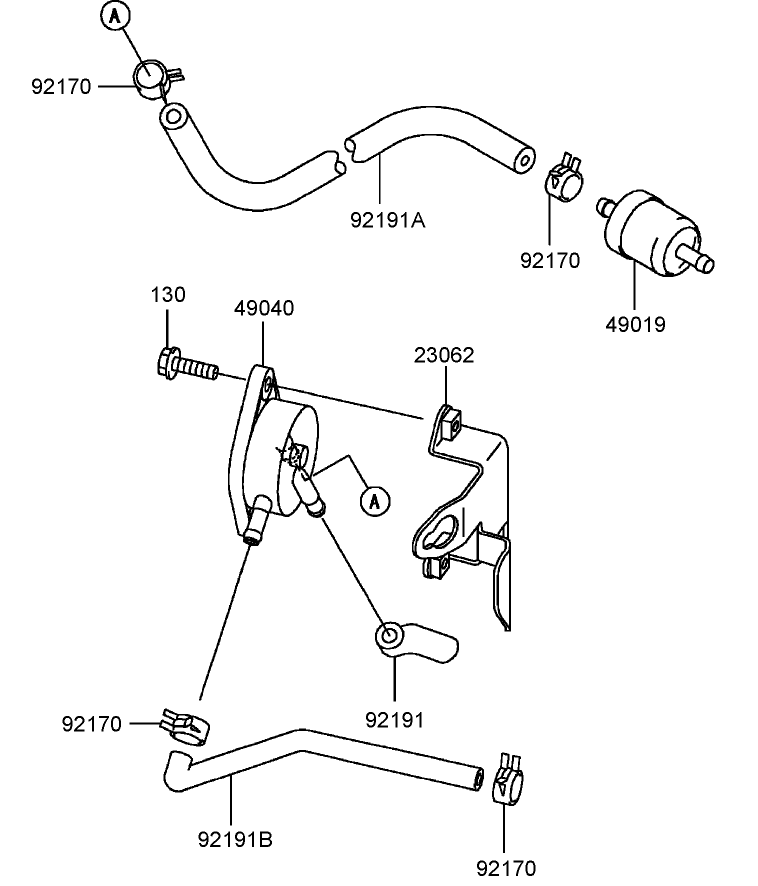

Fuel Tank and Fuel Valve Assembly Kawasaki FH430V AS25
Fuel Tank and Fuel Valve Assembly Kawasaki FH430V AS25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
115-6579
115-6579
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

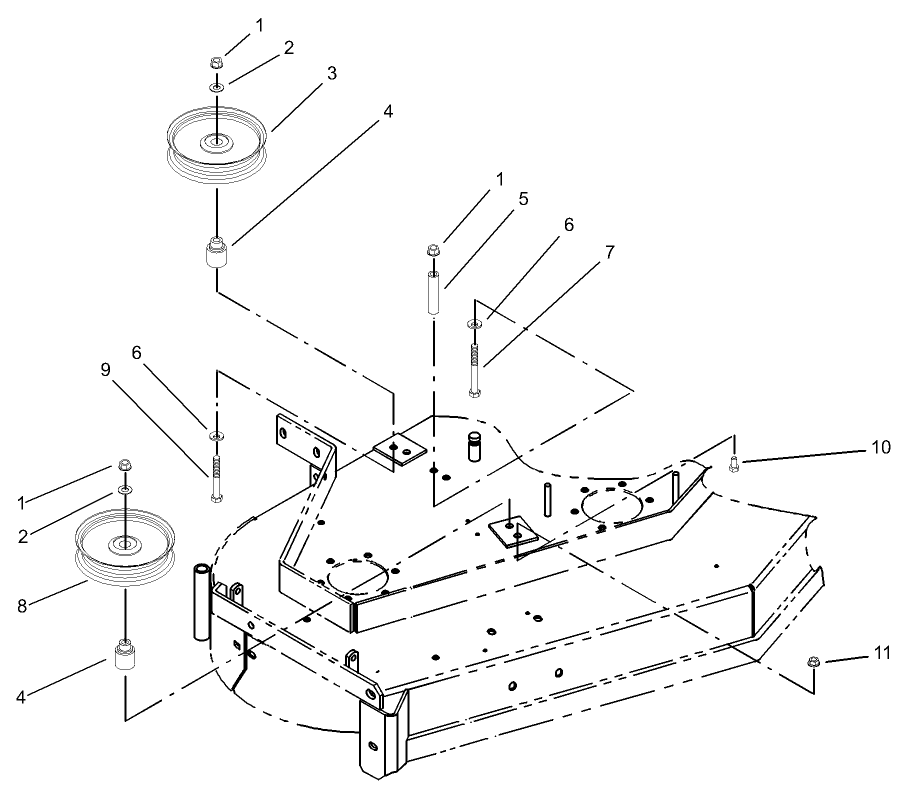

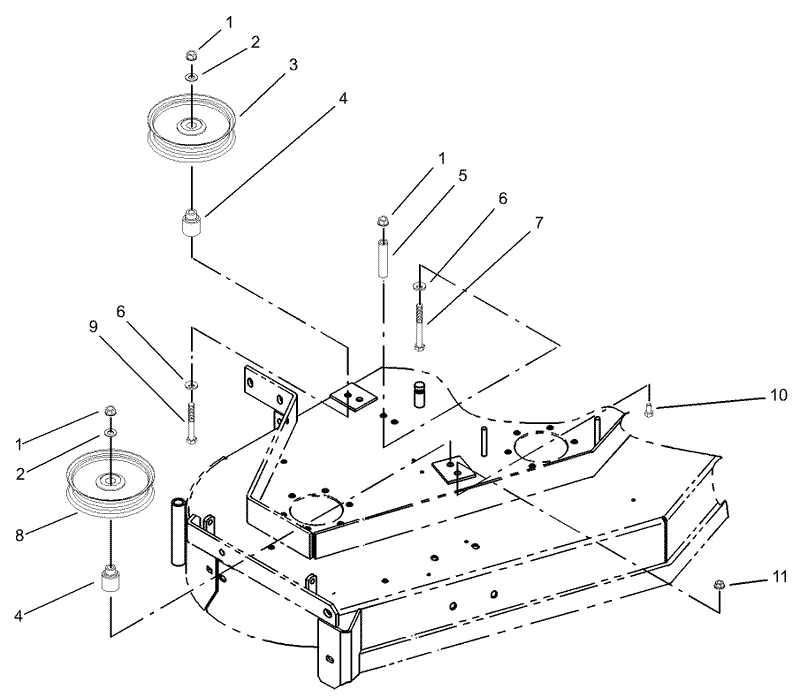

Idler Pulley Assembly
Idler Pulley Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1-633023
1-633023
|
|||
|
|
3256-23
3256-23
|
|||
|
|
1-633349
1-633349
|
|||
|
|
3296-47
3296-47
|
|||
|
|
1-303077
1-303077
|
|||
|
|
|
|||
|
|
106-0699
106-0699
|
|||
|
|
3290-357
3290-357
|
|||
|
|
323-13
323-13
|
|||
|
|
322-7
322-7
|
|||
|
|
1-303334
1-303334
|
|||
|
|
103-1966
103-1966
|
|||
|
|
103-1965
103-1965
|
|||
|
|
1-303022
1-303022
|
|||
|
|
1-603770
1-603770
|
|||
|
|
1-603955
1-603955
|
|||
|
|
322-3
322-3
|
|||
|
|
1-805005
1-805005
|
|||
|
|
106-0730
106-0730
|
|||
|
|
103-2605
103-2605
|
|||
|
|
88-3980
88-3980
|
|||
|
|
88-4010
88-4010
|
|||
|
|
32128-20
32128-20
|
|||
|
|
322-9
322-9
|
|||
|
|
3254-2
3254-2
|
|||
|
|
100-6467
100-6467
|
|||
|
|
103-5465
103-5465
|
|||
|
|
1-303287
1-303287
|
|||
|
|
3290-378
3290-378
|

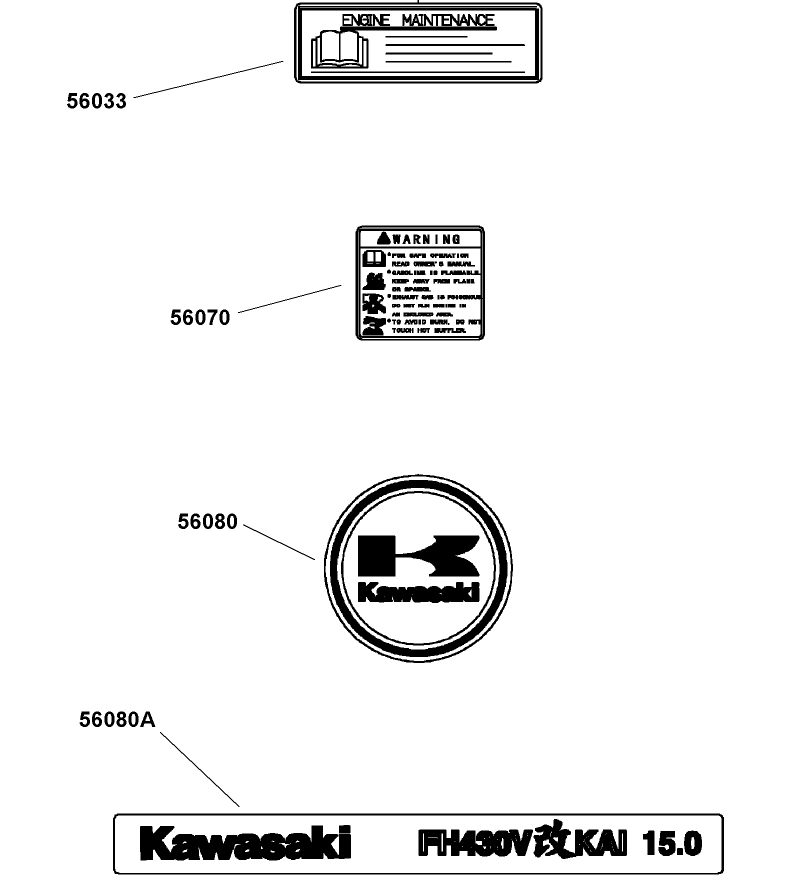

Label Assembly Kawasaki FH430V AS25
Label Assembly Kawasaki FH430V AS25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1-513338
1-513338
|
|||
|
|
1-303314
1-303314
|
|||
|
|
1-809020
1-809020
|
|||
|
|
116-7942-01
116-7942-01
|
|||
|
|
325-20
325-20
|
|||
|
|
1-513648
1-513648
|
|||
|
|
1-513808
1-513808
|
|||
|
|
1-513809
1-513809
|
|||
|
|
1-513810
1-513810
|
|||
|
|
1-513547
1-513547
|
|||
|
|
3217-9
3217-9
|
|||
|
|
3253-7
3253-7
|
|||
|
|
323-4
323-4
|
|||
|
|
3290-357
3290-357
|
|||
|
|
3296-42
3296-42
|
|||
|
|
302-19
302-19
|
|||
|
|
32128-20
32128-20
|
|||
|
|
1-323071
1-323071
|
|||
|
|
322-6
322-6
|
|||
|
|
103-3600
103-3600
|
|||
|
|
1-323729
1-323729
|
|||
|
|
1-303348
1-303348
|
|||
|
|
1-303434
1-303434
|
|||
|
|
132-4718
132-4718
|
|||
|
|
98-5975
98-5975
|
|||
|
|
702809
702809
|
|||
|
|
1-808280
1-808280
|
|||
|
|
1-303105
1-303105
|
|||
|
|
1-806003
1-806003
|
|||
|
|
1-323303
1-323303
|
|||
|
|
1-322235
1-322235
|
|||
|
|
1-303238
1-303238
|
|||
|
|
1-303236
1-303236
|
|||
|
|
32151-103
32151-103
|
|||
|
|
3296-29
3296-29
|
|||
|
|
3256-3
3256-3
|
|||
|
|
1-403179
1-403179
|
|||
|
|
3256-23
3256-23
|
|||
|
|
32120-35
32120-35
|
|||
|
|
1-323714
1-323714
|
|||
|
|
321-4
321-4
|
|||
|
|
1-323747
1-323747
|
|||
|
|
1-323746
1-323746
|
|||
|
|
1-324372
1-324372
|
|||
|
|
1-303334
1-303334
|
|||
|
|
322-10
322-10
|
|||
|
|
1-303352
1-303352
|
|||
|
|
1-323748
1-323748
|
|||
|
|
1-302203
1-302203
|
|||
|
|
|
|||
|
|
1-303514
1-303514
|
|||
|
|
302-52
302-52
|
|||
|
|
3296-56
3296-56
|

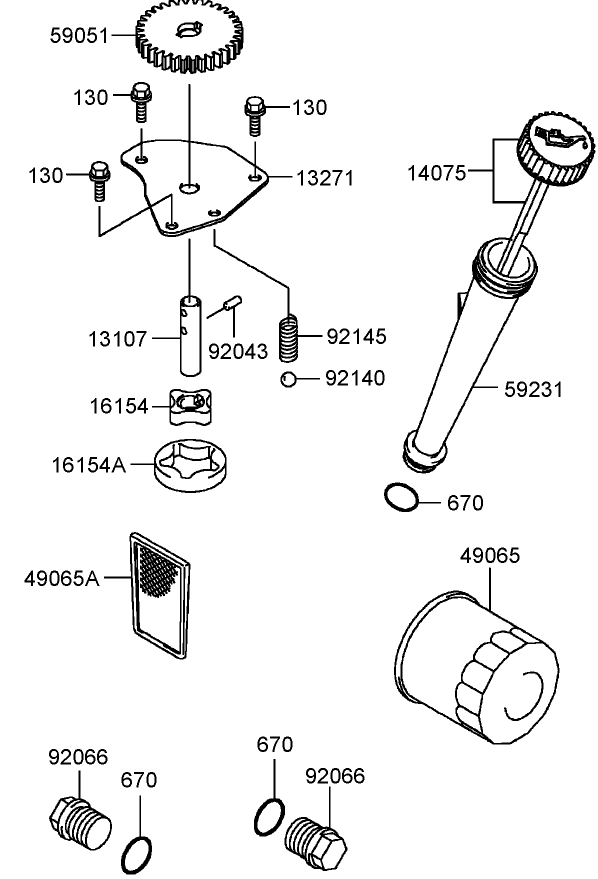

Lubrication Equipment Assembly Kawasaki FH430V AS25
Lubrication Equipment Assembly Kawasaki FH430V AS25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

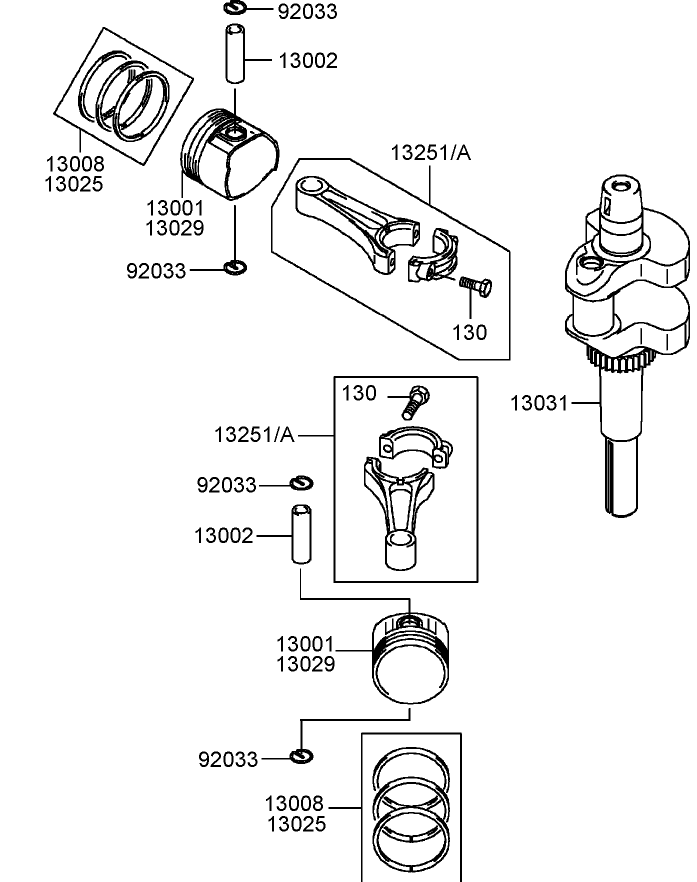

Piston and Crankshaft Assembly Kawasaki FH430V AS25
Piston and Crankshaft Assembly Kawasaki FH430V AS25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3290-357
3290-357
|
|||
|
|
3256-24
3256-24
|
|||
|
|
136-5405
136-5405
|
|||
|
|
1-413113
1-413113
|
|||
|
|
1-403188
1-403188
|
|||
|
|
98-5975
98-5975
|
|||
|
|
323-20
323-20
|
|||
|
|
1-613098
1-613098
|
|||
|
|
323-13
323-13
|
|||
|
|
322-2
322-2
|
|||
|
|
32128-20
32128-20
|

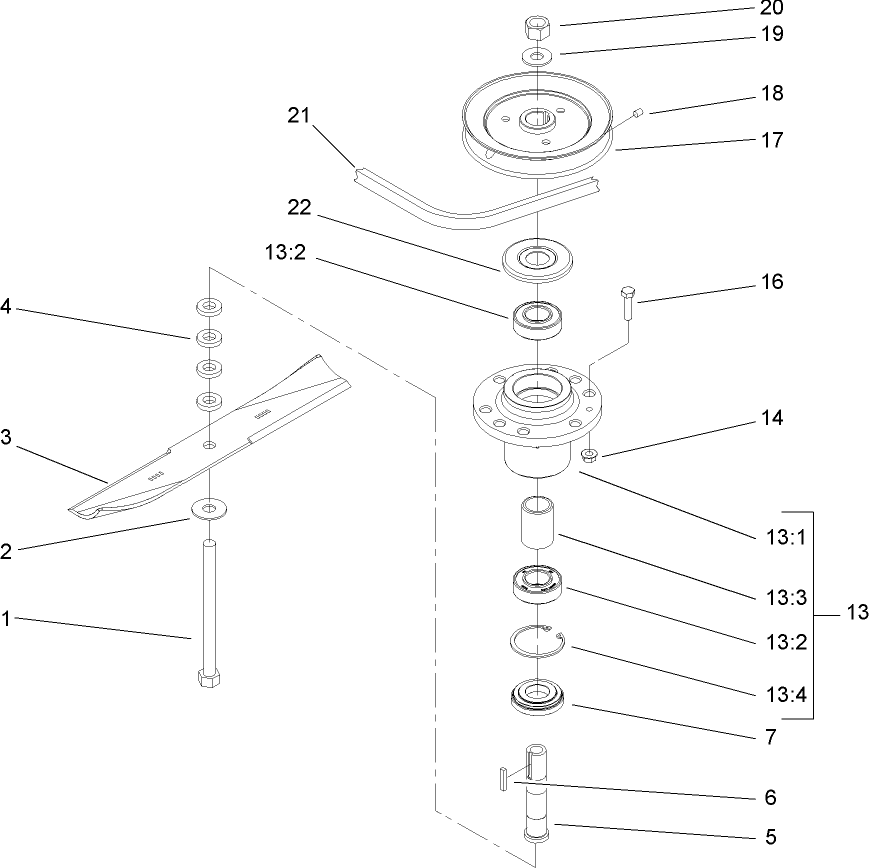

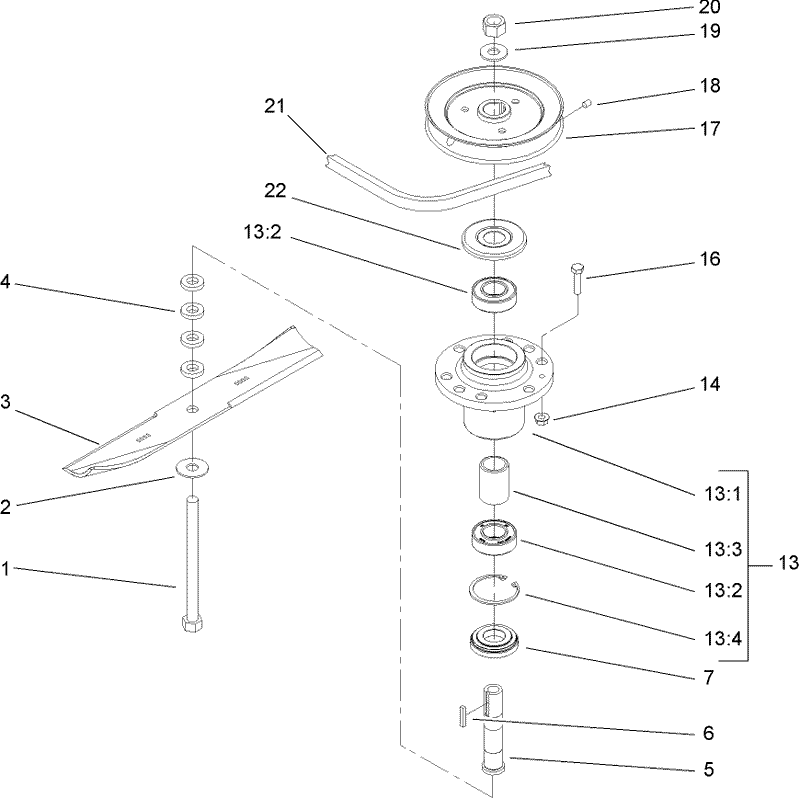

Spindle Assembly
Spindle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

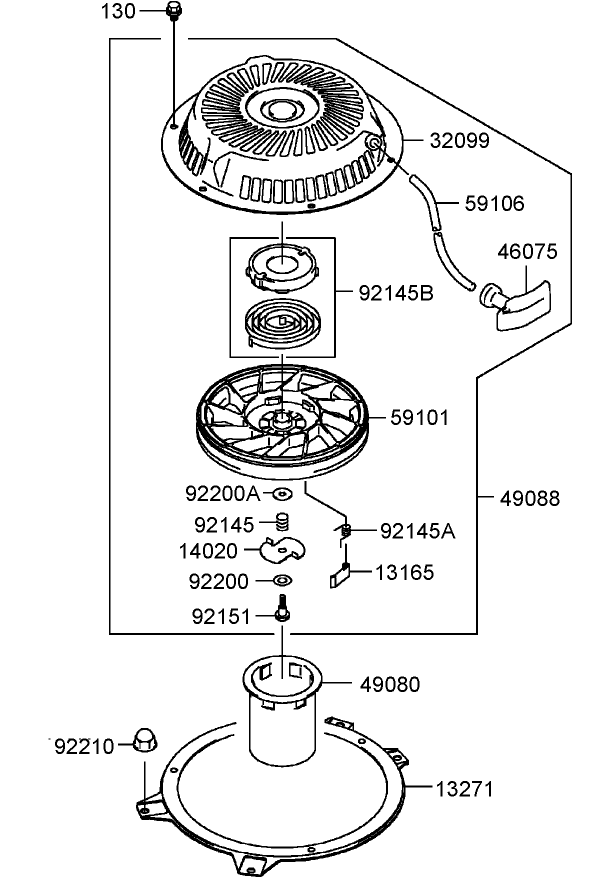

Starter Assembly Kawasaki FH430V AS25
Starter Assembly Kawasaki FH430V AS25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

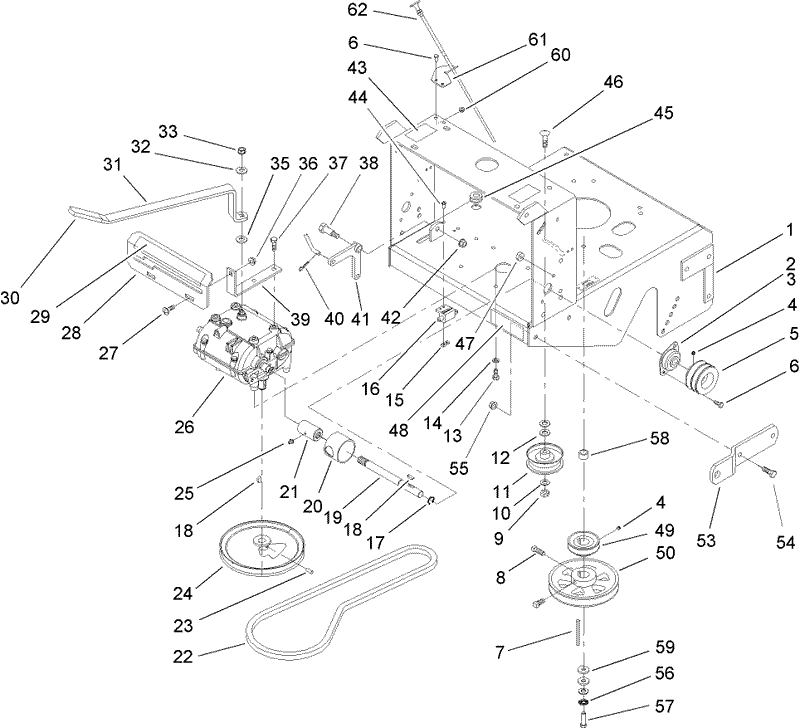

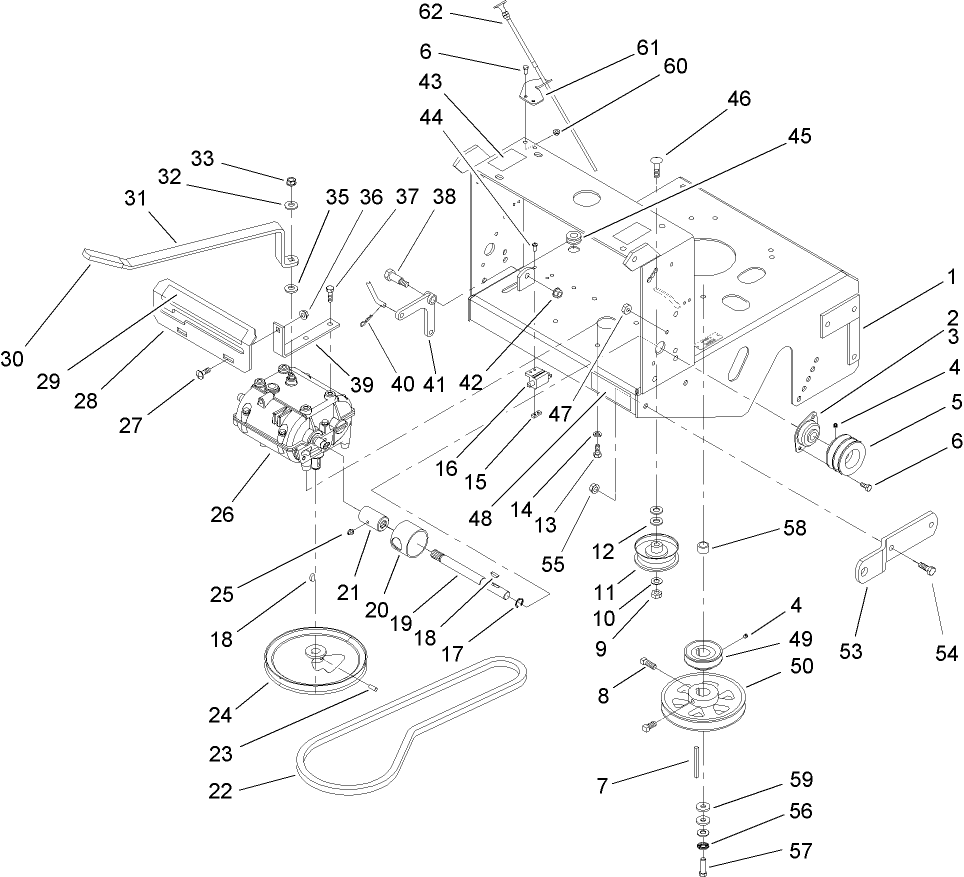

Transmission and Drive Assembly
Transmission and Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

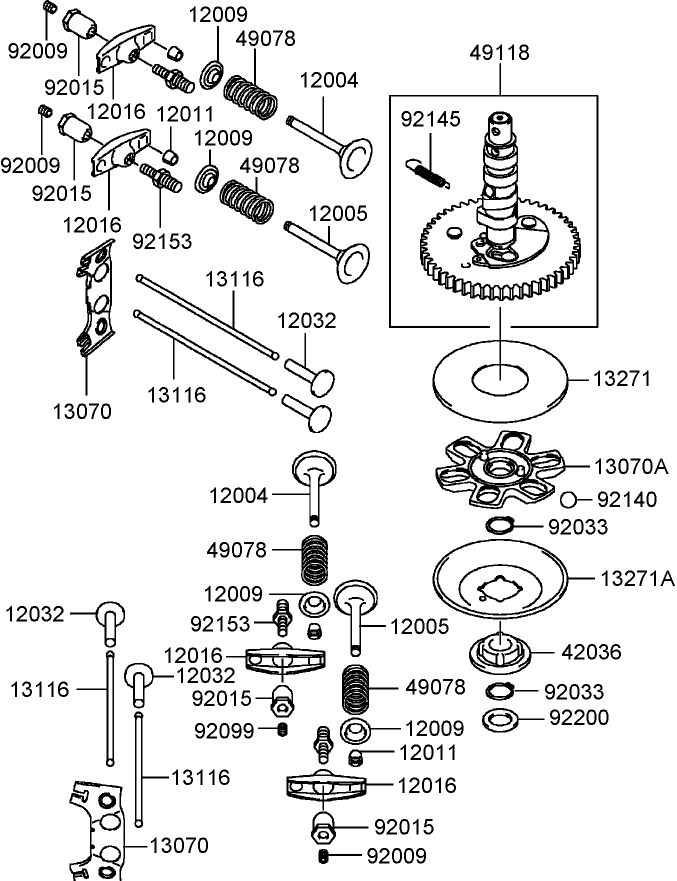

Valve and Camshaft Assembly Kawasaki FH430V AS25
Valve and Camshaft Assembly Kawasaki FH430V AS25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1-800861
1-800861
|
|||
|
|
1-513208
1-513208
|
|||
|
|
103-2507
103-2507
|
|||
|
|
1-323539
1-323539
|
|||
|
|
1-323529
1-323529
|
|||
|
|
1-807267
1-807267
|
|||
|
|
103-2535
103-2535
|
|||
|
|
107-4065
107-4065
|
|||
|
|
103-7975
103-7975
|
|||
|
|
103-2477
103-2477
|
|||
|
|
103-2534
103-2534
|
|||
|
|
32120-8
32120-8
|
|||
|
|
3296-39
3296-39
|
|||
|
|
323-7
323-7
|
|||
|
|
1-403183
1-403183
|
|||
|
|
1-803310
1-803310
|
|||
|
|
1-323339
1-323339
|
|||
|
|
3219-6
3219-6
|
|||
|
|
1-403171
1-403171
|
|||
|
|
103-1330
103-1330
|

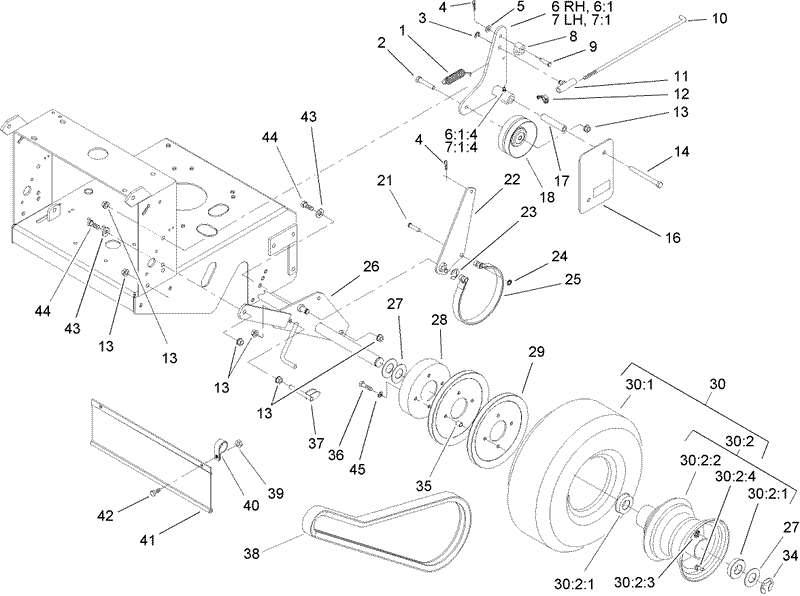

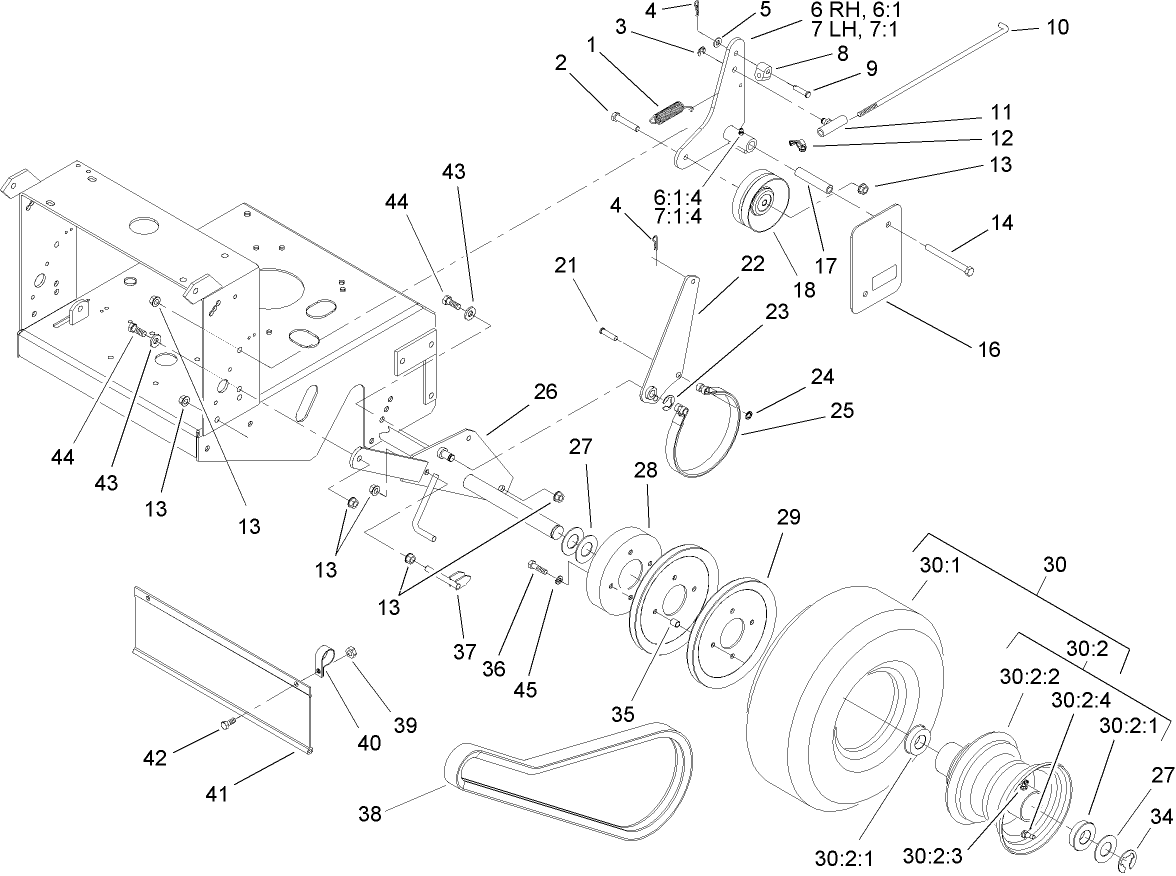

Wheel and Drive Assembly
Wheel and Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
