Toro 30169 Mid-Size Proline Gear Traction Unit, 17 hp (Serial #: 200000001 - 200999999) Parts Diagram
Diagrams:
Diagram:

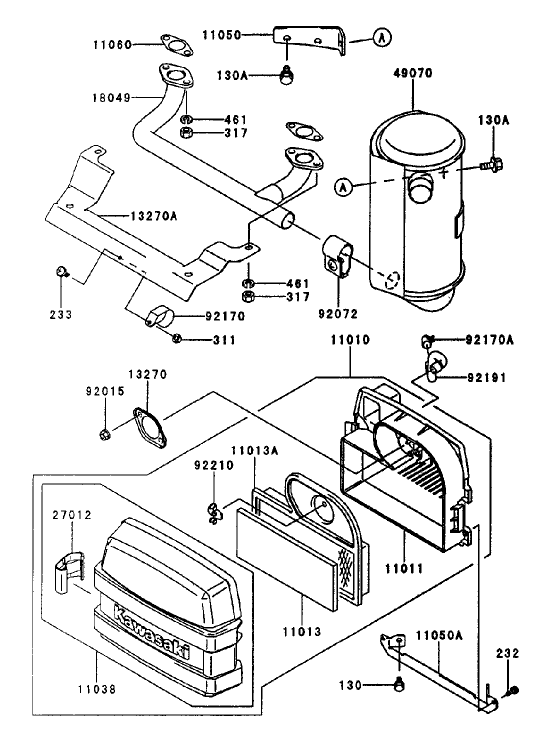

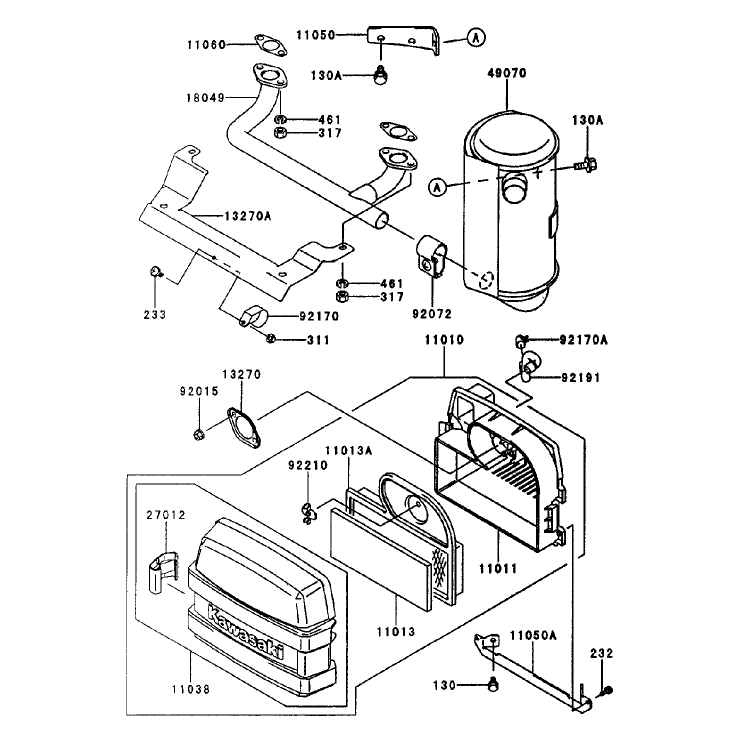

Air Filtermuffler Assembly Kawasaki Fh500v As25
Air Filtermuffler Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130B0612
130B0612
|
|||
|
|
232B0514
232B0514
|
|||
|
|
233B0416
233B0416
|
|||
|
|
311B0400
311B0400
|
|||
|
|
317R0800
317R0800
|
|||
|
|
461F0800
461F0800
|
|||
|
|
11010-7001
11010-7001
|
|||
|
|
11011-7001
11011-7001
|
|||
|
|
11013-7001
11013-7001
|
|||
|
|
11038-7001
11038-7001
|
|||
|
|
11050-7004
11050-7004
|
|||
|
|
11060-7006
11060-7006
|
|||
|
|
13270-7001
13270-7001
|
|||
|
|
18049-7001
18049-7001
|
|||
|
|
27012-7001
27012-7001
|
|||
|
|
49070-7002
49070-7002
|
|||
|
|
92015-1193
92015-1193
|
|||
|
|
92072-7002
92072-7002
|
|||
|
|
92170-7002
92170-7002
|
|||
|
|
92191-7001
92191-7001
|
|||
|
|
92210-7004
92210-7004
|
|||
|
|
11013-7002
11013-7002
|
|||
|
|
11050-7006
11050-7006
|
|||
|
|
130B0816
130B0816
|
|||
|
|
13270-7008
13270-7008
|
|||
|
|
92170-7003
92170-7003
|

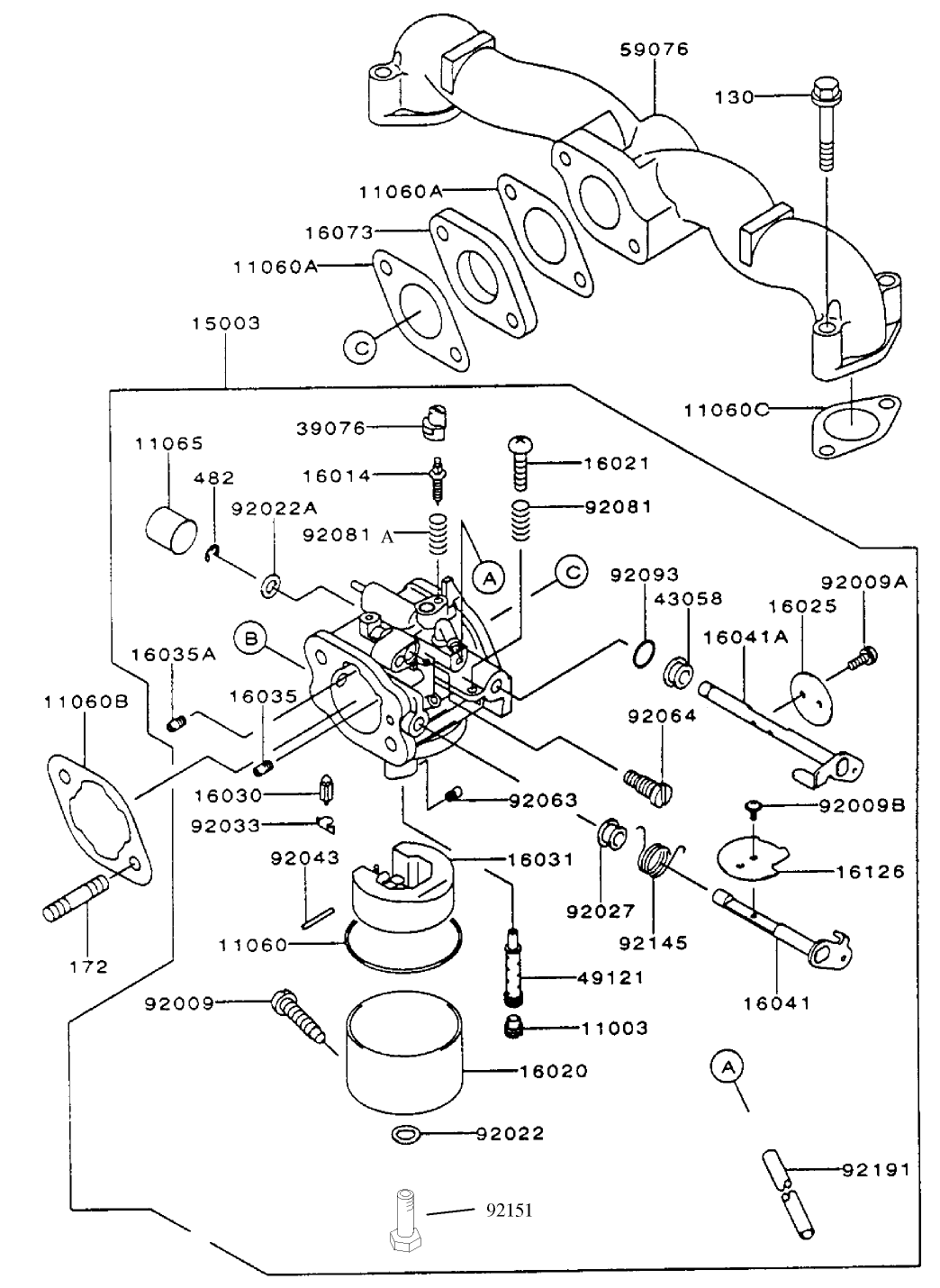

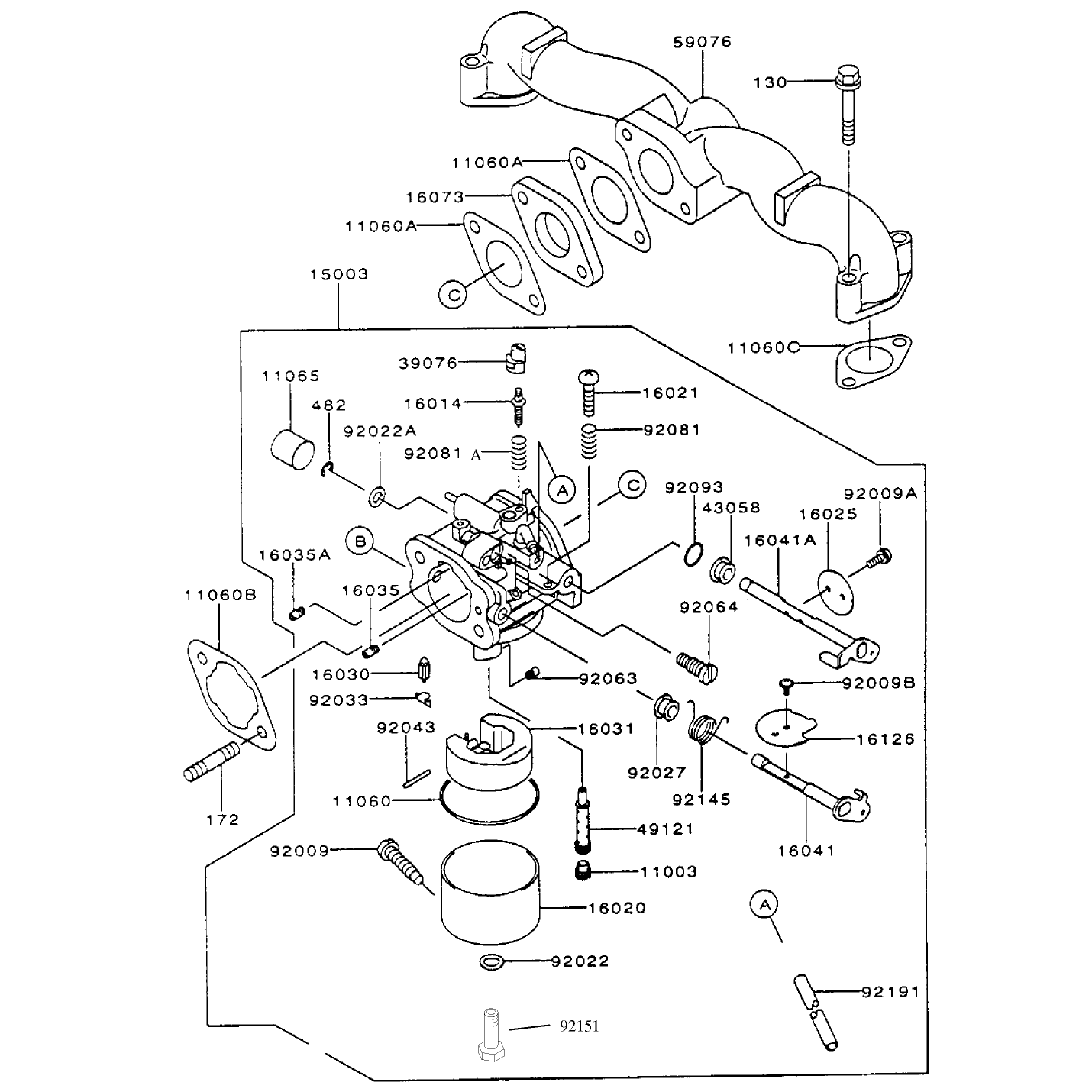

Carburetor Assembly Kawasaki Fh500v As25
Carburetor Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130B0635
130B0635
|
|||
|
|
172G0685
172G0685
|
|||
|
|
482L4000
482L4000
|
|||
|
|
11003-2105
11003-2105
|
|||
|
|
11060-2406
11060-2406
|
|||
|
|
11065-2061
11065-2061
|
|||
|
|
15003-2698
15003-2698
|
|||
|
|
16014-2080
16014-2080
|
|||
|
|
16020-2141
16020-2141
|
|||
|
|
16021-2060
16021-2060
|
|||
|
|
16025-2193
16025-2193
|
|||
|
|
16030-2067
16030-2067
|
|||
|
|
16031-2066
16031-2066
|
|||
|
|
16035-2060
16035-2060
|
|||
|
|
16041-2252
16041-2252
|
|||
|
|
16073-7001
16073-7001
|
|||
|
|
16126-2219
16126-2219
|
|||
|
|
39076-2053
39076-2053
|
|||
|
|
43058-3716
43058-3716
|
|||
|
|
49121-2222
49121-2222
|
|||
|
|
59076-7001
59076-7001
|
|||
|
|
92009-2015
92009-2015
|
|||
|
|
92022-2231
92022-2231
|
|||
|
|
92027-2025
92027-2025
|
|||
|
|
92033-2067
92033-2067
|
|||
|
|
92043-2226
92043-2226
|
|||
|
|
92063-2358
92063-2358
|
|||
|
|
92064-2125
92064-2125
|
|||
|
|
92081-2009
92081-2009
|
|||
|
|
92093-2002
92093-2002
|
|||
|
|
92145-2061
92145-2061
|
|||
|
|
92151-2092
92151-2092
|
|||
|
|
92191-7008
92191-7008
|
|||
|
|
11060-7003
11060-7003
|
|||
|
|
11060-7004
11060-7004
|
|||
|
|
11060-7005
11060-7005
|
|||
|
|
16035-2061
16035-2061
|
|||
|
|
16041-2253
16041-2253
|
|||
|
|
92009-2024
92009-2024
|
|||
|
|
92009-2081
92009-2081
|
|||
|
|
92022-2239
92022-2239
|
|||
|
|
92081-2256
92081-2256
|

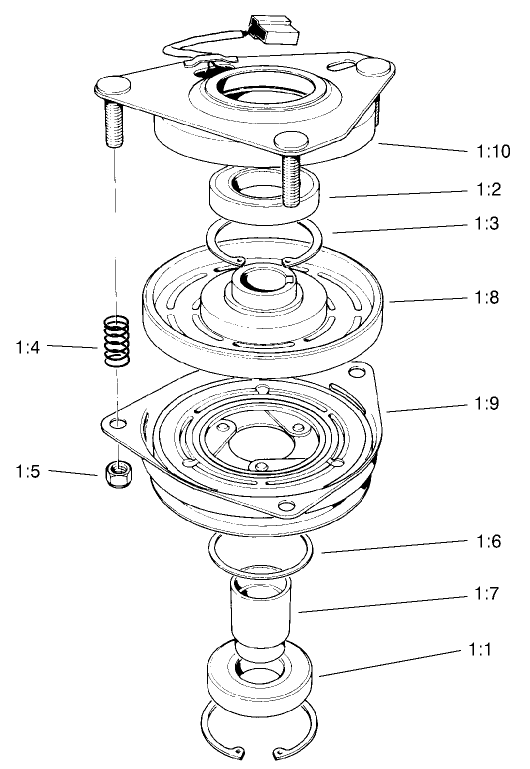

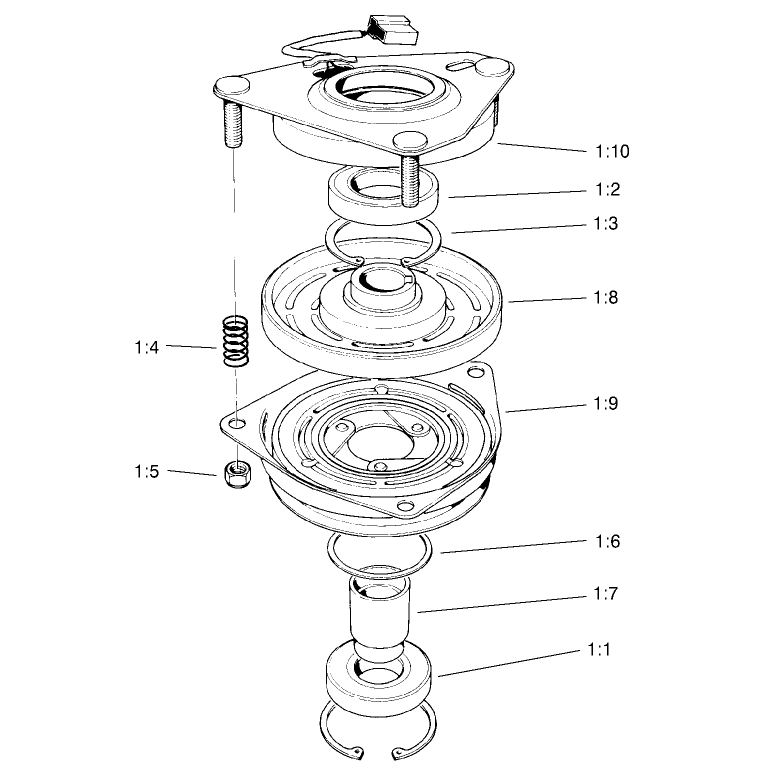

Clutch Assembly
Clutch Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
251-312
251-312
|
|||
|
|
251-292
251-292
|
|||
|
|
44-8310
44-8310
|
|||
|
|
44-8320
44-8320
|
|||
|
|
3296-6
3296-6
|
|||
|
|
44-8330
44-8330
|
|||
|
|
44-8340
44-8340
|
|||
|
|
44-8360
44-8360
|
|||
|
|
44-8370
44-8370
|
|||
|
|
54-0230
54-0230
|
|||
|
|
|

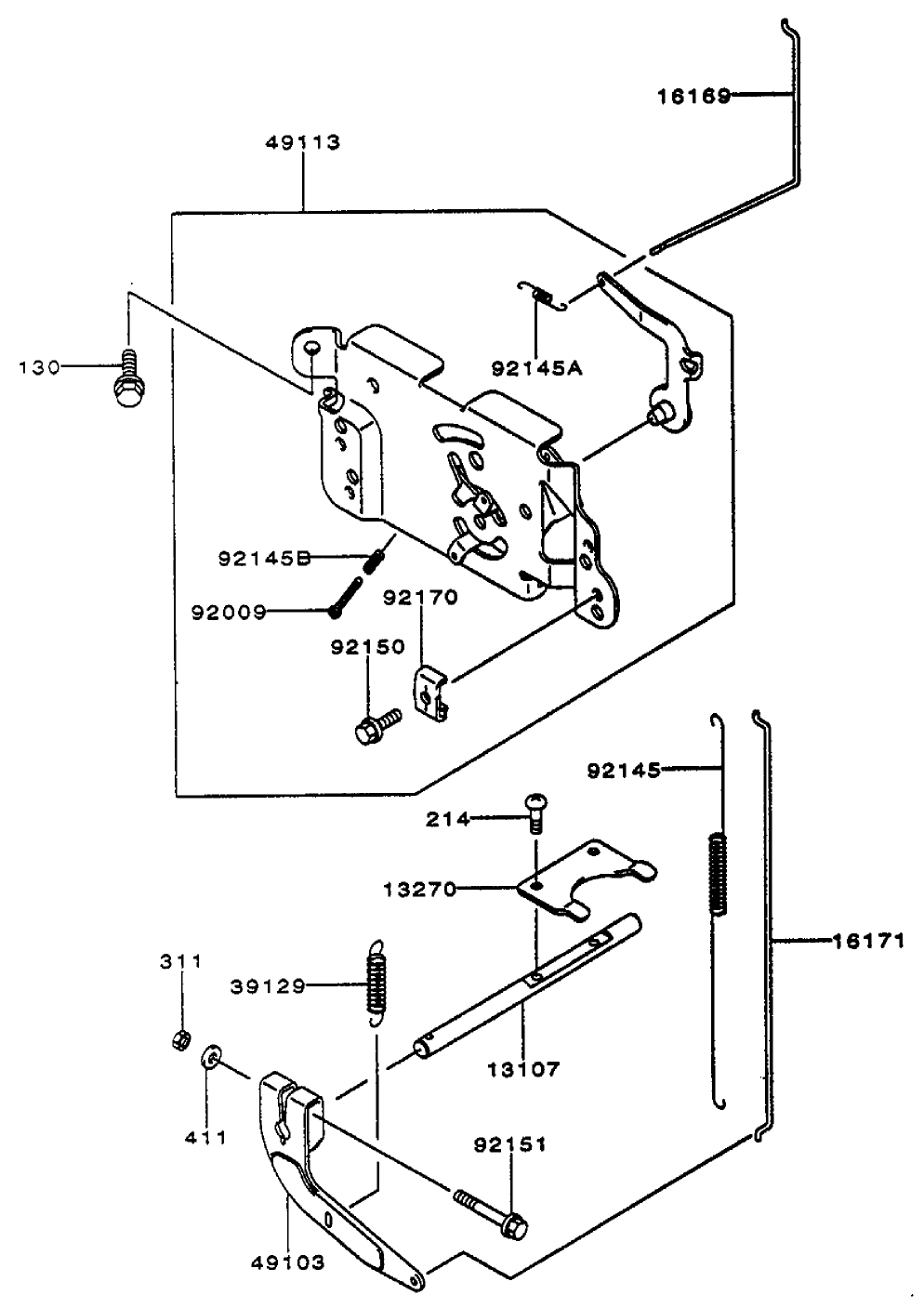

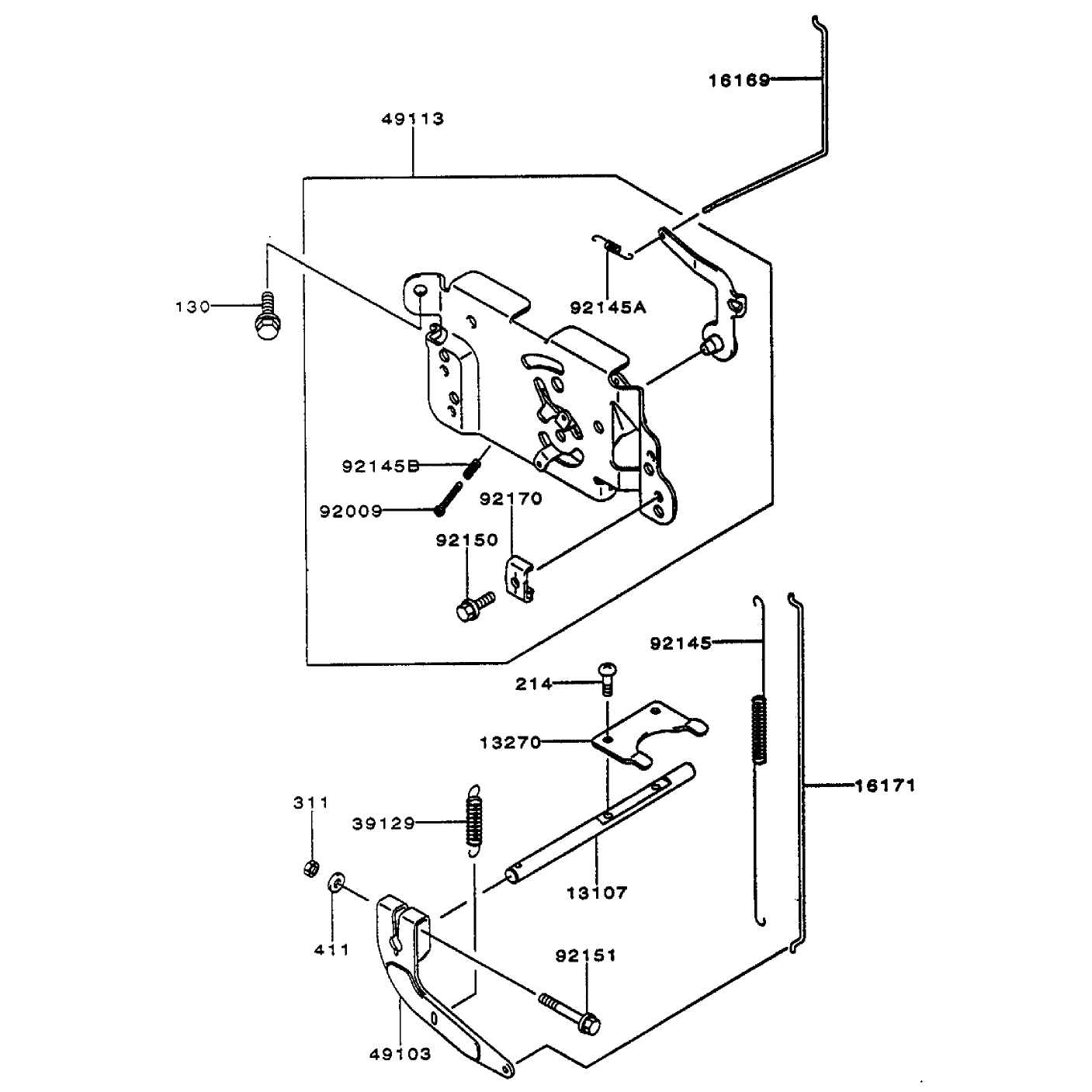

Control Equipment Assembly Kawasaki Fh500v As25
Control Equipment Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130B0612
130B0612
|
|||
|
|
214B0408
214B0408
|
|||
|
|
311B0600
311B0600
|
|||
|
|
411B0600
411B0600
|
|||
|
|
13107-7002
13107-7002
|
|||
|
|
13270-7006
13270-7006
|
|||
|
|
16169-7001
16169-7001
|
|||
|
|
16171-7001
16171-7001
|
|||
|
|
39129-7003
39129-7003
|
|||
|
|
49103-7001
49103-7001
|
|||
|
|
49113-7001
49113-7001
|
|||
|
|
92009-7002
92009-7002
|
|||
|
|
92145-7003
92145-7003
|
|||
|
|
92150-2182
92150-2182
|
|||
|
|
92151-7006
92151-7006
|
|||
|
|
92170-7001
92170-7001
|
|||
|
|
92145-7004
92145-7004
|
|||
|
|
92145-7005
92145-7005
|

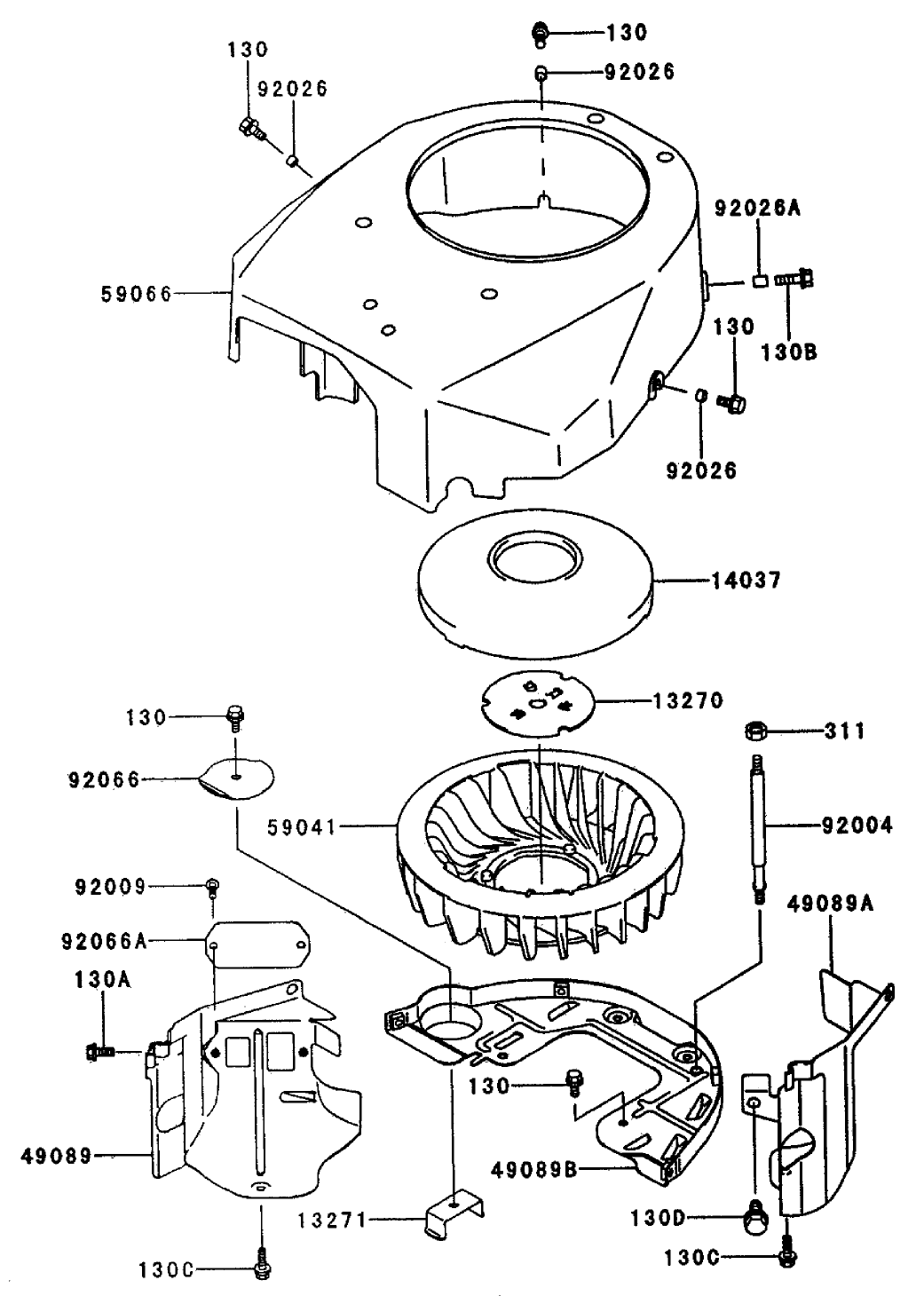

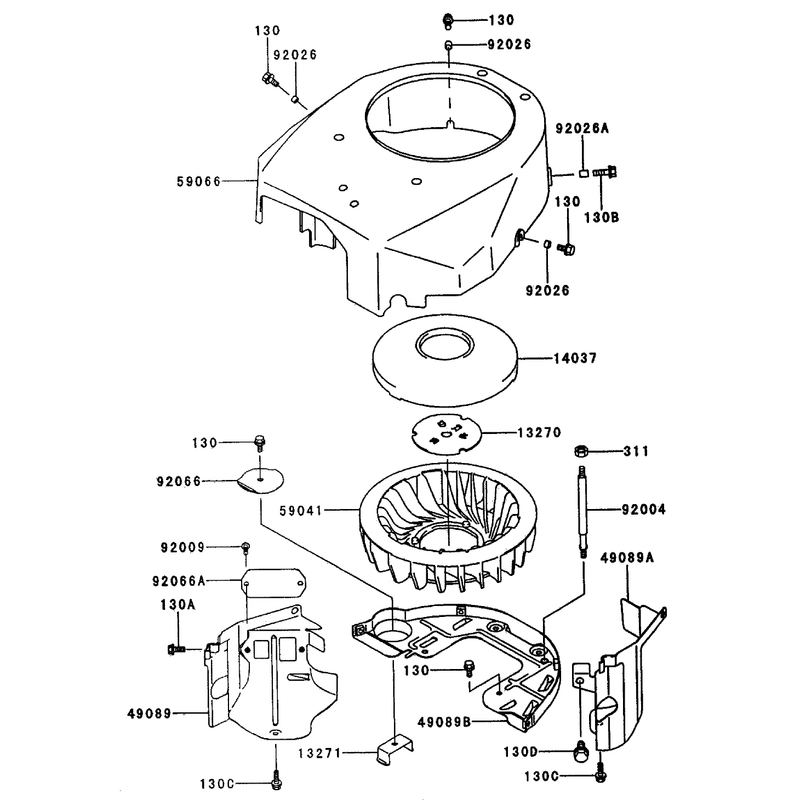

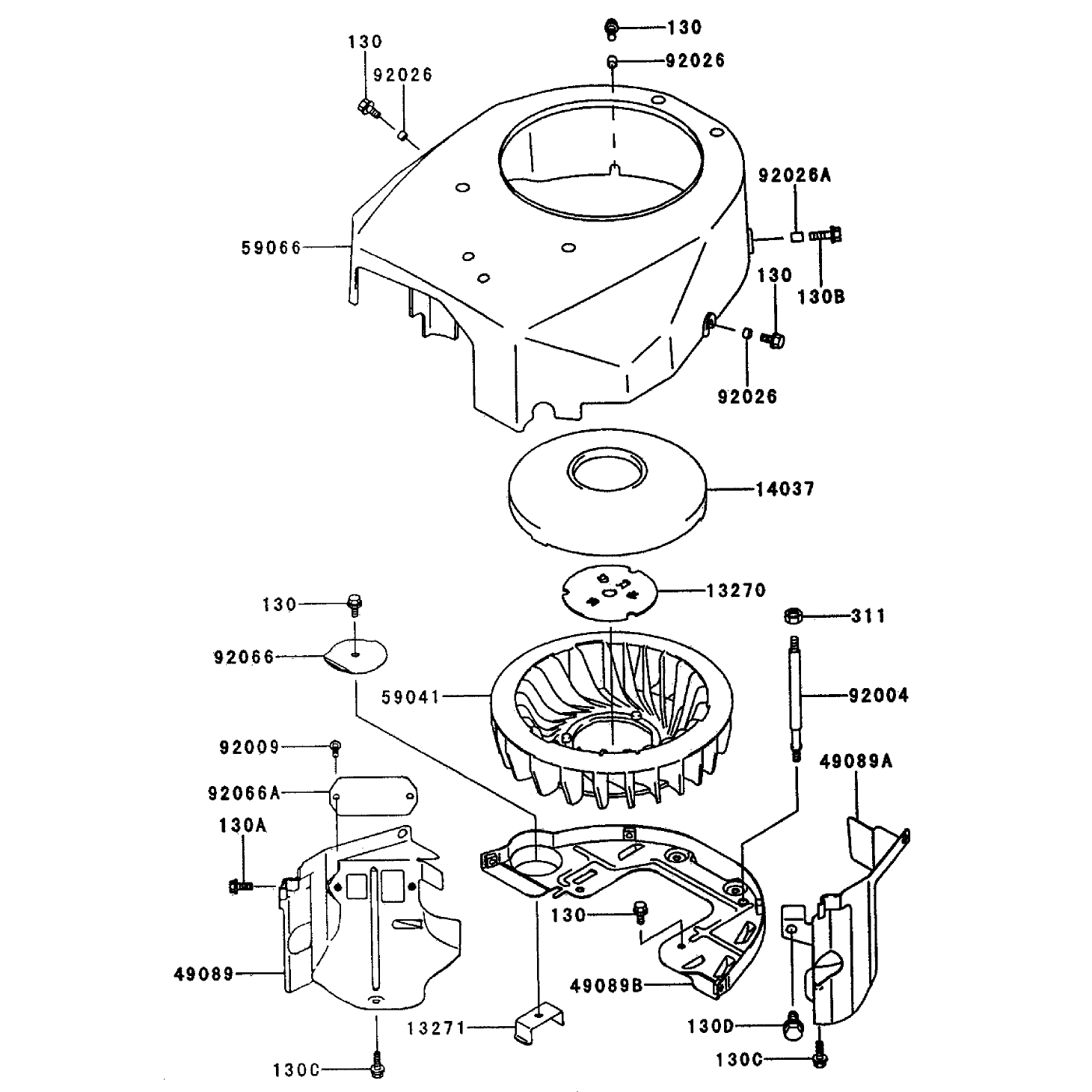

Cooling Equipment Assembly Kawasaki Fh500v As25
Cooling Equipment Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130B0612
130B0612
|
|||
|
|
311B0600
311B0600
|
|||
|
|
13270-7007
13270-7007
|
|||
|
|
13271-7002
13271-7002
|
|||
|
|
|
|||
|
|
49089-7001
49089-7001
|
|||
|
|
59041-7001
59041-7001
|
|||
|
|
59066-7002
59066-7002
|
|||
|
|
92004-7006
92004-7006
|
|||
|
|
92009-2308
92009-2308
|
|||
|
|
92026-7001
92026-7001
|
|||
|
|
92066-7004
92066-7004
|
|||
|
|
130B0616
130B0616
|
|||
|
|
130B0620
130B0620
|
|||
|
|
130B0625
130B0625
|
|||
|
|
130B0816
130B0816
|
|||
|
|
49089-7002
49089-7002
|
|||
|
|
49089-7003
49089-7003
|
|||
|
|
92026-7003
92026-7003
|
|||
|
|
92066-7004
92066-7004
|

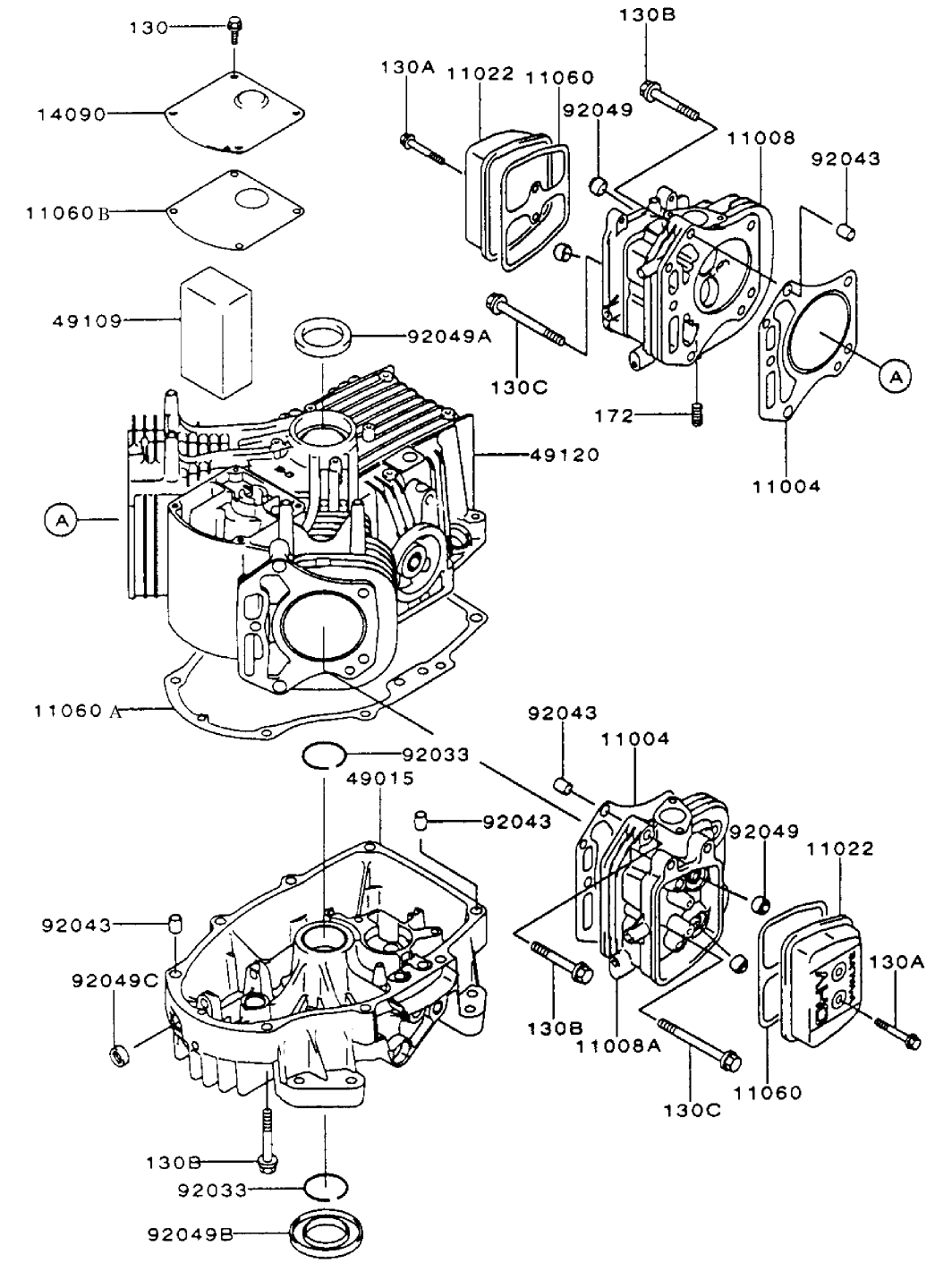

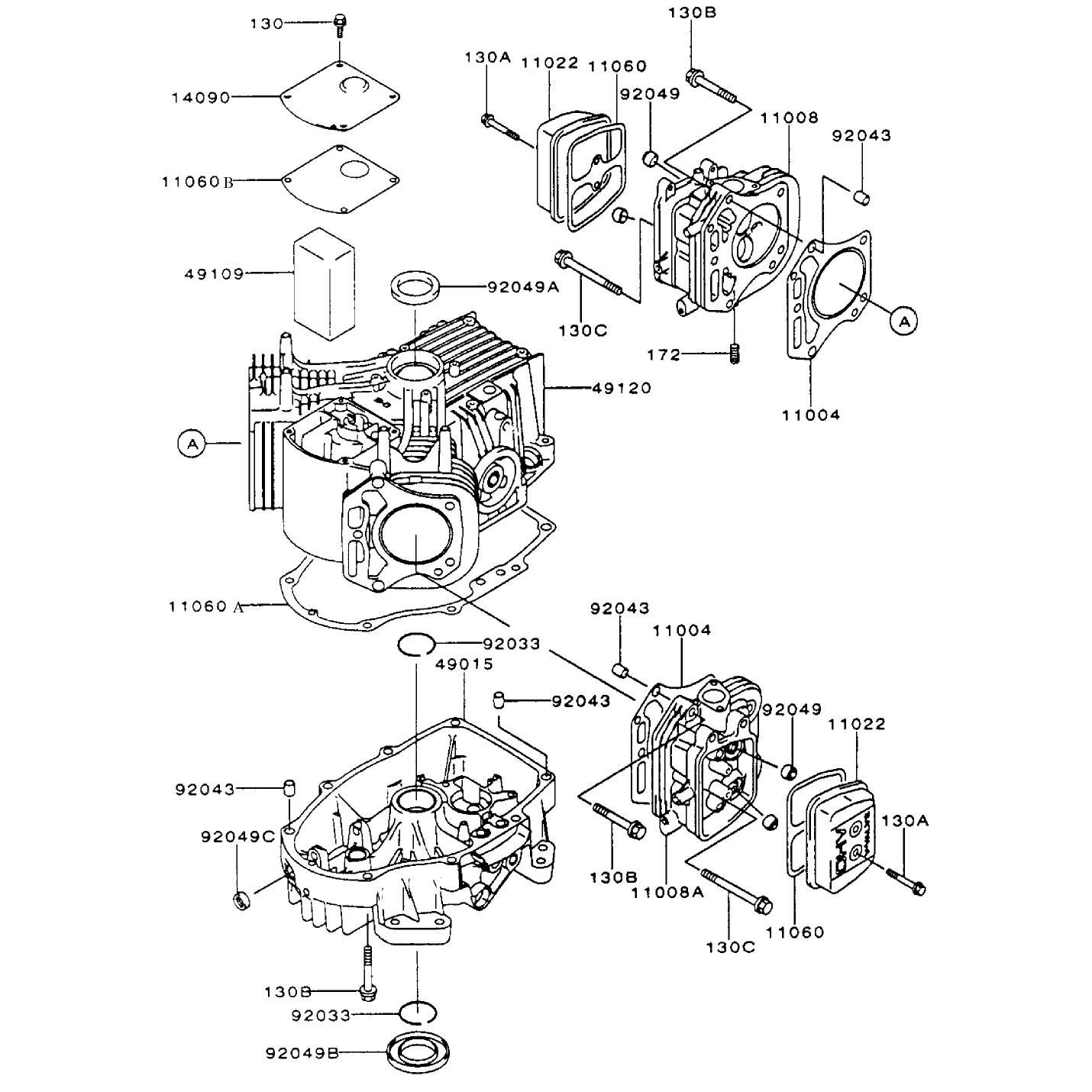

Cylindercrankcase Assembly Kawasaki Fh500v As25
Cylindercrankcase Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130B0612
130B0612
|
|||
|
|
172G0818
172G0818
|
|||
|
|
11004-7001
11004-7001
|
|||
|
|
11008-7001
11008-7001
|
|||
|
|
11022-7001
11022-7001
|
|||
|
|
11060-7001
11060-7001
|
|||
|
|
14090-7001
14090-7001
|
|||
|
|
49015-6215
49015-6215
|
|||
|
|
49109-7002
49109-7002
|
|||
|
|
49120-6119
49120-6119
|
|||
|
|
92033-7003
92033-7003
|
|||
|
|
92043-7001
92043-7001
|
|||
|
|
92049-7001
92049-7001
|
|||
|
|
11008-7002
11008-7002
|
|||
|
|
11060-7008
11060-7008
|
|||
|
|
11060-7015
11060-7015
|
|||
|
|
130B0640
130B0640
|
|||
|
|
130T0850
130T0850
|
|||
|
|
130T0875
130T0875
|
|||
|
|
92049-7002
92049-7002
|
|||
|
|
92049-7004
92049-7004
|
|||
|
|
92049-7005
92049-7005
|

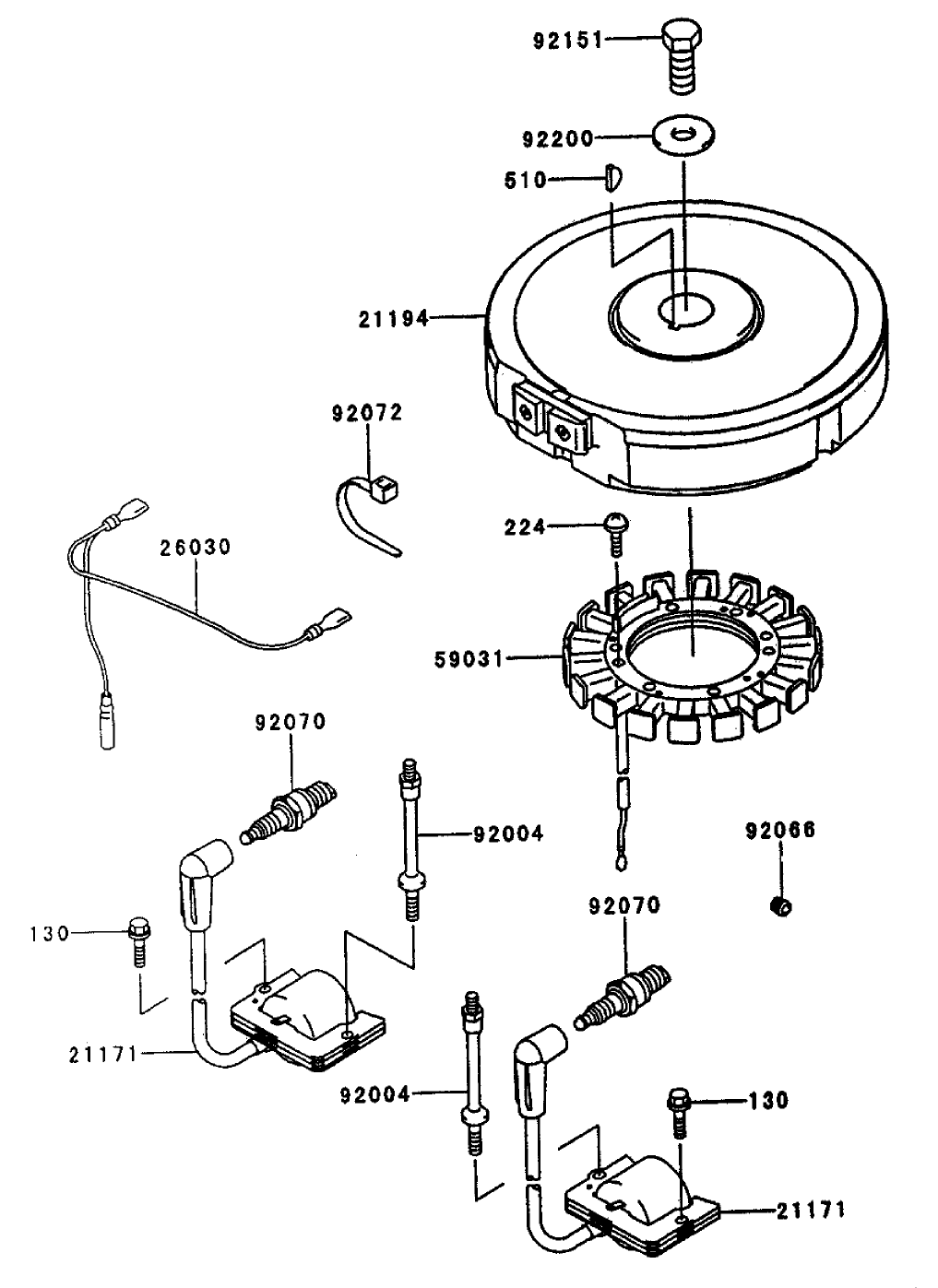

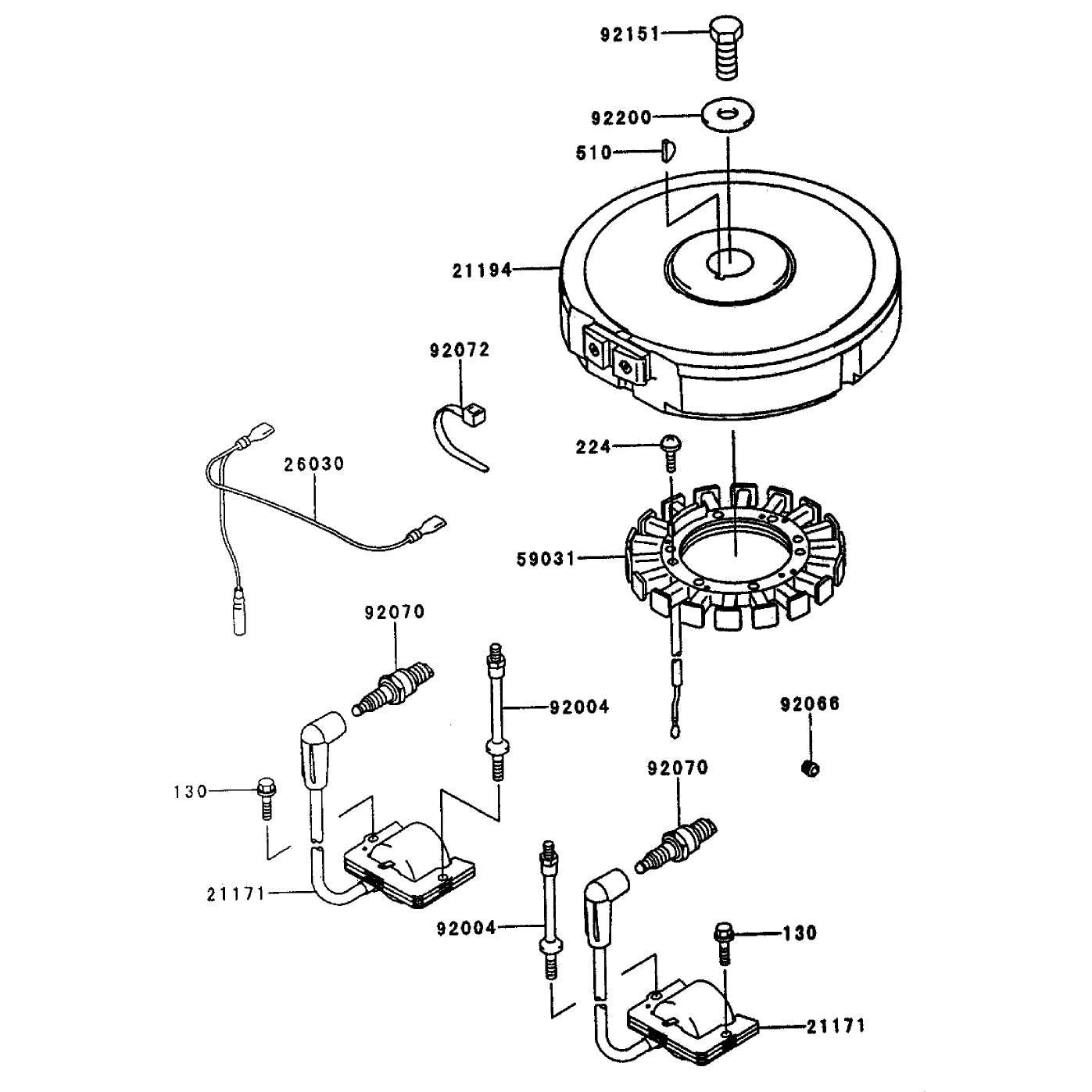

Electric Equipment Assembly Kawasaki Fh500v As25
Electric Equipment Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130B0620
130B0620
|
|||
|
|
224B0520
224B0520
|
|||
|
|
510A5100
510A5100
|
|||
|
|
21171-7001
21171-7001
|
|||
|
|
21193-7001
21193-7001
|
|||
|
|
26030-7001
26030-7001
|
|||
|
|
59031-7002
59031-7002
|
|||
|
|
92004-2147
92004-2147
|
|||
|
|
92066-7002
92066-7002
|
|||
|
|
92070-7001
92070-7001
|
|||
|
|
92072-7001
92072-7001
|
|||
|
|
92151-2097
92151-2097
|
|||
|
|
92220-7002
92220-7002
|

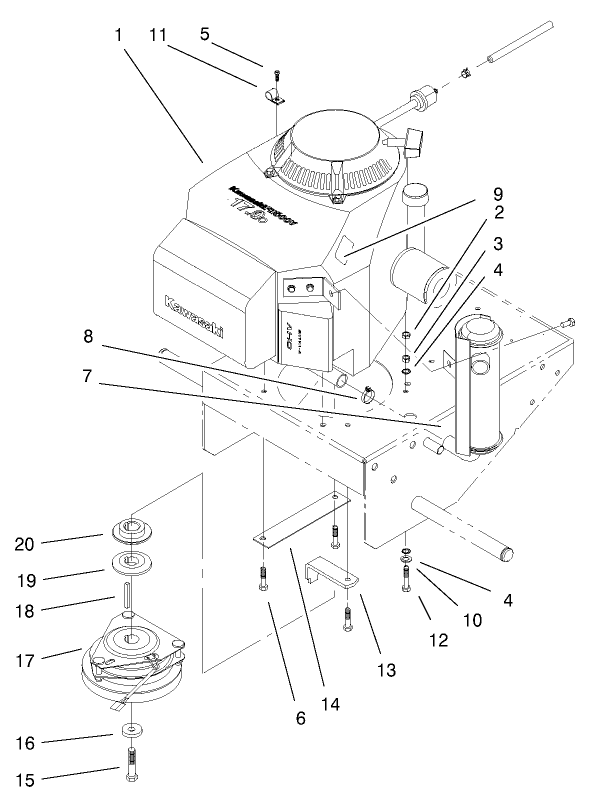

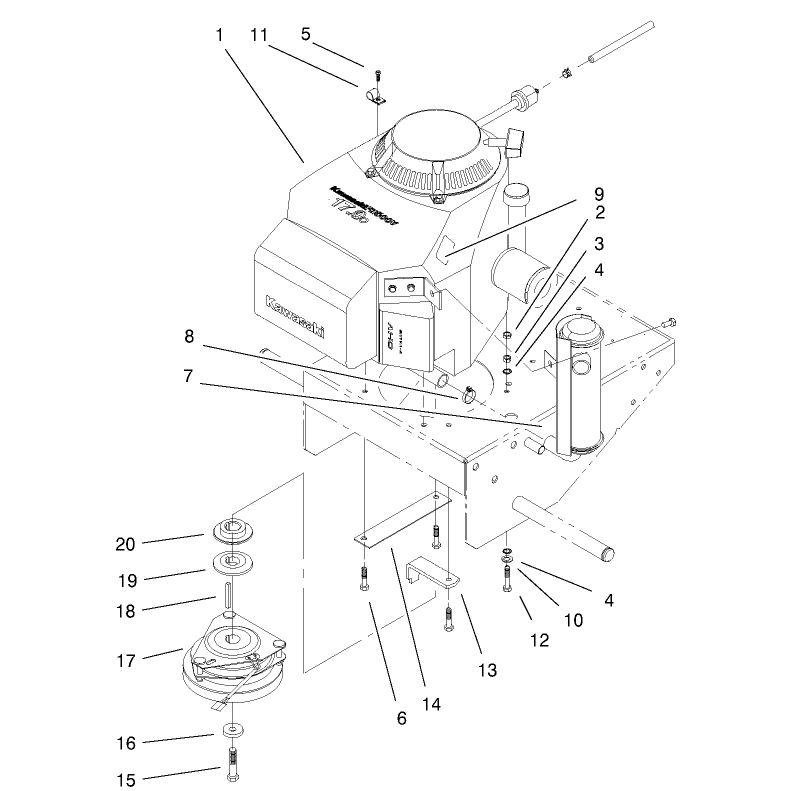

Engine and Muffler Assembly
Engine and Muffler Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
100-6465
100-6465
|
|||
|
|
3217-6
3217-6
|
|||
|
|
32152-1
32152-1
|
|||
|
|
3255-8
3255-8
|
|||
|
|
3296-29
3296-29
|
|||
|
|
322-7
322-7
|
|||
|
|
100-6467
100-6467
|
|||
|
|
100-6468
100-6468
|
|||
|
|
63-8440
63-8440
|
|||
|
|
3256-23
3256-23
|
|||
|
|
2412-93
2412-93
|
|||
|
|
322-9
322-9
|
|||
|
|
51-4540-03
51-4540-03
|
|||
|
|
94-5847-01
94-5847-01
|
|||
|
|
3212-9
3212-9
|
|||
|
|
112843
112843
|
|||
|
|
105-2635
105-2635
|
|||
|
|
608006
608006
|
|||
|
|
74-0050
74-0050
|
|||
|
|
74-0060
74-0060
|

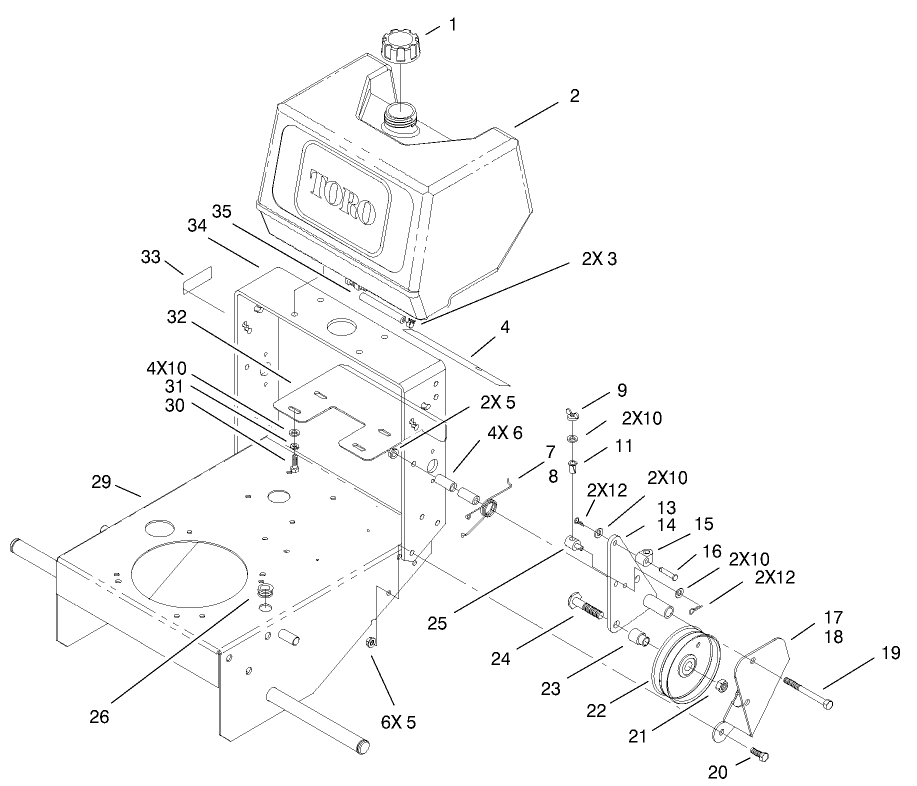

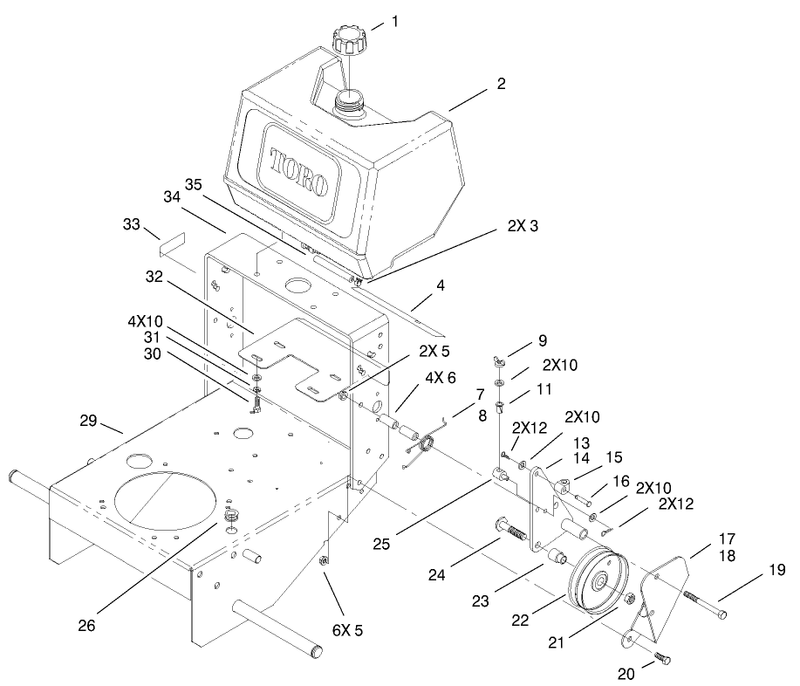

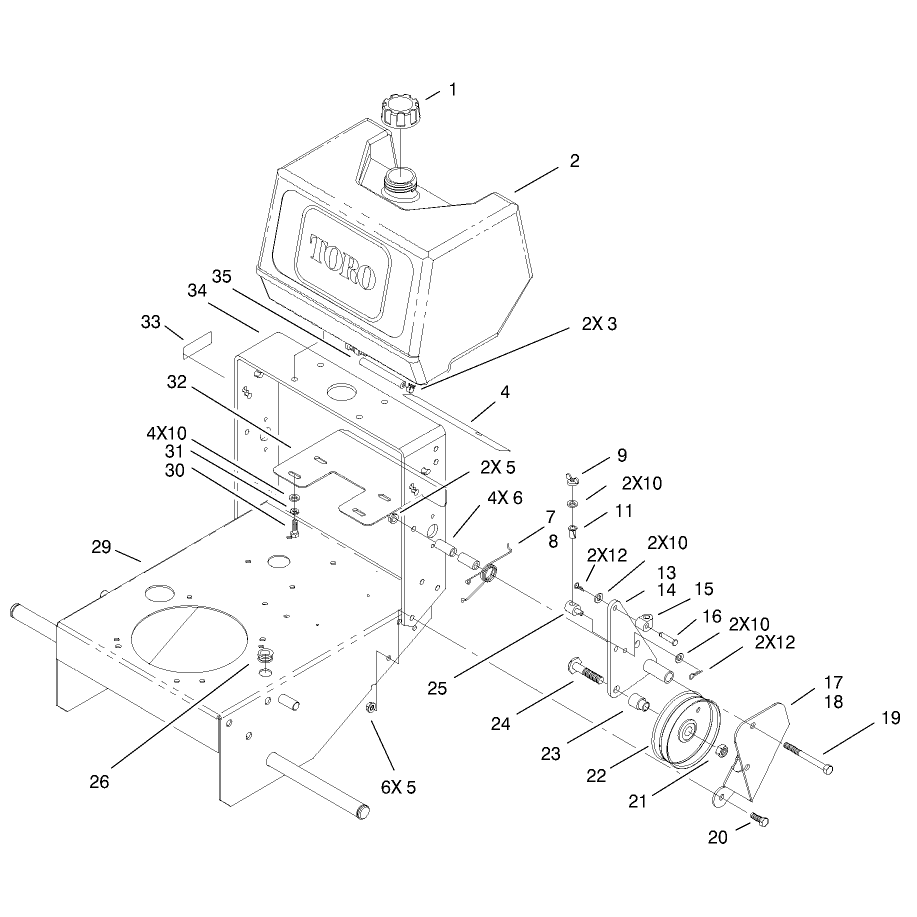

Fuel Tank and Idler Pulley Assembly
Fuel Tank and Idler Pulley Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
55-3570
55-3570
|
|||
|
|
95-2802
95-2802
|
|||
|
|
2412-98
2412-98
|
|||
|
|
82-7750
82-7750
|
|||
|
|
3296-39
3296-39
|
|||
|
|
74-0040
74-0040
|
|||
|
|
51-4370
51-4370
|
|||
|
|
51-4380
51-4380
|
|||
|
|
32103-25
32103-25
|
|||
|
|
3256-23
3256-23
|
|||
|
|
52-2890
52-2890
|
|||
|
|
1-806003
1-806003
|
|||
|
|
74-0230-01
74-0230-01
|
|||
|
|
74-0220-01
74-0220-01
|
|||
|
|
74-0521
74-0521
|
|||
|
|
283-6
283-6
|
|||
|
|
67-6370-01
67-6370-01
|
|||
|
|
67-6380-01
67-6380-01
|
|||
|
|
323-16
323-16
|
|||
|
|
323-6
323-6
|
|||
|
|
3296-23
3296-23
|
|||
|
|
95-2800
95-2800
|
|||
|
|
95-2801
95-2801
|
|||
|
|
51-4450
51-4450
|
|||
|
|
68-9690
68-9690
|
|||
|
|
237-124
237-124
|
|||
|
|
93-1156-01
93-1156-01
|
|||
|
|
322-4
322-4
|
|||
|
|
3253-4
3253-4
|
|||
|
|
66-7400-01
66-7400-01
|
|||
|
|
95-2814
95-2814
|
|||
|
|
74-0360-01
74-0360-01
|
|||
|
|
107-0589
107-0589
|

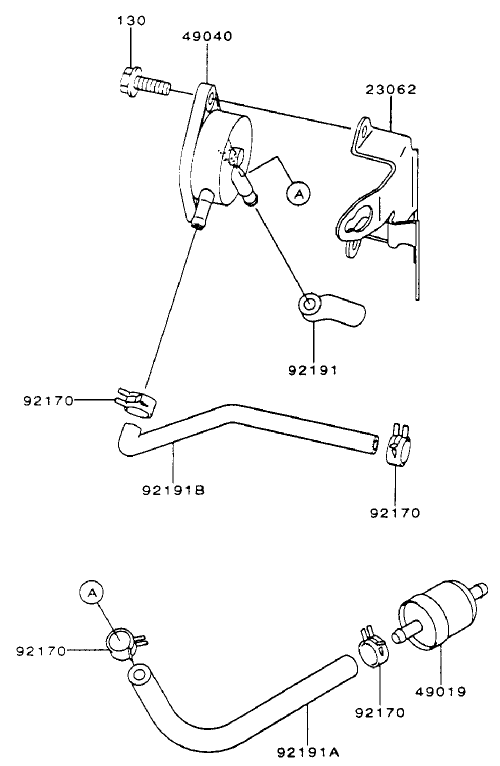

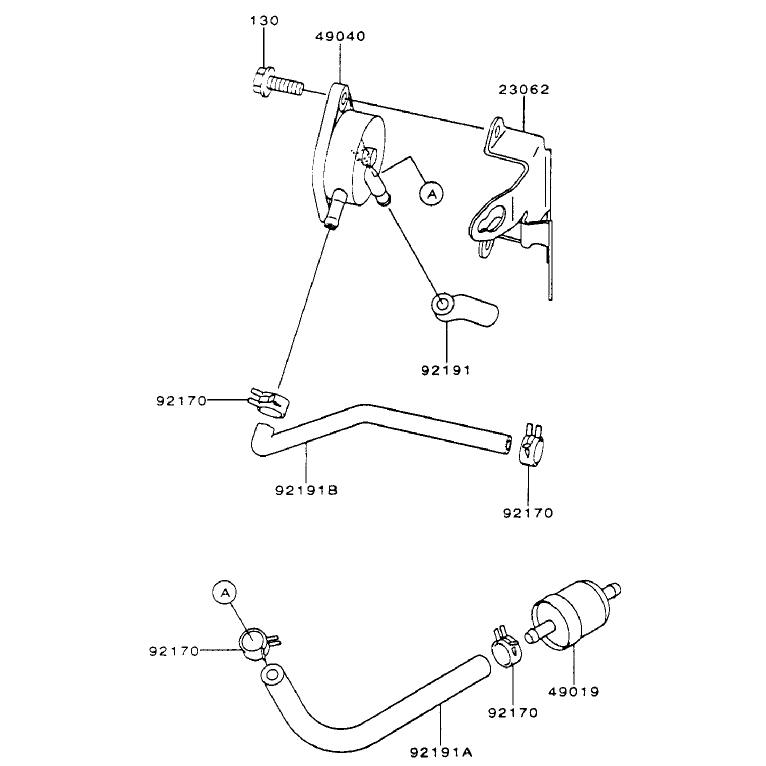

Fuel Tankfuel Valve Assembly Kawasaki Fh500v As25
Fuel Tankfuel Valve Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130B0620
130B0620
|
|||
|
|
23062-7001-9H
23062-7001-9H
|
|||
|
|
49019-7001
49019-7001
|
|||
|
|
49040-2075
49040-2075
|
|||
|
|
92170-2088
92170-2088
|
|||
|
|
92191-7002
92191-7002
|
|||
|
|
92191-7003
92191-7003
|
|||
|
|
92191-7004
92191-7004
|

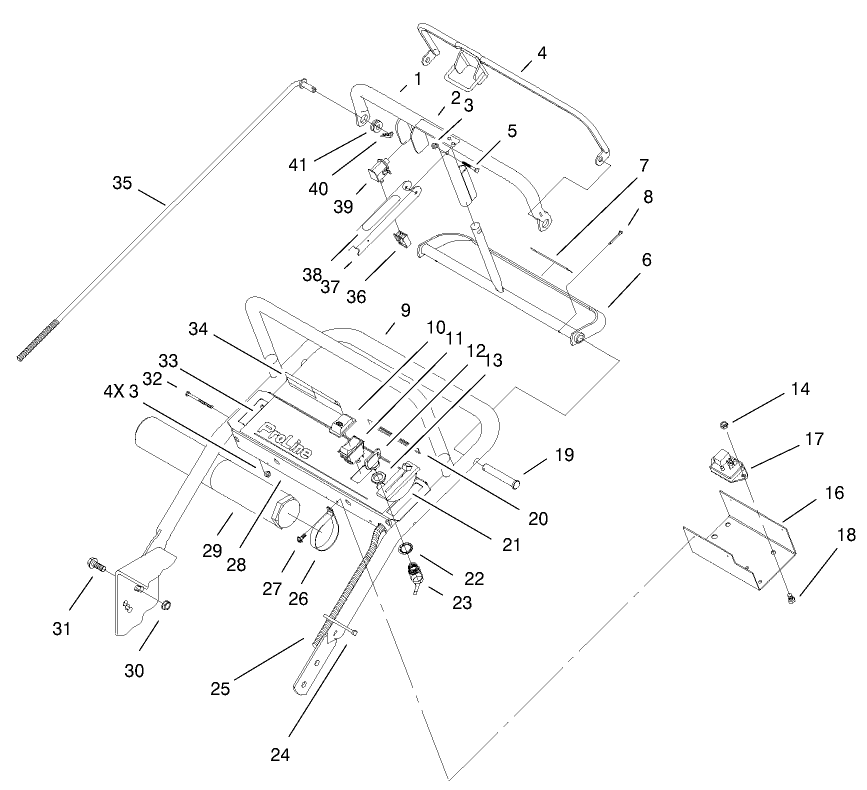

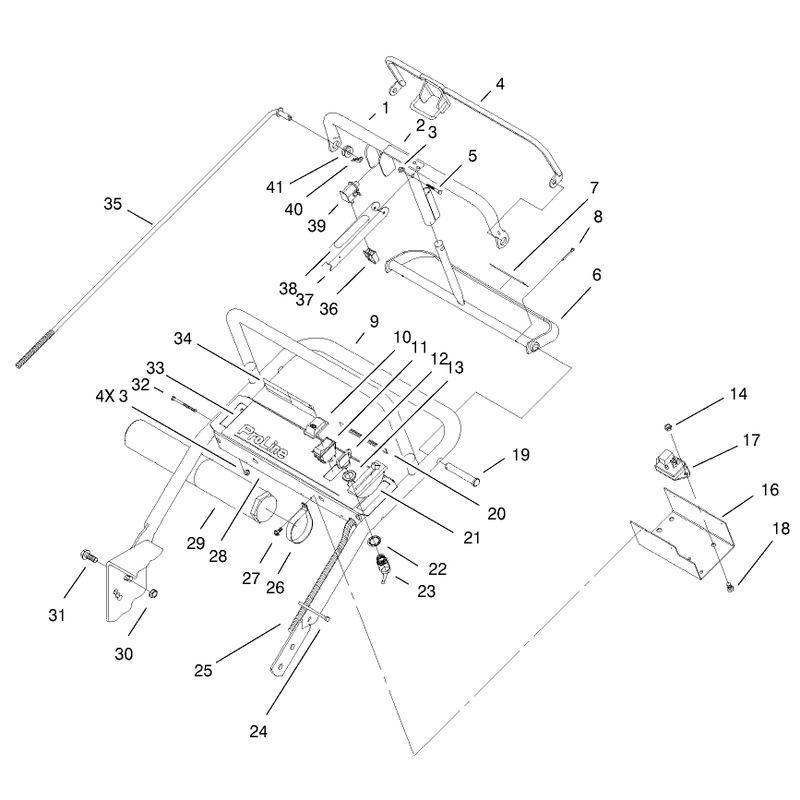

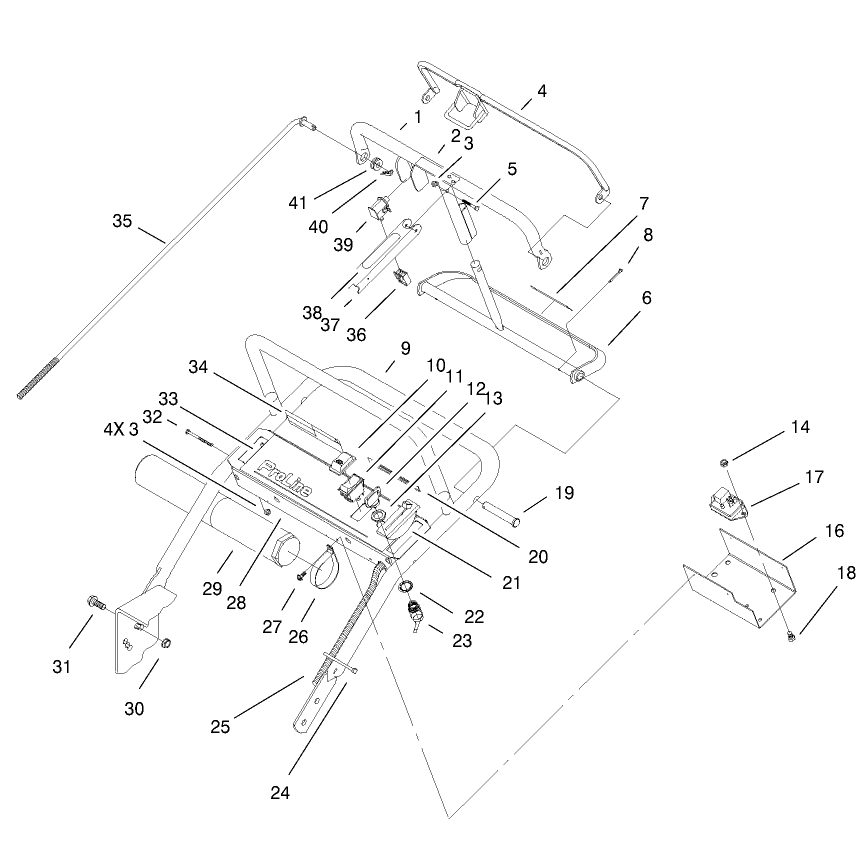

Handle and Controls Assembly
Handle and Controls Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
82-7690-03
82-7690-03
|
|||
|
|
82-2290
82-2290
|
|||
|
|
3296-2
3296-2
|
|||
|
|
82-7680-03
82-7680-03
|
|||
|
|
32105-1
32105-1
|
|||
|
|
106-5477-03
106-5477-03
|
|||
|
|
82-2280
82-2280
|
|||
|
|
3272-11
3272-11
|
|||
|
|
67-6440-01
67-6440-01
|
|||
|
|
82-3820
82-3820
|
|||
|
|
121-8032
121-8032
|
|||
|
|
63-8360
63-8360
|
|||
|
|
218-461
218-461
|
|||
|
|
3296-42
3296-42
|
|||
|
|
93-1187-03
93-1187-03
|
|||
|
|
100-6170
100-6170
|
|||
|
|
321-2
321-2
|
|||
|
|
283-55
283-55
|
|||
|
|
65-3090
65-3090
|
|||
|
|
100-6450
100-6450
|
|||
|
|
3254-5
3254-5
|
|||
|
|
29-5560
29-5560
|
|||
|
|
3290-378
3290-378
|
|||
|
|
100-3294
100-3294
|
|||
|
|
2412-120
2412-120
|
|||
|
|
32104-76
32104-76
|
|||
|
|
82-2180-03
82-2180-03
|
|||
|
|
74-0720
74-0720
|
|||
|
|
32128-21
32128-21
|
|||
|
|
3234-11
3234-11
|
|||
|
|
32105-14
32105-14
|
|||
|
|
82-7730
82-7730
|
|||
|
|
71-1280
71-1280
|
|||
|
|
82-7631
82-7631
|
|||
|
|
218-595
218-595
|
|||
|
|
51-4850-03
51-4850-03
|
|||
|
|
52-2010
52-2010
|
|||
|
|
82-2190
82-2190
|
|||
|
|
1-806003
1-806003
|
|||
|
|
237-141
237-141
|

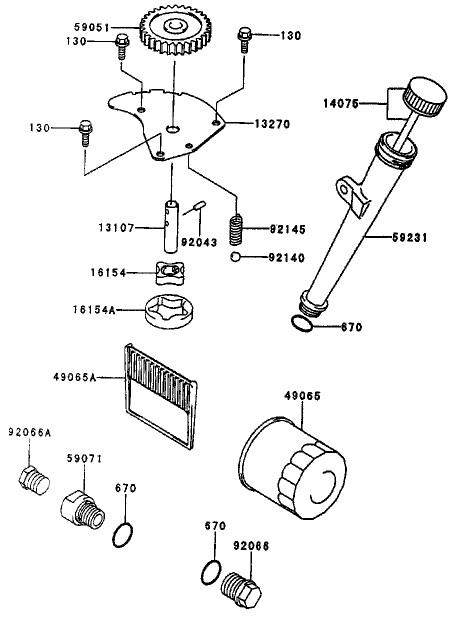

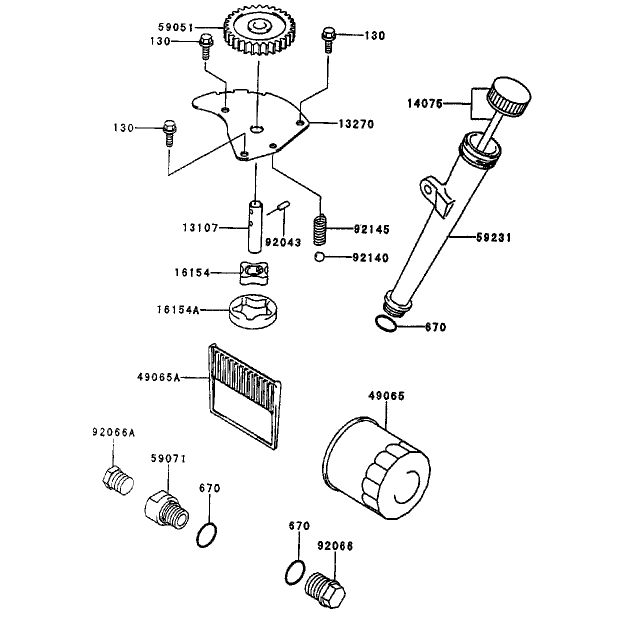

Lubrication Equipment Assembly Kawasaki Fh500v As25
Lubrication Equipment Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130B0612
130B0612
|
|||
|
|
670D2016
670D2016
|
|||
|
|
13107-2099
13107-2099
|
|||
|
|
13270-7004
13270-7004
|
|||
|
|
14075-7001
14075-7001
|
|||
|
|
16154-2053
16154-2053
|
|||
|
|
49065-2078
49065-2078
|
|||
|
|
59051-7004
59051-7004
|
|||
|
|
59071-7004
59071-7004
|
|||
|
|
59231-7001
59231-7001
|
|||
|
|
92043-7003
92043-7003
|
|||
|
|
92066-7003
92066-7003
|
|||
|
|
92140-7003
92140-7003
|
|||
|
|
92145-7002
92145-7002
|
|||
|
|
16154-2054
16154-2054
|
|||
|
|
49065-7001
49065-7001
|
|||
|
|
92066-7006
92066-7006
|

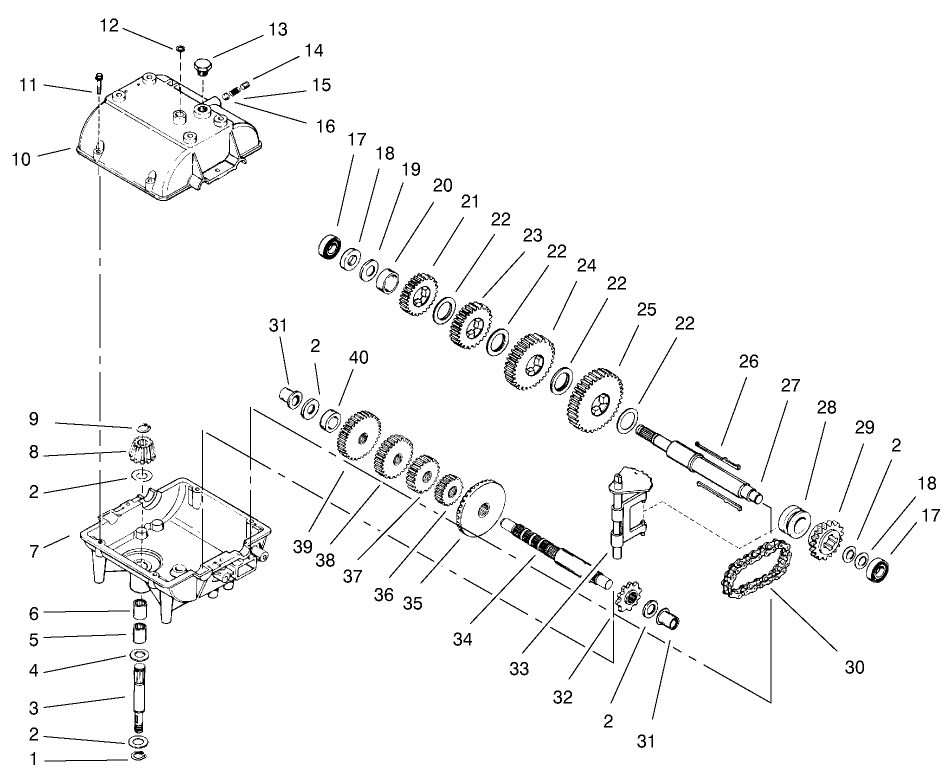

Peerless Transmission Model 700 082
Peerless Transmission Model 700 082
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

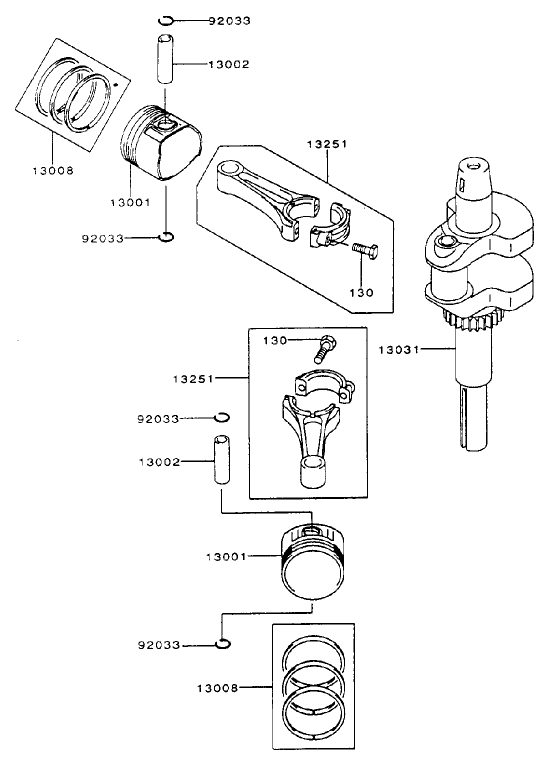

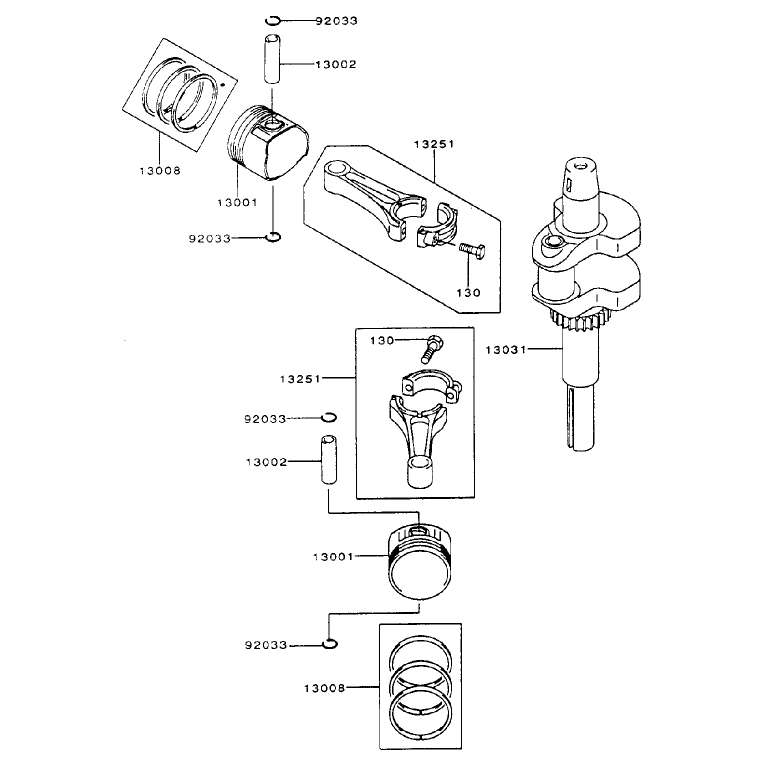

Pistoncrankshaft Assembly Kawasaki Fh500v As25
Pistoncrankshaft Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130G0630
130G0630
|
|||
|
|
13001-7001
13001-7001
|
|||
|
|
13002-7001
13002-7001
|
|||
|
|
13008-6055
13008-6055
|
|||
|
|
13031-7001
13031-7001
|
|||
|
|
13251-7001
13251-7001
|
|||
|
|
92033-7002
92033-7002
|

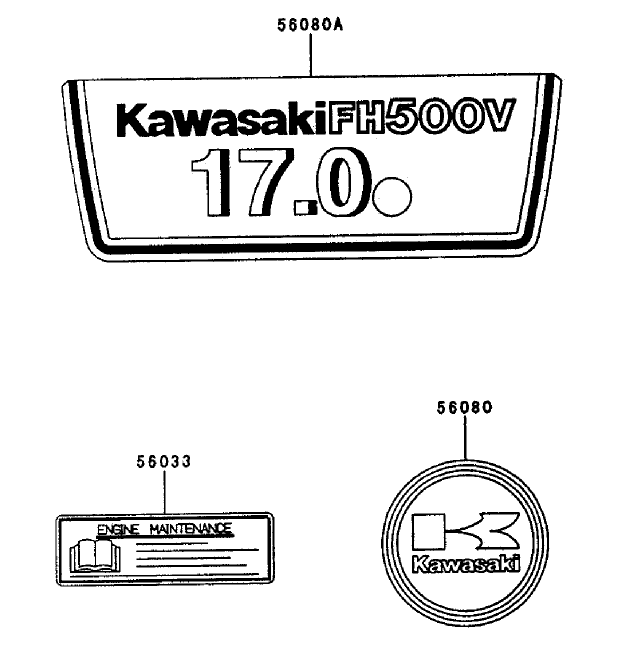

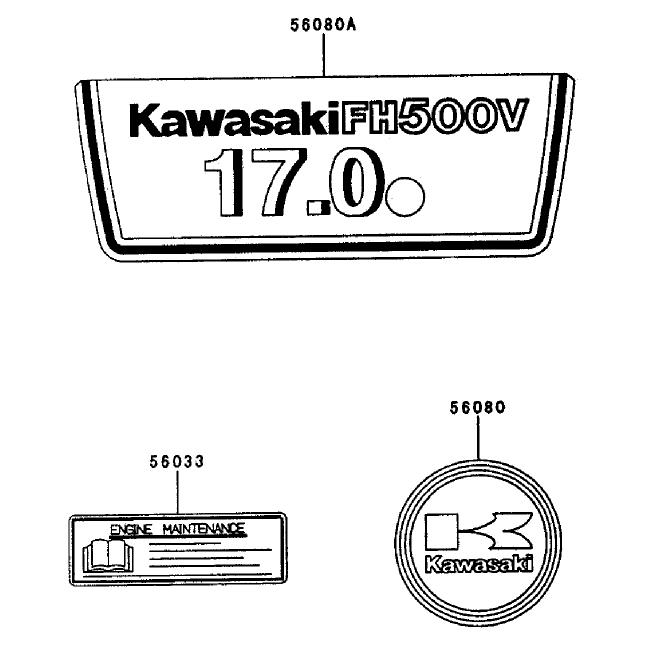

Starterdecals Kawasaki Fh500v As25
Starterdecals Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56033-7001
56033-7001
|
|||
|
|
56080-2077
56080-2077
|
|||
|
|
56080-7001
56080-7001
|

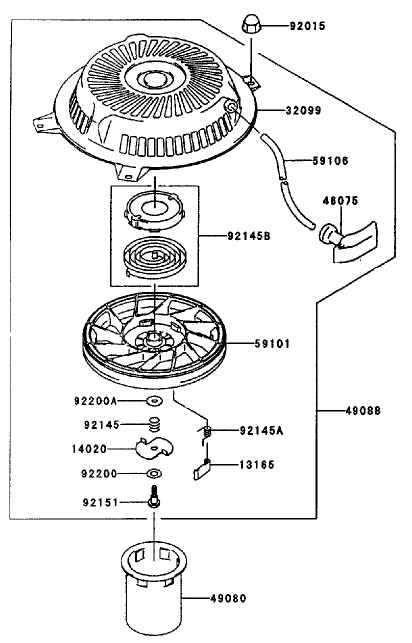

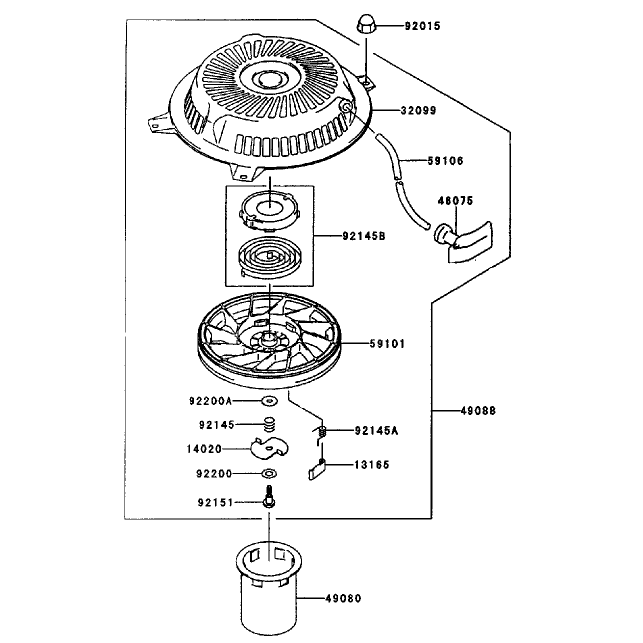

Starter Kawasaki Fh500v As25
Starter Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13165-700
13165-700
|
|||
|
|
14020-7001
14020-7001
|
|||
|
|
32099-7001
32099-7001
|
|||
|
|
46075-7001
46075-7001
|
|||
|
|
49080-7001
49080-7001
|
|||
|
|
49088-7001
49088-7001
|
|||
|
|
59101-7001
59101-7001
|
|||
|
|
59106-7001
59106-7001
|
|||
|
|
92015-1170
92015-1170
|
|||
|
|
92145-7006
92145-7006
|
|||
|
|
|
|||
|
|
|
|||
|
|
92145-7007
92145-7007
|
|||
|
|
92145-7008
92145-7008
|
|||
|
|
92200-7005
92200-7005
|

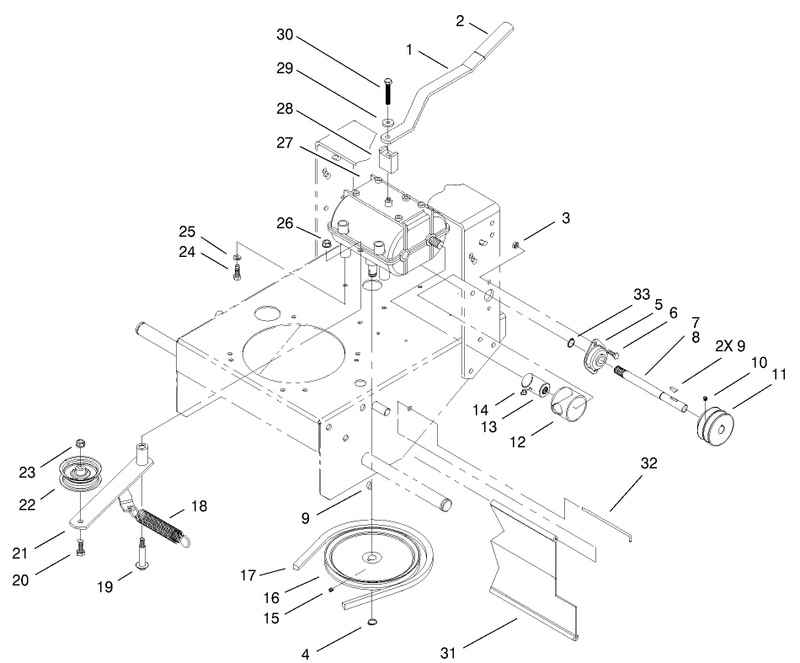

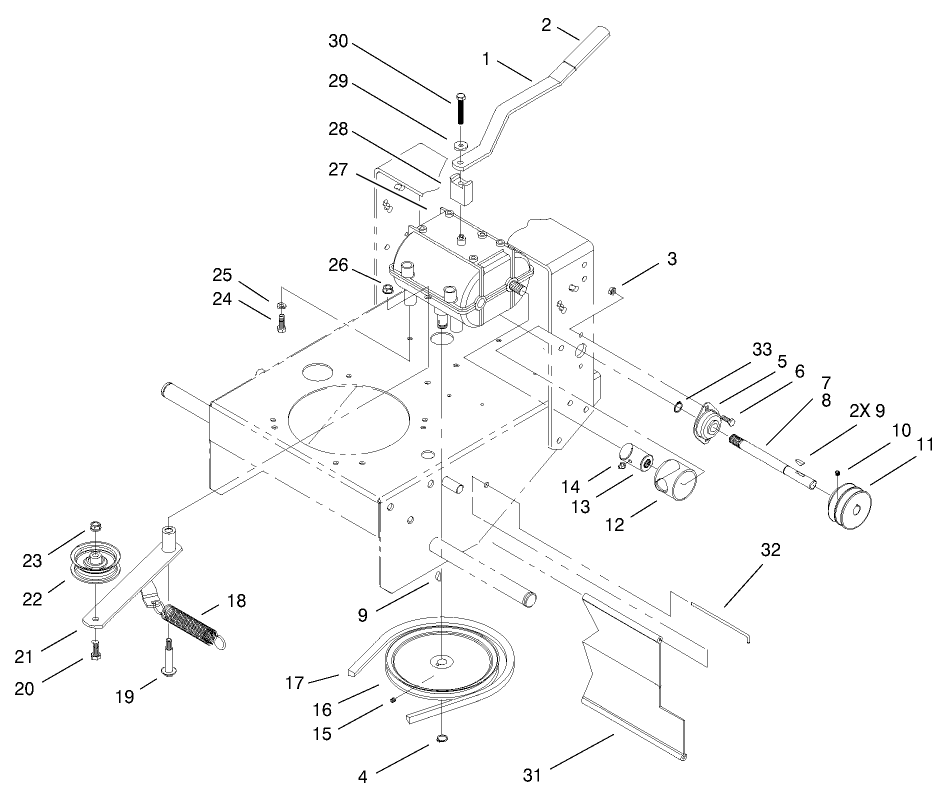

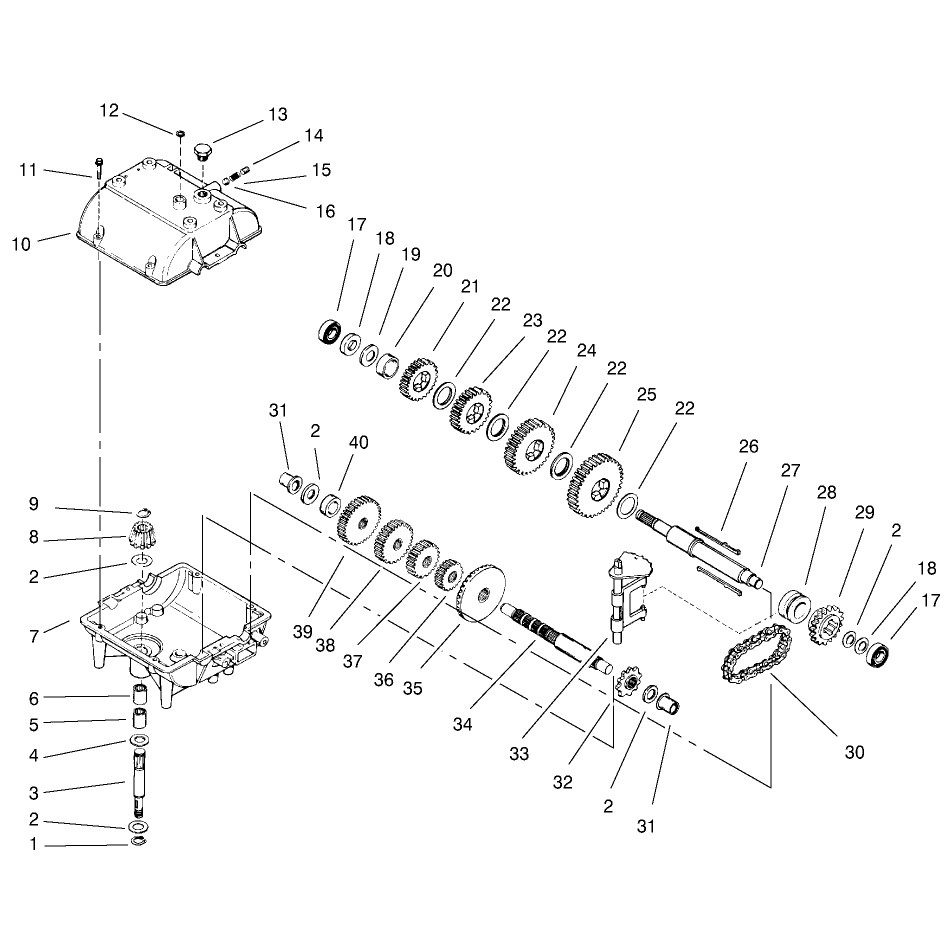

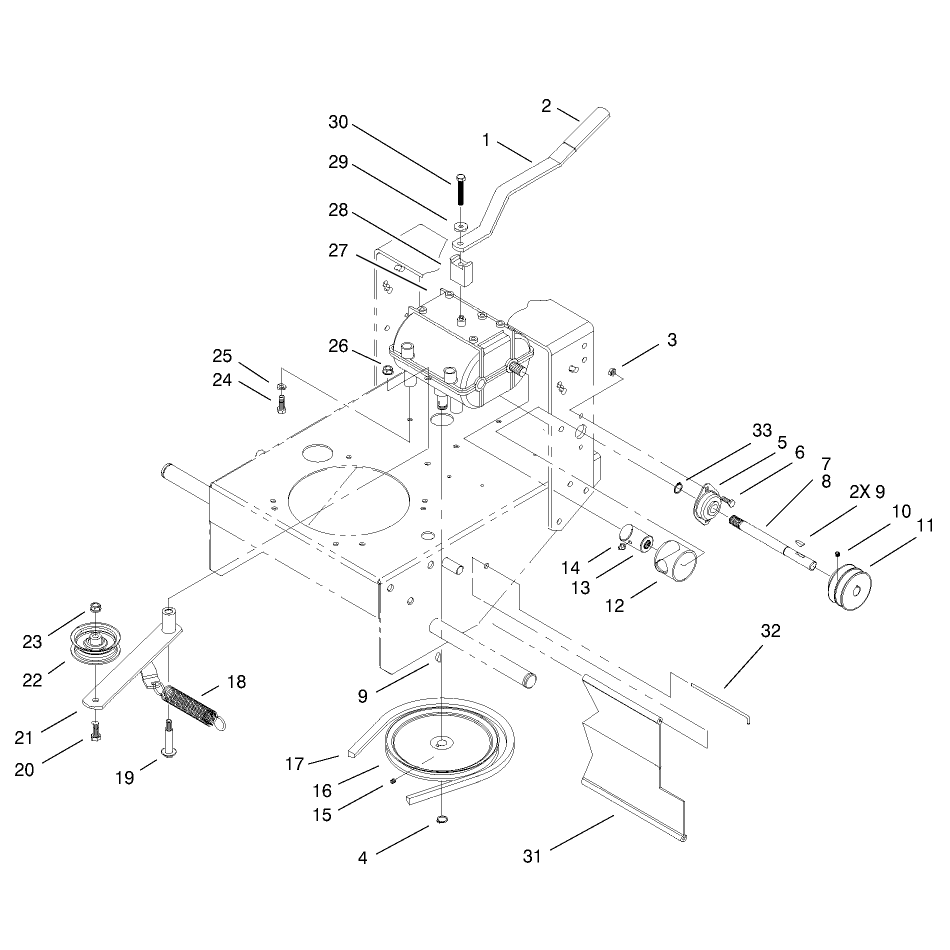

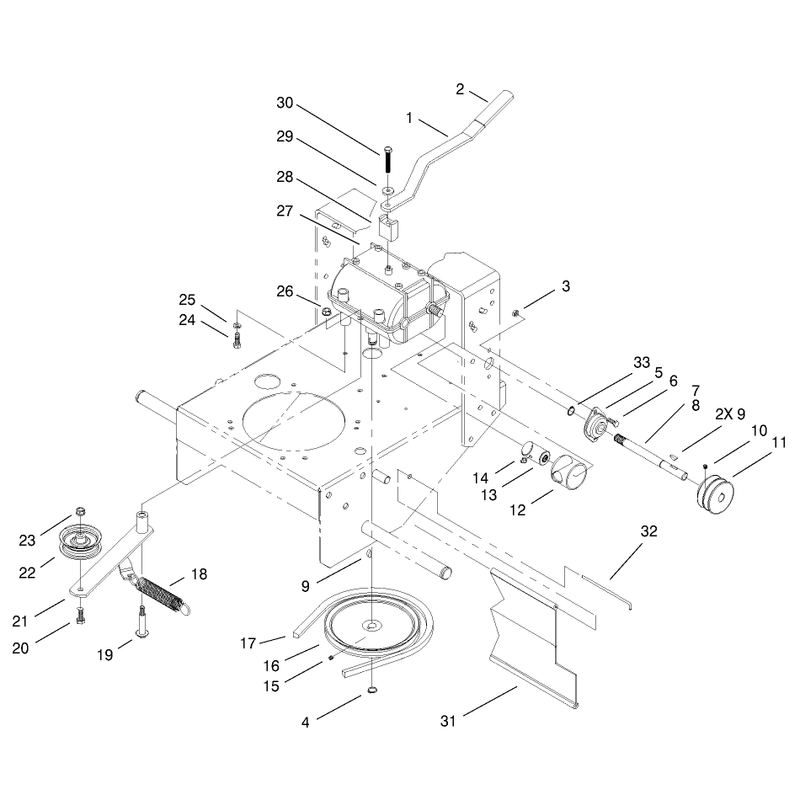

Transmission and Drive Pulley Assembly
Transmission and Drive Pulley Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
74-0320-01
74-0320-01
|
|||
|
|
47-1970
47-1970
|
|||
|
|
3296-42
3296-42
|
|||
|
|
32120-64
32120-64
|
|||
|
|
51-4270
51-4270
|
|||
|
|
321-4
321-4
|
|||
|
|
98-0788
98-0788
|
|||
|
|
98-0787
98-0787
|
|||
|
|
3257-5
3257-5
|
|||
|
|
3245-3
3245-3
|
|||
|
|
105-2698
105-2698
|
|||
|
|
51-4220
51-4220
|
|||
|
|
1-323680
1-323680
|
|||
|
|
302-5
302-5
|
|||
|
|
3245-1
3245-1
|
|||
|
|
51-4190
51-4190
|
|||
|
|
26-9671
26-9671
|
|||
|
|
68-2190
68-2190
|
|||
|
|
27-6230
27-6230
|
|||
|
|
323-8
323-8
|
|||
|
|
16-7509
16-7509
|
|||
|
|
62-4540
62-4540
|
|||
|
|
3296-39
3296-39
|
|||
|
|
322-2
322-2
|
|||
|
|
3253-4
3253-4
|
|||
|
|
3296-6
3296-6
|
|||
|
|
98-0791
98-0791
|
|||
|
|
72-2190
72-2190
|
|||
|
|
7-5461
7-5461
|
|||
|
|
329-10
329-10
|
|||
|
|
95-1526
95-1526
|
|||
|
|
95-1529
95-1529
|
|||
|
|
32151-62
32151-62
|

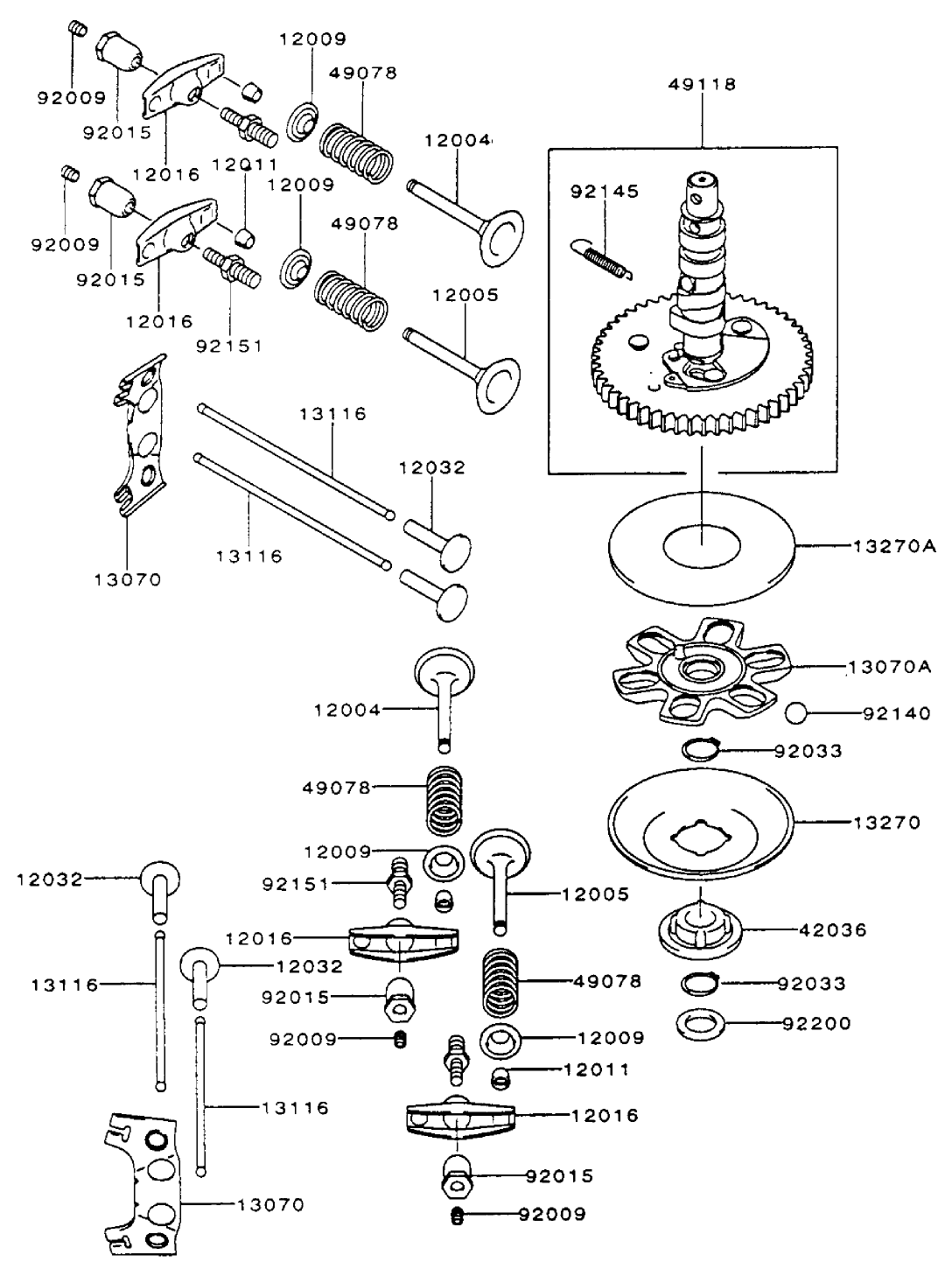

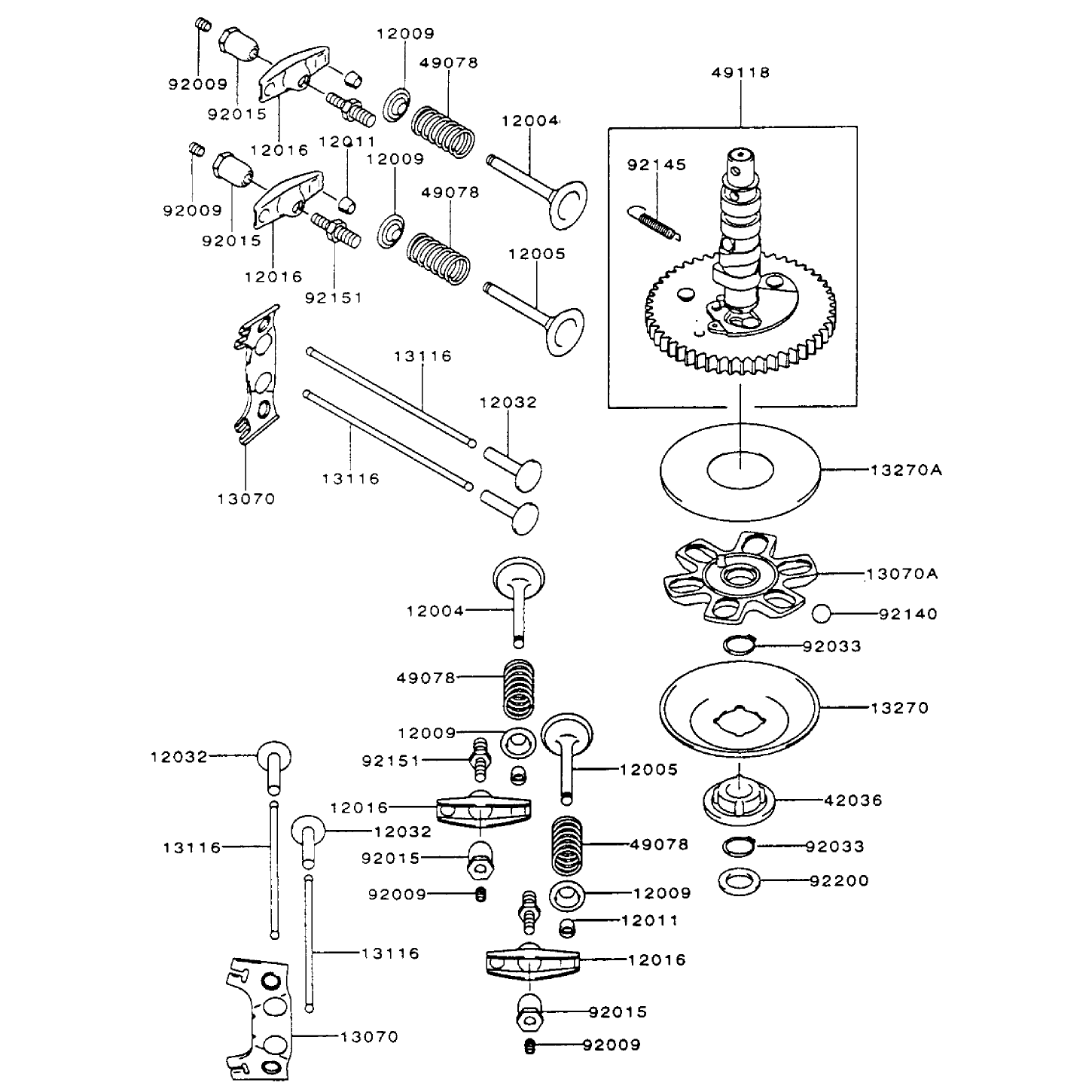

Valvecamshaft Assembly Kawasaki Fh500v As25
Valvecamshaft Assembly Kawasaki Fh500v As25
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12004-7001
12004-7001
|
|||
|
|
12005-7001
12005-7001
|
|||
|
|
12009-7001
12009-7001
|
|||
|
|
12011-2056
12011-2056
|
|||
|
|
12016-7001
12016-7001
|
|||
|
|
12032-7001
12032-7001
|
|||
|
|
13070-7001
13070-7001
|
|||
|
|
13116-2057
13116-2057
|
|||
|
|
13270-7002
13270-7002
|
|||
|
|
42036-7001
42036-7001
|
|||
|
|
49078-7001
49078-7001
|
|||
|
|
49118-7002
49118-7002
|
|||
|
|
92009-2341
92009-2341
|
|||
|
|
92015-2253
92015-2253
|
|||
|
|
92033-7001
92033-7001
|
|||
|
|
92140-7002
92140-7002
|
|||
|
|
92145-7001
92145-7001
|
|||
|
|
92151-7001
92151-7001
|
|||
|
|
92200-7001
92200-7001
|
|||
|
|
13070-7002
13070-7002
|
|||
|
|
13270-7003
13270-7003
|

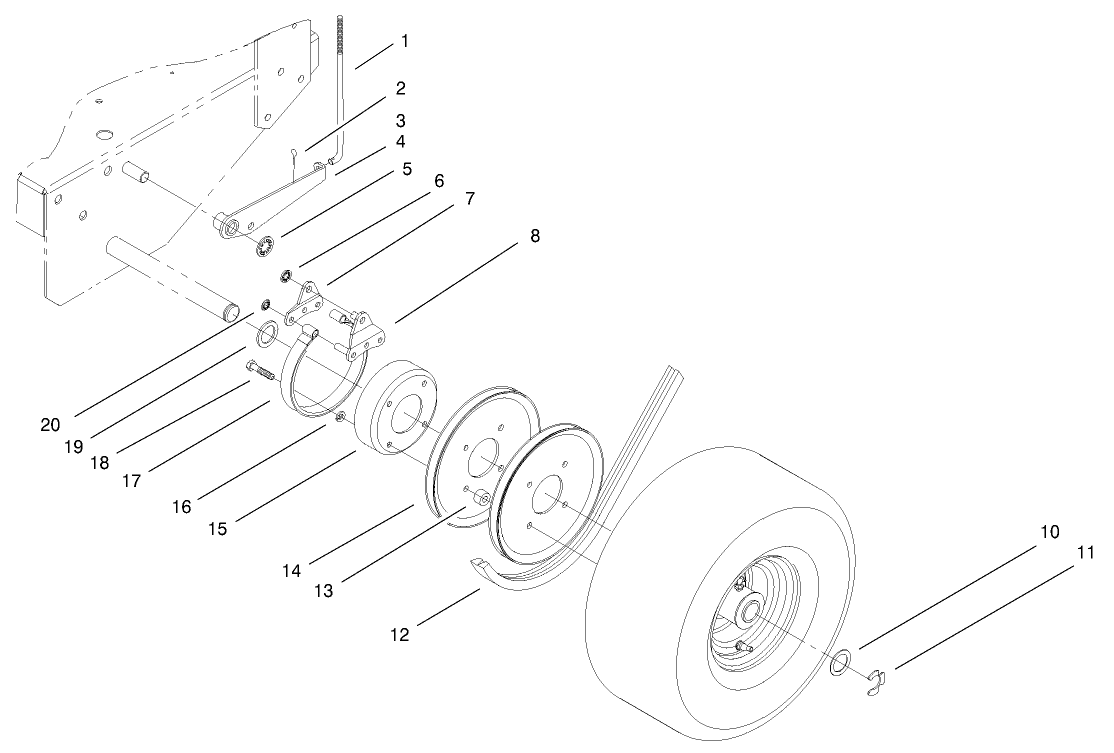

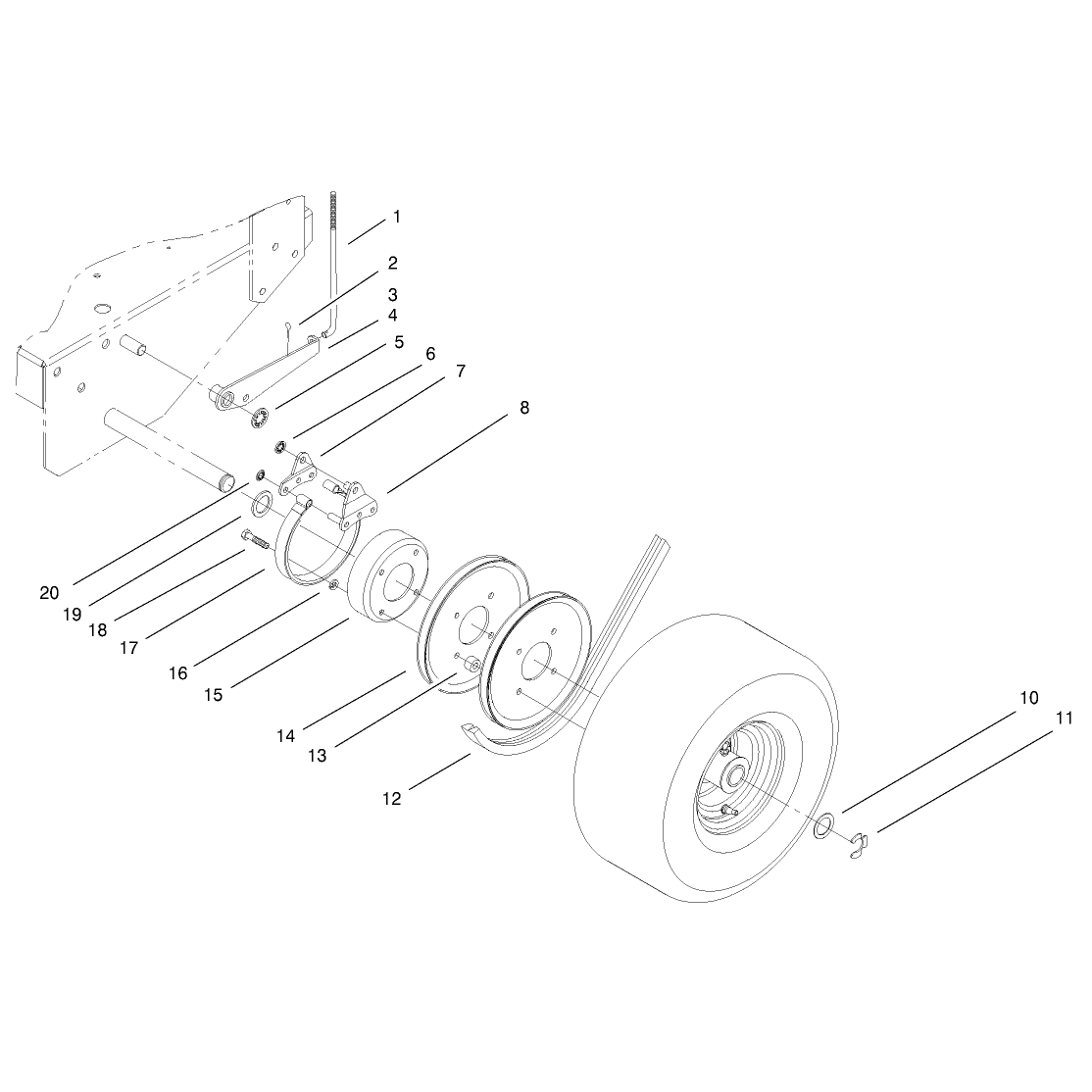

Wheel and Brake Assembly
Wheel and Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
51-4580
51-4580
|
|||
|
|
1-806003
1-806003
|
|||
|
|
106-5537-01
106-5537-01
|
|||
|
|
106-5537-01
106-5537-01
|
|||
|
|
32151-40
32151-40
|
|||
|
|
32151-56
32151-56
|
|||
|
|
51-4660-01
51-4660-01
|
|||
|
|
51-4650-01
51-4650-01
|
|||
|
|
10-8110
10-8110
|
|||
|
|
32151-91
32151-91
|
|||
|
|
51-4290
51-4290
|
|||
|
|
51-4170
51-4170
|
|||
|
|
51-4160-03
51-4160-03
|
|||
|
|
51-4180-03
51-4180-03
|
|||
|
|
3253-4
3253-4
|
|||
|
|
51-4700
51-4700
|
|||
|
|
322-7
322-7
|
|||
|
|
51-4230
51-4230
|
|||
|
|
32151-72
32151-72
|

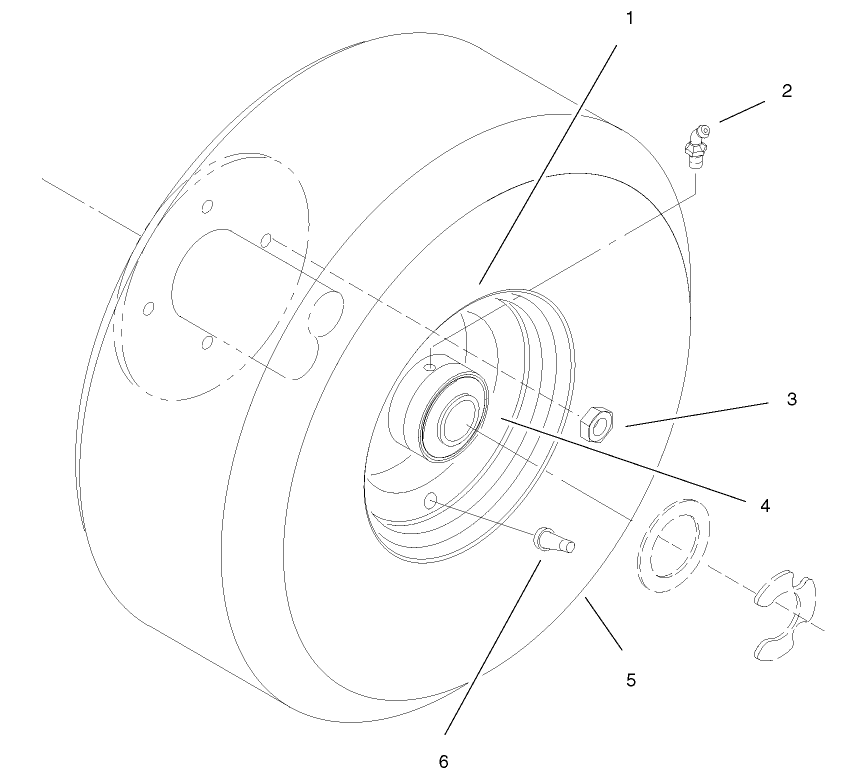

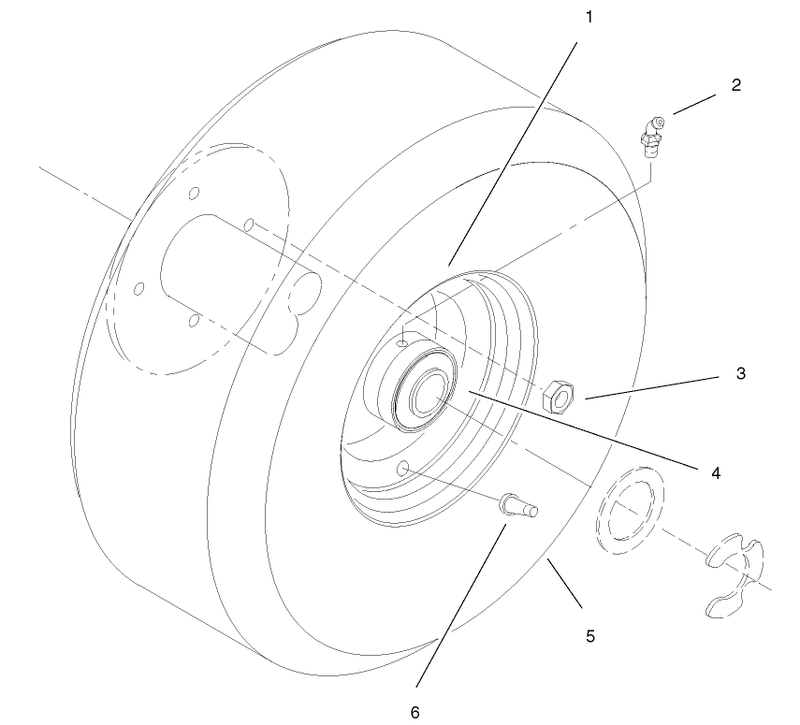

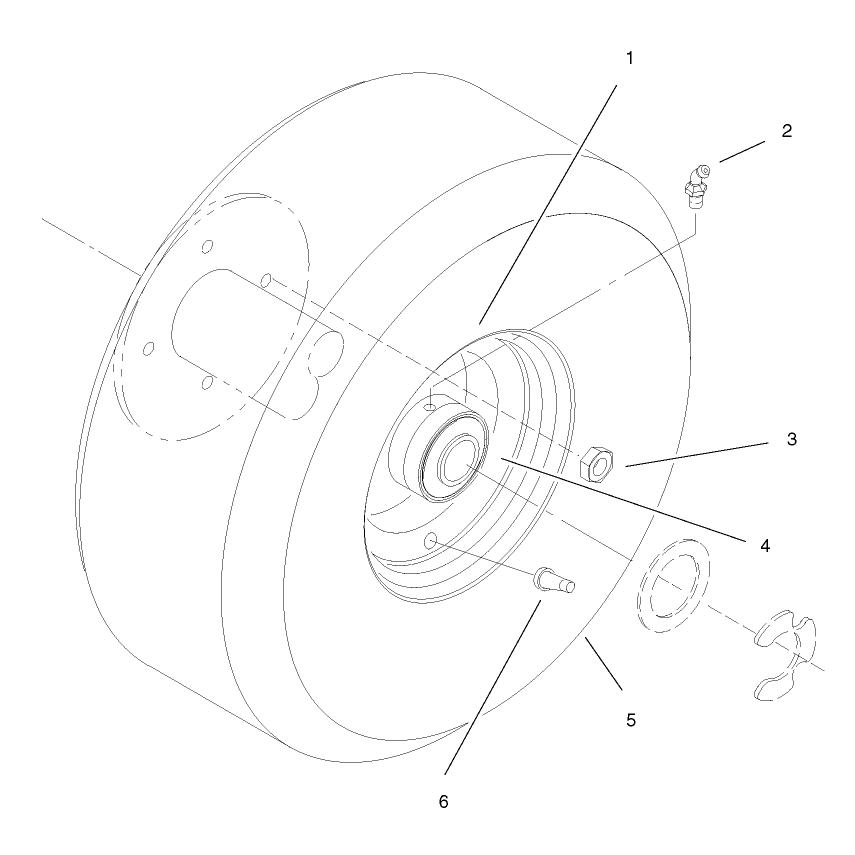

Wheel Assembly
Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
242-80
242-80
|
|||
|
|
302-11
302-11
|
|||
|
|
3296-29
3296-29
|
|||
|
|
92-1746
92-1746
|
|||
|
|
231-111
231-111
|
|||
|
|
5108
5108
|
SUBSCRIBE AND GET EXCLUSIVE DEALS!
Subscribe to our newsletter TODAY and GET $10 OFF your next order of $100 or more. Our newsletter contains special offers, discounts and updates on new EGO products
