Toro 38430 CCR 3000 Snowthrower (Serial #: 8900001 - 8999999) Parts Diagram
Diagrams:
Diagram:

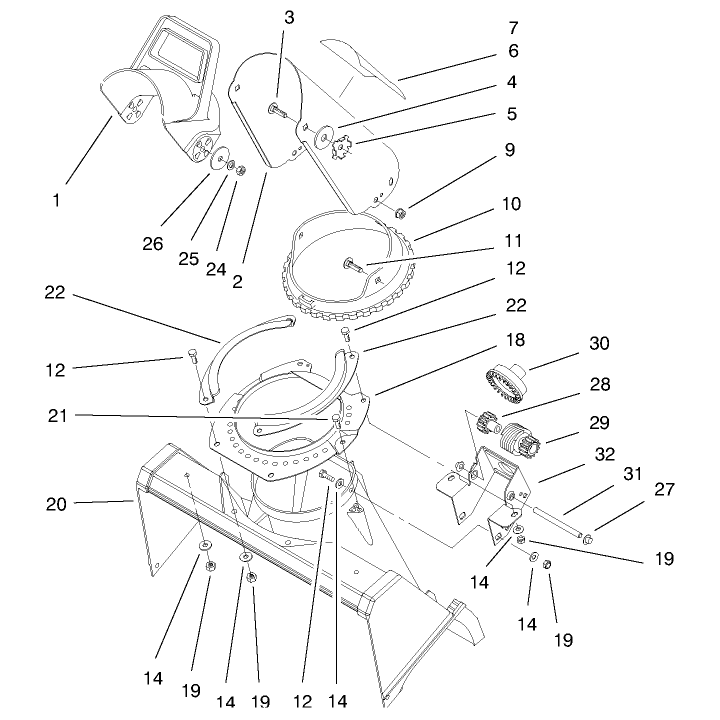

Discharge Chute & Deflector Assembly
Discharge Chute & Deflector Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56-2680
56-2680
|
|||
|
|
94-2790
94-2790
|
|||
|
|
94-2791
94-2791
|
|||
|
|
3230-22
3230-22
|
|||
|
|
20-4320
20-4320
|
|||
|
|
55-8950
55-8950
|
|||
|
|
104-4135
104-4135
|
|||
|
|
94-2901
94-2901
|
|||
|
|
32149-1
32149-1
|
|||
|
|
55-8720
55-8720
|
|||
|
|
3230-18
3230-18
|
|||
|
|
321-4
321-4
|
|||
|
|
3256-22
3256-22
|
|||
|
|
55-8921-03
55-8921-03
|
|||
|
|
3296-42
3296-42
|
|||
|
|
55-8700
55-8700
|
|||
|
|
137-3101
137-3101
|
|||
|
|
55-8910-03
55-8910-03
|
|||
|
|
3296-29
3296-29
|
|||
|
|
3290-456
3290-456
|
|||
|
|
3256-68
3256-68
|
|||
|
|
32112-11
32112-11
|
|||
|
|
55-8750
55-8750
|
|||
|
|
105-3512
105-3512
|
|||
|
|
55-8740
55-8740
|
|||
|
|
55-9150
55-9150
|
|||
|
|
84-5650
84-5650
|

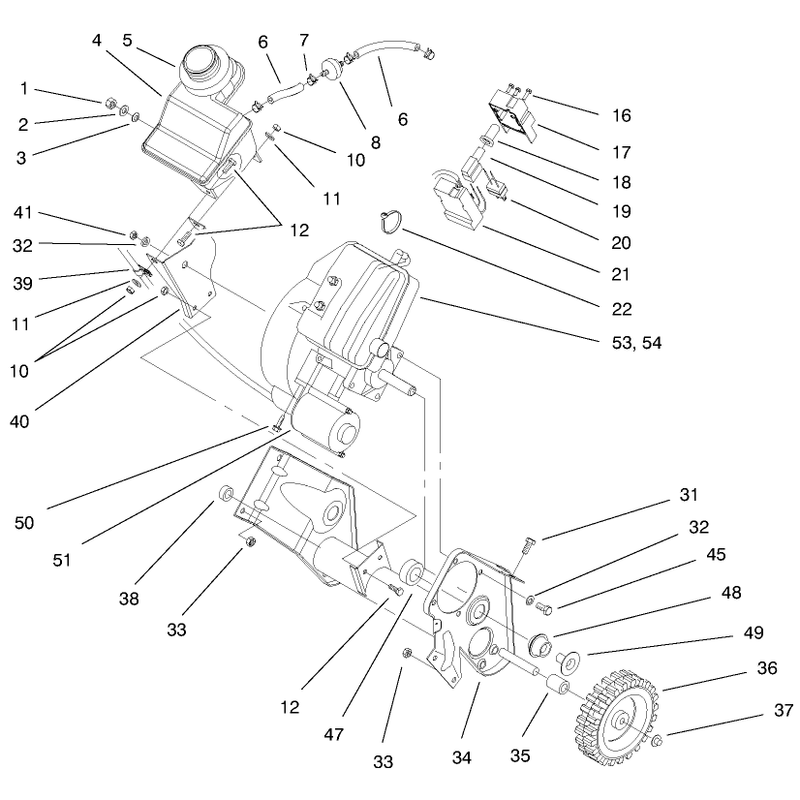

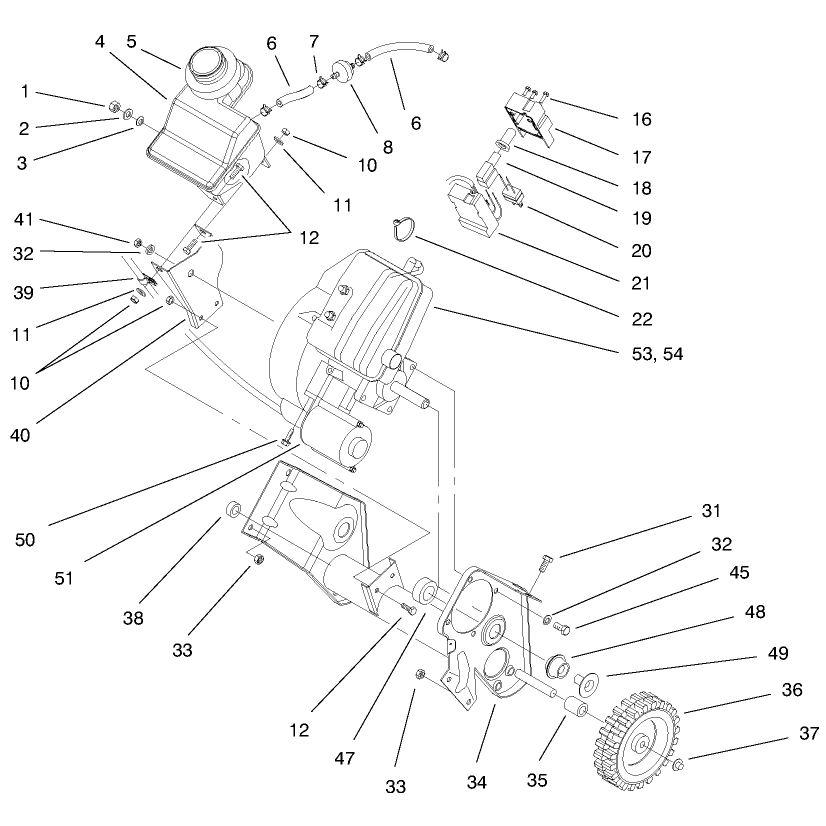

Engine & Frame Assembly
Engine & Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
71-5320
71-5320
|
|||
|
|
32152-8
32152-8
|
|||
|
|
3256-23
3256-23
|
|||
|
|
237-89
237-89
|
|||
|
|
105-8953
105-8953
|
|||
|
|
55-9310
55-9310
|
|||
|
|
49-2481
49-2481
|
|||
|
|
2412-98
2412-98
|
|||
|
|
56-6360
56-6360
|
|||
|
|
3296-42
3296-42
|
|||
|
|
3256-22
3256-22
|
|||
|
|
321-4
321-4
|
|||
|
|
32144-27
32144-27
|
|||
|
|
100-3442
100-3442
|
|||
|
|
61-4810
61-4810
|
|||
|
|
61-4820
61-4820
|
|||
|
|
94-9933
94-9933
|
|||
|
|
80-3730
80-3730
|
|||
|
|
250-4
250-4
|
|||
|
|
322-3
322-3
|
|||
|
|
3290-456
3290-456
|
|||
|
|
3296-29
3296-29
|
|||
|
|
63-3750
63-3750
|
|||
|
|
66-6501
66-6501
|
|||
|
|
145-0701
145-0701
|
|||
|
|
32112-14
32112-14
|
|||
|
|
66-6500
66-6500
|
|||
|
|
2412-91
2412-91
|
|||
|
|
55-9070-01
55-9070-01
|
|||
|
|
81-0300
81-0300
|
|||
|
|
81-0570
81-0570
|
|||
|
|
55-9450
55-9450
|
|||
|
|
55-9460
55-9460
|
|||
|
|
55-9470
55-9470
|
|||
|
|
110-3986
110-3986
|
|||
|
|
84-5292
84-5292
|
|||
|
|
94-9890
94-9890
|
|||
|
|
94-9891
94-9891
|

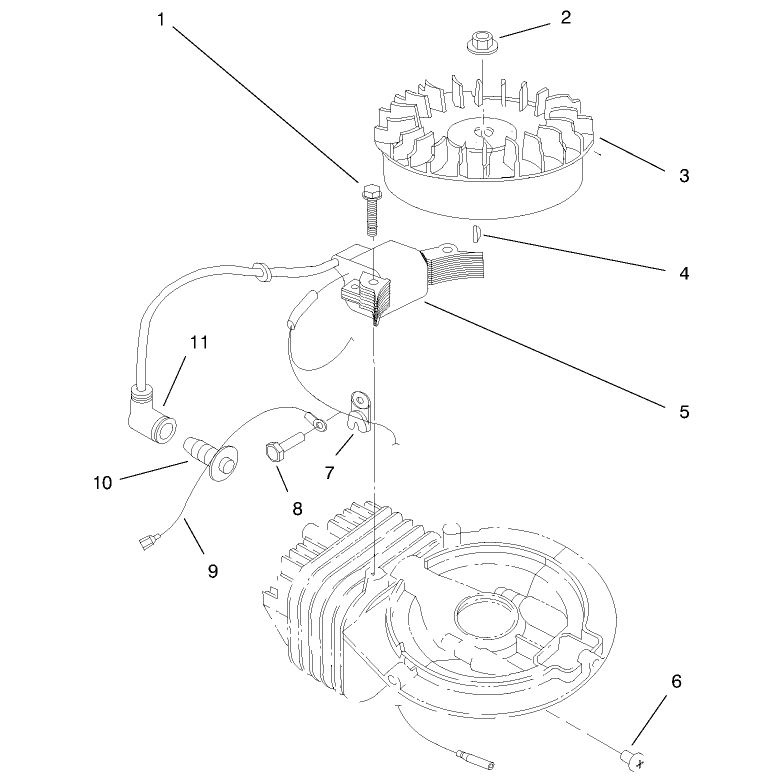

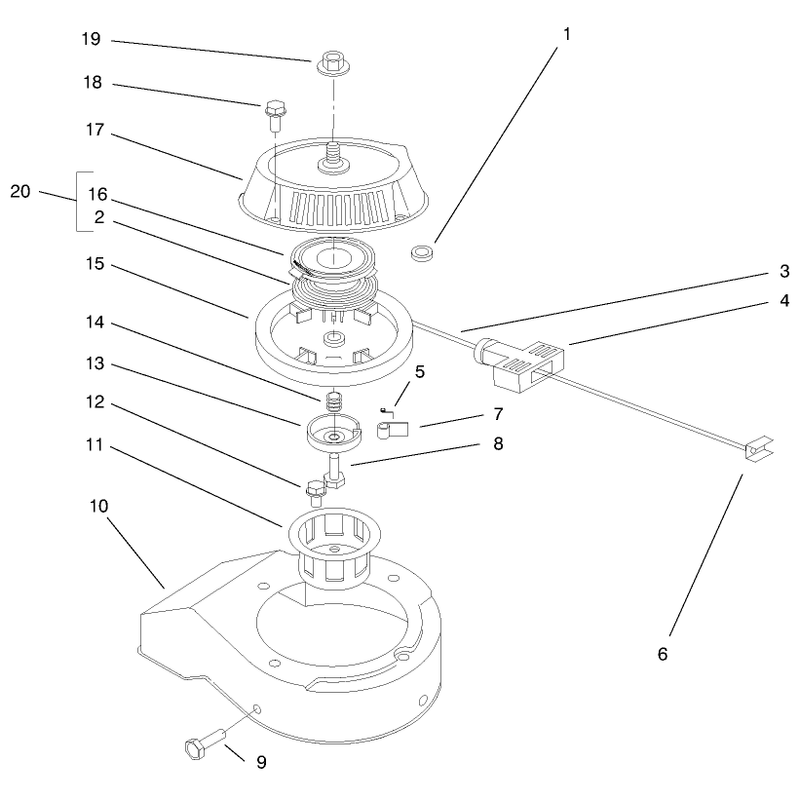

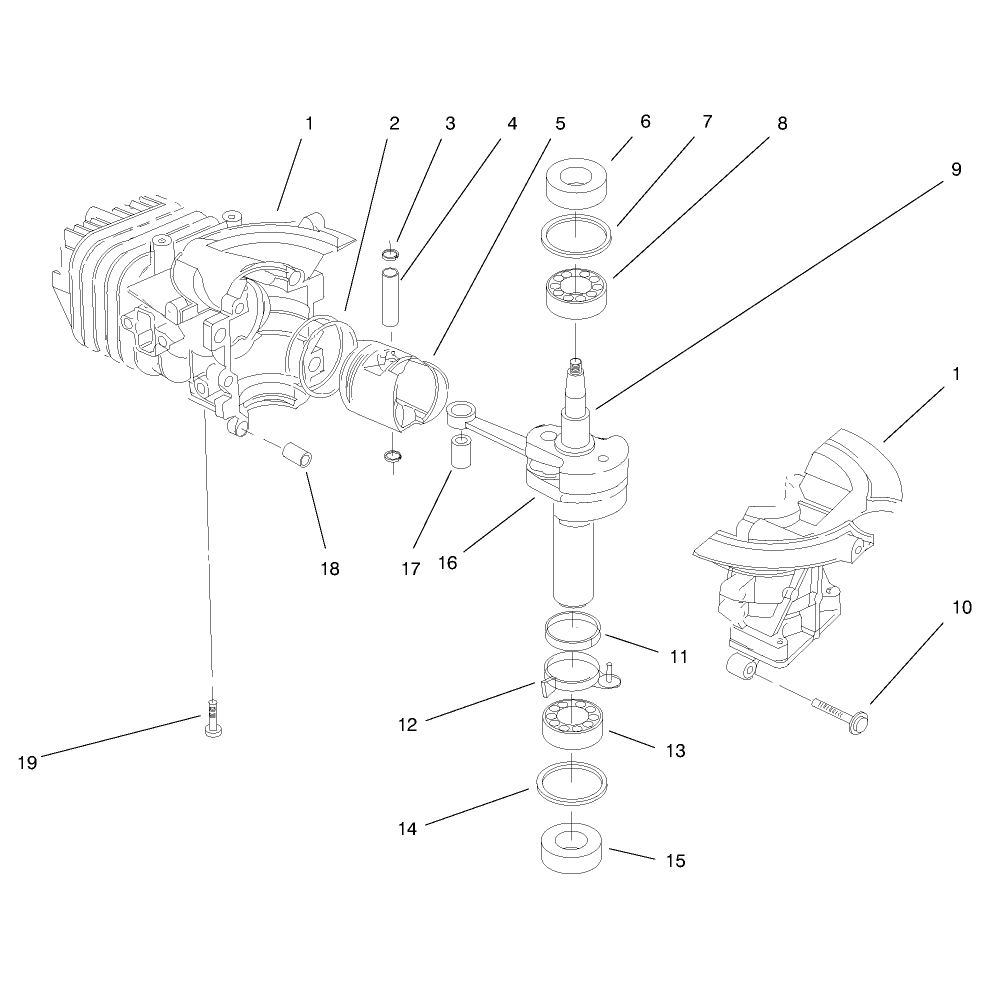

Engine Assebmly (model No. 38430 & 38431)
Engine Assebmly (model No. 38430 & 38431)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
81-0280
81-0280
|
|||
|
|
55-9620
55-9620
|
|||
|
|
81-2300
81-2300
|
|||
|
|
613773
613773
|
|||
|
|
81-1630
81-1630
|
|||
|
|
81-1220
81-1220
|
|||
|
|
81-5760
81-5760
|
|||
|
|
81-1230
81-1230
|
|||
|
|
81-1260
81-1260
|
|||
|
|
53-1340
53-1340
|
|||
|
|
81-0310
81-0310
|
|||
|
|
81-1290
81-1290
|
|||
|
|
81-1300
81-1300
|
|||
|
|
81-1250
81-1250
|
|||
|
|
81-1240
81-1240
|
|||
|
|
81-1210
81-1210
|
|||
|
|
81-2300
81-2300
|
|||
|
|
81-0290
81-0290
|
|||
|
|
81-0390
81-0390
|
|||
|
|
81-0300
81-0300
|
|||
|
|
81-2300
81-2300
|
Engine Assebmly (model No. 38430 & 38431)
Engine Assebmly (model No. 38430 & 38431)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
81-2880
81-2880
|
|||
|
|
81-2890
81-2890
|
|||
|
|
81-0540
81-0540
|
|||
|
|
81-2900
81-2900
|
|||
|
|
81-0370
81-0370
|
|||
|
|
81-0850
81-0850
|
|||
|
|
81-0860
81-0860
|
|||
|
|
81-0870
81-0870
|
|||
|
|
81-0900
81-0900
|
|||
|
|
81-0360
81-0360
|
|||
|
|
81-0410
81-0410
|
|||
|
|
81-0430
81-0430
|
|||
|
|
81-0440
81-0440
|

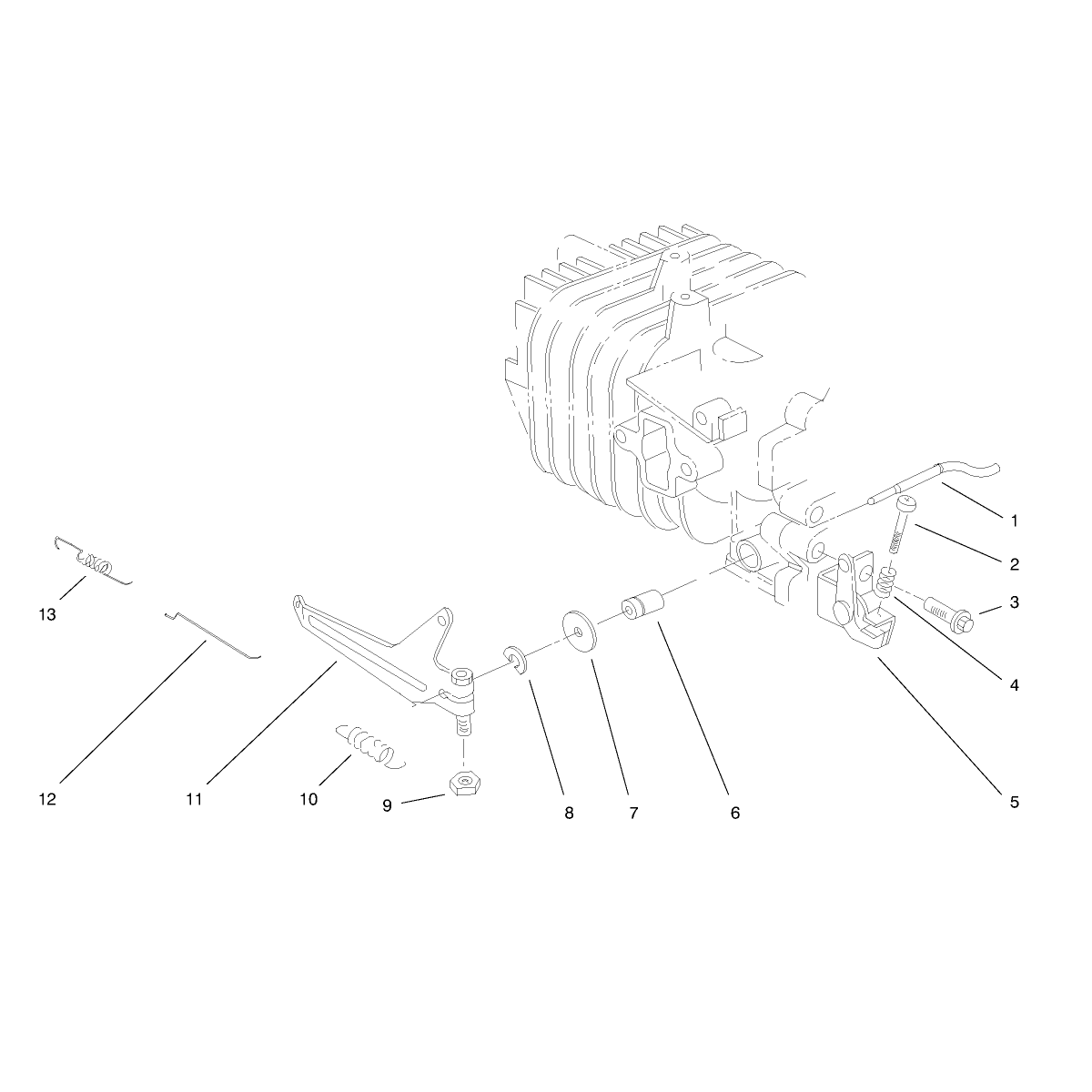

Engine Assembly (model No. 38430 & 38431)
Engine Assembly (model No. 38430 & 38431)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
81-5710
81-5710
|
|||
|
|
81-1330
81-1330
|
|||
|
|
81-0320
81-0320
|
|||
|
|
81-2370
81-2370
|
|||
|
|
94-8890
94-8890
|
|||
|
|
81-0380
81-0380
|
|||
|
|
81-1480
81-1480
|
|||
|
|
53-1340
53-1340
|
|||
|
|
81-2860
81-2860
|
|||
|
|
50-1170
50-1170
|
|||
|
|
81-1500
81-1500
|

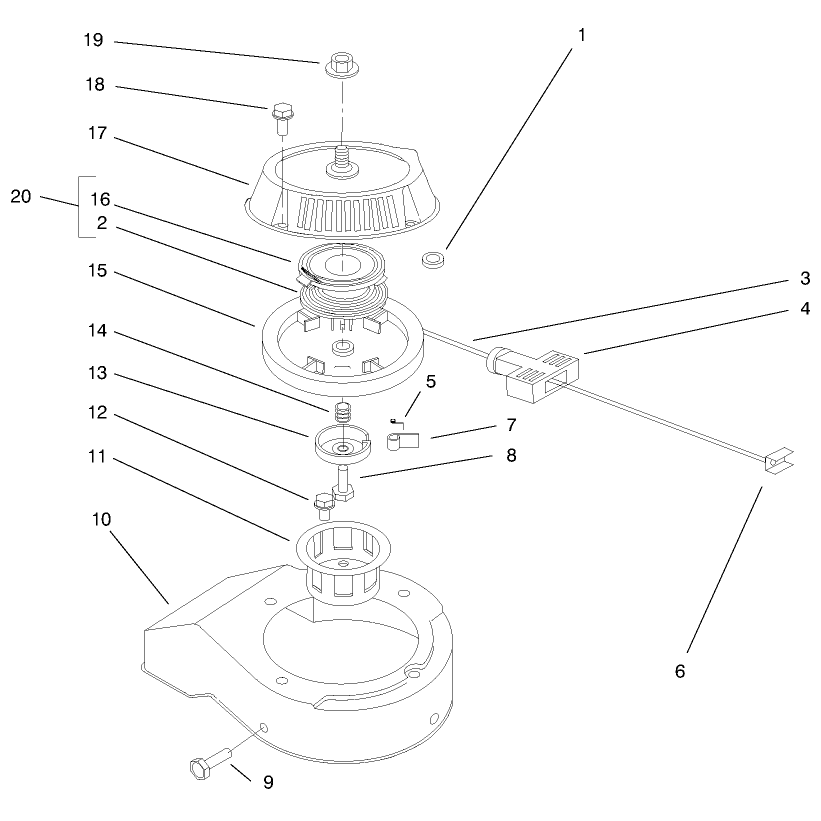

Engine Assembly (model No. 38430 & 38431)
Engine Assembly (model No. 38430 & 38431)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
95-7912
95-7912
|
|||
|
|
95-7933
95-7933
|
|||
|
|
81-0590
81-0590
|
|||
|
|
81-0620
81-0620
|
|||
|
|
81-0600
81-0600
|
|||
|
|
81-2140
81-2140
|
|||
|
|
81-0720
81-0720
|
|||
|
|
81-0710
81-0710
|
|||
|
|
81-0690
81-0690
|
|||
|
|
81-5700
81-5700
|
|||
|
|
81-0540
81-0540
|
|||
|
|
81-0770
81-0770
|
|||
|
|
81-0750
81-0750
|
|||
|
|
81-0700
81-0700
|
|||
|
|
81-0730
81-0730
|
|||
|
|
81-0740
81-0740
|
|||
|
|
81-0760
81-0760
|
|||
|
|
81-0610
81-0610
|
|||
|
|
81-0520
81-0520
|
|||
|
|
81-0570
81-0570
|

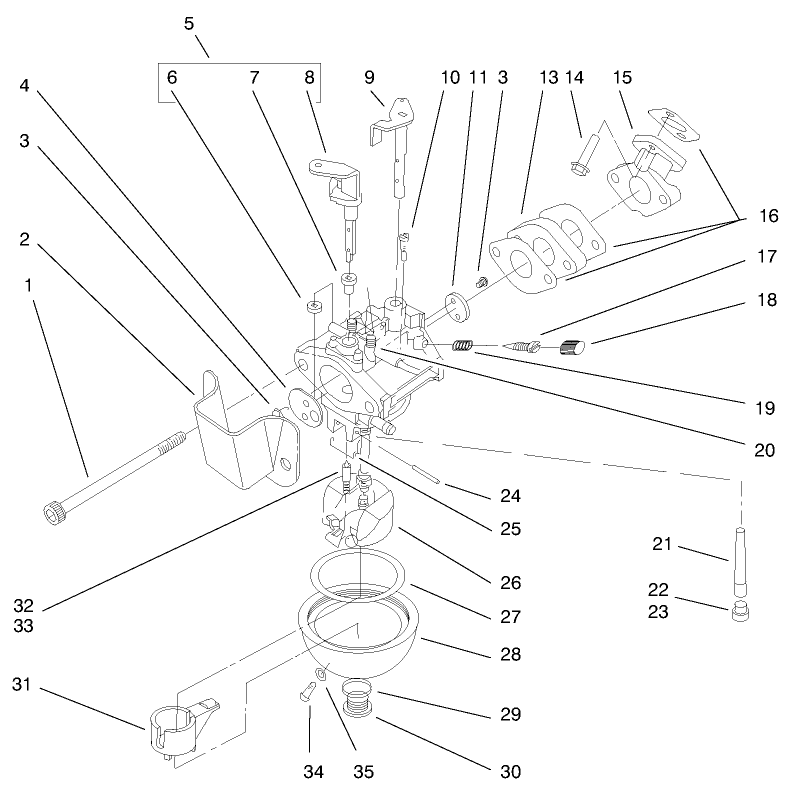

Engine Assembly (model No. 38430 & 38431)
Engine Assembly (model No. 38430 & 38431)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
95-7935
95-7935
|
|||
|
|
81-0450
81-0450
|
|||
|
|
81-2700
81-2700
|
|||
|
|
81-2160
81-2160
|
|||
|
|
81-2720
81-2720
|
|||
|
|
81-2910
81-2910
|
|||
|
|
81-5530
81-5530
|
|||
|
|
81-5520
81-5520
|
|||
|
|
81-5510
81-5510
|
|||
|
|
81-2920
81-2920
|
|||
|
|
81-2930
81-2930
|
|||
|
|
81-2940
81-2940
|
|||
|
|
81-0460
81-0460
|
|||
|
|
50-6350
50-6350
|
|||
|
|
81-0470
81-0470
|
|||
|
|
81-0780
81-0780
|
|||
|
|
95-7937
95-7937
|
|||
|
|
95-7938
95-7938
|
|||
|
|
81-2580
81-2580
|
|||
|
|
81-2590
81-2590
|
|||
|
|
95-7936
95-7936
|
|||
|
|
81-1040
81-1040
|
|||
|
|
95-7940
95-7940
|
|||
|
|
81-2600
81-2600
|
|||
|
|
95-7939
95-7939
|
|||
|
|
81-4920
81-4920
|
|||
|
|
81-2630
81-2630
|
|||
|
|
81-2640
81-2640
|
|||
|
|
81-2650
81-2650
|
|||
|
|
81-2660
81-2660
|
|||
|
|
81-4930
81-4930
|
|||
|
|
81-5820
81-5820
|
|||
|
|
81-5820
81-5820
|
|||
|
|
81-2670
81-2670
|
|||
|
|
81-2680
81-2680
|

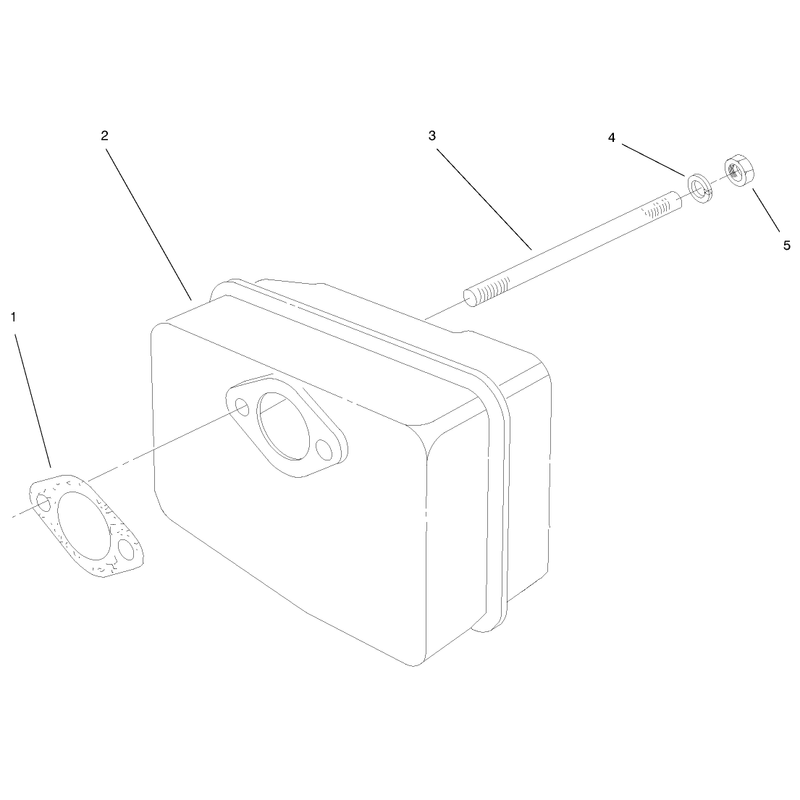

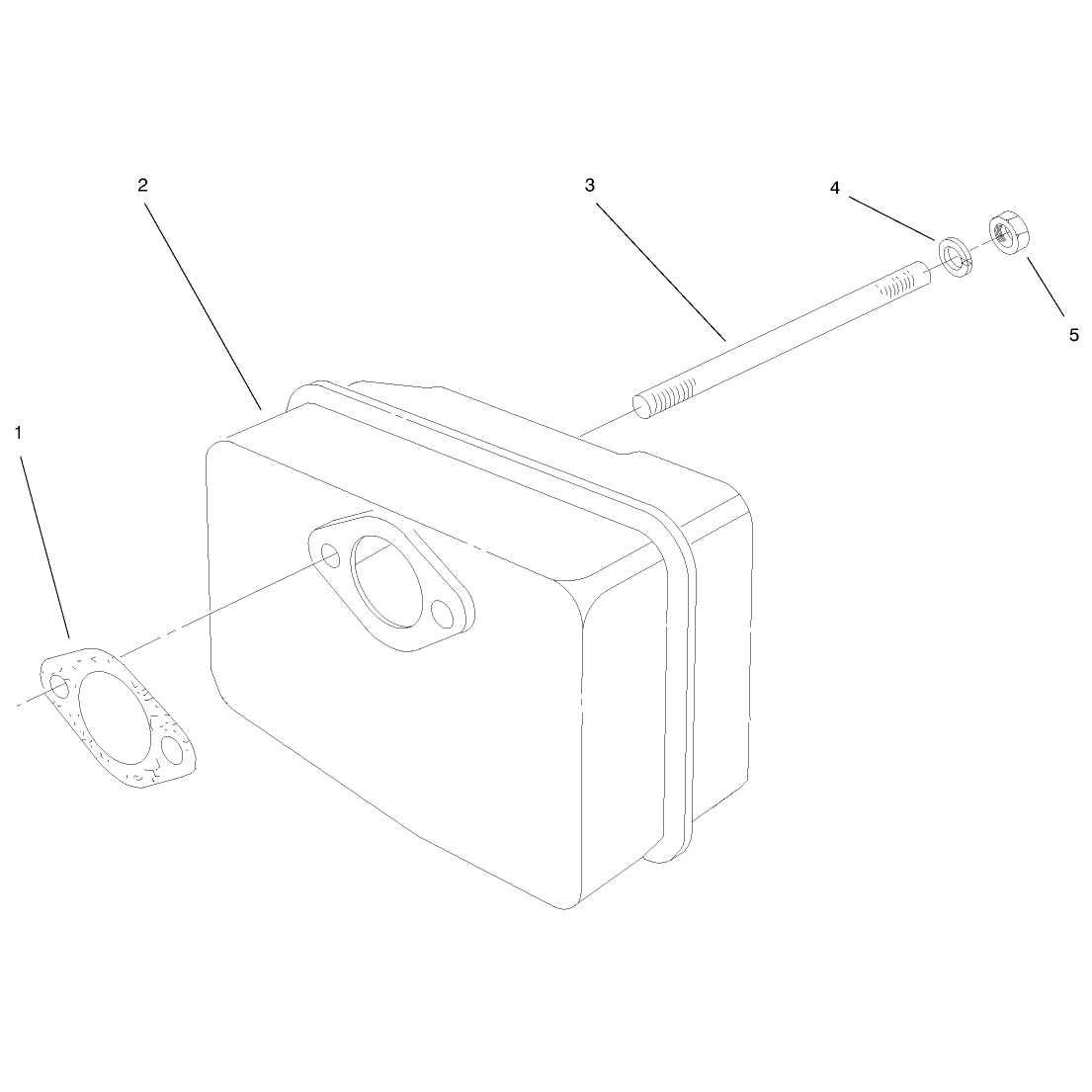

Engine Assembly (model No. 38430 & 38431)
Engine Assembly (model No. 38430 & 38431)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
81-1080
81-1080
|
|||
|
|
81-0490
81-0490
|
|||
|
|
81-0500
81-0500
|
|||
|
|
81-1120
81-1120
|
|||
|
|
81-1110
81-1110
|

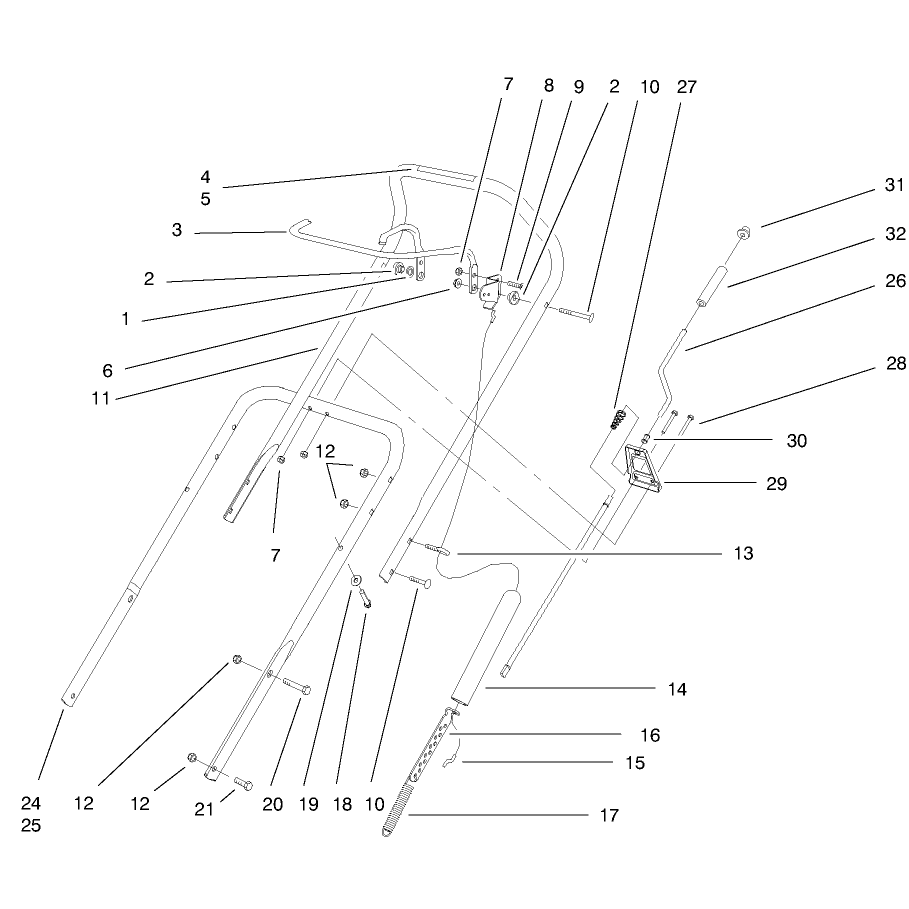

Handle Assembly
Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
55-9670
55-9670
|
|||
|
|
55-9340
55-9340
|
|||
|
|
55-9130
55-9130
|
|||
|
|
104-2775
104-2775
|
|||
|
|
94-2577
94-2577
|
|||
|
|
32111-8
32111-8
|
|||
|
|
3296-42
3296-42
|
|||
|
|
55-9100-01
55-9100-01
|
|||
|
|
3274-31
3274-31
|
|||
|
|
17-9424
17-9424
|
|||
|
|
95-2669
95-2669
|
|||
|
|
94-2794
94-2794
|
|||
|
|
3296-29
3296-29
|
|||
|
|
55-9420
55-9420
|
|||
|
|
55-9390
55-9390
|
|||
|
|
55-9321
55-9321
|
|||
|
|
55-9380
55-9380
|
|||
|
|
55-9270
55-9270
|
|||
|
|
61-8640
61-8640
|
|||
|
|
3-7501
3-7501
|
|||
|
|
322-9
322-9
|
|||
|
|
322-3
322-3
|
|||
|
|
55-9121-01
55-9121-01
|
|||
|
|
55-9120
55-9120
|
|||
|
|
55-9140
55-9140
|
|||
|
|
55-9440
55-9440
|
|||
|
|
321-13
321-13
|
|||
|
|
55-9090
55-9090
|
|||
|
|
5979
5979
|
|||
|
|
3290-320
3290-320
|
|||
|
|
40-8230
40-8230
|

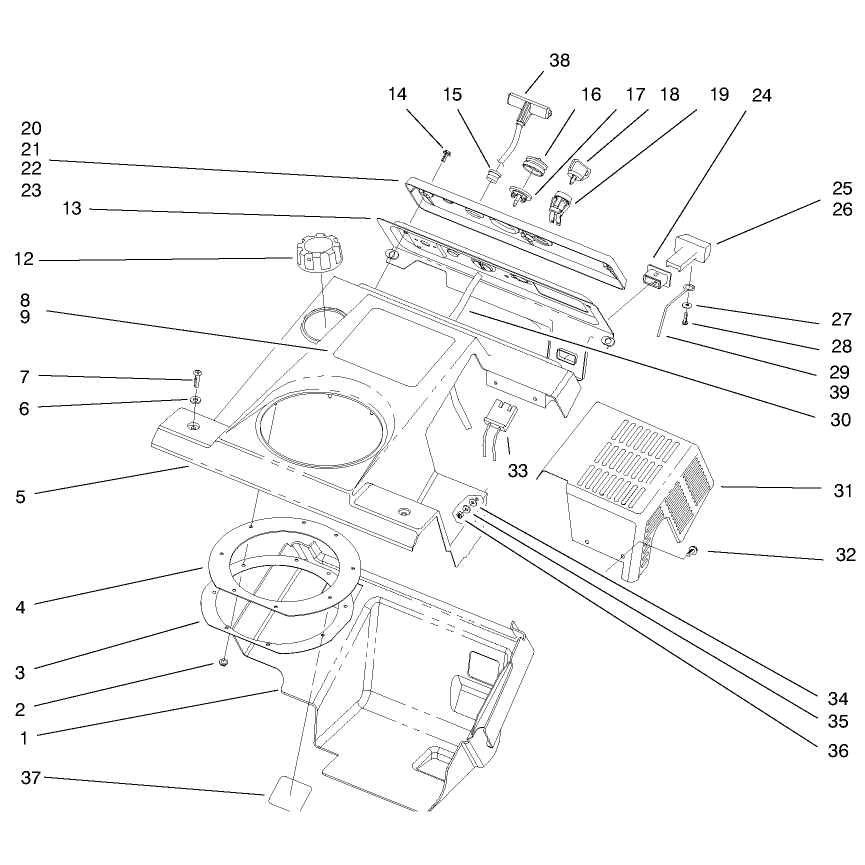

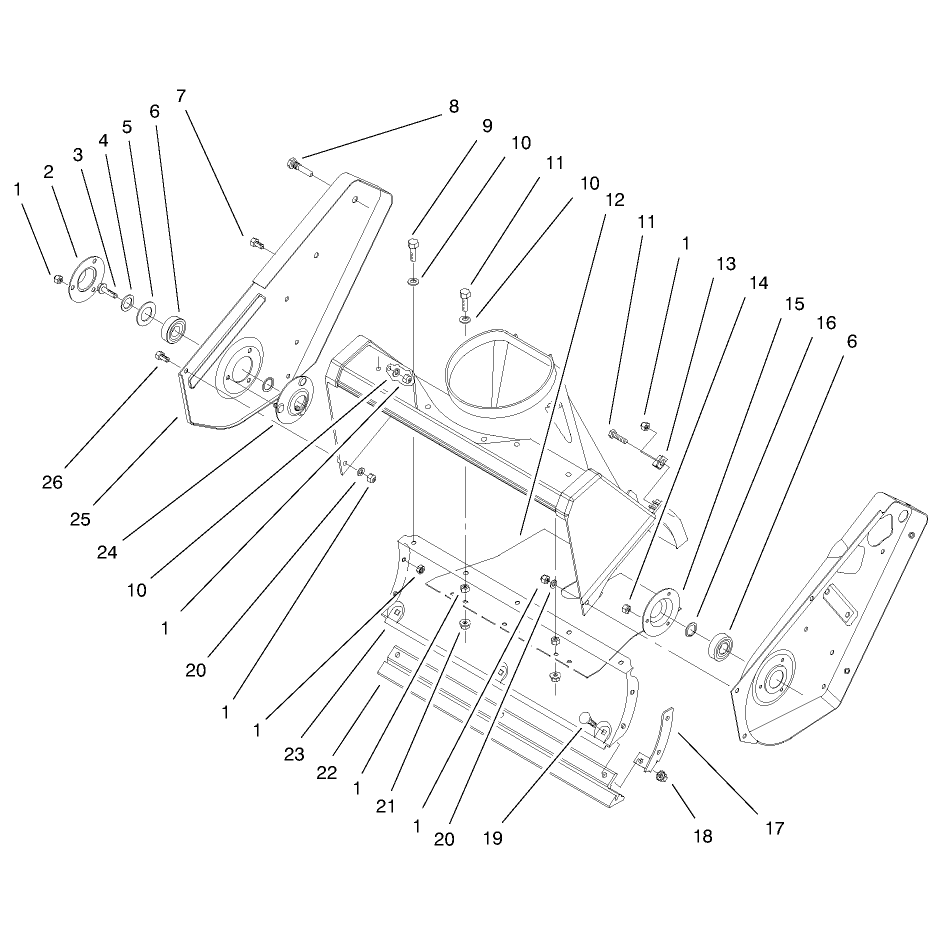

Housing Assembly
Housing Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3296-42
3296-42
|
|||
|
|
52-7290-03
52-7290-03
|
|||
|
|
3234-25
3234-25
|
|||
|
|
3256-24
3256-24
|
|||
|
|
52-7270
52-7270
|
|||
|
|
38-7820
38-7820
|
|||
|
|
322-43
322-43
|
|||
|
|
38-8211
38-8211
|
|||
|
|
321-4
321-4
|
|||
|
|
3256-22
3256-22
|
|||
|
|
321-6
321-6
|
|||
|
|
55-9512
55-9512
|
|||
|
|
55-9430
55-9430
|
|||
|
|
3296-2
3296-2
|
|||
|
|
38-8620
38-8620
|
|||
|
|
52-7280
52-7280
|
|||
|
|
56-2610
56-2610
|
|||
|
|
32149-2
32149-2
|
|||
|
|
3229-11
3229-11
|
|||
|
|
3256-67
3256-67
|
|||
|
|
32128-10
32128-10
|
|||
|
|
55-8760
55-8760
|
|||
|
|
119-1551
119-1551
|
|||
|
|
52-9110
52-9110
|
|||
|
|
55-8840
55-8840
|
|||
|
|
32105-15
32105-15
|

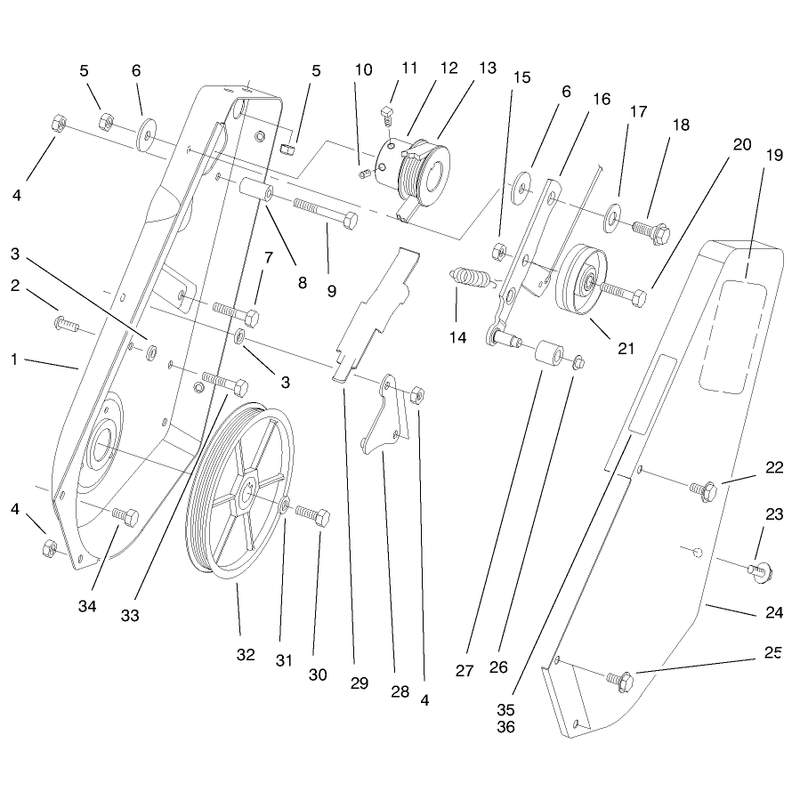

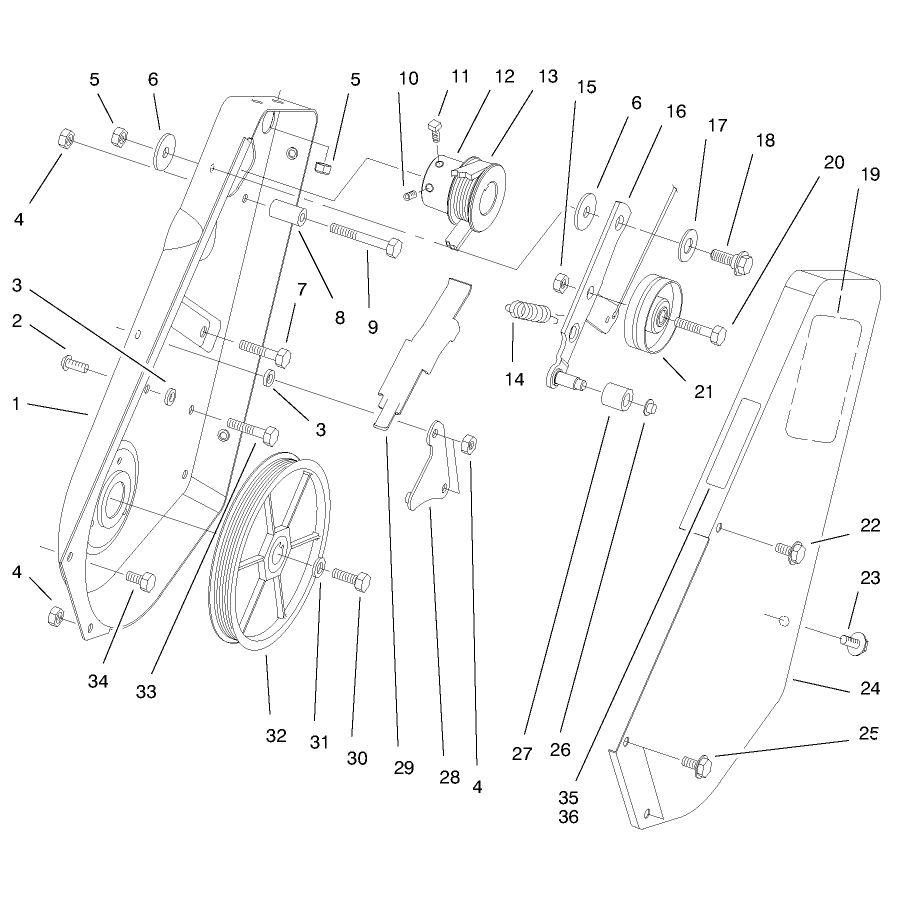

Pulley & Side Plate Assembly
Pulley & Side Plate Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
55-8851-03
55-8851-03
|
|||
|
|
3274-31
3274-31
|
|||
|
|
55-9620
55-9620
|
|||
|
|
3296-42
3296-42
|
|||
|
|
3296-29
3296-29
|
|||
|
|
5-4460
5-4460
|
|||
|
|
322-3
322-3
|
|||
|
|
55-9530
55-9530
|
|||
|
|
321-13
321-13
|
|||
|
|
3245-41
3245-41
|
|||
|
|
3241-7
3241-7
|
|||
|
|
55-9180
55-9180
|
|||
|
|
55-9300
55-9300
|
|||
|
|
55-9280
55-9280
|
|||
|
|
32152-2
32152-2
|
|||
|
|
63-3610
63-3610
|
|||
|
|
25-5640
25-5640
|
|||
|
|
27-0410
27-0410
|
|||
|
|
60-9480
60-9480
|
|||
|
|
323-29
323-29
|
|||
|
|
55-9290
55-9290
|
|||
|
|
36-3860
36-3860
|
|||
|
|
12-3270
12-3270
|
|||
|
|
16-9449
16-9449
|
|||
|
|
32105-15
32105-15
|
|||
|
|
32112-11
32112-11
|
|||
|
|
55-9520
55-9520
|
|||
|
|
55-9570
55-9570
|
|||
|
|
55-9550
55-9550
|
|||
|
|
321-30
321-30
|
|||
|
|
3290-456
3290-456
|
|||
|
|
60-9320
60-9320
|
|||
|
|
321-4
321-4
|
|||
|
|
32105-8
32105-8
|
|||
|
|
104-2767
104-2767
|
|||
|
|
94-2561
94-2561
|

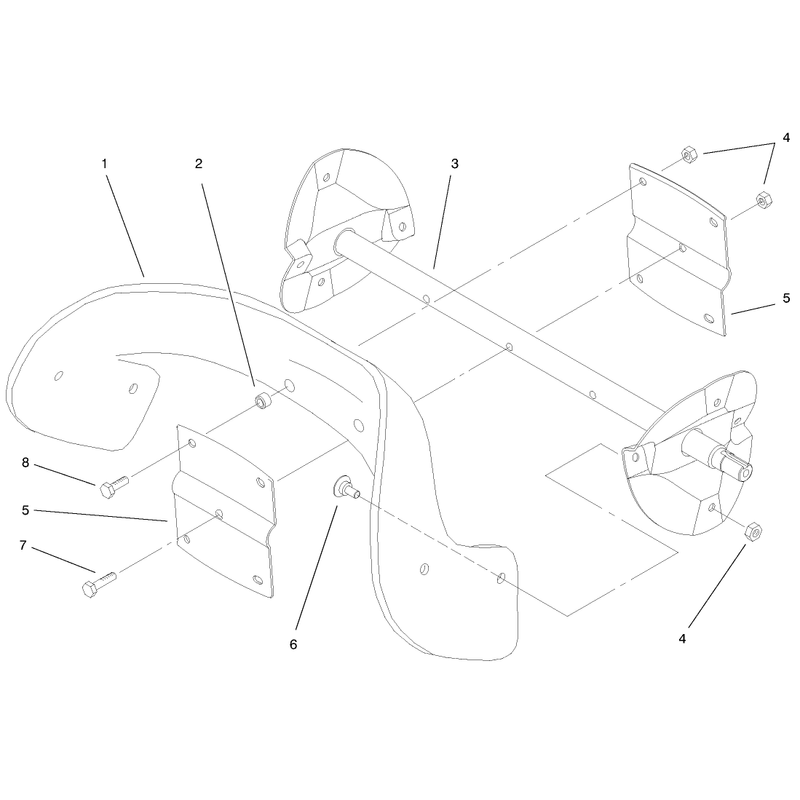

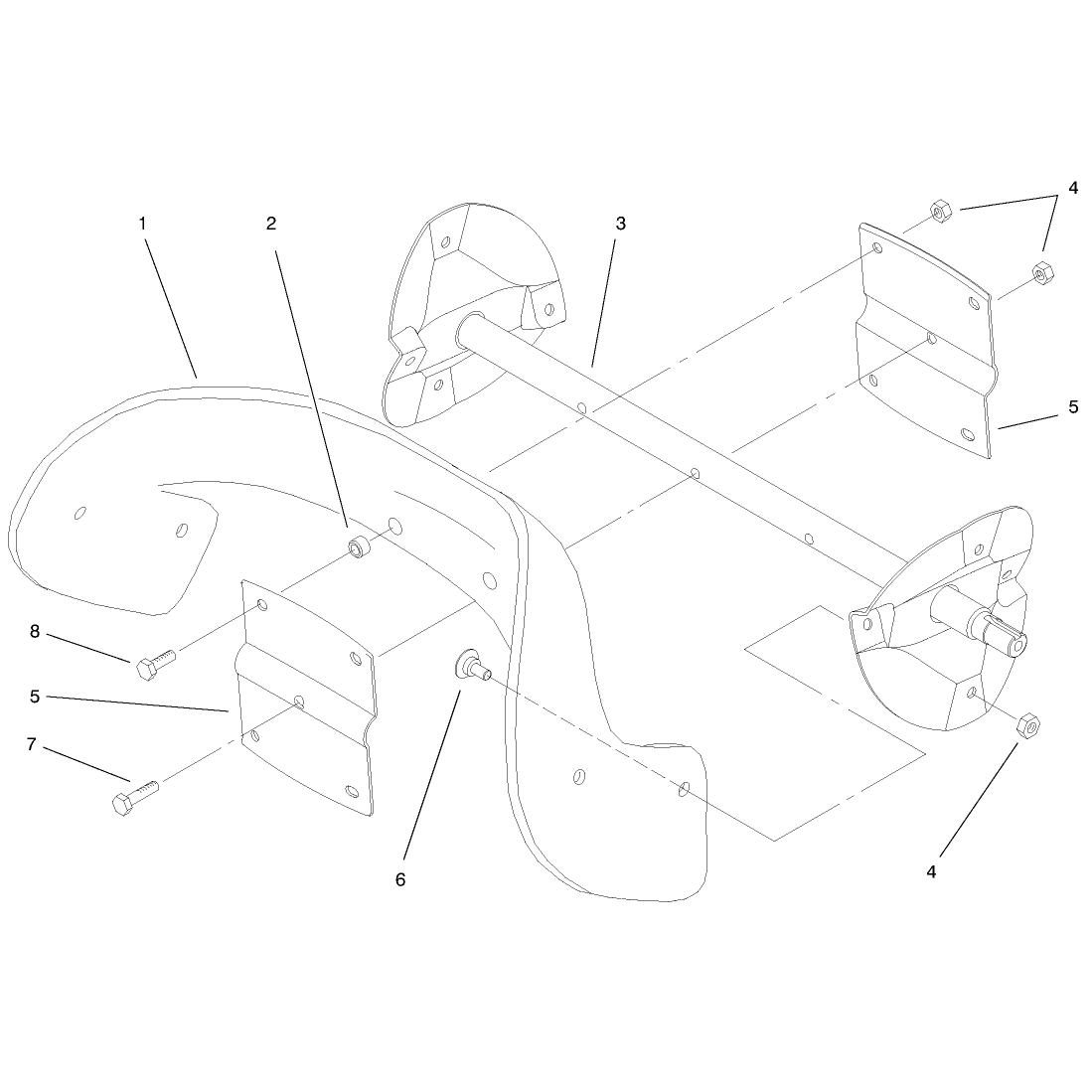

Rotor Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28-9170
28-9170
|
|||
|
|
88-0771
88-0771
|
|||
|
|
55-9370
55-9370
|
|||
|
|
131-6490
131-6490
|
|||
|
|
3296-56
3296-56
|
|||
|
|
66-6600-03
66-6600-03
|
|||
|
|
136-7182
136-7182
|
|||
|
|
321-8
321-8
|
|||
|
|
321-4
321-4
|

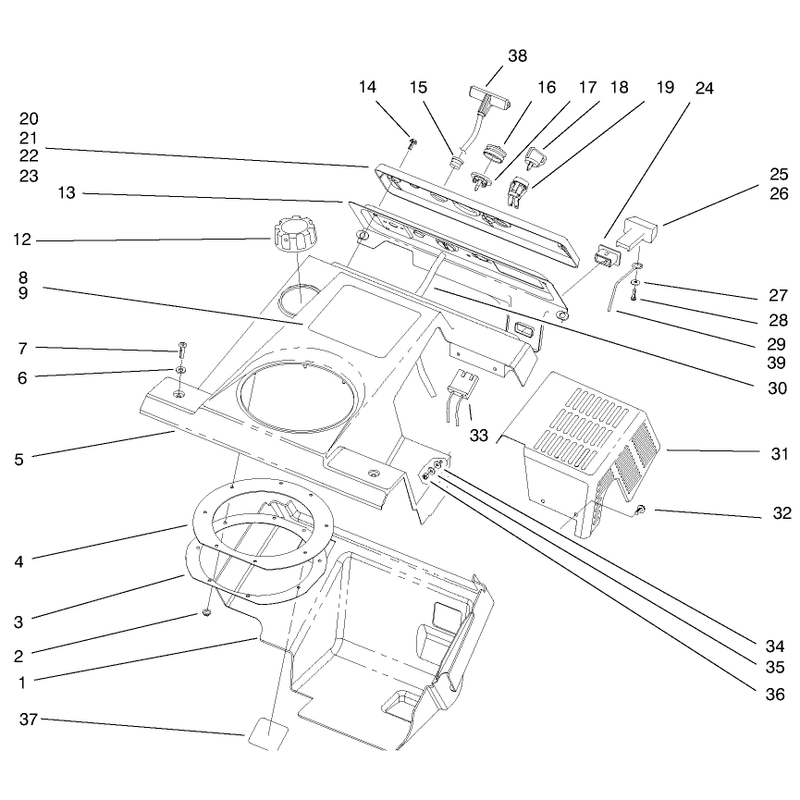

Shroud Assembly
Shroud Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
55-8791
55-8791
|
|||
|
|
3290-474
3290-474
|
|||
|
|
55-9540-03
55-9540-03
|
|||
|
|
105-3543
105-3543
|
|||
|
|
94-9898
94-9898
|
|||
|
|
94-9899
94-9899
|
|||
|
|
3256-22
3256-22
|
|||
|
|
3250-32
3250-32
|
|||
|
|
94-8875
94-8875
|
|||
|
|
94-8874
94-8874
|
|||
|
|
104-4133
104-4133
|
|||
|
|
55-9490-01
55-9490-01
|
|||
|
|
32144-112
32144-112
|
|||
|
|
55-9410
55-9410
|
|||
|
|
66-7460
66-7460
|
|||
|
|
44-2750
44-2750
|
|||
|
|
63-8360
63-8360
|
|||
|
|
40-5940
40-5940
|
|||
|
|
94-2569
94-2569
|
|||
|
|
55-9350
55-9350
|
|||
|
|
94-2570
94-2570
|
|||
|
|
61-4410
61-4410
|
|||
|
|
55-8820
55-8820
|
|||
|
|
55-8811
55-8811
|
|||
|
|
55-8810
55-8810
|
|||
|
|
3256-49
3256-49
|
|||
|
|
32144-111
32144-111
|
|||
|
|
94-2797
94-2797
|
|||
|
|
44-3174
44-3174
|
|||
|
|
55-9210
55-9210
|
|||
|
|
32105-8
32105-8
|
|||
|
|
218-532
218-532
|
|||
|
|
55-9660
55-9660
|
|||
|
|
3256-14
3256-14
|
|||
|
|
3296-12
3296-12
|
|||
|
|
61-4790
61-4790
|
|||
|
|
92-4853
92-4853
|
|||
|
|
94-2798
94-2798
|
