Toro 68138HD MB TX 2500 Tracked Mud Buggy (Serial #: 407100000 - 409999999) Parts Diagram
Diagrams:
Diagram:

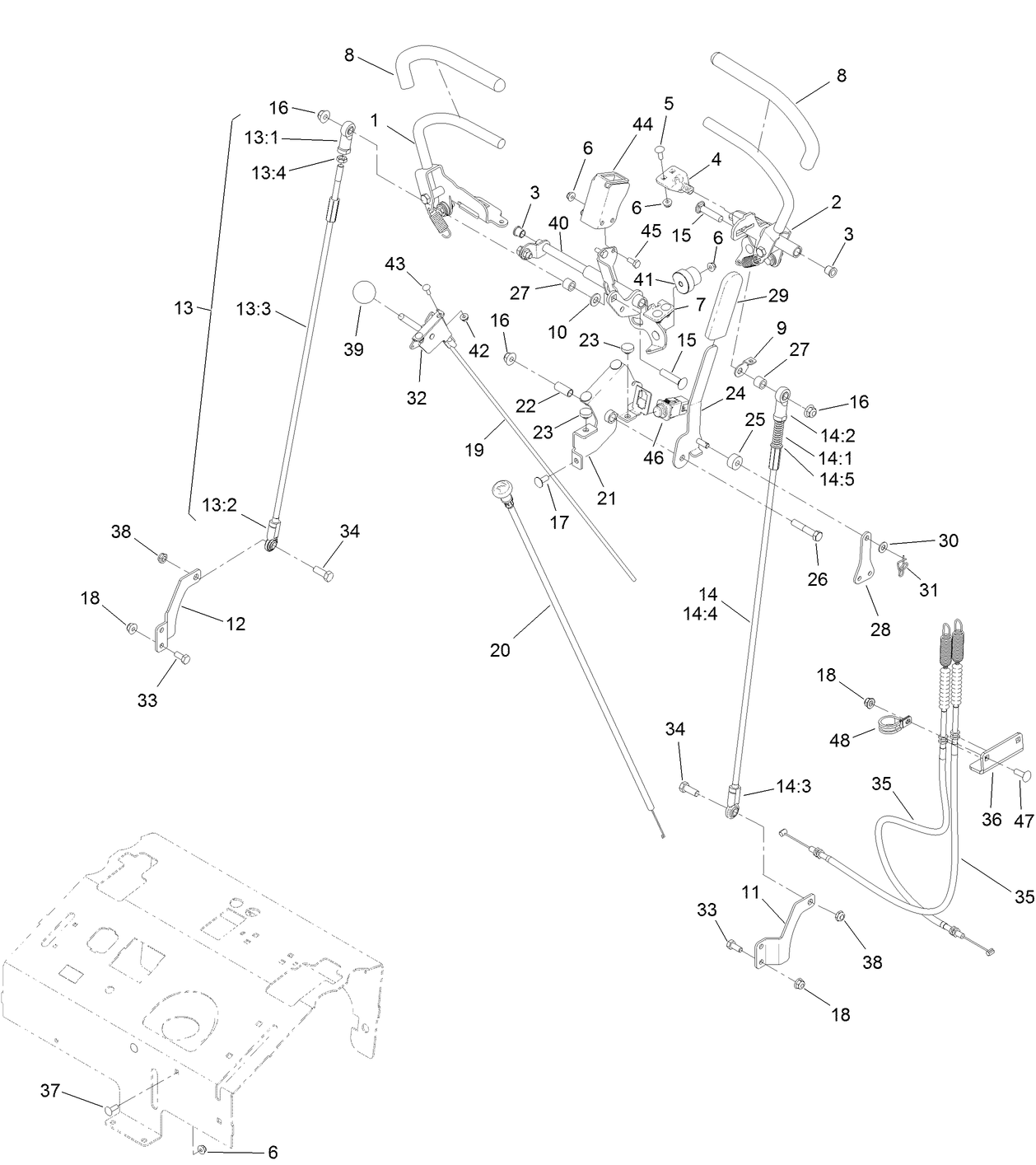

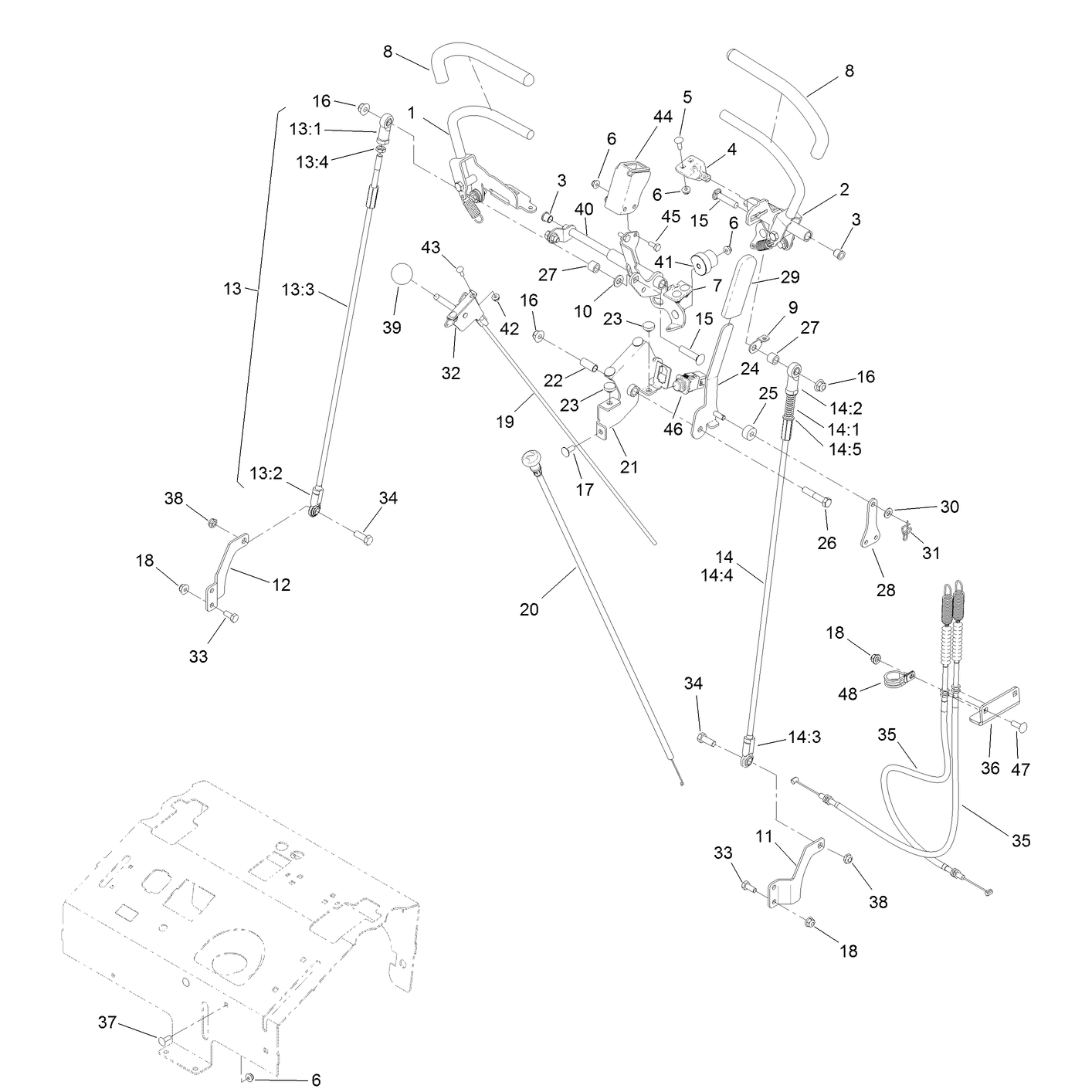

Control Assembly
Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

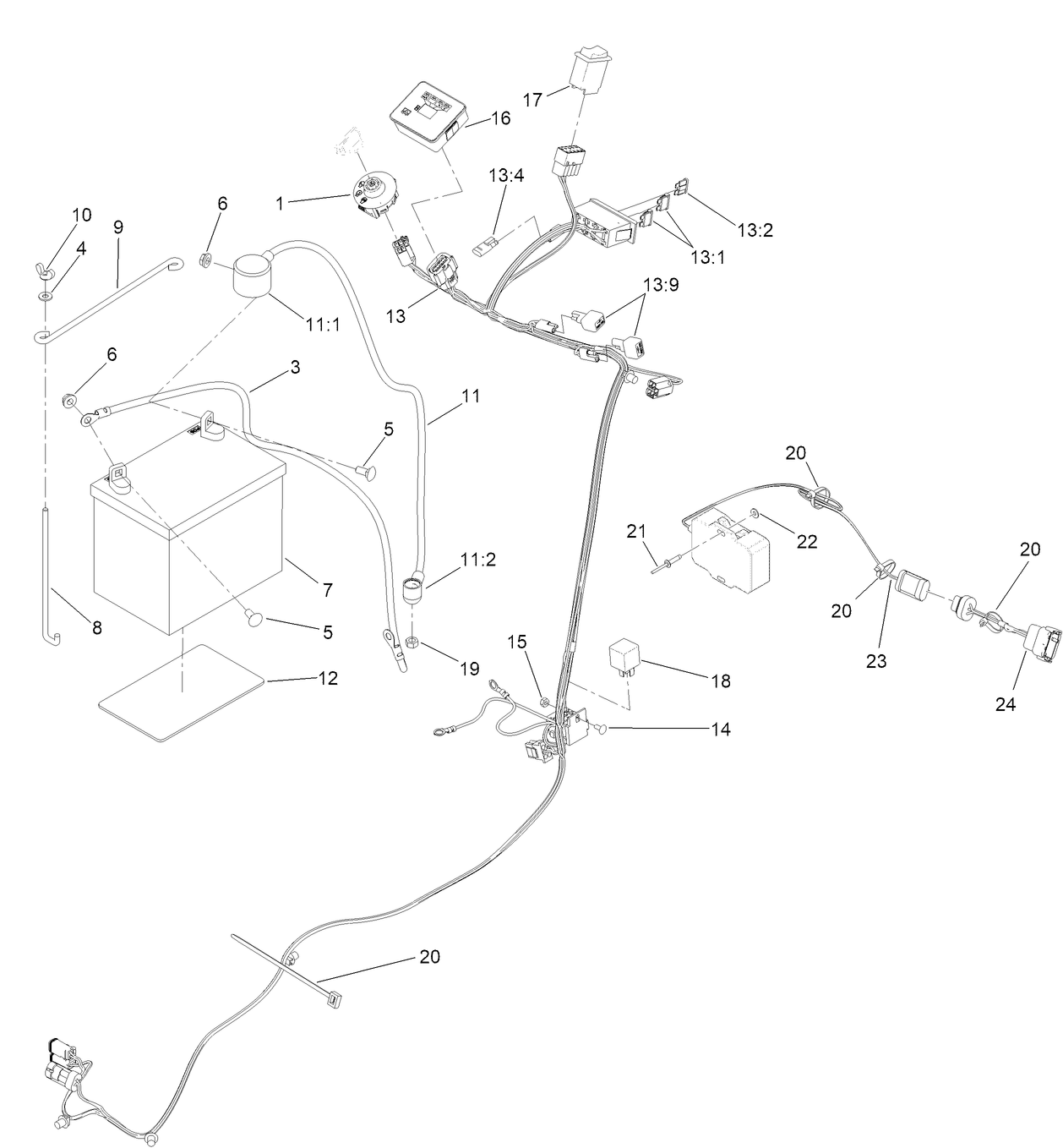

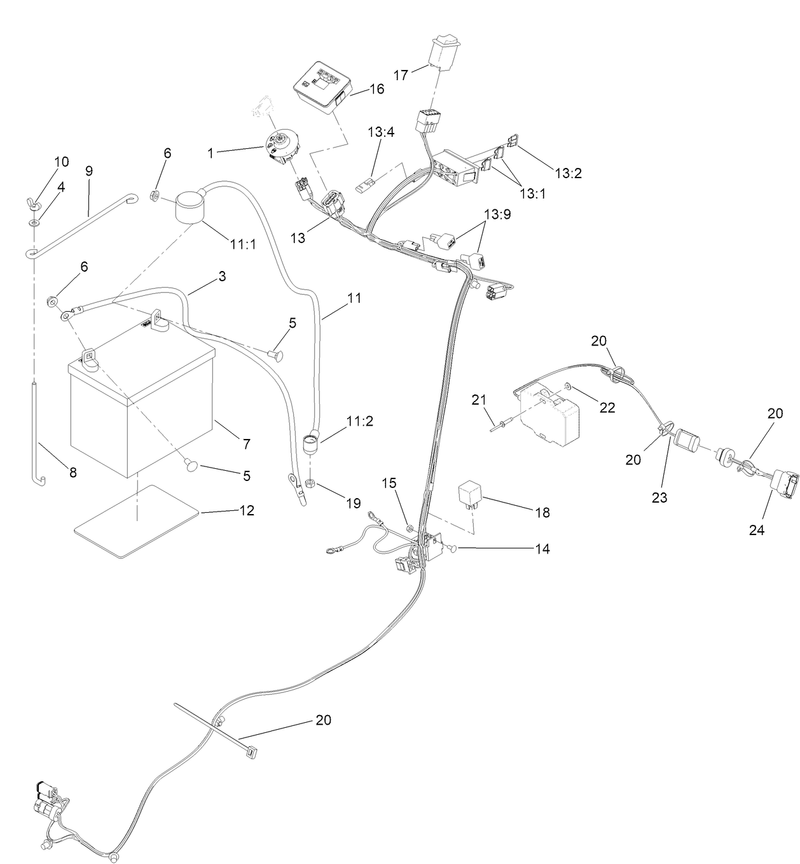

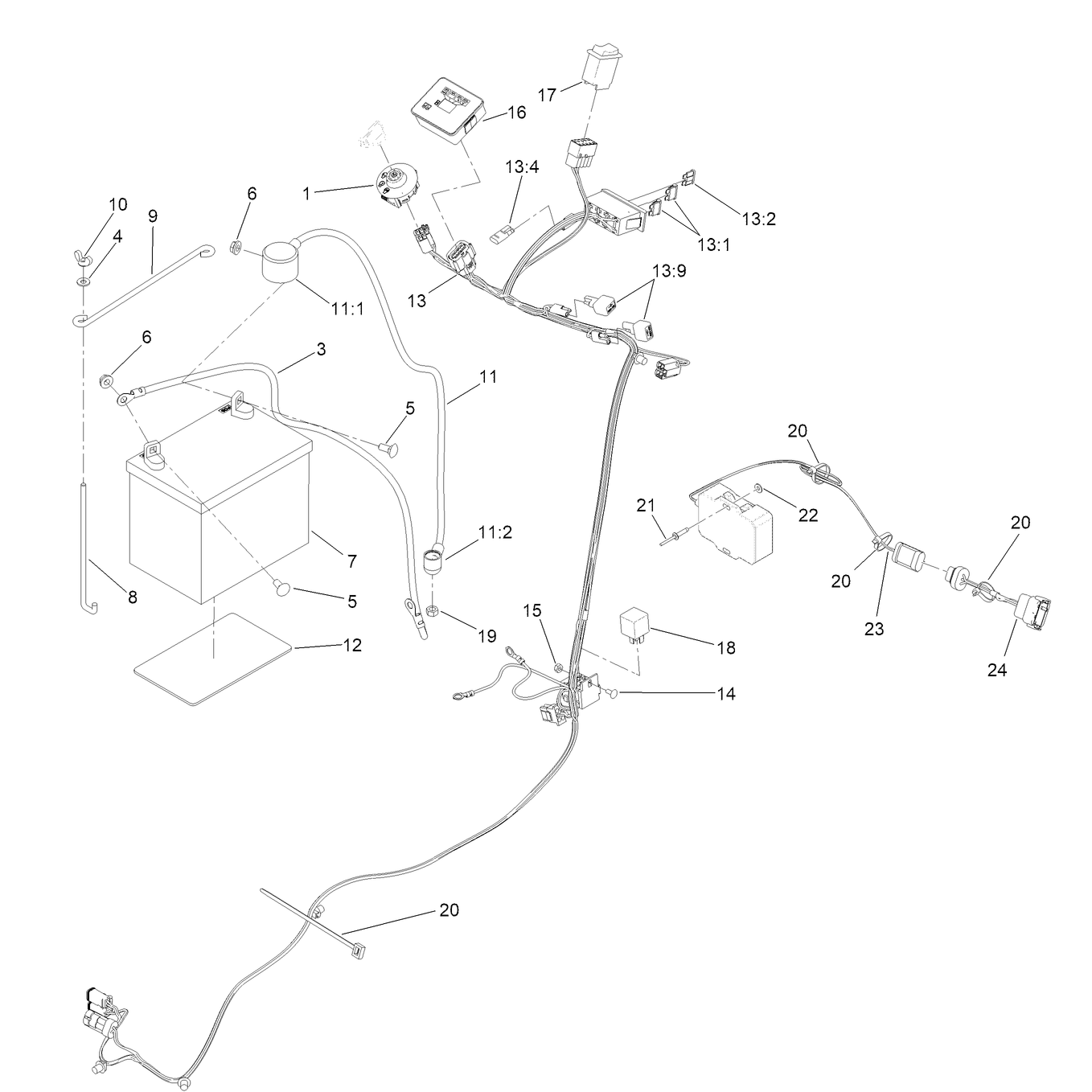

Electrical Harness Assembly.gif
Electrical Harness Assembly.gif
| Sequence Number | Image | Product | Price | Add to cart |
|---|

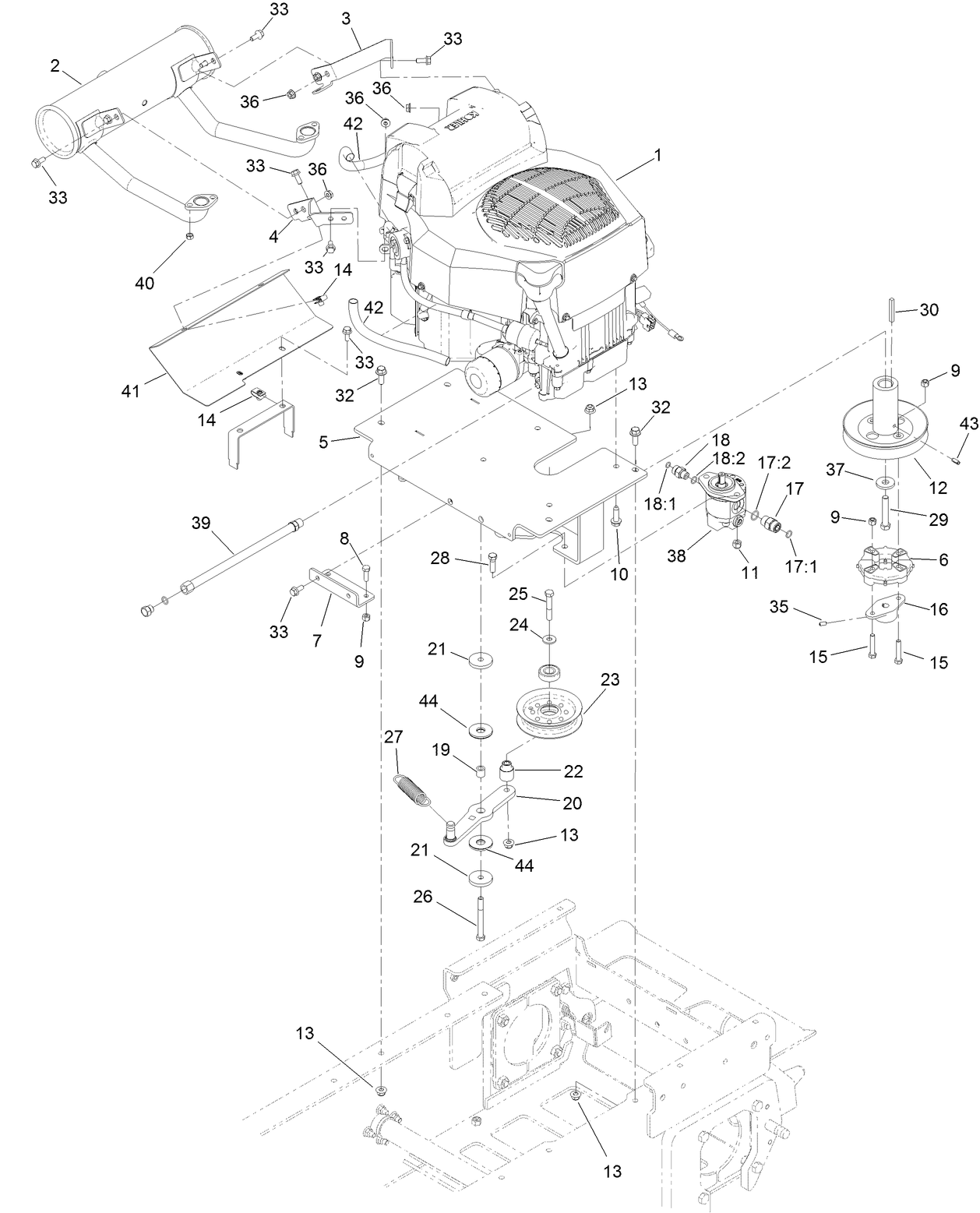

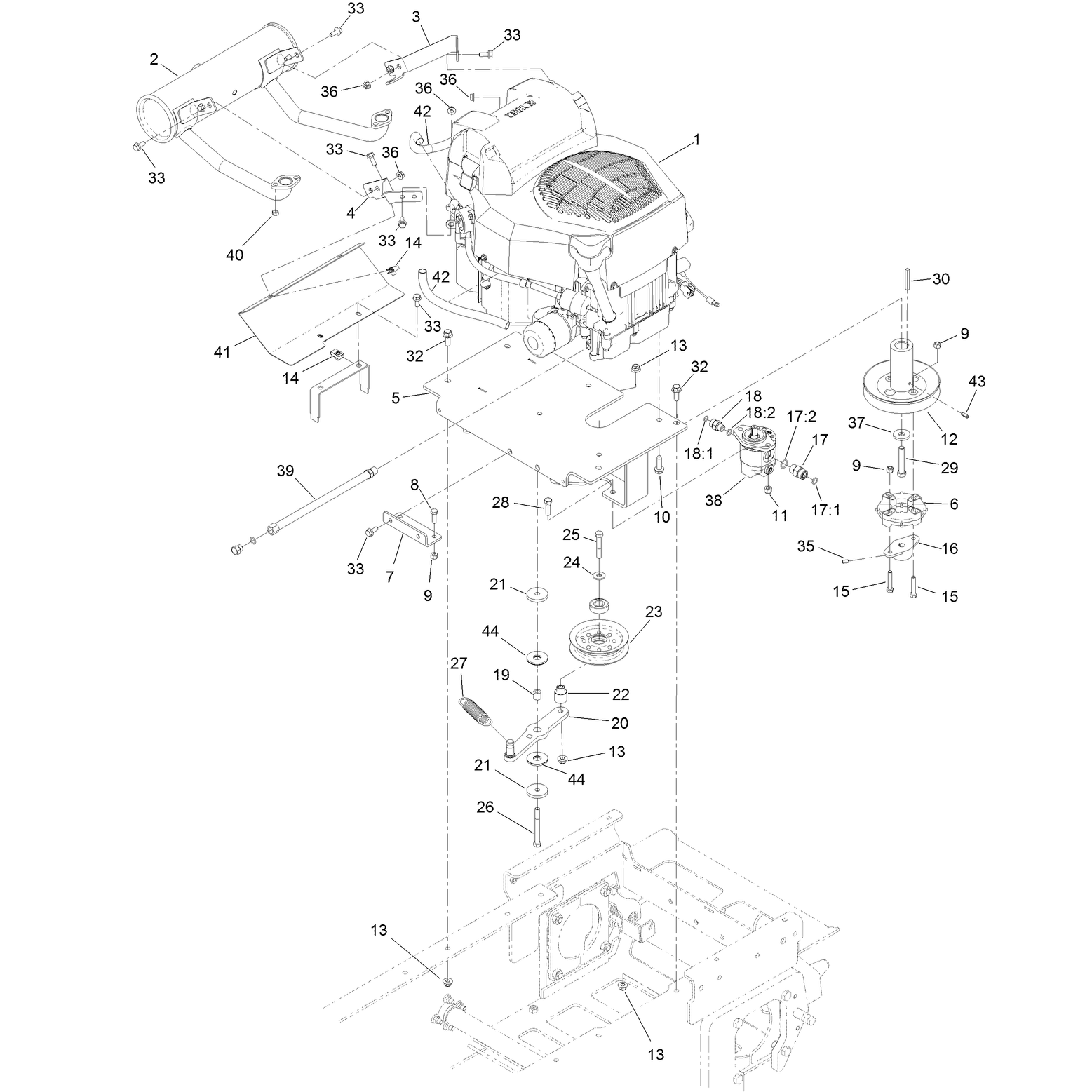

Engine Assembly
Engine Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

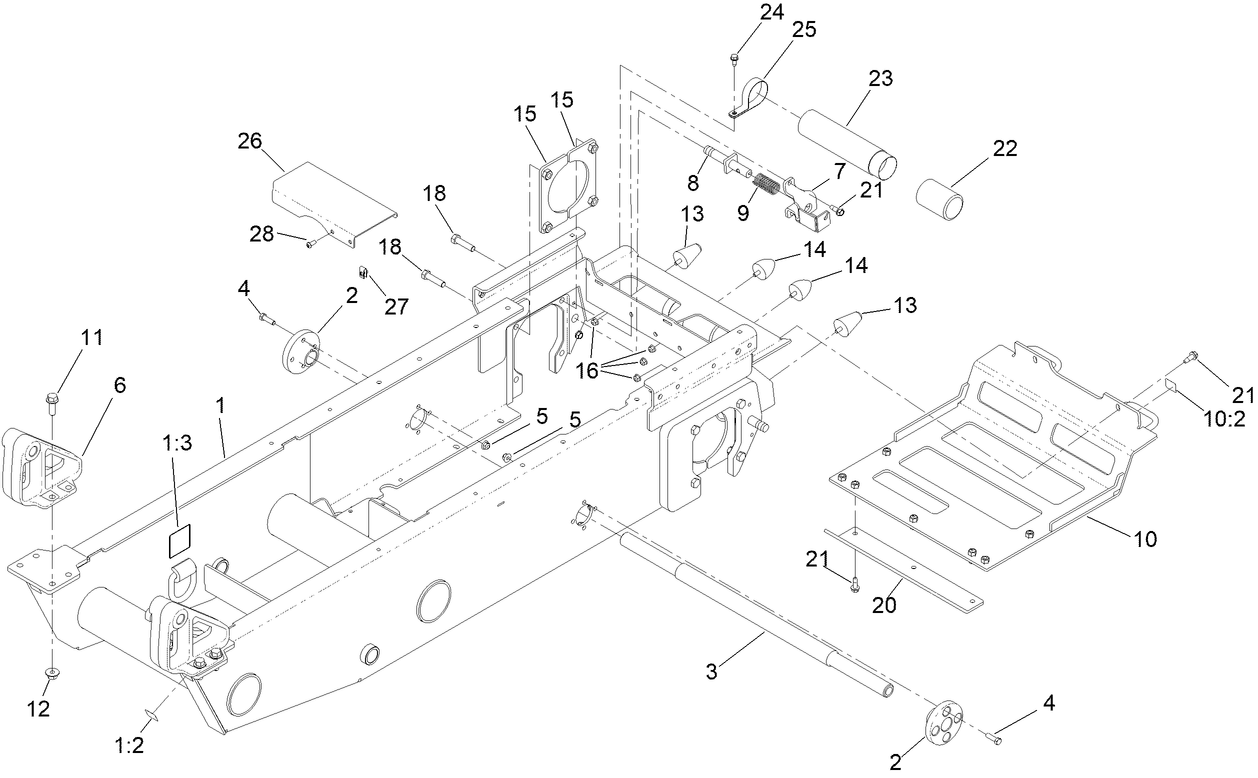

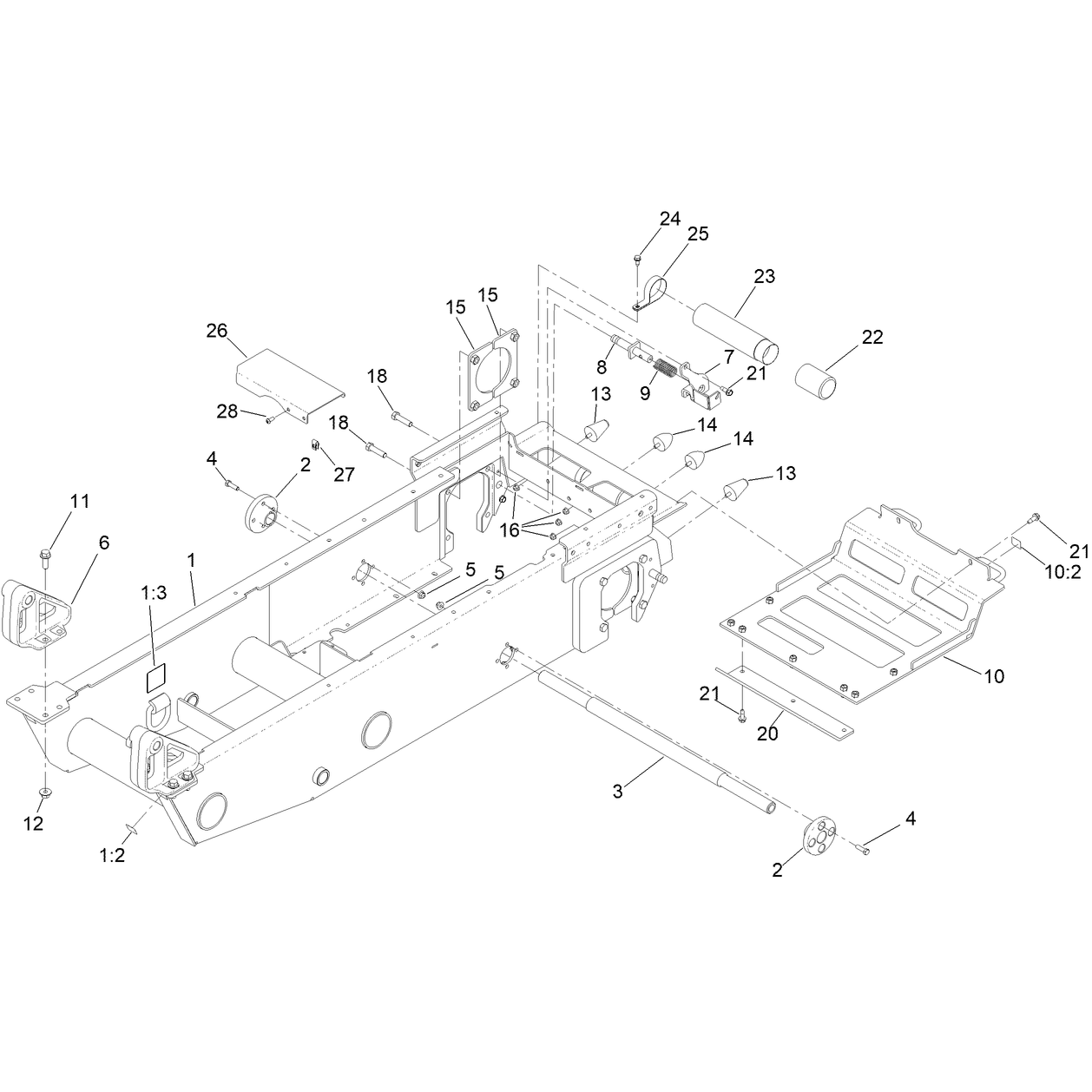

Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

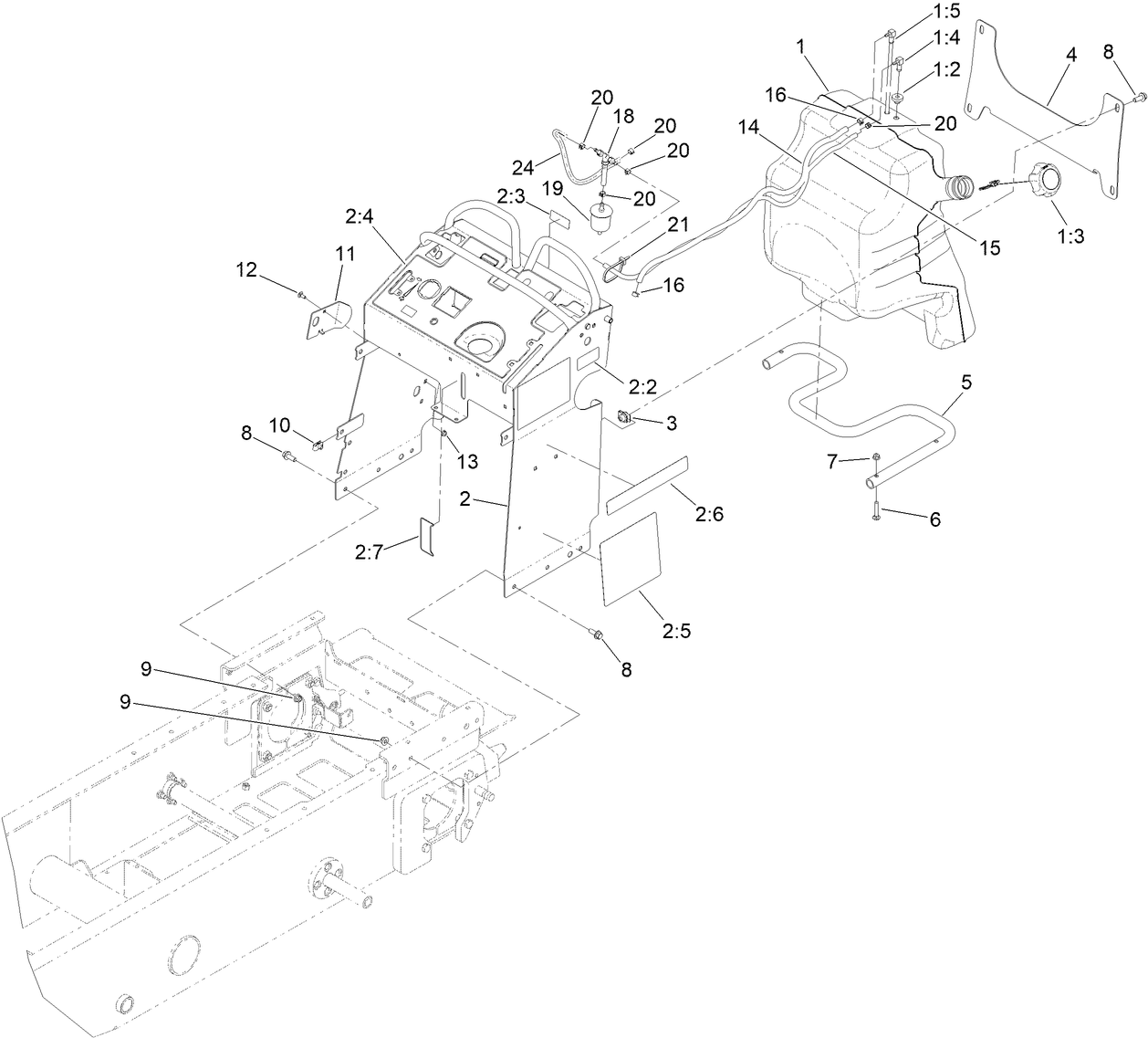

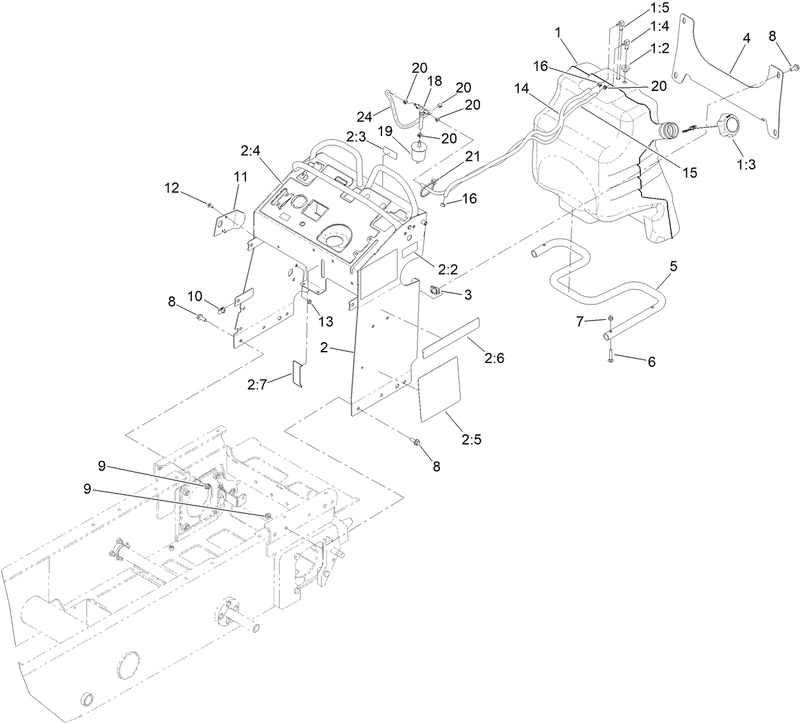

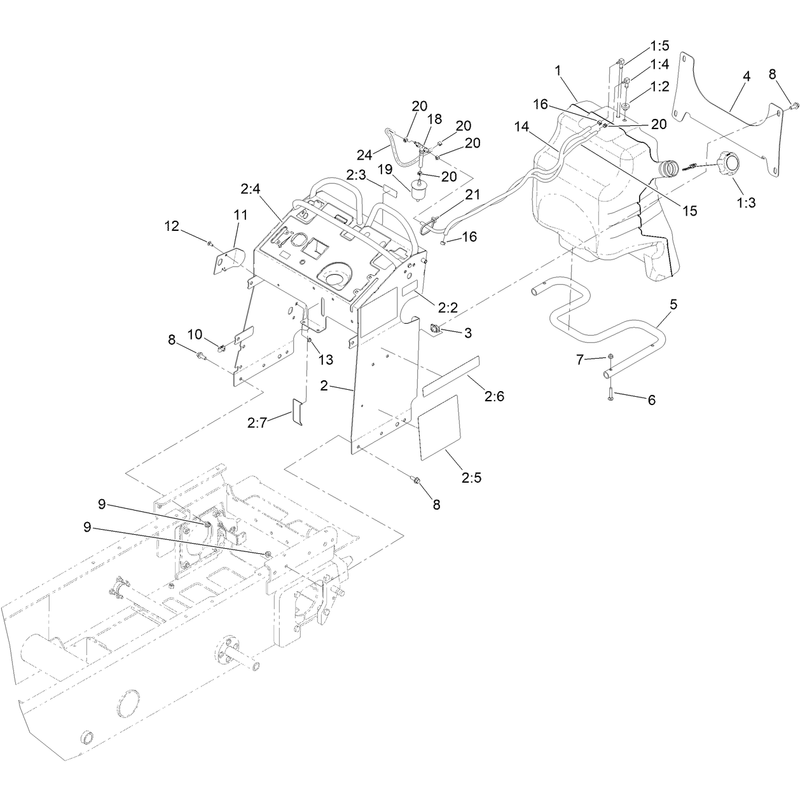

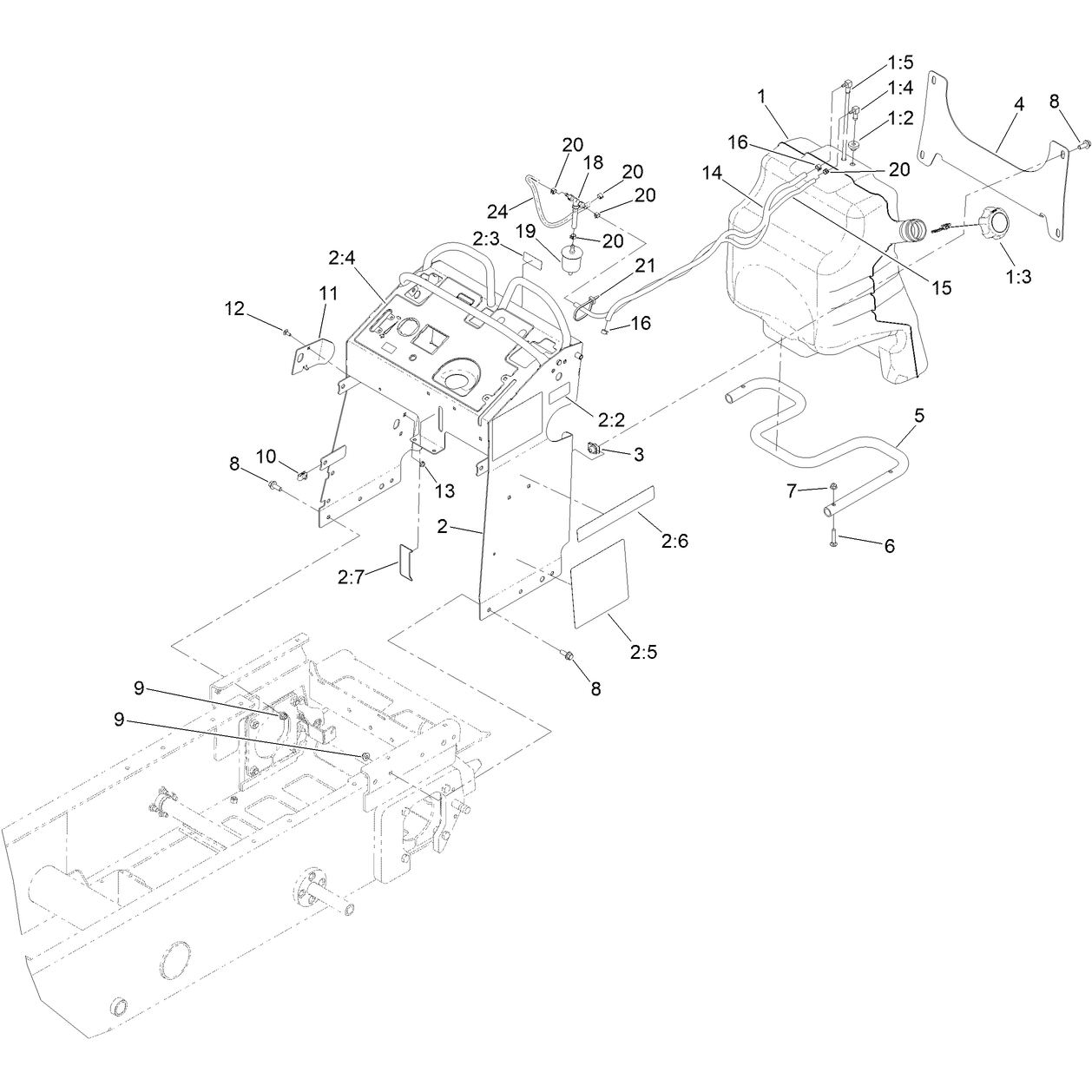

Fuel Tank and Tower Assembly
Fuel Tank and Tower Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

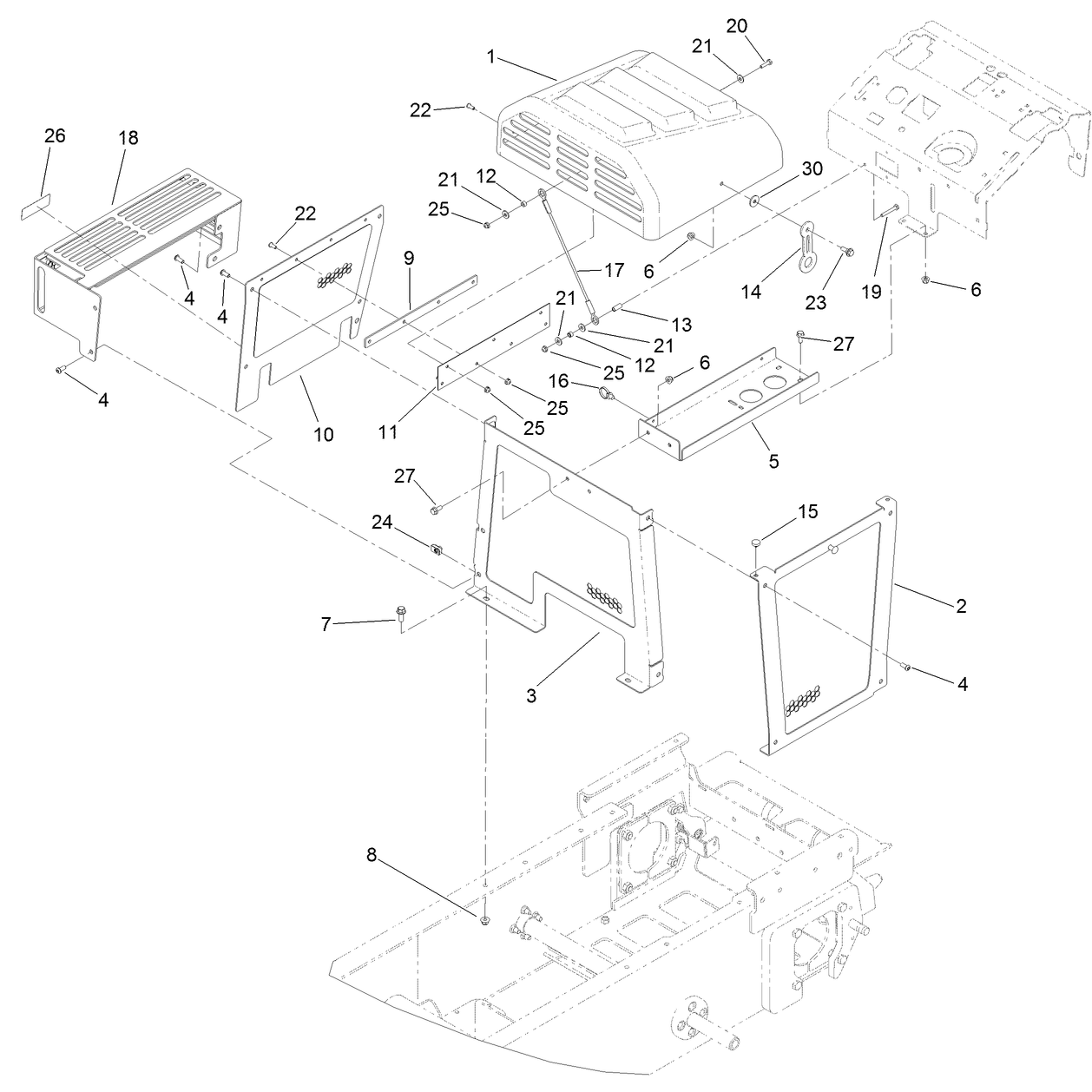

Hood Assembly
Hood Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

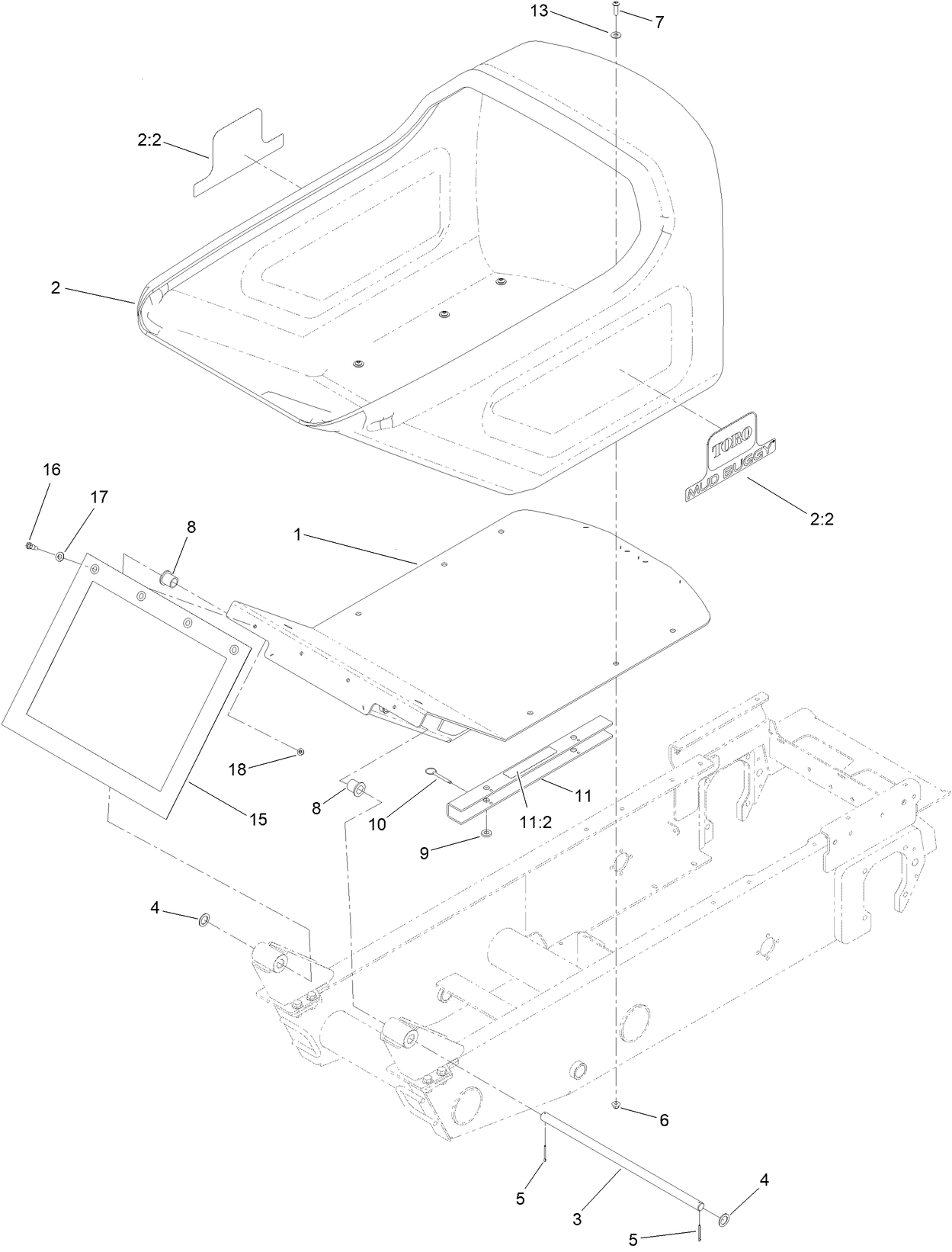

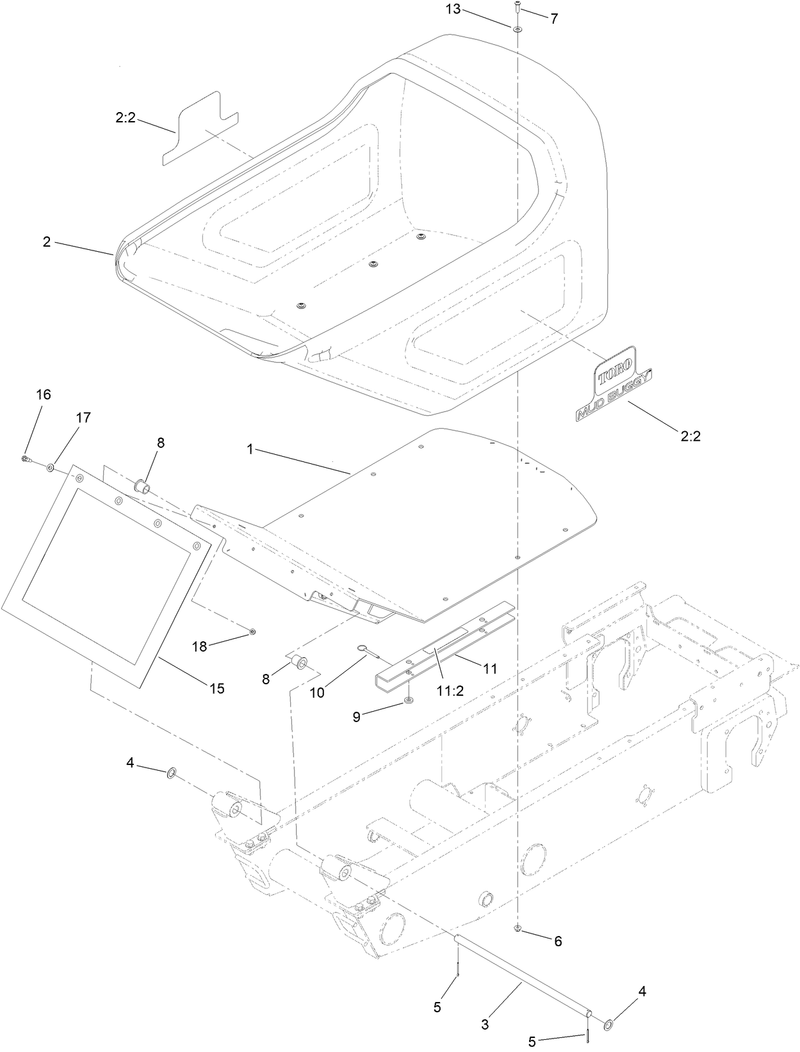

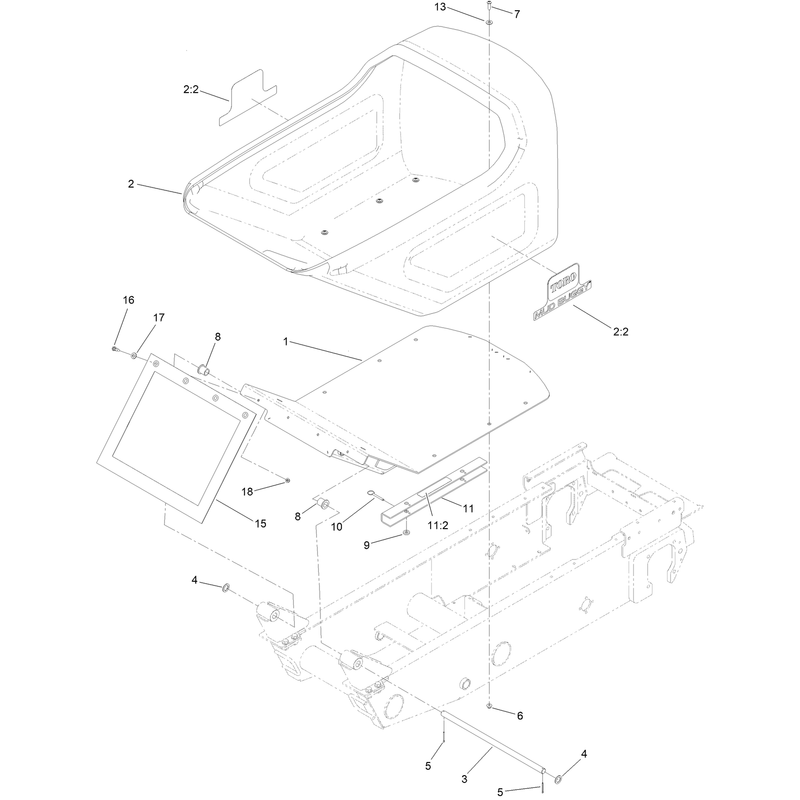

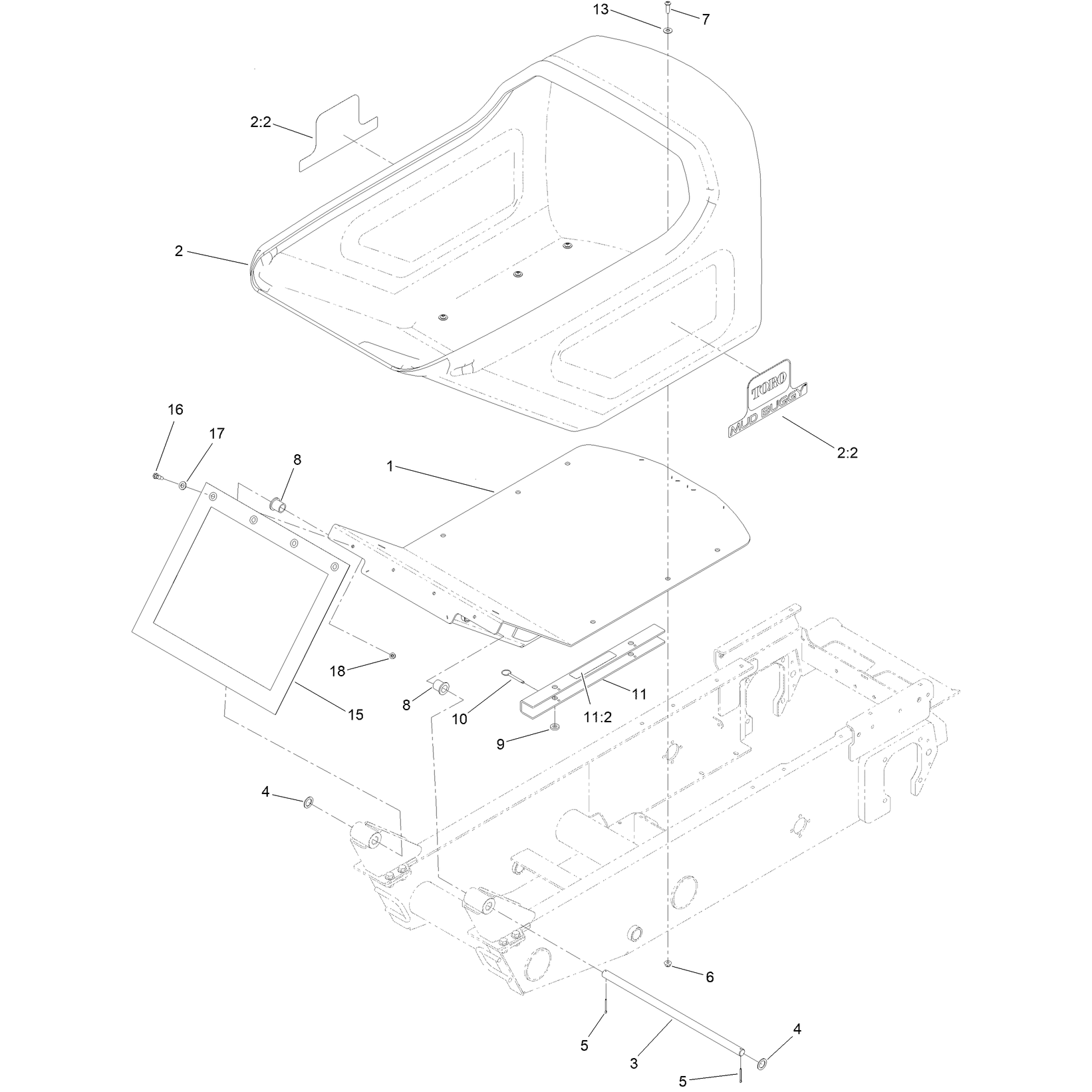

Hopper Assembly
Hopper Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

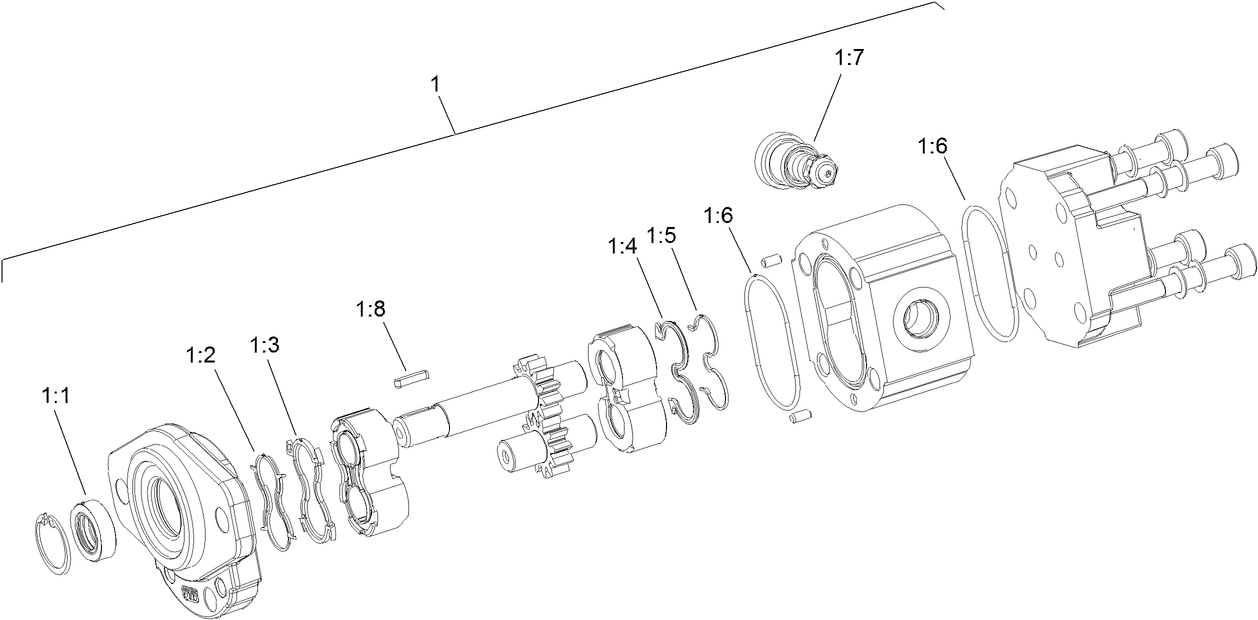

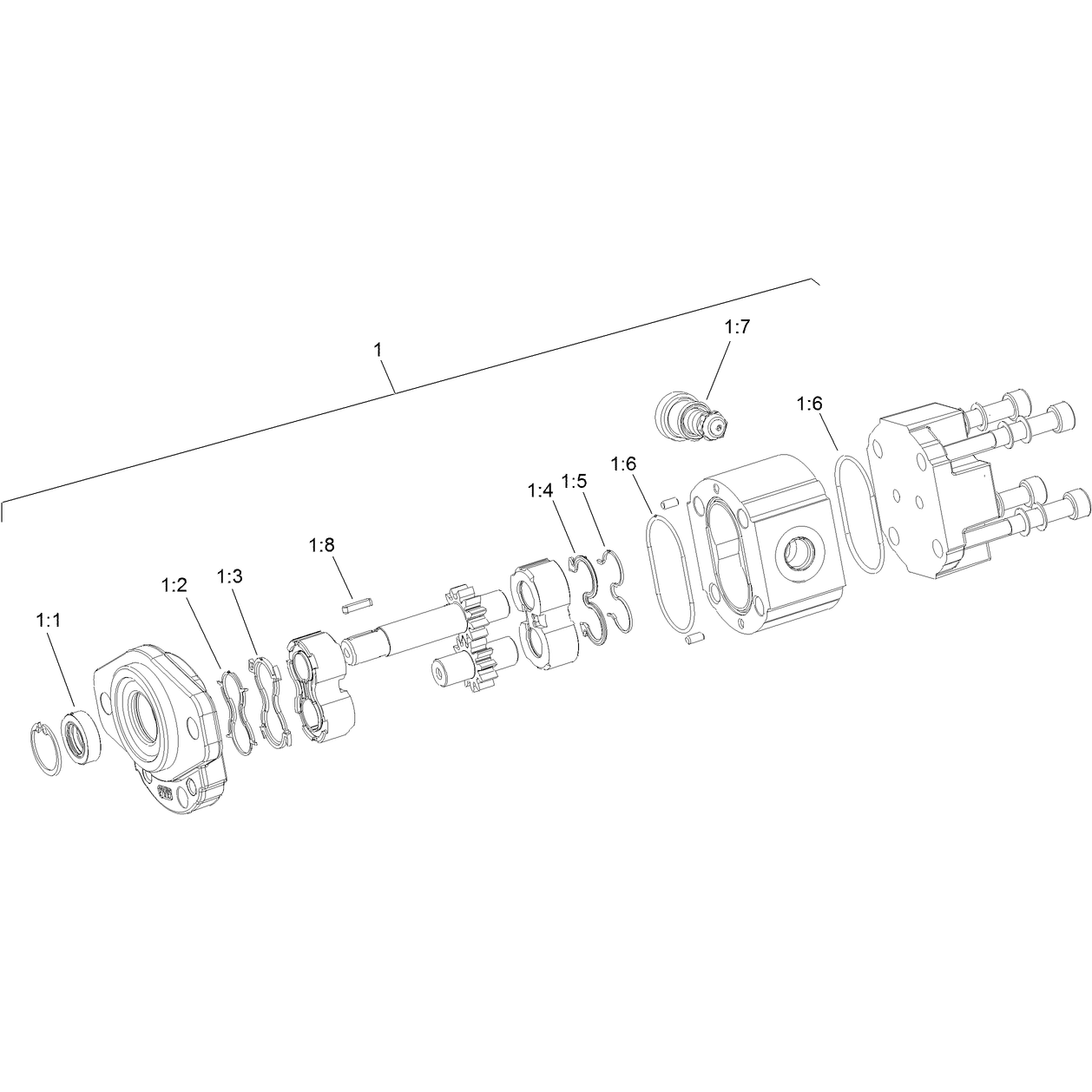

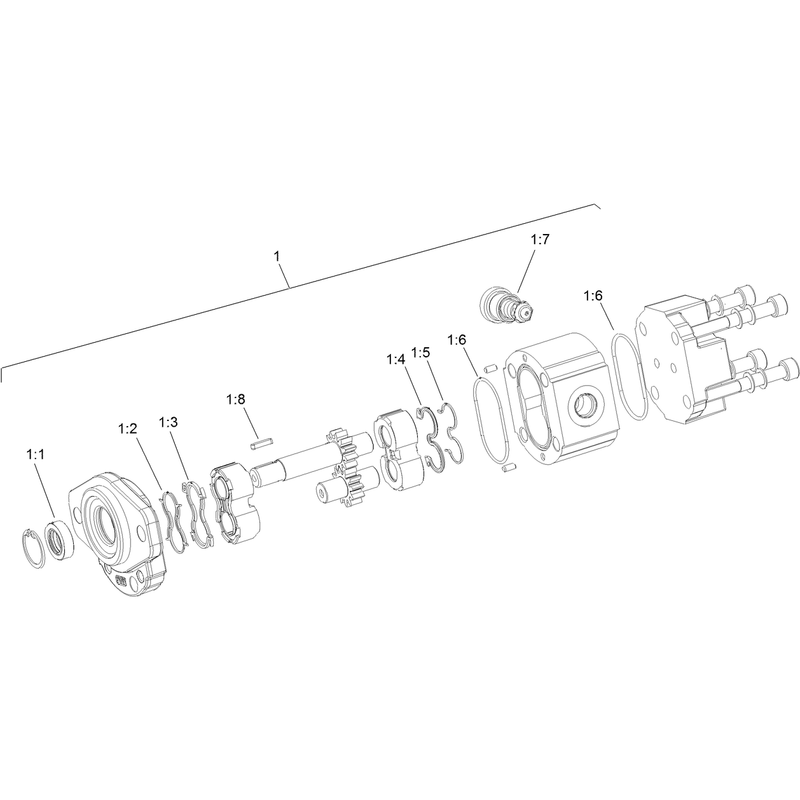

Hydraulic Gear Pump Assembly No 132 8954
Hydraulic Gear Pump Assembly No 132 8954
| Sequence Number | Image | Product | Price | Add to cart |
|---|

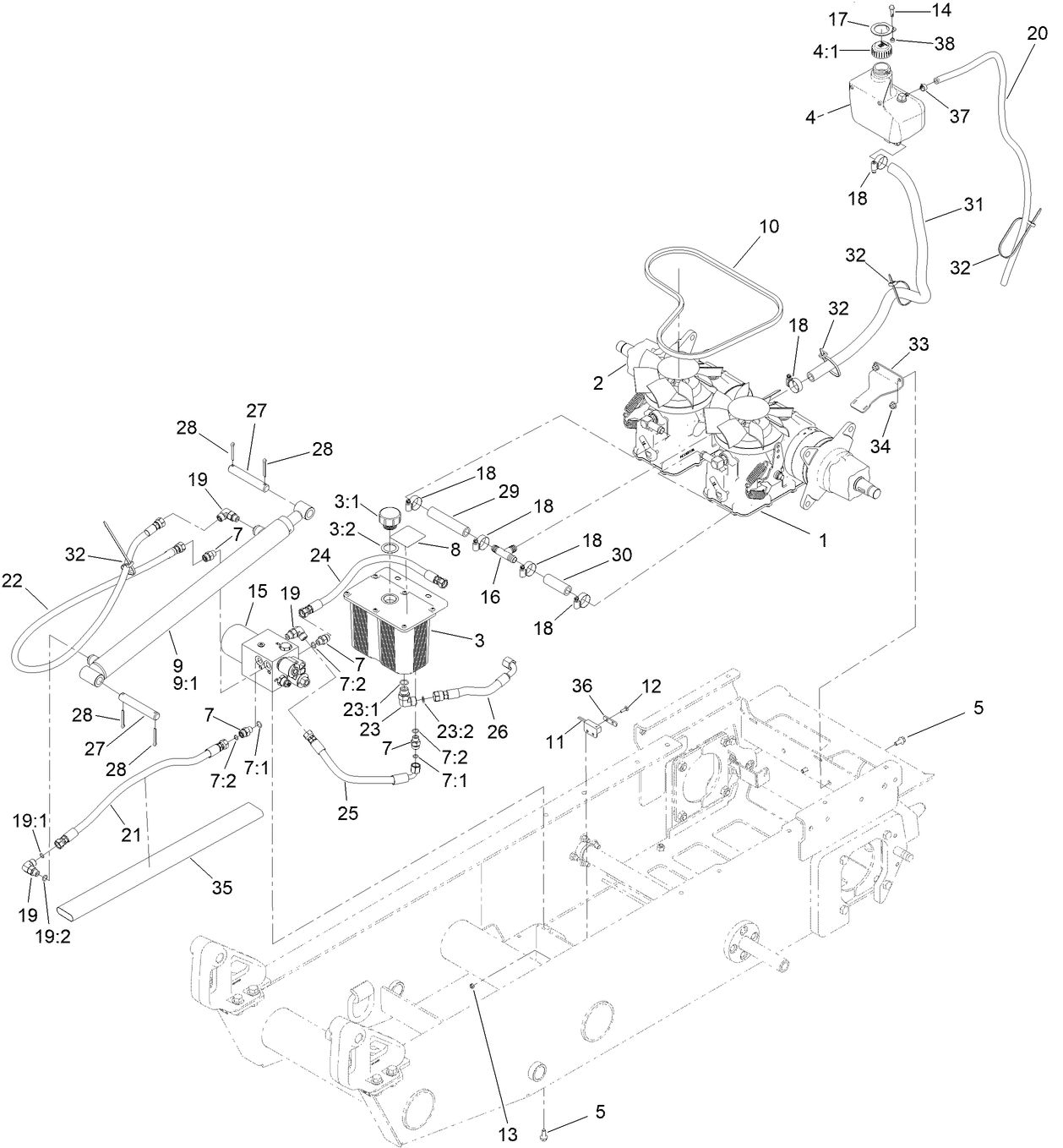

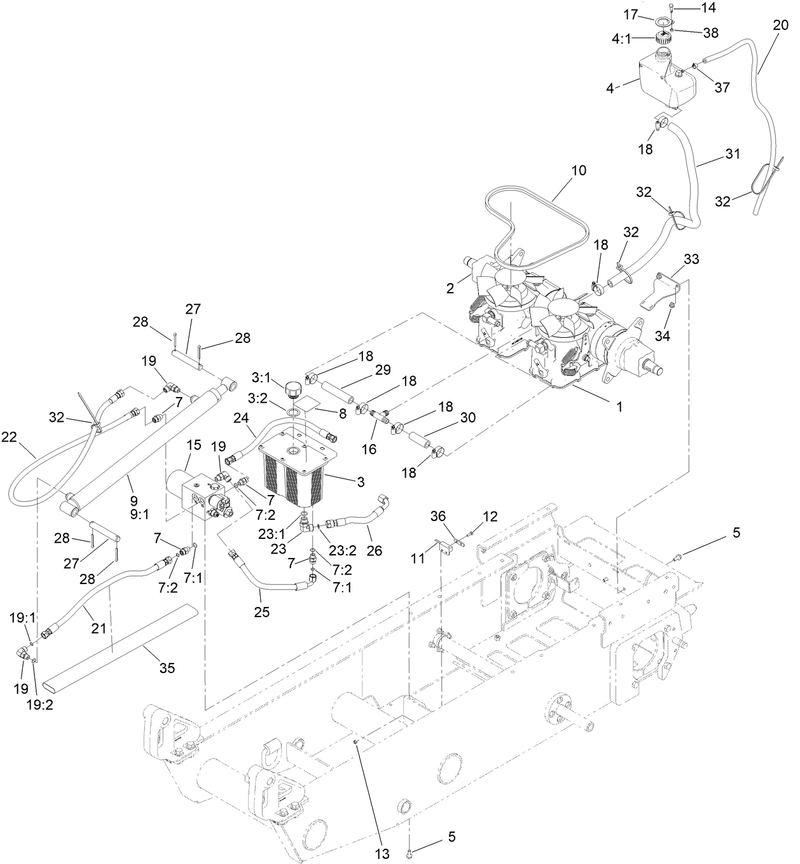

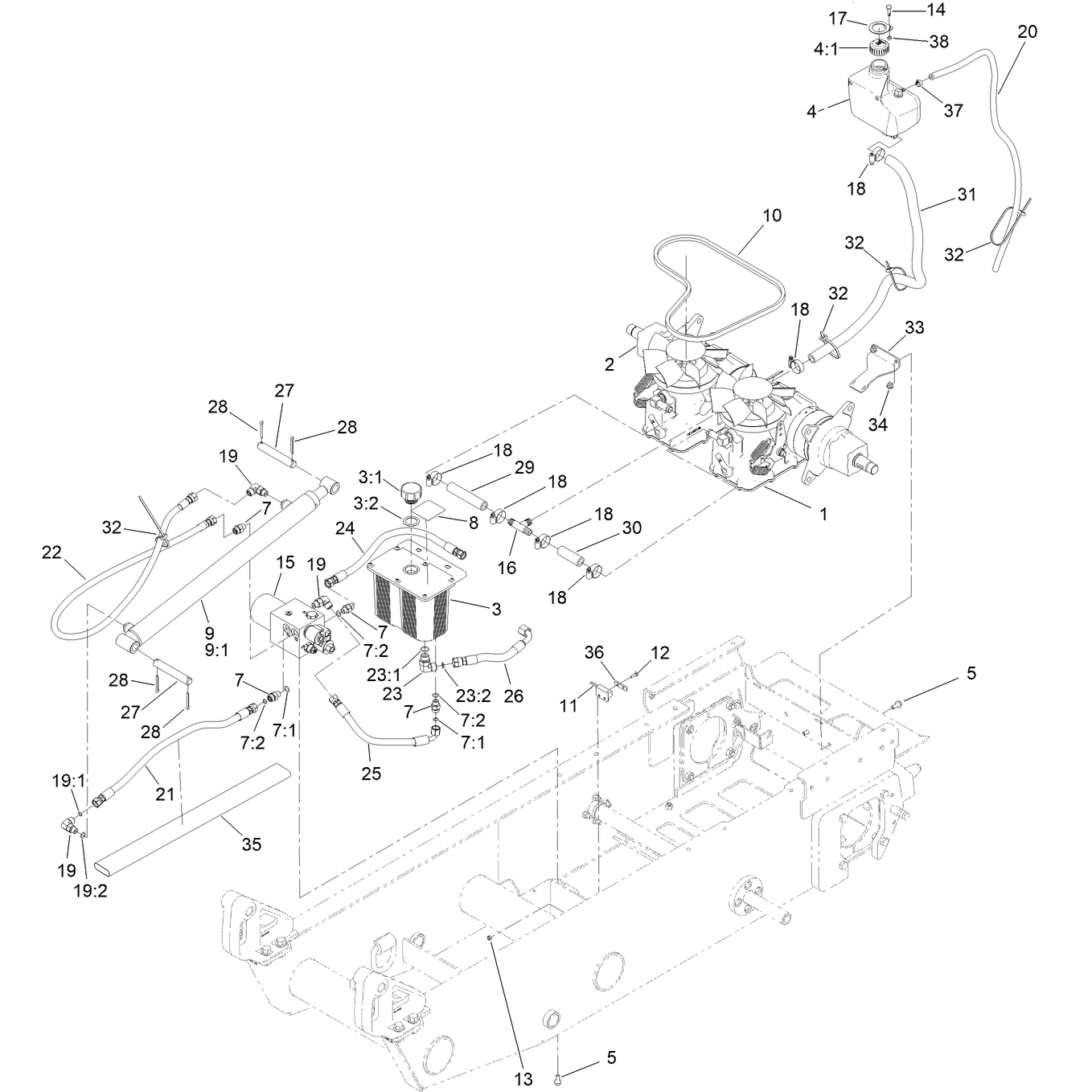

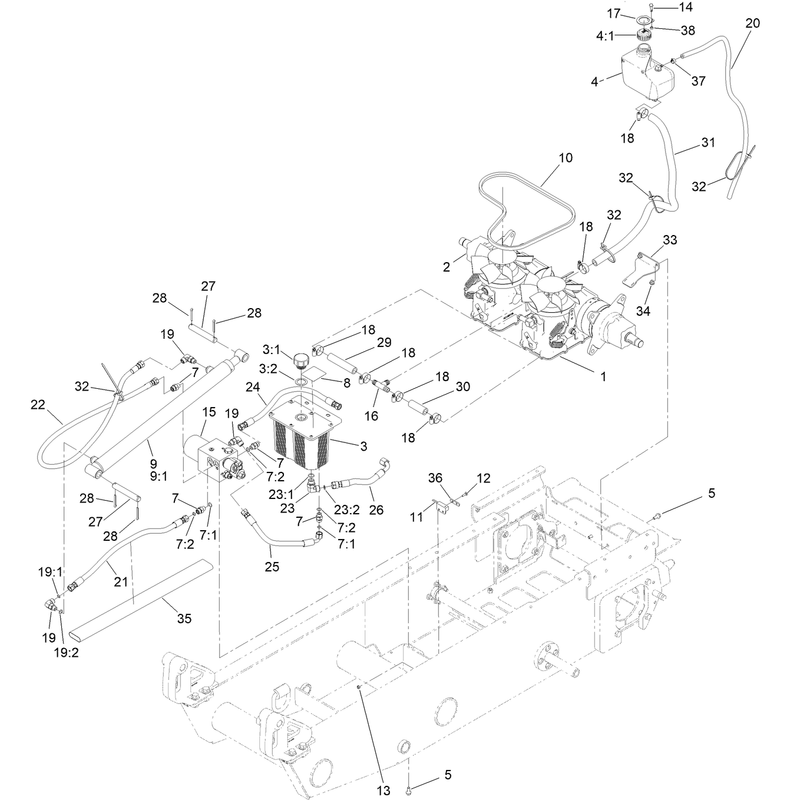

Hydraulic Pump Assembly
Hydraulic Pump Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

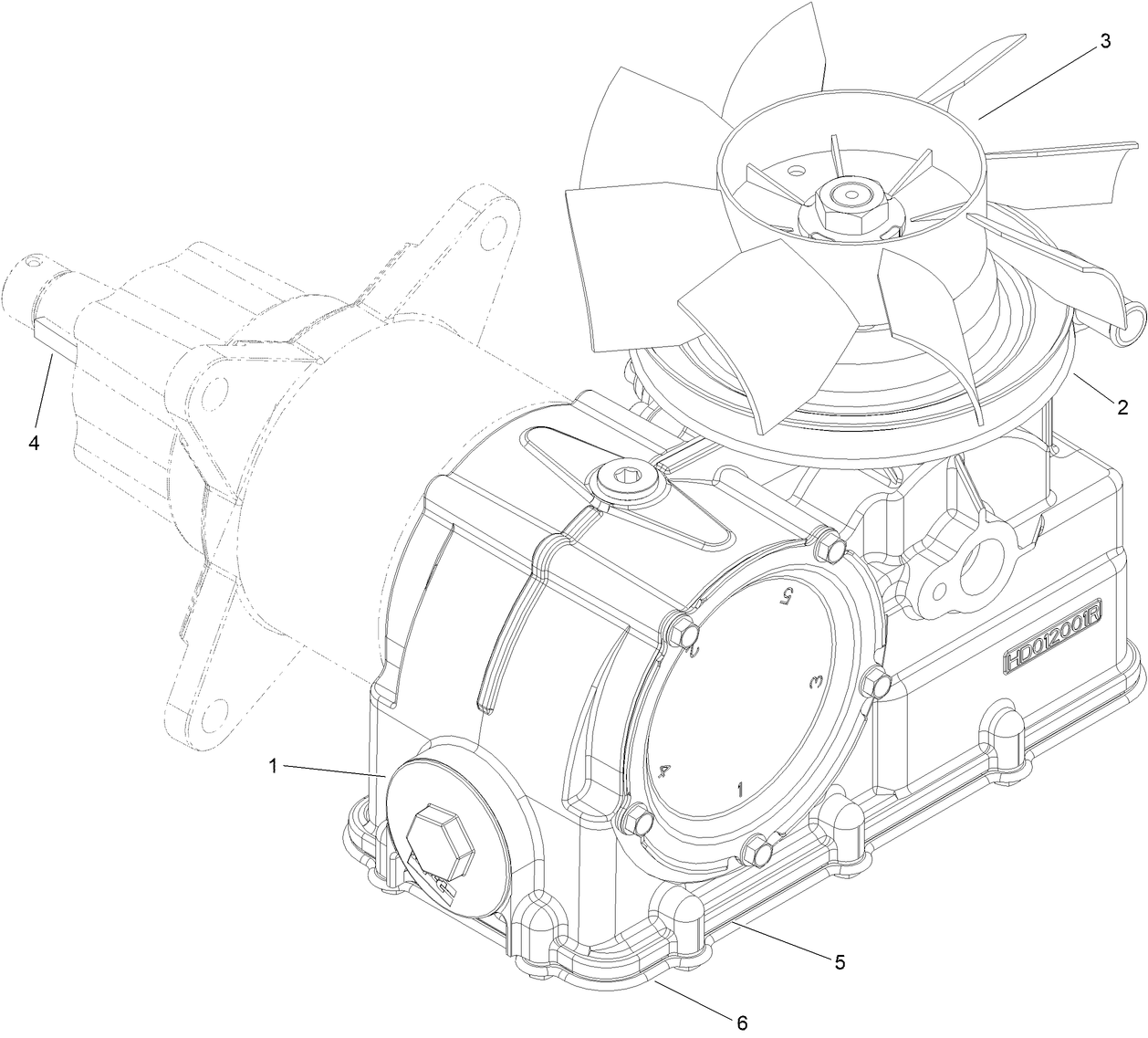

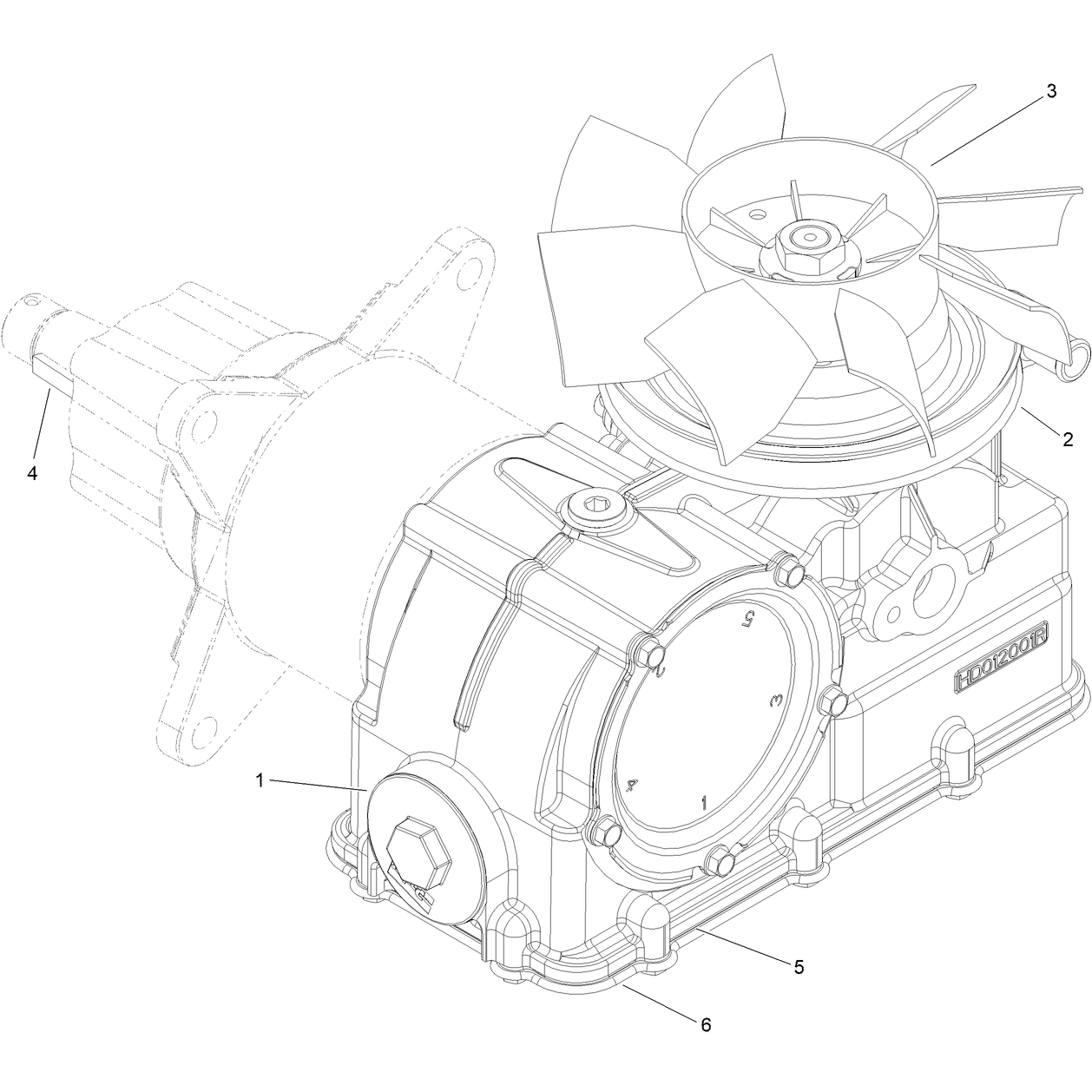

LH Hydro Transaxle Assembly No 132 8802
LH Hydro Transaxle Assembly No 132 8802
| Sequence Number | Image | Product | Price | Add to cart |
|---|

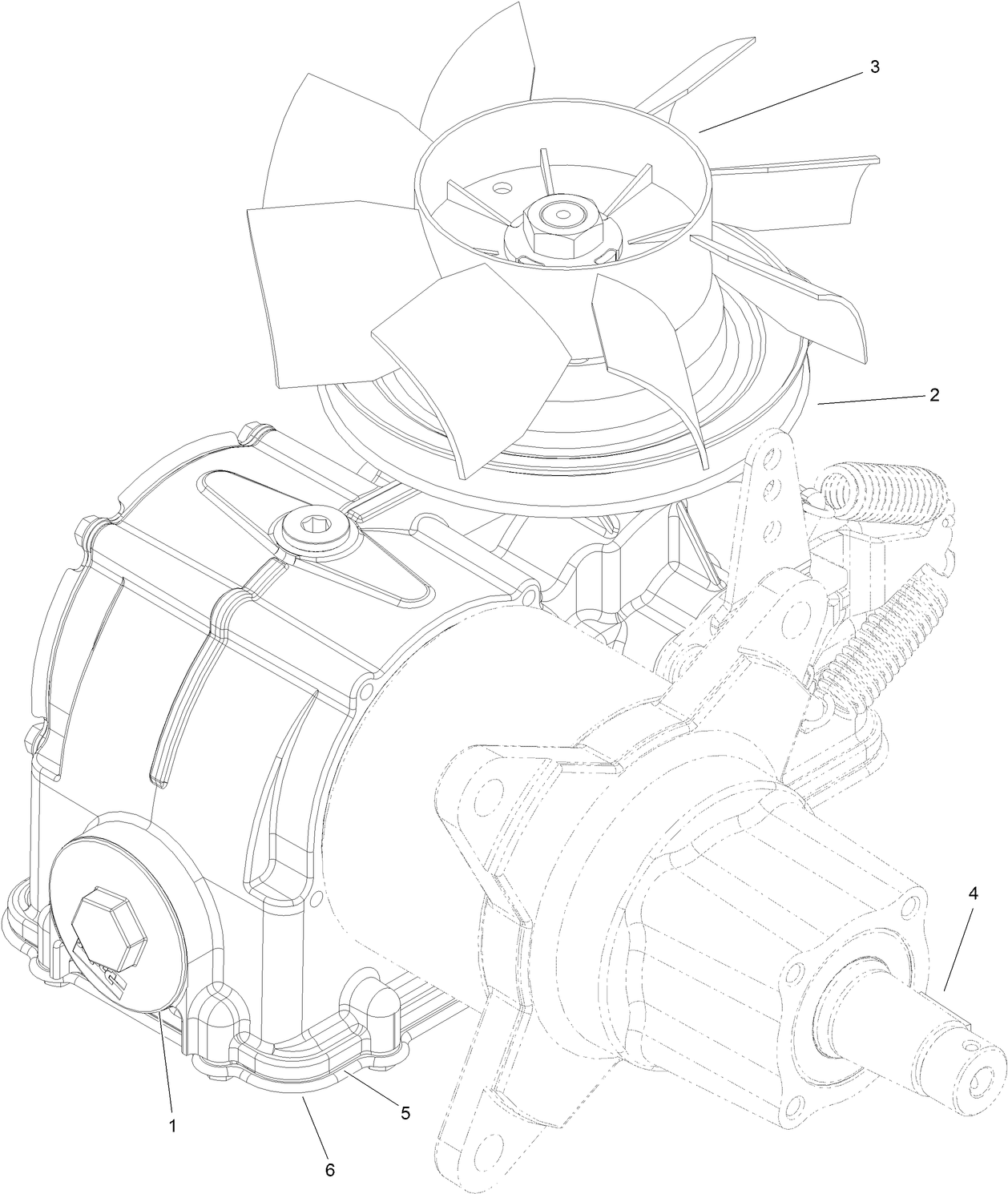

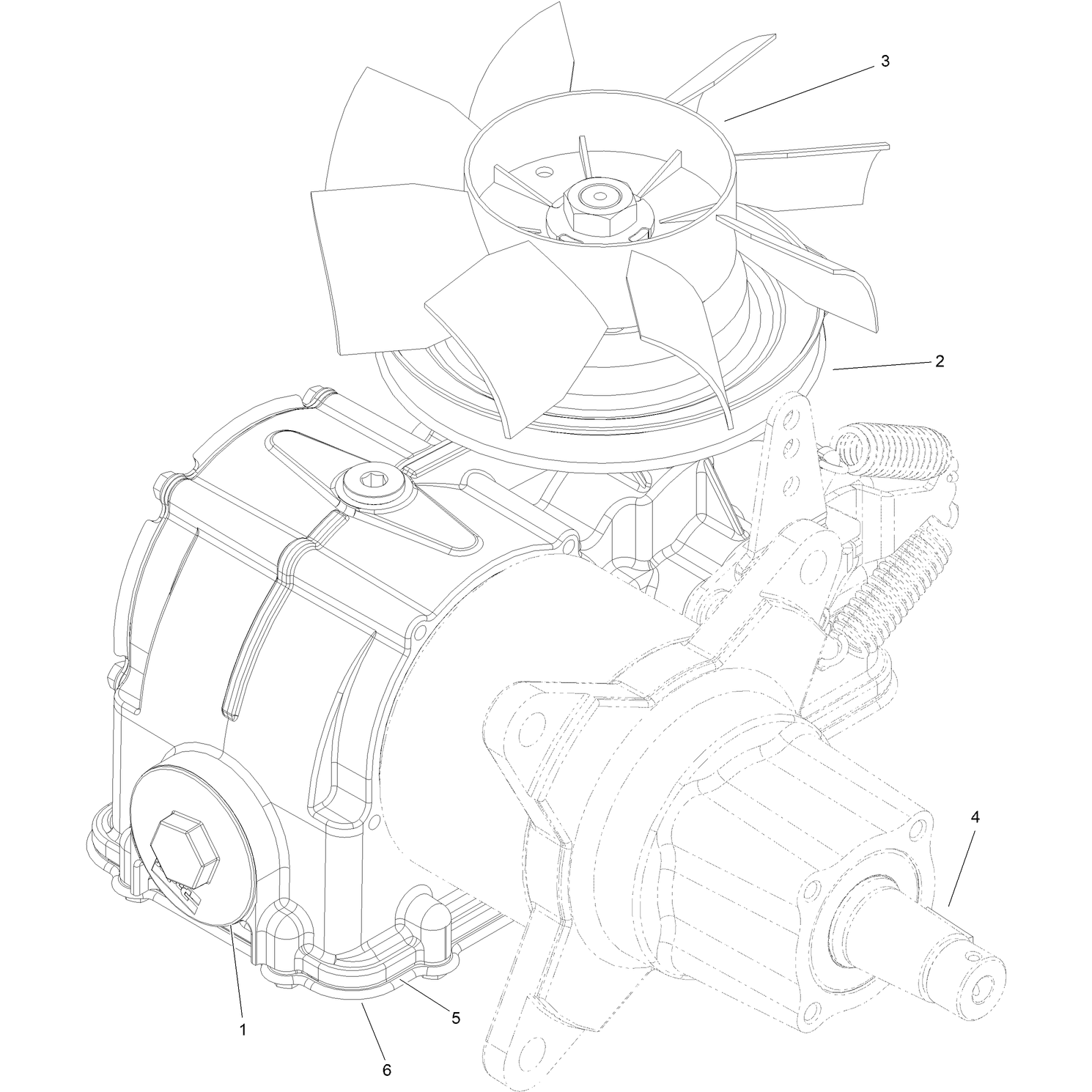

RH Hydro Transaxle Assembly No 132 8803
RH Hydro Transaxle Assembly No 132 8803
| Sequence Number | Image | Product | Price | Add to cart |
|---|

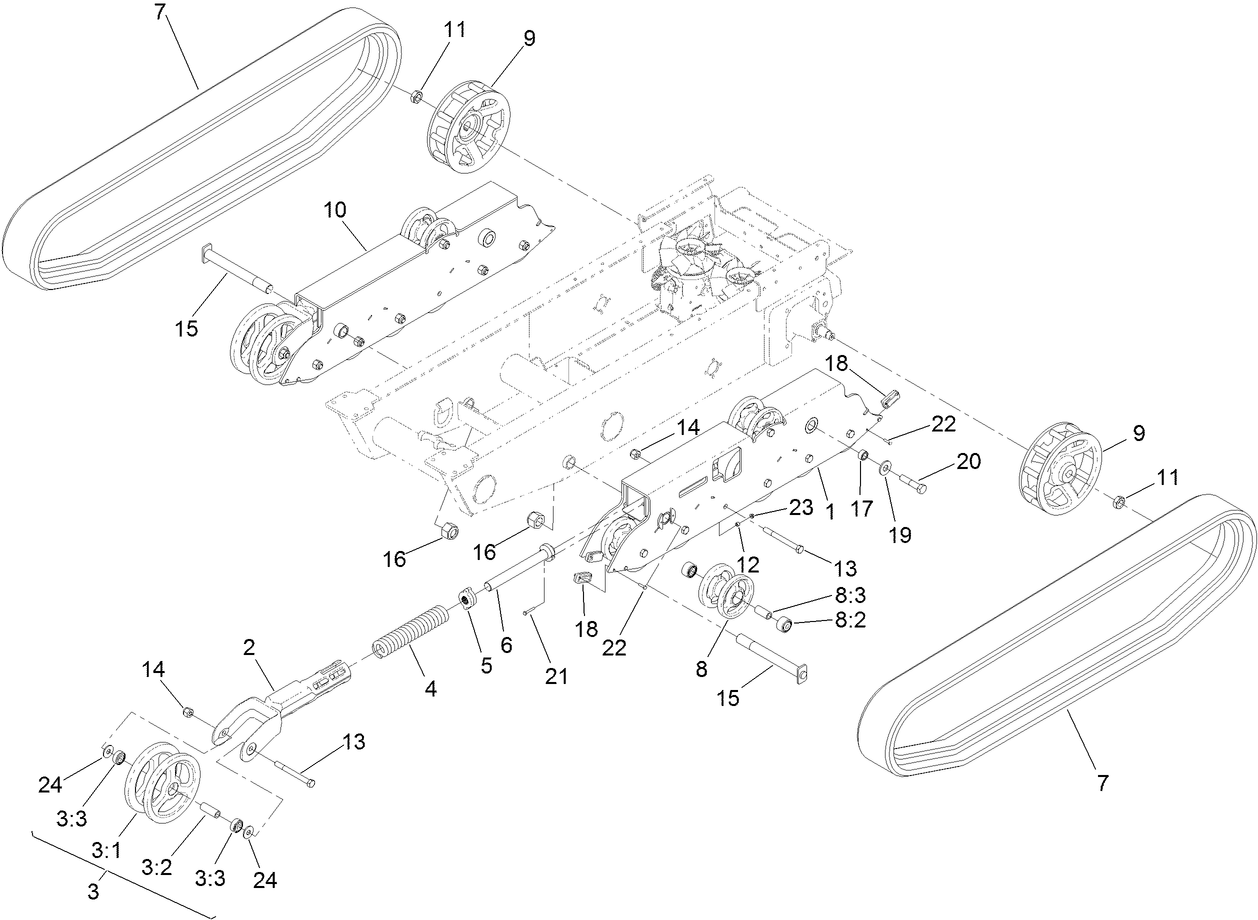

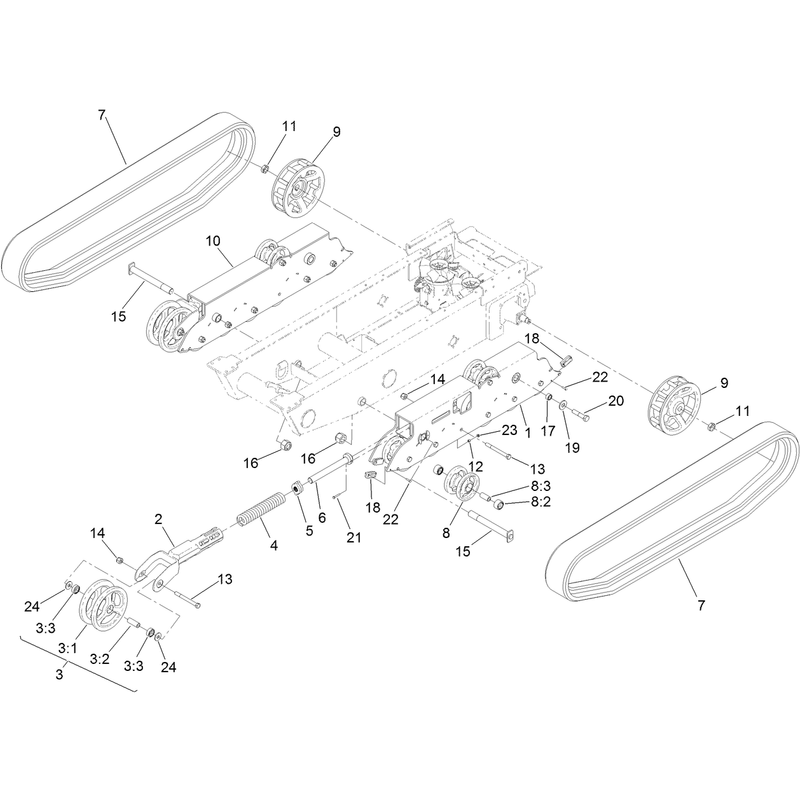

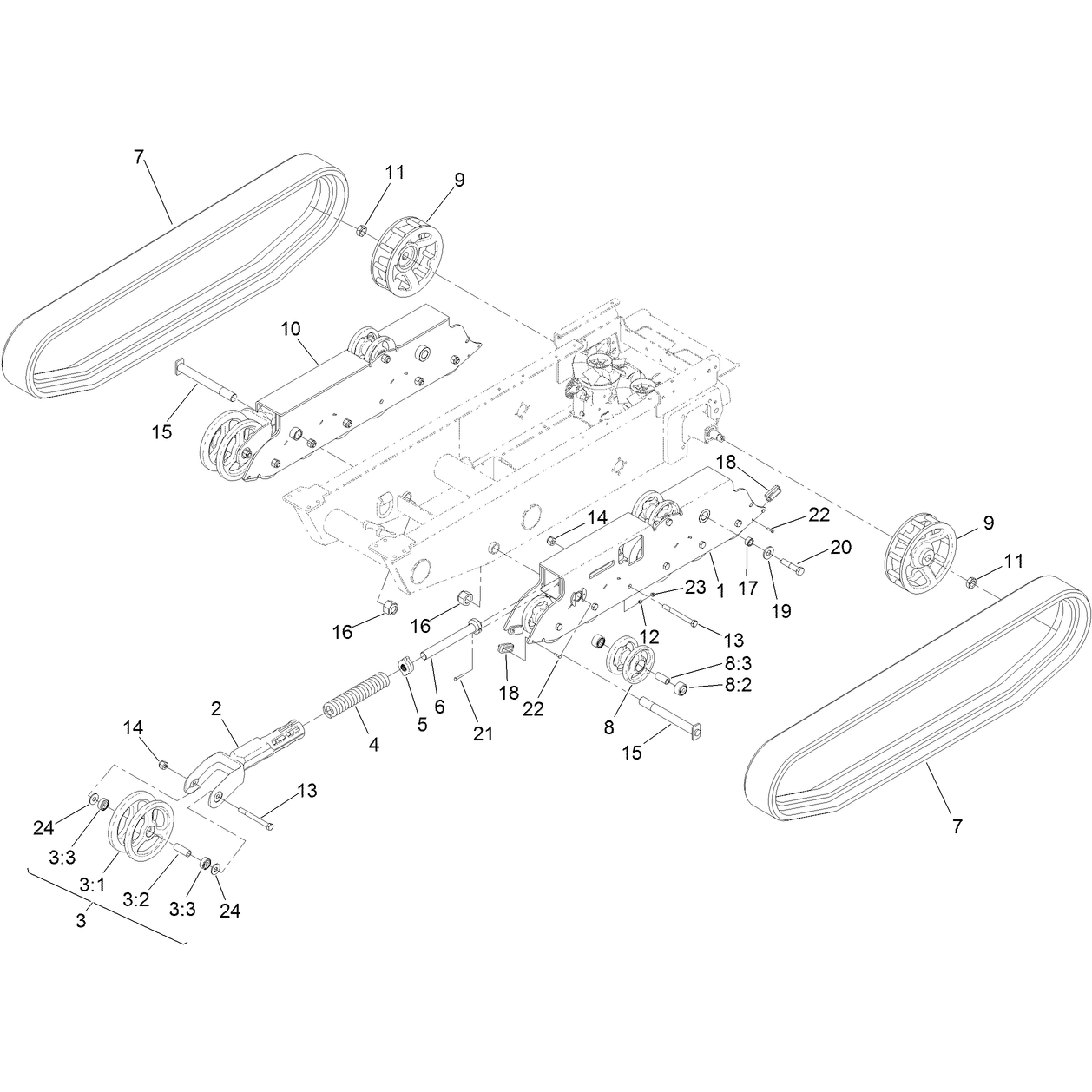

Track Assembly.gif
Track Assembly.gif
| Sequence Number | Image | Product | Price | Add to cart |
|---|
