Not Available to Ship to California

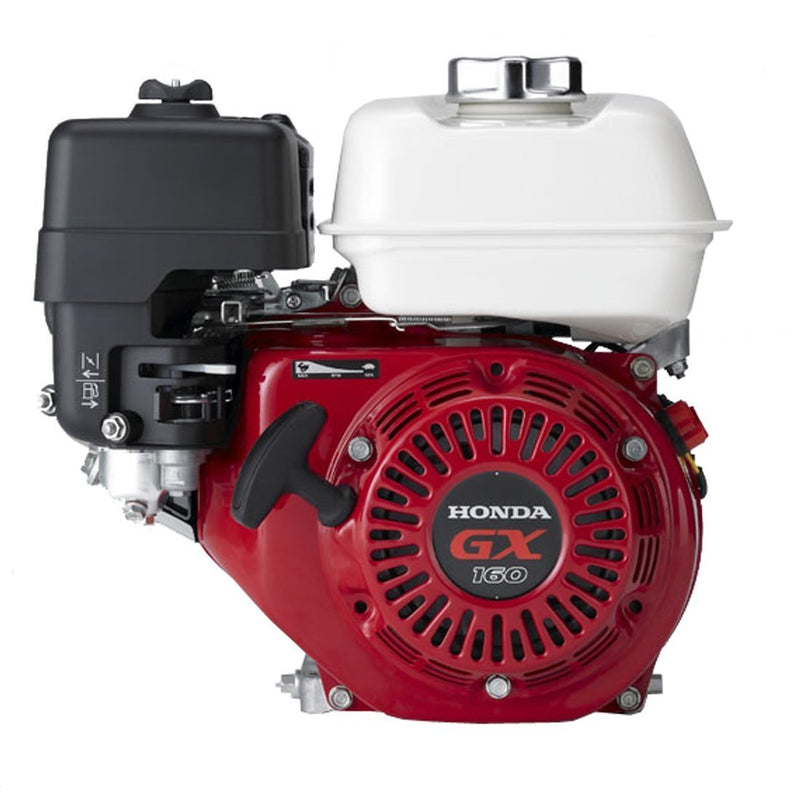

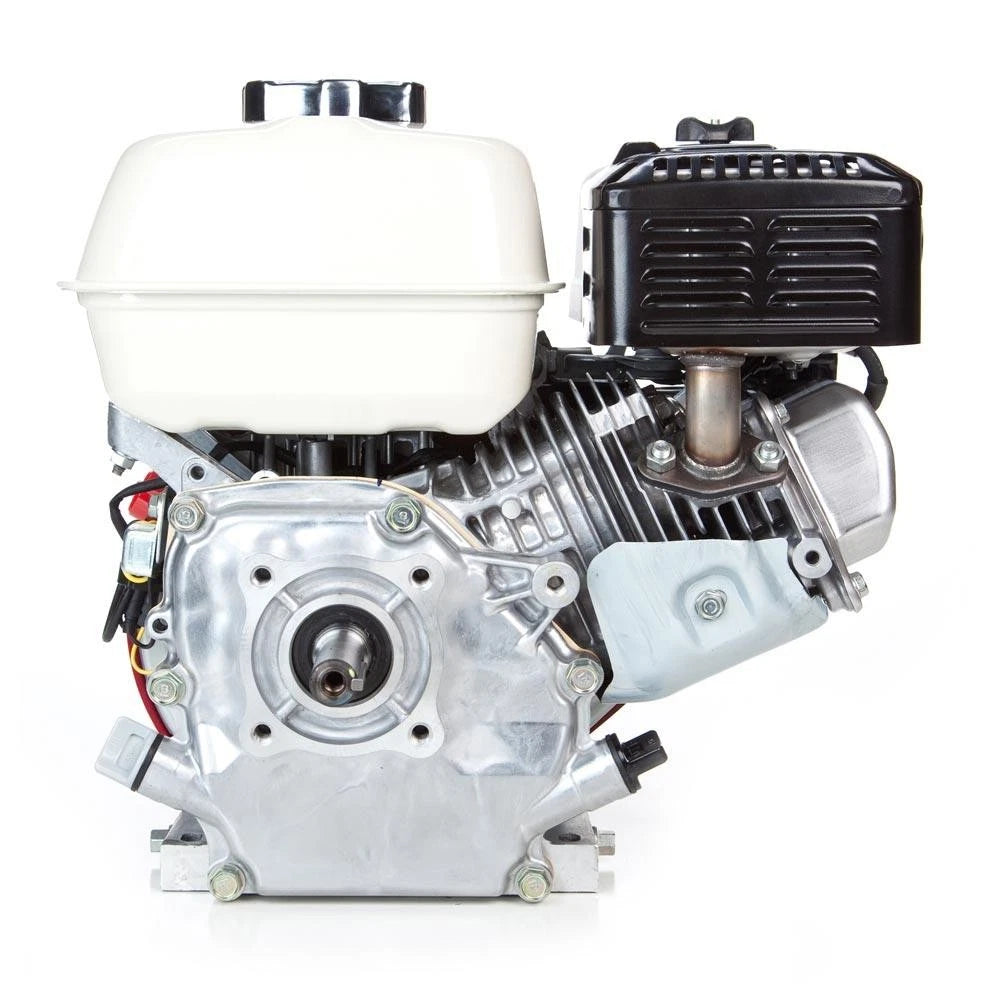

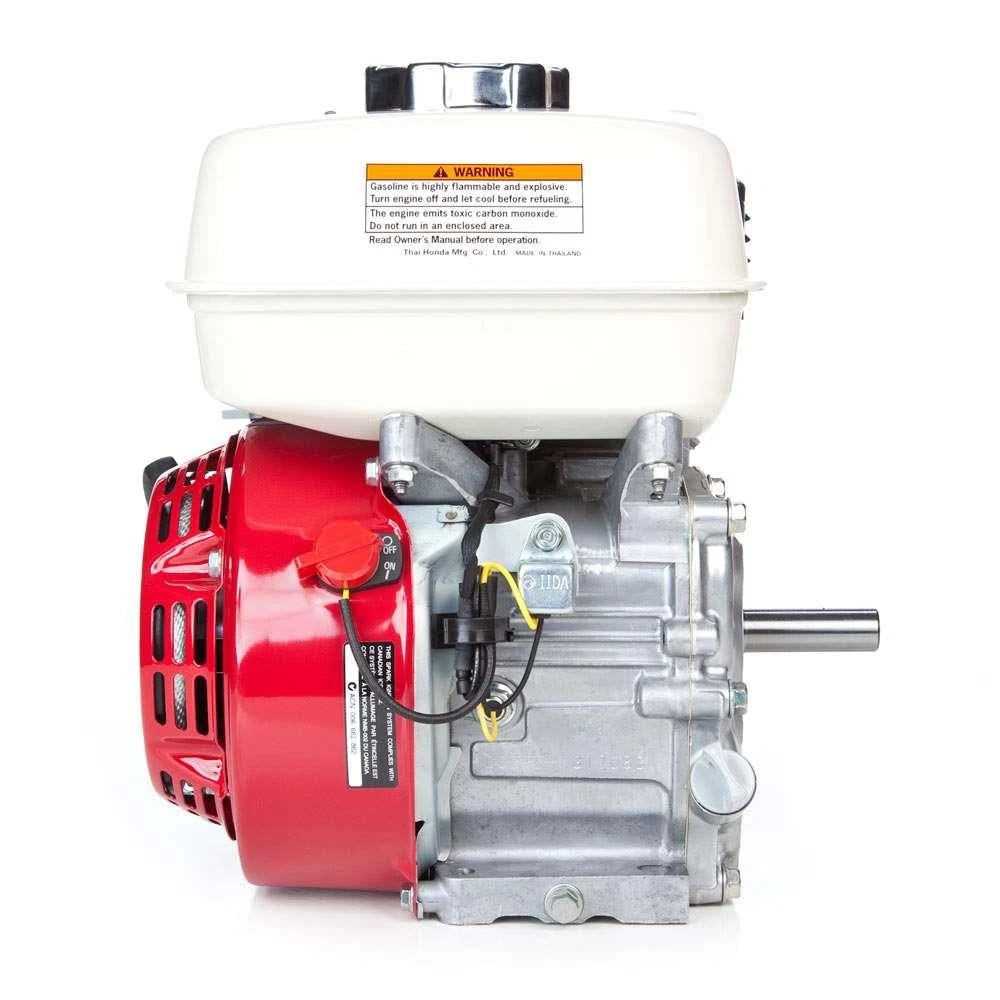

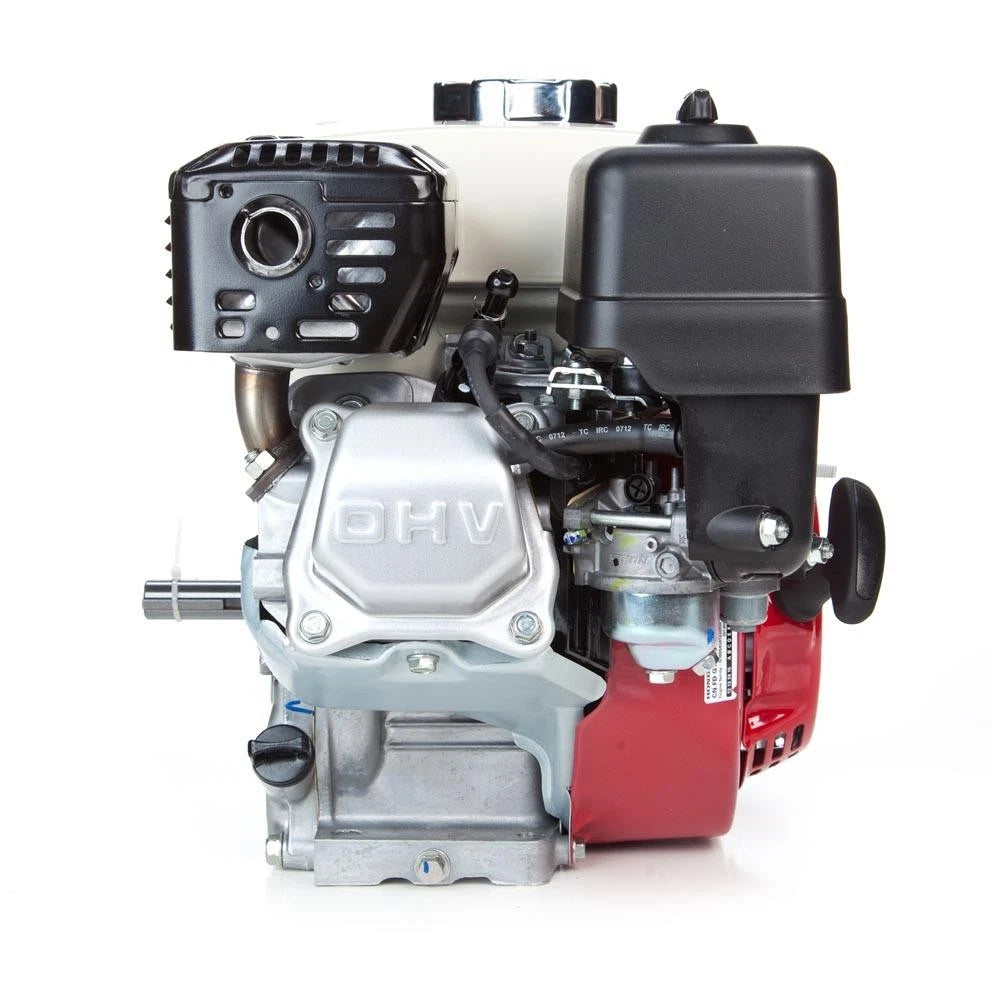

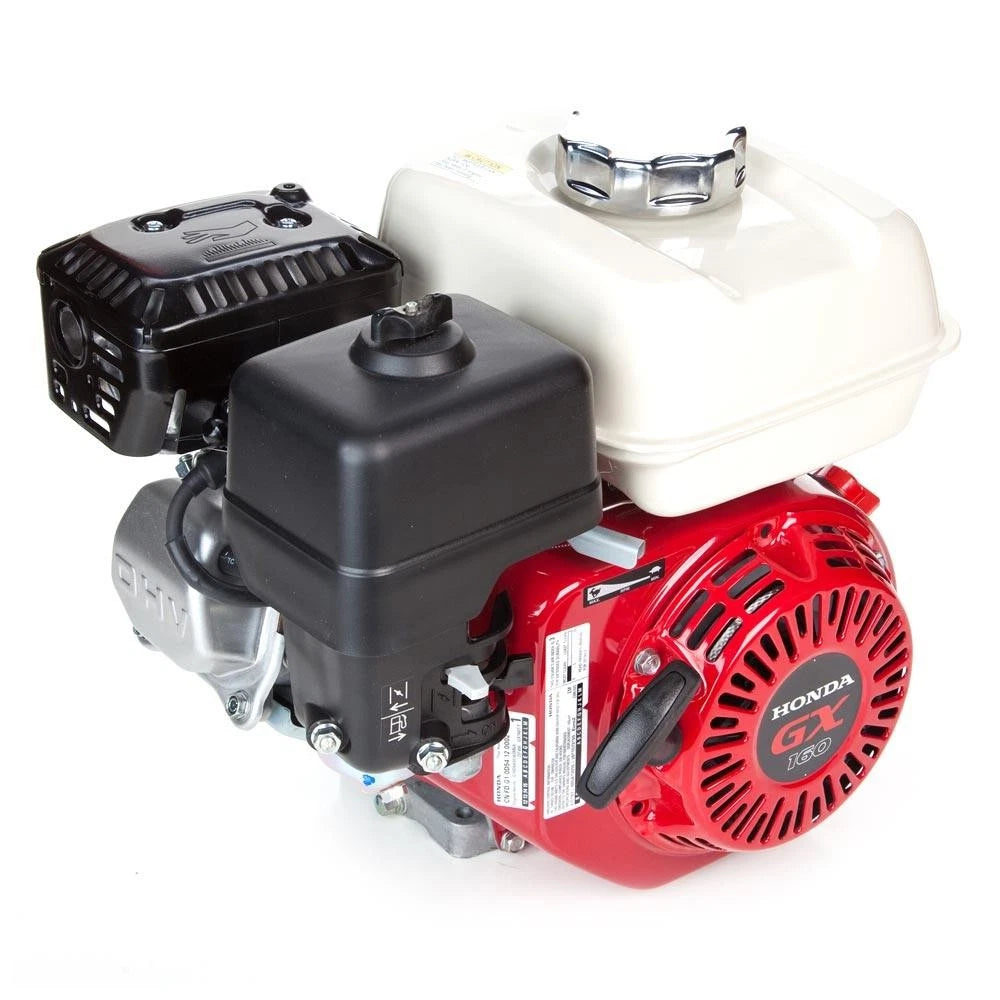

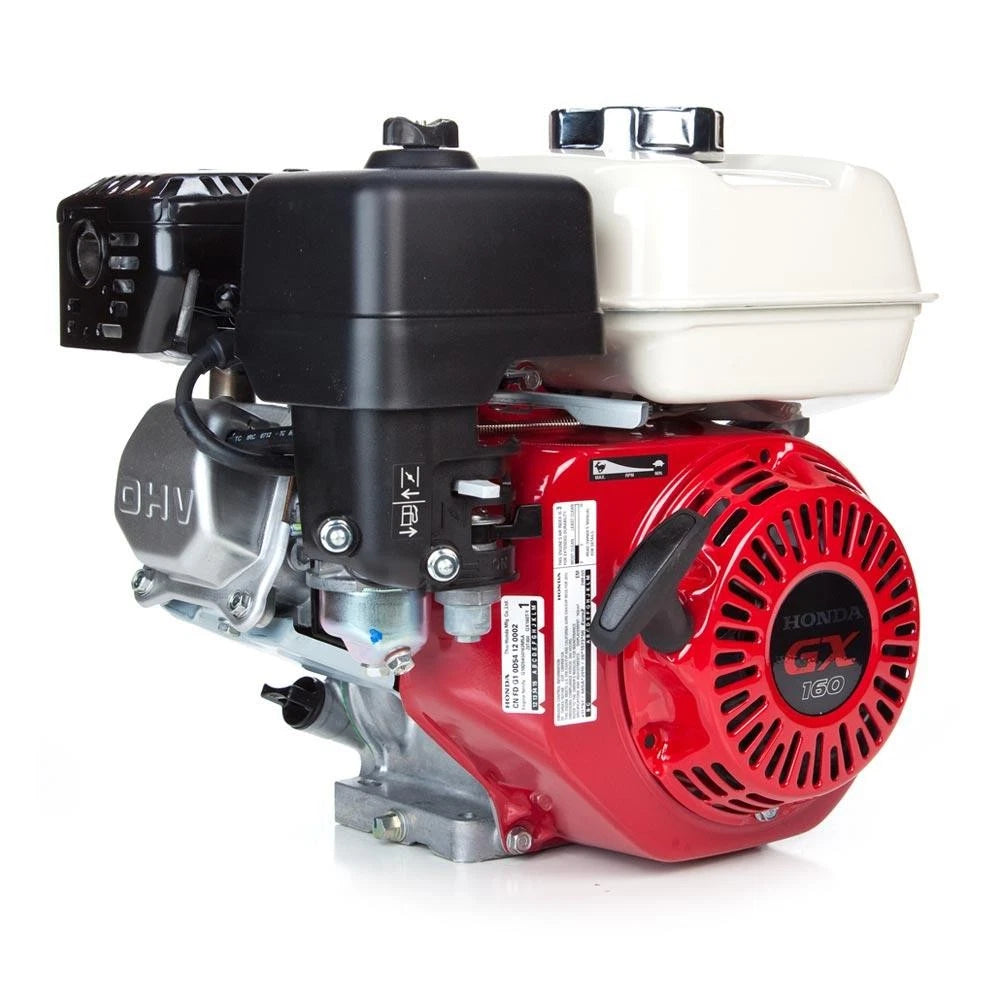

Honda's GX series engines have low noise levels, low vibration and low emissions, all without sacrificing power output or performance. This engine is legendary for superior reliability and performance. Common applications include compaction equipment, pumps, pressure washers and more.
Precision camshaft design offers precise valve timing and optimal valve overlap, OHC design for increased efficiency and optimal power transfer, and High compression ratio for better fuel efficiency
Precision engineered components result in lower vibration
Reduced piston weight and precision-balanced crankshaft result in lower engine vibration
Aluminum push rods reduce both valve clearance and noise level
Ball bearing supported crankshaft for greater stability
Muffler and breather valve enhancements reduce noise and improve sound quality
| ENGINE SPECIFICATIONS |
| ENGINE BRAND |
Honda |
| MODEL NUMBER |
GX160 QX2 |
| WARRANTY |
3 Year Residential | 3 Year Commercial |
| POWER OUTPUT |
4.8 HP @ 3600 RPM |
| TORQUE |
7.6 lb-ft (10.3 Nm) @ 2500 rpm |
| CRANKSHAFT ORIENTATION |
Horizontal |
| CRANKSHAFT TYPE |
Straight |
| CRANKSHAFT DIAMETER |
3/4" |
| CRANKSHAFT LENGTH |
2-27/64" |
| END TAPPED SIZE |
5/16"-24 |
| KEYWAY |
3/16" |
| ROTATION DIRECTION |
Counter-Clockwise |
| STARTER TYPE |
Recoil |
| IGNITION SYSTEM |
Transistorized Magneto |
| CARBURETOR |
Butterfly |
| NUMBER OF CYLINDERS |
One |
| CYLINDER BORE |
Cast Iron Sleeve |
| AIR CLEANER |
Dual Element |
| OIL CAPACITY |
0.61 qt |
| FUEL |
Unleaded 86 Octane or Higher |
| FUEL PUMP |
N/A |
| GOVERNOR SYSTEM |
Centrifugal Mechanical |
| CONTROLS |
Manual Choke, Manual/Remote (Rod) Throttle |
| BORE x STROKE |
68mm x 45mm |
| COMPRESSION RATIO |
9.0 : 1 |
| CHARGING SYSTEM |
N/A |
| MUFFLER |
Standard, Spark Arrestor Optional |
| FLYWHEEL |
|
| ENGINE NOTES |
|
| REPLACES |
GX160 QX2, GX160QX2, GX160UT2QX2, GX160T1QX2, GX160UT1QX2, GX160-UT1QX2, GX160-UT1-QX2, GX160K1-QX2, GX160-K1QX2, GX160-K1-QX2, GX160K1-QWX2, GX160-QMX2, GC150-DHAF, GX160-QWA4 |
|
COMMON APPLICATIONS
*This engine is commonly used for, but not limited to, these applications*
|
Concrete Mixers, Concrete Saws, Dethatchers, Diving Compressors, Edgers, Garden Sprayers, Log Splitters, Plate Compactors, Power Trowels, Pressure Washers, Tampers, Tillers |
|
COMMON EQUIPMENT MANUFACTURERS
*This engine is commonly used on, but not limited to, these equipment manufacturers/brands*
|
Blue Bird, Bolens, Bomag, Brownie's Third Lung, Crown, Excell, Husqvarna, Lesco, McLane, MTD, Multiquip, Troy Bilt
|
