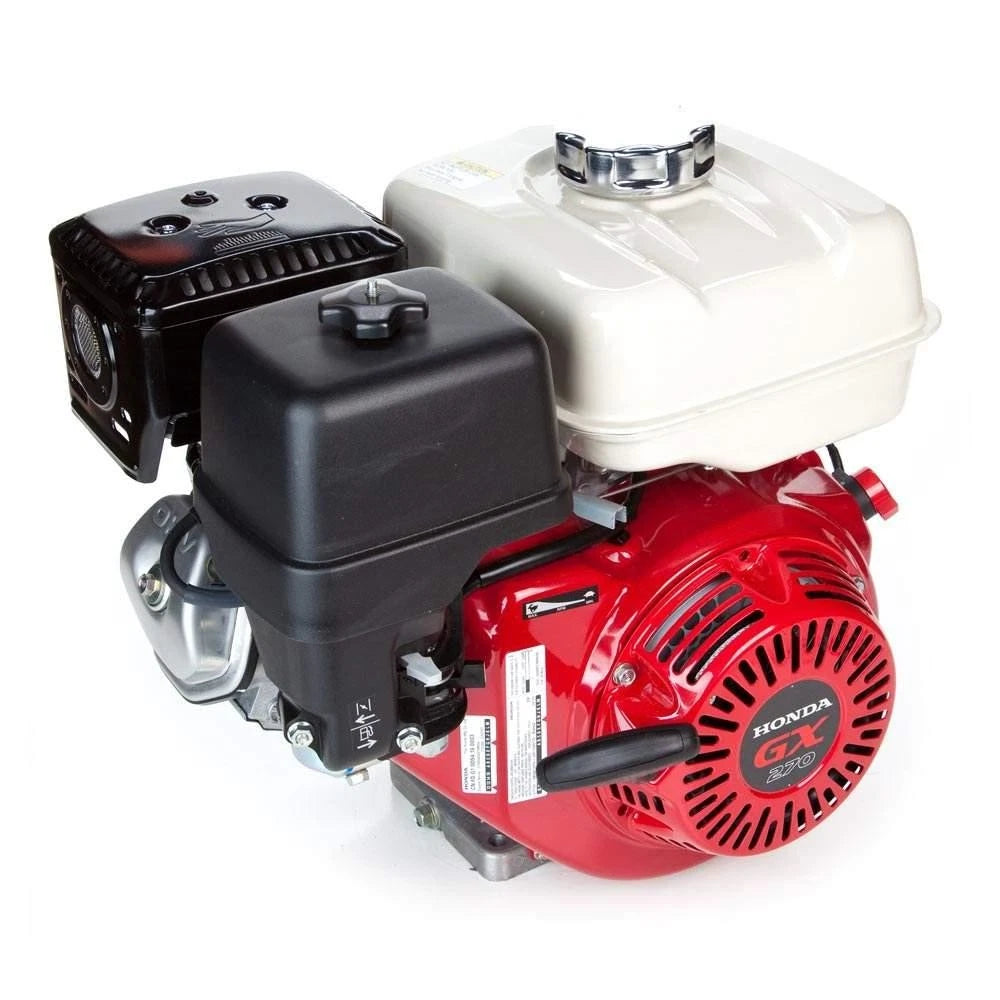

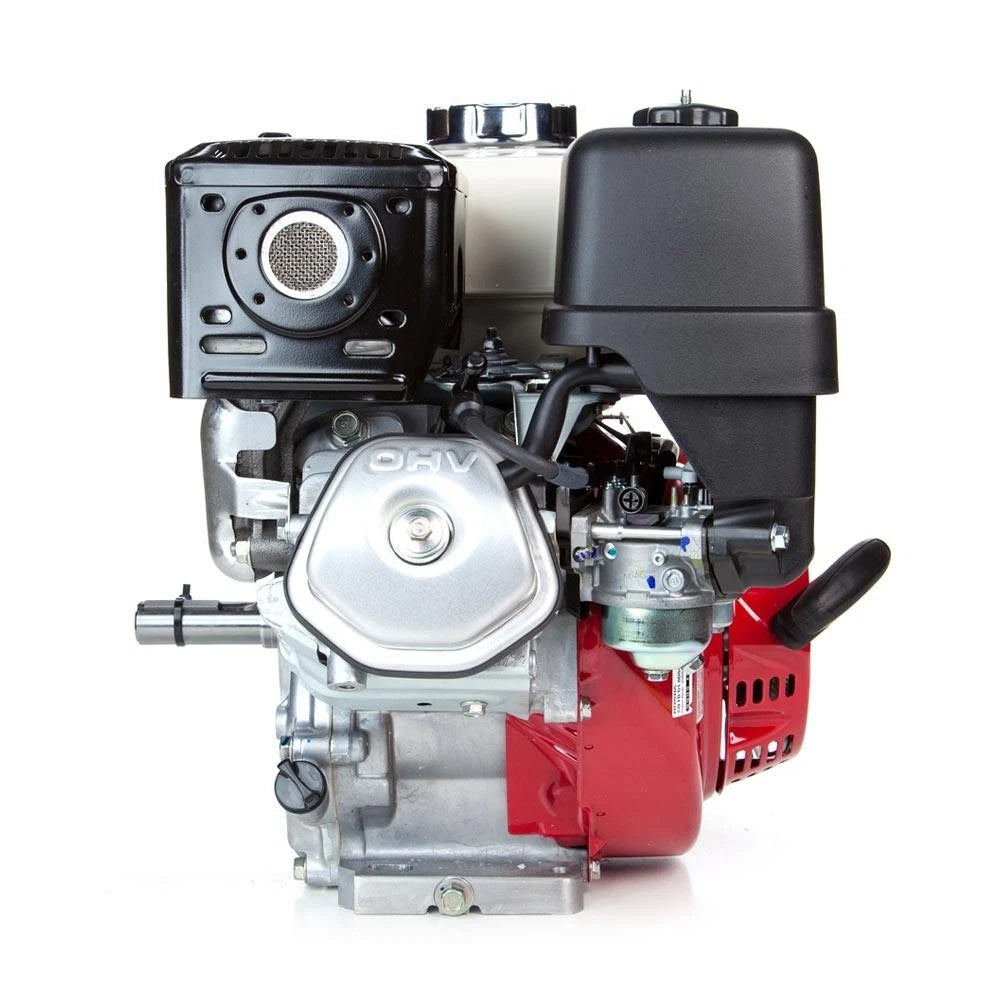

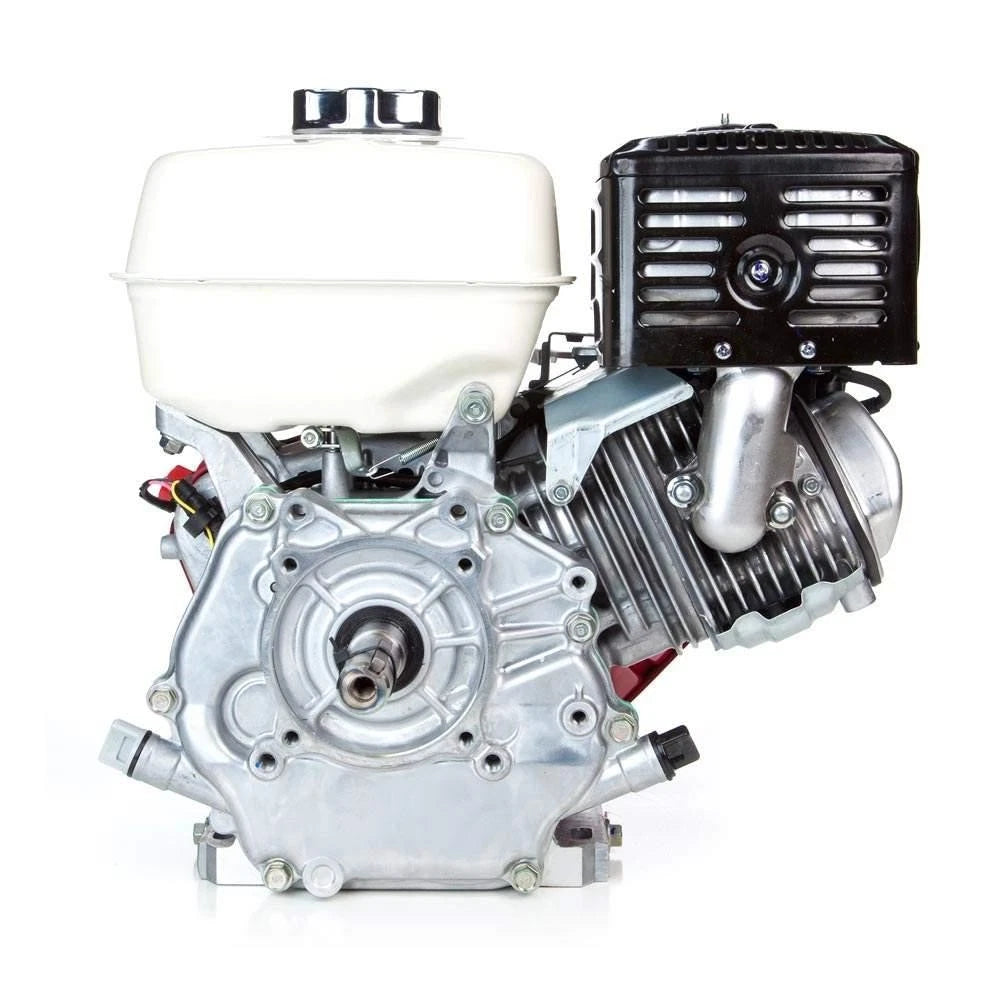

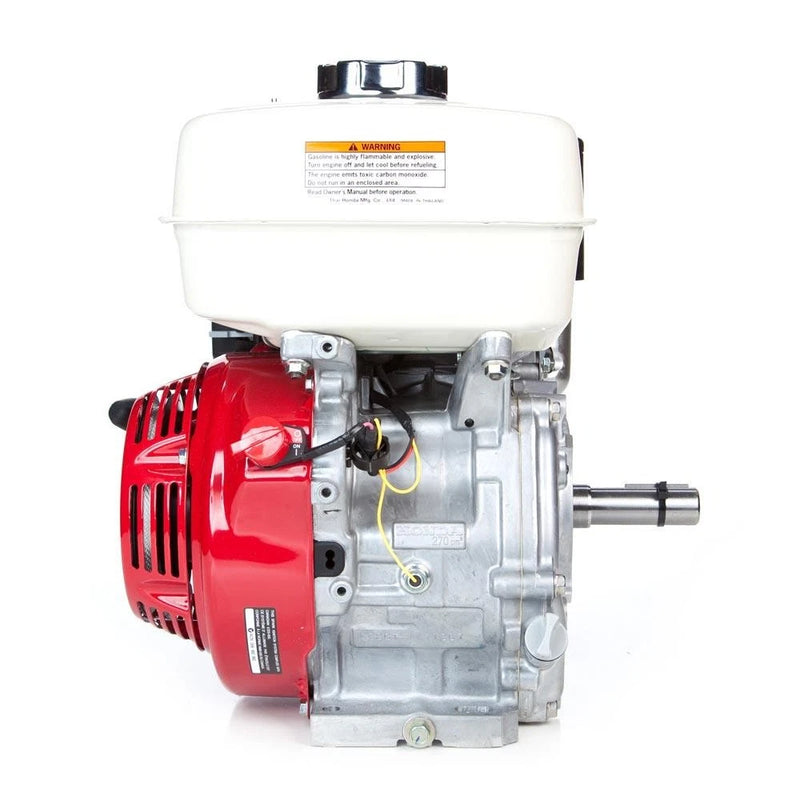

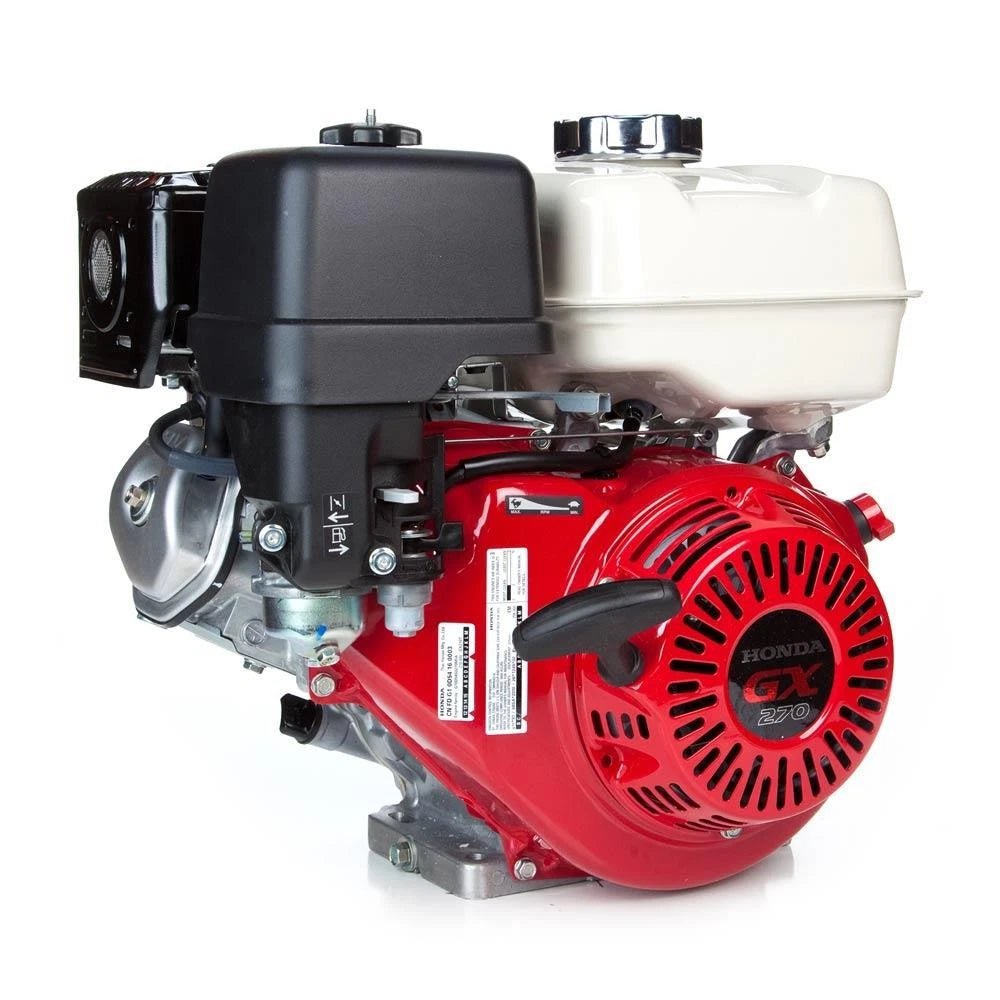

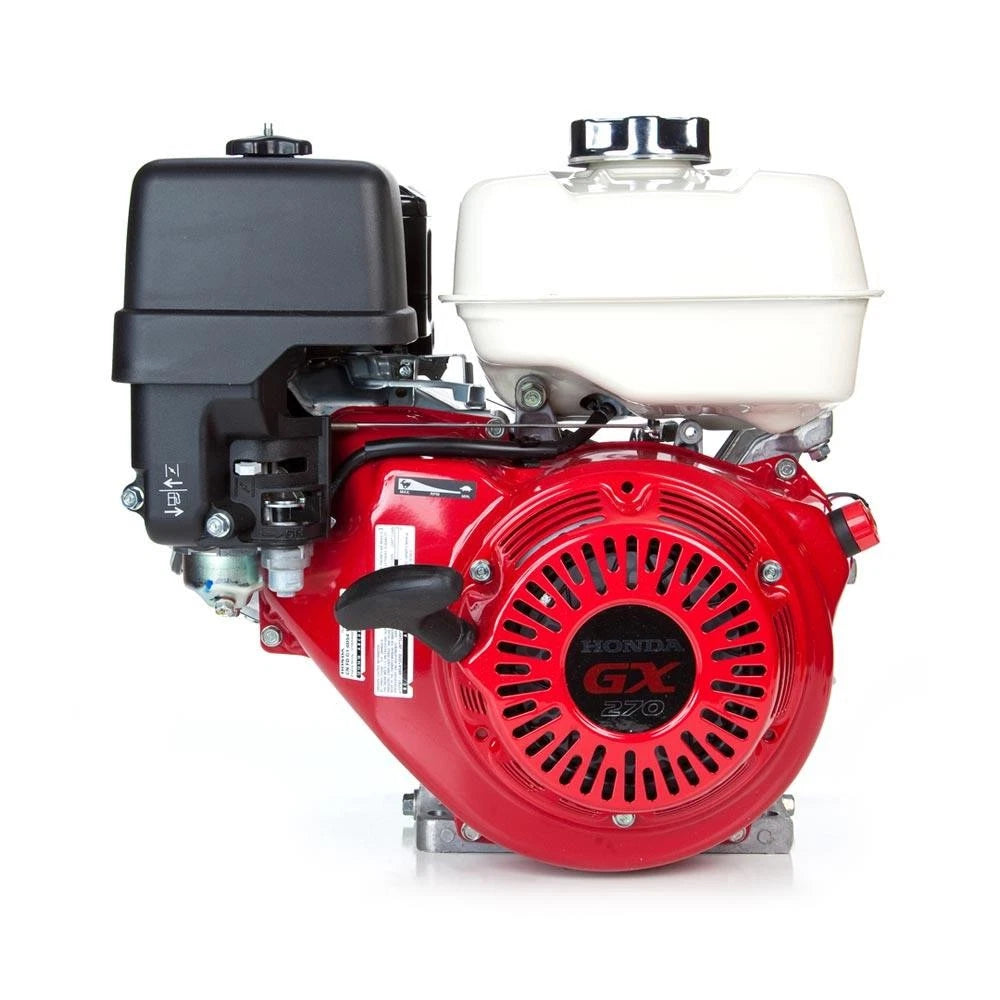

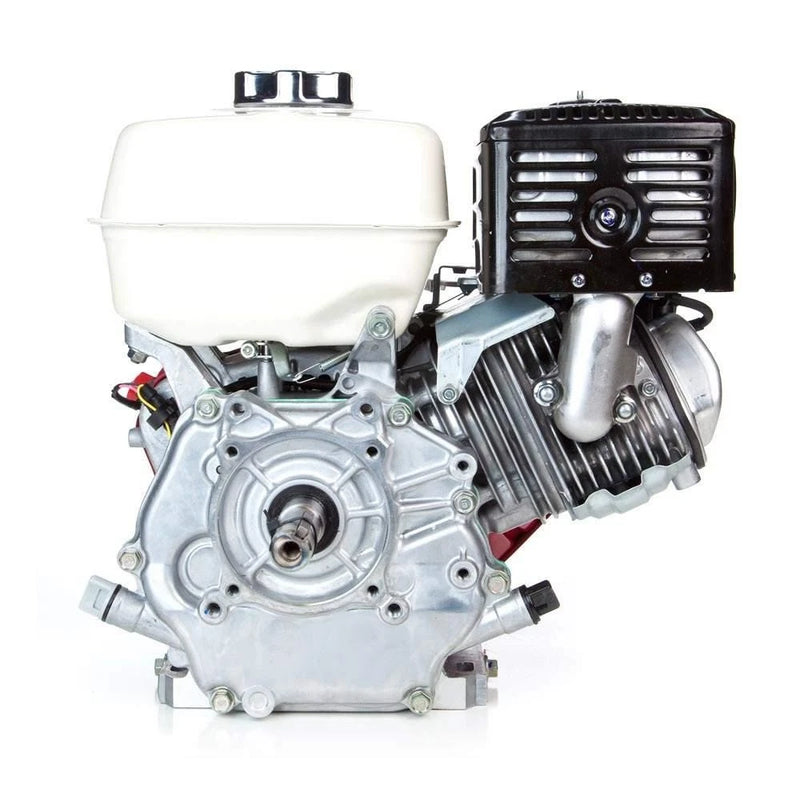

With the GX270, you're looking at one of the best engines in the business. Powerful, reliable, durable, and quiet. Honda's GX Series is power you can trust, and then some.
Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency and OHV design for increased efficiency and optimal power transfer
Precision engineered components result in lower vibration and Ball bearing supported crankshaft for greater stability
Large capacity, multi-chamber exhaust system, Improved camshaft and muffler reduce overall engine noise by up to 5 dB
Simple throttle control, large fuel tanks, dual oil drains and fill, easily accessible spark plug
Automatic mechanical de-compression system
EPA certified
| ENGINE SPECIFICATIONS |
| ENGINE BRAND |
Honda |
| MODEL NUMBER |
GX270 QA2 |
| WARRANTY |
3 Year Residential | 3 Year Commercial |
| POWER OUTPUT |
8.4 HP @ 3600 RPM |
| TORQUE |
14.1 lb-ft (19.1 Nm) @ 2,500 rpm |
| CRANKSHAFT ORIENTATION |
Horizontal |
| CRANKSHAFT TYPE |
Straight |
| CRANKSHAFT DIAMETER |
1" |
| CRANKSHAFT LENGTH |
3-31/64" |
| END TAPPED SIZE |
7/16"-20 |
| KEYWAY |
1/4" |
| ROTATION DIRECTION |
Counter-Clockwise |
| STARTER TYPE |
Recoil |
| IGNITION SYSTEM |
Digital CDI with Variable Ignition Timing |
| CARBURETOR |
Butterfly Float |
| NUMBER OF CYLINDERS |
One |
| CYLINDER BORE |
Cast Iron Sleeve |
| AIR CLEANER |
Dual Element |
| OIL CAPACITY |
1.16 qt |
| FUEL |
Unleaded 86 Octane or Higher |
| FUEL PUMP |
N/A |
| GOVERNOR SYSTEM |
Centrifugal Mass |
| CONTROLS |
Manual Choke & Throttle |
| BORE x STROKE |
77mm x 58mm |
| COMPRESSION RATIO |
8.5 : 1 |
| CHARGING SYSTEM |
N/A |
| MUFFLER |
Yes |
| FLYWHEEL |
|
| ENGINE NOTES |
|
| REPLACES |
GX240U1QA2, GX270UT1QA2, GX270UT2QA2, GX270 QA2, GX270QA2, GX270K1-QA2' |
|
COMMON APPLICATIONS
*This engine is commonly used for, but not limited to, these applications*
|
Chipper Shredders, Leaf Blowers, Lawn Vacuums, Log Splitters, Sod Cutters, Tillers |
|
COMMON EQUIPMENT MANUFACTURERS
*This engine is commonly used on, but not limited to, these equipment manufacturers/brands*
|
Baker, Brave, John Deere, Little Wonder, Ryan, Troy Bilt |
