Briggs & Stratton 402437-4012-01 Parts Diagram
Diagrams:
Diagram:
Air Cleaner Group
Air Cleaner Group
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
691897
691897
|
|||
|
|
222752
222752
|
|||
|
|
694064
694064
|
|||
|
|
691626
691626
|
|||
|
|
691130
691130
|
|||
|
|
691100
691100
|
|||
|
|
691100
691100
|
|||
|
|
394018S
394018S
|
|||
|
|
691668
691668
|
|||
|
|
272490S
272490S
|
|||
|
|
690273
690273
|
|||
|
|
691875
691875
|
|||
|
|
691747
691747
|
|||
|
|
691175
691175
|
|||
|
|
495077
495077
|
|||
|
|
495077
495077
|

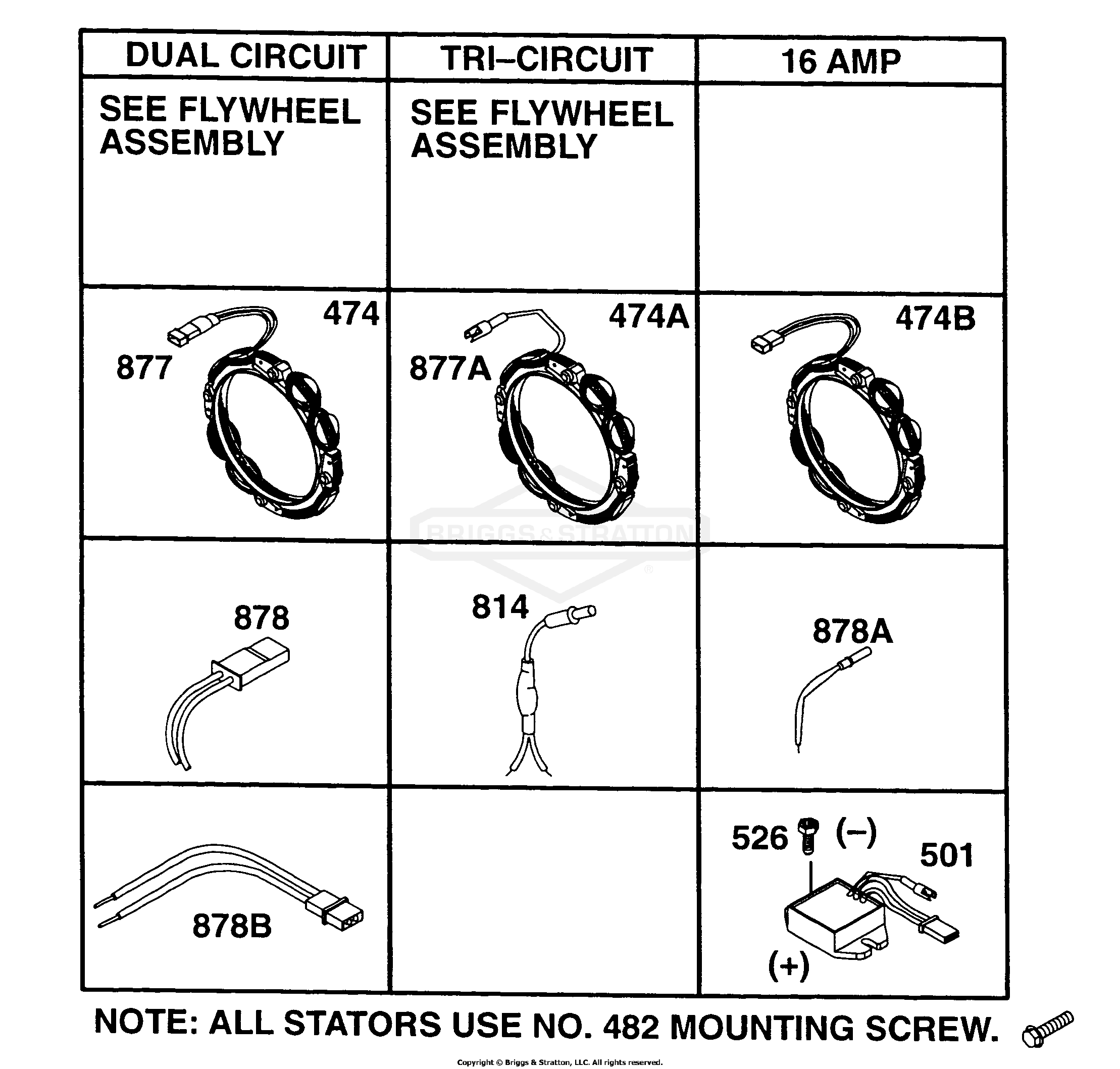

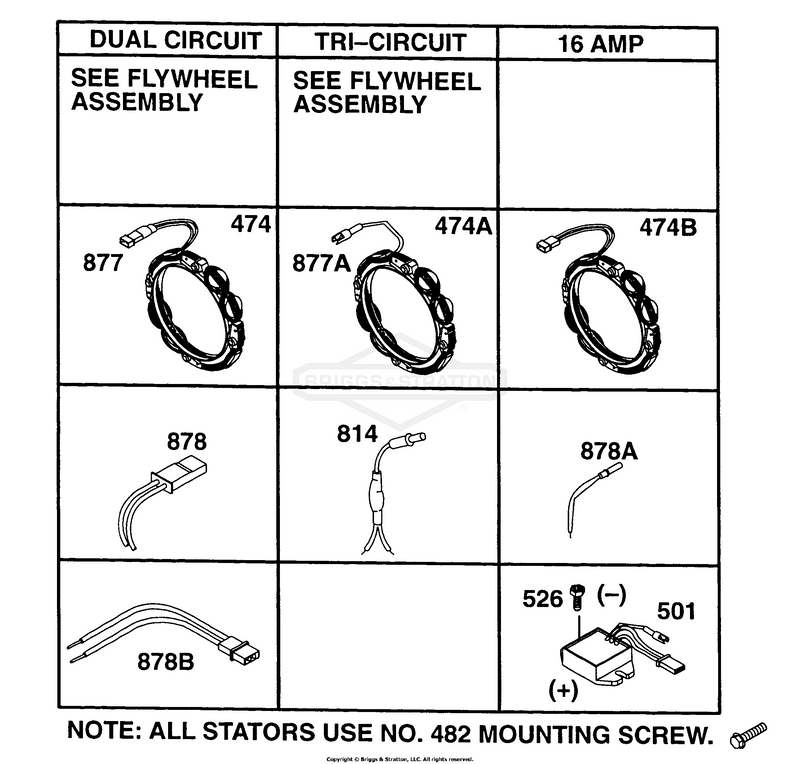

Alternator Chart
Alternator Chart
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
592830
592830
|
|||
|
|
84012661
84012661
|
|||
|
|
84012663
84012663
|
|||
|
|
691183
691183
|
|||
|
|
845907
845907
|
|||
|
|
690810
690810
|
|||
|
|
691955
691955
|
|||
|
|
393537
393537
|
|||
|
|
393456
393456
|
|||
|
|
692306
692306
|
|||
|
|
399916
399916
|
|||
|
|
398661
398661
|
Blower Hsg,Air Guide Parts
Blower Hsg,Air Guide Parts
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
690825
690825
|
|||
|
|
692198
692198
|
|||
|
|
692198
692198
|
|||
|
|
690435
690435
|
|||
|
|
690414
690414
|
|||
|
|
691003
691003
|
|||
|
|
691003
691003
|
|||
|
|
691197
691197
|
|||
|
|
691196
691196
|
|||
|
|
690297
690297
|
|||
|
|
690364
690364
|
|||
|
|
696041
696041
|
|||
|
|
690477
690477
|
|||
|
|
224778
224778
|
|||
|
|
691058
691058
|
|||
|
|
690413
690413
|
|||
|
|
495618
495618
|
|||
|
|
392991
392991
|
|||
|
|
690632
690632
|
|||
|
|
691195
691195
|
Carburetor Assembly
Carburetor Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
692278
692278
|
|||
|
|
693480
693480
|
|||
|
|
693480
693480
|
|||
|
|
694026
694026
|
|||
|
|
690513
690513
|
|||
|
|
691437
691437
|
|||
|
|
691727
691727
|
|||
|
|
690629
690629
|
|||
|
|
691615
691615
|
|||
|
|
693942
693942
|
|||
|
|
273186S
273186S
|
|||
|
|
692265
692265
|
|||
|
|
691775
691775
|
|||
|
|
394683
394683
|
|||
|
|
491543
491543
|
|||
|
|
223534
223534
|
|||
|
|
691957
691957
|
|||
|
|
691319
691319
|
|||
|
|
231333
231333
|
|||
|
|
231338
231338
|
|||
|
|
491538
491538
|
|||
|
|
691090
691090
|
|||
|
|
691739
691739
|
|||
|
|
690316
690316
|
|||
|
|
691896
691896
|
|||
|
|
691801
691801
|
|||
|
|
691801
691801
|
|||
|
|
272638S
272638S
|
|||
|
|
272638S
272638S
|
|||
|
|
690766
690766
|
|||
|
|
690766
690766
|
|||
|
|
690434
690434
|
|||
|
|
691085
691085
|
|||
|
|
791760
791760
|
|||
|
|
791850
791850
|
|||
|
|
691872
691872
|
|||
|
|
691871
691871
|
|||
|
|
691871
691871
|
|||
|
|
691873
691873
|
|||
|
|
691873
691873
|
|||
|
|
691799
691799
|
|||
|
|
691799
691799
|
|||
|
|
397266
397266
|
|||
|
|
397882
397882
|
Control Bracket
Control Bracket
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
691590
691590
|
|||
|
|
690554
690554
|
|||
|
|
691244
691244
|
|||
|
|
690330
690330
|
|||
|
|
691272
691272
|
|||
|
|
262337
262337
|
|||
|
|
690566
690566
|
|||
|
|
691807
691807
|
|||
|
|
691273
691273
|
|||
|
|
690544
690544
|
|||
|
|
491282
491282
|
|||
|
|
690329
690329
|
|||
|
|
690763
690763
|
|||
|
|
692810
692810
|
|||
|
|
690442
690442
|
|||
|
|
690316
690316
|
|||
|
|
691003
691003
|
|||
|
|
690441
690441
|
|||
|
|
691723
691723
|
|||
|
|
690278
690278
|
|||
|
|
690311
690311
|
|||
|
|
691029
691029
|
|||
|
|
690446
690446
|
Crankcase Cover,Sump Base
Crankcase Cover,Sump Base
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
691877
691877
|
|||
|
|
272127
272127
|
|||
|
|
272128
272128
|
|||
|
|
691682
691682
|
|||
|
|
690343
690343
|
|||
|
|
690946
690946
|
|||
|
|
394535
394535
|
|||
|
|
491718
491718
|
|||
|
|
291675S
291675S
|
|||
|
|
691088
691088
|
|||
|
|
691103
691103
|
|||
|
|
690359
690359
|
|||
|
|
490918
490918
|
|||
|
|
692287
692287
|
|||
|
|
491717
491717
|
Cylinder,Cyl Heads,Piston
Cylinder,Cyl Heads,Piston
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
497075
497075
|
|||
|
|
491523
491523
|
|||
|
|
391086S
391086S
|
|||
|
|
493458
493458
|
|||
|
|
493457
493457
|
|||
|
|
271868S
271868S
|
|||
|
|
271867S
271867S
|
|||
|
|
495756
495756
|
|||
|
|
690415
690415
|
|||
|
|
495755
495755
|
|||
|
|
27803S
27803S
|
|||
|
|
690366
690366
|
|||
|
|
691907
691907
|
|||
|
|
592244
592244
|
|||
|
|
690378
690378
|
|||
|
|
692219
692219
|
|||
|
|
691681
691681
|
|||
|
|
691670
691670
|
|||
|
|
691764
691764
|
|||
|
|
690316
690316
|
|||
|
|
691130
691130
|
|||
|
|
691100
691100
|
|||
|
|
691100
691100
|
|||
|
|
796112S
796112S
|
|||
|
|
690272
690272
|
|||
|
|
691077
691077
|
|||
|
|
691612
691612
|
|||
|
|
89838S
89838S
|
|||
|
|
231174
231174
|
|||
|
|
280180
280180
|
|||
|
|
691385
691385
|
|||
|
|
281370S
281370S
|
|||
|
|
691389
691389
|
|||
|
|
222700
222700
|
|||
|
|
690481
690481
|
|||
|
|
690481
690481
|
|||
|
|
66538S
66538S
|
|||
|
|
691870
691870
|
|||
|
|
690651
690651
|
|||
|
|
691802
691802
|
|||
|
|
691844
691844
|
|||
|
|
231218
231218
|
|||
|
|
261961
261961
|
|||
|
|
491261
491261
|
|||
|
|
272111
272111
|
Electric Starter
Electric Starter
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
497596
497596
|
|||
|
|
690323
690323
|
|||
|
|
691263
691263
|
|||
|
|
691263
691263
|
|||
|
|
497608
497608
|
|||
|
|
84013068
84013068
|
|||
|
|
692034
692034
|
|||
|
|
691103
691103
|
|||
|
|
690359
690359
|
|||
|
|
691029
691029
|
|||
|
|
691265
691265
|
|||
|
|
690328
690328
|
|||
|
|
695708
695708
|
|||
|
|
691967
691967
|
|||
|
|
691286
691286
|
|||
|
|
693757
693757
|
|||
|
|
691293
691293
|
Electric Starter
Electric Starter
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
497596
497596
|
|||
|
|
498148
498148
|
|||
|
|
498148
498148
|
|||
|
|
690323
690323
|
|||
|
|
691263
691263
|
|||
|
|
691263
691263
|
|||
|
|
395538
395538
|
|||
|
|
492020
492020
|
|||
|
|
490311
490311
|
|||
|
|
696540
696540
|
|||
|
|
692024
692024
|
|||
|
|
490309
490309
|
|||
|
|
390837
390837
|
|||
|
|
691103
691103
|
|||
|
|
690359
690359
|
|||
|
|
695708
695708
|
|||
|
|
691967
691967
|
|||
|
|
490310
490310
|
|||
|
|
492022
492022
|
|||
|
|
494988
494988
|
|||
|
|
395537
395537
|
|||
|
|
494205
494205
|
|||
|
|
398159
398159
|
|||
|
|
398892
398892
|
|||
|
|
696540
696540
|
|||
|
|
691641
691641
|
|||
|
|
490316
490316
|
Flywheel, Screens
Flywheel, Screens
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
691976
691976
|
|||
|
|
691655
691655
|
|||
|
|
691056
691056
|
|||
|
|
691677
691677
|
|||
|
|
690335
690335
|
|||
|
|
5025170SM
5025170SM
|
|||
|
|
213460
213460
|
|||
|
|
690478
690478
|
|||
|
|
691059
691059
|
|||
|
|
19203
19203
|
|||
|
|
692527
692527
|
|||
|
|
69932S
69932S
|
|||
|
|
391362
391362
|
|||
|
|
691058
691058
|
|||
|
|
280815
280815
|
|||
|
|
690452
690452
|

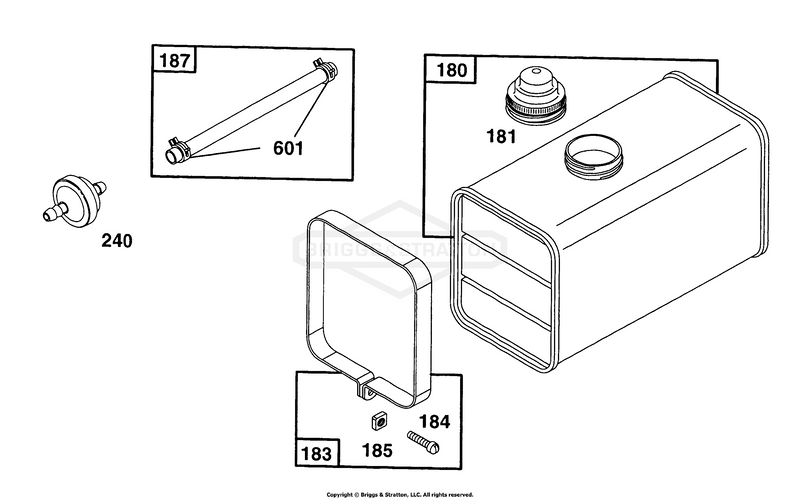

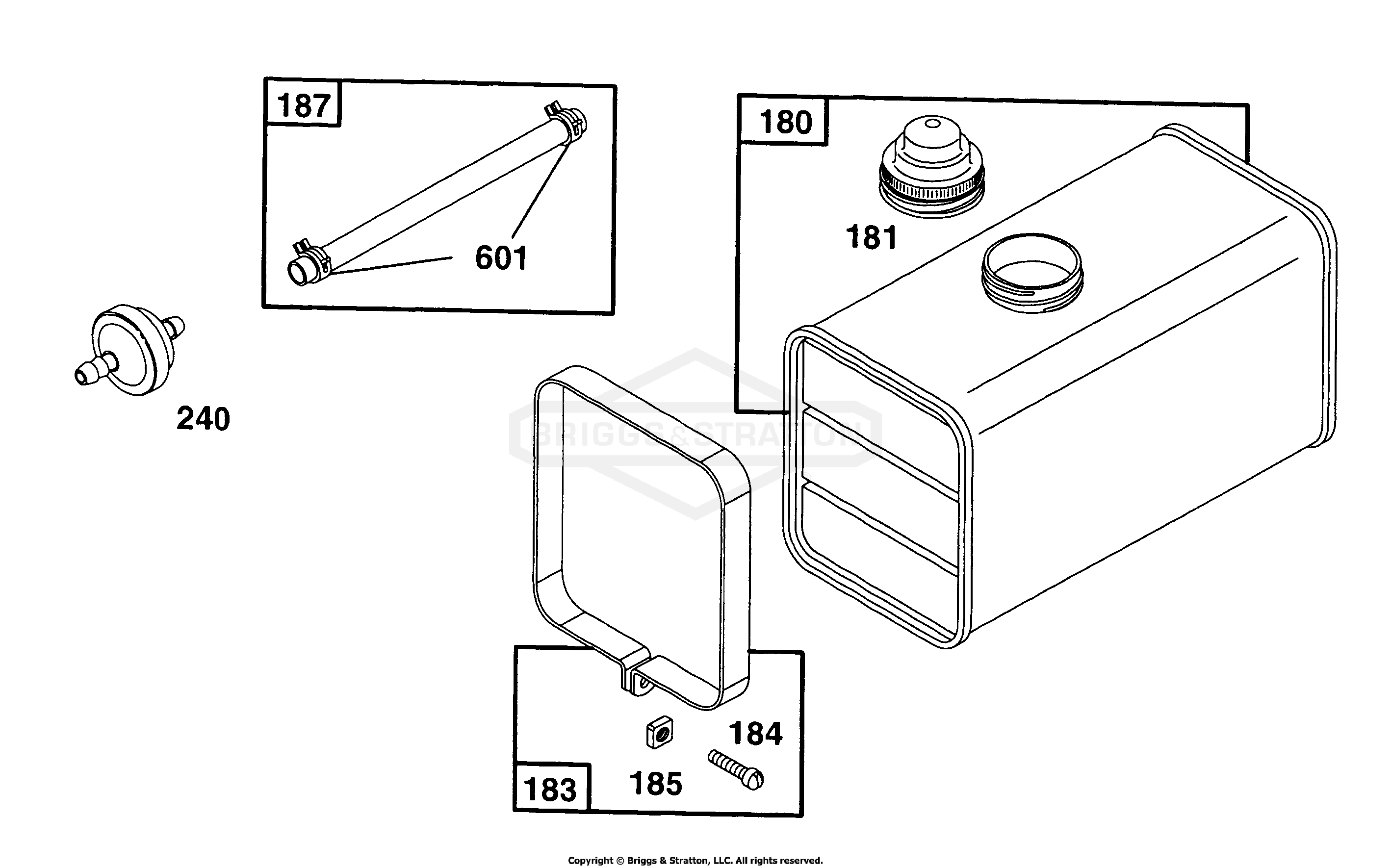

Fuel Tank and Parts
Fuel Tank and Parts
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
292415
292415
|
|||
|
|
791545
791545
|
|||
|
|
691937
691937
|
|||
|
|
690280
690280
|
|||
|
|
690279
690279
|
|||
|
|
841589
841589
|
|||
|
|
791760
791760
|
|||
|
|
394358S
394358S
|
|||
|
|
791850
791850
|
Gasket Sets
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
391086S
391086S
|
|||
|
|
271868S
271868S
|
|||
|
|
271867S
271867S
|
|||
|
|
27803S
27803S
|
|||
|
|
691877
691877
|
|||
|
|
272127
272127
|
|||
|
|
272128
272128
|
|||
|
|
291675S
291675S
|
|||
|
|
692278
692278
|
|||
|
|
692219
692219
|
|||
|
|
273186S
273186S
|
|||
|
|
691775
691775
|
|||
|
|
394683
394683
|
|||
|
|
691319
691319
|
|||
|
|
491538
491538
|
|||
|
|
694056
694056
|
|||
|
|
691739
691739
|
|||
|
|
495868
495868
|
|||
|
|
691801
691801
|
|||
|
|
691801
691801
|
|||
|
|
272638S
272638S
|
|||
|
|
272638S
272638S
|
|||
|
|
690766
690766
|
|||
|
|
690766
690766
|
|||
|
|
281370S
281370S
|
|||
|
|
690273
690273
|
|||
|
|
692287
692287
|
|||
|
|
491717
491717
|
|||
|
|
691872
691872
|
|||
|
|
790574
790574
|
|||
|
|
691870
691870
|
|||
|
|
691871
691871
|
|||
|
|
691871
691871
|
|||
|
|
691873
691873
|
|||
|
|
691873
691873
|
|||
|
|
691799
691799
|
|||
|
|
691799
691799
|
|||
|
|
393397
393397
|
|||
|
|
692324
692324
|
|||
|
|
692282
692282
|
|||
|
|
691313
691313
|
|||
|
|
498047
498047
|
Mufflers and Deflectors
Mufflers and Deflectors
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
691681
691681
|
|||
|
|
691178
691178
|
|||
|
|
399635
399635
|
|||
|
|
491307S
491307S
|
|||
|
|
690661
690661
|
|||
|
|
691416
691416
|
|||
|
|
795036
795036
|
|||
|
|
691365
691365
|
|||
|
|
691975
691975
|
|||
|
|
691970
691970
|
|||
|
|
692236
692236
|
|||
|
|
692282
692282
|
|||
|
|
794945
794945
|
Oil Pump and Oil Filter
Oil Pump and Oil Filter
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
794903
794903
|
|||
|
|
491657S
491657S
|
|||
|
|
690761
690761
|
|||
|
|
691003
691003
|
|||
|
|
690337
690337
|
|||
|
|
491801
491801
|
|||
|
|
690333
690333
|
|||
|
|
691313
691313
|
|||
|
|
690332
690332
|
|||
|
|
491708
491708
|
|||
|
|
491056
491056
|
|||
|
|
491721
491721
|
|||
|
|
492675
492675
|
|||
|
|
491710
491710
|
Panel Kits, Electrical Parts
Panel Kits, Electrical Parts
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
5025170SM
5025170SM
|
|||
|
|
590781
590781
|
|||
|
|
590781
590781
|
|||
|
|
691061
691061
|
|||
|
|
690272
690272
|
|||
|
|
691077
691077
|
|||
|
|
691612
691612
|
|||
|
|
491391
491391
|
|||
|
|
690421
690421
|
|||
|
|
690422
690422
|
|||
|
|
690282
690282
|
|||
|
|
691084
691084
|
|||
|
|
690389
690389
|
|||
|
|
691029
691029
|
|||
|
|
692303
692303
|
|||
|
|
690640
690640
|
|||
|
|
691681
691681
|
|||
|
|
496590
496590
|
|||
|
|
392833
392833
|
|||
|
|
692318
692318
|
|||
|
|
690642
690642
|
|||
|
|
394583
394583
|
|||
|
|
396573
396573
|
|||
|
|
493880S
493880S
|
|||
|
|
394970
394970
|
Piston Group, Crankshaft
Piston Group, Crankshaft
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
492227
492227
|
|||
|
|
691358
691358
|
|||
|
|
222698S
222698S
|
|||
|
|
498584
498584
|
|||
|
|
394956
394956
|
|||
|
|
498586
498586
|
|||
|
|
394958
394958
|
|||
|
|
394959
394959
|
|||
|
|
394960
394960
|
|||
|
|
394961
394961
|
|||
|
|
394962
394962
|
|||
|
|
691792
691792
|
|||
|
|
299691
299691
|
|||
|
|
391286
391286
|
|||
|
|
393270
393270
|
|||
|
|
393714
393714
|
|||
|
|
691733
691733
|
|||
|
|
220863
220863
|
|||
|
|
691133
691133
|
|||
|
|
691133
691133
|
|||
|
|
691794
691794
|
|||
|
|
691804
691804
|
|||
|
|
691605
691605
|
|||
|
|
691597
691597
|
|||
|
|
690656
690656
|
|||
|
|
691939
691939
|
|||
|
|
494553
494553
|
|||
|
|
691800
691800
|
|||
|
|
213520
213520
|
|||
|
|
793338
793338
|
|||
|
|
690412
690412
|
|||
|
|
690442
690442
|
|||
|
|
691483
691483
|
|||
|
|
796638
796638
|
|||
|
|
690553
690553
|
|||
|
|
691265
691265
|
|||
|
|
690328
690328
|
|||
|
|
491530
491530
|
|||
|
|
790574
790574
|
|||
|
|
691277
691277
|
|||
|
|
692324
692324
|
