ECHO GT-251E Curved Shaft Trimmer Parts Diagram (Serial # 08001001 - 08999999)
Diagrams:
Diagram:

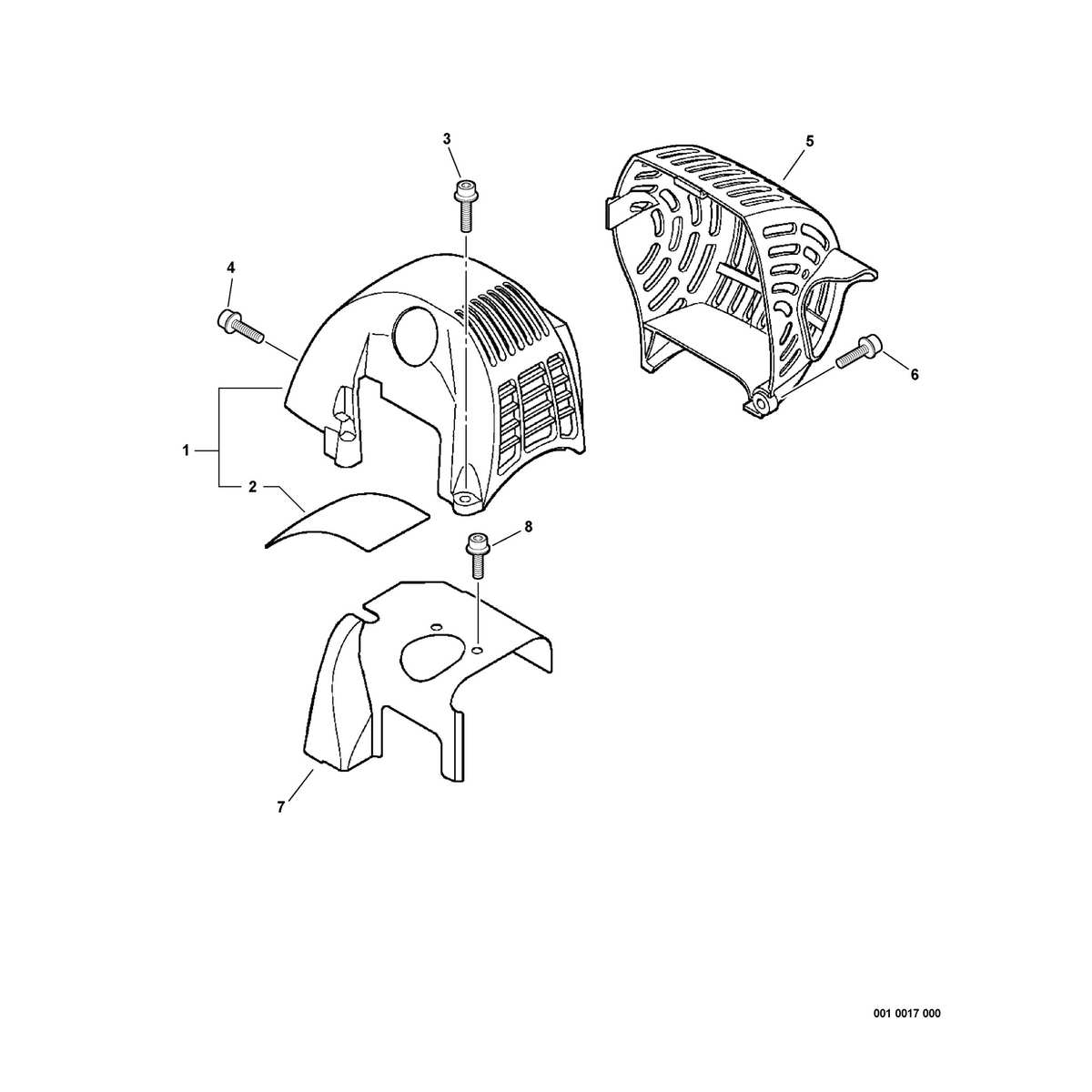

Engine Cover, Cylinder Cover, Exhaust Cover
Engine Cover, Cylinder Cover, Exhaust Cover
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P021008251
P021008251
|
|||
|
|
A209000011
A209000011
|
|||
|
|
90010605014
90010605014
|
|||
|
|
V202000030
V202000030
|
|||
|
|
A320000330
A320000330
|
|||
|
|
90010605020
90010605020
|
|||
|
|
A160000691
A160000691
|
|||
|
|
90010605008
90010605008
|

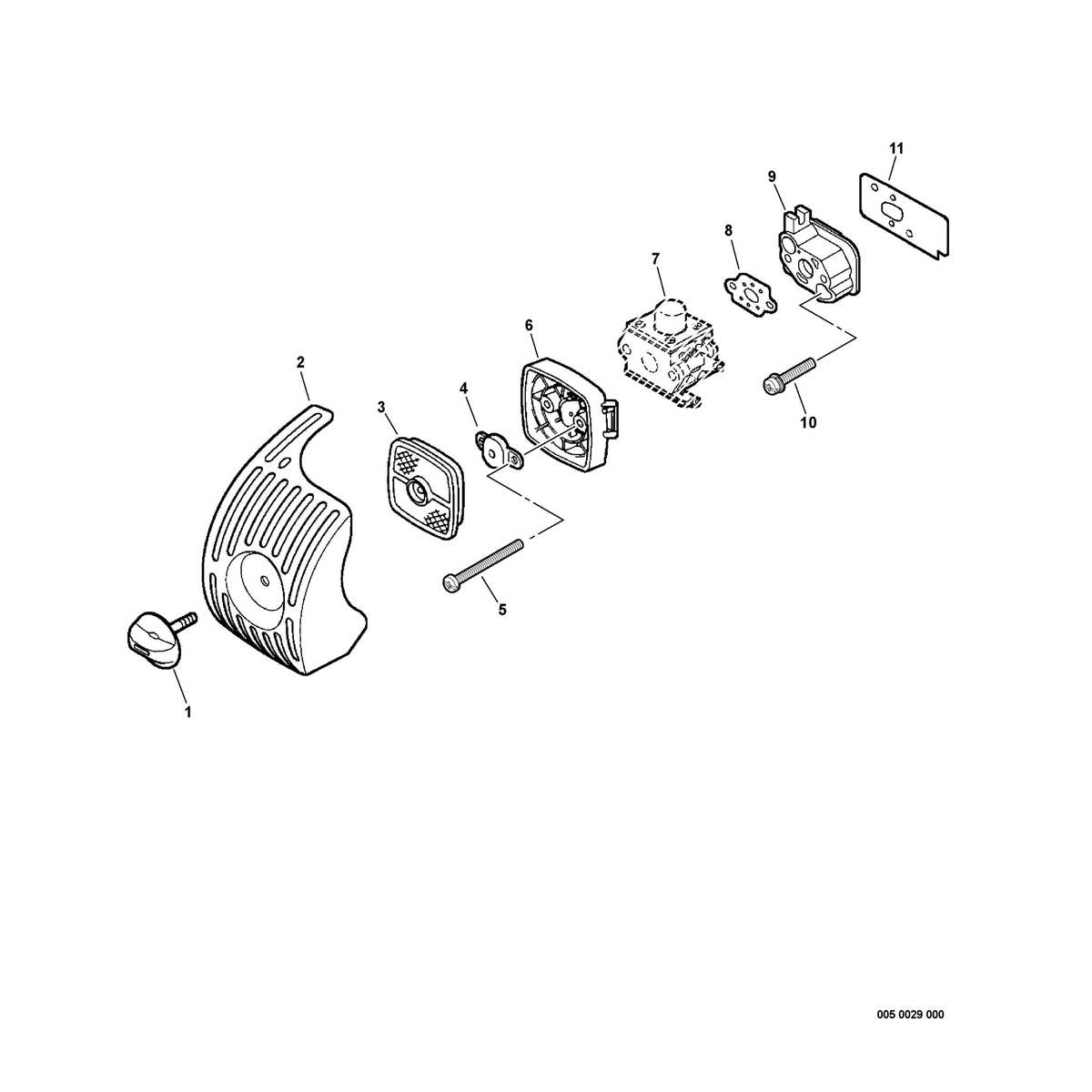

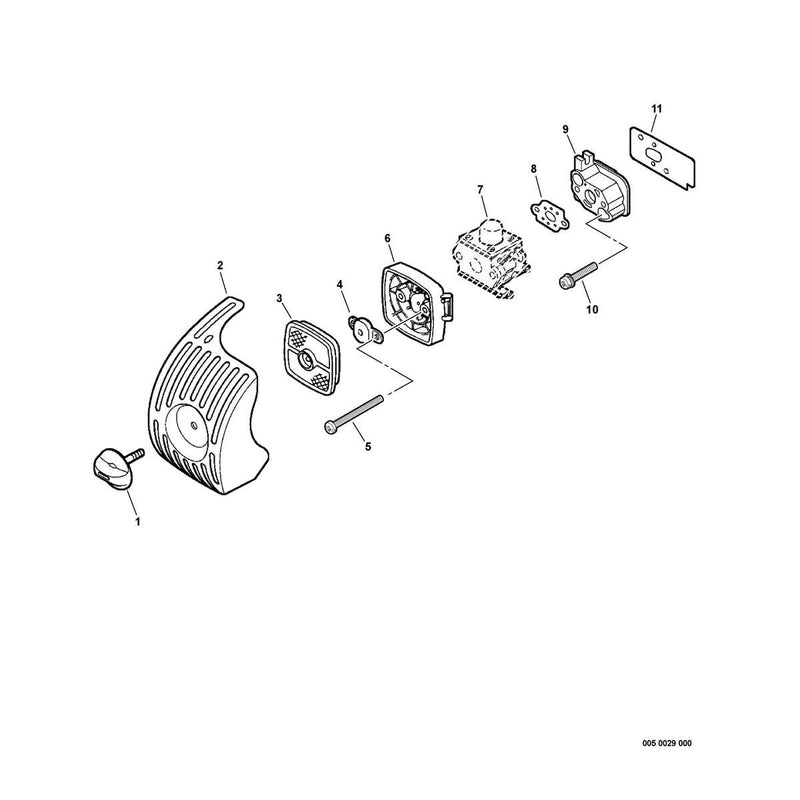

Intake
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
V299000250
V299000250
|
|||
|
|
A232000271
A232000271
|
|||
|
|
13031054130
13031054130
|
|||
|
|
12901152730
12901152730
|
|||
|
|
90022005065
90022005065
|
|||
|
|
P021000991
P021000991
|
|||
|
|
------------------
------------------
|
|||
|
|
V103000200
V103000200
|
|||
|
|
A200000200
A200000200
|
|||
|
|
90016205025
90016205025
|
|||
|
|
V103000210
V103000210
|
Carburetor -- C1U-K81A
Carburetor -- C1U-K81A
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
A021001011
A021001011
|
|||
|
|
P005000980
P005000980
|
|||
|
|
P005000620
P005000620
|
|||
|
|
12538108660
12538108660
|
|||
|
|
P005001680
P005001680
|
|||
|
|
------------------
------------------
|
|||
|
|
12530613120
12530613120
|
|||
|
|
P005001920
P005001920
|
|||
|
|
12532939030
12532939030
|
|||
|
|
12532013310
12532013310
|
|||
|
|
12532909860
12532909860
|
|||
|
|
12531813120
12531813120
|
|||
|
|
P005001700
P005001700
|
|||
|
|
12531342030
12531342030
|
|||
|
|
12531649030
12531649030
|
|||
|
|
12531413930
12531413930
|
|||
|
|
12532713930
12532713930
|
|||
|
|
P005001690
P005001690
|
|||
|
|
12533406960
12533406960
|
|||
|
|
12533306960
12533306960
|
|||
|
|
12532412820
12532412820
|
|||
|
|
12531012820
12531012820
|
|||
|
|
12533942030
12533942030
|
|||
|
|
12530013120
12530013120
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
12530313120
12530313120
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|
|||
|
|
------------------
------------------
|

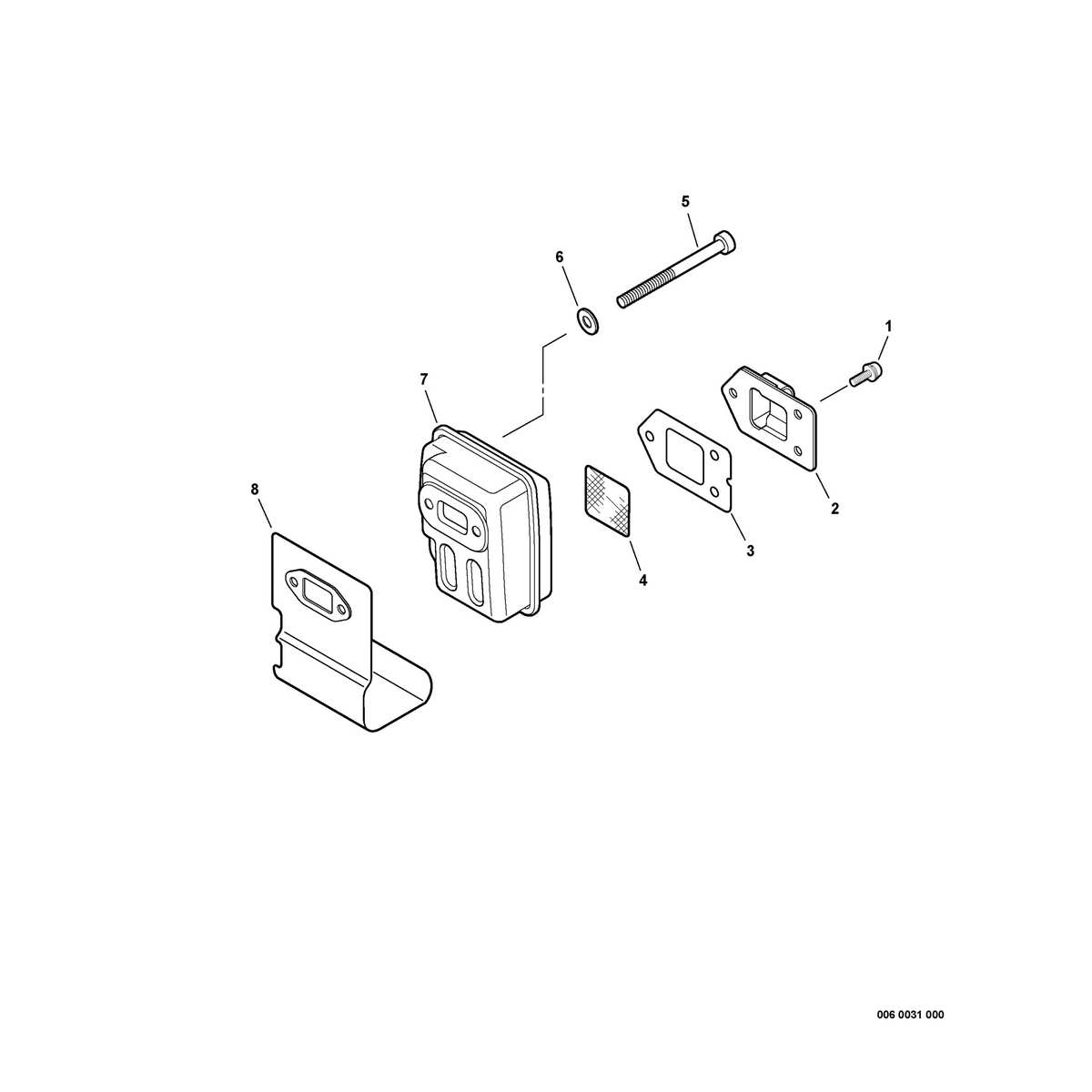

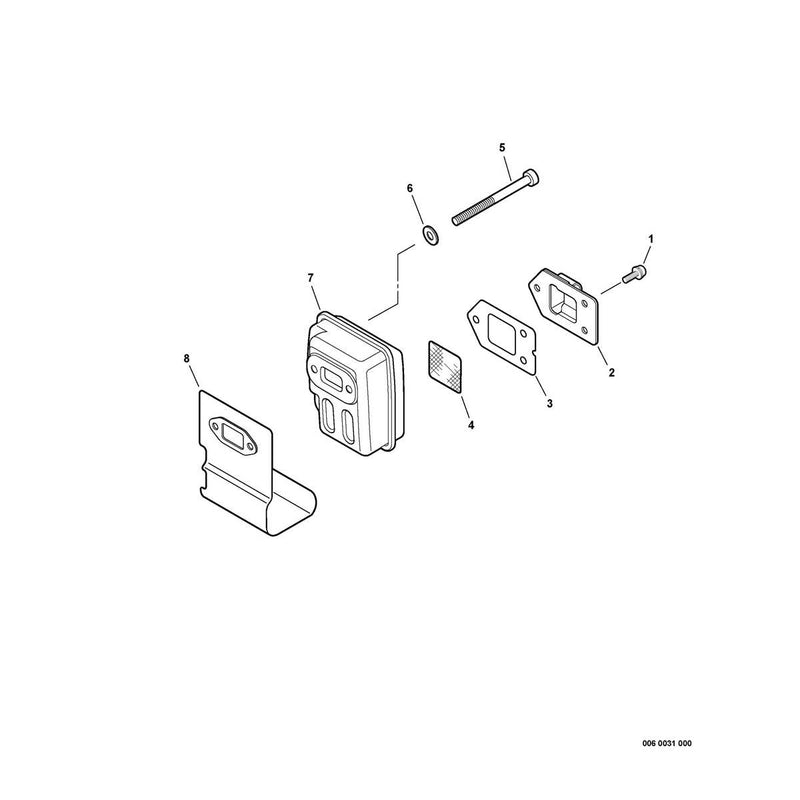

Exhaust
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
90024204010
90024204010
|
|||
|
|
A313000690
A313000690
|
|||
|
|
14586642031
14586642031
|
|||
|
|
14586240630
14586240630
|
|||
|
|
90010505050
90010505050
|
|||
|
|
900600005
900600005
|
|||
|
|
14581011520
14581011520
|
|||
|
|
V104000660
V104000660
|

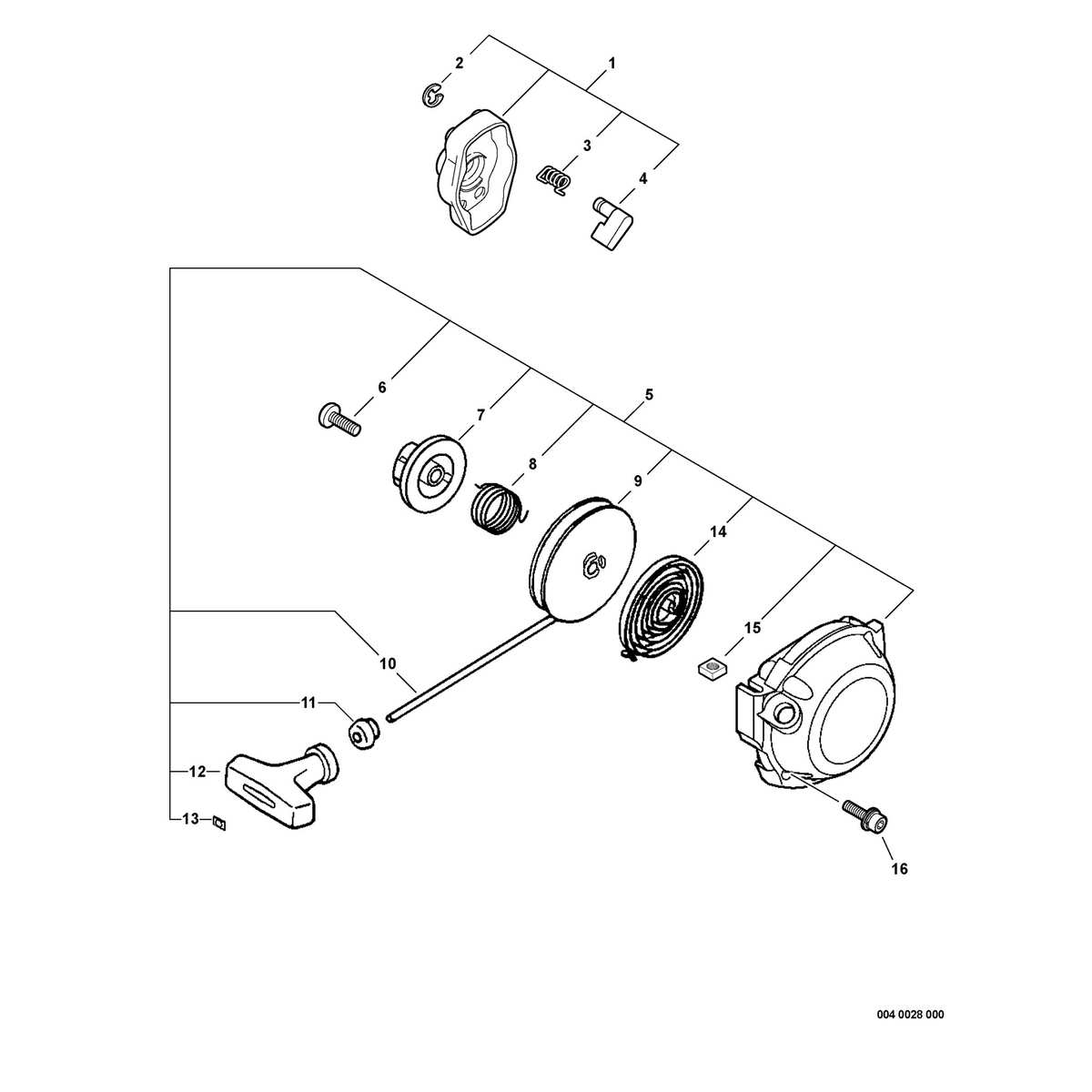

Starter -- i-30
Starter -- i-30
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
A052000180
A052000180
|
|||
|
|
P022002100
P022002100
|
|||
|
|
17723412220
17723412220
|
|||
|
|
P022006850
P022006850
|
|||
|
|
A051000780
A051000780
|
|||
|
|
17723661830
17723661830
|
|||
|
|
P022008280
P022008280
|
|||
|
|
P022008270
P022008270
|
|||
|
|
P022006830
P022006830
|
|||
|
|
P022008260
P022008260
|
|||
|
|
17722742030
17722742030
|
|||
|
|
17722827030
17722827030
|
|||
|
|
17724611120
17724611120
|
|||
|
|
17722042030
17722042030
|
|||
|
|
90056500005
90056500005
|
|||
|
|
90016304016
90016304016
|

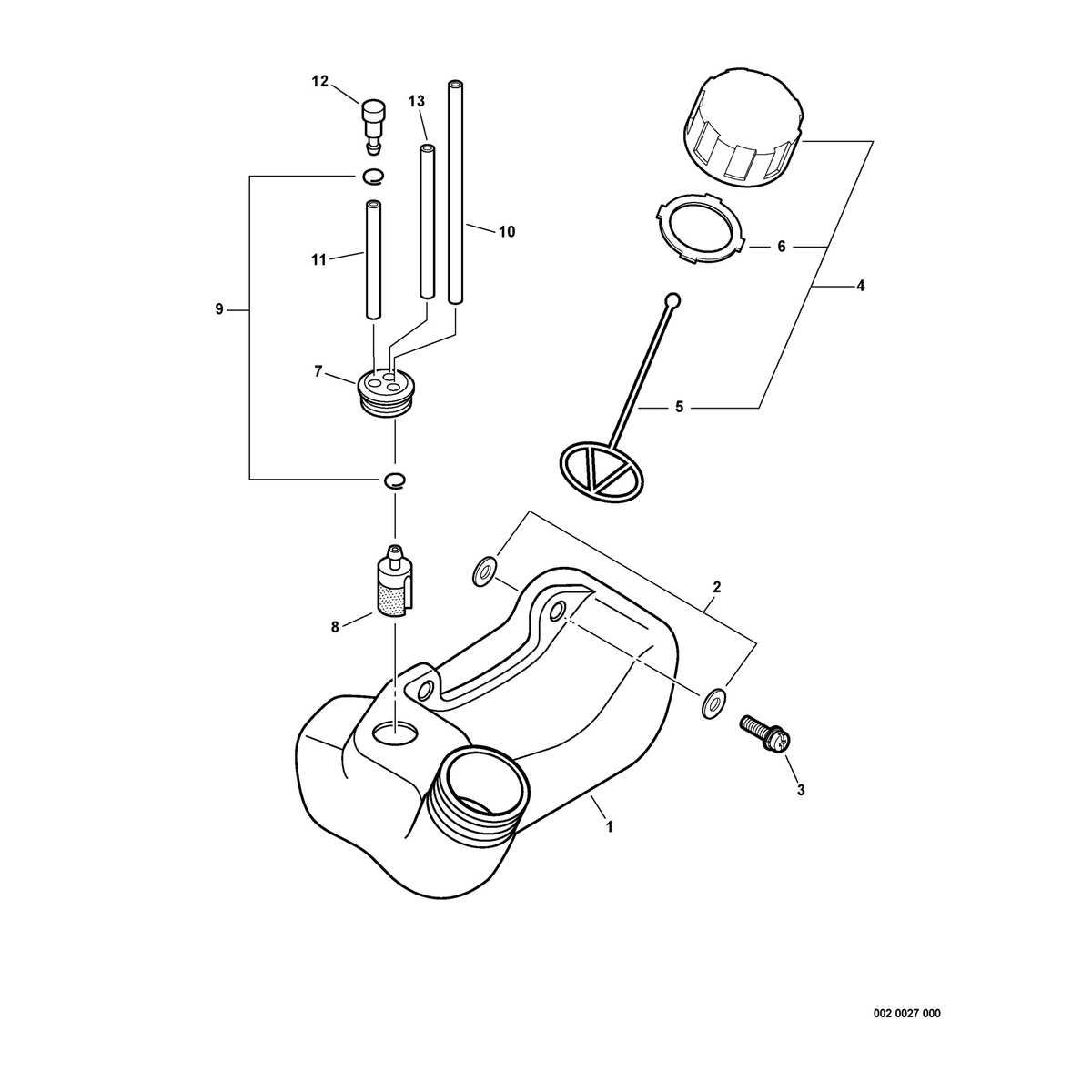

Fuel System
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
A350000392
A350000392
|
|||
|
|
V325000010
V325000010
|
|||
|
|
90023805025
90023805025
|
|||
|
|
P021012210
P021012210
|
|||
|
|
A365000020
A365000020
|
|||
|
|
13101655830
13101655830
|
|||
|
|
V137000030
V137000030
|
|||
|
|
13120507320
13120507320
|
|||
|
|
13201309820
13201309820
|
|||
|
|
V470000580
V470000580
|
|||
|
|
13201021160
13201021160
|
|||
|
|
A356000030
A356000030
|
|||
|
|
13201006460
13201006460
|

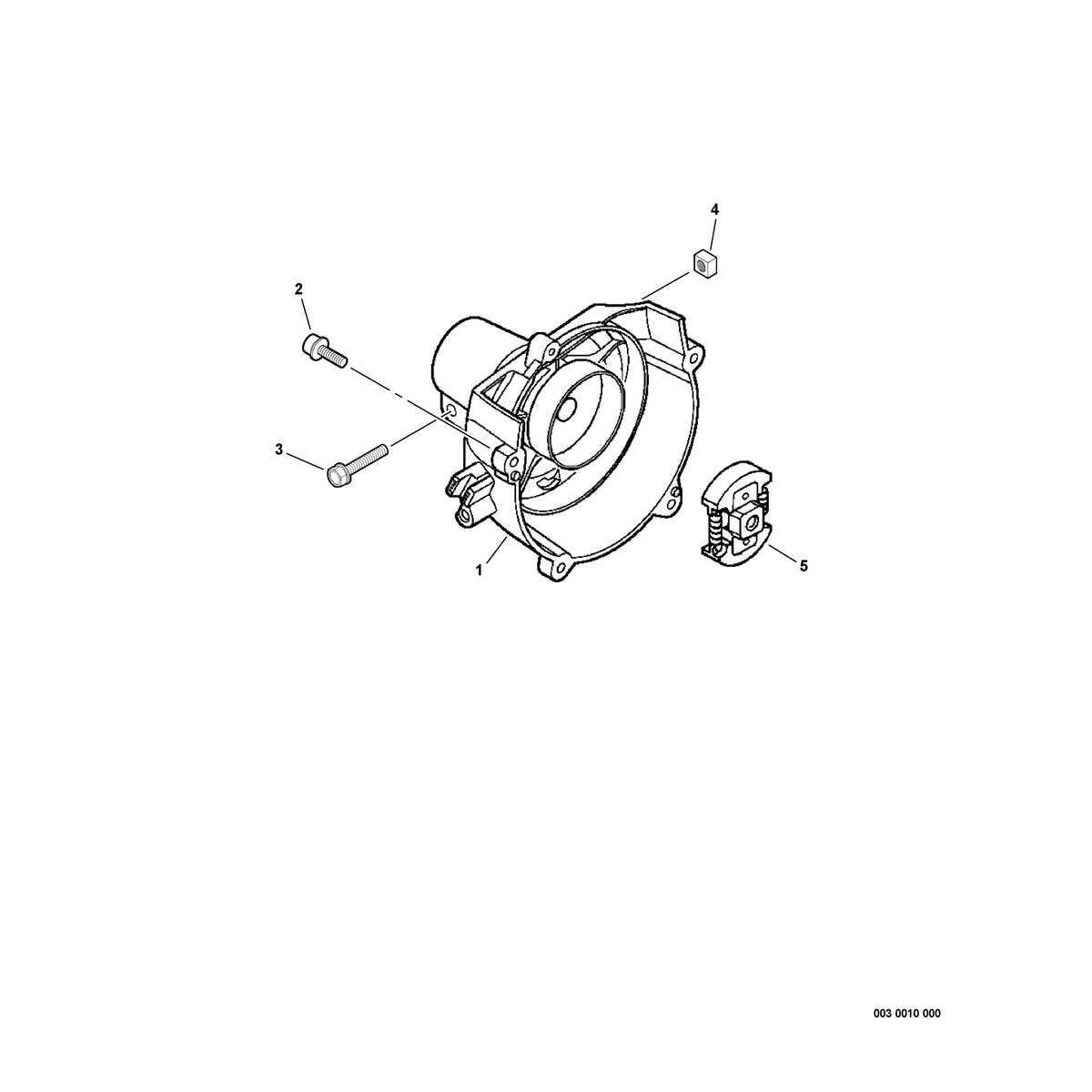

Fancase, Clutch
Fancase, Clutch
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
P021008243
P021008243
|
|||
|
|
9110704016
9110704016
|
|||
|
|
90016205028
90016205028
|
|||
|
|
90056550005
90056550005
|
|||
|
|
A056000150
A056000150
|
Ignition
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
A411000210
A411000210
|
|||
|
|
90016204020
90016204020
|
|||
|
|
V475003380
V475003380
|
|||
|
|
V135000030
V135000030
|
|||
|
|
15611004920
15611004920
|
|||
|
|
A427000013
A427000013
|
|||
|
|
A426000010
A426000010
|
|||
|
|
15901019830
15901019830
|
|||
|
|
A425000000
A425000000
|
|||
|
|
A409000210
A409000210
|
|||
|
|
16201004561
16201004561
|
|||
|
|
15911621231
15911621231
|
|||
|
|
16201452930
16201452930
|
|||
|
|
90024205010
90024205010
|

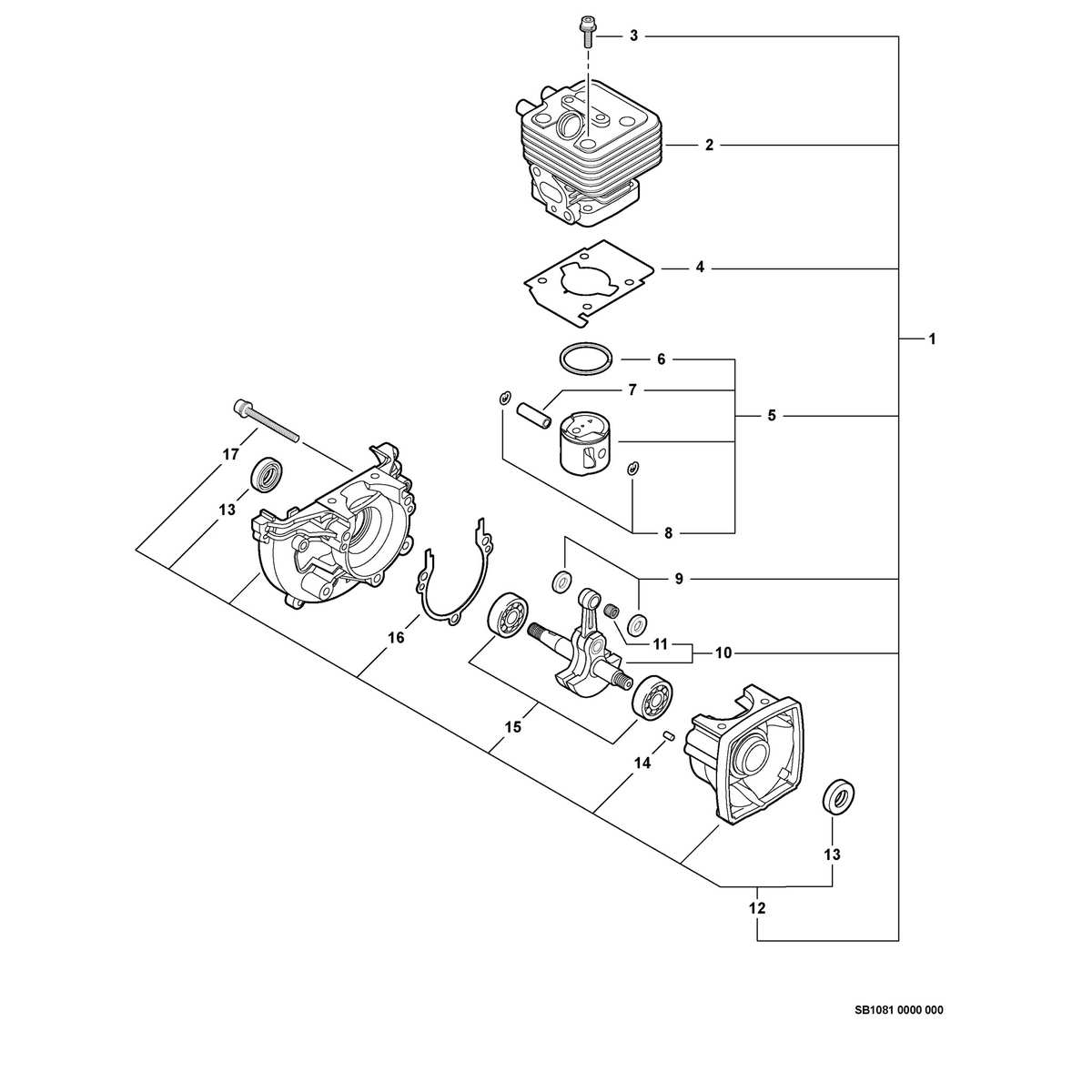

Engine, Short Block -- SB1081
Engine, Short Block -- SB1081
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
SB1081
SB1081
|
|||
|
|
A130000672
A130000672
|
|||
|
|
90016205025
90016205025
|
|||
|
|
V100000181
V100000181
|
|||
|
|
P021008221
P021008221
|
|||
|
|
A101000100
A101000100
|
|||
|
|
V606000000
V606000000
|
|||
|
|
10001504630
10001504630
|
|||
|
|
10001411520
10001411520
|
|||
|
|
A011000371
A011000371
|
|||
|
|
V553000010
V553000010
|
|||
|
|
P021008231
P021008231
|
|||
|
|
10021242031
10021242031
|
|||
|
|
V622000020
V622000020
|
|||
|
|
9403536201
9403536201
|
|||
|
|
10024242030
10024242030
|
|||
|
|
90016205028
90016205028
|
Rapid Loader Head
Rapid Loader Head
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
X480000020
X480000020
|
|||
|
|
P022001091
P022001091
|
|||
|
|
P022001070
P022001070
|
|||
|
|
P022001080
P022001080
|
|||
|
|
V307000110
V307000110
|
|||
|
|
V307000080
V307000080
|
|||
|
|
V266000030
V266000030
|
|||
|
|
102212131
102212131
|
Plastic Shield
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
69900452730
69900452730
|
|||
|
|
90003300008
90003300008
|
|||
|
|
90003500008
90003500008
|
|||
|
|
90001708064
90001708064
|
|||
|
|
90023805016
90023805016
|
|||
|
|
90050000005
90050000005
|
|||
|
|
69901644330
69901644330
|
|||
|
|
69901044330
69901044330
|
Gear Case
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
90016205025
90016205025
|
|||
|
|
90024204010
90024204010
|
|||
|
|
C056000001
C056000001
|
|||
|
|
C535000240
C535000240
|
|||
|
|
90070200030
90070200030
|
|||
|
|
9406106200
9406106200
|
|||
|
|
C534000341
C534000341
|
|||
|
|
9406006200
9406006200
|

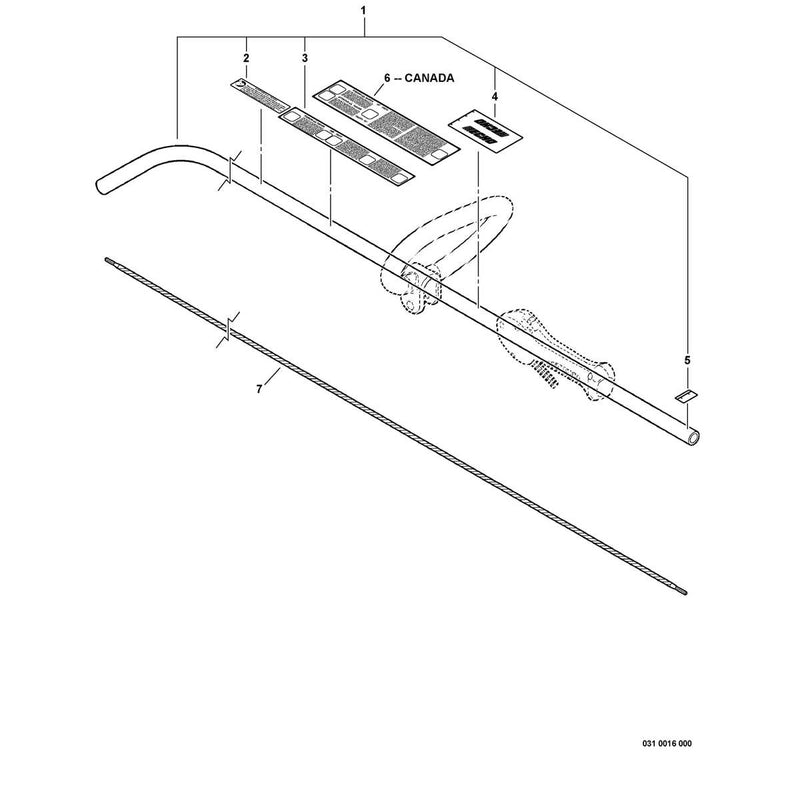

Main Pipe, Flexible Driveshaft
Main Pipe, Flexible Driveshaft
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
C050000470
C050000470
|
|||
|
|
89022809560
89022809560
|
|||
|
|
89031744530
89031744530
|
|||
|
|
X505001930
X505001930
|
|||
|
|
89015204930
89015204930
|
|||
|
|
89031748731
89031748731
|
|||
|
|
C506000090
C506000090
|

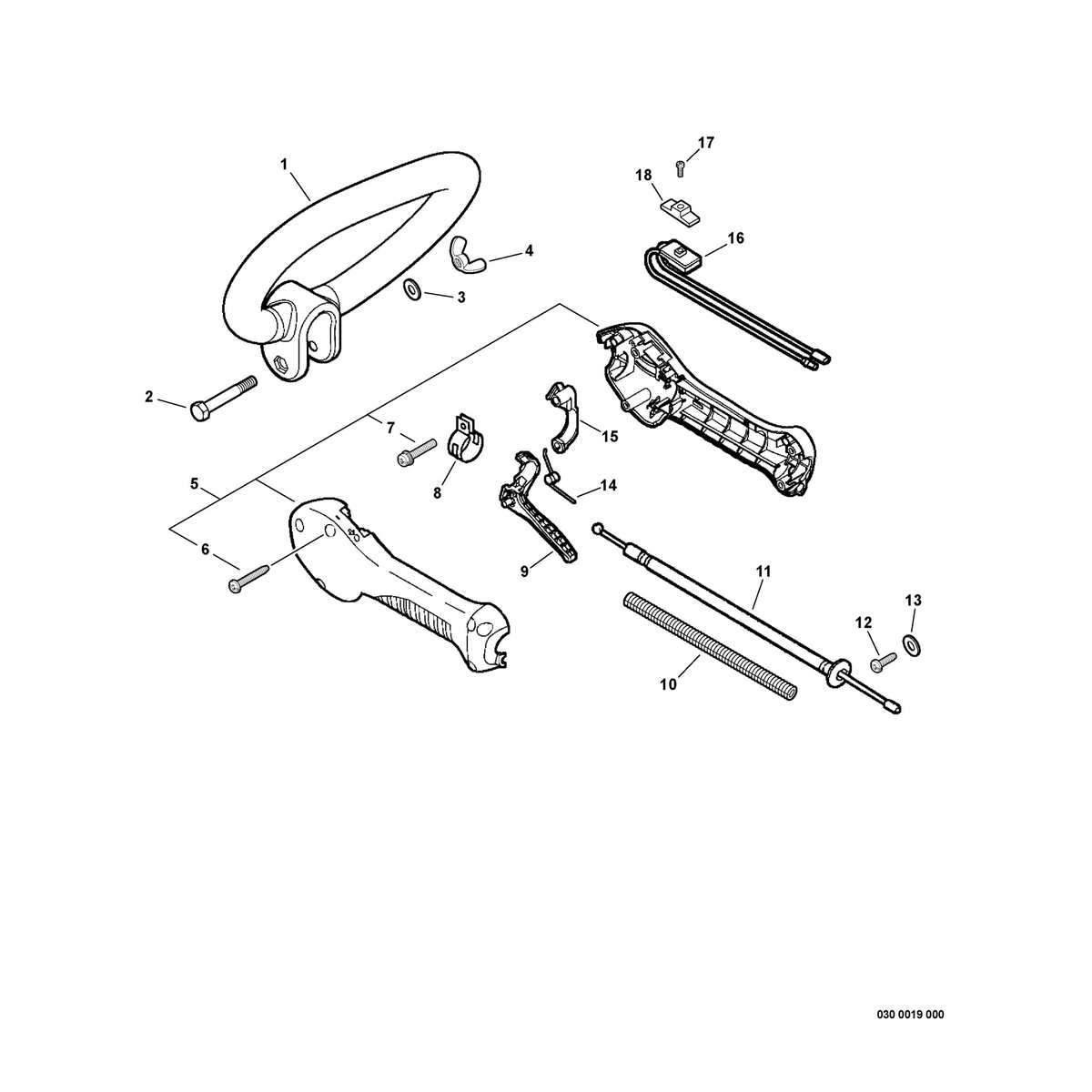

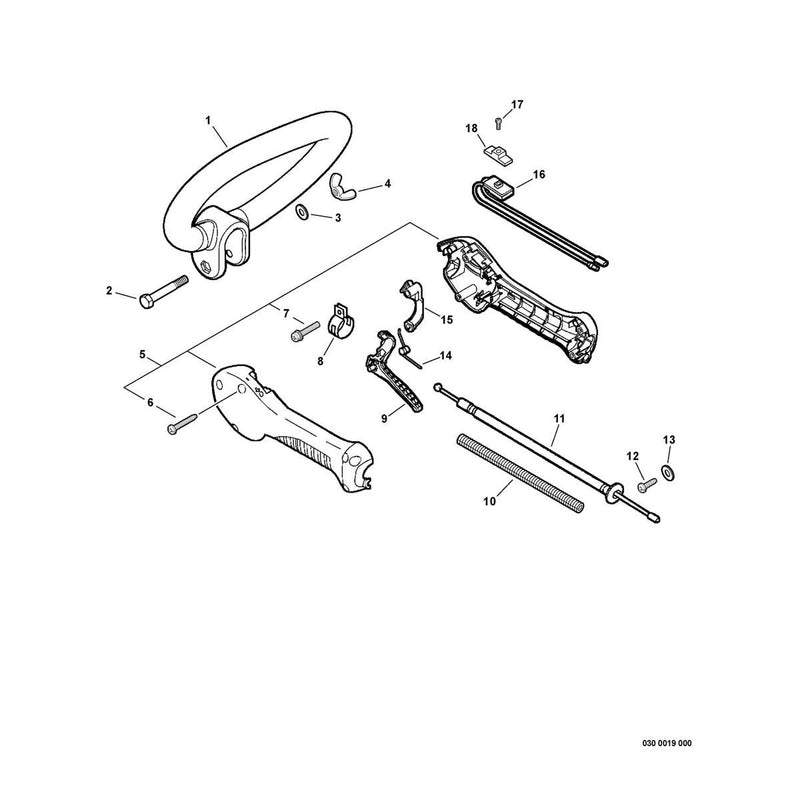

Handles, Ignition Switch,Throttle Cable
Handles, Ignition Switch,Throttle Cable
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
C400000310
C400000310
|
|||
|
|
90001708064
90001708064
|
|||
|
|
90003500008
90003500008
|
|||
|
|
90003300008
90003300008
|
|||
|
|
P021008300
P021008300
|
|||
|
|
V253000140
V253000140
|
|||
|
|
90023805020
90023805020
|
|||
|
|
V495000680
V495000680
|
|||
|
|
C450000183
C450000183
|
|||
|
|
V475003390
V475003390
|
|||
|
|
V430001390
V430001390
|
|||
|
|
9142705012
9142705012
|
|||
|
|
9220805000
9220805000
|
|||
|
|
V452000210
V452000210
|
|||
|
|
C453000151
C453000151
|
|||
|
|
A440000570
A440000570
|
|||
|
|
9154503010
9154503010
|
|||
|
|
A444000020
A444000020
|
Labels
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
89012152730
89012152730
|
|||
|
|
89033252730
89033252730
|
|||
|
|
X505002310
X505002310
|
|||
|
|
X502000150
X502000150
|
|||
|
|
X532000671
X532000671
|
|||
|
|
X532000720
X532000720
|
|||
|
|
X503006170
X503006170
|
|||
|
|
X503006180
X503006180
|
