ECHO ST-5024 Snow Thrower Parts Diagram
Diagrams:
Diagram:

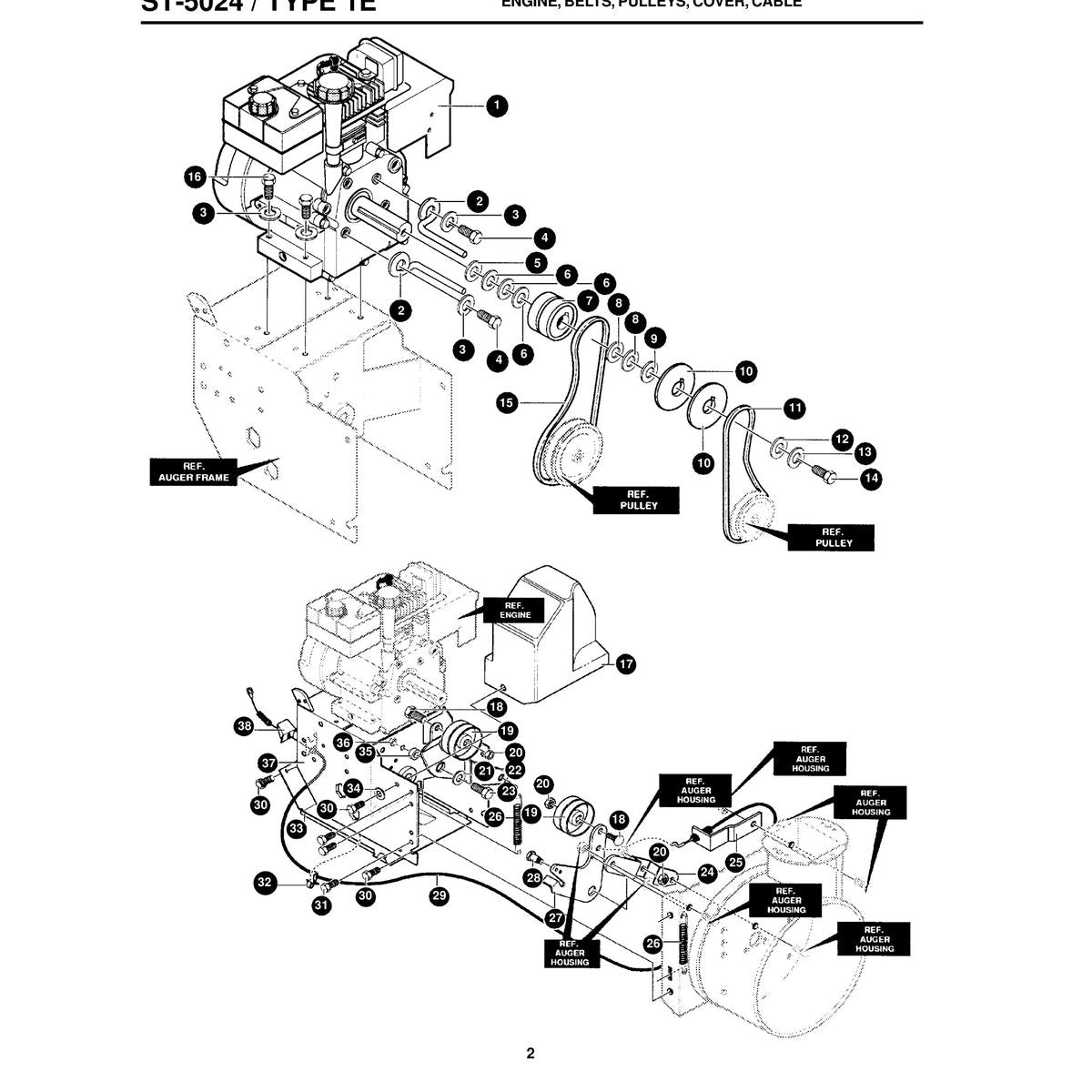

ENGINE, BELTS, PULLEYS, COVER, CABLE
ENGINE, BELTS, PULLEYS, COVER, CABLE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14003949
14003949
|
|||
|
|
14120638
14120638
|
|||
|
|
14578733
14578733
|
|||
|
|
14579855
14579855
|
|||
|
|
14579861
14579861
|
|||
|
|
14579854
14579854
|
|||
|
|
14073840
14073840
|
|||
|
|
14586251
14586251
|
|||
|
|
14586253
14586253
|
|||
|
|
14581264
14581264
|
|||
|
|
14313826
14313826
|
|||
|
|
14120382
14120382
|
|||
|
|
14039573
14039573
|
|||
|
|
14579932
14579932
|
|||
|
|
14710024
14710024
|
|||
|
|
14580772
14580772
|
|||
|
|
14180124
14180124
|
|||
|
|
14313843
14313843
|
|||
|
|
14041529
14041529
|
|||
|
|
14073795
14073795
|
|||
|
|
14579872
14579872
|
|||
|
|
14180077
14180077
|
|||
|
|
14336657
14336657
|
|||
|
|
14340579
14340579
|
|||
|
|
14313854
14313854
|
|||
|
|
14340604
14340604
|
|||
|
|
14335587
14335587
|
|||
|
|
14340373
14340373
|
|||
|
|
14310169
14310169
|
|||
|
|
14035497
14035497
|
|||
|
|
14340682
14340682
|
|||
|
|
14583031
14583031
|
|||
|
|
14120392
14120392
|
|||
|
|
14579865
14579865
|
|||
|
|
14071038
14071038
|
|||
|
|
14345087
14345087
|
|||
|
|
14340869
14340869
|

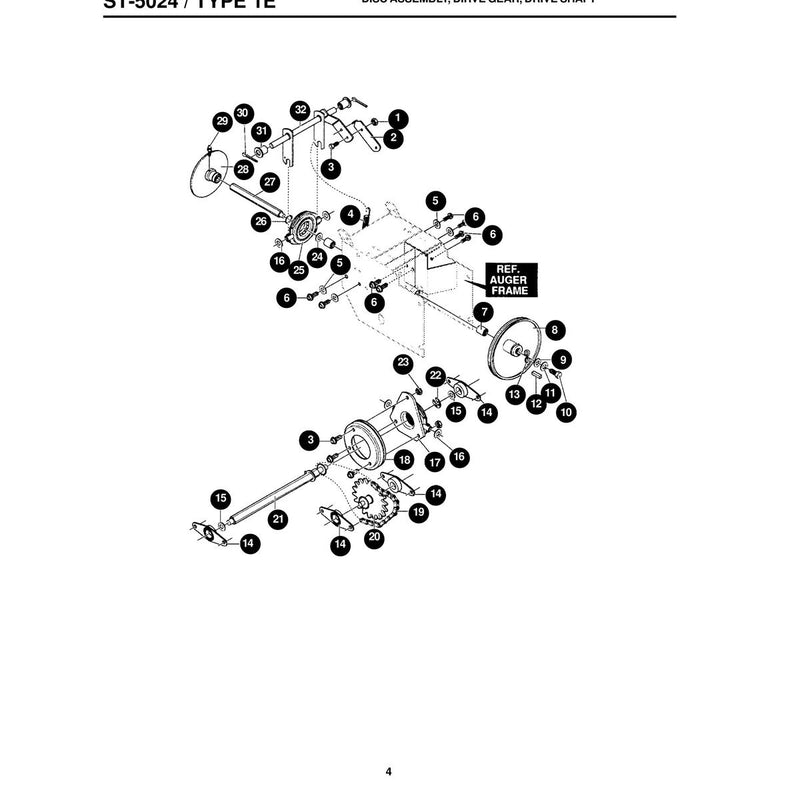

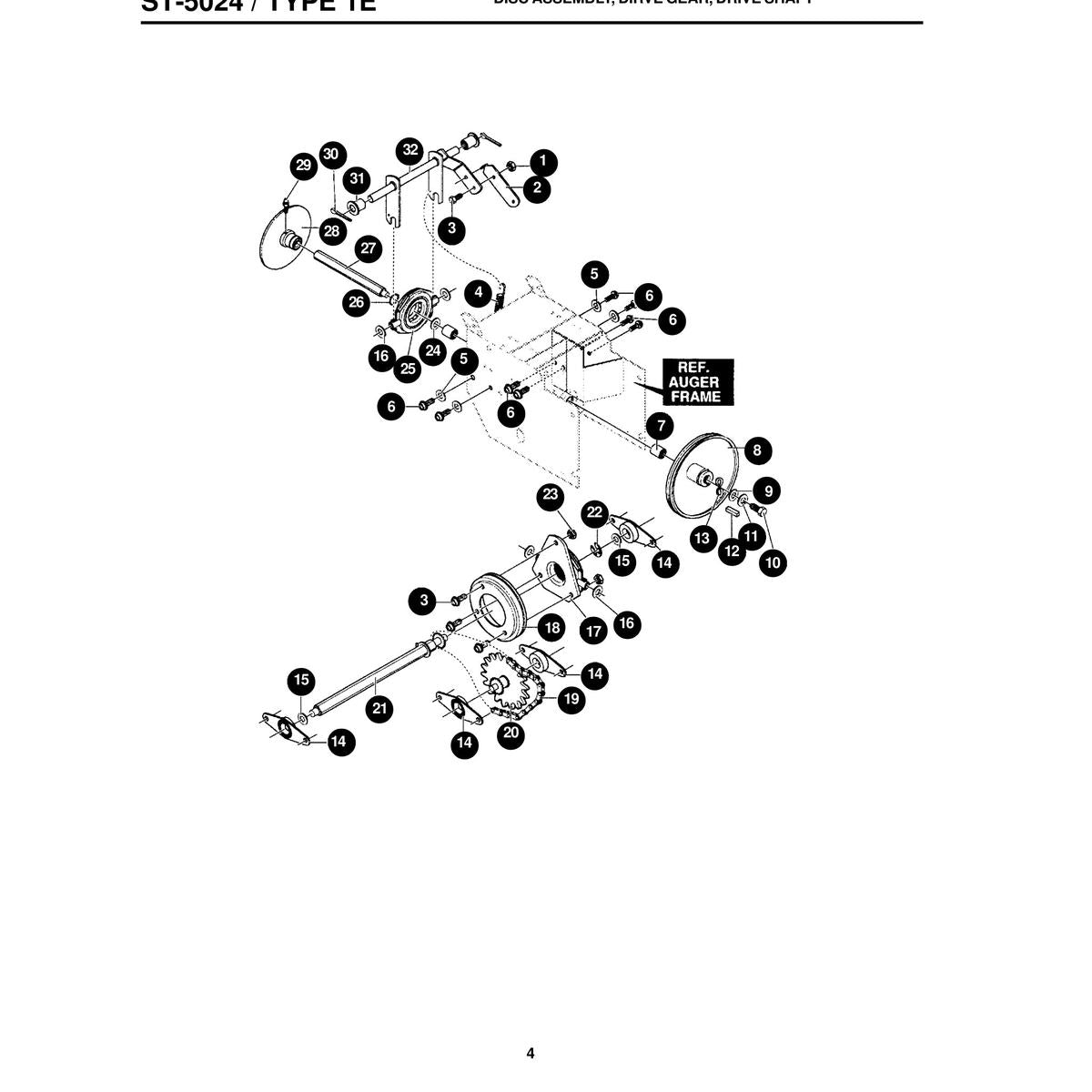

DISC ASSEMBLY, DIRVE GEAR, DRIVE SHAFT
DISC ASSEMBLY, DIRVE GEAR, DRIVE SHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14579937
14579937
|
|||
|
|
14011871
14011871
|
|||
|
|
14313919
14313919
|
|||
|
|
14120638
14120638
|
|||
|
|
14035497
14035497
|
|||
|
|
14049562
14049562
|
|||
|
|
14580961
14580961
|
|||
|
|
14001084
14001084
|
|||
|
|
14180020
14180020
|
|||
|
|
14120380
14120380
|
|||
|
|
14580970
14580970
|
|||
|
|
14580965
14580965
|
|||
|
|
14334163
14334163
|
|||
|
|
14579858
14579858
|
|||
|
|
14071074
14071074
|
|||
|
|
14337029
14337029
|
|||
|
|
14313883
14313883
|
|||
|
|
14579867
14579867
|
|||
|
|
14579893
14579893
|
|||
|
|
14331112
14331112
|
|||
|
|
14303008
14303008
|
|||
|
|
14000462
14000462
|
|||
|
|
14580969
14580969
|
|||
|
|
14085501
14085501
|
|||
|
|
14073811
14073811
|
|||
|
|
14583155
14583155
|
|||
|
|
14583163
14583163
|
|||
|
|
14583206
14583206
|
|||
|
|
14137185
14137185
|
|||
|
|
14313853
14313853
|
|||
|
|
14579941
14579941
|

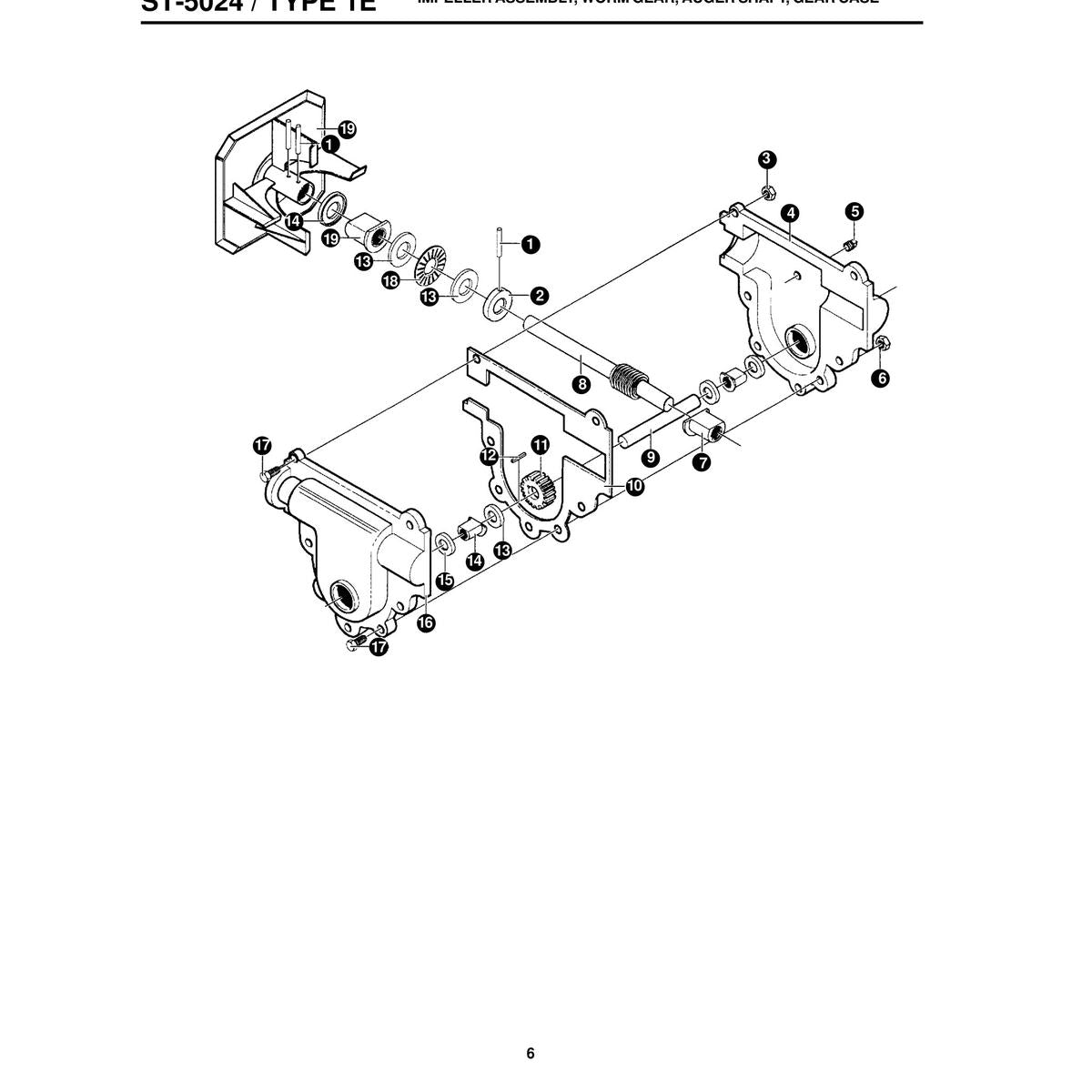

IMPELLER ASSEMBLY, WORM GEAR, AUGER SHAFT, GEAR CASE
IMPELLER ASSEMBLY, WORM GEAR, AUGER SHAFT, GEAR CASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14580295
14580295
|
|||
|
|
14303008
14303008
|
|||
|
|
14010576
14010576
|
|||
|
|
14009344
14009344
|
|||
|
|
14046931
14046931
|
|||
|
|
14050221
14050221
|
|||
|
|
14583125
14583125
|
|||
|
|
14340286
14340286
|
|||
|
|
14051279
14051279
|
|||
|
|
14051405
14051405
|
|||
|
|
14431787
14431787
|
|||
|
|
14009346
14009346
|
|||
|
|
14050304
14050304
|
|||
|
|
14009566
14009566
|
|||
|
|
14010577
14010577
|
|||
|
|
14180020
14180020
|
|||
|
|
14313828
14313828
|
|||
|
|
14585598
14585598
|

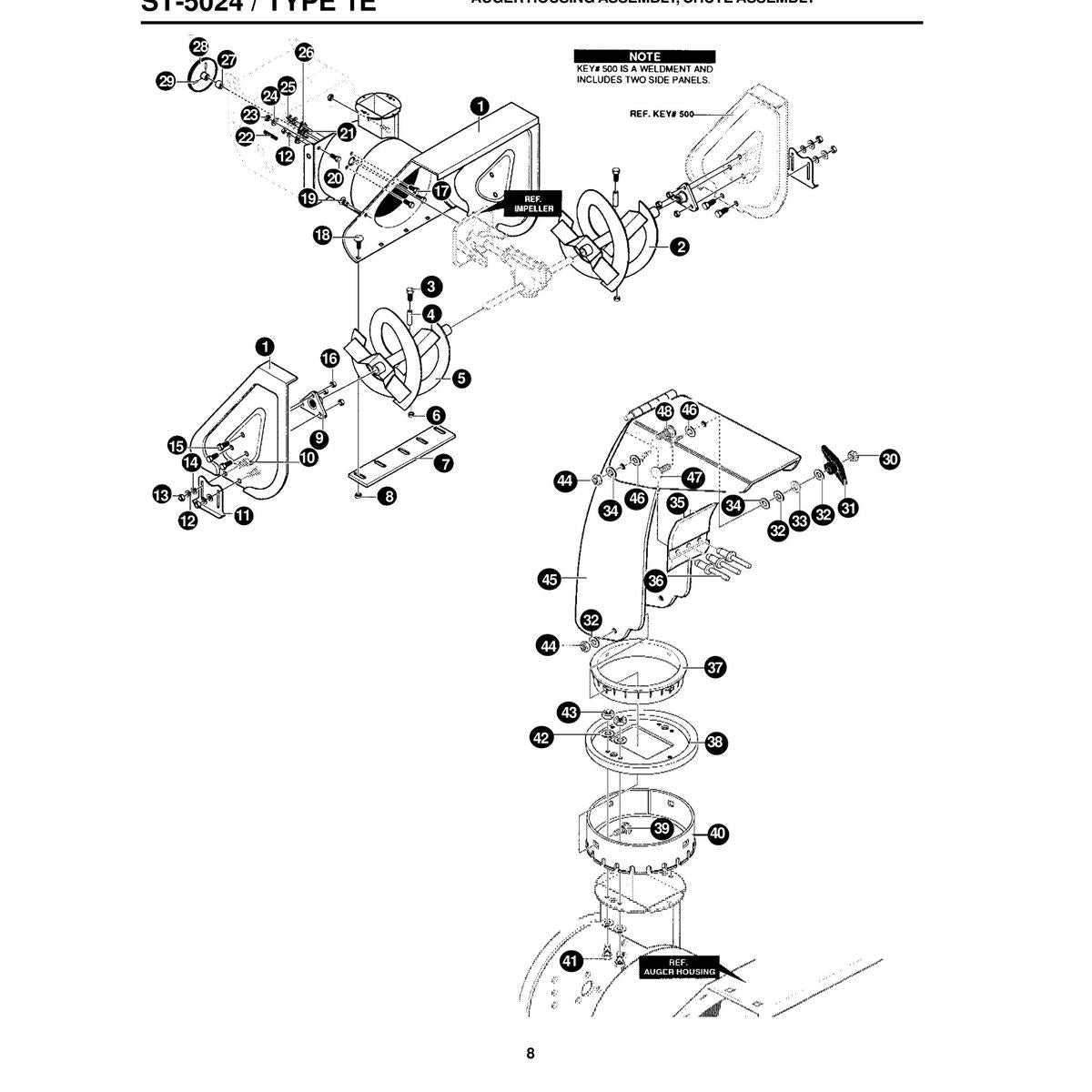

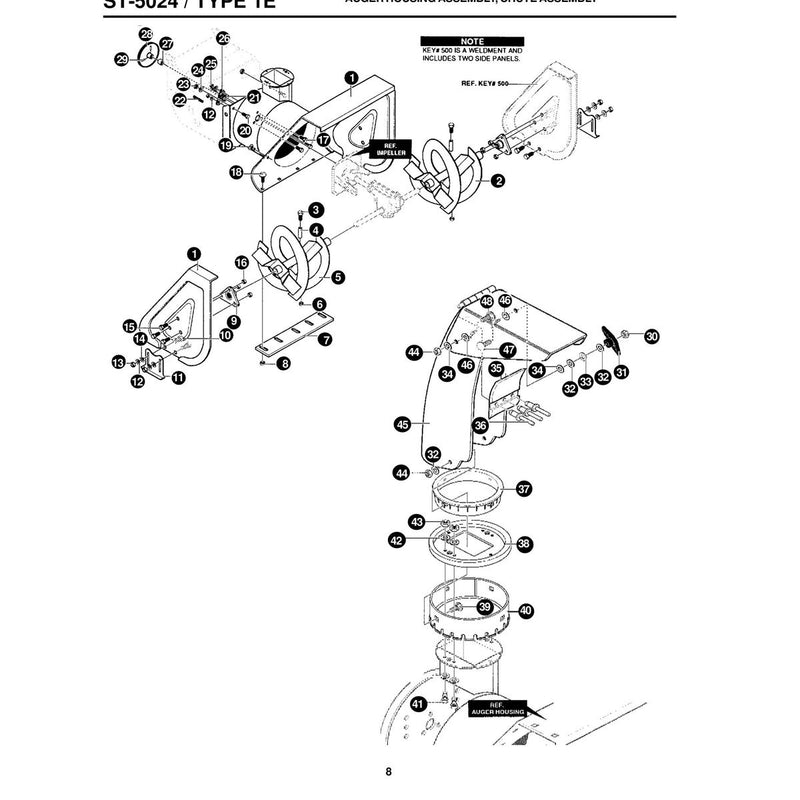

AUGER HOUSING ASSEMBLY, CHUTE ASSEMBLY
AUGER HOUSING ASSEMBLY, CHUTE ASSEMBLY
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14340523
14340523
|
|||
|
|
14009524
14009524
|
|||
|
|
14003943
14003943
|
|||
|
|
14340518
14340518
|
|||
|
|
14001502
14001502
|
|||
|
|
14581397
14581397
|
|||
|
|
14051335
14051335
|
|||
|
|
14009517
14009517
|
|||
|
|
14070993
14070993
|
|||
|
|
14001161
14001161
|
|||
|
|
14120638
14120638
|
|||
|
|
14120376
14120376
|
|||
|
|
14120393
14120393
|
|||
|
|
14009357
14009357
|
|||
|
|
14008619
14008619
|
|||
|
|
14180077
14180077
|
|||
|
|
14323825
14323825
|
|||
|
|
14309235
14309235
|
|||
|
|
14071003
14071003
|
|||
|
|
14043846
14043846
|
|||
|
|
14071371
14071371
|
|||
|
|
14001499
14001499
|
|||
|
|
14120382
14120382
|
|||
|
|
14710026
14710026
|
|||
|
|
14582960
14582960
|
|||
|
|
14334514
14334514
|
|||
|
|
14583124
14583124
|
|||
|
|
14577400
14577400
|
|||
|
|
14120376
14120376
|
|||
|
|
14013527
14013527
|
|||
|
|
14120393
14120393
|
|||
|
|
14120638
14120638
|
|||
|
|
14006711
14006711
|
|||
|
|
14760268
14760268
|
|||
|
|
14760987
14760987
|
|||
|
|
14337227
14337227
|
|||
|
|
14585214
14585214
|
|||
|
|
14586280
14586280
|
|||
|
|
14585193
14585193
|
|||
|
|
14180020
14180020
|
|||
|
|
14120392
14120392
|
|||
|
|
14001502
14001502
|
|||
|
|
14071038
14071038
|
|||
|
|
14760016
14760016
|
|||
|
|
14012021
14012021
|
|||
|
|
14126358
14126358
|
|||
|
|
14070993
14070993
|

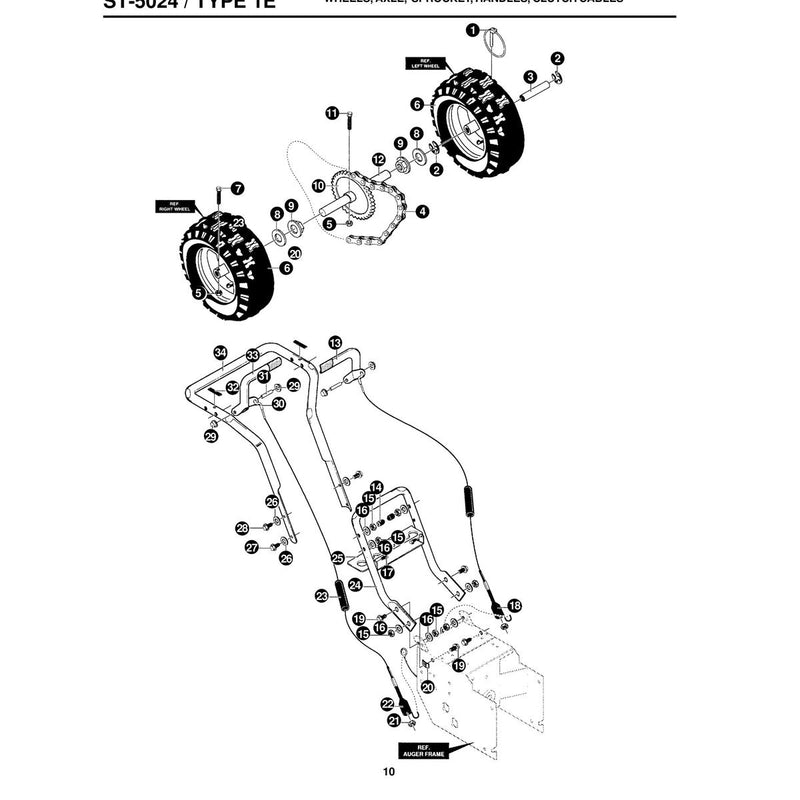

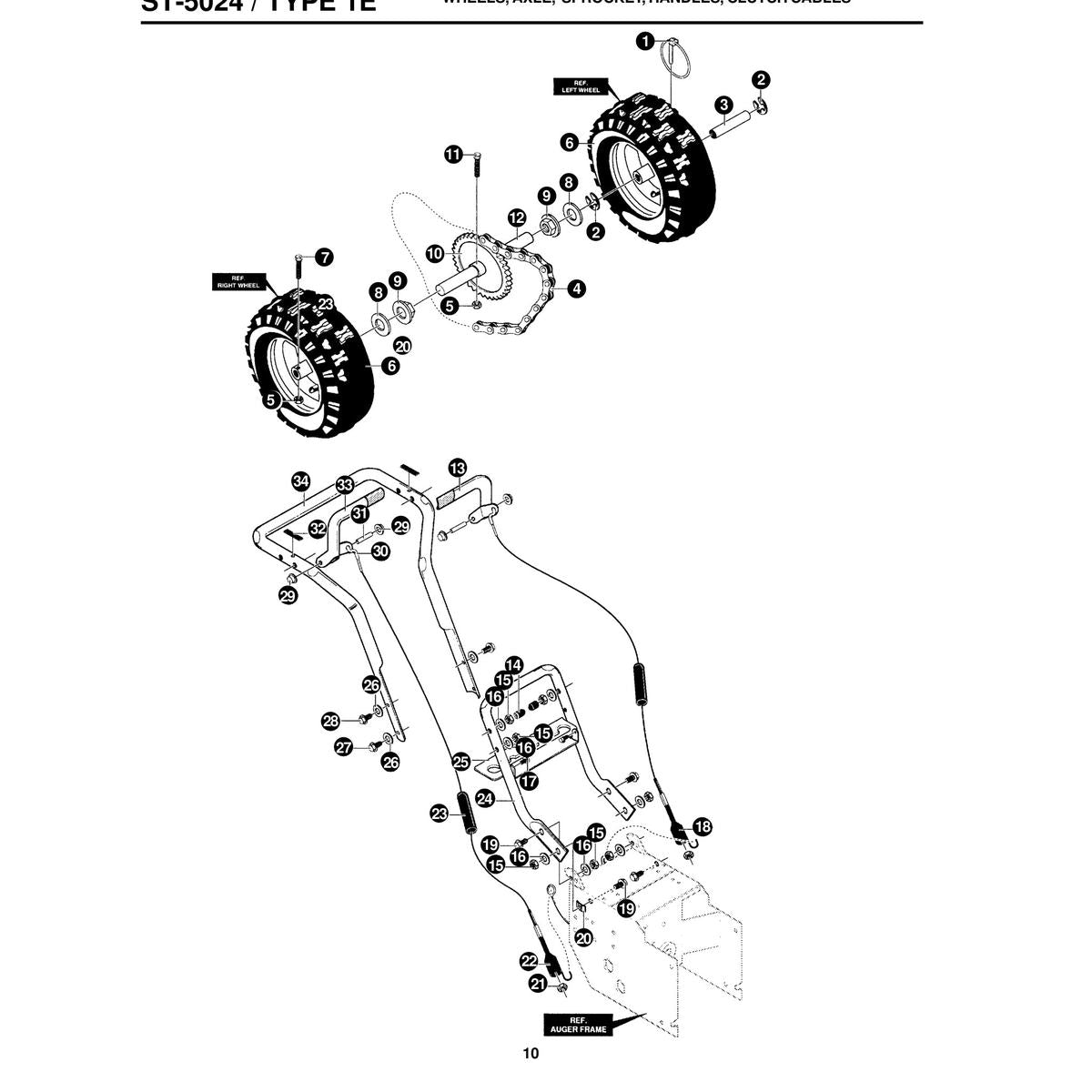

WHEELS, AXLE, SPROCKET, HANDLES, CLUTCH CABLES
WHEELS, AXLE, SPROCKET, HANDLES, CLUTCH CABLES
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14000239
14000239
|
|||
|
|
14585591
14585591
|
|||
|
|
14579867
14579867
|
|||
|
|
14001502
14001502
|
|||
|
|
14318504
14318504
|
|||
|
|
14577015
14577015
|
|||
|
|
14073840
14073840
|
|||
|
|
14581730
14581730
|
|||
|
|
14583012
14583012
|
|||
|
|
14073839
14073839
|
|||
|
|
14580883
14580883
|
|||
|
|
14334195
14334195
|
|||
|
|
14011261
14011261
|
|||
|
|
14120376
14120376
|
|||
|
|
14120638
14120638
|
|||
|
|
14056021
14056021
|
|||
|
|
14579869
14579869
|
|||
|
|
14180079
14180079
|
|||
|
|
14309436
14309436
|
|||
|
|
14001502
14001502
|
|||
|
|
14001673
14001673
|
|||
|
|
14308146
14308146
|
|||
|
|
14339541
14339541
|
|||
|
|
14337407
14337407
|
|||
|
|
14120393
14120393
|
|||
|
|
14180087
14180087
|
|||
|
|
14011234
14011234
|
|||
|
|
14003535
14003535
|
|||
|
|
14001579
14001579
|
|||
|
|
14001058
14001058
|
|||
|
|
14004049
14004049
|
|||
|
|
14334195
14334195
|
|||
|
|
14009552
14009552
|

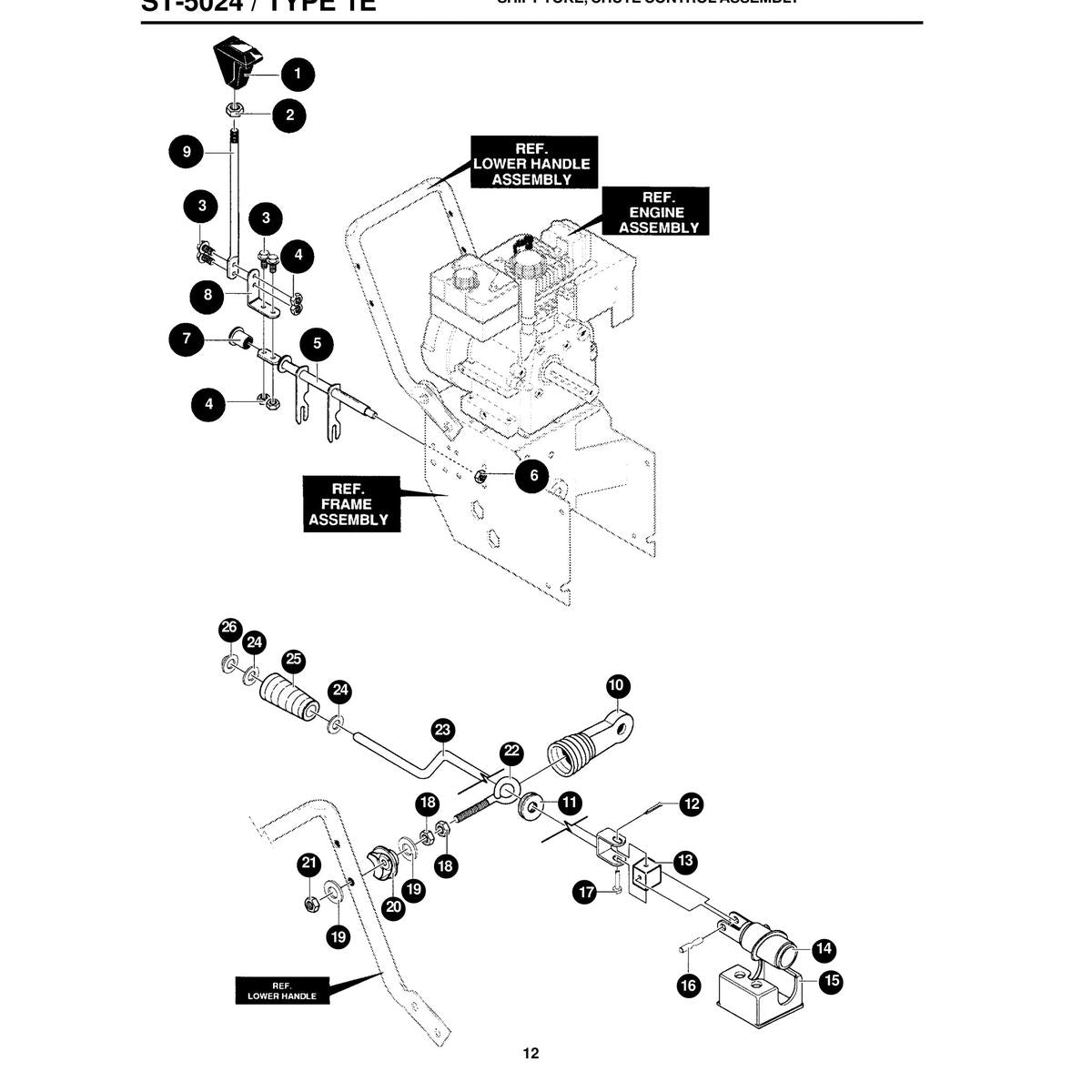

SHIFT YOKE, CHUTE CONTROL ASSEMBLY
SHIFT YOKE, CHUTE CONTROL ASSEMBLY
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14318486
14318486
|
|||
|
|
14051332
14051332
|
|||
|
|
14001502
14001502
|
|||
|
|
14581795
14581795
|
|||
|
|
14001499
14001499
|
|||
|
|
14579944
14579944
|
|||
|
|
14581630
14581630
|
|||
|
|
14581631
14581631
|
|||
|
|
14308145
14308145
|
|||
|
|
14000148
14000148
|
|||
|
|
14579493
14579493
|
|||
|
|
14578063
14578063
|
|||
|
|
14585196
14585196
|
|||
|
|
14585195
14585195
|
|||
|
|
14578060
14578060
|
|||
|
|
14578309
14578309
|
|||
|
|
14124829
14124829
|
|||
|
|
14120394
14120394
|
|||
|
|
14309344
14309344
|
|||
|
|
14071046
14071046
|
|||
|
|
14071457
14071457
|
|||
|
|
14585426
14585426
|
|||
|
|
14309312
14309312
|
|||
|
|
14307399
14307399
|
|||
|
|
14578159
14578159
|

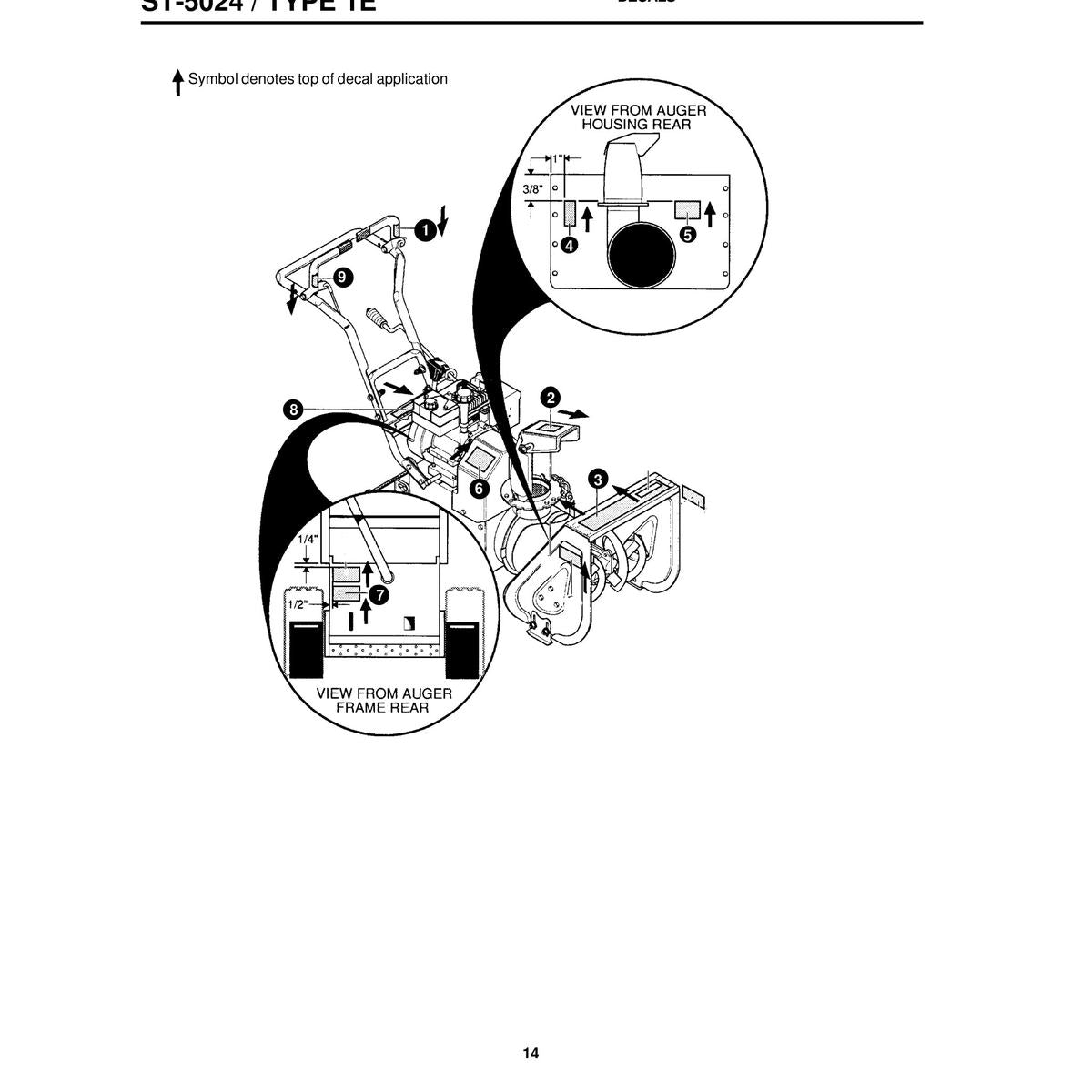

DECALS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14313892
14313892
|
|||
|
|
14760109
14760109
|
|||
|
|
14070141
14070141
|
|||
|
|
14302922
14302922
|
|||
|
|
14007390
14007390
|
|||
|
|
14007859
14007859
|
|||
|
|
14340047
14340047
|
|||
|
|
14003903
14003903
|
