Honda EB2500XK1-AG_B Parts Diagram Generator (Serial EZCP-1018063 to 1079999)
Diagrams:
Diagram:

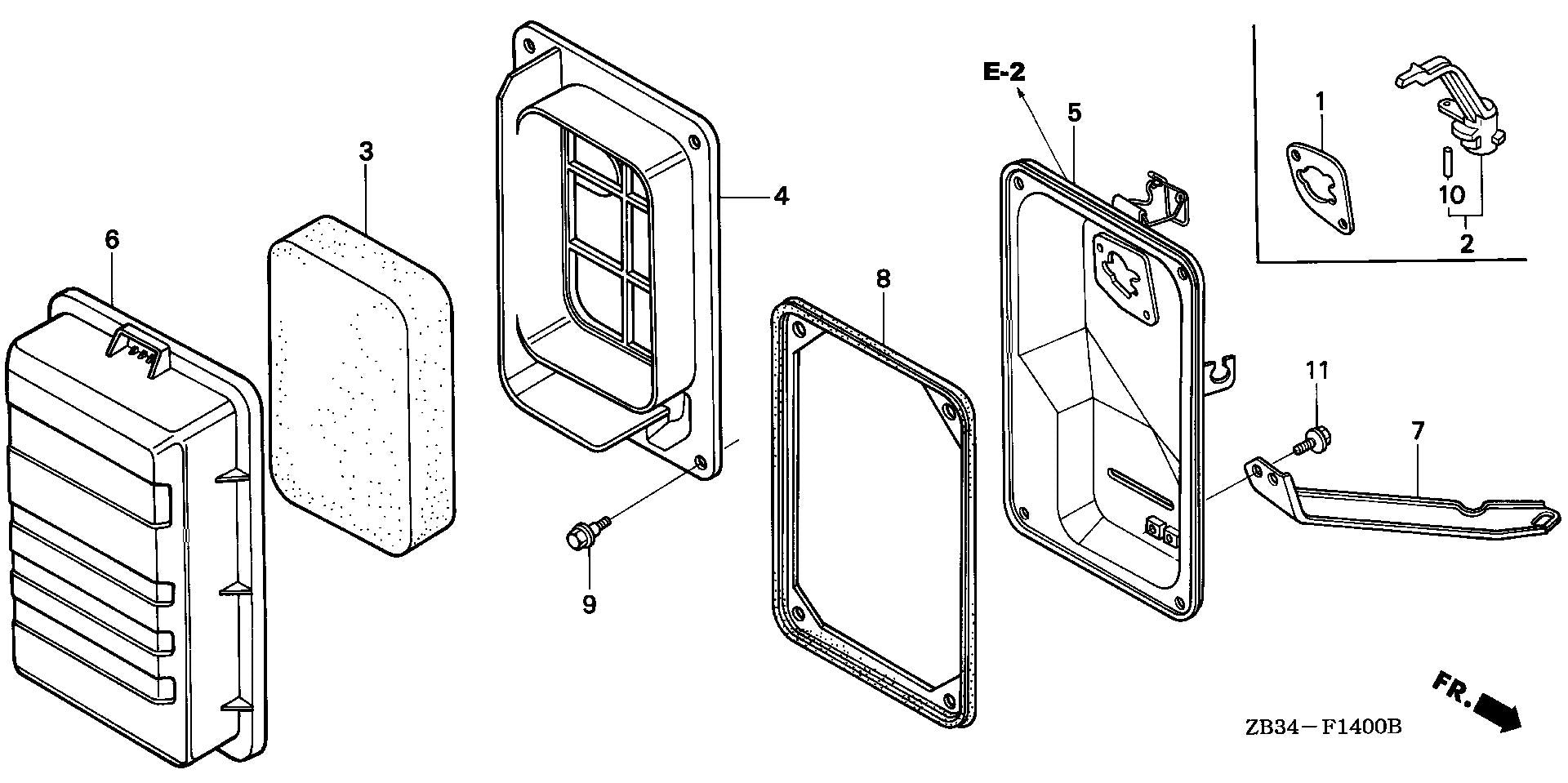

AIR CLEANER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16269-ze1-800
16269-ze1-800
|
|||
|
|
16610-zb2-000
16610-zb2-000
|
|||
|
|
17211-zb2-000
17211-zb2-000
|
|||
|
|
17212-zb2-000
17212-zb2-000
|
|||
|
|
17220-zb2-010
17220-zb2-010
|
|||
|
|
17231-zb2-000
17231-zb2-000
|
|||
|
|
17239-zb2-000
17239-zb2-000
|
|||
|
|
17252-zb2-000
17252-zb2-000
|
|||
|
|
90115-459-770
90115-459-770
|
|||
|
|
94305-20122
94305-20122
|
|||
|
|
95701-06010-00
95701-06010-00
|

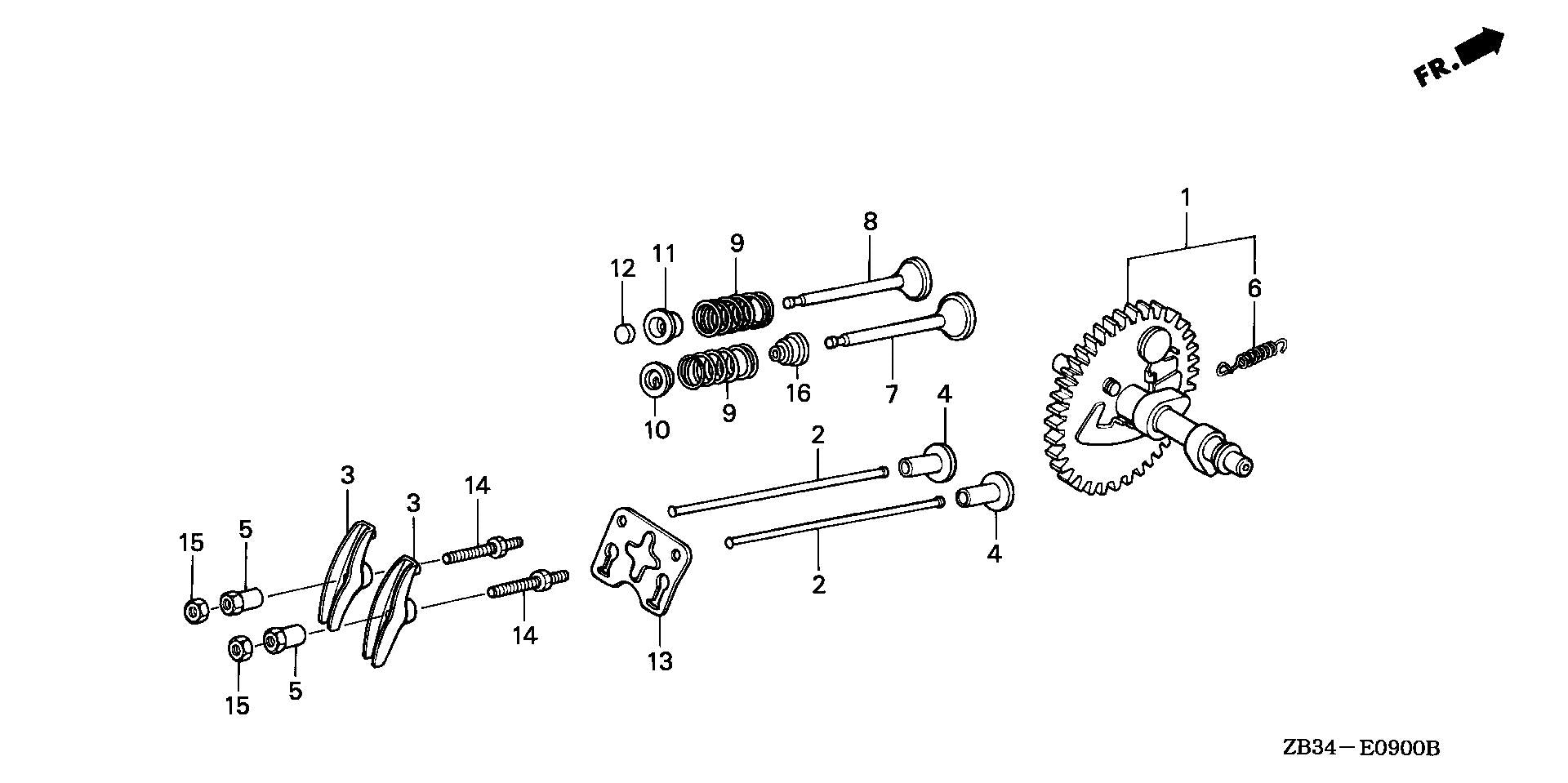

CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14100-ze1-000
14100-ze1-000
|
|||
|
|
14100-ze1-810
14100-ze1-810
|
|||
|
|
14100-ze1-812
14100-ze1-812
|
|||
|
|
14410-ze1-010
14410-ze1-010
|
|||
|
|
14431-ze1-000
14431-ze1-000
|
|||
|
|
14441-ze1-000
14441-ze1-000
|
|||
|
|
14441-ze1-010
14441-ze1-010
|
|||
|
|
14451-ze1-003
14451-ze1-003
|
|||
|
|
14451-z4m-000
14451-z4m-000
|
|||
|
|
14568-ze1-000
14568-ze1-000
|
|||
|
|
14711-zf1-000
14711-zf1-000
|
|||
|
|
14721-zf1-000
14721-zf1-000
|
|||
|
|
14721-zh8-810
14721-zh8-810
|
|||
|
|
14751-ze1-000
14751-ze1-000
|
|||
|
|
14751-zf1-000
14751-zf1-000
|
|||
|
|
14771-z0t-900
14771-z0t-900
|
|||
|
|
14773-ze1-000
14773-ze1-000
|
|||
|
|
14781-ze1-000
14781-ze1-000
|
|||
|
|
14791-ze1-010
14791-ze1-010
|
|||
|
|
90012-ze0-000
90012-ze0-000
|
|||
|
|
90012-ze0-010
90012-ze0-010
|
|||
|
|
12209-zh8-003
12209-zh8-003
|

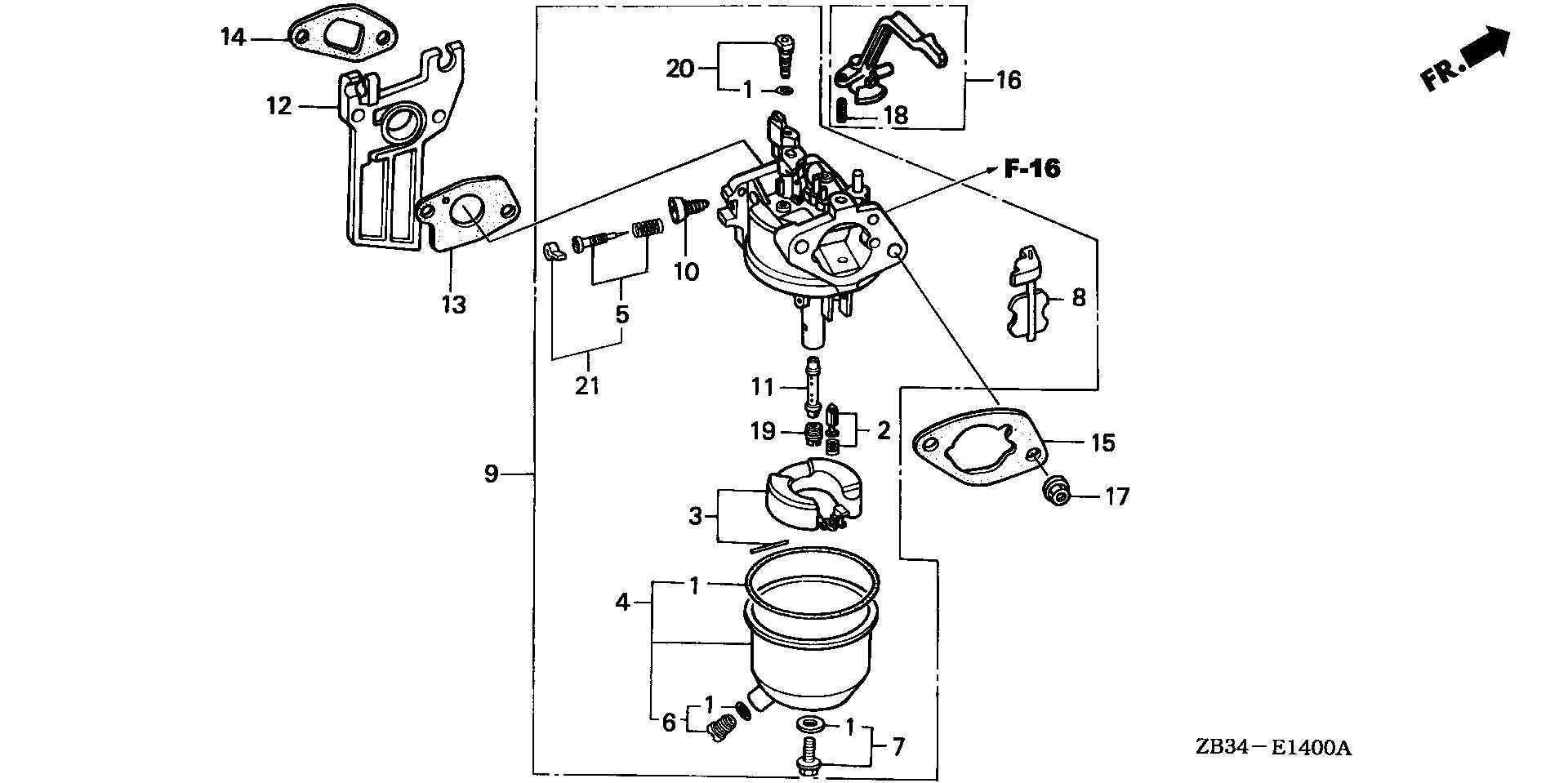

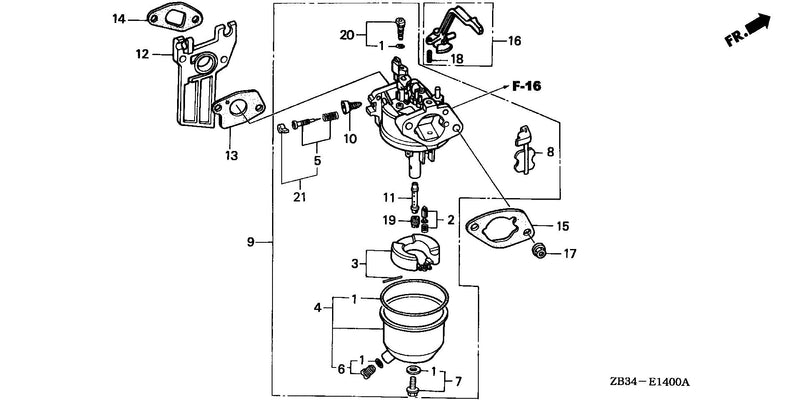

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16010-zb1-015
16010-zb1-015
|
|||
|
|
16010-ze0-505
16010-ze0-505
|
|||
|
|
16011-ze0-005
16011-ze0-005
|
|||
|
|
16013-ze0-005
16013-ze0-005
|
|||
|
|
16015-ze0-831
16015-ze0-831
|
|||
|
|
16015-ze1-811
16015-ze1-811
|
|||
|
|
16016-ze0-005
16016-ze0-005
|
|||
|
|
16024-ze1-811
16024-ze1-811
|
|||
|
|
16028-zk7-s91
16028-zk7-s91
|
|||
|
|
16044-ze0-005
16044-ze0-005
|
|||
|
|
16100-zb2-035
16100-zb2-035
|
|||
|
|
16100-zh8-d21
16100-zh8-d21
|
|||
|
|
16100-zh8-e81
16100-zh8-e81
|
|||
|
|
16124-ze0-005
16124-ze0-005
|
|||
|
|
16166-zh8-e80
16166-zh8-e80
|
|||
|
|
16211-ze1-000
16211-ze1-000
|
|||
|
|
16221-zh8-801
16221-zh8-801
|
|||
|
|
16223-ze1-800
16223-ze1-800
|
|||
|
|
16269-ze1-800
16269-ze1-800
|
|||
|
|
16610-zb2-000
16610-zb2-000
|
|||
|
|
94305-20122
94305-20122
|
|||
|
|
99101-zf5-0680
99101-zf5-0680
|
|||
|
|
99101-zh7-0680
99101-zh7-0680
|
|||
|
|
99101-124-0620
99101-124-0620
|
|||
|
|
99101-124-0650
99101-124-0650
|
|||
|
|
99101-zf5-0700
99101-zf5-0700
|
|||
|
|
99101-zf5-0720
99101-zf5-0720
|
|||
|
|
99101-zf5-0750
99101-zf5-0750
|
|||
|
|
99101-zh7-0700
99101-zh7-0700
|
|||
|
|
99101-zh7-0750
99101-zh7-0750
|
|||
|
|
99101-zh8-0720
99101-zh8-0720
|
|||
|
|
99101-zh8-0750
99101-zh8-0750
|
|||
|
|
99101-zk7-0700
99101-zk7-0700
|
|||
|
|
99204-ze0-0350
99204-ze0-0350
|
|||
|
|
99204-ze0-0380
99204-ze0-0380
|
|||
|
|
16016-zh7-w01
16016-zh7-w01
|

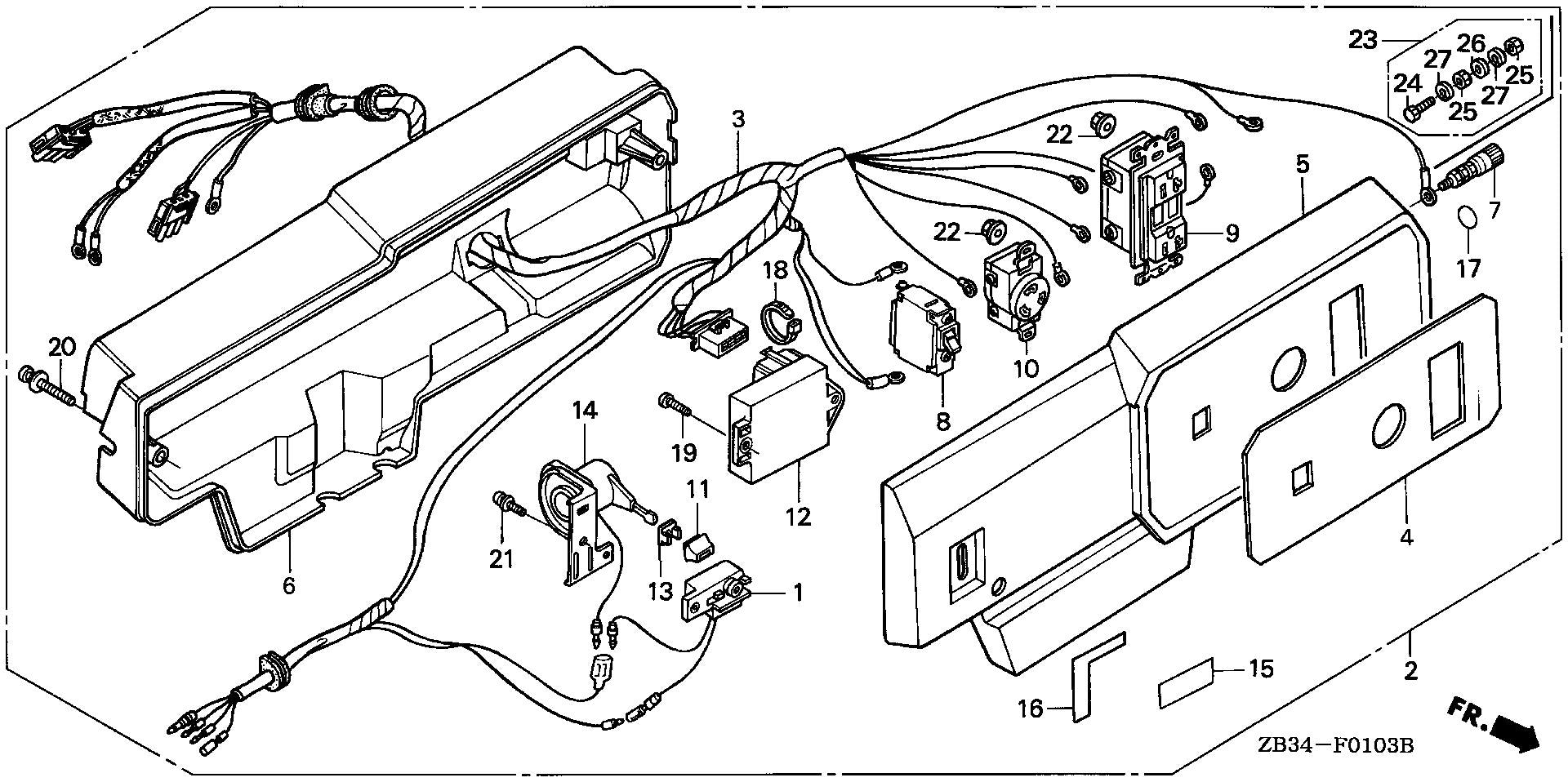

CONTROL BOX (EB2500XK1)
CONTROL BOX (EB2500XK1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
31404-zb3-e32
31404-zb3-e32
|
|||
|
|
31407-zb3-e31
31407-zb3-e31
|
|||
|
|
32330-z08-e42
32330-z08-e42
|
|||
|
|
32343-892-003
32343-892-003
|
|||
|
|
36106-892-003
36106-892-003
|
|||
|
|
36110-zb2-003
36110-zb2-003
|
|||
|
|
87162-zb3-c00
87162-zb3-c00
|
|||
|
|
87534-892-640
87534-892-640
|
|||
|
|
90672-zb4-003
90672-zb4-003
|
|||
|
|
93500-05008-0a
93500-05008-0a
|
|||
|
|
93892-04008-08
93892-04008-08
|
|||
|
|
94050-04000
94050-04000
|
|||
|
|
90011-899-840
90011-899-840
|
|||
|
|
94001-06390-0s
94001-06390-0s
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94111-06800
94111-06800
|

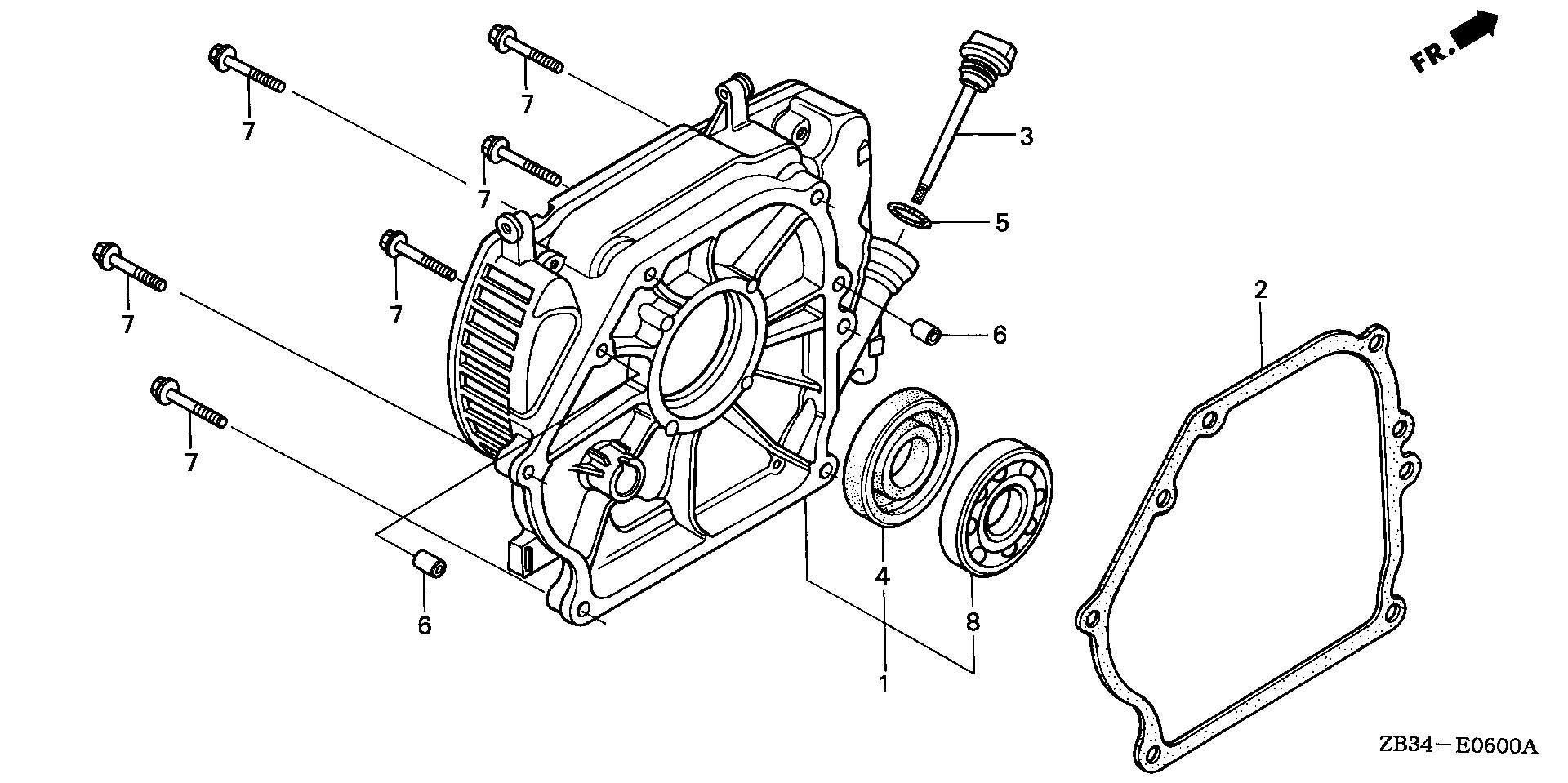

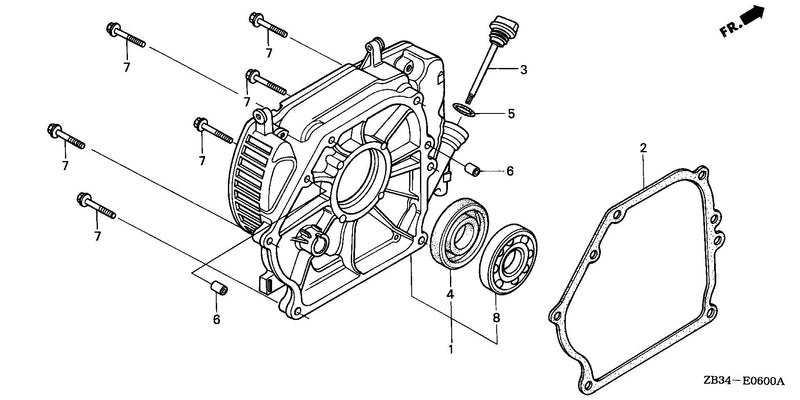

CRANKCASE COVER
CRANKCASE COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11300-zb2-040
11300-zb2-040
|
|||
|
|
11381-zb2-800
11381-zb2-800
|
|||
|
|
15620-zb2-000
15620-zb2-000
|
|||
|
|
94301-08140
94301-08140
|

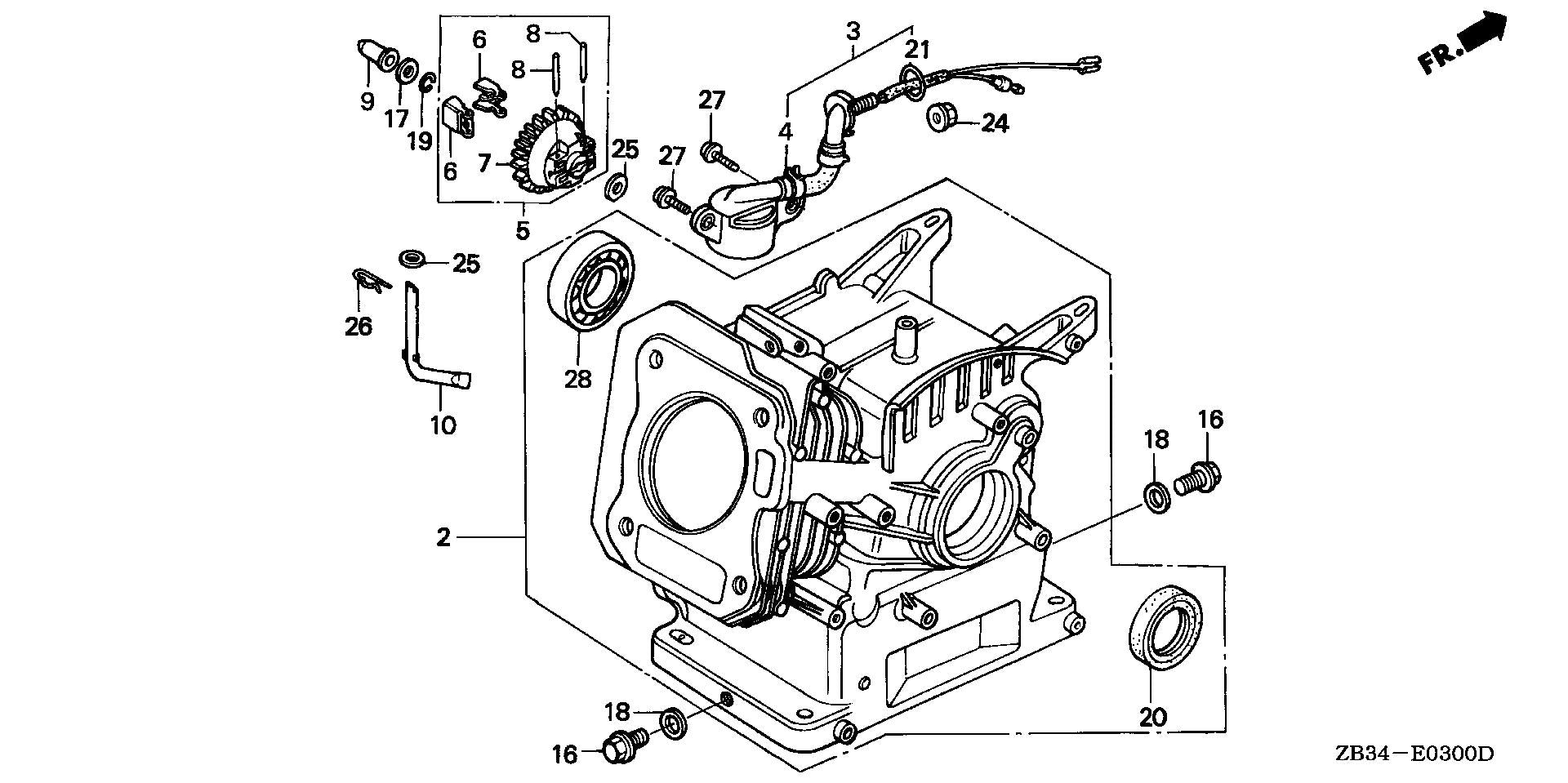

CYLINDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12000-zh8-426
12000-zh8-426
|
|||
|
|
15510-ze1-043
15510-ze1-043
|
|||
|
|
15510-ze1-043
15510-ze1-043
|
|||
|
|
16510-ze1-000
16510-ze1-000
|
|||
|
|
16511-ze1-000
16511-ze1-000
|
|||
|
|
16512-ze1-000
16512-ze1-000
|
|||
|
|
16513-ze1-000
16513-ze1-000
|
|||
|
|
16531-ze1-000
16531-ze1-000
|
|||
|
|
16541-ze1-000
16541-ze1-000
|
|||
|
|
90131-ze1-000
90131-ze1-000
|
|||
|
|
90451-ze1-000
90451-ze1-000
|
|||
|
|
90602-ze1-000
90602-ze1-000
|
|||
|
|
90602-896-000
90602-896-000
|
|||
|
|
91353-671-003
91353-671-003
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94251-08000
94251-08000
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
91001-zf1-003
91001-zf1-003
|

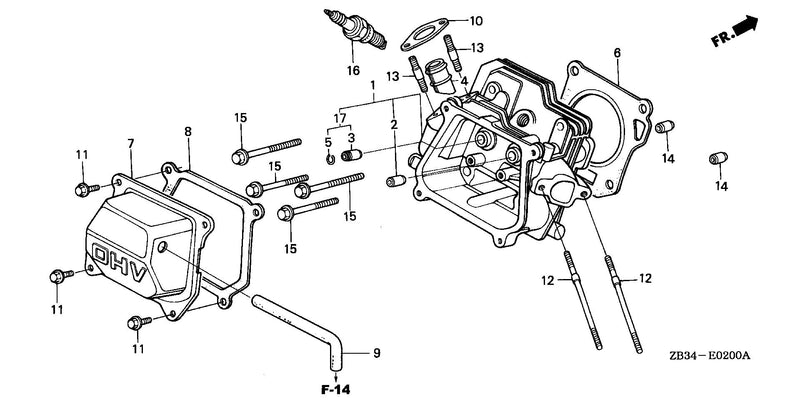

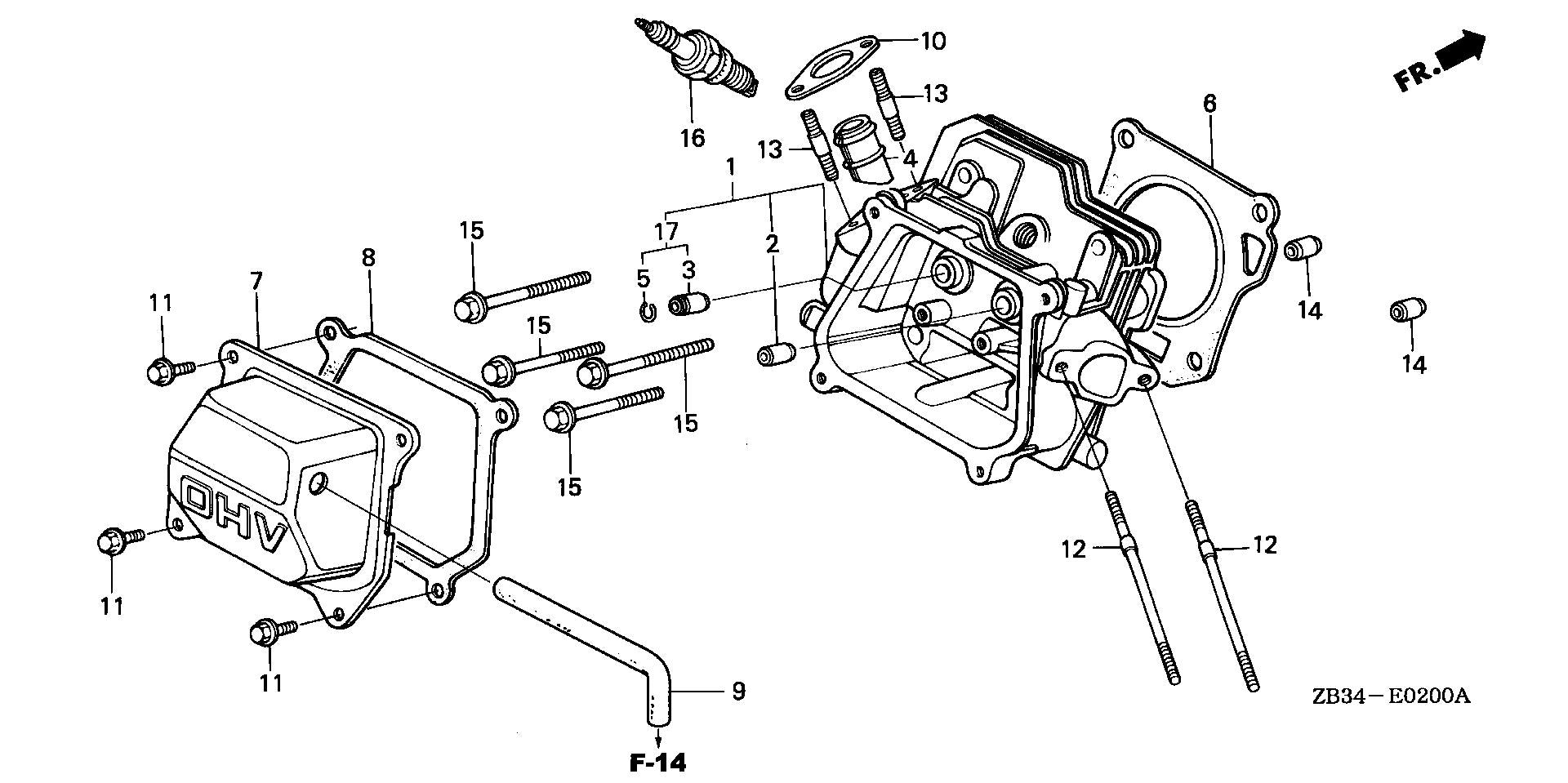

CYLINDER HEAD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12210-zh8-415
12210-zh8-415
|
|||
|
|
12216-ze5-300
12216-ze5-300
|
|||
|
|
12251-ze1-800
12251-ze1-800
|
|||
|
|
12251-zf1-801
12251-zf1-801
|
|||
|
|
12310-ze1-000
12310-ze1-000
|
|||
|
|
12310-ze1-020
12310-ze1-020
|
|||
|
|
12391-ze1-000
12391-ze1-000
|
|||
|
|
15721-883-030
15721-883-030
|
|||
|
|
18381-ze1-801
18381-ze1-801
|
|||
|
|
18381-zh8-801
18381-zh8-801
|
|||
|
|
90016-ze1-000
90016-ze1-000
|
|||
|
|
90043-zb2-003
90043-zb2-003
|
|||
|
|
90043-883-681
90043-883-681
|
|||
|
|
90047-ze1-000
90047-ze1-000
|
|||
|
|
94301-10160
94301-10160
|
|||
|
|
95723-08060-00
95723-08060-00
|
|||
|
|
98079-56846
98079-56846
|
|||
|
|
98079-56855
98079-56855
|

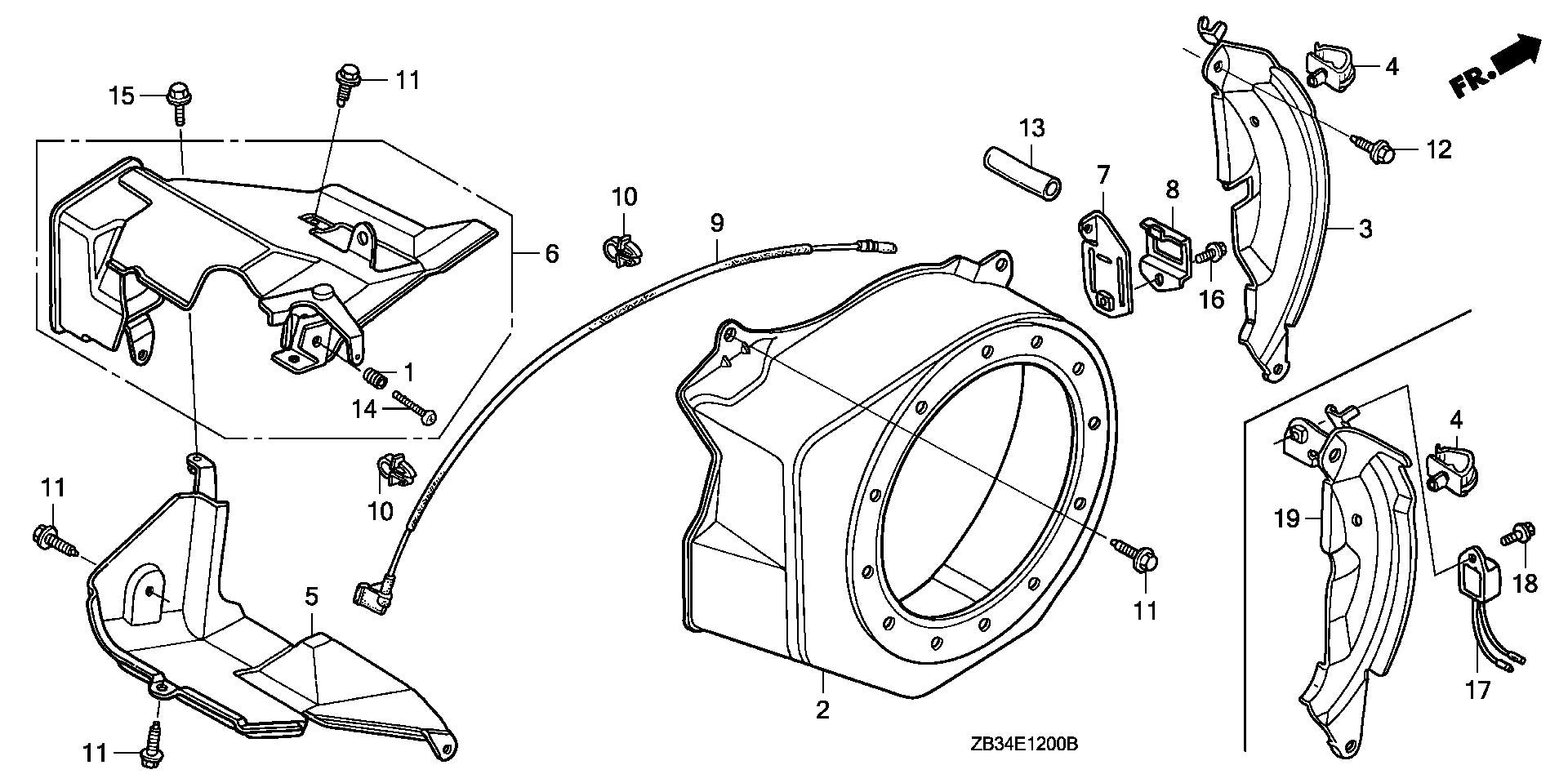

FAN COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16584-883-300
16584-883-300
|
|||
|
|
19612-zh8-821
19612-zh8-821
|
|||
|
|
19613-ze1-000
19613-ze1-000
|
|||
|
|
19613-ze1-010
19613-ze1-010
|
|||
|
|
19613-ze1-020
19613-ze1-020
|
|||
|
|
19630-zb2-000
19630-zb2-000
|
|||
|
|
19640-zb2-010
19640-zb2-010
|
|||
|
|
36101-zb2-010
36101-zb2-010
|
|||
|
|
36103-ze1-000
36103-ze1-000
|
|||
|
|
90022-888-010
90022-888-010
|
|||
|
|
91406-zb3-740
91406-zb3-740
|
|||
|
|
93500-05035-0a
93500-05035-0a
|
|||
|
|
95701-06010-00
95701-06010-00
|
|||
|
|
95701-06010-00
95701-06010-00
|
|||
|
|
19611-zh8-820
19611-zh8-820
|

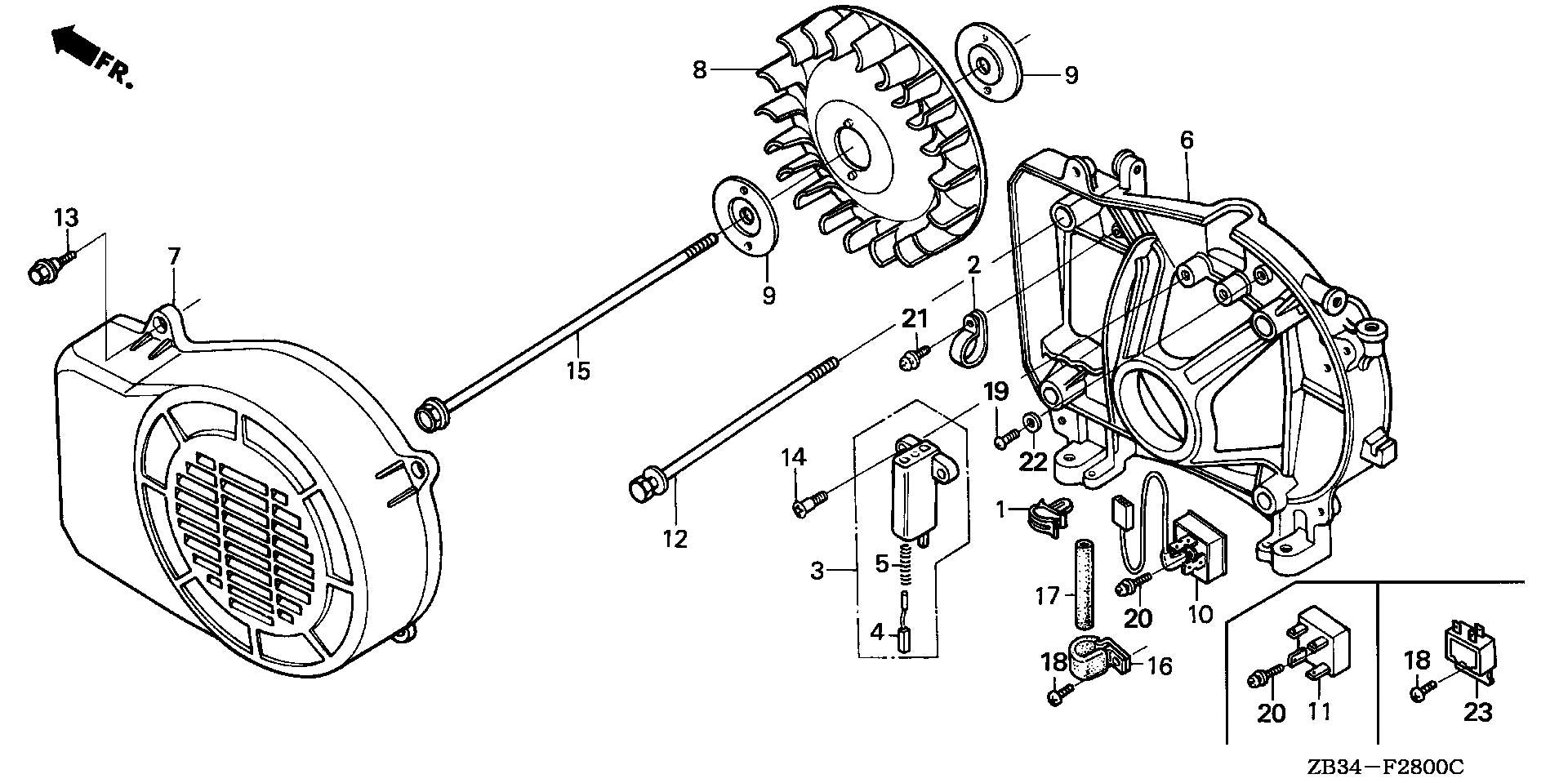

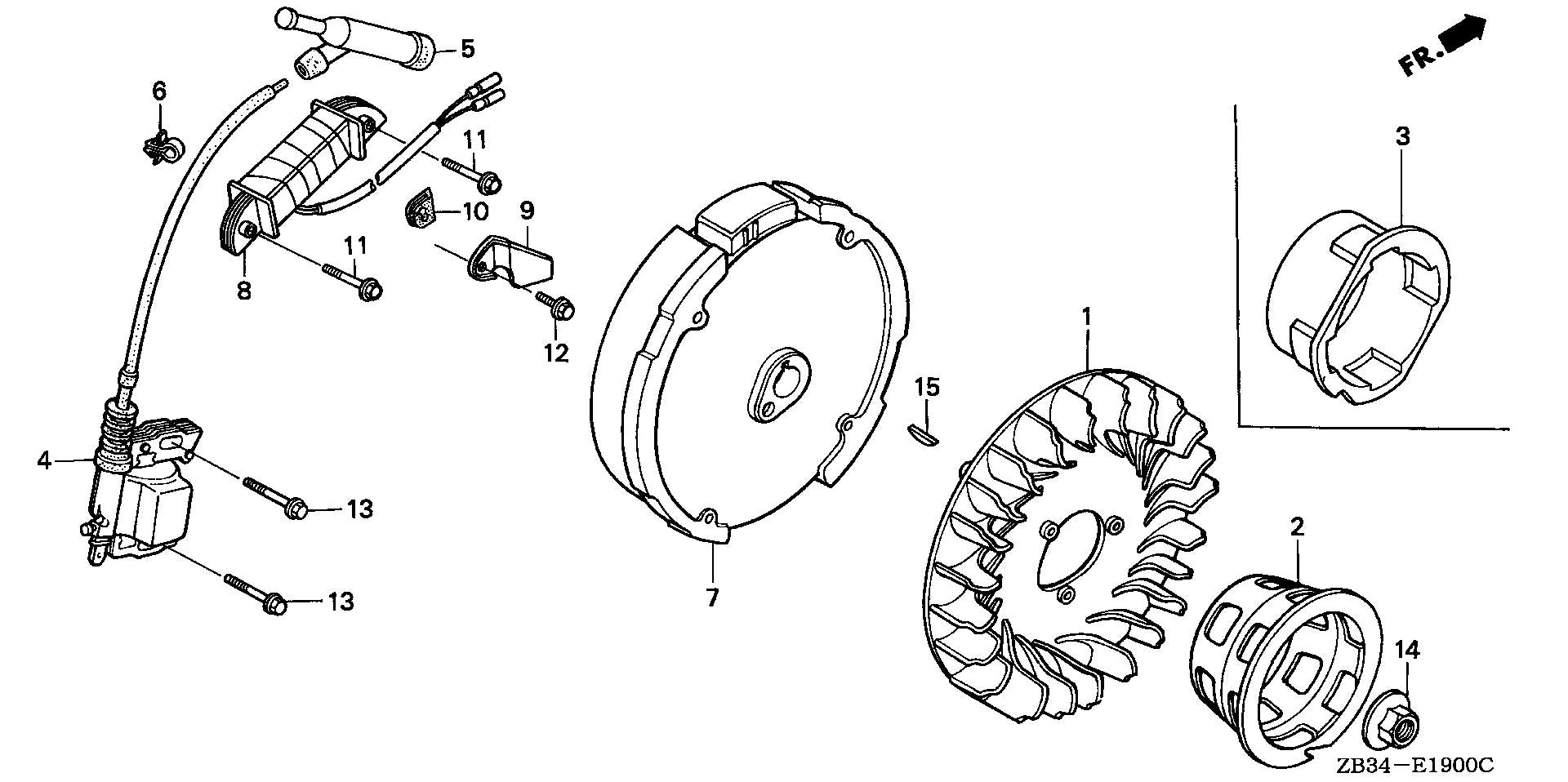

FLYWHEEL@IGNITION COIL
FLYWHEEL@IGNITION COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19511-ze1-000
19511-ze1-000
|
|||
|
|
28451-ze1-003
28451-ze1-003
|
|||
|
|
28451-zh8-003
28451-zh8-003
|
|||
|
|
30500-ze1-073
30500-ze1-073
|
|||
|
|
30701-887-790
30701-887-790
|
|||
|
|
31100-ze1-811
31100-ze1-811
|
|||
|
|
31511-ze1-000
31511-ze1-000
|
|||
|
|
31512-ze1-000
31512-ze1-000
|
|||
|
|
90015-883-000
90015-883-000
|
|||
|
|
90019-883-000
90019-883-000
|
|||
|
|
90015-883-000
90015-883-000
|
|||
|
|
90121-952-000
90121-952-000
|
|||
|
|
90201-878-003
90201-878-003
|
|||
|
|
94401-25180
94401-25180
|

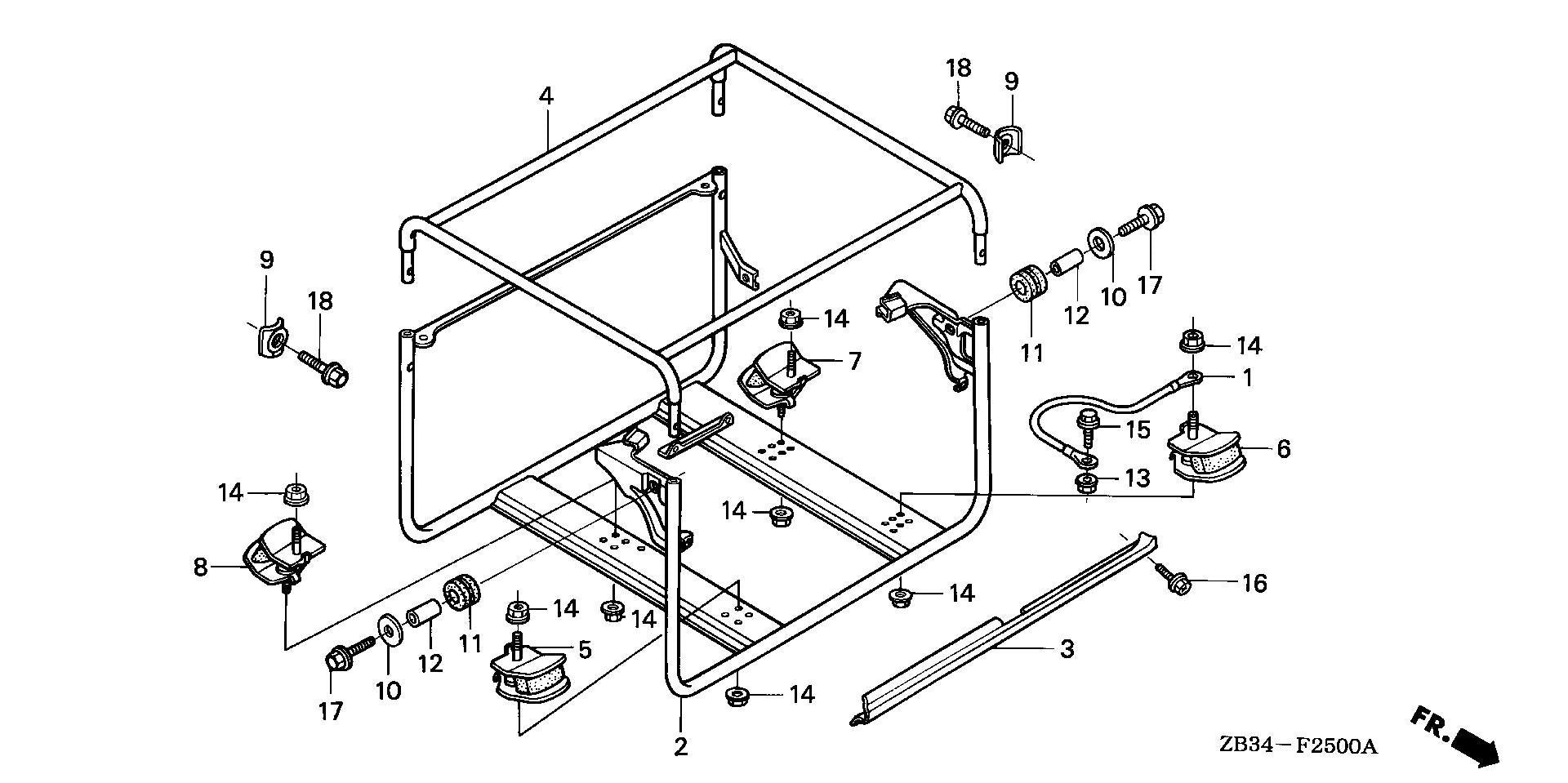

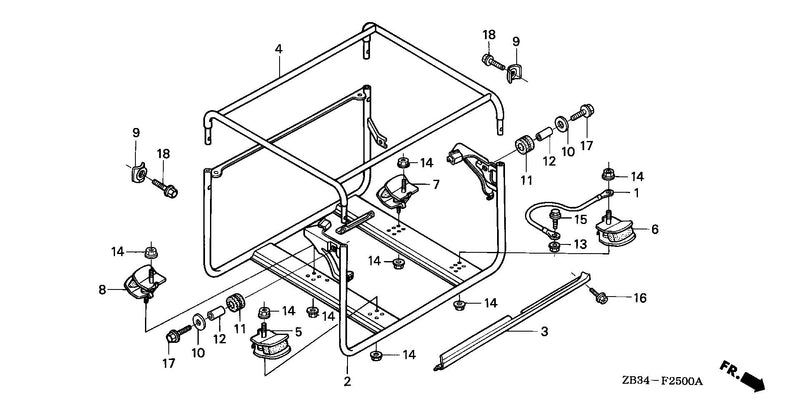

FRAME
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
32610-899-000
32610-899-000
|
|||
|
|
50310-zb2-010
50310-zb2-010
|
|||
|
|
50315-zb2-700za
50315-zb2-700za
|
|||
|
|
50350-zb2-701
50350-zb2-701
|
|||
|
|
68325-zb2-003
68325-zb2-003
|
|||
|
|
68325-zb2-003
68325-zb2-003
|
|||
|
|
68326-zb2-000
68326-zb2-000
|
|||
|
|
68327-zb2-000
68327-zb2-000
|
|||
|
|
68327-898-000
68327-898-000
|
|||
|
|
90501-898-000
90501-898-000
|
|||
|
|
90852-898-000
90852-898-000
|
|||
|
|
91552-898-000
91552-898-000
|
|||
|
|
95701-06010-00
95701-06010-00
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95701-06020-00
95701-06020-00
|
|||
|
|
95701-08020-00
95701-08020-00
|
|||
|
|
95701-08016-00
95701-08016-00
|
|||
|
|
90101-zb1-g01
90101-zb1-g01
|
|||
|
|
90015-898-000
90015-898-000
|

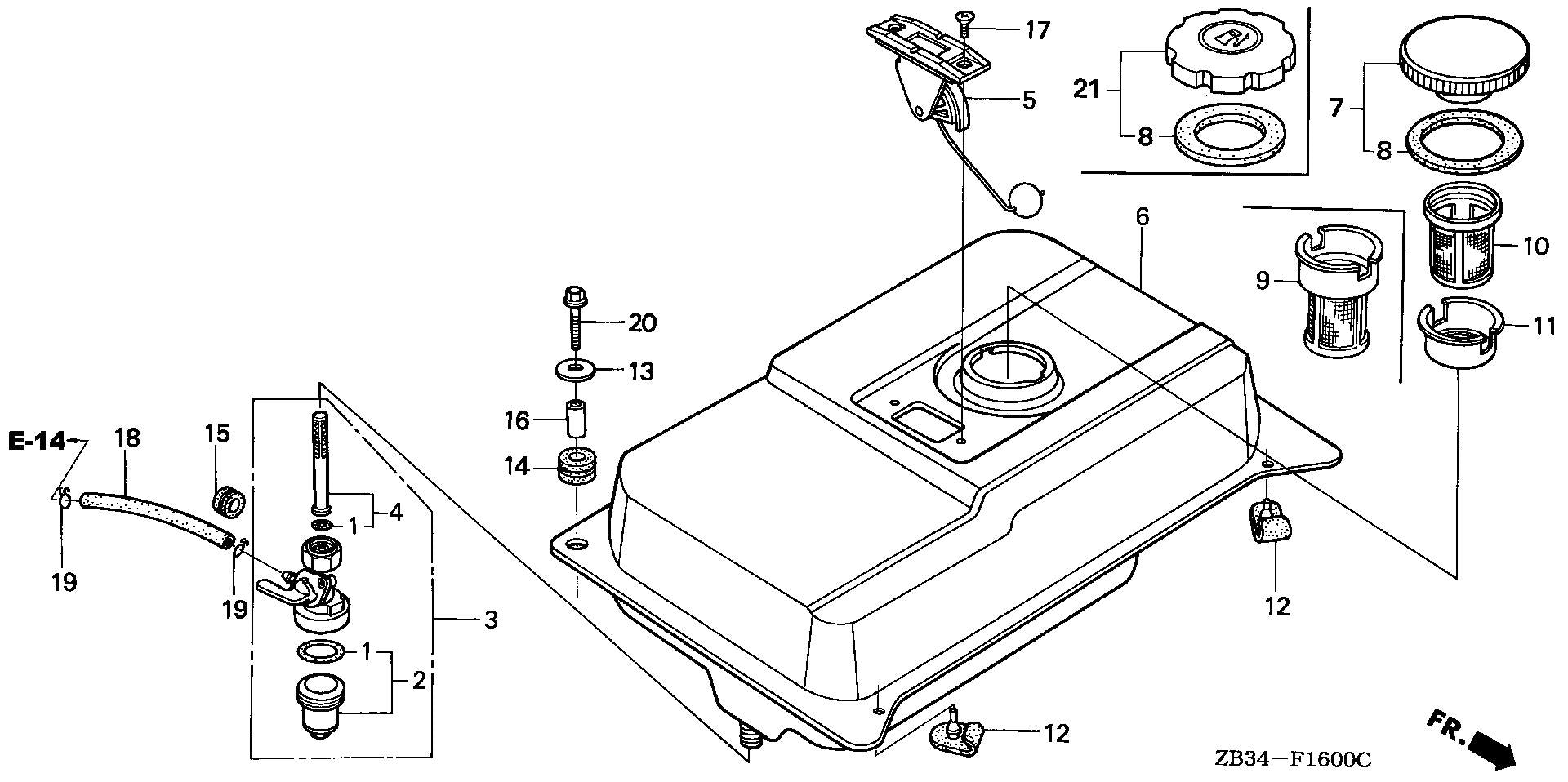

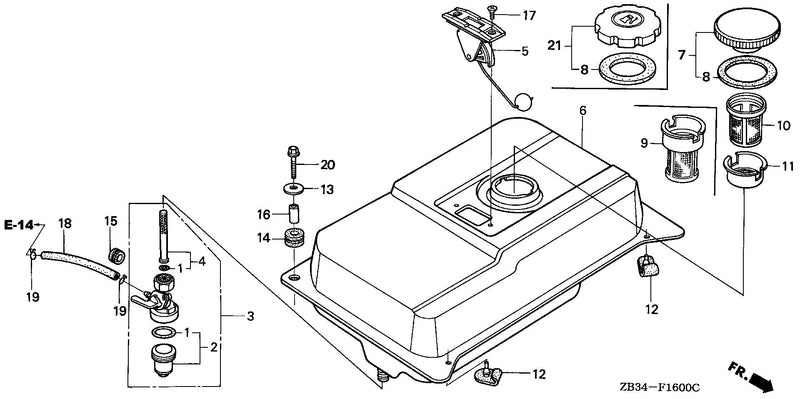

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16080-898-631
16080-898-631
|
|||
|
|
16081-471-831
16081-471-831
|
|||
|
|
16950-898-631
16950-898-631
|
|||
|
|
16950-898-633
16950-898-633
|
|||
|
|
16952-gg2-731
16952-gg2-731
|
|||
|
|
17505-zb2-013
17505-zb2-013
|
|||
|
|
17510-zb2-000zm
17510-zb2-000zm
|
|||
|
|
17620-z0t-315
17620-z0t-315
|
|||
|
|
17631-z0t-813
17631-z0t-813
|
|||
|
|
17672-ze2-w01
17672-ze2-w01
|
|||
|
|
17672-880-000
17672-880-000
|
|||
|
|
17673-893-000
17673-893-000
|
|||
|
|
50319-zb2-000
50319-zb2-000
|
|||
|
|
90852-898-000
90852-898-000
|
|||
|
|
90854-zb2-000
90854-zb2-000
|
|||
|
|
90854-zb3-000
90854-zb3-000
|
|||
|
|
91552-898-000
91552-898-000
|
|||
|
|
93600-05010-0a
93600-05010-0a
|
|||
|
|
95001-45003-60m
95001-45003-60m
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
95701-06020-00
95701-06020-00
|
|||
|
|
17620-z0t-315
17620-z0t-315
|
|||
|
|
17620-z0t-814
17620-z0t-814
|

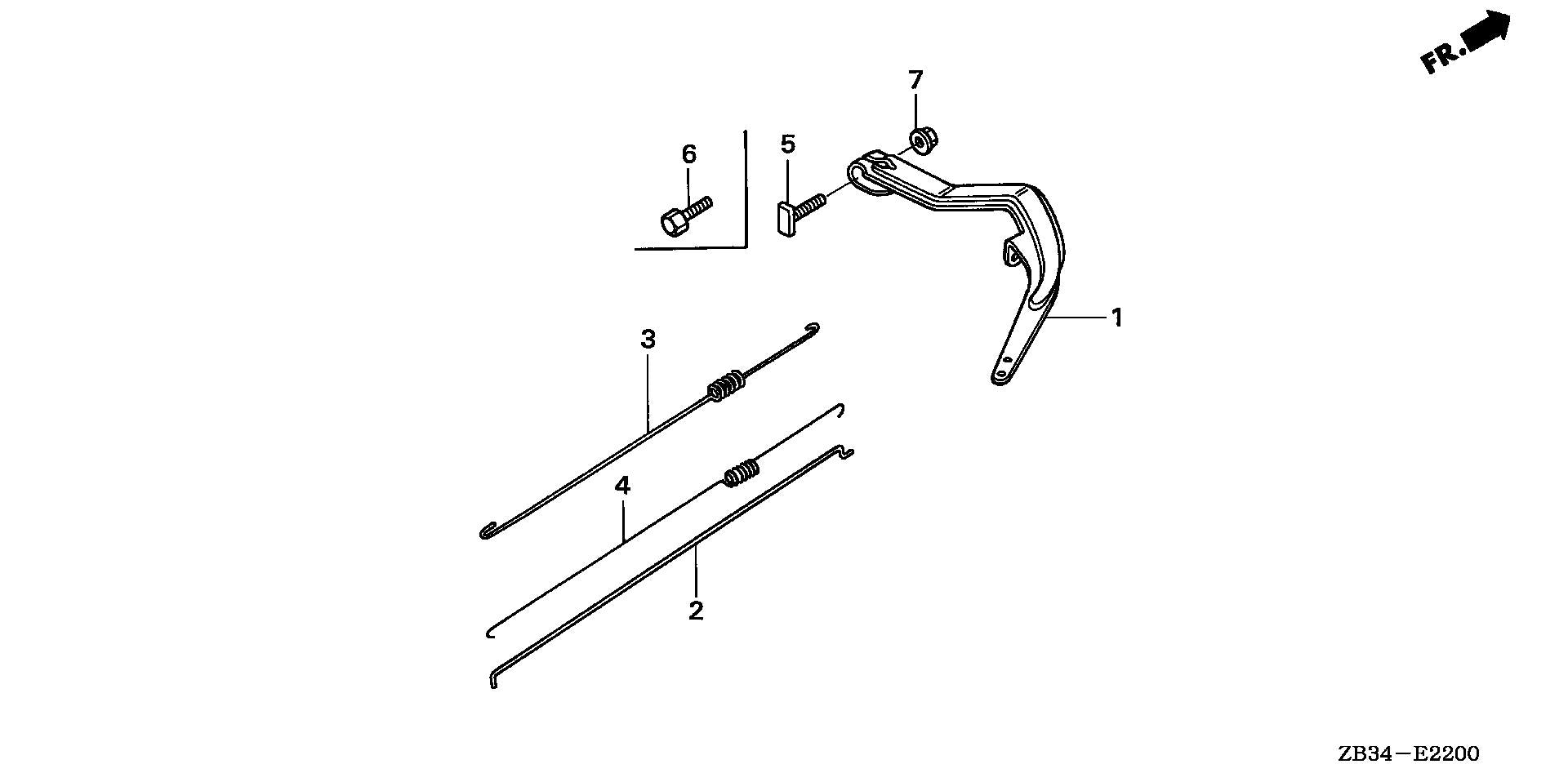

GOVERNOR ARM
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16551-ze0-010
16551-ze0-010
|
|||
|
|
16551-ze1-010
16551-ze1-010
|
|||
|
|
16555-ze1-000
16555-ze1-000
|
|||
|
|
16561-ze1-010
16561-ze1-010
|
|||
|
|
16561-ze1-020
16561-ze1-020
|
|||
|
|
16561-ze1-810
16561-ze1-810
|
|||
|
|
16561-zh8-d00
16561-zh8-d00
|
|||
|
|
90015-ze5-010
90015-ze5-010
|

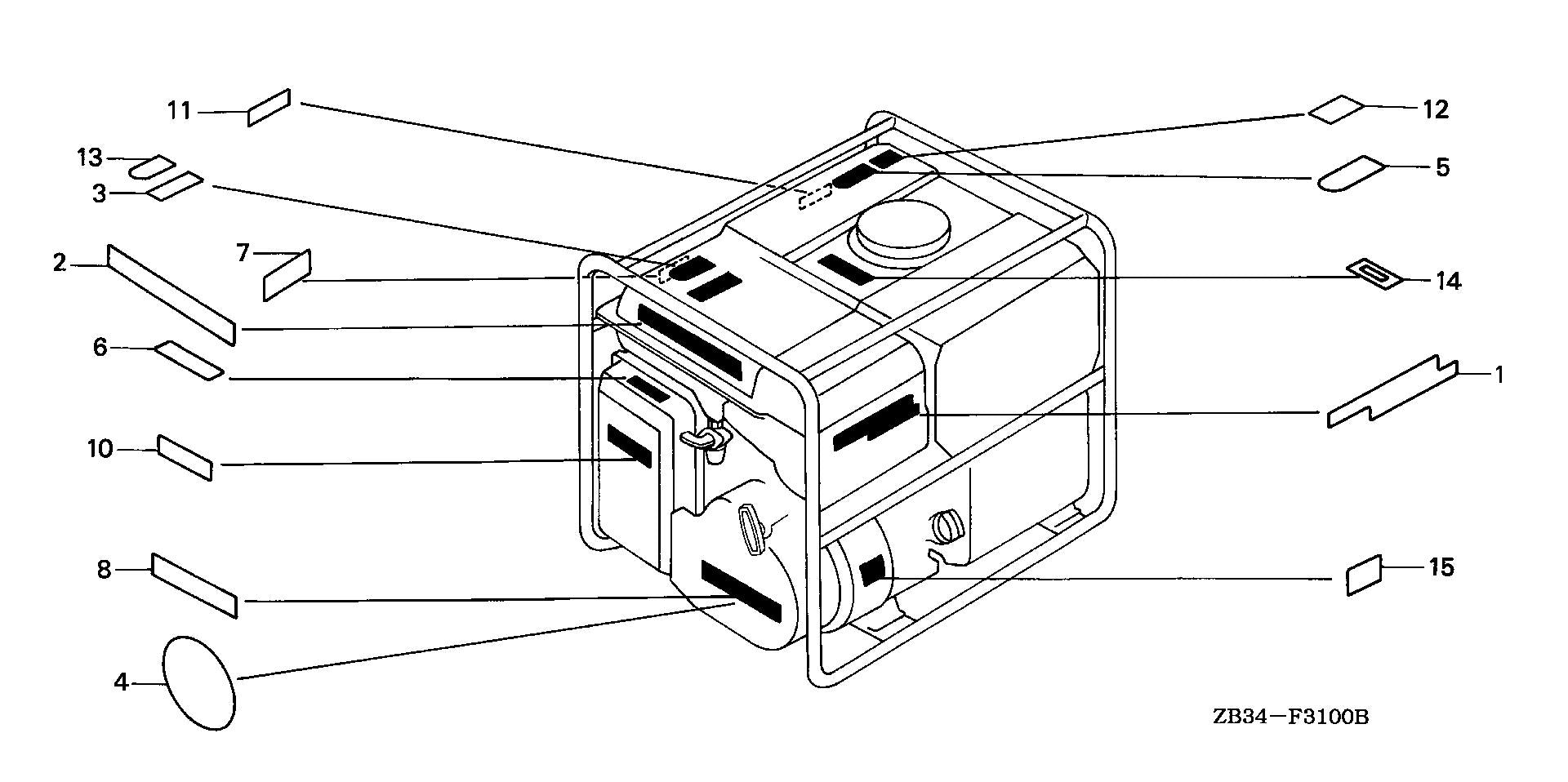

LABELS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87101-zb2-c31
87101-zb2-c31
|
|||
|
|
87101-zb3-c21
87101-zb3-c21
|
|||
|
|
87101-zb3-e31
87101-zb3-e31
|
|||
|
|
87168-zc3-630
87168-zc3-630
|
|||
|
|
87502-zb2-g01
87502-zb2-g01
|
|||
|
|
87522-883-660
87522-883-660
|
|||
|
|
87528-zb2-630
87528-zb2-630
|
|||
|
|
87533-zc0-630
87533-zc0-630
|
|||
|
|
87539-zb2-630
87539-zb2-630
|
|||
|
|
87561-880-600
87561-880-600
|
|||
|
|
87563-zb4-631
87563-zb4-631
|
|||
|
|
87565-zb4-a00
87565-zb4-a00
|
|||
|
|
87594-zb3-c00
87594-zb3-c00
|

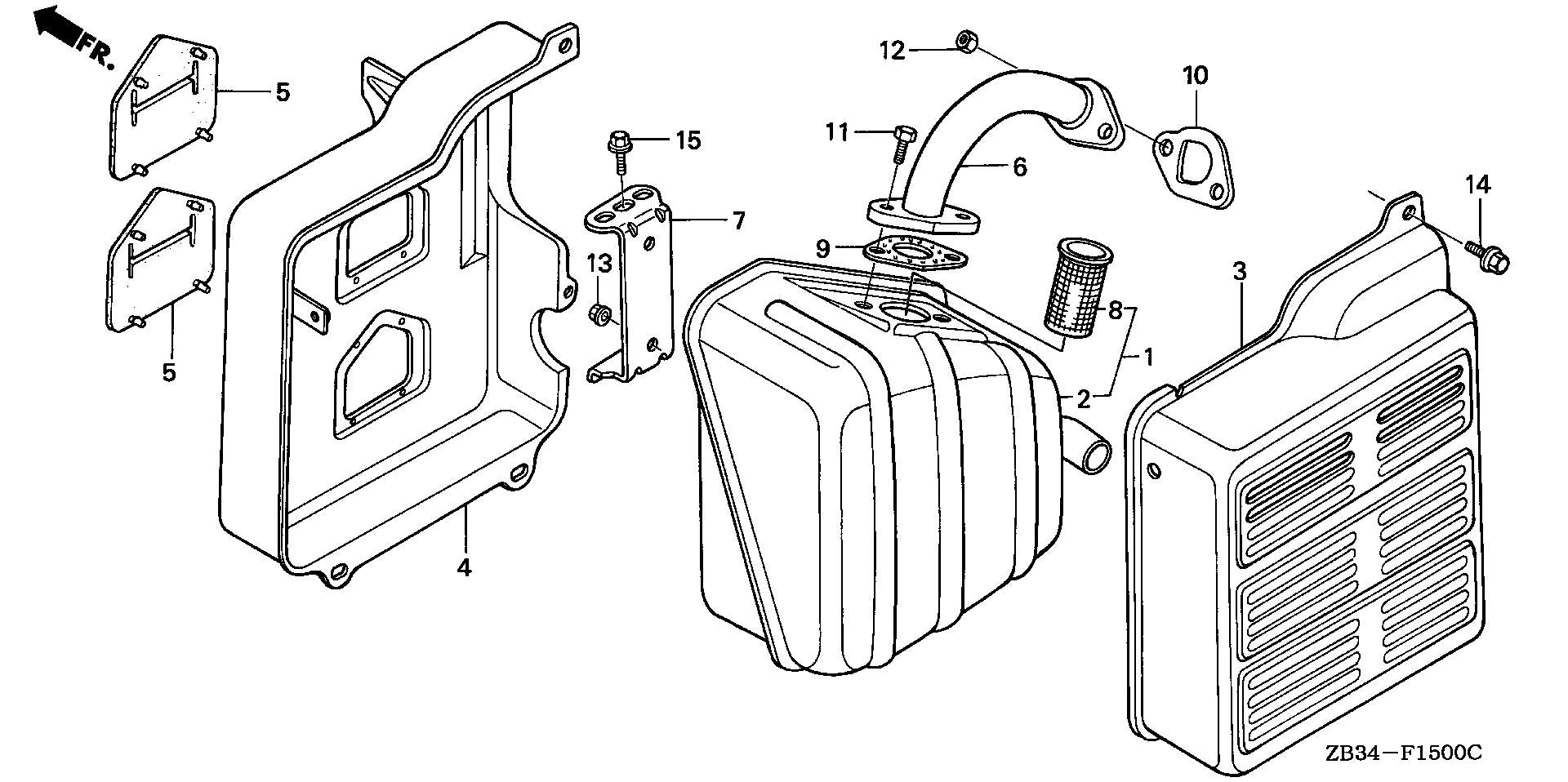

MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
18310-zb3-c01
18310-zb3-c01
|
|||
|
|
18320-zb2-000
18320-zb2-000
|
|||
|
|
18325-zb2-000
18325-zb2-000
|
|||
|
|
18329-zb2-000
18329-zb2-000
|
|||
|
|
18330-zb2-000
18330-zb2-000
|
|||
|
|
18338-zb3-e30
18338-zb3-e30
|
|||
|
|
18355-898-630
18355-898-630
|
|||
|
|
18381-ze1-801
18381-ze1-801
|
|||
|
|
18381-zh8-801
18381-zh8-801
|
|||
|
|
92101-08020-0a
92101-08020-0a
|
|||
|
|
94001-08000-0s
94001-08000-0s
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95701-08018-00
95701-08018-00
|
|||
|
|
95701-08016-00
95701-08016-00
|

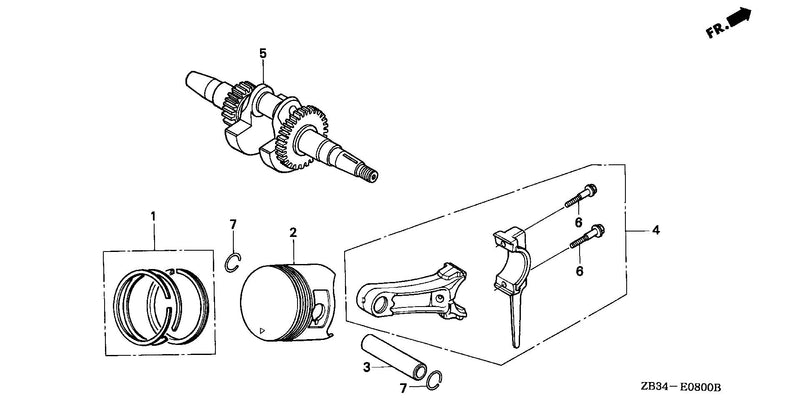

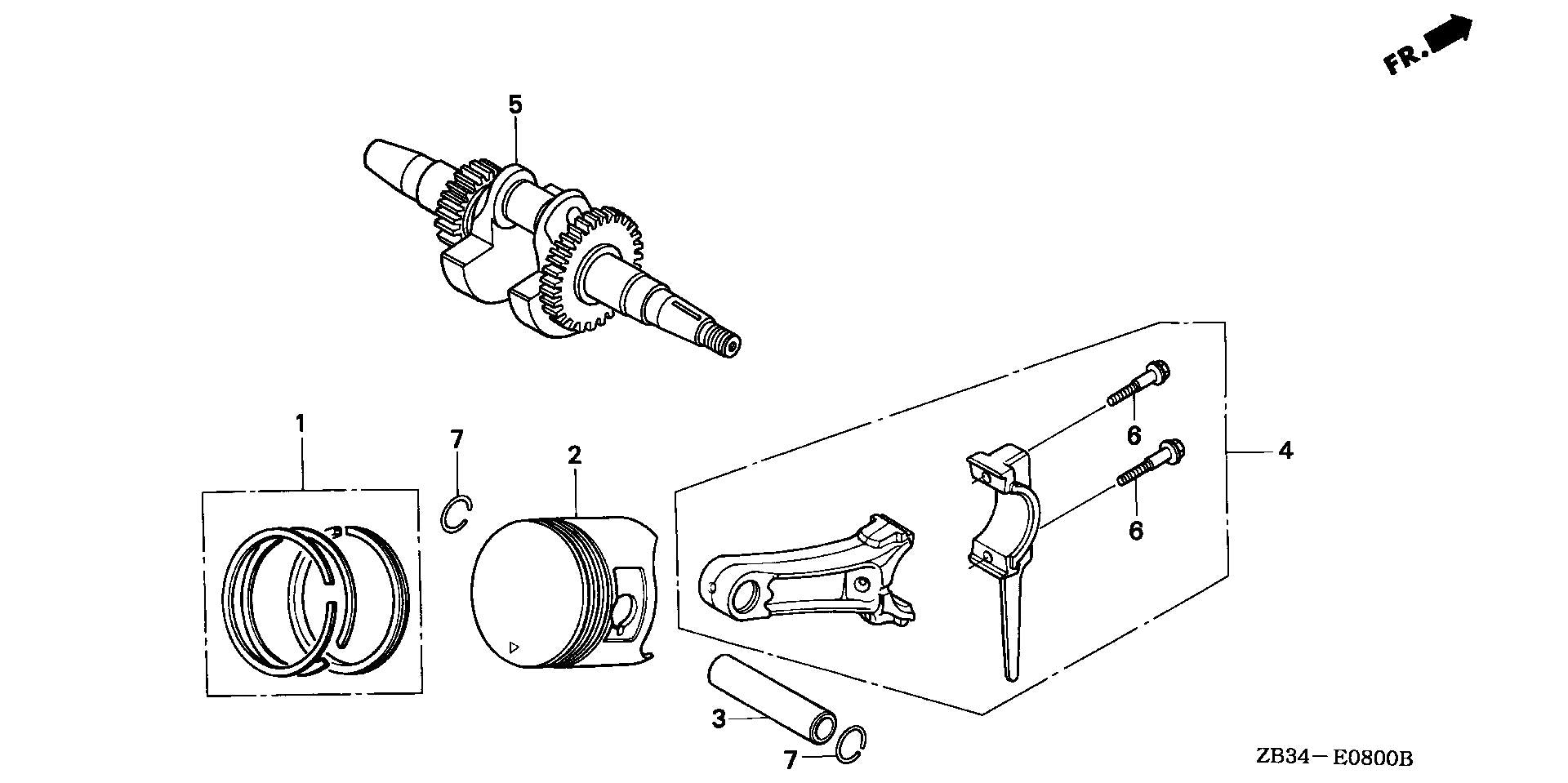

PISTON@CRANKSHAFT
PISTON@CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130a1-ze1-003
130a1-ze1-003
|
|||
|
|
130a1-ze1-004
130a1-ze1-004
|
|||
|
|
130a2-ze1-003
130a2-ze1-003
|
|||
|
|
130a2-ze1-004
130a2-ze1-004
|
|||
|
|
130a3-ze1-003
130a3-ze1-003
|
|||
|
|
130a3-ze1-004
130a3-ze1-004
|
|||
|
|
130a4-ze1-003
130a4-ze1-003
|
|||
|
|
130a4-ze1-004
130a4-ze1-004
|
|||
|
|
13010-ze1-013
13010-ze1-013
|
|||
|
|
13011-ze1-013
13011-ze1-013
|
|||
|
|
13012-ze1-013
13012-ze1-013
|
|||
|
|
13010-zf1-023
13010-zf1-023
|
|||
|
|
13010-zh8-941
13010-zh8-941
|
|||
|
|
13010-zl0-003
13010-zl0-003
|
|||
|
|
13010-zl0-004
13010-zl0-004
|
|||
|
|
13011-zf1-023
13011-zf1-023
|
|||
|
|
13012-zf1-023
13012-zf1-023
|
|||
|
|
13012-zl0-003
13012-zl0-003
|
|||
|
|
13012-zl0-004
13012-zl0-004
|
|||
|
|
13013-zh8-941
13013-zh8-941
|
|||
|
|
13013-zh8-942
13013-zh8-942
|
|||
|
|
13013-zl0-003
13013-zl0-003
|
|||
|
|
13013-zl0-004
13013-zl0-004
|
|||
|
|
13102-ze1-010
13102-ze1-010
|
|||
|
|
13101-zh8-010
13101-zh8-010
|
|||
|
|
13102-zh8-010
13102-zh8-010
|
|||
|
|
13103-zh8-010
13103-zh8-010
|
|||
|
|
13104-zh8-010
13104-zh8-010
|
|||
|
|
13111-ze1-000
13111-ze1-000
|
|||
|
|
132a0-ze1-000
132a0-ze1-000
|
|||
|
|
13200-z4v-900
13200-z4v-900
|
|||
|
|
13310-zb2-000
13310-zb2-000
|
|||
|
|
90001-ze1-000
90001-ze1-000
|
|||
|
|
90551-ze1-000
90551-ze1-000
|
|||
|
|
94601-18000
94601-18000
|

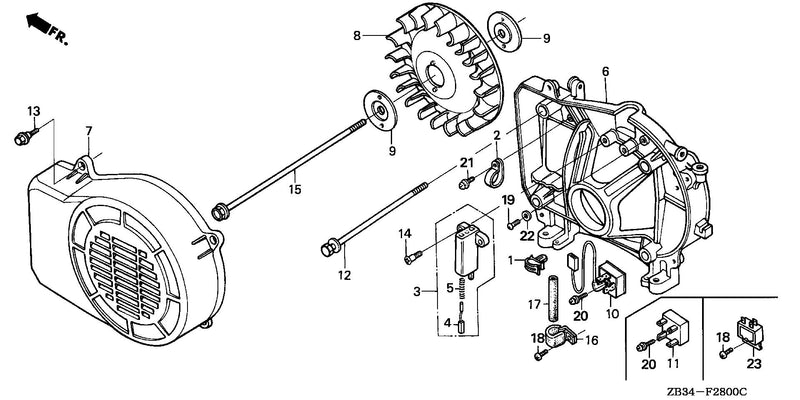

REAR HOUSING
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30566-895-000
30566-895-000
|
|||
|
|
31163-za5-300
31163-za5-300
|
|||
|
|
31191-za5-000
31191-za5-000
|
|||
|
|
317w1-za5-004
317w1-za5-004
|
|||
|
|
90013-zb2-000
90013-zb2-000
|
|||
|
|
90013-zb2-010
90013-zb2-010
|
|||
|
|
90013-zb3-000
90013-zb3-000
|
|||
|
|
90013-zb3-010
90013-zb3-010
|
|||
|
|
90102-zb3-c01
90102-zb3-c01
|
|||
|
|
90015-za5-000
90015-za5-000
|
|||
|
|
90018-za5-000
90018-za5-000
|
|||
|
|
90021-zb2-000
90021-zb2-000
|
|||
|
|
90021-zb2-010
90021-zb2-010
|
|||
|
|
90021-zb3-000
90021-zb3-000
|
|||
|
|
90021-zb3-010
90021-zb3-010
|
|||
|
|
90101-zb3-c01
90101-zb3-c01
|
|||
|
|
93500-05008-0a
93500-05008-0a
|
|||
|
|
93500-05012-3j
93500-05012-3j
|
|||
|
|
93891-05012-00
93891-05012-00
|
|||
|
|
94111-05800
94111-05800
|
|||
|
|
31720-za8-v00
31720-za8-v00
|

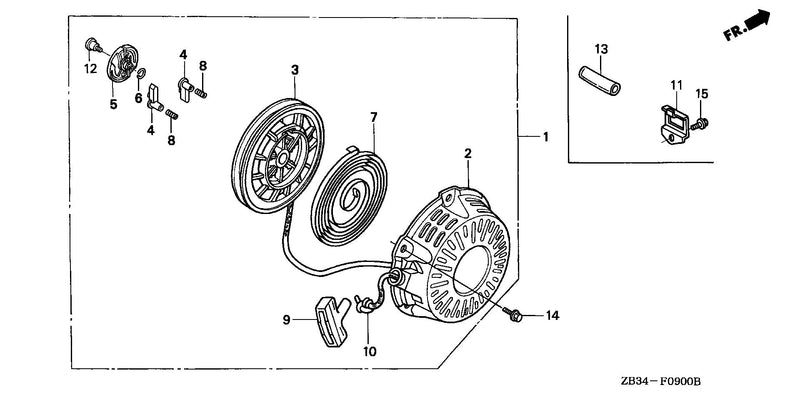

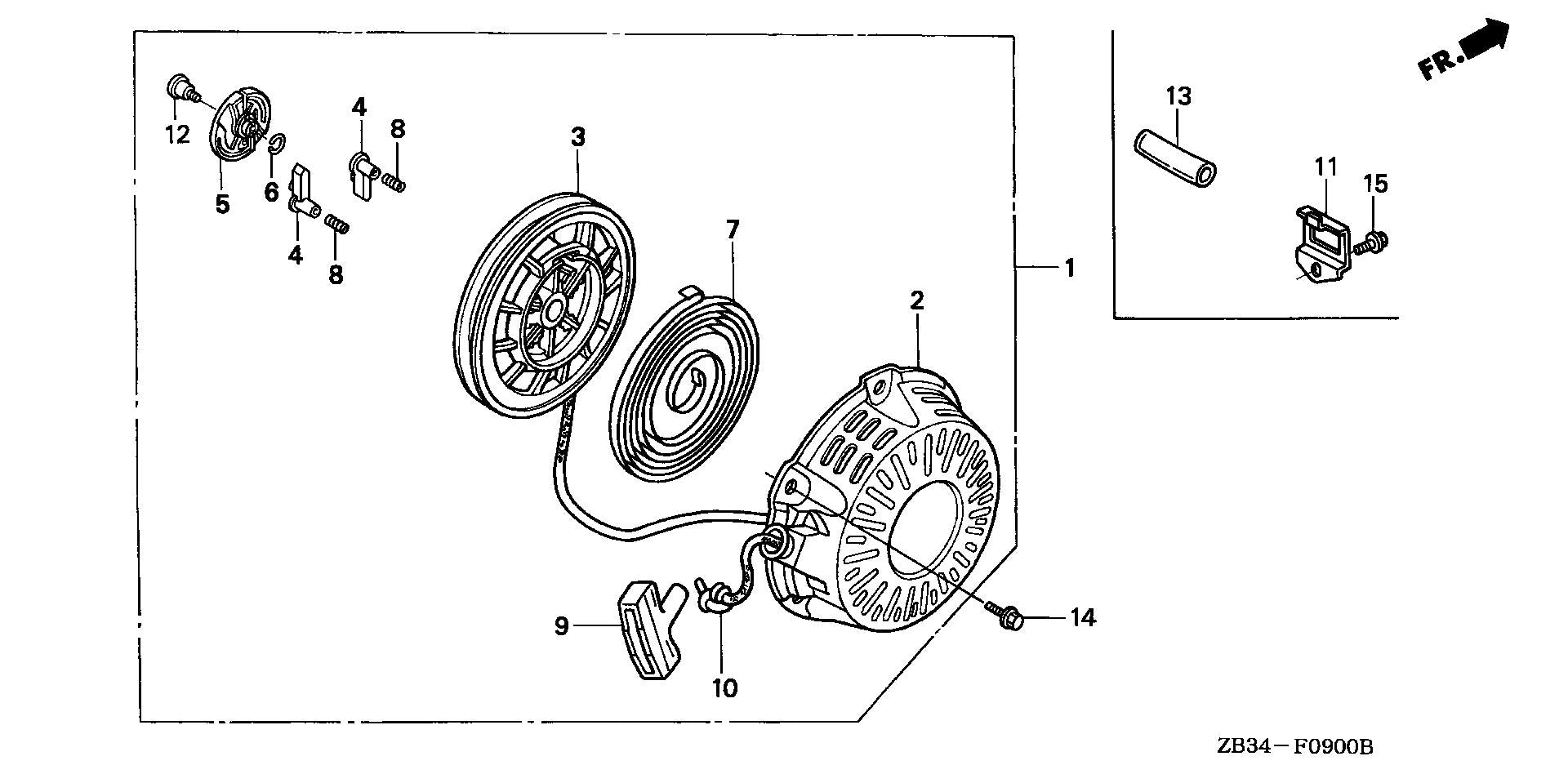

RECOIL STARTER (3)
RECOIL STARTER (3)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28400-zh8-013zb
28400-zh8-013zb
|
|||
|
|
28410-zb2-c02za
28410-zb2-c02za
|
|||
|
|
28420-zh8-013
28420-zh8-013
|
|||
|
|
28422-zh8-013
28422-zh8-013
|
|||
|
|
28433-zh8-003
28433-zh8-003
|
|||
|
|
28441-zh8-003
28441-zh8-003
|
|||
|
|
28443-zh8-003
28443-zh8-003
|
|||
|
|
28461-ze1-013
28461-ze1-013
|
|||
|
|
28462-zh8-003
28462-zh8-003
|
|||
|
|
90003-zh8-003
90003-zh8-003
|
|||
|
|
91406-zb3-740
91406-zb3-740
|
|||
|
|
90008-ze2-003
90008-ze2-003
|
|||
|
|
95701-06010-00
95701-06010-00
|

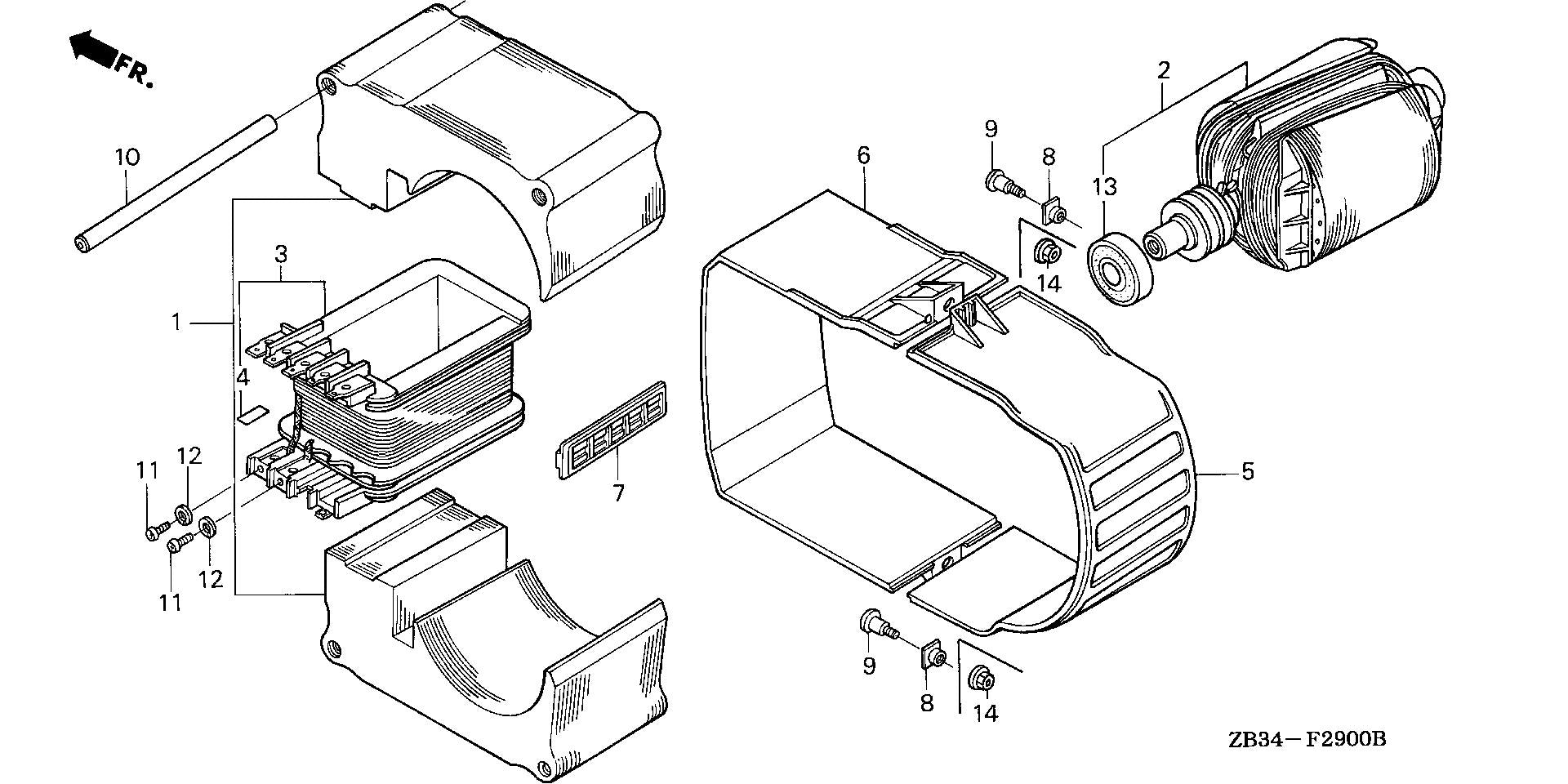

ROTOR@STATOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
311a3-zb2-000
311a3-zb2-000
|
|||
|
|
31010-zb3-c00
31010-zb3-c00
|
|||
|
|
31110-zb2-000
31110-zb2-000
|
|||
|
|
31110-zb2-020
31110-zb2-020
|
|||
|
|
31130-zs2-h62
31130-zs2-h62
|
|||
|
|
31110-zb3-c02
31110-zb3-c02
|
|||
|
|
31154-za5-830
31154-za5-830
|
|||
|
|
31181-zb2-000
31181-zb2-000
|
|||
|
|
90016-za5-000
90016-za5-000
|
|||
|
|
90018-za5-000
90018-za5-000
|
|||
|
|
90701-zb2-000
90701-zb2-000
|
|||
|
|
90701-zb3-000
90701-zb3-000
|
|||
|
|
90751-zb3-c01
90751-zb3-c01
|
|||
|
|
93500-05008-3j
93500-05008-3j
|
|||
|
|
94111-05800
94111-05800
|
|||
|
|
91051-zb3-003
91051-zb3-003
|
|||
|
|
96150-62030-10
96150-62030-10
|
|||
|
|
94050-05000
94050-05000
|

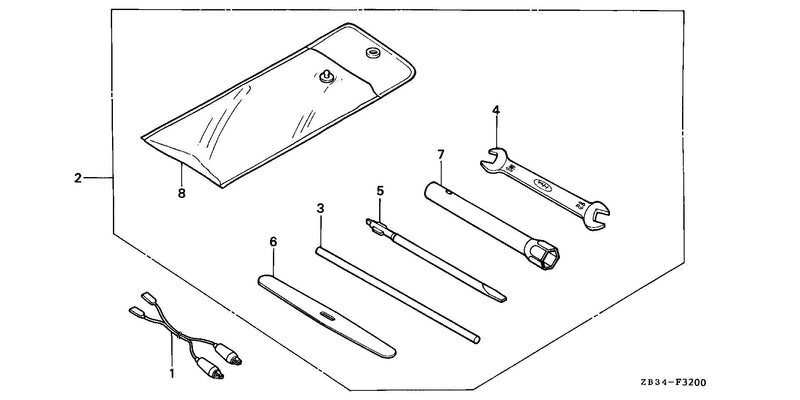

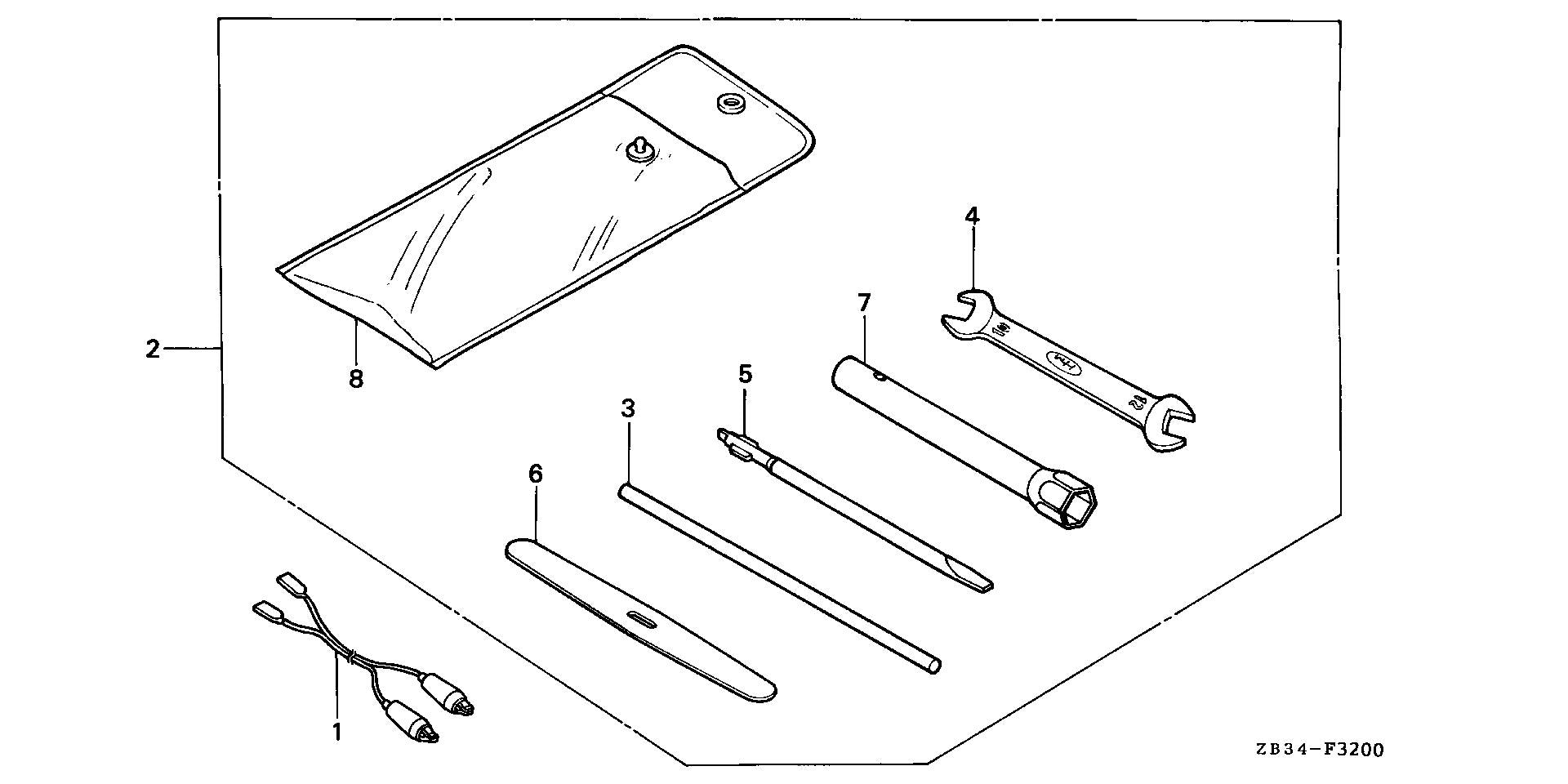

TOOLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
32650-825-015
32650-825-015
|
|||
|
|
89211-170-000
89211-170-000
|
|||
|
|
99001-10120
99001-10120
|
|||
|
|
99003-30000
99003-30000
|
|||
|
|
99003-40000
99003-40000
|
|||
|
|
99004-21001
99004-21001
|

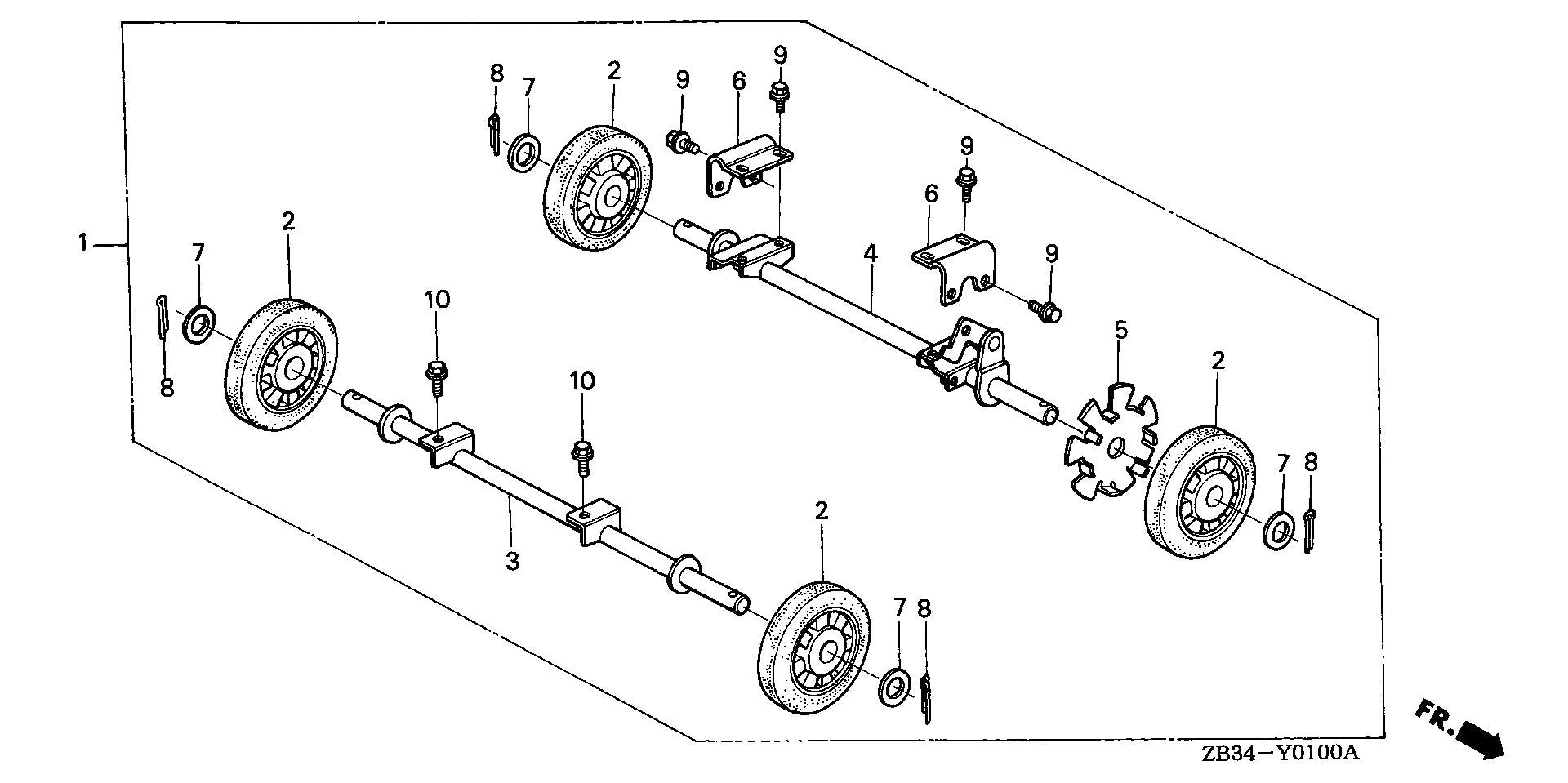

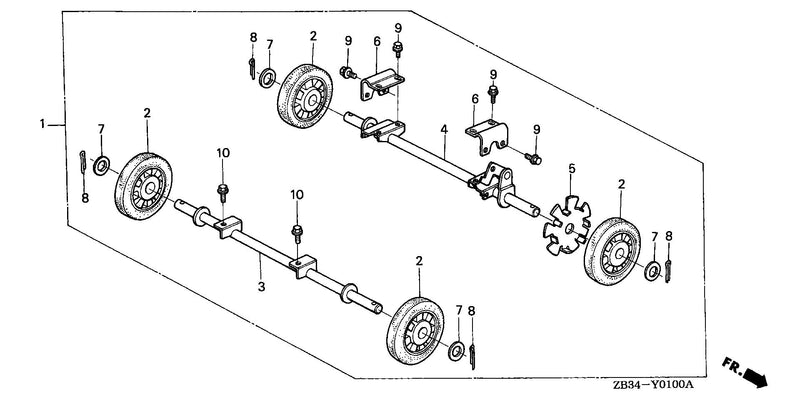

WHEEL KIT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
42730-zb2-000
42730-zb2-000
|
|||
|
|
42754-898-000
42754-898-000
|
|||
|
|
94102-20000
94102-20000
|
|||
|
|
94201-40280
94201-40280
|
|||
|
|
94201-40300
94201-40300
|
|||
|
|
95701-06014-00
95701-06014-00
|
|||
|
|
95701-08016-00
95701-08016-00
|
SUBSCRIBE AND GET EXCLUSIVE DEALS!
Subscribe to our newsletter TODAY and GET $10 OFF your next order of $100 or more. Our newsletter contains special offers, discounts and updates on new EGO products
