Honda EG1500-A Parts Diagram Generator (Serial G41-1018501 to 1071999)
Diagrams:
Diagram:

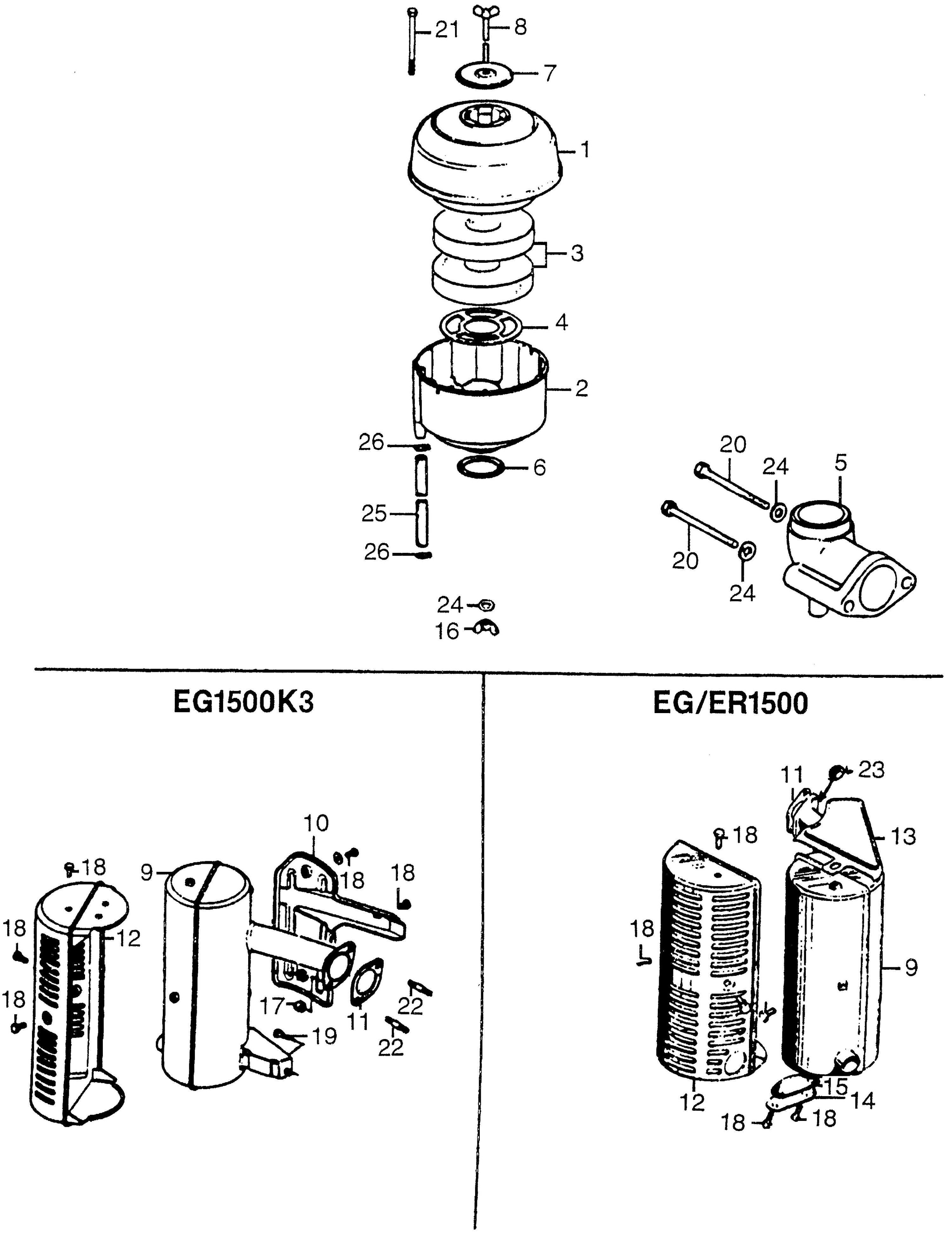

AIR CLEANER@MUFFLER
AIR CLEANER@MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17403-841-000
17403-841-000
|
|||
|
|
17404-841-000
17404-841-000
|
|||
|
|
17425-865-780
17425-865-780
|
|||
|
|
18351-822-000
18351-822-000
|
|||
|
|
90325-044-000
90325-044-000
|
|||
|
|
92101-06008-0b
92101-06008-0b
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
92101-06060-0a
92101-06060-0a
|
|||
|
|
92101-06160-0a
92101-06160-0a
|
|||
|
|
92900-06018-0b
92900-06018-0b
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
95002-02130
95002-02130
|

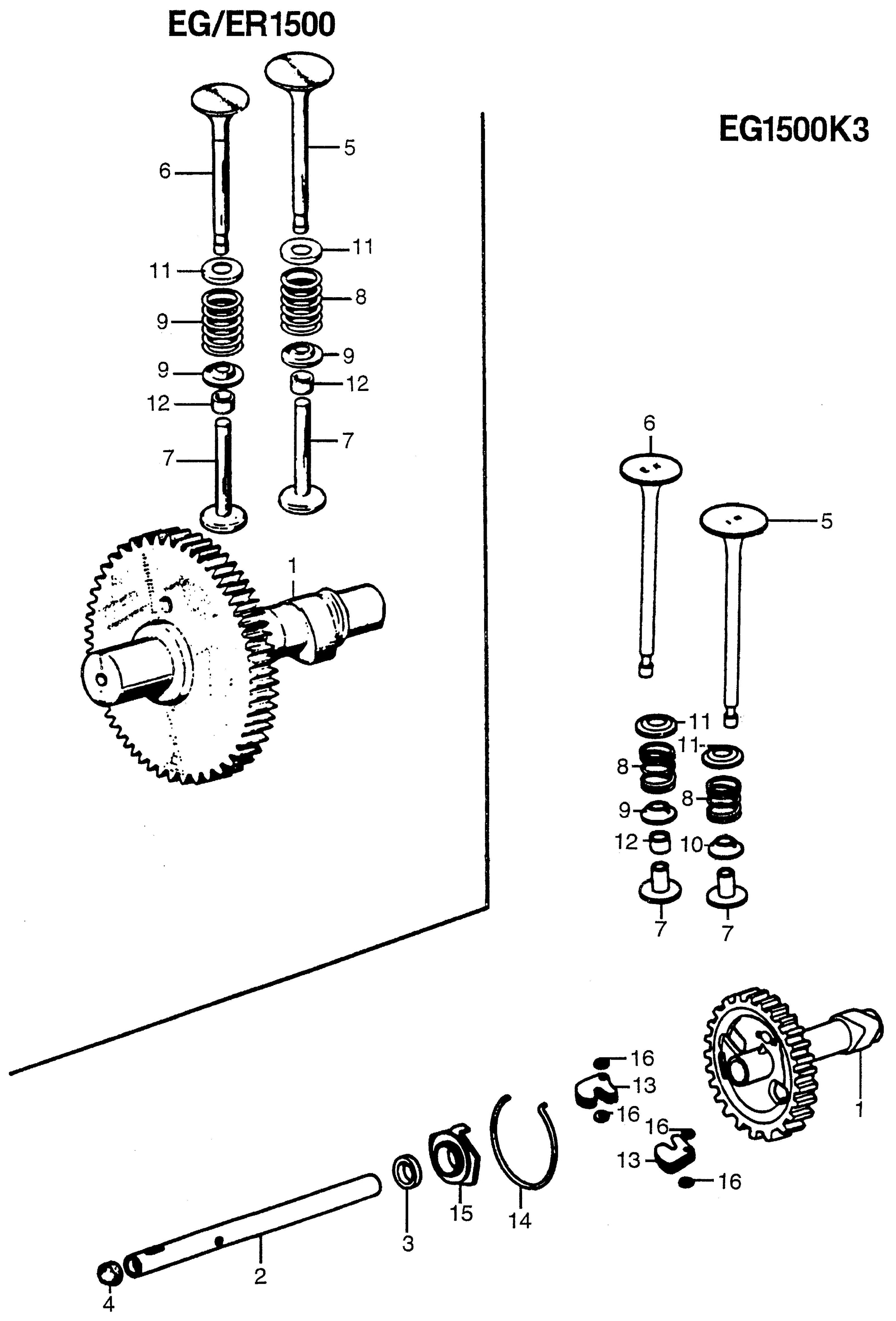

CAMSHAFT@VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14771-883-305
14771-883-305
|
|||
|
|
94101-03000
94101-03000
|

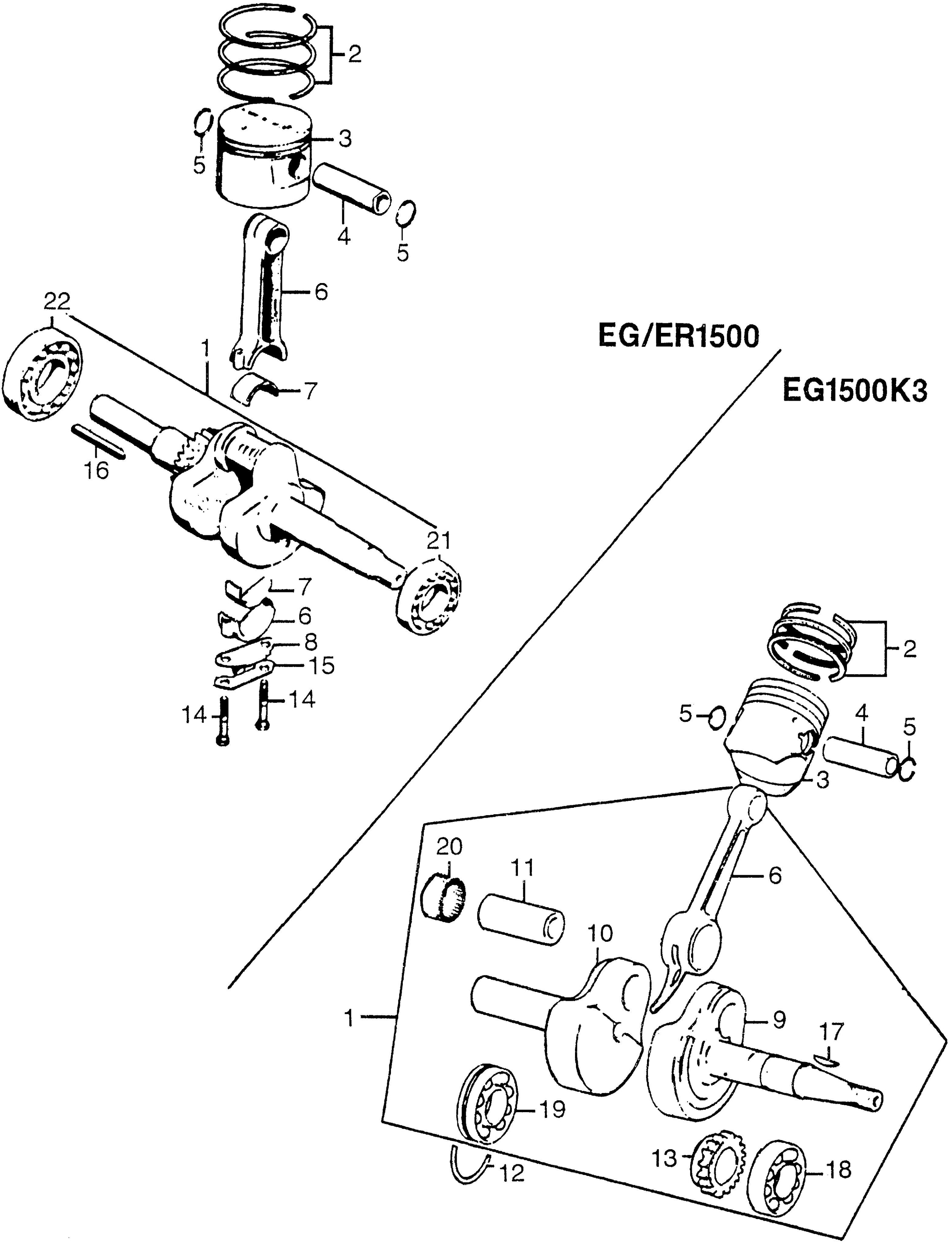

CRANKSHAFT@PISTON
CRANKSHAFT@PISTON
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13011-848-010
13011-848-010
|
|||
|
|
13101-822-000
13101-822-000
|
|||
|
|
13103-822-000
13103-822-000
|
|||
|
|
94601-18000
94601-18000
|
|||
|
|
90741-889-810
90741-889-810
|
|||
|
|
96100-62050-10
96100-62050-10
|
|||
|
|
96100-62060-00
96100-62060-00
|

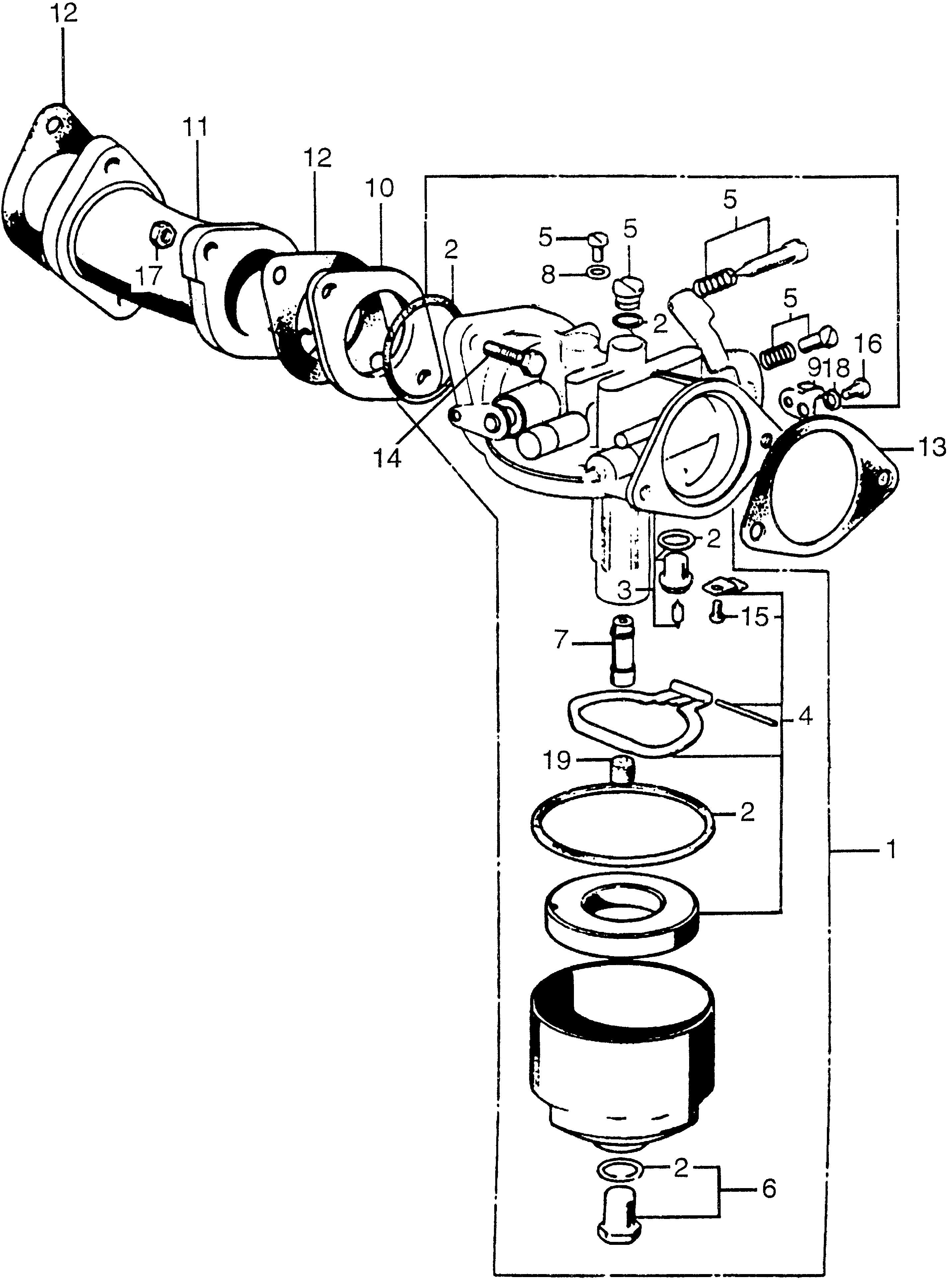

EG/R1500CARBURETOR
EG/R1500CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16011-051-004
16011-051-004
|
|||
|
|
16263-848-000
16263-848-000
|
|||
|
|
93500-03005-0a
93500-03005-0a
|
|||
|
|
93500-03008-0a
93500-03008-0a
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94111-03000
94111-03000
|

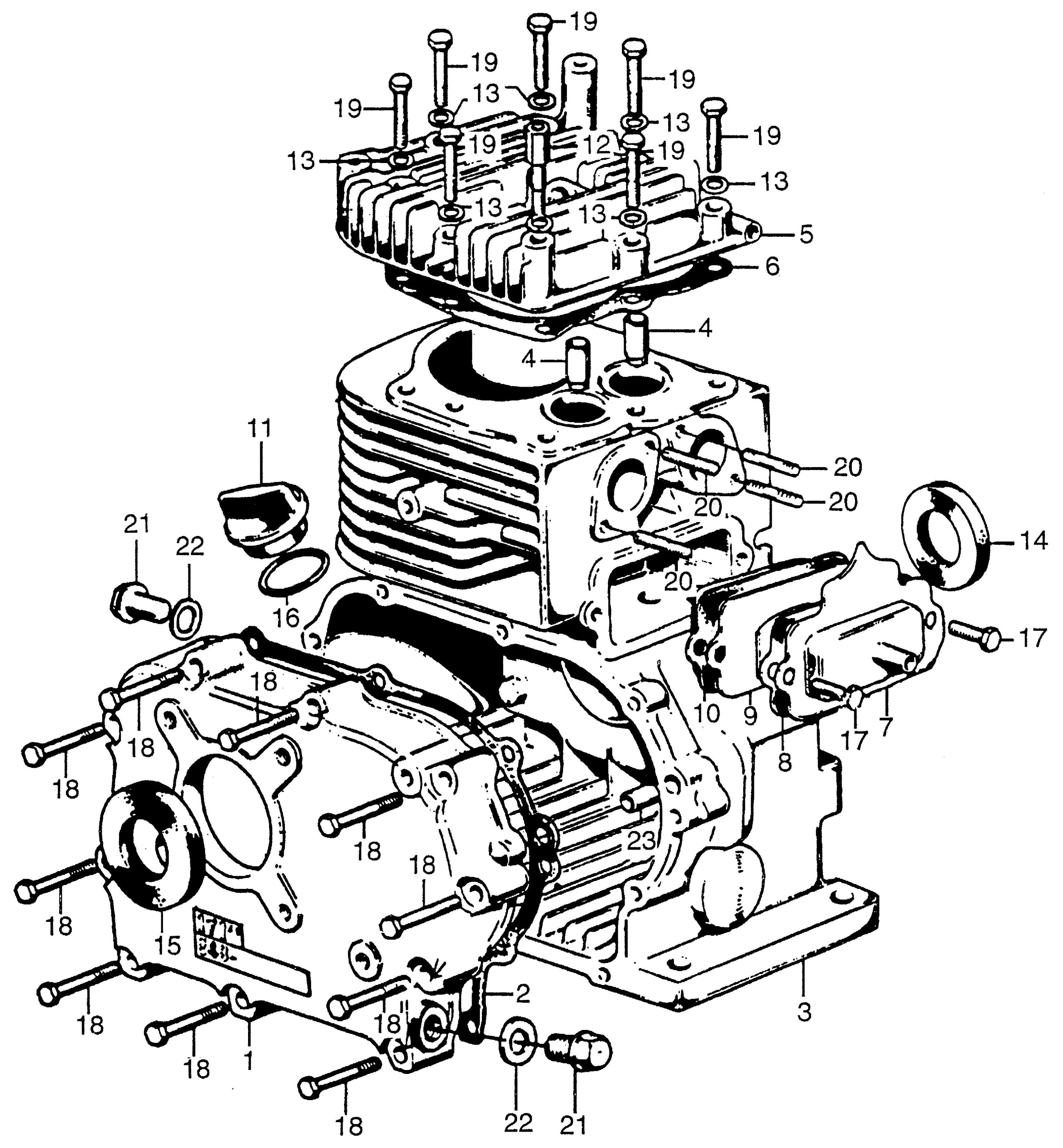

EG/R1500CYLINDER@CYLINDER HEAD
EG/R1500CYLINDER@CYLINDER HEAD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12361-848-010
12361-848-010
|
|||
|
|
12362-848-020
12362-848-020
|
|||
|
|
15611-921-000
15611-921-000
|
|||
|
|
90402-822-000
90402-822-000
|
|||
|
|
91256-848-003
91256-848-003
|
|||
|
|
91301-805-000
91301-805-000
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
92101-06032-0a
92101-06032-0a
|
|||
|
|
92800-12000
92800-12000
|
|||
|
|
94109-12000
94109-12000
|
|||
|
|
94301-08140
94301-08140
|

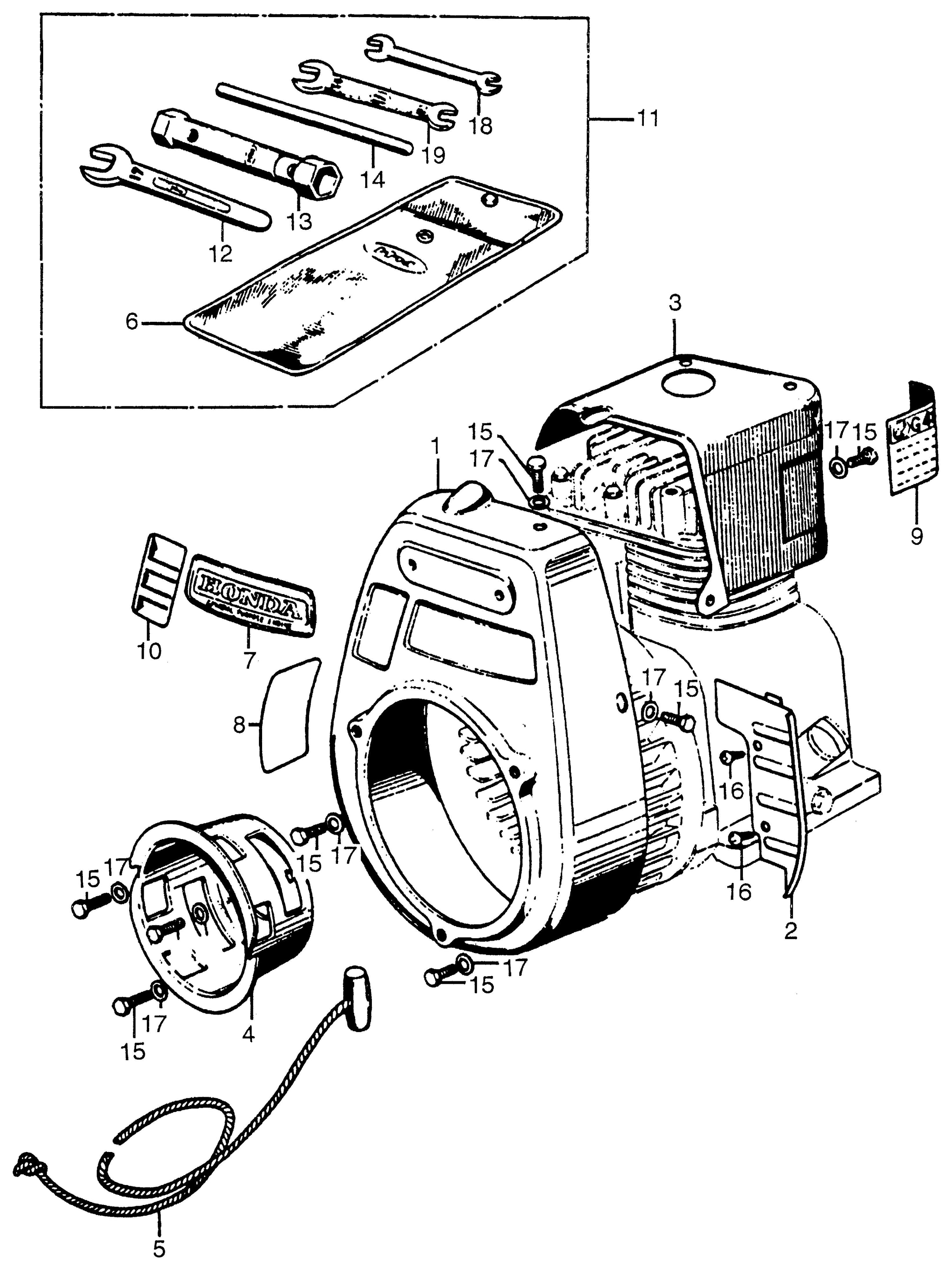

EG/R1500FAN COVER@TOOLS
EG/R1500FAN COVER@TOOLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
89000-839-000
89000-839-000
|
|||
|
|
89206-805-000
89206-805-000
|
|||
|
|
89219-805-000
89219-805-000
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
99001-08120
99001-08120
|
|||
|
|
99001-10140
99001-10140
|

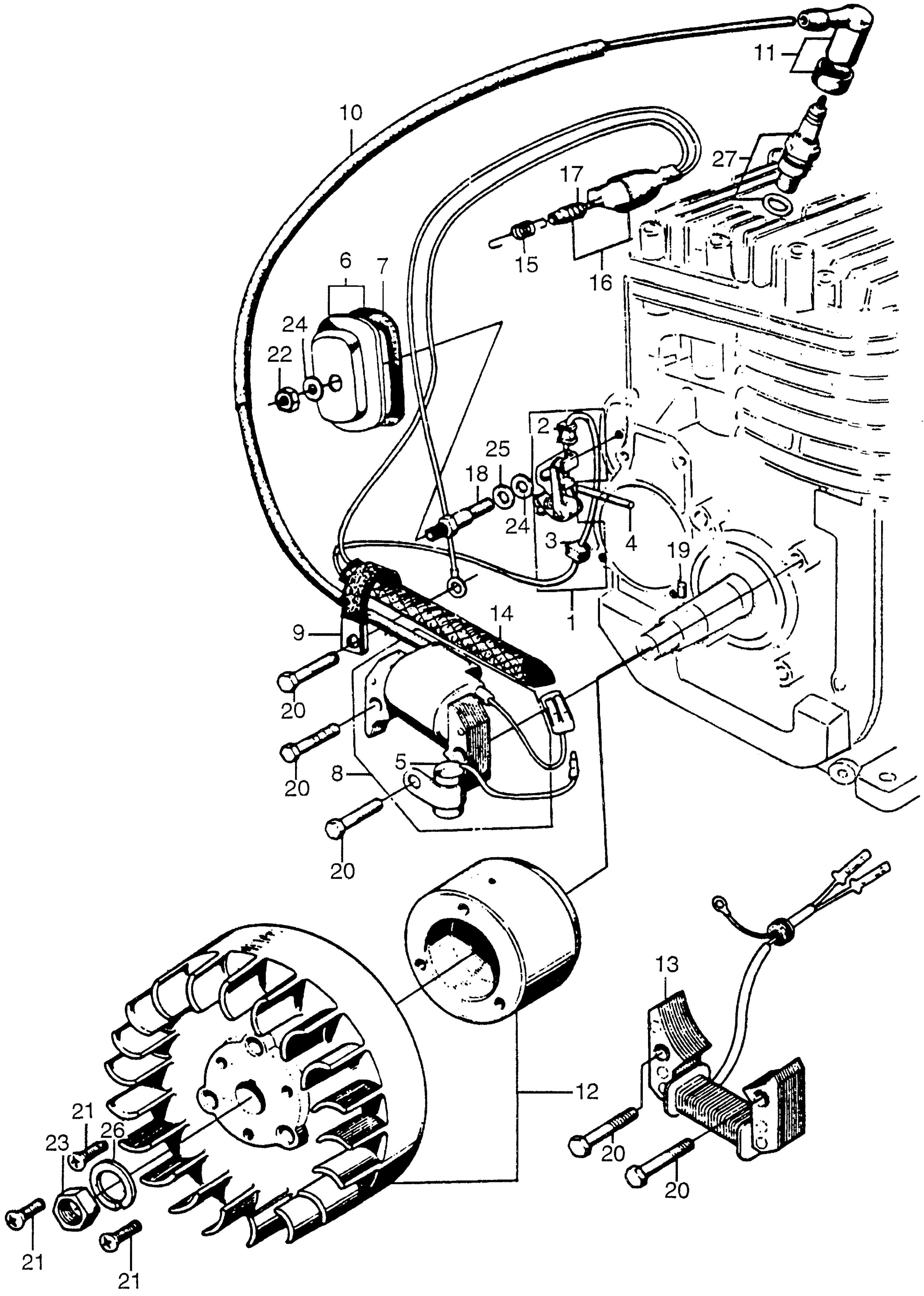

EG/R1500FLYWHEEL
EG/R1500FLYWHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30200-848-013
30200-848-013
|
|||
|
|
92101-06032-0a
92101-06032-0a
|
|||
|
|
93600-06022
93600-06022
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94002-16000-0s
94002-16000-0s
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94111-06000
94111-06000
|
|||
|
|
94111-16000
94111-16000
|
|||
|
|
98076-54710
98076-54710
|

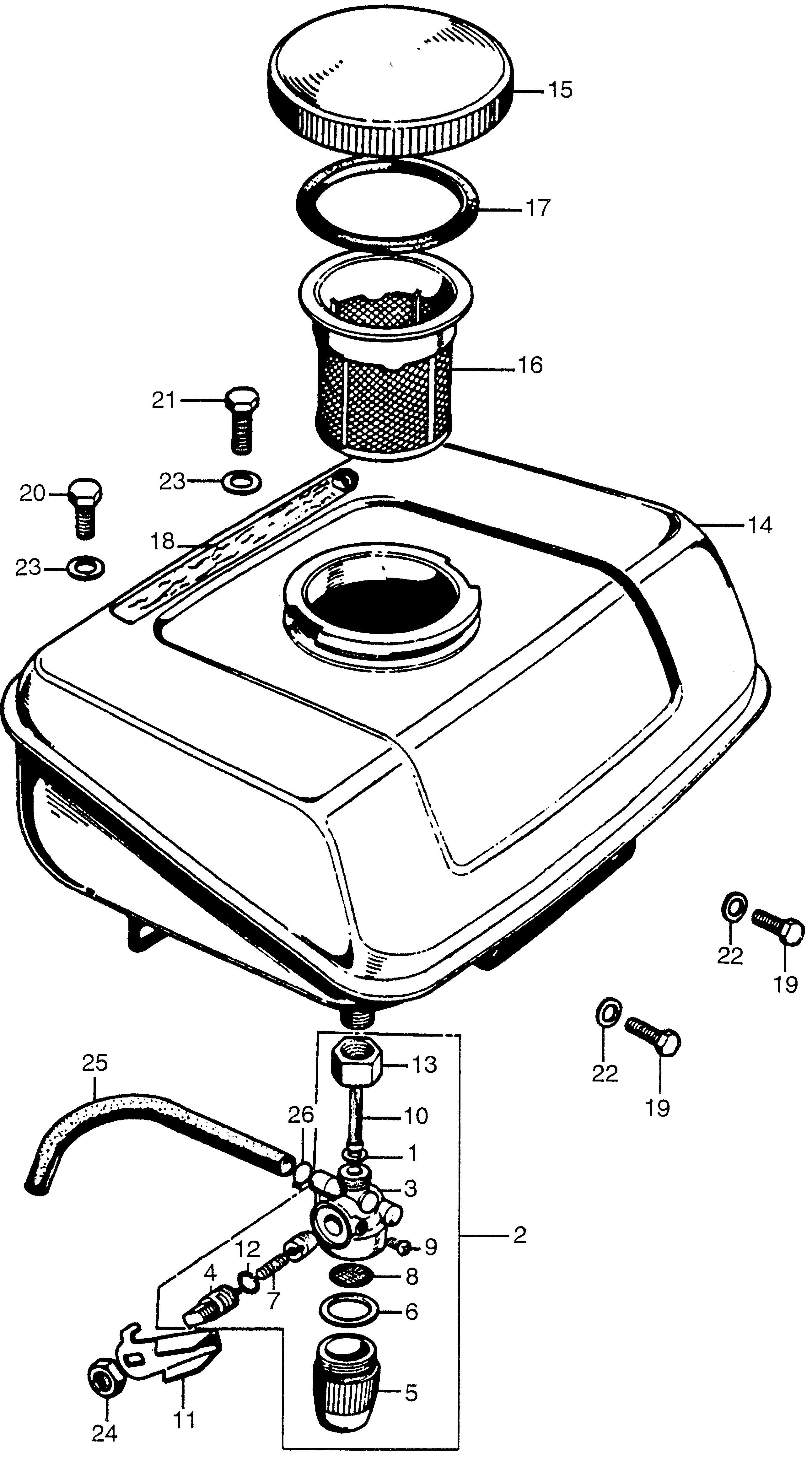

EG/R1500FUEL TANK
EG/R1500FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
92101-08020-0a
92101-08020-0a
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94101-08000
94101-08000
|
|||
|
|
94002-10000-0s
94002-10000-0s
|
|||
|
|
95001-45003-60m
95001-45003-60m
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
95002-45000
95002-45000
|

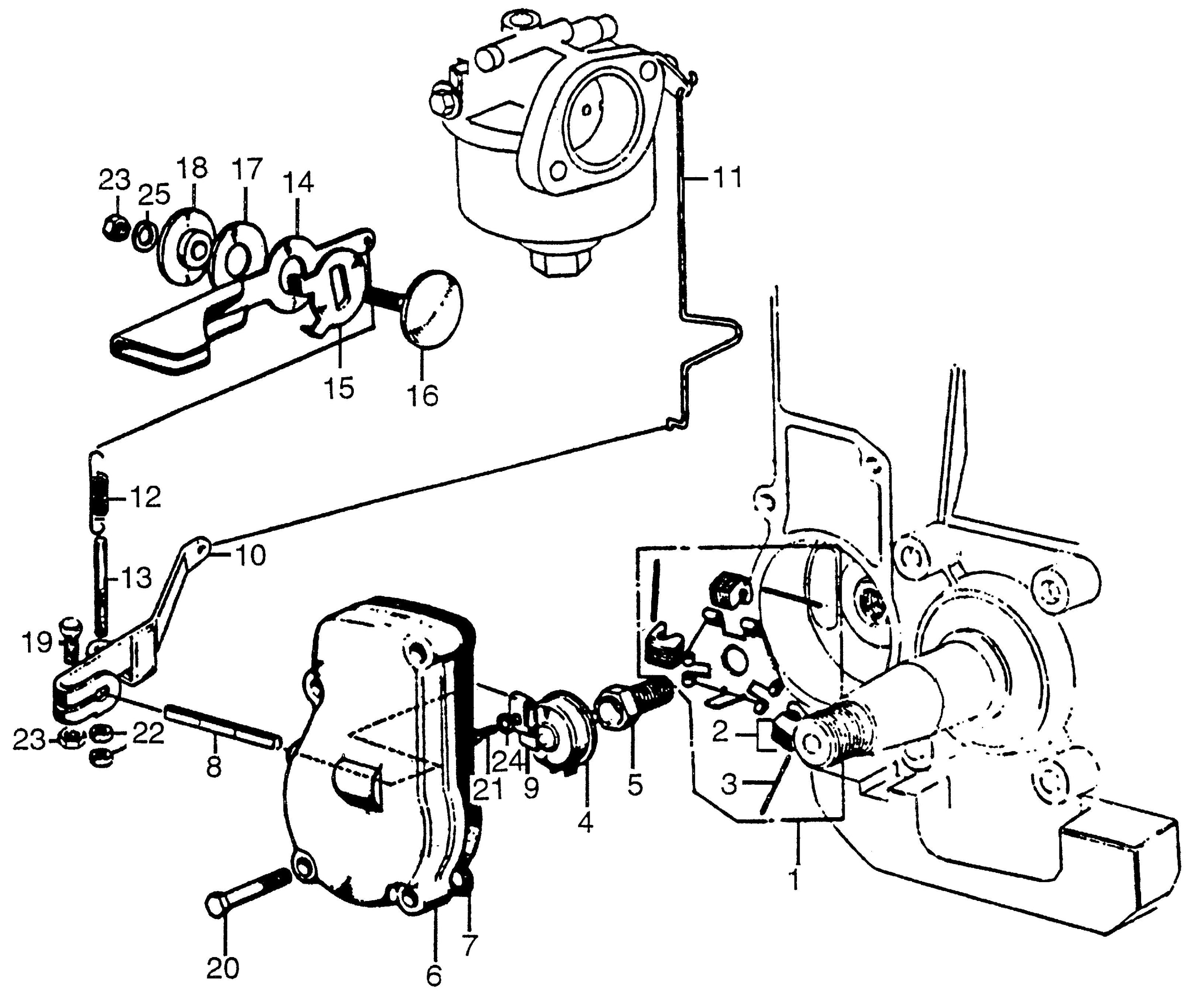

EG/R1500GOVERNOR
EG/R1500GOVERNOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
92101-06025-0a
92101-06025-0a
|
|||
|
|
93500-04008-0a
93500-04008-0a
|
|||
|
|
94001-04000-0s
94001-04000-0s
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94111-04000
94111-04000
|
|||
|
|
94111-06000
94111-06000
|

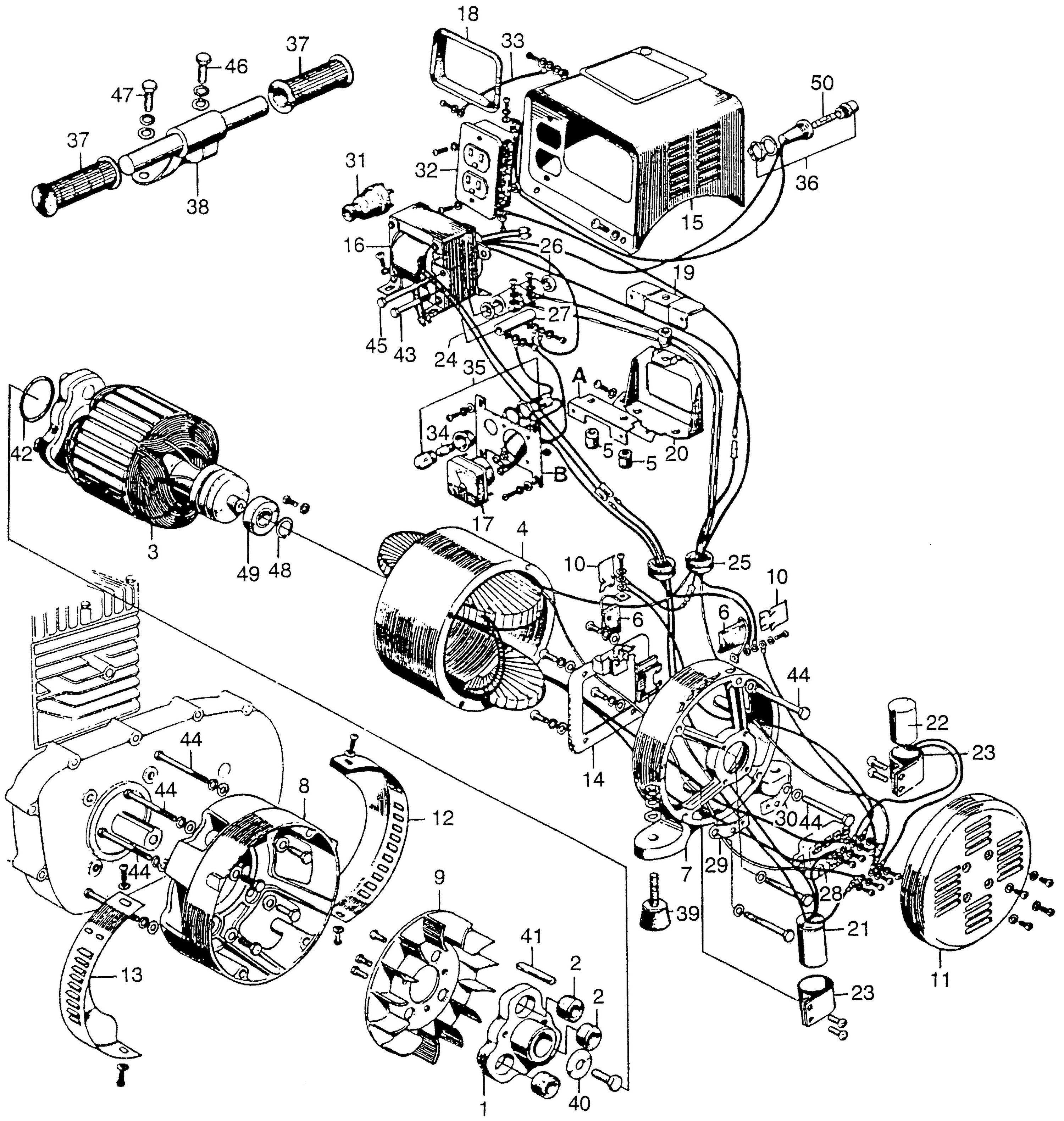

EG1500 CONTROL BOX@GENERATOR
EG1500 CONTROL BOX@GENERATOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
32310-812-640
32310-812-640
|
|||
|
|
34909-880-000
34909-880-000
|
|||
|
|
90473-842-000
90473-842-000
|
|||
|
|
90741-889-810
90741-889-810
|
|||
|
|
91301-428-003
91301-428-003
|
|||
|
|
92101-08014-0a
92101-08014-0a
|
|||
|
|
94510-17000
94510-17000
|
|||
|
|
96150-62030-10
96150-62030-10
|

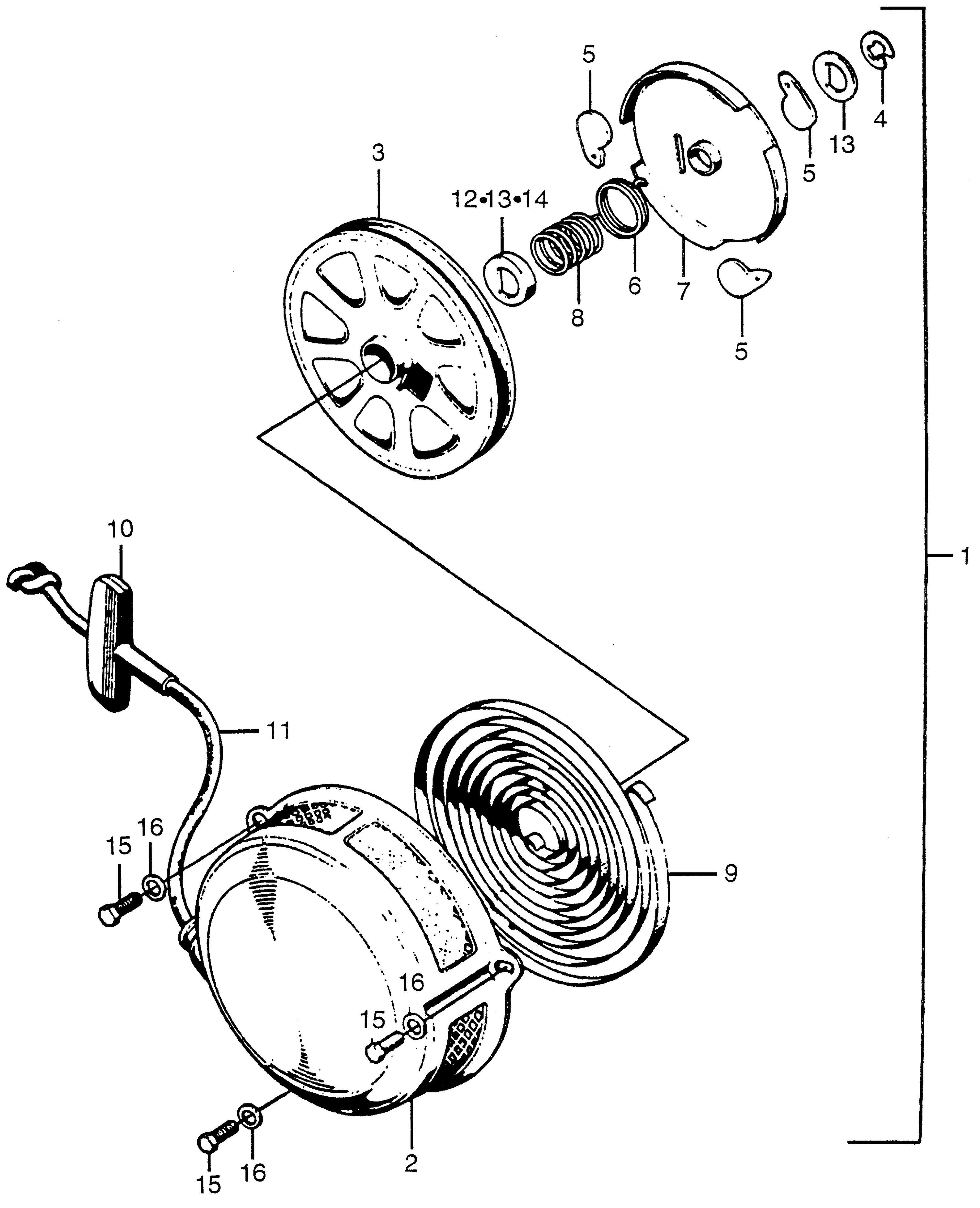

RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28441-848-810
28441-848-810
|
|||
|
|
28455-822-650
28455-822-650
|
|||
|
|
28451-848-810
28451-848-810
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
94101-06800
94101-06800
|
