Honda F220K1-AT2_A Parts Diagram Tiller (Serial FAAJ-3810001 to 9999999)
Diagrams:
Diagram:

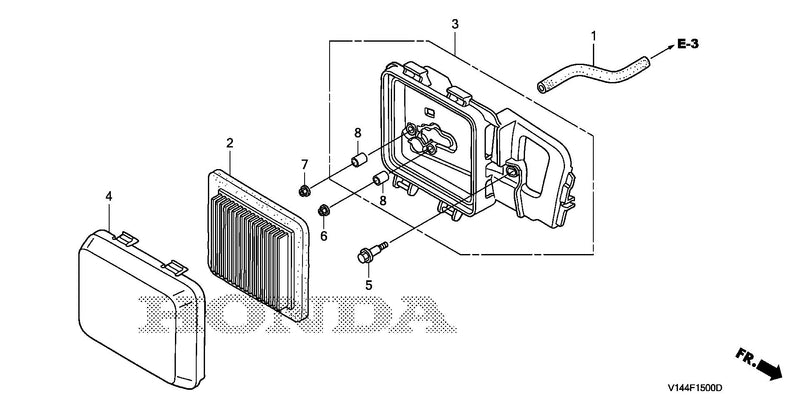

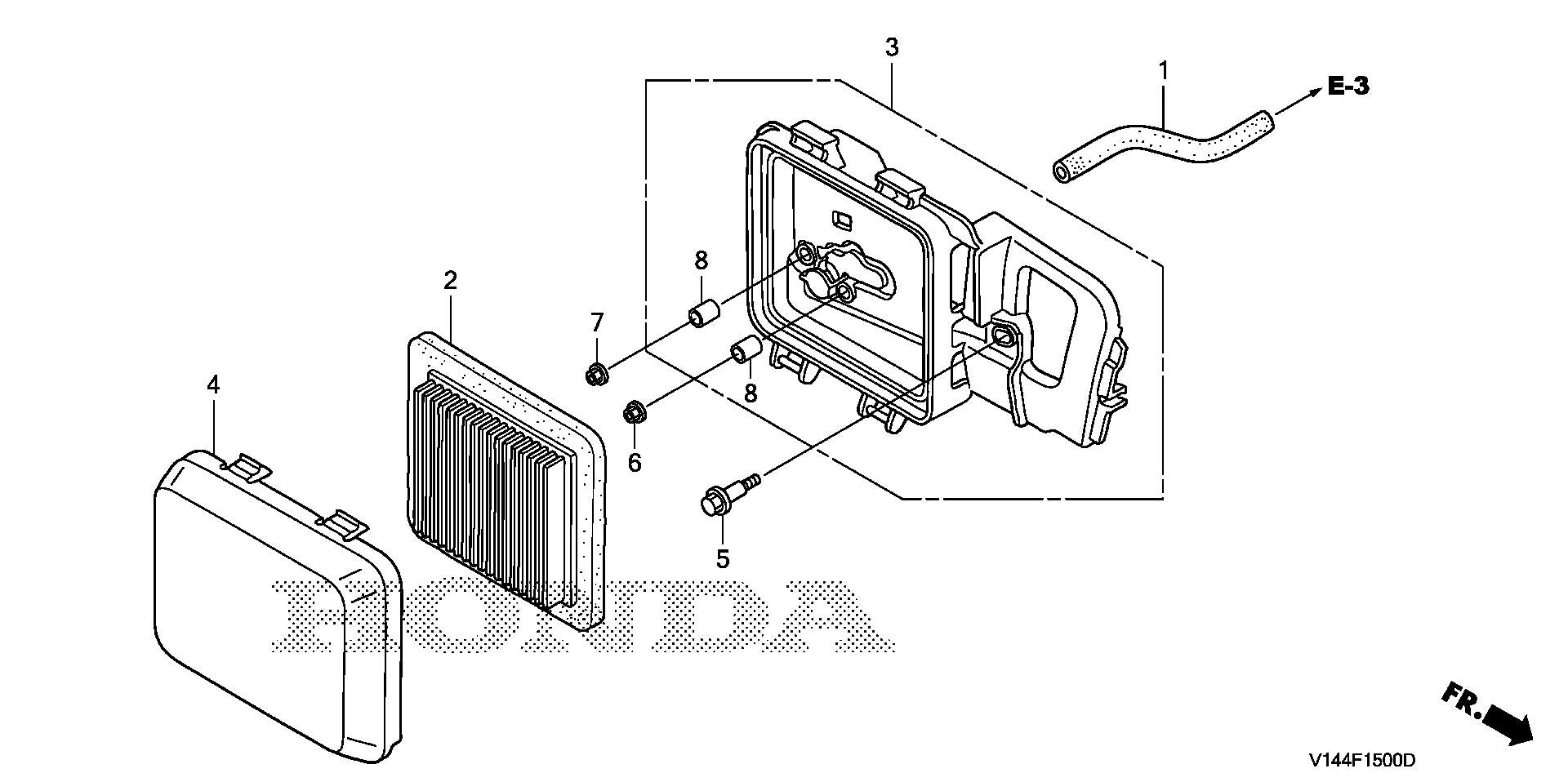

AIR CLEANER
AIR CLEANER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
15721-z0g-000
15721-z0g-000
|
|||
|
|
17211-zl8-023
17211-zl8-023
|
|||
|
|
17220-z0g-010
17220-z0g-010
|
|||
|
|
17231-zm0-040
17231-zm0-040
|
|||
|
|
90001-z0g-000
90001-z0g-000
|
|||
|
|
90110-gb4-680
90110-gb4-680
|
|||
|
|
94050-05000
94050-05000
|
|||
|
|
94050-05000
94050-05000
|
|||
|
|
91501-z0g-000
91501-z0g-000
|

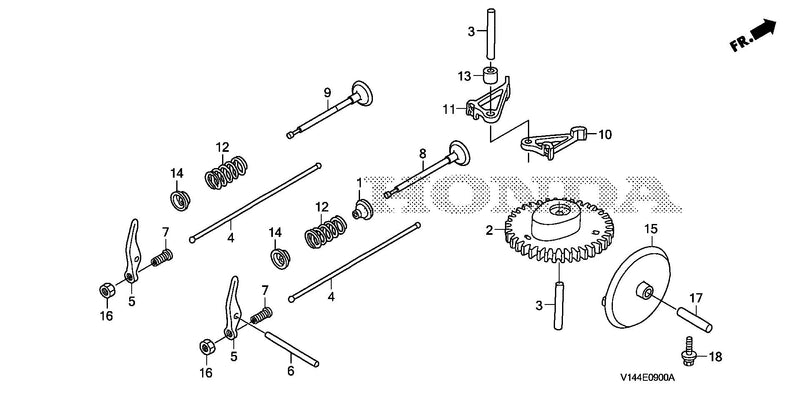

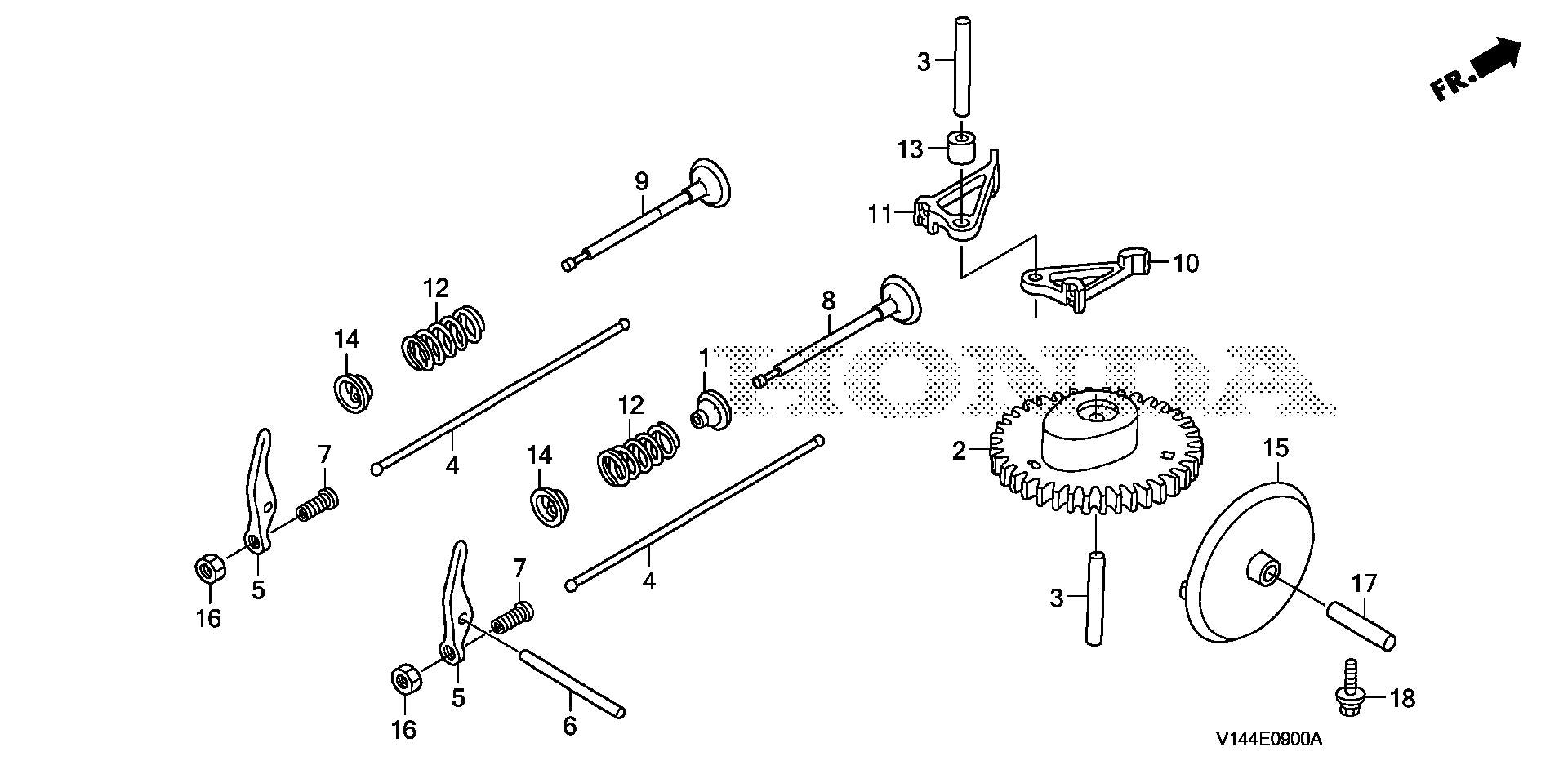

CAMSHAFT
CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12209-zm7-003
12209-zm7-003
|
|||
|
|
14100-z0g-000
14100-z0g-000
|
|||
|
|
14126-z0g-003
14126-z0g-003
|
|||
|
|
14410-zm7-000
14410-zm7-000
|
|||
|
|
14431-zm7-000
14431-zm7-000
|
|||
|
|
14435-zm7-003
14435-zm7-003
|
|||
|
|
14451-zm7-000
14451-zm7-000
|
|||
|
|
14711-zm7-010
14711-zm7-010
|
|||
|
|
14721-zm7-010
14721-zm7-010
|
|||
|
|
14731-zm7-013
14731-zm7-013
|
|||
|
|
14732-z0g-003
14732-z0g-003
|
|||
|
|
14751-zm7-000
14751-zm7-000
|
|||
|
|
14754-zm7-000
14754-zm7-000
|
|||
|
|
14771-zdf-000
14771-zdf-000
|
|||
|
|
15361-z0g-000
15361-z0g-000
|
|||
|
|
90206-km3-000
90206-km3-000
|
|||
|
|
91151-vb5-800
91151-vb5-800
|
|||
|
|
93404-05016-08
93404-05016-08
|

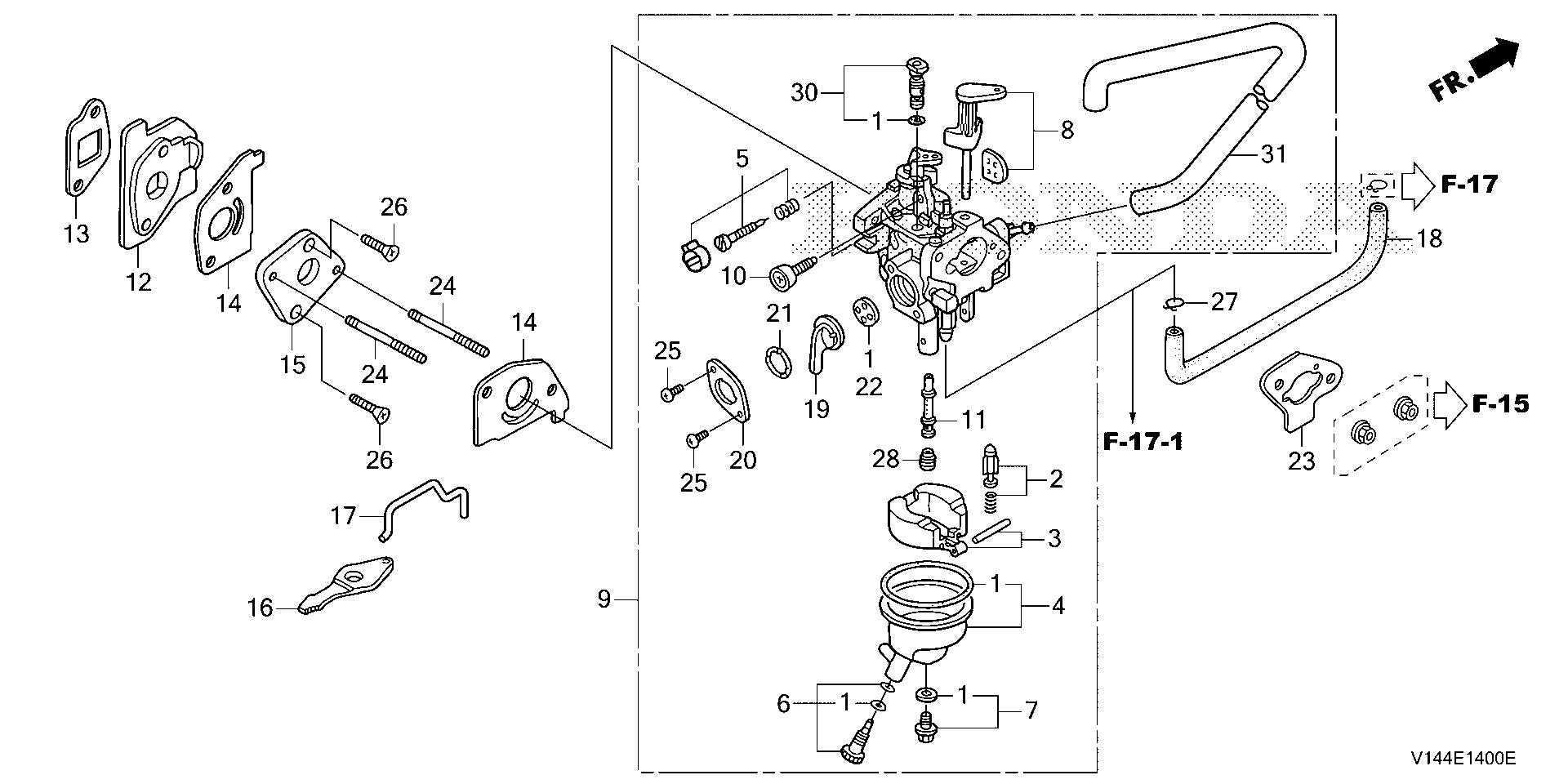

CARBURETOR
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16010-zg1-d20
16010-zg1-d20
|
|||
|
|
16011-ze0-005
16011-ze0-005
|
|||
|
|
16013-zdj-801
16013-zdj-801
|
|||
|
|
16015-zg1-d20
16015-zg1-d20
|
|||
|
|
16016-zh8-w01
16016-zh8-w01
|
|||
|
|
16024-zh7-a20
16024-zh7-a20
|
|||
|
|
16028-zw6-611
16028-zw6-611
|
|||
|
|
16044-z0g-003
16044-z0g-003
|
|||
|
|
16100-z0g-023
16100-z0g-023
|
|||
|
|
16100-z0g-b02
16100-z0g-b02
|
|||
|
|
16124-ze0-005
16124-ze0-005
|
|||
|
|
16166-z0g-003
16166-z0g-003
|
|||
|
|
16166-zn4-a61
16166-zn4-a61
|
|||
|
|
16211-zn4-000
16211-zn4-000
|
|||
|
|
16212-zm7-000
16212-zm7-000
|
|||
|
|
16225-zn4-000
16225-zn4-000
|
|||
|
|
16612-z0g-000
16612-z0g-000
|
|||
|
|
16674-z0g-000
16674-z0g-000
|
|||
|
|
16851-z0g-000
16851-z0g-000
|
|||
|
|
16953-zg1-015
16953-zg1-015
|
|||
|
|
16954-zg1-005
16954-zg1-005
|
|||
|
|
16956-ze1-811
16956-ze1-811
|
|||
|
|
16957-ze1-812
16957-ze1-812
|
|||
|
|
17228-z0g-000
17228-z0g-000
|
|||
|
|
90002-z0g-000
90002-z0g-000
|
|||
|
|
93500-03005-1h
93500-03005-1h
|
|||
|
|
93600-05020-0a
93600-05020-0a
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
99101-zg0-0450
99101-zg0-0450
|
|||
|
|
99101-zg0-0480
99101-zg0-0480
|
|||
|
|
99101-zg0-0500
99101-zg0-0500
|
|||
|
|
99101-zg0-0520
99101-zg0-0520
|
|||
|
|
99204-ze2-0350
99204-ze2-0350
|
|||
|
|
95003-03001-60m
95003-03001-60m
|

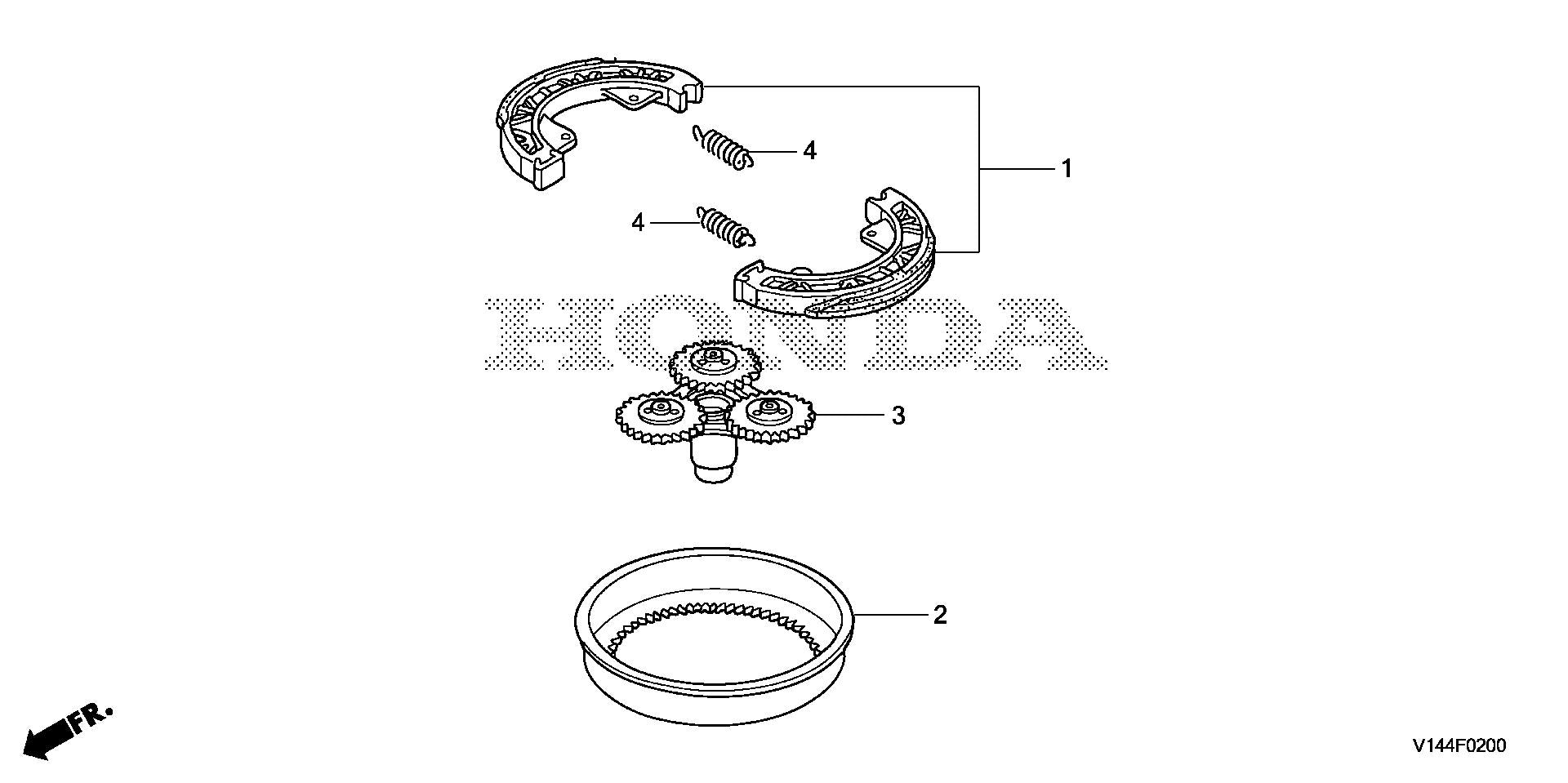

CLUTCH
CLUTCH
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
22010-v14-000
22010-v14-000
|
|||
|
|
22101-729-720
22101-729-720
|
|||
|
|
22610-729-010
22610-729-010
|

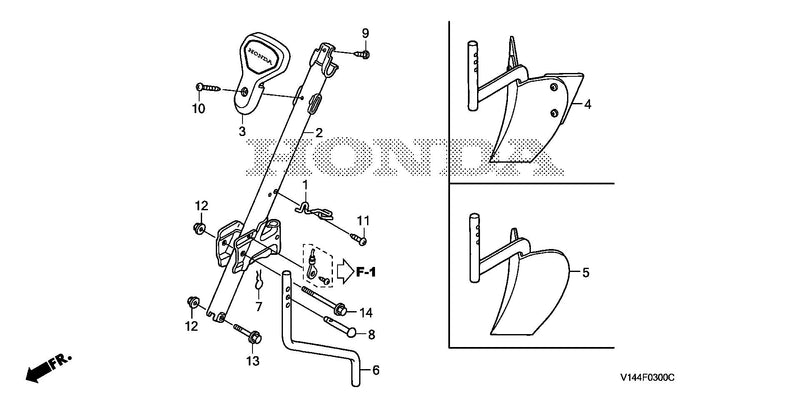

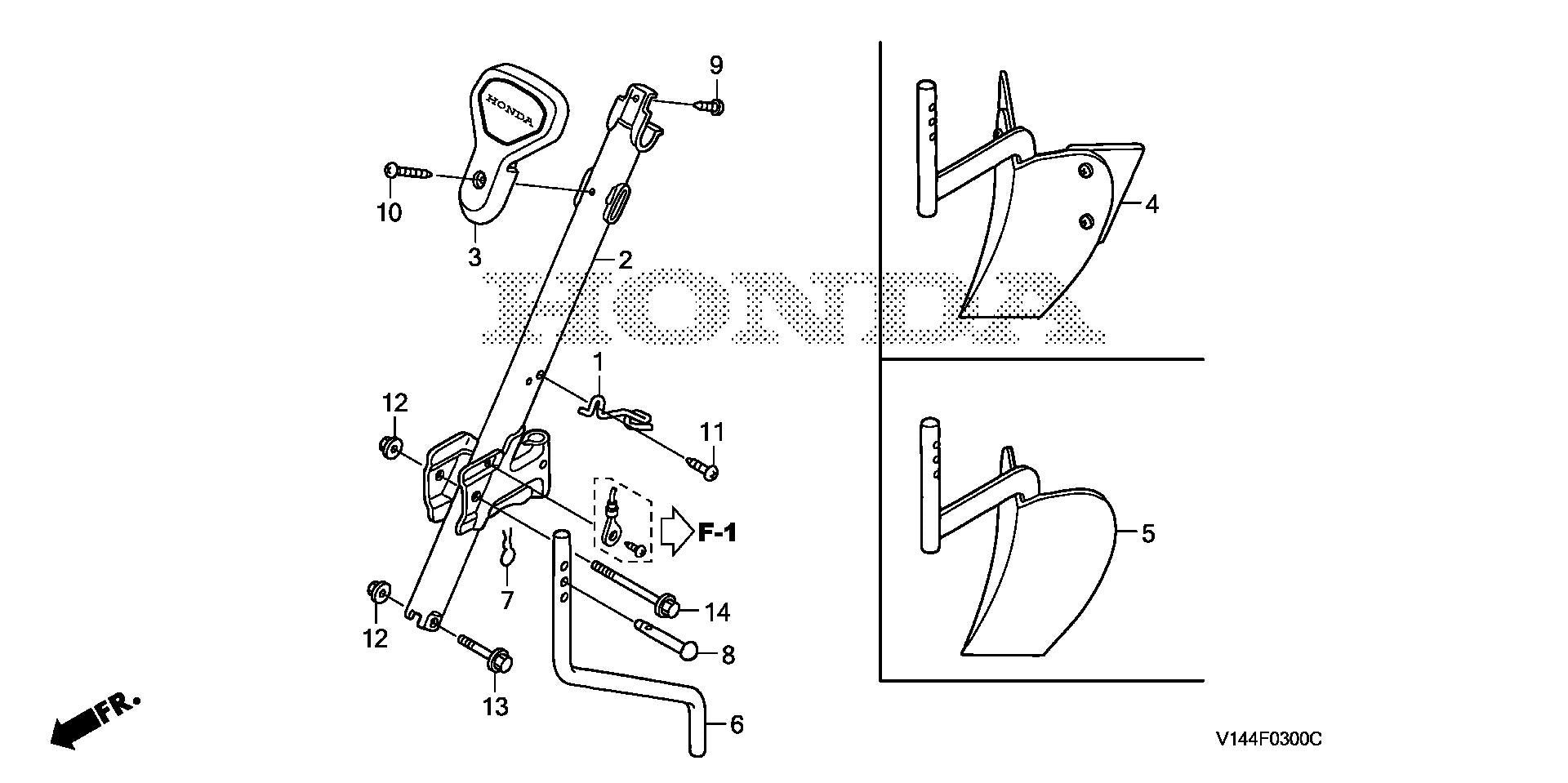

COLUMN HOLDER
COLUMN HOLDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
50275-v14-000
50275-v14-000
|
|||
|
|
53350-v14-010
53350-v14-010
|
|||
|
|
54231-v14-000
54231-v14-000
|
|||
|
|
72700-729-811
72700-729-811
|
|||
|
|
72710-729-810
72710-729-810
|
|||
|
|
80321-729-000
80321-729-000
|
|||
|
|
90651-703-000
90651-703-000
|
|||
|
|
90759-729-010
90759-729-010
|
|||
|
|
93903-25310
93903-25310
|
|||
|
|
93903-25580
93903-25580
|
|||
|
|
93903-35110
93903-35110
|
|||
|
|
93903-35310
93903-35310
|
|||
|
|
95701-08045-00
95701-08045-00
|
|||
|
|
95701-08085-00
95701-08085-00
|

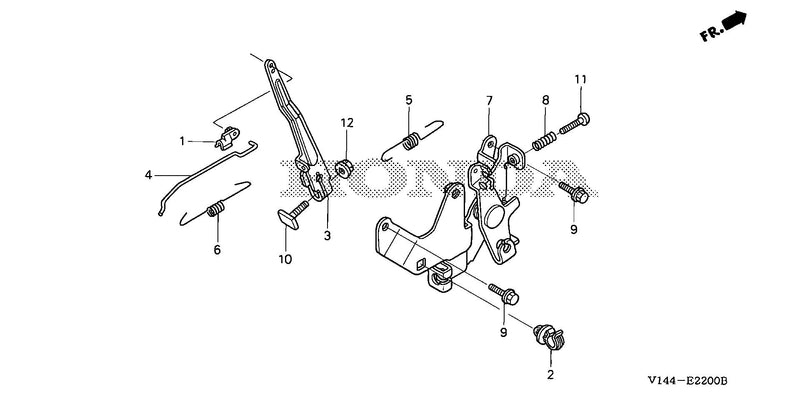

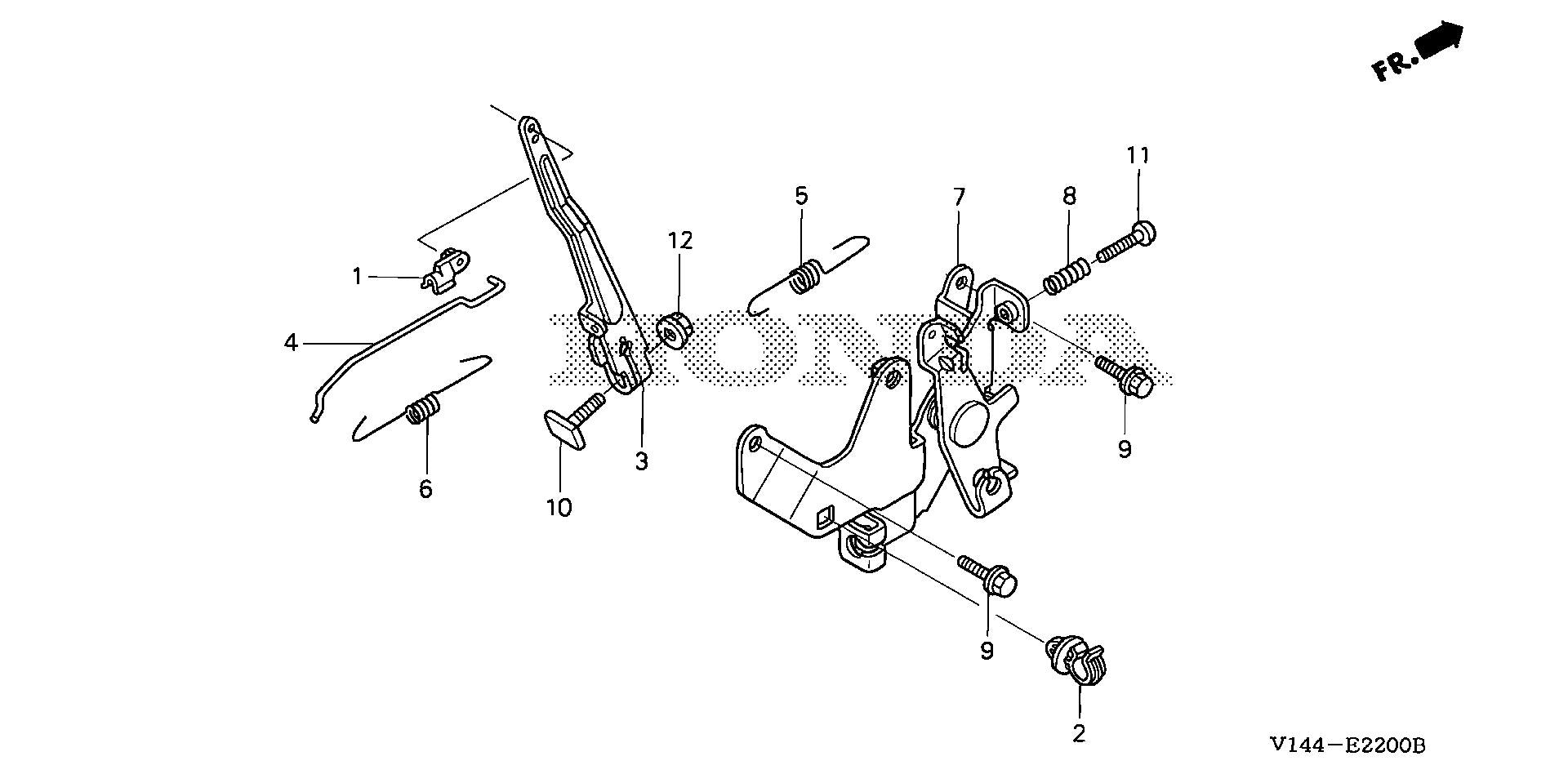

CONTROL
CONTROL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16263-z0g-010
16263-z0g-010
|
|||
|
|
16446-z0g-003
16446-z0g-003
|
|||
|
|
16551-z0g-000
16551-z0g-000
|
|||
|
|
16555-z0g-010
16555-z0g-010
|
|||
|
|
16561-z0g-000
16561-z0g-000
|
|||
|
|
16561-zdh-000
16561-zdh-000
|
|||
|
|
16562-z0g-000
16562-z0g-000
|
|||
|
|
16580-z0g-000
16580-z0g-000
|
|||
|
|
16584-883-300
16584-883-300
|
|||
|
|
90003-892-000
90003-892-000
|
|||
|
|
90015-ze5-010
90015-ze5-010
|
|||
|
|
90015-z5t-000
90015-z5t-000
|
|||
|
|
93500-05020-0a
93500-05020-0a
|
|||
|
|
93500-05022-0a
93500-05022-0a
|

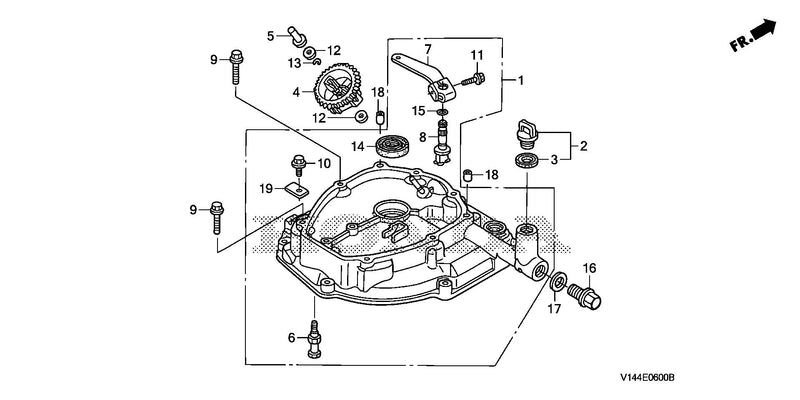

CRANKCASE
CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11340-z0g-405
11340-z0g-405
|
|||
|
|
15600-zg4-003
15600-zg4-003
|
|||
|
|
15600-z0t-820
15600-z0t-820
|
|||
|
|
15625-ze1-003
15625-ze1-003
|
|||
|
|
15625-z0t-800
15625-z0t-800
|
|||
|
|
16510-zm7-000
16510-zm7-000
|
|||
|
|
16531-zm7-000
16531-zm7-000
|
|||
|
|
22533-729-000
22533-729-000
|
|||
|
|
22811-z0g-000
22811-z0g-000
|
|||
|
|
22823-z0g-000
22823-z0g-000
|
|||
|
|
90006-zm7-000
90006-zm7-000
|
|||
|
|
90112-187-010
90112-187-010
|
|||
|
|
90441-zm7-000
90441-zm7-000
|
|||
|
|
90602-zm7-000
90602-zm7-000
|
|||
|
|
91201-z0g-003
91201-z0g-003
|
|||
|
|
91306-pj4-000
91306-pj4-000
|
|||
|
|
92800-20000
92800-20000
|
|||
|
|
94109-20000
94109-20000
|
|||
|
|
94301-06100
94301-06100
|
|||
|
|
51512-z0g-300
51512-z0g-300
|

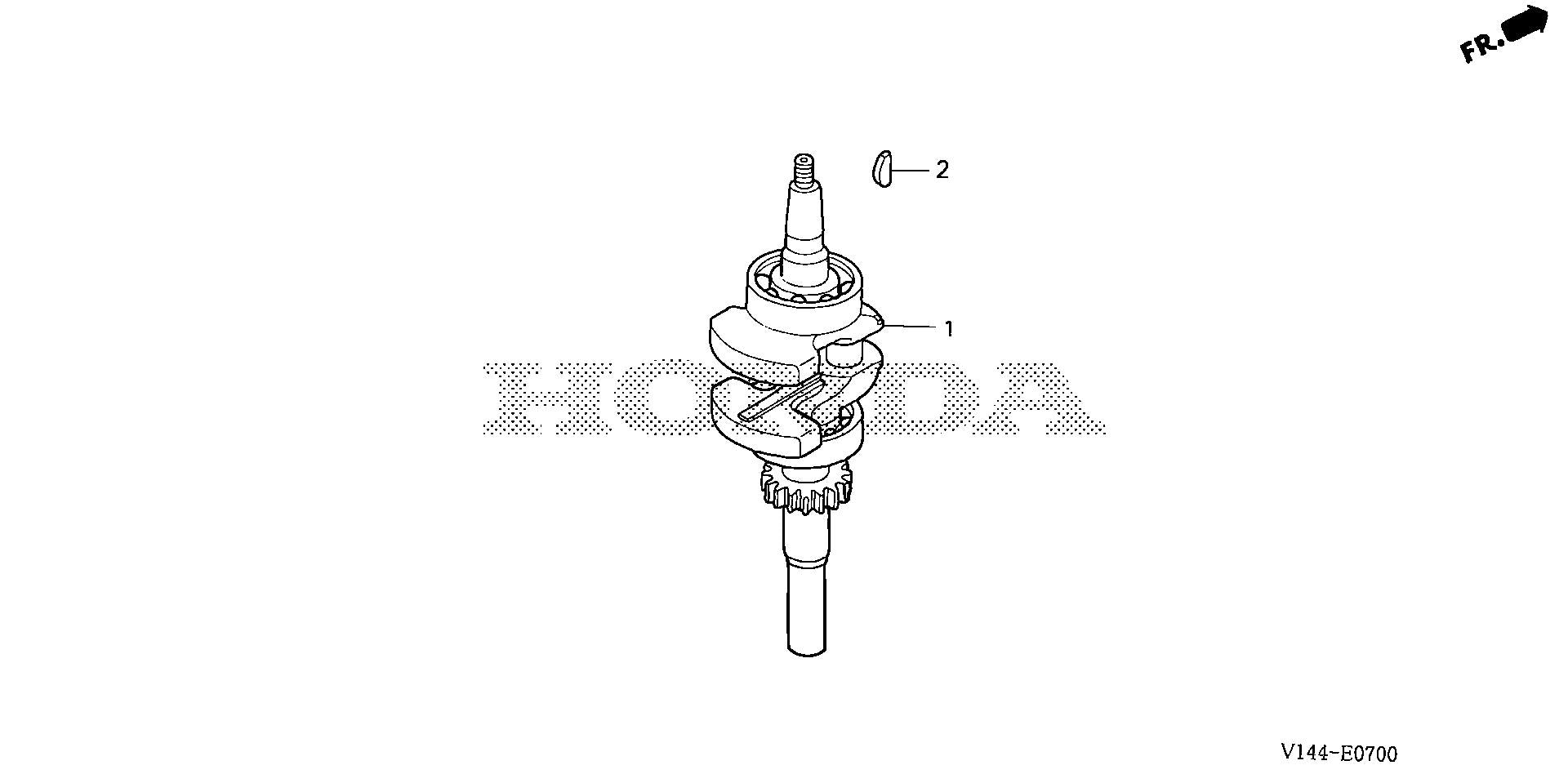

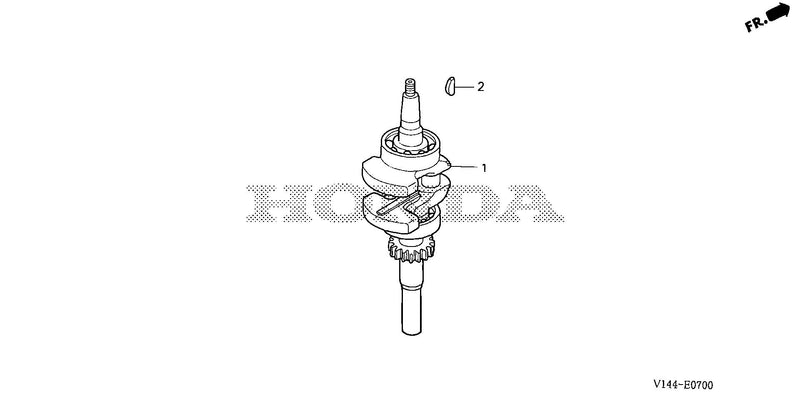

CRANKSHAFT
CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13310-z0g-020
13310-z0g-020
|
|||
|
|
13331-zm7-000
13331-zm7-000
|

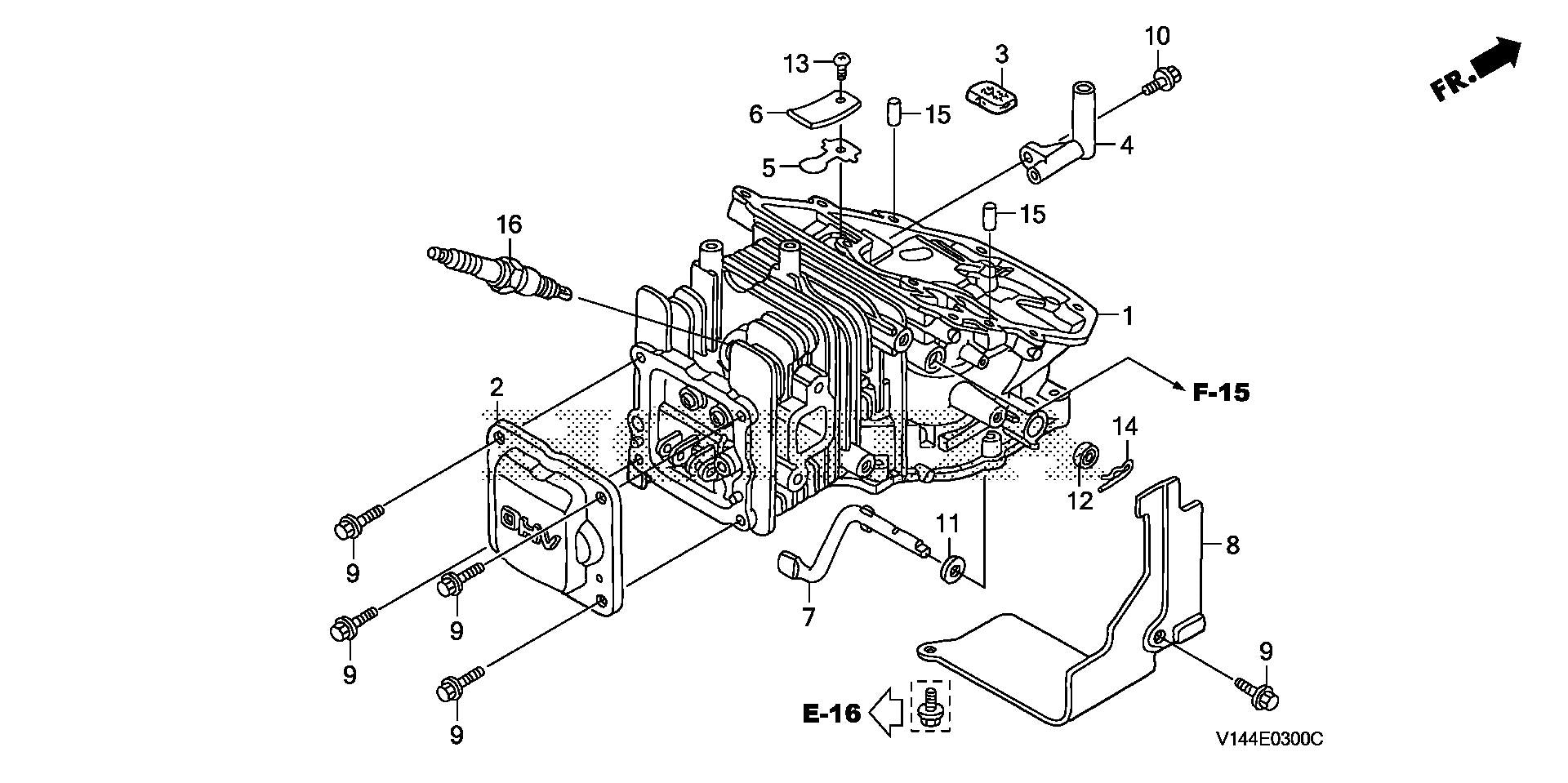

CYLINDER
CYLINDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12100-z0g-415
12100-z0g-415
|
|||
|
|
12311-zm7-000
12311-zm7-000
|
|||
|
|
12311-zm7-010
12311-zm7-010
|
|||
|
|
12367-ze6-010
12367-ze6-010
|
|||
|
|
12367-ze6-020
12367-ze6-020
|
|||
|
|
15171-zn4-000
15171-zn4-000
|
|||
|
|
15571-zm7-003
15571-zm7-003
|
|||
|
|
15572-zm7-000
15572-zm7-000
|
|||
|
|
16541-zm7-000
16541-zm7-000
|
|||
|
|
19631-z0g-000
19631-z0g-000
|
|||
|
|
90003-892-000
90003-892-000
|
|||
|
|
90008-zm7-000
90008-zm7-000
|
|||
|
|
90443-zc3-000
90443-zc3-000
|
|||
|
|
91231-zc3-003
91231-zc3-003
|
|||
|
|
93500-03005-0a
93500-03005-0a
|
|||
|
|
94251-06000
94251-06000
|
|||
|
|
91101-z0g-003
91101-z0g-003
|
|||
|
|
96220-60150
96220-60150
|
|||
|
|
98056-54757
98056-54757
|

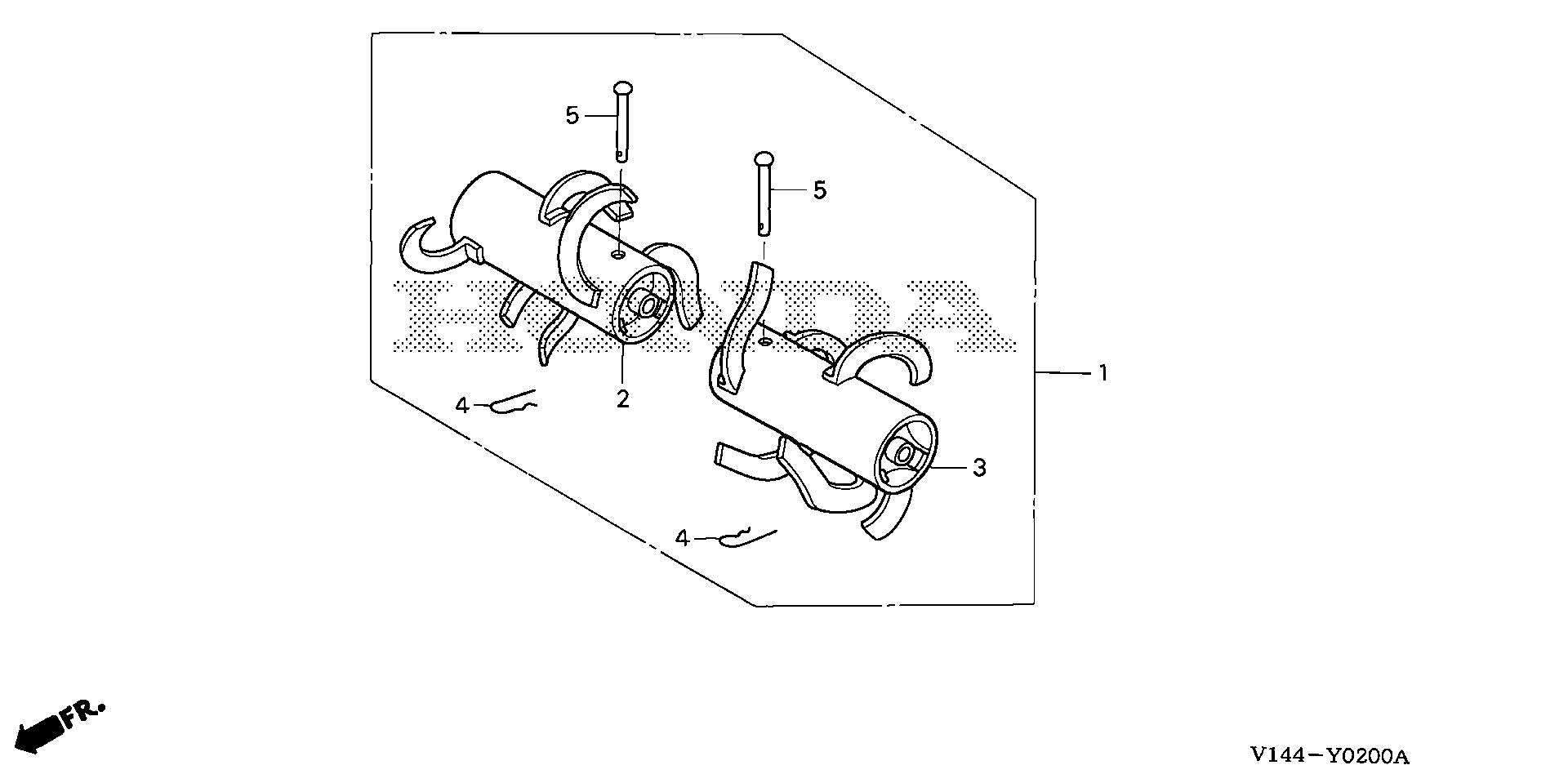

DRUM ROTOR KIT
DRUM ROTOR KIT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
72310-737-811
72310-737-811
|
|||
|
|
72320-737-811
72320-737-811
|
|||
|
|
90651-703-000
90651-703-000
|
|||
|
|
90757-729-810
90757-729-810
|

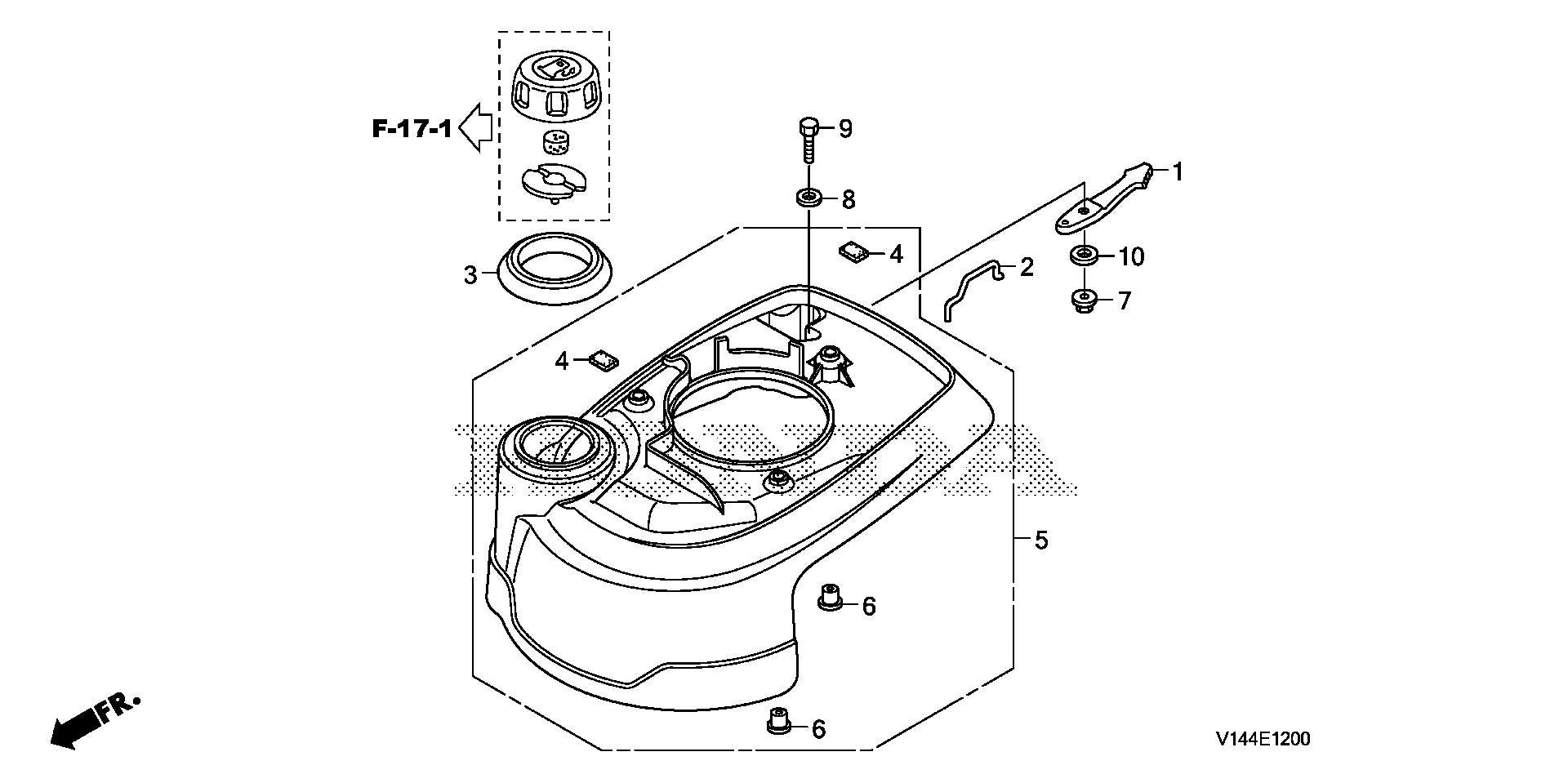

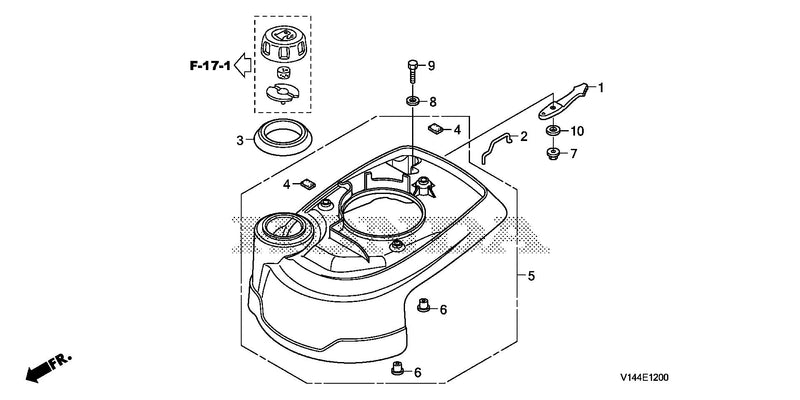

FAN COVER
FAN COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16612-z0g-000
16612-z0g-000
|
|||
|
|
16674-z0g-000
16674-z0g-000
|
|||
|
|
17514-z0g-a70
17514-z0g-a70
|
|||
|
|
17549-z0g-300
17549-z0g-300
|
|||
|
|
19610-z0g-b00
19610-z0g-b00
|
|||
|
|
19619-zm7-300
19619-zm7-300
|
|||
|
|
90136-sm4-901
90136-sm4-901
|
|||
|
|
90482-028-000
90482-028-000
|
|||
|
|
92101-05022-0a
92101-05022-0a
|
|||
|
|
94102-08800
94102-08800
|

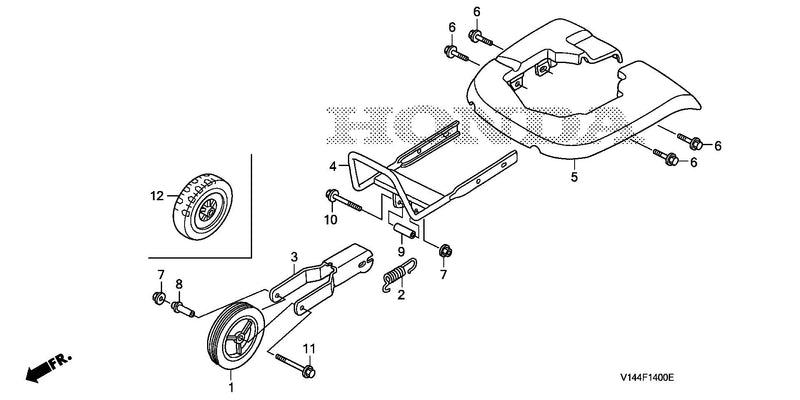

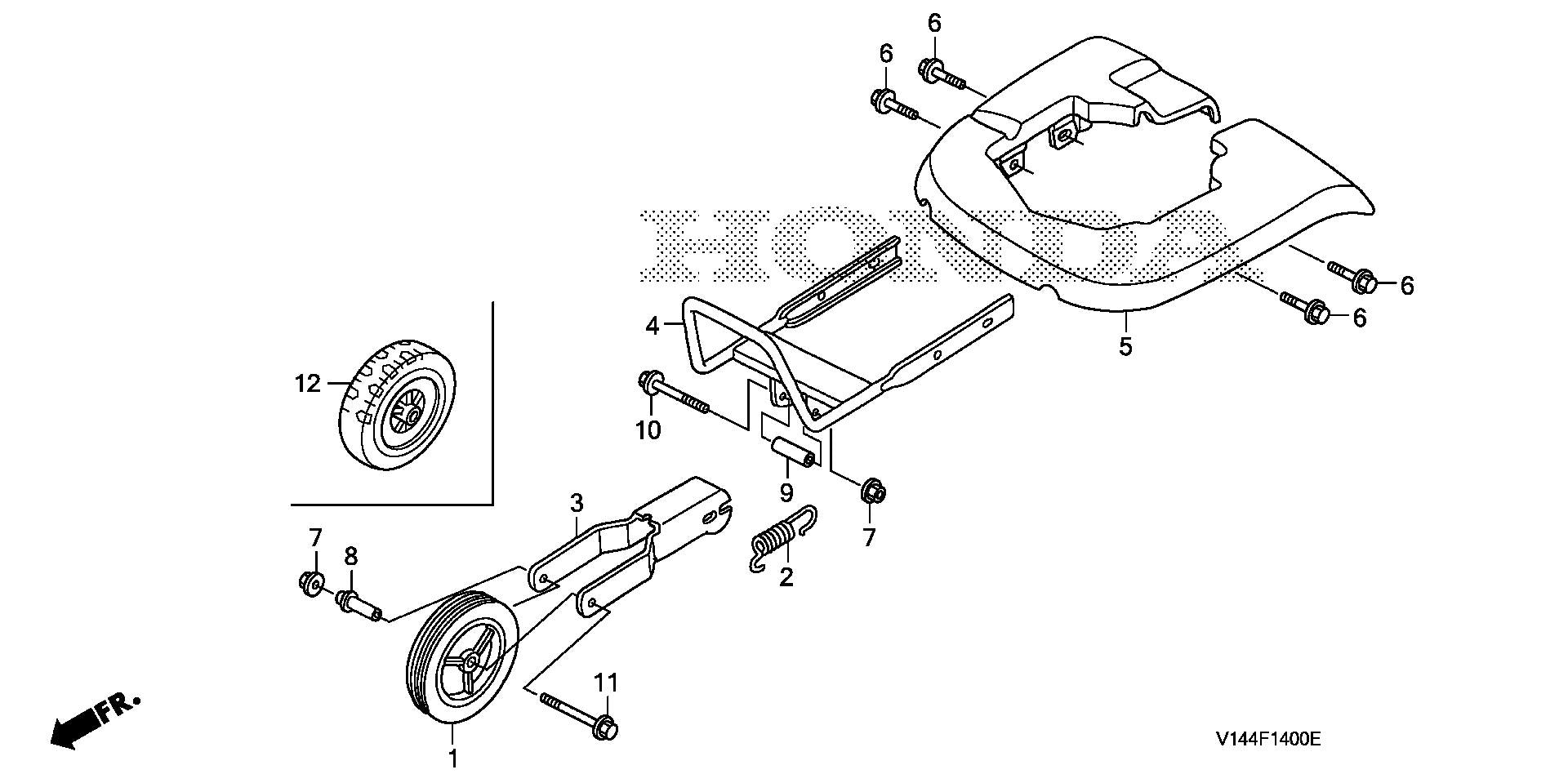

FENDER
FENDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
112h62-cp
112h62-cp
|
|||
|
|
43151-v14-640
43151-v14-640
|
|||
|
|
44761-v14-641
44761-v14-641
|
|||
|
|
51120-v14-640
51120-v14-640
|
|||
|
|
65141-v14-000zc
65141-v14-000zc
|
|||
|
|
90101-v14-000
90101-v14-000
|
|||
|
|
90309-428-731
90309-428-731
|
|||
|
|
91553-v08-010
91553-v08-010
|
|||
|
|
91554-v08-000
91554-v08-000
|
|||
|
|
95701-08055-00
95701-08055-00
|
|||
|
|
95701-08070-00
95701-08070-00
|
|||
|
|
44710-v19-010
44710-v19-010
|
|||
|
|
44710-v14-305
44710-v14-305
|

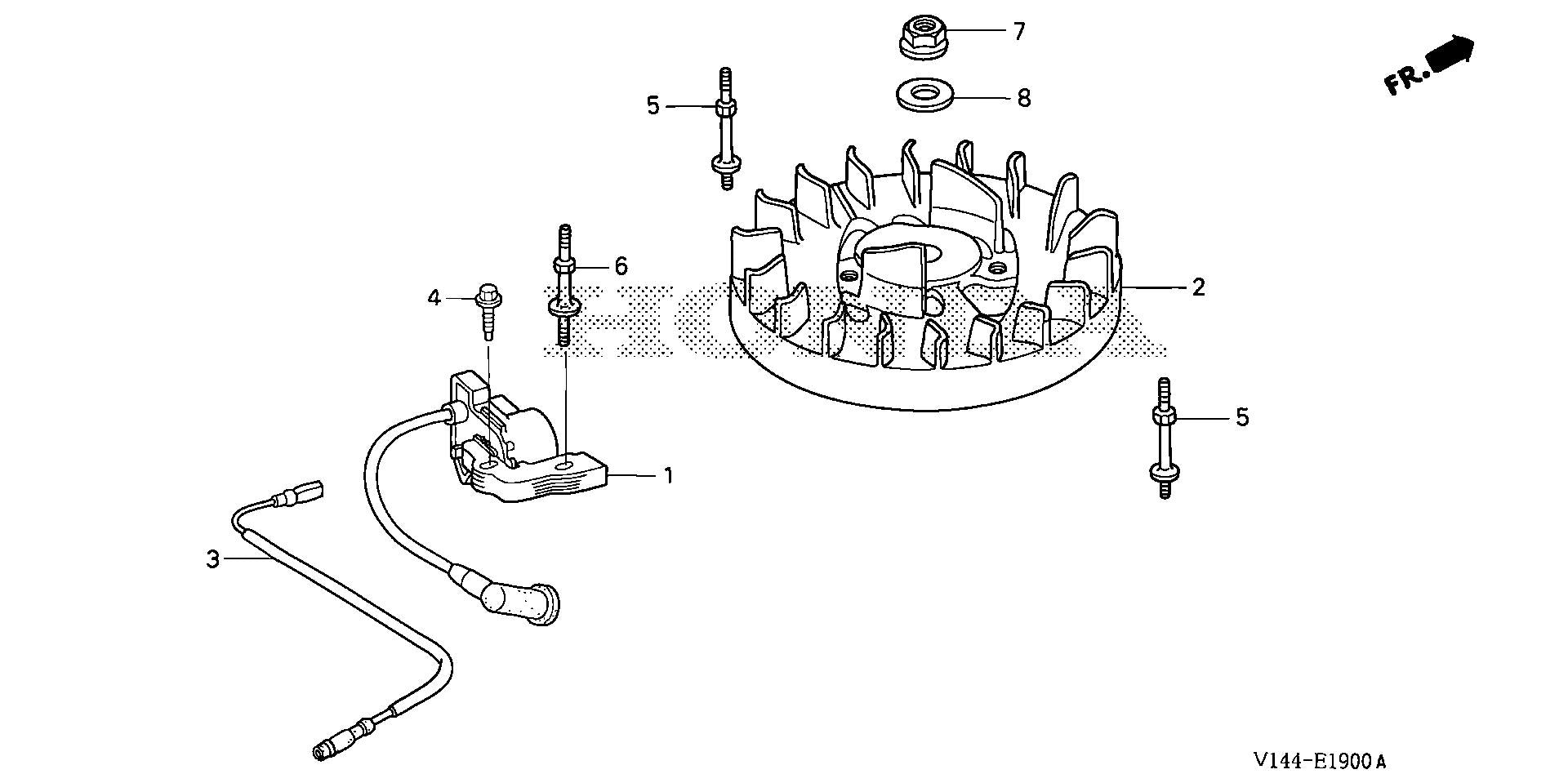

FLYWHEEL@IGNITION COIL
FLYWHEEL@IGNITION COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30500-zm7-014
30500-zm7-014
|
|||
|
|
31110-z0g-004
31110-z0g-004
|
|||
|
|
32195-z0g-000
32195-z0g-000
|
|||
|
|
90004-zc3-000
90004-zc3-000
|
|||
|
|
90042-z0g-000
90042-z0g-000
|
|||
|
|
90043-z0g-000
90043-z0g-000
|
|||
|
|
94101-10000
94101-10000
|

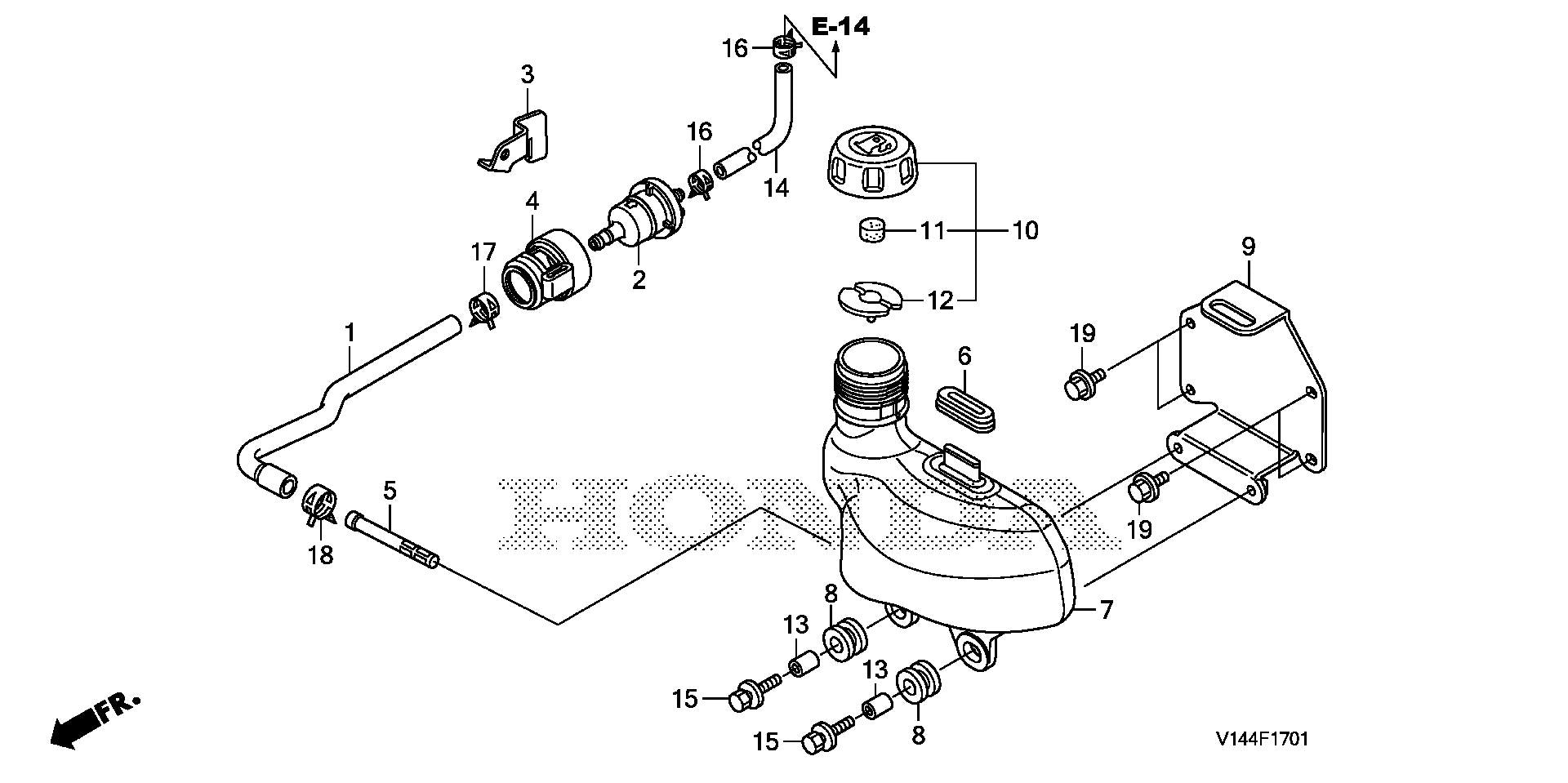

FUEL TANK (F220K1)
FUEL TANK (F220K1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16851-z0g-b03
16851-z0g-b03
|
|||
|
|
16910-z0g-b01
16910-z0g-b01
|
|||
|
|
16911-z0g-b00
16911-z0g-b00
|
|||
|
|
16915-gb2-000
16915-gb2-000
|
|||
|
|
16952-zb6-010
16952-zb6-010
|
|||
|
|
17506-z0g-b00
17506-z0g-b00
|
|||
|
|
17511-z0g-b01
17511-z0g-b01
|
|||
|
|
17516-zv0-000
17516-zv0-000
|
|||
|
|
17544-z0g-b00
17544-z0g-b00
|
|||
|
|
17620-zl8-023
17620-zl8-023
|
|||
|
|
17622-zl8-003
17622-zl8-003
|
|||
|
|
17624-zl8-013
17624-zl8-013
|
|||
|
|
90501-ka2-640
90501-ka2-640
|
|||
|
|
91424-z0g-b03
91424-z0g-b03
|
|||
|
|
93414-06025-08
93414-06025-08
|
|||
|
|
95002-40800-08
95002-40800-08
|
|||
|
|
95002-41000-08
95002-41000-08
|
|||
|
|
95002-41200-08
95002-41200-08
|

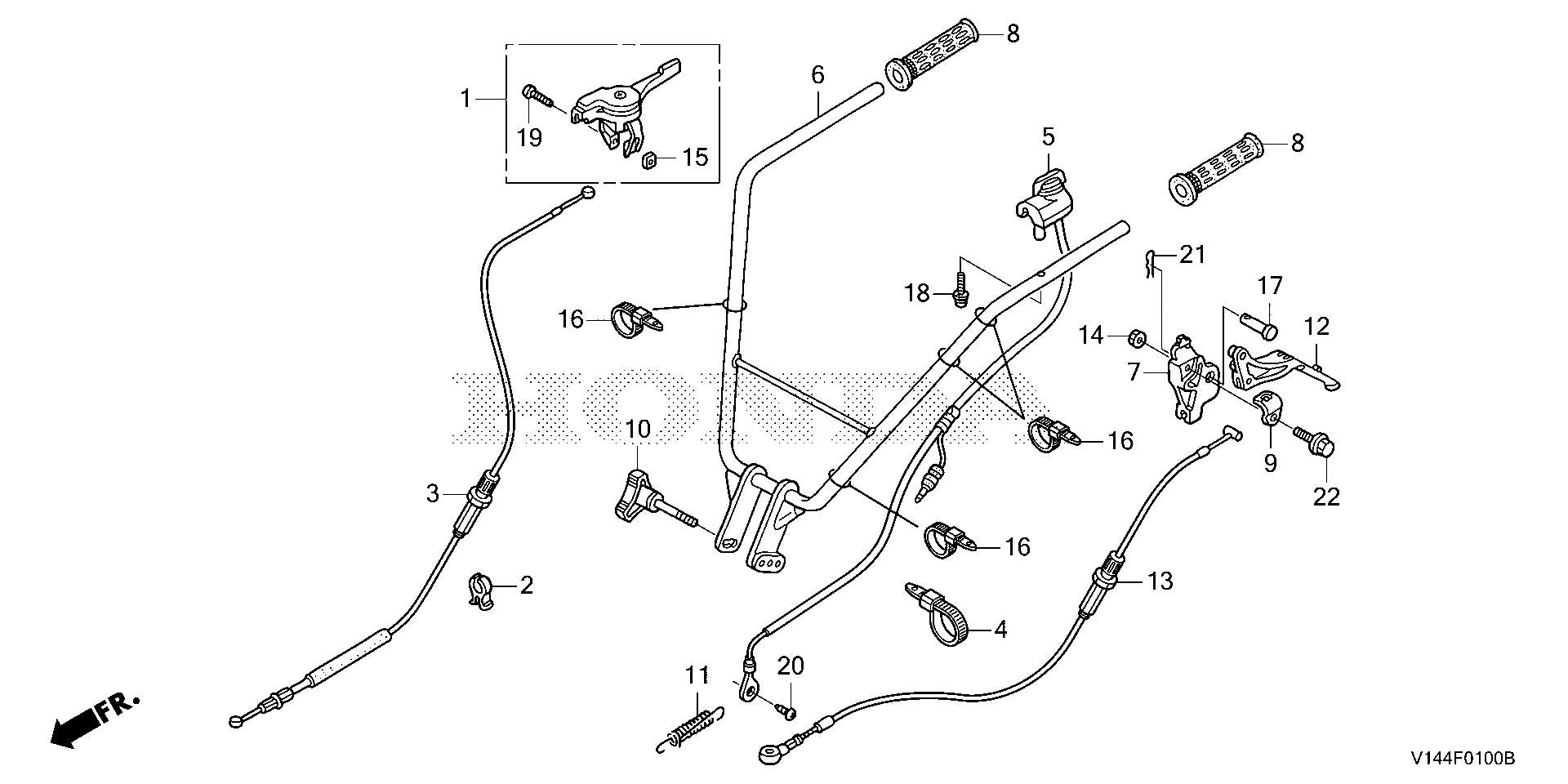

HANDLEBAR
HANDLEBAR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17850-721-013
17850-721-013
|
|||
|
|
17850-v14-305
17850-v14-305
|
|||
|
|
17851-777-003
17851-777-003
|
|||
|
|
17910-v14-003
17910-v14-003
|
|||
|
|
32161-404-610
32161-404-610
|
|||
|
|
35120-v14-003
35120-v14-003
|
|||
|
|
35120-v14-h31
35120-v14-h31
|
|||
|
|
35120-v14-801
35120-v14-801
|
|||
|
|
53110-v14-000
53110-v14-000
|
|||
|
|
53110-v14-305
53110-v14-305
|
|||
|
|
53131-v14-000
53131-v14-000
|
|||
|
|
53166-397-940
53166-397-940
|
|||
|
|
53173-gs7-003
53173-gs7-003
|
|||
|
|
53175-737-000
53175-737-000
|
|||
|
|
54411-v14-000
54411-v14-000
|
|||
|
|
54415-v14-000
54415-v14-000
|
|||
|
|
54510-v14-003
54510-v14-003
|
|||
|
|
90302-kbp-900
90302-kbp-900
|
|||
|
|
90374-777-000
90374-777-000
|
|||
|
|
90674-wa8-003
90674-wa8-003
|
|||
|
|
90755-740-000
90755-740-000
|
|||
|
|
93892-03012-00
93892-03012-00
|
|||
|
|
93500-05020-0g
93500-05020-0g
|
|||
|
|
93903-35010
93903-35010
|
|||
|
|
93903-35110
93903-35110
|
|||
|
|
94251-08000
94251-08000
|
|||
|
|
95701-06025-07
95701-06025-07
|

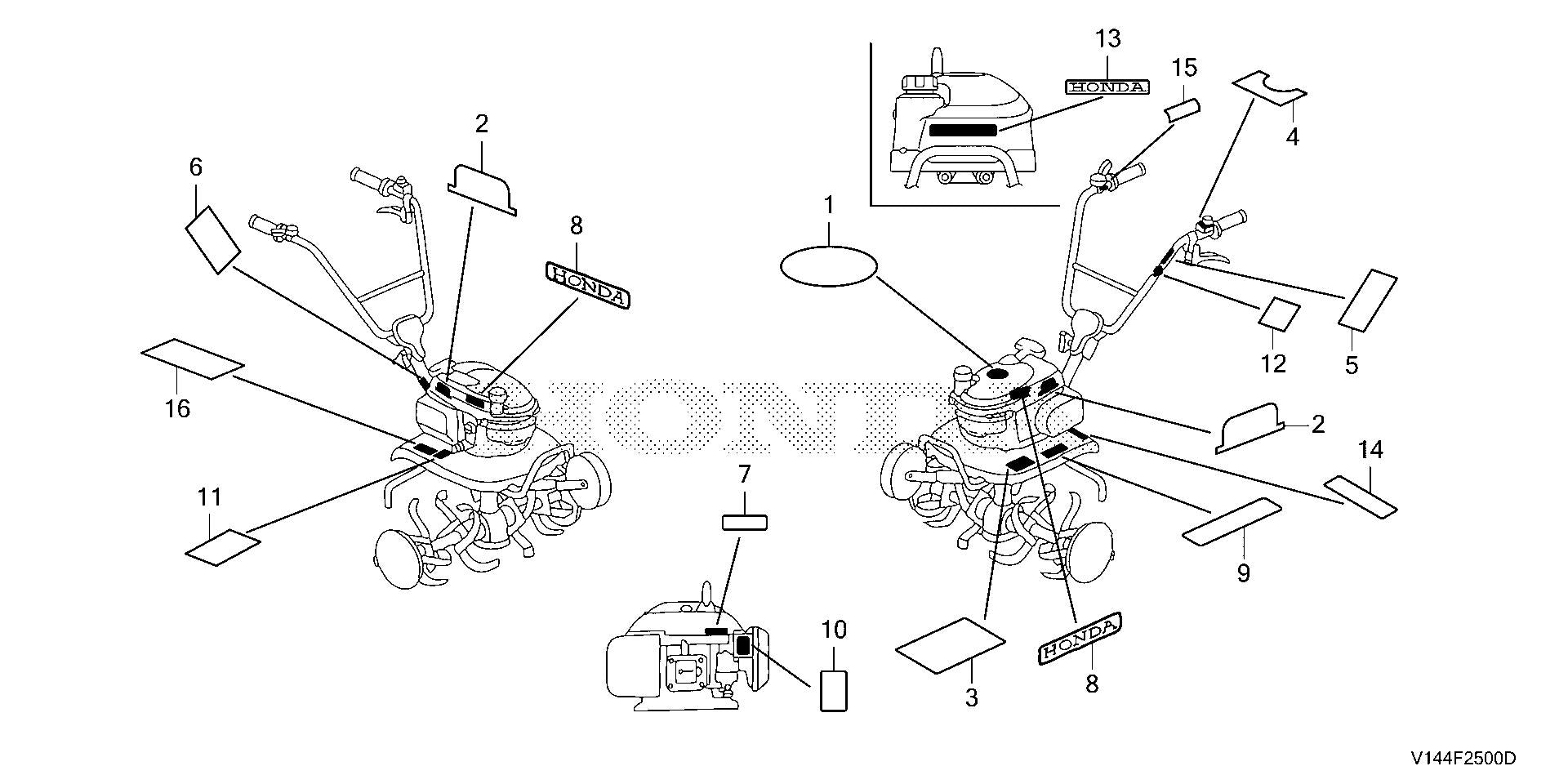

LABELS
LABELS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87102-v14-621
87102-v14-621
|
|||
|
|
87145-v14-641
87145-v14-641
|
|||
|
|
87406-v14-621
87406-v14-621
|
|||
|
|
87501-v14-620
87501-v14-620
|
|||
|
|
87501-v14-h20
87501-v14-h20
|
|||
|
|
87512-v14-620
87512-v14-620
|
|||
|
|
87516-v06-000
87516-v06-000
|
|||
|
|
87516-v20-a40
87516-v20-a40
|
|||
|
|
87516-v42-a20
87516-v42-a20
|
|||
|
|
87528-v14-641
87528-v14-641
|
|||
|
|
87531-vf9-781
87531-vf9-781
|
|||
|
|
87539-v14-620
87539-v14-620
|
|||
|
|
87540-v14-860
87540-v14-860
|
|||
|
|
87539-v14-621
87539-v14-621
|
|||
|
|
87539-v20-a40
87539-v20-a40
|
|||
|
|
87565-v14-640
87565-v14-640
|
|||
|
|
87594-v14-000
87594-v14-000
|
|||
|
|
87643-v14-620
87643-v14-620
|
|||
|
|
87531-v24-660
87531-v24-660
|
|||
|
|
87549-ye0-000
87549-ye0-000
|
|||
|
|
87532-v42-a20
87532-v42-a20
|
|||
|
|
87114-zt6-j20
87114-zt6-j20
|

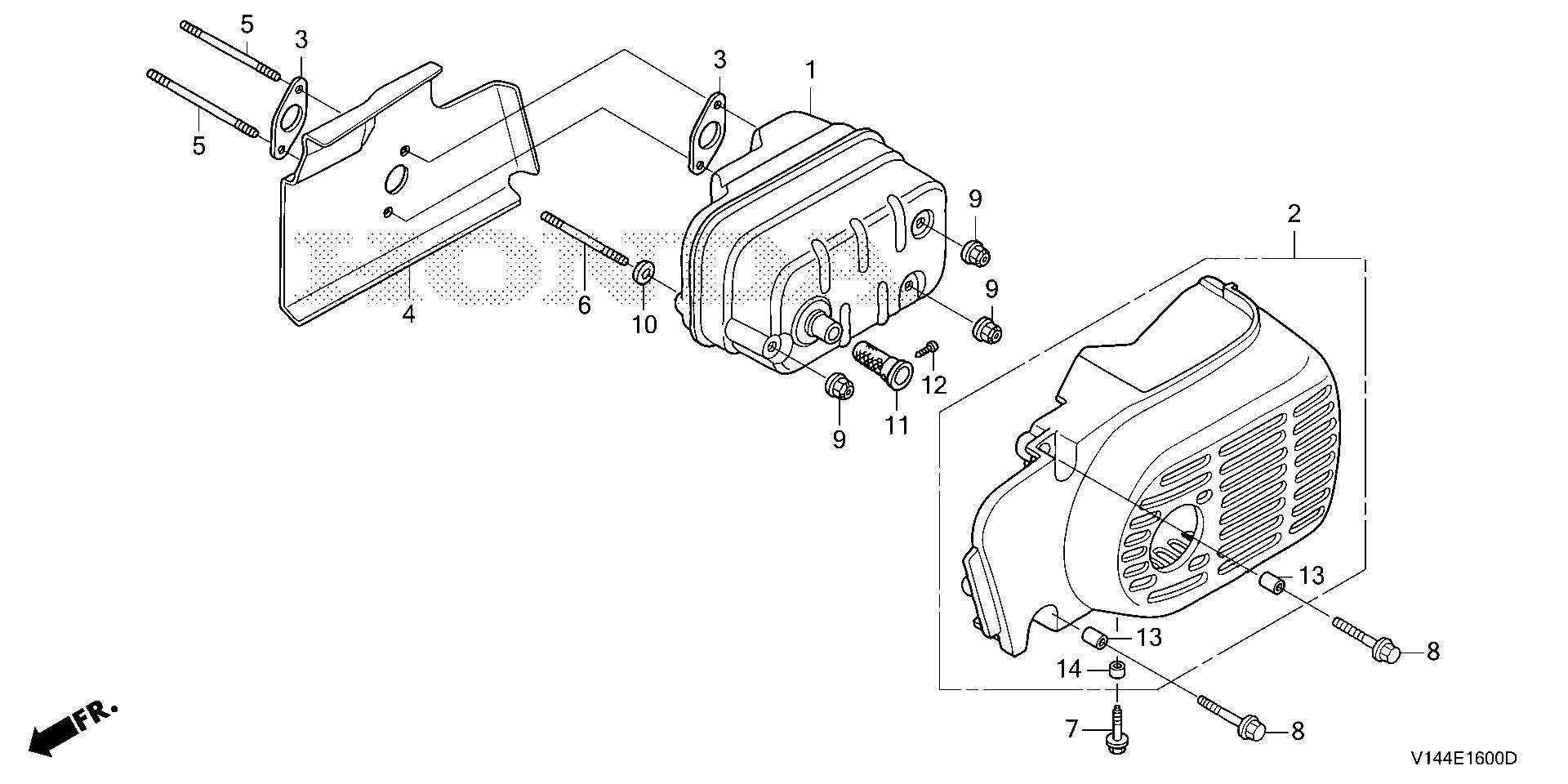

MUFFLER
MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
18310-z0g-800
18310-z0g-800
|
|||
|
|
18320-z0g-000
18320-z0g-000
|
|||
|
|
18381-z0g-010
18381-z0g-010
|
|||
|
|
18515-z0g-000
18515-z0g-000
|
|||
|
|
90003-z0g-620
90003-z0g-620
|
|||
|
|
90004-z0g-620
90004-z0g-620
|
|||
|
|
90012-892-000
90012-892-000
|
|||
|
|
90014-kcz-000
90014-kcz-000
|
|||
|
|
90136-sm4-901
90136-sm4-901
|
|||
|
|
90483-178-000
90483-178-000
|
|||
|
|
18350-zm7-801
18350-zm7-801
|
|||
|
|
93903-24110
93903-24110
|
|||
|
|
33720-kct-690
33720-kct-690
|
|||
|
|
91502-zm3-000
91502-zm3-000
|

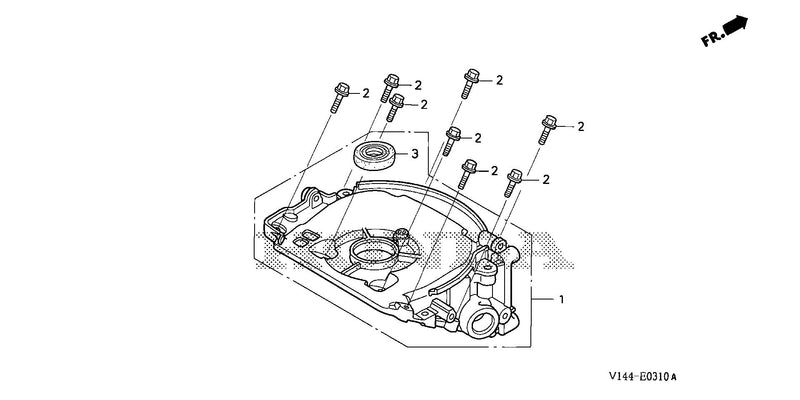

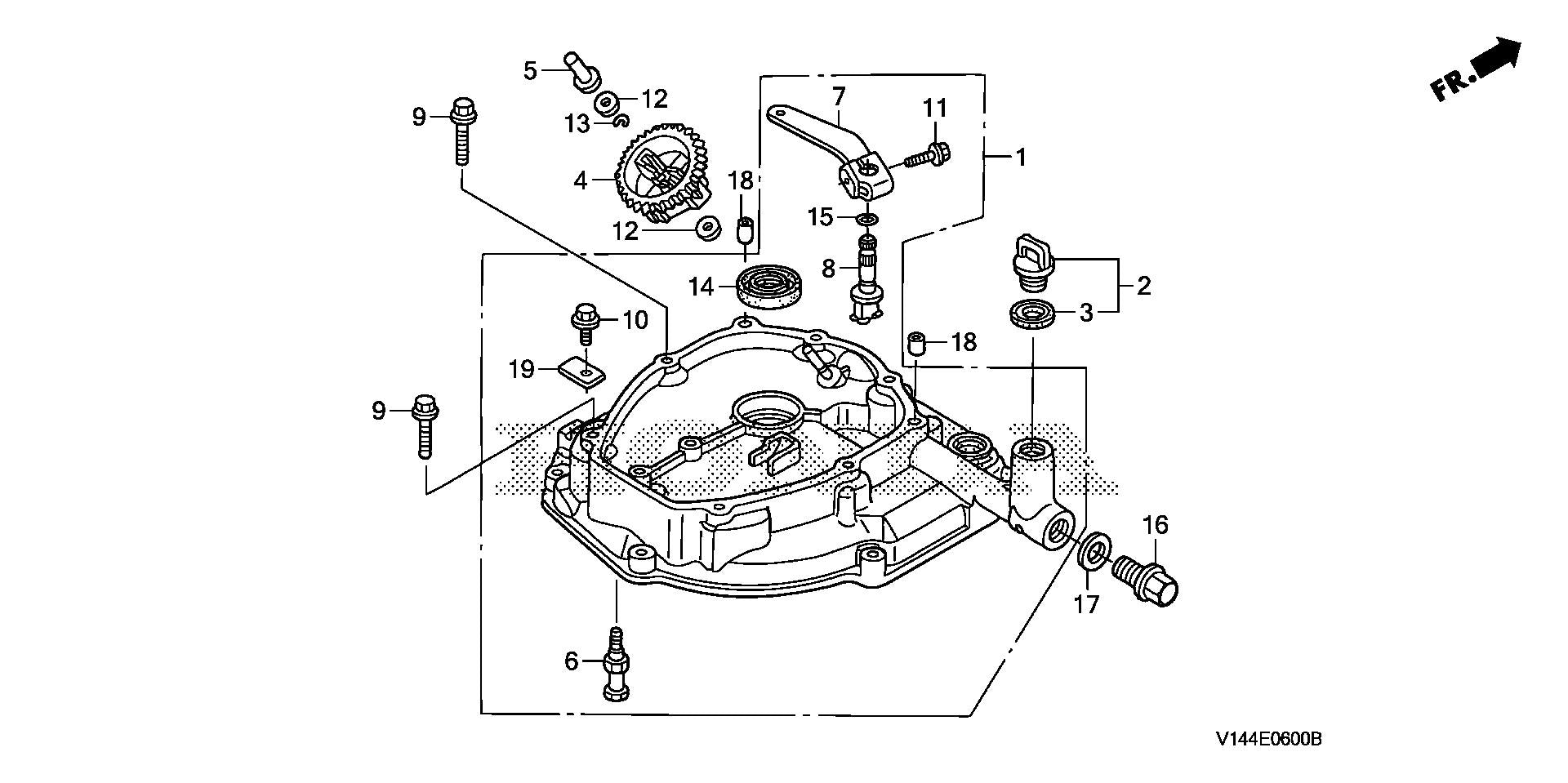

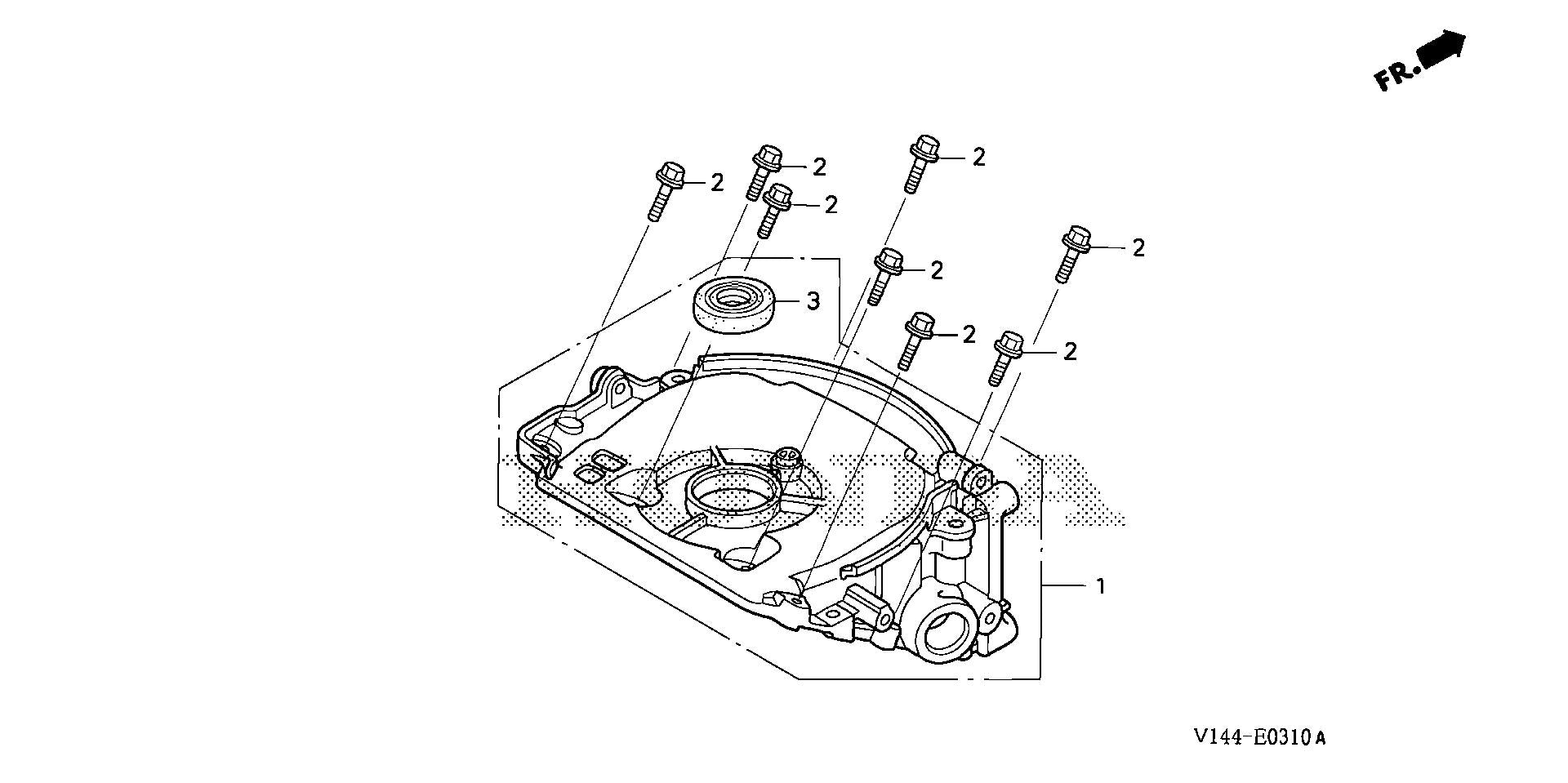

OIL CASE
OIL CASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11300-z0g-405
11300-z0g-405
|
|||
|
|
90006-zm7-000
90006-zm7-000
|
|||
|
|
91202-hc5-005
91202-hc5-005
|

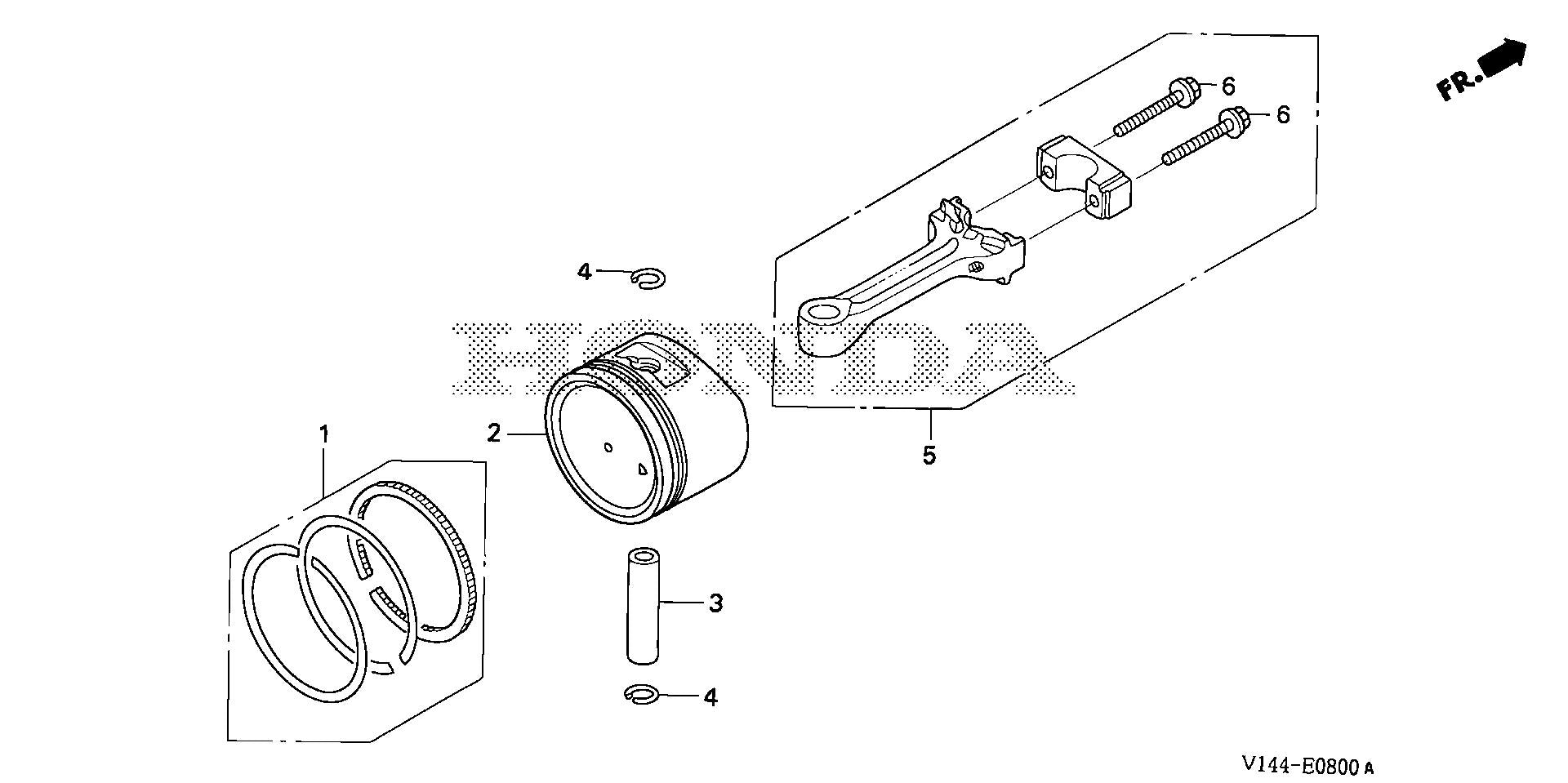

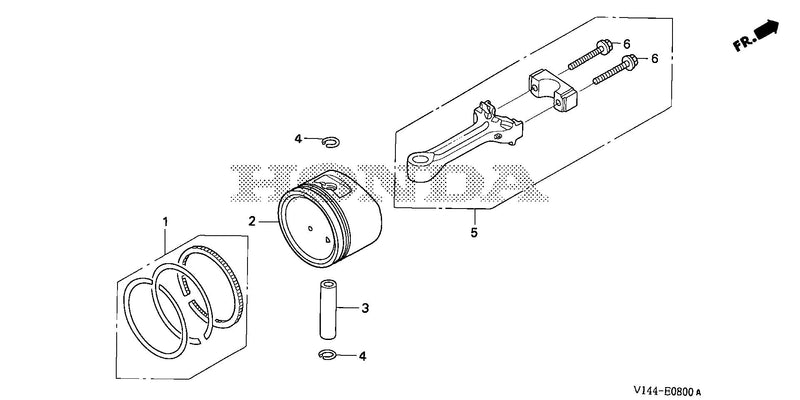

PISTON@CONNECTING ROD
PISTON@CONNECTING ROD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13010-zw6-000
13010-zw6-000
|
|||
|
|
13101-zdh-000
13101-zdh-000
|
|||
|
|
13101-z0g-000
13101-z0g-000
|
|||
|
|
13111-gs7-000
13111-gs7-000
|
|||
|
|
13200-zn4-010
13200-zn4-010
|
|||
|
|
13200-z0g-000
13200-z0g-000
|
|||
|
|
90001-zm7-000
90001-zm7-000
|

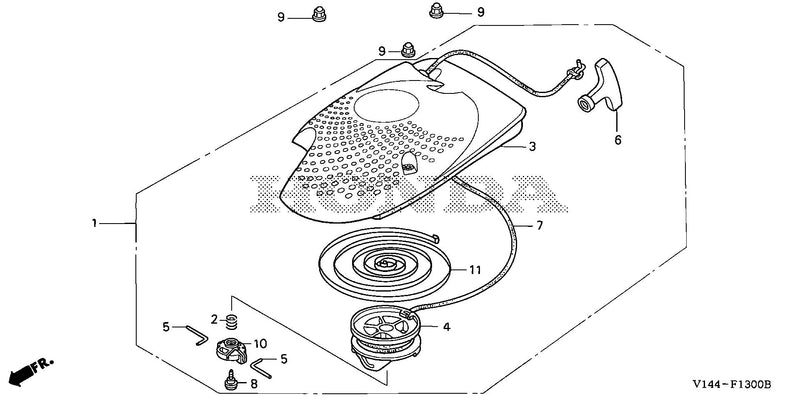

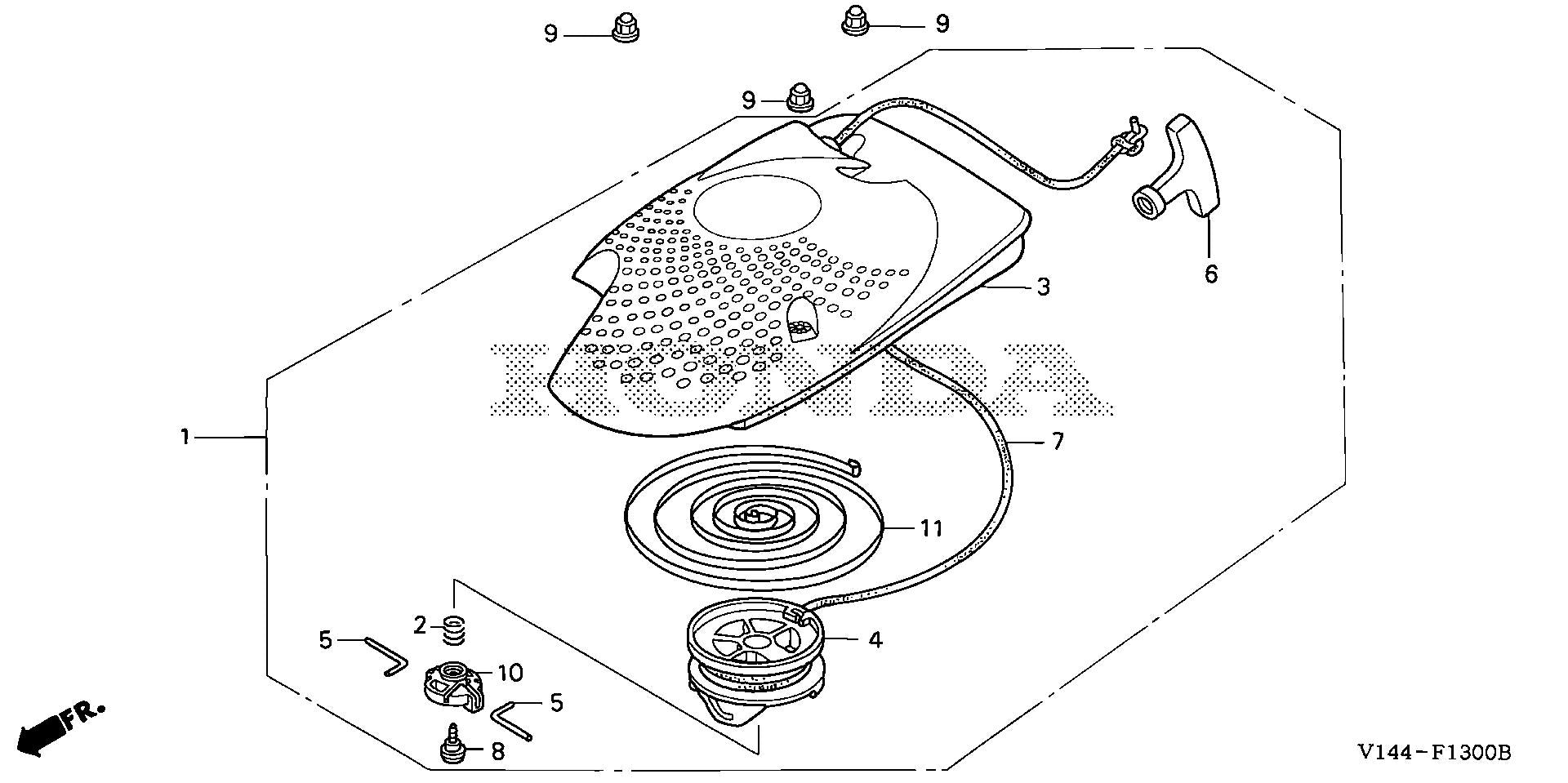

RECOIL STARTER
RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28400-z0g-013zb
28400-z0g-013zb
|
|||
|
|
28400-z0g-305za
28400-z0g-305za
|
|||
|
|
28404-968-004
28404-968-004
|
|||
|
|
28410-z0g-003zc
28410-z0g-003zc
|
|||
|
|
28421-zm7-003
28421-zm7-003
|
|||
|
|
28459-zm7-003
28459-zm7-003
|
|||
|
|
28462-z0g-003
28462-z0g-003
|
|||
|
|
90012-zm3-003
90012-zm3-003
|
|||
|
|
90167-sa0-980
90167-sa0-980
|
|||
|
|
91504-zm7-003
91504-zm7-003
|
|||
|
|
28442-zl8-003
28442-zl8-003
|

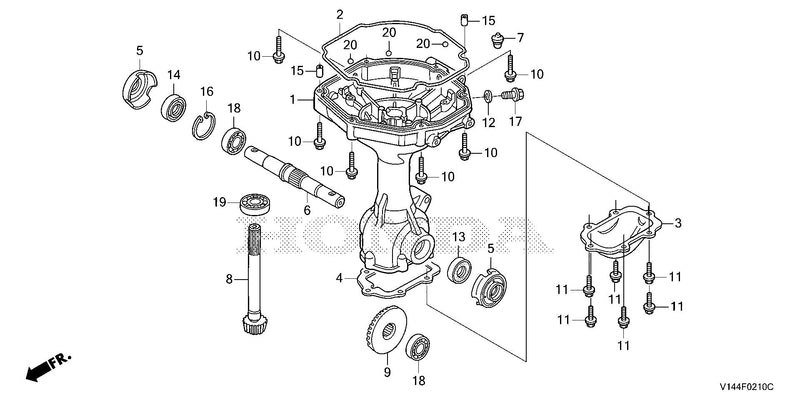

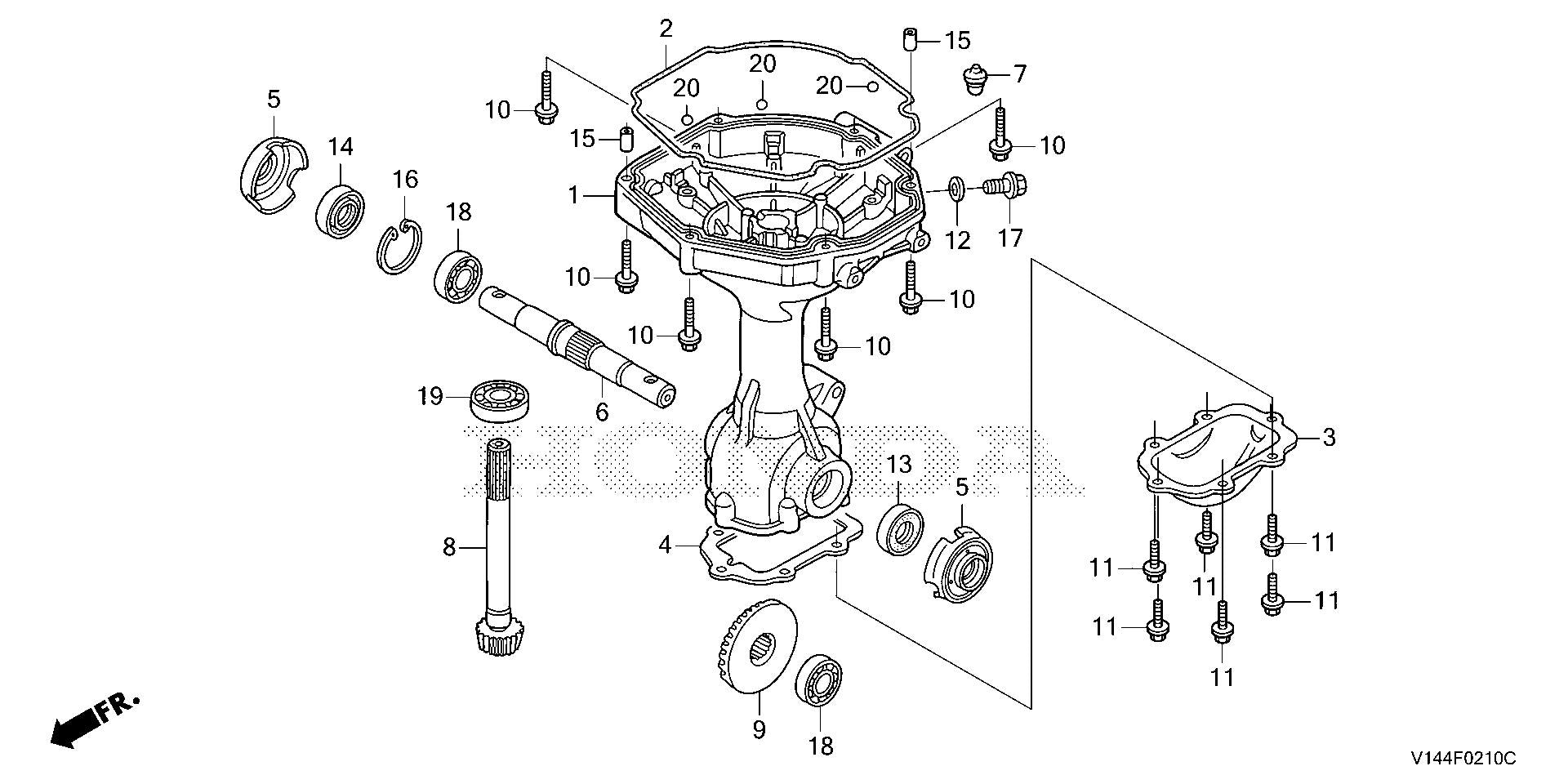

REDUCTION CASE
REDUCTION CASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21111-v14-405
21111-v14-405
|
|||
|
|
21271-729-000
21271-729-000
|
|||
|
|
21282-729-000
21282-729-000
|
|||
|
|
21289-v14-000
21289-v14-000
|
|||
|
|
21911-729-000
21911-729-000
|
|||
|
|
23371-v14-000
23371-v14-000
|
|||
|
|
25611-v14-010
25611-v14-010
|
|||
|
|
41131-729-000
41131-729-000
|
|||
|
|
41141-729-000
41141-729-000
|
|||
|
|
90016-ze8-000
90016-ze8-000
|
|||
|
|
90029-888-000
90029-888-000
|
|||
|
|
90481-705-000
90481-705-000
|
|||
|
|
91257-729-003
91257-729-003
|
|||
|
|
91253-729-003
91253-729-003
|
|||
|
|
94301-08120
94301-08120
|
|||
|
|
94520-47000
94520-47000
|
|||
|
|
95701-10016-08
95701-10016-08
|
|||
|
|
96100-62040-00
96100-62040-00
|
|||
|
|
96100-63020-00
96100-63020-00
|
|||
|
|
96211-10000
96211-10000
|

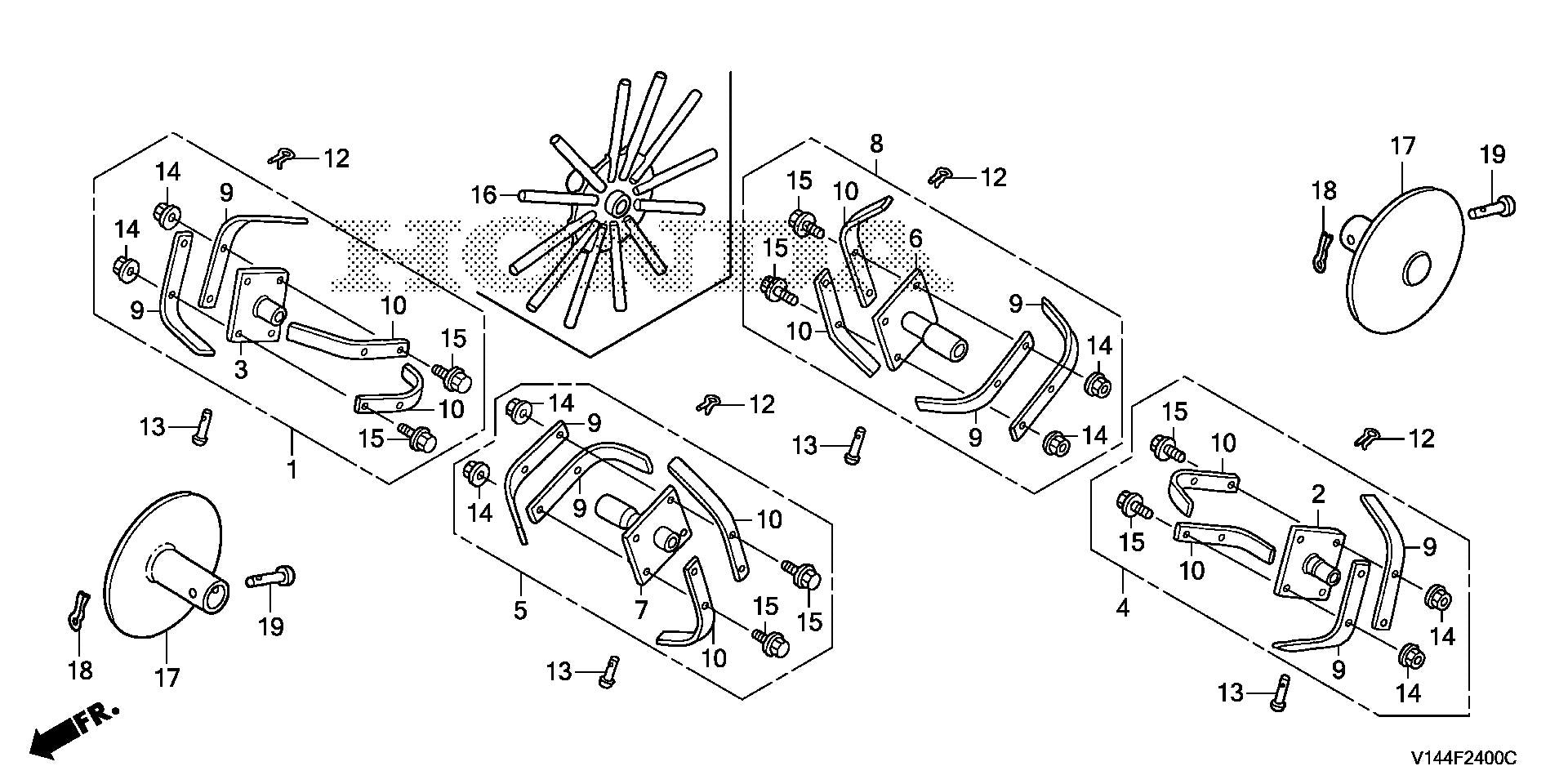

ROTOR TINE
ROTOR TINE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
72110-737-e80za
72110-737-e80za
|
|||
|
|
72120-729-670za
72120-729-670za
|
|||
|
|
72111-729-305
72111-729-305
|
|||
|
|
72112-729-305
72112-729-305
|
|||
|
|
72110-729-670za
72110-729-670za
|
|||
|
|
72120-737-e80za
72120-737-e80za
|
|||
|
|
72220-729-670za
72220-729-670za
|
|||
|
|
72211-729-305
72211-729-305
|
|||
|
|
72212-729-305
72212-729-305
|
|||
|
|
72210-729-670za
72210-729-670za
|
|||
|
|
72461-729-315
72461-729-315
|
|||
|
|
72461-737-a00
72461-737-a00
|
|||
|
|
72461-729-315
72461-729-315
|
|||
|
|
72465-737-a00
72465-737-a00
|
|||
|
|
90651-703-000
90651-703-000
|
|||
|
|
90757-729-000
90757-729-000
|
|||
|
|
95701-08018-00
95701-08018-00
|
|||
|
|
72610-729-810
72610-729-810
|

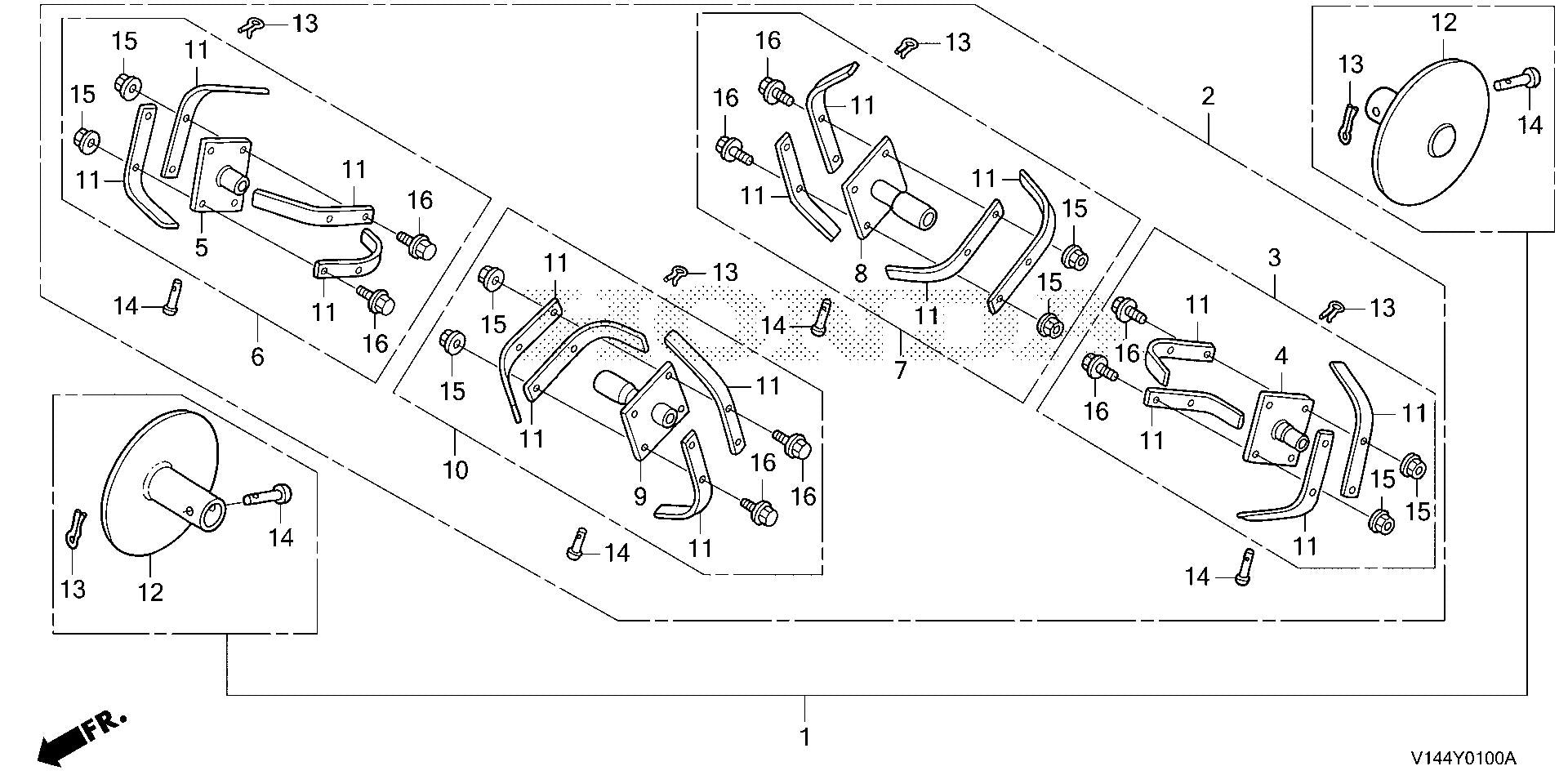

SIDE DISK KIT@ROTOR KIT
SIDE DISK KIT@ROTOR KIT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
06720-v14-620
06720-v14-620
|
|||
|
|
06721-729-305za
06721-729-305za
|
|||
|
|
72110-729-670za
72110-729-670za
|
|||
|
|
72111-729-305
72111-729-305
|
|||
|
|
72112-729-305
72112-729-305
|
|||
|
|
72120-729-670za
72120-729-670za
|
|||
|
|
72210-729-670za
72210-729-670za
|
|||
|
|
72211-729-305
72211-729-305
|
|||
|
|
72212-729-305
72212-729-305
|
|||
|
|
72220-729-670za
72220-729-670za
|
|||
|
|
72461-729-315
72461-729-315
|
|||
|
|
72510-737-003
72510-737-003
|
|||
|
|
90651-703-000
90651-703-000
|
|||
|
|
90757-729-000
90757-729-000
|
|||
|
|
95701-08018-00
95701-08018-00
|

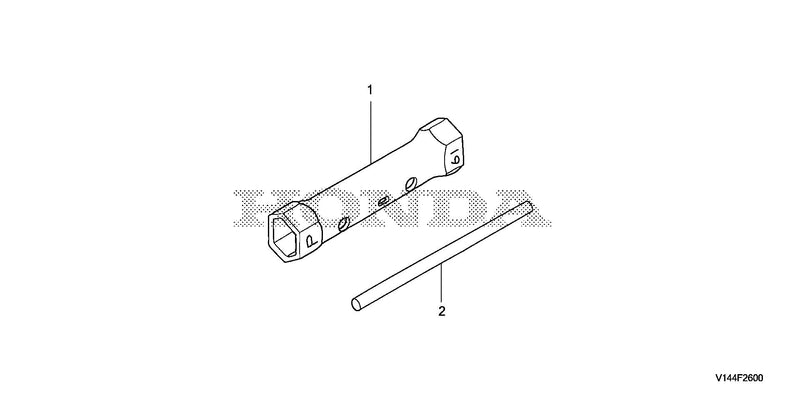

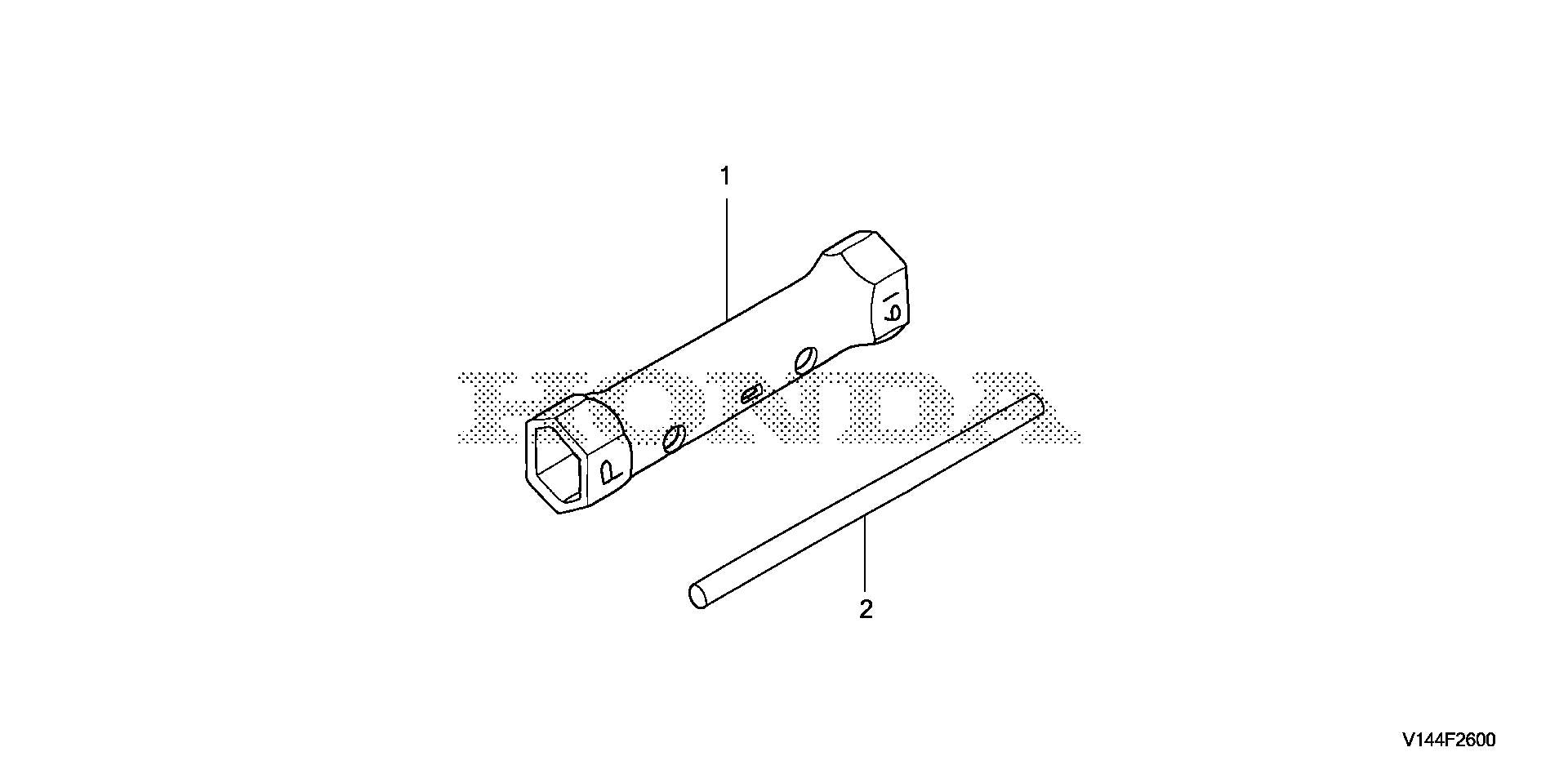

TOOLS
TOOLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
89216-045-010
89216-045-010
|
|||
|
|
99005-01000
99005-01000
|
SUBSCRIBE AND GET EXCLUSIVE DEALS!
Subscribe to our newsletter TODAY and GET $10 OFF your next order of $100 or more. Our newsletter contains special offers, discounts and updates on new EGO products
