Honda F400-A1 Parts Diagram Tiller (Serial F400-2000001 to 2031403)
Diagrams:
Diagram:

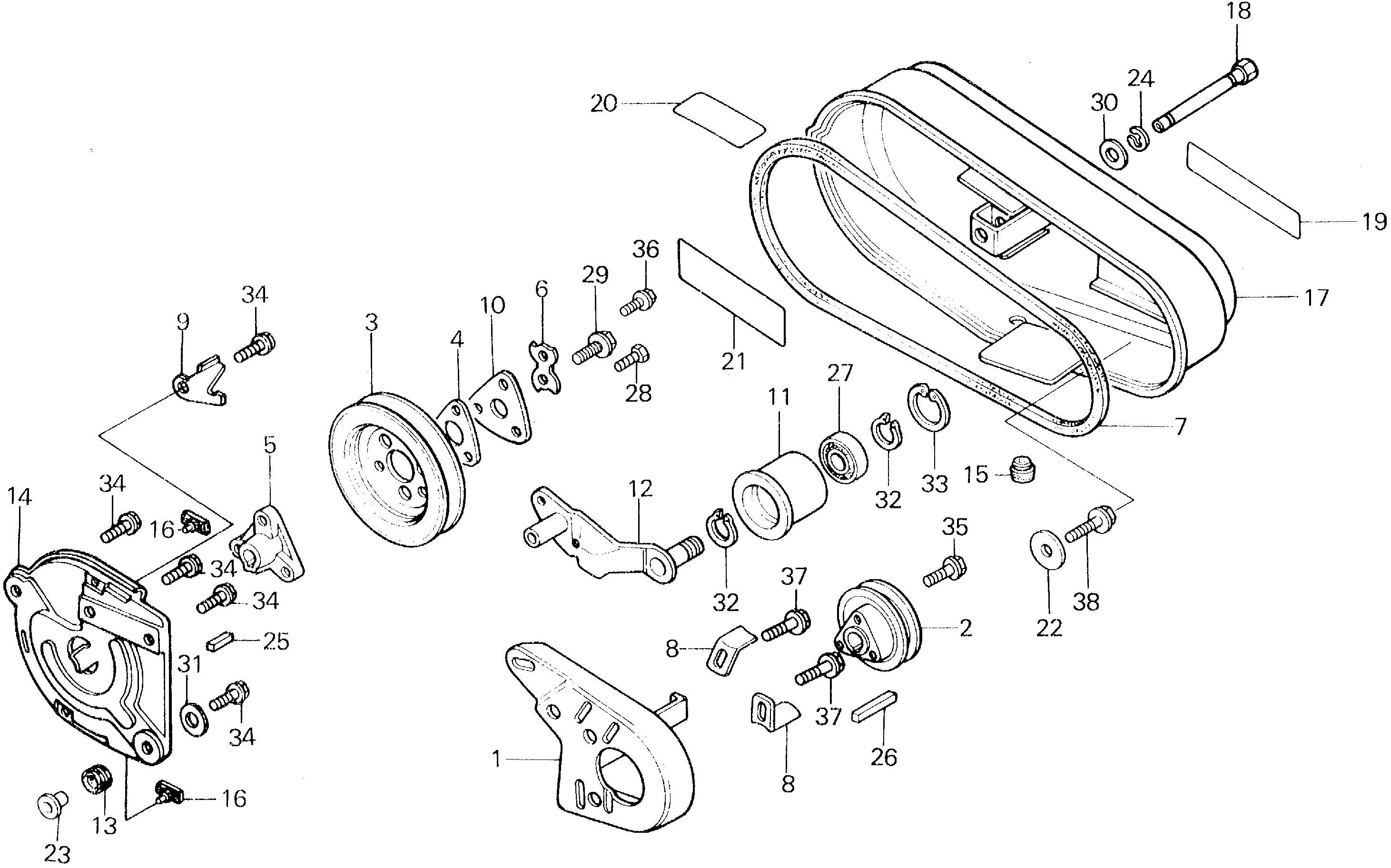

BELT COVER@PULLEY
BELT COVER@PULLEY
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
22414-723-000
22414-723-000
|
|||
|
|
22443-723-670
22443-723-670
|
|||
|
|
32983-028-000
32983-028-000
|
|||
|
|
63615-719-610
63615-719-610
|
|||
|
|
63615-723-670
63615-723-670
|
|||
|
|
90428-844-650
90428-844-650
|
|||
|
|
90563-045-000
90563-045-000
|
|||
|
|
90652-719-000
90652-719-000
|
|||
|
|
90741-715-000
90741-715-000
|
|||
|
|
90746-835-000
90746-835-000
|
|||
|
|
92101-06016-0a
92101-06016-0a
|
|||
|
|
92101-08016-0a
92101-08016-0a
|
|||
|
|
94101-10000
94101-10000
|
|||
|
|
94102-08000
94102-08000
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95701-06016-00
95701-06016-00
|
|||
|
|
95701-06016-08
95701-06016-08
|
|||
|
|
95701-08016-00
95701-08016-00
|
|||
|
|
95701-08016-08
95701-08016-08
|
|||
|
|
95701-08025-00
95701-08025-00
|
|||
|
|
95701-08028-08
95701-08028-08
|

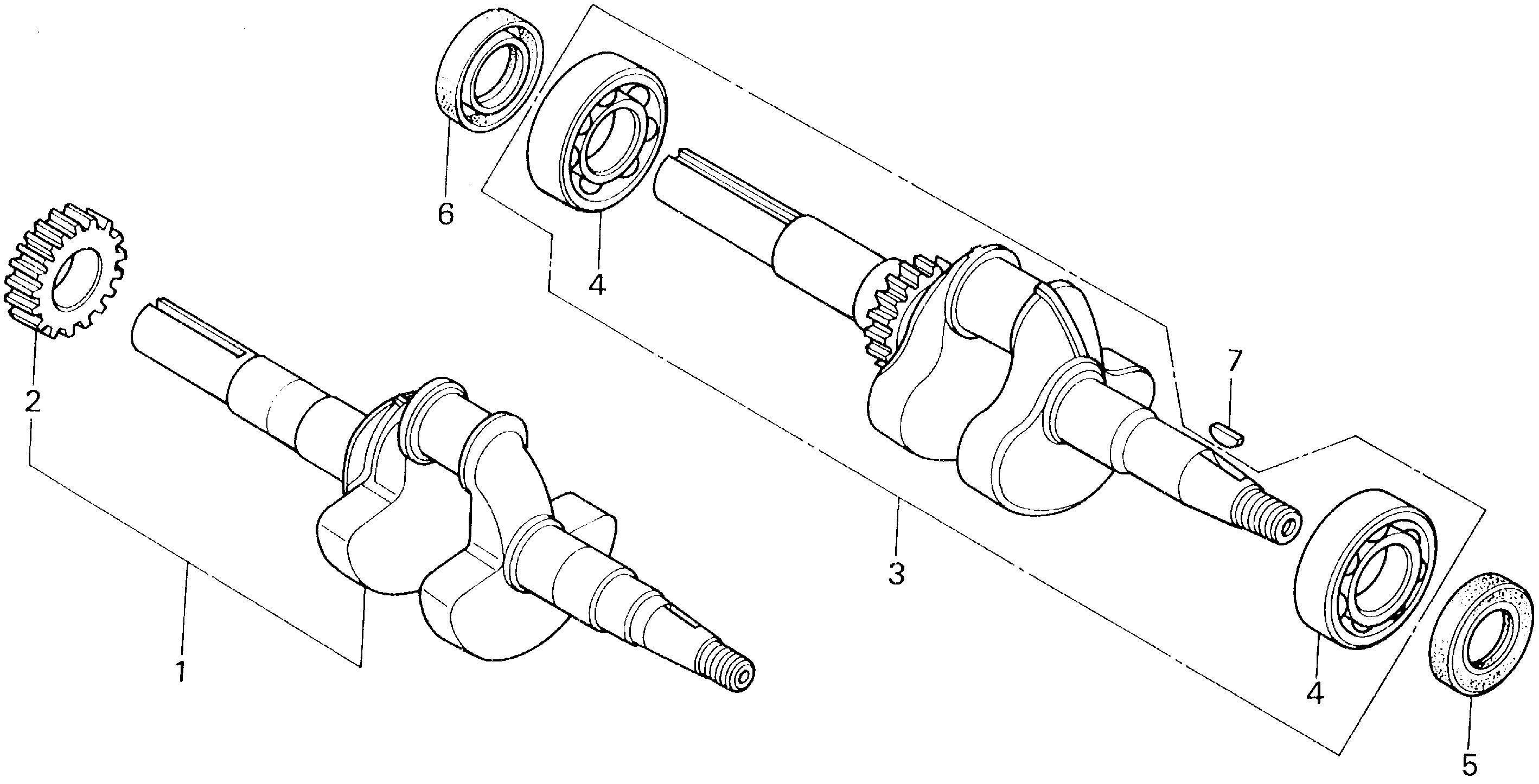

CRANKSHAFT
CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14311-883-310
14311-883-310
|
|||
|
|
91001-878-003
91001-878-003
|
|||
|
|
91202-ze6-013
91202-ze6-013
|
|||
|
|
91203-ze0-013
91203-ze0-013
|
|||
|
|
94401-25140
94401-25140
|

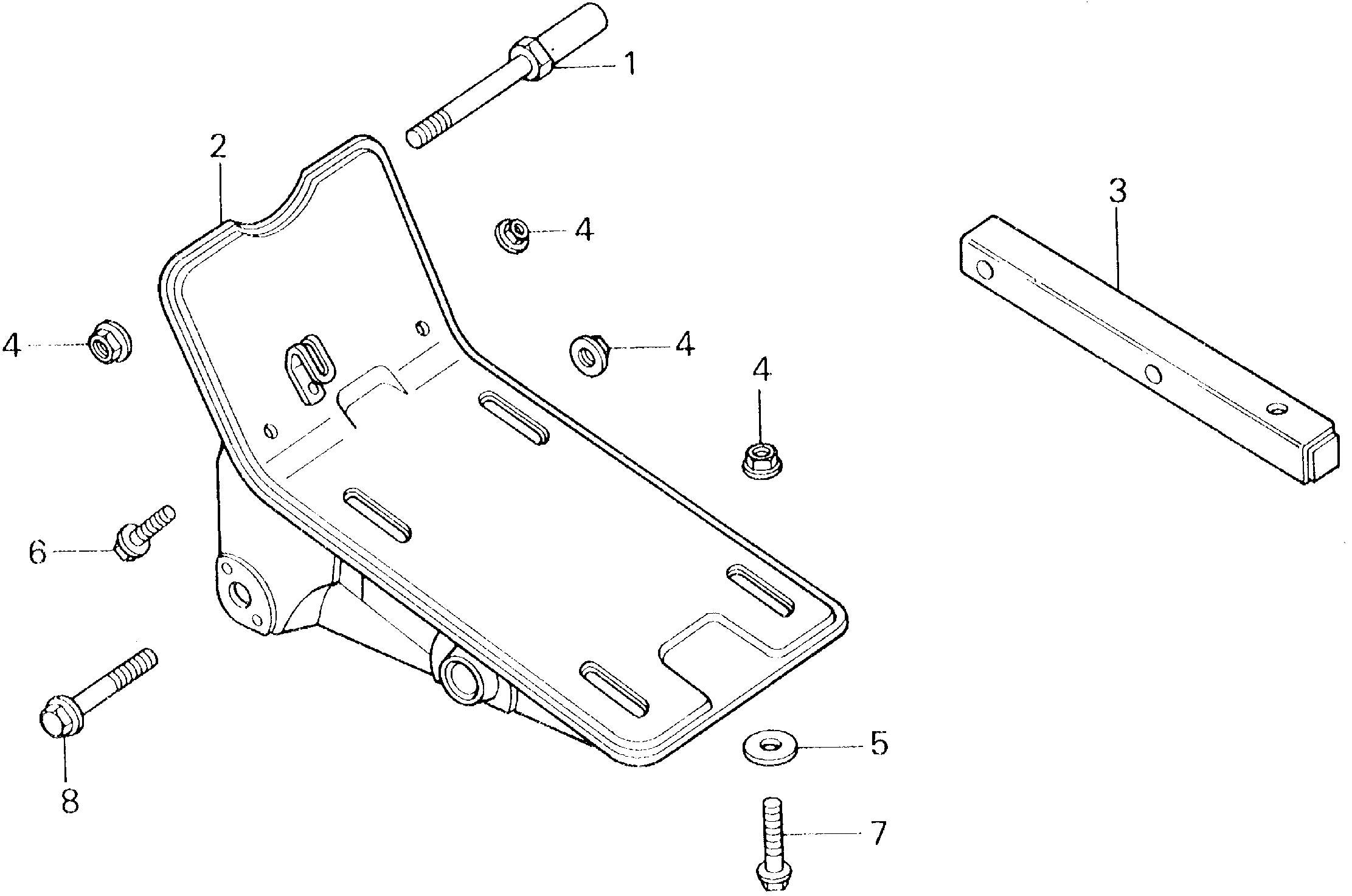

ENGINE BED
ENGINE BED
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
22551-723-000
22551-723-000
|
|||
|
|
59431-723-810
59431-723-810
|
|||
|
|
90402-344-820
90402-344-820
|
|||
|
|
95701-08016-00
95701-08016-00
|
|||
|
|
95801-08045-00
95801-08045-00
|

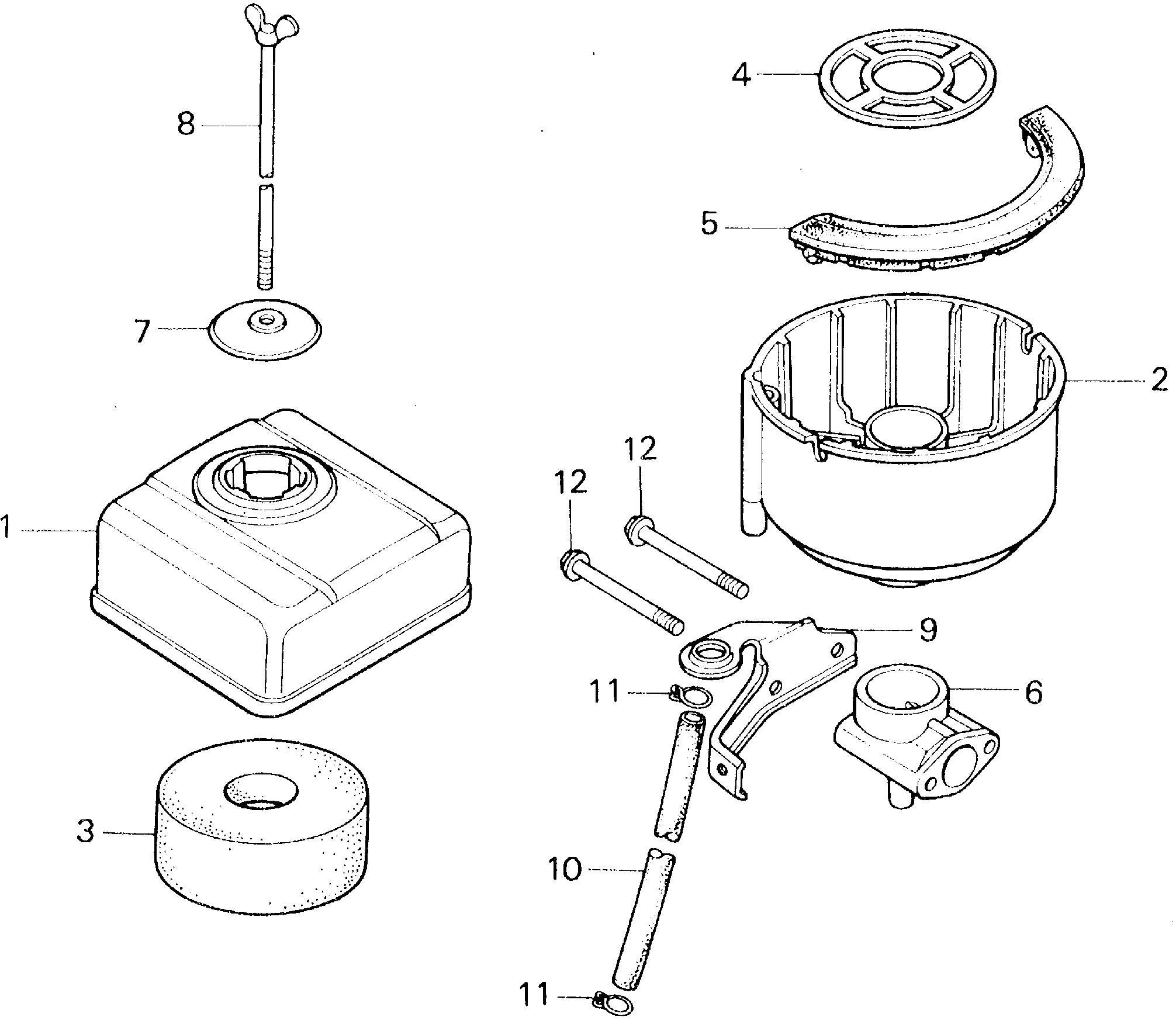

F400 AIR CLEANER
F400 AIR CLEANER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17403-841-000
17403-841-000
|
|||
|
|
17404-841-000
17404-841-000
|
|||
|
|
17425-865-780
17425-865-780
|
|||
|
|
95002-02130
95002-02130
|
|||
|
|
95701-06070-08
95701-06070-08
|

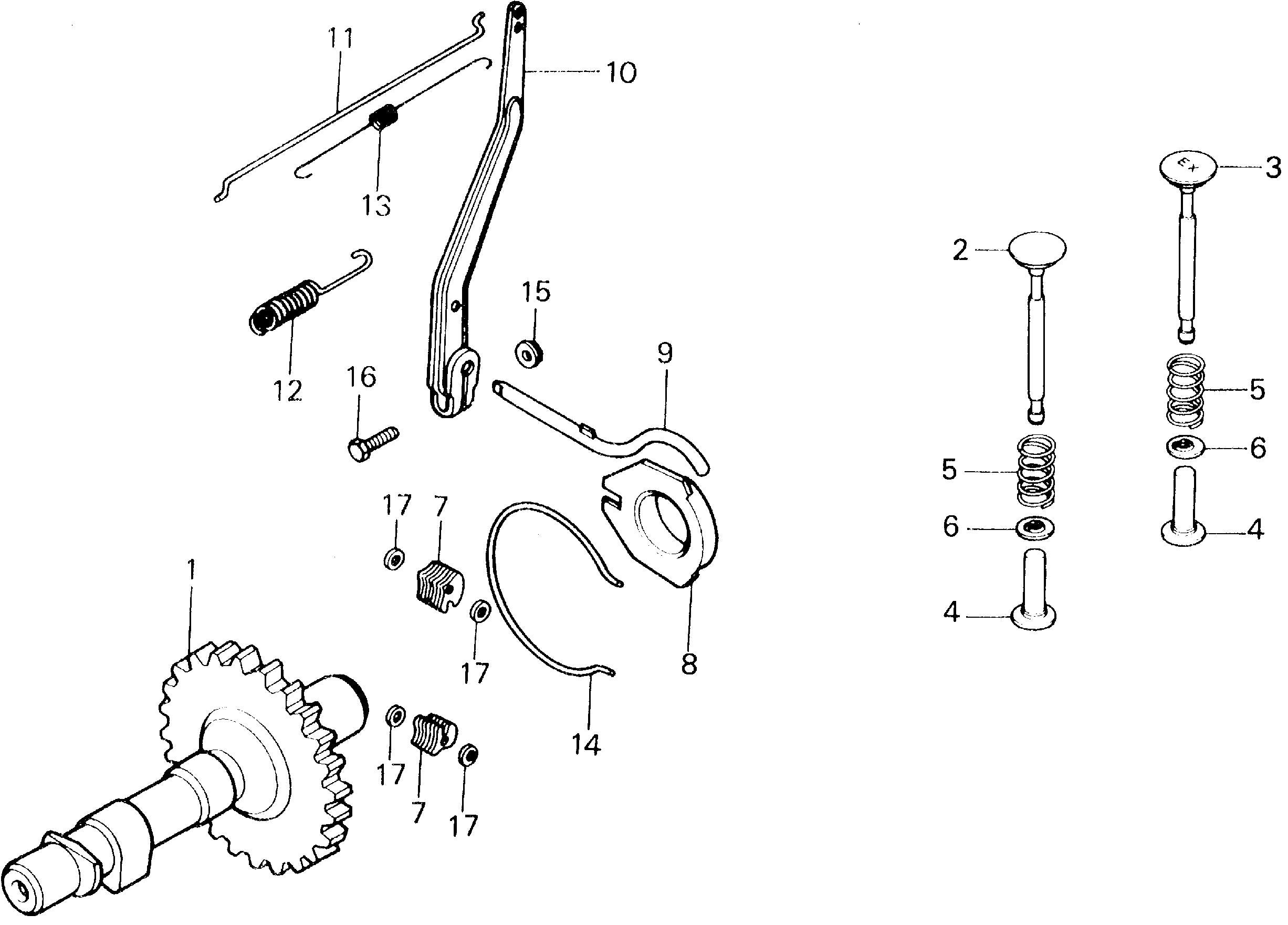

F400 CAMSHAFT
F400 CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14738-878-000
14738-878-000
|
|||
|
|
14771-883-305
14771-883-305
|
|||
|
|
92101-06020-0h
92101-06020-0h
|
|||
|
|
94101-03000
94101-03000
|

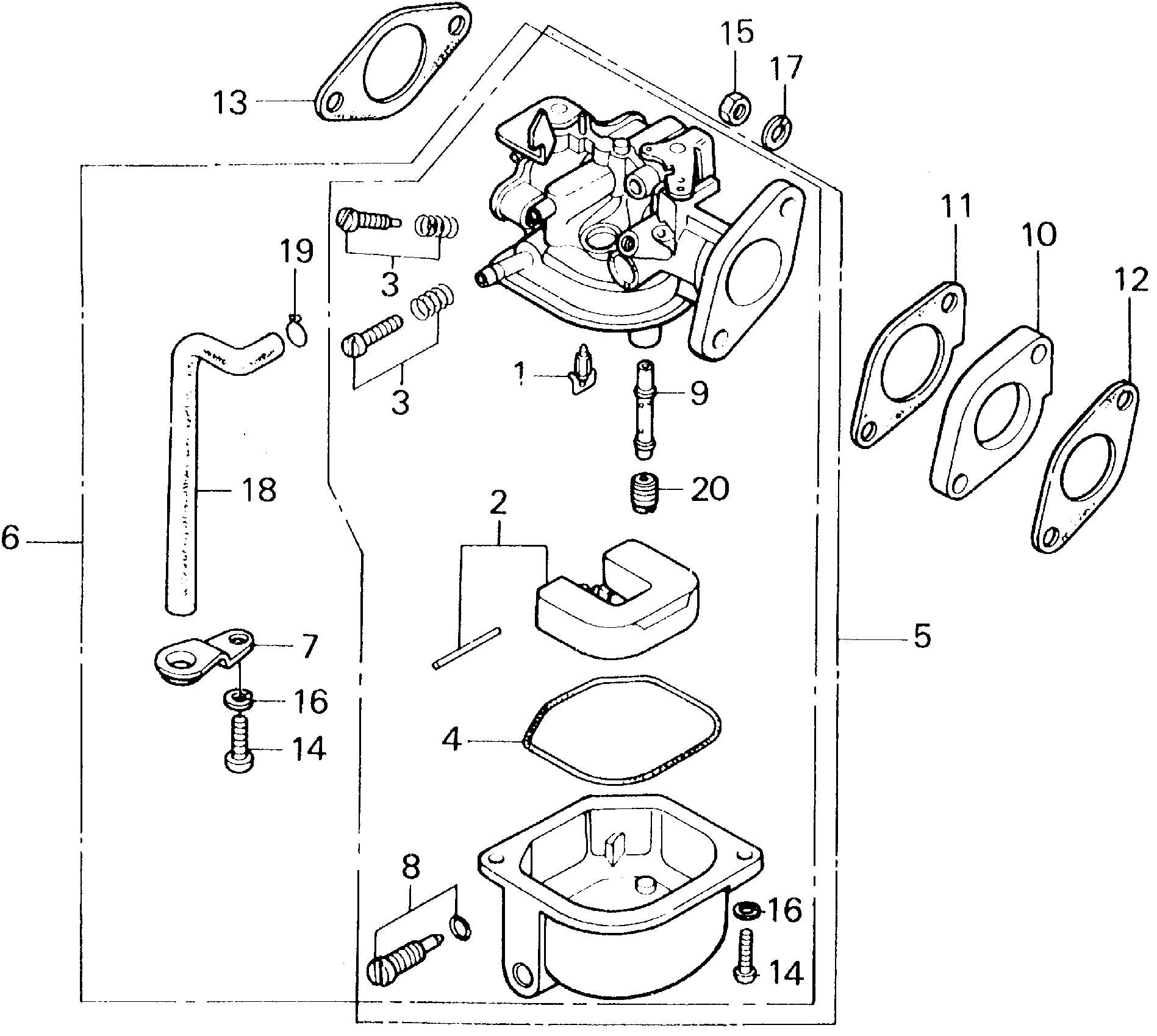

F400 CARBURETOR
F400 CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16011-721-004
16011-721-004
|
|||
|
|
16013-721-014
16013-721-014
|
|||
|
|
93500-04012-0a
93500-04012-0a
|
|||
|
|
94001-06080-0s
94001-06080-0s
|
|||
|
|
94111-04000
94111-04000
|
|||
|
|
94111-06800
94111-06800
|
|||
|
|
95001-35003-60m
95001-35003-60m
|
|||
|
|
95002-02070
95002-02070
|

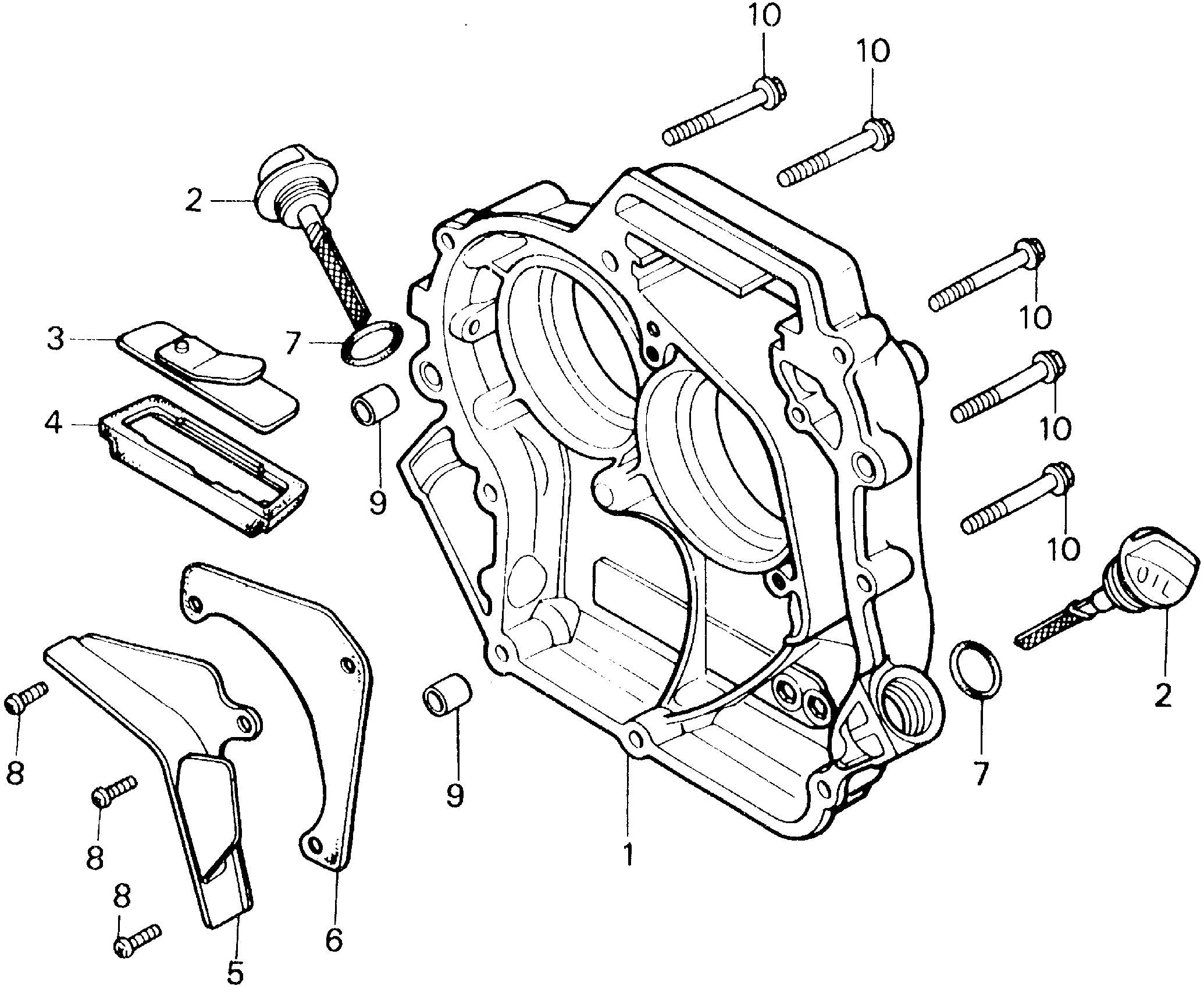

F400 CRANKCASE COVER
F400 CRANKCASE COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
93500-05012-0h
93500-05012-0h
|
|||
|
|
94301-08140
94301-08140
|
|||
|
|
95701-06032-08
95701-06032-08
|

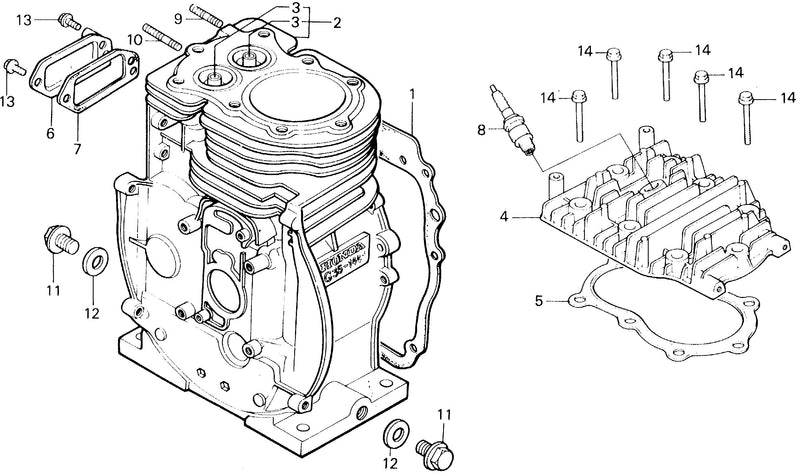

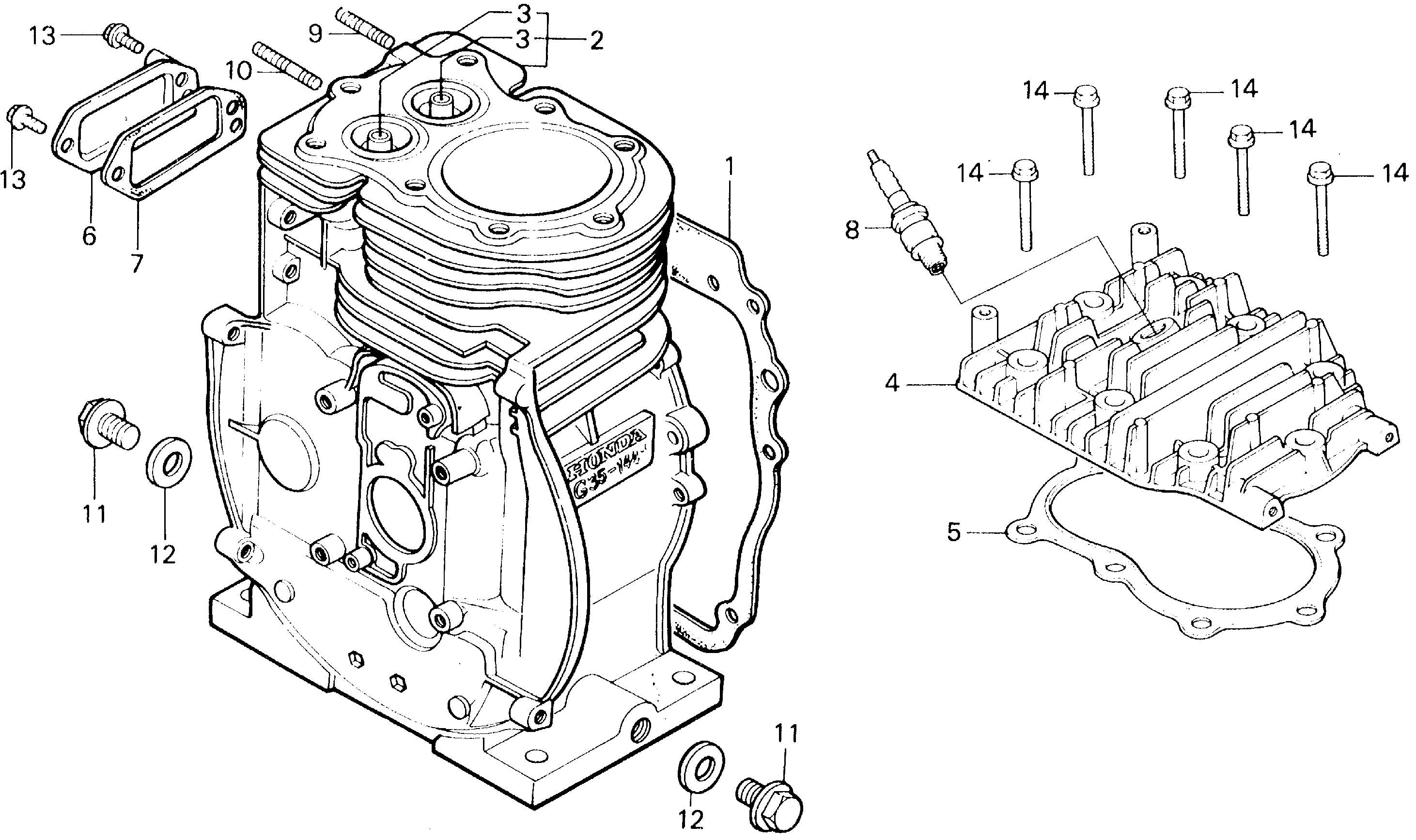

F400 CYLINDER HEAD@CYLINDER
F400 CYLINDER HEAD@CYLINDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12221-878-000
12221-878-000
|
|||
|
|
98076-56716
98076-56716
|
|||
|
|
92900-06016-0b
92900-06016-0b
|
|||
|
|
92900-06025-0b
92900-06025-0b
|
|||
|
|
92800-12000
92800-12000
|
|||
|
|
94109-12000
94109-12000
|
|||
|
|
95701-08040-08
95701-08040-08
|

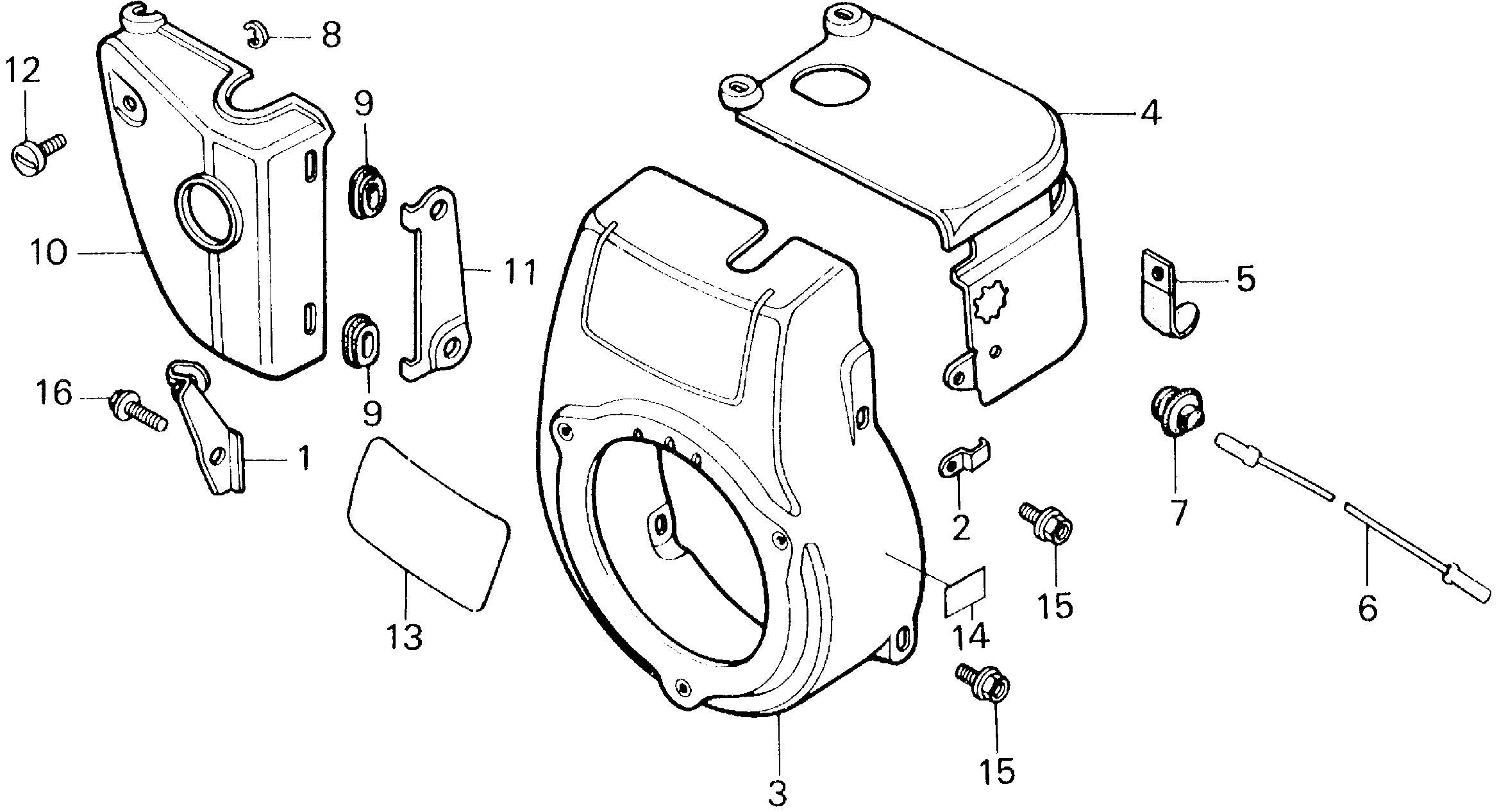

F400 FAN COVER@SIDE PLATE
F400 FAN COVER@SIDE PLATE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
40513-310-000
40513-310-000
|
|||
|
|
95701-06016-08
95701-06016-08
|

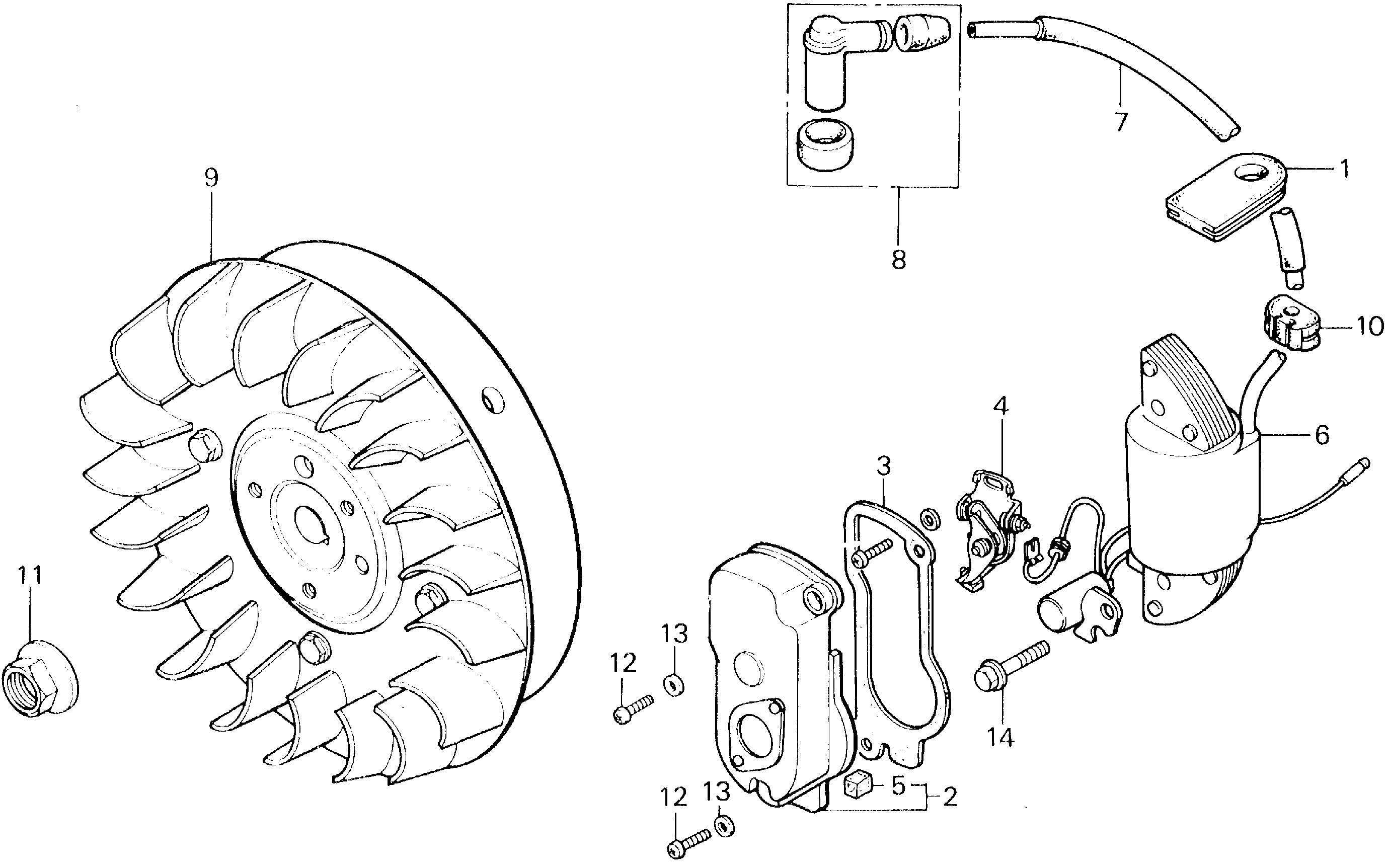

F400 FLYWHEEL@POINTS
F400 FLYWHEEL@POINTS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30280-878-003
30280-878-003
|
|||
|
|
30700-ke2-942
30700-ke2-942
|
|||
|
|
90201-878-003
90201-878-003
|
|||
|
|
93500-04008-0h
93500-04008-0h
|
|||
|
|
94101-04000
94101-04000
|

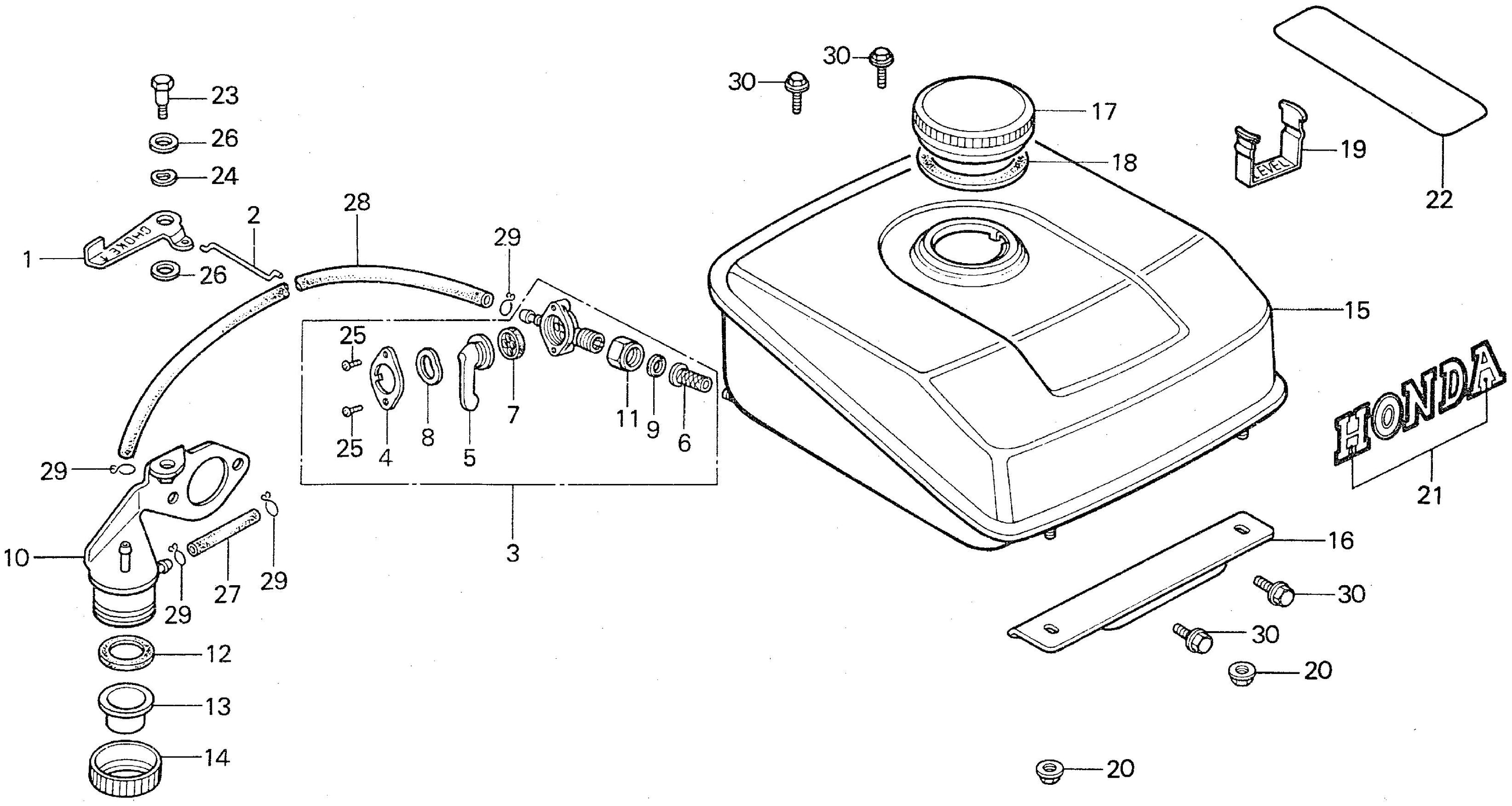

F400 FUEL TANK@PETCOCK
F400 FUEL TANK@PETCOCK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16950-045-005
16950-045-005
|
|||
|
|
16956-ze1-811
16956-ze1-811
|
|||
|
|
90162-721-010
90162-721-010
|
|||
|
|
93500-03006-0a
93500-03006-0a
|
|||
|
|
94101-08000
94101-08000
|
|||
|
|
95001-45003-60m
95001-45003-60m
|
|||
|
|
95001-45003-60m
95001-45003-60m
|
|||
|
|
95002-02080
95002-02080
|

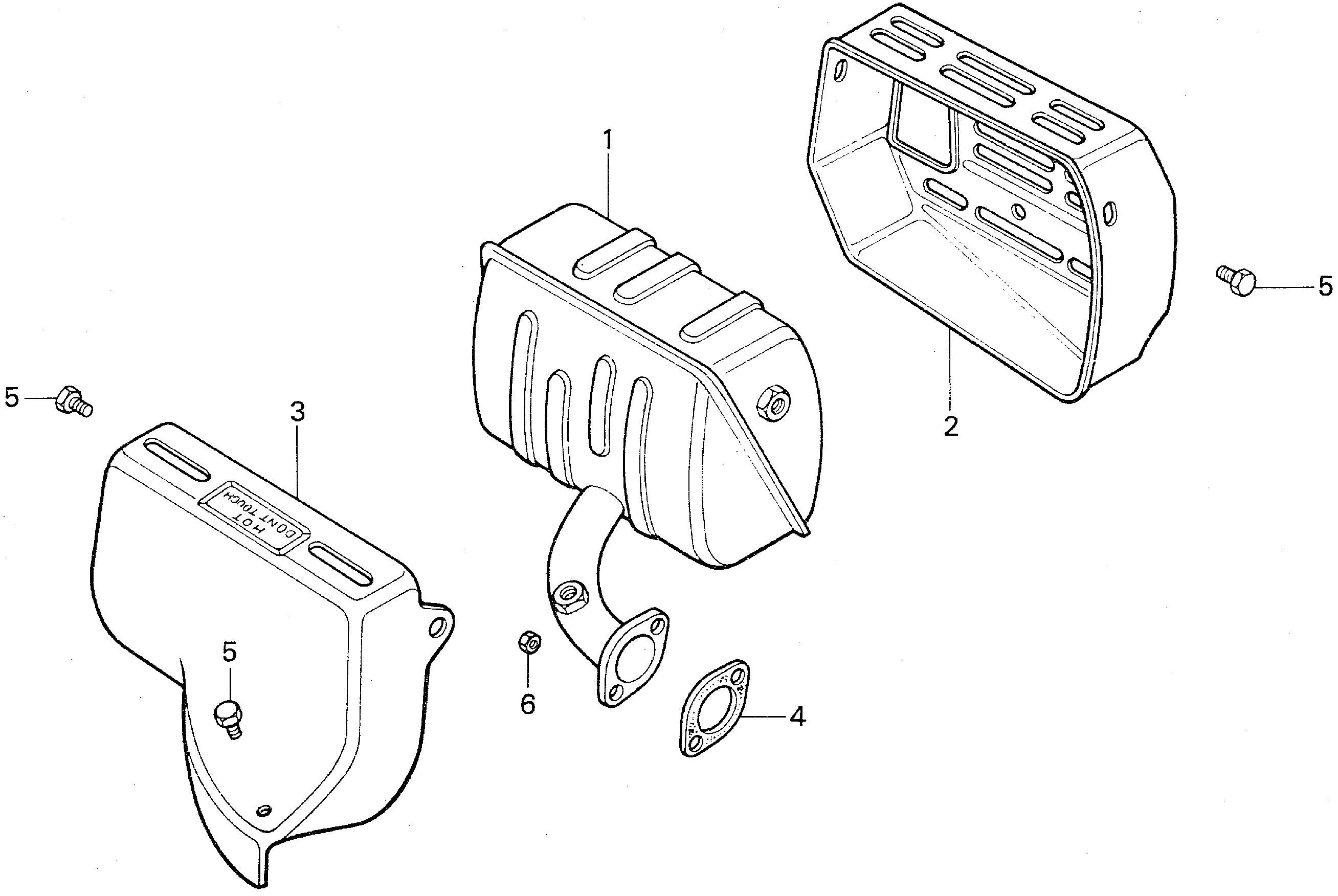

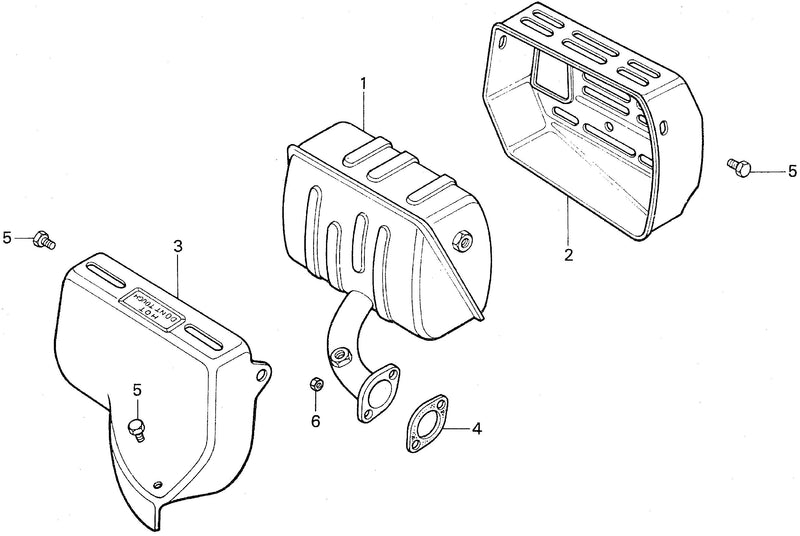

F400 MUFFLER
F400 MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
94001-06080-0s
94001-06080-0s
|

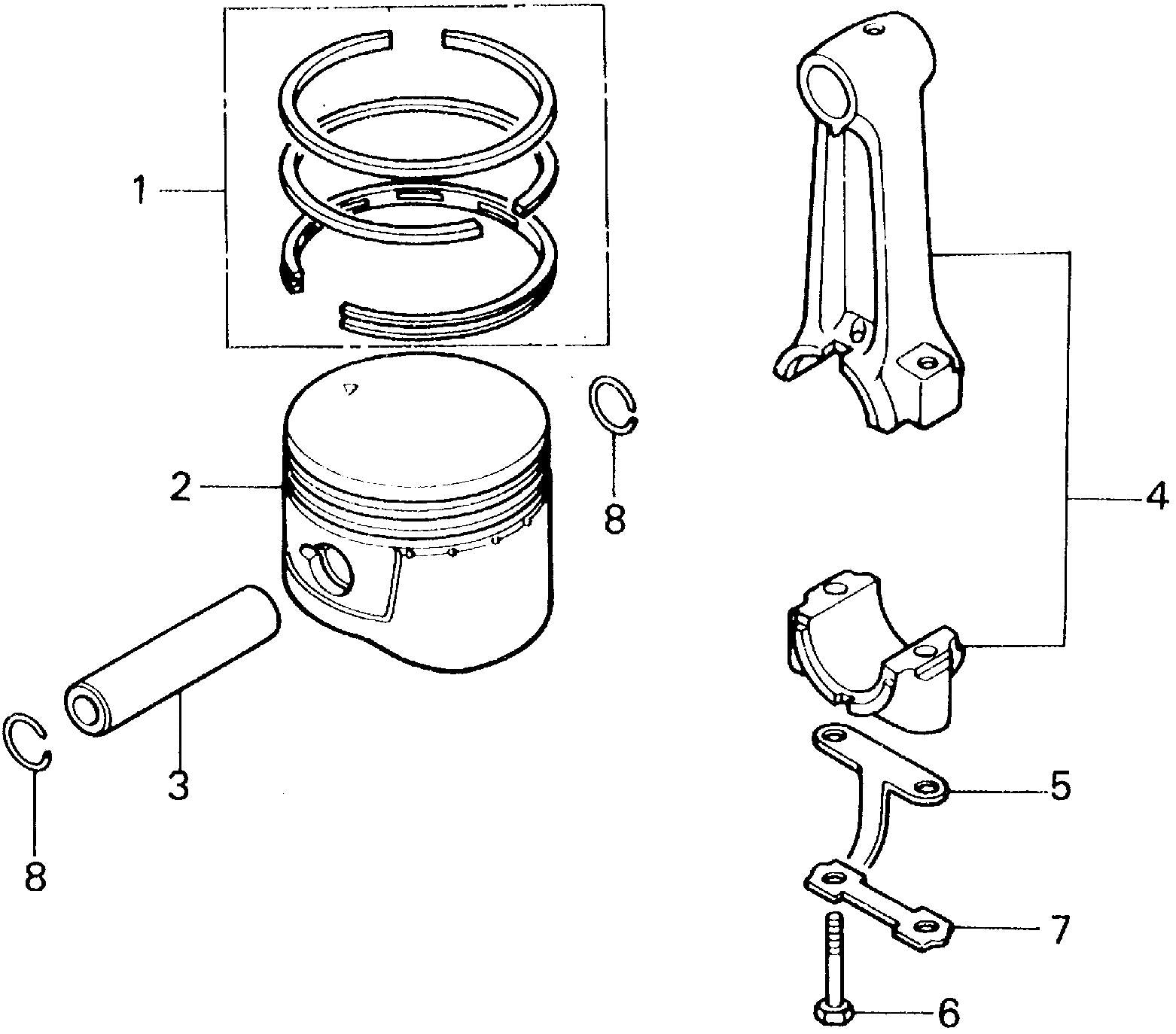

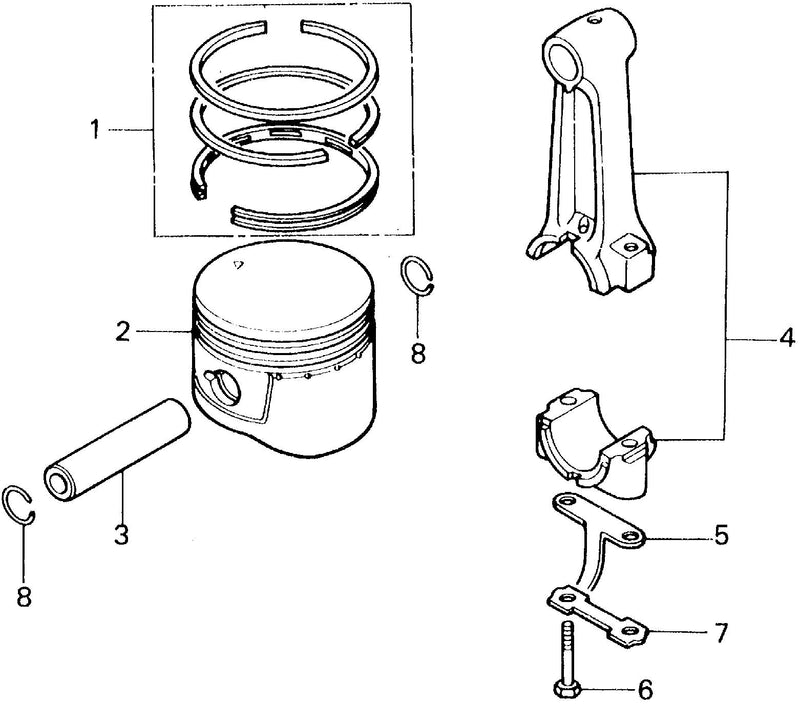

F400 PISTON@CONNECTING ROD
F400 PISTON@CONNECTING ROD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13010-878-000
13010-878-000
|
|||
|
|
13010-887-000
13010-887-000
|
|||
|
|
13011-887-000
13011-887-000
|
|||
|
|
13013-887-000
13013-887-000
|
|||
|
|
94601-15000
94601-15000
|

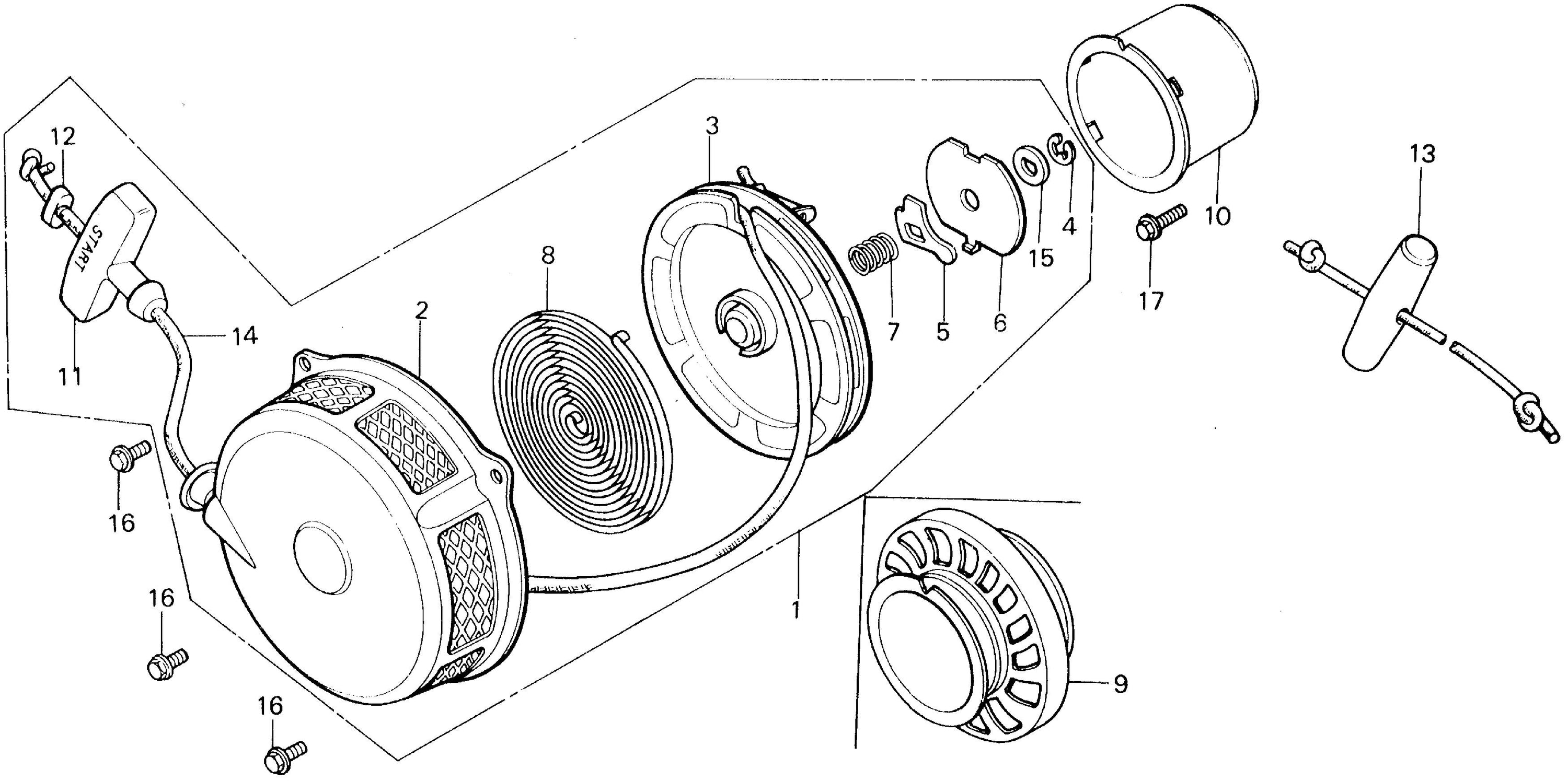

F400 RECOIL STARTER
F400 RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28441-878-810
28441-878-810
|
|||
|
|
90482-878-811
90482-878-811
|
|||
|
|
95700-06010-08
95700-06010-08
|
|||
|
|
95701-06010-08
95701-06010-08
|

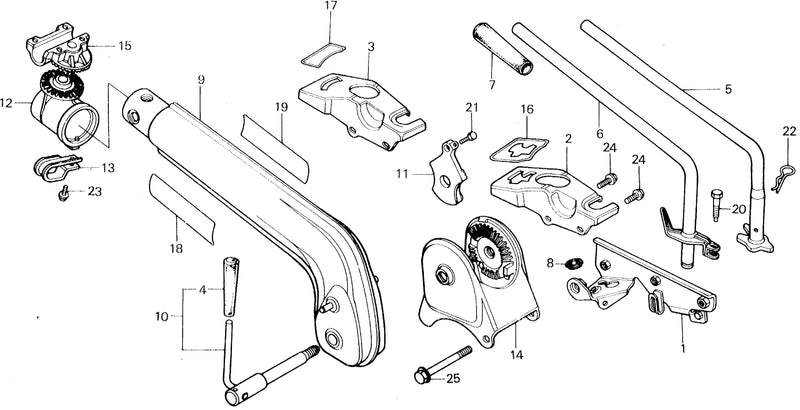

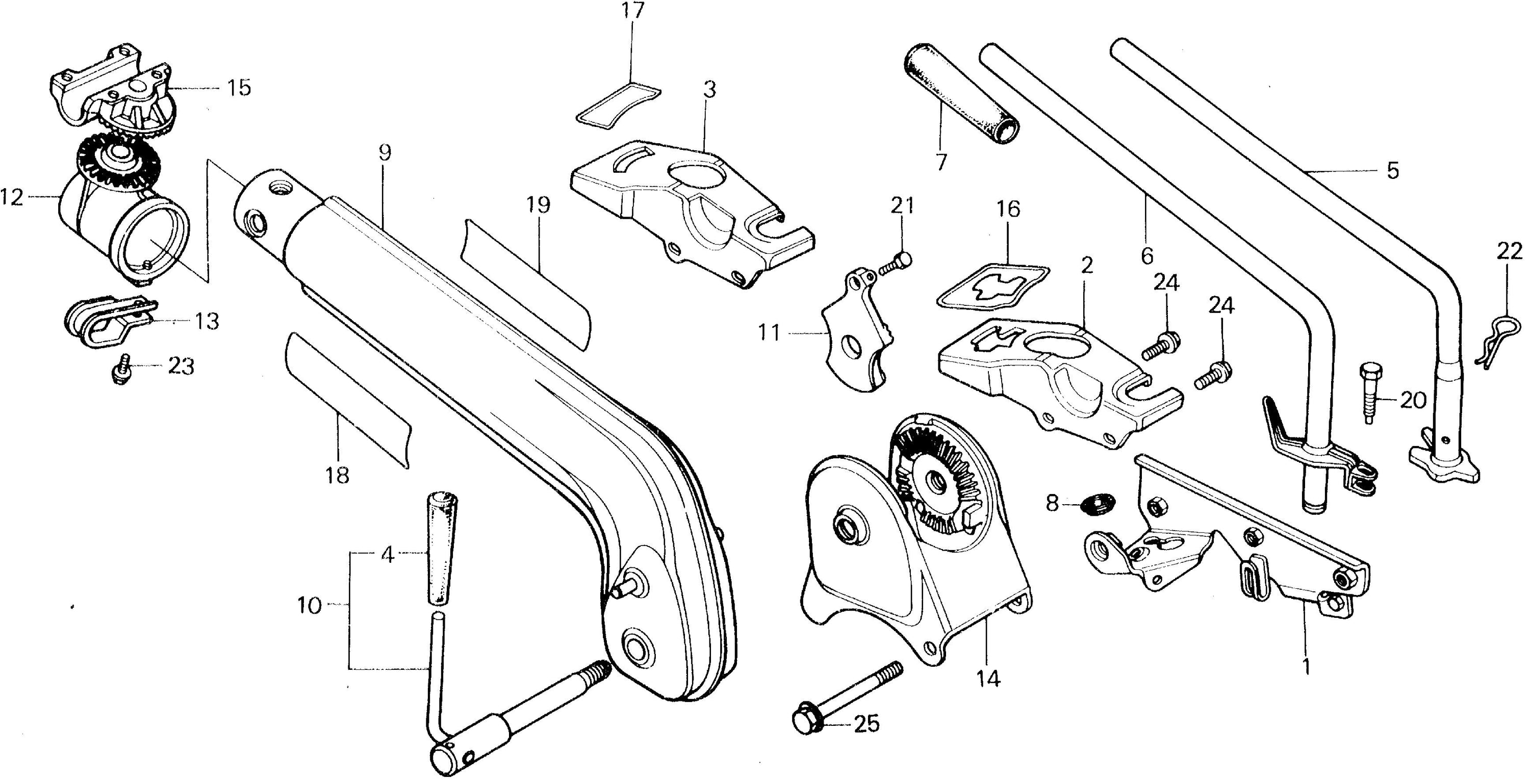

HANDLE COLUMN@CHANGE LEVER
HANDLE COLUMN@CHANGE LEVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
22542-900-000
22542-900-000
|
|||
|
|
24411-719-000
24411-719-000
|
|||
|
|
50130-723-670
50130-723-670
|
|||
|
|
92101-06010-0a
92101-06010-0a
|
|||
|
|
94252-14000
94252-14000
|
|||
|
|
95701-06010-00
95701-06010-00
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95801-10095-00
95801-10095-00
|

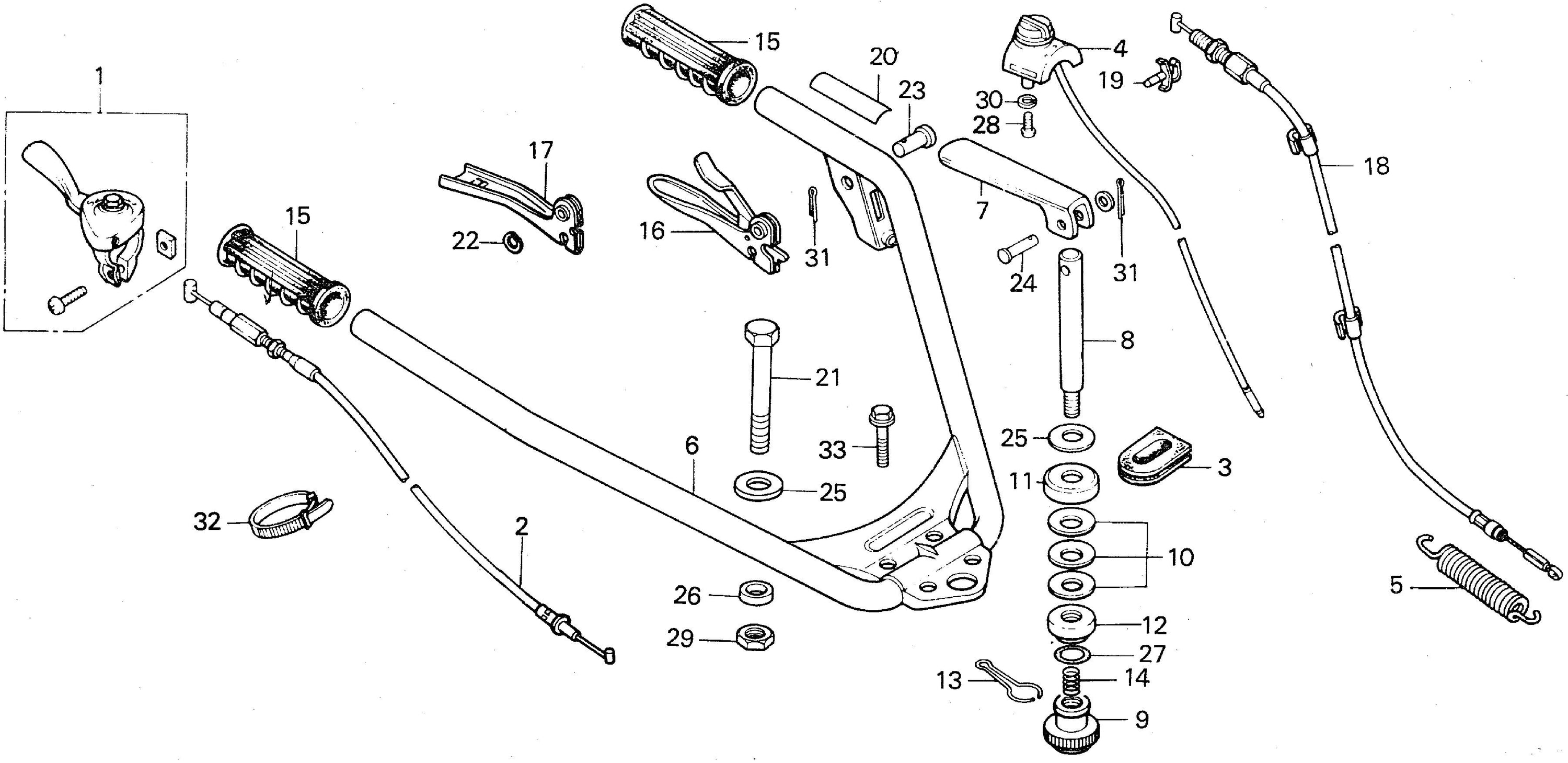

HANDLEBAR@THROTTLE CABLE @CLUTCH
HANDLEBAR@THROTTLE CABLE @CLUTCH
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17850-723-003
17850-723-003
|
|||
|
|
17910-723-000
17910-723-000
|
|||
|
|
17910-723-020
17910-723-020
|
|||
|
|
19905-za8-701
19905-za8-701
|
|||
|
|
35130-723-671
35130-723-671
|
|||
|
|
51521-715-000
51521-715-000
|
|||
|
|
53133-715-000
53133-715-000
|
|||
|
|
53134-715-000
53134-715-000
|
|||
|
|
53136-715-000
53136-715-000
|
|||
|
|
53139-715-000
53139-715-000
|
|||
|
|
53321-708-000
53321-708-000
|
|||
|
|
90404-723-000
90404-723-000
|
|||
|
|
91308-500-010
91308-500-010
|
|||
|
|
93500-03012-0a
93500-03012-0a
|
|||
|
|
94001-14000-0s
94001-14000-0s
|
|||
|
|
94111-03000
94111-03000
|
|||
|
|
94201-20150
94201-20150
|
|||
|
|
95701-06016-00
95701-06016-00
|

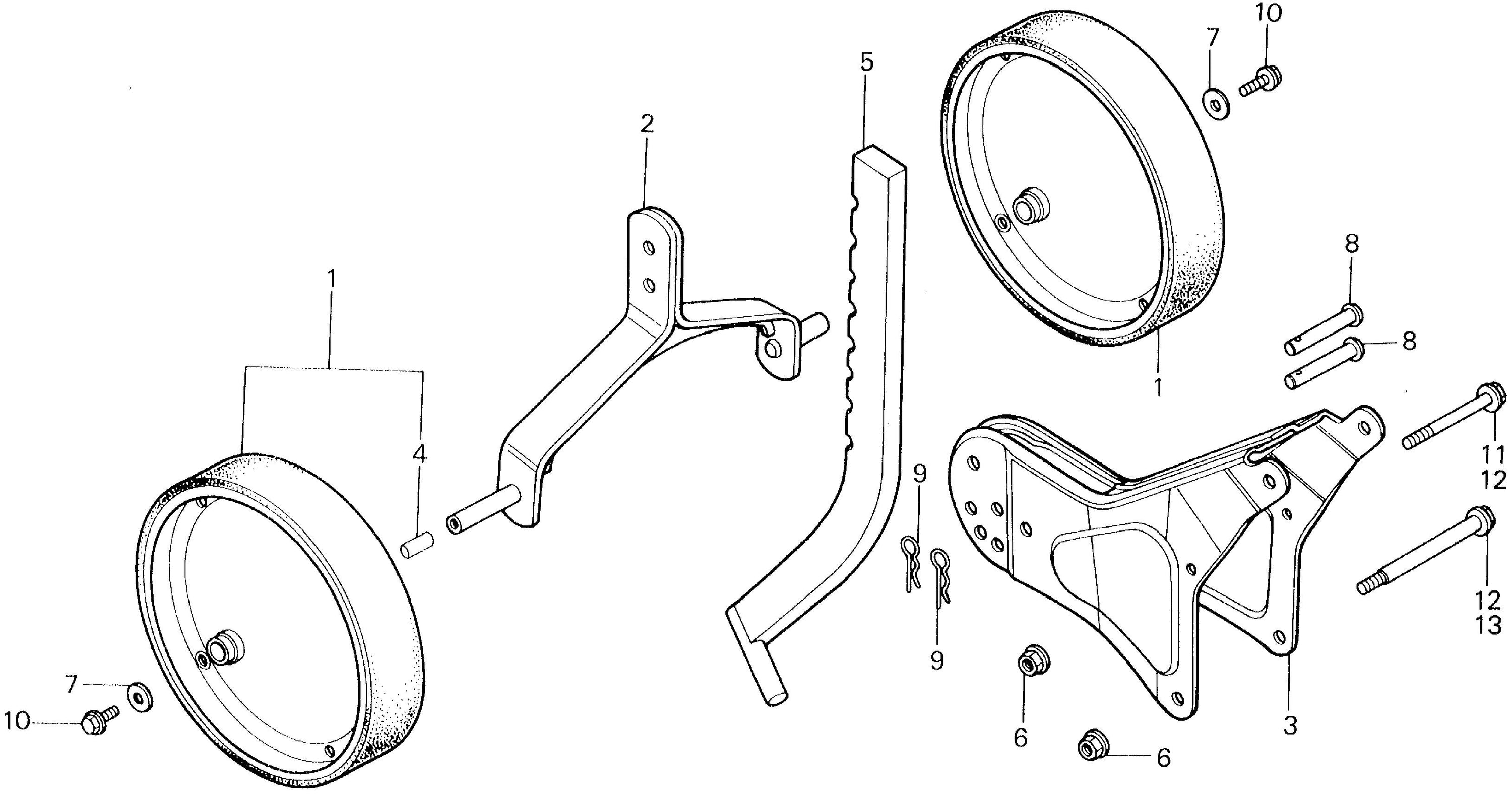

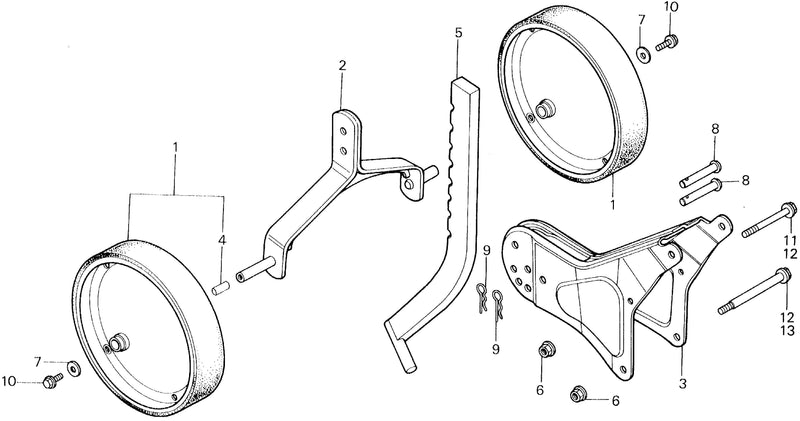

HITCH BOX@DRAG BAR
HITCH BOX@DRAG BAR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
42810-723-670
42810-723-670
|
|||
|
|
54543-719-310
54543-719-310
|
|||
|
|
90545-292-000
90545-292-000
|
|||
|
|
90757-723-670
90757-723-670
|
|||
|
|
94252-10000
94252-10000
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95801-08090-00
95801-08090-00
|

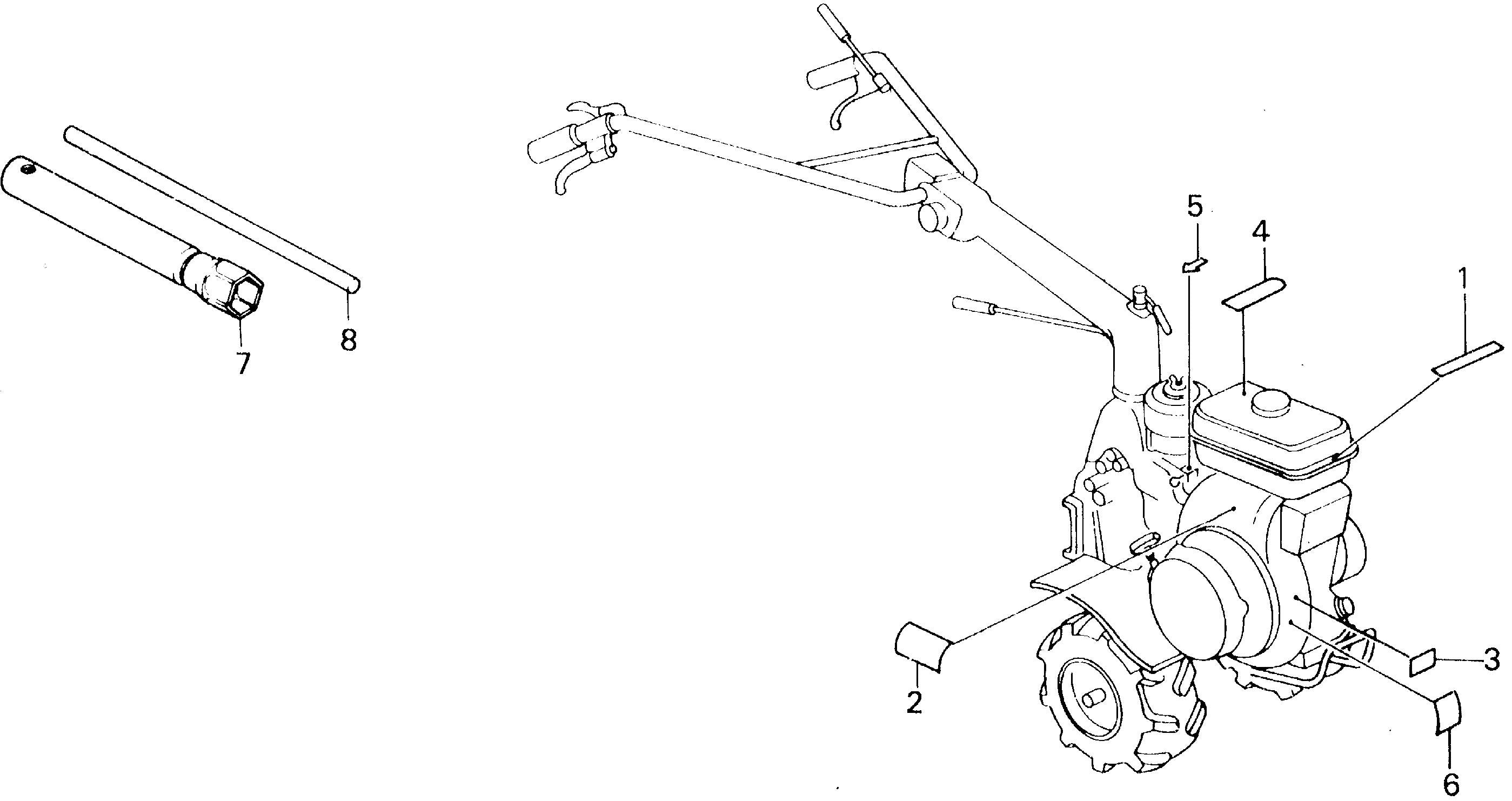

MARKS@TOOLS
MARKS@TOOLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87528-883-661
87528-883-661
|
|||
|
|
89216-809-000
89216-809-000
|
|||
|
|
89219-805-000
89219-805-000
|

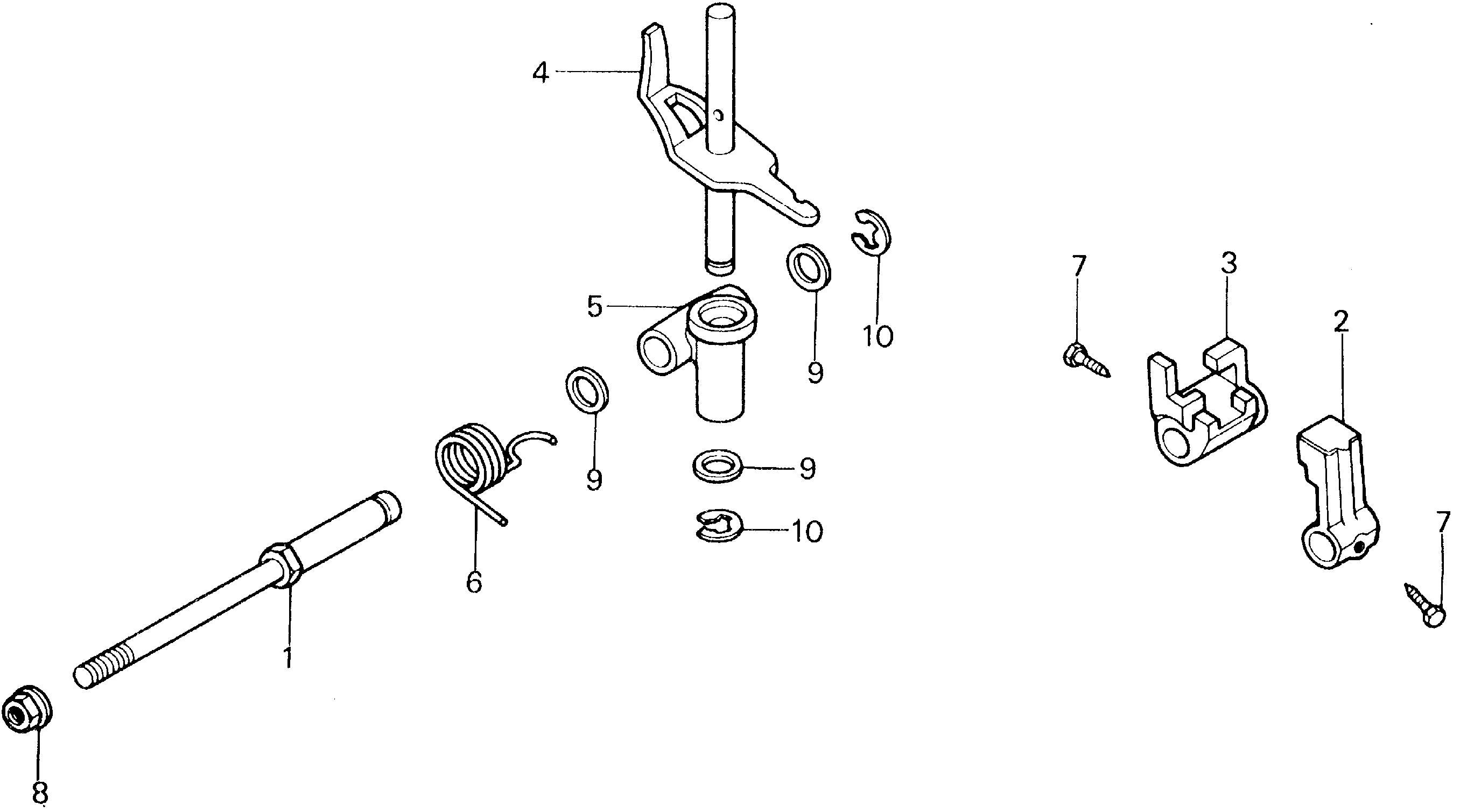

SELECT LEVER HOLDER
SELECT LEVER HOLDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
22552-723-000
22552-723-000
|
|||
|
|
90021-700-010
90021-700-010
|
|||
|
|
90472-723-000
90472-723-000
|
|||
|
|
90653-723-000
90653-723-000
|

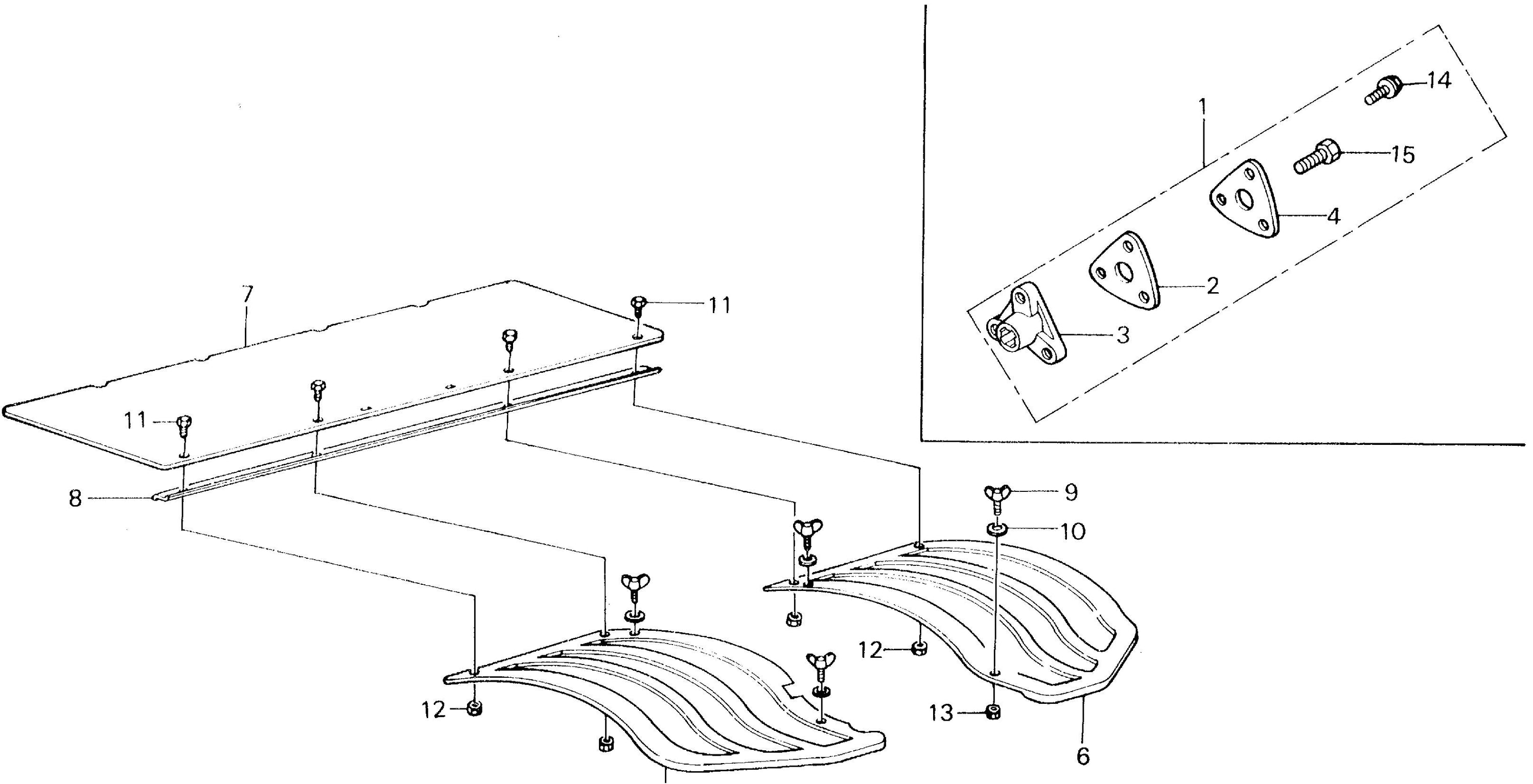

SUB FENDER
SUB FENDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
76610-708-810
76610-708-810
|
|||
|
|
76651-708-811
76651-708-811
|
|||
|
|
92101-06012-0a
92101-06012-0a
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94001-08000-0s
94001-08000-0s
|
|||
|
|
95701-06016-00
95701-06016-00
|
|||
|
|
95701-06016-08
95701-06016-08
|
|||
|
|
95701-08016-08
95701-08016-08
|

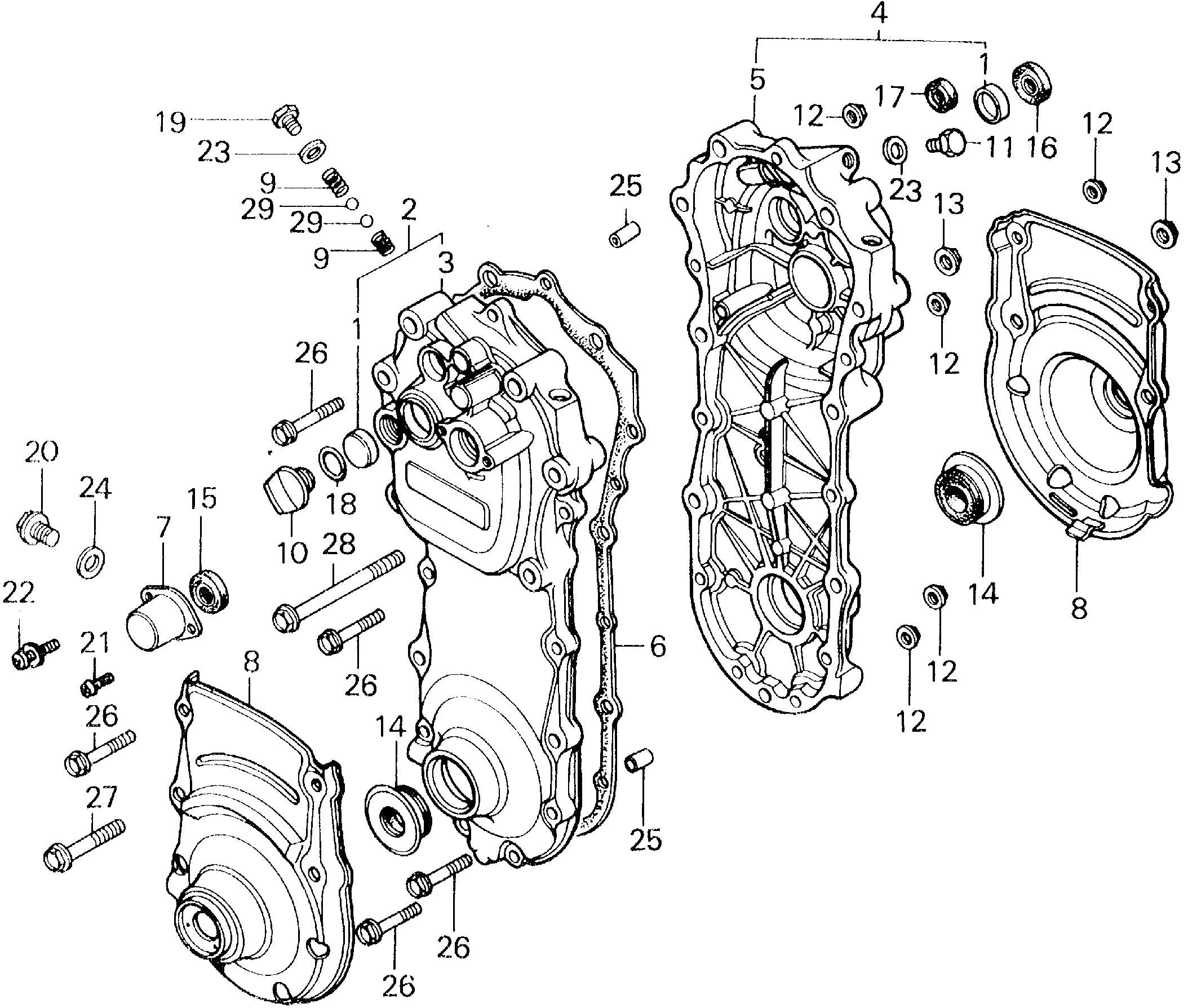

TRANSMISSION CASE
TRANSMISSION CASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11105-657-300
11105-657-300
|
|||
|
|
24271-765-000
24271-765-000
|
|||
|
|
25611-733-000
25611-733-000
|
|||
|
|
91205-723-672
91205-723-672
|
|||
|
|
91201-862-003
91201-862-003
|
|||
|
|
91252-721-003
91252-721-003
|
|||
|
|
91253-706-003
91253-706-003
|
|||
|
|
92101-08010-0a
92101-08010-0a
|
|||
|
|
92800-12000
92800-12000
|
|||
|
|
93500-06012-0a
93500-06012-0a
|
|||
|
|
93891-06012-00
93891-06012-00
|
|||
|
|
94102-08000
94102-08000
|
|||
|
|
94109-12000
94109-12000
|
|||
|
|
94301-08140
94301-08140
|
|||
|
|
95701-06035-00
95701-06035-00
|
|||
|
|
95701-08080-00
95701-08080-00
|
|||
|
|
96211-08000
96211-08000
|

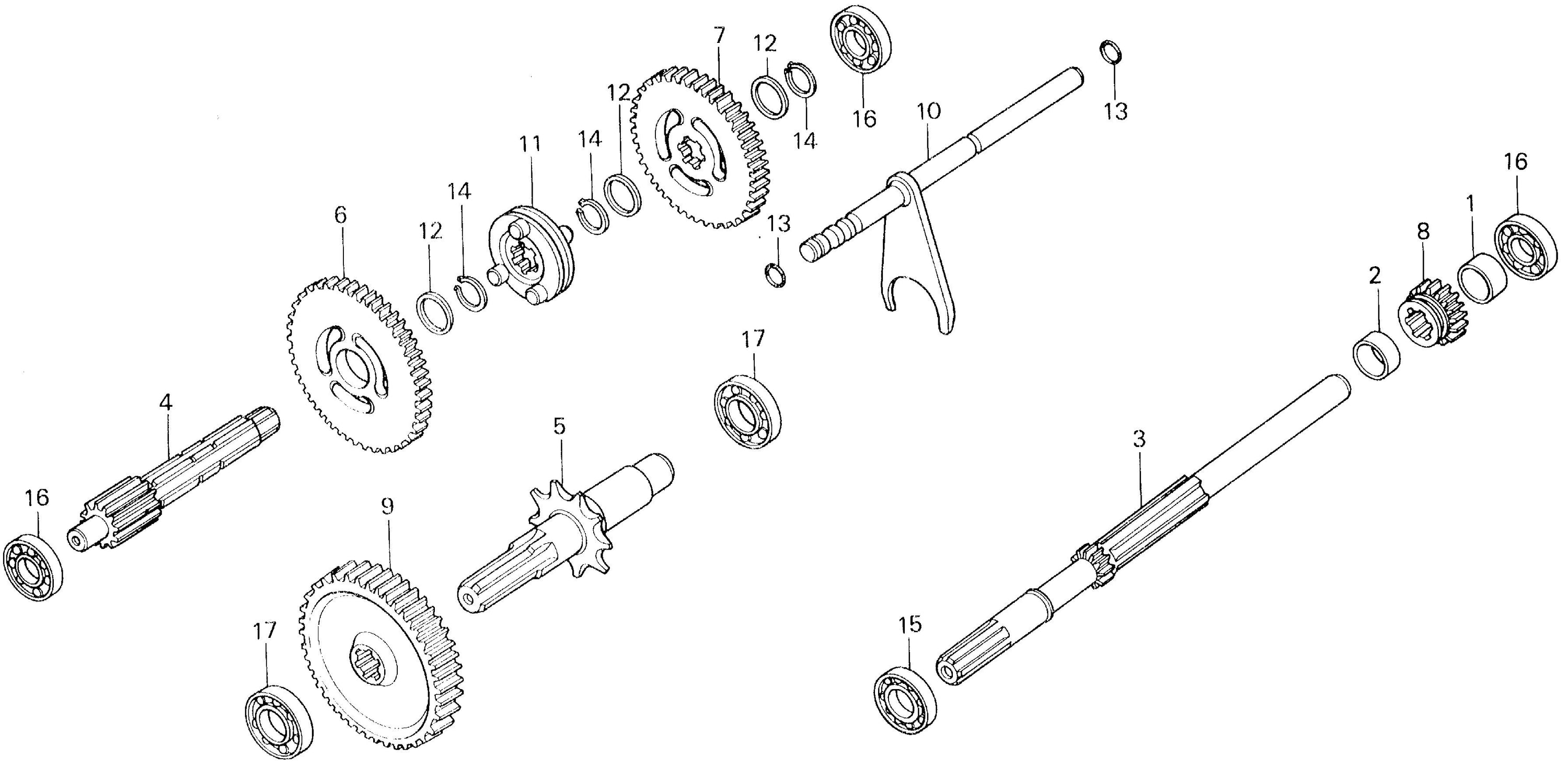

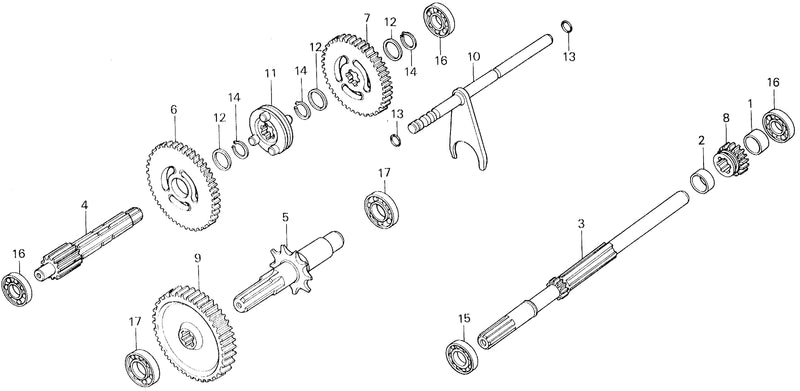

TRANSMISSION GEAR (TYPEA1)
TRANSMISSION GEAR (TYPEA1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
23451-723-000
23451-723-000
|
|||
|
|
91302-ge0-000
91302-ge0-000
|
|||
|
|
94510-17000
94510-17000
|
|||
|
|
96100-60030-00
96100-60030-00
|

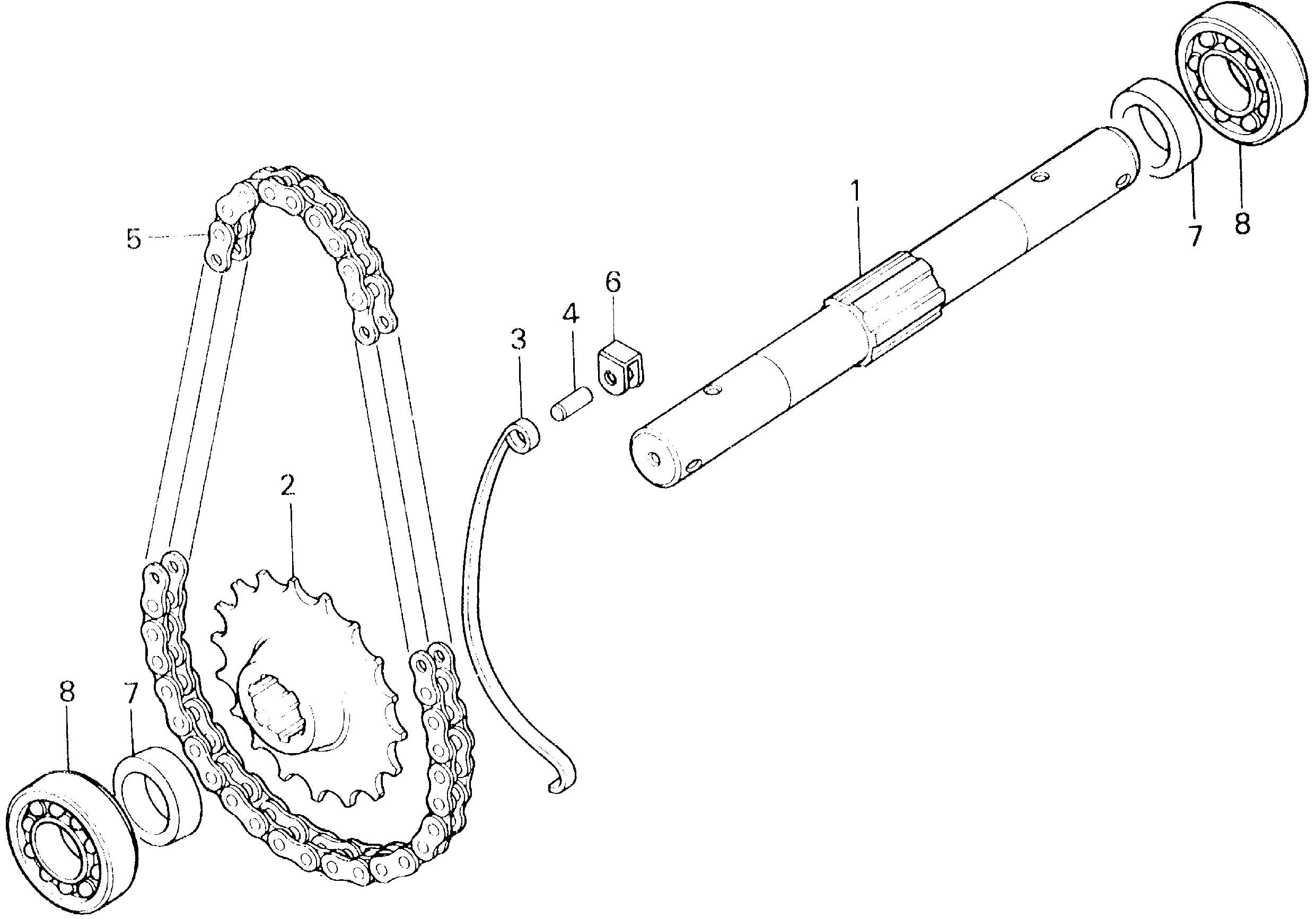

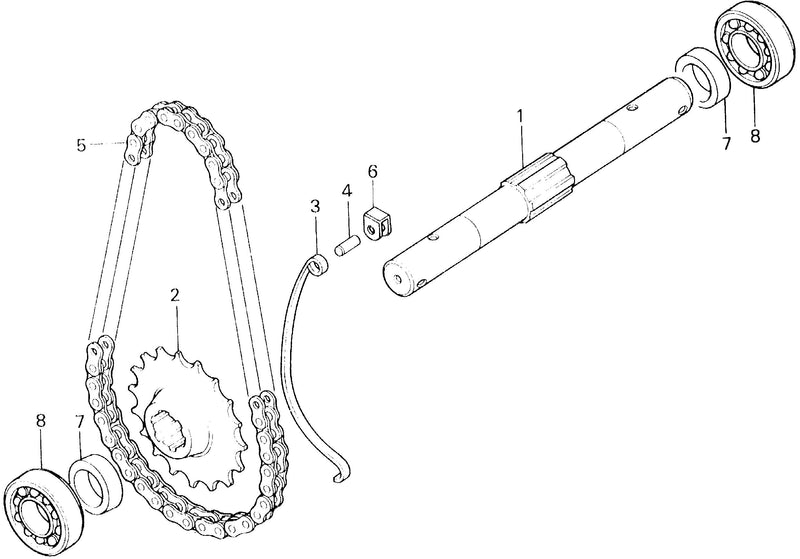

WHEEL SHAFT@FINAL CHAIN
WHEEL SHAFT@FINAL CHAIN
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
23372-723-671
23372-723-671
|
|||
|
|
23372-723-672
23372-723-672
|
|||
|
|
23861-733-003
23861-733-003
|
|||
|
|
96100-60070-00
96100-60070-00
|

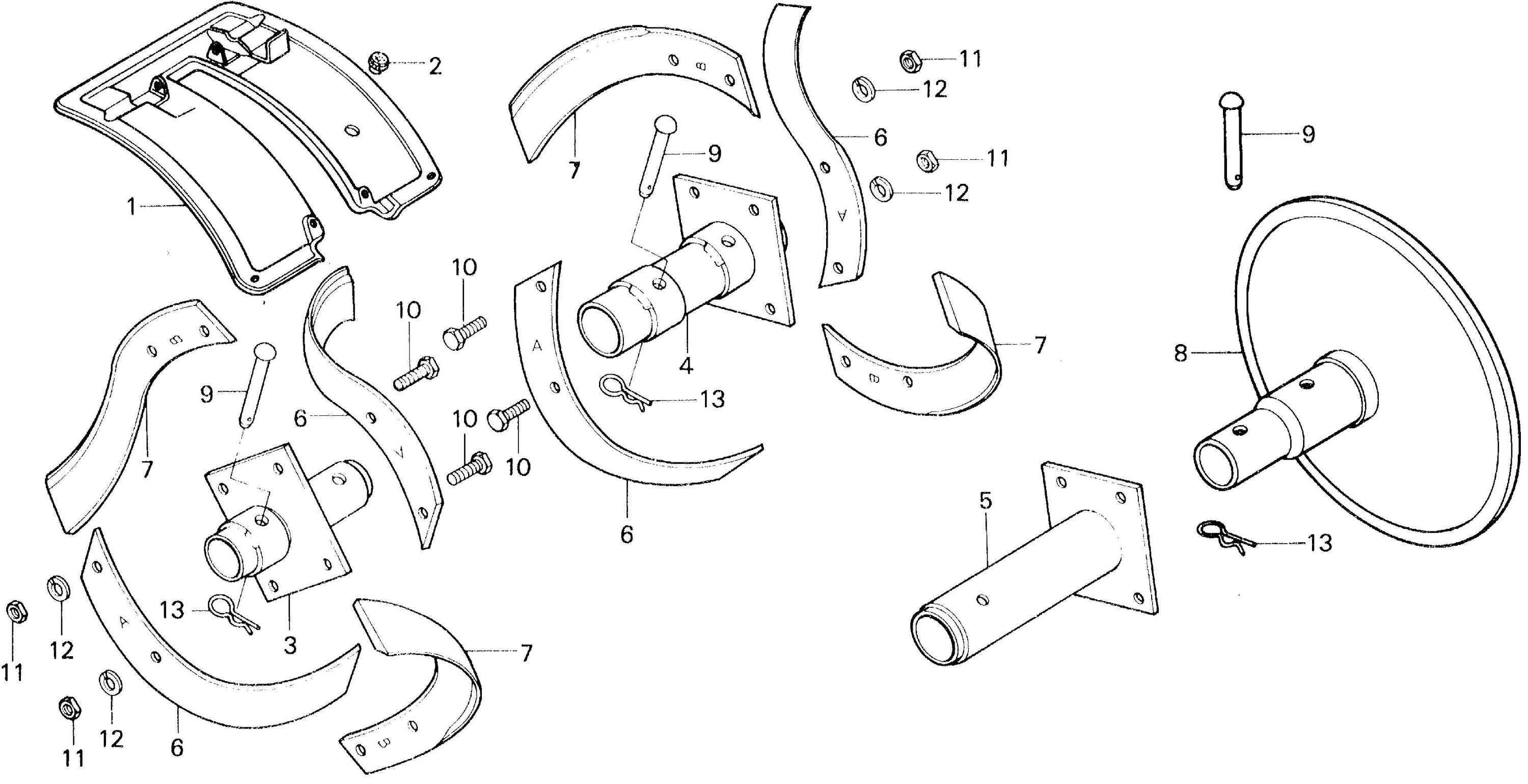

WHEEL@FENDER
WHEEL@FENDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
72130-723-811
72130-723-811
|
|||
|
|
72130-733-760
72130-733-760
|
|||
|
|
72461-723-670
72461-723-670
|
|||
|
|
72461-733-750
72461-733-750
|
|||
|
|
72465-733-750
72465-733-750
|
|||
|
|
90757-723-670
90757-723-670
|
|||
|
|
92101-10025-0a
92101-10025-0a
|
|||
|
|
94001-10000-0s
94001-10000-0s
|
|||
|
|
94111-10000
94111-10000
|
|||
|
|
94252-10000
94252-10000
|
