Honda GC190LA-QTT Parts Diagram Engine (Serial GCAAA-1496157 to 3599999)
Diagrams:
Diagram:

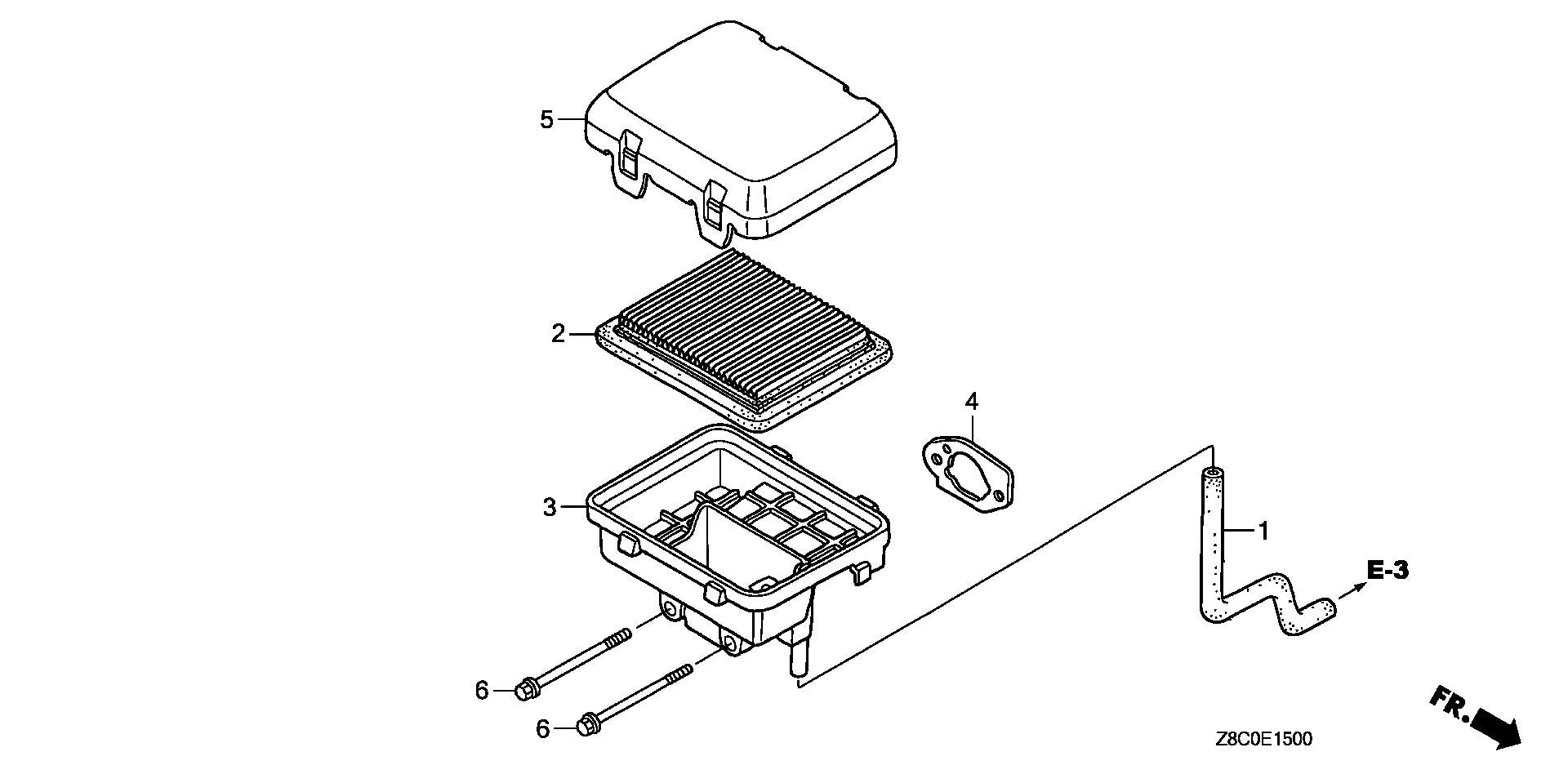

AIR CLEANER
AIR CLEANER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
15721-zl8-000
15721-zl8-000
|
|||
|
|
17211-zl8-023
17211-zl8-023
|
|||
|
|
17211-z8b-901
17211-z8b-901
|
|||
|
|
17220-zl8-020
17220-zl8-020
|
|||
|
|
17228-zl8-000
17228-zl8-000
|
|||
|
|
17228-z8a-000
17228-z8a-000
|
|||
|
|
17231-z0j-040
17231-z0j-040
|
|||
|
|
90003-zl8-000
90003-zl8-000
|

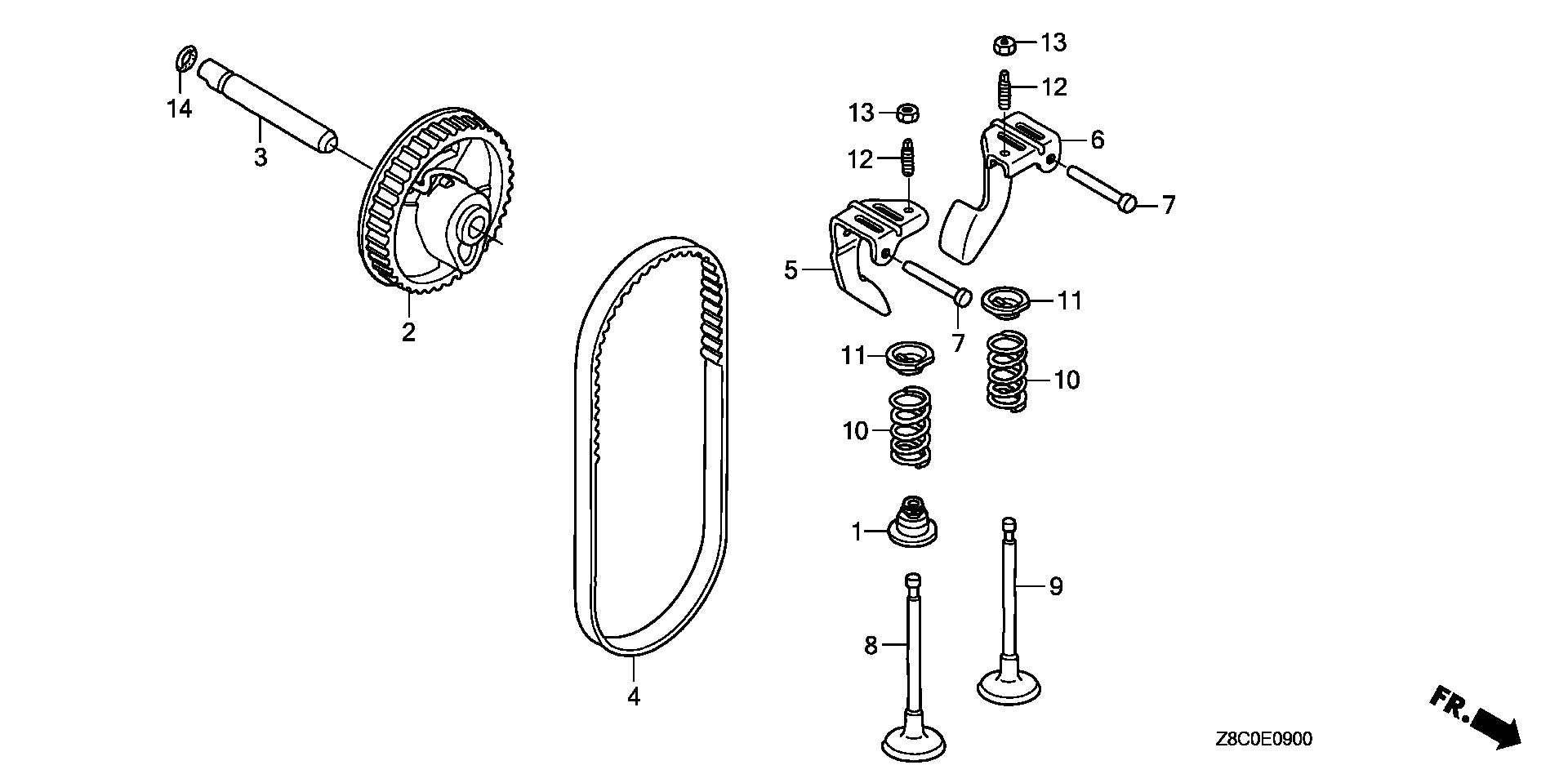

CAMSHAFT PULLEY
CAMSHAFT PULLEY
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12209-zm0-003
12209-zm0-003
|
|||
|
|
14320-z8d-000
14320-z8d-000
|
|||
|
|
14324-zl8-000
14324-zl8-000
|
|||
|
|
14400-z8b-003
14400-z8b-003
|
|||
|
|
14431-z0j-000
14431-z0j-000
|
|||
|
|
14461-zl8-000
14461-zl8-000
|
|||
|
|
14711-zl8-000
14711-zl8-000
|
|||
|
|
14721-zl8-000
14721-zl8-000
|
|||
|
|
14721-z8b-000
14721-z8b-000
|
|||
|
|
14751-zl8-000
14751-zl8-000
|
|||
|
|
14771-z0j-000
14771-z0j-000
|
|||
|
|
90012-333-000
90012-333-000
|
|||
|
|
90206-001-000
90206-001-000
|

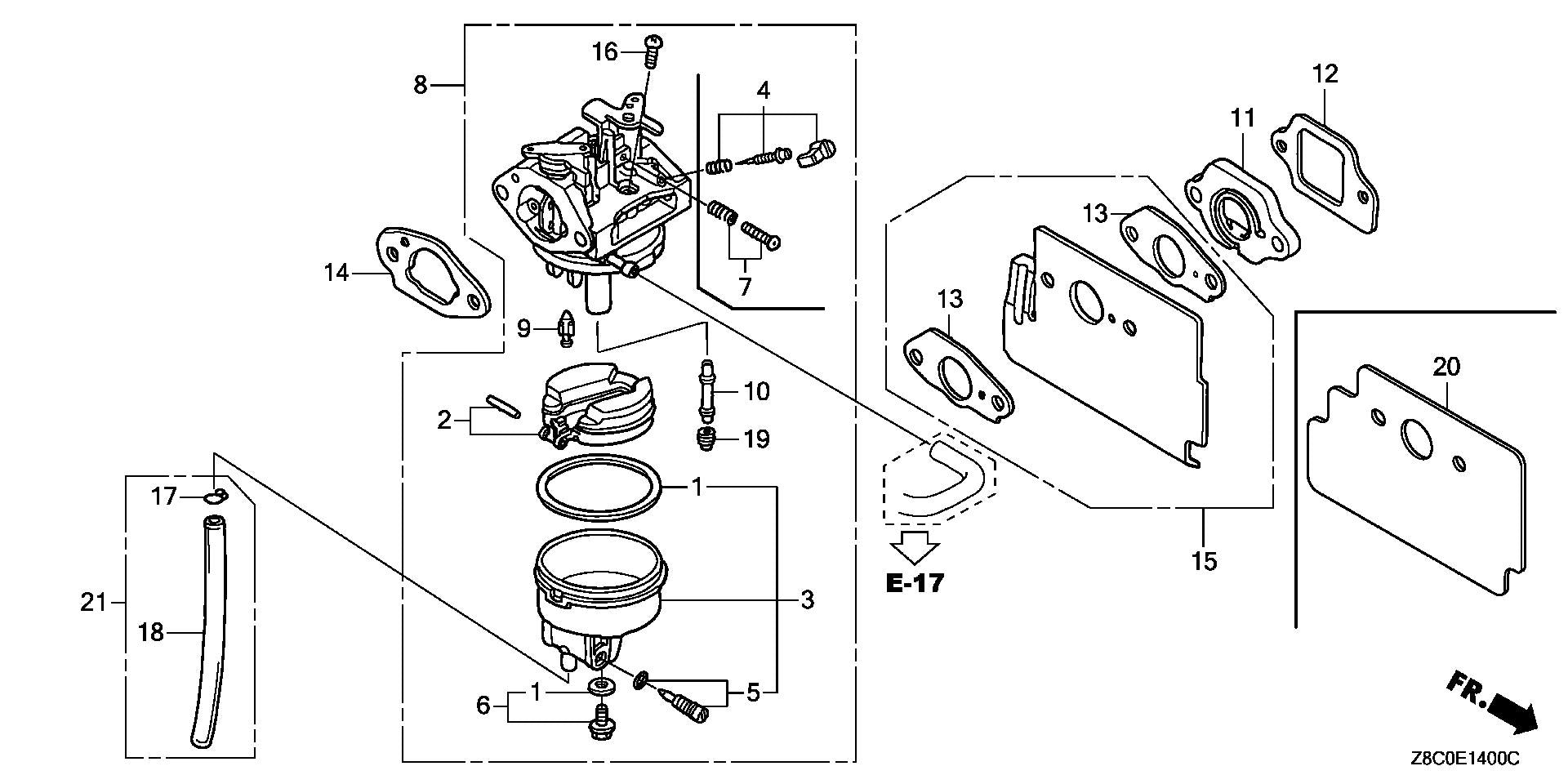

CARBURETOR
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16013-zl1-003
16013-zl1-003
|
|||
|
|
16015-zl8-003
16015-zl8-003
|
|||
|
|
16016-zg0-w00
16016-zg0-w00
|
|||
|
|
16016-z1a-003
16016-z1a-003
|
|||
|
|
16024-124-760
16024-124-760
|
|||
|
|
16028-zk7-s91
16028-zk7-s91
|
|||
|
|
16029-zg0-901
16029-zg0-901
|
|||
|
|
16100-z1a-802
16100-z1a-802
|
|||
|
|
16100-z1a-812
16100-z1a-812
|
|||
|
|
16100-z8a-wa1
16100-z8a-wa1
|
|||
|
|
16100-z8a-802
16100-z8a-802
|
|||
|
|
16100-z8c-801
16100-z8c-801
|
|||
|
|
16100-z8c-811
16100-z8c-811
|
|||
|
|
16155-zl8-013
16155-zl8-013
|
|||
|
|
16166-z1a-003
16166-z1a-003
|
|||
|
|
16166-z8a-wa1
16166-z8a-wa1
|
|||
|
|
16166-z8c-801
16166-z8c-801
|
|||
|
|
16211-zl8-000
16211-zl8-000
|
|||
|
|
16211-z8b-000
16211-z8b-000
|
|||
|
|
16212-zl8-000
16212-zl8-000
|
|||
|
|
19650-zl8-000
19650-zl8-000
|
|||
|
|
93500-05006-0h
93500-05006-0h
|
|||
|
|
95002-02650
95002-02650
|
|||
|
|
95003-07008-60m
95003-07008-60m
|
|||
|
|
99101-124-0620
99101-124-0620
|
|||
|
|
99101-124-0650
99101-124-0650
|
|||
|
|
99101-124-0680
99101-124-0680
|
|||
|
|
99101-124-0700
99101-124-0700
|
|||
|
|
99101-124-0720
99101-124-0720
|
|||
|
|
19651-z0j-000
19651-z0j-000
|
|||
|
|
91410-z0j-000
91410-z0j-000
|

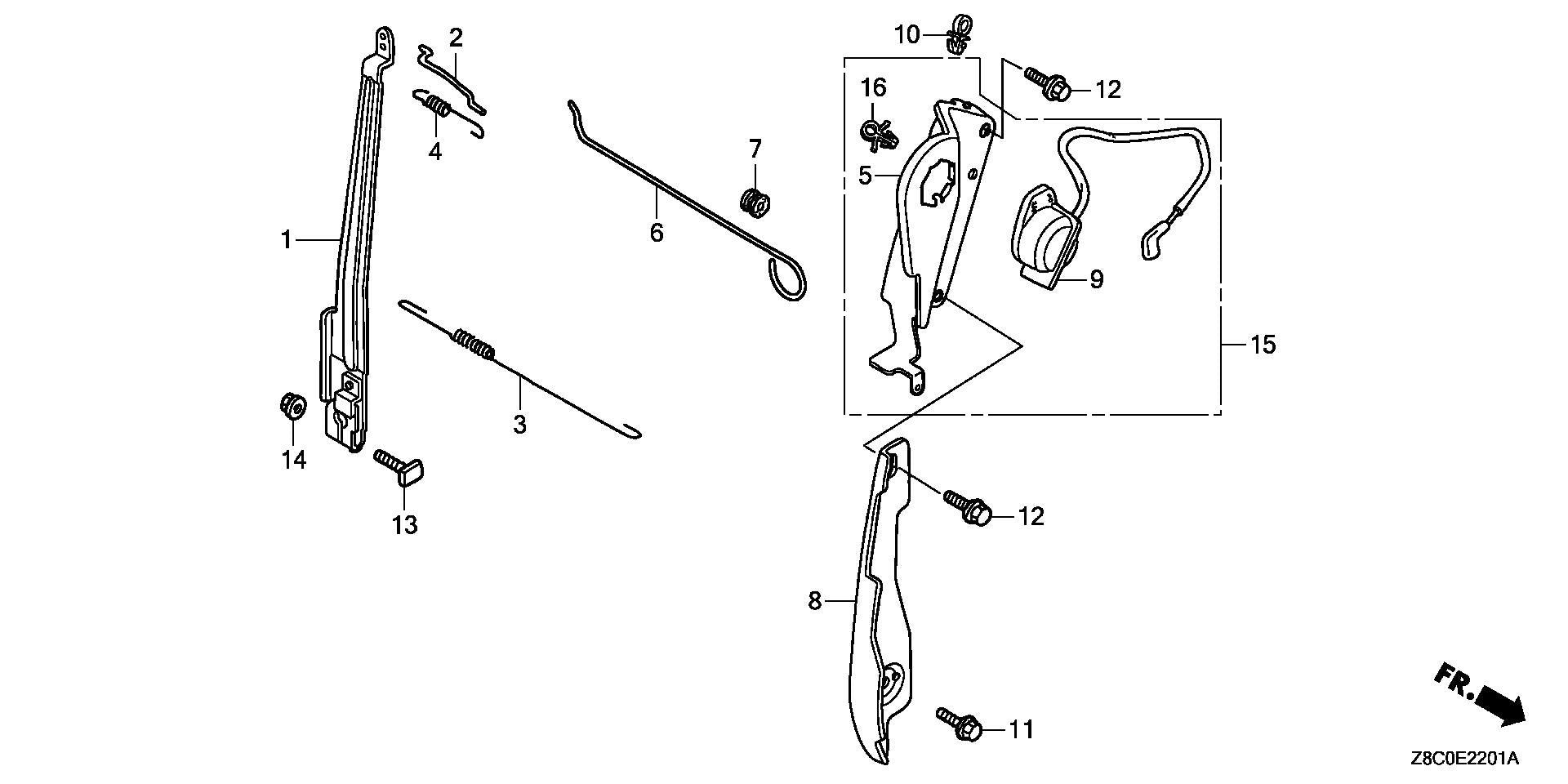

CONTROL (2)
CONTROL (2)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16551-zl8-010
16551-zl8-010
|
|||
|
|
16555-zl8-000
16555-zl8-000
|
|||
|
|
16561-z0j-000
16561-z0j-000
|
|||
|
|
16562-zl8-800
16562-zl8-800
|
|||
|
|
16581-z0j-801
16581-z0j-801
|
|||
|
|
16611-zl8-000
16611-zl8-000
|
|||
|
|
16613-893-000
16613-893-000
|
|||
|
|
19612-z0l-000
19612-z0l-000
|
|||
|
|
35120-z0j-801
35120-z0j-801
|
|||
|
|
35120-z0j-901
35120-z0j-901
|
|||
|
|
35120-z1a-903
35120-z1a-903
|
|||
|
|
51125-z0l-003
51125-z0l-003
|
|||
|
|
90681-959-003
90681-959-003
|
|||
|
|
90014-952-000
90014-952-000
|
|||
|
|
90015-ze5-010
90015-ze5-010
|
|||
|
|
16500-z8c-900
16500-z8c-900
|
|||
|
|
16500-z8c-901
16500-z8c-901
|
|||
|
|
51125-z0l-003
51125-z0l-003
|

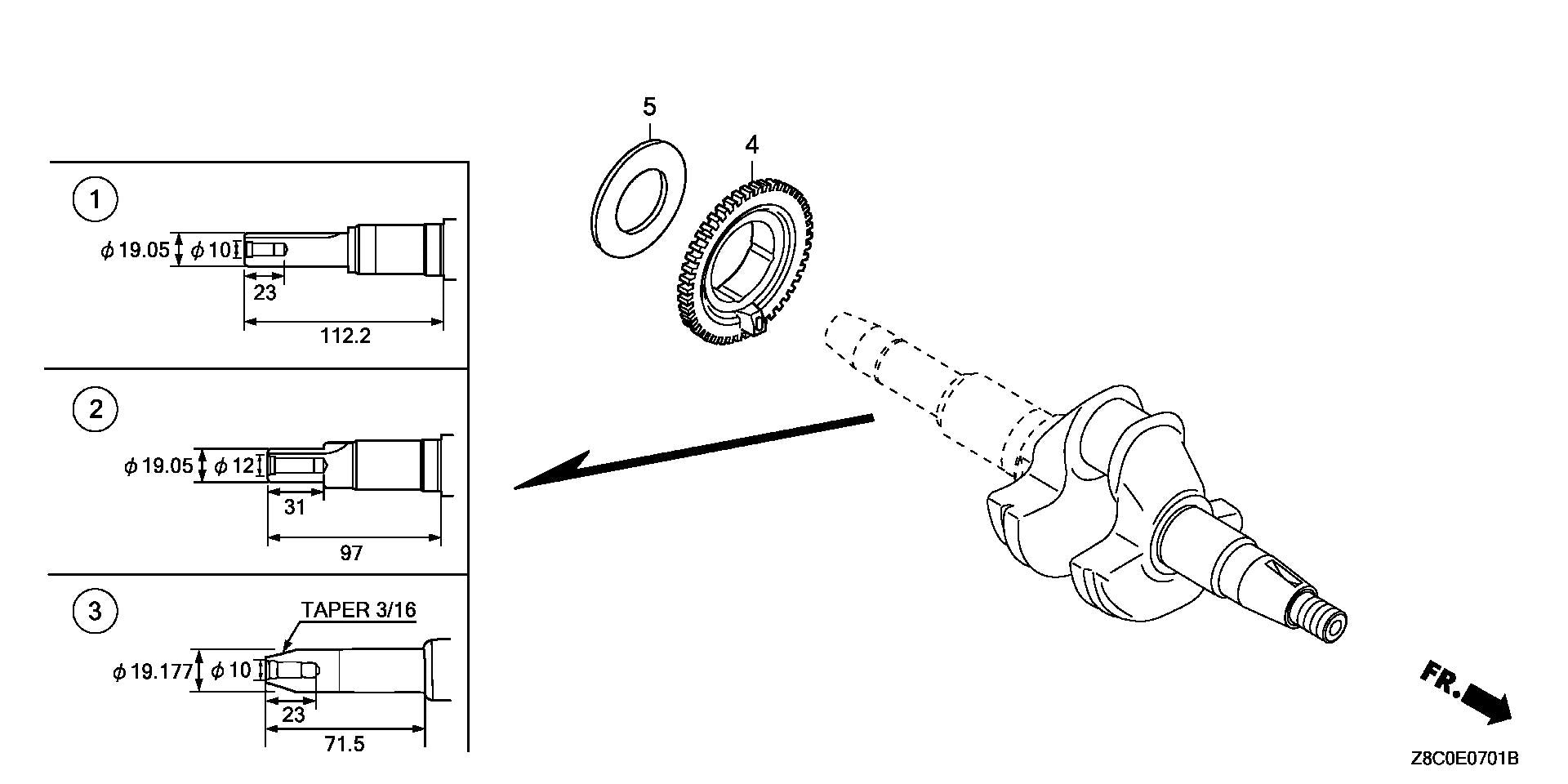

CRANKSHAFT (2)
CRANKSHAFT (2)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13311-z8c-900
13311-z8c-900
|
|||
|
|
13311-z8c-960
13311-z8c-960
|
|||
|
|
06131-z8c-w20
06131-z8c-w20
|
|||
|
|
13621-z8b-900
13621-z8b-900
|
|||
|
|
90402-zl8-000
90402-zl8-000
|
|||
|
|
90402-z0y-000
90402-z0y-000
|

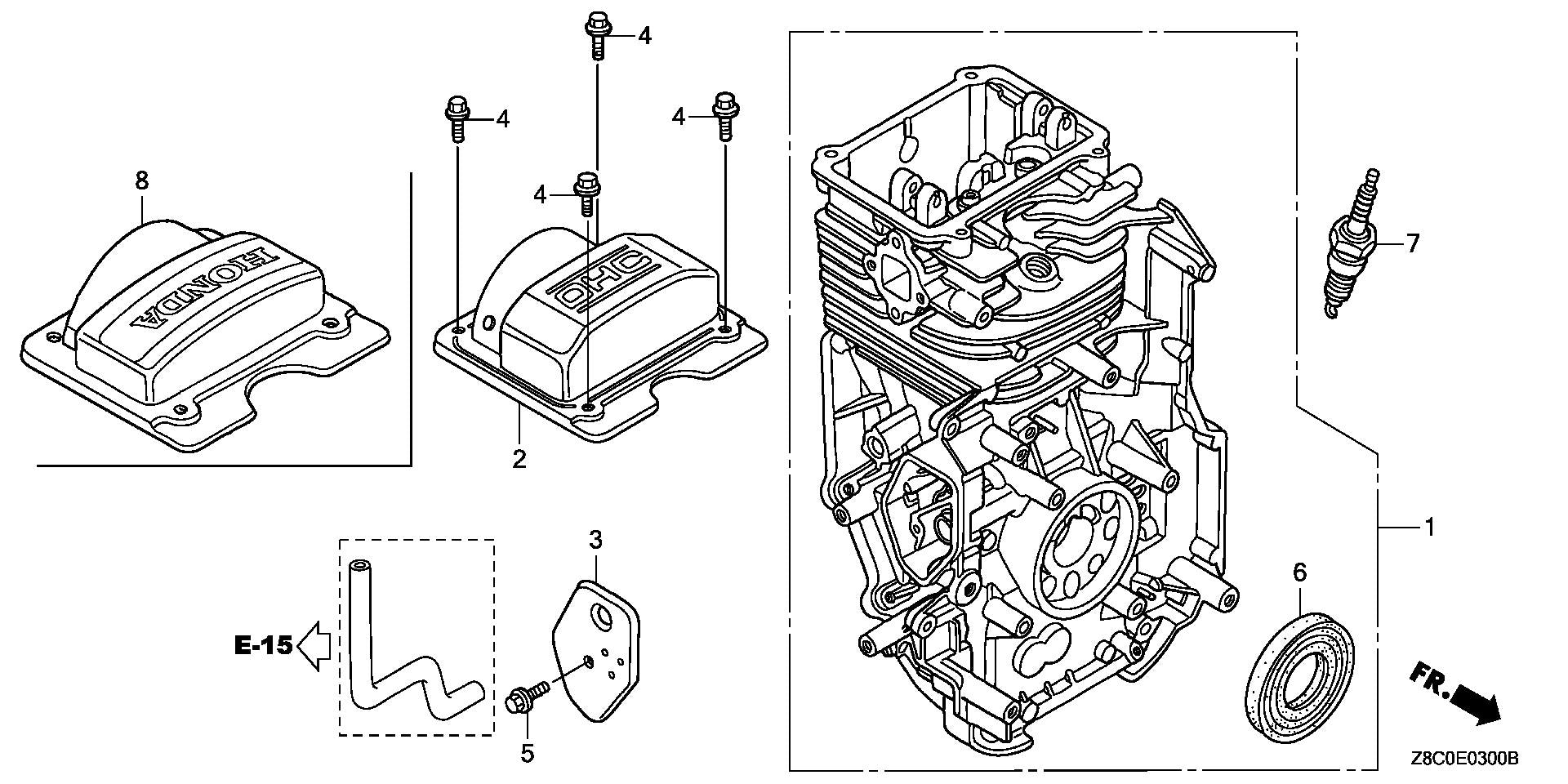

CYLINDER BARREL
CYLINDER BARREL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12000-z1a-010
12000-z1a-010
|
|||
|
|
12310-z8a-000
12310-z8a-000
|
|||
|
|
12355-zl8-000
12355-zl8-000
|
|||
|
|
90014-952-000
90014-952-000
|
|||
|
|
91201-zl8-003
91201-zl8-003
|
|||
|
|
98079-56846
98079-56846
|
|||
|
|
12310-z8a-000
12310-z8a-000
|

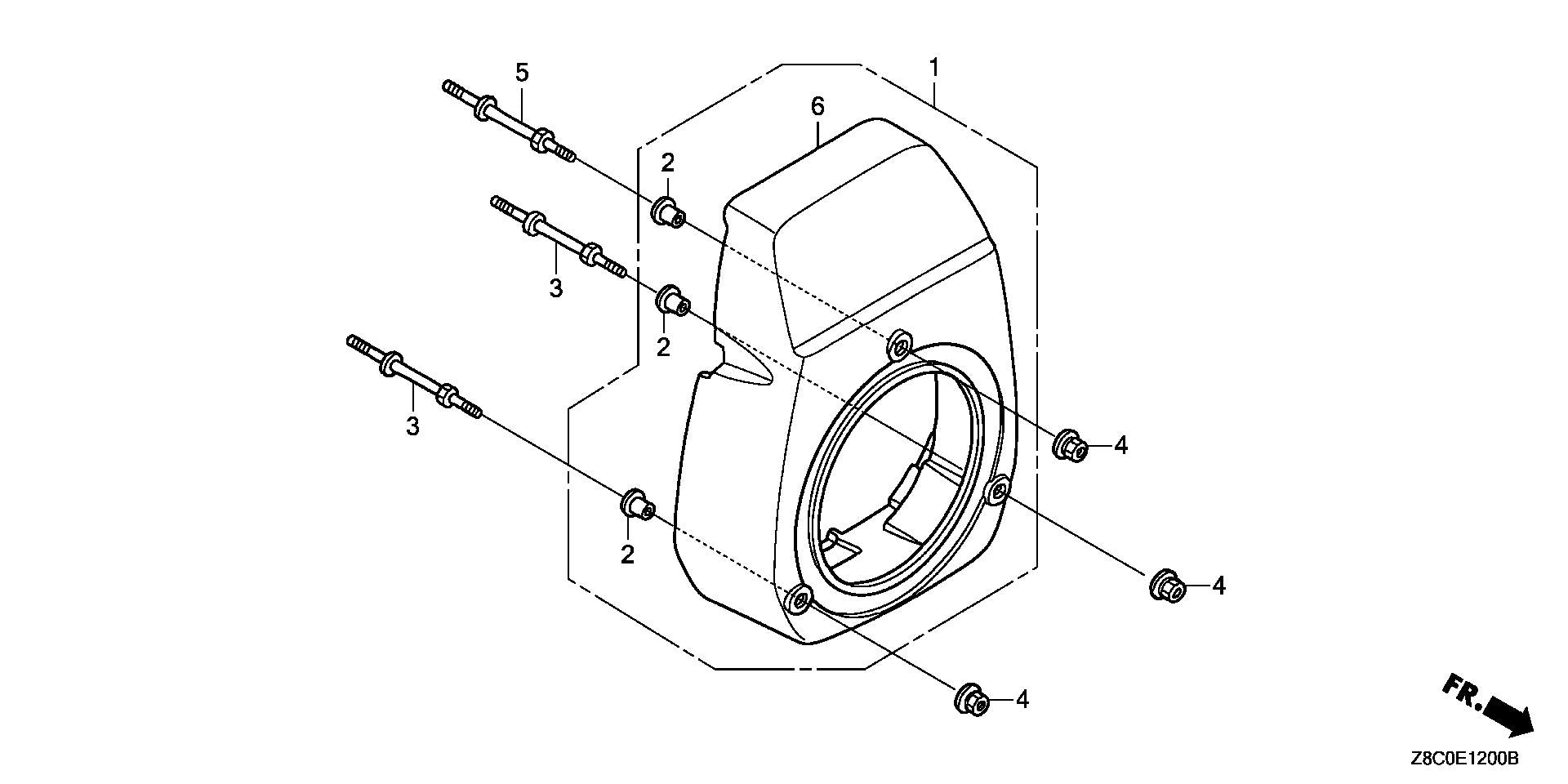

FAN COVER
FAN COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19611-z1a-000za
19611-z1a-000za
|
|||
|
|
19611-z1a-000zb
19611-z1a-000zb
|
|||
|
|
19611-z1a-900za
19611-z1a-900za
|
|||
|
|
19611-z1a-900zb
19611-z1a-900zb
|
|||
|
|
19611-z1a-900zc
19611-z1a-900zc
|
|||
|
|
19619-zl8-300
19619-zl8-300
|
|||
|
|
90043-zl8-000
90043-zl8-000
|
|||
|
|
90043-z8b-000
90043-z8b-000
|
|||
|
|
90043-z8d-010
90043-z8d-010
|
|||
|
|
90201-zm0-000
90201-zm0-000
|
|||
|
|
90043-zl8-000
90043-zl8-000
|
|||
|
|
90043-z0j-900
90043-z0j-900
|
|||
|
|
90043-z8b-900
90043-z8b-900
|
|||
|
|
90043-z8d-010
90043-z8d-010
|
|||
|
|
90043-z8d-901
90043-z8d-901
|
|||
|
|
19611-z1a-901za
19611-z1a-901za
|
|||
|
|
19611-z1a-901zb
19611-z1a-901zb
|
|||
|
|
19611-z1a-901ze
19611-z1a-901ze
|

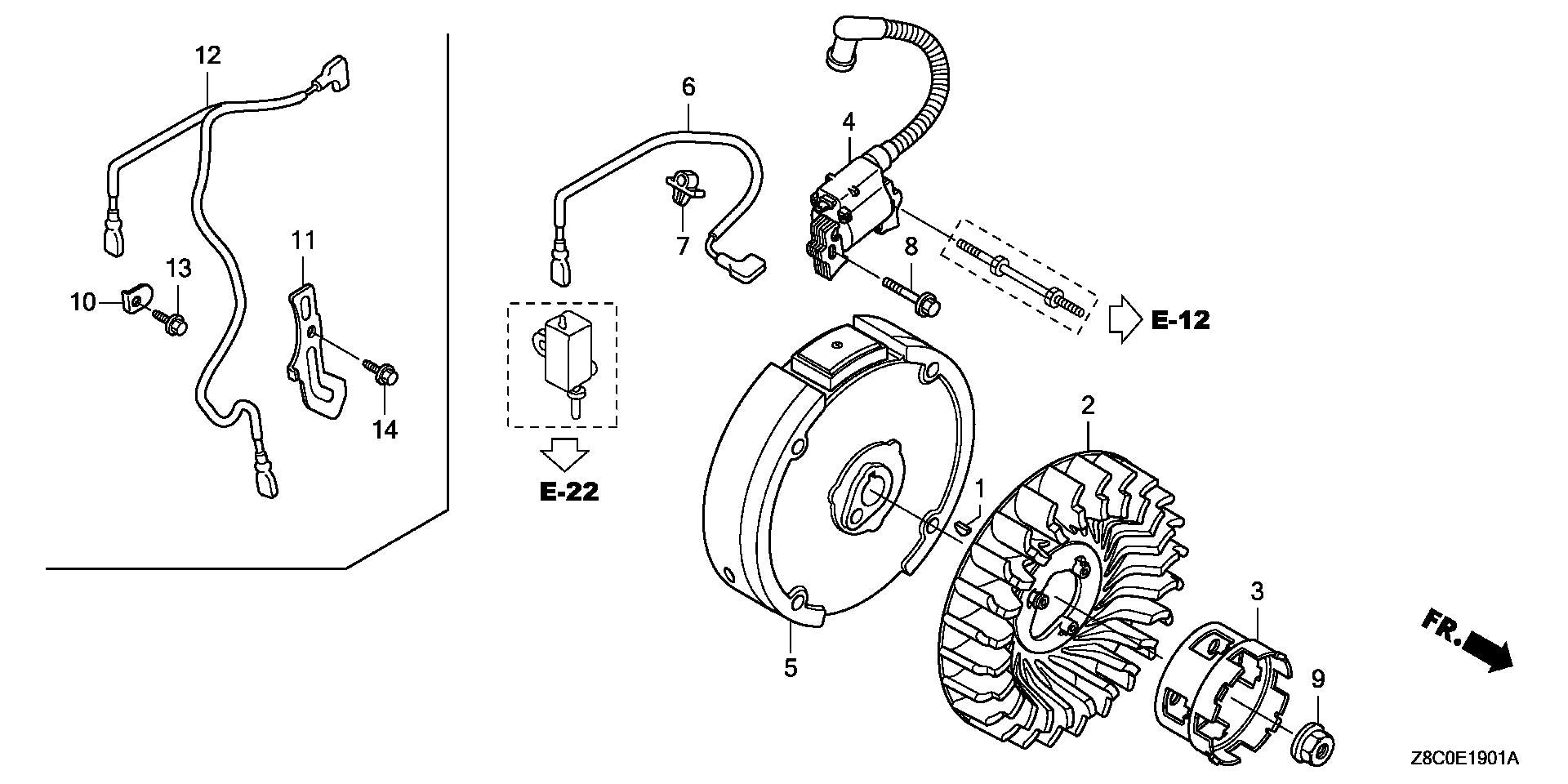

FLYWHEEL (CAST IRON)
FLYWHEEL (CAST IRON)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13331-z8b-900
13331-z8b-900
|
|||
|
|
19511-z0j-900
19511-z0j-900
|
|||
|
|
28451-z0j-900
28451-z0j-900
|
|||
|
|
30500-z0j-004
30500-z0j-004
|
|||
|
|
30500-z8b-912
30500-z8b-912
|
|||
|
|
31110-z0j-014
31110-z0j-014
|
|||
|
|
32195-z0j-900
32195-z0j-900
|
|||
|
|
32195-z1a-900
32195-z1a-900
|
|||
|
|
36103-ze1-000
36103-ze1-000
|
|||
|
|
51125-z0l-003
51125-z0l-003
|
|||
|
|
90681-959-003
90681-959-003
|
|||
|
|
90018-ze1-000
90018-ze1-000
|
|||
|
|
90201-z0t-800
90201-z0t-800
|
|||
|
|
30548-zl8-000
30548-zl8-000
|
|||
|
|
30549-zl8-000
30549-zl8-000
|
|||
|
|
32195-z1a-910
32195-z1a-910
|

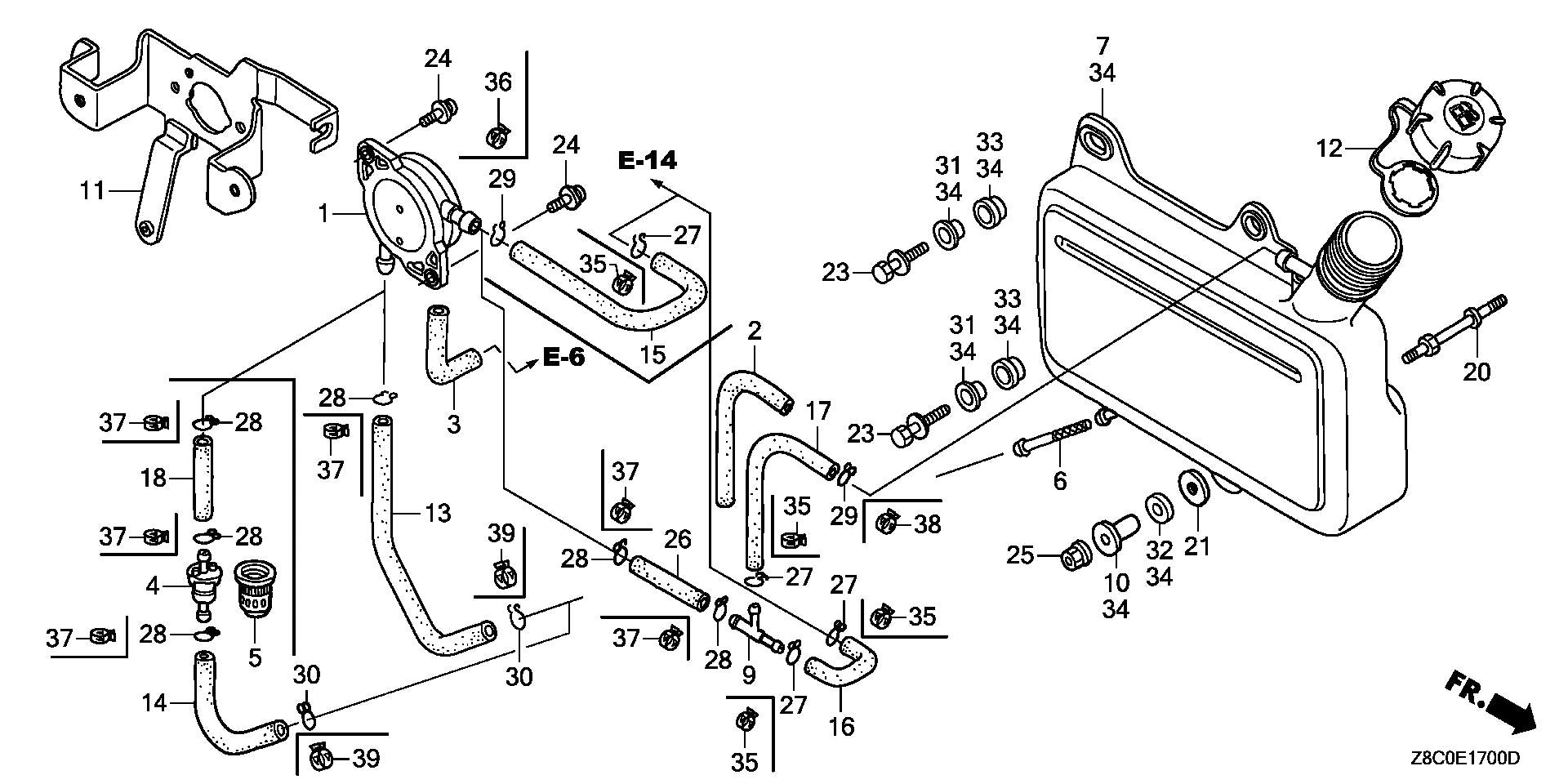

FUEL TANK
FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16700-z0j-003
16700-z0j-003
|
|||
|
|
16700-z8a-004
16700-z8a-004
|
|||
|
|
16854-zh8-000
16854-zh8-000
|
|||
|
|
16882-zl8-000
16882-zl8-000
|
|||
|
|
16915-zv4-000
16915-zv4-000
|
|||
|
|
16952-za8-800
16952-za8-800
|
|||
|
|
16952-z8b-000
16952-z8b-000
|
|||
|
|
17511-z8a-801
17511-z8a-801
|
|||
|
|
17511-z8a-811
17511-z8a-811
|
|||
|
|
17519-zl8-800
17519-zl8-800
|
|||
|
|
17535-ke7-000
17535-ke7-000
|
|||
|
|
17561-z0j-000
17561-z0j-000
|
|||
|
|
17620-z0j-800
17620-z0j-800
|
|||
|
|
17701-zl8-000
17701-zl8-000
|
|||
|
|
17701-zl8-800
17701-zl8-800
|
|||
|
|
17701-z8a-804
17701-z8a-804
|
|||
|
|
17702-zl8-000
17702-zl8-000
|
|||
|
|
17702-z8a-023
17702-z8a-023
|
|||
|
|
17702-zl8-800
17702-zl8-800
|
|||
|
|
17703-zl8-800
17703-zl8-800
|
|||
|
|
17703-z8a-812
17703-z8a-812
|
|||
|
|
17704-zl8-800
17704-zl8-800
|
|||
|
|
17704-z8a-804
17704-z8a-804
|
|||
|
|
90041-zl8-000
90041-zl8-000
|
|||
|
|
90473-896-000
90473-896-000
|
|||
|
|
93404-06025-00
93404-06025-00
|
|||
|
|
93894-05014-00
93894-05014-00
|
|||
|
|
91425-z8a-802
91425-z8a-802
|
|||
|
|
95001-55003-60m
95001-55003-60m
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
95002-02100
95002-02100
|
|||
|
|
95002-50000
95002-50000
|
|||
|
|
95002-70000
95002-70000
|
|||
|
|
17518-z8a-800
17518-z8a-800
|
|||
|
|
17532-z8a-800
17532-z8a-800
|
|||
|
|
17533-z8a-800
17533-z8a-800
|
|||
|
|
06175-z8a-800
06175-z8a-800
|
|||
|
|
06175-z8a-810
06175-z8a-810
|
|||
|
|
95002-40800-08
95002-40800-08
|
|||
|
|
95002-40850-08
95002-40850-08
|
|||
|
|
95002-41000-08
95002-41000-08
|
|||
|
|
95002-41050-08
95002-41050-08
|
|||
|
|
95002-41200-08
95002-41200-08
|

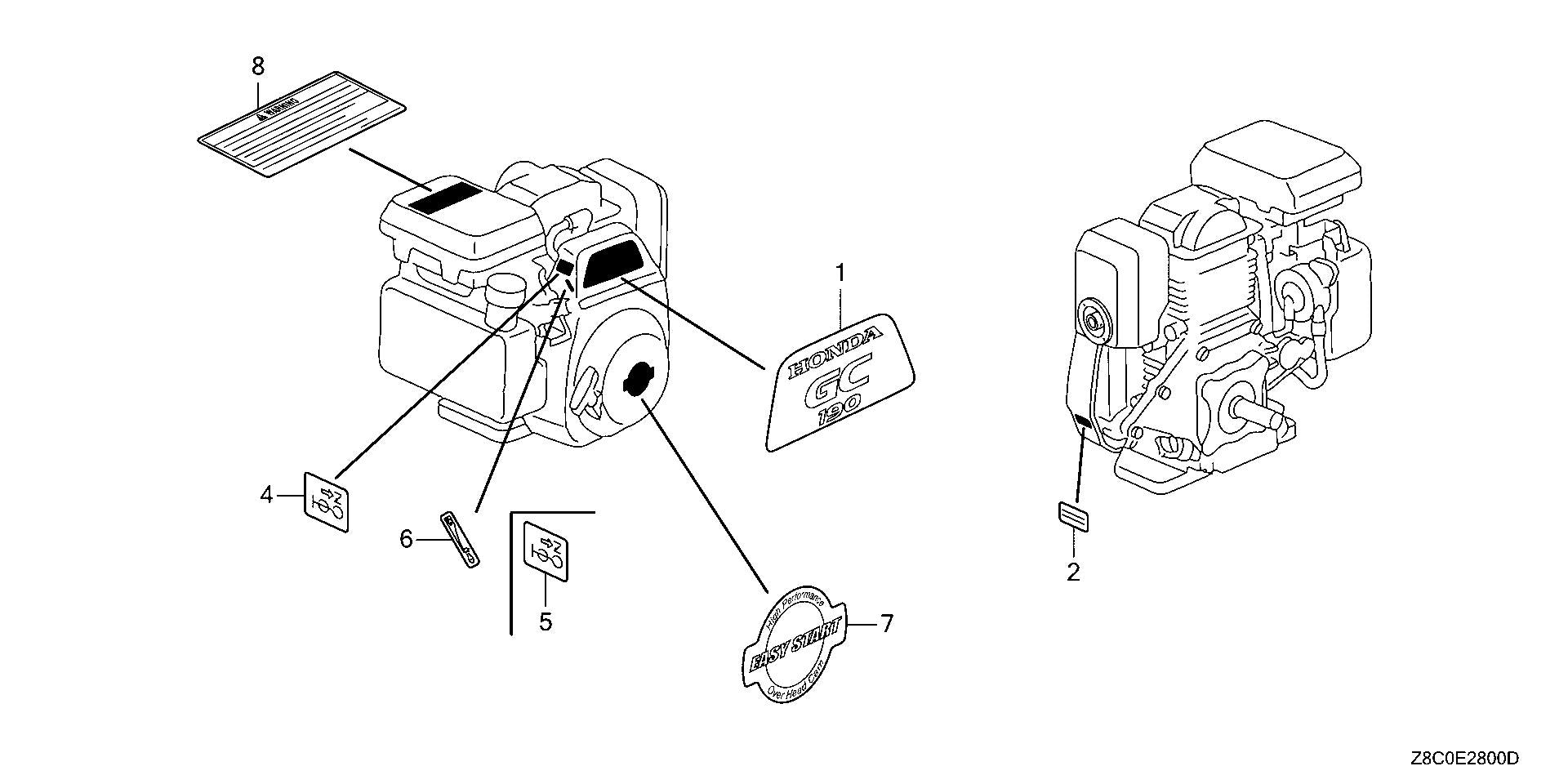

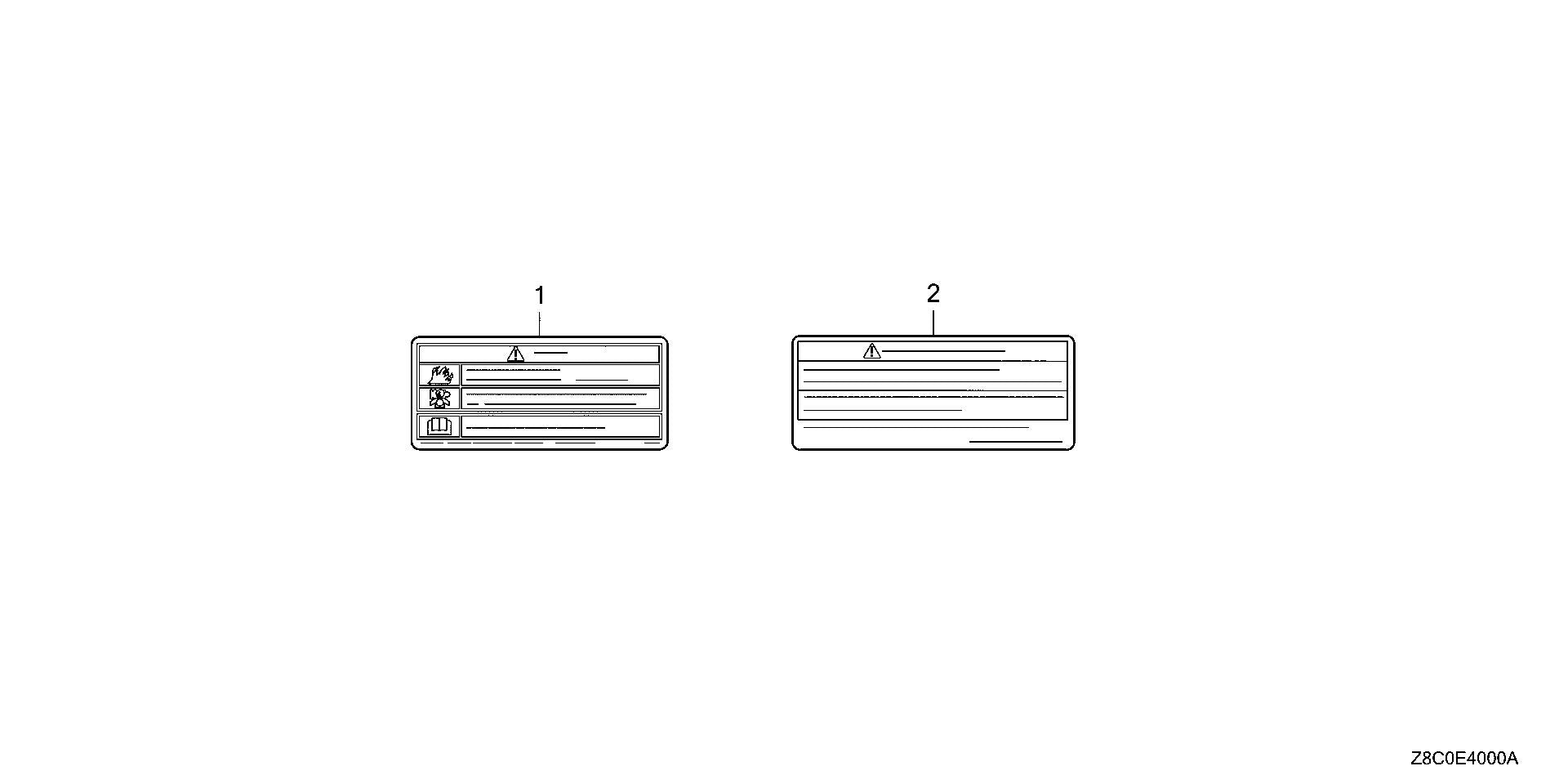

LABEL
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87101-z1a-010
87101-z1a-010
|
|||
|
|
87114-zh7-821
87114-zh7-821
|
|||
|
|
87114-zh7-860
87114-zh7-860
|
|||
|
|
87528-zl8-000
87528-zl8-000
|
|||
|
|
87528-zl8-000
87528-zl8-000
|
|||
|
|
87532-zl8-800
87532-zl8-800
|
|||
|
|
87169-z8a-000
87169-z8a-000
|
|||
|
|
87516-z0j-000
87516-z0j-000
|

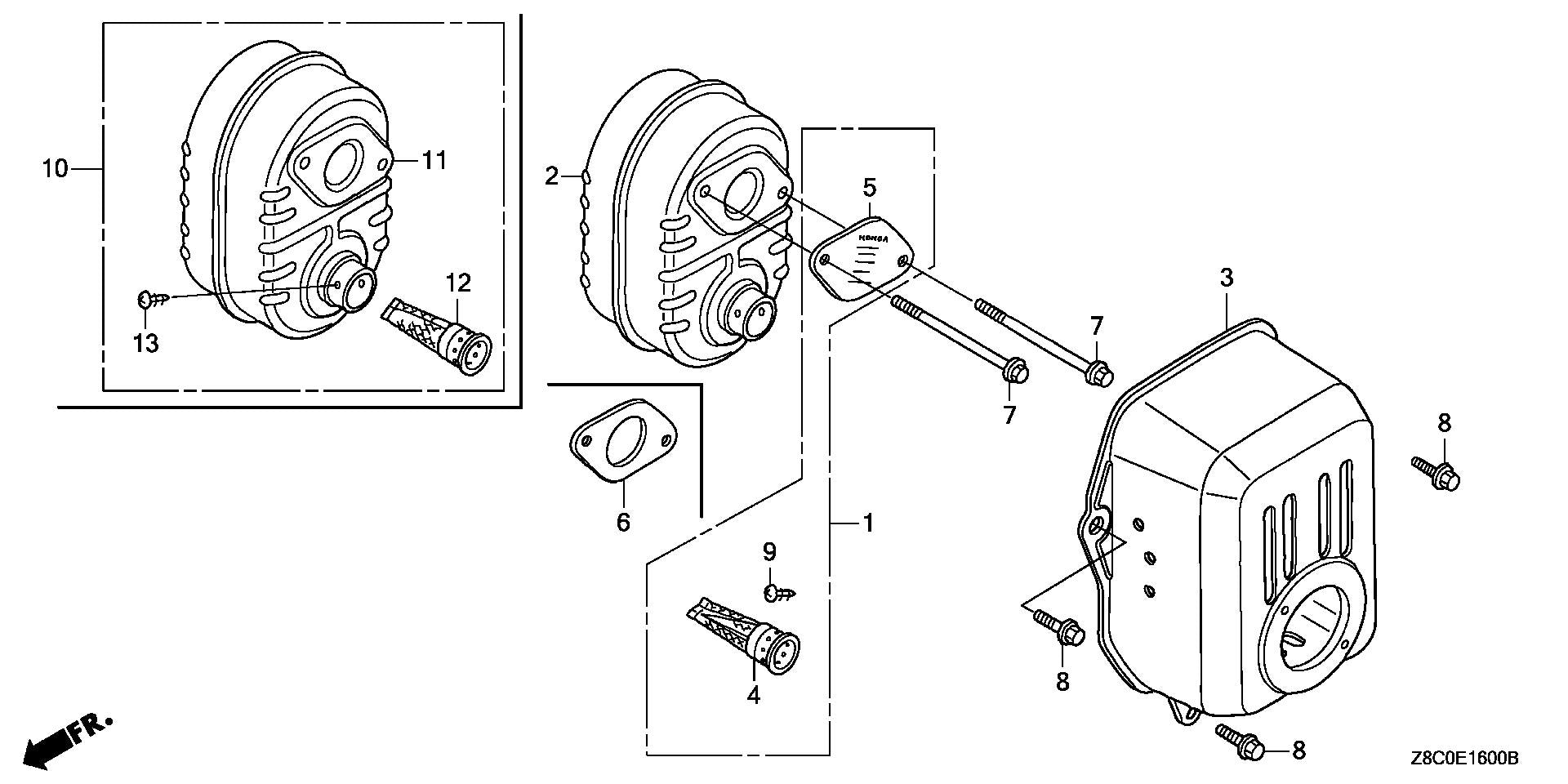

MUFFLER
MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
06180-z0j-000
06180-z0j-000
|
|||
|
|
18310-z0y-010
18310-z0y-010
|
|||
|
|
18321-z0l-010
18321-z0l-010
|
|||
|
|
18350-zl8-000
18350-zl8-000
|
|||
|
|
18356-zl8-000
18356-zl8-000
|
|||
|
|
18381-zl8-305
18381-zl8-305
|
|||
|
|
90004-zl8-000
90004-zl8-000
|
|||
|
|
18300-z8a-000
18300-z8a-000
|
|||
|
|
18310-z8a-000
18310-z8a-000
|
|||
|
|
18350-z0y-000
18350-z0y-000
|

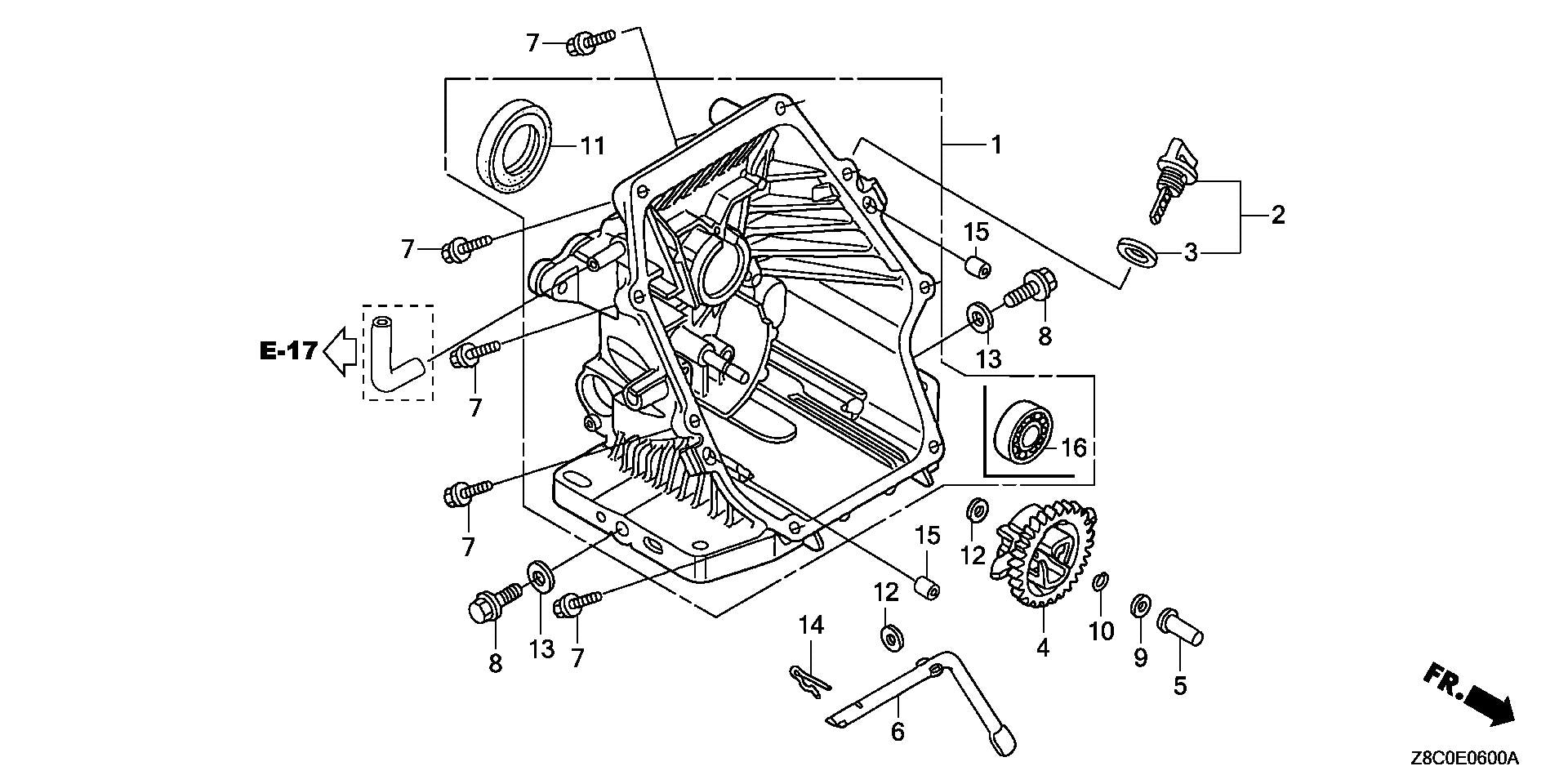

OIL PAN
OIL PAN
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11300-z1a-600
11300-z1a-600
|
|||
|
|
11300-z2a-660
11300-z2a-660
|
|||
|
|
15600-zf0-003
15600-zf0-003
|
|||
|
|
15650-z1a-000
15650-z1a-000
|
|||
|
|
15625-ze1-003
15625-ze1-003
|
|||
|
|
16510-zl8-000
16510-zl8-000
|
|||
|
|
16531-ze1-000
16531-ze1-000
|
|||
|
|
16531-z8b-000
16531-z8b-000
|
|||
|
|
16541-z8a-000
16541-z8a-000
|
|||
|
|
90121-952-000
90121-952-000
|
|||
|
|
90451-ze1-000
90451-ze1-000
|
|||
|
|
90602-ze1-000
90602-ze1-000
|
|||
|
|
91202-zl8-003
91202-zl8-003
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94109-12000
94109-12000
|
|||
|
|
94251-08000
94251-08000
|
|||
|
|
90701-z8b-000
90701-z8b-000
|
|||
|
|
94301-08200
94301-08200
|
|||
|
|
91001-zl8-003
91001-zl8-003
|
OTHER PARTS
OTHER PARTS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87516-z7e-000
87516-z7e-000
|

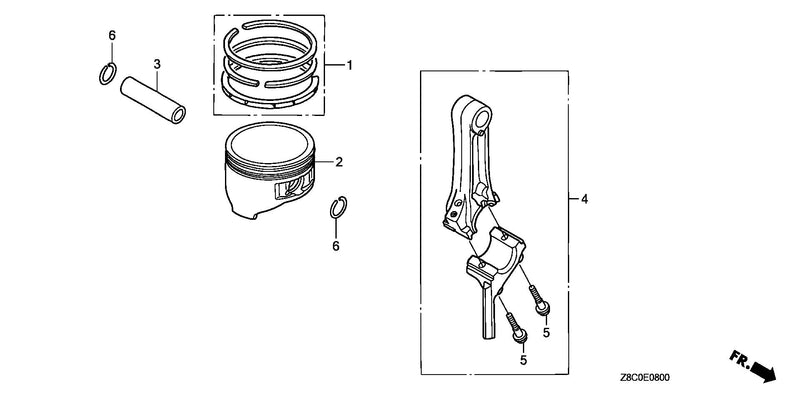

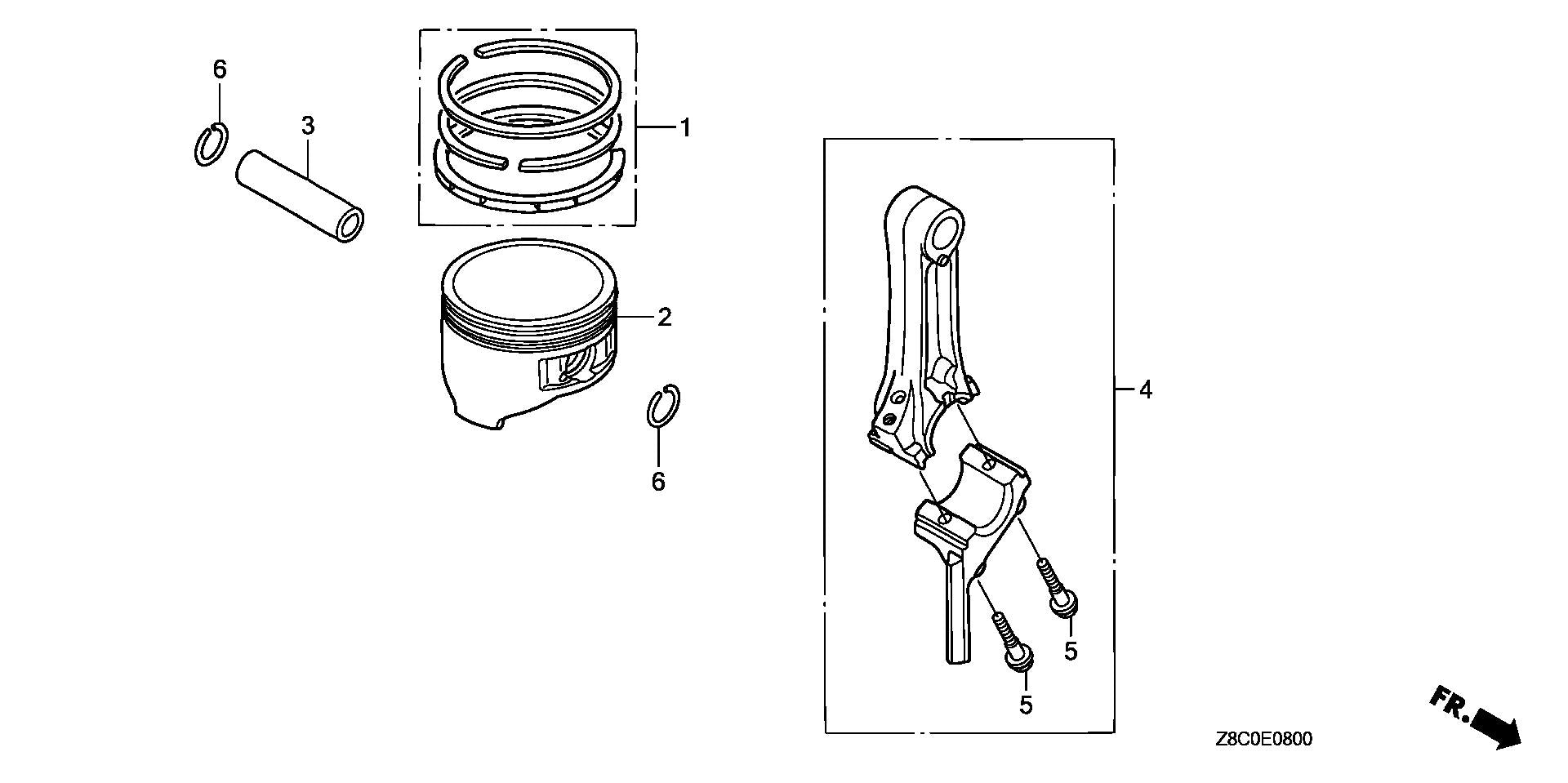

PISTON@CONNECTING ROD
PISTON@CONNECTING ROD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13010-z0y-014
13010-z0y-014
|
|||
|
|
13101-z0y-010
13101-z0y-010
|
|||
|
|
13101-z8c-900
13101-z8c-900
|
|||
|
|
13111-z0y-000
13111-z0y-000
|
|||
|
|
13111-z8d-000
13111-z8d-000
|
|||
|
|
13200-z0y-010
13200-z0y-010
|
|||
|
|
90001-ze1-000
90001-ze1-000
|
|||
|
|
90006-z8b-000
90006-z8b-000
|
|||
|
|
90551-ze0-000
90551-ze0-000
|

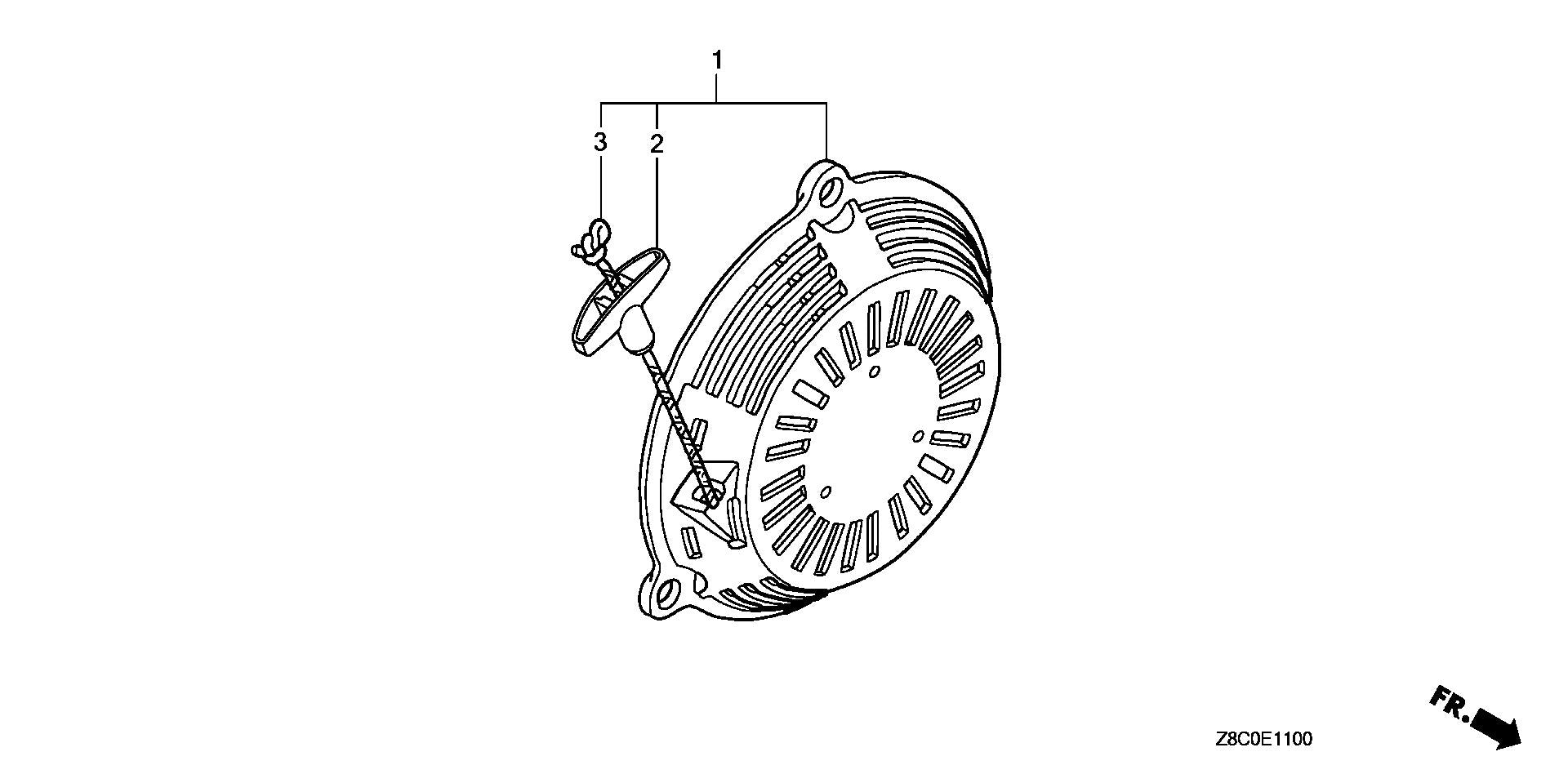

RECOIL STARTER
RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28400-z8a-003zb
28400-z8a-003zb
|
|||
|
|
28400-z8a-003zc
28400-z8a-003zc
|
|||
|
|
28461-zl8-003
28461-zl8-003
|
|||
|
|
28462-zl8-003
28462-zl8-003
|
