Honda GV400K1-ADAB Parts Diagram Engine (Serial GV400-2000001 to 2094026)
Diagrams:
Diagram:

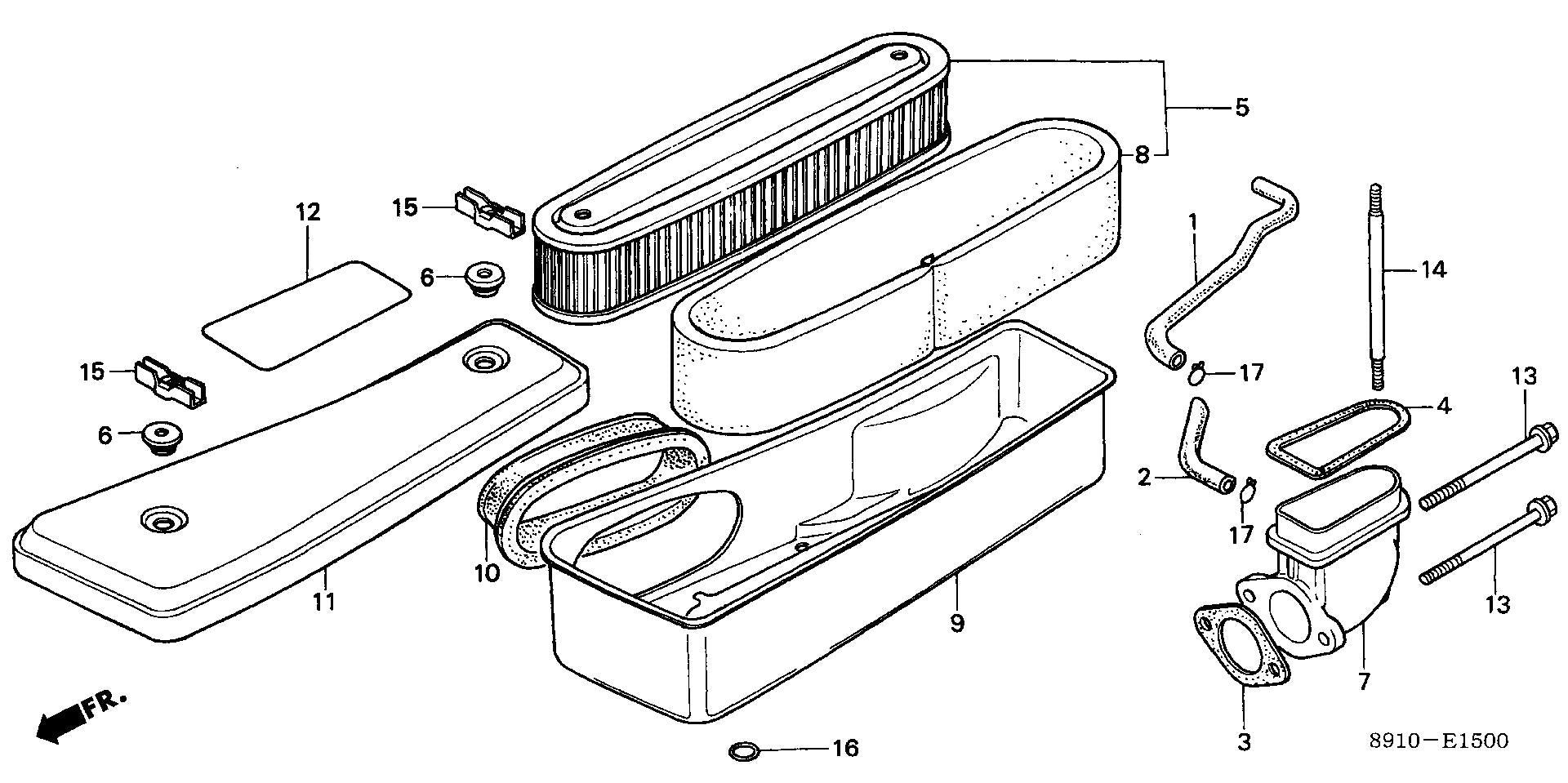

AIR CLEANER
AIR CLEANER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
15721-891-020
15721-891-020
|
|||
|
|
16269-890-800
16269-890-800
|
|||
|
|
16271-891-010
16271-891-010
|
|||
|
|
17212-611-000
17212-611-000
|
|||
|
|
17232-891-000
17232-891-000
|
|||
|
|
17214-891-305
17214-891-305
|
|||
|
|
17231-891-010za
17231-891-010za
|
|||
|
|
90011-891-000
90011-891-000
|
|||
|
|
90203-pb2-000
90203-pb2-000
|
|||
|
|
95002-02130
95002-02130
|

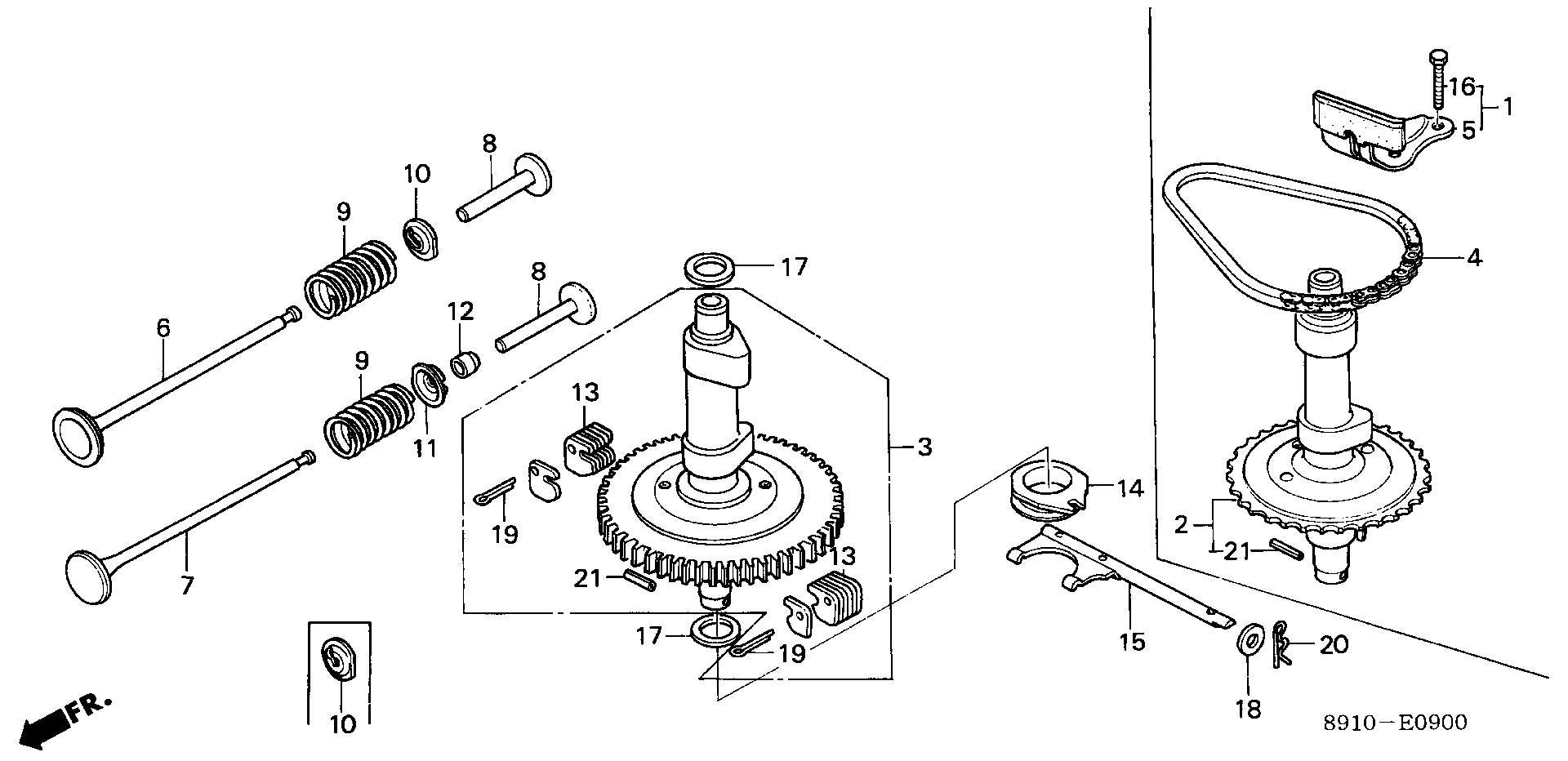

CAMSHAFT
CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14711-890-000
14711-890-000
|
|||
|
|
14721-890-000
14721-890-000
|
|||
|
|
14721-za1-000
14721-za1-000
|
|||
|
|
14732-889-000
14732-889-000
|
|||
|
|
14737-889-000
14737-889-000
|
|||
|
|
14742-889-000
14742-889-000
|
|||
|
|
14747-889-000
14747-889-000
|
|||
|
|
14771-883-305
14771-883-305
|
|||
|
|
16511-883-300
16511-883-300
|
|||
|
|
16540-891-000
16540-891-000
|
|||
|
|
90452-883-000
90452-883-000
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94201-30450
94201-30450
|
|||
|
|
94251-06000
94251-06000
|
|||
|
|
94305-25162
94305-25162
|

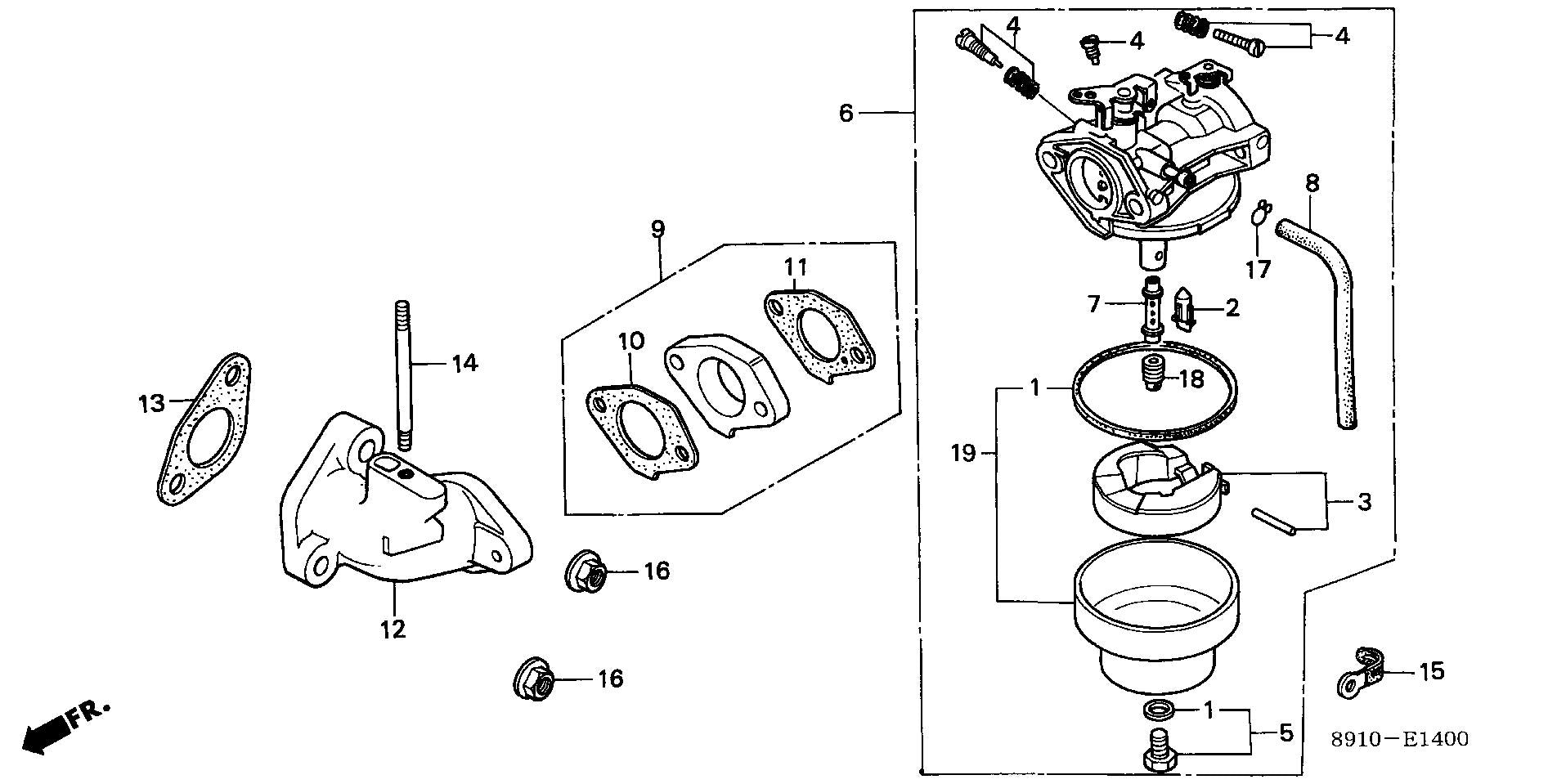

CARBURETOR@INLET MANIFOLD
CARBURETOR@INLET MANIFOLD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16016-888-005
16016-888-005
|
|||
|
|
16028-zk7-s91
16028-zk7-s91
|
|||
|
|
16212-891-306
16212-891-306
|
|||
|
|
91410-679-000
91410-679-000
|
|||
|
|
95002-02070
95002-02070
|
|||
|
|
99101-124-0920
99101-124-0920
|
|||
|
|
99101-124-0950
99101-124-0950
|
|||
|
|
99101-124-1020
99101-124-1020
|
|||
|
|
99101-124-1050
99101-124-1050
|

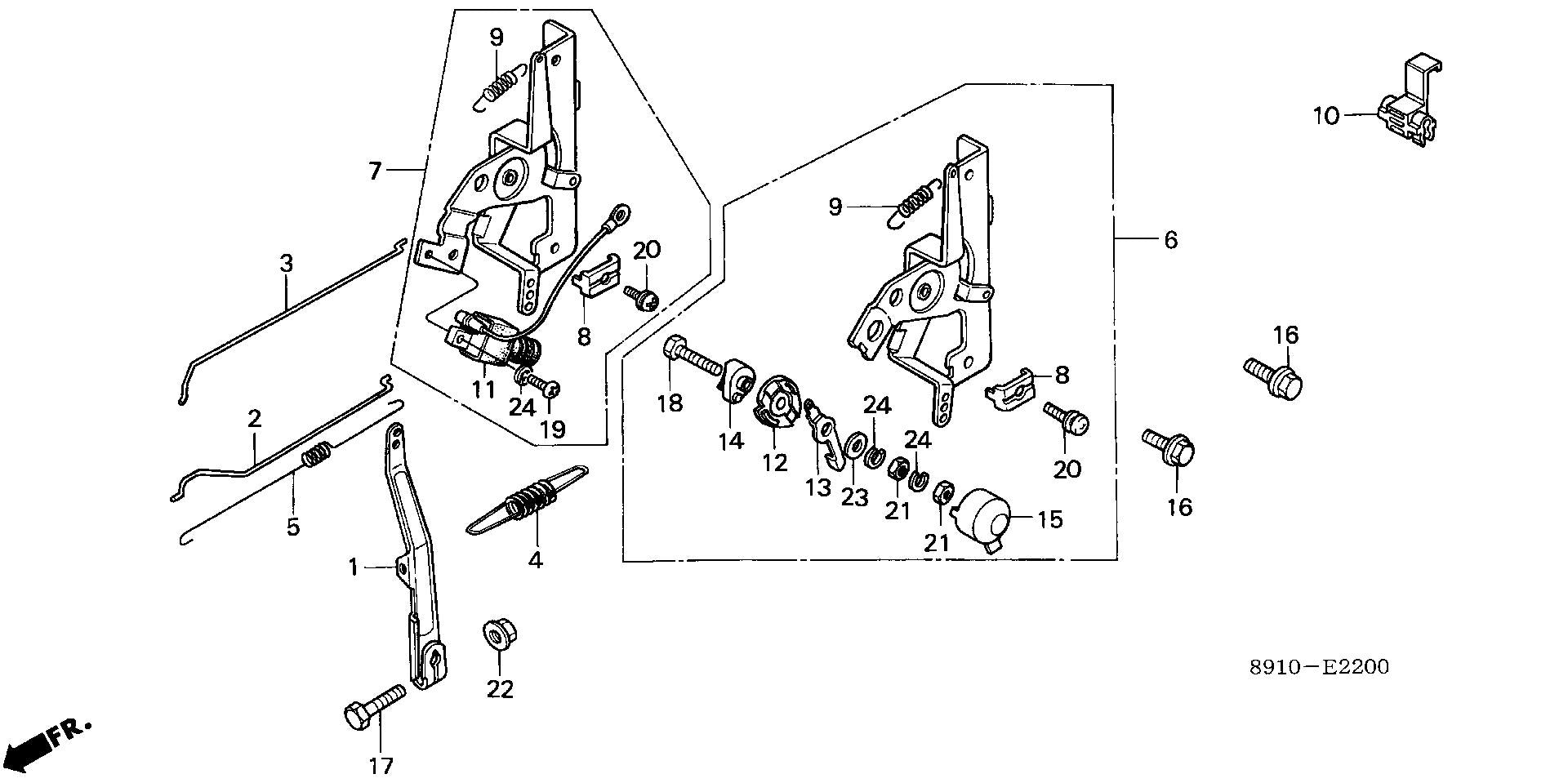

CONTROL
CONTROL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16556-891-010
16556-891-010
|
|||
|
|
16576-891-000
16576-891-000
|
|||
|
|
16592-883-310
16592-883-310
|
|||
|
|
36100-891-000
36100-891-000
|
|||
|
|
90061-161-000
90061-161-000
|
|||
|
|
90015-ze5-010
90015-ze5-010
|
|||
|
|
93500-04014-0a
93500-04014-0a
|
|||
|
|
93893-05016-00
93893-05016-00
|
|||
|
|
94001-04000-0s
94001-04000-0s
|
|||
|
|
94101-04000
94101-04000
|
|||
|
|
94111-04000
94111-04000
|

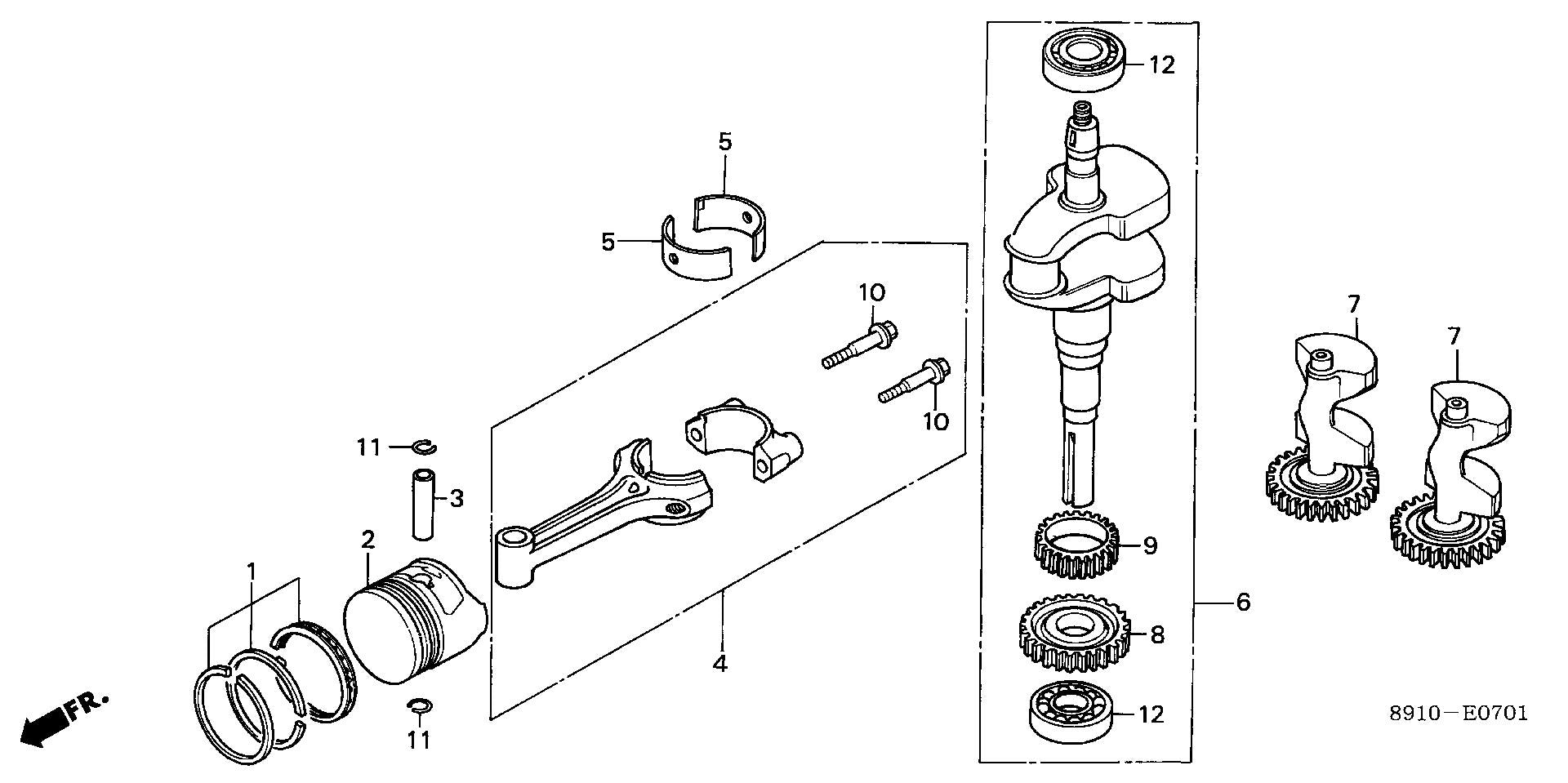

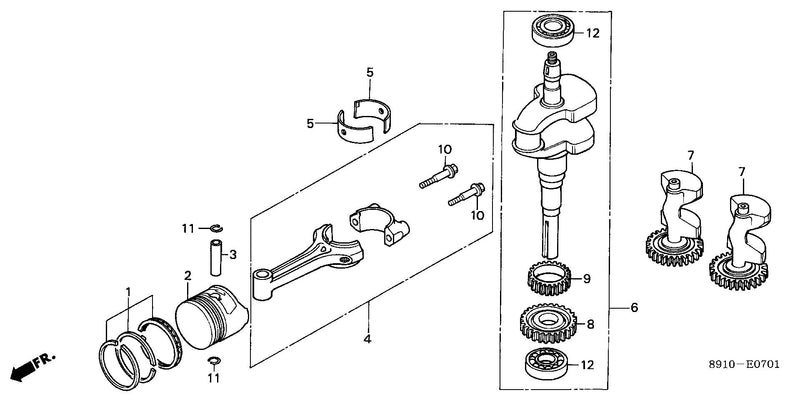

CRANKSHAFT@PISTON (GV400K1)
CRANKSHAFT@PISTON (GV400K1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13010-890-010
13010-890-010
|
|||
|
|
13011-ya2-003
13011-ya2-003
|
|||
|
|
13012-890-010
13012-890-010
|
|||
|
|
13101-890-010
13101-890-010
|
|||
|
|
13102-890-010
13102-890-010
|
|||
|
|
13104-890-010
13104-890-010
|
|||
|
|
13111-890-000
13111-890-000
|
|||
|
|
13200-891-040
13200-891-040
|
|||
|
|
13225-890-003
13225-890-003
|
|||
|
|
13226-890-003
13226-890-003
|
|||
|
|
13227-890-003
13227-890-003
|
|||
|
|
13228-890-003
13228-890-003
|
|||
|
|
13229-890-003
13229-890-003
|
|||
|
|
13352-891-310
13352-891-310
|
|||
|
|
94601-19000
94601-19000
|
|||
|
|
96100-62060-00
96100-62060-00
|

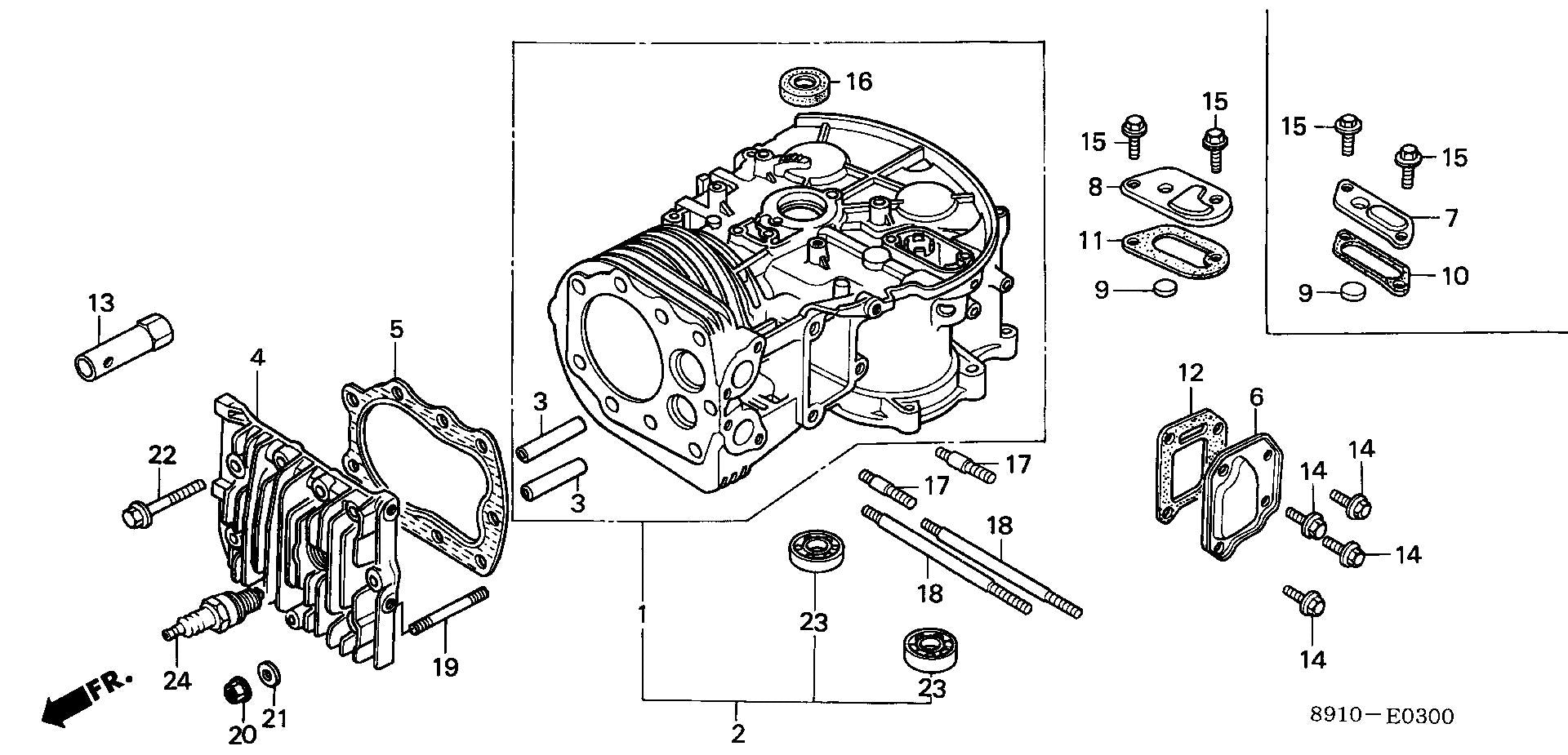

CYLINDER HEAD@CYLINDER
CYLINDER HEAD@CYLINDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12134-890-305
12134-890-305
|
|||
|
|
12361-891-000
12361-891-000
|
|||
|
|
12370-888-000
12370-888-000
|
|||
|
|
12372-879-000
12372-879-000
|
|||
|
|
12373-888-000
12373-888-000
|
|||
|
|
12373-891-000
12373-891-000
|
|||
|
|
90061-161-000
90061-161-000
|
|||
|
|
91201-890-003
91201-890-003
|
|||
|
|
92900-08028-0b
92900-08028-0b
|
|||
|
|
92900-08032-0e
92900-08032-0e
|
|||
|
|
90021-891-000
90021-891-000
|
|||
|
|
90045-890-000
90045-890-000
|
|||
|
|
92900-10040-0b
92900-10040-0b
|
|||
|
|
94050-10080
94050-10080
|
|||
|
|
90401-437-000
90401-437-000
|
|||
|
|
94102-10000
94102-10000
|
|||
|
|
95730-10055-08
95730-10055-08
|
|||
|
|
98073-56740
98073-56740
|
|||
|
|
98073-56744
98073-56744
|
|||
|
|
98073-56941
98073-56941
|
|||
|
|
98073-56944
98073-56944
|
|||
|
|
98073-56750
98073-56750
|
|||
|
|
98073-56951
98073-56951
|
|||
|
|
98073-56954
98073-56954
|

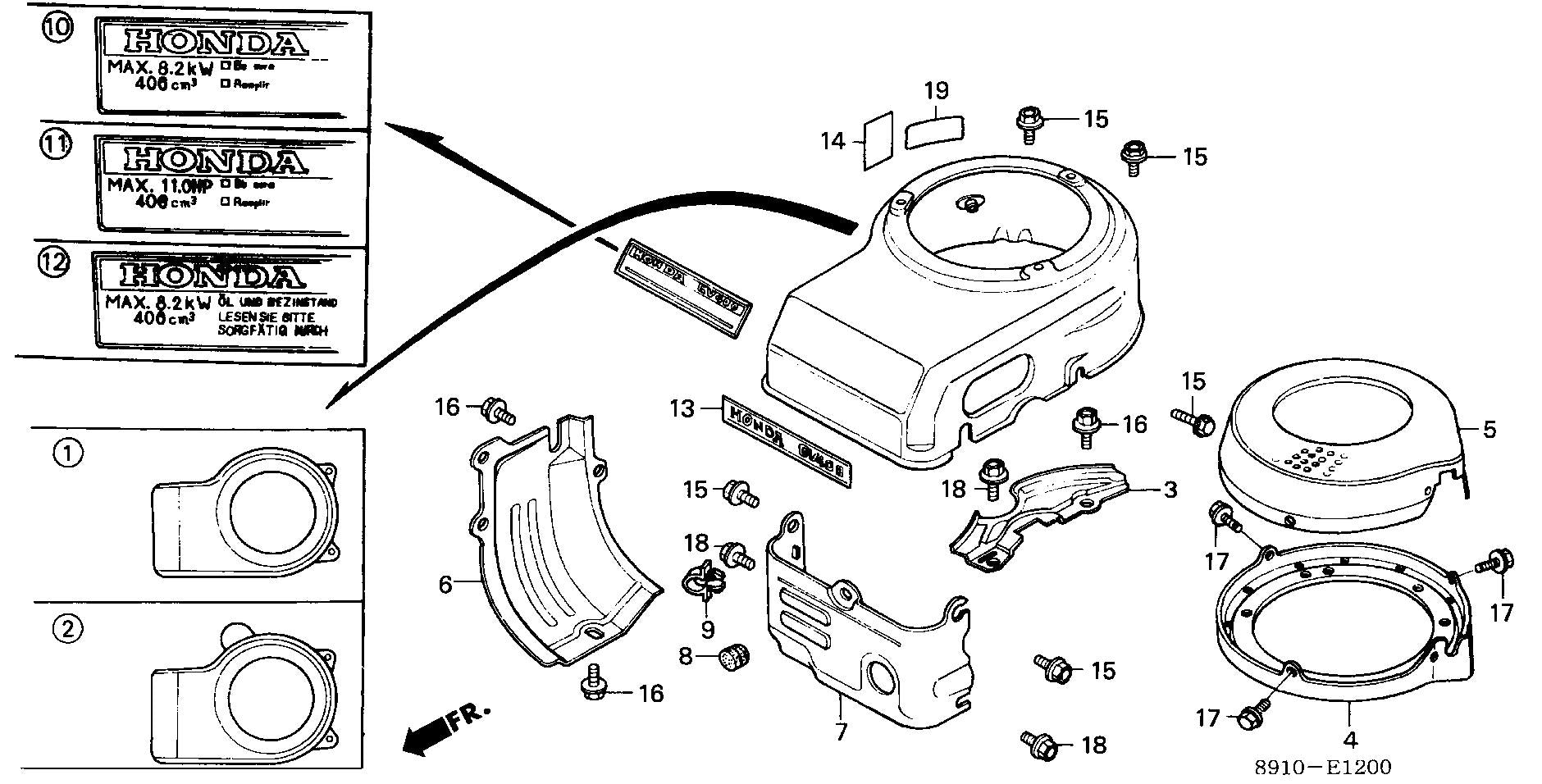

FAN COVER@TOP COVER
FAN COVER@TOP COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19631-891-000
19631-891-000
|
|||
|
|
19643-883-010
19643-883-010
|
|||
|
|
30701-883-000
30701-883-000
|
|||
|
|
90061-161-000
90061-161-000
|

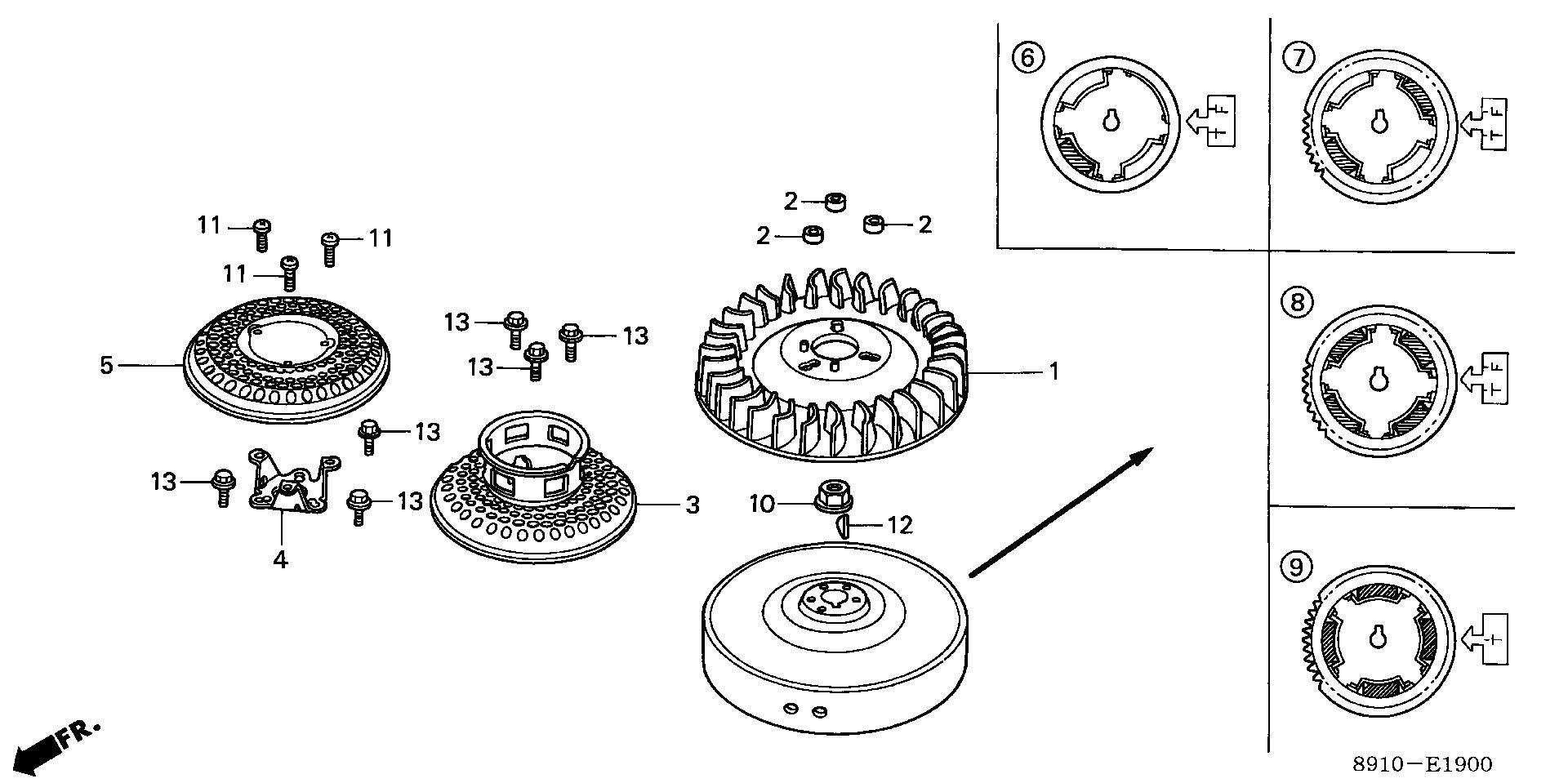

FLYWHEEL
FLYWHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19512-883-000
19512-883-000
|
|||
|
|
28451-891-640
28451-891-640
|
|||
|
|
90201-ze3-790
90201-ze3-790
|
|||
|
|
93500-05008-0a
93500-05008-0a
|
|||
|
|
94401-25180
94401-25180
|
|||
|
|
95701-06016-08
95701-06016-08
|

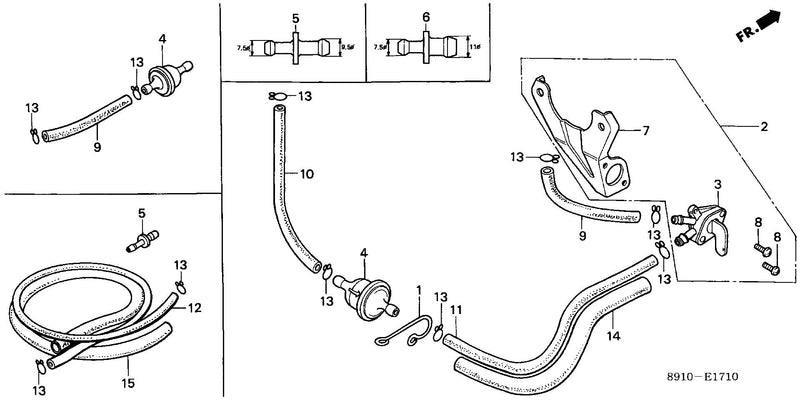

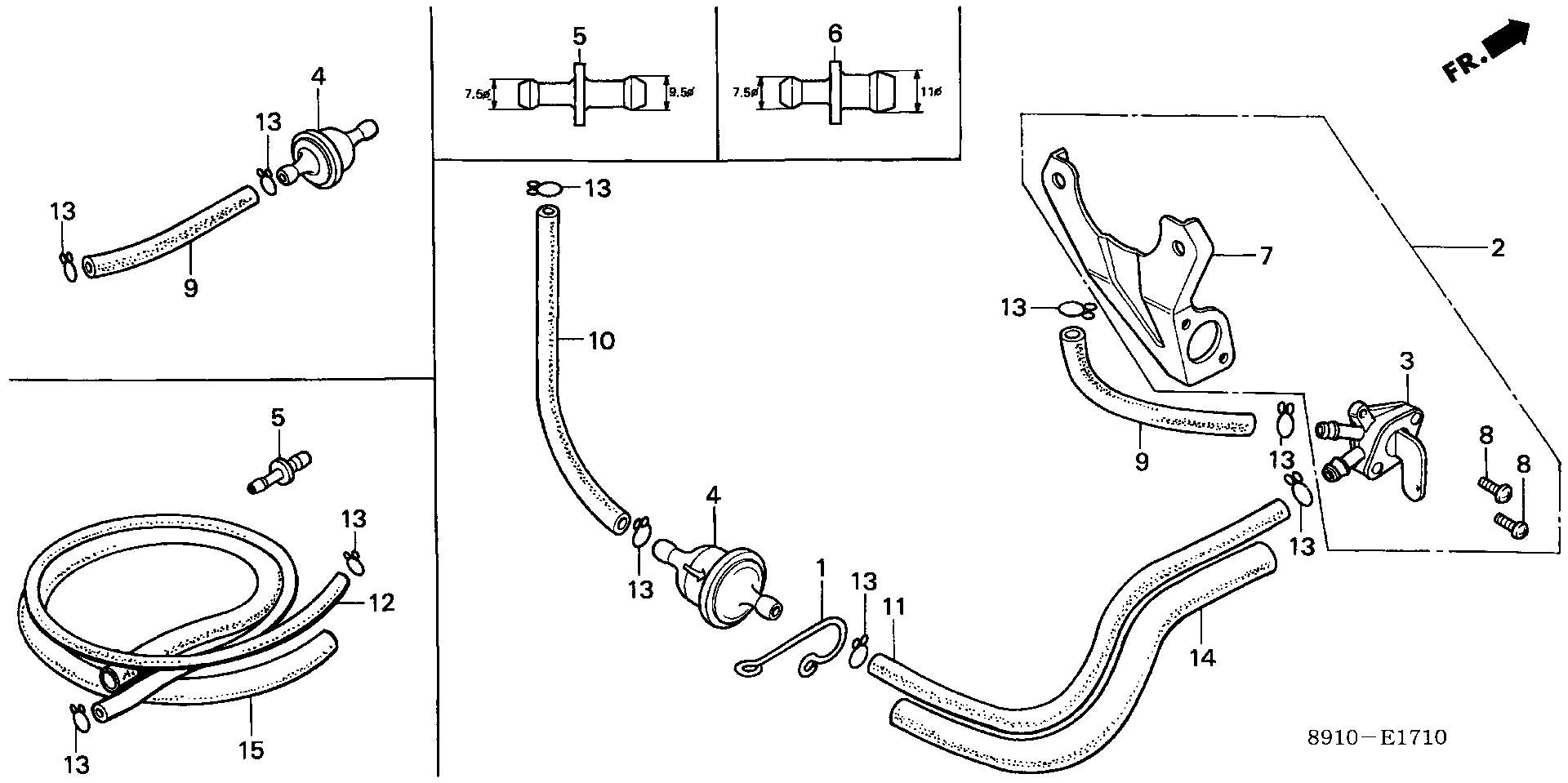

FUEL PETCOCK (1)
FUEL PETCOCK (1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16950-891-681
16950-891-681
|
|||
|
|
16953-891-670
16953-891-670
|
|||
|
|
93500-03012-0a
93500-03012-0a
|
|||
|
|
95001-55003-60m
95001-55003-60m
|
|||
|
|
95001-55003-60m
95001-55003-60m
|
|||
|
|
95001-55003-60m
95001-55003-60m
|
|||
|
|
95001-55003-60m
95001-55003-60m
|
|||
|
|
95002-02100
95002-02100
|
|||
|
|
95005-11001-30m
95005-11001-30m
|
|||
|
|
95005-11001-30m
95005-11001-30m
|

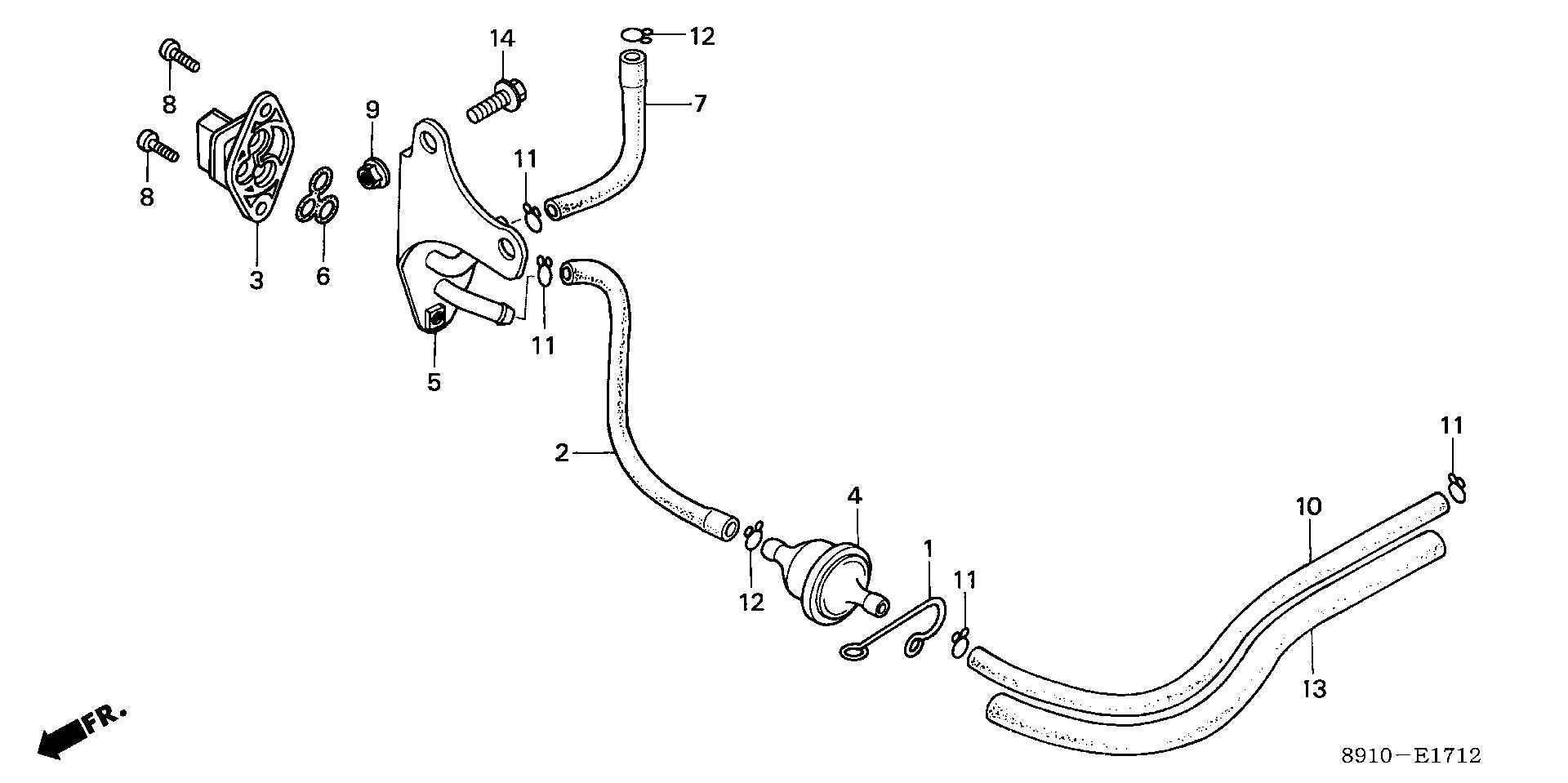

FUEL PETCOCK (3)
FUEL PETCOCK (3)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16958-mb4-005
16958-mb4-005
|
|||
|
|
17512-891-830
17512-891-830
|
|||
|
|
93500-06014-0a
93500-06014-0a
|
|||
|
|
95001-55003-60m
95001-55003-60m
|
|||
|
|
95002-02100
95002-02100
|
|||
|
|
95002-02120
95002-02120
|
|||
|
|
95005-11001-30m
95005-11001-30m
|

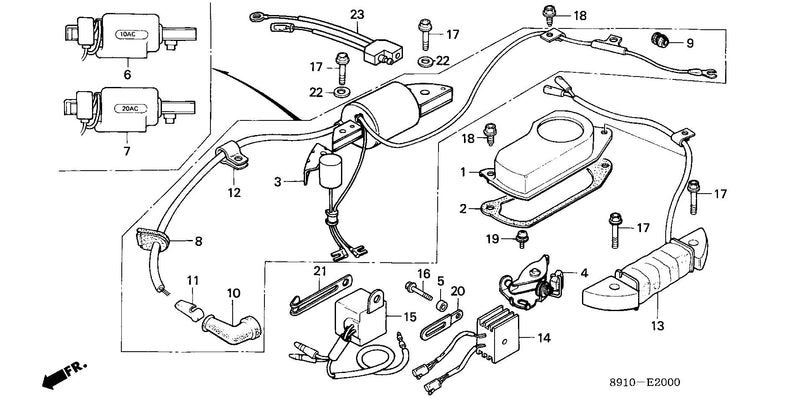

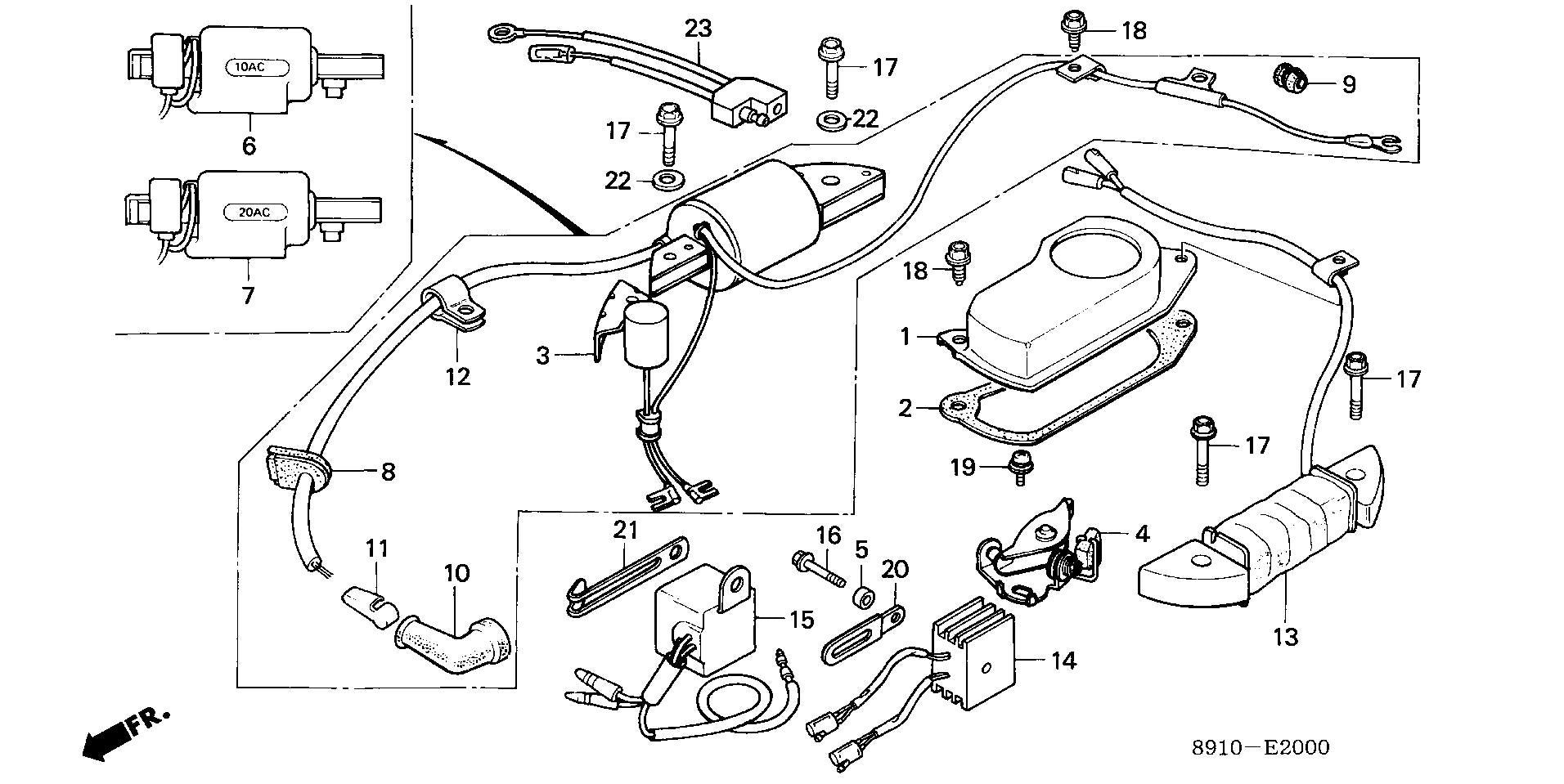

IGNITION COIL (1)
IGNITION COIL (1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30251-883-003
30251-883-003
|
|||
|
|
30563-890-003
30563-890-003
|
|||
|
|
30702-888-003
30702-888-003
|
|||
|
|
30702-890-000
30702-890-000
|
|||
|
|
31630-891-821
31630-891-821
|
|||
|
|
90012-888-000
90012-888-000
|
|||
|
|
90017-883-000
90017-883-000
|
|||
|
|
90012-896-750
90012-896-750
|
|||
|
|
90051-883-000
90051-883-000
|
|||
|
|
90105-727-000
90105-727-000
|
|||
|
|
91405-671-000
91405-671-000
|
|||
|
|
94101-06800
94101-06800
|

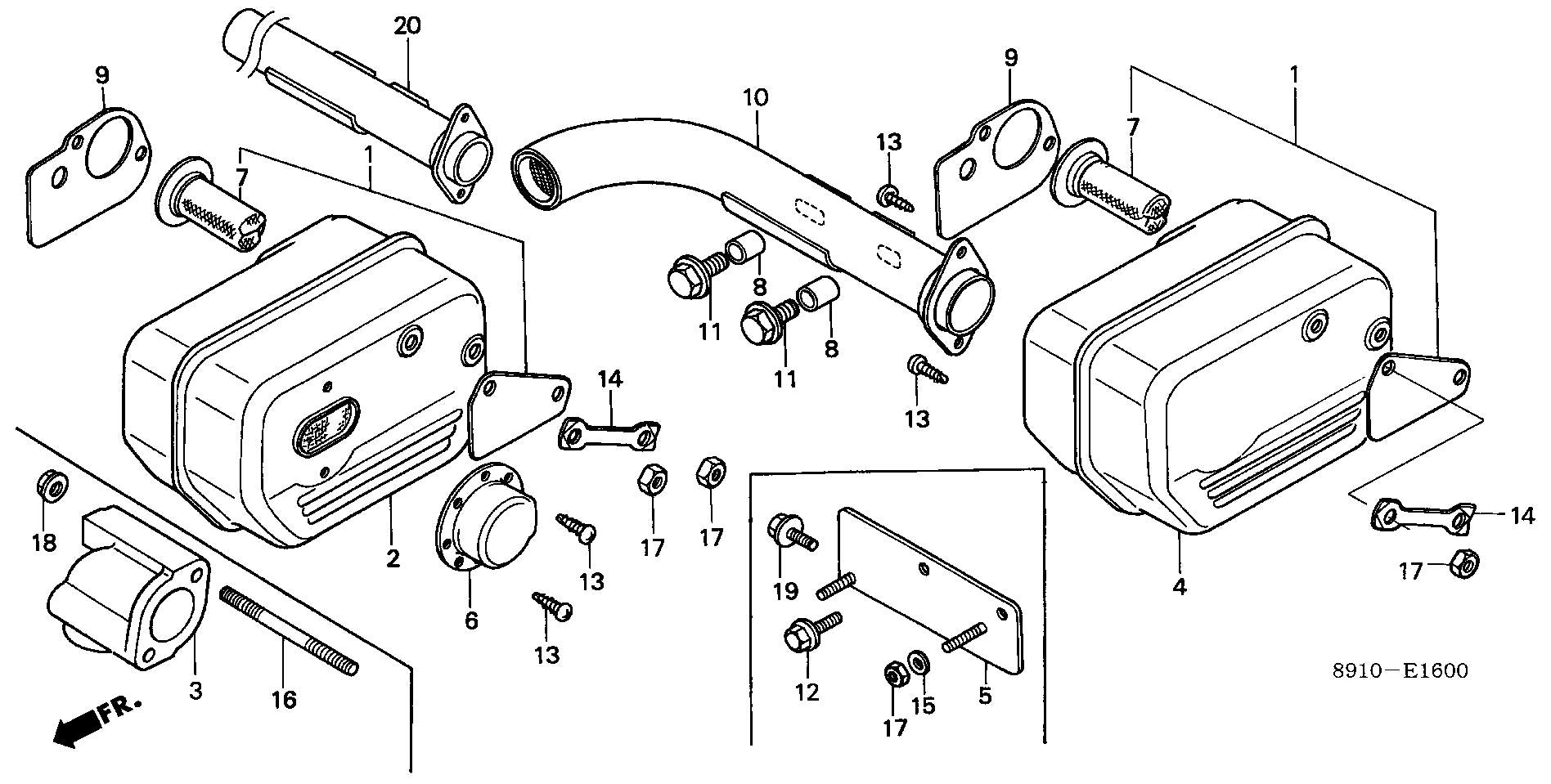

MUFFLER
MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
18310-891-010
18310-891-010
|
|||
|
|
90125-891-000
90125-891-000
|
|||
|
|
90126-891-000
90126-891-000
|
|||
|
|
90002-zg0-003
90002-zg0-003
|
|||
|
|
90450-147-000
90450-147-000
|
|||
|
|
94001-08000-0s
94001-08000-0s
|
|||
|
|
95701-08018-08
95701-08018-08
|

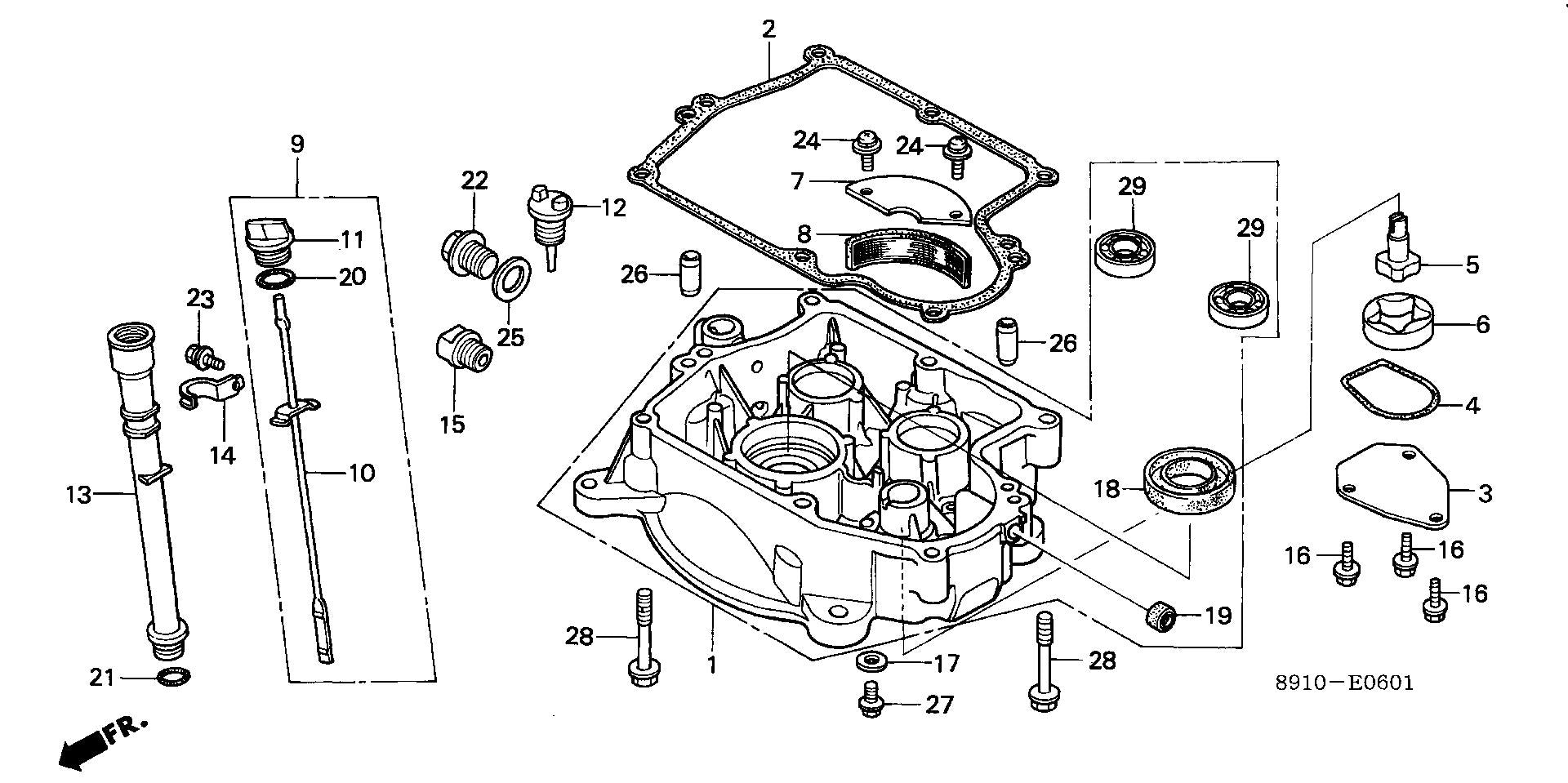

OIL PAN@OIL PUMP (GV400K1)
OIL PAN@OIL PUMP (GV400K1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
15330-891-000
15330-891-000
|
|||
|
|
15332-891-003
15332-891-003
|
|||
|
|
15611-921-000
15611-921-000
|
|||
|
|
15620-891-000
15620-891-000
|
|||
|
|
15630-891-680
15630-891-680
|
|||
|
|
15632-891-680
15632-891-680
|
|||
|
|
90488-700-000
90488-700-000
|
|||
|
|
91201-890-003
91201-890-003
|
|||
|
|
91231-891-003
91231-891-003
|
|||
|
|
91301-805-000
91301-805-000
|
|||
|
|
92800-20000
92800-20000
|
|||
|
|
93401-06010-08
93401-06010-08
|
|||
|
|
93892-05012-00
93892-05012-00
|
|||
|
|
94109-20000
94109-20000
|
|||
|
|
94301-08140
94301-08140
|
|||
|
|
95701-08016-08
95701-08016-08
|
|||
|
|
95701-08045-08
95701-08045-08
|

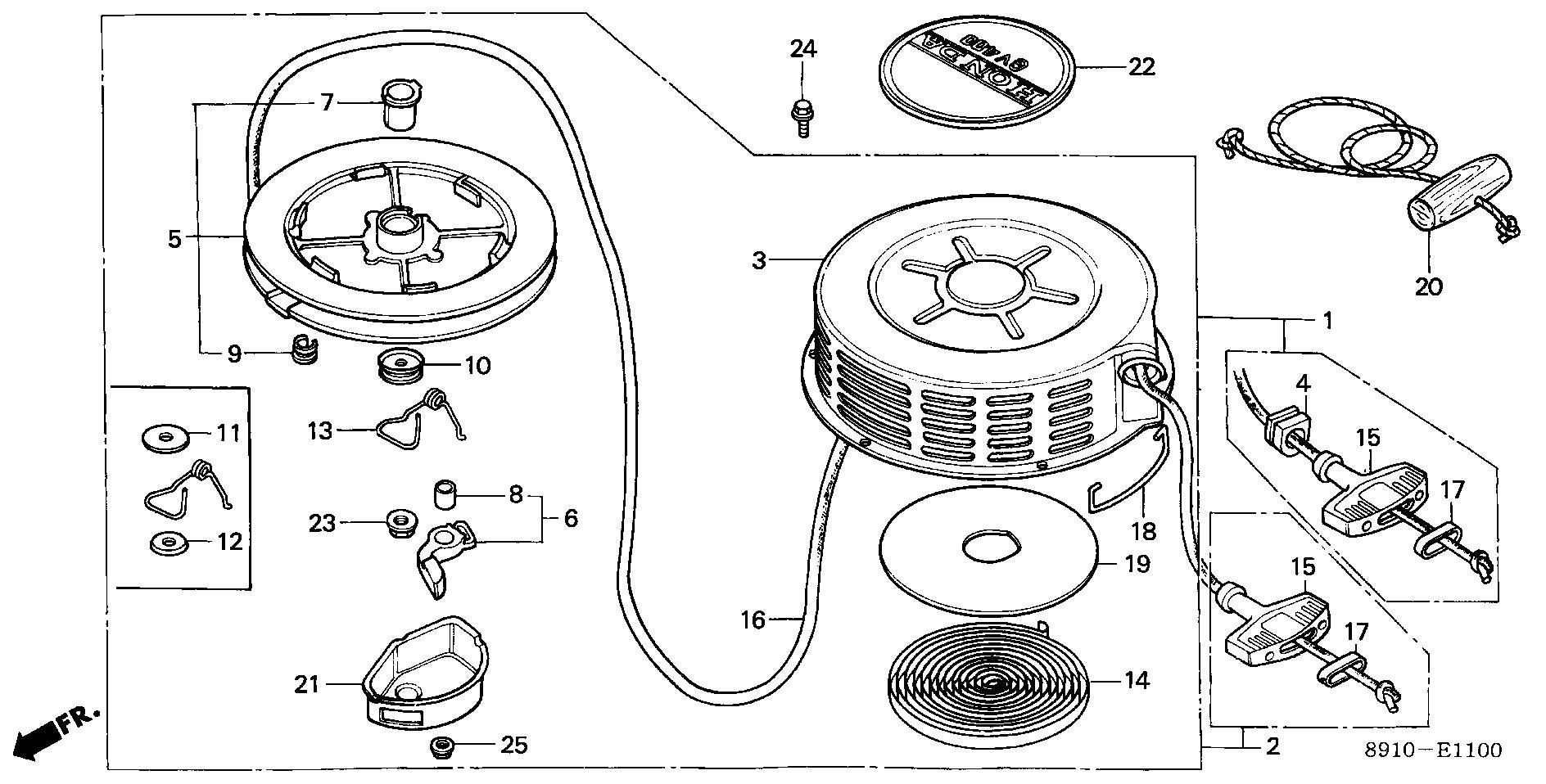

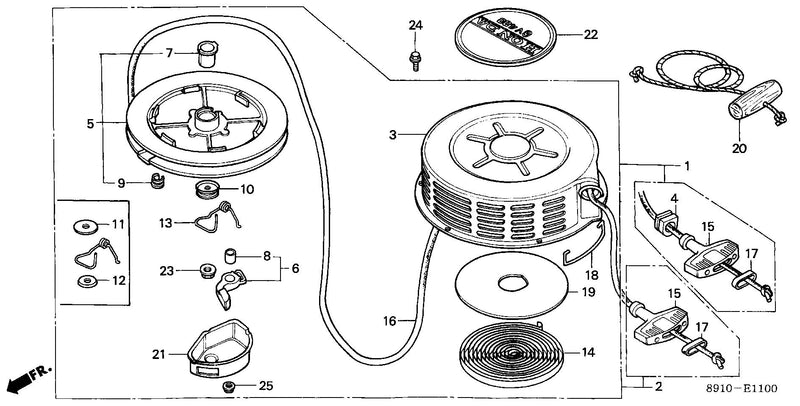

RECOIL STARTER
RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28400-890-030zc
28400-890-030zc
|
|||
|
|
28410-890-010h
28410-890-010h
|
|||
|
|
28422-890-003
28422-890-003
|
|||
|
|
28425-890-300
28425-890-300
|
|||
|
|
28461-883-000
28461-883-000
|
|||
|
|
28461-883-t20
28461-883-t20
|
|||
|
|
28470-816-000
28470-816-000
|
|||
|
|
87521-891-000
87521-891-000
|
|||
|
|
90115-659-003
90115-659-003
|
|||
|
|
93401-06010-08
93401-06010-08
|
|||
|
|
90114-sa0-000
90114-sa0-000
|
