Honda GX110-QX Parts Diagram (Serial GX110-1000001 to 2454428)
Diagrams:
Diagram:

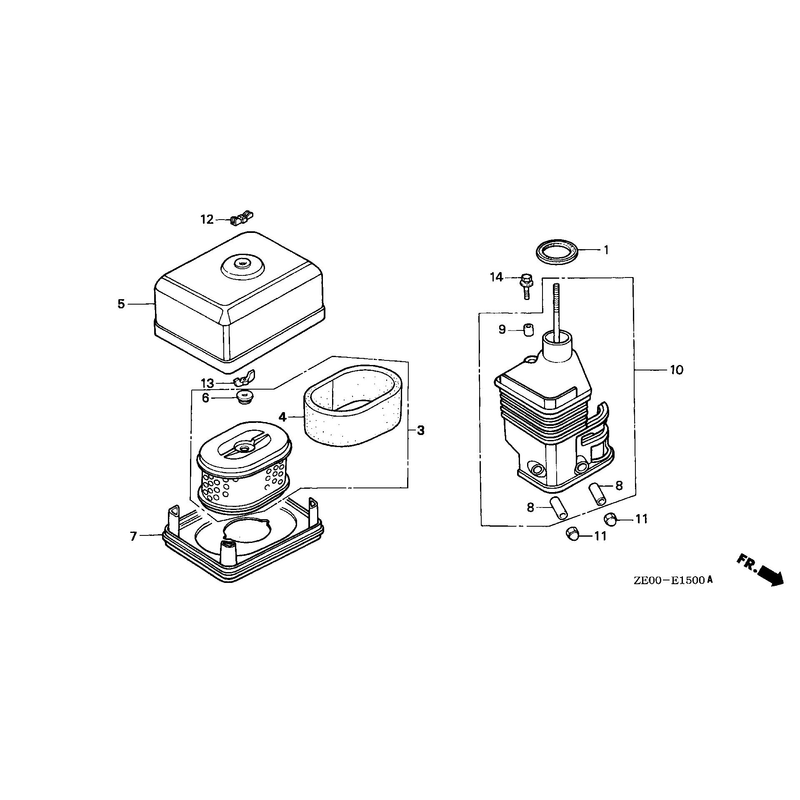

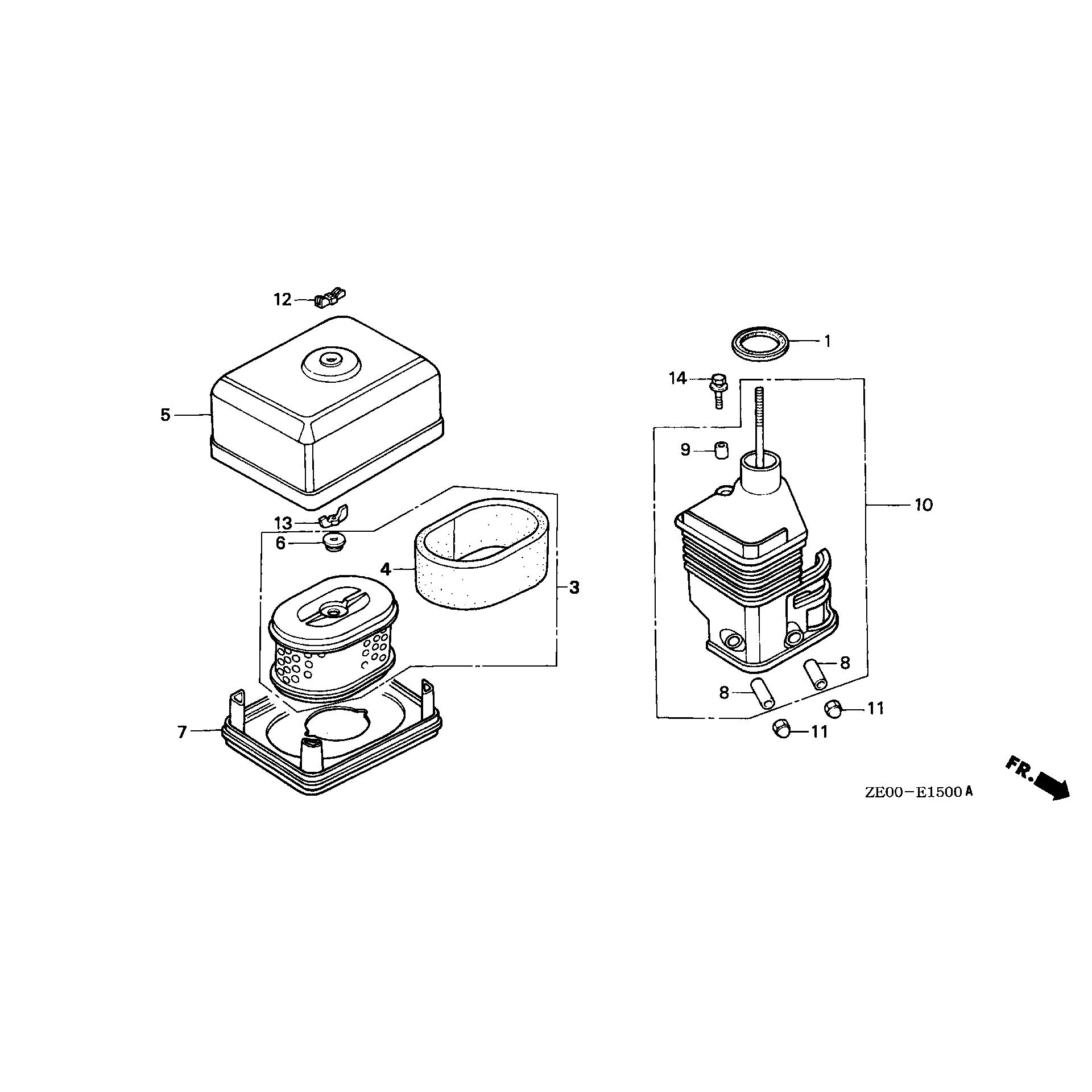

AIR CLEANER (DUAL)
AIR CLEANER (DUAL)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17218-ze0-821
17218-ze0-821
|
|||
|
|
17230-ze0-820
17230-ze0-820
|
|||
|
|
17232-891-000
17232-891-000
|
|||
|
|
17238-ze0-010
17238-ze0-010
|
|||
|
|
17238-ze1-000
17238-ze1-000
|
|||
|
|
17239-ze1-000
17239-ze1-000
|
|||
|
|
17410-ze0-020
17410-ze0-020
|
|||
|
|
17410-ze0-040
17410-ze0-040
|
|||
|
|
90203-pb2-000
90203-pb2-000
|
|||
|
|
90325-044-000
90325-044-000
|
|||
|
|
93404-06020-08
93404-06020-08
|

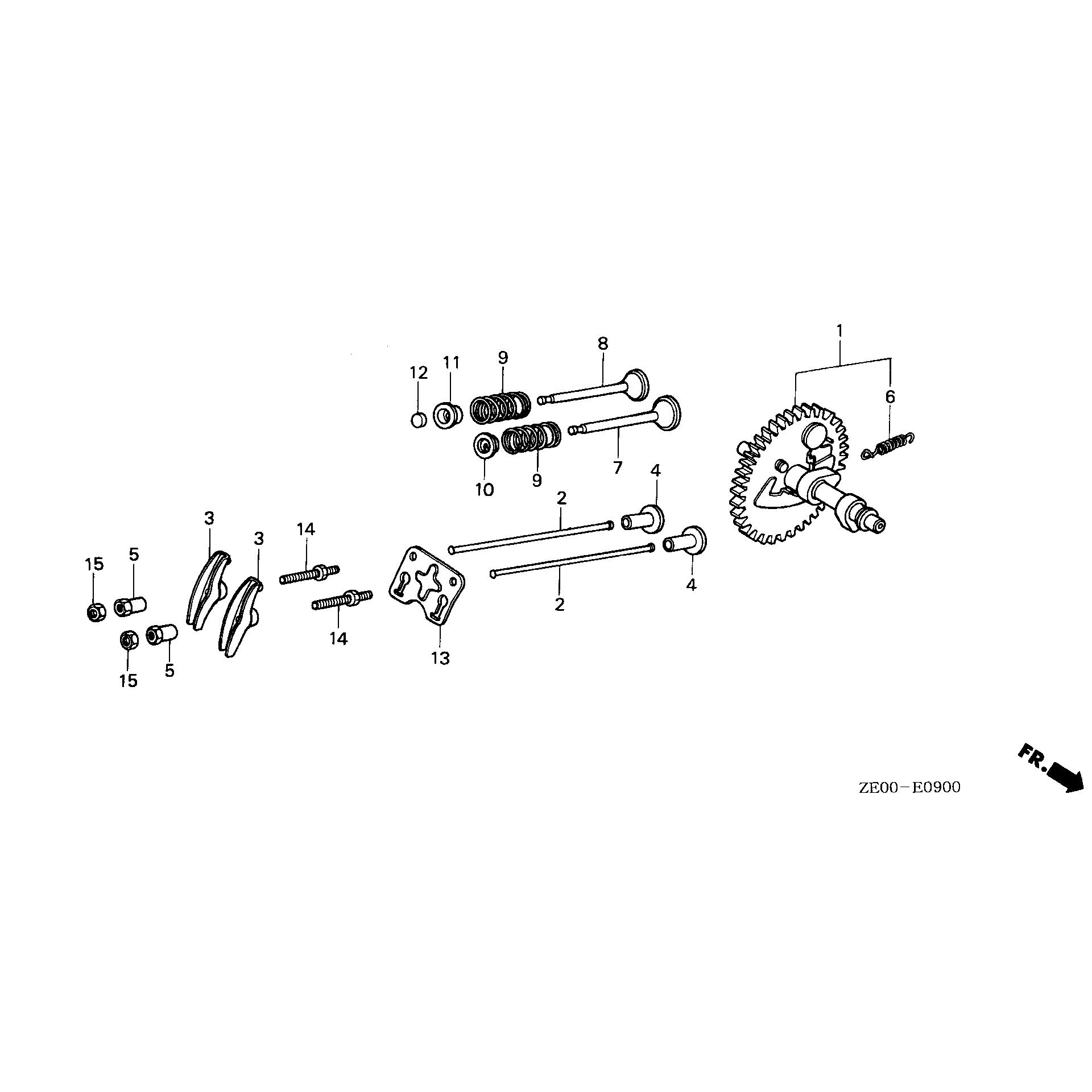

CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14100-ze0-000
14100-ze0-000
|
|||
|
|
14100-ze0-810
14100-ze0-810
|
|||
|
|
14100-ze0-812
14100-ze0-812
|
|||
|
|
14410-ze0-010
14410-ze0-010
|
|||
|
|
14431-ze1-000
14431-ze1-000
|
|||
|
|
14441-ze1-000
14441-ze1-000
|
|||
|
|
14451-ze1-003
14451-ze1-003
|
|||
|
|
14568-ze1-000
14568-ze1-000
|
|||
|
|
14751-ze1-000
14751-ze1-000
|
|||
|
|
14771-z0t-900
14771-z0t-900
|
|||
|
|
14773-ze1-000
14773-ze1-000
|
|||
|
|
14781-ze1-000
14781-ze1-000
|
|||
|
|
14791-ze0-010
14791-ze0-010
|
|||
|
|
90012-ze0-000
90012-ze0-000
|
|||
|
|
90012-ze0-010
90012-ze0-010
|

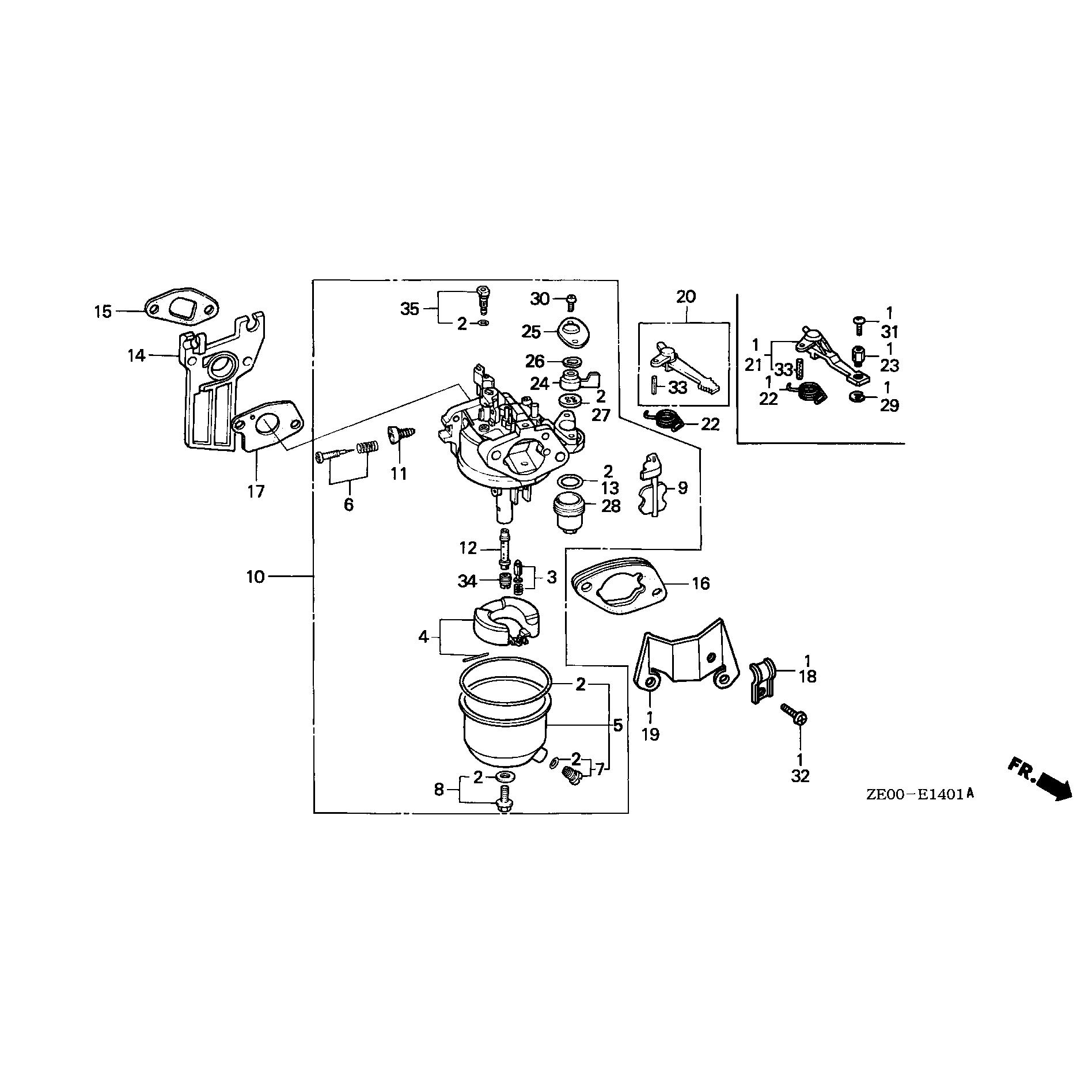

CARBURETOR (2)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16010-ze0-505
16010-ze0-505
|
|||
|
|
16011-ze0-005
16011-ze0-005
|
|||
|
|
16013-ze0-005
16013-ze0-005
|
|||
|
|
16013-ze0-005
16013-ze0-005
|
|||
|
|
16015-ze0-831
16015-ze0-831
|
|||
|
|
16015-ze1-811
16015-ze1-811
|
|||
|
|
16016-ze0-005
16016-ze0-005
|
|||
|
|
16024-ze1-811
16024-ze1-811
|
|||
|
|
16028-zk7-s91
16028-zk7-s91
|
|||
|
|
16044-ze0-005
16044-ze0-005
|
|||
|
|
16044-733-005
16044-733-005
|
|||
|
|
16100-ze0-817
16100-ze0-817
|
|||
|
|
16100-ze0-837
16100-ze0-837
|
|||
|
|
16124-ze0-005
16124-ze0-005
|
|||
|
|
16211-ze0-000
16211-ze0-000
|
|||
|
|
16212-ze0-800
16212-ze0-800
|
|||
|
|
16221-zh8-801
16221-zh8-801
|
|||
|
|
16610-ze1-000
16610-ze1-000
|
|||
|
|
16615-ze1-010
16615-ze1-010
|
|||
|
|
16953-ze1-406
16953-ze1-406
|
|||
|
|
16954-ze1-811
16954-ze1-811
|
|||
|
|
16954-ze1-812
16954-ze1-812
|
|||
|
|
16956-ze1-811
16956-ze1-811
|
|||
|
|
16957-ze1-811
16957-ze1-811
|
|||
|
|
16957-ze1-812
16957-ze1-812
|
|||
|
|
16967-ze0-811
16967-ze0-811
|
|||
|
|
93500-03008-0h
93500-03008-0h
|
|||
|
|
94305-20122
94305-20122
|
|||
|
|
99101-124-0550
99101-124-0550
|
|||
|
|
99101-124-0580
99101-124-0580
|
|||
|
|
99101-124-0600
99101-124-0600
|
|||
|
|
99101-124-0620
99101-124-0620
|
|||
|
|
99204-ze0-0350
99204-ze0-0350
|

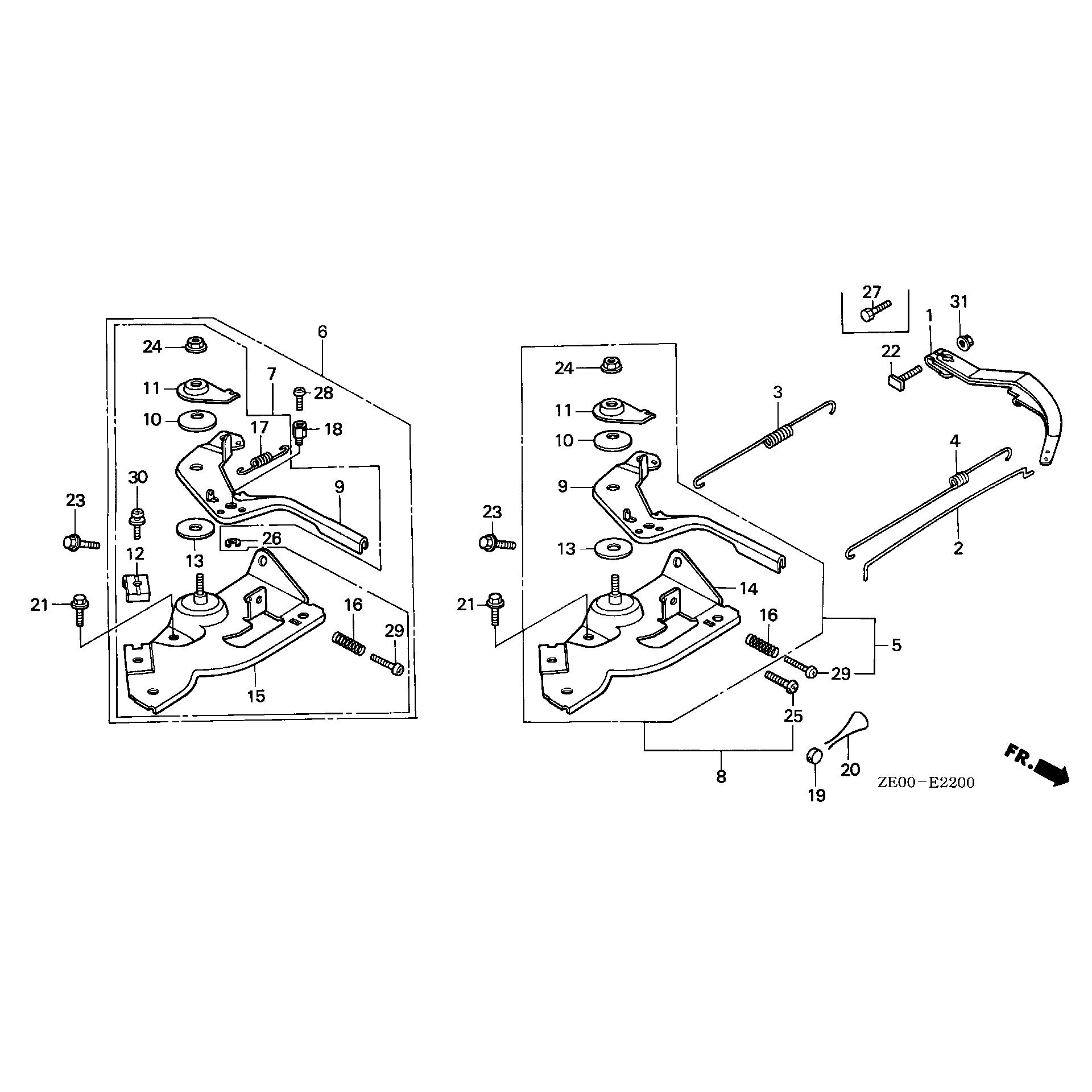

CONTROL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16551-ze0-010
16551-ze0-010
|
|||
|
|
16551-ze1-010
16551-ze1-010
|
|||
|
|
16555-ze0-000
16555-ze0-000
|
|||
|
|
16561-ze0-030
16561-ze0-030
|
|||
|
|
16561-ze0-810
16561-ze0-810
|
|||
|
|
16562-ze0-000
16562-ze0-000
|
|||
|
|
16562-ze0-020
16562-ze0-020
|
|||
|
|
16500-zh7-000
16500-zh7-000
|
|||
|
|
16500-zh7-850
16500-zh7-850
|
|||
|
|
16500-zh7-820
16500-zh7-820
|
|||
|
|
16571-zh7-000
16571-zh7-000
|
|||
|
|
16574-ze1-000
16574-ze1-000
|
|||
|
|
16575-zh8-000
16575-zh8-000
|
|||
|
|
16576-891-000
16576-891-000
|
|||
|
|
16578-ze1-000
16578-ze1-000
|
|||
|
|
16580-zh7-000
16580-zh7-000
|
|||
|
|
16580-zh7-810
16580-zh7-810
|
|||
|
|
16580-zh7-850
16580-zh7-850
|
|||
|
|
16581-ze0-850
16581-ze0-850
|
|||
|
|
16584-883-300
16584-883-300
|
|||
|
|
16592-ze1-810
16592-ze1-810
|
|||
|
|
16594-883-010
16594-883-010
|
|||
|
|
90015-ze5-010
90015-ze5-010
|
|||
|
|
90022-888-010
90022-888-010
|
|||
|
|
90114-sa0-000
90114-sa0-000
|
|||
|
|
93500-04006-0h
93500-04006-0h
|
|||
|
|
93500-05020-0h
93500-05020-0h
|
|||
|
|
93500-05025-0h
93500-05025-0h
|
|||
|
|
93500-05028-0a
93500-05028-0a
|
|||
|
|
93500-05016-0a
93500-05016-0a
|
|||
|
|
93893-05016-00
93893-05016-00
|

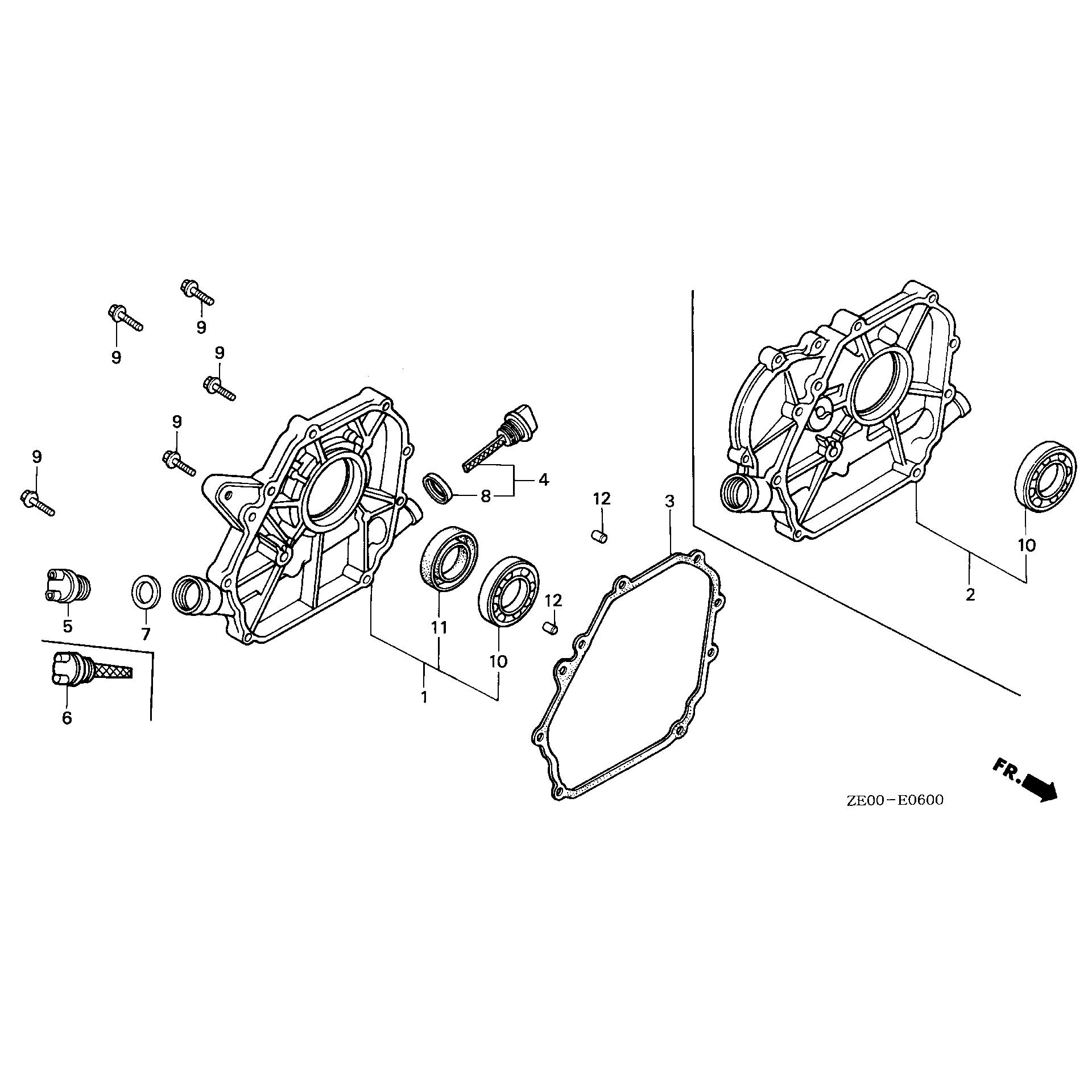

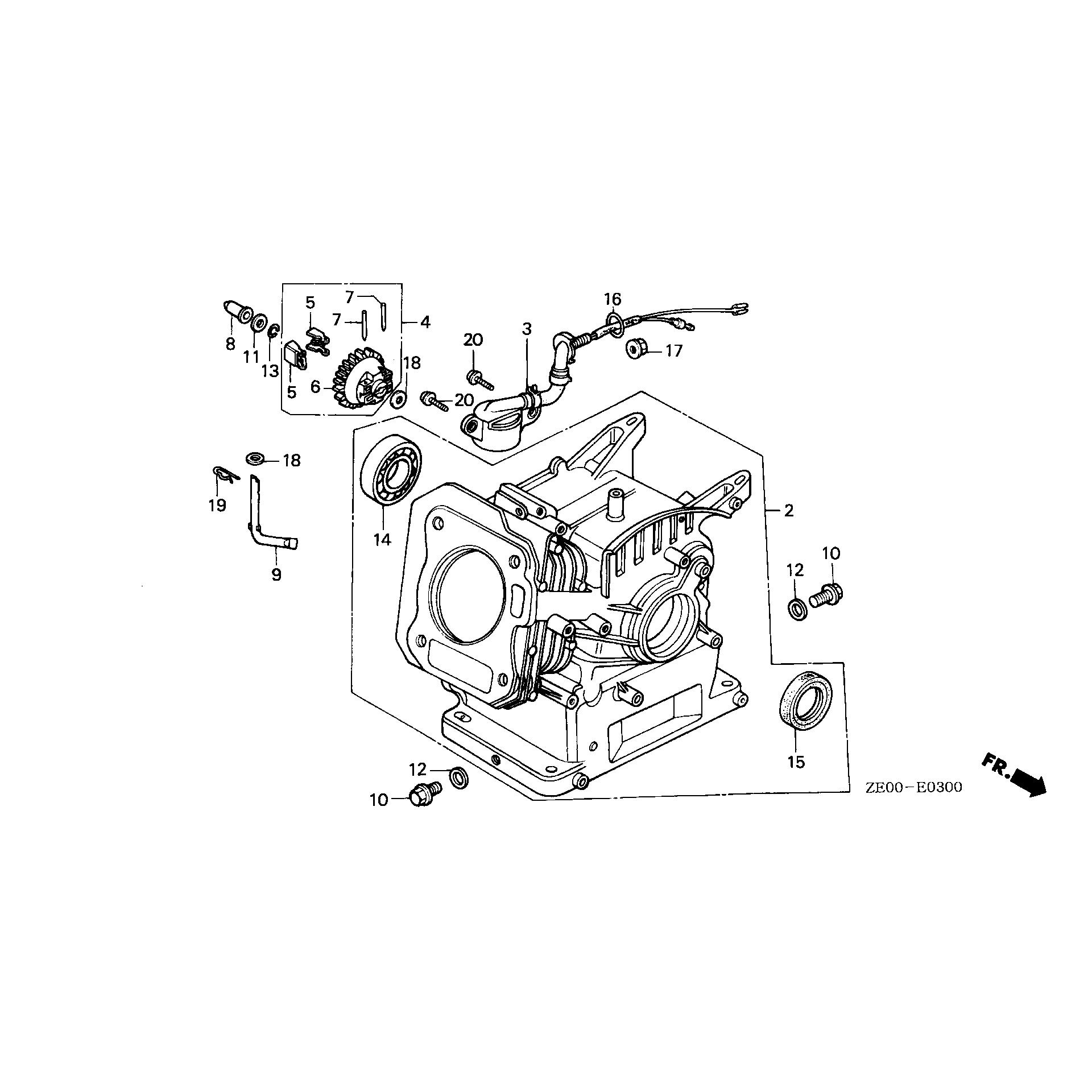

CRANKCASE COVER
CRANKCASE COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11300-ze0-630
11300-ze0-630
|
|||
|
|
11300-ze0-631
11300-ze0-631
|
|||
|
|
11300-ze0-634
11300-ze0-634
|
|||
|
|
11300-ze0-641
11300-ze0-641
|
|||
|
|
11381-zh7-800
11381-zh7-800
|
|||
|
|
15620-zg4-910
15620-zg4-910
|
|||
|
|
15621-ze1-000
15621-ze1-000
|
|||
|
|
15621-896-010
15621-896-010
|
|||
|
|
15625-ze1-003
15625-ze1-003
|
|||
|
|
90015-883-000
90015-883-000
|
|||
|
|
91001-878-003
91001-878-003
|
|||
|
|
91203-ze0-013
91203-ze0-013
|
|||
|
|
94301-08140
94301-08140
|

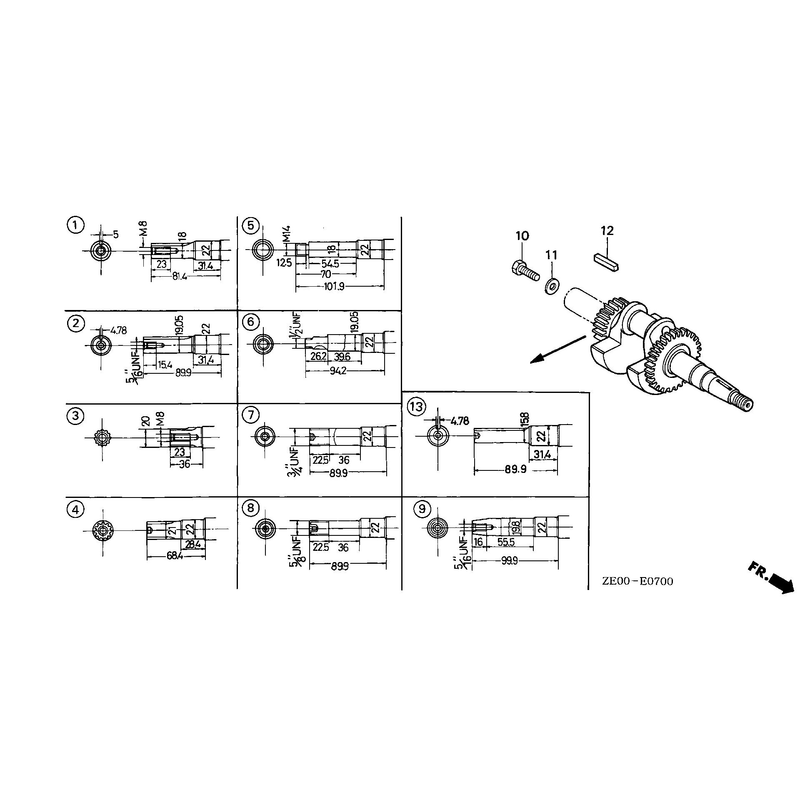

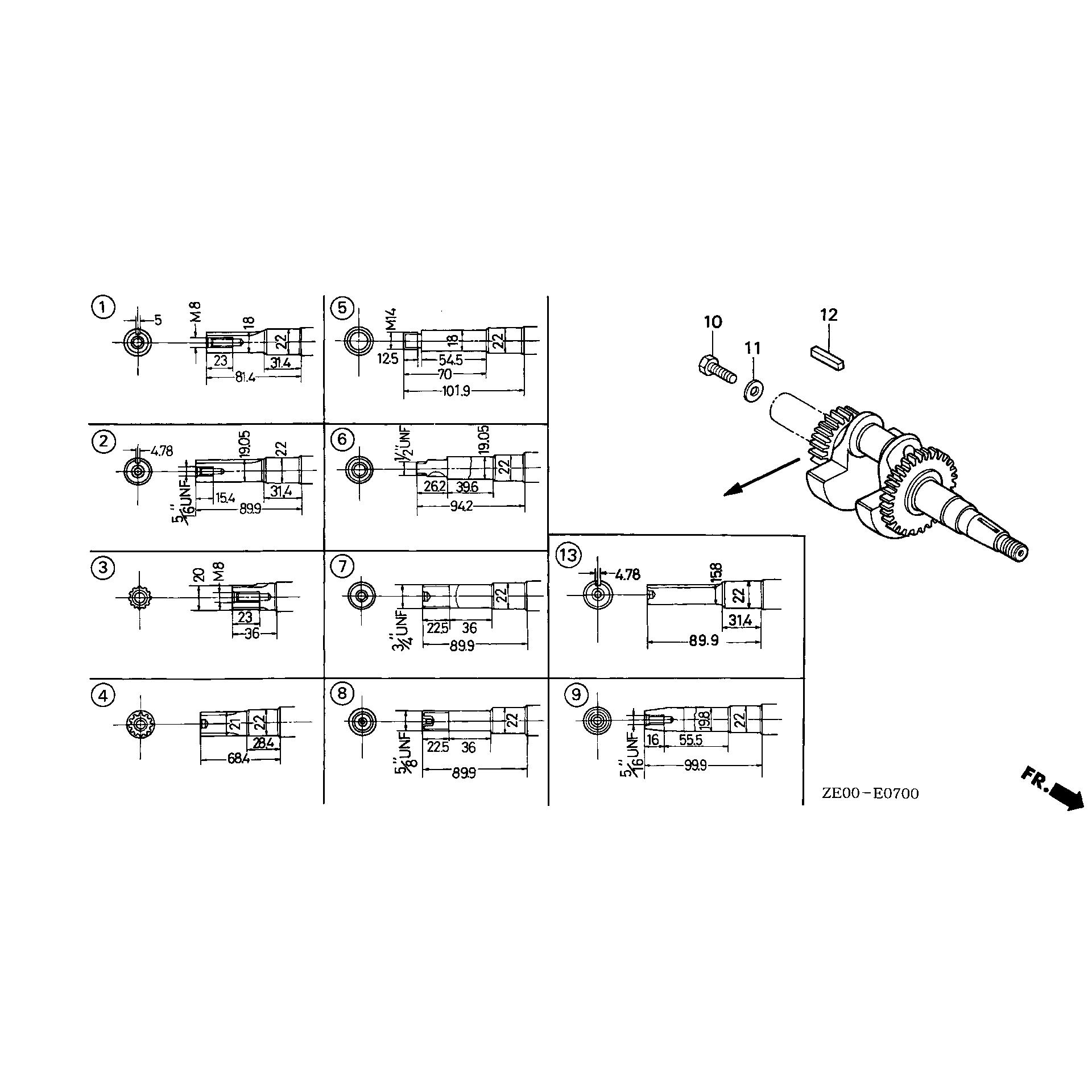

CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13310-ze0-601
13310-ze0-601
|
|||
|
|
13310-ze0-505
13310-ze0-505
|
|||
|
|
13310-ze0-660
13310-ze0-660
|
|||
|
|
13310-ze0-670
13310-ze0-670
|
|||
|
|
90745-ze1-600
90745-ze1-600
|
CYLINDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
120a0-ze0-812
120a0-ze0-812
|
|||
|
|
15510-ze1-043
15510-ze1-043
|
|||
|
|
16510-ze1-000
16510-ze1-000
|
|||
|
|
16511-ze1-000
16511-ze1-000
|
|||
|
|
16512-ze1-000
16512-ze1-000
|
|||
|
|
16513-ze1-000
16513-ze1-000
|
|||
|
|
16531-ze1-000
16531-ze1-000
|
|||
|
|
16541-ze1-000
16541-ze1-000
|
|||
|
|
90131-ze1-000
90131-ze1-000
|
|||
|
|
90451-ze1-000
90451-ze1-000
|
|||
|
|
90602-ze1-000
90602-ze1-000
|
|||
|
|
91001-878-003
91001-878-003
|
|||
|
|
91202-ze6-013
91202-ze6-013
|
|||
|
|
91353-671-003
91353-671-003
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94251-08000
94251-08000
|
|||
|
|
95701-06012-00
95701-06012-00
|

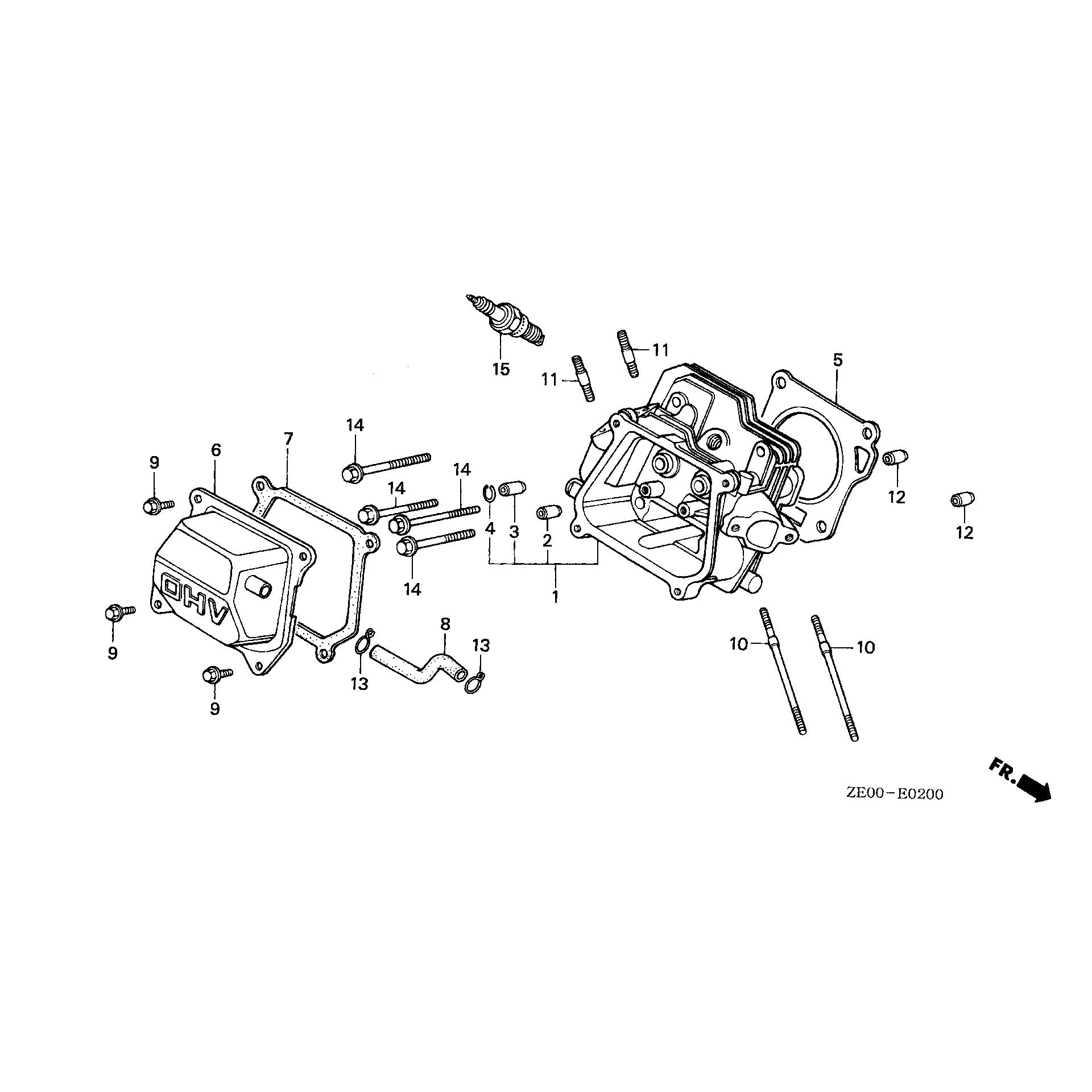

CYLINDER HEAD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12216-ze5-300
12216-ze5-300
|
|||
|
|
12310-ze1-000
12310-ze1-000
|
|||
|
|
12310-ze1-842
12310-ze1-842
|
|||
|
|
12391-ze1-000
12391-ze1-000
|
|||
|
|
15721-ze1-010
15721-ze1-010
|
|||
|
|
15721-ze1-840
15721-ze1-840
|
|||
|
|
90016-ze1-000
90016-ze1-000
|
|||
|
|
90043-ze1-010
90043-ze1-010
|
|||
|
|
90043-ze1-020
90043-ze1-020
|
|||
|
|
90047-ze1-000
90047-ze1-000
|
|||
|
|
94301-10160
94301-10160
|
|||
|
|
95002-80000
95002-80000
|
|||
|
|
95723-08055-00
95723-08055-00
|
|||
|
|
98079-56846
98079-56846
|
|||
|
|
98079-56855
98079-56855
|

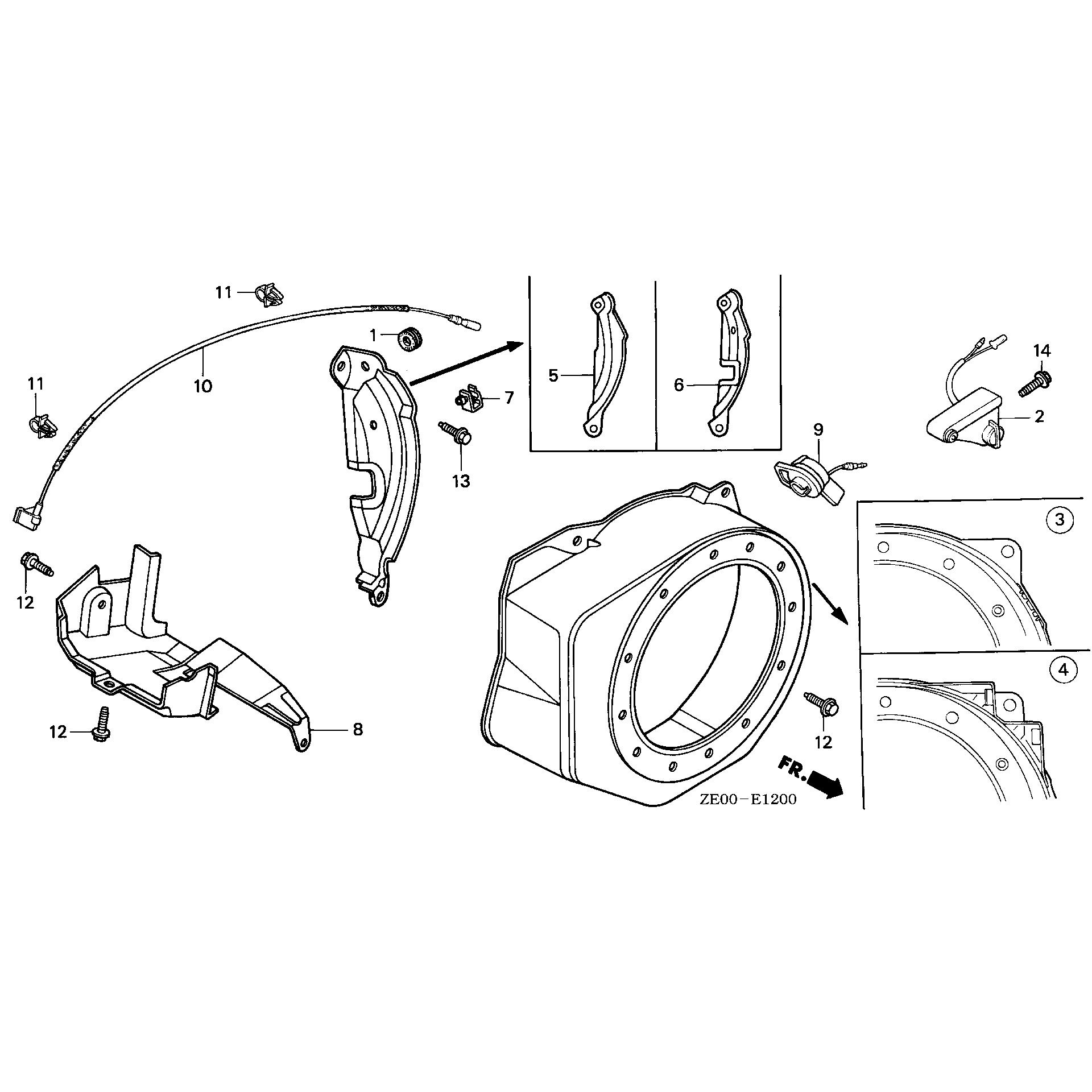

FAN COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11347-371-300
11347-371-300
|
|||
|
|
19610-ze0-000zs
19610-ze0-000zs
|
|||
|
|
19612-zh7-000
19612-zh7-000
|
|||
|
|
19613-ze1-000
19613-ze1-000
|
|||
|
|
36100-ze1-015
36100-ze1-015
|
|||
|
|
36101-ze1-010
36101-ze1-010
|
|||
|
|
36103-ze1-000
36103-ze1-000
|
|||
|
|
90022-888-010
90022-888-010
|

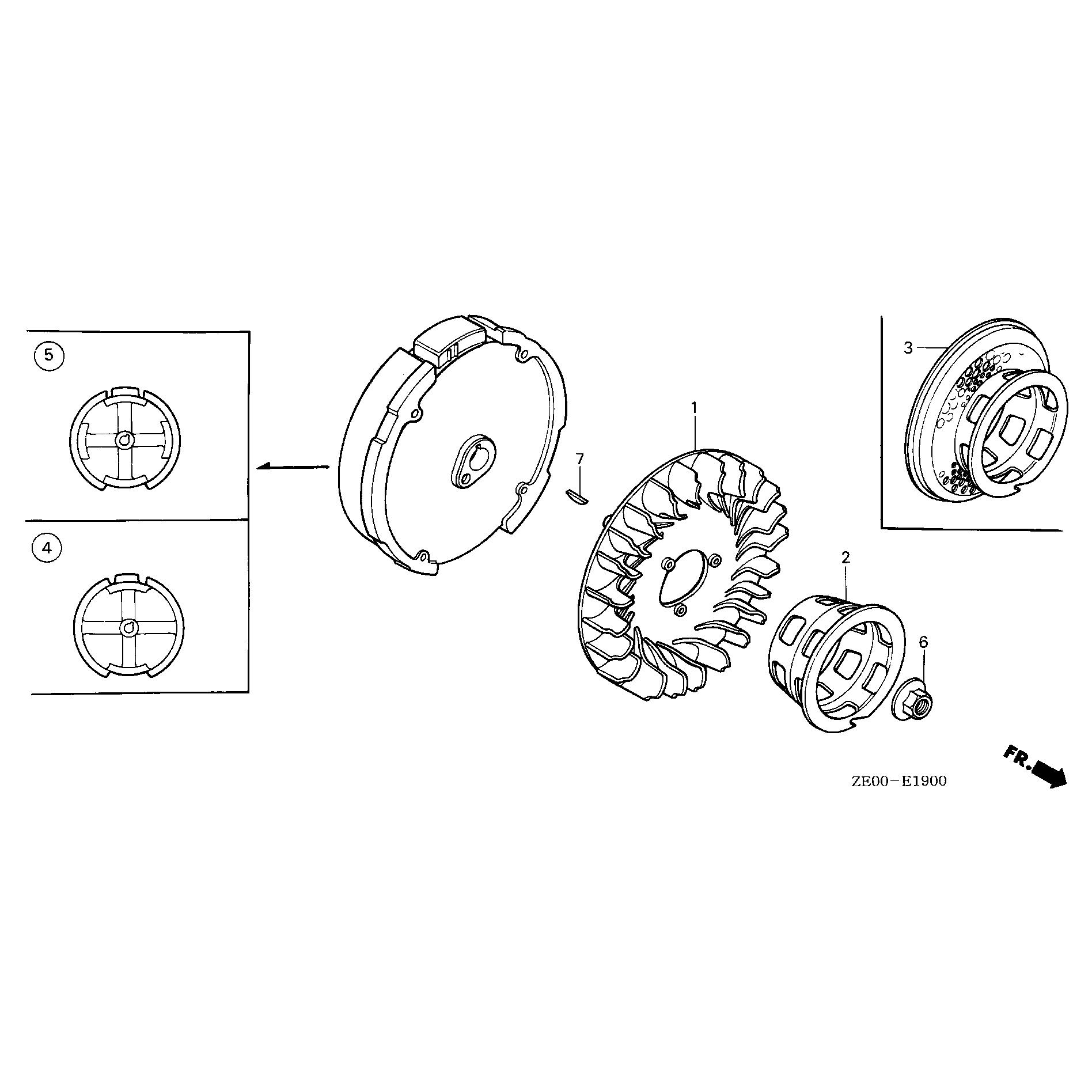

FLYWHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19511-ze0-000
19511-ze0-000
|
|||
|
|
28451-ze0-003
28451-ze0-003
|
|||
|
|
28451-ze0-811
28451-ze0-811
|
|||
|
|
90201-878-003
90201-878-003
|
|||
|
|
94401-25180
94401-25180
|

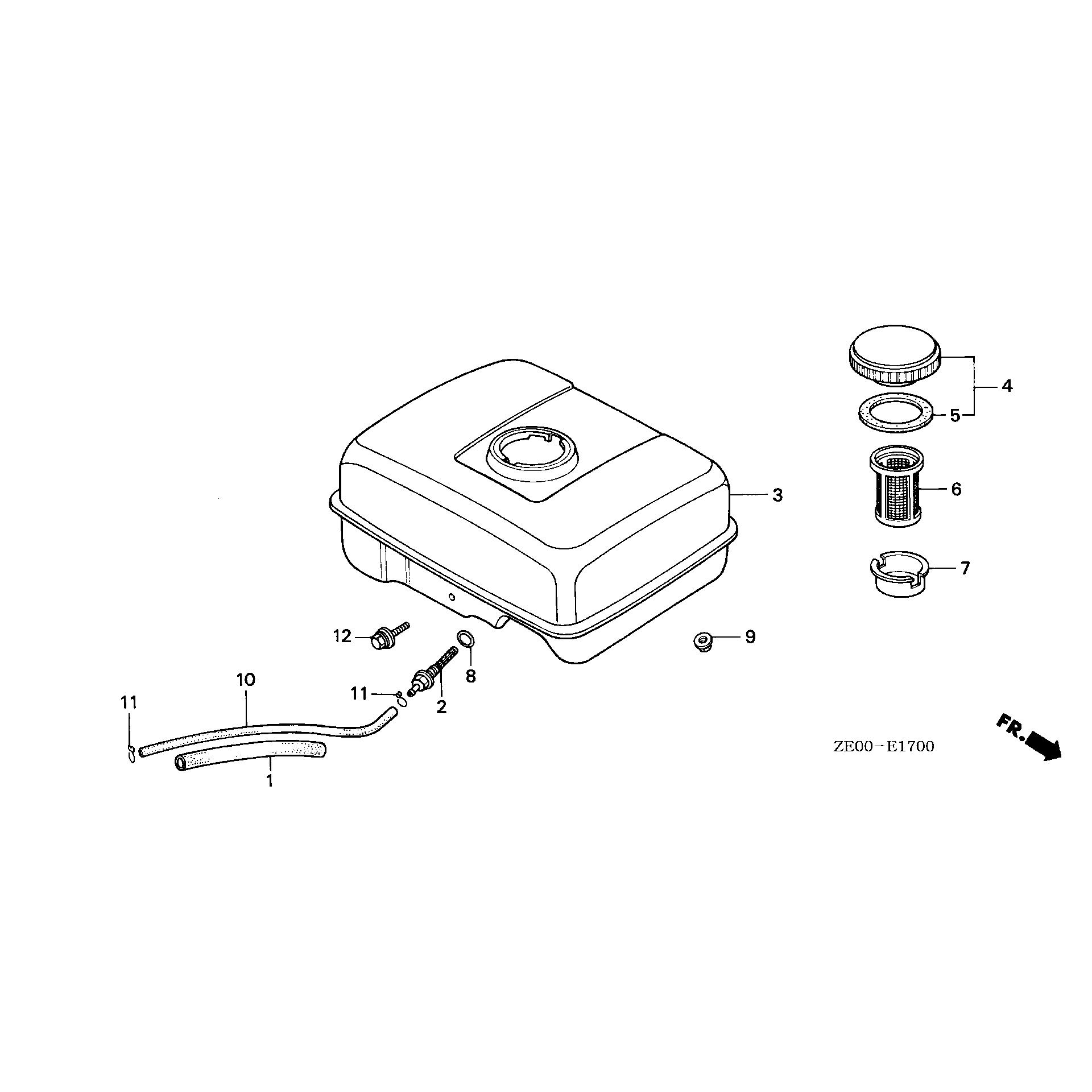

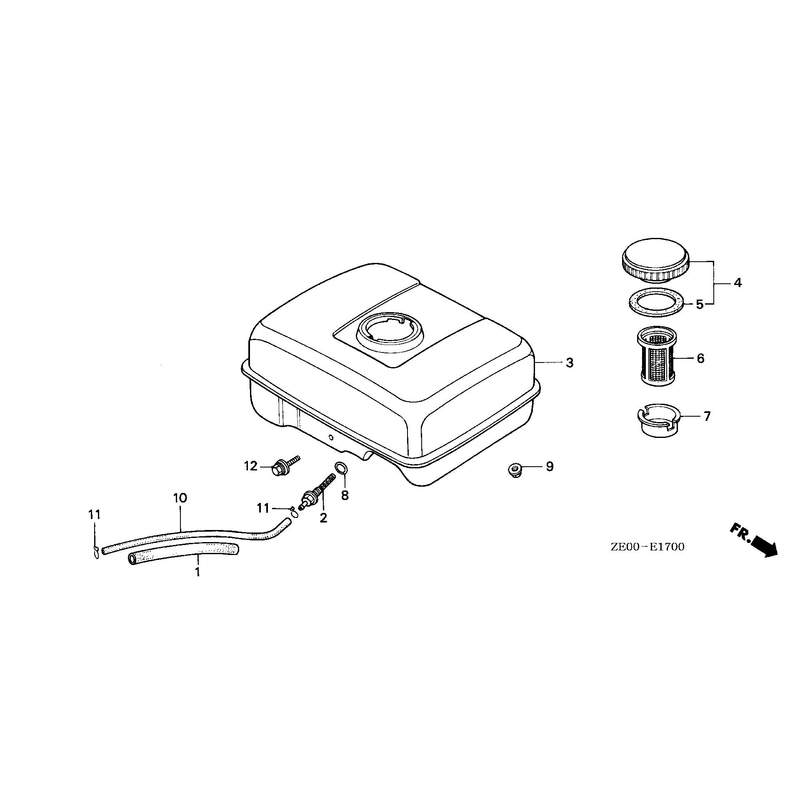

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16854-zh8-000
16854-zh8-000
|
|||
|
|
17510-ze0-020za
17510-ze0-020za
|
|||
|
|
17620-z0t-315
17620-z0t-315
|
|||
|
|
17672-880-000
17672-880-000
|
|||
|
|
17673-893-000
17673-893-000
|
|||
|
|
91353-671-003
91353-671-003
|
|||
|
|
95001-45003-60m
95001-45003-60m
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
95701-06025-00
95701-06025-00
|

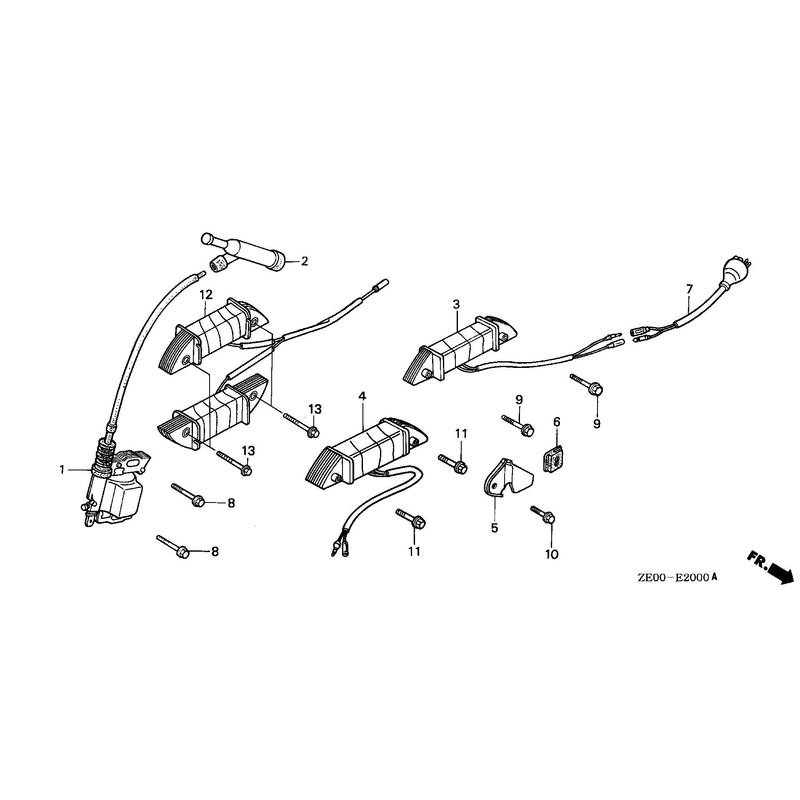

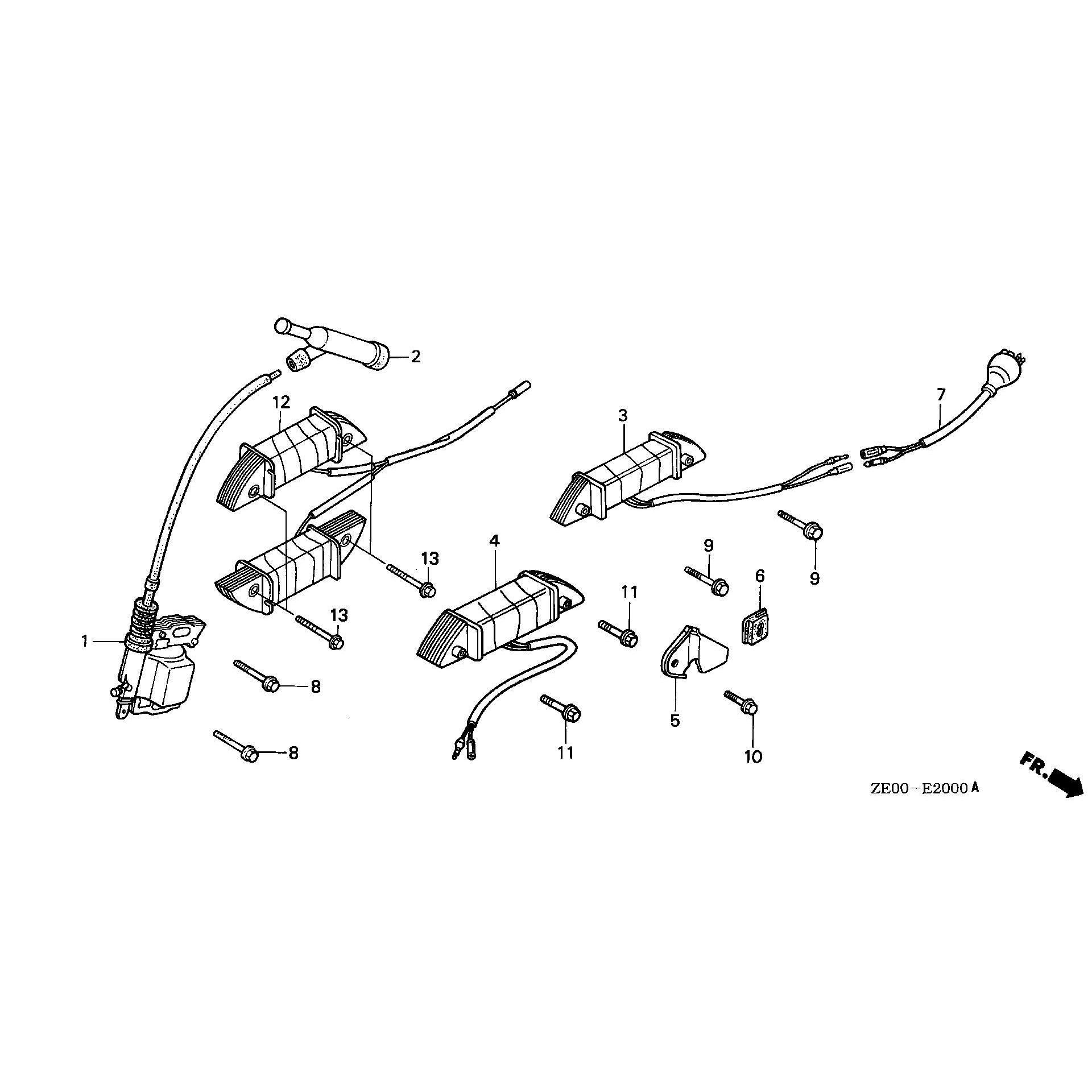

IGNITION COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30500-ze1-073
30500-ze1-073
|
|||
|
|
90015-883-000
90015-883-000
|
|||
|
|
90121-952-000
90121-952-000
|

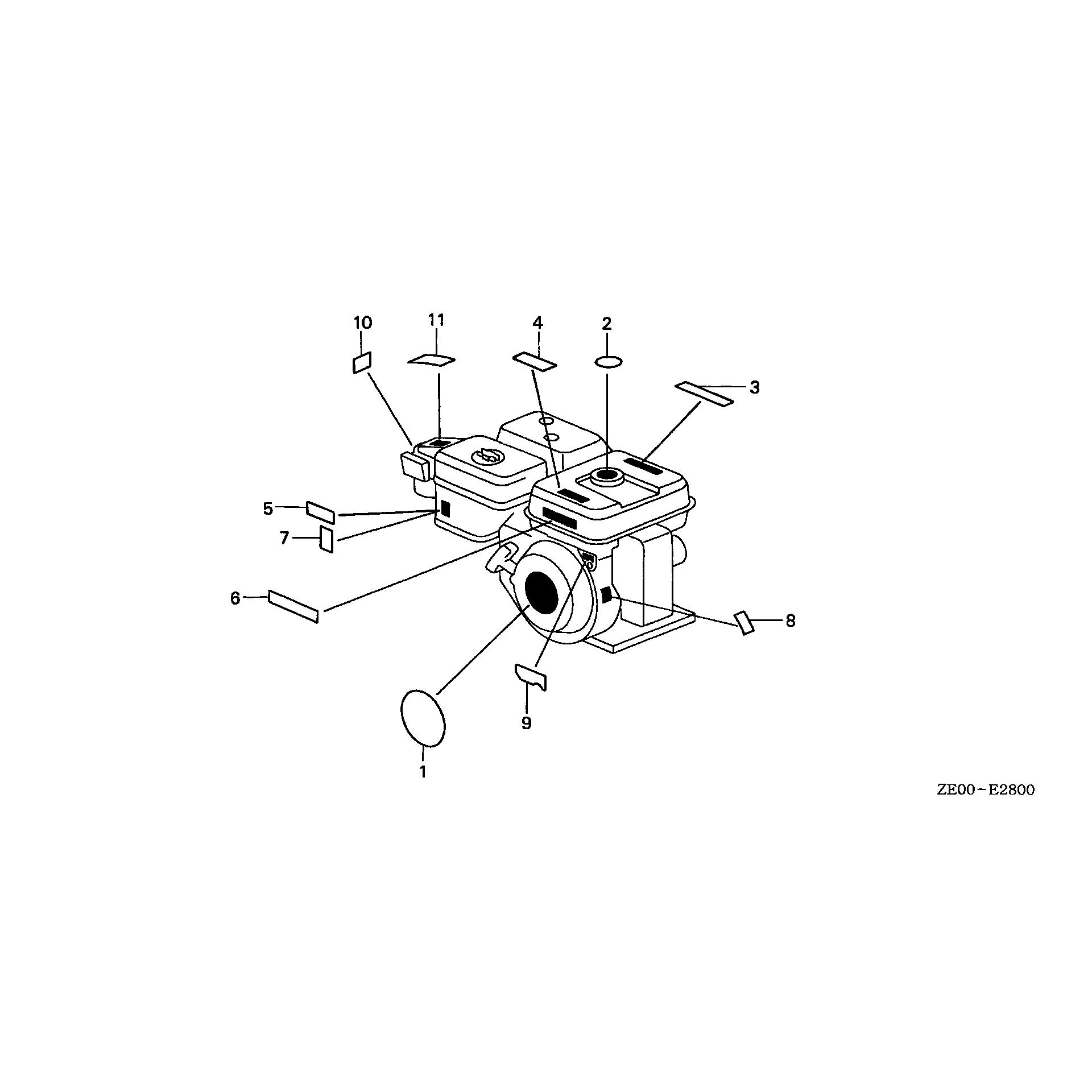

LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87522-ze1-810
87522-ze1-810
|
|||
|
|
87528-ze1-810
87528-ze1-810
|
|||
|
|
87534-ze1-841
87534-ze1-841
|

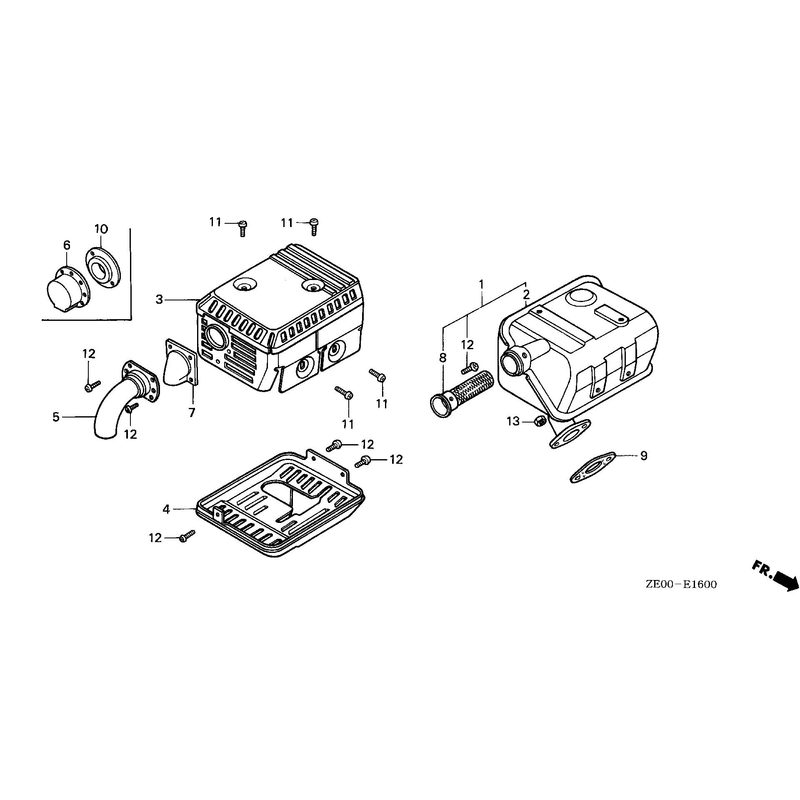

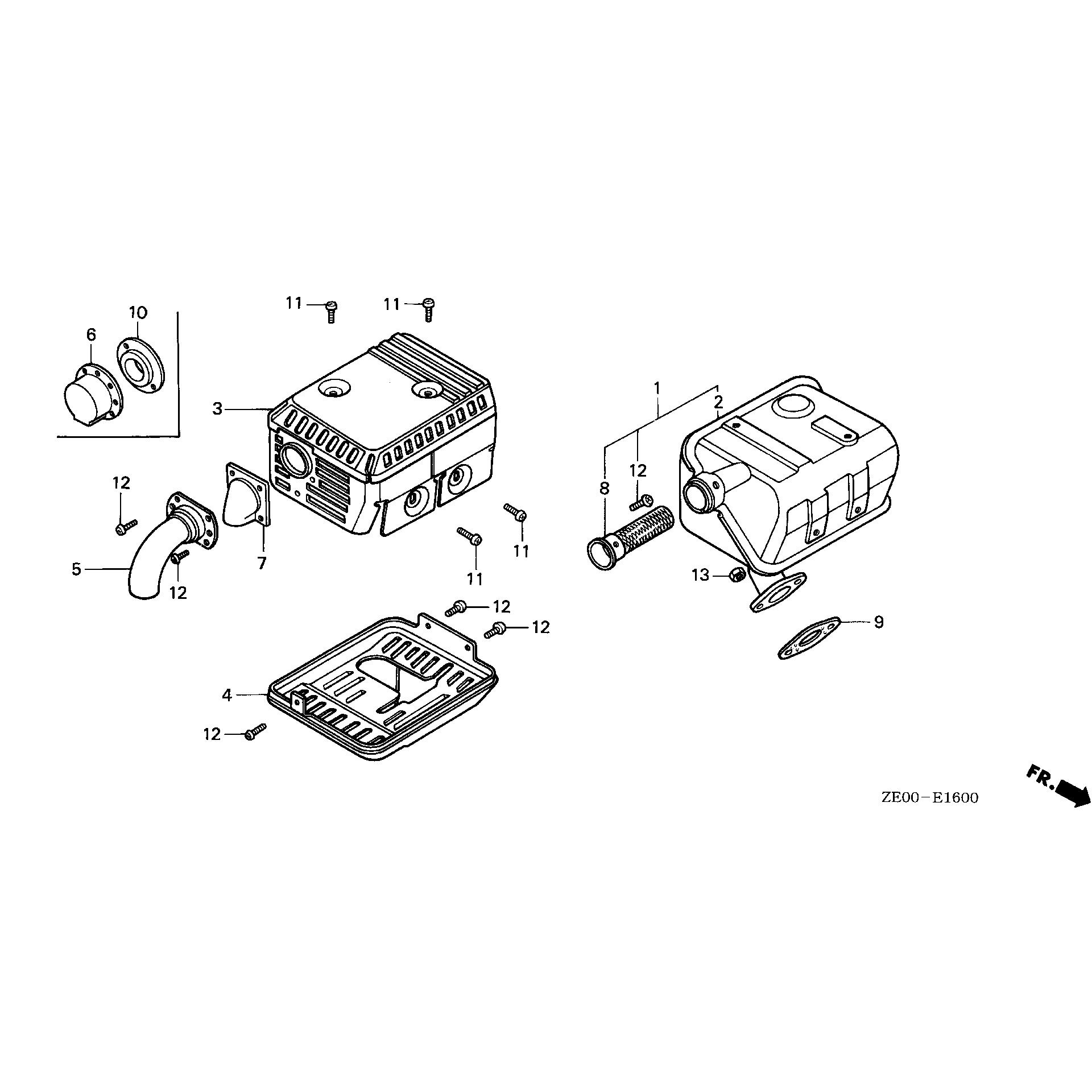

MUFFLER (STANDARD)
MUFFLER (STANDARD)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
18310-zf1-000
18310-zf1-000
|
|||
|
|
18320-zh8-w02
18320-zh8-w02
|
|||
|
|
18340-ze1-000
18340-ze1-000
|
|||
|
|
18355-ze1-000
18355-ze1-000
|
|||
|
|
18381-ze1-801
18381-ze1-801
|
|||
|
|
90050-ze1-000
90050-ze1-000
|
|||
|
|
94001-08000-0s
94001-08000-0s
|

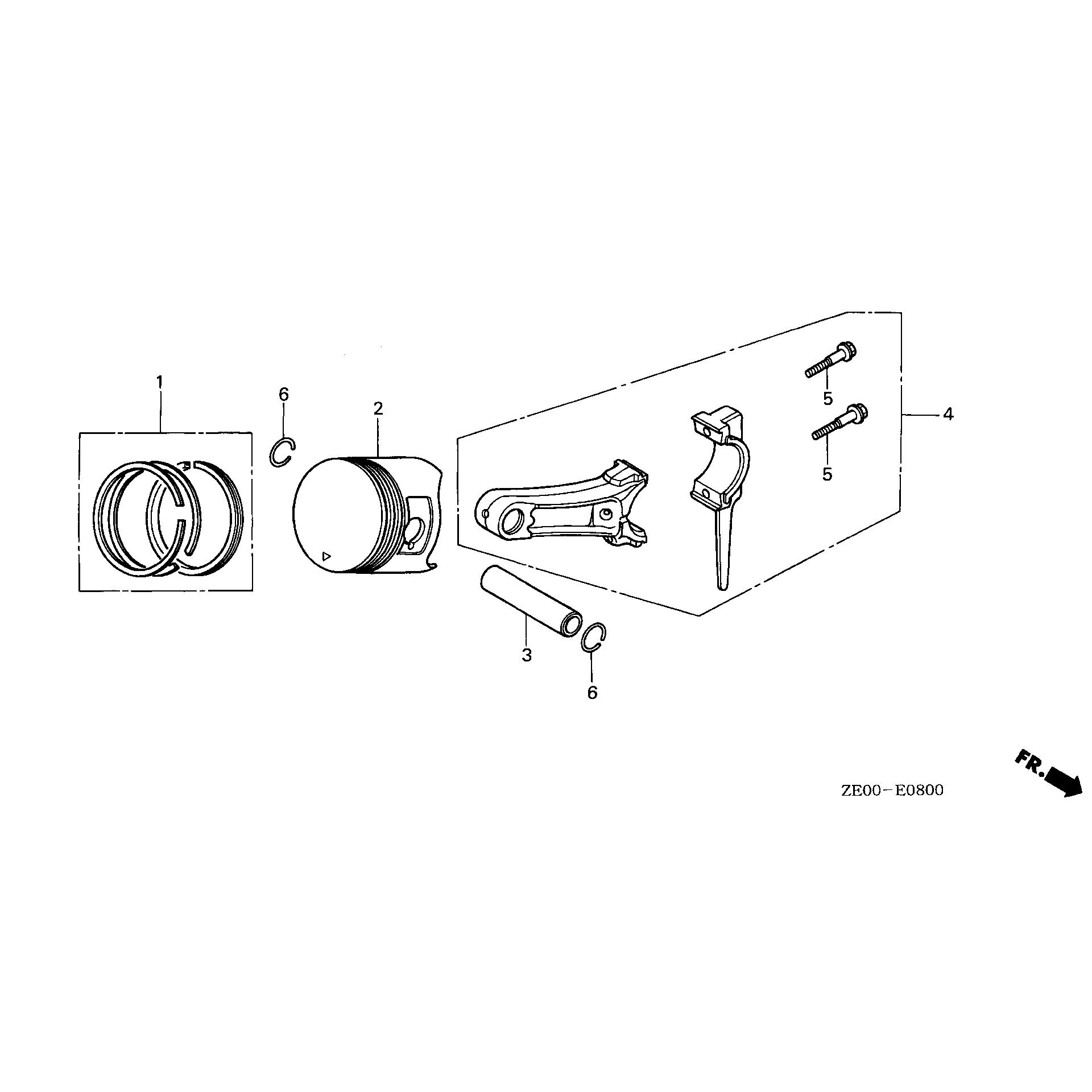

PISTON@CONNECTING ROD
PISTON@CONNECTING ROD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130a1-ze0-003
130a1-ze0-003
|
|||
|
|
130a1-ze0-004
130a1-ze0-004
|
|||
|
|
130a2-ze0-003
130a2-ze0-003
|
|||
|
|
130a2-ze0-004
130a2-ze0-004
|
|||
|
|
130a3-ze0-003
130a3-ze0-003
|
|||
|
|
130a3-ze0-004
130a3-ze0-004
|
|||
|
|
130a4-ze0-003
130a4-ze0-003
|
|||
|
|
130a4-ze0-004
130a4-ze0-004
|
|||
|
|
13010-ze0-013
13010-ze0-013
|
|||
|
|
13011-ze0-013
13011-ze0-013
|
|||
|
|
13012-ze0-013
13012-ze0-013
|
|||
|
|
13013-ze0-013
13013-ze0-013
|
|||
|
|
13102-ze0-010
13102-ze0-010
|
|||
|
|
13104-ze0-010
13104-ze0-010
|
|||
|
|
13111-ze0-000
13111-ze0-000
|
|||
|
|
132a0-ze0-000
132a0-ze0-000
|
|||
|
|
90001-ze1-000
90001-ze1-000
|
|||
|
|
90551-ze0-000
90551-ze0-000
|

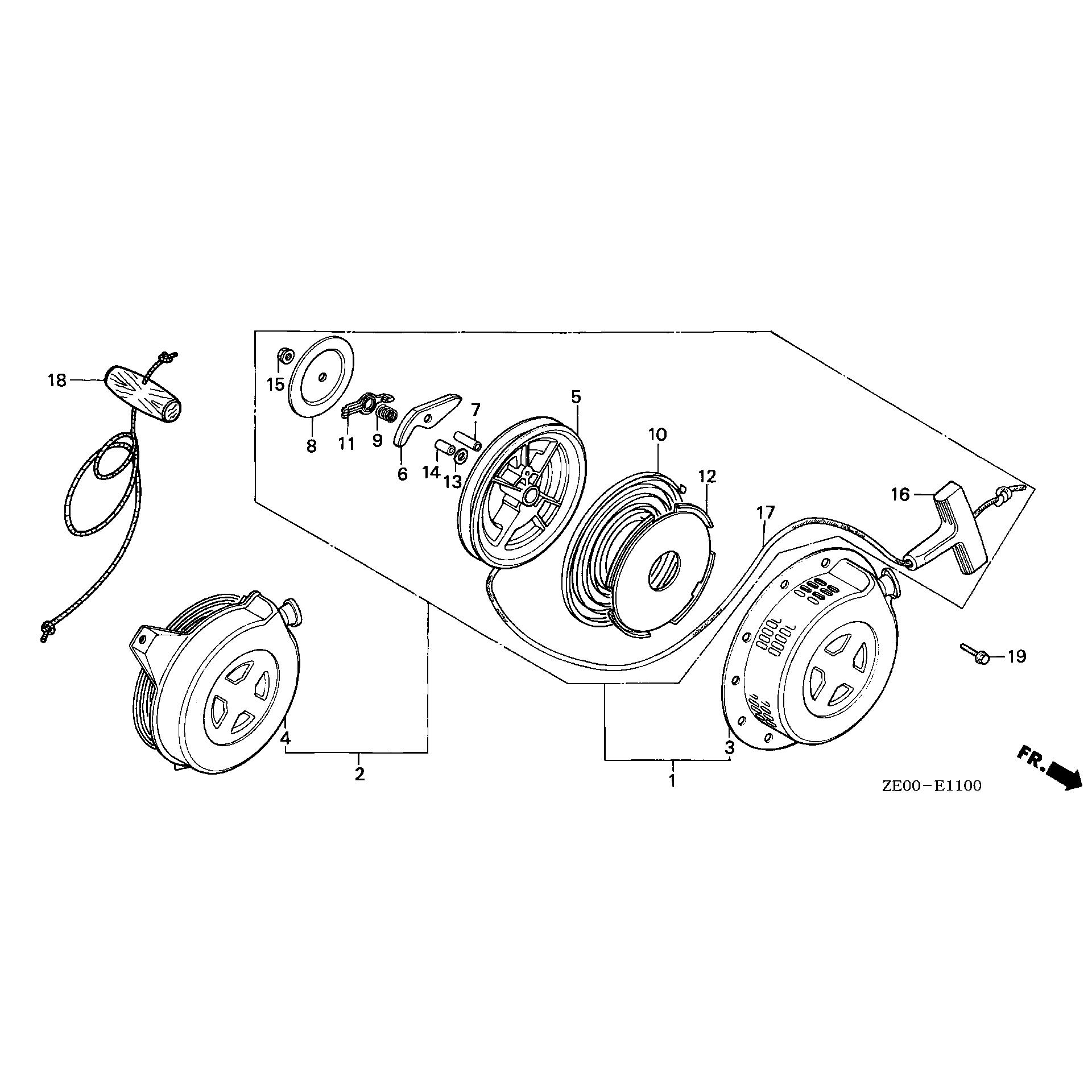

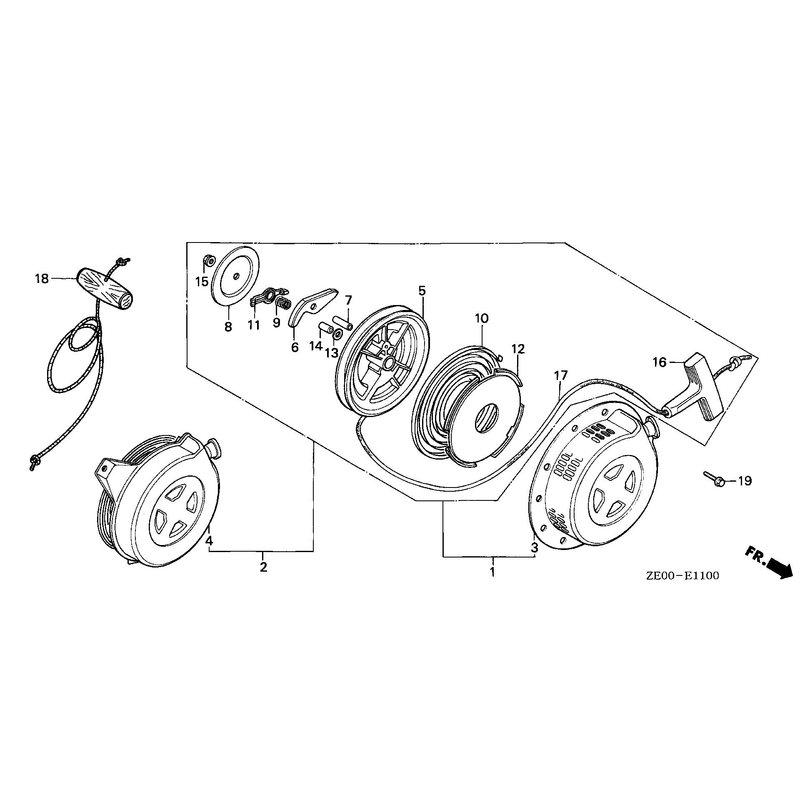

RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28400-ze1-003zf
28400-ze1-003zf
|
|||
|
|
28420-ze1-003
28420-ze1-003
|
|||
|
|
28422-ze1-003
28422-ze1-003
|
|||
|
|
28423-ze1-003
28423-ze1-003
|
|||
|
|
28431-ze1-003
28431-ze1-003
|
|||
|
|
28441-ze1-003
28441-ze1-003
|
|||
|
|
28442-ze1-003
28442-ze1-003
|
|||
|
|
28443-ze1-003
28443-ze1-003
|
|||
|
|
28445-ze1-003
28445-ze1-003
|
|||
|
|
28446-ze1-003
28446-ze1-003
|
|||
|
|
28447-ze1-003
28447-ze1-003
|
|||
|
|
28461-ze1-013
28461-ze1-013
|
|||
|
|
28462-ze1-003
28462-ze1-003
|
