Honda GX25N-S3 Parts Diagram (Serial GCADK-1000001 to 9999999)
Diagrams:
Diagram:

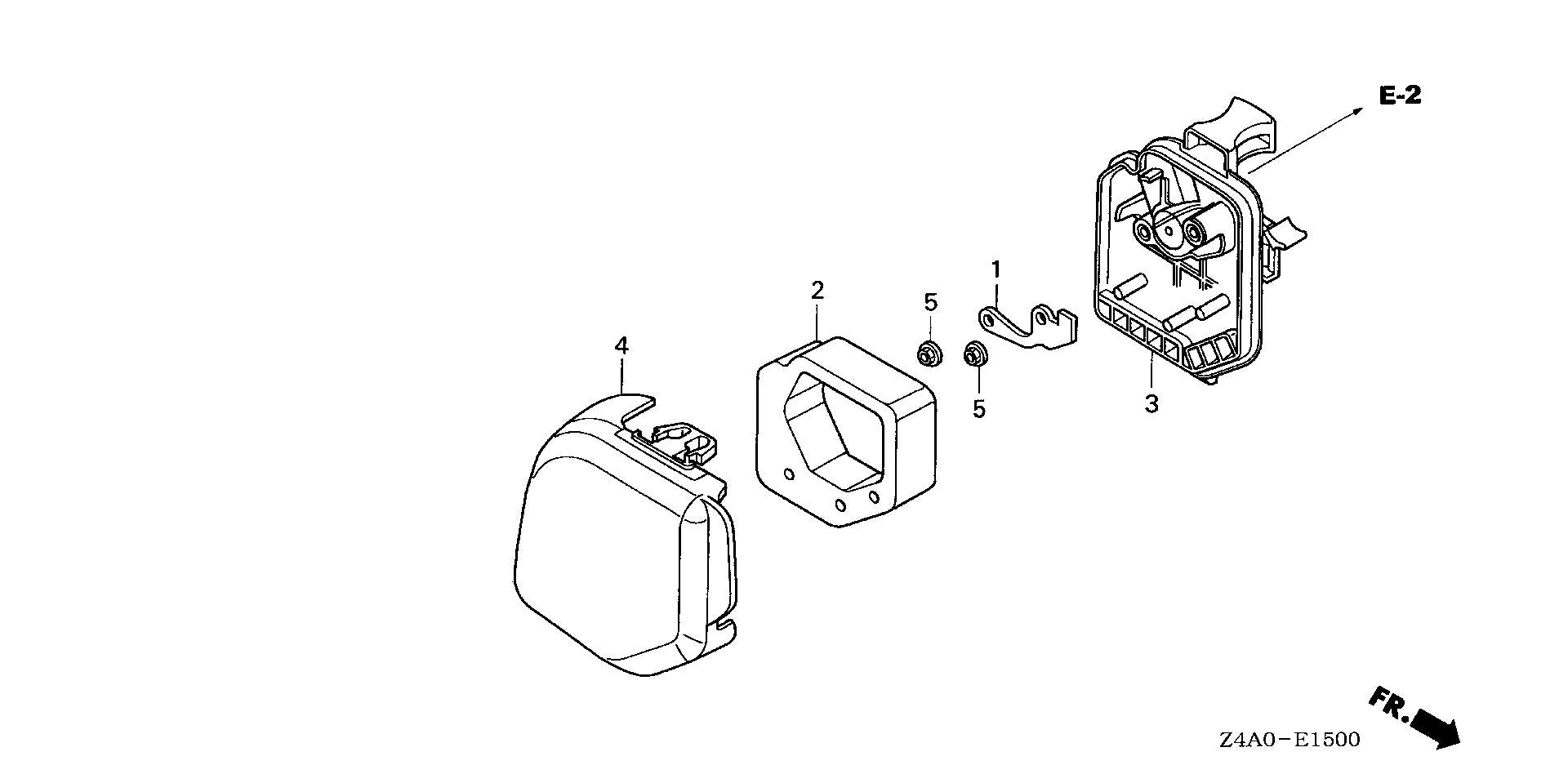

AIR CLEANER (1)
AIR CLEANER (1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17204-z0h-000
17204-z0h-000
|
|||
|
|
17220-z0h-020
17220-z0h-020
|
|||
|
|
17231-z0h-010
17231-z0h-010
|
|||
|
|
94050-05000
94050-05000
|

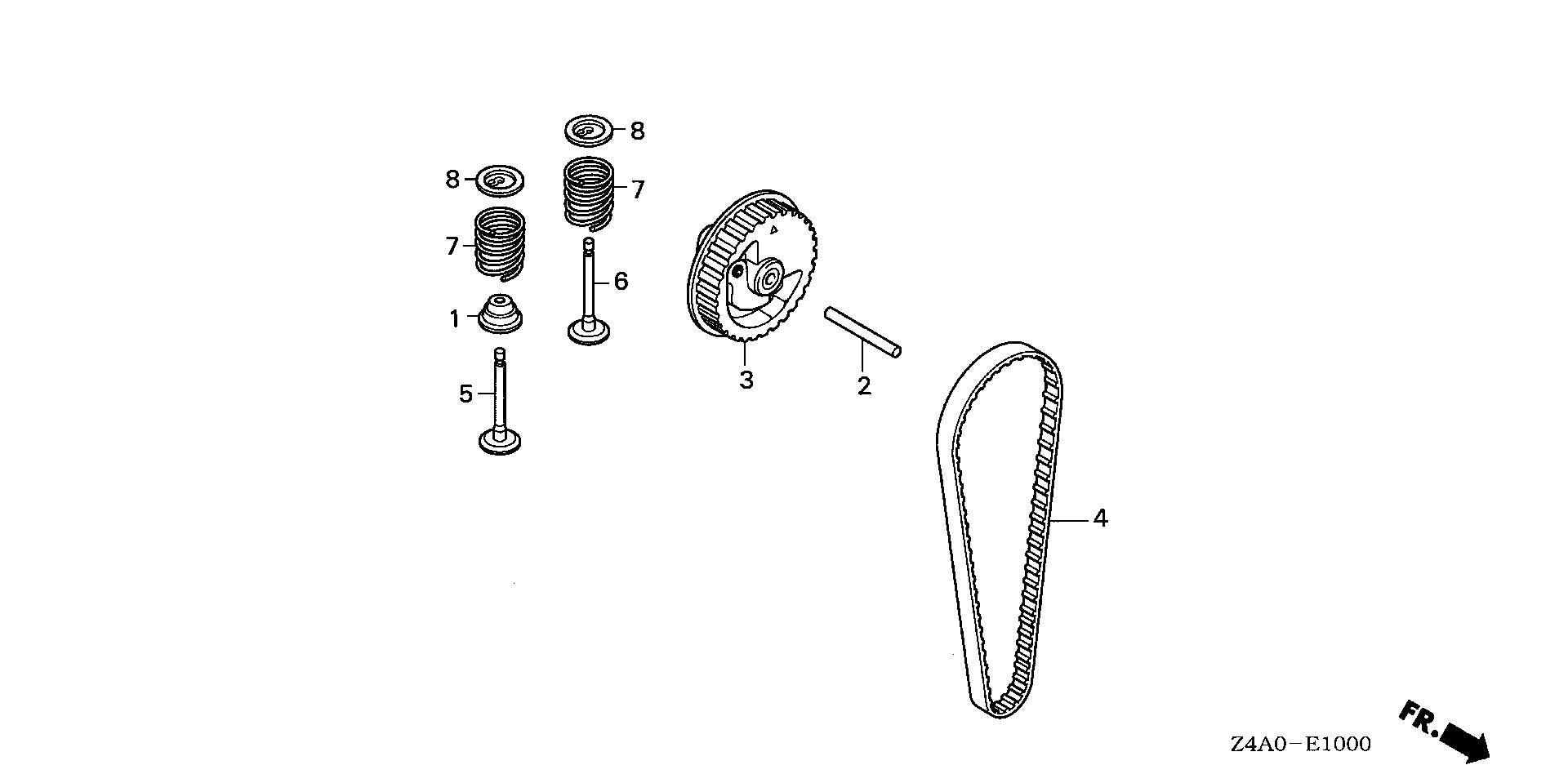

CAM PULLEY
CAM PULLEY
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12209-z0h-003
12209-z0h-003
|
|||
|
|
14126-z0h-003
14126-z0h-003
|
|||
|
|
14320-z0h-010
14320-z0h-010
|
|||
|
|
14400-z3e-013
14400-z3e-013
|
|||
|
|
14711-z3e-000
14711-z3e-000
|
|||
|
|
14721-z3e-000
14721-z3e-000
|
|||
|
|
14751-z0h-000
14751-z0h-000
|
|||
|
|
14771-z3f-000
14771-z3f-000
|

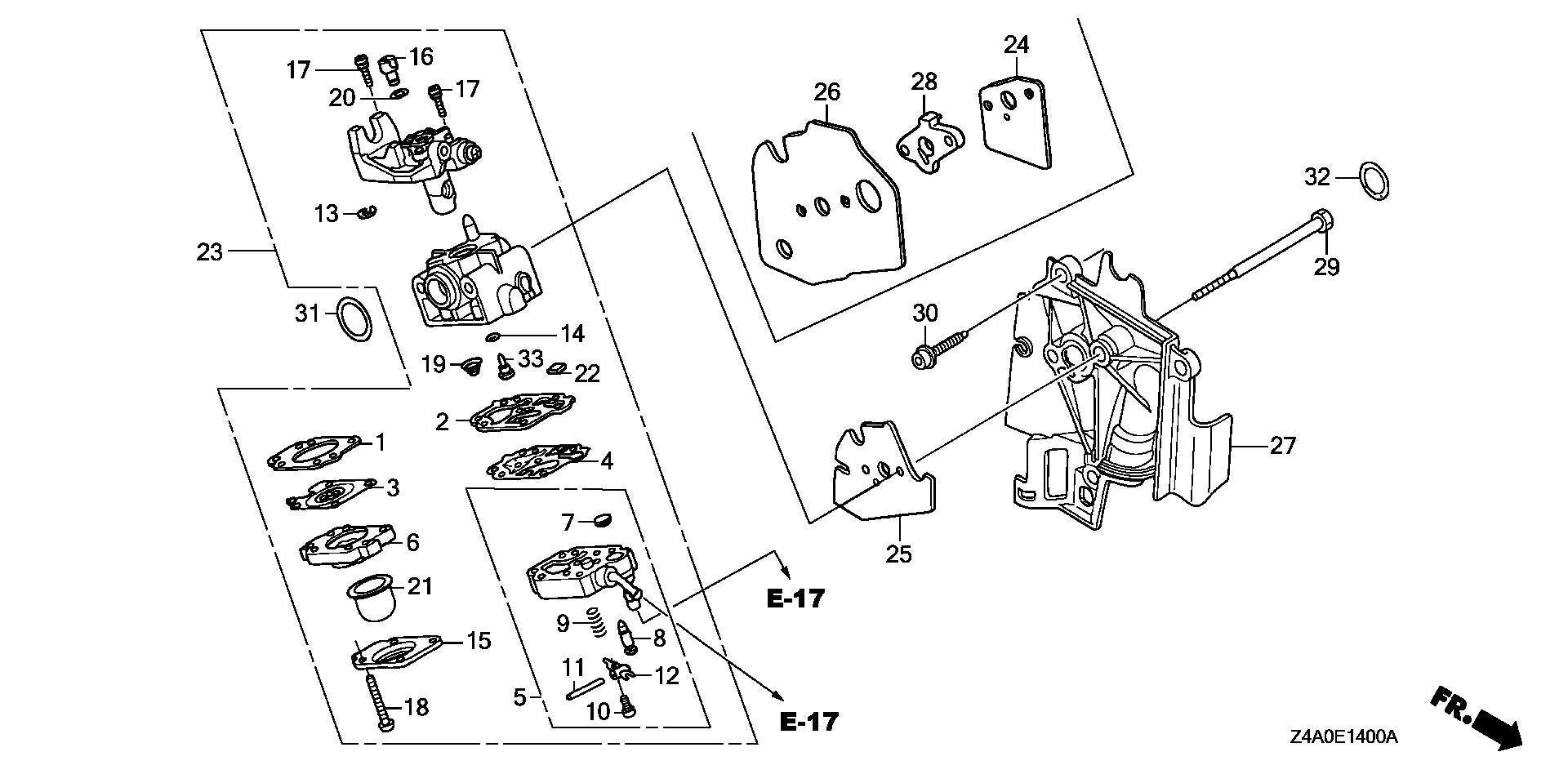

CARBURETOR
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16010-zm3-004
16010-zm3-004
|
|||
|
|
16011-z0h-013
16011-z0h-013
|
|||
|
|
16013-z0h-003
16013-z0h-003
|
|||
|
|
16014-zm3-004
16014-zm3-004
|
|||
|
|
16015-z0h-013
16015-z0h-013
|
|||
|
|
16017-zm3-004
16017-zm3-004
|
|||
|
|
16018-zm3-802
16018-zm3-802
|
|||
|
|
16019-zm3-004
16019-zm3-004
|
|||
|
|
16020-zm3-004
16020-zm3-004
|
|||
|
|
16021-zm3-004
16021-zm3-004
|
|||
|
|
16022-zm3-014
16022-zm3-014
|
|||
|
|
16023-zm3-004
16023-zm3-004
|
|||
|
|
16024-z0h-003
16024-z0h-003
|
|||
|
|
16025-zm3-004
16025-zm3-004
|
|||
|
|
16026-zm3-004
16026-zm3-004
|
|||
|
|
16027-zm3-004
16027-zm3-004
|
|||
|
|
16028-zm3-004
16028-zm3-004
|
|||
|
|
16029-zm3-004
16029-zm3-004
|
|||
|
|
16030-zm3-004
16030-zm3-004
|
|||
|
|
16031-zm3-004
16031-zm3-004
|
|||
|
|
16035-zm3-802
16035-zm3-802
|
|||
|
|
16100-z0h-835
16100-z0h-835
|
|||
|
|
16100-z0h-863
16100-z0h-863
|
|||
|
|
16221-zm3-g10
16221-zm3-g10
|
|||
|
|
16221-z0h-010
16221-z0h-010
|
|||
|
|
16222-z0h-800
16222-z0h-800
|
|||
|
|
16222-z0h-801
16222-z0h-801
|
|||
|
|
19631-z0h-000
19631-z0h-000
|
|||
|
|
19632-z0h-800
19632-z0h-800
|
|||
|
|
90014-z0h-003
90014-z0h-003
|
|||
|
|
90014-z3f-000
90014-z3f-000
|
|||
|
|
90018-z0h-003
90018-z0h-003
|
|||
|
|
91301-zm3-000
91301-zm3-000
|
|||
|
|
91308-z0h-003
91308-z0h-003
|
|||
|
|
99101-zm5-0330
99101-zm5-0330
|
|||
|
|
99101-zm5-0340
99101-zm5-0340
|
|||
|
|
99101-z0h-0320
99101-z0h-0320
|

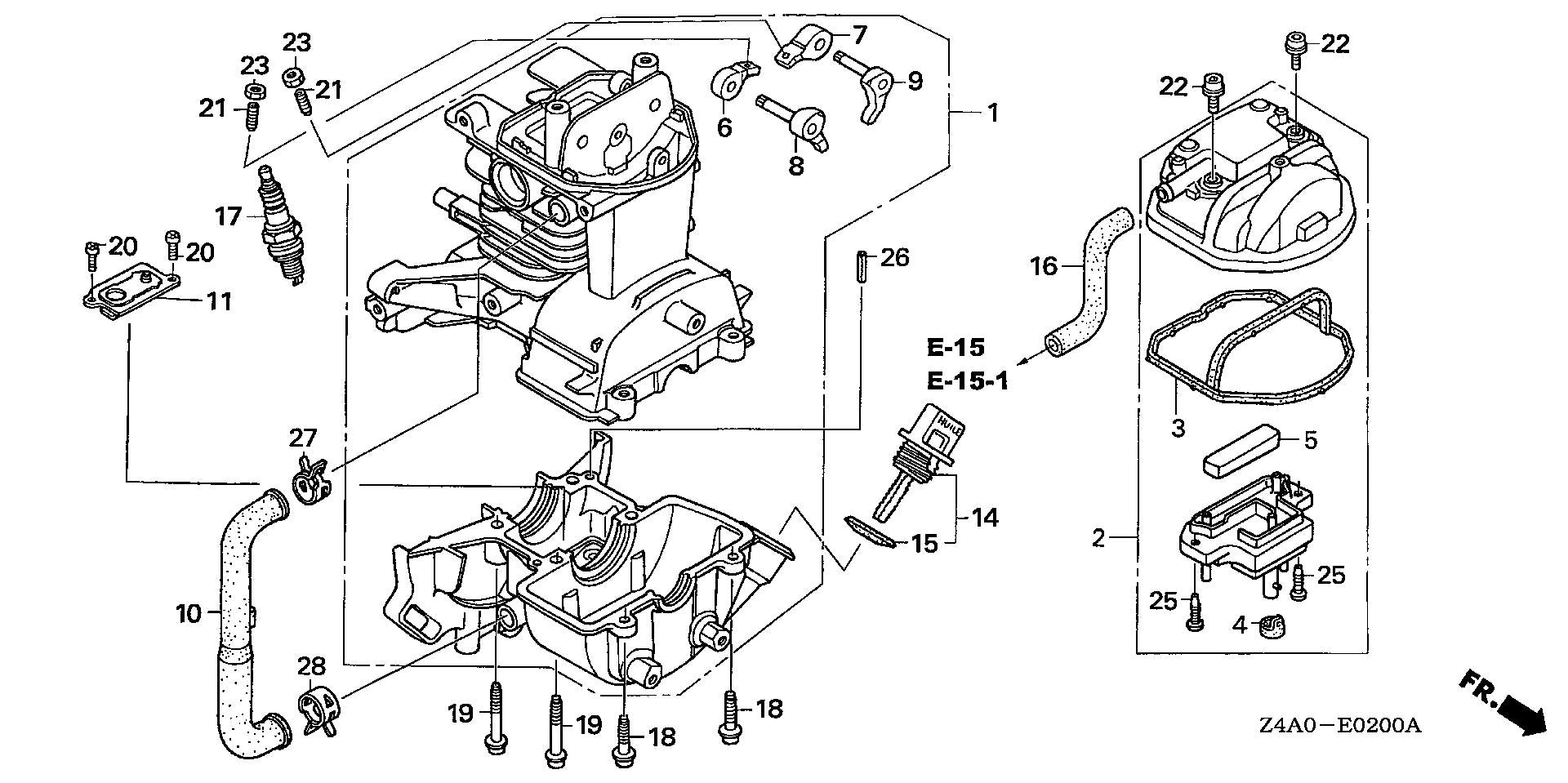

CRANKCASE SET
CRANKCASE SET
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
10100-z3e-406
10100-z3e-406
|
|||
|
|
12310-z0h-010
12310-z0h-010
|
|||
|
|
12312-z0h-300
12312-z0h-300
|
|||
|
|
12314-z0h-300
12314-z0h-300
|
|||
|
|
12367-z0h-000
12367-z0h-000
|
|||
|
|
14431-z0h-003
14431-z0h-003
|
|||
|
|
14441-z0h-003
14441-z0h-003
|
|||
|
|
14730-z0h-000
14730-z0h-000
|
|||
|
|
14740-z0h-000
14740-z0h-000
|
|||
|
|
15422-z0h-000
15422-z0h-000
|
|||
|
|
15510-z0h-000
15510-z0h-000
|
|||
|
|
15600-zf0-003
15600-zf0-003
|
|||
|
|
15625-ze1-003
15625-ze1-003
|
|||
|
|
15721-z0h-000
15721-z0h-000
|
|||
|
|
15721-z0h-800
15721-z0h-800
|
|||
|
|
15721-z0h-820
15721-z0h-820
|
|||
|
|
31916-z0h-003
31916-z0h-003
|
|||
|
|
90009-z0h-003
90009-z0h-003
|
|||
|
|
90010-z0h-003
90010-z0h-003
|
|||
|
|
90013-z0h-004
90013-z0h-004
|
|||
|
|
90017-z0h-000
90017-z0h-000
|
|||
|
|
90019-z0h-003
90019-z0h-003
|
|||
|
|
90206-zm3-000
90206-zm3-000
|
|||
|
|
93901-34320
93901-34320
|
|||
|
|
94305-40102
94305-40102
|
|||
|
|
95002-41200-08
95002-41200-08
|
|||
|
|
95002-41300-04
95002-41300-04
|

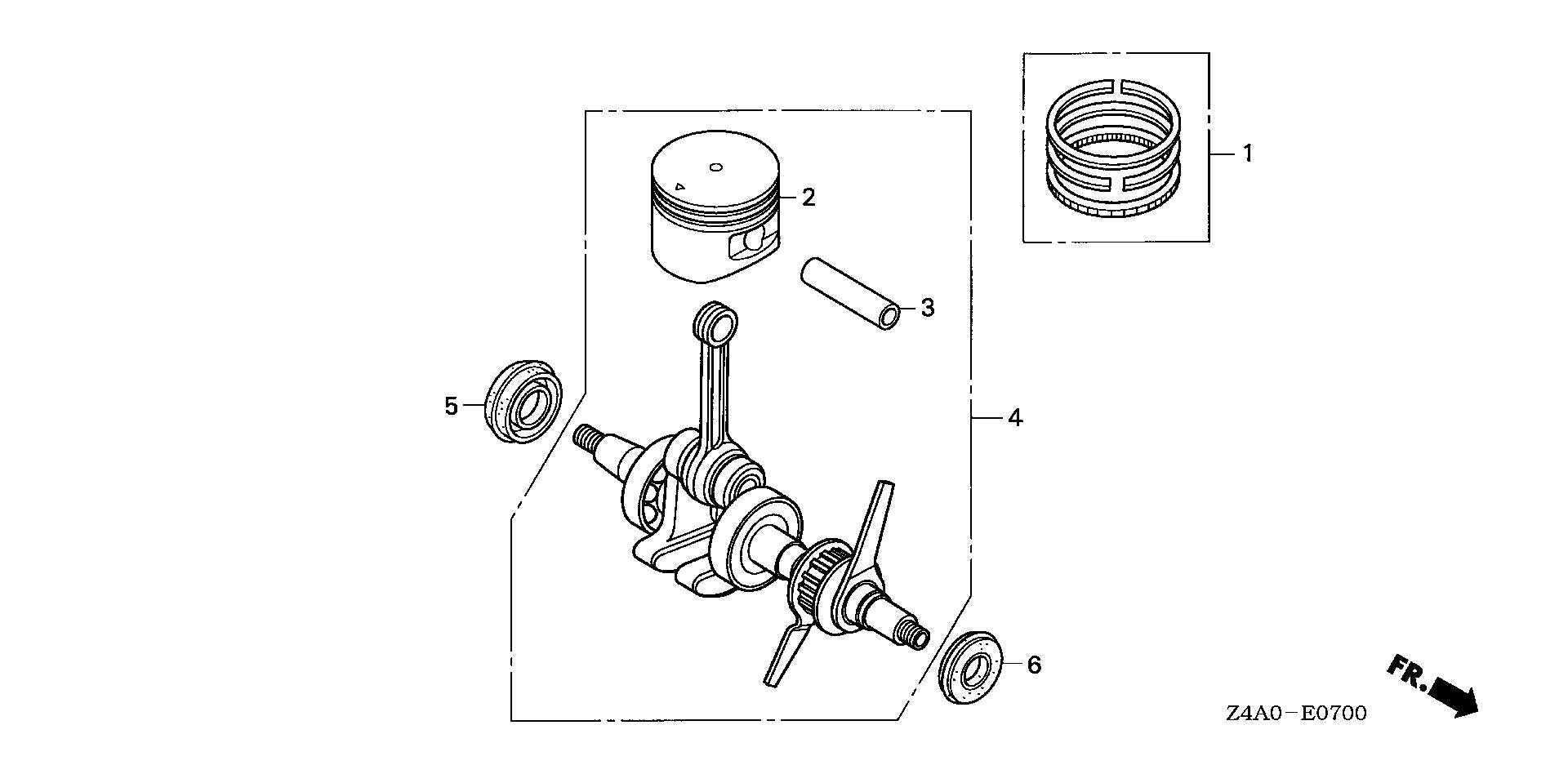

CRANKSHAFT@PISTON
CRANKSHAFT@PISTON
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13010-z0h-000
13010-z0h-000
|
|||
|
|
13101-z3e-000
13101-z3e-000
|
|||
|
|
13111-z0h-000
13111-z0h-000
|
|||
|
|
13310-z3e-000
13310-z3e-000
|
|||
|
|
13310-z3e-800
13310-z3e-800
|
|||
|
|
91211-z0h-003
91211-z0h-003
|
|||
|
|
91212-z0h-003
91212-z0h-003
|

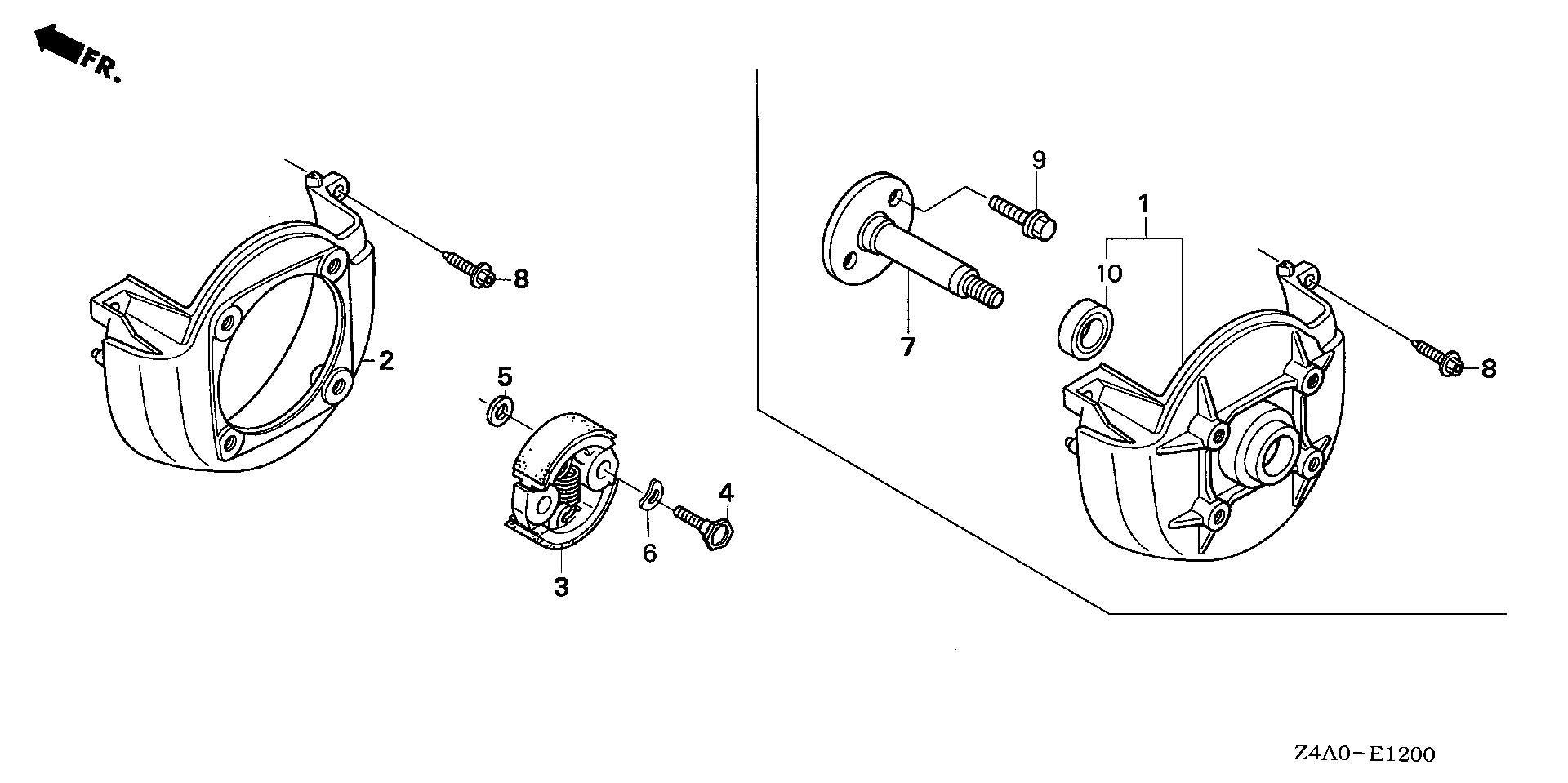

FAN COVER@CLUTCH
FAN COVER@CLUTCH
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19610-z0h-801
19610-z0h-801
|
|||
|
|
19611-z0h-000
19611-z0h-000
|
|||
|
|
22000-zm3-003
22000-zm3-003
|
|||
|
|
22000-z0h-u61
22000-z0h-u61
|
|||
|
|
22000-z0h-811
22000-z0h-811
|
|||
|
|
22253-z0h-003
22253-z0h-003
|
|||
|
|
22254-zm3-003
22254-zm3-003
|
|||
|
|
22254-z0h-u61
22254-z0h-u61
|
|||
|
|
22254-z0h-003
22254-z0h-003
|
|||
|
|
22256-z0h-u61
22256-z0h-u61
|
|||
|
|
40210-z0h-800
40210-z0h-800
|
|||
|
|
90009-z0h-003
90009-z0h-003
|
|||
|
|
96001-06022-00
96001-06022-00
|
|||
|
|
96150-60010-10
96150-60010-10
|

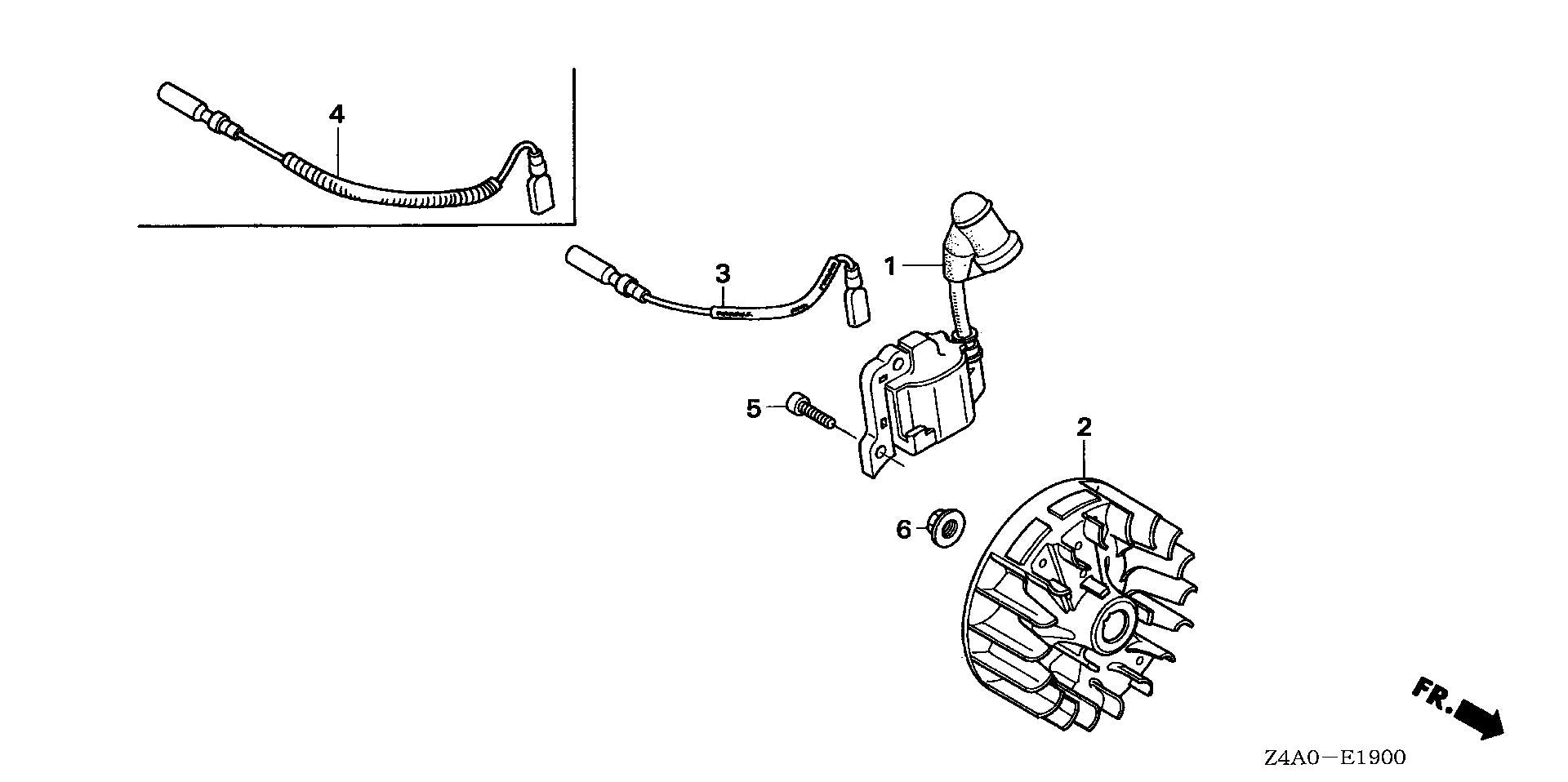

FLYWHEEL
FLYWHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30500-z3e-004
30500-z3e-004
|
|||
|
|
31110-z0h-821
31110-z0h-821
|
|||
|
|
31110-z3e-004
31110-z3e-004
|
|||
|
|
31110-z3e-812
31110-z3e-812
|
|||
|
|
32195-z0h-000
32195-z0h-000
|
|||
|
|
32195-z0h-810
32195-z0h-810
|
|||
|
|
32195-z0h-800
32195-z0h-800
|
|||
|
|
90012-z0h-005
90012-z0h-005
|
|||
|
|
90355-427-770
90355-427-770
|

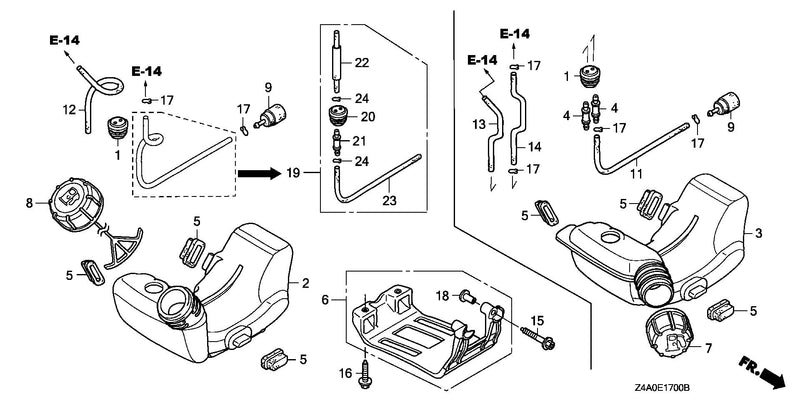

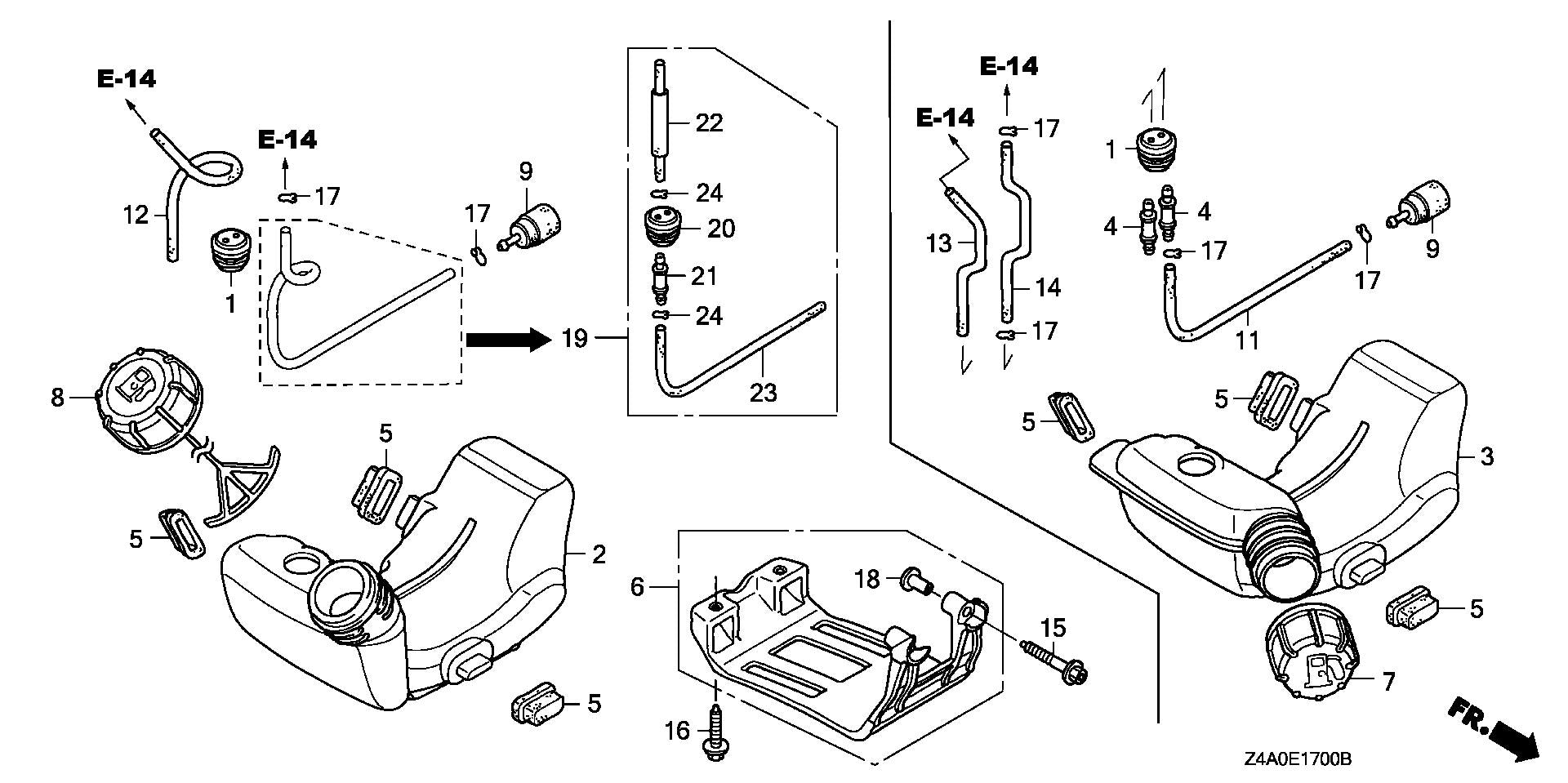

FUEL TANK
FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17504-zm3-003
17504-zm3-003
|
|||
|
|
17511-z0h-305
17511-z0h-305
|
|||
|
|
17511-z0h-823
17511-z0h-823
|
|||
|
|
17519-zm5-003
17519-zm5-003
|
|||
|
|
17533-z0h-000
17533-z0h-000
|
|||
|
|
17555-z0h-010
17555-z0h-010
|
|||
|
|
17620-zm3-818
17620-zm3-818
|
|||
|
|
17701-z0h-820
17701-z0h-820
|
|||
|
|
17702-z0h-003
17702-z0h-003
|
|||
|
|
17702-z0h-820
17702-z0h-820
|
|||
|
|
17703-z0h-820
17703-z0h-820
|
|||
|
|
90010-z0h-003
90010-z0h-003
|
|||
|
|
90018-z0h-003
90018-z0h-003
|
|||
|
|
91401-zm3-003
91401-zm3-003
|
|||
|
|
91501-z0h-000
91501-z0h-000
|
|||
|
|
17700-z0h-305
17700-z0h-305
|
|||
|
|
17700-z0h-307
17700-z0h-307
|
|||
|
|
17504-zm3-003
17504-zm3-003
|
|||
|
|
17519-zm5-003
17519-zm5-003
|
|||
|
|
17701-z3e-305
17701-z3e-305
|
|||
|
|
17703-z0h-j71
17703-z0h-j71
|
|||
|
|
91401-zm3-003
91401-zm3-003
|

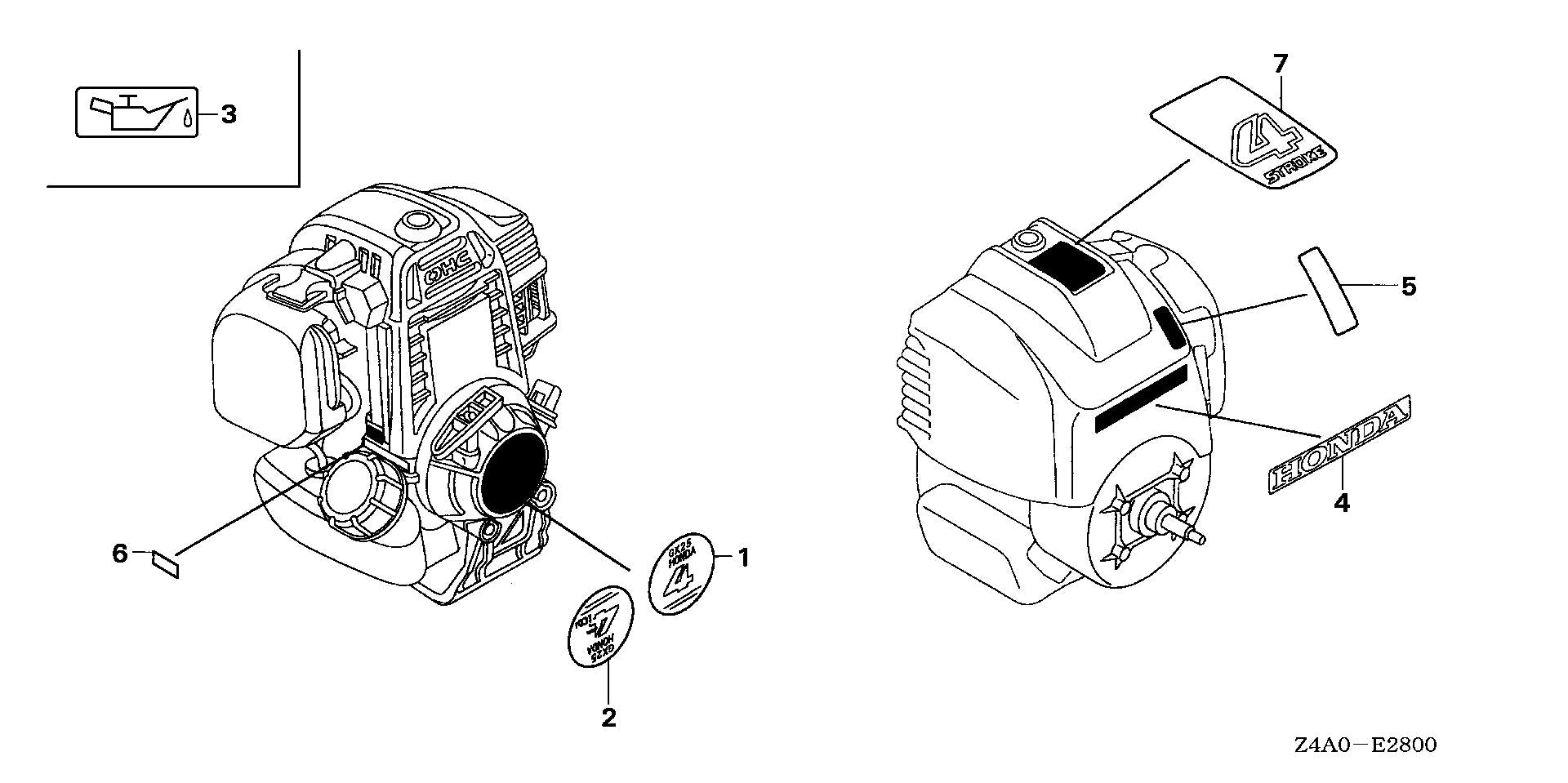

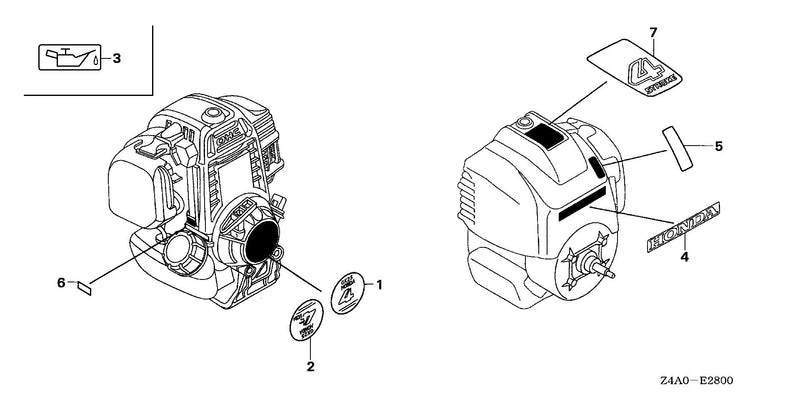

LABEL
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87521-z0h-801
87521-z0h-801
|
|||
|
|
87531-ye9-000
87531-ye9-000
|
|||
|
|
87531-z0h-000
87531-z0h-000
|
|||
|
|
87532-zh7-000
87532-zh7-000
|
|||
|
|
87601-z4a-000
87601-z4a-000
|
|||
|
|
87601-z4a-800
87601-z4a-800
|
|||
|
|
87601-z4a-810
87601-z4a-810
|
|||
|
|
87601-z4a-820
87601-z4a-820
|
|||
|
|
87601-z4a-830
87601-z4a-830
|
|||
|
|
87601-z4a-840
87601-z4a-840
|
|||
|
|
87660-z0h-000
87660-z0h-000
|

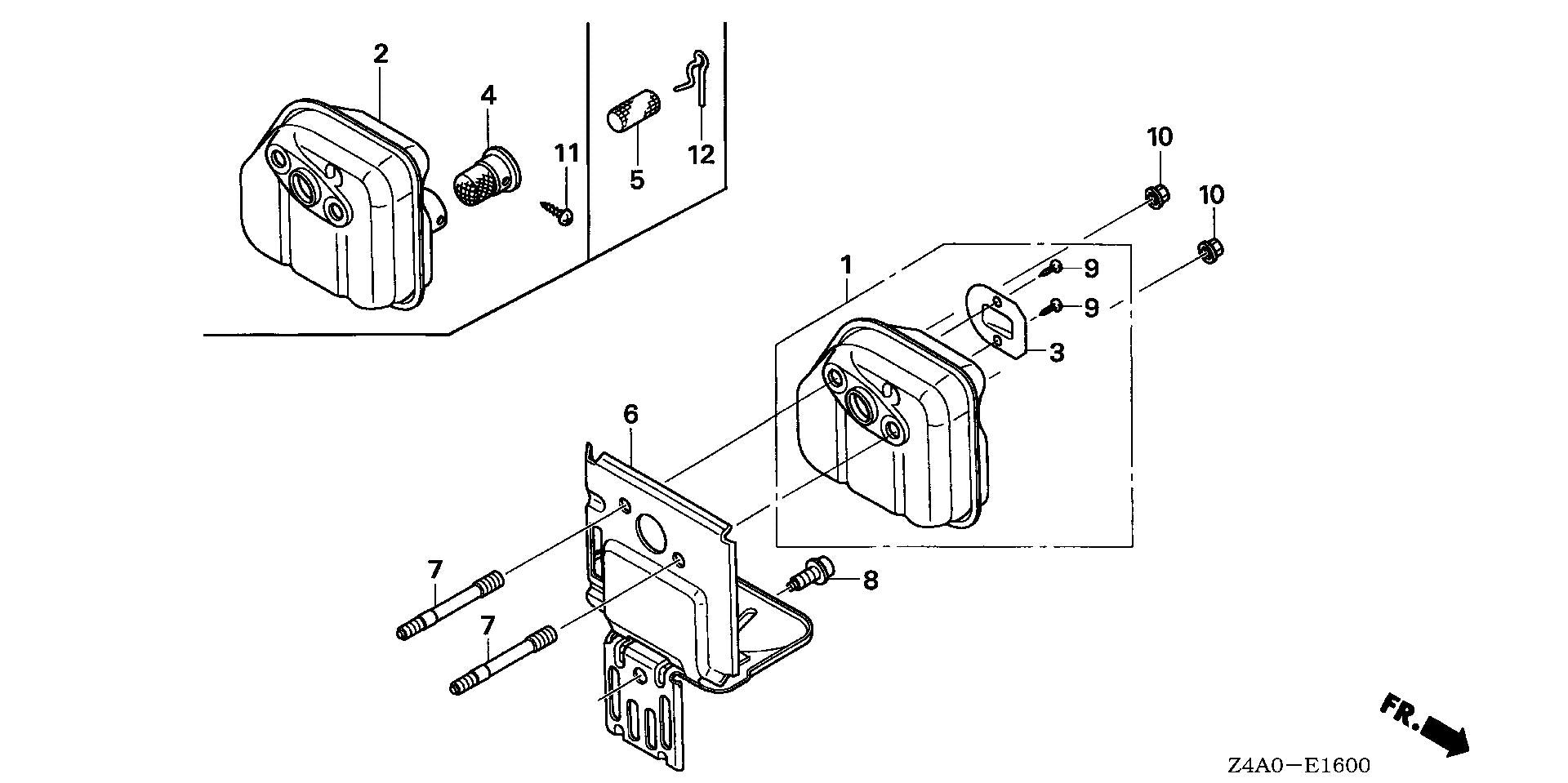

MUFFLER
MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
18310-z0h-801
18310-z0h-801
|
|||
|
|
18310-z0h-841
18310-z0h-841
|
|||
|
|
18310-z0h-850
18310-z0h-850
|
|||
|
|
18350-z0h-800
18350-z0h-800
|
|||
|
|
18350-z0h-820
18350-z0h-820
|
|||
|
|
18510-z0h-800
18510-z0h-800
|
|||
|
|
18515-z0h-000
18515-z0h-000
|
|||
|
|
90001-z0h-003
90001-z0h-003
|
|||
|
|
90011-z0h-003
90011-z0h-003
|
|||
|
|
90136-sm4-901
90136-sm4-901
|
|||
|
|
93901-22010
93901-22010
|
|||
|
|
94251-06000
94251-06000
|

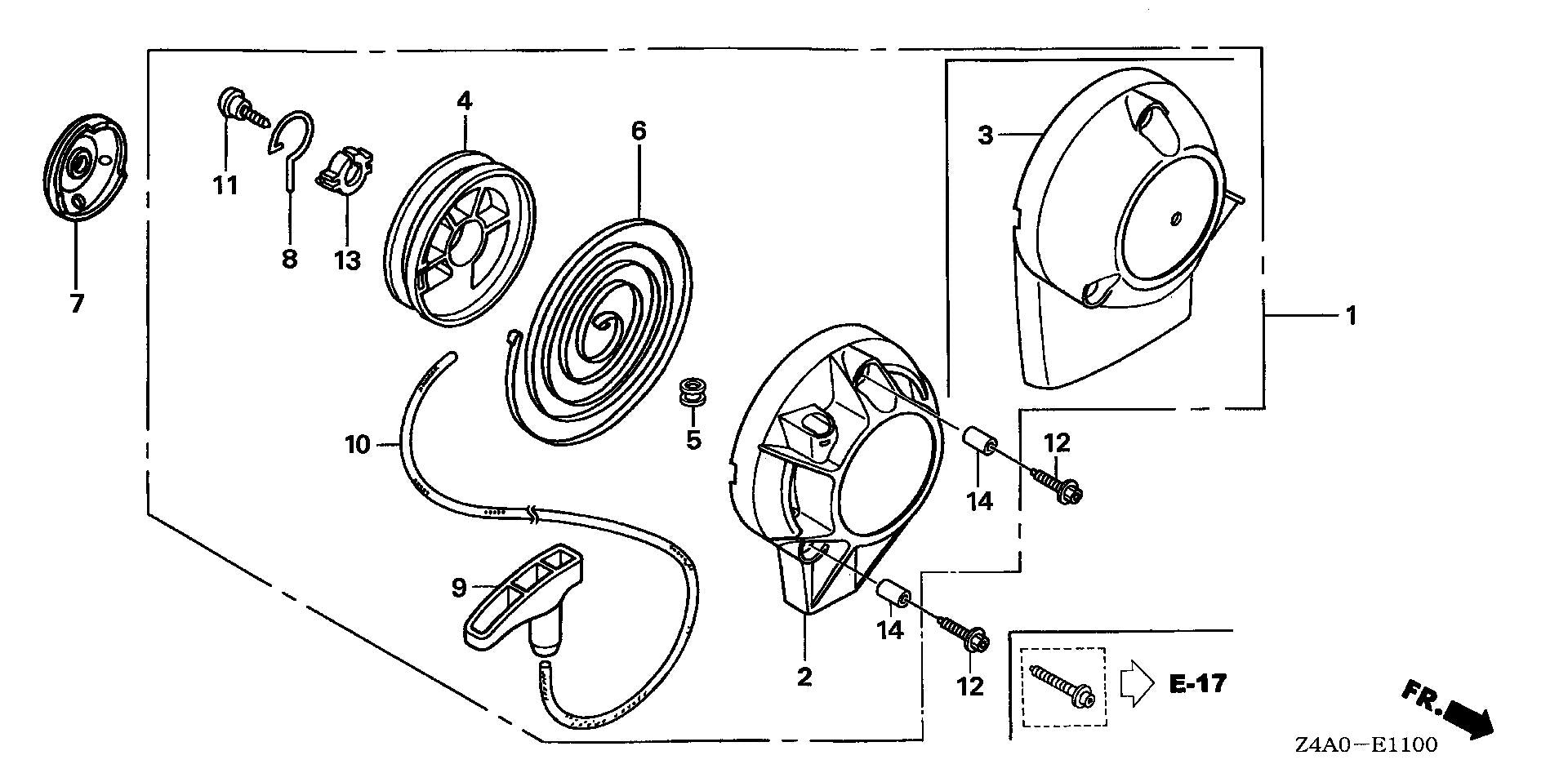

RECOIL STARTER
RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28400-z0h-802
28400-z0h-802
|
|||
|
|
28400-z3e-m01
28400-z3e-m01
|
|||
|
|
28414-z0h-003
28414-z0h-003
|
|||
|
|
28414-z0h-801
28414-z0h-801
|
|||
|
|
28421-z0h-003
28421-z0h-003
|
|||
|
|
28433-zm3-003
28433-zm3-003
|
|||
|
|
28442-z0h-003
28442-z0h-003
|
|||
|
|
28451-z0h-003
28451-z0h-003
|
|||
|
|
28459-z0h-003
28459-z0h-003
|
|||
|
|
28461-zm3-003
28461-zm3-003
|
|||
|
|
28462-zm3-003
28462-zm3-003
|
|||
|
|
90012-zm3-003
90012-zm3-003
|
|||
|
|
90018-z0h-003
90018-z0h-003
|
|||
|
|
91504-zm3-003
91504-zm3-003
|
|||
|
|
91506-zm3-000
91506-zm3-000
|

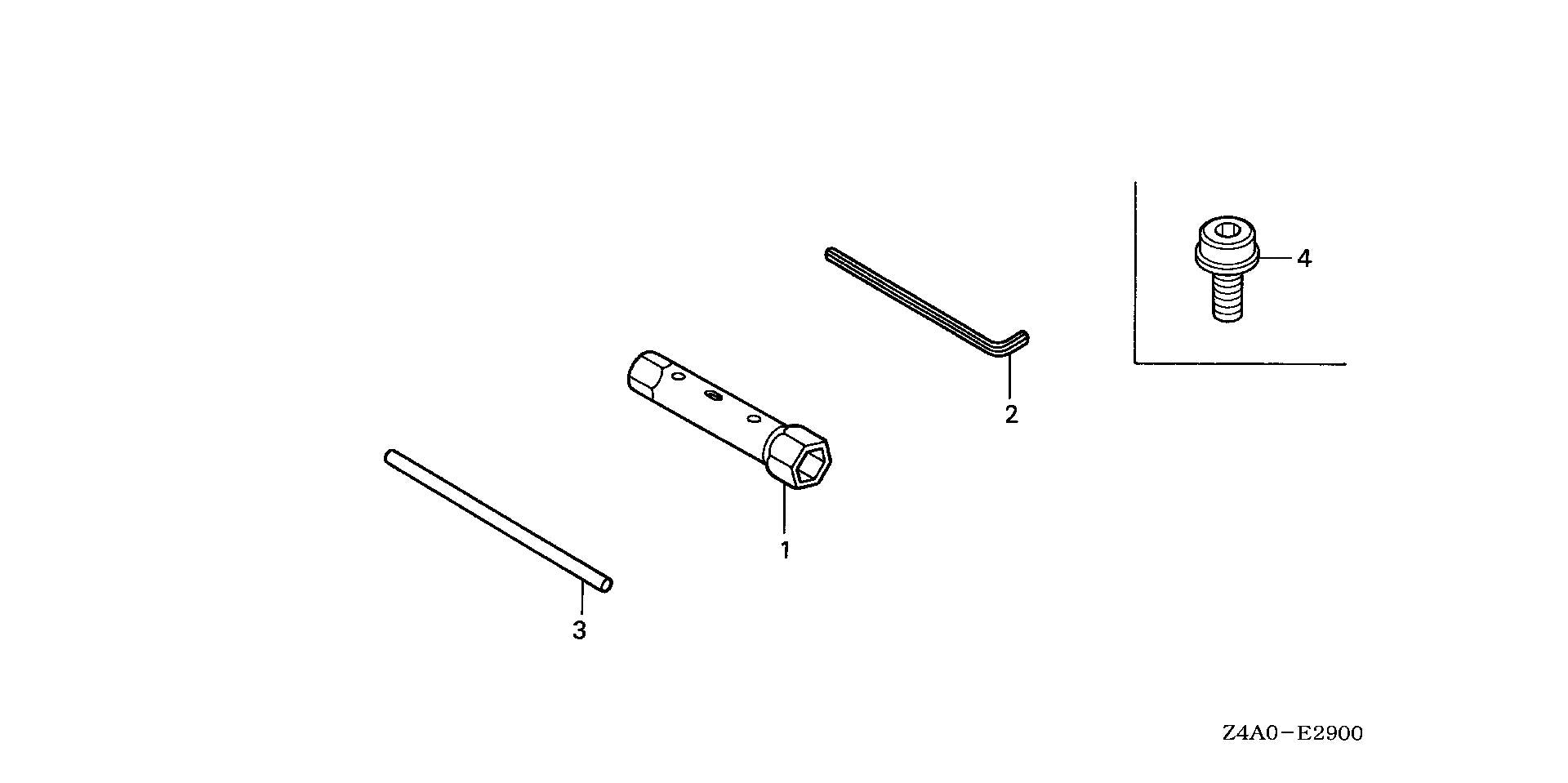

TOOL
TOOL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
89216-045-010
89216-045-010
|
|||
|
|
89221-kw3-000
89221-kw3-000
|
|||
|
|
99005-01000
99005-01000
|
|||
|
|
90011-z0h-811
90011-z0h-811
|

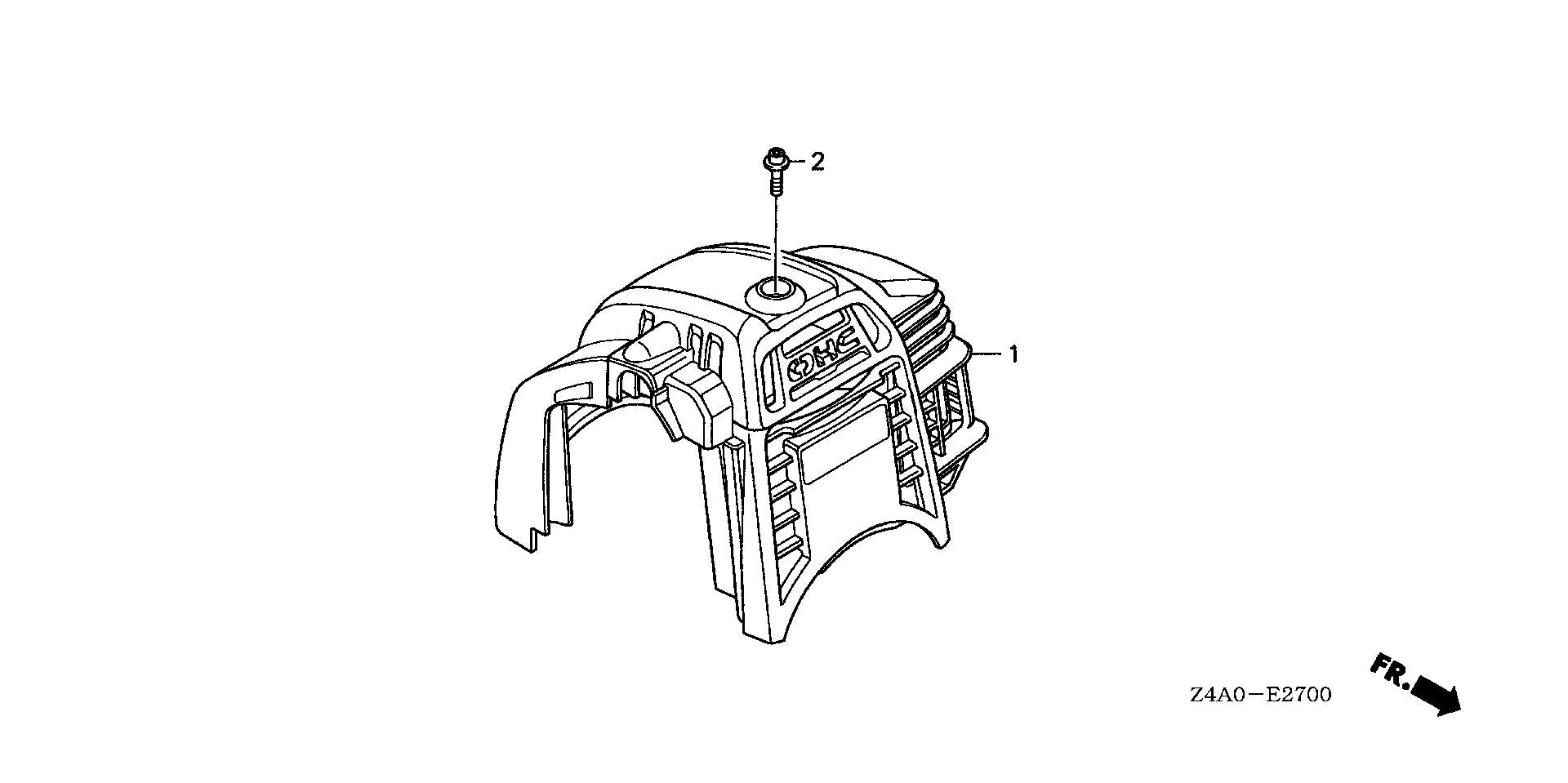

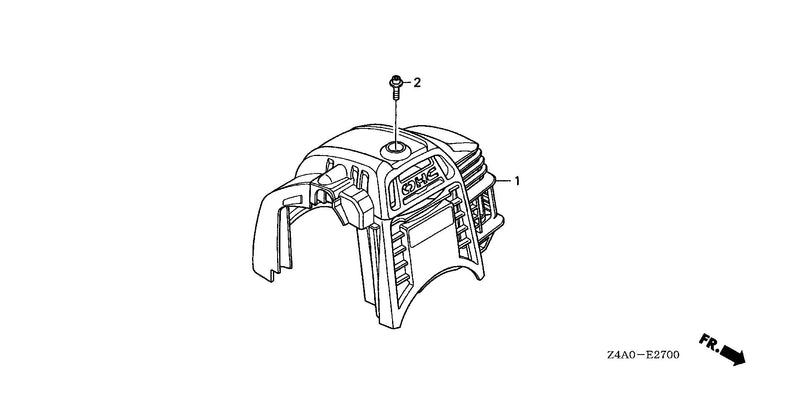

TOP COVER
TOP COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19720-z0h-000zc
19720-z0h-000zc
|
|||
|
|
19720-z0h-801za
19720-z0h-801za
|
|||
|
|
19720-z0h-802za
19720-z0h-802za
|
|||
|
|
19720-z0h-810za
19720-z0h-810za
|
|||
|
|
90015-z0h-003
90015-z0h-003
|
