Honda GXV390-DA2 Parts Diagram Engine (Serial GJAA-1000001 to 2063521)
Diagrams:
Diagram:

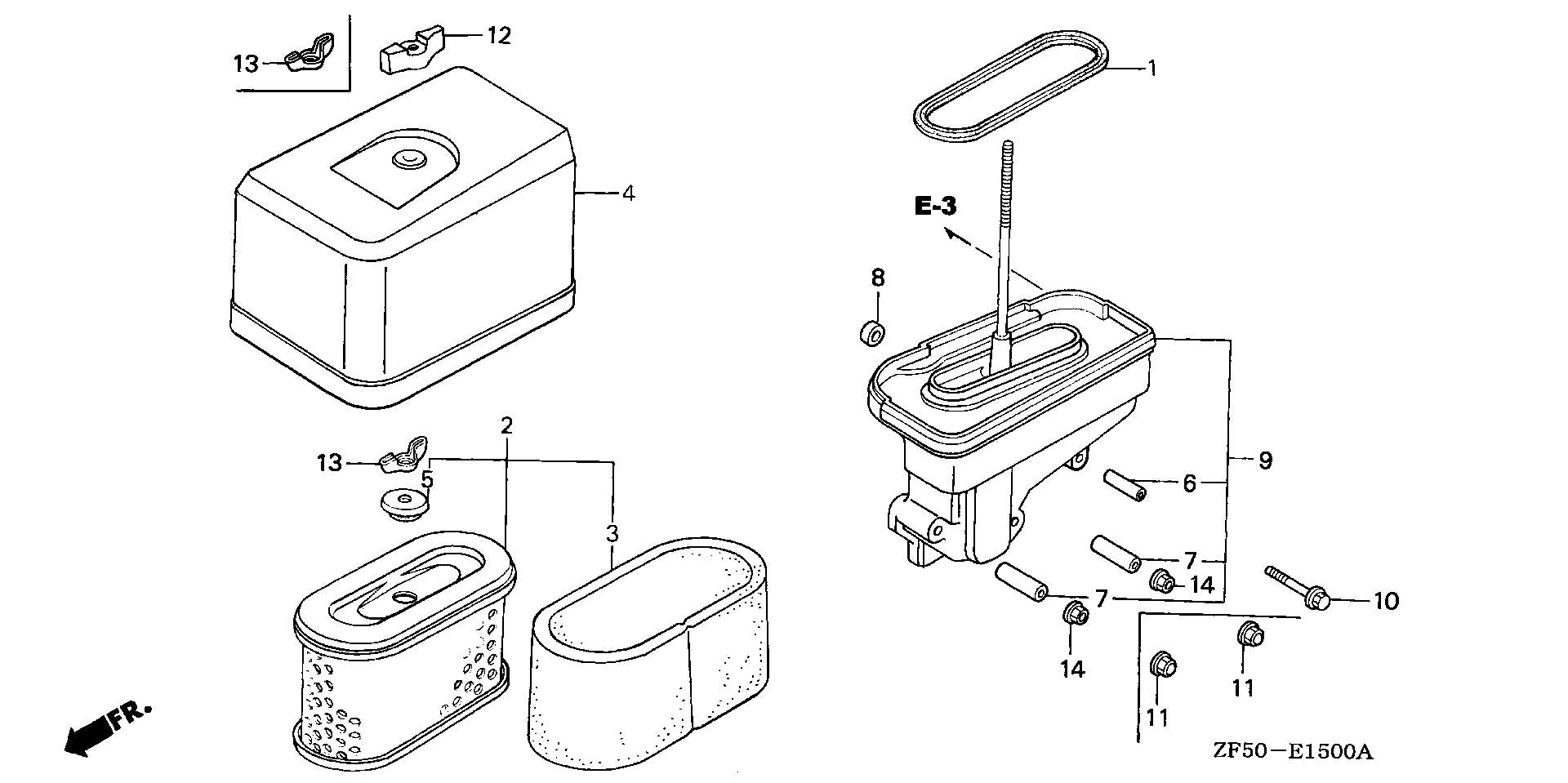

AIR CLEANER
AIR CLEANER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16271-ze8-000
16271-ze8-000
|
|||
|
|
17210-zf5-010
17210-zf5-010
|
|||
|
|
17218-zf5-305
17218-zf5-305
|
|||
|
|
17230-ze8-013
17230-ze8-013
|
|||
|
|
17232-891-000
17232-891-000
|
|||
|
|
17238-ze1-000
17238-ze1-000
|
|||
|
|
17238-ze2-310
17238-ze2-310
|
|||
|
|
17410-ze8-013
17410-ze8-013
|
|||
|
|
90014-ze6-000
90014-ze6-000
|
|||
|
|
90203-za0-800
90203-za0-800
|
|||
|
|
90325-044-000
90325-044-000
|

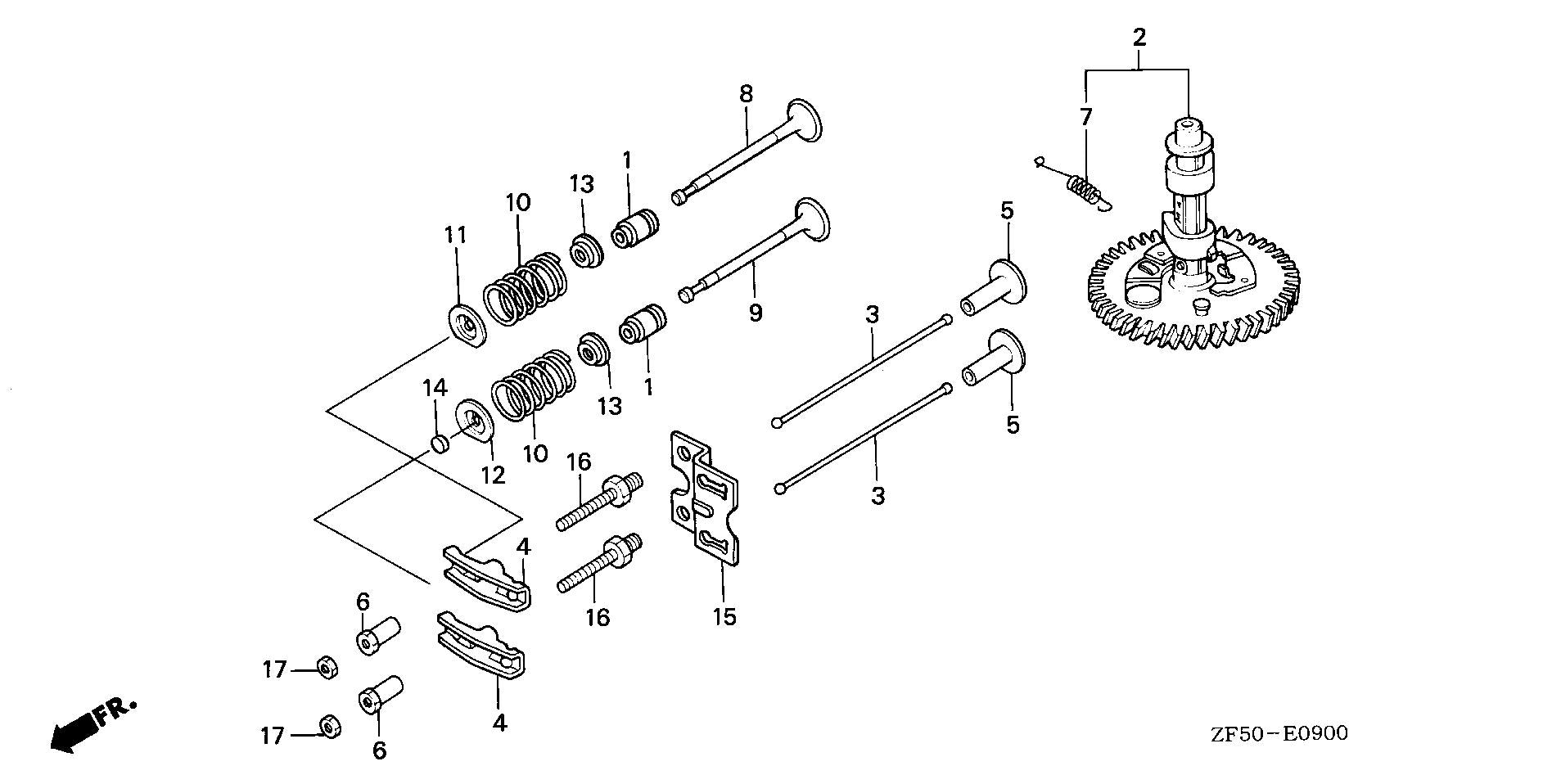

CAMSHAFT
CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12209-ze8-003
12209-ze8-003
|
|||
|
|
14100-zf5-010
14100-zf5-010
|
|||
|
|
14410-ze3-013
14410-ze3-013
|
|||
|
|
14431-ze2-000
14431-ze2-000
|
|||
|
|
14431-ze2-010
14431-ze2-010
|
|||
|
|
14441-ze2-000
14441-ze2-000
|
|||
|
|
14451-ze1-003
14451-ze1-003
|
|||
|
|
14451-z4m-000
14451-z4m-000
|
|||
|
|
14568-ze1-000
14568-ze1-000
|
|||
|
|
14711-ze3-000
14711-ze3-000
|
|||
|
|
14721-ze3-000
14721-ze3-000
|
|||
|
|
14751-ze2-003
14751-ze2-003
|
|||
|
|
14771-z8s-000
14771-z8s-000
|
|||
|
|
14773-z8s-000
14773-z8s-000
|
|||
|
|
14775-ze2-010
14775-ze2-010
|
|||
|
|
14781-ze2-000
14781-ze2-000
|
|||
|
|
14791-ze9-000
14791-ze9-000
|
|||
|
|
90012-ze0-010
90012-ze0-010
|

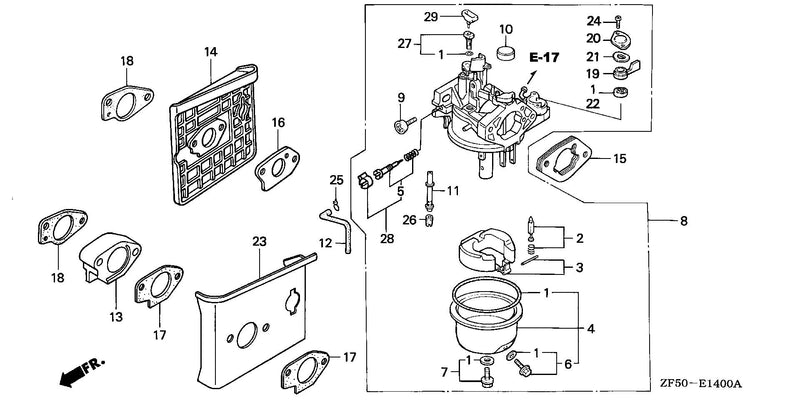

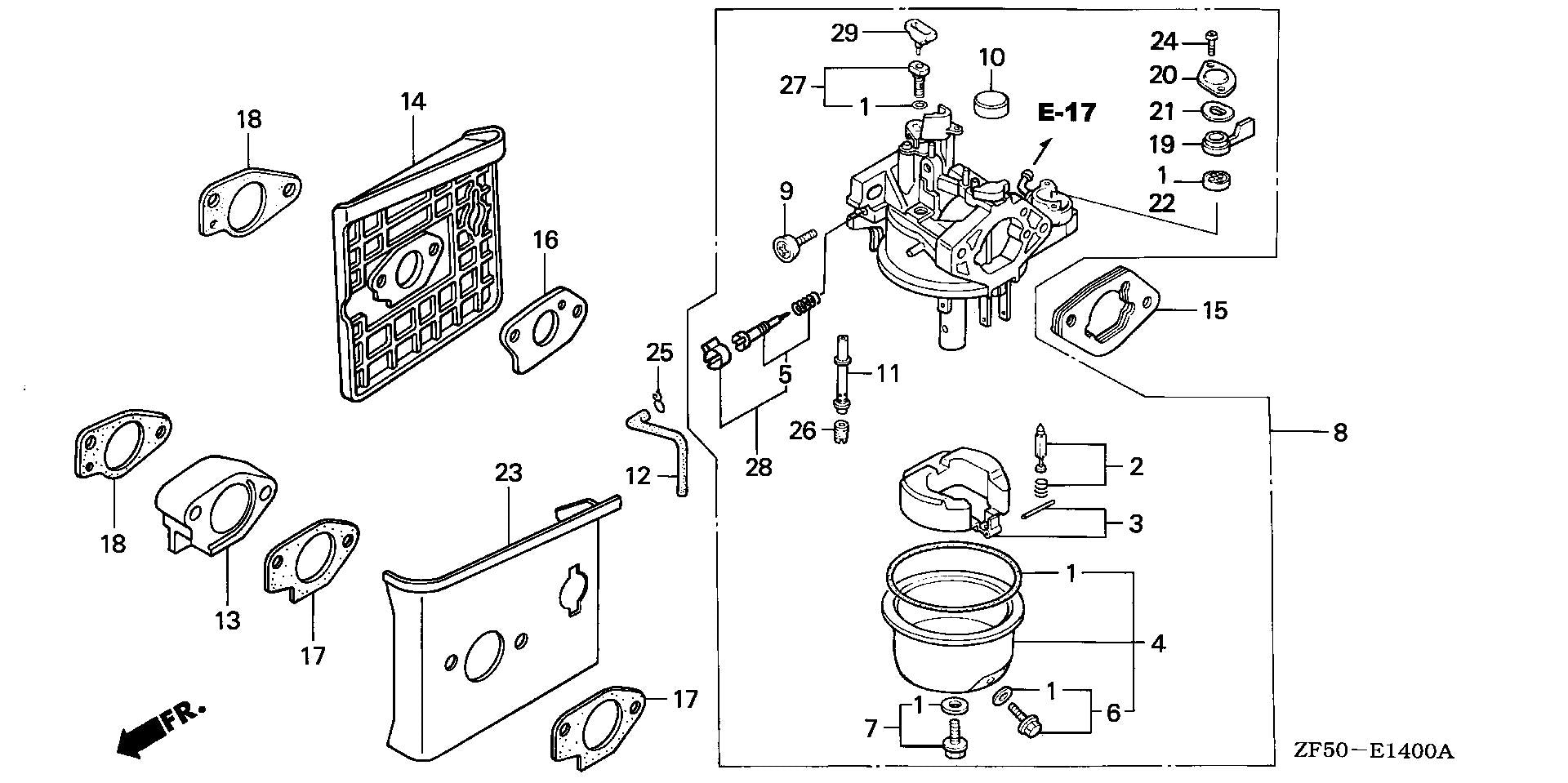

CARBURETOR
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16010-ze2-005
16010-ze2-005
|
|||
|
|
16010-ze2-015
16010-ze2-015
|
|||
|
|
16011-za0-931
16011-za0-931
|
|||
|
|
16013-za0-931
16013-za0-931
|
|||
|
|
16015-ze8-005
16015-ze8-005
|
|||
|
|
16016-zf6-005
16016-zf6-005
|
|||
|
|
16024-ze1-811
16024-ze1-811
|
|||
|
|
16028-zk7-s91
16028-zk7-s91
|
|||
|
|
16100-zf5-025
16100-zf5-025
|
|||
|
|
16124-ze0-005
16124-ze0-005
|
|||
|
|
16148-141-881
16148-141-881
|
|||
|
|
16166-zf6-005
16166-zf6-005
|
|||
|
|
16199-ze8-000
16199-ze8-000
|
|||
|
|
16223-ze9-800
16223-ze9-800
|
|||
|
|
16953-ze1-711
16953-ze1-711
|
|||
|
|
16953-ze1-712
16953-ze1-712
|
|||
|
|
16954-ze1-811
16954-ze1-811
|
|||
|
|
16954-ze1-812
16954-ze1-812
|
|||
|
|
16956-ze1-811
16956-ze1-811
|
|||
|
|
16957-ze1-811
16957-ze1-811
|
|||
|
|
16957-ze1-812
16957-ze1-812
|
|||
|
|
93500-03006-0h
93500-03006-0h
|
|||
|
|
93500-03008-0h
93500-03008-0h
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
99101-zf5-0920
99101-zf5-0920
|
|||
|
|
99101-zh7-0920
99101-zh7-0920
|
|||
|
|
99101-zh8-0880
99101-zh8-0880
|
|||
|
|
99101-zh8-0900
99101-zh8-0900
|
|||
|
|
99204-za0-0400
99204-za0-0400
|
|||
|
|
99204-ze2-0400
99204-ze2-0400
|
|||
|
|
16016-zh7-w01
16016-zh7-w01
|
|||
|
|
16172-ze3-w10
16172-ze3-w10
|

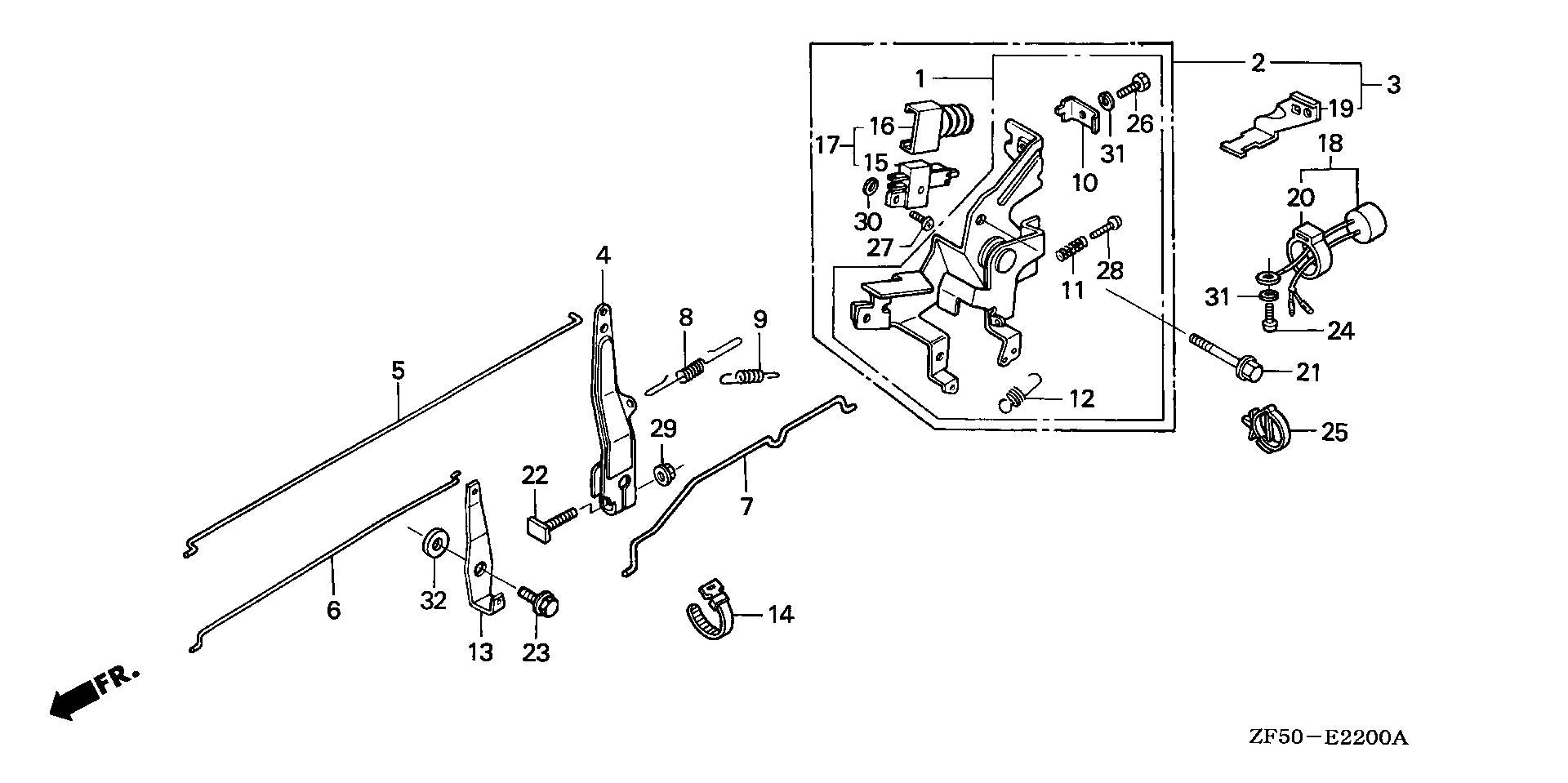

CONTROL (1)
CONTROL (1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16500-zf5-u11
16500-zf5-u11
|
|||
|
|
16500-zf5-010
16500-zf5-010
|
|||
|
|
16500-zf5-800
16500-zf5-800
|
|||
|
|
16551-zf5-000
16551-zf5-000
|
|||
|
|
16555-ze9-000
16555-ze9-000
|
|||
|
|
16556-ze9-000
16556-ze9-000
|
|||
|
|
16557-ze8-810
16557-ze8-810
|
|||
|
|
16561-zf5-000
16561-zf5-000
|
|||
|
|
16576-891-000
16576-891-000
|
|||
|
|
16584-883-300
16584-883-300
|
|||
|
|
16592-732-700
16592-732-700
|
|||
|
|
16619-zf5-000
16619-zf5-000
|
|||
|
|
32161-404-610
32161-404-610
|
|||
|
|
35330-zg1-751
35330-zg1-751
|
|||
|
|
35336-750-003
35336-750-003
|
|||
|
|
36100-ze8-003
36100-ze8-003
|
|||
|
|
38400-ze8-003
38400-ze8-003
|
|||
|
|
38401-zf5-800
38401-zf5-800
|
|||
|
|
38402-gc1-000
38402-gc1-000
|
|||
|
|
90015-ze5-010
90015-ze5-010
|
|||
|
|
90015-ze8-000
90015-ze8-000
|
|||
|
|
90050-ze1-000
90050-ze1-000
|
|||
|
|
90684-za0-601
90684-za0-601
|
|||
|
|
92301-05016-0a
92301-05016-0a
|
|||
|
|
93500-04014-0a
93500-04014-0a
|
|||
|
|
93500-05020-0a
93500-05020-0a
|
|||
|
|
94111-04000
94111-04000
|
|||
|
|
94111-05000
94111-05000
|

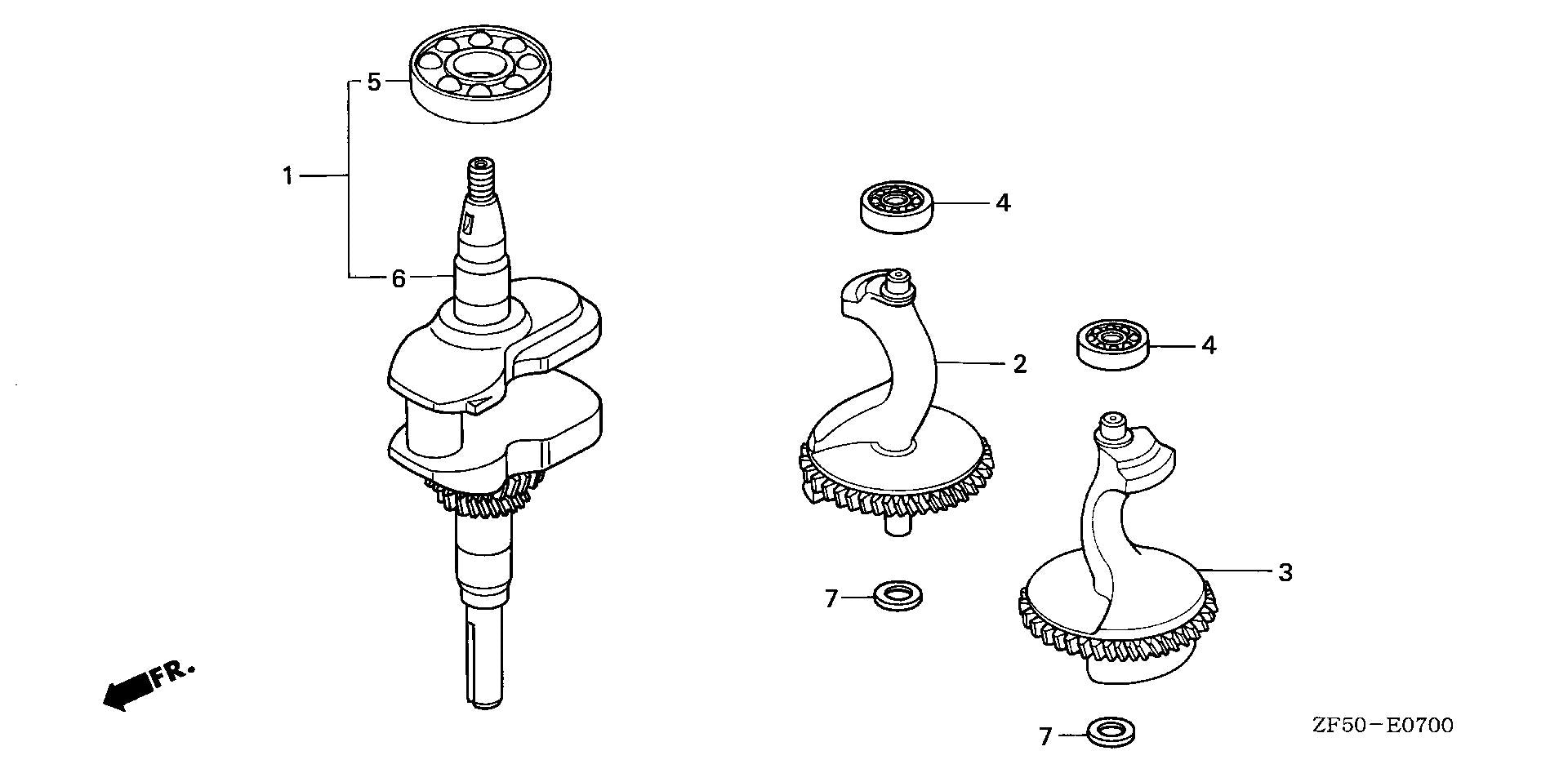

CRANKSHAFT
CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13351-zf5-000
13351-zf5-000
|
|||
|
|
13351-zf5-010
13351-zf5-010
|
|||
|
|
13351-zf5-030
13351-zf5-030
|
|||
|
|
13356-zf5-010
13356-zf5-010
|
|||
|
|
13356-zf5-040
13356-zf5-040
|
|||
|
|
91001-zf5-003
91001-zf5-003
|
|||
|
|
96100-62070-00
96100-62070-00
|
|||
|
|
13310-zf5-040
13310-zf5-040
|
|||
|
|
90417-ha0-000
90417-ha0-000
|

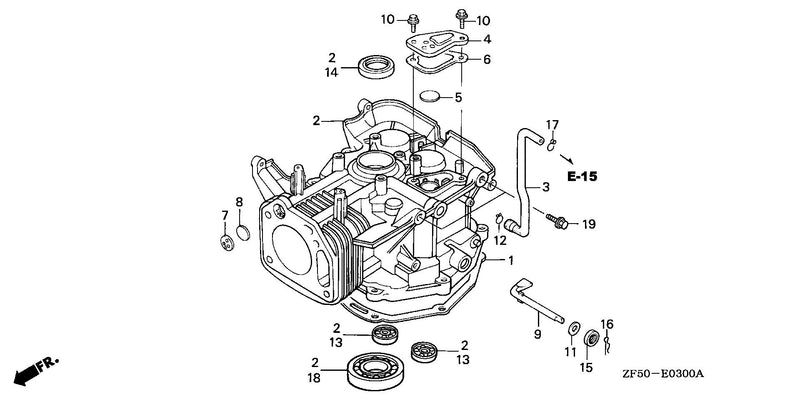

CYLINDER
CYLINDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11381-ze9-800
11381-ze9-800
|
|||
|
|
12315-zf5-000
12315-zf5-000
|
|||
|
|
12370-zf5-000
12370-zf5-000
|
|||
|
|
12372-ze2-300
12372-ze2-300
|
|||
|
|
12373-ze8-000
12373-ze8-000
|
|||
|
|
12375-ze9-010
12375-ze9-010
|
|||
|
|
12376-ze8-000
12376-ze8-000
|
|||
|
|
16541-ze8-000
16541-ze8-000
|
|||
|
|
90406-vm6-000
90406-vm6-000
|
|||
|
|
90652-mb1-000
90652-mb1-000
|
|||
|
|
91001-zf5-003
91001-zf5-003
|
|||
|
|
91201-ze3-004
91201-ze3-004
|
|||
|
|
91201-ze9-003
91201-ze9-003
|
|||
|
|
94251-08000
94251-08000
|
|||
|
|
94251-10000
94251-10000
|
|||
|
|
95002-70000
95002-70000
|
|||
|
|
96100-62070-00
96100-62070-00
|

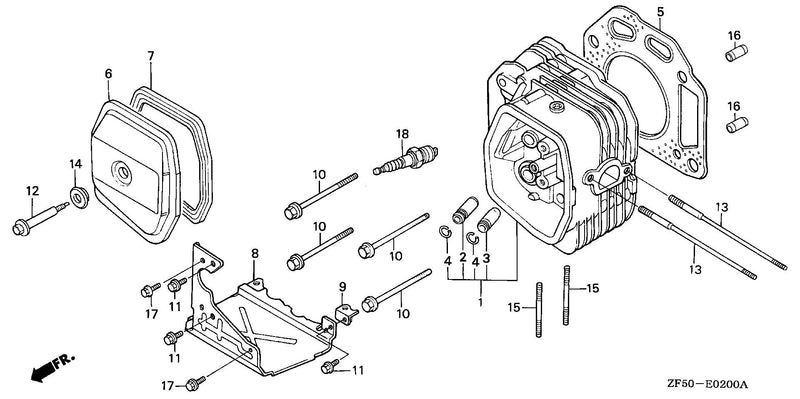

CYLINDER HEAD
CYLINDER HEAD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12200-z1e-405
12200-z1e-405
|
|||
|
|
12216-ze2-300
12216-ze2-300
|
|||
|
|
12251-zf5-000
12251-zf5-000
|
|||
|
|
12310-ze8-000
12310-ze8-000
|
|||
|
|
12391-ze8-000
12391-ze8-000
|
|||
|
|
18345-zf5-030
18345-zf5-030
|
|||
|
|
18347-ze8-000
18347-ze8-000
|
|||
|
|
90003-zf5-003
90003-zf5-003
|
|||
|
|
90014-ze8-000
90014-ze8-000
|
|||
|
|
90042-ze8-000
90042-ze8-000
|
|||
|
|
90441-ze2-010
90441-ze2-010
|
|||
|
|
92900-08022-0b
92900-08022-0b
|
|||
|
|
92900-08032-0b
92900-08032-0b
|
|||
|
|
94301-12200
94301-12200
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
98079-55846
98079-55846
|
|||
|
|
98079-55855
98079-55855
|

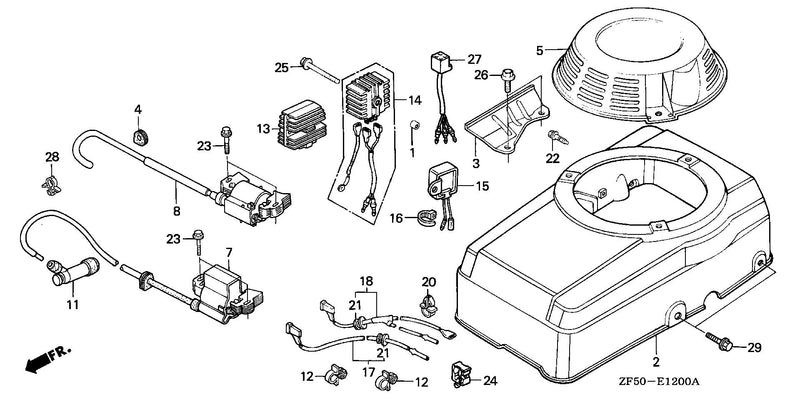

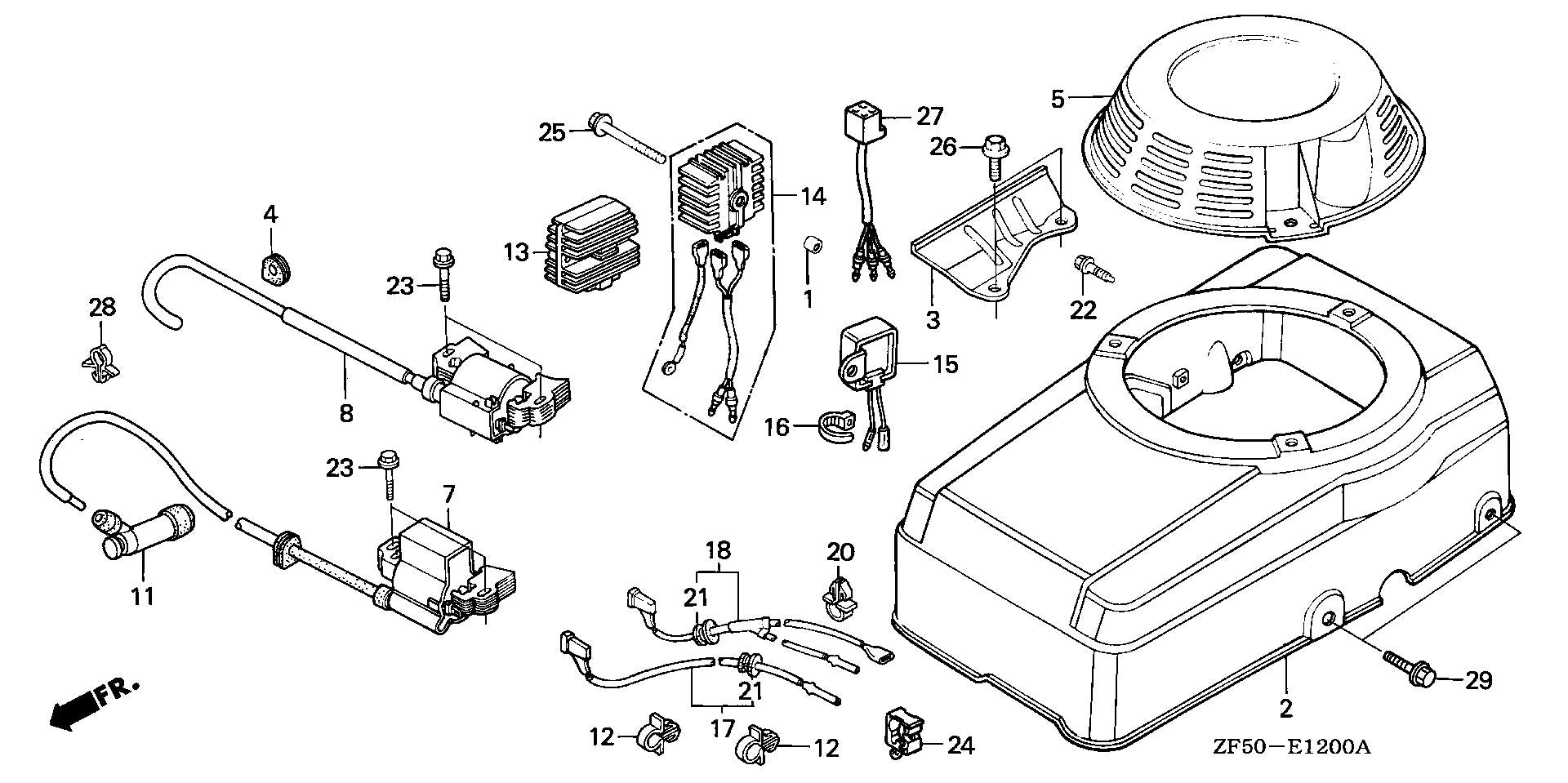

FAN COVER@IGNITION COIL (1)
FAN COVER@IGNITION COIL (1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17239-ze8-700
17239-ze8-700
|
|||
|
|
19610-zf5-801zb
19610-zf5-801zb
|
|||
|
|
19610-zf5-801ze
19610-zf5-801ze
|
|||
|
|
19612-zf5-010
19612-zf5-010
|
|||
|
|
19613-za8-000
19613-za8-000
|
|||
|
|
30500-ze9-l32
30500-ze9-l32
|
|||
|
|
30500-z1c-023
30500-z1c-023
|
|||
|
|
30700-zf5-013
30700-zf5-013
|
|||
|
|
30701-883-000
30701-883-000
|
|||
|
|
31700-ze8-003
31700-ze8-003
|
|||
|
|
31700-ze8-901
31700-ze8-901
|
|||
|
|
31700-zf5-003
31700-zf5-003
|
|||
|
|
32161-404-610
32161-404-610
|
|||
|
|
36101-ze8-000
36101-ze8-000
|
|||
|
|
36101-ze8-810
36101-ze8-810
|
|||
|
|
36103-ze1-000
36103-ze1-000
|
|||
|
|
80101-166-000
80101-166-000
|
|||
|
|
90015-883-000
90015-883-000
|
|||
|
|
90622-sa7-930
90622-sa7-930
|
|||
|
|
95701-06040-00
95701-06040-00
|
|||
|
|
95701-08020-08
95701-08020-08
|
|||
|
|
90684-za0-601
90684-za0-601
|
|||
|
|
95701-08016-00
95701-08016-00
|

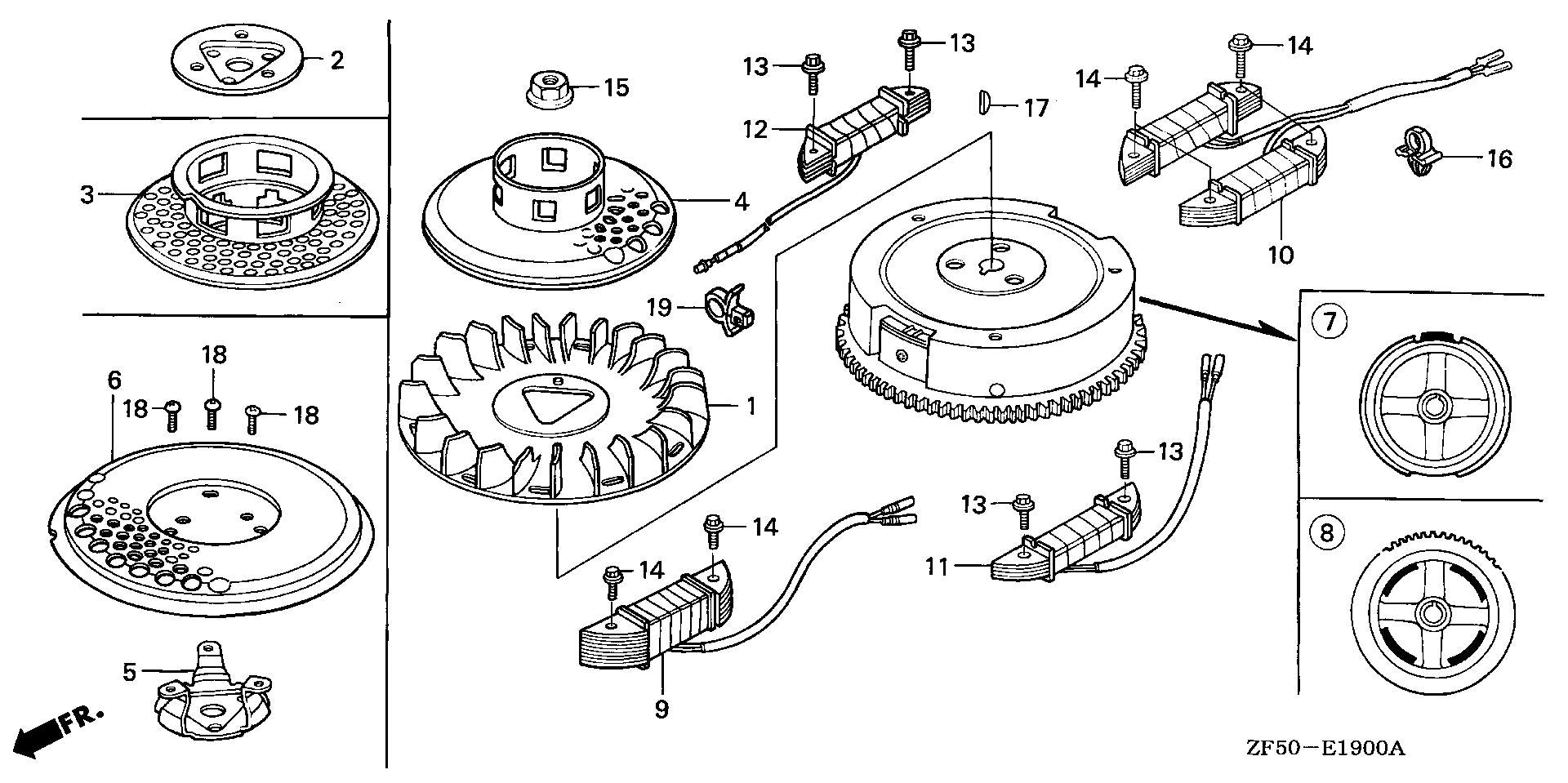

FLYWHEEL
FLYWHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19511-ze9-020
19511-ze9-020
|
|||
|
|
28450-ze9-004
28450-ze9-004
|
|||
|
|
28451-ze9-801
28451-ze9-801
|
|||
|
|
28452-ze8-801
28452-ze8-801
|
|||
|
|
31100-ze9-020
31100-ze9-020
|
|||
|
|
31510-zf5-811
31510-zf5-811
|
|||
|
|
31630-zf5-003
31630-zf5-003
|
|||
|
|
31630-zf5-801
31630-zf5-801
|
|||
|
|
90015-883-000
90015-883-000
|
|||
|
|
90015-883-000
90015-883-000
|
|||
|
|
90201-ze3-v00
90201-ze3-v00
|
|||
|
|
90201-ze3-790
90201-ze3-790
|
|||
|
|
90741-ze2-000
90741-ze2-000
|
|||
|
|
93500-05008-0a
93500-05008-0a
|

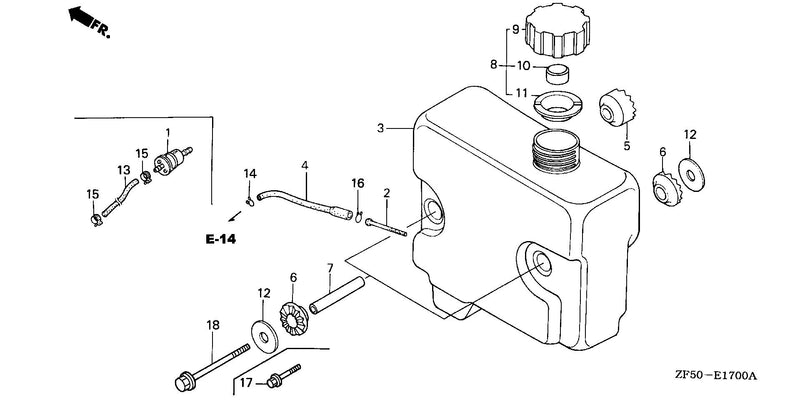

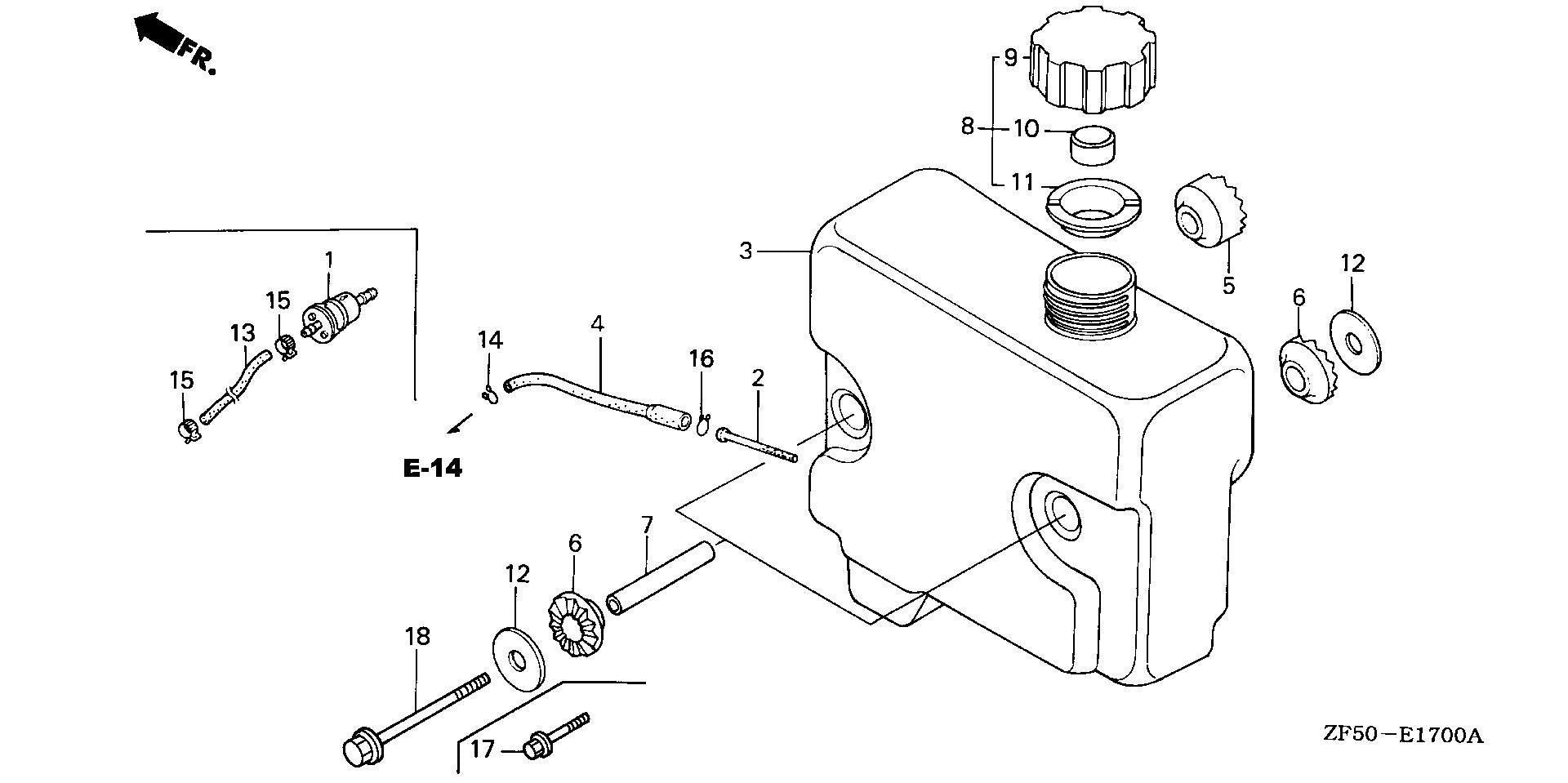

FUEL TANK (1)
FUEL TANK (1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16952-ze6-000
16952-ze6-000
|
|||
|
|
17510-ze9-000
17510-ze9-000
|
|||
|
|
17512-ze9-000
17512-ze9-000
|
|||
|
|
17516-ze8-000
17516-ze8-000
|
|||
|
|
17516-896-700
17516-896-700
|
|||
|
|
17518-ze8-000
17518-ze8-000
|
|||
|
|
17620-zg9-000
17620-zg9-000
|
|||
|
|
17621-ze6-000
17621-ze6-000
|
|||
|
|
17622-888-010
17622-888-010
|
|||
|
|
17624-ze7-000
17624-ze7-000
|
|||
|
|
90455-896-700
90455-896-700
|
|||
|
|
95001-45001-50m
95001-45001-50m
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
95002-40850-08
95002-40850-08
|
|||
|
|
95002-70000
95002-70000
|
|||
|
|
95701-08016-00
95701-08016-00
|
|||
|
|
95801-08090-00
95801-08090-00
|

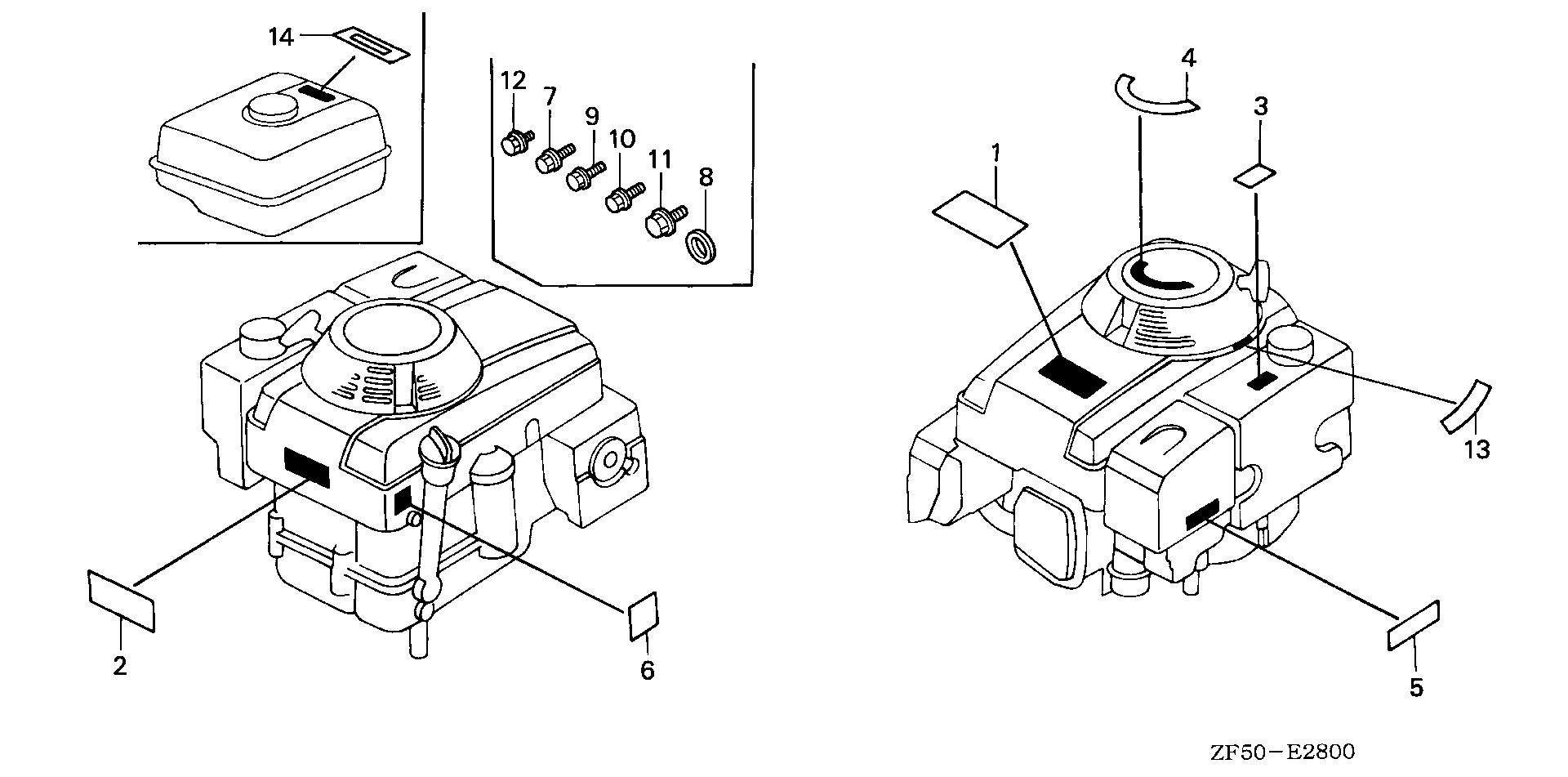

LABEL
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87101-zf5-800
87101-zf5-800
|
|||
|
|
87106-ze8-000
87106-ze8-000
|
|||
|
|
87524-ze8-000
87524-ze8-000
|
|||
|
|
94109-20000
94109-20000
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95701-06016-00
95701-06016-00
|
|||
|
|
95701-08012-00
95701-08012-00
|
|||
|
|
96001-06010-00
96001-06010-00
|

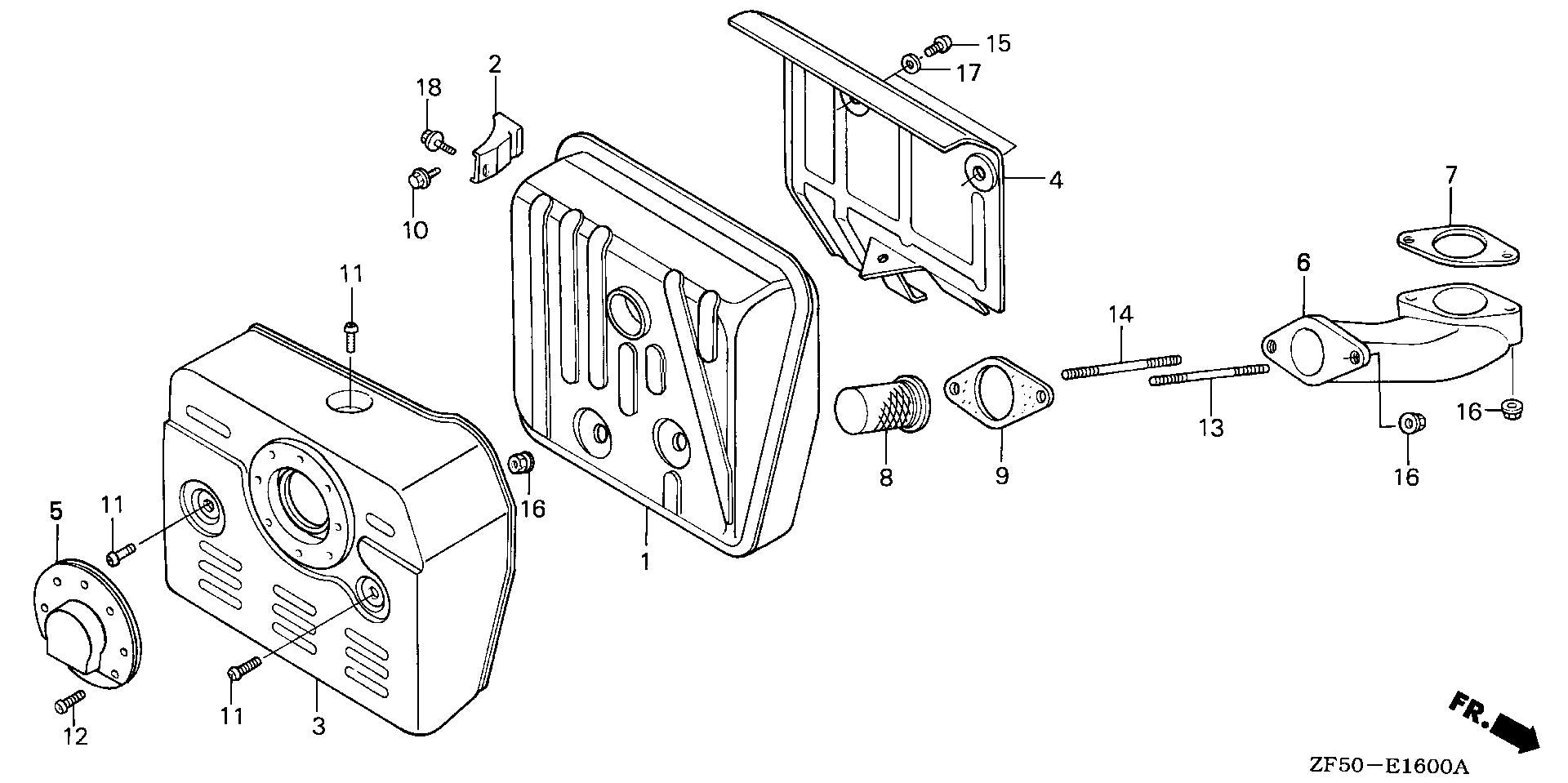

MUFFLER
MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
18318-ze8-000
18318-ze8-000
|
|||
|
|
18321-zf5-010
18321-zf5-010
|
|||
|
|
18325-ze9-010
18325-ze9-010
|
|||
|
|
18331-ze2-810
18331-ze2-810
|
|||
|
|
18331-zf5-000
18331-zf5-000
|
|||
|
|
18333-zk6-y00
18333-zk6-y00
|
|||
|
|
18382-ze9-800
18382-ze9-800
|
|||
|
|
90031-883-000
90031-883-000
|
|||
|
|
90050-ze1-000
90050-ze1-000
|
|||
|
|
92900-08060-1b
92900-08060-1b
|
|||
|
|
92900-08070-1b
92900-08070-1b
|
|||
|
|
93500-06006-0a
93500-06006-0a
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
95701-08014-00
95701-08014-00
|

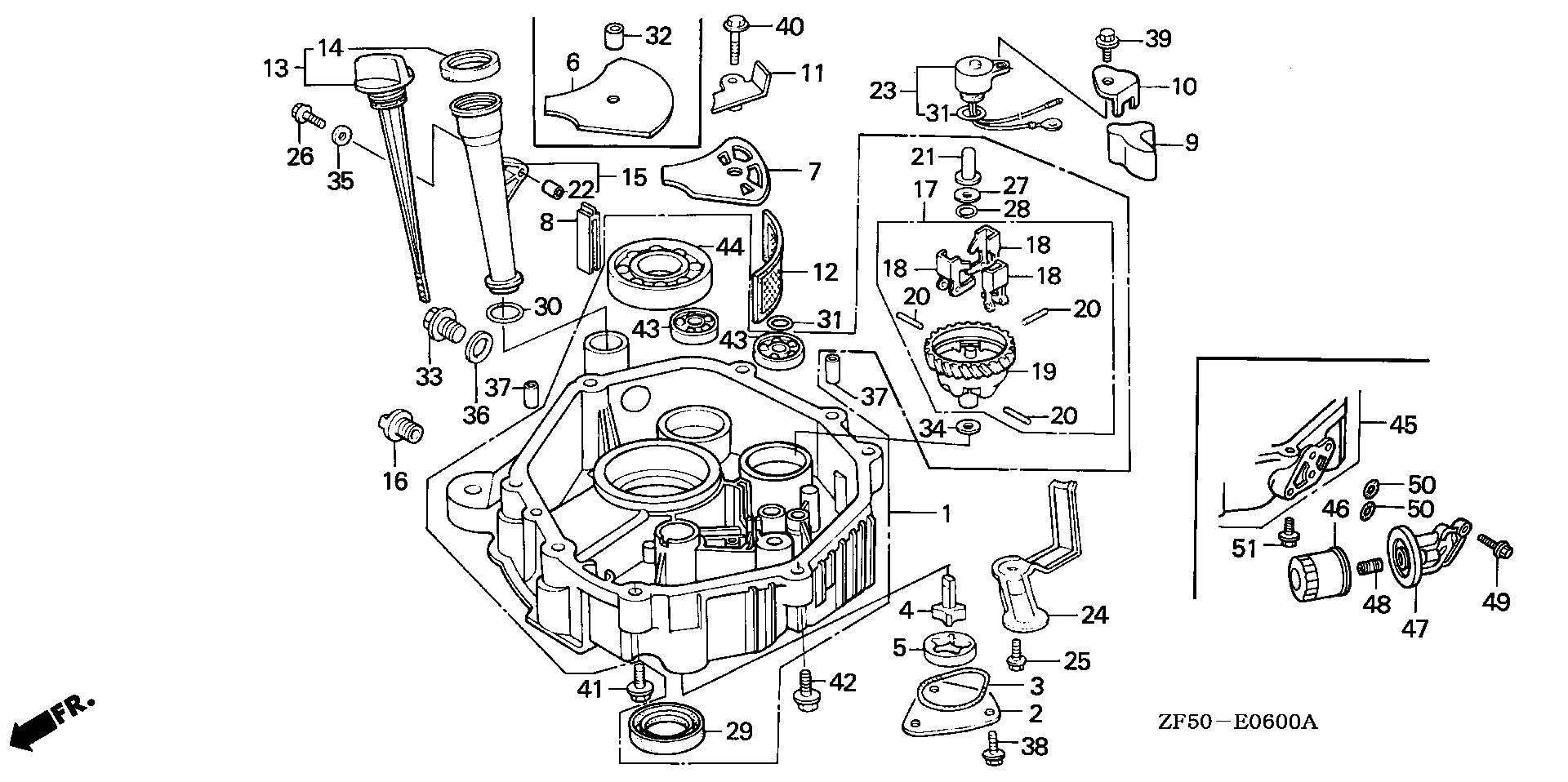

OIL PAN
OIL PAN
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11300-zf5-w22
11300-zf5-w22
|
|||
|
|
11300-zf5-w32
11300-zf5-w32
|
|||
|
|
11300-zf5-020
11300-zf5-020
|
|||
|
|
11300-z1e-407
11300-z1e-407
|
|||
|
|
11300-z1e-408
11300-z1e-408
|
|||
|
|
15130-ze8-000
15130-ze8-000
|
|||
|
|
15131-ze9-003
15131-ze9-003
|
|||
|
|
15330-ze8-000
15330-ze8-000
|
|||
|
|
15332-891-003
15332-891-003
|
|||
|
|
15334-ze8-010
15334-ze8-010
|
|||
|
|
15334-ze8-811
15334-ze8-811
|
|||
|
|
15335-ze9-000
15335-ze9-000
|
|||
|
|
15336-ze8-000
15336-ze8-000
|
|||
|
|
15337-ze8-000
15337-ze8-000
|
|||
|
|
15420-ze8-000
15420-ze8-000
|
|||
|
|
15421-ze9-003
15421-ze9-003
|
|||
|
|
15600-zf5-000
15600-zf5-000
|
|||
|
|
15625-ze8-000
15625-ze8-000
|
|||
|
|
15630-z5n-800
15630-z5n-800
|
|||
|
|
16510-ze3-000
16510-ze3-000
|
|||
|
|
16510-ze8-000
16510-ze8-000
|
|||
|
|
16511-ze8-000
16511-ze8-000
|
|||
|
|
16512-ze3-000
16512-ze3-000
|
|||
|
|
16512-ze8-000
16512-ze8-000
|
|||
|
|
16513-ze2-000
16513-ze2-000
|
|||
|
|
16531-z0a-000
16531-z0a-000
|
|||
|
|
17240-ze6-000
17240-ze6-000
|
|||
|
|
35410-zf5-013
35410-zf5-013
|
|||
|
|
35419-zf5-000
35419-zf5-000
|
|||
|
|
90014-ze6-000
90014-ze6-000
|
|||
|
|
90473-147-000
90473-147-000
|
|||
|
|
90602-ze1-000
90602-ze1-000
|
|||
|
|
91201-ze3-004
91201-ze3-004
|
|||
|
|
91301-ze9-003
91301-ze9-003
|
|||
|
|
91302-ze9-003
91302-ze9-003
|
|||
|
|
91501-zf5-000
91501-zf5-000
|
|||
|
|
92800-20000
92800-20000
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94103-06700
94103-06700
|
|||
|
|
94109-20000
94109-20000
|
|||
|
|
90701-hc4-000
90701-hc4-000
|
|||
|
|
94301-08120
94301-08120
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95701-06016-00
95701-06016-00
|
|||
|
|
95701-06025-00
95701-06025-00
|
|||
|
|
95701-08040-08
95701-08040-08
|
|||
|
|
95701-08060-08
95701-08060-08
|
|||
|
|
95701-08040-08
95701-08040-08
|
|||
|
|
95701-08060-08
95701-08060-08
|
|||
|
|
96100-62070-00
96100-62070-00
|
|||
|
|
11300-zf5-w01
11300-zf5-w01
|
|||
|
|
11300-zf5-w02
11300-zf5-w02
|
|||
|
|
11300-zf5-w11
11300-zf5-w11
|
|||
|
|
11300-zf5-w12
11300-zf5-w12
|
|||
|
|
11300-zf5-w13
11300-zf5-w13
|
|||
|
|
11300-z1e-406
11300-z1e-406
|
|||
|
|
15400-plm-a02pe
15400-plm-a02pe
|
|||
|
|
15411-zf5-w00
15411-zf5-w00
|
|||
|
|
90018-pn3-000
90018-pn3-000
|
|||
|
|
90121-952-000
90121-952-000
|
|||
|
|
95701-08060-08
95701-08060-08
|

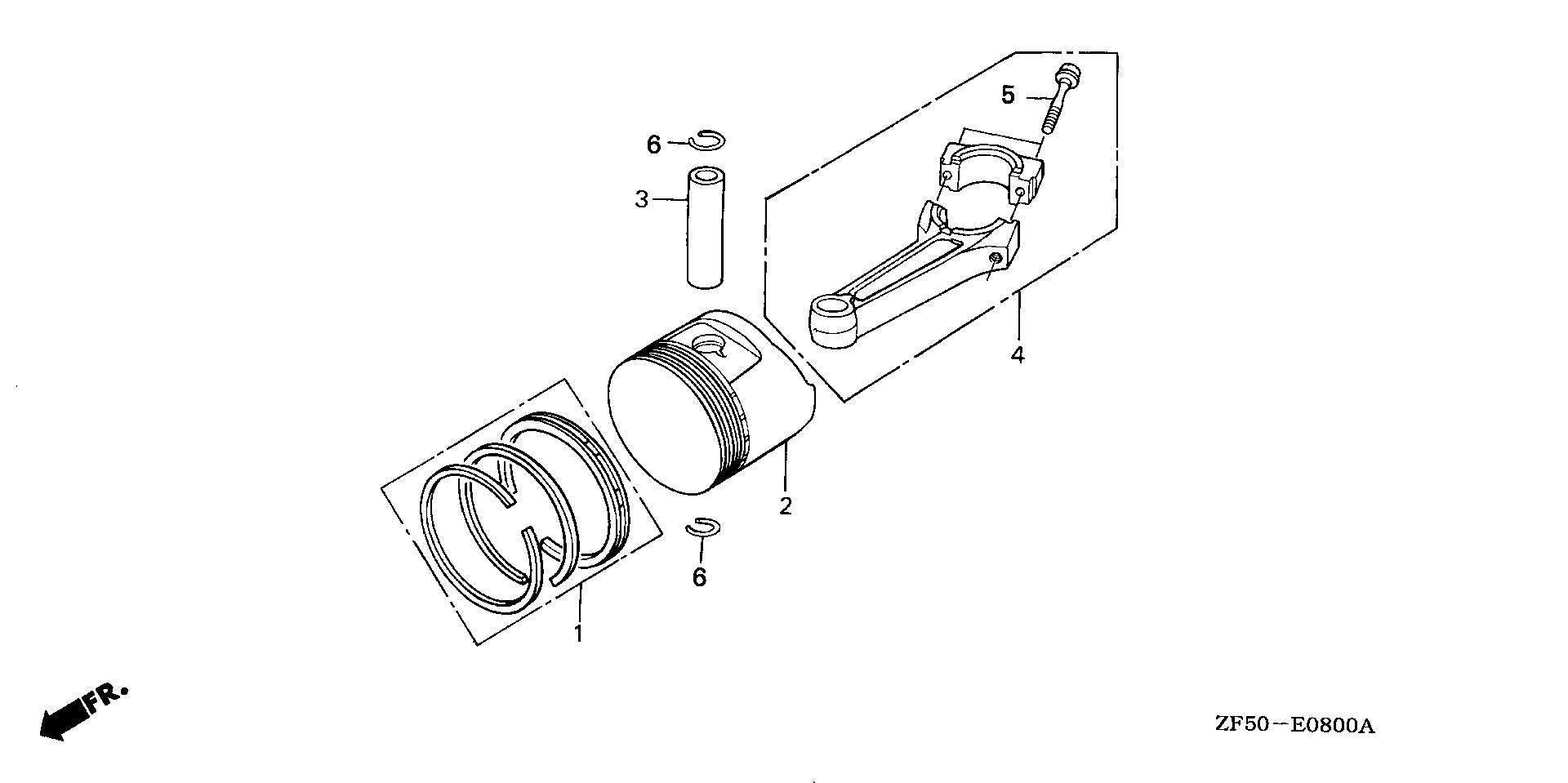

PISTON
PISTON
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13010-zf6-003
13010-zf6-003
|
|||
|
|
13011-zf6-003
13011-zf6-003
|
|||
|
|
13012-zf6-005
13012-zf6-005
|
|||
|
|
13101-zf6-000
13101-zf6-000
|
|||
|
|
13102-zf6-000
13102-zf6-000
|
|||
|
|
13103-zf6-000
13103-zf6-000
|
|||
|
|
13111-zf6-000
13111-zf6-000
|
|||
|
|
13200-z1e-000
13200-z1e-000
|
|||
|
|
90001-ze8-000
90001-ze8-000
|
|||
|
|
90601-ze3-000
90601-ze3-000
|

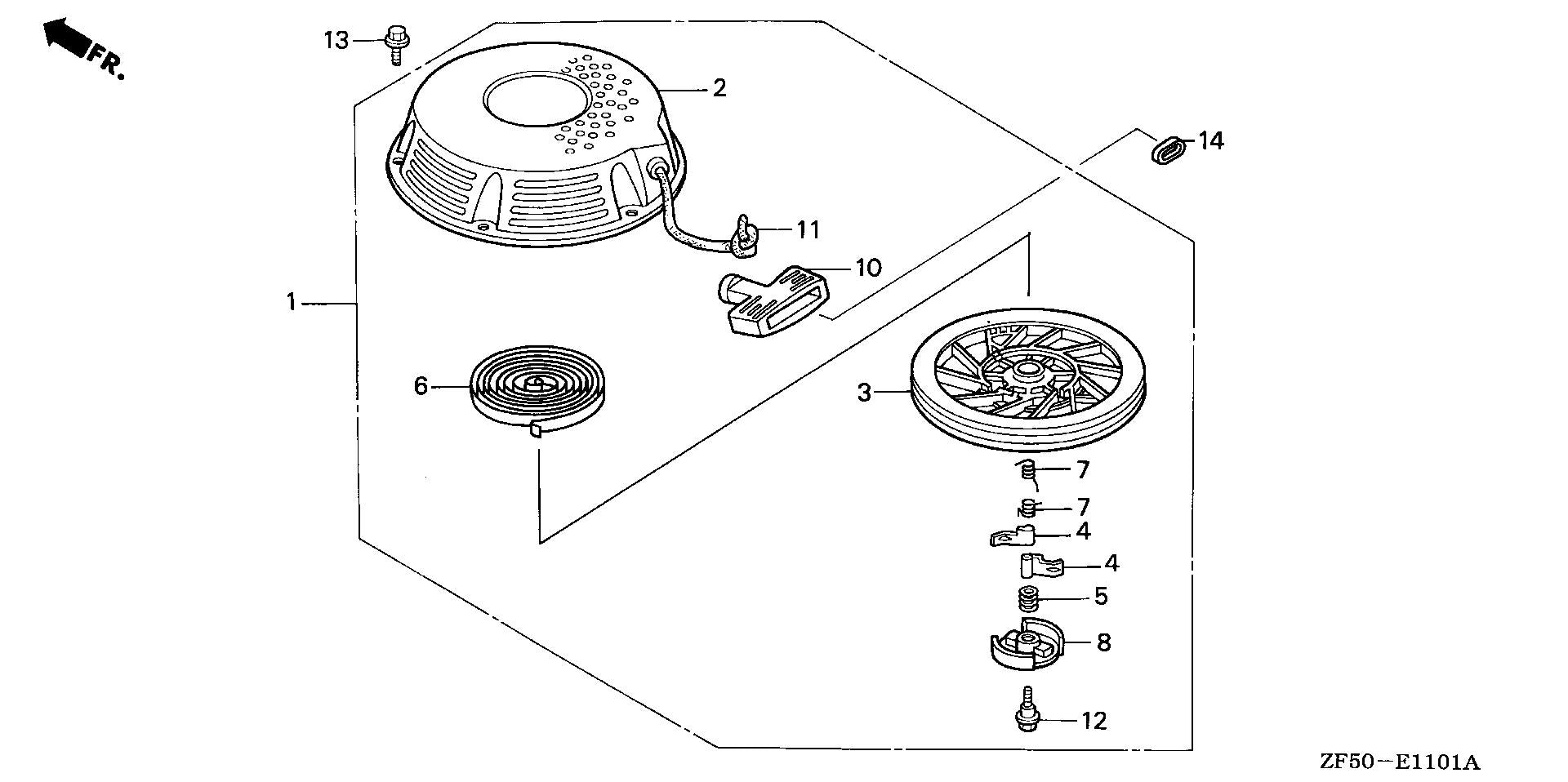

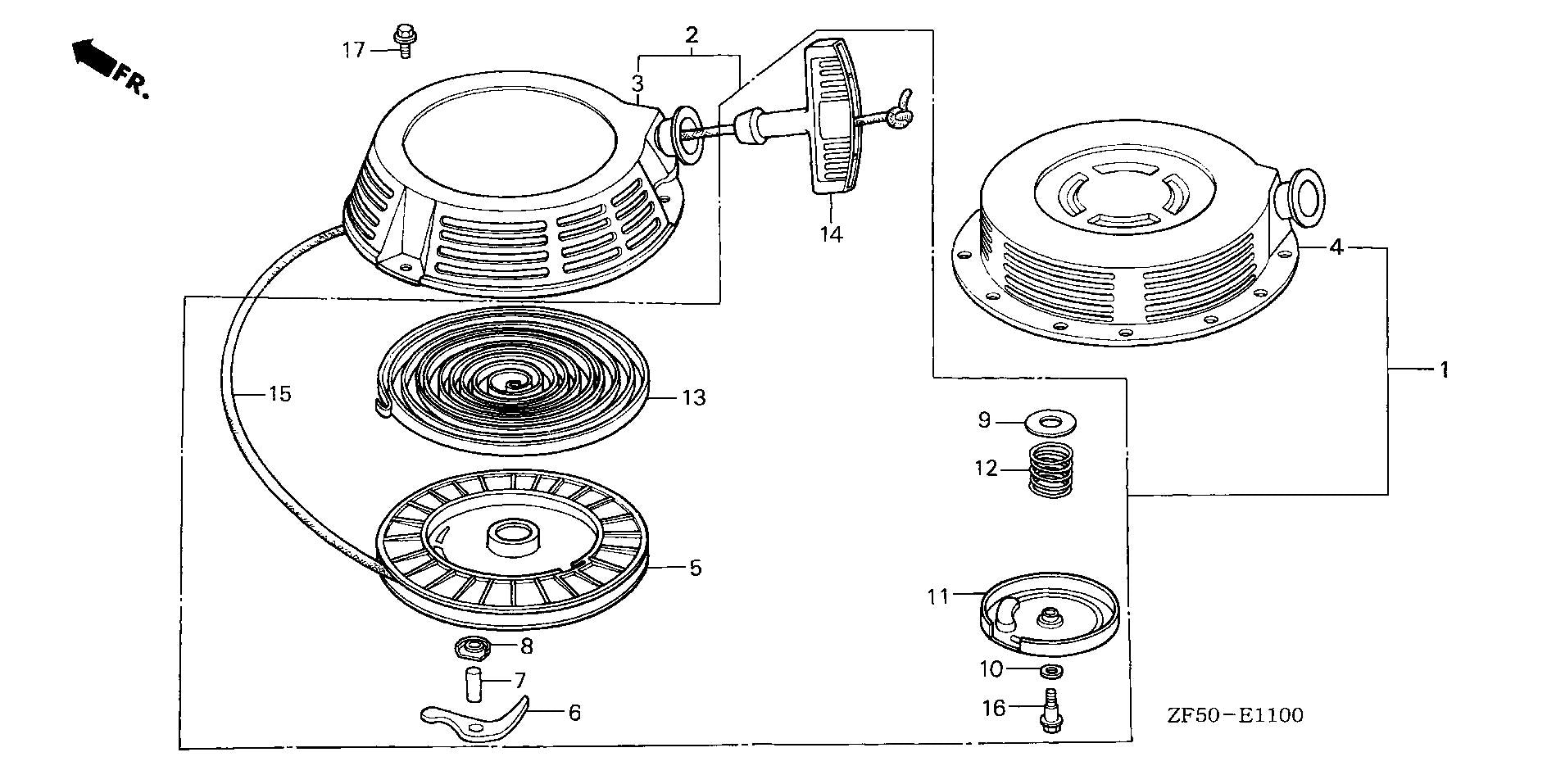

RECOIL STARTER (1)
RECOIL STARTER (1)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28420-ze8-812
28420-ze8-812
|
|||
|
|
28422-ze8-811
28422-ze8-811
|
|||
|
|
28423-ze1-711
28423-ze1-711
|
|||
|
|
28424-ze1-712
28424-ze1-712
|
|||
|
|
28431-ze1-711
28431-ze1-711
|
|||
|
|
28432-zg0-003
28432-zg0-003
|
|||
|
|
28432-883-t20
28432-883-t20
|
|||
|
|
28434-ze8-812
28434-ze8-812
|
|||
|
|
28441-883-t20
28441-883-t20
|
|||
|
|
28442-ze1-713
28442-ze1-713
|
|||
|
|
28461-889-631
28461-889-631
|
|||
|
|
96001-06010-00
96001-06010-00
|

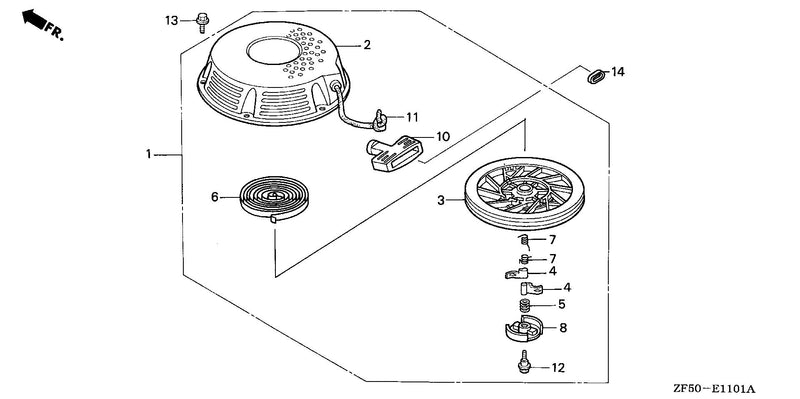

RECOIL STARTER (2)
RECOIL STARTER (2)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28421-ze3-w01
28421-ze3-w01
|
|||
|
|
28422-ze2-w01
28422-ze2-w01
|
|||
|
|
28441-ze2-w01
28441-ze2-w01
|
|||
|
|
28442-ze2-w01
28442-ze2-w01
|
|||
|
|
28443-ze2-w01
28443-ze2-w01
|
|||
|
|
28444-ze2-w01
28444-ze2-w01
|
|||
|
|
28461-ze2-w03
28461-ze2-w03
|
|||
|
|
28462-zh8-003
28462-zh8-003
|
|||
|
|
90004-ze2-w01
90004-ze2-w01
|
|||
|
|
96001-06010-00
96001-06010-00
|
|||
|
|
28469-ze2-w01
28469-ze2-w01
|

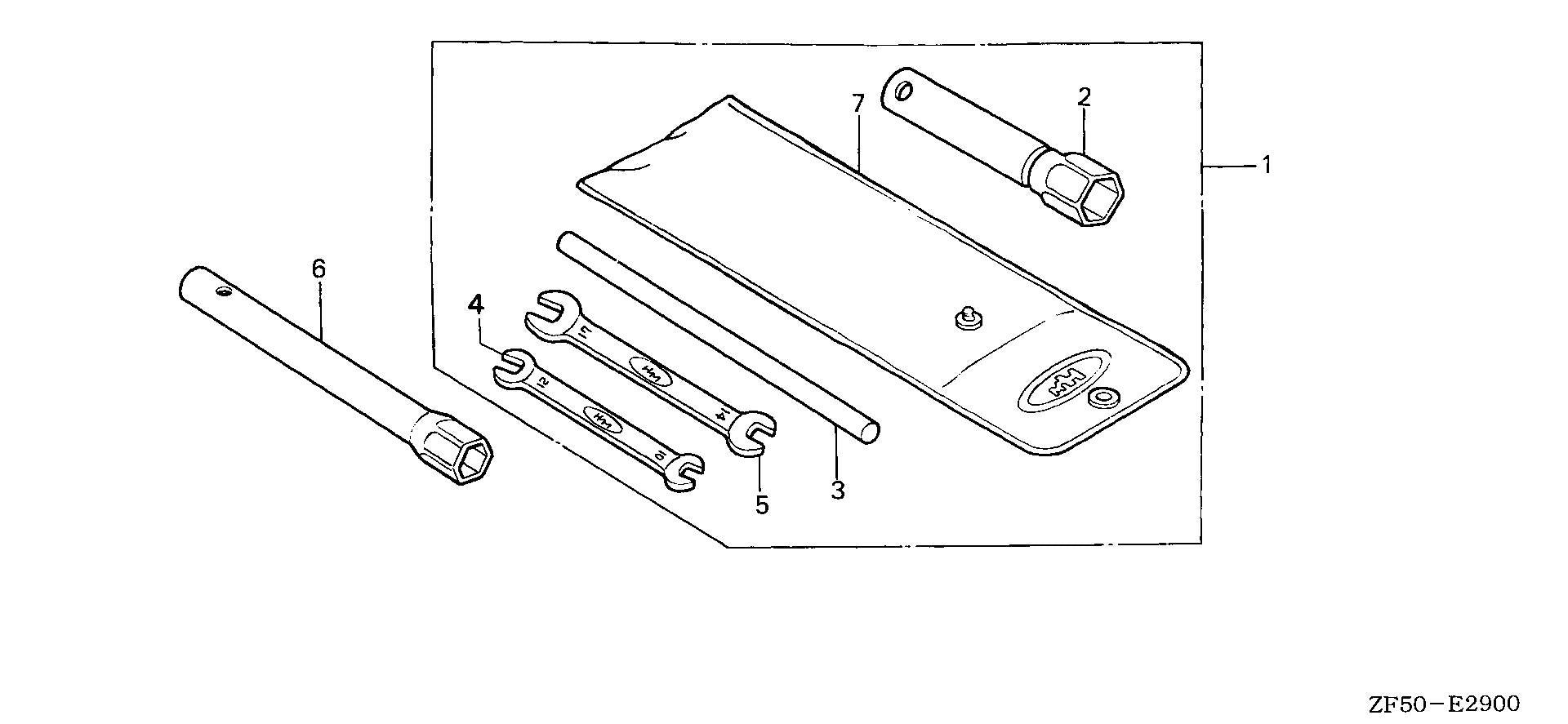

TOOL
TOOL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
99004-21002
99004-21002
|
SUBSCRIBE AND GET EXCLUSIVE DEALS!
Subscribe to our newsletter TODAY and GET $10 OFF your next order of $100 or more. Our newsletter contains special offers, discounts and updates on new EGO products
